VP-633 - AV Diffuser DataVideo - Free user manual and instructions

Product Type	SDI Repeater
Model	VP-633
Brand	DataVideo
Input Connector	1 x BNC (SDI Input)
Output Connector	1 x BNC (SDI Output)
Power Input	12-25V DC, 1.08W max
Supported SDI Formats	HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M)
Video Formats	1080i 50/60, 720p 50/60, 625i (PAL), 525i (NTSC)
Audio Support	Yes (embedded)
Plug and Play	Yes
Impedance	75 Ohm
Max Cable Length (HD-SDI)	200 m (Belden 5CFB)
Max Cable Length (SD-SDI)	200 m (Belden 5CFB)
Operating Modes	Powered or unpowered (passive)
Compliance	FCC Part 15, CE
Warranty	1 year standard (3 years with registration)

Frequently Asked Questions - VP-633 DataVideo

What is the VP-633 used for?

The VP-633 is a 100M SDI repeater designed to extend SDI signals (HD-SDI and SD-SDI) over long cable runs up to 200 meters.

Does the VP-633 require external power?

The VP-633 can operate in powered (using a 12-25V DC supply) or unpowered (passive) mode. When powered, it regenerates the signal for longer distances.

What cable types are recommended?

For maximum performance, use Belden 5CFB or equivalent 75 Ohm coaxial cable. The typical cable length is 200 meters for both HD and SD signals.

Can the VP-633 be used outdoors?

The VP-633 is designed for indoor use. It should be kept dry and away from moisture. Refer to the manual for environmental precautions.

Does the VP-633 support 3G-SDI?

No, the VP-633 supports HD-SDI (1.485 Gbps) and SD-SDI (270 Mbps) only. It does not support 3G-SDI or higher data rates.

What is the power consumption?

When powered, the VP-633 consumes a maximum of 1.08W. It can be powered from any 12-25V DC source.

How do I connect the VP-633?

Connect the SDI source to the SDI Input BNC, and the SDI display or device to the SDI Output BNC. If using powered mode, connect a 12-25V DC supply to the DC socket.

Is the VP-633 plug and play?

Yes, the VP-633 is plug and play. No configuration is needed. Simply connect the cables and apply power if desired.

What warranty does the VP-633 have?

The VP-633 comes with a 1-year standard warranty. If registered within 30 days of purchase, the warranty is extended to 3 years.

Can multiple VP-633 units be cascaded?

Yes, you can cascade multiple units to extend the signal further. Each unit adds up to 200 meters of cable length. Ensure proper power is supplied for each unit.

USER MANUAL VP-633 DataVideo

Two identical mechanical device components with mounting flanges and bolt holes (no text or symbols visible)

VP-633 VP-634

100M SDI REPEATER (POWERED/ UNPOWERED)

VP-633/VP-634

Instruction Manual

Table of Contents

FCC COMPLIANCE STATEMENT......4

WARNINGS AND PRECAUTIONS 4

WARRANTY 6

STANDARD WARRANTY 6

THREE YEAR WARRANTY....7

DISPOSAL 7

CONNECTIONS....9

SPECIFICATIONS 10

TYPICAL CABLE LENGTH PERFORMANCE.... 10

NOTES 11

SERVICE & SUPPORT...... 12

Disclaimer of Product & Services

The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. This manual may contain typing errors, omissions or incorrect information. Datavideo Technologies always recommend that you double check the information in this document for accuracy before making any purchase decision or using the product. Datavideo Technologies is not responsible for any

omissions or errors, or for any subsequent loss or damage caused by using the information contained within this manual. Further advice on the content of this manual or on the product can be obtained by contacting your local Datavideo Office or dealer.

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Warnings and Precautions

1. Read all of these warnings and save them for later reference.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this unit in or near water.
5. Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing serious damage.
6. Slots and openings on the cabinet top, back, and bottom are provided for ventilation. To ensure safe and reliable operation of this unit, and to protect it from overheating, do not block or cover these openings. Do not place this unit on a bed, sofa, rug, or similar surface, as the ventilation openings on the bottom of the cabinet will be blocked. This unit should never be placed near or over a heat register or radiator. This unit should not be placed in a built-in installation unless proper ventilation is provided.
7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.

1. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed.
2. If an extension cord must be used with this unit, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord rating.
3. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed 15 amperes.
4. Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock. Never spill liquid of any kind onto or into this unit.
5. Except as specifically explained elsewhere in this manual, do not attempt to service this product yourself. Opening or removing covers that are marked “Do Not Remove” may expose you to dangerous voltage points or other risks, and will void your warranty. Refer all service issues to qualified service personnel.
6. Unplug this product from the wall outlet and refer to qualified service personnel under the following conditions:

a. When the power cord is damaged or frayed;
b. When liquid has spilled into the unit;
c. When the product has been exposed to rain or water;
d. When the product does not operate normally under normal operating conditions. Adjust only those controls that are covered by the operating instructions in this manual; improper adjustment of other controls may result in damage to the unit and may often require extensive work by a qualified technician to restore the unit to normal operation;

e. When the product has been dropped or the cabinet has been damaged;

f. When the product exhibits a distinct change in performance, indicating a need for service.

Warranty

Standard Warranty

• Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase.
• The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.
• The product warranty period begins on the purchase date. If the purchase date is unknown, the product warranty period begins on the thirtieth day after shipment from a Datavideo office.
• All non-Datavideo manufactured products (product without Datavideo logo) have only one year warranty from the date of purchase.
• Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered under warranty.
• Viruses and malware infections on the computer systems are not covered under warranty.
• Any errors that are caused by unauthorized third-party software installations, which are not required by our computer systems, are not covered under warranty.
• All mail or transportation costs including insurance are at the expense of the owner.

• All other claims of any nature are not covered.

• All accessories including headphones, cables, and batteries are not covered under warranty.

• Warranty only valid in the country or region of purchase.
• Your statutory rights are not affected.

Three Year Warranty

- All Datavideo products purchased after July 1st, 2017 are qualified for a free two years extension to the standard warranty, providing the product is registered with Datavideo within 30 days of purchase.

- Certain parts with limited lifetime expectancy such as LCD panels, DVD drives, Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera module, PCIe Card are covered for 1 year.

- The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase.

Disposal

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

For EU Customers only - WEEE Marking

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the

time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For

more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CE Marking is the symbol as shown on the left of this page. The letters "CE" are the abbreviation of French phrase "Conformité Européenne" which literally means "European Conformity". The term initially used was "EC Mark" and it was officially replaced by "CE Marking" in the Directive 93/68/EEC in 1993. "CE Marking" is now used in all EU official documents.

Connections

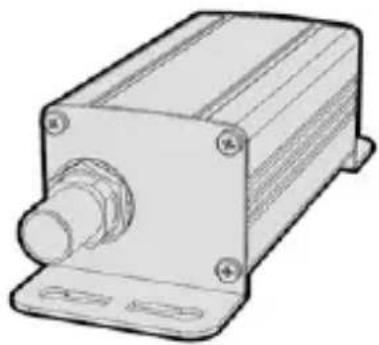

Technical line drawing of a mechanical device with mounting flanges and a central hub (no text or symbols)

VP-633

Technical line drawing of a mechanical device with mounting flanges and a central hub (no text or symbols)

VP-634

SDI Input

BNC connector for SDI Input.

SDI Output

BNC connector for SDI output.

DC: 12\~25V

DC in socket

Connect the supplied 12\~25V PSU to this socket. The connection can be secured by screwing the outer fastening ring of the DC In plug to the socket.

Specifications

Input / Output	1.5G, SD / 1.5G, SD
Supported SDI Formats	HD-SDI (SMPTE 292M)SD-SDI (SMPTE 259M)
Supported Video Formats	HD formats: 1080i 50/60, 720P50/60SD formats: 625i(PAL) / 525i (NTSC)

Audio Yes

Plug and Play Yes

Impedance 75 Ohm

DC In 12\~25V

Max. Power 1.08W

Consumption

Typical Cable Length Performance

Data Rate 5CFB (M)

HD-SDI@1.485Gb/s 200M

SD-SDI@270Mb/s 200M

Notes

Service & Support

It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo.com for answers to common questions, support requests or contact your local office below.

Please visit our website for latest manual update. www.datavideo.com/product/VP-633
