UWL-12KLD - Wall Charging Station Black Box - Free user manual and instructions

Product Type	Wallmount Charging Locker
Brand	Black Box
Model	UWL-12KLD
Device Capacity	12 Chromebooks or similar devices
Lock Type	Key lock for front door; separate key lock for drawer
Dimensions (H x W x D)	17 x 21 x 16 in (43.2 x 53.3 x 40.6 cm)
Weight	30 lb (13.6 kg) unit; 40 lb (18.2 kg) shipping
Maximum Weight Capacity	150 lb (68.2 kg)
Material	18 ga (1.2 mm) minimum thick steel, powder coat finish
Color	Gray
Input Power	120 VAC, 15 A, 50-60 Hz, 1 phase
Power Cord	NEMA 5-15P plug, 6 ft (1.8 m) minimum
Power Distribution	1 PDU with 12 NEMA 5-15R outlets
On/Off Switch	Illuminated switch on PDU
Ventilation	Min. 75% high flow steel mesh, 2 places per shelf
Certifications	UL 60950, CE, RoHS2
Use Location	Indoor office and mobile use only
Warranty (Frame)	Lifetime
Warranty (Electronics)	3 years
Installation	Wallmount on 16" or 19" center-to-center wood studs

Frequently Asked Questions - UWL-12KLD Black Box

How many devices can the UWL-12KLD charge?

The UWL-12KLD can store and charge up to 12 Chromebooks or similarly sized devices.

What type of lock does this model have?

It features a key lock for the front door and a separate key lock for the drawer.

Can this locker be mounted on the wall?

Yes, it is designed for wallmounting on 16-inch or 19-inch center-to-center wood studs. Use the included template for proper placement.

What is the maximum device size it can accommodate?

The maximum device dimensions are 12.5 inches height, 1.2 inches width, and 13.9 inches depth. Power supply bricks up to 3 x 1.5 x 5.5 inches fit.

What power supply is required?

It requires a 120 VAC, 15 A, 50-60 Hz outlet. The power cord has a NEMA 5-15P plug.

How much does the locker weigh?

The unit weighs 30 lb (13.6 kg); shipping weight is 40 lb (18.2 kg).

What is the maximum total weight the locker can hold?

The maximum weight capacity is 150 lb (68.2 kg).

Is the locker safe for children?

WARNING: Children should not climb on the locker. It can tip over. Use only with adult supervision and mount securely to the wall.

What certifications does the locker have?

It is UL 60950 approved, CE, and RoHS2 compliant.

How to clean and maintain the locker?

Use a dry cloth to clean the exterior. Do not use liquids. Ensure vents remain unobstructed. Inspect power cord and plug regularly for damage.

USER MANUAL UWL-12KLD Black Box

Simple line drawing of a monitor with a screen, lens, and abstract geometric shapes (no text or symbols)

TABLE OF CONTENTS

SAFETY INFORMATION/ELECTRICAL PRECAUTIONS 3

Important Safety Information....3

Electrical Precautions....3

1. SPECIFICATIONS......4

1.1 Wallmount Charging Lockers General Specifications....4

1.2 Wallmount Charging Lockers Specifications by Part Number....5

2. OVERVIEW....6

2.1 Introduction......6

2.2 What's Included 6

3. CONFIGURATION AND SETUP....7

3.1 Unpacking 7

3.2 Routing the Cables....7

3.3 Wallmounting the Locker on 16" and 19" C/C Studs ....8

3.4 Plugging In and Turning On the Locker 10

APPENDIX A. REGULATORY INFORMATION....11

A.1 FCC Statement....11

A.2 NOM Statement (Electrical Safety)....11

TRADEMARKS USED IN THIS MANUAL....13

SAFETY INFORMATION/ELECTRICAL PRECAUTIONS

IMPORTANT SAFETY INFORMATION

WARNING! Death or serious injury may occur when children climb on the Locker. The locker can tip over onto the child.

WARNING! Avoid uneven loading of equipment onto the locker.

• Do not leave the locker unattended in areas where children have access.
• Do not block the air vent openings.
• The Locker should only be used for the storage of tablets, laptops, and other similar devices.
• Misuse, incorrect operation, or inadequate repair of the Locker will void the warranty.
• Never hang from the locker drawer or door.
• Only mount locker to flat walls with wall anchors into wood stud walls.
• Do not overload the locker past the maximum weight capacity.

ELECTRICAL PRECAUTIONS

DANGER! Failure to observe the following electrical safety precautions can result in fire or death by electric shock.

• The power switch must be in the "OFF" position before plugging the Locker into a wall receptacle.
• The Locker must ONLY be connected to a 110–120-volt AC, 15-amp power supply.

- The Locker must only be used by adults or with adult supervision.

Do not plug the Locker in if the switch, receptacle(s), or power cord has been damaged. All electrical components on this product must be repaired by a qualified electrician.

• Do not use an extension cord in conjunction with the Locker.

• Do not use liquids in or around the Locker environment.

• Inadequate repair or modifications can create significant hazards to users and are not covered by warranty.
  For your safety, we recommend that a qualified electrician test the circuit you will be plugging the Locker into. The circuit should be checked for ground integrity and appropriate branch circuit protection.
  The Locker ground prong must be present for safe operation. If the plug is damaged or if the ground prong has been removed, it should be replaced by a qualified electrician.
  The use of the Locker, including plugging or unplugging laptops, plugging or unplugging the Locker, and operating the control switch, must be done with adult supervision.

1.1 WALLMOUNT CHARGING LOCKERS GENERAL SPECIFICATIONS

TABLE 1-1. GENERAL SPECIFICATIONS

SPECIFICATION DESCRIPTION
General
Approvals UL	® 60950 Approved, CE, RoHS2
Use Indoor office and mobile use only
Assembled Yes
Material 18 ga (1.2 mm) minimum thick steel
Construction Welded, riveted and bolted panels
Finish Powder Coat
Color	Gray
Maximum Weight Capacity	150 lb. (68.2 kg)
Electrical
Input Power 120 VAC, 15 A, 50-60 Hz, 1 Ph
Input Power Cord	NEMA 5-15P plug, min. 6-ft. (1.8-m) cord
Power Cord Access	(2) 1.3" (3.3 cm) DIA holes (Left and Right rear bottom corner)
On/Off Switch	(1) illuminated switch on PDU
Device Charging Type	(1) PDU with (12) total NEMA 5-15R outlets
Auxiliary Power	No
Dimensions
Unit Height 17" (43.2 cm)
Unit Width	21" (53.3 cm)
Unit Depth	16" (40.6 cm)
Unit Weight	30 lb. (13.6 kg)
Shipping Height	21" (53.3 cm)
Shipping Width	25" (63.5 cm)
Shipping Depth	20" (50.8 cm)
Shipping Weight	40 lb. (18.2 kg)
Frame
Ventilation	Min. 75% high flow steel mesh, (2) places per shelf
Warranty
Cart	Lifetime
Electronics	3 Years

1.2 WALLMOUNT CHARGING LOCKERS SPECIFICATIONS BY PART NUMBER

TABLE 1-2. WALLMOUNT CHARGING LOCKERS SPECIFICATIONS BY PART NUMBER

PART NUMBER TYPICAL DEVICE		DEVICE QUANTITY	LOCK TYPE	SEPARATE LOCKING DRAWER	MAX. DEVICE SIZE (INCHES) MAX. WALLMOUNT POWER SUPPLY SIZE (INCHES)						MAX. POWER BRICK SIZE (INCHES)
					HEIGHT	WIDTH	DEPTH	HEIGHT	WIDTH	DEPTH	HEIGHT	WIDTH	DEPTH
UWL-10KD	Chromebook	10	Key lock	No	12.5	1.48	13.9	3.1	1.1	2.8	3	1.8	5.5
UWL-10PD	Chromebook	10	Padlock	No	12.5	1.48	13.9	3.1	1.1	2.8	3	1.8	5.5
UWL-12KD	Chromebook	12	Key lock	No	12.5	1.2	13.9	3.1	1.1	2.8	3	1.5	5.5
UWL-12PD	Chromebook	12	Padlock	No	12.5	1.2	13.9	3.1	1.1	2.8	3	1.5	5.5
UWL-10KLD	Chromebook	10	Key lock	Yes	12.5	1.48	13.9	3.1	1.1	2.8	3	1.8	5.5
UWL-10PLD	Chromebook	10	Padlock	Yes	12.5	1.48	13.9	3.1	1.1	2.8	3	1.8	5.5
UWL-12KLD	Chromebook	12	Key lock	Yes	12.5	1.2	13.9	3.1	1.1	2.8	3	1.5	5.5
UWL-12PLD	Chromebook	12	Padlock	Yes	12.5	1.2	13.9	3.1	1.1	2.8	3	1.5	5.5

MAXIMUM WALLMOUNT POWER SUPPLY DIMENSIONS

2.1 INTRODUCTION

The Wallmount Charging Lockers are ideal for smaller classrooms, offices, and training environments that are short on space. The Lockers can be wallmounted or placed on desks, tables, filing cabinets, or shelves. Each Locker is designed to store and charge up to 10 or 12 tablets, 15" Chromebooks, and other similarly-sized devices. You can even create locker walls and blocks by stacking the lockers on top of each other or mounting them side-to-side and back-to-back. Each Locker plugs into a typical 120-V, 15-A outlet.

The Wallmount Charging Lockers can be equipped in eight configurations according to the following standard options/features.

◆ 10 or 12 stored devices
- Adjustable-depth 19" rackmount rails so you can mount IT equipment for different uses
- Locking steel front door
- On some models, a separate keyed lockable drawer provides a place to store electronics
♦ Keyed front door or padlocking front door

The Wallmount Charging Lockers feature a heavy-duty, fully welded steel frame and hold up to 150 pounds.

Please know and understand the configuration of your Locker and read these operating instructions carefully. The manual contains important information concerning the use and safety of your Locker and the operators. This Locker must be used for its intended purpose only and in accordance with these operating instructions.

2.2 WHAT'S INCLUDED

Your package should contain the following items. If anything is missing or damaged, contact Black Box Technical Support at 877-877-2269 or [e-mail].

(1) Locker
(2) sets of keys for front door
◆ (2) sets of keys for locking drawer (if equipped)

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP? LE AVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.8 7 7.87 7.2269

3.1 UNPACKING

Remove and discard all packaging materials.

Open and inspect the locker to verify all doors and locks are working properly.

Do not plug the locker into a wall outlet until all configurations and setup are complete.

3.2 ROUTING THE CABLES

1. Open the drawer of the locker and attach the wrapped cord and power brick of the device to the shelf using the hook and loop strap. Keep some extra cable unwrapped to plug into the power strip.

Line drawing of a server rack cabinet with internal compartments and mounting holes (no text or symbols)

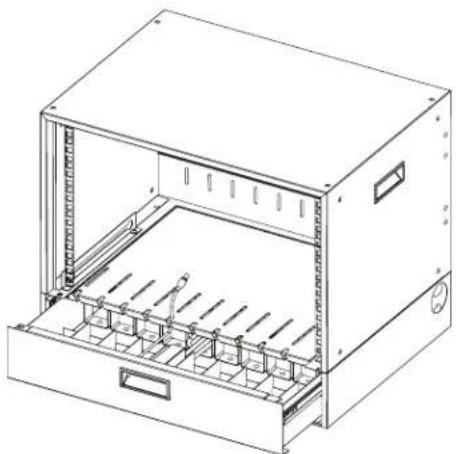

FIGURE 3-1. ROUTING THE CABLES DIAGRAM #1.

1. Place the device power cord into the corresponding cord hanger with the plug going into the device space of the locker.

Technical line drawing of an open industrial storage unit with internal compartments and drawers (no text or symbols)

FIGURE 3-2. ROUTING THE CABLES DIAGRAM #2.

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP? LE AVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.8 7 7.87 7.2269

3.3 WALLMOUNTING THE LOCKER ON 16" AND 19" C/C STUDS

Only mount to solid, flush walls with mounting hardware into wood studs only.

1. Using the template below, measure and mark out the locations of the desired mounting holes on the wall.

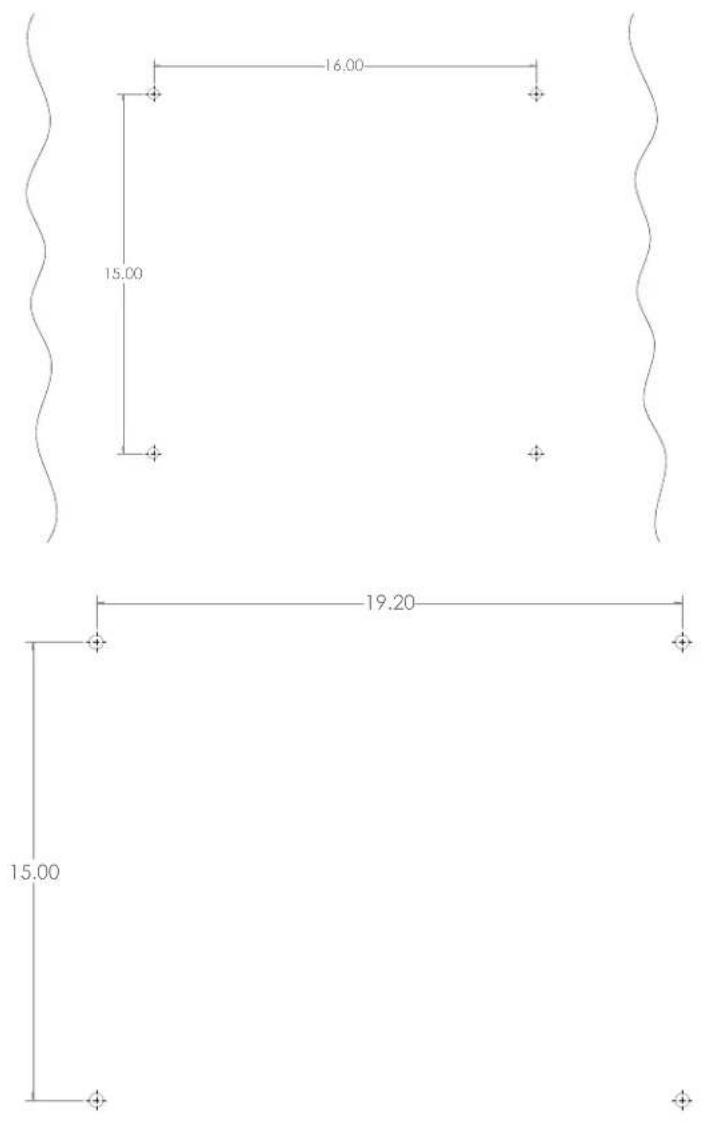

FIGURE 3-3. WALLMOUNTING TEMPLATE

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP? LE AVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.8 7 7.87 7.2269

1. Attach the mounting hardware to the wall as shown below in the corresponding mounting hole locations. Do not screw in completely.

Pure geometric diagram with wavy boundary and four marked points (no text or symbols)

FIGURE 3-4. ATTACHING THE MOUNTING HARDWARE

1. Place the Wallmount Locker onto the mounting hardware on the wall as shown.

Technical line drawing of an open electrical enclosure with internal rack-mounted components (no text or symbols)

FIGURE 3-5. PLACING THE LOCKER ON THE MOUNTING HARDWARE

1. Tighten the mounting hardware to hold the Wallmount Locker against the wall.

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP?

LE AVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.8 7 7.87 7.2269

3.4 PLUGGING IN AND TURNING ON THE LOCKER

After the devices have been loaded into the Locker, plug the power cord of the Locker into a typical wall outlet.

A.1 FCC STATEMENT

This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own expense will be required to take whatever measures may be necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of Industry Canada.

TRADEMARKS USED IN THIS MANUAL

NEED HELP?

LE AVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.8 7 7.87 7.2269

Black Box ^® and the Double Diamond logo are registered trademarks of BB Technologies, Inc.

UL ^® is a registered trademark of Underwriters' Laboratories.

Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.

NOTES

NEED HELP?

LE AVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.8 7 7.87 7.2269

NOTES

NEED HELP?

LE AVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.8 7 7.87 7.2269
