USER MANUAL VP-210K Kramer
Kramer Electronics, Ltd.
Model:
VP-210K
UXGA Line Amplifier
Contents
1 Introduction 1
2 Getting Started 1
2.1 Quick Start 2
3 Overview 3
4 Your VP-210K UXGA Line Amplifier 4
5 Connecting the VP-210K UXGA Line Amplifier 5
6 Technical Specifications 6
Figures
Figure 1: VP-210K UXGA Line Amplifier 4
Figure 2: Connecting the VP-210K UXGA Line Amplifier 6
Tables
Table 1: VP-210K UXGA Line Amplifier Features 5
Table 2: Technical Specifications of the VP-210K UXGA Line Amplifier 6
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better! Our 1,000-plus different models now appear in 11 groups ^1 that are clearly defined by function.
Thank you for purchasing your Kramer TOOLS VP-210K UXGA Line Amplifier, which is ideal for:
- Dual monitor systems, local or remote (loop and output)
- Presentation systems for remote transmission and cable equalization
The package includes the following items:
• VP-210K UXGA Line Amplifier
• Power adapter (5V DC input) and this user manual ^2
2 Getting Started
We recommend that you:
- Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
- Review the contents of this user manual
- Use Kramer high-performance high-resolution cables ^3
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
3 Overview
The high-performance VP-210K is a line amplifier for UXGA ^1 computer graphics signals that provides controls to compensate for signal losses inherent in long cable runs.
In particular, the VP-210K UXGA Line Amplifier features:
- Video bandwidth of 350MHz, ensuring that it remains transparent for all resolutions
- HDTV compatibility
- Separate controls for output level and cable equalization, and independent input signal termination for red, green and blue
- A looping input
- KR-ISPTM advanced sync processing that ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform
To achieve the best performance:
- Use only good quality connection cables ^2 to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables).
- Avoid interference from neighboring electrical appliances that may adversely influence signal quality and position your Kramer VP-210K away from moisture, excessive sunlight and dust

Caution - No operator-serviceable parts inside unit.
Warning - Use only the Kramer Electronics input power wall adapter that is provided with this unit ^3 .
Warning – Disconnect power and unplug unit from wall before installing or removing device or servicing unit.
4 Your VP-210K UXGA Line Amplifier
Figure 1 and Table 1 define the VP-210K :


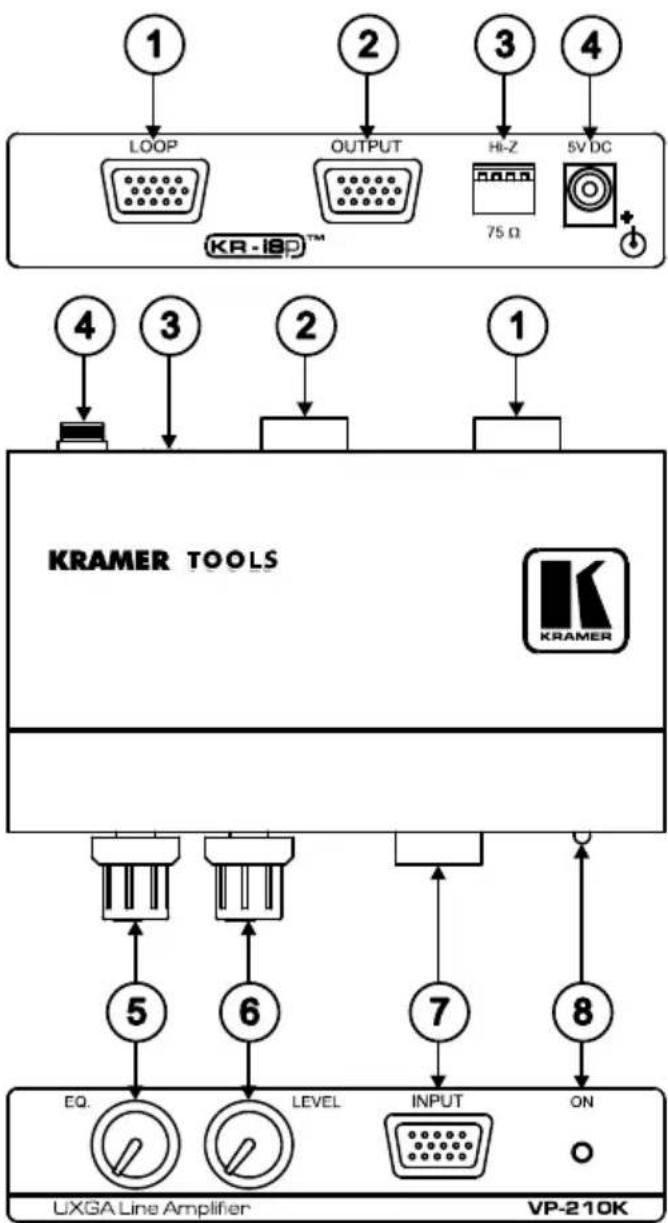

Figure 1: VP-210K UXGA Line Amplifier
Table 1: VP-210K UXGA Line Amplifier Features
| # Feature Function | ||
| 1 | LOOP 15-pin HD (F) Connector Connects to a local display | |
| 2 | OUTPUT 15-pin HD (F) Connector Connects to the computer graphics acceptor | |
| 3 | HI-Z/75Ω DIP-switches | Set to 75Ω TERM (when a local monitor is not used); set to Hi-Z (when a local monitor is connected to the LOOP 15-pin HD connector) |
| 4 | 5V DC +5V DC connector for powering the unit | |
| 5 | EQ. Control knob | Adjusts the video EQ. (equalization) compensation |
| 6 | LEVEL Control knob Adjusts the video signal level | |
| 7 | INPUT 15-pin HD (F) Connector Connect to the computer graphics source | |
| 8 | ON LED Illuminates when receiving power | |
5 Connecting the VP-210K UXGA Line Amplifier
To connect your VP-210K UXGA Line Amplifier, as shown in the example in Figure 2, do the following ^1 :
- Connect a computer graphics source (for example, a computer) to the INPUT 15-pin HD (F) connector.
- Connect the OUTPUT 15-pin HD (F) connector to an acceptor (for example, a projector).
- Connect the LOOP 15-pin HD (F) connector to an acceptor (for example, a local display).
- Connect the 5V DC power adapter to the 5V DC socket and connect the transformer to the mains electricity (not illustrated in Figure 2).
- Adjust the video output signal level and/or cable compensation equalization level as needed.
- Set the DIP-switches as follows:
- If no terminal is attached to the LOOP connector, set the switches down to 75Ω TERM
- If a terminal is attached to the LOOP connector, set the switches up to HI-Z
Figure 2: Connecting the VP-210K UXGA Line Amplifier
6 Technical Specifications
Table 2 includes the technical specifications:
Table 2: Technical Specifications ^1 of the VP-210K UXGA Line Amplifier
| INPUT: | 1 UXGA on a 15-pin HD (F) connector |
| OUTPUT: | 1 UXGA on a 15-pin HD (F) connector1 LOOP UXGA on an 15-pin HD (F) connector |
| VIDEO BANDWIDTH (-3dB): | 350MHz |
| DIFF. GAIN: | 0.41% |
| DIFF. PHASE: | 0.53° |
| VIDEO S/N RATIO: | 66dB |
| K-FACTOR: | <0.05% |
| CONTROLS: | Level: -1.2 to +6.3dB; EQ: 0 to +4dB @50MHz |
| POWER SOURCE: | 5V DC, 108mA |
| DIMENSIONS: | 12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98") W, D, H |
| WEIGHT: | 0.25kg (0.55lbs) approx. |
| ACCESSORIES: | Power supply, mounting brackets |
| OPTIONS: | 19" rack adapters |
LIMITED WARRANTY
Kramer Electronics (hereafter Kramer) warrants this product free from defects in material and workmanship under the following terms.
HOW LONG IS THE WARRANTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
WHO IS PROTECTED?
Only the first purchase customer may enforce this warranty.
WHAT IS COVERED AND WHAT IS NOT COVERED
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered by the warranty:
- Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site www.kramerelectronics.com.
- Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID IF TAMPERED sticker has been torn, reattached, removed or otherwise interfered with.
- Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR
We will pay labor and material expenses for covered items. We will not pay for the following:
- Removal or installations charges.
- Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the responsibility of the Kramer dealer from whom the product was purchased.
- Shipping charges.
HOW YOU CAN GET WARRANTY SERVICE
- To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
- Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name, company, address, and a description of the problem(s).
- For the name of the nearest Kramer authorized service center, consult your authorized dealer.
LIMITATION OF IMPLIED WARRANTIES
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to the length of this warranty.
EXCLUSION OF DAMAGES
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for:
- Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss; or:
- Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
NOTE: All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
generic emission standard.
Part 1: Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
Part 1: Residential, commercial and light industry environment".
CFR-47: FCC* Rules and Regulations:
Part 15: "Radio frequency devices
Subpart B Unintentional radiators"
CAUTION!
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the equipment.
Use the supplied DC power supply to feed power to the machine.
☒ Please use recommended interconnection cables to connect the machine to other components.
* FCC and CE approved using STP cable (for twisted pair products)
For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Safety Warning:
Disconnect the unit from the power supply before opening/servicing.

Rev:
