| Product Type | Rear-Projection DLP TV |
| Screen Size | 52 inches (diagonal) |
| Display Technology | DLP (Digital Light Processing) |
| Resolution | 1080p (1920 x 1080) |
| Dimensions (W x H x D) | 49.6 x 41.1 x 19.1 inches (with stand) |
| Weight | 115 lbs (with stand) |
| Power Consumption | 250W (typical), less than 1W standby |
| Power Supply | AC 120V, 60Hz |
| Inputs | HDMI, Component, Composite, S-Video, VGA, RF |
| Outputs | Optical digital audio, analog audio L/R |
| Built-in Tuner | ATSC / NTSC |
| Speakers | Integrated 10W x 2 |
| Remote Control | Yes, IR |
| Lamp Life | Approximately 8,000 hours (typical) |
| Mounting | Tabletop stand included, VESA compatible |
| Cleaning | Use a dry soft cloth; avoid liquids and abrasives |
| Safety Features | Over-voltage protection, automatic shutdown |
| Repairability | Replaceable lamp and accessible modules |
| Spare Parts Availability | Lamp, remote, and cables available online |
Frequently Asked Questions - WD-52725 MITSUBISHI
User questions about WD-52725 MITSUBISHI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your TV in PDF format for free! Find your manual WD-52725 - MITSUBISHI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WD-52725 by MITSUBISHI.
USER MANUAL WD-52725 MITSUBISHI
WD-52:525, WVD5:527:25
WD-62525, WDD62725
▶ViewPoint®
DTV Link™
visit our website at
www.mitsubishi-tv.com
TV Information:
Use this space to record the model and serial numbers of your television. This information is on the back of your TV.
Model number
Serial number
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user of the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
This TV is very heavy! Exercise extreme care when lifting or moving. A minimum of two adults should lift or move the TV.
Portions of the advanced circuitry of this TV must continue to operate even when the TV is turned off. Some of these circuits therefore need to be cooled at all times. A low power standby fan may be heard in a quiet environment. This is normal operation.
Custom cabinet installation must allow for proper air circulation around the television.
STAND REQUIREMENT
CAUTION: Mitsubishi TV models WD-52525 and WD-52725 are for use only with Mitsubishi stand, model MB-52525. Mitsubishi TV models WD-62525 and WD-62725 are for use only with Mitsubishi stand model MB-62525. Use with other stands is capable of resulting in instability causing possible injury.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
NOTE TO CATV SYSTEM INSTALLER: THIS REMINDER IS PROVIDED TO CALL THE CATV SYSTEM INSTALLER'S ATTENTION TO ARTICLE 820-40 OF THE NEC THAT PROVIDES GUIDELINES FOR THE PROPER GROUNDING AND, IN PARTICULAR, SPECIFIES THAT THE CABLE GROUND SHALL BE CONNECTED TO THE GROUNDING SYSTEM OF THE BUILDING, AS CLOSE TO THE POINT OF CABLE ENTRY AS PRACTICAL.
FCC Declaration of Conformity
Product: Projection Television Receiver
Models: WD-52525, WD-52725, WD-62525, WD-62725
Responsible Party: Mitsubishi Digital Electronics America, Inc.
9351 Jeronimo Road
Irvine, CA 92618-1904
Telephone: 949-465-6000
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: To assure continued FCC compliance, the user must use a shielded video interface cable with bonded ferrite cores at both ends, when using the PC or HDMI input.
Changes or modifications not expressly approved by Mitsubishi could cause harmful interference and would void the user's authority to operate this equipment.
Contents
Chapter 1 Television Overview
TV Accessories....10
Special Features....10
Front Control Panel 11

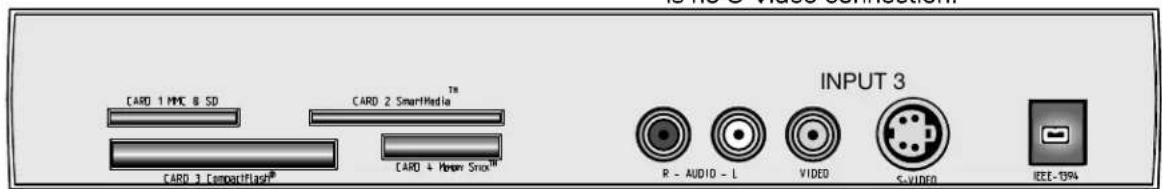

Front Panel Inputs and Media Card Slots 12

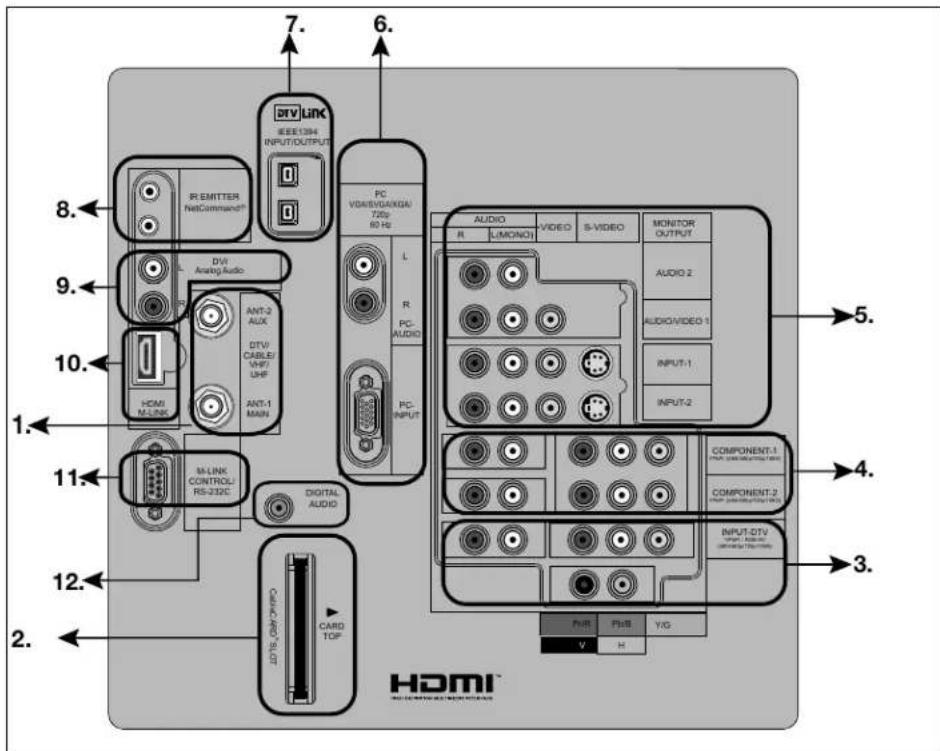

Back Panel....13
Chapter 2 Connecting

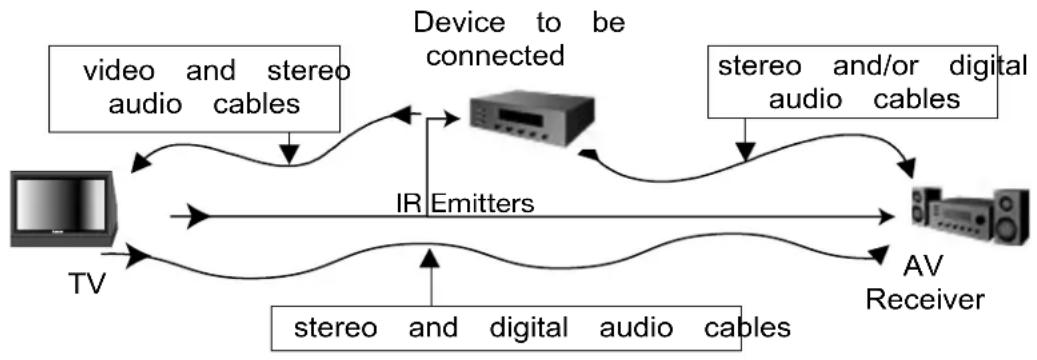

External Devices & NetCommand® Setup 16

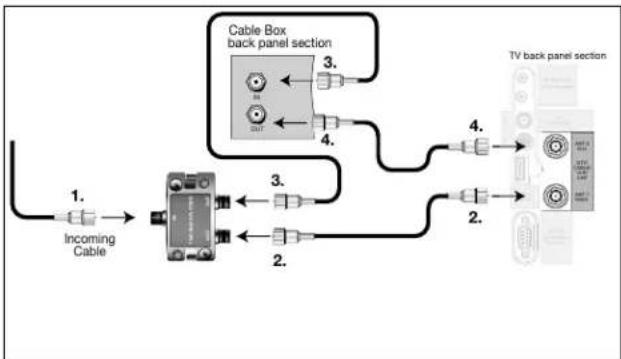

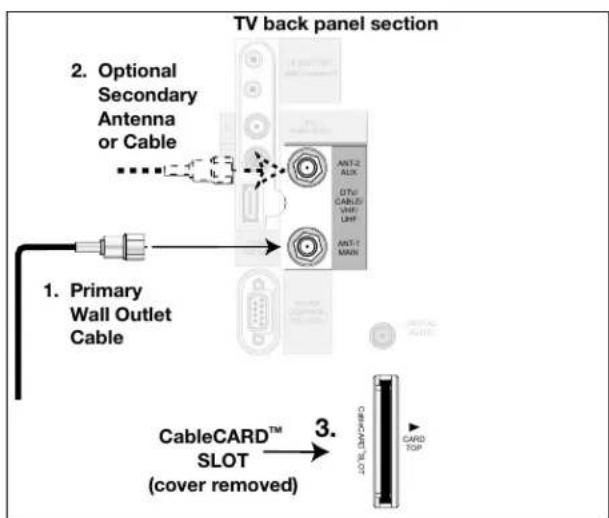

Wall Outlet Cable or Cable Box....17
CableCARD™ Technology 18

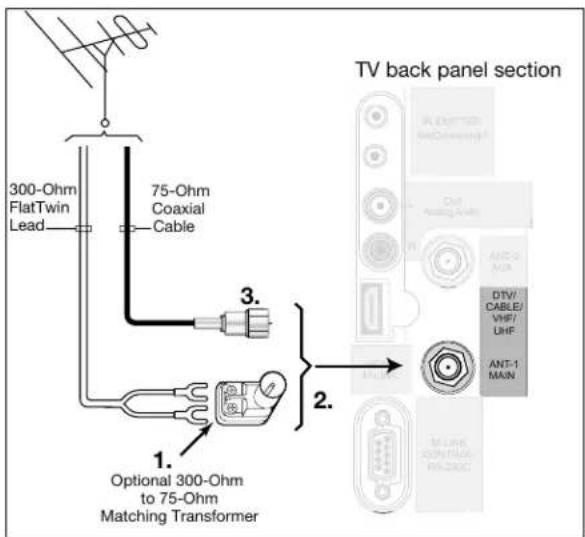

Single Lead Antenna 19

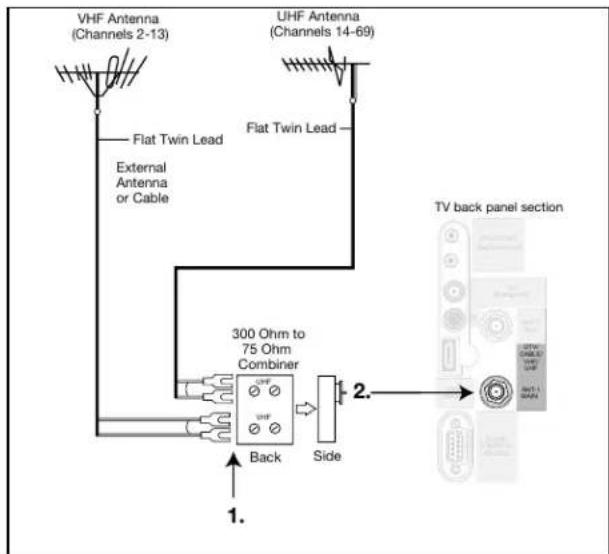

Separate UHF and VHF Antennas 19

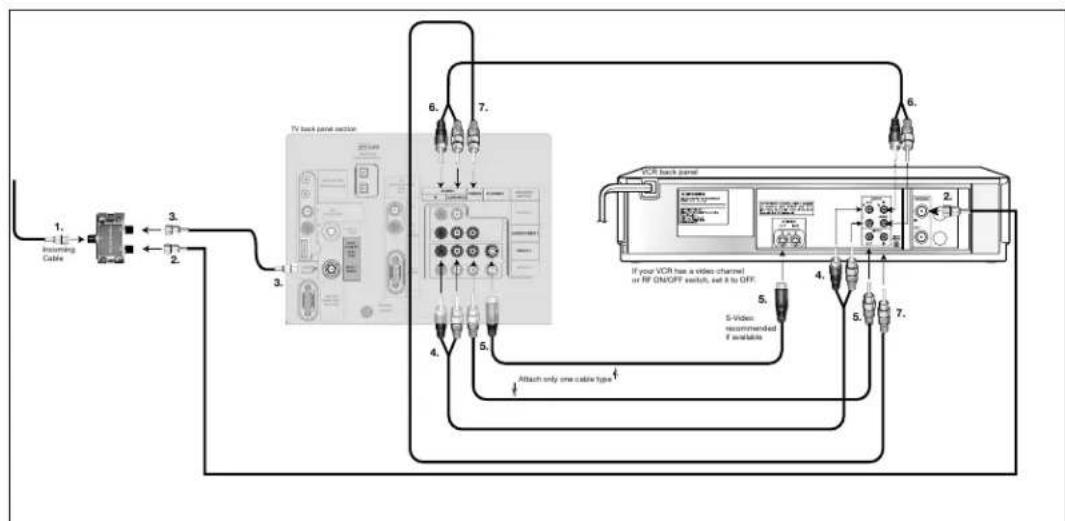

VCR Video and Audio to an Antenna or Wall Outlet Cable ....20

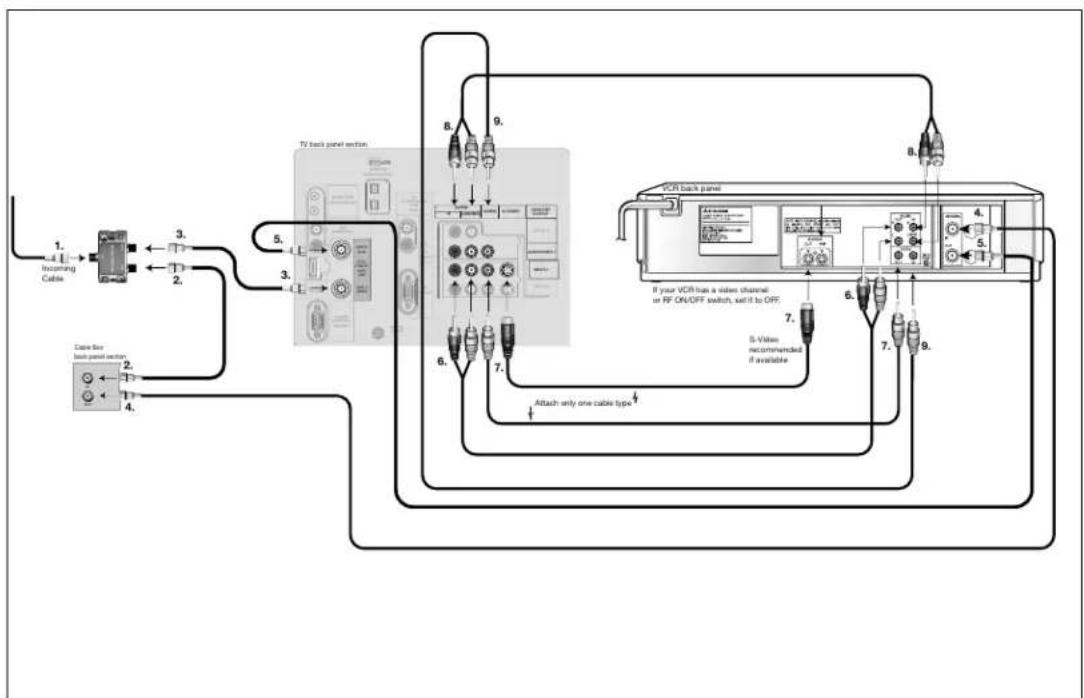

VCR Video and Audio to a Cable Box 21

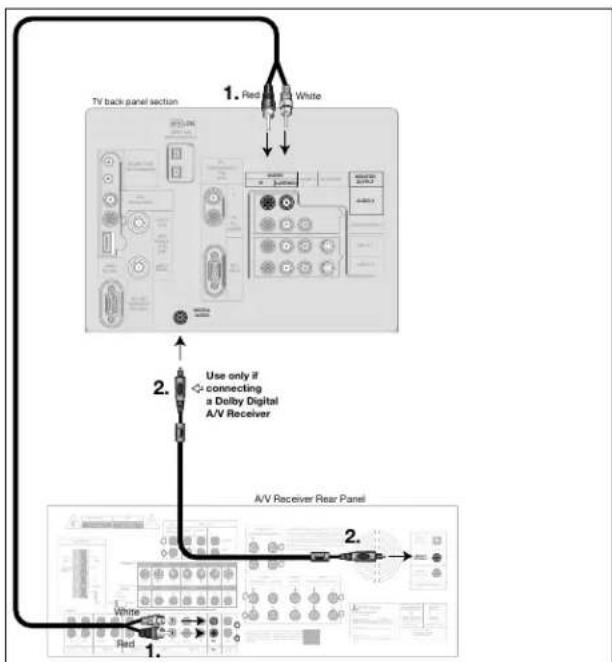

A/V Receiver or Stereo System.... 22

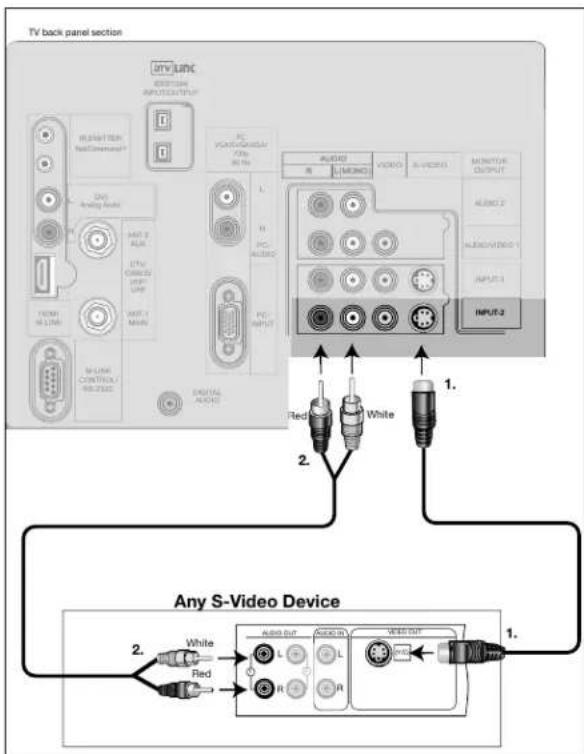

Satellite Receiver or Other Device with S-Video 22

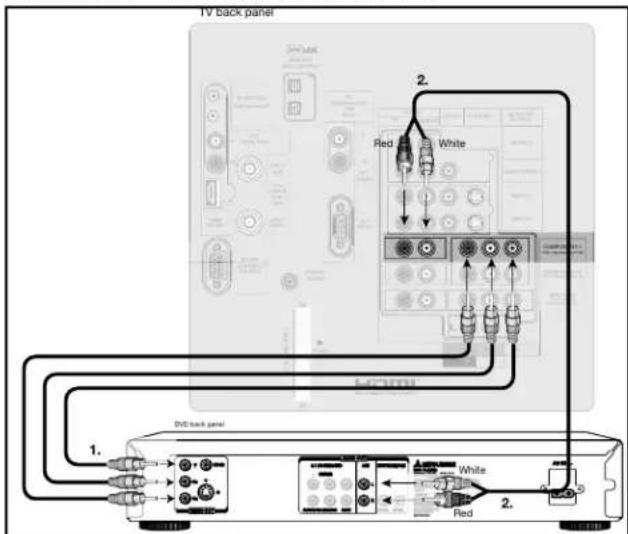

DVD Player with Component Video.... 23

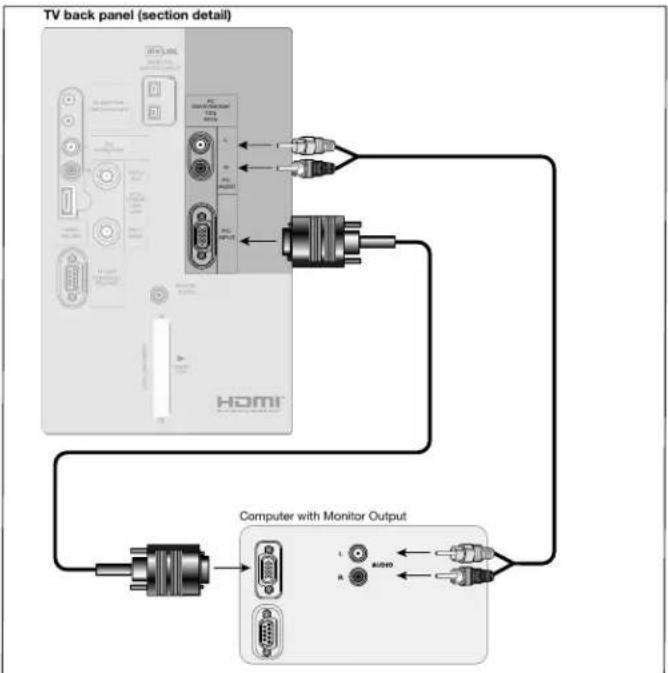

Computer with a PC Monitor Output.... 23

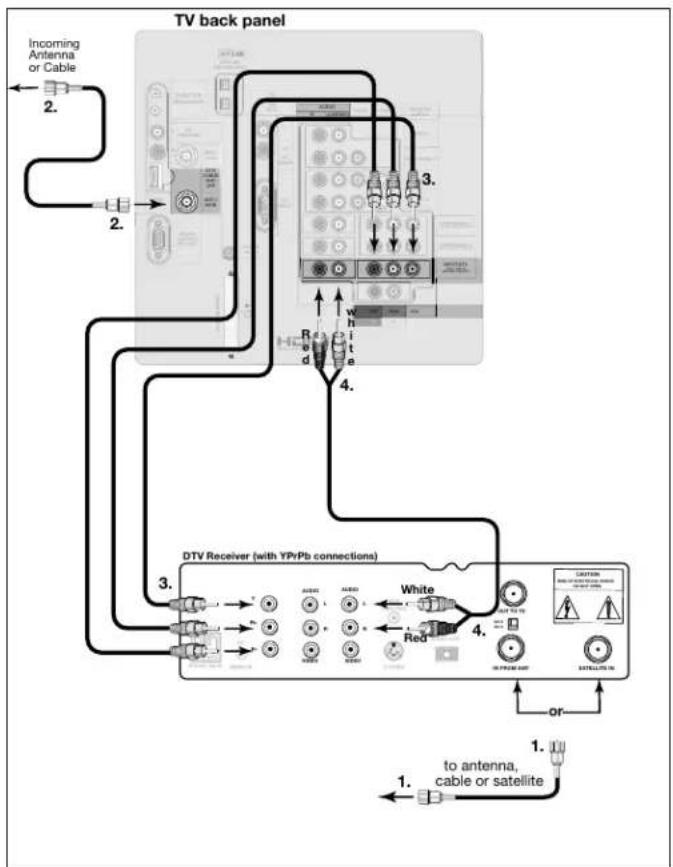

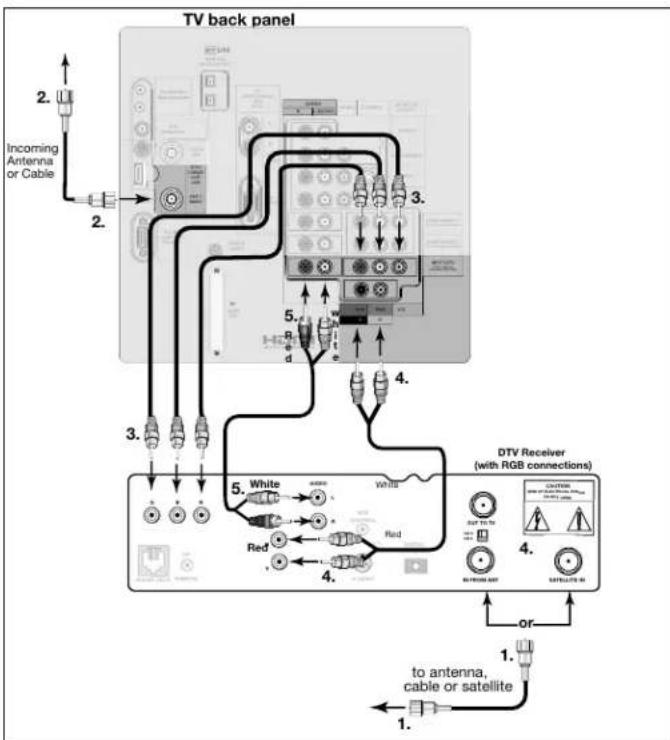

DTV Receiver
with Component Video.... 24
with RGB, HV Video 25
M-Link Control....26

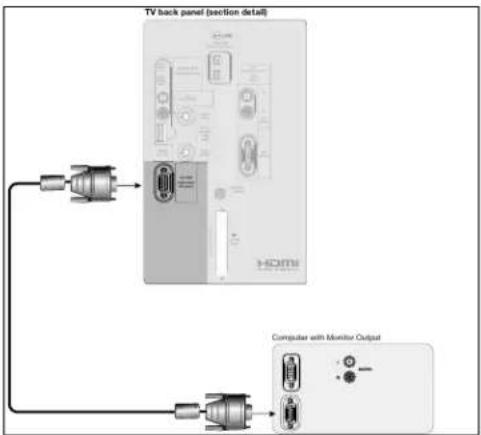

RS-232C Connection 26

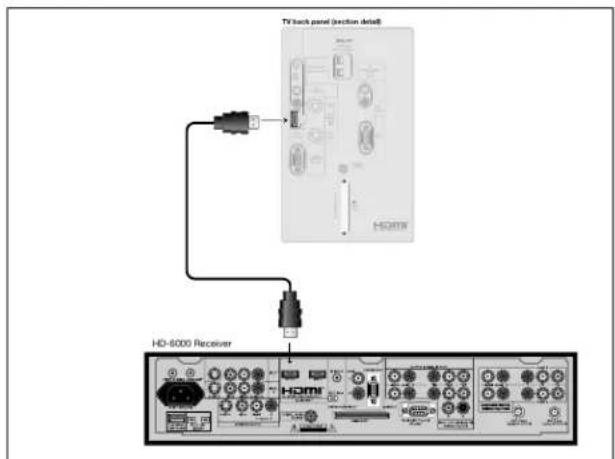

HDMI Device....26

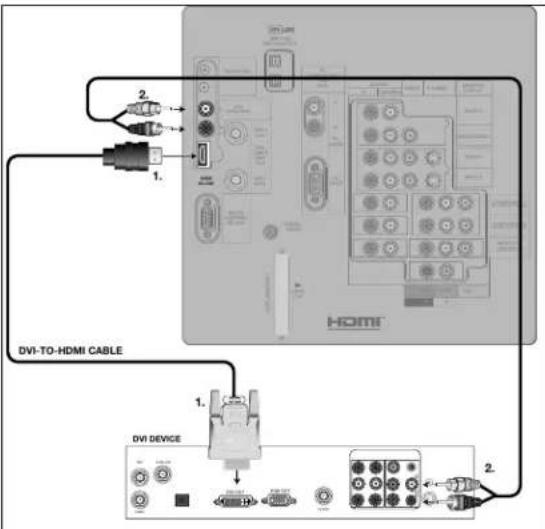

DVI Device 26

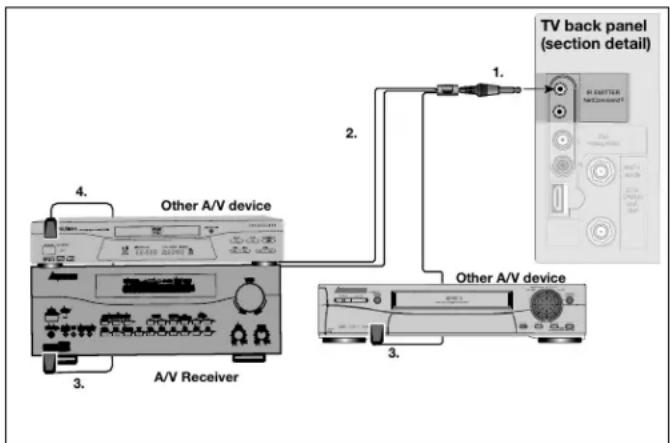

IR Emitter NetCommand® 27

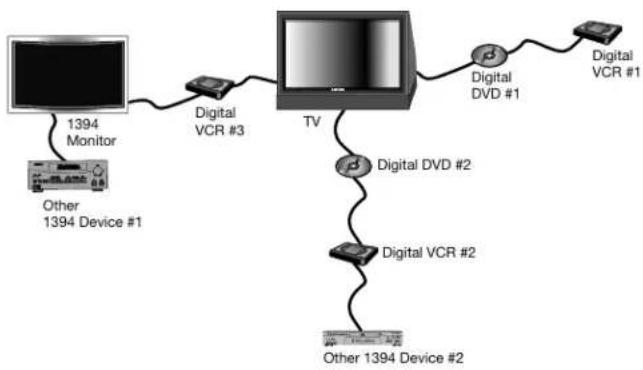

Compatible IEEE 1394 Devices 28
Helpful Hints 30
Chapter 3 NetCommand ^® Setup and Editing
Using the Remote Control with NetCommand® 32

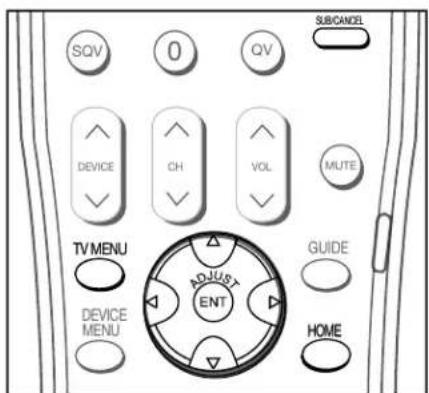

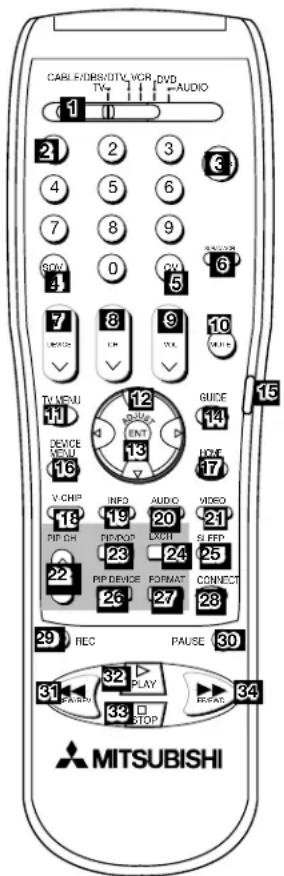

Remote Control Functions: Overview.... 33
Remote Control Functions:
Operation....34
Care 34
Sleep Timer 34
NetCommand® OnScreen Buttons 35

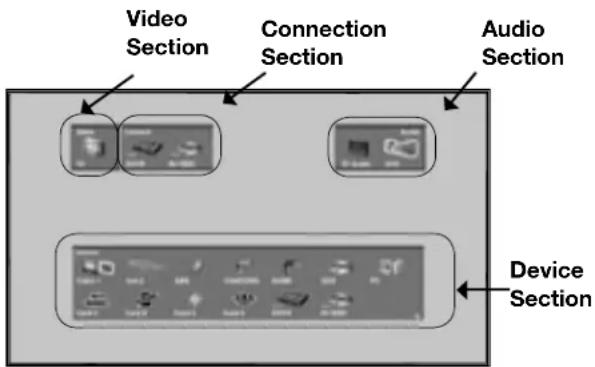

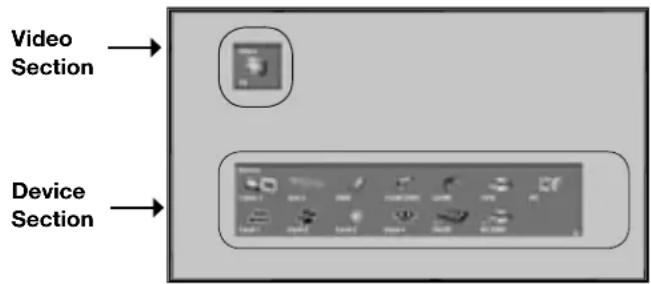

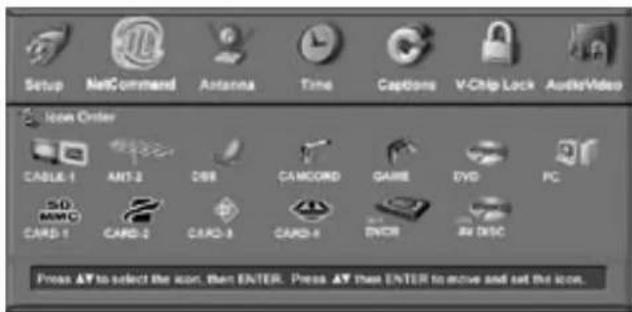

3D Graphical Viewpoint® Menu System.... 36

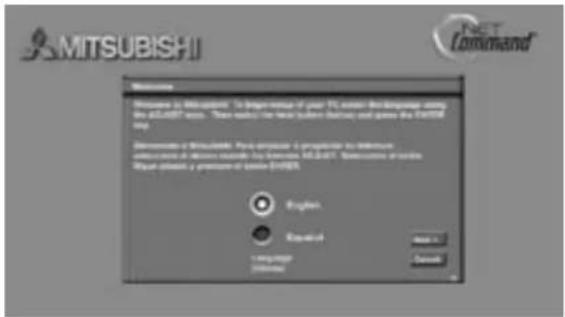

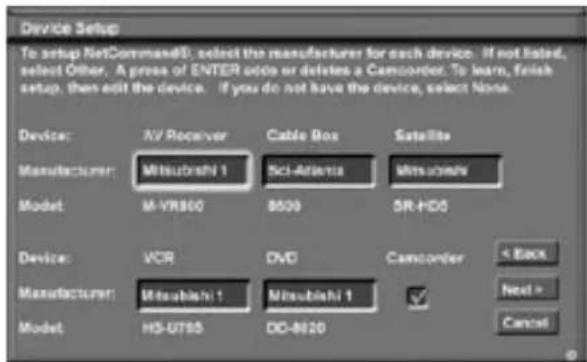

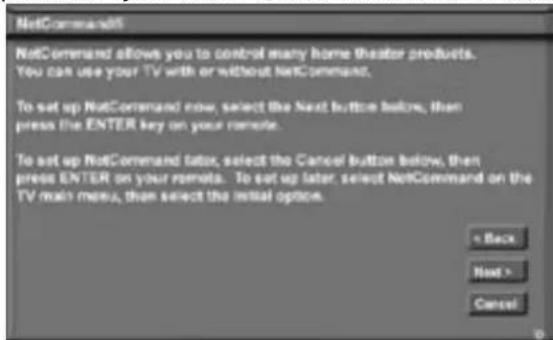

NetCommand® Initial Setup 37

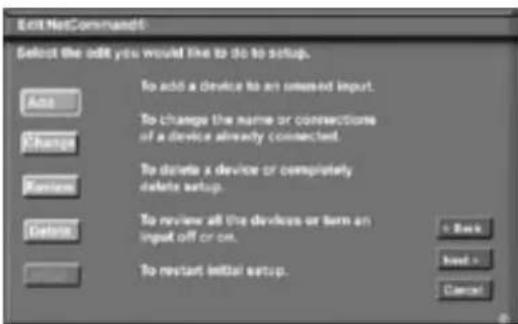

Edit NetCommand®

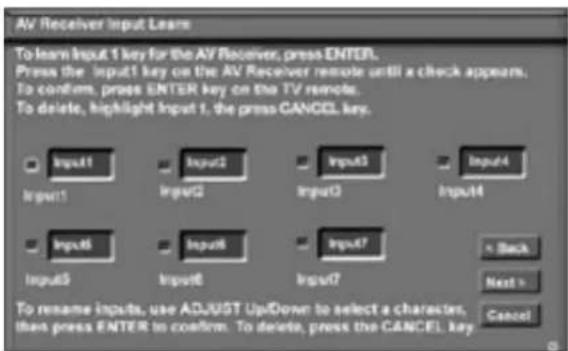

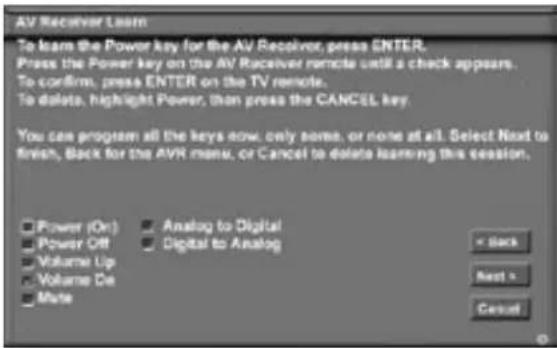

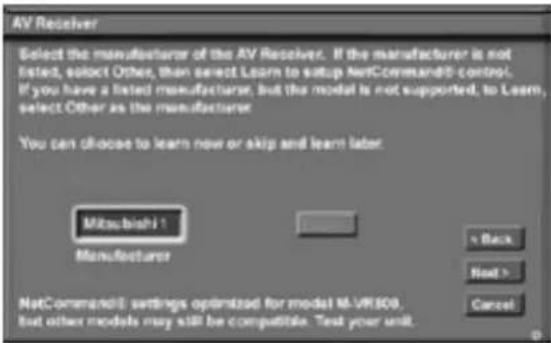

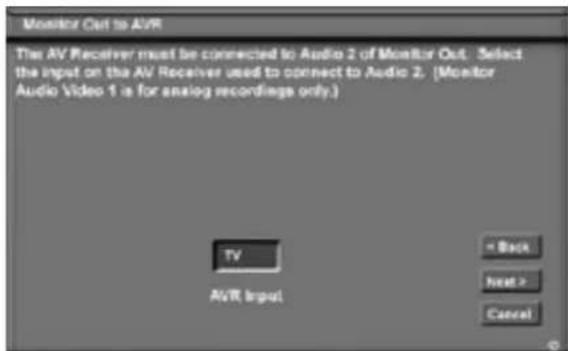

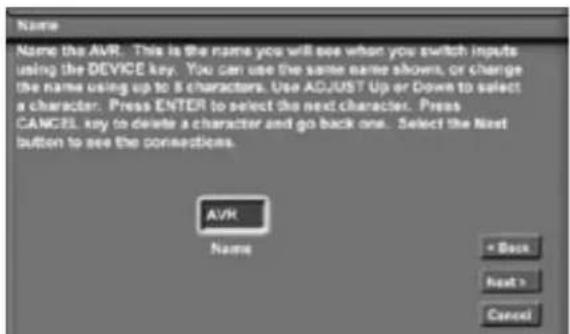

Add an A/V Receiver 39

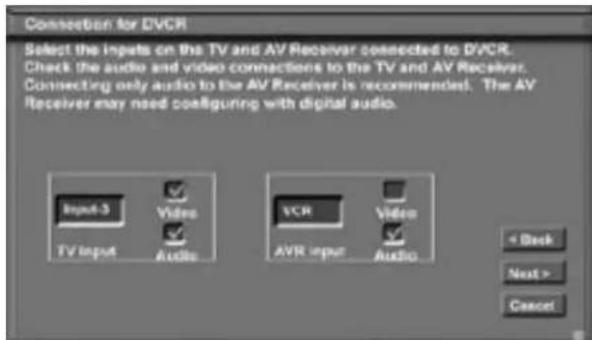

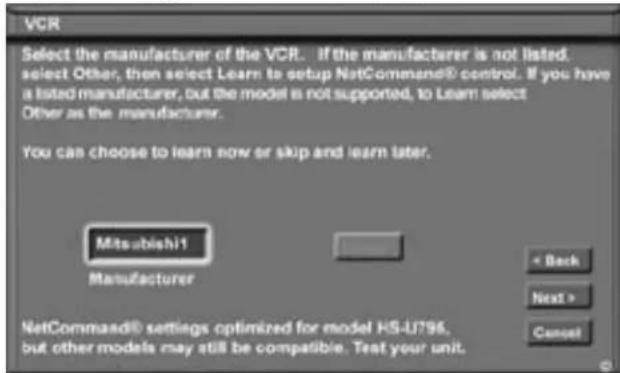

Add Devices 42

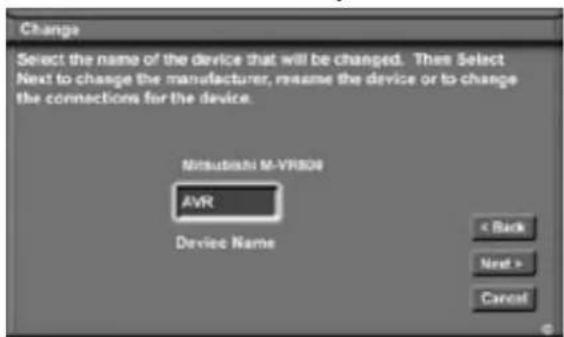

Change Devices 46

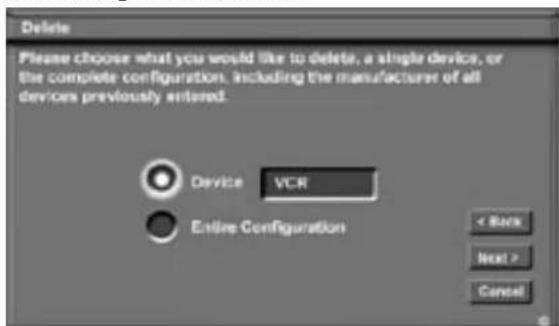

Delete Devices....46

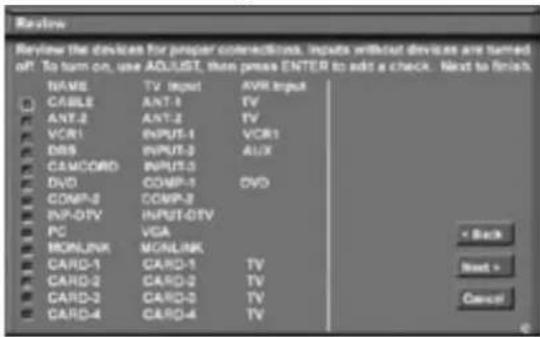

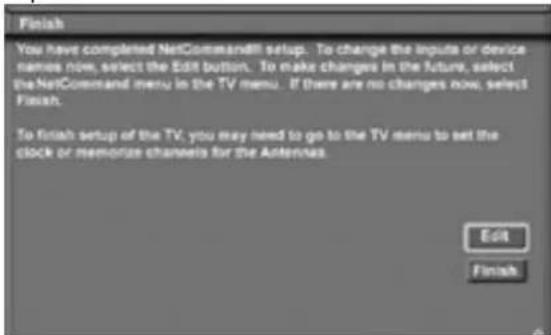

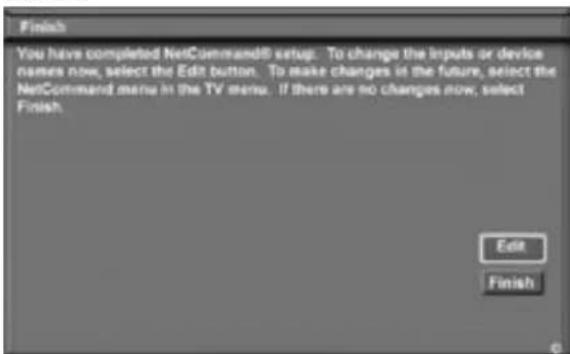

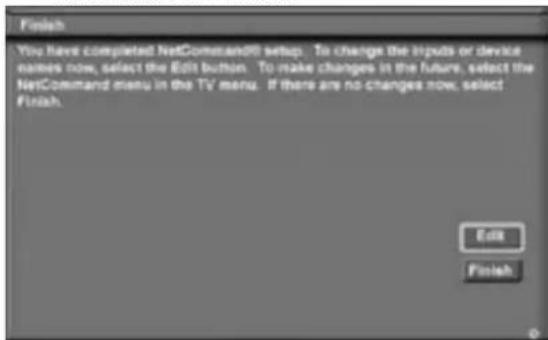

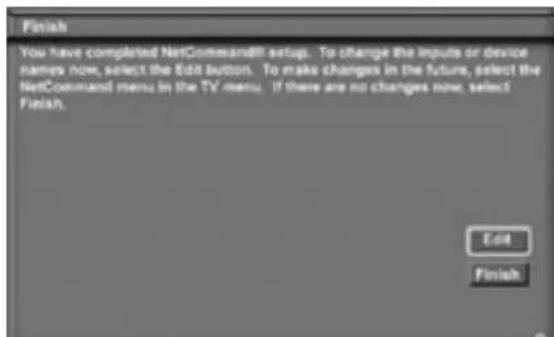

Finish Screen....46
Chapter 4 IEEE 1394 Devices and NetCommand® Controlled Recordings
IEEE 1394 Devices and NetCommand® Control 48

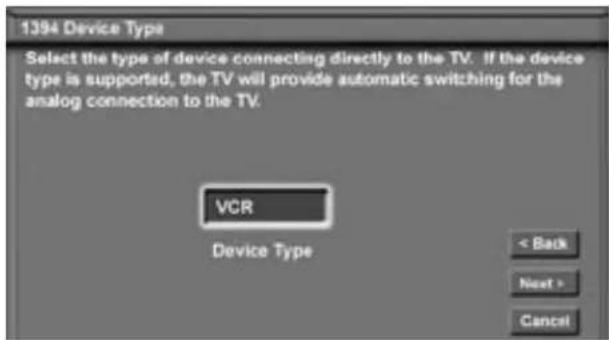

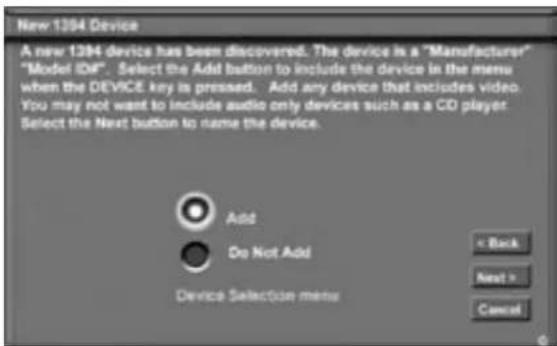

Adding IEEE 1394 Devices Automatically.... 49
Device Selection Menu....51
Using the DEVICE MENU Button to Display Menus.... 52

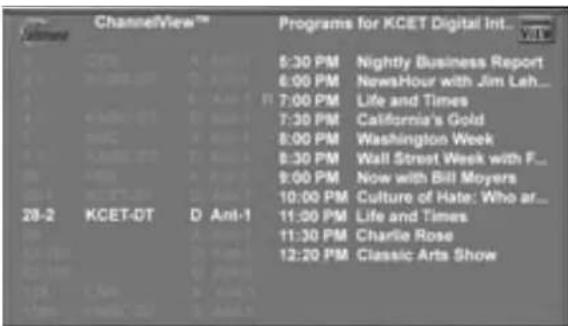

Using the Guide Button to Display ChannelView™ and Menus.... 53

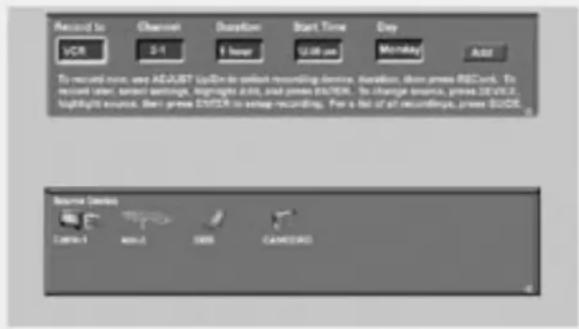

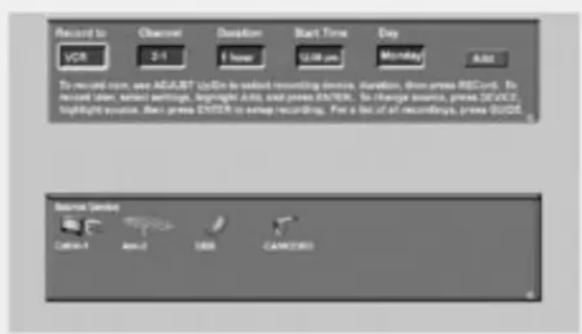

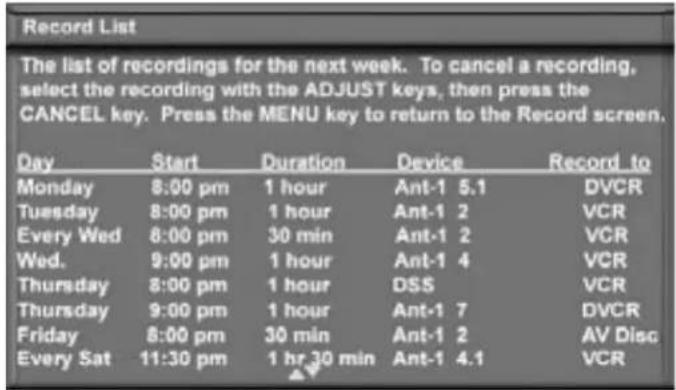

NetCommand® Controlled Recordings 54

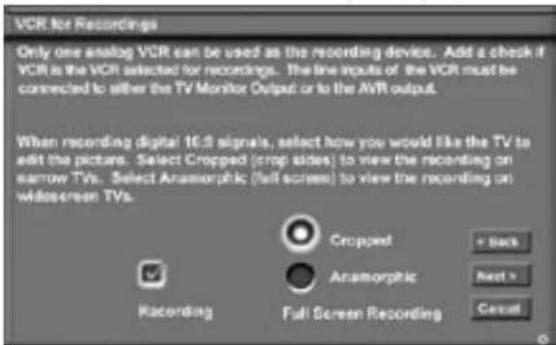

NetCommand® and Traditional VCR's 54
NetCommand® Controlled Peer-to-Peer Connections 56
Direct VCR Recording from an Antenna or Cable Screen 57
A/V Disc Search 57

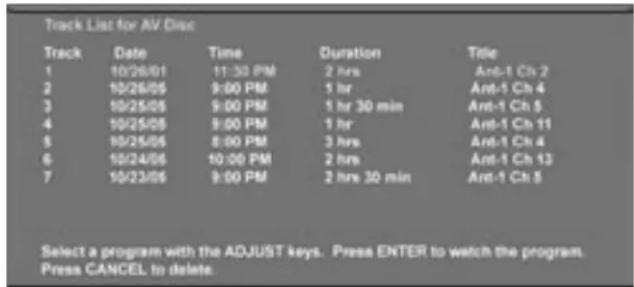

Track List Screen 57

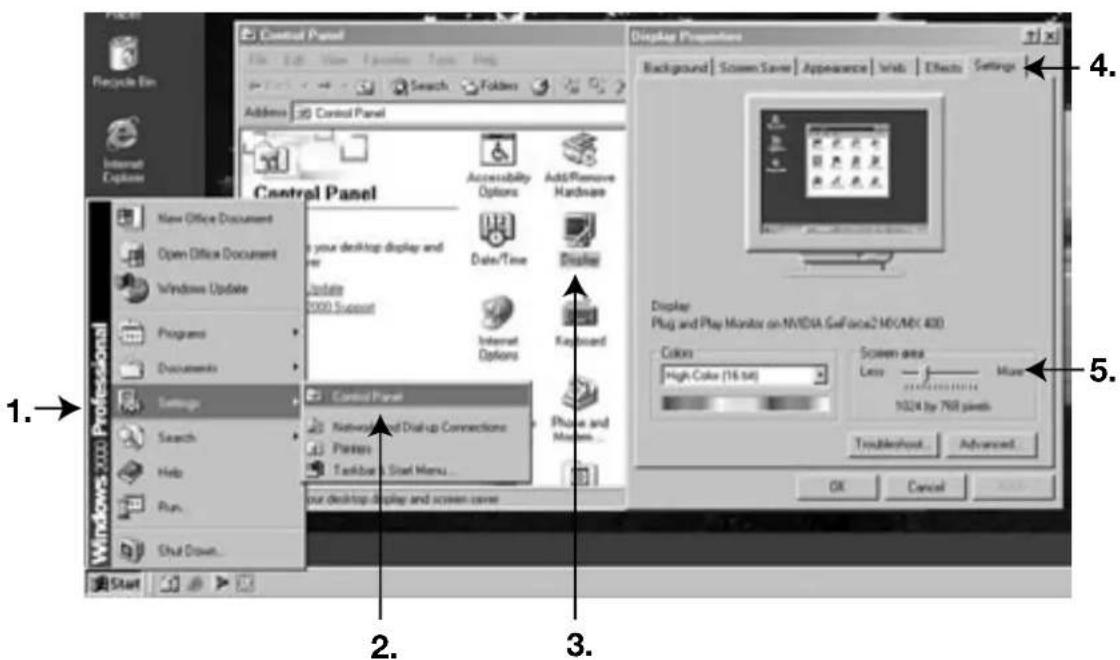

PC Viewing 58
MediaCommand™ and Media Card Playback.... 59
Chapter 5 TV Menu Screen Operations

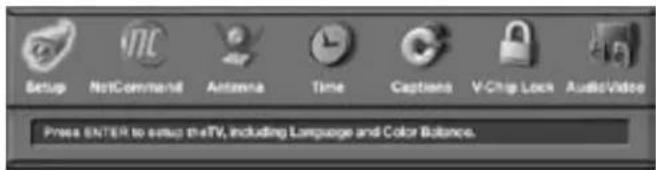

Main Menu Choices....62

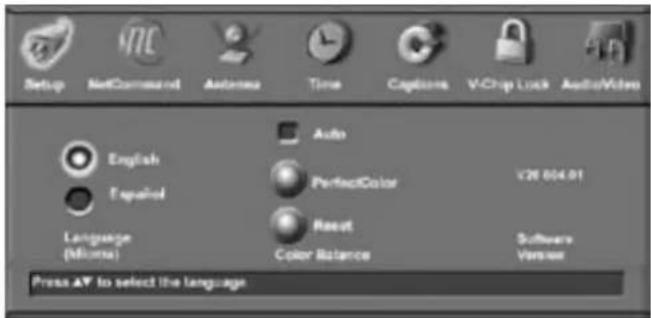

Setup Menu 63
NetCommand® Menu 64

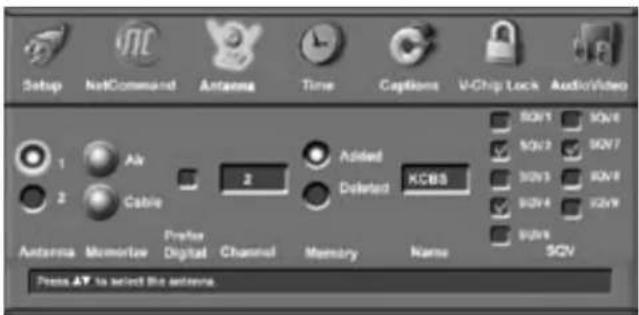

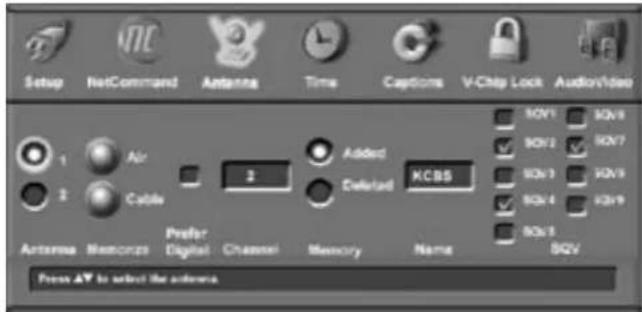

Antenna Menu 65

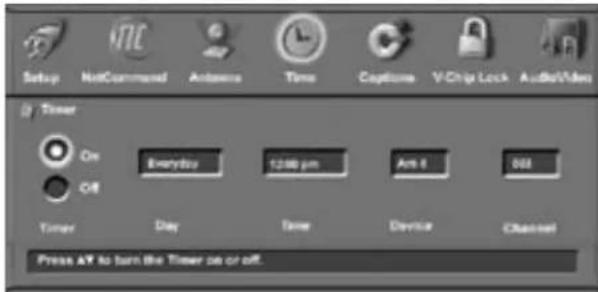

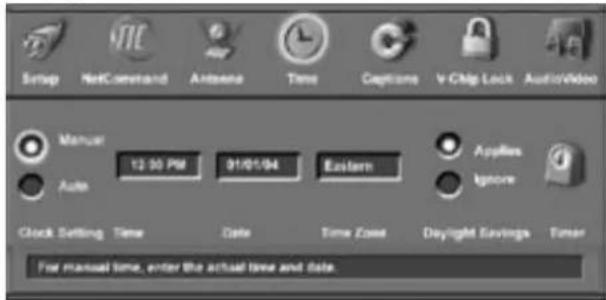

Time Menu....67

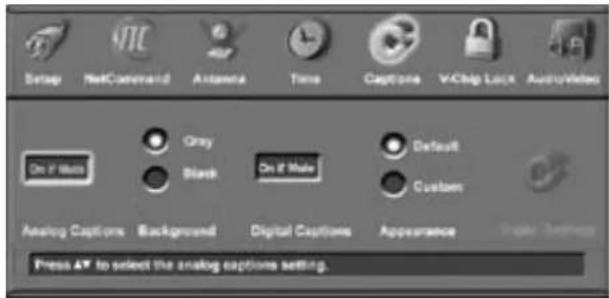

Captions Menu 68

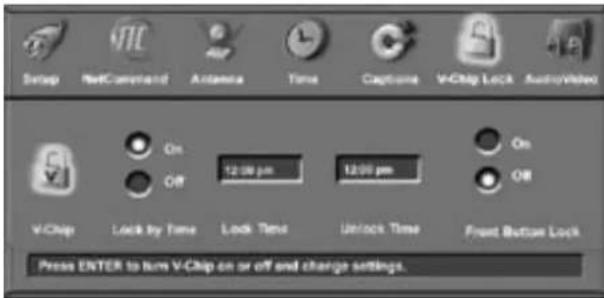

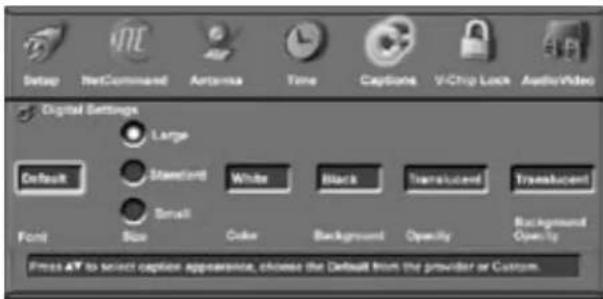

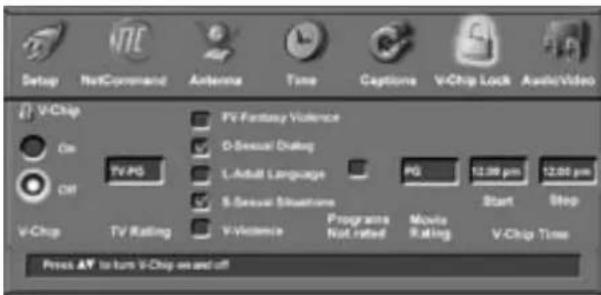

V-Chip Lock Menu....70

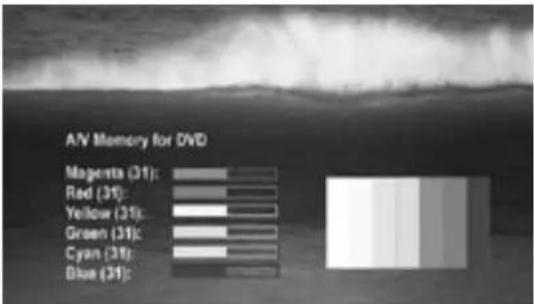

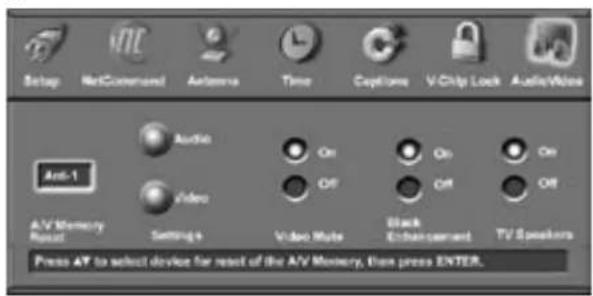

AudioVideo Menu 73
A/V Settings Descriptions 74
Operation of PIP and POP....76
Chapter 6 Special Features

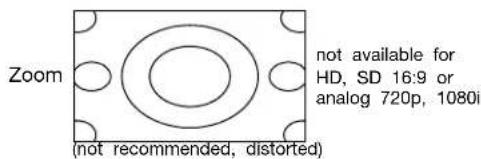

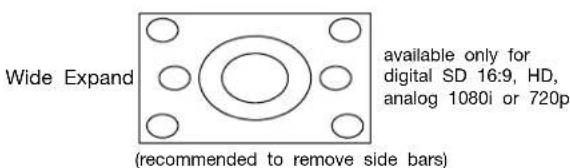

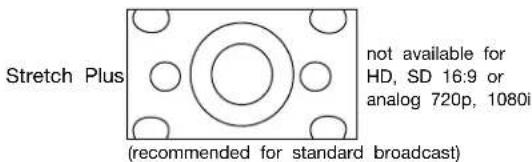

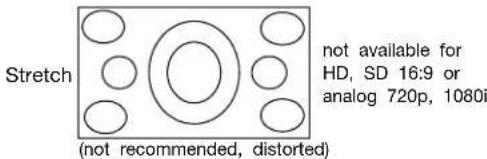

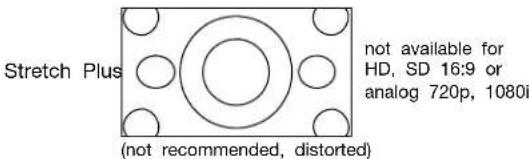

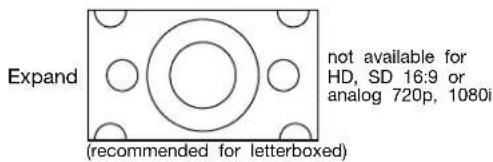

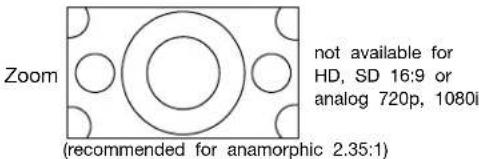

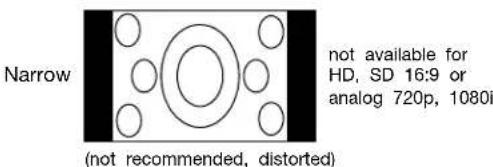

Display Formats 78
Device Control with NetCommand® 81
Appendix A: Bypassing the V-Chip Lock 83
Appendix B: Specifications 85
Appendix C: Remote Control Programming Codes.... 87

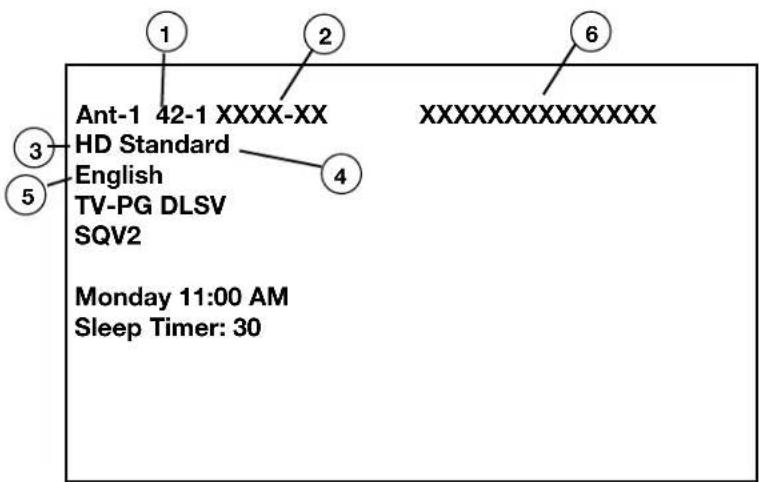

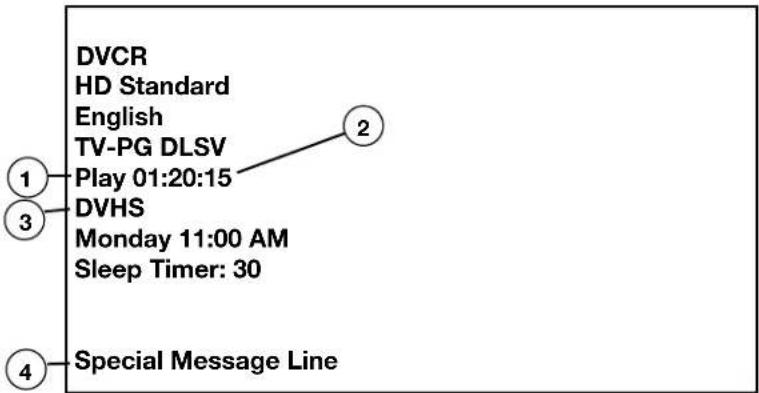

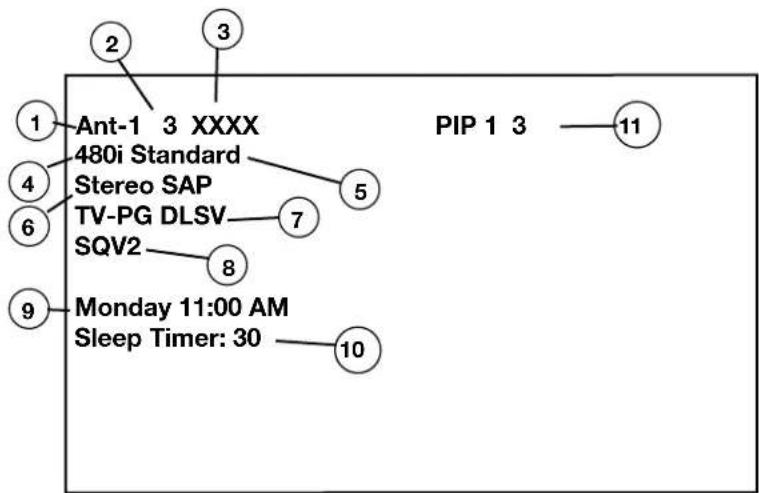

Appendix D: On-Screen Information Displays 90
Appendix E: NetCommand® Specialized Device Keys 91
Appendix F: Cleaning and Service 92

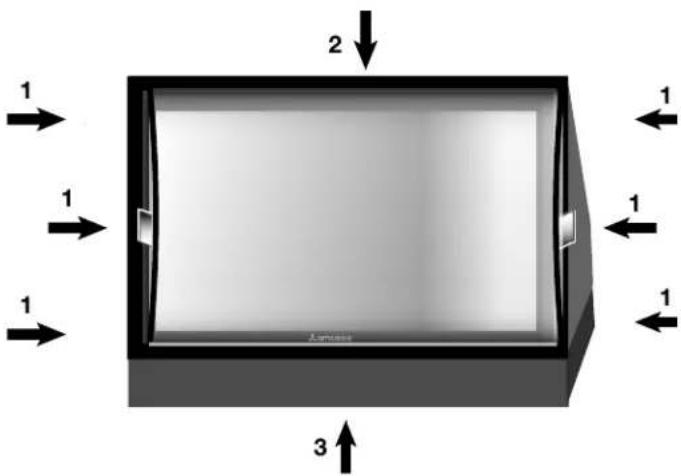

Appendix G: Diamond Shield™ Removal 93

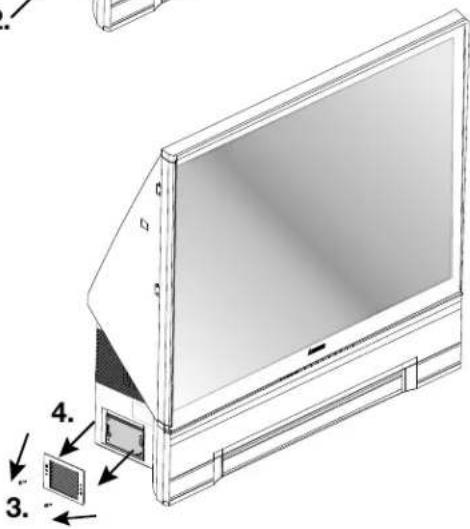

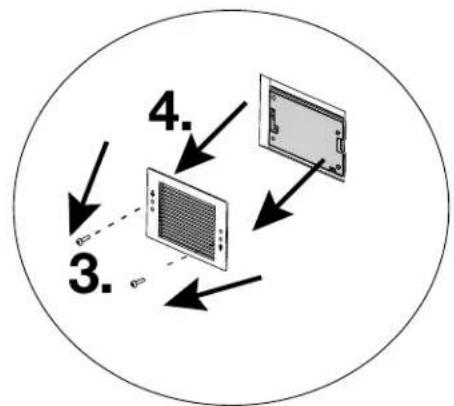

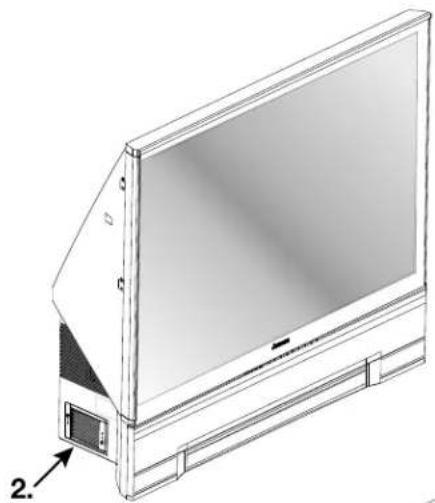

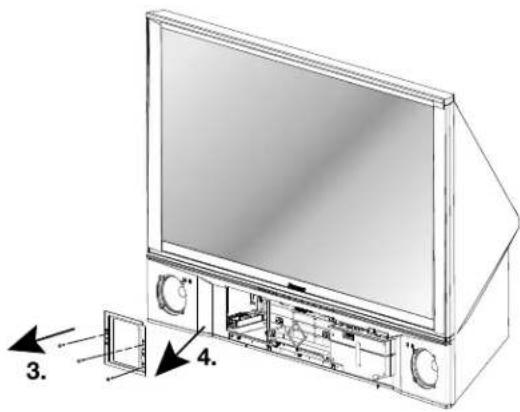

Appendix H: Filter Cleaning.... 94

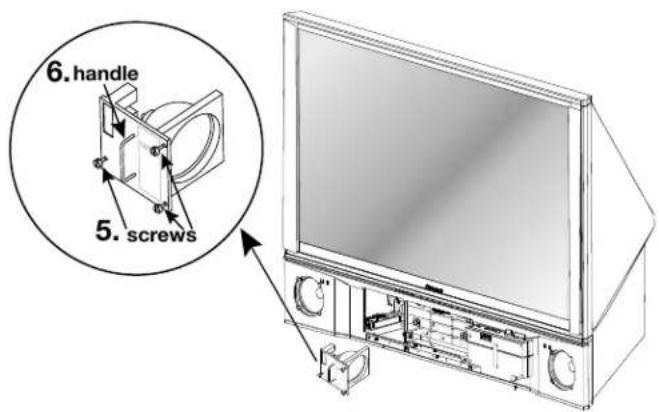

Lamp Replacement 95
Troubleshooting....97
Additional Information 102
Index....103
Warranty 105
IMPORTANT SAFEGUARDS
Please read the following safeguards for your TV and retain for future reference. Always follow all warnings and instructions marked on the television.
1. Read, Retain and Follow All Instructions
Read all safety and operating instructions before operating the TV. Retain the safety and operating instructions for future reference. Follow all operating and use instructions.
2. Heed Warnings
Adhere to all warnings on the appliance and in the operating instructions.
3. Cleaning
Unplug the TV from the wall outlet before cleaning. Do not use liquid, abrasive or aerosol cleaners. Cleaners can permanently damage the cabinet and screen. Use a lightly dampened cloth for cleaning.
4. Attachments and Equipment
Never add any attachments and/or equipment without approval of the manufacturer as such additions may result in the risk of fire, electric shock or other personal injury.
5. Water and Moisture
Do not use the TV where contact with or immersion in water is possible. Do not use near bath tubs, wash bowls, kitchen sinks, laundry tubs, swimming pools, etc.
6. Accessories
An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
7. Ventilation
Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the TV and to protect it from overheating. Do not block these openings or allow them to be obstructed by placing the TV on a bed, sofa, rug, or other similar surface. Nor should it be placed over a radiator or heat register. If the TV is to be placed in a rack or bookcase, ensure that there is adequate ventilation and that the manufacturer's instructions have been adhered to.
8. Power Source
This TV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your appliance dealer or local power company.
9. Grounding or Polarization
This TV is equipped with a polarized alternating current line plug having one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
10. Power-Cord Protection
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the TV.
11. Lightning
For added protection for this TV during a lightning storm, or when it is left unattended and unused for long period of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV due to lightning and power-line surges.
IMPORTANT SAFEGUARDS, continued
12. Power Lines
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
13. Overloading
Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
14. Object and Liquid Entry
Never push objects of any kind into this TV through openings as they may touch dangerous voltage points or short-out parts that could result in fire or electric shock. Never spill liquid of any kind on or into the TV.
15. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.
Article 810 of the National Electric Code, ANSI/NFPA No. 70-2002, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
E XAMP LE OF ANT E NNA G R OUNDING
16. Servicing
Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
17. Damage Requiring Service
Unplug the TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:
(a) When the power-supply cord or plug is damaged.
(b) If liquid has been spilled, or objects have fallen into the TV.
(c) If the TV has been exposed to rain or water.
(d) If the TV does not operate normally by following the operating instructions, adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV to its normal operation.
(e) If the TV has been dropped or the cabinet has been damaged.
(f) When the TV exhibits a distinct change in performance - this indicates a need for service.
18. Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
19. Safety Check
Upon completion of any service or repair to the TV, ask the service technician to perform safety checks to determine that the TV is in safe operating condition.
20. Heat
The product should be situated away from heat sources such as radiators, heat registers, stoves or other products (including amplifiers) that produce heat.
Our Thanks...
Thank you for choosing Mitsubishi as your premier Home Entertainment provider.
This Owner's Guide describes the features and functions of your Mitsubishi widescreen, high definition TV. We urge you to examine this Owner's Guide to become familiar with the innovative features and operations this unique television offers.
The very core of our corporate philosophy is to provide our customers with the very best. Our development team at Mitsubishi has worked to provide you with a television that defines “state-of-the-art,” with the capability to meet your needs now and in the future.
Whether this is your first Mitsubishi electronic product, or an addition to your Mitsubishi collection, we believe you and your family will continue to enjoy your Mitsubishi home theater for many years.
Thank you,
Mitsubishi Digital Electronics America, Inc.
Chapter . . .
Television Overview
TV Accessories ....10
Special Features ....10
Front Control Panel.... 11

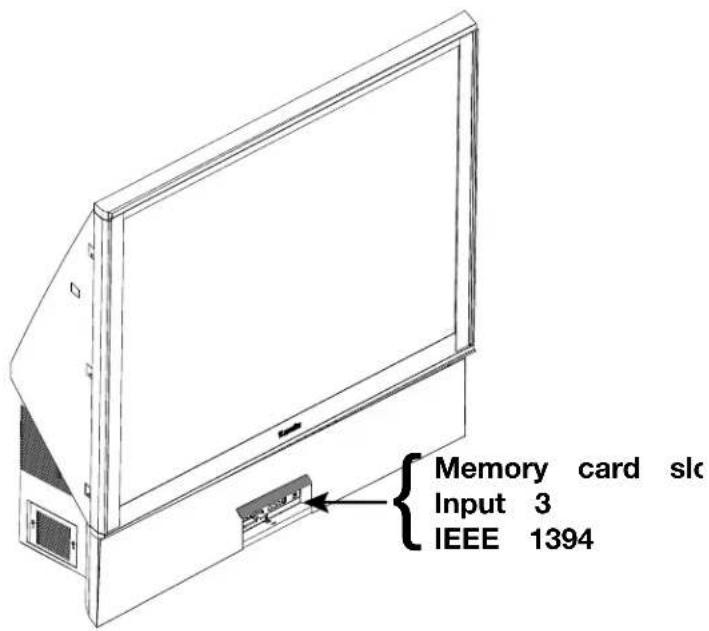

Front Panel Inputs and Media Card Slots ....12
Back Panel 13

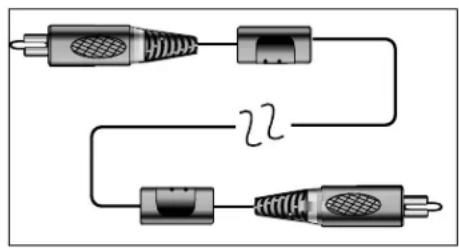

TV Accessories
Please take a moment to review the following list of items to ensure that you have received everything including:

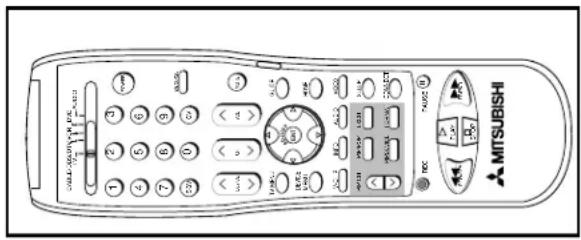

- Remote Control

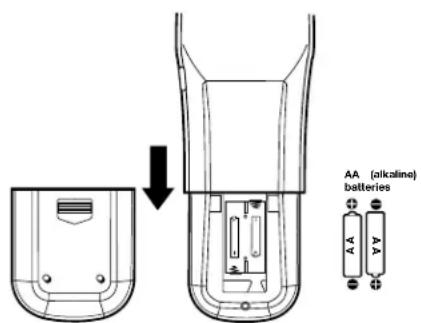

- Two AA Batteries
- Product Registration Card (not pictured)
- Owner's Guide (not pictured)
- Quick Reference Card (not pictured)
Special Features
Your new High Definition widescreen television has many special features that make it the perfect center of your home entertainment system, including:
High Definition DLP™ Display System
Your widescreen Mitsubishi HDTV uses Texas Instruments Digital Light Processing™ technology. This TV is truly a high performance multimedia monitor uniquely capable of both stunning high definition video images and clear detailed high resolution PC images. Your TV is able to accept video signals in the standard video scanning rates of 480i, 480p, 720p and 1080i. It is also able to accept signals with PC resolutions from VGA (640 x 480) through XGA (1024 x 768). When using a compatible graphics card and controlling software, this TV is also able to accept the custom PC resolution of 720p (1280 x 720). All signals will be converted to 720p for final display.
Digital Cable Ready (CableCARD™)
Your widescreen Mitsubishi HDTV is “Plug-and-Play” ready. It can descramble a cable provider’s one-way digital signals with the use of a CableCARD security module. The CableCARD is used in place of a traditional cable box to access digital cable programming (including high definition). Contact your local cable provider for availability information and service details.
NetCommand® Home Network Control System
Your widescreen Mitsubishi HDTV offers a new level of networking to combine selected older products with new and future digital products. NetCommand supports IEEE 1394 connections, Audio Video Control system (AV/C), 5C copy protection and IR control of selected older products such as VCRs, DVD players, cable boxes or satellite receivers. NetCommand includes the ability to learn remote control signals directly from many devices, allowing you to customize the NetCommand system in a way that works best for your viewing.
16:9 Widescreen Picture Format
Enjoy a full theatrical experience in the comfort of your home. View pictures as film directors intended them. Digital TV broadcasts, DVDs and newer video game consoles support this widescreen format.
Media Cards

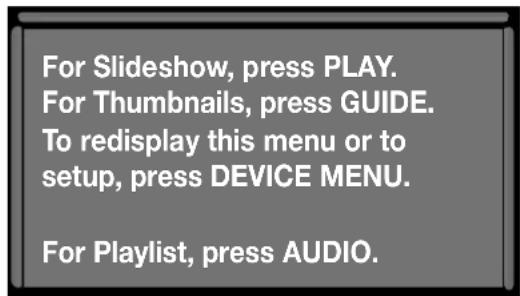

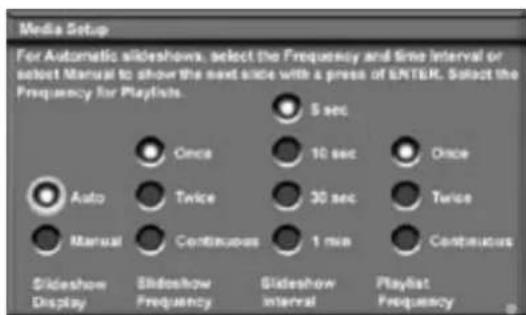

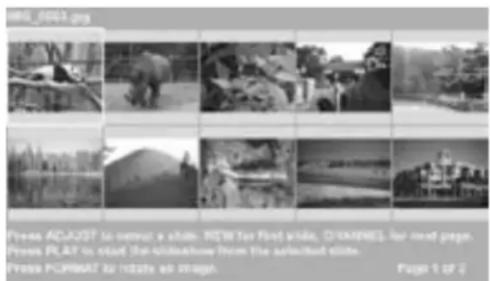

You can display a slideshow of your favorite JPEG pictures or listen to MP3 or WMA audio selections that have been recorded on compatible media cards.

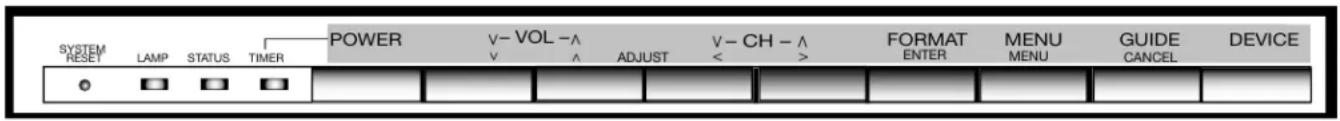

Front Control Panel
The buttons on the Front Control Panel highlighted in gray are duplicated on the remote control. The top row of labels show the control functions when there are no TV menus displayed on the screen. The bottom row of labels show the control functions when the TV menus are displayed on the screen or when a special function has been activated. See Remote Control Overview, for further details on the functions of these buttons.
System Reset
If the TV will not respond to either the remote control or the front panel controls and/or will not power Off, press the SYSTEM RESET button with a pointed item like the end point of a paperclip. The TV will turn Off and the TIMER light will flash quickly for about one minute. When the TIMER light stops flashing, you may again turn on the TV. The changes you made the last time the TV was on before you used the SYSTEM RESET button may be lost, however, the changes that were previously saved are not lost.
Indicators
Please refer to the table below for conditions when the indicator lights will display.
| COLOR LAMP LIGHT INDICATOR | TIMER/POWER | |
| None (off) Power off Power off None (off) Power off | ||
| Green(steady light) | n/a Power on Green | |
| Green( fast blinking light) | n/a Starting | up* |
| Green(blinking light) | Power just turned off, TV cooling down (1 minute). Cannot turn the TV back on until blinking stops. | TV Timer is set |
| Yellow(steady light) | Lamp life end warning.A new lamp should be purchased.See Appendix H. | n/a Yellow |
| Yellow(blinking light) | Lamp cover door is openor no lamp installed.See Appendix H. | n/a Yellow |
| Red(steady light) | Lamp has failed, replacement is required.See Appendix H. | n/a Red |
| Red(blinking light) | n/a n/a Red | |
| COLOR STATUS LIGHT INDICATOR | |
| (steady light) | n/a |
| Green( fast blinking light) | n/a |
| Green(blinking light) | n/a |
| (steady light) | Operating temperature is too high.The dust filter may be dirty. See Appendix H.orThe room temperature too hot. Turn off TV until the room is cooler. |
| (blinking light) | The filter cover is open or not secure.See Appendix H. |
| (steady light) | Service required.Turn off TV and call your dealer or a Mitsubishi Authorized Service Center.See www.mitsubishi.com or call 1-800-332-2119. |
| (blinking light) | Service required.Turn off TV and call your dealer or a Mitsubishi Authorized Service Center.See www.mitsubishi.com or call 1-800-332-2119. |
*Each time the TV is plugged into a wall electrical outlet, when power is restored after a power failure, or when using the SYSTEM RESET button, this light will flash for about one (1) minute.
A/V Reset
There may be times when you wish to reset the A/V (Audio and Video) settings back to the factory defaults. To return all of the settings at once, press GUIDE and FORMAT on the front panel at the same time. To reset the defaults for individual devices, use the A/V Memory Reset selection on the AudioVideo menu.
Front Panel Inputs and Media Card Slots
Media Card Slots and IEEE 1394 Input/Output
There are four card slots in the front of the TV that allow the display of JPEG pictures from many digital cameras, MP3 or WMA audio files recorded from computers or other digital recording devices. The card slots are designed for specific types of cards and other cards or objects should not be inserted into the slots as this may damage the TV. CARD-1 slot is compatible with both MultiMediaCard™ (MMC) and Secure Digital (SD) cards. CARD-2 slot is compatible with SmartMedia™ cards. CARD-3 slot is compatible with CompactFlash® cards and CARD-4 is compatible with MEMORY STICK™ cards. See media card (slideshow, playlist) Setup for details about JPEG, MP3 and WMA file types that are compatible with the TV.
The IEEE 1394 input/output allows for temporary connection of IEEE 1394 devices such as some camcorders, to the front of the TV. This connection works the same way as rear IEEE 1394 connections, please refer to the NetCommand® information (Chapter 3) for details.
Input 3
This input can be used for convenient connection of a camcorder or other video device to the TV. Please note that if you connect to the S-VIDEO terminal, the VIDEO terminal is deactivated. The VIDEO terminal is active when there is no S-Video connection.
IMPORTANT
Portions of the advanced circuitry of this TV must continue to operate even when the TV is turned off. Some of these circuits therefore need to be cooled at all times. A low power standby fan may be heard in a quiet environment. This is normal operation.
Back Panel
1. Antenna (ANT-1 MAIN, ANT-2 AUX)
ANT-1 MAIN and ANT-2 AUX can each receive both digital and analog over-the-air channels from a VHF/UHF antenna or non-scrambled digital/analog cable channels.
Your primary viewing signal source should be connected to ANT-1 MAIN. ANT-1 MAIN must be used to view premium subscription cable TV service authorized by the CableCARD™ access card. The CableCARD access card is provided by your local cable company. ANT-2 AUX can continue to receive over-the-air or non-scrambled cable signals.
2. CableCARD™ Slot
The CableCARD access card provided by your cable TV service provider is inserted into this slot. The top of the card should face in the direction the CARD TOP arrow indicates.
CableCARD is a nationwide standard system that allows your local cable TV provider to supply you with an access card customized to your account. This card allows the TV to receive, decode and unscramble the premium digital channels included in your cable TV subscription without the use of a cable box. See page 16 for additional CableCARD information and activation instructions.
If your cable company is not currently offering CableCARD access cards, you will need to use a cable box provided and authorized by your local cable company to view scrambled channels.
3. Input DTV (480i/480p/720p/1080i)
This input is used to connect an external DTV receiver, and can be configured for YPbPr or RGB plus H&V signal types. Please see Appendix B for signal compatibility.
4. Component-1, -2 Inputs YPbPr (480i/480p/720p/1080i)
These inputs can be used for the connection of devices with component video outputs, such as a DVD player, external HDTV receiver or compatible video game system. Please see Appendix B for signal compatibility.
5. Input-1, -2; Monitor Output (Audio/Video 1, Audio 2)
Input 1 and 2 can be used for the connection of a VCR, Super VHS (S-VHS) VCR, DVD player, standard satellite receiver or other A/V device to the TV. Please note that if S-VIDEO and VIDEO are available for the input, you must choose to connect only one. They cannot both be connected at the same time.
The Monitor Output sends the TV audio and video signals from the antennas or Inputs to an A/V receiver or other analog A/V equipment such as a VCR. Digital channels and IEEE 1394 signals will be down converted to analog signals compatible with traditional VCRs. Digital channels or IEEE 1394 signals may be output with copy protection or may display no video signals if they have copy restrictions. There will be only audio and no video signals from Monitor Outputs when viewing the Component 1 & 2 inputs, INPUT-DTV, the HDMI input or Cards 1-4.
Back Panel, continued
Monitor Output Audio/Video 1 should be connected to a VCR for recording. Monitor Output Audio 2 should be connected to your A/V receiver for home theater surround sound.
6. PC Input and Audio (VGA/WVGA/SVGA/WSVGA/XGA/720p, 60Hz)
This input can be used for the connection of a computer. Please see Appendix B for signal compatibility. If NetCommand® has not been setup, the on-screen display name will be VGA.
Stereo audio inputs are also provided for the PC connection.
7. DTV Link/IEEE1394
These jacks allow the TV to connect to external IEEE 1394 digital products by means of a single cable. Three jacks (one on the front panel and two on the back) are provided for this purpose, which allow for a high degree of flexibility for connecting your NetCommand controlled system. Detailed information regarding IEEE 1394 connection requirements are in Chapter 4.
8. IR Emitter-NetCommand®
Two jacks are provided for connecting IR emitters. IR Emitters connected to these jacks are used by the NetCommand system of the TV to control external analog devices such as VCRs, DVDs, cable boxes, satellite receivers and audio receivers.
9. DVI Analog Audio
Unlike HDMI, DVI does not carry audio information on the same cable. Use these analog stereo audio inputs when using the HDMI input with a device that outputs DVI instead of HDMI.
10. HDMI/M-Link
M-Link(MonitorLink™) is a Mitsubishi exclusive proprietary digital interface for the display of high quality digital video signals from Mitsubishi products, such as the HD-6000 HDTV Receiver/Controller.
The HDMI ^™ (High Definition Multimedia Interface) supports uncompressed standard and high definition digital video formats and existing digital multi-channel audio formats. If using a cable box, the HDMI input supports both video and audio using a single cable.
Use this input to connect to EIA/CEA-861 compliant devices such as a high definition receiver or DVD player. This input supports 480i, 480p, 720p and 1080i video formats. It is not intended for use with personal computers or devices outputting video signals with computer resolutions.
This input can also be used as a DVI connection with separate analog audio inputs. An optional HDMI-to-DVI adaptor or cable will be necessary to make this connection and may be available from your local electronics retailer. When using the optional HDMI-to-DVI adapter, the DVI analog audio inputs on your TV allow you to receive left and right audio from your DVI device.
This input is HDCP (High-Bandwidth Digital Copy Protection) compliant.
11. M-Link/RS-232C Control
A digital control interface that works in conjunction with M-Link. While M-Link provides the digital video signal, the RS-232 control provides enhanced functioning such as automatic power ON/OFF and input port selection with an external control system. For RS-232 command protocol please visit www.mitsubishi-tv.com.
12. Digital Audio Output
This output will automatically send Dolby® Digital audio from digital channels and IEEE 1394 devices to a digital Audio/Video receiver. Connect this output to the A/V receiver's coaxial digital audio input. The output will automatically turn off when viewing an analog channel or device. Use Monitor Output Audio 2 to send analog sound to your A/V receiver.
Some digital cable channels send MPEG-1 digital audio instead of Dolby Digital, however, not all A/V receivers can decode MPEG-1 digital audio. This can cause the A/V receivers to produce a loud noise that can damage speakers. For this reason, the TV will automatically turn off the digital audio output when tuned to a channel or device that has MPEG-1 digital audio and send it to the A/V receiver as analog left and right audio from Monitor Output.
Chapter . . .
Connecting
External Devices & NetCommand® Setup....16
Wall Outlet Cable or Cable Box 17
CableCARD™ Technology....18
Single Lead Antenna....19
Separate UHF and VHF Antennas ....19
VCR Video and Audio to an Antenna or Wall Outlet Cable .....20
VCR Video and Audio to a Cable Box 21
A/V Receiver or Stereo System....22
Satellite Receiver or Other Device with S-Video 22
DVD Player with Component Video....23
Computer with a PC Monitor Output ....23
DTV Receiver
with Component Video....24
with RGB, HV Video 25
M-Link Control, RS-232 Connection....26
HDMI Device....26
DVI Device....26
IR Emitter NetCommand® 27
Compatible IEEE 1394 Devices....28
Helpful Hints ....30
Connecting External Devices & NetCommand® Setup
NetCommand is able to control many current audio and video devices by sending remote control signals from the TV to each device through IR emitters. Additionally, it is also able to learn the remote control signals used by most audio video devices not already in the TV's memory. NetCommand can automatically switch the TV and compatible or learned Audio/Video (A/V) Receivers to the correct input used with each device. It is important that the inputs on the TV and A/V receiver back panels match the NetCommand setup that is displayed on-screen.

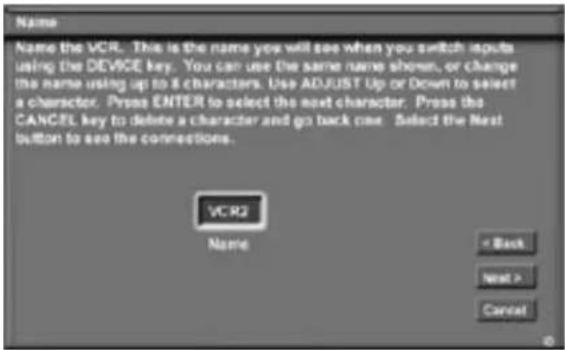

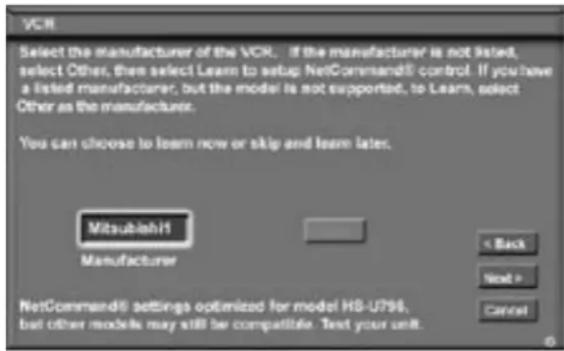

To simplify the installation of NetCommand, there is a step-by-step on-screen NetCommand Setup procedure in this chapter, which details the type and brands of devices you are connecting to the TV. The NetCommand Setup also assigns preset TV and A/V receiver inputs for each device. You should connect each device to the TV input (both audio and video) and to the A/V receiver (audio) as shown in the figure below.


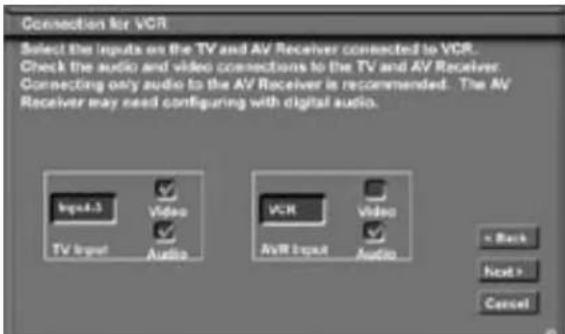

The following charts show which preset inputs you should use on the TV and A/V receiver.
Chart 1 shows TV inputs.
Chart 2 shows the A/V receiver inputs used by A/V receiver models already known by NetCommand.
| Chart 1 | |
| Device Audio and Video Outputs to TV Inputs | |
| Cable for CableCARDTM Service | ANT-1 |
| Antenna/Cable (digital/analog) | ANT-1 if primary viewing source, ANT-2 if secondary viewing source |
| Cable box | ANT-2 |
| VCR | Input-1 |
| Satellite Receiver (DBS) | Input-2 |
| Camcorder | Input-3 (on front panel) |
| DVD Player | Component-1 |
| Chart 2 | Mitsubishi 1 | Mitsubishi 2 | Bose | Denon | Integra | Kenwood | Marantz | Pioneer 1 | Pioneer 2 | Rotel | Sony | Yamaha 1 | Yamaha 2 |
| Model M-VR800 & M-VR1000 | Model M-VR900 & M-VR700 | Model Lifestyle @28 | Model AVR-2700 | Model DTR-9.1 | Model VR-2080 | Model SR8200 | Model VSX-D557 | Model VSX-49TX | Model RSX-1065 | Model STR-DE825 | Model RV-X2095 | Model RX-V2200 | |
| Device Audio Output to AV Receiver Inputs by Name | |||||||||||||
| VCR | VCR 1 VCR | VCR VCR-1 | Video 1 Video | VCR1 | VCR/Tape | VCR 1/DVR | Video 2 | Video 1 | VCR 1 | VCR 1 | |||
| Satellite Receiver | Aux | Cable/DBS | AUX | CD | Video 3 | Video 3 | DSS | CD | SAT | Video 4 | TV/DBS | TV/DBS | D-TV/LD |
| DVD Player | DVD | DVD | (built-in) | DVDVDP | DVD | Video 4 | DVD | LD/SAT | DVD/LD | Video 5 | TAPE/MD | CD | DVD |
| TV Monitor Output (& Digital Audio) | TV | TV | TV | TV/DBS | Video 4 | Video 4 | TV | DVD/TV | TV | Video 1 | DVD/LD | DVD/LD | CBL/SAT |

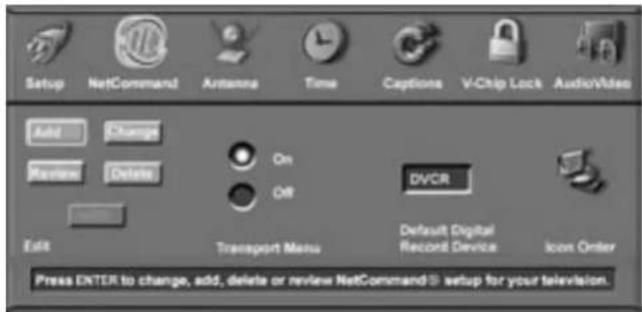

After using NetCommand Setup, you may go to the NetCommand menu at any time to change the inputs you used for connecting each device, custom name devices, add devices not included in the presets above or delete devices no longer used. See Edit NetCommand. See Helpful Hints, at the end of this chapter for additional information on device setup.
Connecting a Wall Outlet Cable or Cable Box
Wall Outlet Cable
(can be used with a CableCARD™)
Figure 1
It is very important to connect the incoming cable for your primary viewing source to ANT-1, especially for CableCARD™ use.
- Connect the primary incoming coaxial lead cable to ANT-1 MAIN on the TV back panel.
- For an optional secondary antenna source, connect an antenna (or cable) to ANT-2 AUX.
- If you have subscribed to a CableCARD™ service, the CableCARD can now be inserted into the CableCARD SLOT. Using a phillips screwdriver, remove the CableCARD cover screws. Insert the CableCARD, then replace the cover and screws. Additional CableCARD information is on page 18.
Figure 1. Wall Outlet Cable
IMPORTANT
Additional connection cables are not provided with the TV. They are available at most electronic stores.
Cable Box (compatible with PIP/POP)
Figure 2 3 coaxial cables and one two-way RF splitter are required. These are not included with the TV.
It is very important to connect the incoming cable for your primary viewing source to ANT-1, especially for CableCARD™ use.
- Connect the incoming cable to IN on an RF splitter.
- Connect one coaxial cable from OUT on the RF splitter to ANT-1 MAIN on the TV back panel.
- Connect one coaxial cable from OUT on the RF splitter to IN on the cable box.
- Connect one coaxial cable from OUT on the cable box to ANT-2 AUX on the TV back panel.
Figure 2. Connecting a Cable Box

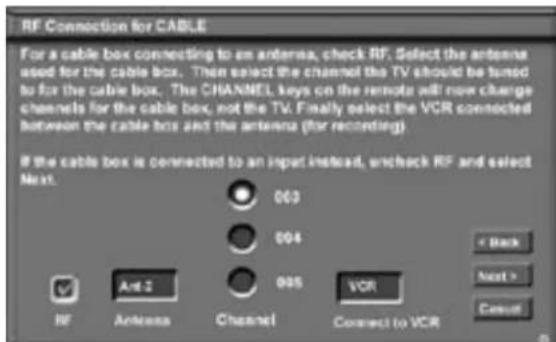

Note: Net Command® will assume that your Cable Box is connected as shown above. Also, that Channel 3 is the default output channel for the cable box. If either the connections or output channel are different, use the Change option of Edit NetCommand to apply the changes.
CableCARD™ Technology
CableCARD Technology
CableCARD is a nationwide system standard that allows your local cable TV provider to supply you with an access card customized to your account. This card allows your TV to receive, decode and unscramble the premium digital channels included in your cable TV subscription, without the use of a cable box. It also allows your cable provider to automatically update and change your subscription. When you move to a new cable provider's area, you simply return the CableCARD to the original cable provider and get a new card from your new cable provider.
Please note that CableCARD is a new technology and your local cable provider may not currently be offering this service. As time passes, this system will become broadly supported by most cable providers.
The CableCARD system is “unidirectional” which means your cable provider can send updates to the access card and TV, however, the TV cannot send back signals such as requests for Video-On-Demand or Pay-per-View request by remote control.
Digital cable channels authorized by the CableCARD will be available on the Firewire® IEEE 1394 network and can be shared by other products on the network. Some digital channels or programs may not be copied or recorded because of copy restriction limits set by the content owners or copyright holders.
The digital television is cable of receiving analog basic, digital basic and digital premium cable television programming by direct connection to a cable system providing such programming. A security card (CableCARD) provided by your cable operator is required to view encrypted digital programming. Certain advanced and interactive digital cable services such as video-on-demand, a cable operator's enhanced program guide and data-enhanced television services may require the use of a set-top box. For more information call your local cable operator.
Please see page 17 for instructions on how to insert the CableCARD.
Using a CableCARD
After inserting a CableCARD into the TV back panel CableCARD slot and powering On the TV, the initialization process begins. An initial screen will automatically display for a few minutes, with information that your Cable Provider will need in order to start service. Please write down this information before calling your cable provider.
Please call XYZ Cable
at xxx-xxx-xxxx to
activate cable service.
They will need these numbers:
Host ID X-XXX-XXX-XXX-XXX
CableCARD™ ID: X-XXX-XXX-XXX-XXX
See owner's manual for
further information
An example of an initial screen is shown here. Your screen will display specific information from your cable provider and may not look like this screen.
If you were unable to record the information, you can press TV MENU on the remote and then enter the number 999 and the screen will re-display. You can also press DEVICE MENU when the CableCARD is the selected source and you will be able to select the startup application.
IMPORTANT
To use a CableCARD, the primary incoming cable must be connected to ANT-1 MAIN.
Connecting a Lead Antenna or Separate UHF and VHF Antenna
Lead Antenna (not for use with CableCARD™)
Figure 3 A 300-Ohm to 75-Ohm transformer is required. This is not included with the TV, but is available at most electronics stores.
For antennas with twin flat lead
-
For antenna with twin flat leads, connect the 300-Ohm twin leads to the 300-Ohm to 75-Ohm transformer.
-
Push the 75-Ohm side of the transformer onto ANT-1 MAIN on the TV back panel.
For cable or antenna with coaxial lead
- Connect the coaxial lead directly to ANT-1 MAIN on the TV back panel.
Figure 3. Connecting a Single Antenna
Separate UHF and VHF Antenna
Figure 4 A UHF/VHF combiner is required. This is not included with the TV.
-
Connect the UHF and VHF antenna leads to the UHF/VHF combiner.
-
Push the combiner onto ANT-1 MAIN on the TV back panel.
Figure 4. Connecting separate UHF and VHF Antennas
Mitsubishi strongly recommends against using antennas with twin flat leads. Twin flat lead antenna wires are subject to interference which may adversely affect the performance of the TV. We recommend using coaxial antenna cable.
Connecting VCR Video and Audio to an Antenna or Wall Outlet Cable
VCR Video and Audio to an Antenna or Wall Outlet Cable
Figure 5 A two-way RF splitter, 3 coaxial cables, right and left audio cables and a S-Video or Video cables are required. These are not included with the TV.
-
Connect the incoming cable or Antenna to IN on the RF splitter.
-
Connect one coaxial cable from OUT on the RF splitter to ANTENNA IN on the VCR back panel.
-
Connect one coaxial cable from OUT on the RF splitter to ANT-1 MAIN on the TV back panel.
-
To use the TV speakers with the VCR, connect a set of audio cables from AUDIO OUT on the VCR back panel to INPUT-1 AUDIO-LEFT (MONO) and AUDIO-RIGHT on the TV back panel. The red cable connects to the R (right) channel and the white cable connects to the L (left) channel. If your VCR is mono (non-stereo), connect only the white (left) cable.
-
Connect either an S-Video or Video cable from VIDEO OUT on the VCR back panel to INPUT-1 VIDEO on the TV back panel. Only one type of video cable should be connected. S-Video is recommended, if available.
-
For NetCommand® controlled recordings, connect a set of audio cables from AUDIO IN on the VCR back panel to MONITOR OUTPUT AUDIO/VIDEO 1 AUDIO-LEFT (MONO) and AUDIO-RIGHT on the TV back panel. The red cable connects to the R (right) channel and the white cable connects to the L (left) channel.
-
Complete the NetCommand controlled recordings connections by connecting a Video cable from VIDEO IN on the VCR back panel to MONITOR OUTPUT AUDIO/VIDEO 1 on the TV back panel.
Figure 5. Connecting a VCR to an Antenna or Wall Outlet Cable
Note:
NetCommand® will assume your VCR is connected to inputs as shown on this page. If you use any other inputs for your VCR or add a second VCR, this change must match in the NetCommand system. See Edit NetCommand... in Chapter 3 for more information.
Connecting VCR Video and Audio to a Cable Box
VCR Video and Audio to a Cable Box
Figure 6
A two-way RF splitter, 4 coaxial cables, right and left audio cables and an S-Video or Video cable are required. These are not included with the TV.
- Connect the incoming cable to IN on the RF splitter.
- Connect one coaxial cable from OUT on the RF splitter to ANTENNA IN on the cable box back panel.
- Connect one coaxial cable from OUT on the RF splitter to ANT-1 MAIN on the TV back panel.
- Connect one coaxial cable from OUT on the cable box to ANTENNA IN on the VCR back panel.
- Connect one coaxial cable from ANTENNA OUT on the VCR back panel to ANT-2 AUX on the TV back panel.
- To use the TV speakers with the VCR, connect a set of audio cables from AUDIO OUT on the VCR back panel to INPUT-1 AUDIO-LEFT (MONO) and AUDIO-RIGHT on the TV back panel. The red cable connects to the R (right) channel and the white
cable connects to the L (left) channel. If your VCR is mono (non-stereo), connect only the white (left) cable.
- Connect either an S-Video or Video cable from VIDEO OUT on the VCR back panel to INPUT 1 VIDEO on the TV back panel. Only one type of video cable should be connected. S-Video is recommended, if available.
- For NetCommand® controlled recordings, connect a set of audio cables from AUDIO IN on the VCR back panel to MONITOR OUTPUT AUDIO/VIDEO 1 AUDIO-LEFT (MONO) and AUDIO-RIGHT on the TV back panel. The red cable connects to the R (right) channel and the white cable connects to the L (left) channel.
- Complete the NetCommand controlled recordings connections by connecting a Video cable from VIDEO IN on the VCR back panel to MONITOR OUTPUT AUDIO/VIDEO 1 on the TV back panel.
Figure 6. Connecting a VCR to a Cable Box
Note:
NetCommand® will assume your VCR is connected to inputs as shown on this page. If you use any other inputs for your VCR or add a second VCR, this change must match in the NetCommand system. See Edit NetCommand... in Chapter 3 for more information.
Connecting an A/V Receiver or Stereo System or a Satellite Receiver or Other Device with S-Video
A/V Receiver or Stereo System
Figure 7 A digital audio cable and stereo audio cables are required. The digital audio cable is provided. The stereo audio cables are not included with the TV.
- Connect a set of stereo audio cables from OUTPUT AUDIO 2 on the TV back panel to the TV AUDIO INPUT on the back of the A/V receiver. The red cable connects to the R (right) channel and the white cable connects to the L (left) channel.
To connect a digital A/V receiver with Dolby® Digital surround sound:
- Connect one end of the digital audio cable supplied with the TV to DIGITAL AUDIO on the back of the TV. Connect the other end to the COAXIAL DIGITAL INPUT on the back of the A/V receiver.
Check A/V receiver's Owner's Guide for information concerning the use of the digital input and switching between the digital sound and analog stereo sound from the TV.
Figure 7. Connecting an A/V receiver
Satellite Receiver or Other Device with S-Video
Figure 8 An S-Video cable and audio cables are required. These are not included with the TV.
-
Connect an S-Video cable from VIDEO OUT on the satellite receiver back panel to INPUT-2 VIDEO on the TV back panel.
-
Connect a set of audio cables from AUDIO OUT on the satellite receiver back panel to INPUT-2 AUDIO, on the TV back panel. The red cable connects to the R (right) channel and the white cable connects to the L (left) channel.
Note: Refer to the Satellite Receiver Owner's Guide for Dish Antenna connections.
Figure 8. Connecting a Satellite Receiver with S-Video
Note: NetCommand® will assume you connected your Satellite Receiver to Input-2. If you add a second Satellite Receiver or use any other inputs for your Satellite Receiver, this change must match in the NetCommand system. See Editing NetCommand Setup in Chapter 3 for more information.
Connecting a DVD Player with Component Video or Computer with a PC Monitor Output
DVD Player with Component Video
Figure 9 Component video cables and audio cables are required. These are not included with the TV.
-
Connect the Component Video cables from Y/Pr/Pb VIDEO OUT on the back of the DVD player to COMPONENT-1 on the TV back panel, matching the correct connection:
-
Y to Y (Green)
- Pr to Pr (Red)
-
Pb to Pb (Blue)
-
Connect a set of audio cables from AUDIO OUT on the back of the DVD player to COMPONENT-1 AUDIO Input on the TV back panel. The red cable connects to the R (right) channel, and the white cable connects to the L (left) channel.
Figure 9. Connecting a DVD Player with Component Video
Note: NetCommand® will assume you connected your DVD player to Component-1. If you add a second DVD or use any other inputs for your DVD, this change must match in the NetCommand system. See Edit NetCommand... in Chapter 3 for more information.
IMPORTANT
See Appendix B for component video signal compatibility information.
For digital audio connections, see your DVD Owner's Guides.
Computer with a PC Monitor Output
Figure 10
-
Connect PC Monitor Out from the computer to PC Input on the TV back panel using a PC compatible monitor cable. See Appendix B for PC signal compatibility.
-
Connect the L (left) and R (right) audio cables from the computer to PC AUDIO on the TV back panel. In cases where your computer's audio output is a single mini-jack, a splitter is needed to complete this connection.
Note: To utilize the benefits of a digital A/V receiver, connect your computer's digital audio out, if available, to a digital input on your digital A/V receiver.
Figure 10. Connecting a Computer with a PC Monitor
CAUTION: To ensure continued FCC compliance, the user must use a shielded video interface cable with bonded ferrite cores at both ends when using the PC input.

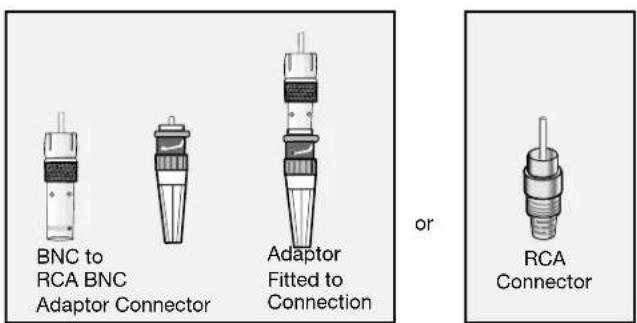

DTV Connectors and Adaptors Connecting a DTV Receiver with Component Video
DTV Connectors and Adaptors
Figure 11
The TV back panel has 5 RCA-type connectors for the Input-DTV. The back panel of your external DTV receiver may use RCA-type connectors or BNC-type connectors. If your DTV receiver comes with BNC type connections, you will need to purchase BNC to RCA adaptors to connect the TV to the DTV receiver. These adaptors should be available at most electronic supply stores.
Figure 11. DTV Connectors and Adaptors
IMPORTANT
See Appendix B for component video signal compatibility information.
For digital audio connections, see your DTV Receiver and A/V receiver Owner's Guides.
DTV Receiver with Component Video
Figure 12
A coaxial splitter, RCA component video cables and audio cables are required. These are not included with the TV.
- Connect the outside antenna, cable or satellite to ANT or SATELLITE IN on the DTV receiver (see your DTV receiver's owner's guide for instructions and cable compatibility).
-
Connect the incoming terrestrial antenna or cable (not satellite) to ANT-1 on the TV back panel (a coaxial splitter, available at most electronic supply stores, may be required to complete this installation).
-
Connect RCA-type cables from the YPrPb outputs
on the DTV receiver to Input-DTV on the TV back panel, matching the correct connections:
DTV Receiver to TV Back panel
- Y to Y
- Pr to Pr
-
Pb to Pb
-
Connect the L (left) and R (right) audio cables from the DTV receiver to Input-DTV AUDIO on the TV back panel.
Note: To utilize the benefits of a digital A/V receiver, connect your DTV receiver's digital audio out to a digital input on your digital A/V receiver.
Figure 12. Connecting an External DTV Receiver with Component Video Connections
Connecting a DTV Receiver with RGB, HV Video
DTV Receiver with RGB, HV Video
Figure 13 A coaxial splitter, RGB, HV and audio cables are required. These are not included with the TV.
- Connect the outside antenna, cable or satellite to ANT or SATELLITE IN on the DTV receiver (see your DTV receiver owner's guide for instructions and cable compatibility).
- Connect the incoming terrestrial antenna or cable (not satellite) to ANT-1 on the TV back panel (a coaxial splitter, available at most electronic supply stores, may be required to complete this installation).
- Connect RGB cables from the DTV receiver to Input-DTV on the TV back panel.
DTV Receiver to TV Back Panel
• G (green) to Y/G
• R (red) to Pr/R
• B (blue) to Pb/B
- Connect the H & V sync signals as shown below:
• H (horizontal sync) to H
• V (vertical sync) to V
All 5 cables (G,R,B,H and V) must be connected. 3 cables or Sync on green connections are incomplete or not compatible and will not work.
5. Connect the L (left) and R (right) audio cables from the DTV Receiver to Input-DTV AUDIO on the TV back panel.
It may be necessary to obtain a VGA to RGB, HV adaptor cable. These are available at most computer stores and many electronic stores. Some of the adaptor cables have RCA type connector ends, others have BNC type ends and will require adaptors as shown on page 24.
Figure 13. Connecting an External DTV Receiver with RGB Video Connections
IMPORTANT
See Appendix B for RGB, HV video signal compatibility information.
For digital audio connections, see your DTV Receiver and A/V receiver Owner's Guides.
Connecting M-Link Control RS-232C Connection, or a HDMI or DVI Device
M-Link Control RS-232C Connection
Figure 14 A 9 pin RS-232C cable is required. This is not included with the TV. It may be available at your local electronics retailer
As M-Link Control, connect to a Mitsubishi HD Receiver/Controller, like the HD-5000 or HD-6000. As RS-232C, connect to other external controllers. See mitsubishi-tv.com for RS-232C command protocol. Connect a 9 pin RS-232C cable from the TV back panel to the M-Link or RS-232C on the external control device.
Figure 14. Connecting M-Link Control
HDMI Device
Figure 15 An HDMI to HDMI cable is required. This is not included with the TV. It may be available at your local electronics retailer
Connect an HDMI cable from the TV back panel to the HDMI device output. HDMI devices provide video and audio through this cable, so no other connection is required.
Figure 15. Connecting HDMI Device
DVI Device
Figure 16 A DVI-to-HDMI cable or DVI/HDMI adaptor and HDMI cable and audio cables are required. These are not included with the TV. They may be available at your local electronics retailer.
- Connect the DVI-to-HDMI cable (recommended) (or DVI/HDMI adaptor with an HDMI cable) from the DVI device's back panel to the TV back panel.
NOTE: If you are using a DVI/HDMI adaptor, it is important to connect the adaptor to the DVI side for best performance.
- Connect a set of audio cables from AUDIO OUT on the the DVI device back panel to the DVI Analog Audio input on the TV back panel. The red cable connects to the R (right) channel, and the white cable connects to the L (left) channel.
NOTE: The HDMI connection supports copy protection (HDCP). Some devices require connecting to an analog input first, in order to view on-screen menus and select DVI as the output. Please review your equipment instructions for DVI connectivity and compatibility.
Figure 16. Connecting a DVI Device
CAUTION: To ensure continued FCC compliance, the user must use a shielded video interface cable with bonded ferrite cores at both ends when using the PC input.
Connecting the IR Emitter NetCommand®
IR Emitter NetCommand®
Figure 17
A quadruple IR Emitter cable is included with the TV.
The emitters connected to these jacks are used by the NetCommand system to control other devices such as VCRs, DVD players, Cable boxes and Satellite receivers.
- Connect the plug end of the supplied quadruple IR Emitter Cable to one of the IR Output NetCommand jacks on the TV back panel.
- Run the cable for each of the emitter ends under, along side or over the top of each device to be controlled to the area of the front where the remote control sensor is located.
- Place the emitter end in front of the remote control sensor of the device to be controlled. The emitter bulb should face the remote control sensor. This bulb emits infrared light in a cone shaped pattern. The bulb needs to be placed far enough from the remote control sensor to allow the cone pattern to include the sensor.
The remote control sensor is usually behind the plastic window of the front display panel. It is sometimes visible when you look through the display plastic using a flashlight and is normally a round or square cutout behind the plastic. If you cannot see the sensor and the device's Owner's Guide does not specify the location, you can find it by using the device's remote control. Hold the remote about 1/2 inch from the front of the device. Starting from one end of the display window plastic, press the POWER button.
If the device does not respond, move the remote control 1 inch toward the center and try again. Repeat this until the device responds. Note this location then start over from the other end of the display window plastic, repeating until the device responds again. The remote control sensor will be somewhere between these two positions. This is usually enough accuracy for the placement of the IR emitters.
-
With some devices, the emitter will work better facing downward from the top of the device. Some experimentation may be needed.
-
The emitter end being used can be secured in place using double stick tape.
-
If you are not going to be using all emitter ends, place the unused ends behind the devices so that they cannot send signals to the remote control sensors.
Figure 17. Connecting IR Emitter NetCommand
IMPORTANT
If a single emitter end can be placed in a position that will operate more than one device, do not use a separate emitter end for the additional device. A single device receiving remote control signals from too many emitters or remote controls may not respond at all.
Connecting Compatible IEEE 1394 Devices
Compatible IEEE 1394 Devices
It is possible to connect devices to the TV that have IEEE 1394 connectors but are not compatible with the TV or with the NetCommand ^® control system. Areas of compatibility to consider are:
1. Digital Video Signals
The TV is able to decode MPEG2 video. Other types of digital video, such as DV video provided by some camcorders, must be decoded by the source device and sent to the TV as analog video or S-Video. If the camcorder uses a compatible digital control system, the IEEE 1394 cable can still provide control for the camcorder while the TV is viewing the analog video or S-Video signals.
2. Digital Audio Signals
When received with video signals, the TV is able to decode Dolby Digital signals and MPEG audio signals. Other types of digital audio as provided by some digital recording devices, such as MP3 audio and DTS audio, cannot be decoded by the TV when received over IEEE 1394.
The TV may not be able to pass incompatible digital audio signals on the coaxial digital audio output, however these signals may pass on the IEEE 1394 cable to other devices.
3. Digital Control Signal
The TV is able to act as the control center for IEEE 1394 audio/video devices, such as VCRs, A/V Discs, tuners, cable boxes and amplifiers that are compatible with the following IEEE 1394 control standards.
- EIA-775 is designed for tuning devices such as cable boxes allowing the device to send simple graphics. However, this standard does not allow the TV to control the cable box by IEEE 1394.
- AV/C (Audio Video Control) is designed to provide basic controls such as play, stop, channel selection and volume, as appropriate for the device.
Some devices may be a combination of two or more types of devices. For example, there may be a recording device that is also a tuning device. Each portion of the device is called a sub-unit. When you select a device on the Device Selection menu that has sub-units, a pop-up menu will appear so you can select which sub-unit section you wish to use.
When Connecting IEEE 1394 Devices
- Do not loop the last device in the chain back to the TV. When the device chain is looped, the TV may not be able to work with the other devices.
- Place devices that have only a mechanical (two-position) power switch at the end of the chain or leave the power switch in the On position. When turned Off, IEEE 1394 signals may not be able to pass through the device to other devices.
- Place devices with the slowest communication speed at the end of the chain. Sometimes the communication speed will be marked near the IEEE 1394 connector with an "S" number. The higher the number, the faster the communication speed. This TV has a communication speed of S400. Devices with slow communication speed can interfere with IEEE 1394 signals from faster devices. When using NetCommand to set up a digital recording between a faster and slower device, select "Record Later".
- Do not use an IEEE 1394 cable longer than 15 feet between each device.
- This TV is an IEEE 1394a Device. IEEE 1394b is currently under development. This system will provide for longer distances and multi-room applications. Included in the IEEE 1394b systems are IEEE 1394a to IEEE 1394b converters to maintain compatibility with this TV and other IEEE 1394a devices.
Connecting Compatible IEEE 1394 Devices, continued
Connection Styles
There are two different connection styles that can be used when connecting IEEE 1394 devices. Use the style that fits your network of audio/video products.
Direct Device-To-Device Style
The IEEE 1394 offers you the capability to chain devices, unlike previous audio and video connections where you had to individually connect each device directly to the TV. For example, you can connect your D-VHS to your 1394 DVD Player and then connect the 1394 DVD Player to the TV. The resulting IEEE 1394 chain will allow you to add more devices to the chain. You will be able to see each video device on the TV's Device Selection Menu and send information from any IEEE 1394 device to other compatible devices.
Hub Connection Style
The IEEE 1394 also offers you the capability to connect your devices using the TV as a hub within the audio/video network. Each device can send information, which may include audio and video, to any other device in the network.
4-Pin Style vs. 6-Pin Style Connectors
There are two different types of connectors used for IEEE 1394 terminals and cables, a 4-pin and a 6-pin style.
4 pin connector
The 4-pin connector sends digital audio signals, digital video signals and digital control signals back and forth between devices. Your TV has three 4-pin type connection jacks available. One is on the front panel and two are on the back.
6 pin connector
The 6-pin connector is capable of sending the same digital audio, video and control signals as the 4-pin connector, but the 6-pin connector is also able to send low voltage electrical power. This TV does not have 6 pin connectors.
The purpose of this low voltage electrical power is to provide the needed operating power to a device that is not connected directly to the household AC power such as a camcorder. A device with a 6-pin connector can send this electrical power to another device, or receive electrical power from another device, or simply use a 6-pin connector without using the two additional pins.
6 pin to 4 pin adaptor
A 6-pin connector cannot be connected directly to a 4-pin jack, and vice versa. To connect a 6-pin device to a 4-pin device, you will need to obtain a 6-pin to 4-pin adaptor or adaptor cable. These cables are available from electronic and computer stores.
When connecting a 6-pin device (such as a camcorder) to the TV, (if it is designed to receive electrical power from another 6-pin device) you will need to connect the camcorder directly to the household AC, or use the camcorder's battery for power. If this is not possible, then the camcorder will need to be connected directly to another 6-pin device in the network that can provide the electrical power.
Connecting: Helpful Hints
Q My VCR (or other device) does not have two sets of stereo audio outputs. How can I connect this device's audio to both the TV and the A/V Receiver?
A. There are two solutions:
-
Connect the single set of stereo audio outputs to the TV only. Use Edit NetCommand® to change the setup of this device. In the Connection screen of "Change" make sure both audio and video for the TV input are checkmarked and neither the audio or the video for the AVR input are check marked. This will allow the NetCommand system to use the TV outputs to transfer the device's audio to the A/V Receiver. See Edit NetCommand in the next chapter for details.
-
Use RCA type "Y" splitter cables to split the device's audio output to be connected to both the TV and the A/V Receiver.
Q. I have both the TV monitor stereo audio output and TV digital audio output connected to the same input designation on my A/V Receiver. How do I switch between analog audio and digital audio?
A. This depends on the individual A/V Receiver. Some A/V Receivers will switch automatically to digital when a digital audio signal is supplied. Other A/V Receivers can be manually switched by remote control. For these types of A/V Receivers, see Edit NetCommand in the next chapter for NetCommand control of these features. Some A/V Receivers will require that you make this change on the front panel of the A/V Receiver.
Q. The front panel of my A/V Receiver is too tall or too convex for the IR emitter signal to reach the remote control sensor of the A/V Receiver. What can I do?
A. There are several possible solutions.
- Mount the IR Emitter on the top, front edge of the A/V Receiver over the remote control sensor. Use tape to secure it in place.
- Mount the IR Emitter on the underside of the shelf above the A/V Receiver (if the A/V Receiver is in a cabinet). Use double sided tape to secure it in place.
- Some small stick-on emitters from other manufacturers may be compatible with this TV's IR Emitter jacks. These may be used instead of the supplied IR Emitters.
Q. I occasionally need to see the menu from my A/V Receiver. How can I connect it to the TV for this purpose?
A. You can connect the video output of the A/V Receiver to an unused input on the TV. Then use Edit NetCommand to "Add" this as an "Other" device, not an A/V Receiver. On the "Connection" screen, indicate which TV input was used and checkmark the video box. Make sure the TV input audio box and both the audio and video boxes for the AVR input are not checkmarked. You should also name this device so you can easily identify it on the Device Selection Menu. You can also use Input 3 (Camcorder) on the front panel.
Q. I have a high definition receiver I would like to connect and it also has an S-video output I would like to be able use as well. Is there any way to connect this receiver both ways?
A. Yes, this item will appear twice in the Device Selection Menu. Just add this unit once using the Input-DTV and once using one of the S-video inputs. Make sure you indicate that this is the same manufacturer for both. We suggest that you connect stereo audio outputs with the S-video to the TV so that you do not need to use two inputs on the A/V Receiver. If this is a NetCommand compatible HDTV receiver and HD or SD outputs can be switched by remote control, see Edit NetCommand in the next chapter for NetCommand control of this feature.
Chapter . . .
NetCommand® Setup and Editing
Using the Remote Control with NetCommand® ....32
Remote Control Functions: Overview....33
Remote Control Functions:
Operation 34
Care ....34
Sleep Timer....34
NetCommand® OnScreen Buttons....35
3D Graphical Viewpoint® Menu System 36
NetCommand® Initial Setup....37
Edit NetCommand®
Add an A/V Receiver....39
Add Devices....42
Change....46
Delete Devices 46
Finish Screen....46
Using the Remote Control with NetCommand®
Below is a list of several manufacturers devices tested and shown to be compatible with NetCommand. These devices can be controlled without changing the setting of the remote control from TV to another product. NetCommand may be able to operate additional models since many manufacturers use the same control signals to operate some or all of the models they offer. This chart lists only the models that have been tested with NetCommand. The NetCommand Learning feature is able to learn the remote control signals of most Audio Video devices. For devices not listed in the table, or if your device does not operate using the same remote control as the models listed below, use the learning feature by selecting "Other" at the [Device] screen. See the Edit NetCommand section of this Guide.
NOTE: There are many different types of remotes and not all of them may be compatible with the learning feature. Bright light near the TV screen can also adversely affect the learning feature. If it is not possible to learn a device, you will need to use the original remote control of the device, or program the TV remote to operate these devices in the traditional manner.
NetCommand Pre-Memorized Devices
| DEVICE | ||||||
| MANUFACTURER | A/V receiver Cable Box DBS Satellite | Receiver | DVD Player VCR | |||
| Mitsubishi M-VR800, M-VR900 | SR-HD5 DD-6000, DD-8020 | HS-U795, HS- | U778 | |||
| Bose Lifestyle® 28 Lifestyle® 28 | ||||||
| Denon AVR-2700 | ||||||
| Echostar 6000 | ||||||
| Funai F260LA | ||||||
| General Instruments | CFT2200 | |||||
| Hitachi DV-P415U | VT-FX665A | |||||
| Hughes | HIRD-E45, HIRD-E86 | |||||
| Integra | DTR-9.1 | DPS-9.1 | ||||
| JVC | XV-S65GD | HR-VP 650U | ||||
| Kenwood | VR2080 | |||||
| Marantz | SR8200 | |||||
| Microsoft | XBox^TM (requires the DVD kit from Microsoft) | |||||
| Motorola | DCT2244 | |||||
| Panasonic | TU-HDS20 | DVD-A310 | PV-8662 | |||
| Philips | VR620CAT | |||||
| Pioneer | VSX-D557, VSX-49TX | DV-414 | ||||
| RCA | DRD480RE, DTC-100 | |||||
| Rotel | RSX-1065 | |||||
| Scientific Atlanta | 8600 | |||||
| Sharp | VC-H810U | |||||
| Sony STR-DE825 | SAT-A55 | DVP-S500D, Play Station® 2(Playstation® 2 requires the DVD Remote Controller kit from Sony; DVD Player software disc version 2.10) | SLV-778HF | |||
| Toshiba | DTS-3000 | SD-9200, SD-5109 | W-717 | |||
| Yamaha | RX-V2095, RX-V2200 | DVD-S520, DVD-C996 | ||||
| Zenith | DTV1080 | |||||
Remote Control Functions: Overview
Overview
Figure 1, following page
- Slide Switch: Selects A/V product to be controlled by the remote control. Select TV for NetCommand® device control.
- Numbers: Individually selects channels or enters information into menus.
- POWER: Turns power on and off for TV and other A/V products.
- SQV (SuperQuickView™): Scans through memorized lists of favorite channels.
- QV (QuickView™): Switches between the current channel and last channel viewed.
- SUB/CANCEL: Clears SQV and some menu entries and cancel recordings. For digital channels, adds separator between major and sub channel numbers.
- DEVICE: Displays the Device Selection menu to select the device to view (Ant-1 and Ant-2 or devices connected to the TV's inputs including IEEE 1394 devices).
- CHANNEL: Scrolls up or down through memorized channels.
- VOLUME: Changes sound level.
- MUTE: Turns sound on or off.
- TV MENU: Displays ▶ViewPoint een menu system.
- ADJUST: Press ◀▶ and to navigate menus, change settings, and move the PIP on-screen location. Operates many NetCommand® functions.
- ENTER: Selects a channel number or menu item.
- GUIDE: Displays ChannelView for Ant-1 and 2. Displays Track List for A/V Disc. Displays program guide for satellite receiver, some cable boxes or DVD Disc menu. Displays thumbnails or playlists for media card files.
- Light: Located on the right side of the remote control, this feature illuminates buttons or labels.
- DEVICE MENU: Displays menus for devices connected to TV, including CableCARD™.
-
HOME: Exits TV on-screen menus and return to TV viewing.
-
V-CHIP: Turns On or Off the V-Chip Lock.
- INFO: Displays on-screen summary of the current device used and any broadcast information available (including current V-Chip information). See Appendix D for details.
- AUDIO: Selects and adjusts individual audio settings.
- VIDEO: Selects and adjusts individual video settings.
- PIP CH: Scrolls up or down through memorized channels for PIP or POP.
- PIP/POP: Cycles through PIP and POP display choices.
- EXCH: Exchanges PIP or POP and main TV picture.
- SLEEP: Sets the TV to turn off within 2 hours. See next page for setup instructions.
- PIP DEVICE: Displays PIP Selection menu to select the PIP or POP image source device

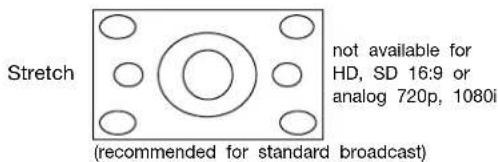

- FORMAT: Changes the shape and size of the main TV picture.
- CONNECT: Initiates IEEE 1394 peer-to-peer connections.
- REC (Record): Records with a VCR, sets up recordings for DVCR, IEEE 1394 devices or while in ChannelView.
- PAUSE: When no PIP or POP image is displayed, freezes the main TV picture. When PIP or POP image is visible, pauses that image. Pauses a VCR, DVD or A/V Disc, media card file.
- REW/REV: Rewinds or reverses search with a VCR, reverses scan with a DVD, A/V Disc or media card file.
- PLAY: Plays a VCR, DVD, A/V Disc or media card file.
- STOP: Stops a VCR, DVD, A/V Disc or media card file.
- FF/FWD: Fast forward or forward search with a VCR or media card file, or fast play a DVD.
Remote Control Functions: Operation and Care, Sleep Timer
Figure 1. Remote Control Overview
Operation
Figure 2 Installing the Batteries:
- Remove the remote control's back cover by gently pressing the ribbed tab in the direction of the arrow and sliding off the cover.
- Load the batteries, making sure the polarities (+) and (-) are correct. For best results, insert the negative (-) side first.
Figure 2. Operation: Installing the Batteries
Care
For Best Results from the Remote Control:
- Be within 20 feet of the equipment.
- Do not press two or more buttons at the same time unless instructed.
- Do not allow unit to get wet or become heated.
- Avoid dropping on hard surfaces.
- Do not use harsh chemicals to clean. Use only a soft, lightly moistened cloth.
- Do not mix new and old batteries.
- Do not heat, take apart or throw batteries into fire.
- Use only AA alkaline batteries.
Hint: If the remote is in the TV layer and will not function, press POWER and OOO (or POWER and 935 if NetCommand® is setup) to reset the remote.
Sleep Timer
Setting the Sleep Timer:
- Press SLEEP on the remote control.
- Each press of SLEEP increases the time displayed by 30 minutes, until the maximum value of 120 minutes is reached.
- After 5 seconds of inactivity, the message will disappear.
- Press SLEEP to view the remaining time before the timer turns the TV off.
Canceling the Sleep Timer:
- Press SLEEP to display the on-screen message.
- Press SLEEP repeatedly until OFF is displayed.
Note: After 5 seconds of inactivity, the message box disappears.
NetCommand® Setup On Screen Buttons
To use the TV's NetCommand feature, you need to provide some detailed information during the setup of your Mitsubishi TV. You must define the manufacturer of the devices that are connected to the television, or learn the IR code remote control signals for the device connected. For each device, the input to the TV and A/V receiver, and the names for the device are pre-set during Initial NetCommand setup. You may change those inputs or names using the Edit NetCommand or Learn screens. The buttons described below will help you navigate the screens.
On your remote control, the ADJUST ◀ and ▶ buttons allow you to navigate left and right to different selections on the screen. The ADJUST ▲ and ▼ buttons allow you to:
- Change the radio button
- Change current text box selection
- Navigate up and down on the screen
The ENTER button allows you to:
- Confirm the selected character when naming a device
- Add or delete check marks in check boxes
- Select on-screen buttons to change screens
Textbox
Press ADJUST ▲ or t▼ make a selection.
Checkbox
Checkmarks indicate the item or input is added or turned On. Press ENTER when the Checkbox is highlighted to add or delete a checkmark. When viewing the Review screen, a Checkbox reflects which devices are turned On or Off, or connected to the TV.
Radio Buttons
The setting changes when one of the choices is highlighted.
Control Buttons
Much like the software on your computer, you will use graphic buttons to navigate through the NetCommand Setup screen. Highlight the button and press ENTER to select the function.
Use the Next> Button
Use the Next> button to navigate forward to the next screen.
Cancel Button
The Cancel button will cancel out any changes you are currently making without saving them into memory. When you select the Cancel key, NetCommand will prompt you to confirm that you want to cancel the changes you are currently making. If you select Cancel during Initial Setup, you can setup NetCommand later by selecting the NetCommand menu, then choosing Initial.
3D Graphical ▶ WavePoint System
Your TV also has Mitsubishi's exclusive 3D Graphical ViewPoint operating system, which provides on-screen information for menu choices and changes, using the TV's remote control.
▶ViewPoint Menu Screens
A picture (icon) will be highlighted on the menu screen when selected with the ADJUST arrows. You may then make changes within the menu or access sub-menus, if available.
You can also access sub-menus from a button. Sometimes when you select a button, an automatic function begins.
The ▶ViewPoint includes the following special features:
- The currently selected icon or button is highlighted with a yellow outline; the text color is yellow.
- On-screen instructions, shown in the message line at the bottom of the menu, provide feature selection and adjustment information.
- Some on-screen menu options must be set before other options are available.
Main Menu: This screen will always be the first screen that appears when you press the remote's TV MENU button.
▶ViewPoint Remote Control Buttons
The following buttons on your remote control help you navigate within the ▶ViewPoint
- ADJUST ◀ or ▶ to select the menu item you want to change.
- ADJUST ▲ or ▼ change the settings.
- ENTER to enter into a menu, start an automatic function or select a checkbox.
- CANCEL to clear a setting or stop an automatic function.
- TV MENU to display the main menu or move back one menu screen at a time.
- HOME to exit all menus and return to TV viewing.
Press ADJUST ▲ or ▶ change text boxes. Some text boxes have preset labels. Other boxes allow you to select letters, numbers or characters to customize names.
When customizing names, press ADJUST ▲r ▼o select letters, numbers or characters. Press ENTER to move to the next character position. Use CANCEL to erase letters, numbers or characters or move one space backward.
NetCommand® Initial Setup
IMPORTANT
You may use your TV without setting up NetCommand. You may also set up NetCommand at a later time by choosing the NetCommand menu from the Main menu, then selecting Initial.
When you first power On your new Mitsubishi TV, the initial setup screens appear. Most IR remote control signal formats can be learned by NetCommand.
Welcome Screen
Figure 1
When you first turn on your TV, the Welcome screen displays and asks you to select either English or Spanish as the language for the on-screen menus. The default language is English. To change Language later, select Setup in the Main Menu. Selecting Cancel at this screen will cause the default language (English) to be selected.
Figure 1. Welcome screen
NetCommand (Information) Screen
Figure 2
The NetCommand (Information) Screen describes how to start or delay the initial NetCommand Setup. This screen displays automatically the first time you power On your new TV, after the Welcome screen.
Figure 2. Information screen
If the NetCommand Setup is cancelled before it's completed, you can restart the NetCommand setup by:
- A press of TV MENU on the remote control to display the TV Main menu.
- Select NetCommand. The available options will be: Add, Review or Initial. Change and Delete will be grayed out.
- Press ADJUST ▲, ▼or◀to ▶elect Initial.
- Press ENTER. The Device Setup screen displays.
Device Setup Screen
Figure 3
If the devices connected to the TV are already in NetCommand memory, you can quickly select them at this screen. Press ADJUST ▶ or ▶ move to each device type. Press ADJUST ▶ or ▶ to select the manufacturer. Select "Other" if the manufacturer is not listed. Later, you can use the Change setting in the Edit NetCommand menu to learn the remote control signals for this device. Select "None" for device types that are not connected.
For the A/V Receiver, if the manufacturer is not listed, you cannot select "Other". Instead, select "None". Later, you can use the "Add" feature in the NetCommand menu to have the TV add and learn the remote control signals for this device.
If you have a camcorder connected, check the Camcorder box. NetCommand will not be able to control it, but will reserve the front input to use with the camcorder. After completing your choices, select Next> and press ENTER.
Figure 3. Device Setup screen
NetCommand® Initial Setup, continued
Note: If you selected "Other" for any of the device names, the TV can "Learn" the connected device by following the Edit NetCommand instructions. For many device types, non-listed models will operate in the same way as the listed models and you can still use the pre-loaded setting.
Review Screen
Figure 4
After you have made your device choices the Review Screen will display. It is important to review the settings to ensure that they are correct. If necessary, you can use
Figure 4. Review screen
Note: The Review screen lists the TV input and A/V receiver input used with each device. You must correctly identify the inputs you used when you connected the devices. If you have not connected your devices, write down these inputs as a guide. If you cannot use these inputs, or if you would like to change the name of a device, use the instructions in Edit NetCommand to make necessary changes.
Note: If you select Next> on the Review screen, all selections made are finalized.
On the Review screen, adding or deleting check marks will turn the adjacent devices, media cards or inputs On or Off. 1394 device names only appear on the Review screen when the devices are connected to the TV.
Finish Screen
Figure 5 To complete the NetCommand setup, select Finish from the Finish screen.
If you wish to change any of the pre- configured inputs or names for the devices, or add devices not in the pre-configured setup, select Edit to display Edit NetCommand menu.
If your A/V receiver was not listed, select Edit to add the AVR and then assign all devices to new AVR inputs.
Figure 5. Finish screen
It is still necessary to memorize the available channels for Antenna-1 (and Antenna-2, if used). You may do that by going to the TV Main menu and selecting Antenna. Instructions to memorize channels are found in the Antenna menu section.
Edit NetCommand®, Add an A/V Receiver
A/V Receiver Screen
Figure 6
If your A/V Receiver manufacturer was not listed, and you selected "None" during the initial NetCommand Setup you may add the A/V Receiver and have NetCommand learn its remote controls functions. Either select Edit from the Finish screen or if you have finished the initial setup, go to the Main menu, select NetCommand, then press ENTER. The Edit NetCommand screen will display, select Add.
Figure 6. A/V receiver screen
Choose ONE of these options:
- Select a recognized manufacturer. The model number optimized for NetCommand will display at the bottom of the screen. If a number follows the manufacturer's name, (example: Mitsubishi 1), this indicates additional models are optimized for that manufacturer. For many device types, non-listed models will operate in the same way as the listed models and you can still use the pre-loaded setting.
After selecting Next>, the screens that follow are: the Name Screen (Figure 10), Monitor Out to AVR screen (Figure 11), ending with the Finish screen (Figure 12).
- Select "Other", then highlight "Learn" and press ENTER. This will allow you to have NetCommand learn the remote control signals of this new device.
After selecting "Learn" and pressing ENTER, the screens that follow are: the A/V receiver Inputs screen (Figure 7), A/V Receiver Input Learn screen (Figure 8), A/V Receiver Learn screen (Figure 9), Name screen (Figure 10), Monitor Out to AVR screen (Figure 11), ending with the Finish screen (Figure 12).
- Select "Other", skip Learn and select Next>. This will allow the device to appear and will allow NetCommand to switch inputs to use this device. However, NetCommand will not be able to control this device. Later you may use the "Change" option in the NetCommand menu to learn the remote control signals.
After selecting Next>, the screens that follow are: the A/V Receiver Input screen (Figure 7), Name screen (Figure 10), Monitor Out to AVR screen (Figure 11), ending with the Finish screen (Figure 12).
A/V Receiver Inputs
Figure 7
If you select "Other" as the manufacturer, you will see the A/V Receiver Input screen after selecting "Learn" and pressing ENTER. After selecting the number of inputs, this screen will not appear again.
Depending on your A/V Receiver's capability, you may connect up to to seven (7) A/V inputs. Select the number of inputs by pressing ADJUST ▲ or .▼
If the number of connected inputs changes, you will need to delete the A/V receiver through Edit NetCommand and add it again, as described above.
Figure 7. A/V receiver Input screen
Edit NetCommand®, Add an A/V Receiver, continued
A/V Receiver Input Learn Screen
Figure 8
NetCommand can now learn the remote control signals used to select each input on the A/V receiver.
- Press ADJUST◀or ▶on the TV remote to select the check box for each function to be learned.
- Press ENTER and the function name will begin to flash to confirm the ready-to-learn status.
- Press the button on the A/V receiver's remote control that corresponds to the selected function. A check mark will appear and the function name will stop flashing. This confirms the signal learned status.
- To test the learned command, press ENTER on the TV remote. The A/V receiver will perform the selected function. The A/V receiver needs to be turned on and the IR emitters properly placed for the test to be successful (see page 27 for IR emitter placement).
- To customize the input names, press ADJUST ▶ to move to the Input Name text box and then press ADJUST ▶ or ▶ and ENTER to select each letter of the name. These names will appear on the Review screen as the A/V receiver's input names.
- To erase the learned input signal, highlight the check box for that input and press CANCEL.
- Repeat for each connected input.
- When the input selection signals have been learned and the inputs named, press ADJUST ▶ to select Next> and move to the A/V receiver Learn screen.
Figure 8. A/V receiver Input Learn screen
A/V Receiver Learn Screen
Figure 9
- Press ADJUST ◀ or ▶ on the TV remote to select the check box for each function to be learned.
- Press ENTER and the function name will begin to flash to confirm the ready-to-learn status.
- Press the button on the A/V receiver's remote control that corresponds to the selected function, A check mark will appear and the function name will stop flashing. This confirms the signal learned status.
- To test the learned command, press ENTER on the TV remote. The A/V receiver will perform the selected function. The A/V receiver needs to be turned on and the IR emitters properly placed for the test to be successful (see page 27 for IR emitter placement).
- Repeat for each function to be learned.
- To erase a learned function, highlight the check box for that function and press CANCEL.
- When the function signals have been learned, press ADJUST ▶ to select Next> and move to the Name screen.
Figure 9. A/V receiver Learn screen
Hint: If your A/V receiver remote control uses a single button for both Power On and Power Off, don't learn the Power Off function. If your A/V receiver uses a single button to toggle between digital and analog sound, then learn only Analog to Digital. If your A/V receiver automatically switches between analog and digital audio, then you don't need to learn either Analog to Digital or Digital to Analog functions.
Edit NetCommand®, Add an A/V Receiver, continued
Name Screen
Figure 10
The Name screen allows you to change the default name for the A/V receiver to a custom name of up to eight characters (including a blank space), selecting from letters, numbers, and nine different characters. Using the TV's remote, press ADJUST ▲ or ▶ to select each letter, then press ENTER to move to the next position. Press CANCEL to delete the current letter and move back one character position. When in the first position, the CANCEL button will return the name to the default name.
Figure 10. Name screen
Monitor Out to AVR Screen
Figure 11
Use this screen to select which A/V Receiver input is connected to Audio 2 Monitor Output on the TV back panel. Press ADJUST ▶to select Next> and move to the Finish screen.
Figure 11. Monitor Out to AVR screen
Finish Screen
Figure 12
To finalize your selections and complete the A/V receiver setup, select Finish from the Finish screen.
Note: If you connected the audio output of a device directly to the A/V Receiver, you must use the "Change" function of the Edit NetCommand menu and select the device to assign the correct A/V Receiver input to be used with each device.
Figure 12. Finish screen
Edit NetCommand®, Add Devices
Mitsubishi's NetCommand allows you to edit your home theater configuration. You can add new devices, change device settings and connections, delete devices and learn remote control IR signals not already in NetCommand memory.
Edit NetCommand Screen
Figure 13
If you selected Edit when you were at the Finish screen, the Edit NetCommand screen displays. There are five possible choices from this screen. They are:
Figure 13. NetCommand Menu, Edit NetCommand Option
Add:
Add a new device to the NetCommand setup. See Figure 14 for more information.
Change:
Change the brand/model or input connections of a device already listed in the configuration. Learn the remote control signals of devices listed as "Other" brands. See Figure 23 for more information.
Review:
View a list of all devices and input connections in the NetCommand home theater configuration. This is also where you can turn On or Off unused TV inputs or devices. See Figure 4 for more information.
Delete:
Remove a device or erase the complete NetCommand home theater configuration. The learned remote control signals are erased when the associated device is deleted. See Figure 25 for more information.
Initial:
Start the setup at the beginning. This button only becomes available after deleting the complete configuration, or if NetCommand was not set up when the TV was first powered On. See Figure 2 for more information.
Use these settings to change the NetCommand setup to reflect a change in your home theater system. To learn the remote control IR signals of a device that is not already in the NetCommand memory, add this device as manufacturer of "Other". The learning screens will then automatically be included in the series of screens used for adding the device.
Add Screen
Figure 14
Select "Add" from the Edit NetCommand screen, and the New Device screen will display. Select the Device type that you would like to add. You may add your A/V receiver (if not added in Initial setup) Cable Box, Camcorder, DBS, DVD, Laser Disc, PC and VCR.
At the next screen, choose the manufacturer. If you choose “Other” for the manufacturer, the device (A/V receiver, Cable, DBS, DVD or VCR) can be learned. For device types Laser Disc, Camcorder, Game and PC, the “Learn” screen is skipped. There is no NetCommand support or learning for these devices.
At the next screen, you can keep the default Name or select a custom Name for the device, using ADJUST
▲ or ▼ to select letters A-Z, numbers 0-9, and/or symbols (!.&'/.* - and blank) for each character of the name you would like for the selected channel.
The next screen displays the Connection screen (RF Connection for Cable, Figure 21). Select the TV and A/V receiver inputs that the device is connected to. Connecting only audio to the A/V receiver is recommended. The A/V receiver may need configuring for digital audio.
Figure 14. Add screen
Edit NetCommand® Add Devices, continued
[Device] Screen
Figure 15
If you selected "None", during initial setup, then you can add a device. If you have added a new device, use this screen to start learning.
Our examples show the choices for adding a VCR, however, the same type of screens will appear for any DBS (Direct Broadcast Satellite), DVD player or Cable Box.
Figure 15. [Device] screen
Choose ONE of these options:
- Select a recognized manufacturer. The model number optimized for NetCommand will display at the bottom of the screen. If a number follows the manufacturer's name, (example: Mitsubishi 1), this indicates additional models are optimized for that manufacturer. For many device types, non-listed models will operate in the same way as the listed models and you can still use the pre-loaded setting.
After selecting Next>, the screens that follow are: the Name Screen (Figure 18), Connection screen (Figure 19) and specialized device screens (Figures 20-23), ending with the Finish screen (Figure 26).
- Select "Other", then highlight "Learn" and press ENTER. This will allow you to have NetCommand learn the remote control signals of this new device.
After selecting “Learn” and pressing ENTER, the screens that follow are: [Device] Learn screen (Figure 16), [Device] Advanced Learn screen (Figure 17), Name screen (Figure 18), Connection screen, (Figure 19) and specialized device screens (Figures 20-23), ending with the Finish screen (Figure 26).
- Select "Other", skip Learn and select Next>. This will allow the device to appear and will allow NetCommand to switch inputs to use this device. However, NetCommand will not be able to control this device. Later you may use the "Change" option in the Setup menu to learn the remote control signals.
After selecting Next>, the screens that follow are: the Name Screen (Figure 18), Connection screen (Figure 19) and specialized device screens (Figures 20-23), ending with the Finish screen (Figure 26).
[Device] Learn Screen
Figure 16
Shown only if "Learn" was selected
-
Press ADJUST ▲, ▼ or ◀ to ▶ select the check box for each function to be learned.
-
Press ENTER and the function name will begin to flash to confirm the ready-to-learn status.
-
Press the button on the device's remote control that corresponds to the selected function. A check mark will appear and the function name will stop flashing. This confirms the signal learned status.
-
To test the learned command, press the ENTER button on the TV remote, while the learned function is still highlighted. The device should perform the selected function. The device needs to be turned on and the IR emitters properly placed for the test to be successful (see page 27 for IR emitter placement).
-
Repeat for each function to be learned.
-
To erase a learned function, highlight the check box for that function and press CANCEL.
-
When the function signals have been learned, press ADJUST ▶ to select Next> and move to the [Device] Advanced Learn screen.
NOTE: When learning the device's remote control signals, point the device's remote control at the TV screen.
Hint: If the device's remote control uses a single button for both Power On and Power Off, don't learn the Power Off function.
Edit NetCommand®, Add Devices, continued

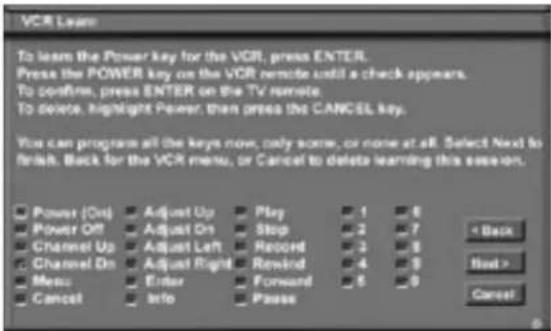

Figure 16. [Device] Learn screen
[Device] Advanced Learn Screen
Figure 17 After learning the basic device keys, the [Device] Advanced Learn screen allows you to learn any special keys for your device. Most common IR remote control signal formats can be learned by NetCommand.
A table of specialized device keys is shown in Appendix E. You only need to learn the functions your devices respond to and can ignore the functions that do not apply to your device.

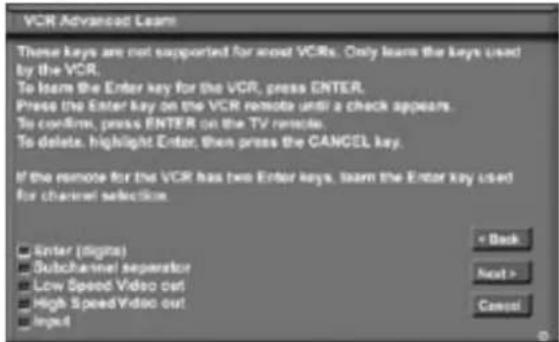

Figure 17 [Device] Advanced Learn screen
Name Screen
Figure 18 The Name screen allows you to change the default name for each device to a custom name of up to eight characters (including a blank space), selecting from letters, numbers and nine different characters. Press ADJUST ▲ or ☑ select each letter, then press ENTER to move to the next position. Press CANCEL on the remote to delete the current letter and move back one character position. When in the first position, the CANCEL button will return the name to the default name.
Figure 18. Name screen
The screen described below may not be necessary for your device setup. If it does not display automatically on-screen, it is not required.
Connection for [Device] Screen
Figure 19 This screen allows the TV to learn the connection between device(s) and input(s). Inputs 1-3, Components 1 & 2, Input-DTV, VGA and/or the inputs for the A/V Receiver all need to be checked, if connected. Add or remove check marks to indicate what type of connections (Audio, Video or both) are used with each TV and A/V Receiver input.
Figure 19. Connection for [Device] screen
Edit NetCommand®, Add Devices, continued
The screens described below may not be necessary for your device setup. If they do not display automatically on-screen, they are not required.
VCR for Recordings Screen
Figure 20
Select the VCR to use for recording. You may also select whether you want the recorded 16:9 signals from digital channels or IEEE-1394 devices to be cropped (sides are cut off) or Anamorphic (full screen). If Anamorphic is selected for viewing, choose the Standard format for the best quality playback.
Figure 20. VCR for Recordings screen
RF Connection for Cable Screen
Figure 21
The RF Connection screen displays only when adding or changing a Cable Box. If your Cable Box is connected to a TV Antenna input, check the RF checkbox. Select the TV antenna input that is used with the Cable Box. Select the channel number used for output by your cable box. The default channel is 003. If the Cable Box is also connected to a VCR for recording, select that VCR.
If your Cable box is connected using Audio/Video cables, make sure the RF checkbox is unchecked. Then the next screen will be Connection (Figure 19), to allow the selection of the TV input used with the Cable Box.
Figure 21. RF Connection for Cable screen
Input-DTV Connection Screen
Figure 22
This screen displays only if the device selected in the Connection screen (Figure 19) is connected to Input-DTV. This is usually DBS, but can be Cable Box. The Input-DTV Connection screen allows you to select the connection type, RGB (HV) or Component YPbPr you are using to connect your cable box or DBS.

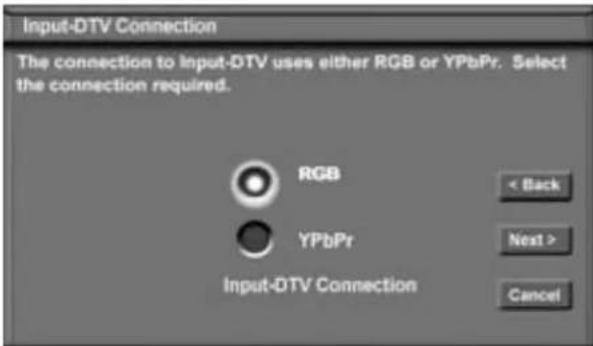

Figure 22. Input-DTV Connection screen
IR Code for [Device] Screen
Figure 23
This screen only displays if an added device has the same IR code as a previously added device of the same type and manufacturer. You can specify the IR setting for the new device. For example, for the second Mitsubishi VCR you can specify the IR Code setting to VCR-B, if the primary Mitsubishi VCR is using the VCR-A IR code.

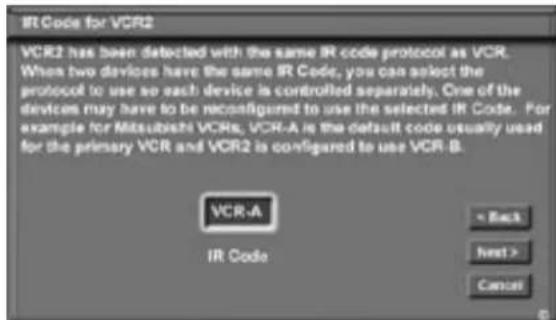

Figure 23. IR Code for [Device] screen
Edit NetCommand®, Change or Delete Devices, Finish Screen
Change Device Screen
Figure 24
Selecting Change from the Setup menu screen, displays the Change screen. To change a device, select the device by name, not type. You can change the name or input connections to the TV and A/V receiver. If "Other" is selected for the manufacturer then you can also "Learn". The rest of the screens that follow are the same as when you Add a device.
Figure 24. Change screen
Delete Device Screen
Figure 25
Selecting Delete from the Setup menu, displays the Delete screen. You can choose to delete a single device by selecting the device you would like to delete, or you can delete the entire NetCommand configuration. After you have chosen the device, or the entire configuration, you will be prompted to confirm your choice to delete. If you select the Entire Configuration, the Initial button becomes available on the Edit NetCommand screen. If you delete a device that you learned the remote control signals for the learned signals are erased.
Figure 25. Delete screen
Finish Screen
Figure 26
To finalize your selections and complete the NetCommand setup, select Finish from the Finish screen.
Note: To change any of the inputs or names for the devices, or add devices not included in the initial settings, select Edit to display the Edit NetCommand menu.
Figure 26. Finish screen
IMPORTANT
NetCommand does not allow you to delete a device or change the connections for a device (like a VCR or a DVD player) if the device (input) is currently being displayed by the TV.
Switch the TV to a different device from the one you are changing or deleting. To change the A/V receiver, you need to be listening to the TV speakers.
Chapter . . .
IEEE 1394 Devices and NetCommand® Controlled Recordings
IEEE 1394 Devices and NetCommand® Control ....48
Adding IEEE 1394 Devices Automatically....49
Device Selection Menu....51
Using the DEVICE MENU Button to Display Menus....52
Using the Guide Button to Display ChannelView™ and Menus..53
NetCommand® Controlled Recordings ....54
NetCommand® and Traditional VCR's ....54
NetCommand® Controlled Peer-to-Peer Connections .....56
Direct VCR Recording from an Antenna or Cable Source......57
A/V Disc Search ....57
Track List Screen 57
PC Viewing....58
MediaCommand™ and Media Card Playback ....59
IEEE 1394 Devices and NetCommand® Control
See pages 28-29 for information regarding compatible IEEE 1394 devices and connection styles. The TV is not able to control IEEE 1394 devices that use other types of control protocols. Incompatible digital audio, video and/or control information will still be able to pass from one device through the TV to another device on the network. These incompatible devices may not appear on the Device Selection menu or in the Review screen of the Edit NetCommand menu.
NetCommand Control of Digital Devices Using the "Learn" Feature.
Some IEEE 1394 devices such as cable boxes or satellite receivers will not have compatible digital control signals or require the use of the device's own remote control. Some of these IEEE 1394 devices will not display on-screen information through the IEEE 1394 connection and will require using an analog connection for on-screen displays. In many cases, to control these digital devices, the Learning feature of NetCommand can be used.
- Place an IR Emitter for NetCommand in front of the device's remote control sensor (see IR Emitters, page 27).
- On the Name for 1394 Device screen (Figure 2, page 49) check mark the Analog Connection check box.
- Select the device type on the IEEE 1394 Device Type screen (Figure 3, page 50) of cable box, DBS or similar tuning device.
- Select "Other" as a manufacturer and then highlight "Learn" and press ENTER on the Device screen (Figure 4, page 50).
- Follow the device learning instructions found in Edit NetCommand section of Chapter 3.
- The Connection screen (Figure 5, page 50) follows the learning screens. If analog connections are used, select the correct inputs. If analog connections are not used, uncheck the audio and video connections for both the TV and AVR inputs.
- Proceed with the Finish screen.
This will allow NetCommand to use the learned remote control signal to control these IEEE 1394 devices.
Note: When using the NetCommand learning feature for IEEE 1394 devices that do not have analog connections, the GUIDE function will require pressing GUIDE twice. The first press of GUIDE will display the TV's digital channel guide. The second press will display the program guide for the device if an IEEE 1394 Guide is available.
Adding IEEE 1394 Devices Automatically
Adding IEEE 1394 Devices Automatically
When an IEEE 1394 device is connected into the TV network and is powered On, the new device will automatically announce its presence. This process is called device discovery and can take up to 1 minute. Some non-audio/video or non-compatible IEEE 1394 devices, such as Personal Computers (PCs), may not announce their presence to the TV. The TV will not be able to show these devices in the Device Selection menu, however, they can coexist and will still be available to other devices on the IEEE 1394 network that are compatible with these non-audio/video devices.
IEEE 1394 cable boxes and satellite receivers may require that you use the remote control that came with those devices. For some compatible devices, the Cable/DBS/DTV position of the TV remote control may be able to control operation.
New 1394 Device Screen
Figure 1 When your TV discovers a new IEEE 1394 device, the New 1394 Device screen will appear. Selecting “Add” will include the device in the Device Selection menu. Selecting “Do Not Add” will not add the device to the Device Selection menu. If the IEEE 1394 device does not provide audio and video, you may not want to add that device to the TV’s Device Selection menu. Devices that were discovered but not added to the Device Selection menu will still be listed in the Review screen of the Edit NetCommand® menu.
Figure 1. New 1394 Device screen
Name for 1394 Device Screen
Figure 2 If you choose to add the discovered IEEE 1394 device, the Name for 1394 Device screen will appear. Name the device or use the default name that appears automatically.
Some IEEE 1394 digital devices, such as some DVCRs, can also operate as analog devices. For example, some DVCRs can record and play as VHS or S-VHS, in addition to D-VHS. This allows you to play analog rental tapes or analog tapes from your established library or make analog recordings from antenna or cable systems. To use the analog capability, check the Analog Connection box.

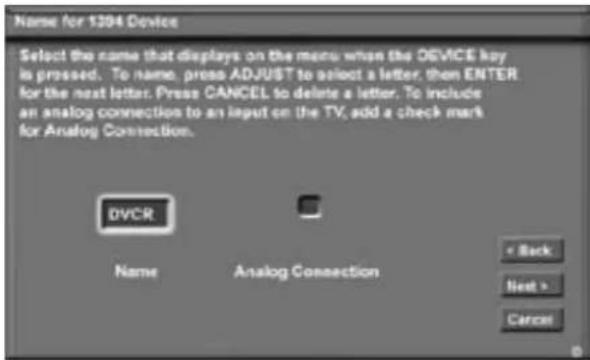

Figure 2. Name for 1394 Device screen
Adding IEEE 1394 Devices Automatically, continued
IEEE 1394 Device Type Screen
Figures 3 and 4 If the new IEEE 1394 device is also connected using analog inputs, you will need to define the device type. Select the type of device, such as a VCR.
Figure 3. IEEE 1394 Device Type screen
Once the device type is selected, then the Device screen is displayed so the manufacturer can be selected. If the manufacturer is listed, then you may be able to control this device while it is operating as an analog VCR. For example, if the IEEE 1394 device you have added is a Mitsubishi DVCR, and you have selected an analog connection as a second connection, then you will select Mitsubishi for the manufacturer. If the manufacturer is not listed, select “Other” and use the Learn screens.
Be sure to place an IR Emitter in front of the remote control sensor, just as you have done for other NetCommand® devices. It is necessary to use the IR Emitter only when the DVCR is being used as an S-VHS or VHS VCR. When the DVCR is playing or recording digital signals in D-VHS, the TV will control the VCR through the IEEE 1394 cable.
Figure 4. Device screen
Connection Screen
Figure 5 Select the TV input that you used when you connected the video or S-Video cables. You may also select the TV or A/V receiver input you used when you connected the stereo audio cables. The TV will learn the input names for the TV Input and A/V Receiver Input selections. If your A/V receiver has other inputs than those listed in the menu, those other inputs are not available for NetCommand.
The playback and record control of some DV camcorders may still operate by the IEEE 1394 cable automatically, even though you must use the video or S-video cable for the picture. In this case, when you select the Camcorder, be sure to select analog (not digital) from the pop up when a camcorder is selected from the Device Selection menu. Then the picture is shown via the analog connection but control is from IEEE 1394.
Figure 5. Connection screen
Finish Screen
Figure 6 To finalize your selections and complete the NetCommand setup, select Finish from the Finish screen.
Figure 6. Finish screen
Device Selection Menu
When you press DEVICE on the TV's remote control, the Device Selection menu (Figure 7) displays. If NetCommand® has not been setup, the Device Selection menu allows you to select an input for viewing. If NetCommand is setup, the Device Selection menu allows you to select the device for viewing, select audio from the TV speakers or A/V receiver, power compatible devices On or Off, and verify the destination of signals. On the Device Section menu, the device or input currently displayed appears as a gold-colored icon.
Figure 7. Device Selection Menu with NetCommand
Power On/Off Devices
Devices that have separate On and Off remote control buttons will power On automatically when you select the device and will power Off when you turn off the TV. For devices that do not power On or Off automatically, display the Device Selection menu, press ADJUST ◀ or ▶ to highlight the device icon and press POWER on the remote control. For the A/V receiver, press AUDIO to move the navigation to the Audio Section. Highlight the A/V receiver icon and press POWER. If you press POWER on the remote control when the Device Selection menu is not displayed, the TV will turn Off.
Video Section
The TV icon shows the destination for the device highlighted in the Device Section.
Connection Section
The Connection Section shows the other devices currently connected to the device highlighted in the Device Section. For example, if the Digital VCR (D-VCR) is currently recording, when you move the highlight to the Ant-1 icon, the D-VCR icon will appear in the Connection Section. This icon will disappear when you move the highlight to another icon. Press CANCEL to stop recording.
Audio Section
When a NetCommand pre-memorized or learned IR controlled A/V receiver has been connected to the TV and added to NetCommand Setup, an AVR icon will appear in the audio section. Press AUDIO to change navigation to the audio section. Then press ADJUST
◀, ▶, ▲ to select the TV speakers icon or the A/V receiver icon. Press ENTER to change the audio selection. Press DEVICE to return the navigation to the Device Section.
Device Section
To select another device or input, press ADJUST ▶, ▶, ▶ on the TV's remote to move the highlight. Press ENTER to select the device to view and hear. The TV inputs are automatically changed. If NetCommand is set up, the inputs on compatible A/V receivers are automatically changed at the same time.
PIP Device Selection Menu
Figure 8
The PIP Selection menu displays when you press the PIP DEVICE button on the remote control. This menu has the same general format as the Device Selection menu. The source for the Video Section is the sub picture and the Audio and Connection Sections are not available.
Use ADJUST ▶, ▶ to ▶ move the highlight to the device to show in the PIP or POP screen, then press ENTER. Device icons that are grayed out are not available for use as PIP/POP sources or with the current source.
Figure 8. PIP Device Selection Menu
IMPORTANT
If a device does not respond to separate On or Off remote control signals, the manufacturer has not provided that ability for the device.
Using the Device Menu Button to Display Menus
Device Menu
Pressing the remote control's DEVICE MENU button displays the menu for the current device source.
IR Controlled Devices
For a NetCommand compatible traditional IR controlled device, pressing DEVICE MENU once or twice will display the menu for that device. While the menu for the device is displayed, press ADJUST ▶, ▶ and ENTER to navigate the screen. For some NetCommand traditional devices you will also be able to use the number buttons and other additional buttons on the TV remote.
For traditional DVD players, DEVICE MENU is also known as the setup menu.
CableCARD™ Menu
Figure 9 When using a CableCARD, pressing DEVICE MENU will display a list of up to 8 links to applications that contain basic CableCARD information made available from your cable provider. Press ADJUST ▲ or ▼ move through the application links. To select a link (blue text) to an application, press ADJUST ▲ or ▼ to highlight the link, then press ENTER to access the linked page. Pressing DEVICE MENU will return to the CableCARD menu screen and pressing HOME will return to TV viewing.
If there are technical problems with the CableCARD, an error screen will automatically display with information that may be needed by your Cable provider when you call them for assistance.
The screen shown below is an example of the type of screen that may display. Specific screen menus are sent by your cable provider.
Figure 9. Possible Device Menu for CableCARD
Moving Through Other CableCARD Screens
In addition to CableCARD menus, other CableCARD application screens may display and require you to make additional selections. While CableCARD application screens are customized in each area, some general rules apply in using these screens on your Mitsubishi television.
- Blue text denotes a link to another screen. Press ENTER to move to the next application. When screens do not have blue text, there are no more links.
- You cannot move backward through the links. If you want to exit the CableCARD system, press HOME to exit and return to TV viewing. CANCEL does not apply to the CableCARD screens.
All information on these application screens is provided by your local cable company. Please contact your cable provider if you have any problems with the application screen displays.
IMPORTANT
Most CableCARD screens are status or diagnostic in nature and do not allow you to make changes. These screens are meaningful only to your local cable provider.
Using the GUIDE Button to Display ChannelView™ and Menus
The GUIDE Button
Depending on the device you are currently viewing, pressing GUIDE allows you to see different program guides or menus.
Devices (1394 or IR Controlled)
For NetCommand compatible satellite receivers and some cable boxes, GUIDE will display the on-screen programming guide for the receiver or cable box. Press ADJUST ◀▶ ▶ and ▼ ENTER to navigate the displayed Guide. For NetCommand compatible satellite receivers, you may also be able to use the number or other additional buttons.
For NetCommand compatible DVD players, GUIDE will display the DVD disc "top" menu (not the setup menu).
For A/V Discs, pressing GUIDE will display the Track List screen
For IEEE 1394 devices with digital connections, press GUIDE twice to display the device's Guide
ChannelView
Figures 10 and 11
Press GUIDE while viewing Ant-1 or Ant-2 to display a list of available memorized digital channels (D) and analog (A) channel information (if available from the broadcaster). This list is called ChannelView™.
ChannelView for digital channels will show the major and sub-channels (or bitstreams). Analog channel information will display as sent. Press ADJUST ▲r ▼ to page through the all the channels in memory, one by one. To page through the choices quickly, press CH ▲ or ▼
The information on this screen is sent by the broadcaster. If limited data is shown or no program data appears, it is because the broadcaster is not sending the information. This is not a defect of your TV. See Troubleshooting for information regarding failed recordings.
| ChannelView™ | 5:47 pm, Friday, Apr 25, 04 | ||
| 2 | CBS | A Ant-1 | |
| 2-1 | KCBS-DT | D Ant-1 | CBS Local News |
| 4 | A Ant-1 | ||
| 4-1 | KNBC-DT | D Ant-1 | NBC Evening News |
| 7 | ABC | A Ant-1 | |
| 7-1 | KABC-DT | D Ant-1 | ABC World News with Dan Rather ... |
| 28 | PBS | A Ant-1 | |
| 28-1 | KCET-DT | D Ant-1 | The 2003 Rose Parade |
| 28-2 | KCET-DT | D Ant-1 | Nightly Business Report |
| 30 | A Ant-1 | ||
| 62-101 | D Ant-1 | ||
| 62-102 | D Ant-1 | ||
| 128 | CNN | A Ant-1 | |
| 1104 | KNBC-DT | D Ant-1 | NBC Evening News |
Figure 10. ChannelView screen, current programs
To record a current program, press REC (record) when your program choice is highlighted on the program list in ChannelView. A red "R" will be added before the program time and name. The TV will immediately switch to the selected channel and start recording.
To record a future program, press ADJUST ▲ or ▼ to select the channel you want to record from. Press INFO to see the upcoming programs for that channel. Press ADJUST ▲ or ▼ to move to your program choice. Press REC (record) when your choice is highlighted in ChannelView. A red "R" will be added after the input name. The message, "The recording has been added to the Record List" will display. To view, change or cancel the recording, use the Record List (page 55). The program you selected will be on that list.
Figure 11. ChannelView screen, future programs
Device Selection Menu
For compatible traditional VCRs, pressing GUIDE when the VCR is highlighted on the Device Selection menu will change the VCR's input.
When the A/V Receiver icon is highlighted in the Audio Section, pressing GUIDE switches the A/V Receiver from analog audio to digital audio and vice versa.
Record To List
When in the Record To menu, pressing GUIDE will display the current list of programmed recordings. Please see Record List, page 55 for more information.
IMPORTANT
For complete ChannelView information to be refreshed daily, the TV must be powered Off between 5 to 15 minutes a day, depending on the number of channels in memory. If the TV loses power, the program listings will be temporarily lost.
NetCommand® Controlled Recordings
Record To Setup
Figure 12
Your TV is able to start and stop recordings automatically and send the signals from one external playback device to another external recording device. It is also able to convert digital channels and IEEE 1394 device signals to analog signals that can be recorded on NetCommand compatible analog VHS and S-VHS VCRs.
You cannot record from an analog channel or device or a VHS or S-VHS VCR to a digital recording device such as a DVCR or A/V Disc. Also, if you select an analog channel, you will not be able to record to a digital device.
You can schedule the recording to take place at a later time and program the recording duration for a minimum of 30 minutes and a maximum of 6 hours (in 30 minute increments). The default is 1 hour.
When a digital recording is being made, the TV will direct the signals to the recording device using the IEEE 1394 cable. When an analog recording is being made, the TV will direct signals to the recording using the monitor audio/video outputs.
During the recording, the TV can be powered Off. If the TV is powered On, it must be tuned to the source that is being recorded.
Figure 12. Record to screen
Recording Now
Can be used when viewing Antenna 1 or 2, an IEEE 1394 device, or a non-recording traditional device.
To initiate recording now:
- Press REC (record) on the TV remote.
- Press DEVICE on the remote control to move to the Source Device section.
- Press ADJUST ◀ or ▶ to select the source device you will record from.
- Press ENTER to confirm selection and return to the "Record to" section.
- In the "Record to" section, review the destination device (VCR) and duration. Change if necessary.
- Press REC a second time to initiate recording.
Time-Delayed Recording
To initiate a time-delayed recording:
- Press REC (record) on the TV remote.
- Press DEVICE on the remote control to move to the Source Device section.
- Press ADJUST ▲, ▼or◀ to select the source device you will record from.
- Press ENTER to confirm your Record from selection and move to the Record to section.
- Press ADJUST ▲ or to select the Record to device, duration time, start time (press ENTER after selecting hour, minutes and AM or PM to set the time) and day. For devices that can select channels, select the channel.
- Select Add and press ENTER to add the recording to the record list. If your selection is successful, a confirmation message will be displayed. If you pick overlapping times, day(s), or destination devices, you will see a message stating there is a conflict.
- To exit, press HOME on the TV remote after all recordings have been added.
NetCommand® Controlled Recordings, continued
Record List Screen
Figure 13
To see a list of all currently programmed recordings, press GUIDE while viewing the Record To screen. A maximum of 32 recordings can be scheduled. To cancel a recording on the Record List, press ADJUST ▲ or ▼ to select the recording, then press CANCEL. To page through the list, press CH ▲ or .▼
Figure 13. Record List screen
Cancel Current Recordings
To cancel a recording in progress, press DEVICE to display the Device Selection menu and highlight the source of the recording. Confirm that the icon for VCR (or recording device) is in the Connection Section next to the TV icon. Press the CANCEL button. The icon for the VCR (or recording device) will disappear from the Connection Section to confirm the cancellation.
Copy-Protected Material
When attempting to record copy-protected material, the Record functions of the NetCommand and IEEE 1394 systems may be prevented or stopped. If you have a recording that is tagged "Record Once", NetCommand will change the tag to "Record No More".
Restrictions for Traditional VCRs
If turned On, the TV must be tuned to the source device.
- Your VCR should be connected directly to Audio Video 1.
- The VCR must be set manually to "Line Input". Display the Device Selection menu, highlight the VCR and press GUIDE to change VCR inputs.
- The TV can select channels on compatible cable boxes for recordings. Leave the cable box turned on.
- If the source device or recording device does not have separate power On and Off features, then leave that device powered On.
NetCommand® Controlled Peer-to-Peer Connections
What is a Peer-to-Peer Connection?
Figure 14
A peer-to-peer connection allows the IEEE 1394 devices in your TV network to talk to each other without the further need of TV intervention once the peer-to-peer connection is established.
For example, the TV can setup a connection for an A/V Disc or DVCR that sends a recorded program to an IEEE 1394 monitor in another room. NetCommand will establish the connection between the two devices. Once the connection has been established, the TV can be turned off or used to watch another device. Recording from digital channels to a DVCR is also a peer-to-peer connection. In this case, the TV is one of the devices in the peer-to-peer connection.
Analog or traditional (non-digital) devices can not be used for peer-to-peer connections.
Figure 14. Record screen
Setting up a Peer-to-Peer Connection
A peer-to-peer connection is a current connection and cannot be setup as a delayed connection.
To establish a peer-to-peer connection:
- Press CONNECT on the TV remote.
- Press DEVICE on the remote control to move to the Source Device section.
- Press ADJUST ◀ or ▶ to select the source device you will record from.
- Press ENTER to confirm selection and return to the "Record to" section.
- In the "Record to" section, review the destination device (example: DVCR) and duration. Change if necessary.
- Press CONNECT a second time to initiate recording.
NOTE: Multiple peer-to-peer connections can occur simultaneously, sometimes with the same source device. Also, please note that peer-to-peer connections are NOT listed on the Record List screen.
Canceling a Current Peer-to-Peer Connection
When a peer-to-peer connection has been established, you can cancel the connection by highlighting the source device in the Device Selection menu. Confirm that the on-screen icon for the peer-to-peer connection is in the Connection Section next to the TV icon, then press CANCEL. The peer-to-peer connection will end and the destination icon will be removed. If there is more than one peer-to-peer connection for the same device, all of the connections will all be canceled.
Direct VCR Recording from an Antenna or Cable Source, A/V Disc Search, Track List Screen
Direct VCR Recording from an Antenna or Cable Source:
Pressing REC (record) on the TV's remote control will function the same way as pressing the record button on the VCR's remote control or front panel.
To record directly from antenna or cable:
- Press DEVICE on the TV's remote to display the Device Selection menu. Highlight the traditional VCR and press POWER to turn on the VCR. If necessary, press GUIDE to select the input the VCR is on, such as Antenna input (or line input).
- Press ENTER to switch the TV to the VCR.
- Select the correct channel for recording on the VCR and then press REC to start recording. You will need to manually stop the recording at the end of the program.
OR...
- Press the DEVICE MENU button to display the VCR's menu to schedule a delayed recording directly from antenna or cable.
To record from Ant-1, Ant-2 or other devices, see NetCommand Controlled Recordings.
A/V Disc Search
NetCommand is able to search to a specific time in a recording on an IEEE 1394 A/V Disc.
- Start the playback of the desired track on the A/V disc.
- Use the number buttons to enter the time code position of hours followed by minutes. For example, to enter one hour and twenty-two minutes (1:22) into the track, enter 1, 2, 2.
- Press ENTER to skip to the time code position.
- To cancel the request or to start over, press CANCEL instead of ENTER.
Track List Screen
Figure 15
When viewing an A/V Disc, press GUIDE to display its Track List. The time and date it was added, the duration and title will be displayed. Tracks will be listed in date and time order and will vary in size. Press ADJUST ▲ or ▼ navigate through the Track List. To play a track, select it on the list, then press ENTER. To change pages, press CH ▲ or ▼ . ▼o delete a track, select it on the list and press CANCEL.
Figure 15. Track List screen
PC Viewing
PC Input
Figure 16
To display your PC screen on the TV, first, connect it to the TV's back panel (see Chapter 2). You will then be able to select it through the Device Selection Menu. For the correct screen resolution (pixels), use the PC's Control Panel settings.
Your Mitsubishi TV can display resolutions from standard VGA (640 x 480) through PC 720p (1280 x 720). See Appendix B, in this book for more screen resolutions. The instructions below are for most PC's.
- In the PC's "Start" menu, select "Settings".
- Select "Control Panel".
- Select "Display".
- Choose the "Settings" tab.
- Depending on your PC, either:
Use the Screen area slider or
Use the Screen Resolution slider to adjust the resolution.
You may need to restart the PC for this change to take effect.
Hint: You may want to set the computer's screen saver to a pattern, to display after several minutes, as a reminder that the TV is still powered on and time is being added to the lamp's elapsed hours. Even if the screen appears dark, if the TV's power is on, the lamp is in use.
Figure 16. PC resolution XGA selection
MediaCommand™ and Media Card Playback
Warning: Some media cards available on the market are not properly certified to follow the card type specified and cannot be used by the Card Reader. If you experience problems with the reading of your file, please transfer your files to a properly certified card.
Media Card Slots
Inserting a media card
- Insert a card into a matching card slot on the front of the TV. Be sure to use the correct card slot. Card 1 will accept MultiMediaCard™ and SD Media Card. Card 2 will accept SmartMedia™. Card 3 will accept CompactFlash®. Card 4 will accept MEMORY STICK™. Cards up to 128mb, with a file format of FAT 16 (block size = 1024 or 2048) are supported.
Normally the label side should be up, but if the card does not fit, try turning the card over and insert again. When properly inserted, the light next to the slot will light up.
- Press DEVICE on the remote control to display the Device Selection Menu and then select the correct card slot from the list, using ADJUST ▶, ▶o▲. ▼
- The Media Dialog box (figure 17) will automatically display. Use the AUDIO button to switch from JPEG Picture Slideshow setup to MP3 or WMA7 Audio Playlist setup or use the VIDEO button on the remote to switch from the MP3 or WMA Audio Playlist setup to JPEG Picture Slideshow setup.
Don't pull the media card out while it is playing.
Figure 17. Media Dialog Box
- On the remote control, press:
PLAY: to start the slideshow or play audio.
GUIDE: to display the JPEG Thumbnail menu (Figure 18) or Audio track playlist (Figure 19)
DEVICE
MENU: to display the Media Setup menu (Figure 20).
Remote Control Buttons for Controlling the Playback
For JPEG Pictures Slideshow:
PLAY: begins or resumes slideshow playback
PAUSE: pauses or resumes playback while in the automatic advance mode.
FF: skips to the next slide.
REW: returns to the previous slide.
FORMAT: single press rotates the slide 90°. Multiple press continues to rotate the slide.
STOP: Stop slideshow, return to media card screen.
For MP3 or WMA Audio Playback
PLAY: begins or resumes playlist playback.
PAUSE: pauses or resumes playback.
FF: skips to the next track/song.
REW: skips to the previous track/song.
STOP: Stop playback and returns to media card screen.
Using the Picture Thumbnail Menu or Audio Playlist Menu
For JPEG Picture Thumbnail Menu:
Figure 18
- Press GUIDE on the remote to display the JPEG picture Thumbnail menu.
- Press ADJUST ▶, ▶ to move the highlight to different images (CH up/down will change pages of the Thumbnail menu). Use REW to go to the first slide and FF to go to the last slide on the page.
- Press FORMAT to rotate the selected image 90° (pressing FORMAT four times will rotate the image completely around to the original position).
- Press PLAY to begin playback of the Slideshow from the selected image. The Thumbnail menu will be taken down.
Figure 18. JPEG Thumbnails
Media Command™ and Media Card Playback, continued
For MP3 or WMA7 Playlist Menu:
Figure 19
- Press GUIDE to display the Playlist menu.
- Using ADJUST ▲ or ▼ move the highlight to different tracks (CH up/down will change pages of the Playlist).
- Press PLAY to begin playback. The Playlist menu will be taken down. An asterisk (*) will be next to the song currently playing.
Figure 19. Audio Playlist
COMPATIBLE PICTURE OR AUDIO FILES: For JPEG Pictures up to 128MB:
- Still images recorded on digital cameras using the Exchangable Image File Format, version 2.1 (EXIF 2.1) standard for digital still cameras and Design Rules for Camera File Systems version 1.0 (DCF 1.0).
Some images opened and resaved on a computer may not playback or may not be able to display a picture in the thumbnail list because the computer program that opened and resaved the images changed the file to an incompatible format.
- Standard digital images with a maximum size of 5-megapixels for each image, or 2560 x 1920 pixels. Pictures will be scaled to the TV display. Some pictures may be cropped to fit.
- Full path file names can be no longer than 50 characters and must end in a .jpg extension. Not all 50 characters will display.
For MP3 or WMA7 Audio files:
- Files recorded with sampling rates of 32 kHz, 44.1 kHz or 48 kHz.
- Files recorded with fixed bit rates
- File names with .mp3 or .wma extensions
NOTE: During MP3 or WMA7 audio playback, audio from the cards will be sent to the A/V receiver as analog audio. Digital out is not available.
Media Setup Menu
Figure 20
Press DEVICE MENU at any time to display the Media Setup screen, where you can adjust the Slideshow Display, Frequency, Interval or Playlist Frequency.
For JPEG Picture Slideshow Setup
- For JPEG picture Slideshow playback, select Automatic or Manual advance. For manual operation, press PLAY or ENTER on the remote control to advance each slide.
- For automatic advance, select the frequency or number of times to show the complete slide show, Once, Twice or Continuously.
- For automatic advance, select the interval time each slide is shown, for example, 5 seconds, or 30 seconds.
For MP3 or WMA7 Audio Playlist Setup
- Select the frequency or number of times to play the complete playlist. Once, Twice or Continuously.
When you are finished, press DEVICE MENU on the remote control to redisplay the media card screen or press HOME to exit.
Figure 20. Media Setup Menu
IMPORTANT
JPEG images cannot be edited through the TV. Only name changes should be made on your PC to avoid file incompatibility problems.
MP3's must have at least 32 kHz sampling rate.
Chapter . . .
TV Menu Screen Operations
Main Menu Choices ....62
Setup Menu 63
NetCommand® Menu....64
Antenna Menu 65
Time Menu 67
Captions Menu 68
V-Chip Lock Menu 70
AudioVideo Menu 73
A/V Settings Descriptions....74
Operation of PIP and POP....76
Main Menu Choices
Setup Menu
Figure 1 Use the Setup menu to select English or Spanish as the language for the menus and on-screen displays.
Adjust Color Balance Automatically or manually (PerfectColor™). Color Balance uses six colors, Magenta, Red, Yellow, Green, Cyan and Blue to obtain color balance. Reset the Color Balance to the factory default settings.
The TV's software version is also found on this screen.
Figure 1. Main menu, Setup selected
NetCommand Menu
Figure 2 Add, change, review or delete NetCommand® settings and devices. If you have more than one digital recording device connected, use this menu to change the default digital Record To device. Turn the transport menu off and change the order of the icons in the Device Selection menu.
Figure 2. Main menu, NetCommand selected
Antenna Menu
Figure 3 Memorize available analog and digital channels for Ant-1 and Ant-2. After memorization, if a channel displays as digital and analog, you can choose to see the channel digitally every time it is selected. Manually add or delete channels from memory, name channels or add your favorite channels to a SQV (SuperQuickView™) list.
Figure 3. Main menu, Antenna selected
Time Menu
Figure 4 Manually set the time for the TV, or select Auto and the TV will automatically set the time based upon Extended Data Service (XDS) time data. This time data is usually broadcast by your local PBS station. This menu is also used to set the TV timer.
Figure 4. Main menu, Time selected
Captions Menu
Figure 5 Display Closed Captions if sent by the broadcaster, select settings for analog or digital captions.
Figure 5. Main menu, Captions selected
V-Chip Lock Menu
Figure 6 Block or allow programing based upon rating signals sent by the broadcast station, lock by time, or lock the front panel buttons.
Figure 6. Main menu, V-Chip Lock selected
AudioVideo Menu
Figure 7 Reset the A/V Memory to return to the original factory A/V settings for a selected device. Customize the individual audio and video settings. Display a blue screen when viewing a device with no signal, enhance the darker parts of bright pictures or turn the TV
Figure 7. Main menu, Audio/Video selected
Setup Menu
Setup Menu
Figure 8
Figure 8. Setup Menu, NetCommand Option
Language
Display the on-screen menus in either English or Spanish (Español). The first time you powered On your TV, you were requested to select an on-screen menu language. If you choose to change the selection, all menu text will immediately switch to the language of your choice.
Program titles and other information sent by a broadcaster will be shown in the original language.
Color Balance
Figure 8
Your Mitsubishi TV uses six colors (Magenta, Red, Yellow, Green, Cyan and Blue) to create color balance. You may adjust the intensity of the colors automatically or manually (PerfectColor™) or reset them to the default settings. Each TV input or device has a memory for PerfectColor.
Auto (Color Balance)
If the Auto box is checked, your TV will optimize color automatically and continuously. Both PerfectColor and Reset options for Color Balance are grayed out and unavailable.
PerfectColor™ (Manual Color Balance)
Figure 9
Figure 9. PerfectColor Menu, Manual Color Correction
The manual PerfectColor option is only available when Auto (Color Balance) is not checked. Select PerfectColor and press ENTER to display the menu for manual color adjustment. Individual sliders for Magenta, Red, Yellow, Green, Cyan and Blue will be displayed. The sliders have a numeric value, where 63 is the maximum. The default setting for each color is 31 (center). Highlighted text will show which slider you are adjusting. Each active input can be individually adjusted.
Press ADJUST ▲ or to navigate between colors and ADJUST ◀ or ▶ to change the color slider settings.
Reset Color
Select to reset the Color Balance settings. Each active input can be individually reset, if Auto is not checked.
Software Version
For some service related issues, it may be necessary to know which software version is in your TV. This information is displayed on the Setup menu screen.
NetCommand Menu
Figure 10
Figure 10. NetCommand Menu
NetCommand
Detailed information regarding setting up and editing the NetCommand menu is found in Chapter 3. The Edit NetCommand screens allow you to add new devices, change or edit traditional and IEEE 1394 devices, turn devices and unused inputs On or Off, delete a single device or delete the entire setup configuration. If you choose to delete the entire configuration, or if the NetCommand setup was cancelled, deleted or not completed, you can start at the Initial NetCommand screen. The Review screen shows all devices connected to the TV, including IEEE 1394 devices.
Transport Menu
Figure 11
Figure 11. Transport Menu
NetCommand uses the Transport menu to control VCRs, DVDs, IEEE 1394 AV Discs, digital VCRs, and similar devices. If you choose to turn off this menu when viewing the devices, the transport buttons (rewind, play forward, stop, pause and record) on the TV's remote control will continue to operate these devices. In the Device Selection menu selecting a VCR or DVD Player will automatically display the Transport menu. You can re-display this menu by pressing DEVICE MENU.
Select Transport menu functions by pressing ADJUST ◀, ▶, ▲ and then ENTER. For example, to pause playback, press ADJUST ◀ or ▶ to move to PAUSE, then press ENTER. If a function is not possible, such as record for a DVD Player, the Transport menu button will be grayed out.
Remote Control Transport Buttons
Transport buttons (rewind, play forward, stop, pause and record) on the remote control are located in the bottom section of the remote control.
Default Digital Record Device
If multiple recording devices are available in NetCommand, this setting allows you to choose the device to use when recording digital programs. A digital recording can be made on either a digital or analog device although the quality will not be as good if recorded on an analog device. For best playback quality, record digital programs on a digital recording device.
If multiple devices were not connected and then added in the NetCommand setup, this setting will be unavailable (grayed out). Analog recordings can only be made on the one analog device connected to Monitor Out (usually a VCR) and are not affected by this setting. This feature is most useful when recording from ChannelView™ (page 53).
Icon Order
Figure 12
The Icon Order screen allows you to arrange the device icon order on the Device Selection menu to a different sequence, for ease of selection and operation.
To change the order, press ADJUST ▲, ▼, of to▶ highlight the icon to be moved and then press ENTER.
Press ADJUST ▲, ▼or to move the icon to the desired position and then press ENTER to select the icon.
Figure 12. Icon Order Menu
Antenna Menu
Antenna Menu
Figure 13
Figure 13. Antenna Menu
The Antenna Menu options are available for use with analog and digital channels on Antenna-1 and Antenna-2. You can memorize channels, add or delete channels, name channels and add channels to an SQV (Super Quick View™) list.
Memorize
For Antenna 1 (Main) or Antenna 2 (Aux)
Select either Air (when used with an indoor/outdoor antenna) or Cable (when used with direct cable) then press ENTER to start the automatic channel memorization process. If a CableCARD™ is being used, memorized channels are provided by your cable provider through the CableCARD.
To stop the automatic channel memorization process, press CANCEL. Channels memorized before you pressed CANCEL are retained in memory.
After memorizing channels, the channels in the memory can be accessed in ascending or descending order by pressing CH ▲r .▼
The memorization will occur twice, as the TV memorizes analog and digital channels separately.
Prefer Digital
When a memorized channel is available as both analog and digital, a check mark in the Prefer Digital box will allow digital channels to display and analog channels to be hidden (when using CH). Removing the checkmark will show both analog and digital choices.
Channel
Channels can be changed in 3 ways:
-
By pressing ADJUST ▲ or to select the channel.
-
By pressing CH ▲ or for channels already in memory.
-
Directly entering the number. With so many current and potential channels, the number range is greatly expanded. Channels can be one part, analog or digital (up to the number 16383) or two part, for digital channels (these use a separator). For a two part digital channel, you may press SUB/CANCEL on the remote to enter a separator after the first, second or third number, depending on the broadcaster's channel information.
For digital channels, when the broadcaster has sent a virtual channel number, the virtual channel number is shown in the text box and the original digital channel is shown below on-screen, as a reference.
Memory
After the available channels have been memorized with Memorize, weaker channels can be added. Unwanted channels can also be deleted. Press CH ▲r or the remote control to see the channels in memory. Press ADJUST ▲r to select Added or Deleted for the channel shown in the Channel number box.
Name
Analog channels shown on Antenna-1 or Antenna-2 can be named (up to four characters). After you enter a name, it will appear on the TV screen, next to the channel number.
-
Press ADJUST ▲ or ▼ to select each letter.
-
Press ENTER to set the letter and move to the next letter position.
-
Press CANCEL to move back one position.
Digital channels are automatically named if the broadcaster sends the information.
Antenna Menu, continued: SuperQuickView™ (SQV)
SQV (SuperQuickView™)
Using The Menu Screen
Figure 14
SQV (SuperQuickView™) allows you to put together lists of your favorite channels from Antenna 1 and Antenna 2. You can store channels in any of the 9 different SQV memory banks. You can also store the same channel in multiple memory banks. Once you have added a channel to an SQV memory, "SQV" and the memory bank number will appear under the tuned channel number on the TV screen.
Adding SQV Channels
- Select the channel using the "Channel" option box or press CH ▲ or .▼
- Highlight the bank (SQV1-SQV9).
- Press ENTER to check mark the selected SQV memory bank.
- Repeat for additional channels or banks.
Removing SQV Channels
- Highlight the box for the SQV bank number.
- Press ENTER to remove the check mark.
Figure 14. Antenna Menu, SQV (SuperQuickView)
SQV (SuperQuickView™)
Using The Remote Control
Viewing and changing SQV banks using the remote control:
-
Press the SQV button.
-
To change memory banks, press a number button within 5 seconds of pressing the SQV button.
-
Press the SQV button repeatedly to cycle through the channels available in that bank.
Adding SQV channels using the remote control:
- Press CH ▲ or number buttons to select the channel you want to add to the current SQV memory bank.
- Press and hold the SQV button for about 2 seconds. When "SQV" and the memory bank number appear under the channel number, the channel has successfully been added.
Removing SQV channels using the remote control:
- Press the SQV button and then the memory bank number.
- Press the SQV button repeatedly until you see the desired channel.
- While the channel number and SQV indicator (with correct bank number) are still displayed on the screen, press the CANCEL button. If the CANCEL button is not pressed before the SQV indicator disappears automatically, the channel will not be removed.
- When the SQV indicator disappears, the channel has successfully been removed only from that bank. "Other" banks remain unchanged.
Time Menu
Setting the Clock
You may choose to manually or automatically set the clock that your TV will use for recording or timer functions.
Manual
Figure 15
To manually set the clock, you need to select the current time, including AM or PM, current date, time zone for your area and the Daylight Savings time setting.
Figure 15. Time Menu, Manual Clock Setting
Set Time
Press ADJUST ▲ or ▼peatedly to slowly select the hour or press and hold to quickly select the hour. Press ENTER to move to the minutes options. Press ADJUST ▲ or ▼ select minutes, then press ENTER to select AM or PM.
Set Date
Press ADJUST ▲ or ▼ to select the correct date.
Time Zone
Select your correct time zone. Press ADJUST ▲r to select the time zone (Atlantic, Eastern, Central, Mountain, Pacific, Alaska or Hawaii) for your area. Then press ADJUST ▶to move to the Daylight Savings time option.
Daylight Savings Time
Select the Daylight Savings time (DST) option that your state uses. Press ADJUST ▲ or ▼ select Applies if your state or area uses DST, or Ignore if DST does not apply.
Auto
Select the Time Zone and Daylight Savings time setting, as noted above. You may then tune to a channel (on Ant-1 or Ant-2) that uses Extended Data Service (XDS) time data, typically a PBS channel. The Auto selection will automatically retrieve the correct time and date information from this channel. Be aware that if a channel displays incorrect time information, it is because of information sent from the broadcaster and is not a defect of the TV.
Timer On/Off
Figure 16
The timer can be turned to On or Off. When On, you need to select the time and day to turn the TV On and the device and channel to display. At your preselected time, the timer will turn the TV On, and this message will be displayed: "Press a button for the TV to stay on". Press any button on the remote control within 5 minutes or the TV will turn itself Off.
Set Time
Press ADJUST ▲ or ▼peatedly to slowly select the hour or press and hold to quickly select the hour. Press ENTER to move to the minutes options. Press ADJUST ▲ or ▼ select minutes, then press ENTER to select AM or PM.
Set Day
Select the day or days that the TV will turn on automatically. Press ADJUST ▲ or to select Everyday, Mon-Fri (Monday through Friday), or the individual days of the week.
Figure 16. Timer Menu (Timer On/Off)
Device
Press ADJUST ▲ or ▶ to select the device to use when the timer turns on the TV. If the TV is already on, the timer will turn the TV to this selected device.
Channel
When an antenna is the selected device, you may select any memorized channel. Press ADJUST ▲r▼ to select the channel and the TV will tune to this channel in memory when the timer turns it on. This includes sub-channels for digital choices.
Captions Menu: Analog and Digital Captions
Captions Menu
Figure 17
For analog channels broadcasters can send either Standard or Text closed captioning. Standard Closed Captions follows the dialogue of the characters on-screen and displays in a small section of the screen. Text Closed Captions often contain information such as weather or news and covers a large portion of the screen. On digital channels, broadcasters can send up to 6 different captioning selections. Each TV station may broadcast only one or two types of captions or none at all. The TV cannot decode Closed Captions received on Component 1, 2 or Input-DTV.
Figure 17. Captions Menu
Analog Captions
The TV can display one of the following captions for Analog sources:
- CC1, CC2, CC3, or CC4. (Standard closed captioning signals).
- Text1, Text2, Text3, or Text4. (Text closed captioning signals).
- On if mute. Closed captions when mute. When selected, the standard closed captioning signal (CC1) will turn on/off by pressing MUTE on the TV remote control.
- Off. No closed captions.
IMPORTANT
When analog text closed captioning is selected, a large black or gray box appears on your TV screen if no signal is broadcast.
Background
To make the analog closed captions easier to read, you can choose to display the background color as either black or gray behind the captions.
Digital Captions
The TV can display one of the following Captions for Digital sources:
- Captions 1-6. Sent by broadcaster.
- On if Mute. Closed captions when mute. When selected, the captioning signal (Caption 1) will turn on/off by pressing MUTE on the TV remote control.
- Off. No closed captions.
Note: If the broadcaster is only sending analog captions converted to digital, then the analog captions settings apply.
Appearance
Closed Captions provider selects the Default options when sending digital closed captions. You may select the Custom option to override and customize Closed Captions appearance. These settings do not apply to analog Closed Captioning converted to digital.
Digital Settings
Figure 18
Select Digital Settings by moving the ADJUST buttons and pressing ENTER allows you to customize the Closed Caption settings that are sent by the broadcaster. Digital settings do not apply to analog closed captions converted to digital.
Figure 18. Closed Captions Menu Digital Settings
Captions Menu, continued: Customizing Digital Settings
Fonts
You can customize the text of digital captions by selecting the font of your choice. The available Font options are as follows:
- Default - Selected by the Closed Captions provider
- Font 1 - Monospaced font with Serif
- Font 2 - Proportional spaced font with Serif
- Font 3 - Monospaced font without Serif
- Font 4 - Proportionally spaced without Serif
- Font 5 - Casual font
- Font 6 - Cursive font
• Font 7 - Small Capitals font
Size
You can also customize the text of digital captions by selecting your desired size of font. Large is the recommended font size.
Color
You can customize the text of digital captions by selecting the color of font. The available font colors are as follows:
- White
- Yellow
- Black • Green
- Magenta
- Cyan
- Red
- Blue
Background
To make the digital closed captions easier to read, you can choose the background color. The available background colors are as follows:
- White
- Yellow
- Black • Green
- Magenta
- Cyan
- Red
- Blue
NOTE: If you choose the same color for the fonts and background, Closed Captions will not be visible.
Opacity (Font)
You can customize the visibility of your fonts using the following categories:
- Transparent - See-through text to the TV program
- Translucent - TV program is visible behind the text
- Opaque - Solid color text; blocks the TV program
- Flashing - Text flashing in intervals
IMPORTANT
We recommend you use contrasting colors between captions and background. In particular, Black background with translucent opacity and White font are ideal.
Care must be exercised when selecting customized colors. Your choice may change the legibility or readability of captions.
Background Opacity
You can customize the background for digital captions using the following categories:
- Transparent - See-through background to the TV program
- Translucent - TV program is visible behind the background
- Opaque - Solid background; blocks TV program
- Flashing - Background flashing in intervals
IMPORTANT
The content of captions is determined by the broadcaster. If your captions show strange characters, misspellings or odd grammar, it is not a malfunction of the TV.
V-Chip Lock Menu: Passcode
V-Chip
Select V-Chip Lock to perform the functions listed below. V-Chip allows you to Block or Allow programs based upon rating signals sent by the broadcaster. The TV comes from the factory with the V-Chip Lock in the Off setting.
You can turn the V-Chip on within the V-Chip Menu or you can use the V-CHIP button on the remote control to conveniently turn the V-CHIP on or off.
The factory preset is TV-PG for TV ratings or PG for movie ratings, allowing only programs rated TV-PG/PG or lower. You can change the blocking level to various TV ratings and lettered categories or movie ratings. After changing channels or devices, there may be up to a 5 second delay before the V-Chip lock takes effect.
IMPORTANT
If you forget your four-digit Passcode, see Appendix A.
Entry
Figures 19 and 20
You will see the screen shown in Figure 21 when you press V-CHIP on the remote control, the first time you select the V-Chip Lock menu, or after you have canceled your passcode. To use the Lock, input a four-digit passcode with the number buttons on the remote control, then press ENTER. You can delete a number and move back one space by pressing CANCEL. You can exit without inputting a passcode by pressing MENU or HOME.
After setting a passcode, the V-Chip Lock is active. The next time you select V-Chip Lock you will see ‘...enter your passcode” instead of “...enter a new passcode”.
V-CHIP PARENT LOCK
To go to the menu, enter a new passcode.
图 1-3 例 4.2
Use the NUMBER buttons and press ENTER
Figure 19. V-Chip Entry screen
To view a V-Chip blocked program or to watch the program during a scheduled lock time, you must enter your 4-digit passcode or change the channel to an unlocked program. Once you have entered the passcode, the V-Chip block or Lock by Time will remain released until the TV is powered Off and then On again.
Channel is locked.
V-Chip locked the program because the ratio TV-PG DSLV
To watch the program, Enter your passcode
(No text)
Use the NUMBER buttons and press ENTER
Figure 20. V-Chip Passcode screen
V-Chip Start Time and V-Chip Stop Time
Figure 21
Select the times you would like the V-Chip to be active. By setting the V-Chip Start Time and V-Chip Stop Time to the same time, the V-Chip will be active 24 hours a day.
Press ADJUST ▲r to slowly select the time, starting with the hours. Press and hold ADJUST ▲ or ▼o quickly select the hours, press ADJUST to select the minutes.
Figure 21. V-Chip Menu, Start & Stop Time
V-Chip Lock Menu: V-Chip Definitions
V-Chip Signal Information
When provided by the broadcaster, V-Chip ratings can be used to control which programs can be viewed or will be blocked. When V-Chip ratings are sent, you will see the ratings when you change the channel or when you press the INFO button on the remote control. Both TV and Movie ratings will display. TV ratings apply to programs and movies developed for TV and may have supplemental blocking by content categories. Movie ratings use MPAA ratings for movies released in theaters.
V-CHIP EXCEPTIONS:
- V-Chip is not effective for programs viewed on devices connected to Component input or HDMI.
- Videotapes, laser discs and DVDs may not contain V-Chip rating signals. If they don't contain the V-Chip signal, V-Chip cannot block the program or movie.
- Broadcasters are not currently required to include V-Chip rating signals at this time. If the broadcaster does not include the V-Chip rating signal, V-Chip cannot block the program.
TV Ratings:
Used with TV programs and Made-for-TV movies.
TV-Y Youth, for children under the age of 7.
TV-Y7 Youth, 7 years old and older. For children 7 years old and older.
TV-G General Audience. For the entire family to view.
TV-PG Parental Guidance. Parental Guidance is recommended, may not be suitable for some children.
TV-14 Adolescent 14 years old and older. Not recommended for children under the age of 14.
TV-MA Mature Audience. For adults only.
| TV Rating | FV | D | L | S | V |
| TV-Y | |||||
| TV-Y7 | X | ||||
| TV-PG | X | X | X | X | |
| TV-14 | X | X | X | X | |
| TV-MA | X | X | X |
Content Categories:
Used in association with the TV ratings above.
FV Fantasy Violence- applies to TV-Y7 only.
D Sexual Dialog- applies in different degrees to TV-PG and TV-14.
L Adult Language-applies in different degrees to TV-PG, TV-14, and TV-MA.
S Sexual Situations- applies in different degrees to TV-PG, TV-14, and TV-MA
V Violence (graphic or realistic)- applies in different degrees to TV-PG, TV-14, and TV-MA.
When you select a TV rating, you are selecting the least-restricted program level that can be viewed. As an example, if you select TV-PG, you are allowing programs rated TV-Y, TV-Y7, TV-G and TV-PG to be seen and blocking programs rated TV-14 and TV-MA. When you select a TV Content category, you will block all TV programs that have the same content category listing. As an example, if you select to block V (Violence) at the TV-14 level, you will also block any program that has the V category listing at the TV-PG rating level as well.
Movie Ratings:
Used with theater released movies and direct-to-video movies.
G General Audience- Designed for the entire family to view.
PG Parental Guidance- Parental Guidance is recommended, may not be suitable for some children.
PG-13 Parental Guidance 13 years old and older- Not recommended for children under the age of 13.
R Restricted- Restricted in the theater to 17 years old and older unless accompanied by an adult.
NC-17 No Children- Restricted in the theater to 18 years old and older.
X Adult- Designed for and restricted in the theater to adult audiences only.
When you select a Movie rating, you are selecting the least restricted program level that can be viewed. As an example, if you select a movie rating of PG-13, you are allowing movies rated G, PG and PG-13 to be seen and blocking movies rated R, NC-17, and X.
Programs Not Rated: Used for programs that are not rated like news, sports, weather, emergency bulletins, or movies such as those prior to or without MPAA Ratings.
This does not include programs without V-Chip signals.
IMPORTANT
If you select to block programs that carry the V-Chip rating “Programs Not Rated,” you may block News or Emergency Bulletins, when ““None”” or “NR” Not Rated V-Chip rating is included. Care should be used when blocking programming that is not rated.
V-Chip Lock Menu, continued
Lock By Time
Figure 22
Lock by Time allows you to lock the entire TV during specific hours. During the Lock Time, you must use your passcode to view the TV. To enable the lock:
Press ADJUST ▲ or ▼ to select On or Off, then press ADJUST ▶ to move to the Lock Time box. Press ADJUST ▶ or ▶ to select Lock Time.
Press ADJUST ▲ or ▼peatedly to slowly select the hour or press and hold to quickly select the hour. Press ENTER to move to the minutes options. Press ADJUST ▲ or ▼ to select minutes, then press ENTER to select AM or PM
Setting the Lock Time and Unlock Time to the same time will make the Lock by Time active 24 hours a day.
Figure 22. V-Chip Menu, Lock by Time
Front Button Lock
Front Button Lock lets you disable controls on the front panel to prevent anyone from changing settings by accident.
Select ON to lock out the operations of the front panel buttons and select OFF to restore the operations of the front panel buttons.
If the front panel buttons have been locked and you misplaced the remote control, you can restore the function of the front panel buttons by pressing and holding the MENU button on the front panel for more than 8 seconds. If the TV is already on, a message will be displayed to confirm the release of the Front Button Lock.
AudioVideo Menu
AudioVideo
Figure 23
Figure 23. Audio/Video Menu, Settings
A/V Memory Reset
A/V Memory Reset allows you to select the device which will have the A/V Settings returned to the original factory settings. To return a device's memory to the original factory settings, select the device and then press ENTER.
Settings
Each device has its own A/V memory. Select the device in A/V Memory Reset, then select Audio or Video to adjust the device's individual settings. Press ENTER, and the menu is removed and the individual settings are displayed.
Use ADJUST ▲ or to select the individual settings to be adjusted. Use ADJUST ▲ or ▲ to make the adjustment. For descriptions of the individual A/V settings see A/V Setting Descriptions, pages 74 and 75.
Video Mute
Video Mute lets you display a blue background when no signal is being received on Inputs 1-3, Components 1-2 and Input DTV.
Black Enhancement
Select On to enhance the contrast in bright scenes for better picture quality. Darker scenes will not be affected.
TV Speakers
This selection will turn on or off the TV's internal speakers. You may select Off when sending the sound through a separate stereo system or surround sound A/V receiver. When NetCommand ^ is enabled, selecting the A/V receiver icon from the Device Selection menu automatically turns Off the TV speakers. See the NetCommand information for further instructions.
Note: To prevent damage from a sudden increase in volume, make sure the TV volume is set to low before setting speakers to ON.
Using the AUDIO or VIDEO Button on the Remote Control
To adjust individual Audio or Video settings directly with the remote control:
- Press AUDIO or VIDEO to cycle through the available settings.
- Press ADJUST ▶ or ▶ to adjust the setting. After 5 seconds of inactivity, the setting display will disappear.
A/V Setting Descriptions: Audio
NOTE: The effects of the Audio Settings of Bass, Treble, Balance and Surround affect the sound heard through the TV speakers only.
Analog and Digital Audio Setting
A slider will display on-screen for most settings.
When the slider is displayed it has a numeric value, where 63 is the maximum, 31 is the mid-point and 0 is the minimum.
◇ Bass
Enhances or reduces low-pitch sound.
Treble
Enhances or reduces high-pitch sound.
Balance
Adjusts the level of sound between the left and right speakers.
Surround
Creates simulated stereo and surround effects through the TV speakers. Your choices are:
- Off: No surround effects.
- Surround Sound: Your TV will create a simulated surround effect when watching a stereo program.
- Simulated Stereo: Your TV will create a simulated stereo effect when watching a non-stereo program.
Analog Only Audio Settings
◇ Listen to
Determines how your TV will receive a broadcast audio signal and play back the sound you hear.
Your choices are:
- Stereo: Default setting. The TV will play stereo broadcasts in stereo and mono broadcasts in mono. The word “Stereo” will be displayed when you tune to a channel broadcasting stereo.
- SAP (Second Audio Program): Additional monaural soundtrack that you cannot hear during normal TV viewing. The SAP signal might be related to the program you are watching, such as a soundtrack in a foreign language, or unrelated to the program you are watching, such as a weather report. If an SAP signal is broadcast, the letters “SAP” will be displayed when you tune to the channel.
- Mono: Reduces background noise and should be used when receiving a weak stereo audio signal. All audio will be played mono with this setting.
Listen to is not available for devices connected to the TV Inputs, Component inputs or 1394 devices.
◇ Level Sound
Turn On or Off to automatically equalize the volume level of programs containing significant level differences from one segment to another (for example, regular programming to commercials). To receive the best fidelity with music programs, you can turn this setting to Off.
Digital Only Audio Settings
Language
Determines what possible language you will hear. Your choices are:
- English
- French
- German
- Italian
- Portuguese
- Spanish
- "Other"
◇ Level Sound
Automatically reduces loud passages and boosts soft passages to a more uniform loudness. When connecting to an A/V receiver, set level sound to OFF and turn the TV speakers off to send full dynamics to the A/V receiver.
This feature only works with Dolby Digital sources. Other digital audio formats do not offer this dynamic range control. In these cases, no effect will be heard when changing the level sound setting.
A/V Setting Descriptions: Video
Video Settings
◇ Contrast
Provides a slider to adjust the white-to-black level. Low contrast shows a variety of shades in darker images, while high contrast shows darker images more uniformly black and makes colors appear more vibrant. In most home lighting situations, a medium contrast looks best. High contrast is good for brightly lit environments.
◇ Brightness
Provides a slider to adjust the overall brightness of the picture.
◇ Sharpness
Provides a slider to adjust the detail and clarity.
◇ Color
Provides a slider to adjust the color intensity.
◇ Tint
Provides a slider to adjust the proportion of red to green.
◇ Color Temp (Color Temperature)
Allows you to adjust how white images are displayed. Your choices are:
- Low 6500K or Low (for DTV): White images will have a warm cast to them. This adjustment is an average and can vary due to ambient room lighting, video scene brightness and the TV's age. The Low 6500K represents the 6500K industry standard for NTSC (non-DTV) pictures.
- Medium: White images will be balanced between the Low (warm) and High (cool) settings.
- High: White images will have a cool cast to them. This setting may provide the most realistic picture under bright lighting.
◇ Video Noise
Use to reduce minor noise (graininess) in the broadcast received on Ant-1 and Ant-2 or Inputs 1-3, Component 1 and 2 and Input-DTV. Use standard with good quality signals.
◇ Film Mode (Auto) - On or Off
On is the automatic setting and will automatically
detect and apply film decoding correction for signals that originated on 24 frames per second film cameras and then were converted for broadcast to 30 frames per second video.
When the original signals originated on 30 frames per second video cameras, the On setting will automatically apply video decoding, the same as used with the Off setting. Try the Off setting when the TV seems to have difficulties and adds too many jagged edges to the images.
Film Mode is not effective for progressive scan (480p) devices, and high definition signals.
◇ DefinEdge
Selected image outlines are emphasized, resulting in sharper images, when On. When Off, the edge enhancer functions are prevented. The default is On.
NOTE: A slider will display on-screen for most settings. When the slider is displayed it has a numeric value, where 63 is the maximum, 31 is the mid-point and 0 is the minimum.
For a Currently Viewed PC
Auto Position
Press ENTER to automatically center the position of the PC video. This can be used whether the PC video is on the main or PIP/POP screen.
◇ HorizPosition (Horizontal Position)
Manually adjust the horizontal position of the PC, either on the main or PIP/POP screen. This selection will override the Auto Position selection.
◇ VertPosition (Vertical Position)
Manually adjust the vertical position of the PC, either on the main or PIP/POP screen. This selection will override the Auto Position selection.
◇ Fine Detail
Manually adjust the picture quality of the PC, either on the main or PIP/POP screen. This selection will override the Auto Position selection.
◇ PC Contrast
Manually adjust the picture contrast of the PC when it is the PIP or POP.
Operation of PIP and POP
You can display programs from analog channels, analog inputs or devices as Picture-In-Picture (PIP) and Picture-Outside-Picture (POP). The TV has a second analog tuner for non-scrambled analog channels received on Ant-1 and will display them as the PIP/POP sub-pictures. Digital channels and devices can be shown as the main picture but cannot be the sub-picture. PC screens can be viewed in the side-by-side mode.
Press PIP/POP to activate the PIP/POP option. With each press of the PIP/POP button on the TV remote control (within 3 seconds of each other), the PIP/POP will cycle through the following display options:
| MAIN PICTURE | Side-by-Side |
- POP
side-by-side pictures
To turn PIP/POP off, wait at least 10 seconds, and press PIP/POP. The next time you activate PIP/POP, the last used PIP/POP option will be displayed
Changing PIP/POP Device
Press PIP DEVICE to change the PIP or POP picture source device. A menu similar to the Device Selection menu will be displayed.
Changing PIP/Side-by-Side Channels
Press PIP CH to scroll up and down through
memorized channels on Ant-1 and Ant-2.
Exchanging Program Images
Press EXCH to exchange the main picture and the PIP/POP picture. Pictures from digital channels can only be shown as the main picture.
Moving PIP Image
If no menus are on the screen, press ADJUST ▲, ▼◀ or ▶ to move the PIP display anywhere on the main screen.
Automatic POP Switching
When automatic POP switching is active, the TV will cycle through memorized analog channels on Ant-1 or Ant-2 or strobe pictures from other A/V components in the POP display. Press PAUSE to pause or restart automatic POP switching.
Selecting POP "Live" Image
Press ADJUST ▲, ▼or◀ to select a different POP "live" image (automatic POP switching must be paused.)
Freezing the PIP and Side-By-Side Picture
Press PAUSE to freeze the PIP and side-by-side images. Press PAUSE again to return to a "live" image.
IMPORTANT
Side-by-Side cannot show the same channel or device on both sides.
When Ant-1 or Ant-2 is the main picture, Ant-2 is not available as the PIP, POP or Side-by-Side.
PIP/POP is not compatible with signals from media cards.
Chapter . . .
Special Features
Display Formats 78
Device Control with NetCommand® 81
Appendix A: Bypassing the V-Chip Lock....83
Appendix B: Specifications....85
Appendix C: Remote Control Programming Codes ....87
Appendix D: On-Screen Information Displays....90
Appendix E: NetCommand® Specialized Device Keys .....91
Appendix F: Cleaning and Service 92
Appendix G: Diamond Shield™ Removal 93
Appendix H: Filter Cleaning 94
Lamp Replacement....95
Troubleshooting 97
Additional Information....102
Index....103
Warranty 105
Display Formats
This is a widescreen TV (also known as a 16:9 TV). This shape reflects the new types of images available from HDTV and many DVDs. There are still many older style narrow screen images (called 4:3 aspect ratio) you will encounter. While there will never be a perfect solution for displaying a narrow image on a wide screen, Mitsubishi offers several display formats to choose from.
Press FORMAT on the TV remote control to cycle through the available display formats. The last used format for each device will be used when you return to that device.
Note: Not all formats are available for PIP/POP. Side-by-Side, 3 POP and 9 POP are only available in Standard and Expand formats. PC formats vary depending on PC signal.
Signals and Formats Definitions:
480i Signals: Traditional analog interlaced signals from or through Ant-1 & 2, Inputs 1-3, Component 1 & 2, Input-DTV and HDMI.
480p Signals: Progressive scan analog DVD signals on Ant-1 & 2, Component-1 & 2, Input-DTV and HDMI.
720p & 1080i Signals: High definition analog signals received through Component-1 & 2, Input-DTV and HDMI. These signals are always 16:9 (widescreen).
SD 4:3: Standard definition narrow screen format signals from digital channels and IEEE 1394 devices.
SD 16:9: Standard definition wide screen format signals from digital channels and IEEE 1394 devices.
HD: High definition wide screen format signals from digital channels and IEEE-1394 devices. These signals are always 16:9 (widescreen).
Standard: This is the full screen format. HDTV signals use this format. This format is useful to display Anamorphic DVDs that have 1.78:1 or 1.85:1 aspect ratios. Anamorphic DVDs that have a 2.35:1 aspect ratio will still display black bars at the top and bottom, but will show the entire image correctly. Narrow (4:3) images will be stretched evenly from side to side. Available for all signals.
Expand: This will enlarge the picture to fill the screen, cropping off some of the image at the top and bottom. This is useful to reduce the letterbox top and bottom bars of non-anamorphic DVD. Available for analog 480i, 480p and digital SD 4:3 signals only.
Zoom: This will enlarge the picture, cropping off some of the image at each side and top and bottom. This is useful to remove or reduce the black top and bottom bars on anamorphic DVDs with a 2.35:1 aspect ratio. Available for analog 480i and 480p and SD 4:3 signals only.
Stretch: This format will stretch a narrow (4:3) image across the screen, however, there is less stretch in the center than the sides. This will allow the entire narrow image to be displayed across the screen with less distortion than seen in the Standard format. Available for analog 480i and 480p and SD 4:3 signals only.
Stretch Plus: Similar to stretch mode, however to minimize distortions on the side, the picture is expanded to crop off portions of the top and bottom. Useful when no important information is shown at the top and/or bottom of the screen. Available for analog 480i and 480p and SD 4:3 signals only.
Narrow: This format will display narrow (4:3) images in their original shape, and add stationary black side bars to fill the screen. Available for 480i, 480p and digital SD 4:3 signals only.
Wide Expand: Enlarges the picture, cropping some of the image on both sides. This Expand format is useful to remove or reduce black side bars added to narrow images that are converted to 16:9 signals for digital broadcast. Available for analog 1080i, 720p, digital SD 16:9 and digital HD signals.
DVD Definitions:
Anamorphic (or Enhanced for Widescreen TV's):
These DVDs are recorded in a special way to properly show widescreen images on 16:9 TV sets in the Standard format mode. This is the recommended choice.
Non-Anamorphic (or 4:3, 1:33:1, Letterbox or Full Screen):
These DVDs are recorded for use with traditional shaped TVs. They may be full screen (4:3 or 1:33:1) which crops movies to fit the narrow TV, or Letterboxed which adds black top and bottom bars.
This information may or may not be listed on the DVD case. Some DVDs support both types of recordings.
TV Display Formats
ORIGINAL SIGNAL
Non-anamorphic or SD 4:3
H D DIGITAL
(with side bars in broadcast)
Original HD or SD 16:9, 720p or 1080i
ORIGINAL SIGNAL
Anamorphic DVD
PC Display Formats
| Signal FormatOriginal Pixel Count | Reduce 1 | Reduce 2 | Standard | Zoom |
| VGA 4:3640 X 480 |  640 x 480 |  848 X 648 | ||
| WVGA 16:9848 X 480All 4 formatsavailablefor above inputs |  848 X 480 |  1149 X 648 | ||
| SVGA 4:3800 X 600 |  800 x 600 |  864 x 648 | ||
| WSVGA 16:91084 X 600All 4 formatsavailablefor above inputs |  1064 X 600 |  1149 X 648 | ||
| XGA 4:31024 X 768 |  864 X 648 |  1024 x 768 |  1152 x 864 | |
| PC 720p 16:91280 X 720 |  1088 x 612 |  1152 x 648 |  1280 x720 |
Device Control with Net Command®
| NetCommand Compatible Traditional Devices (Analog) | ||||
| When Device Selection Menu is Displayed and the Device is Highlighted (Yellow Outline) | ||||
| DeviceRemoteControl Button | A/V RECEIVER V | CR DVD CABLE BOX/DBS | ||
| POWER | Power On/Off (toggle) | Power On/Off (toggle) | Power On/Off (toggle) | Power On/Off (toggle) |
| GUIDE | Changes between digital and analog audio | Changes VCR inputs n/a Changes antenna inputs (RCA model DTC-100 only) | ||
| FORMAT | n/a n/a Changes output between inter- | laced and progressive | Changes output between HD and SD select models | |
| When Net Command® Compatible Traditional Device is Viewed or Played | ||||
| DeviceRemoteControl Button | A/V RECEIVER | VCR DVD CABLE/DBS | ||
| CH up/down | Channel up/down Skip Forward/BackwardsChapter or Track | Backwards | Channel up/down Page up/down when guide showing | |
| VOL up/down | VolumeUp/Down | |||
| MUTE | Mute On/Off | |||
| 0-9 (digits) | number functions number functions | number functions | ||
| QV | Last Channel Recall | |||
| DEVICE Menu | 1st press Transport Menu,2nd press Setup Menu display | 1st press Transport Menu,2nd press Setup Menu display | Setup menu display or Action function | |
| HOME | ||||
| ENTER | Enter or select | Enter or select | ||
| CANCEL | Counter Reset | Exit or return | Exit or return | |
| GUIDE | Disc menu display | Channel Guide | ||
| ADJUST | up/down left/right | up/down left/right | ||
| PLAY | Play | Play | ||
| STOP | Stop | Stop | ||
| RECORD | Record | |||
| REW/REV | Rewind/Reverse | Reverse | ||
| FF/FWD | Fast Forward or Fast Play | Fast Play | ||
Device Control with Net Command ^® , continued
| IEEE 1394 Devices | ||||
| When Device Selection Menu is Displayed and the Device is Highlighted (Yellow Outline) | ||||
| DeviceRemoteControl Button | TUNER/CABLE BOX/DBS | A/V DISC | DVCR | AMPLIFIER |
| POWER | Power On/Off(toggle) | Power On/Off(toggle) | Power On/Off(toggle) | Power On/Off(toggle) |
| GUIDE | n/a | n/a | n/a | n/a |
| FORMAT | n/a | n/a | n/a | n/a |
| When an IEEE 1394 Device is Viewed or Played | ||||
| DeviceRemoteControl Button | CABLE/DBS A/V DISC | DVCR AMPLIFIER | ||
| CH up/down | Channel up/down Page up/down (when track list is displayed) | Index search forward/reverse (if supported by DVCR) | ||
| VOL up/down | Volume Up/Down | |||
| MUTE | Mute On/Off | |||
| 0-9 (digits) | number functions Search by time (when followed by ENTER) | |||
| QV | Last Channel Recall | |||
| DEVICE Menu | n/a Transport Menu redisplay Transport Menu redisplay Device Menu | |||
| HOME | Exit menus/displays Exit menus/displays Exit menus/displays Exit menus/displays | |||
| ENTER | Enter or select Enter or select Enter or select | |||
| CANCEL | Cancel function | Cancel function | Cancel function or Counter Reset | Cancel function |
| GUIDE | Digital Channel Guide | Track or program list display | Digital Channel Guide | |
| ADJUST | up/down left/right | Skip Forward 30 seconds (during playback)Skip Backwards 12 seconds (during playback)Page up/down in track list | up/down left/right | up/down left/right |
| PLAY | Play | Play | ||
| STOP | Stop | Stop | ||
| RECORD | Record | Record | ||
| REW/REV | Reverse or Slow Play | Reverse or Slow Play | ||
| FF/FWD | Fast Play | Fast Play | ||
Appendix A:
Bypassing the V-Chip Lock:
Lock Bypass Instructions Have Been Filed for Future Reference
Bypassing the V-Chip Lock
After you set the lock, you need your passcode to view a V-Chip locked program, view the locked TV, cancel the lock, or enter the V-Chip Lock menus.
If you forget your passcode, you can view the locked TV without entering your passcode. This is done by pressing the number 9 and QV buttons on the TV remote control at the same time, when your passcode is requested. This process temporarily unlocks the TV.
When entering the V-Chip Lock menu, this process deletes your old passcode and prompts you to enter a new passcode. Press HOME to exit the menu.
Bypassing Front Button Lock
If you have misplaced the remote control, you can bypass the front button lock by pressing and holding the MENU button on the front panel for more than 8 seconds.
IMPORTANT
Cut along the dotted line and file bypass instructions in a safe place for future reference.
IMPORTANT
When changing or deleting your passcode, you must use the remote control included with this TV. You cannot use a Mitsubishi remote control from another component or a "universal" remote.
This page intentionally blank
Appendix B: Specifications
From time to time, Mitsubishi may offer software updates to expand the features or operation of this TV. When these updates are available they will be announced on our web site, Mitsubishi-tv.com. If you return your Owner's registration card, with your model and serial number, you may receive written notification of available software updates.
| TV Specifications | |
| Projection System DLP, 0.85" chip, 720 x 1280 pixels | |
| Lamp 120 watt VIP type | |
| Channel Frequency Reception Over-the-Air: VH F 2 - 13, UHF 14 - 69 Analog Cable: 1 - 125 Digital Cable: 1 - 135 | |
| Channel Type Over the Air: Analog NTSC, Digital ATSC with sub-channels (all 18 video formats) Cable: Analog NTSC (non-scrambled) Digital QAM 64 and 256 with sub-channels (non-scrambled) CableCARDTM: Authorized scrambled and non-scrambled digital channels | |
| Note for Digital Channels: The channel numbers displayed on-screen are determined by the broadcaster or cable company and can vary from the standard frequency number. If there is no channel number information included from the broadcaster or cable company, then the TV will create a channel number based on the frequency number as the main channel number and the program number as the sub-channel number. When using an authorized CableCARD, the channel numbers are determined by the cable company. | |
| Inputs | |
| Antenna/Cable input Qty 2 F connector, 75ohm | |
| HDMI (digital video/audio), Qty 1 Signal Type | HDMI standard connector HDMI standards for digital audio and video. Not intended for use with personal computers |
| Video/S-Video, Qty 3 each Signal Type | Video: RCA Pin Plug, 1.0 V p-p, 75 ohm S-Video: Four Pin Din Plug Y: 1.0 Vp-p 75 ohm C: 0.286 Vp-p (burst signal), 75 ohm NTSC 480i only |
| Component Video (Y/Pr/Pb) Qty 2 sets Signal Type | RCA Pin Plug (EIA-770.3 Standard Levels and Timing) Y: 1.0 Vp-p (includes sync), 75 ohm Pr: 700 mVp-p, 75 ohm Pb: 700 mVp-p, 75 ohm EIA-770.1 & EIA 770.2 480i, 480p, EIA 770.3 720p and 1080i (video standards) |
| Input-DTV (Y/Pr/Pb or RGBH&V) Qty 1 set Signal Type | RCA Pin Plug, When used as Y/Pr/Pb same as component inputs shown above When used as RGBH&V: R (red): 700 mVp-p, 75 ohm G (green - no sync): 700 mVp-p 75 ohm B (blue): 700 mVp-p, 75 ohm H (horizontal sync): 3 Vp-p +/-1.0v, 2.2k-ohm V (vertical sync): 3 Vp-p, +/- 1.0v, 2.2k-ohm EIA-770.1 & EIA 770.2 480i, 480p, EIA 770.3 720p and 1080i (video standards) |
| PC Input (RGB) Qty 1 Signal Type | Mini-D Sub, 15 pin VGA (640 x 480), 60Hz Some WVGA (848 x 480), 60 Hz might be compatible, but not guaranteed SVGA (800 x 600), 60Hz XGA (1024 x 768), 60 Hz 720 x 1280, 60 Hz (EIA standards) |
| Audio Inputs: Qty 8 pair RCA Pin Plug 500mV (full scale), 43kohm | |
| Outputs | |
| Video | |
| Video, Qty 1Signal Type | Video: RCA Pin Plug 1.0 Vp-p, 75 ohmNTSC 480i only |
| Audio | |
| Monitor Output, Qty 2 pair RCA Pin Plug, 500 mV rms ±200 mV (full scale) for analog sources.1.5 V ± 0.5 V (full scale) for digital sources. | |
| Digital Interfaces: | |
| Digital Audio Output, Qty 1 RCA Pin Plug, Signal Type, Dolby Digital | |
| IEEE 1394, Qty 3 IEEE 1394 Four Pin type Terminal, S400 | |
| Audio/Speakers 10 watt x 2, 5" coaxial speakers | |
| Dimensions | |
| WD-52525, WD-52725 H 37-1/4" x W 49-5/8" x D 17-3/8", 132lbs | |
| WD-62525, WD-62725 H 43-5/8" x W 58-5/16" x D 19-7/8", 165 lbs | |
| Power Consumption 275 watts | |
| Net command® IEEE 1394 System Compatibility:This television is designed to conform to IEEE 1394 AV/C Software standards in effect at the time of development. This exciting new networking and control technology is designed to provide high-performance digital connections and product control, making the product easier to use.Mitsubishi D-VHS VCRs are fully compatible with this TV in audio, video and control. Many DV camcorders that have IEEE 1394 connections will be compatible with the control features of this TV, but not compatible with the audio or video decoder.As other manufacturers produce products that use the IEEE 1394 AV/C standards, they will be responsible to develop theses products to meet the standards of the technology, as well as compatibility testing with other products.Mitsubishi cannot be responsible for their efforts, and therefore cannot promise compatibility with these other products. Any compatibility problems with other manufacturers products should be brought to the attention of those manufacturers.The HDMI input is compliant with EIA-861B standards for standard, extended and high definition video, digital audio and HDCP copy protection. However, this input is not intended for use with personal computers or devices outputting video signals with computer resolutions. | |
Appendix C: Remote Control Programming Codes
IMPORTANT
The remote control may return to its initial setting when the batteries are changed. You may need to reprogram.
Programming the Remote to Control NetCommand A/V Products
- Move the slide switch at the top of the remote to the TV position.
- Press and hold POWER on the remote control.
- Enter the three digit code of 935, and then release POWER.
- When the remote control is in the TV position, it is now programmed to send NetCommand signals to the TV so the TV can control the IEEE 1394 devices and older NetCommand supported or learned IR devices.
(This is the default setting for the remote control.)
Programming the Remote to Control Other Brands of Audio and Video Products
- Move the slide switch at the top of the remote to the product you want to control.
- Press and hold POWER on the remote control.
- Enter the first three digit code listed for your equipment, and then release the POWER button on the remote control.
- Point the remote control at the equipment and press the POWER button. If the equipment responds, the remote control is properly programmed to operate the equipment. If the equipment does not respond, repeat steps 2-4 with the next three digit code listed in step 3 for your equipment.
A/V Receivers
| A/V Receiver Brand | Code |
| MITSUBISHI 010, 011, 012, 013, 014 | |
| AIWA | 225, 226, 241 |
| BOSE | 351 |
| B&K | 352 |
| DENON | 234, 235, 236, 245, 246, 359, 361 |
| FISHER | 204 |
| GARRARD | 213 |
| HARMAN KARDON | 215, 223, 242, 362 |
| JENSEN | 223, 229 |
| JVC | 232, 233 |
| KENWOOD | 200, 208 |
| KLH | 363 |
| KOSS | 357 |
| MAGNAVOX | 227, 228 |
| MARANTZ | 224, 350, 360 |
| MCINTOSH | 216 |
| NAKAMICHI | 206, 217 |
| ONKYO | 209, 214, 240, 247 |
| OPTIMUS | 203, 227, 231, 230 |
| PANASONIC | 219, 218, 221 |
| PARASOUND | 356 |
| PHILIPS | 223, 248 |
| PIONEER | 205, 207 |
| POLK AUDIO 353 | |
| QUASAR | 219, 218, 221 |
| RCA 203, 205, 227, 231, 230 | |
| ROTEL | 366 |
| SANSUI | 203, 211, 239 |
| SHARP | 234, 237 |
| SHERWOOD | 354, 355 |
| SONY | 222, 249, 364, 365 |
| TEAC | 212, 213, 211, 210 |
| TECHNICS | 221, 218, 219 |
| VICTOR | 232, 233 |
| YAMAHA | 201, 202, 243, 244 |
Cable Boxes
| Cable Brand Code | |
| ABC 124 | |
| ARCHER 125 | |
| CABLEVIEW 105, | |
| CITIZEN 122, 105 | |
| COLOR VOICE 128, 129, 130, | 106, 107 |
| COMTRONICS 128, 129, 130, | 106, 107 |
| CURTIS 112, 113 | |
| DIAMOND 124, 125 | |
| EAGLE 129 | |
| GCBRAND | 105 |
| GE | 112, 113 |
| GEMINI | 122 |
| GENERAL INSTRUMENT/ JERROLD | 119, 123, 124, 125, 126, 127, 120, 121, 122 |
| HAMLIN 112 | |
| HITACHI | 103, 124 |
| MACOM | 103, 104, 105, 108 |
| MAGNAVOX | 128, 129, 130, 106, 107, 133, 138 |
| MOTOROLA 123, 146 | |
| MEMOREX | 130 |
| MOVIETIME | 105, |
| PANASONIC | 114 |
| PARAGON | 117 |
| PHILIPS | 128, 129, 130, 106, 107, 131, 133, 138 |
| PIONEER | 101, 106, 116 |
| PULSAR | 105 |
| RCA 115 | |
| REGAL | 112 |
| REMBRANDT | 105, 138 |
| SAMSUNG | 105 |
| SONY | 147, 177 |
| ZENITH/DRAKE SATELLITE | 100 |
Appendix C: Remote Control Programming Codes, continued
| SCIENTIFIC ATLANTA | 112, 113, 194 |
| SIGNATURE | 119,124,125,126,127,120,121,122 |
| SLMARK | 105,101 |
| SPRUCER | 105 |
| STARCOM 119,124,125,126,1 | 27,120,121,122 |
| STARGATE | 105 |
| TELEVIEW | 101,105 |
| TOCOM | 135,136 |
| TOSHIBA | 104 |
| UNIKA | 125 |
| UNITED CABLE | 119,124,125,126,127,120,121,122 |
| UNIVERSAL | 122 |
| VIDEOWAY | 106 |
| VIEWSTAR | 129,130 |
| ZENITH | 117,100 |
DVD Players
| DVD Brand | Code |
| MITSUBISHI 003 | |
| AIWA | 261, 274 |
| APEX | 266, 283 |
| BOSE | 286 |
| DENON | 250, 273 |
| FERGUSON | 251 |
| HARMAN KARDON | 282, 288 |
| HITACHI | 270 |
| JVC | 257 |
| KENWOOD | 271, 289 |
| MINTEK | 285 |
| NORDMENDE | 251 |
| ONKYO | 267, 280 |
| ORITRON | 263, 268 |
| PANASONIC | 250 |
| PHILPS/MAGNAVOX | 258, 253, 272, 290 |
| PIONEER | 252 |
| RCA/GE/PROSCAN | 251, 256 |
| ROTEL | 292 |
| SABA | 251 |
| SAMSUNG | 261 |
| SAMPO | 263 |
| SHARP | 260 |
| SYLVANIA | 264 |
| SONY | 254, 278, 279 |
| THOMSON | 251 |
| TOSHIBA | 253 |
| V INC. (BRAVO D1) | 291 |
| YAMAHA | 250, 272, 276, 287 |
| ZENITH | 259 |
Satellite Receivers/DBS/DTV
| DBS Brand | Code |
| MITSUBISHI | 006 (same as 173) |
| ECHOSTAR/DISH NETWORK | 175, 182, 183, 188 |
| EXPRESS VU | 175 |
| G.E. | 176 |
| HITACHI | 173, 181, 184 |
| HNS(Hughes) 173 | |
| JVC (ECHOSTAR) | 175 |
| MAGNAVOX | 171, 172 |
| PANASONIC | 174 |
| PHILIPS | 171, 172 |
| PROSCAN | 176, 179, 180, 185 |
| RCA | 176, 179, 180, 185 |
| SAMSUNG - TERRESTRIAL | 192 |
| SONY | 177 |
| STAR CHOICE | 173 |
| TOSHIBA | 170, 189, 190, 191 |
| UNIDEN | 171, 172 |
| WEBTV | 187 |
| ZENITH/LG | 193 |
VCRsCable Boxes, continued
| VCR Brand Code | |
| MITSUBISHI 001, 060, 067, 068, 061, 062, 002 | |
| AKAI 049, 034, 035, 036 | |
| AUDIO DYNAMIC 031 | |
| BELL&HOWELL 025, | |
| BROKSONIC 040, 046 | |
| CANON 043, 045 | |
| CITIZEN 026 | |
| CRAIG 025, 049, 026 | |
| CURTIS MATHES 065, 044, 047 | |
| DAEWOO 063, 021, 044, 078 | |
| DBX 030, 031 | |
| DIMENSIA | 065 |
| EMERSON | 063, 046, 038, 039, 023, 045, 062, 040 |
| FISHER | 025, 028, 029, 027 |
| FUNAI | 047, 046, 040 |
| GE | 053, 065, 044, 079 |
| GO VIDEO | 057, 069, 070, 071 |
| GOLDSTAR 026 | |
| HITACHI | 043, 065, 020, 047 |
| INSTANT REPLAY | 044, 043 |
| JVC | 030, 031, 076, 077 |
| KENWOOD | 030, 026, 031 |
| LXI | 047, 026, 020, 027, 028, 025, 029 |
| MAGNAVOX | 051, 043, 044 |
| MARANTZ | 030, 031 |
| MARTA | 026 |
| MEMOREX | 044, 029 |
| MGA 060, 067, 068, 061, 062 | |
| MINOLTA | 020, 065 |
| MULTITECH | 067, 047 |
| NEC | 030, 031 |
| OLYMPIC | 044, 043 |
| OPTIMUS | 048, 041, 055, 026 |
| ORION | 046, 040 |
| PANASONIC | 043, 044, 041, 042 |
| PENNEY | 044, 020, 065, 025, 030, 031 |
| PENTAX 020, 031, 065 | |
| PHILCO | 051, 044, 047, 043, 046, 040, 063 |
| PHILIPS | 051, 043, 044 |
| PIONEER | 043 |
| PROSCAN | 065, 020, 043, 044, 051, 066, 021, 022, 053 |
| QUASAR | 041, 042, 043, 044 |
| RADIO SHACK | 053, 044, 025, 056, 029, 060, 047 |
| RCA | 020, 021, 022, 043, 044, 049, 051, 053, 065, 066 |
| REALISTIC | 044, 025, 056, 029, 060, 047 |
| SAMSUNG | 057, 022, 053 |
| SANSUI | 046, 040 |
| SANYO | 025, 029 |
| SCOTT | 021, 022, 029, 060, 067, 068, 046, 040 |
| SEARS | 025, 026, 027, 028, 020 |
| SHARP | 055, 056 |
| SIGNATURE 2000 | 047, 055 |
| SONY | 048, 049, 050, 073, 074, 075 |
| SV2000 | 047 |
| SYLVANIA | 051, 043, 044, 047 |
| SYMPHONIC | 047 |
| TASHIRO | 026 |
| TATUNG | 030, 031 |
| TEAC | 030, 047, 031 |
| TECHNICS | 041, 042, 043, 044 |
| TEKNIKA | 044, 047 |
| TOSHIBA | 021, 066 |
| TOTEVISION | 026 |
| VECTOR RESEARCH | 031 |
| WARDS 055, 056, 029, 064, 026 | |
| YAMAHA | 025, 030, 031 |
| ZENITH | 064, 026 |
Appendix C: Remote Control Programming Codes, continued
IMPORTANT
Some manufacturers may change their products, or they may use more than one remote control system. If this is the case, your remote control may not be able to operate your VCR, DVD, cable box, satellite receiver, or A/V receiver.
After entering the correct codes in each position of the remote control, use the slide switch to select which product will respond when an operational button is pressed. Only one of the below devices is allowed for each slide switch position.
TV position:
TV, NetCommand® Controlled Devices
Cable/DBS/DTV position:
→ Cable box
→ Satellite receiver
→ DTV receiver
VCR position:
VCR
DVD position:
DVD
→ LD Player
Audio position:
→ A/V receiver
Mitsubishi CD player
If you have a Mitsubishi A/V receiver, the audio position may be used in conjunction with select Mitsubishi CD players. Your audio position must be programmed to 010.
When your remote control has been programmed to operate another manufacturer's product, the function performed on each layer can vary. The most common functions are:
VCR
- POWER
- CHANNEL up/down
- PLAY
• REC - PAUSE
- STOP
- FF/FWD
- REW/REV
Mitsubishi VCRs will be compatible with some additional buttons
Cable Boxes and Satellite Receivers
- POWER
- CHANNEL up/down
• 0-9 number buttons (on some models) - ENTER (on some models)
- CANCEL (on some models)
- ADJUST up/down/ left/right (on some models)
• GUIDE (on some models)
A/V Receivers
- POWER
• VOLUME
• MUTE
Mitsubishi A/V Receivers
- Direct Input Selection buttons: numbers, SQV and QV (on some models)
Mitsubishi CD Players
(not all functions for all models)
- PLAY
- FF/FWD
- REW/REV
- PAUSE
- STOP
DVD and Laser Disc Players
(not all functions for all models)
- POWER
- MENU
• 0-9 number buttons (on some models) - PLAY
- STOP
• ARROW up/down/left/right (on some models) - FF/FWD
- REW/REV
- PAUSE
• CANCEL (on some models) - ENTER
• CHANNEL (on some models)
Appendix D: On Screen Information Displays
When you turn on the TV, change Devices, change Channels or when you press the INFO button on the remote control the TV will display the current status. Below are the most common displays; please note that seldom or never do all of the different status indicators appear at the same time.
Analog Program
- Antenna or Device being viewed
- Analog channel being received: If antenna being viewed
- Channel name (if manually programmed)
- Signal Type being received
Possible:
Ant-1, Ant-2 or Input 1-3 - 480i
Component 1, 2 - 480i, 480p, 720p or 1080i
Inp-DTV - 480i, 480p, 720p or 1080i
- Screen format being used
Possible:
Analog 480i/480p signals – Standard, Expand, Zoom, Stretch, Stretch Plus, Narrow 720p/1080i signals - Standard, Wide Expand
- Stereo and/or SAP being broadcast
- V-Chip Ratings
- Channel in SuperQuickView bank 2
- Day and Time
- Sleep Timer remaining time
- PIP source and channel
Digital Program
- Digital Major and Sub channel number
- Digital Channel Name (only if broadcast)
- Signal Type being broadcast/received Possible: SD 4:3, SD 16:9 or HD
- Screen format being used
Possible:
SD 4:3 - Standard, Expand, Zoom, Stretch, Stretch Plus, Narrow SD 16:9 or HD - Standard, Wide Expand - Language(s) being broadcast
- Program Name (if broadcast)
Digital IEEE 1394 Device
- Status of D-VHS VCR or IEEE 1394 device
- Counter of D-VHS VCR
- Media type in D-VHS VCR
- Special message line (shows only when a special message is needed; may be seen with Analog signals)
Appendix E: NetCommand® Specialized Device Keys
| A/V RECEIVER | CABLE or DBS | VCR | DVD LEARNING SCREEN CHECKBOX NAME | FUNCTION NAME ON TV | REMOTE |
| X X X X Power* | Power On or Power On | Power On | Off POWER** | ||
| X X X X Power | (Off)* Power Off | Power Off | POWER** | ||
| X Volume Up | Volume Up | VOL ▲ | |||
| X Volume Down | Volume Down | VOL | ▼ | ||
| X Mute | Mute | MUTE | |||
| X Analog to Digital* | Analog/Digital Switch | GUIDE** | |||
| X Digital to Analog* | Digital/Analog Switch | GUIDE** | |||
| X | Input (1-7) | AVR Input Select | Automatic (when device is selected) | ||
| X X | Channel | Up Channel | Scan Up CHAN | ▲ | |
| X X | Channel | Down Channel Scan Down | CHAN | ▼ | |
| X | Recall | Last Channel Recall | QV | ||
| X | X Guide Guide | GUIDE | |||
| X X X Adjust Up | Arrow/move Up | ADJUST ▲ | |||
| X X X Adjust Down | Arrow/move Down | ADJUST ▼ | |||
| X X X Adjust Left | Arrow/move Left | ADJUST ◀ | |||
| X X X Adjust Right | Arrow/move Right | ADJUST ▶ | |||
| X X X Enter | Enter/Select | ENT | |||
| X X X Menu | Device Menu or Setup Menu DEVICE MENU | ||||
| X X X Cancel | Cancel or Exit | CANCEL | |||
| X X X Info | Status Information | Display INFO | |||
| X | Page Up | Guide Page Up | CHAN ▲** | ||
| X | Page Down | Guide Page Down | CHAN ▼ *** | ||
| X X X Play | Play | PLAY | |||
| X X X Stop | Stop | STOP | |||
| X X X Forward | Fast Forward/Fwd | Search FF | |||
| X X X Rewind | Rewind/Reverse Search | REW | |||
| X X X Pause | Pause | PAUSE | |||
| X X X Record | Record | REC | |||
| X X X Enter (digits)† | Enter for channel numbers | ENT | |||
| X | X | Low Speed Out* | LowSpeed 480i out | FORMAT** | |
| X | X | High Speed Out* | Hi Speed 480p/1080i out | FORMAT** | |
| X | X | 1,2,3,4,5,6,7,8,9,0 | 1,2,3,4,5,6,7,8,9,0 | 1,2,3,4,5,6,7,8,9,0 | |
| X X | Input | Input Change | GUIDE** | ||
| X | Sub channel separator‡ | Digital Sub channel | CANCEL | ||
| X Chapter + Chapter - | Chapter Skip Forward | CHAN ▲ | |||
| X Chapter - | Chapter Skip Reverse | CHAN ▼ | |||
* These are paired functions (e.g. Power and Power Off). When the original remote control uses a single button for both functions, learn only the first of the paired functions.
† If there are two Enter keys, learn the Enter key used for channel selection here. The ENT button on the remote sends the correct IR code when digits are entered.
Learn the subchannel separator if a special key is used to add a separator (dash or dot) in a digital channel. Press the CANCEL button on the remote to add the separator
** This function is performed only when the Device Selection Menu is displayed and the device icon is highlighted.
*** Channel Up/Down as Guide Page Up/Down happens only after pressing GUIDE and returns to channel functions after pressing ENTER or CANCEL.
Appendix F: Cleaning and Service
IMPORTANT
DO NOT use any kind of abrasive cleaner on the surface of the TV screen or Diamond Shield™.
Cleaning
Normally, light dusting with a dry, non-scratching duster will keep your TV clean. If cleaning beyond this is needed, please use the following guidelines:
First, turn off the TV and unplug the power cord from the power outlet.
Top and Sides of the TV:
- Gently wipe down your TV with a soft, non-abrasive cloth such as cotton flannel or a clean cloth diaper, lightly moistened with water. Dry with a second dry, soft, non-abrasive cloth.
- For oily dirt, add a few drops of mild liquid detergent, such as dishwashing detergent to the water used to moisten the cloth. Rinse with a second cloth moistened only with water. Dry with a third dry, soft, non-abrasive cloth.
Diamond Shield™:
- Clean with a soft non-abrasive cloth moistened with water only.
Screen behind the Diamond Shield:
- Follow the instructions for the top and sides, however, wipe gently in an up and down motion, following the grooves in the screen.
- Clean the entire screen evenly, not just sections of the screen.
- Do not allow liquid to drip down the grooves of the screen as some liquid may enter the TV between the screen and the screen frame.
- You may purchase Mitsubishi Screen Cleaner, part number CLEANER-VSS, by calling (800) 553-7278.
General Cleaning Warnings:
- DO NOT allow liquid to enter the TV through the ventilation slots or any crevice.
- DO NOT use any strong or abrasive cleaners as these can scratch the surfaces.
- DO NOT use any cleaners with ammonia, bleach, alcohol, benzine, or thinners as these can dull the surfaces.
- DO NOT spray liquids or cleaners directly on the TV's surfaces.
- DO NOT scrub or rub the TV harshly. Wipe it gently.
Service
If you are unable to correct a problem with your TV, consult your Mitsubishi dealer or a Mitsubishi Authorized Warranty Service Center.
- DO NOT adjust any controls other than those described in this Owner's Guide.
- DO NOT remove the protective back cover of your TV.
Menus not described and shown in this owner's guide are designed for Factory use and for Authorized Service Personnel. Damage caused to the TV by non-authorized changes or changes to these menus made by non-authorized persons are not covered under warranty.
Appendix G: Diamond Shield™ Removal
The Diamond Shield is installed by the factory to enhance your television viewing experience. If you want to remove the Diamond Shield, please follow the steps listed below:
To Remove the Diamond Shield:
- While wearing soft cotton gloves, loosen the sides of the Diamond Shield by pressing a small plastic card (the size of a standard credit card or a clean, plastic, putty knife) into the middle of the side slot. The Diamond Shield side will snap out of the top middle and bottom clips. Loosen both sides before proceeding to step 2.
- After the sides are free, gently push down on the top of the Diamond Shield. It will slide out of the top channel.
3 Carefully pull the screen up to remove it from the bottom channel. Store the Diamond Shield in a clean, dust free area, where it will not be scratched.

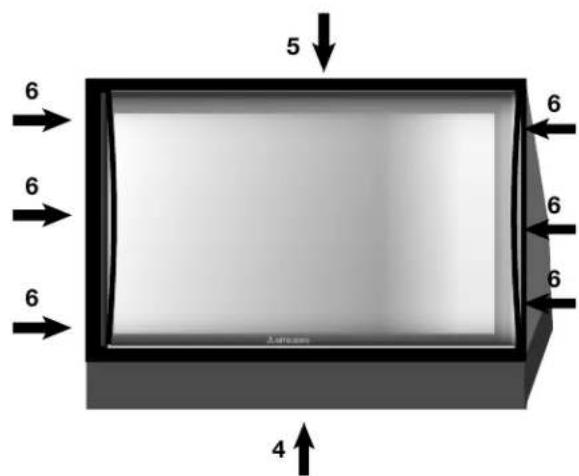

To Install the Diamond Shield:
- Slide the Diamond Shield into the bottom channel, making sure it fits securely.
- Press gently on the top of the Diamond Shield to slightly bow the screen towards you. Insert the top of the Diamond Shield into the top channel. It should fit securely.
- At each side, gently press the top, middle and bottom of the Diamond Shield to snap it back into place.
WARNING
Sharp edges! Always wear gloves to handle, lift, install and remove the Diamond Shield.
IMPORTANT
For further assistance, call (800) 332-2119.
Appendix H: Filter Cleaning
Cleaning the Dust Filter
Clean the filter annually and whenever you replace the lamp cartridge.
Tools needed: Phillips screwdriver
- Turn the television off and unplug the AC cord.
- Locate the dust filter on the left side panel of the TV.
- Using a phillips screwdriver, remove the two screws that hold the dust filter cover in place.
- Remove the filter cover, set it and the screws aside.

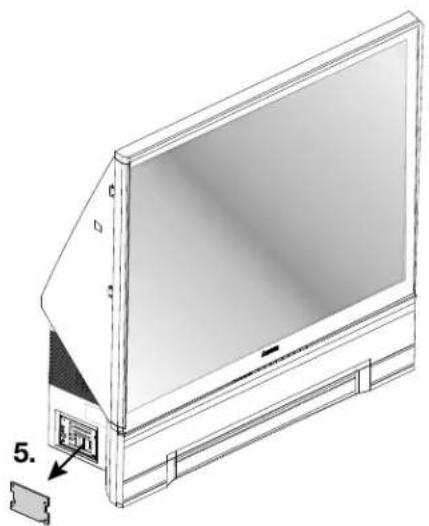

- Carefully remove the filter from the TV.
- Clean the filter material by dusting with a lint-free cloth.
- If the filter is soiled, you can rinse it with water. Do not use detergents or soap on the filter.
- Completely air dry the filter before placing it back into the TV.
- Replace the filter cover and secure with the screws.
Before you replace the lamp cartridge please note the following:
CAUTION: If the television is on, press POWER to turn off and allow the television to cool for one hour before attempting to replace the lamp cartridge.
LAMP LIFE
The light source for this television is a lamp, which is part of a lamp cartridge assembly. The actual lamp in this television can vary, based on the lamp itself, the air temperature around the TV while it and your viewing patterns. Warmer air or poor ventilation shortens the lamp life, as does turning the on and off frequently.
Mitsubishi warrants the lamp for one (1) year from date of the original purchase at retail. However, if that the lamp will last significantly longer than this. When the end of the lamp's life is approaching, display a warning message for one minute, when the TV is powered on. The purpose of this message advise you that the lamp may fail soon. This warning message will continue to be displayed every time is turned on, until the lamp cartridge is replaced and the lamp's status is reset.
After replacing the lamp cartridge, when you power on the TV, the message "Did you change the la ENTER for Yes, press CANCEL for No" will appear, press ENTER to reset.
To order a new lamp cartridge, please call (800) 553-7278 and order part number 915P020010.
WARNING:
Do not remove the lamp cartridge immediately after turning off the television. You may get burned by the lamp's high temperature. Allow the television to cool for one hour before attempting to replace t cartridge.
Do not remove the lamp cartridge, except when replacing. Careless treatment can result in injury or
Do not touch the lamp element directly. It may break and cause you to have injuries or burns.
Be sure not to insert any metal or flammable object into the lamp cartridge opening, as it may cause fire or electrical shock. If any object is inserted into the opening unplug the AC cord of the TV and contact your dealer for service.
Install the lamp cartridge securely. Failure to do so may cause a fire.
The lamp in this product contains mercury. Disposal of mercury may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Elec Industries Alliance: www.eiae.org
Appendix H: Lamp Cartridge Replacement, continued
Replacing the Lamp Cartridge
Tool needed: Phillips screwdriver
- Turn the television off and unplug the AC cord.

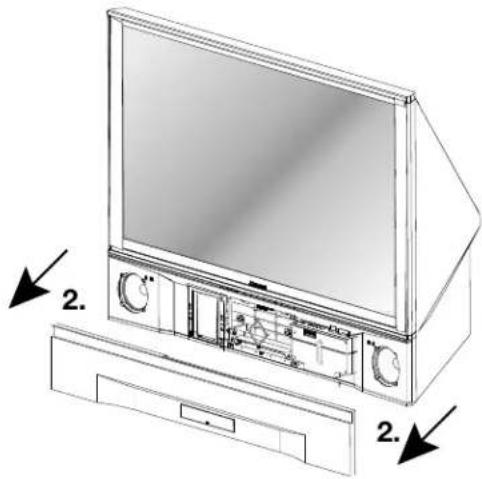

- Remove the front speaker grill by gently pulling on each side. The grill will snap out.
- Using a phillips screwdriver, remove the three screws (one on the left and two on the right side) that hold the recessed plastic cover in place.
- Remove the plastic cover and set aside with the screws.
-
After removing the cover, you will be able to see the lamp cartridge. With the screwdriver, loosen the three screws of the cartridge. The three screws will not completely remove.
-
Gently grasp the metal handle and pull straight out (towards you).
-
Insert the new lamp cartridge securely into the TV. Do not touch the glass surface of the cartridge.
-
With the screwdriver, tighten the screws on the lamp cartridge.
-
Replace the plastic cover and screws.
-
Snap the speaker grill back into place by pushing it into place on each side with the palm of your hand.
To order a replacement lamp cartridge, part number 915P020010, call (800) 553-7278.
Troubleshooting
Problem
Possible Solution
| 1. The TV remote control does not work. • Check that the batteries are installed correctly.• Check that the selected switch is set to “TV”.• Be no further than 20 feet from the TV when using the remote control.• Program the remote control to operate the TV (Appendix C). | |
| 2. The TV takes several seconds to respond. • It is normal for digital channels to take longer to tune in.• Press ENTER after a channel number to avoid delays.• Use a 4 digit number for an over-the-air digital channel• Use a 6 digit number for cable digital channels | |
| 3. Cable provider needs information to start CableCARDTM service. | • On the remote control, press TV MENU and then enter the numbers 999 to display the Host ID and CableCARDTM ID information. |
| 4. You cannot access a channel. • Use number keys instead of CHANNEL up/down.• Be sure the channel you want to view is in memory. See page 65.• Check that the TV is turned to the correct device or antenna for that channel, by pressing the DEVICE button.• Make sure the V-Chip lock is off.• If tuned to Digital channels, have physical channel in memory. | |
| 5. On-screen displays appear each time you change a function. | • This is part of normal TV operation. |
| 6. You cannot program the TV to turn on automatically (timer function) | • The TV may be locked.• The clock may not be set. |
| 7. There is no sound even when the volume is turned up. | • Check audio source in Device Menu.• Check to see if the MUTE button is on.• The TV’s “Listen to:” setting may be set to SAP.• Check that the “TV Speakers” setting is On in the Audio/Video menu. |
| 8. NetCommand unable to learn specific device keys. | • Device does not use IR format for remote control signal. ITT and RF formats cannot be learned.• Room lighting may affect the signal. Have the remotes very close (6 inches or less) to the TV during Learning.• If using a Mitsubishi remote control make sure slide switch is not set to TV position.• Some but not all device key functions can be learned by NetCommand. For example, POWER and PLAY may be learned, but other functions may not.• The signal from the remote control may not be strong enough. Insert fresh batteries and try Learning again. |
| 9. You have forgotten your V-Chip passcode. • See Appendix A, Bypassing the V-Chip Lock. | |
| 10. Lamp indicator light is a constant red. • Turn the TV off for at least 2 minutes. Turn back on. If light is still red, the lamp has failed, replace it. See Appendix H for lamp replacement information. | |
| 11. Lamp indicator light is a constant yellow. | • Lamp’s elapsed time has exceeded 4,000 hours. Purchase a new lamp. See Appendix H for lamp replacement information. |
| 12. Lamp indicator light is a flashing yellow. | • Lamp cover door is open or lamp cartridge is not secure. See Appendix H for lamp replacement information. |
| 13. Status indicator light is a constant yellow. | • Operating temperature or room temperature has exceeded proper levels. Clean the TV’s dust filter or cool the room. See Appendix H for filter cleaning information. |
| 14. Status indicator light is a constant/flashing red. | • Service is required. Contact your dealer or a Mitsubishi Authorized Service Center to arrange for a service evaluation listings of Mitsubishi Authorized Service locations can be obtained from our web site, www.mitsubishi-tv.com or by calling 1-800-332-2119. |
| 15. PIP does not display a picture. | • Make sure the V-Chip lock is off.• Not all inputs can be displayed as a PIP. |
| 16. Digital channels do not appear in PIP. | • Normal PIP operation. |
| 17. Not all channels appear in multiple PIP/POP. | • Digital channels do not display in PIP/POP. |
Troubleshooting, continued
Problem Possible Solution
| 18. | The sound does not match the screen picture. • NetCommand® is setup incorrectly.• The TV's "Listen to:" setting may be set to SAP.• If using stereo or A/V receiver speakers, check their input selection.• If using stereo or A/V receiver, check that AUDIO 2 of MONITOR OUTPUT on TV's back panel is connected to the A/V receiver. | |
| 19. | There is a large black or gray rectangle on the screen. | • The TV's analog closed captioning has been set to "text" mode in the Captions menu. Turn off because there is no text information being broadcast. |
| 20. | You cannot see a picture when playing a VHS tape. | • Display the Device Selection menu and select the correct VCR.• Check your VCRs owner's guide for further trouble shooting. |
| 21. | V-Chip is not working. • Make sure that V-Chip is On. | • If V-Chip Hours are currently set to disable the V-Chip lock, the V-Chip will not block programming. |
| 22. | The TV will not turn on after being plugged in. • If green light on front panel is blinking, wait for at least one minute for the light to turn off, then press Power again. | |
| 23. | TV functions do not respond to the remote control or to front panel control and will not Power Off. | • Use the System Reset button as explained at the end of this section. |
| 24. | Name options not available for some channels • Only | memorized analog channels can be named. |
| 25. | When viewing a stopped VCR, white lines are rolling on the screen. | • Turn off video mute for the VCR.• Begin playing the tape.• Change the VCR input to the antenna input. |
| 26. | TV turned itself Off and the light on the Front Panel started to blink. | • Momentary power fluctuation caused the TV to turn off to prevent damage. Wait for the green light to stop flashing and turn On again.• If the TV does not stay turned On, use the System Reset button. If this happens frequently, obtain an AC line power conditioner/surge protector. |
| 27. | When a Device is selected from the Device Selection menu, the screen is blue (no signal source). | • Make sure the selected device is turned on.• From the Edit NetCommand® menu select Review setting. Verify that the inputs are actually connected to the TV . If they are not, either change the physical connections on the back panel, or select the Change setting on the Edit NetCommand menu to change the TV NetCommand's settings for the connection. |
| 28. | The Device does not respond to button presses from the remote. | • Remote has not been setup for NetCommand® use.• The incorrect manufacturer was selected during setup.Select the Change setting from the Setup menu and then the device to display the manufacturer selection. Change if necessary.• The device is not supported and keys have not been learned.• The requested function is not supported by NetCommand.Verify that the function is supported or keys are learned.• The IR emitter is incorrectly placed. Make sure the IR emitter is facing the IR sensor in the device.• The IR emitter is not plugged into the IR emitter Output NetCommand.• The IR emitter is facing the TV screen, causing double signals. Be sure that the IR emitter cannot send to the TV. |
| 29. | The A/V Receiver is the selected audio source but there is no sound. | • Check to see if the A/V Receiver power is turned on. After the power is turned on, redisplay the Device Selection menu and press ENTER to allow NetCommand to correctly select the A/V Receiver input.• From the Setup Menu select Review setting. Check the Review screen to see if the A/V Receiver inputs and device correspond to the actual connections on the A/V Receiver. If they do not match, either change the actual connections, or select Change on the Edit NetCommand menu to change the device on the Connection screen. |
Troubleshooting, continued Problem Possible Solution
| 30. The TV Speaker icon or A/V Receiver icon is grayed out and not selectable. | Select the Change setting from the Edit NetCommand menu, and then select the device (for example VCR). Once the Connection screen is displayed, check if the audio checkbox is selected for the TV input and/or AVR input. |
| 31. Devices are grayed out in the Device Selection menu or the PIP Selection menu. | A recording is in progress requiring the use of Monitor Out. Cancel the recording to select the device.Digital channels and media cards cannot display in the PIP or POP. |
| 32. Cannot see the A/V Receiver menu. • The A/V Receiver is not connected to any input of the TV. To check the A/V Receiver menu temporarily plug into an unused input of the TV. Then select Review from the Setup Menu, turn the input On to view the A/V Receiver menu. | |
| 33. Screen is black when trying to view digital channels or IEEE 1394 device. | The PerfectColorTM color balance has been incorrectly set. Use the Advanced menu to reset the color balance. |
| 34. The REC button is not working, or, on the Transport menu the record key is grayed out and not available. | The device does not support recording, such as a DVD player.Recordings can not be initiated from the Transport menu when using an IEEE 1394 device. Press REC instead. The Record menu displays allowing setup of a recording. |
| 35. A program recorded on your TV is distorted when played on a 4:3 TV. | TV was set to Anamorphic when program was recorded. Record programs in Cropped mode if playing back on a 4:3 TV. |
| 36. Excessive digital artifacts. • The IEEE 1394 cable is too long (15 feet between devices is the maximum length).There may be a slow device in the middle of the IEEE 1394 network. Move the slow devices to the end so that connections for faster devices do not pass through them. | |
| 37. Cannot see a picture from a DV Camcorder. • Go to Device Selection menu and select analog connection.Connect the DV Camcorder to analog input (for example, Input-3). Select Setup from the main menu, then Change. At the Change screen, select the camcorder. On the Name screen, check Analog Connection. Select the device and on the following screen, select which analog input was used, and check audio and/or video. | |
| 38. DVCR analog/digital problems. • If the tape is currently playing but no picture displays, there may be a mismatch of the media with the display. Press DEVICE to display the Device Selection menu. Press ENTER for the DVCR device. If digital is selected, try analog, or if analog is selected, try digital. | |
| 39. D-VHS recordings for digital cable have drop-outs (loss of picture or sound), or no playback. | Digital cable signals on IEEE 1394 can exceed the data rate standards supported by DVCR. |
| 40. There is no audio and video from the IEEE 1394 device. | The device is not turned on - turn the device power on.No media (tape or disc) is inserted into the device.The media is blank (has no recording).The play command failed - Try pressing play again on the device's remote control or front panel.The device is already in use (for example: the device is currently recording).The source is copy-protected or violates copy protection.The device's digital video signal is not supported by the TV, such as DV video, common with camcorders. Use analog connections instead, if available.The device is not an audio/video device.Too many other devices are already communicating over IEEE 1394. Remove or stop some devices and try again. |
| 41. The IEEE 1394 Device is not listed in the Device Selection menu. | The device is unchecked in the Review screen. Select the NetCommand menu. Through Review, verify the device is checked.The IEEE 1394 plug is disconnected or loose.The IEEE 1394 Device has not been powered On. Turn on.The device has not been discovered.The device is not an Audio/Video device |
| 42. The IEEE 1394 device cannot be selected. • The device may be busy, either recording or a peer-to-peer connection has been established. Cancel the recording or peer-to-peer connection. | |
| 43. DEVICE MENU button does not display a menu. • The | IEEE 1394 device does not provide a menu.The TV cannot support IEEE 1394 menus. See page 46. |
| 44. All IEEE 1394 devices disappear. • The connected devices must not be in a loop that returns to the TV. Make sure a device is connected at the end.Disconnect all the cables and devices from the TV. Replace them one by one to locate the problem device or cable.Use System Reset (front control panel). | |
| 45. Cannot rediscover a deleted IEEE 1394 device • The device has been disconnected. Plug it in.The device is unchecked in the Review screen. Select NetCommand from the Main menu, then select Review. Check the device.Remove IEEE 1394 plug. Go to the Edit NetCommand menu. Delete the IEEE 1394 device. Plug the device in again so it can be discovered again. | |
| 46. An IEEE 1394 device has been plugged in but does not appear in the Device Selection menu (not discovered). | The IEEE 1394 connection to the TV or another device is not secure or is loose.The IEEE 1394 device is not powered on.A device in the IEEE 1394 chain is not powered on - turn on all the devices.The device discovery can take as long as a minute to initiate.IEEE 1394 cable is too long (maximum of 15 feet between devices).The IEEE 1394 device uses an incompatible protocol and will not be discovered |
| 47. Cannot record to or from the IEEE 1394 device, including Dub recordings. | To initiate a recording to IEEE 1394 device press the REC key.The Record menu displays allowing setup of the recording.The source device for the recording is not powered on.When dubbing, the destination device for the recording is not powered on.The wrong media, (analog tape for digital recording, or digital tape for the analog recording) is in the device.Either the program is copy protected, or if there are multiple subchannels and one of the programs (not necessarily the program requested) is copy protected.The program has already been recorded once and the copy protection only allows one recording.Unapproved source device for copy protected material.The recording device can not decode the copyright signal included in the signal source (try another device if available).The playing device (for dubbing) does not support copyrighted material.Source for recording is copyrighted.Too many IEEE 1394 devices in network. Insufficient bandwidth available. Disconnect unused devices.Source Device has higher speed (S 400) than record device. If possible, reverse devices, play in the slower device and record in the faster device. |
| 48. Cannot control the IEEE 1394 device from the Transport Menu. | Device may not support the command.Selected function is gray (such as Record for a DVD, which does not support the Record function). |
| 49. When ChannelViewTM list is displayed, information appears incomplete | Available information is sent from the broadcaster or cable provider.No other data is available. |
| 50. Program to be recorded was correctly selected from ChannelView, however, incorrect program was recorded. | The broadcaster supplied program information that was incorrect and/or was changed after a recording was added to the Record List. |
| 51. Incomplete ChannelView program recorded. • Recording device may have lack of space availability and there is not enough blank space to make a full recording. | |
Troubleshooting, continued Problem Possible Solution
| 52. ChannelView program recording failed. • Connection and compatibility issues with IEEE 1394 (FireWire®) digital devices. This may include too many Firewire devices in use at one time, or the recording device not understanding the record command.• Television lost power long enough to lose current clock time.• Analog VCR power was left Off. | |
| 53. TV is not responding, after pulling out a Memory card during playback. | • Press STOP or wait until playback is complete before removing media card. |
| 54. TV can’t play or stop a media card. • NetCommand was not set up. Without NetCommand enabled, you can only use ENTER to play and CANCEL on the TV remote to control the media cards. | |
| 55. Can’t see a thumbnail picture in the JPEG menu, or can’t see a track/song name in the Playlist menu. | • File does not meet file standards for playback. |
Using The System Reset Button
If the TV doesn't respond to either the remote control or the front panel controls or will not power off, press the SYSTEM RESET button on the front panel with a pointed item such as the point of a ball point pen or end tip of a paperclip.
The TV will turn off and the green led will flash quickly for about one minute. When the green led stops flashing, you may turn on the TV again. The changes you made while the TV was most recently on, before you used the SYSTEM RESET button may lost, however, the changes you made previously are not lost. Only those changes since the last power On may be lost when the system reset button is pressed. All other settings are retained.
Additional Information
Demo Mode
This TV has a demo mode for use in a retail store.
To turn On/Off, press the following buttons in sequence:
MENU, 0, QV, 0
IMPORTANT
Do not attempt to update the software of this TV with software or cards that are not provided by or authorized by Mitsubishi Digital Electronics America, Inc. Non-authorized software may damage the TV and will not be covered by the warranty.
LICENSOR'S SUPPLIERS DO NOT MAKE OR PASS ON TO END USER OR ANY OTHER THIRD PARTY, ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY OR REPRESENTATION ON BEHALF OF SUCH SUPPLIERS, INCLUDING, BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, TITLE, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
CableCARD™ is a trademark of Cable Television Laboratories, Inc.
HDMI™ the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Manufactured under license from Dolby Laboratories. Dolby® and the double-D symbol are registered trademarks of Dolby Laboratories.
Lifestyle® 28 is a trademark of the Bose Corporation.
XBox ^TM is a trademark of the Microsoft Corporation.
Playstation® 2 is a trademark of the Sony Corporation.
This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.
DTVLINK™ Certification Logo is a trademark of the Consumer Electronics Association.
DCR™ Certification Logo is a trademark of the Consumer Electronics Association.
Firewire® is a trademark of Apple Computer, Inc. registered in the U.S. and other countries.
Digital Light Processing™ and DLP™ are trademarks of Texas Instruments.
MonitorLink™, NetCommand®, ViewPoint®, QuickView™, SuperQuickView™, Diamond Shield™, PerfectColor™ and Definedge™ are trademarks of Mitsubishi Digital Electronics America, Inc.
Index
A
A/V
Disc Search 57
Memory Reset 73
Receiver, add 39-41
Reset 11
Setting Descriptions 73-75
Audio 74
Video 75
Add
A/V Receiver 39-41
Devices 42-45
Audio Setting
Analog and Digital 74
Analog only 74
Digital only 74
Antenna 13, 19
Menu 62, 65
AudioVideo Menu 62, 73
B
Back Panel Inputs 13
Black Enhancement 73
Bypassing the V-Chip Lock 83
C
CableCARD™ 12, 13
Inserting 17
Technology 18
Captions Menu 62, 68-69
Change Device 46
Channel 65, 67
Memorize 65
Name 65
ChannelView 53
Cleaning and Service 92
Color Balance, Setting 63
Connecting
A/V Receiver 22
Cable Box 17
Component 1, and 2 Inputs with YPbPr 13, 23, 24
Computer with a PC Monitor Output 23
Digital Audio Output 14, 23
DTV Link (see also IEEE 1394) 14
DTV Receiver with
Component Video 24
RGB, HV Video 25
DVD Player with Component Video 23
DVI Device with Analog Audio 14, 26
External Devices & NetCommand 16
Helpful Hints 30
HDMI Device 14, 26
IEEE 1394 Devices 14, 28-29
Lead Antenna 19
NetCommand® IR Emitter 27
RS-232 14, 26
S-Video 22
Satellite Receiver 22
Separate UHF and VHF Antenna 19
Stereo System 22
Wall Outlet Cable 17
Copy-Protected Material 55
Current Recordings, cancelling 55
D
Daylight Savings Time, setting 67
Device 67
Add 42-45
Advanced Learn Screen 44
Change 46
Connection for, Screen 44
Control with Net Command® 81
Delete 46
IEEE 1394 53
IR Controlled 53
Learn Screen 43
Menu 52
Name Screen 44
Screen 43
Device Setup 37
Device Menu Button to Display Menus 52
Device Selection Menu 51, 53
Diamond Shield™ Removal 93
Digital
Audio 74
Record Device 64
Prefer, Setting 65
Display Formats 78-80
DTV
Connectors and Adaptors 24
Link (see also IEEE 1394) 14
DVD Format Definitions 78
DVI Analog Audio 14, 26
F
Filter Cleaning 94
Finish Screen 38, 41, 46, 50
Front Button Lock 72
Front Control Panel 11
A/V Reset 11
Indicators 11
System Reset 11
G
GUIDE Button to Display ChannelView™ and Menus 53
H
HDMI 14, 26
|
Icon Order, Viewing, Changing 64
IEEE1394
Adding Automatically 49-50
and NetCommand® Control 48
Compatible Devices 28
Device Type Screen 50
Input/Output 12, 14
Name 49
Important Safeguards 6-7
Indicators, front panel 11
Information Displays, On-Screen 90
Input DTV 13, 45
IR Emitter-NetCommand® 14, 27
J
JPEG Picture Thumbnail Menu 59
L
Lamp
Cartridge Replacement 95
Indicator 11
Status 63
Language selection 37, 63, 74
M
M-Link 14, 26
Media Cards 10
Front Control Panel 12
Playback 59-60
Slots 12,59
Memorize Channels 65
Monitor Output 13, 20, 21, 41
MP3 Playlist Menu 60
N
NetCommand® 10
Edit NetCommand Screen 42
InformationScreen 37
Initial Setup 16, 37-38
Menu 62, 64
On Screen Buttons 35
Peer-to-Peer Connections 56
Specialized Device Keys 91
Time-Delayed Recording 54
P
PC 14, 23, 58, 80
PerfectColor™ (Manual Color Balance) 63
PIP
Device Selection Menu 51
Operation 76
R
Recording Now 54
Record List Screen 55
Record To
List 53
Menu 53
Setup 54
Remote Control
Buttons 33, 36
Care 34
Functions 33
with NetCommand® 32
Operation 34
Programming to Control A/V Products 87
Transport Buttons 64
Reset Color 63
Review Screen 38
RF Connection for Cable Screen 45
RS-232 14, 26
S
Setting the Clock 67
Setup Menu 62, 63
Sleep Timer 34
Software version 63
Specifications 85
Status Indicator, front panel 11
SQV (SuperQuickView™) 66
System Reset Button 11, 101
T
Time Menu 62, 67
Time Zone Selection 67
Timer
Indicator 11
On/Off setting 67
Track List Screen 57
Transport Menu 64
Troubleshooting 97-101
TV Accessories 10
TV Speakers 73
V
V-Chip Lock Menu 62, 70-72
Definitions 71
Exceptions 71
Lock By Time 72
Passcode 70, 83
Signal Information 71
Start Time and V-Chip Stop Time 70
VCR
Connecting 20,21
Restrictions for Traditional 55
Video Mute 73
Video Settings 75
W
Welcome Screen 37
WMA7 Playlist Menu 60
MITSUBISHI TV SOFTWARE
END-USER LICENSE AGREEMENT FOR EMBEDDED SOFTWARE
IMPORTANT – READ CAREFULLY: This License Agreement is a legal agreement between you (either an individual or an entity) and Mitsubishi Digital Electronics America, Inc. (MDEA) for all software pre installed and/or provided along with this television ("Software"). By utilizing this television and Software, you agree to be bound by the terms of this License Agreement.
The Software is protected by United States copyright laws and international treaty provisions, as well as other intellectual property laws and treaties. The Software is licensed, not sold.
-
LICENSE GRANT. MDEA grants you a non-exclusive, non-transferable, limited right and license to use one copy of the Software only with the Mitsubishi television model that included this owner's guide and owned by you.
-
RIGHTS AND LIMITATIONS.
Software Not for Resale. You may not resell or otherwise transfer for value the Software, except in conjunction with a sale of the TV that Software has been pre installed.
Prohibition on Reverse Engineering, Decompilation and Disassembly. The Software contains trade secrets or other proprietary material in its human perceivable form and to protect them, you may not reverse engineer, decompile, or disassemble, or otherwise reduce the Software to any human perceivable form, except to the extent that the foregoing restriction is expressly prohibited by applicable law.
Separation of Components. The Software is licensed as a single product. Its component parts may not be separated for use on more than one TV.
No Rental. You may not rent, lease, lend, or sublicense the Software.
Trademarks. This License Agreement does not grant you any rights to any trademarks of MDEA.
-
VIOLATIONS. You understand that any use, copying or transfer of the Software, except as permitted pursuant to this License, may subject you to serious criminal and civil penalties including damages and an award to MDEA of attorneys' fees in connection with any violation of this License. You further understand that you may be held legally responsible for any copyright infringement or other violation of intellectual property rights that is caused, encouraged, or induced by your failure to abide by the terms of the License. This license is effective until terminated, and will terminate immediately without notice from MDEA or judicial resolution if you fail to comply with any provision of this License.
-
COPYRIGHT. All title and intellectual property rights in and to the Software (including but not limited to any images, photographs, animations, video, audio, music, text, and "applets" incorporated into the Software), and any accompanying printed materials are owned by or licensed to MDEA. All title and intellectual property rights in and to the content which may be accessed through use of the Software is the property of the respective content owner and may be protected by applicable copyright or other intellectual property laws and treaties. This License Agreement grants you no rights to use such content, except that you own the media on which the Software is recorded, but MDEA and its licensors retain ownership of the Software itself. All rights not expressly granted are reserved by MDEA.
-
EXPORT RESTRICTIONS. MDEA is licensing the Software for use within the United States. You agree that you will not export or re-export the Software. You specifically agree not to export or re-export the Software: (i) to any country to which the U.S. has embargoed or restricted the export of goods or services, which currently include, but are not necessarily limited to Cuba, Iran, Iraq, Libya, North Korea, Sudan, and Syria, or to any national of any such country, wherever located, who intends to transmit or transport the Software back to such country; (ii) to any person or entity who you know or have reason to know will utilize the Software in the design, development, or production of nuclear, chemical, or biological weapons; or (iii) to any person or entity who has been prohibited from participating in U.S. export transactions by any federal agency of the U.S. government. You warrant and represent that neither the BXA nor any other U.S. federal agency has suspended, revoked, or denied your export privileges.
-
DISCLAIMER OF WARRANTY. EXCEPT AS OTHERWISE PROVIDED IN THIS LICENSE OR IN THE LIMITED WARRANTY APPLICABLE TO THE TV, MDEA MAKES NO OTHER WARRANTIES OF ANY KIND WHATSOEVER REGARDING THE SOFTWARE AND HEREBY EXPRESSLY DISCLAIMS ALL WARRANTIES OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, WITH RESPECT TO THE SOFTWARE. ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY EXPRESSLY DISCLAIMED BY MDEA. IN NO EVENT SHALL MDEA BE LIABLE TO YOU OR ANY THIRD PARTIES, IN CONTRACT, IN TORT OR OTHERWISE, FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE. BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IMPLIED WARRANTIES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
-
LIMITATION OF LIABILITY. MDEA SHALL NOT, UNDER ANY CIRCUMSTANCES BE LIABLE TO YOU OR ANY THIRD PARTIES FOR ANY DAMAGES OF ANY NATURE, WHETHER INDIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHERWISE, INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOST PROFITS, LOSS OF GOOD WILL OR EXPENDITURES MADE OR COMMITTED FOR IN RELIANCE ON THE CONTINUATION OF THIS LICENSE. YOU AGREE THAT NEITHER MDEA'S BREACH OF THIS LICENSE NOR ITS FAILURE TO REPAIR A DEFECT, ERROR OR BUG SHALL CONSTITUTE A FAILURE OF THE ESSENTIAL PURPOSE OF THIS LICENSE. BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. MDEA's liability to you for direct damages for any cause whatsoever and regardless of the form of the action, will be limited to the money paid by you for the TV (based on fair market value of the TV) that caused the damages.
-
GENERAL. This License Agreement will be governed by the laws of the State of California.
Mitsubishi DLP™ Projection Television Limited Warranty
MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC. ("MDEA") warrants as follows to the original purchaser of this television that if purchased from an authorized MITSUBISHI Audio/Video Dealer, should it prove defective by reason of against defects arising from improper workmanship and/or material:
a. Parts. The lenticular (i.e. front picture) screen and/or the Diamond Shield™ is warranted against defects in materials and workmanship for a period of thirty (30) days from the date of the original purchase at retail. The VIP lamp and all other parts (except any software incorporated into this television) are warranted for a period of one (1) year from the date of the original purchase at retail. We will repair or replace, at our option, any defective part without charge for the part. Parts used for replacement may be replaced with those of like kind and quality and may be new or remanufactured. Parts used for replacement are warranted for the remainder of the original warranty period.
b. Embedded Software. MDEA warrants that all software incorporated into this television set (the "Embedded Software") will perform in accordance with the functional description of Embedded Software in all material respects, but MDEA does not warrant that the Embedded Software is error-free. MDEA also does not warrant that the Embedded Software will be compatible under IEEE 1394 AV/C and HAVi software standards with products produced by any other manufacturer. The warranty contained in this section shall continue for a period of one (1) year from the date of the original purchase at retail. If, after prompt notice within the warranty period, MDEA determines that the Embedded Software has failed to perform in accordance with such functional description in all material respects and if such failure is not due to accident, misuse, modification or misapplication of the Embedded Software, then MDEA shall modify or replace the nonconforming Embedded Software at no charge to you, which at MDEA's sole discretion may be fulfilled by means of modification or replacement software contained on a replacement media card for Customer installation. The foregoing shall be MDEA's sole obligation to you under this limited warranty. All rights under this limited warranty on the Embedded Software also subject to your compliance with the terms of the Software License Agreement applicable to this television, and this limited warranty on the Embedded Software shall be null and void if the Embedded Software is modified or changed in any manner except as specifically authorized by MDEA.
c. Labor. For thirty (30) days after the original purchase at retail, we will repair or replace, at our option, the lenticular screen if it proves defective. For certain items that are designed to be replaced by the consumer, including (but not limited to) the Diamond Shield™ and/or some Embedded Software, the consumer is solely responsible for any replacement labor. The VIP lamp is consumer replaceable and labor for replacement is not covered under warranty, please refer to the Owner's Guide for replacement procedures. Air filter cleaning is normal consumer required maintenance and labor for this procedure is not covered under warranty, please refer to the Owner's Guide for air filter cleaning procedures. For all other parts, we will provide the labor for a warranty repair by an authorized MITSUBISHI service center without charge for one (1) year from the original date of purchase at retail.
d. Notice. To obtain warranty service, you must notify an authorized MITSUBISHI service center of any defect within the applicable warranty time period.
e. This DLP™ Projection Television uses a revolutionary technology, Digital Micromirror Device™, to create the screen image. This technology creates the image using small dots, or picture elements (pixels). Your DLP Projection TV is manufactured to a high level of performance and quality, in fact, 99.99% perfect in the number of properly functioning pixels. As in other display technology, sometimes a pixel is continuously active, inactive or the incorrect color. Our standard is clear; MDEA warrants only that the percentage of properly functioning pixels will be not less than 99.99% of all pixels.
BEFORE REQUESTING SERVICE, please review the instruction booklet to insure proper installation and correct customer control adjustment. If the problem persists please arrange for warranty service.
- TO OBTAIN WARRANTY SERVICE:
a. Contact your nearest authorized MITSUBISHI service center whose name and address can be obtained from your MITSUBISHI dealer, by writing at the address provided below, calling MDEA at the 800-332-2119, or use the support feature of our website at www.mitsubishi-tv.com.
b. Warranty service will be provided in your home or, if required, at an authorized service shop, provided that your television is located within the geographic territory customarily covered by an authorized MITSUBISHI service center. If not, you must either deliver your television to an authorized service location at your own expense, or pay for any travel and/or transportation costs the service center may charge to and from your home. Actual service labor will be provided without charge.
c. Proof of purchase date from an authorized MITSUBISHI dealer is required when requesting warranty service. Present your sales receipt or other document which establishes proof and date of purchase. THE RETURN OF THE OWNER REGISTRATION CARD IS NOT A CONDITION OF WARRANTY COVERAGE. However, please return the Owner Registration Card so that we can contact you should a question of safety arise which could affect you.
d. To obtain a replacement VIP lamp during the warranty period, please contact the MDEA Consumer Relations Department at (949) 830-8364. After the warranty period you may order the lamp directly from the MDEA Parts Department at (800) 553-7278.
2. THIS WARRANTY DOES NOT COVER:
a. Up to .01% pixel outages (small dot picture elements that are dark or incorrectly illuminated).
b. Damage to Diamond Shield, lenticular screen or Fresnel lens, screen frame, cosmetic damage or to any other damage where such damage is caused by unauthorized modification, alteration, repairs to or service of the product by anyone other than an authorized MITSUBISHI service center; physical abuse to or misuse of the product (including any failure to carry out any maintenance as described in the Owner's Guide including air filter cleaning or any product damaged by excessive physical or electrical stress); any products that have had a serial number or any part thereof altered, defaced or removed; product use in any manner contrary to the Owner's Guide; freight damage; or any damage caused by acts of God or other factors beyond the reasonable control of MDEA, such as power surge damage caused by electrical system or lightning. This warranty also excludes service calls where no defect in the product covered under this warranty is found, service calls related to unsatisfactory audio or visual reception or signal unless caused a defect in the product that is covered under this warranty, all costs, expenses or any other damages arising from product installation, or set-ups, any adjustments of user controls (including contrast, brightness, color, tint, fine tuning, sharpness), other adjustment necessary to prepare the unit for display or use, connection with any external audio receiver, antenna, cable or satellite systems, or service of products purchased or serviced outside the U.S.A. Please consult the operating instructions contained in the Owner's Guide furnished with the product for information regarding user controls.
-
ANY EXPRESS WARRANTY NOT PROVIDED HEREIN, AND ANY REMEDY WHICH, BUT FOR THIS PROVISION, MIGHT ARISE BY IMPLICATION OR OPERATION OF LAW, IS HEREBY EXCLUDED AND DISCLAIMED. THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR ANY PARTICULAR PURPOSE ARE EXPRESSLY LIMITED TO A TERM OF ONE YEAR.
-
UNDER NO CIRCUMSTANCES SHALL MDEA BE LIABLE TO PURCHASER OR ANY OTHER PERSON FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, WHETHER ARISING OUT OF BREACH OF WARRANTY, BREACH OF CONTRACT, OR OTHERWISE.
-
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental, special, or consequential damages, so the above limitations or exclusions may not apply to you.
-
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC.
9351 Jeronimo Road
Irvine, CA 92618-1904
WARNING: This product contains chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm.
Website:
www.mitsubishi-tv.com
Email:
MDEAservice@mdea.com
To order replacement or additional remote controls, lamp cartridges or Owner's Guides, call 800-553-7278
For questions, call Consumer Relations at 800-332-2119
- WD-52:525, WVD5:527:25
- WD-62525, WDD62725
- CAUTION
- Custom cabinet installation must allow for proper air circulation around the television.
- STAND REQUIREMENT
- FCC Declaration of Conformity
- Contents
- Chapter 1 Television Overview
- Chapter 2 Connecting
- Chapter 3 NetCommand ® Setup and Editing
- Chapter 4 IEEE 1394 Devices and NetCommand® Controlled Recordings
- Chapter 5 TV Menu Screen Operations
- Chapter 6 Special Features
- IMPORTANT SAFEGUARDS
- Read, Retain and Follow All Instructions
- Heed Warnings
- Cleaning
- Attachments and Equipment
- Water and Moisture
- Accessories
- Ventilation
- Power Source
- Grounding or Polarization
- Power-Cord Protection
- Lightning
- IMPORTANT SAFEGUARDS, continued
- Power Lines
- Overloading
- Object and Liquid Entry
- Outdoor Antenna Grounding
- Servicing
- Damage Requiring Service
- Replacement Parts
- Safety Check
- Heat
- Our Thanks...
- Chapter . . .
- Television Overview
- TV Accessories
- Special Features
- High Definition DLP™ Display System
- Digital Cable Ready (CableCARD™)
- NetCommand® Home Network Control System
- 16:9 Widescreen Picture Format
- Media Cards
- Front Control Panel
- System Reset
- Indicators
- A/V Reset
- Front Panel Inputs and Media Card Slots
- Media Card Slots and IEEE 1394 Input/Output
- Input 3
- IMPORTANT
- Back Panel
- Antenna (ANT-1 MAIN, ANT-2 AUX)
- CableCARD™ Slot
- Input DTV (480i/480p/720p/1080i)
- Component-1, -2 Inputs YPbPr (480i/480p/720p/1080i)
- Input-1, -2; Monitor Output (Audio/Video 1, Audio 2)
- Back Panel, continued
- PC Input and Audio (VGA/WVGA/SVGA/WSVGA/XGA/720p, 60Hz)
- DTV Link/IEEE1394
- IR Emitter-NetCommand®
- DVI Analog Audio
- HDMI/M-Link
- M-Link/RS-232C Control
- Digital Audio Output
- Connecting
- Connecting External Devices & NetCommand® Setup
- Connecting a Wall Outlet Cable or Cable Box
- Wall Outlet Cable
- Cable Box (compatible with PIP/POP)
- CableCARD™ Technology
- CableCARD Technology
- Using a CableCARD
- Connecting a Lead Antenna or Separate UHF and VHF Antenna
- Lead Antenna (not for use with CableCARD™)
- For antennas with twin flat lead
- For cable or antenna with coaxial lead
- Separate UHF and VHF Antenna
- Connecting VCR Video and Audio to an Antenna or Wall Outlet Cable
- VCR Video and Audio to an Antenna or Wall Outlet Cable
- Note:
- Connecting VCR Video and Audio to a Cable Box
- VCR Video and Audio to a Cable Box
- Connecting an A/V Receiver or Stereo System or a Satellite Receiver or Other Device with S-Video
- A/V Receiver or Stereo System
- To connect a digital A/V receiver with Dolby® Digital surround sound:
- Satellite Receiver or Other Device with S-Video
- Connecting a DVD Player with Component Video or Computer with a PC Monitor Output
- DVD Player with Component Video
- Computer with a PC Monitor Output
- Figure 10
- DTV Connectors and Adaptors Connecting a DTV Receiver with Component Video
- DTV Connectors and Adaptors
- DTV Receiver with Component Video
- Connecting a DTV Receiver with RGB, HV Video
- DTV Receiver with RGB, HV Video
- DTV Receiver to TV Back Panel
- Connecting M-Link Control RS-232C Connection, or a HDMI or DVI Device
- M-Link Control RS-232C Connection
- HDMI Device
- DVI Device
- Connecting the IR Emitter NetCommand®
- IR Emitter NetCommand®
- Connecting Compatible IEEE 1394 Devices
- Compatible IEEE 1394 Devices
- Digital Video Signals
- Digital Audio Signals
- Digital Control Signal
- When Connecting IEEE 1394 Devices
- Connecting Compatible IEEE 1394 Devices, continued
- Connection Styles
- Direct Device-To-Device Style
- Hub Connection Style
- 4-Pin Style vs. 6-Pin Style Connectors
- Connecting: Helpful Hints
- NetCommand® Setup and Editing
- Using the Remote Control with NetCommand®
- Remote Control Functions: Overview
- Overview
- Remote Control Functions: Operation and Care, Sleep Timer
- Operation
- Figure 2 Installing the Batteries:
- Care
- For Best Results from the Remote Control:
- Sleep Timer
- Setting the Sleep Timer:
- Canceling the Sleep Timer:
- NetCommand® Setup On Screen Buttons
- Textbox
- Checkbox
- Radio Buttons
- Control Buttons
- Cancel Button
- 3D Graphical ▶ WavePoint System
- ▶ViewPoint Menu Screens
- ▶ViewPoint Remote Control Buttons
- NetCommand® Initial Setup
- Welcome Screen
- NetCommand (Information) Screen
- Device Setup Screen
- NetCommand® Initial Setup, continued
- Review Screen
- Finish Screen
- Edit NetCommand®, Add an A/V Receiver
- A/V Receiver Screen
- Figure 6
- A/V Receiver Inputs
- Figure 7
- Edit NetCommand®, Add an A/V Receiver, continued
- A/V Receiver Input Learn Screen
- A/V Receiver Learn Screen
- Name Screen
- Monitor Out to AVR Screen
- Edit NetCommand®, Add Devices
- Edit NetCommand Screen
- Figure 13
- Add:
- Change:
- Review:
- Delete:
- Initial:
- Add Screen
- Figure 14
- Edit NetCommand® Add Devices, continued
- [Device] Screen
- [Device] Learn Screen
- Edit NetCommand®, Add Devices, continued
- [Device] Advanced Learn Screen
- Connection for [Device] Screen
- VCR for Recordings Screen
- RF Connection for Cable Screen
- Input-DTV Connection Screen
- IR Code for [Device] Screen
- Edit NetCommand®, Change or Delete Devices, Finish Screen
- Change Device Screen
- Delete Device Screen
- IEEE 1394 Devices and NetCommand® Controlled Recordings
- IEEE 1394 Devices and NetCommand® Control
- NetCommand Control of Digital Devices Using the "Learn" Feature.
- Adding IEEE 1394 Devices Automatically
- New 1394 Device Screen
- Name for 1394 Device Screen
- Adding IEEE 1394 Devices Automatically, continued
- IEEE 1394 Device Type Screen
- Connection Screen
- Device Selection Menu
- Power On/Off Devices
- Video Section
- Connection Section
- Audio Section
- Device Section
- PIP Device Selection Menu
- Figure 8
- Using the Device Menu Button to Display Menus
- Device Menu
- IR Controlled Devices
- CableCARD™ Menu
- Moving Through Other CableCARD Screens
- Using the GUIDE Button to Display ChannelView™ and Menus
- The GUIDE Button
- Devices (1394 or IR Controlled)
- ChannelView
- Record To List
- NetCommand® Controlled Recordings
- Record To Setup
- Figure 12
- Recording Now
- Time-Delayed Recording
- NetCommand® Controlled Recordings, continued
- Record List Screen
- Cancel Current Recordings
- Copy-Protected Material
- Restrictions for Traditional VCRs
- NetCommand® Controlled Peer-to-Peer Connections
- What is a Peer-to-Peer Connection?
- Setting up a Peer-to-Peer Connection
- Canceling a Current Peer-to-Peer Connection
- Direct VCR Recording from an Antenna or Cable Source, A/V Disc Search, Track List Screen
- Direct VCR Recording from an Antenna or Cable Source:
- A/V Disc Search
- Track List Screen
- PC Viewing
- PC Input
- Figure 16
- MediaCommand™ and Media Card Playback
- Media Card Slots
- Inserting a media card
- Don't pull the media card out while it is playing.
- Remote Control Buttons for Controlling the Playback
- For JPEG Pictures Slideshow:
- For MP3 or WMA Audio Playback
- Using the Picture Thumbnail Menu or Audio Playlist Menu
- For JPEG Picture Thumbnail Menu:
- Media Command™ and Media Card Playback, continued
- For MP3 or WMA7 Playlist Menu:
- COMPATIBLE PICTURE OR AUDIO FILES: For JPEG Pictures up to 128MB:
- For MP3 or WMA7 Audio files:
- Media Setup Menu
- For JPEG Picture Slideshow Setup
- For MP3 or WMA7 Audio Playlist Setup
- TV Menu Screen Operations
- Main Menu Choices
- Setup Menu
- NetCommand Menu
- Antenna Menu
- Time Menu
- Captions Menu
- V-Chip Lock Menu
- AudioVideo Menu
- Language
- Color Balance
- Auto (Color Balance)
- PerfectColor™ (Manual Color Balance)
- Reset Color
- Software Version
- NetCommand
- Transport Menu
- Remote Control Transport Buttons
- Default Digital Record Device
- Icon Order
- Memorize
- For Antenna 1 (Main) or Antenna 2 (Aux)
- Prefer Digital
- Channel
- Memory
- Name
- Antenna Menu, continued: SuperQuickView™ (SQV)
- SQV (SuperQuickView™)
- Using The Menu Screen
- Adding SQV Channels
- Removing SQV Channels
- Using The Remote Control
- Adding SQV channels using the remote control:
- Removing SQV channels using the remote control:
- Setting the Clock
- Manual
- Set Time
- Set Date
- Time Zone
- Daylight Savings Time
- Auto
- Timer On/Off
- Set Day
- Device
- Captions Menu: Analog and Digital Captions
- Figure 17
- Analog Captions
- Background
- Digital Captions
- Appearance
- Digital Settings
- Figure 18
- Captions Menu, continued: Customizing Digital Settings
- Fonts
- Size
- Color
- Opacity (Font)
- Background Opacity
- V-Chip Lock Menu: Passcode
- V-Chip
- Entry
- V-CHIP PARENT LOCK
- V-Chip Start Time and V-Chip Stop Time
- V-Chip Lock Menu: V-Chip Definitions
- V-Chip Signal Information
- V-CHIP EXCEPTIONS:
- TV Ratings:
- Content Categories:
- Movie Ratings:
- V-Chip Lock Menu, continued
- Lock By Time
- Front Button Lock
- AudioVideo
- A/V Memory Reset
- Settings
- Video Mute
- Black Enhancement
- TV Speakers
- Using the AUDIO or VIDEO Button on the Remote Control
- A/V Setting Descriptions: Audio
- Analog and Digital Audio Setting
- ◇ Bass
- Treble
- Balance
- Surround
- Analog Only Audio Settings
- ◇ Listen to
- ◇ Level Sound
- Digital Only Audio Settings
- A/V Setting Descriptions: Video
- Video Settings
- ◇ Contrast
- ◇ Brightness
- ◇ Sharpness
- ◇ Color
- ◇ Tint
- ◇ Color Temp (Color Temperature)
- ◇ Video Noise
- ◇ Film Mode (Auto) - On or Off
- ◇ DefinEdge
- For a Currently Viewed PC
- Auto Position
- ◇ HorizPosition (Horizontal Position)
- ◇ VertPosition (Vertical Position)
- ◇ Fine Detail
- ◇ PC Contrast
- Operation of PIP and POP
- - POP
- Changing PIP/POP Device
- Changing PIP/Side-by-Side Channels
- Exchanging Program Images
- Moving PIP Image
- Automatic POP Switching
- Selecting POP "Live" Image
- Freezing the PIP and Side-By-Side Picture
- Display Formats
- Signals and Formats Definitions:
- DVD Definitions:
- Anamorphic (or Enhanced for Widescreen TV's):
- Non-Anamorphic (or 4:3, 1:33:1, Letterbox or Full Screen):
- TV Display Formats
- PC Display Formats
- Device Control with Net Command®
- Device Control with Net Command ® , continued
- Appendix A:
- Bypassing the V-Chip Lock:
- Bypassing the V-Chip Lock
- Bypassing Front Button Lock
- Appendix B: Specifications
- Appendix C: Remote Control Programming Codes
- Programming the Remote to Control NetCommand A/V Products
- Programming the Remote to Control Other Brands of Audio and Video Products
- Appendix C: Remote Control Programming Codes, continued
- VCR
- Cable Boxes and Satellite Receivers
- A/V Receivers
- Mitsubishi A/V Receivers
- Mitsubishi CD Players
- (not all functions for all models)
- DVD and Laser Disc Players
- Appendix D: On Screen Information Displays
- Analog Program
- Possible:
- Digital Program
- Digital IEEE 1394 Device
- Appendix F: Cleaning and Service
- Cleaning
- Top and Sides of the TV:
- Diamond Shield™:
- Screen behind the Diamond Shield:
- General Cleaning Warnings:
- Service
- Appendix G: Diamond Shield™ Removal
- To Remove the Diamond Shield:
- To Install the Diamond Shield:
- WARNING
- Appendix H: Filter Cleaning
- Cleaning the Dust Filter
- Clean the filter annually and whenever you replace the lamp cartridge.
- Tools needed: Phillips screwdriver
- Appendix H: Lamp Cartridge Replacement
- CAUTION: If the television is on, press POWER to turn off and allow the television to cool for one hour before attempting to replace the lamp cartridge.
- LAMP LIFE
- WARNING:
- Appendix H: Lamp Cartridge Replacement, continued
- Replacing the Lamp Cartridge
- Tool needed: Phillips screwdriver
- Using The System Reset Button
- Additional Information
- Demo Mode
- Index
- A
- B
- C
- D
- F
- G
- H
- |
- J
- L
- M
- N
- P
- R
- S
- T
- V
- W
- MITSUBISHI TV SOFTWARE
- END-USER LICENSE AGREEMENT FOR EMBEDDED SOFTWARE
- Mitsubishi DLP™ Projection Television Limited Warranty
- THIS WARRANTY DOES NOT COVER:
- MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC.
Brand : MITSUBISHI
Model : WD-52725
Category : TV
