USER MANUAL WT8505EG SAMSUNG

Owner's Instructions

Line drawing of a microwave oven with control panel and side legs (no text or symbols)

Before operating the unit, please read this manual thoroughly, and retain for future reference.

FEATURES FEATURES 1

SAFETY INSTRUCTIONS 2

CAUTIONS 2

PRECAUTIONS WHEN OPERATING 2

DESCRIPTION OF PARTS 3

CONTROL PANEL....4

INSTALLATION 5

ENVIRONMENT....5

CONNECTING THE DRAIN HOSE 5

CLEANING THE MACHINE ....5

HOW TO CLEAN THE FILTER 5

WASHING PROCEDURE....6

TO WASH 6

SPIN DRY....6

RINSING 7

OVER FLOW RINSE....7

ADDITIONAL RINSE 7

LAUNDRY GUIDE....8

MAINTENANCE....8

TROUBLE SHOOTING 9

SPECIFICATION 9

Register your product at

www.samsung.com/global/register

CODE NO.: DC68-01783E

• The Silver Wash System option

- This is a wash control system that enables to protect human skin from harmful bacteria through the antibiotic coating by SILVER WASH, and to realize a pleasant, healthy sanitization. This system also prevents propagation of bacteria through antibiotic coating on the wash cloth.

Test Method :

KS K 0693 Test Method for antibacterial textiles.

• Air Turbo Drying System option

- Air Turbo technology spins hard and fast so you can spend less time drying.

- Time Saving AIR TURBO saves your time, ensuring your clothes are dried 30%-40% faster than line drying alone. Especially during the rainy season and in high-humid weather, laundry that once took days to drip-dry, such as heavy jeans, bulky sweaters, and thick blankets are dried more rapidly.

- Easy-to-iron AIR TURBO is perfect for delicates and clothes made of synthetic fabrics. No more hanging and waiting. Simply iron straight-out-of-the washer, since AIR TURBO eliminates just enough moisture to keep clothes adequately damp for ironing.

• Transparent Window

- This Transparent Window is the new concept to solve the curiosity of users to see inside of washing machine while operation.

While operation, the laundry progress inside of washing machine can be checked by looking through the transparent window.

• Double Storm Pulsator option

By rotating an inner and outer blade at different speeds, two powerful currents of water created that ensure that clothes get clean with less damage than a conventional washing machine. The tornado like water currents enhance both washing and rinsing power while reducing unnecessary fractions and in creating both the durability and reliability of your fine fabrics by preventing the laundry from getting twisted and knotted.

SAFETY INSTRUCTIONS

- Must follow the cautions and precautions for safety intend to prevent unpredictable danger and damage by helping the proper use in safety.

CAUTIONS

- Be sure that the washer is grounded.

To avoid electrical shock, use a metal pipe for the ground connection. But, don't ground the washer with gas pipes or telephone lines to avoid to dangers of explosion or lightening strike.

- Do not put your hands into the spin dryer basket when it is spinning.

Your fingers can be caught by spinning laundry and damaged.

- Never allow children to operate or play with the washer.

Children playing with the washer may accidentally fall into the washing tub.

• Disconnect the power cord from the power supply when not in use.
• Ventilation opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.
• If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required.
• To avoid overfilling and damages this appliance must be filled with the operator present using a moderate water supply pressure only.
• For washing machines with ventilation openings in the base, that a carpet must not obstruct the openings.
• Do not use adapter or extension cord to supply power to your washer.

PRECAUTIONS WHEN OPERATING

• Don't use excessively hot water. (50°C or more)
  Plastic parts may be deformed or damaged. Also, clothing may be deformed or decolored.
  • Before washing, check all pockets.
  If nails or pins remain in pockets, they may damage the washer or clothes.
• Close the water tap a little if the water pressure is too high.
  • To avoid water splashes, close the wash tub lid.
  • Never splash water on the control panel.
  • Take out personal belongings from pockets.

Caution

Check the pockets! Hairpins and coins cause damages to clothes and wasing machine. They make noise and problems to the machine. Must check the pocket.

- Be sure to cover with the inner cover on laundry before spinning.

This prevents laundry from being tossed out and damaged.

- Be sure lay the drain hose(A) down.

Diagram showing two scenarios of a dam or pipeline with labeled points A and a cross symbol, likely illustrating structural deformation or damage.

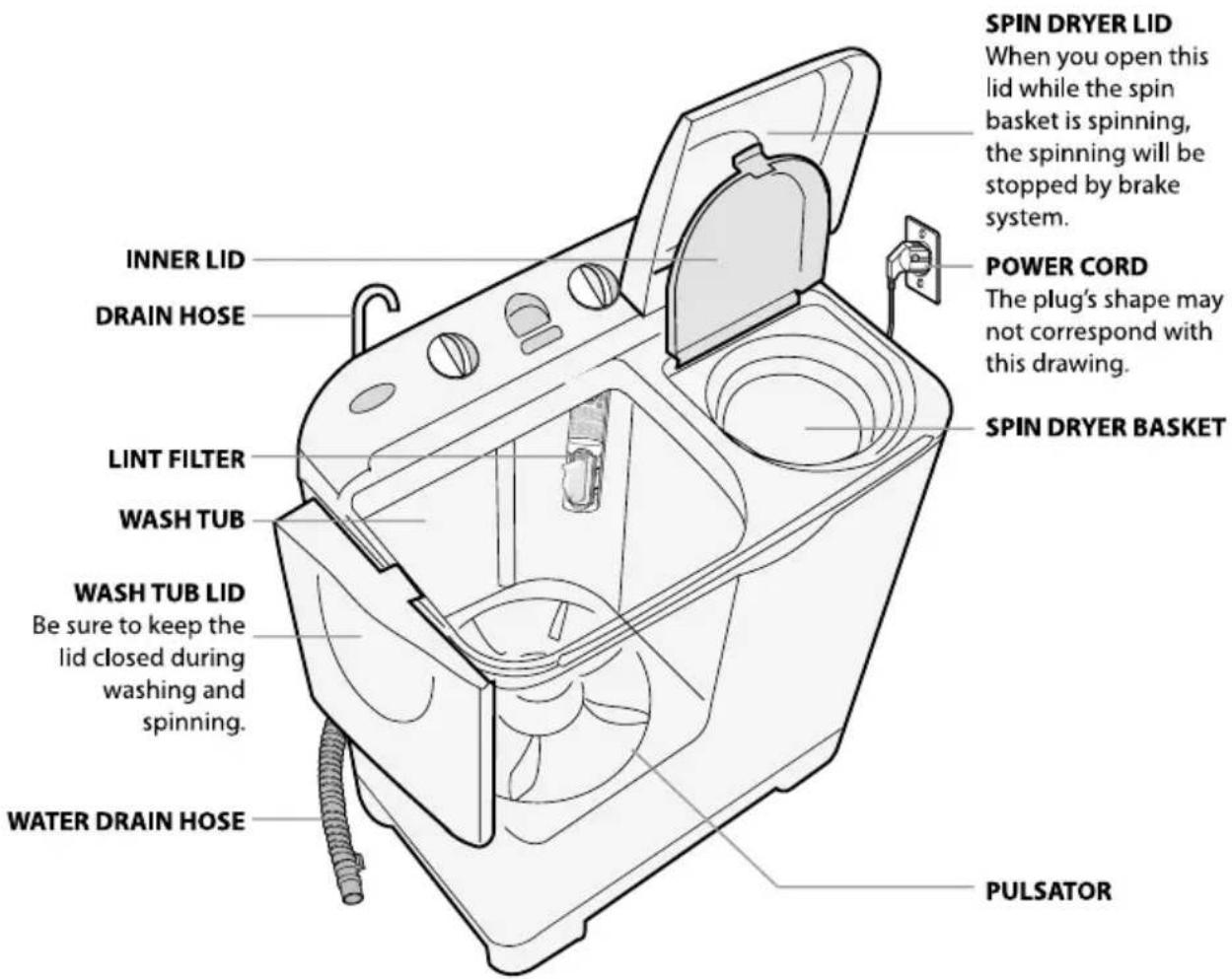

SPIN DRYER LID When you open this lid while the spin basket is spinning, the spinning will be stopped by brake system. POWER CORD The plug's shape may not correspond with this drawing. SPIN DRYER BASKET INNER LID DRAIN HOSE LINT FILTER WASH TUB WASH TUB LID Be sure to keep the lid closed during washing and spinning. WATER DRAIN HOSE PULSATOR

(Please do not match this figure with model because this may not be similar with your model).

1. WASH SELECTOR

This is used to select wash action.

2. WASH TIMER

This is used to set the wash time,

1-15 minutes
1-35 minutes
1-42 minutes

3. CYCLE SELECTOR /DRAIN SELECTOR

This is used to select the Washing / Rinsing or draining.

4. SPIN DRY TIMER

This is used to set the spin time,

1-5 minutes

1-10 minutes option

5. WATER SELECTOR

During washing, WATER SELECTOR KNOB should be selected to wash. During spin rinsing, WATER SELECTOR KNOB should be selected to spin.

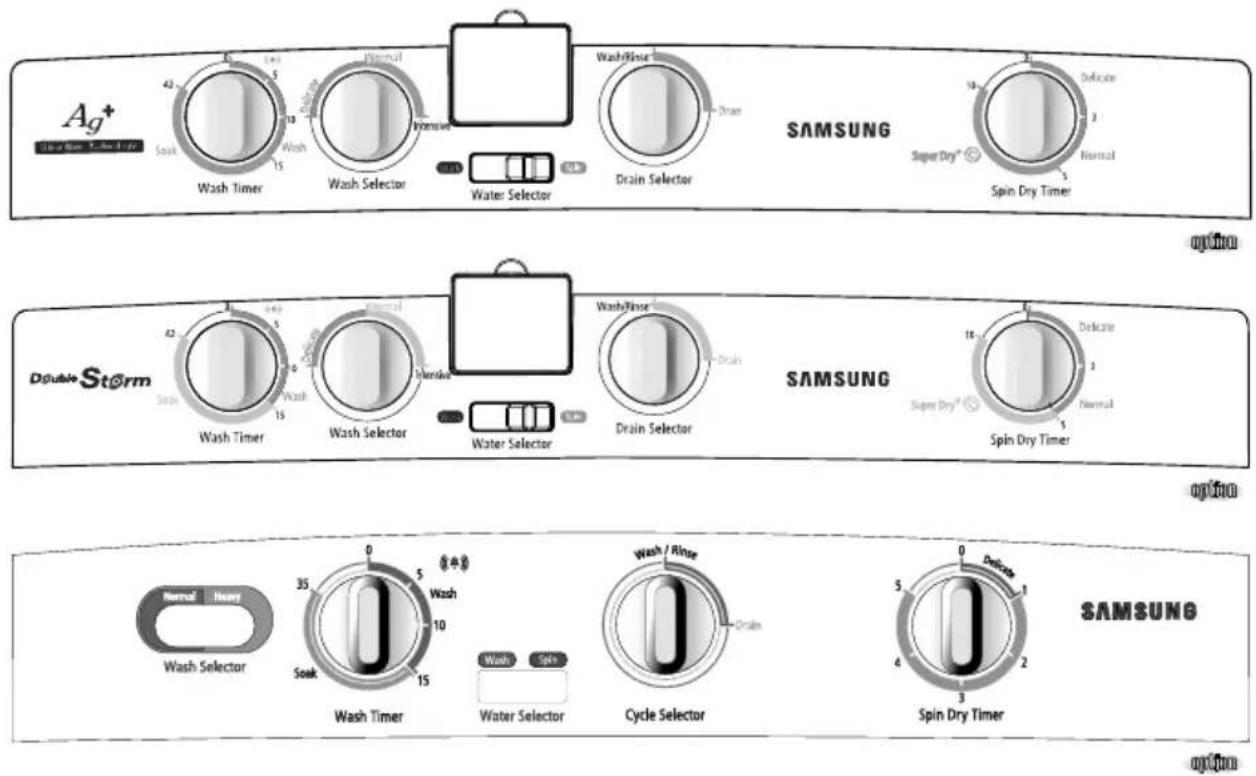

Ag+ Super Dry® Sonic Tube 42 5 10 15 Wash Timer Wash Selector Normal Drain Selector Water Selector Wash/Rinse Drain Drain Selector Super Dry® Normal Spin Dry Timer SAMSUNG option Double Storm 42 5 10 15 Wash Timer Wash Selector Normal Drain Selector Wash/Rinse Drain Selector Water Selector Wash/ Rinse Drain Drain Selector Super Dry® Normal Spin Dry Timer option Normal Heavy Wash Selector 35 0 5 Wash 10 Wash / Rinse Drain Cycle Selector 5 0 1 2 3 Spin Dry Timer SAMSUNG option

INSTALLATION

ENVIRONMENT

Leave some space

Space at last 15cm between the washer and the wall.

Place the washer on a sturdy flat surface.

If the washer is placed on an uneven or weak surface, noise or vibration may be occurred. (Allowable is 2°)

Never install the washer near water.

Do not place the washer in steamy rooms or where the washer is directly exposed to rain. Moisture may destroy the electrical insulation and cause an electrical shock hazard.

Avoid direct sunlight or heating devices.

As plastic and electrical components are affected by direct heat, never place the washer near heaters, boilers, etc. Do not place under direct sunlight.

CONNECTING THE DRAIN HOSE

Insert the drain hose(a) and push it tightly to be connected as arrow direction.

a 9

• Push it with force further to the bottom of the drain outlet.
• Check the drain hose for not getting apart from the outlet by drawing it.

CLEANING THE MACHINE

CLEANING THE LINT FILTER

If the dregs are filled up in the lint filter after finishing the wash, push down(1) and pull it out(2) as shown in figure.

Remove the collected lint and rinse the filter net.

Lint Filter

OVERFLOW FILTER

Pull the upper side of the overflow filter with two fingers into the hole 'A' in the direction of arrow as shown in the figure.

Illustration of a hand holding a container with an arrow labeled 'A' pointing upward (no text or symbols on the diagram itself)

CLEANING THE WASH TUB

• Wipe off strains on the cabinet and operation panel with soft cloth.
  Do not use benzene, thinners, cleanser, or wax, nor scrub the washer with a brush.
  Painted surfaces or plastic parts will be damaged.
  * When cleaning don't spray water directly to the parts of the washer. It may make its life span shorter. Also an electric shock or fire may take place.

TO WASH

1. Before starting washing, check the following;

2. Connect the water supply hose and open the water tap.

3. Connect the power cord to the power supply outlet.
4. Lay the drain hose(A) down toward a sinkhole.

1. Set the WASH SELECTOR KNOB to the desired mode.

1. Set the CYCLE SELECTOR / DRAIN SELECTOR KNOB to 'WASH·RINSE'.

Cycle Selector / Drain Selector

1. Set the WATER SELECTOR KNOB to WASH.

1. Load laundry in the wash tub.

Line drawing of a washing machine with a handle and fan (no text or symbols)

1. Fill water in the wash tub and add the detergent.

Cartoon character shaped like a box with a pencil, smiling and giving a thumbs-up (no text or symbols)

1. Set the WASH TIMER.

Wash Timer Wash Timer Wash Timer 15 12 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

option

epium

Set the Wash Timer 1-15 min.

Set the Wash Timer 1-35 min.

(Set the Wash Timer to a point between 15 to 35 mins for soak function).

SOAK FUNCTION

If the WASH TIMER is set to a point between "15" to "35", the washing machine start the wash (15 min), after the soak (2-20 min) is completed.

The Soak function (20 min) repeats the cycle that is 1.5-2.0 min. Turning and the 5 min Resting (3 times).

option

Set the Wash Timer 1-42 min.

(Set the Wash Timer to a point between 15 to 42 mins for soak function).

SOAK FUNCTION

If the WASH TIMER is set to a point between "15" to "42", the washing machine start the wash (15 min), after the soak (26.5 min) is completed.

The Soak function (26.5 min) repeats the cycle that is 1.5-2.0 min on washing. Turning and the 5 min Resting (4 times).

1. After washing, set the CYCLE SELECTOR/ DRAIN SELECTOR KNOB to 'DRAIN' for drain.

Cycle Selector / Drain Selector

SPIN DRY

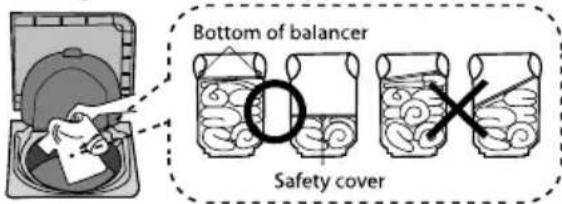

1. Transfer the clothes into the spin basket and arrange the clothes evenly.

Bottom of balancer Safety cover

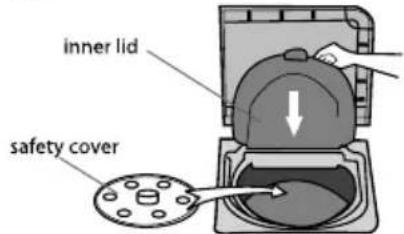

1. Be sure to attach the safety cover and close the inner lid.

inner lid safety cover

1. Close the spin dryer lid.

1-5 min Spin Dry Timer

1-10 min Spin Dry Timer

Spin Dry Timer

Spin Dry Timer

1. Incomplete spining. (Severe vibration or unbalance) See "When you load ..." on page 8.

RINSING

1. Set the CYCLE SELECTOR / DRAIN SELECTOR KNOB to 'WASH RINSE'.

Cycle Selector / Drain Selector

1. Supply the proper amount of water as not to overflow the top of the washing tub.

Wash Timer

Cycle Selector / Drain Selector

1. Set the WASH TIMER 2\~3minutes.
2. Drain the water. Set the CYCLE SELECTOR / DRAIN SELECTOR KNOB to 'DRAIN'
3. Repeat this cycle until drain water is clean. (2\~3 cycles)
4. Be sure lay the drain hose down. Be sure lay the drain hose do

OVER FLOW RINSE

1. Keep suppling water

Adjust water pressure to ensure that the amount of water supplied does not exceed that water drained.

Cycle Selector / Drain Selector

1. Set the WASH TIMER 6\~8 minutes.

Wash Timer

1. As soon as the WASH TIMER shuts off, turn off the water tap.

Wash Timer

1. Set the CYCLE SELECTOR / DRAIN SELECTOR KNOB to 'DRAIN'

Cyc e Se actor

ADDITIONAL RINSE

After rinsing you can select this course for more effective rinse (Don't select only this course for rinse.)

1 Load the laundry evenly into the spin basket.

inner lid safety cover

4 After stopping water supply, cover the laundry with safety cover and close the inner lid.

2 Set the WATER SELECTOR KNOB to SPIN (a) and CYCLE SELECTOR/ DRAIN SELECTOR KNOB to 'DRAIN'(b).

R (a) Wash Spin (b) Drain Cycle Selector / Drain Selector

5 Close the spin dryer lid.

3 Supply water for about 1 minute. Adjust the water flow to prevent overflow from the wash tub.

Spin Dry Timer

6 Set the SPIN DRY TIMER 2\~3 minutes.

WASHING TIME

KINDS OF CLOTHING	WASHING TIME	WASHING SELECTION
Extremely soiled heavy fabric	10 to 15minutes	HEAVY / INTENSIVE
Linen,cotton,etc.	8 to 10minutes
Ordinary clothes (underwear,etc)	7minutes	NORMAL / DELICATE
Slightly soiled synthetic fiber	2 to 5minutes
100%wool,mixed wool knitting, thin synthetic fiber with tags indicating hand washing	2 to 5minutes

SPIN DRY TIME

TIME	TYPE OF LAUNDRY
1 min.	Thin(synthetic fiber)
1~2 min.	wool
3~5 min.	cotton
5 min.	thick(cotton)
10 min. (Air Turbo)	thick(cotton)

DETERGENT

AMOUNT OF DETERGENT	WATER LEVEL
37 g	Low (37 l)
45 g	Mid (45 l)
54 g	High (54 l)

The amount of detergent is average. Follow the instruction detergent printed on the package for amount of detergent. Choose the amount of detergent depending on the fabric type.

MAINTENANCE

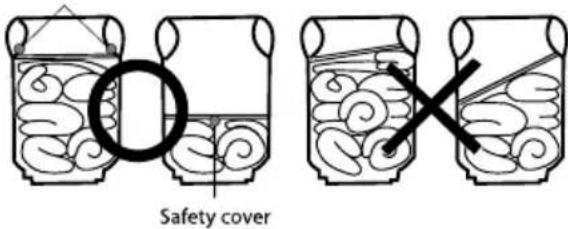

WHEN YOU LOAD THE LAUNDRY INTO THE SPIN BASKET.

Press the laundry evenly and put the safety cover into the spin basket drum as shown in the figure.

Bottom of balancer

Safety cover

inner lid safety cover

TO PICK OUT THE CLOTHING WHICH HAS FALLEN BETWEEN THE BASKET AND TUB.

For safety, pull the power supply plug out of the socket.

1. Disassemble a screws from the spin dryer hatch.
2. The spin dryer hatch is fixed to the brim by the concave and convex parts at two places. Expand the concave and convex parts, and pull up the spin dryer hatch to remove it.
3. Remove the clothing
4. Close the spin dryer hatch. Push the hatch firmly until the catch at the front is engaged securely.

Spin dryer hatch Screw

TROUBLE SHOOTING

TROUBLE	CHECK POINT	TROUBLE	CHECK POINT
1. The washer does not work.	Check that the power cord is connected to a power outlet well. Power stoppage?	5. The spin dryer basket will not run.	Is the spin dryer lid closed completely?Are laundry (socks,etc.) falling out of the spin dryer basket and clinging to the axle?See "To pick out..." on page 8.
2. Clothes will not move freely.	Is the laundry overloaded?	6. The water drains out immediately.	Is the Cycle Selector/ Drain Selector set to drain?Is the drain hose clogged with scrap?Hang up drain hose over the drain hose hook. Half fill the wash tub with the water and try for drain again.(Scrab will be removed by water drain pressure.)
3. Incomplete spinning.(Severe vibration or unbalance.)	Are the laundry arranged evenly?See "When you load..." on page 8.
4. Water does not drain.	- Be sure lay the drain hose down.See "Before using..." on page 2.	7. Pulsator not moving	- Although the machine may stay still, maximum 5 minutes. If the WASH TIMER indicates in excess of 15 minutes. It is just in the process of soaking and not a breakdown.

SPECIFICATION

MODELS	WT8202	WT8204/WT8205/WT8207AG	WT8504/WT8505/WT8507AG	WT9204/WT9205/WT9207AG
DIMENSIONS (WxDxH)	776x434x900mm	776x434x930mm	799x489x965mm	820x504x1020mm
WATER PRESSURE	0.05~0.3MPa(0.5~3.0kg.f/cm2)	0.05~0.3MPa(0.5~3.0kg.f/cm2)	0.05~0.3MPa(0.5~3.0kg.f/cm2)	0.05~0.3MPa(0.5~3.0kg.f/cm2)
WEIGHT	24.5 kg	25.5 kg	26.5 kg	30.0 kg
STANDARD QUANTITY OF WATER	50/	50/	55/	65/
RATING TIME	Washing 1 Hour/Spinning 15 minutes	Washing 1 Hour/Spinning 15 minutes	Washing 1 Hour/Spinning 15 minutes	Washing 1 Hour/Spinning 15 minutes

Samsung strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country	Customer Care Center	Web Site
AUSTRALIA	1300 362 603	www.samsung.com/au
INDIA	3030 8282, 1600 1100 11	www.samsung.com/in
MALAYSIA	1800-88-9999	www.samsung.com/my
PHILIPPINES	1800-10-SAMSUNG (7267864)	www.samsung.com/ph
RUSSIA	8-800-200-0400	www.samsung.ru
SINGAPORE	1800-SAMSUNG (7267864)	www.samsung.com/sg
SOUTH AFRICA	0860 7267864 (SAMSUNG)	www.samsung.com/za
VIETNAM	1 800 588 889	www.samsung.com/vn

SAMSUNG

WT8202EG

WT8204EG

WT8205EG

WT8207AG

WT8504EG

WT8505EG

WT8507AG

WT9204EG

WT9205EG

WT9207AG

उपभोक्ता निर्देशिका

Line drawing of a microwave oven with control panel and buttons (no text or symbols)

Register your product at

www.samsung.com/global/register

CODE NO.: DC68-01783E

विशिष्ट पद्धतियाँं

- सिल्यर वाश पद्धति

Diagram showing two scenarios of a dam or retaining structure with labeled components A and a cross symbol indicating failure.

Illustration of hands holding a tool with a ruler, no text or symbols present

Illustration of a hand placing a component into a cylindrical device with a label 'A' (no text or symbols on the device itself)

वाश टब की सफाई

Wash Selector Wash Selector

例42

Cycle Selector / Drain Selector

inner lid safety cover

Line drawing of a washing machine with a handle and internal blades (no text or symbols)

Cartoon illustration of a smiling container with hands pointing at it (no text or symbols)

Cycle Selector / Drain Selector

Cycle Selector / Drain Selector

Cycle Selector / Drain Selector

Cycle Selector / Drain Selector

inner lid safety cover

4

(a) Wash Spin (b) Drain Cycle Selector / Drain Selector

Safety cover

inner lid safety cover

Spin dryer hatch Screw

समस्या का समाधान
