USER MANUAL LCDWDVD320 SANSUI

32" TFT LCD TV WITH DVD PLAYER

LCDWDVD320

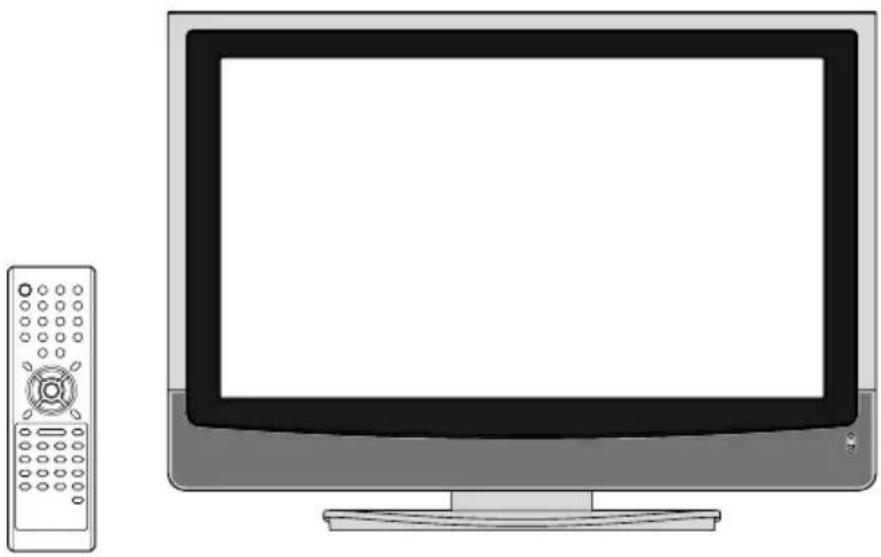

Illustration of a remote control unit next to a flat-screen monitor (no text or symbols visible)

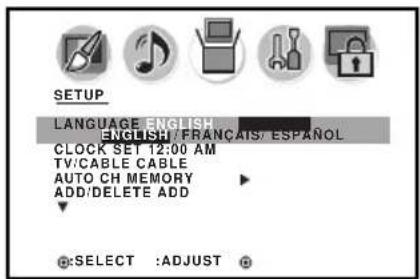

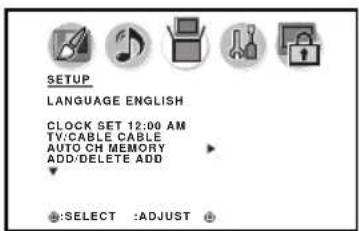

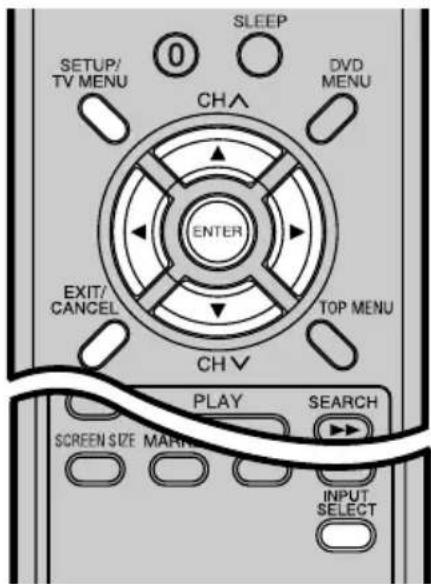

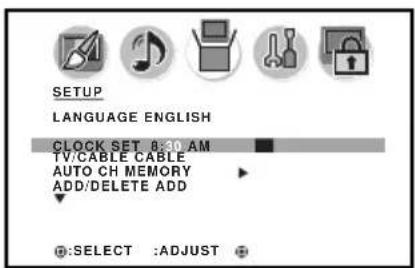

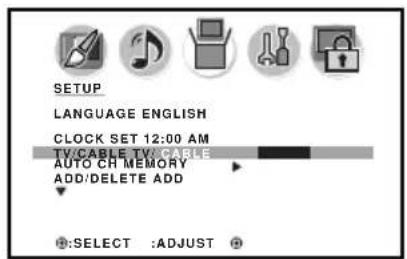

TV/CABLE MODE SELECTION

When shipped from the factory, the TV/CABLE menu option is set to the "CABLE" (Cable Television) mode. If not using CABLE, set this menu option to the "TV" position.

IF CONTACT WITH CUSTOMER SERVICE IS REQUIRED PLEASE HAVE THE MODEL NUMBER READY PRIOR TO THE CALL CUSTOMER SERVICE – 1-800-289-0980

ORION WEBSITE

FOR INFORMATION ON OUR OTHER PRODUCTS, PLEASE VISIT OUR WEBSITE AT

www.orionsalesinc.com

Before operating the unit, please read this manual thoroughly.

CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

FCC Declaration of Conformity Compliance Statement (Part 15):

The Sansui LCDWDVD320, LCD TV/DVD Combination complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The party responsible for compliance to these rules is:

ORION SALES, INC

HIGHWAY 41 ORION PLACE, PRINCE, PRINCETON, INDIANA 47670

Ph: 1-800-289-0980

WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION: Changes or modifications not expressly approved by the partly responsible for compliance with the FCC Rules could void the user's authority to operate this equipment.

CAUTION:

THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS OWNER'S MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE.

USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM.

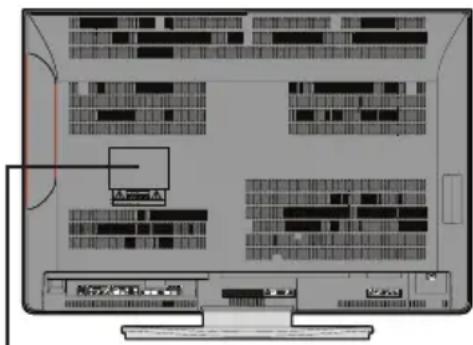

Location of the required Marking

The rating sheet and the safety caution are on the rear of the unit.

CERTIFICATION: COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J.

1) Read these instructions.
2) Keep these instruction.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the grounding-type plug. A grounding type plug has two blades and a third grounding prong. The third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

PORTABLE CART WARNING (symbol provided by RETAC)

15) Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such a vases, shall be placed on the apparatus.

CONDENSATION

Moisture will form in the operating section of the player if the player is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, player's performance will be impaired.

To prevent this, let the player stand in its new surroundings for about an hour before switching it on, or make sure that the room temperature rises gradually.

Condensation may also form during the summer if the player is exposed to the breeze from an air conditioner. In such cases, change the location of the player.

HOW TO HANDLE THE LCD PANEL

- Do not press hard or jolt the LCD panel. It may cause the LCD panel glass to break and injury may occur.

- If the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause skin inflammation.

- Do not press hard or jolt the LCD panel. It may cause the LCD panel glass to break and injury may occur. - If the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause skin inflammation.

If the liquid gets in your mouth, immediately gargle and consult with your doctor. Also, if the liquid gets in your eyes or touches your skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water.

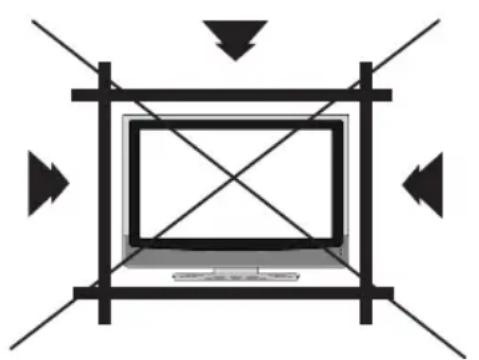

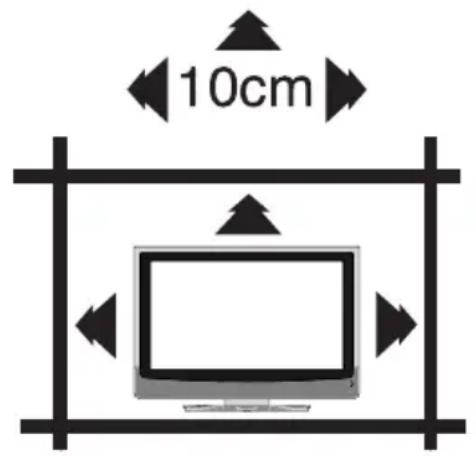

The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause overheating. Do not block ventilation holes, or set up near radiators. Do not place in direct sunshine. When placing on a shelf leave 10 cm (4 inches) free space around the entire unit.

Pure geometric diagram with arrows and lines, no text or symbols present

Notes when mounting the LCD TV/DVD on a wall

• When installing the unit on a wall, allow at least 6 cm (2 1/2 inches) clearance between the rear of the LCD TV/DVD and the wall. Clearance of less than 6 cm (2 1/2 inches) will obstruct the vents and may cause the interior of the unit to overheat, resulting in damage to the unit.
• If the unit is to be mounted on the wall, contact the retailer where you purchased the LCD TV/DVD for advice, and have the equipment professionally installed. Incomplete or improper installation may cause injury to you and/or the LCD TV/DVD.

IMPORTANT NOTICE

Possible Adverse Effects on LCD Panel: If a fixed (non-moving) pattern remains on the LCD Panel for long periods of time, the image can become permanently engrained in the LCD Panel and cause subtle but permanent ghost images. This type of damage is NOT COVERED BY YOUR WARRANTY. Never leave your LCD Panel on for long periods of time while it is displaying the following formats or images:

• Fixed Images, such as stock tickers, video game patterns, TV station logos, and websites.
• Special Formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on a normal (4:3) display (black bars at top and bottom of screen); or viewing normal style (4:3) media on a widescreen (16:9) display (black bars on left and right sides of screen).

The following symptoms are not signs of malfunction but technical limitation. Therefore we disclaim any responsibility for these symptoms.

• LCD Panel are manufactured using an extremely high level of precision technology, however sometimes parts of the screen may be missing picture elements or have luminous spots.
  This is not a sign of a malfunction.
• Do not install the LCD Panel near electronic equipment that is susceptible to electromagnetic waves. Some equipment placed too near this unit may cause interference.
• Effect on infrared devices – There may be interference while using infrared devices such as infrared cordless headphones.

LCD color TV With DVD/CD player

Unique space saving design combines a 32" LCD color TV and a DVD/CD player.

A DVD disc has much more capacity, but is the same size as an audio CD disc. The Picture/Audio quality of a DVD exceeds other software. The Picture quality is higher than Super VHS video cassettes. The audio quality is higher than an audio CD. The DVD also has special options; audio language selection, subtitle language selection, or multi-angle, etc.

The DVD PLAYER can play back both audio CDs and MP3 CDs.

Compatible with a wide range of DVD audio outputs

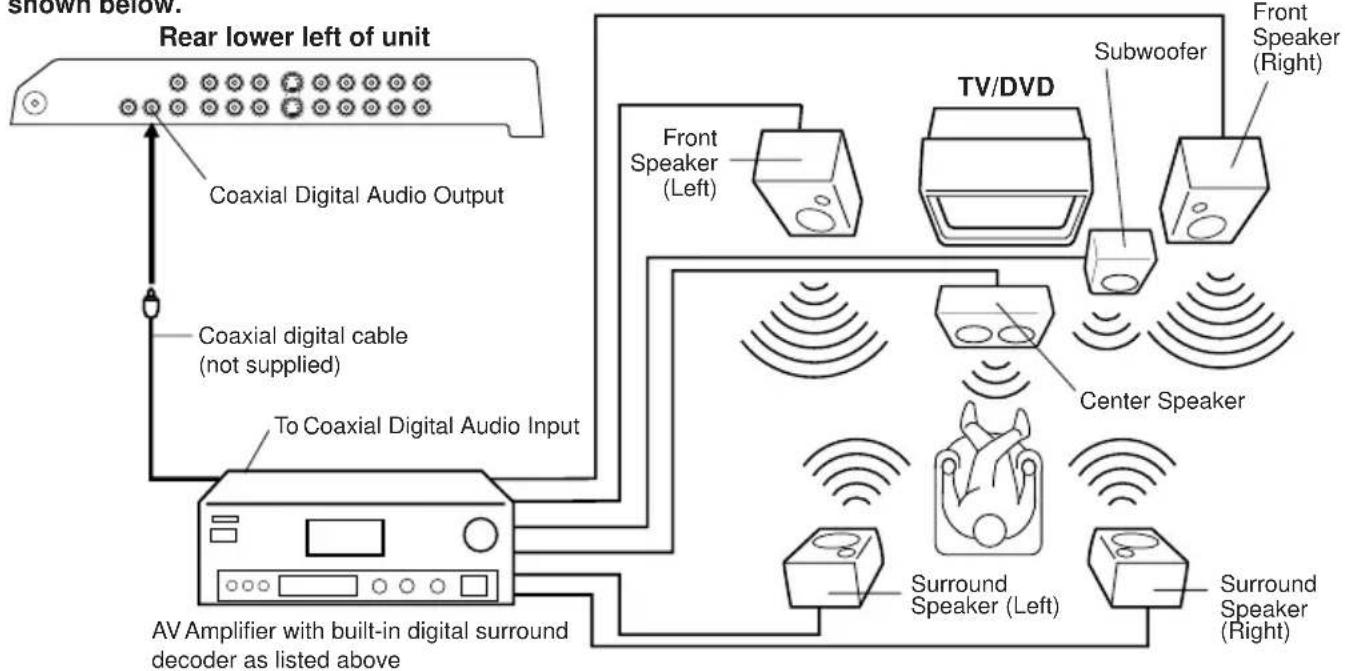

Digital Audio Jack (Coaxial)

• When a component with a built-in Dolby Digital decoder is connected, Dolby Digital sound can produce the effect of being in a movie theater or a concert hall.
• Surround standard is different from Dolby Digital. This format is already in use in many theaters. By connecting this unit to a DTS decoder or an AV amplifier with a built-in DTS decoder, the DTS audio of DVD discs recorded in this format can be enjoyed. However, audio will not be output from the analog audio output jacks.
• By connecting this unit to an AV amplifier with a built-in MPEG decoder, the MPEG audio of DVD discs recorded in this format can be enjoyed.
  • The Linear PCM sound of a 48 kHz/24 bit through 96 kHz/24 bit exceeds audio CD sound.

Convenience Features

Direct selection of your desired scenes using Title/Chapter/Time/Track - You can play back from the desired scene.

Recalling Up to 3 Scenes (DVD only) - You can program up to 3 scenes in memory and recall the marked scenes.

Frame Advance - The PAUSE/ STILL moves one frame at a time.

Slow Motion - The SLOW moves you back and forth through the program by 4 steps of 1/7-1/2 times.

Repeat Playback - You can repeat chapter, track, title, sides or material between two selected points.

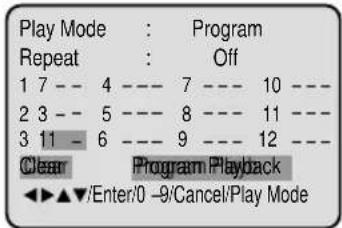

Program Playback (Audio CD/MP3 CD) - You can play back tracks in programmed sequences.

Zoom (DVD only) - You can zoom in the selected subject on the screen during playback.

Note: Make sure that discs are suitable for the following functions.

Multi-Language - Maximum 32 language subtitles and maximum 8 language soundtracks can be played back for movies or programs.

Multi-Angle - Pictures of Sports or a Live Concert are recorded with many cameras. When you play such a disc, you can change the angles during playback.

Parental Control - You can limit the play back of scenes or sounds of DVD discs that have a rating level encoded on the disc.

Video Aspect Ratio - You can change the aspect ratio of the screen for your monitor.

TV Features

181 Channel Tuner - Receives standard VHF and UHF broadcast channels and up to 113 cable channels. The actual number of channels received depends upon channel reception in your area or your cable system.

Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for hearing impaired viewers.

Picture Adjustments Using The Remote Control - The On-Screen display allows precise remote control adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS.

Programmable TV Sleep Timer - Operable from the remote control, the TV can be programmed up to 120 minutes to turn off automatically.

On-Screen 3 Language Display - You can select one of 3 languages, English, Spanish or French for on-screen programming.

V-Chip - The V-Chip function can read the rating of a TV program or movie content if the program is encoded with this information. V-chip will allow you to set a restriction level.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Before using your unit

IMPORTANT SAFETY INSTRUCTIONS .....3

SAFETY PRECAUTIONS 4

IMPORTANT NOTICE 4

Features 5

Contents....6

Disc 7

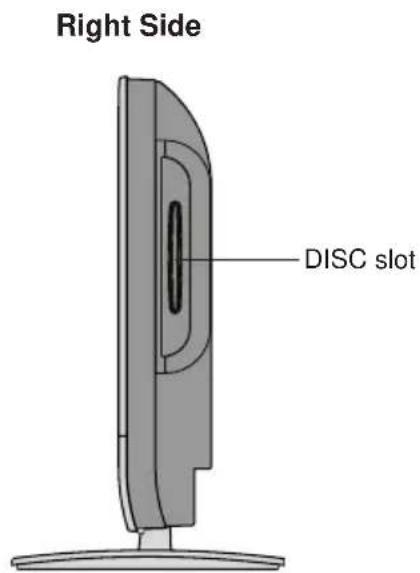

Location of controls 8

Remote control....10

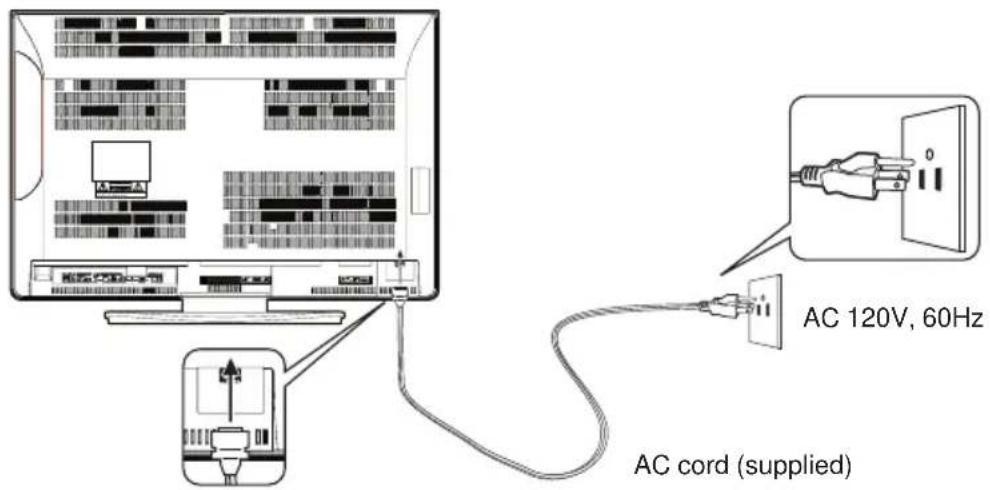

Power source 11

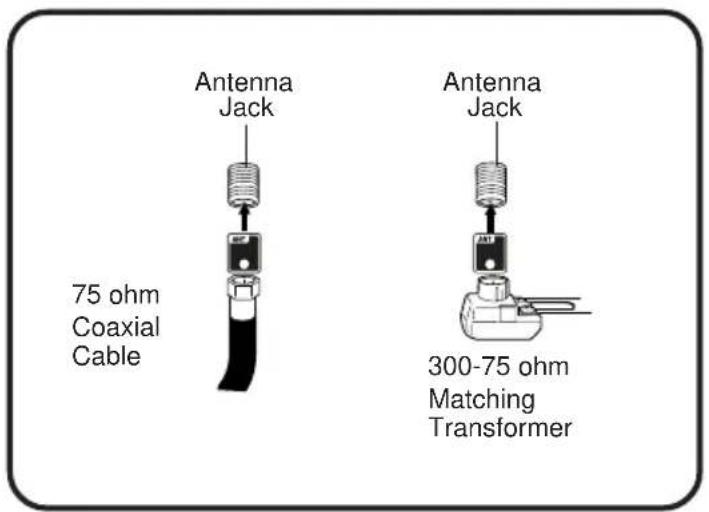

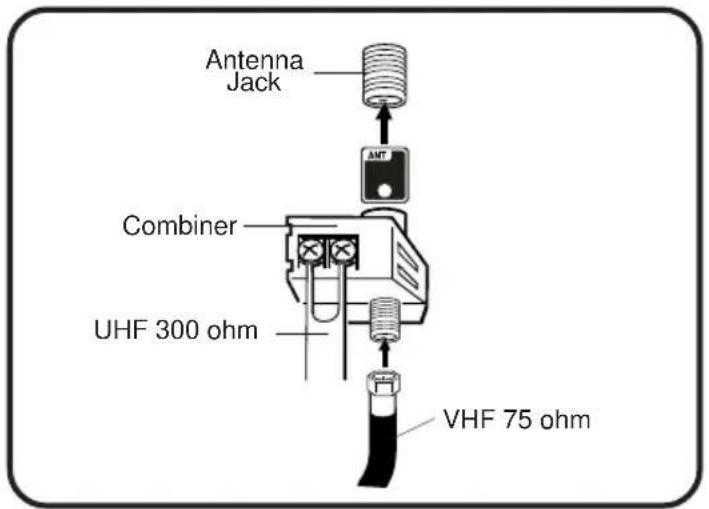

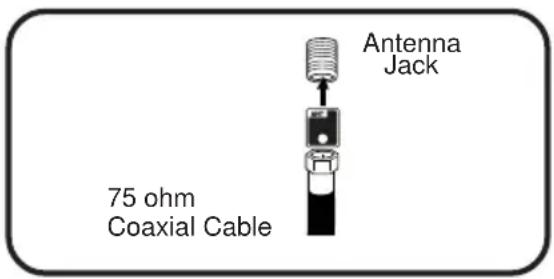

Antenna connections....12

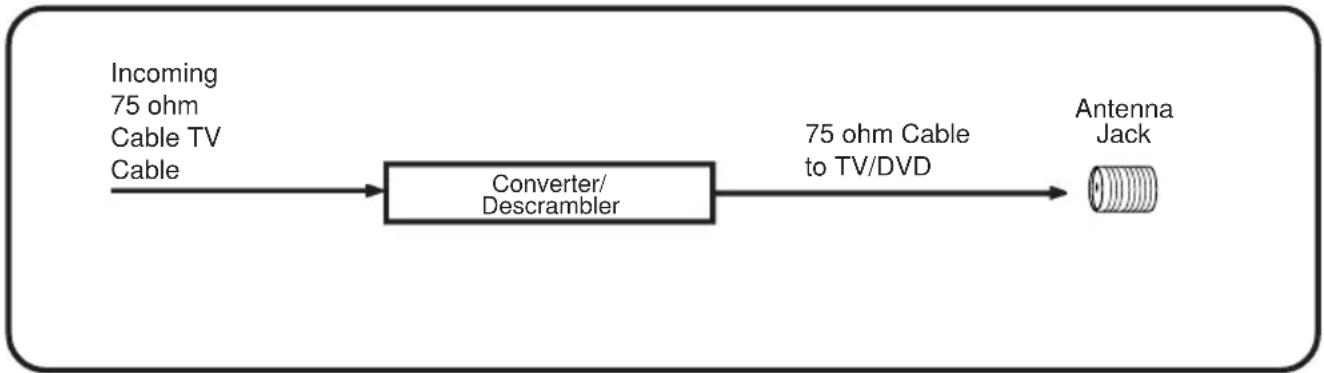

Cable TV connections 13

TV operation

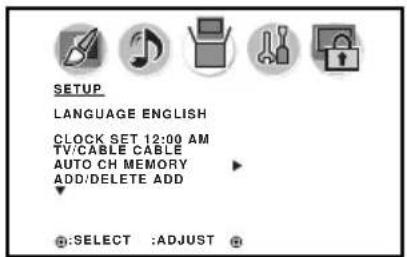

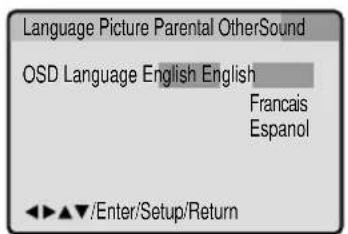

Setting the on-screen display language .....14

TV operation....15

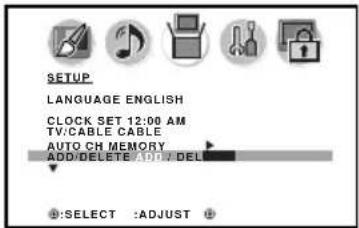

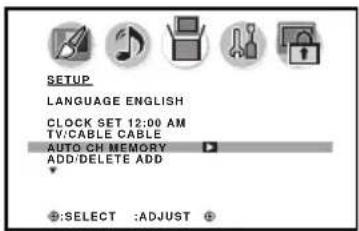

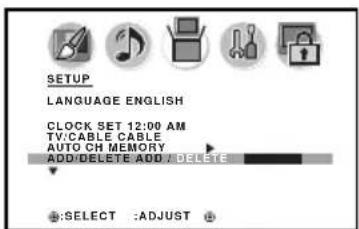

Memorizing channels 17

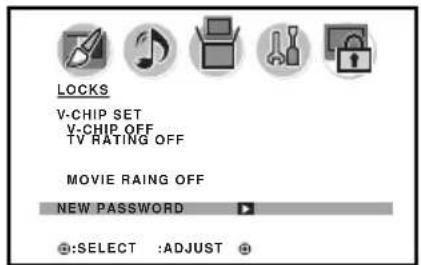

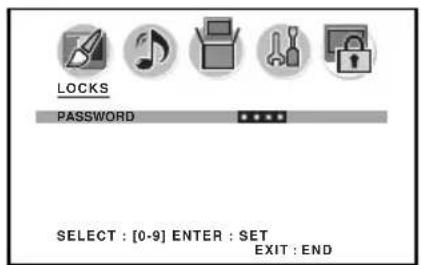

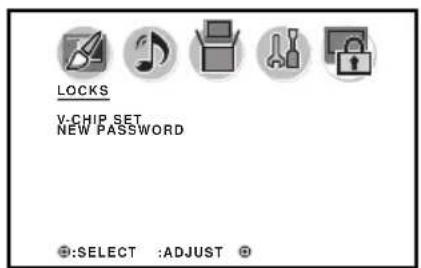

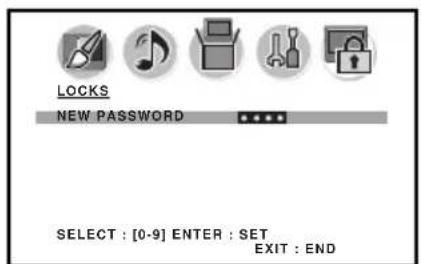

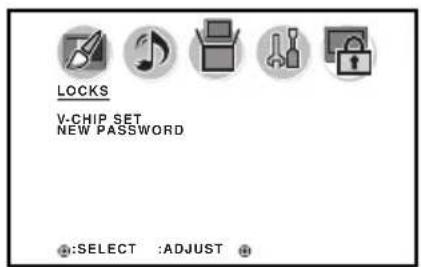

Setting the V-Chip 19

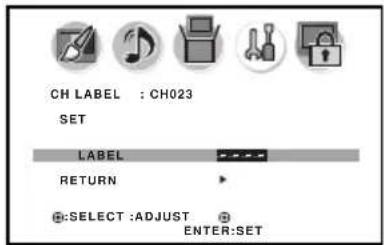

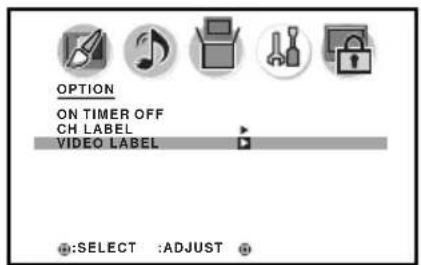

Labeling channels 22

Selecting the video input source .....23

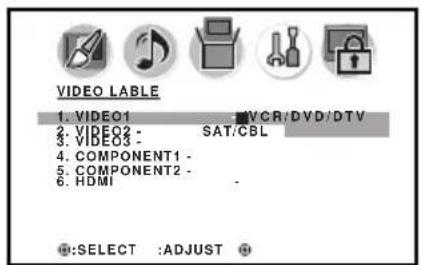

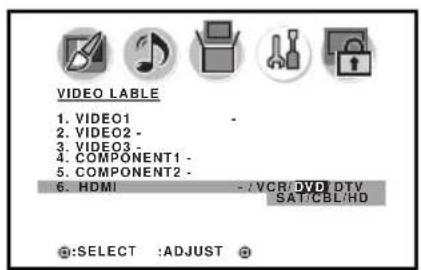

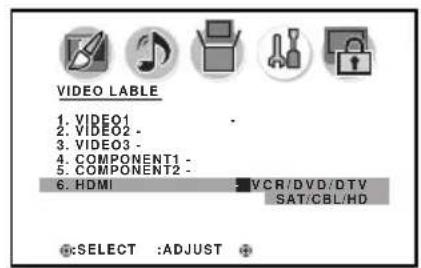

Labeling the video input source .....23

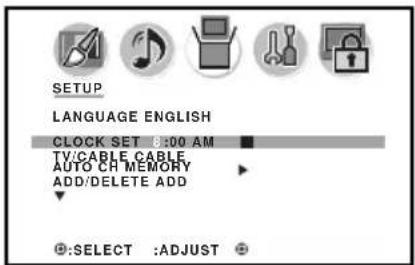

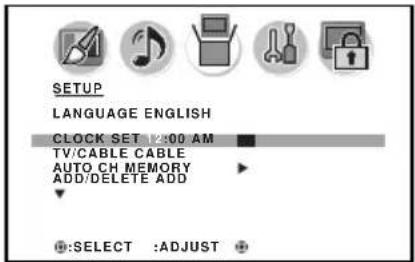

Setting the clock 24

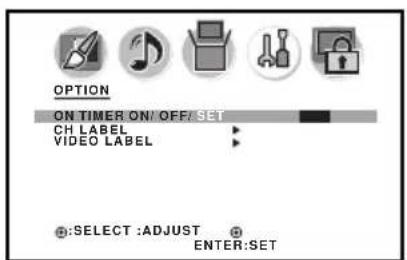

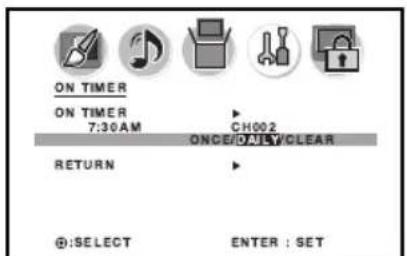

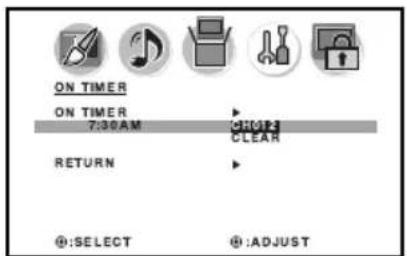

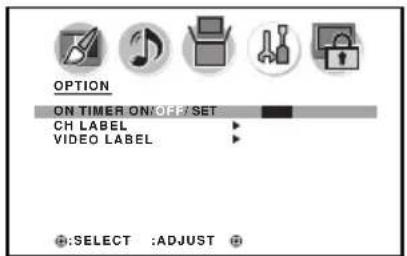

Setting the on timer 25

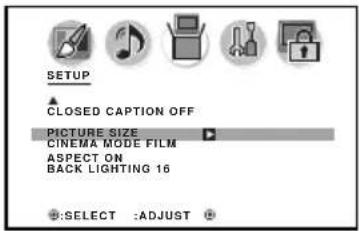

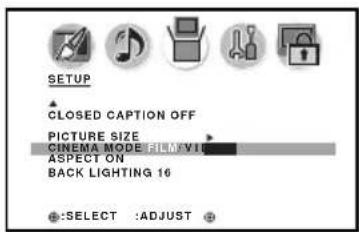

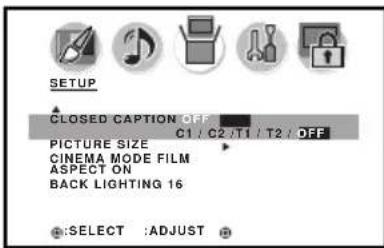

Setting the picture size 26

Selecting the cinema mode....27

Using the aspect feature ....27

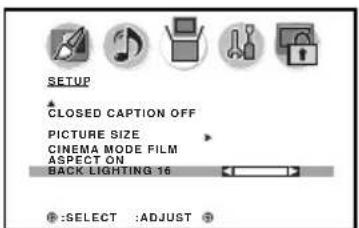

Adjusting the back lighting feature .....27

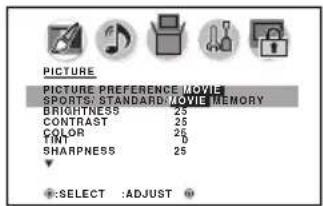

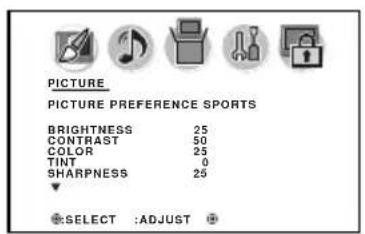

Adjusting the picture preference .....28

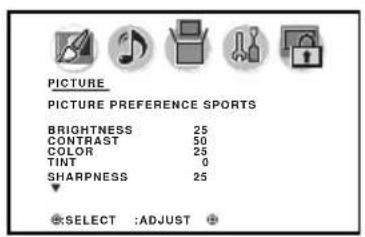

Picture control adjustment....28

Selecting the color temperature .....29

Resetting your picture adjustments .....29

Closed Caption....30

Selecting stereo/Second Audio Program (SAP)....31

Sound control adjustment ....31

Turning off the built-in speakers ....31

Using the WOW ^TM surround sound feature ....32

Selecting the HDMI audio input source.....32

Resetting your audio adjustments .....32

Playback operation

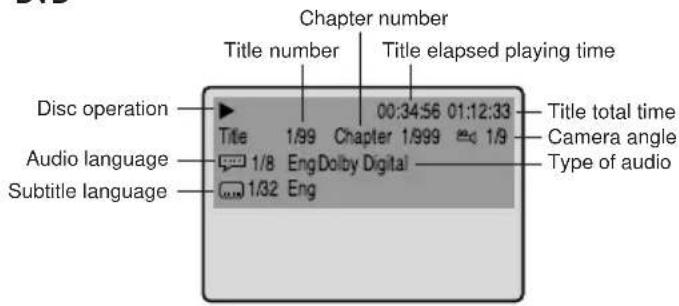

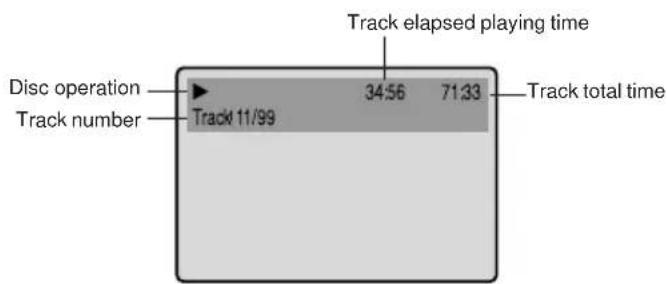

Preparation/Status display of disc....33

Playback procedure 34

Special playback 35

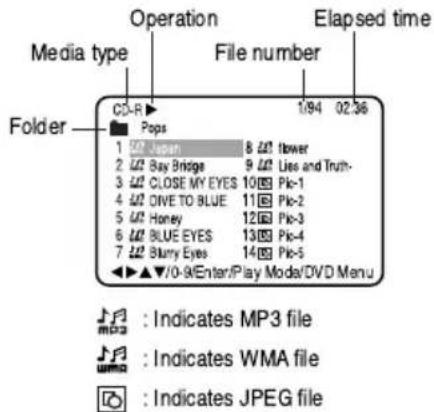

MP3/WMA/JPEG playback 36

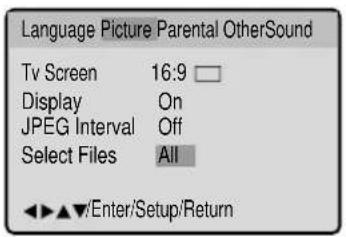

Setting the JPEG interval 38

Setting the select files 39

Advanced function

Zooming 40

Locating desired scene 40

Repeat playback 41

Program playback 42

Random playback (CD)......42

Marking desired scenes 43

Changing soundtrack language .....44

Subtitles 44

Karaoke playback....44

Changing angles 45

Title selection 45

DVD menu....45

Additional information

Setting the language 46

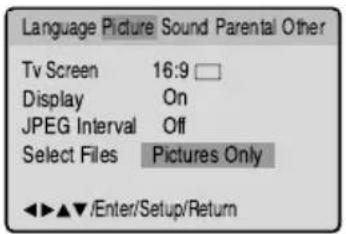

Setting the aspect ratio of TV screen .....47

Setting on screen display 47

Dynamic Range Control 48

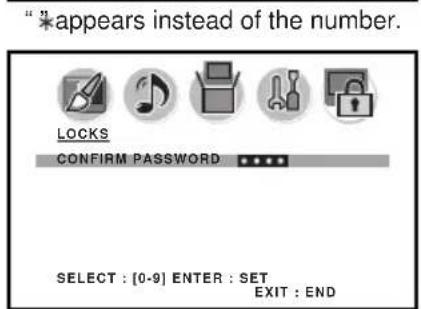

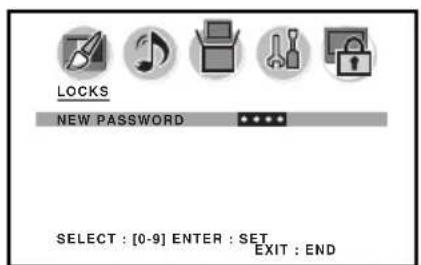

Parental control setting 49

Changing the parental level 50

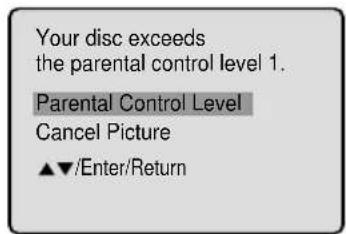

Temporary disabling of rating level by DVD disc ....51

Setting the language 52

Language code list 53

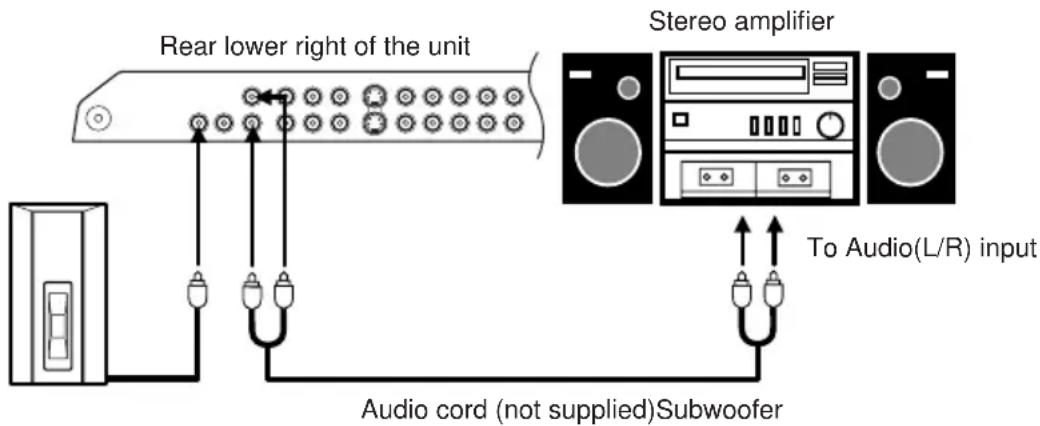

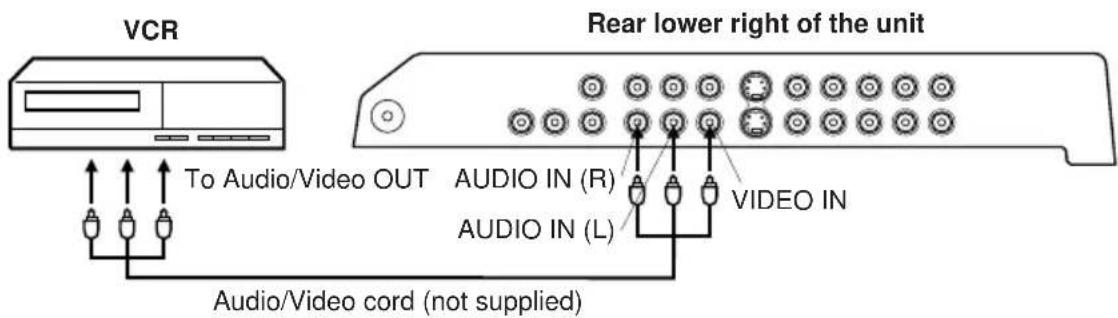

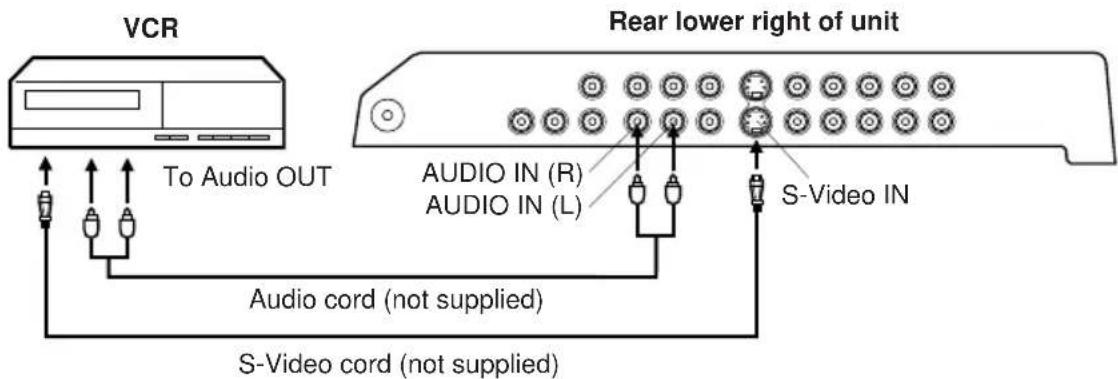

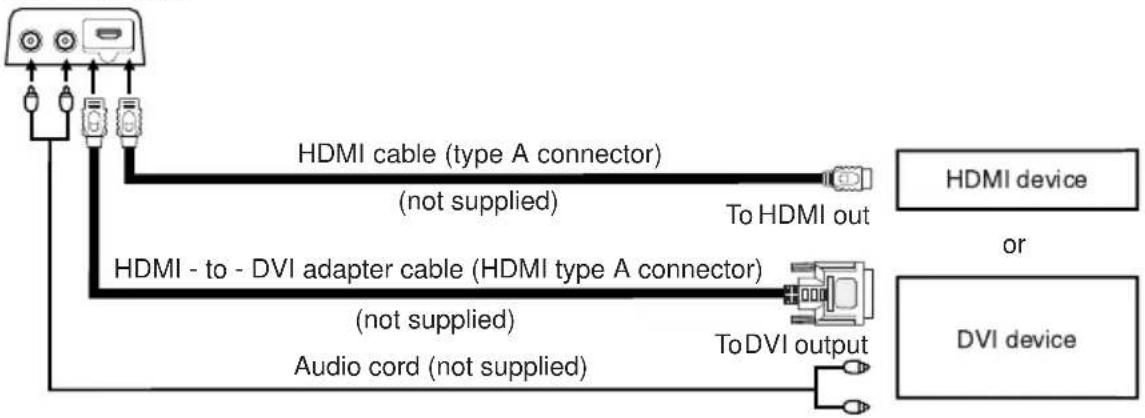

Connecting to other equipment 54

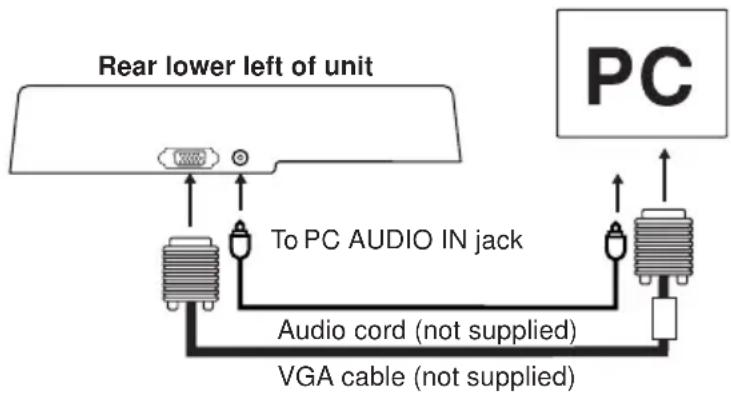

Picture/Audio control adjustment in the PC mode 58

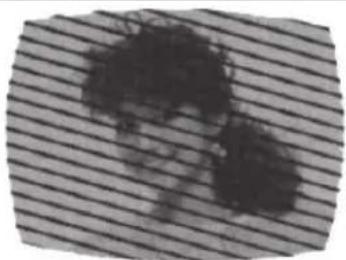

Reception disturbances....59

Problems and troubleshooting 60

Specifications 62

Limited WARRANTY 63

playable discs

Disc type and logo mark		content
DVD Video		Audio+Video(movingpictures)
CD-DA		Audio
The following discs are also available.• DVD-R/RW discs of DVD video format.• CD-R/RW discs of MP3.

Region Number

Region number (Regional restriction code) is built-in to the unit and DVD video discs. Region number "1" or "ALL" of DVD video discs can be used on this unit.

CAUTION:

• Only the left types of discs can be played on this unit. DVD-ROM, CD-ROM, SVCD, CVD, VCD, etc. cannot be played.
• When you play an 8 cm disc, please assemble it with an off-the-shelf disc adapter before you insert it into the unit.
• This unit is to be used exclusively with the NTSC color system. PAL and SECAM system discs cannot be used with this unit.
• Some CD-R/RWs and DVD-R/RW can not be played back depending on the recording conditions.

You cannot play discs like the following:

- Irregular shaped discs such as card shaped, heart shaped

- Stickered or papered discs

• Discs with scotch tape, glue or other remains of labels

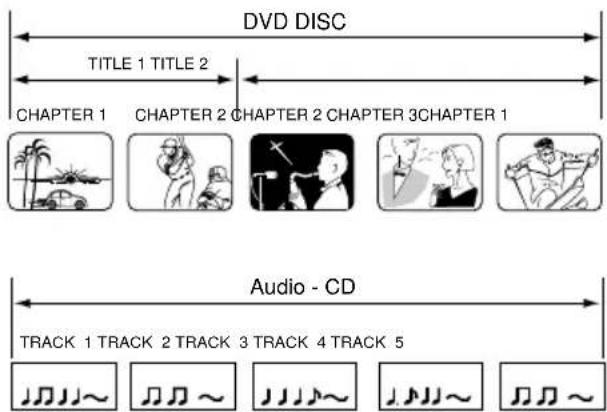

Title

When two or more movies are recorded on a disc, the disc is divided into two or more sections. Each section is called a "TITLE".

Chapter

The titles can be subdivided into many sections. Each section is called a "CHAPTER".

Track

An Audio CD can contain several items. These are assigned to the tracks.

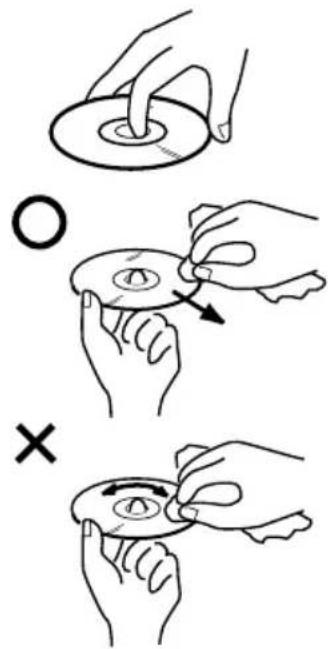

Removing Disc from Case

Be sure to hold the edge of disc. Do not touch the surface of the disc. Pick up the disc gently from the case.

• Do not scratch the disc.
• Do not get dirt on the surface of the disc.
• Do not stick a label or adhesive tape on the disc.
• Do not drop or bend the disc.

Storing Disc

• Store the disc in the case to avoid risk of scratches, dirt or damage.
• Do not leave disc exposed to direct sunlight or in hot or humid places.

Cleaning Disc

Wipe the disc with a clean, dry cloth from center to edge.
- Do not wipe the disc in a circular motion.
- Do not use liquid or aerosol cleaners.

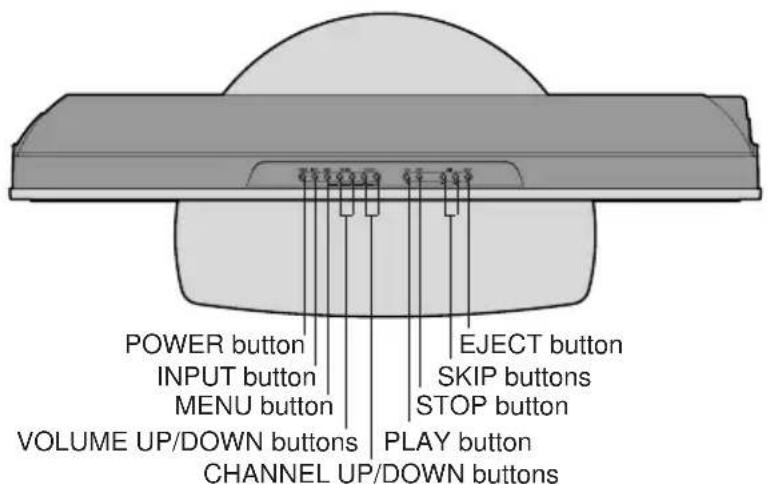

Top

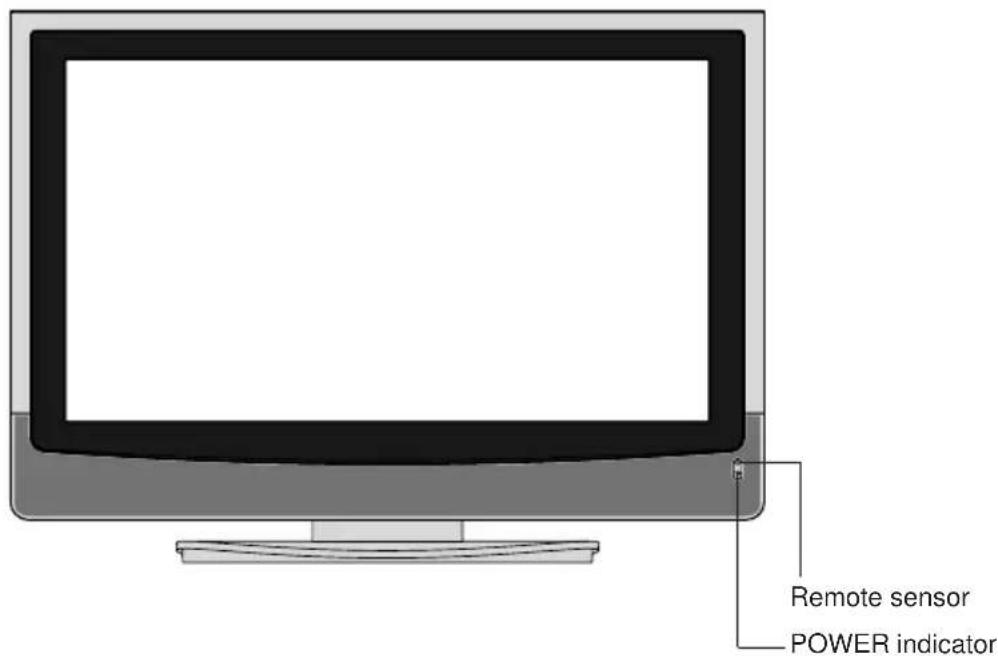

Front

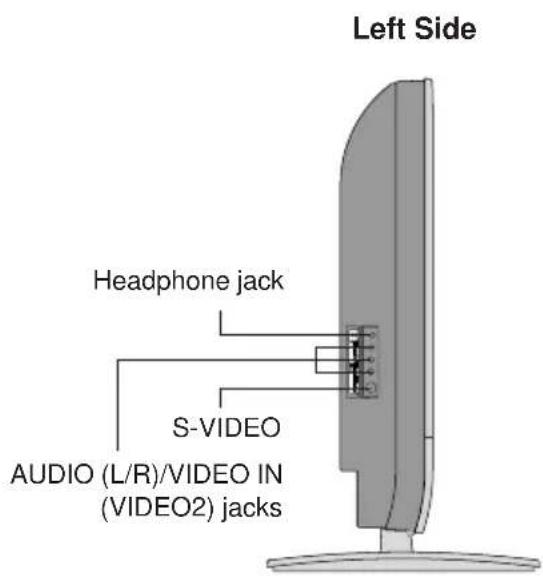

Location of controls (continued)

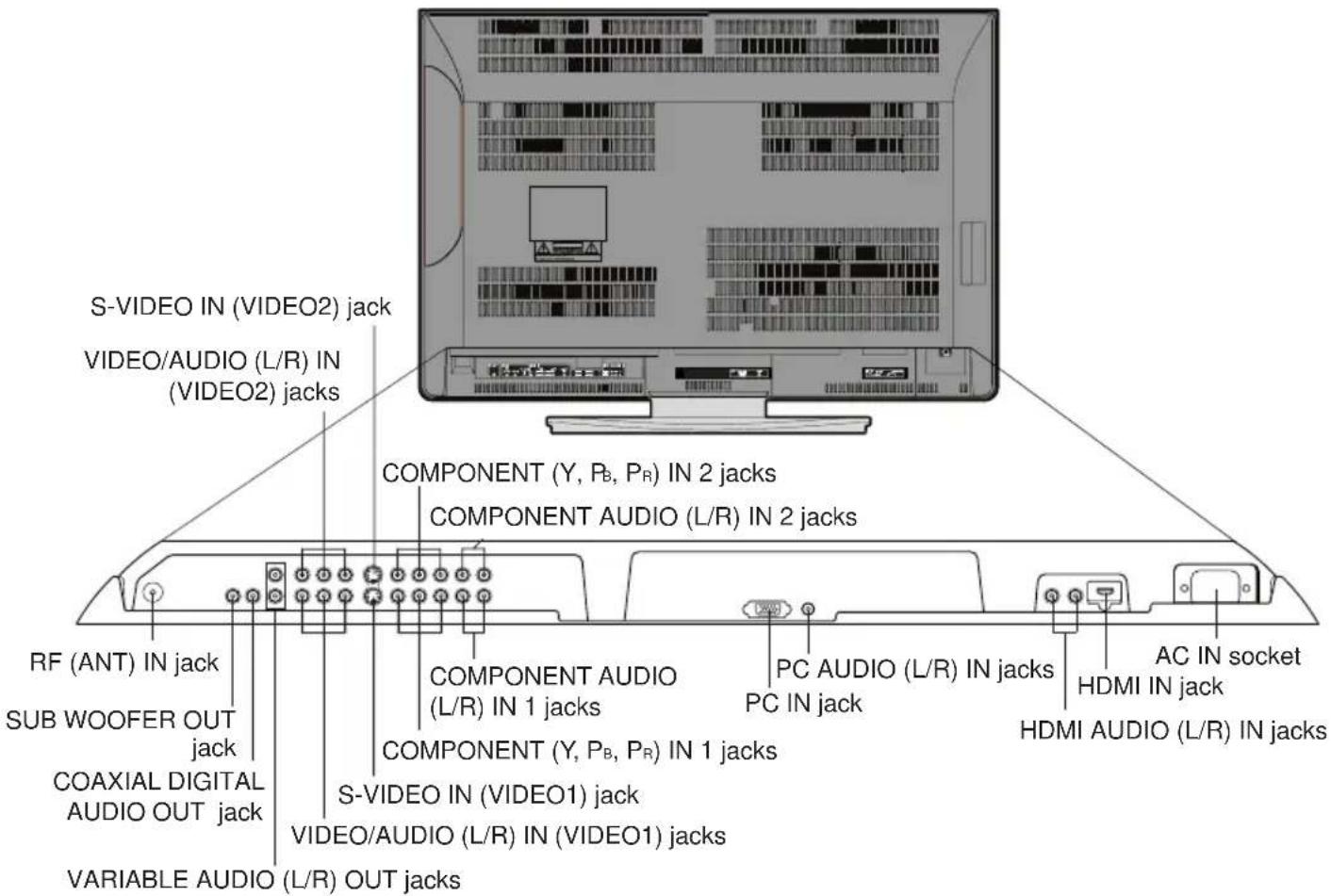

Rear

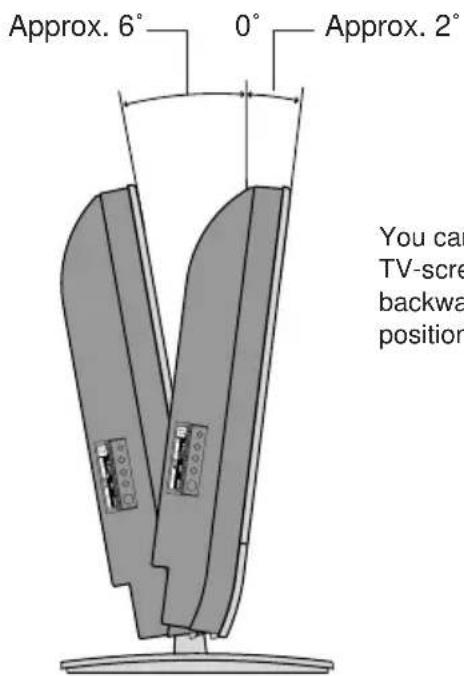

Variable TV-screen angle

You can adjust the angle of the TV-screen up to 2^ forward or 6^ backwards from the vertical position.

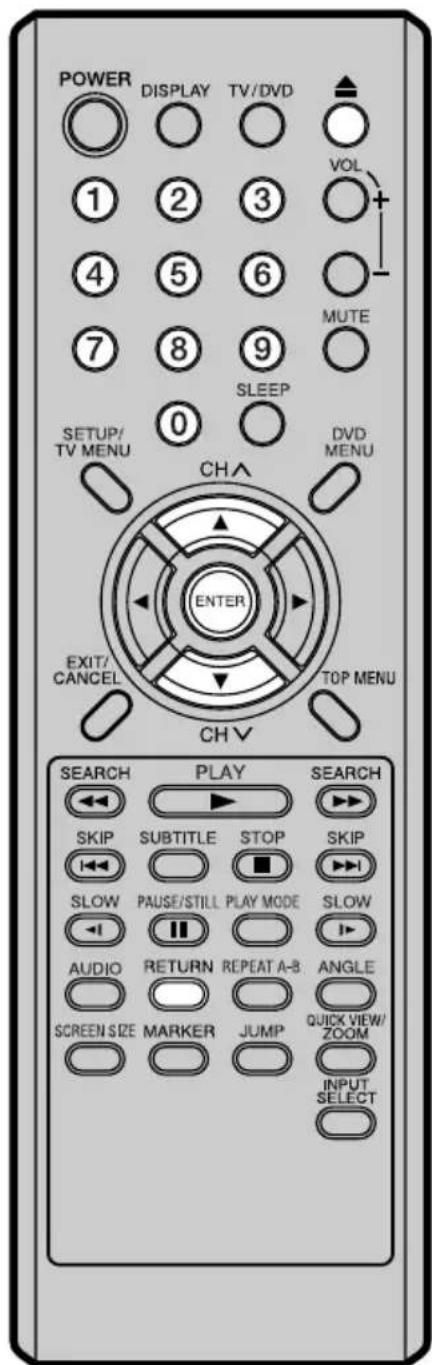

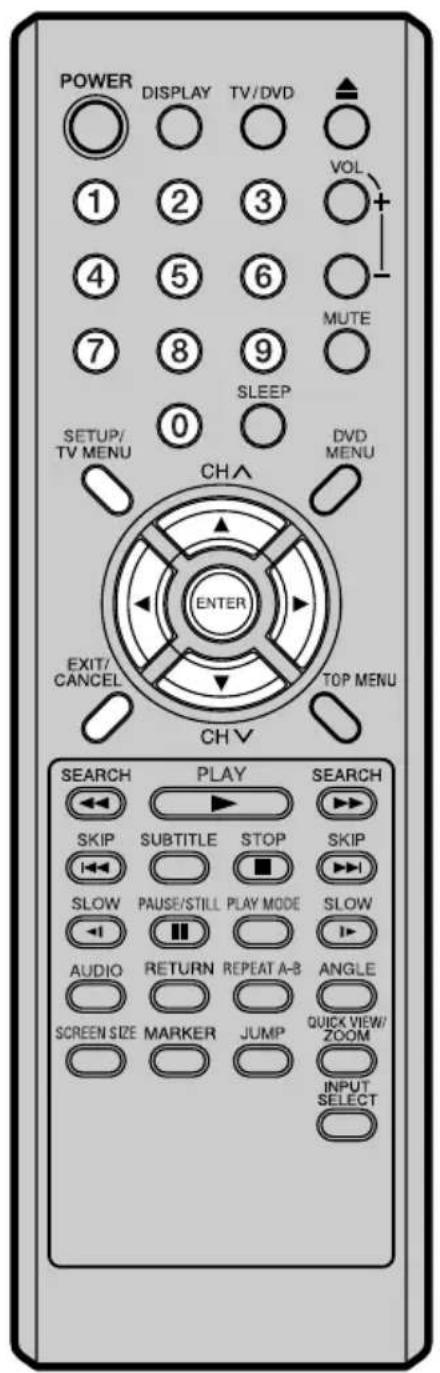

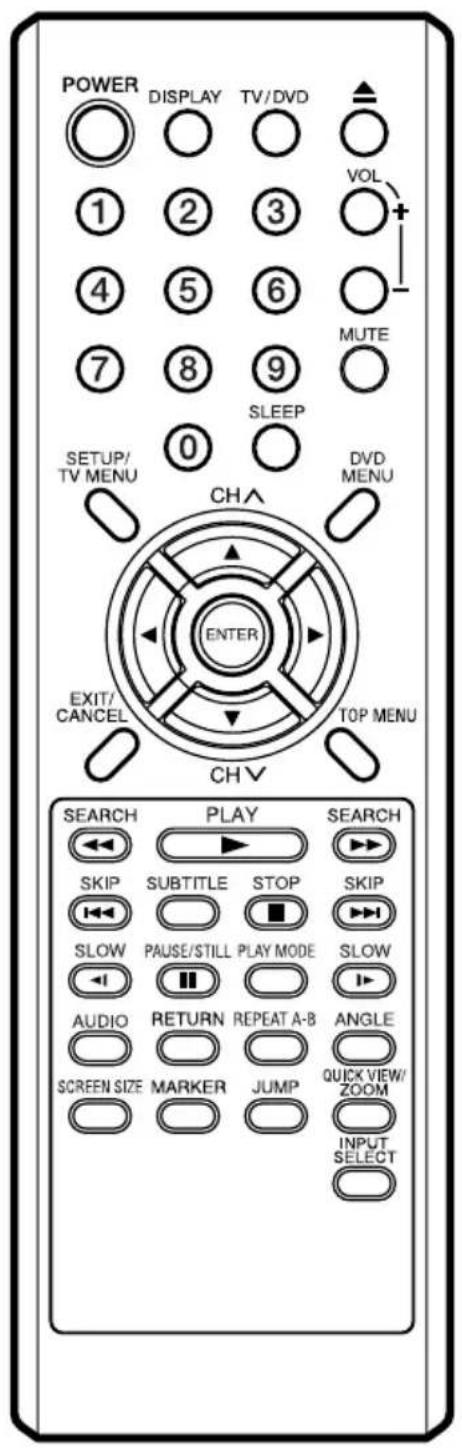

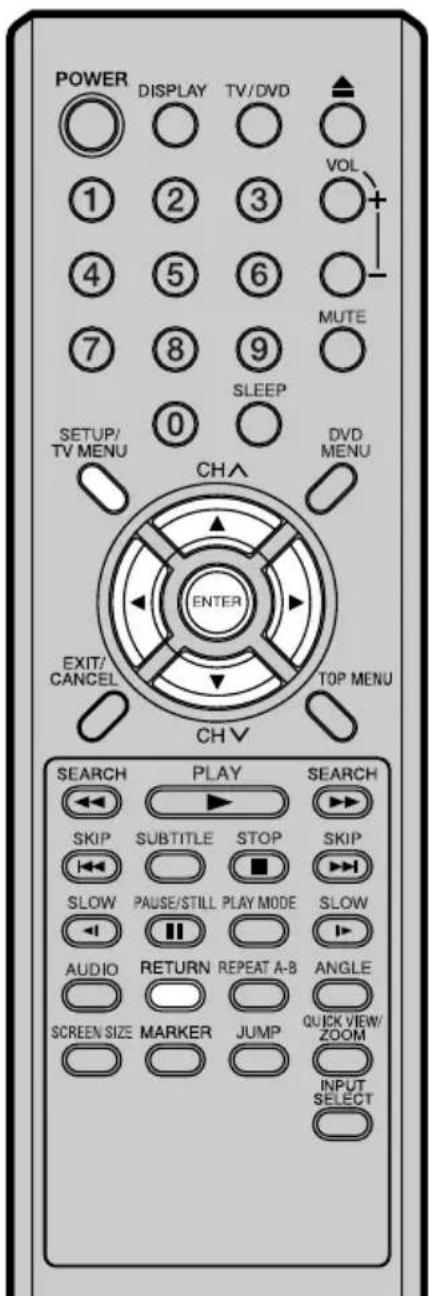

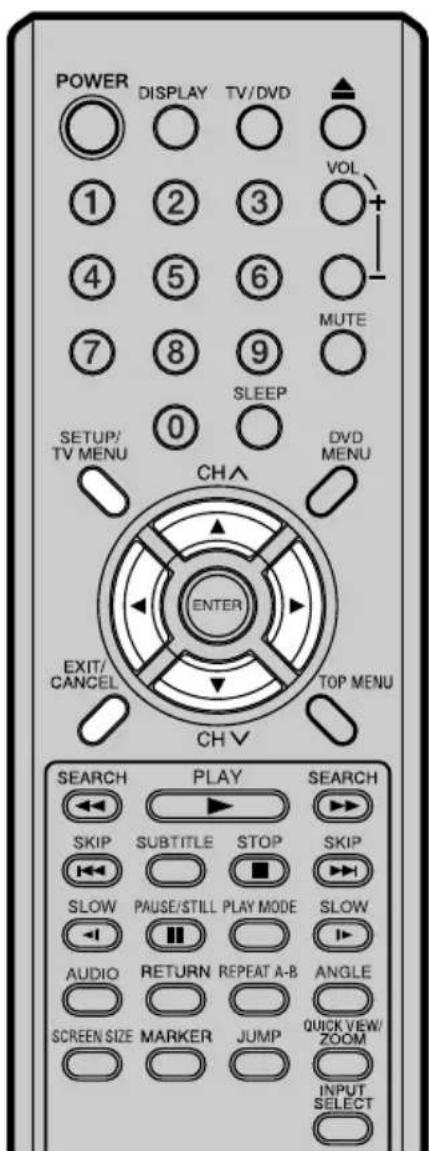

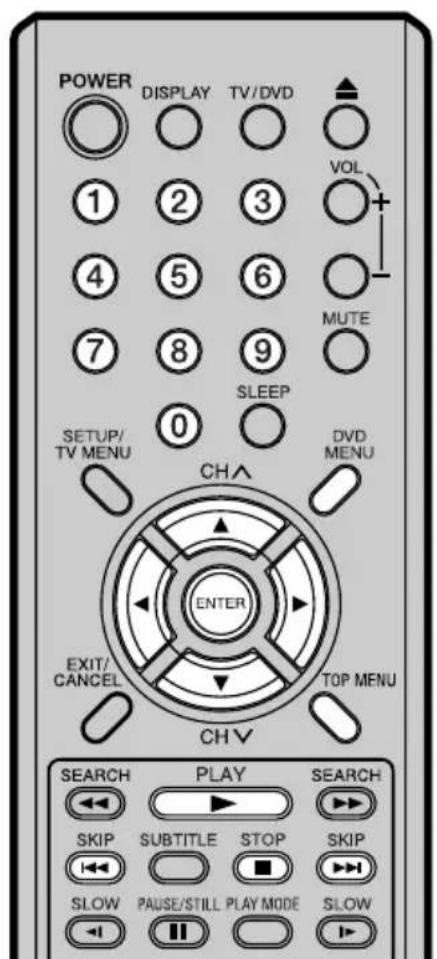

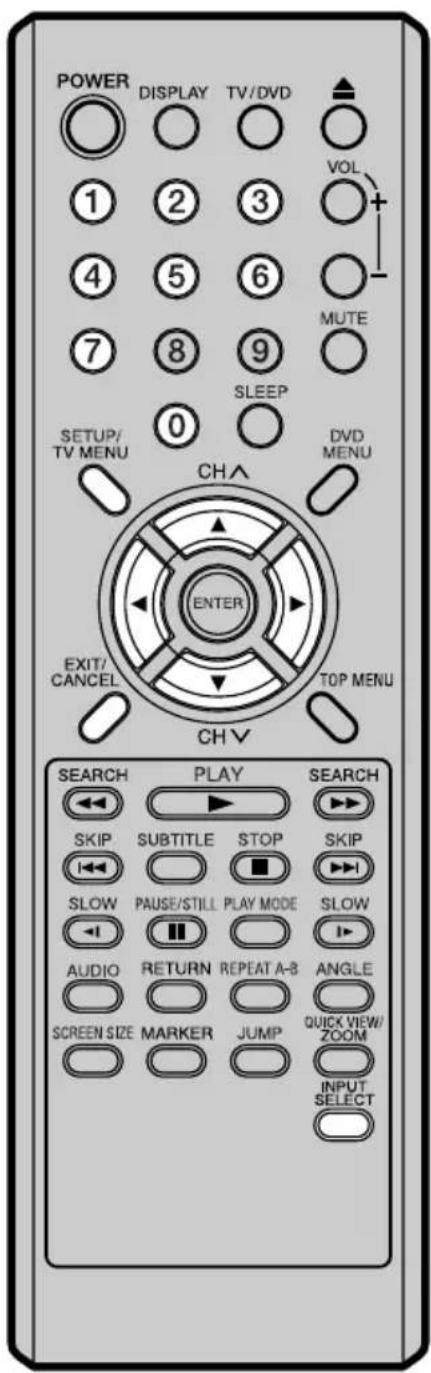

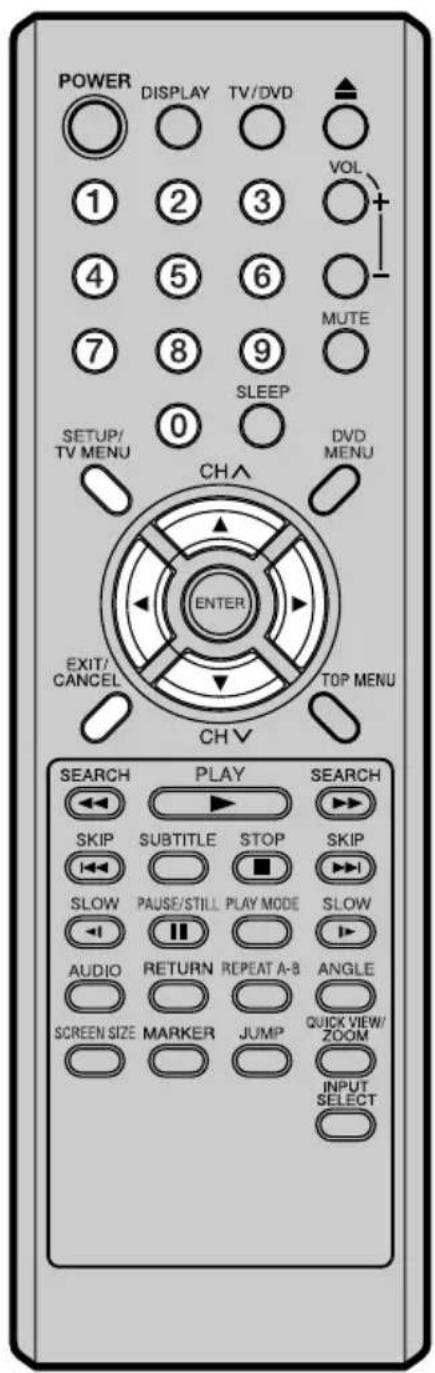

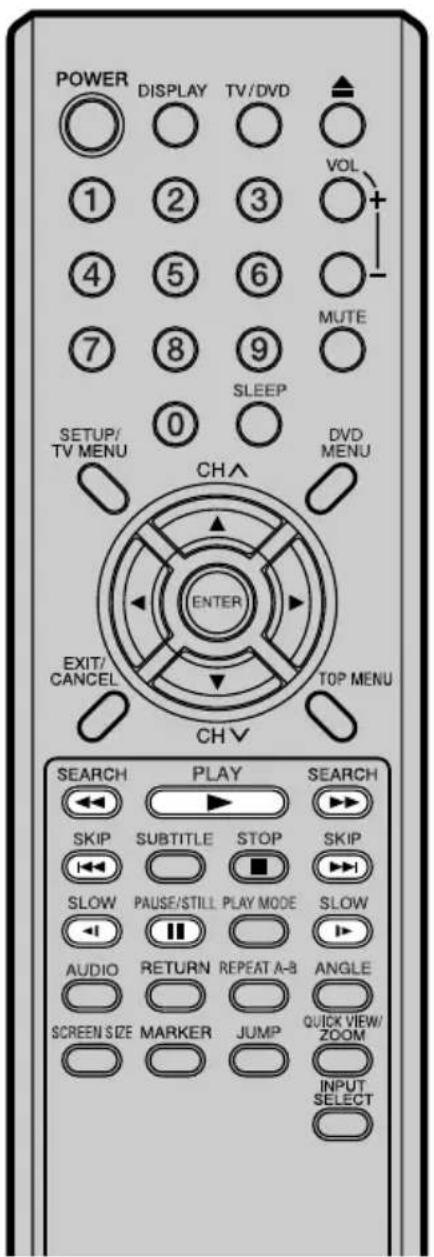

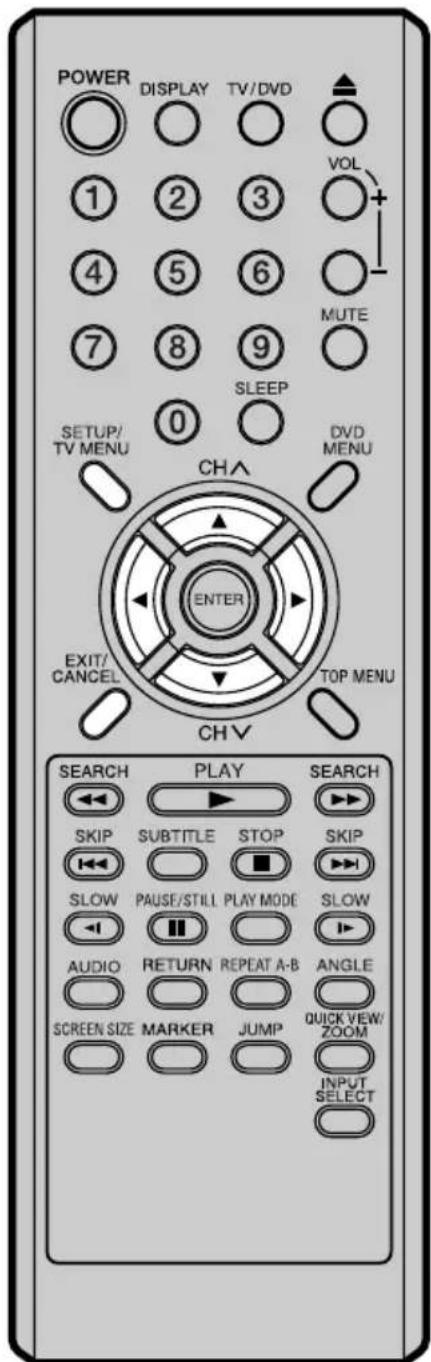

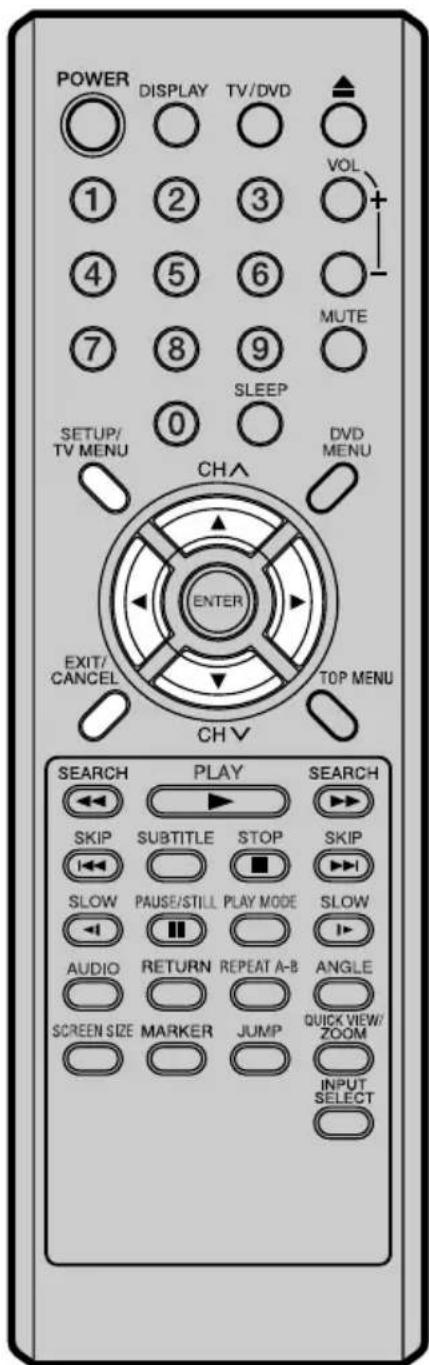

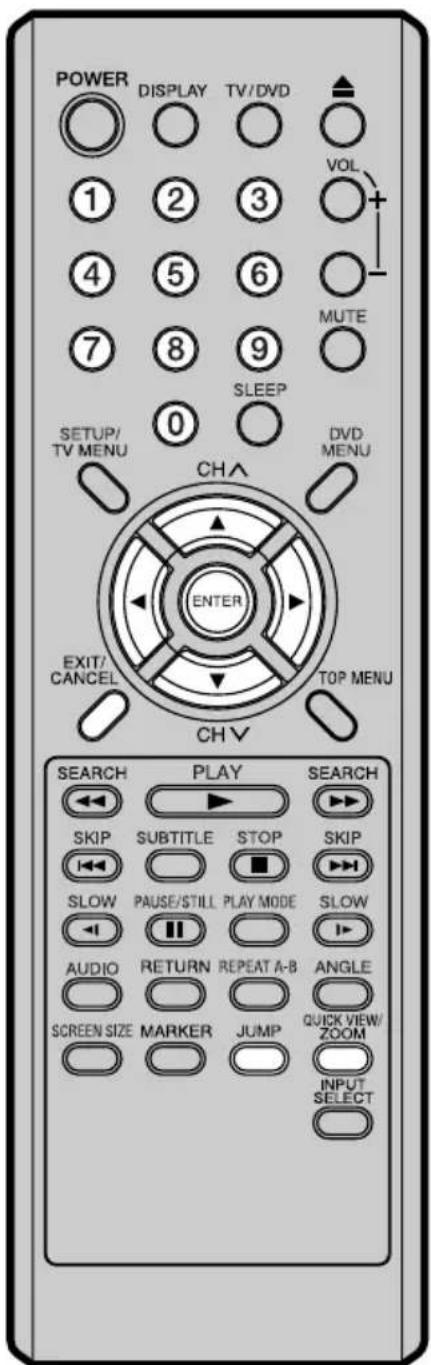

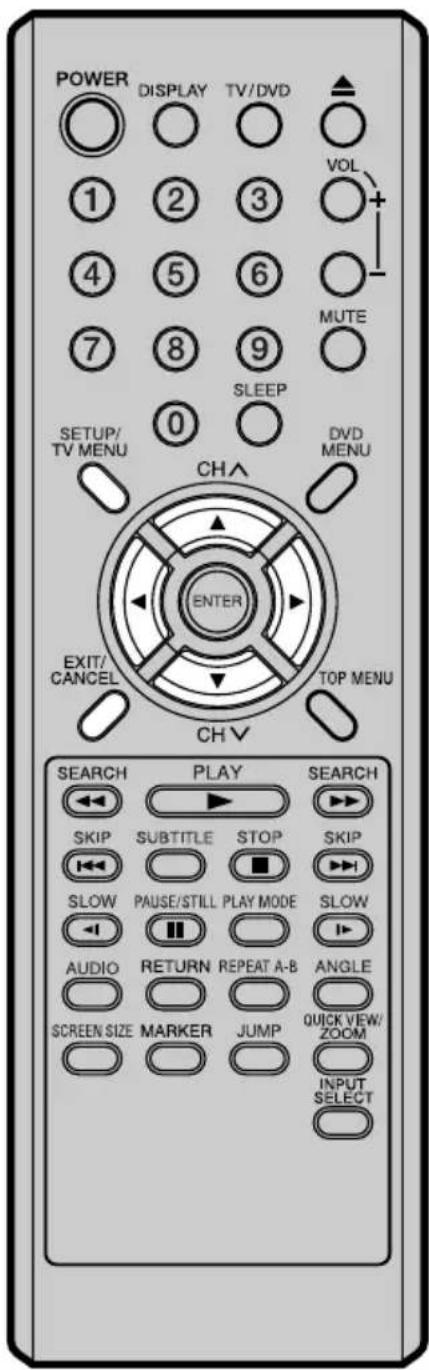

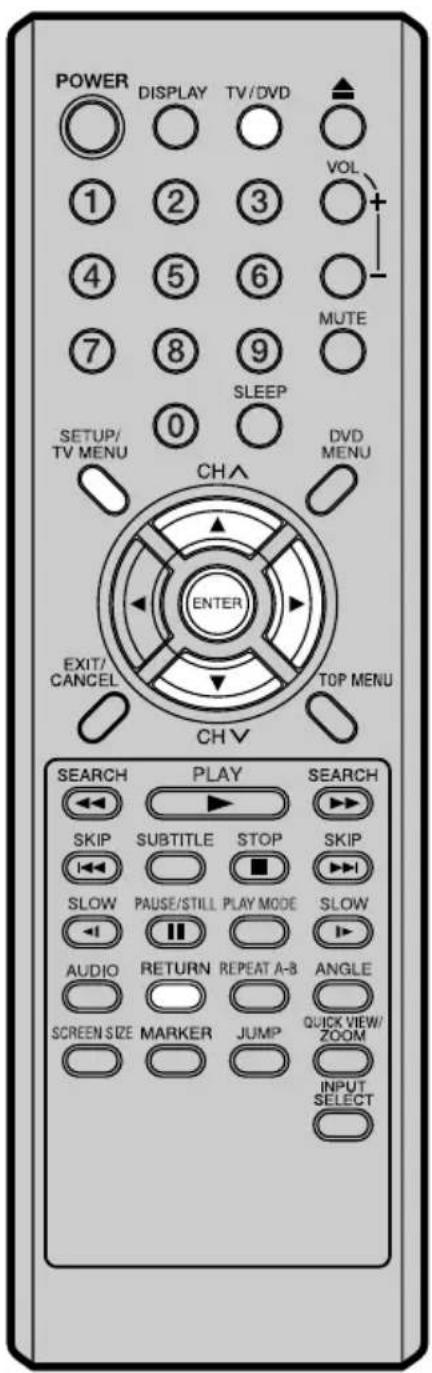

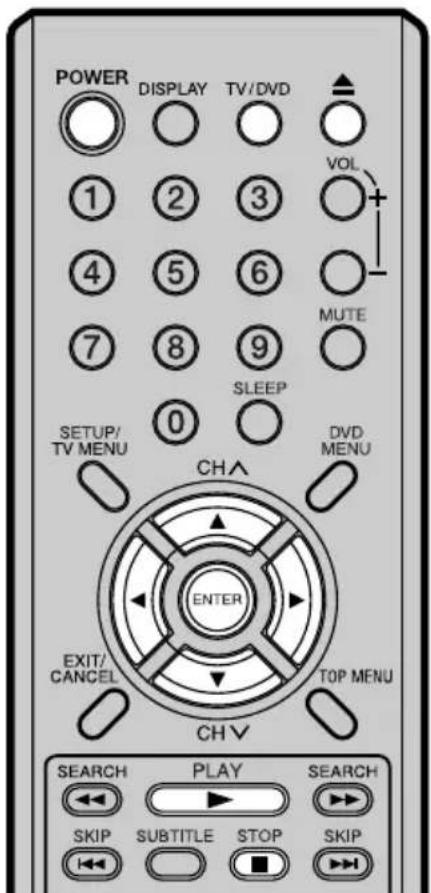

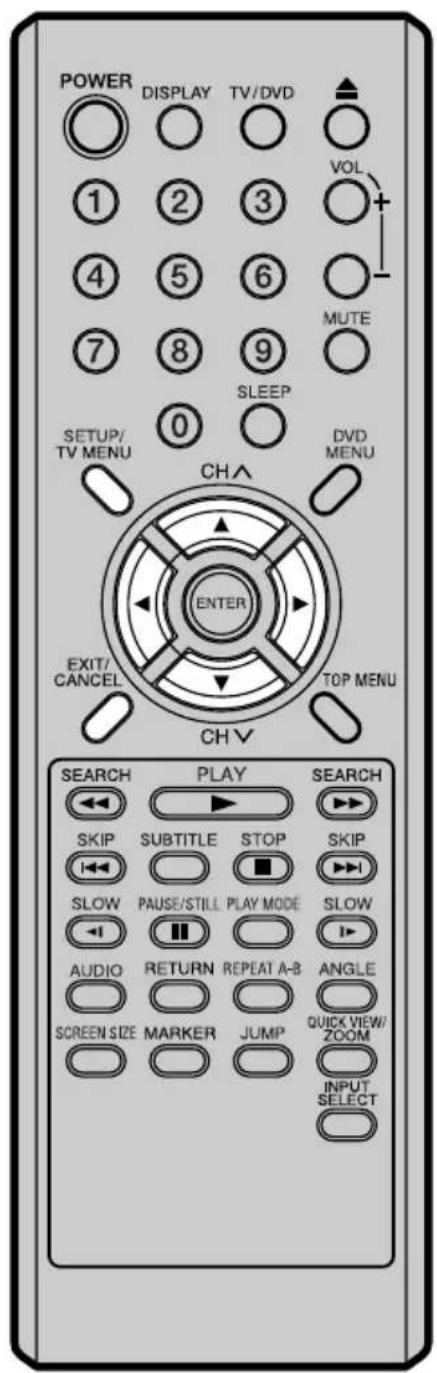

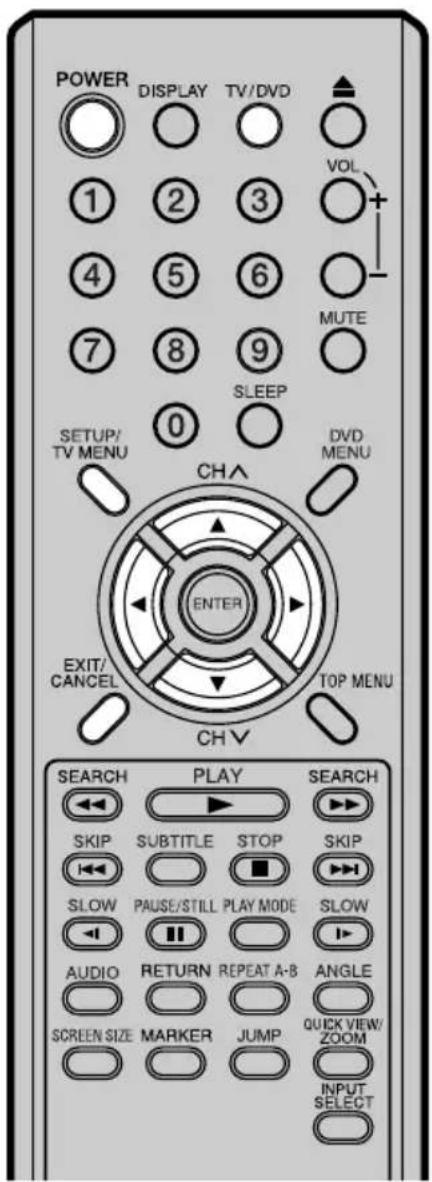

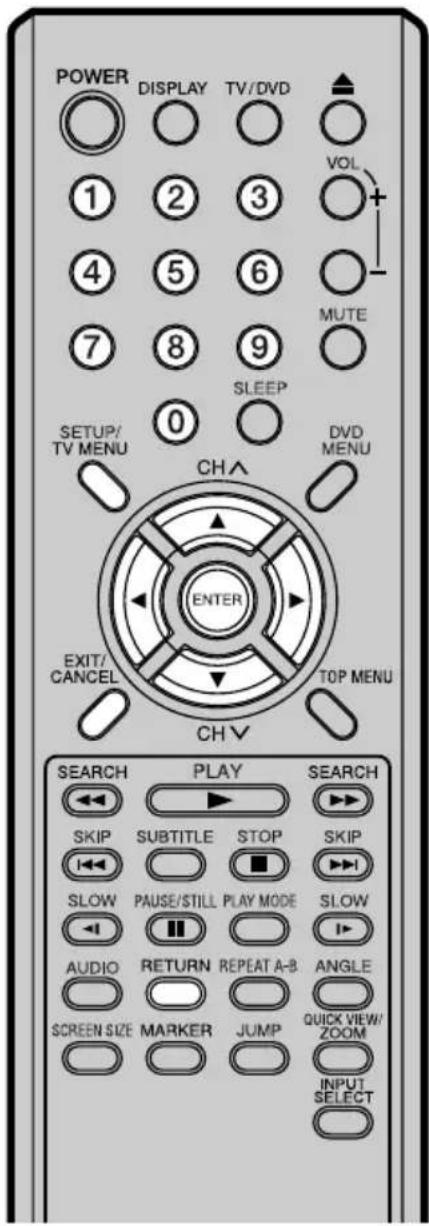

Page

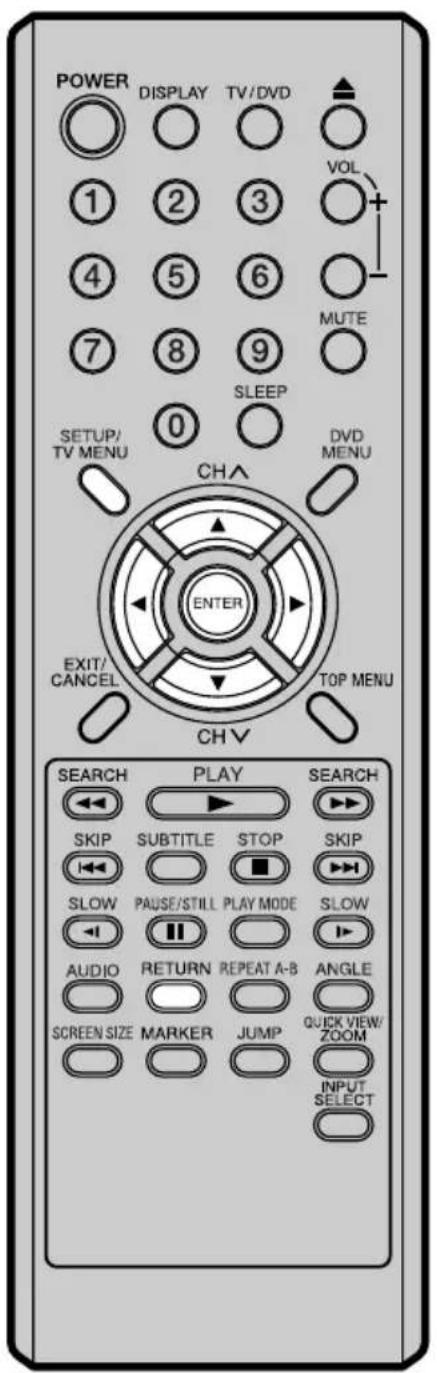

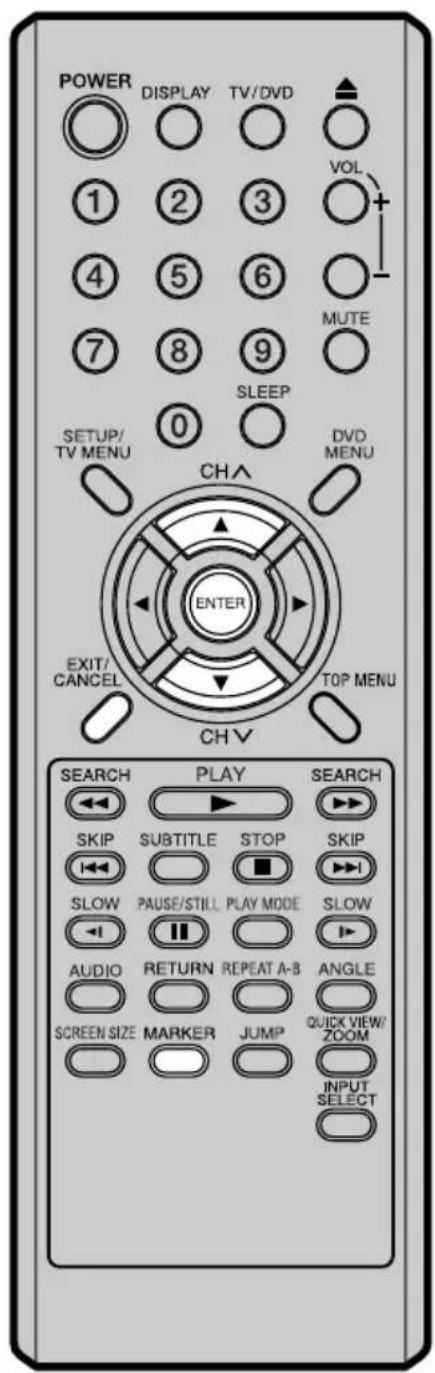

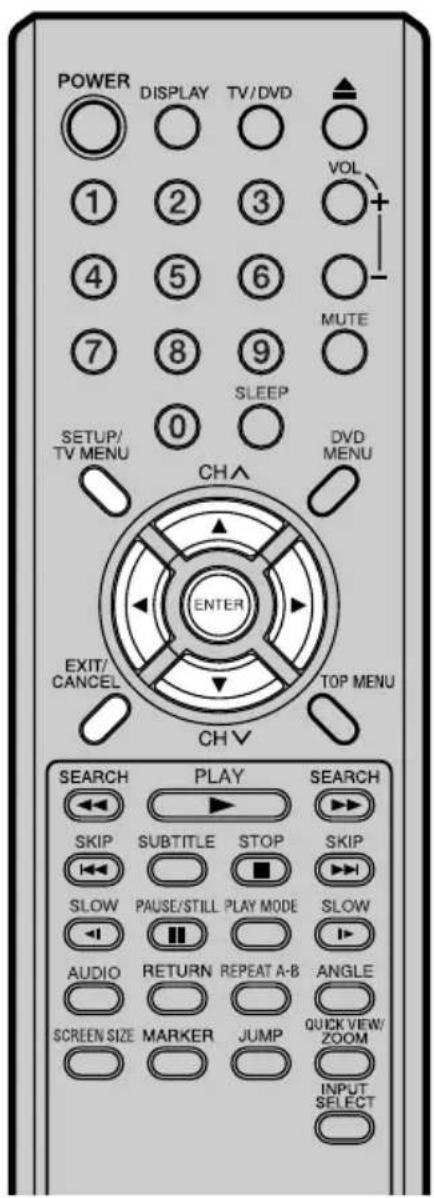

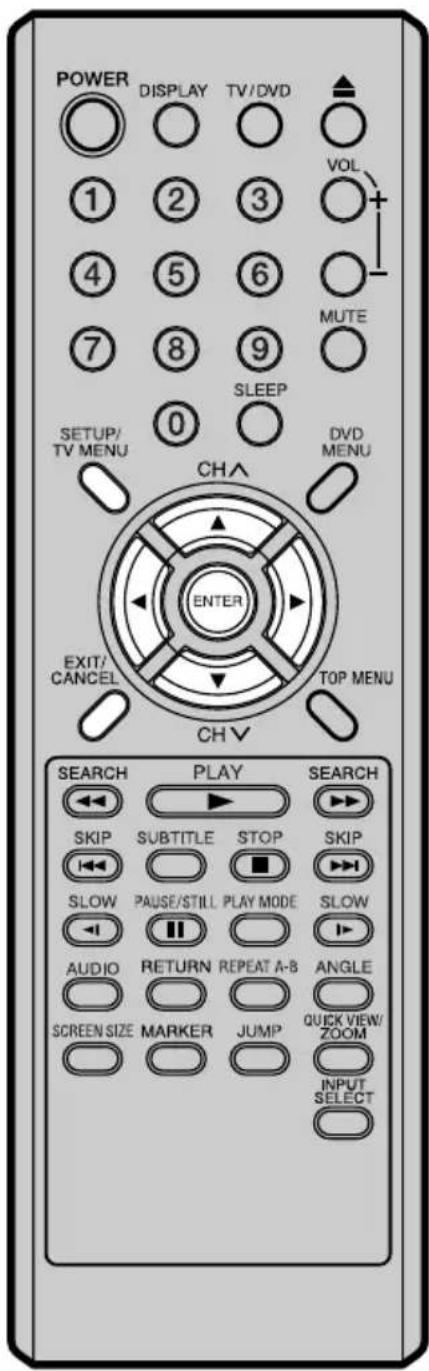

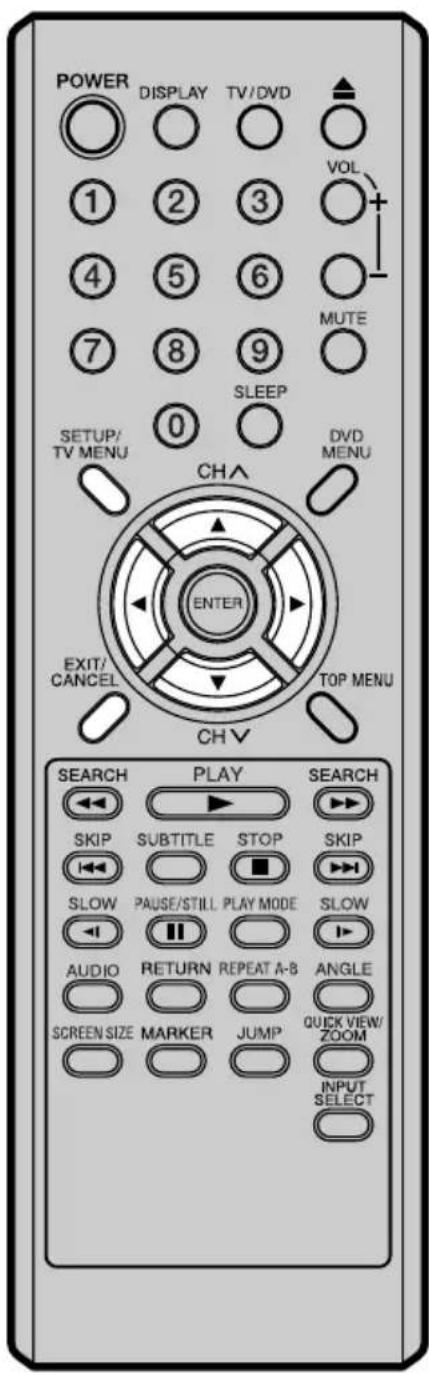

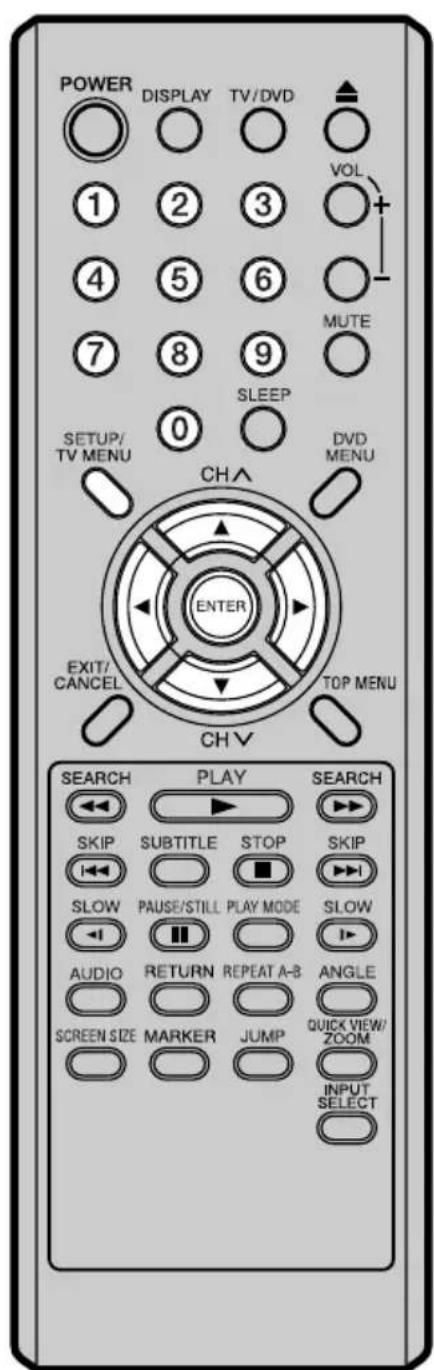

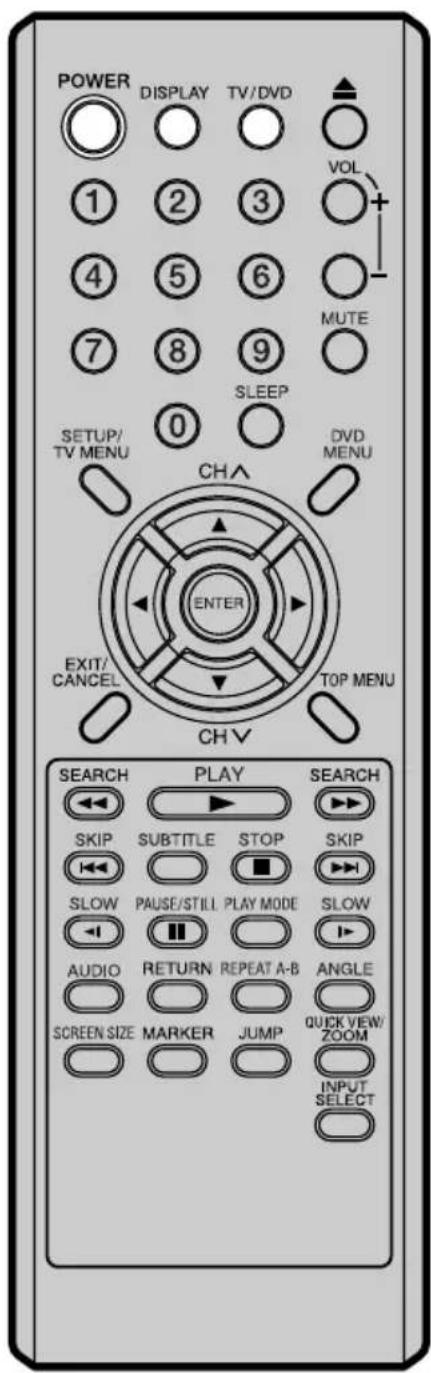

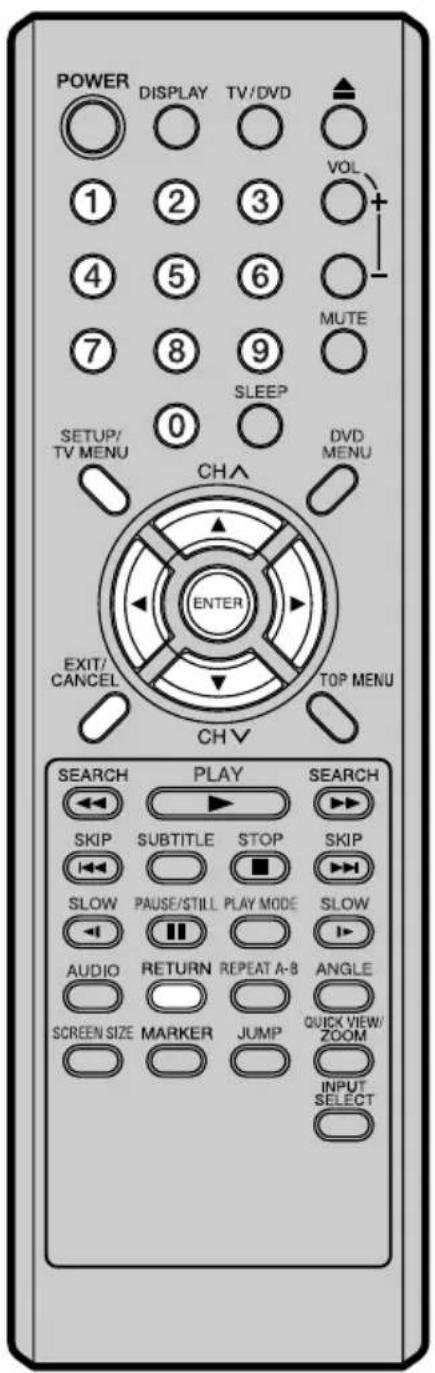

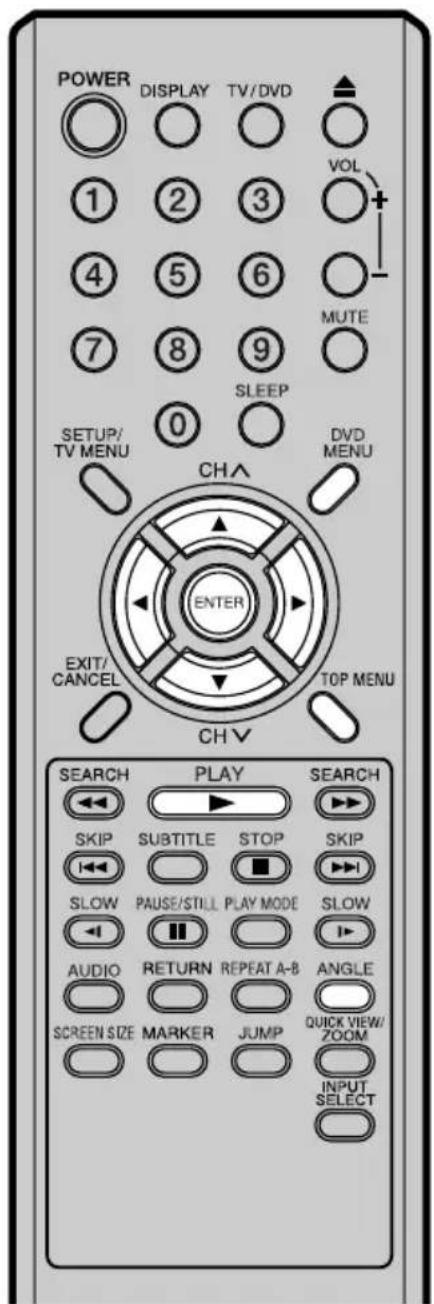

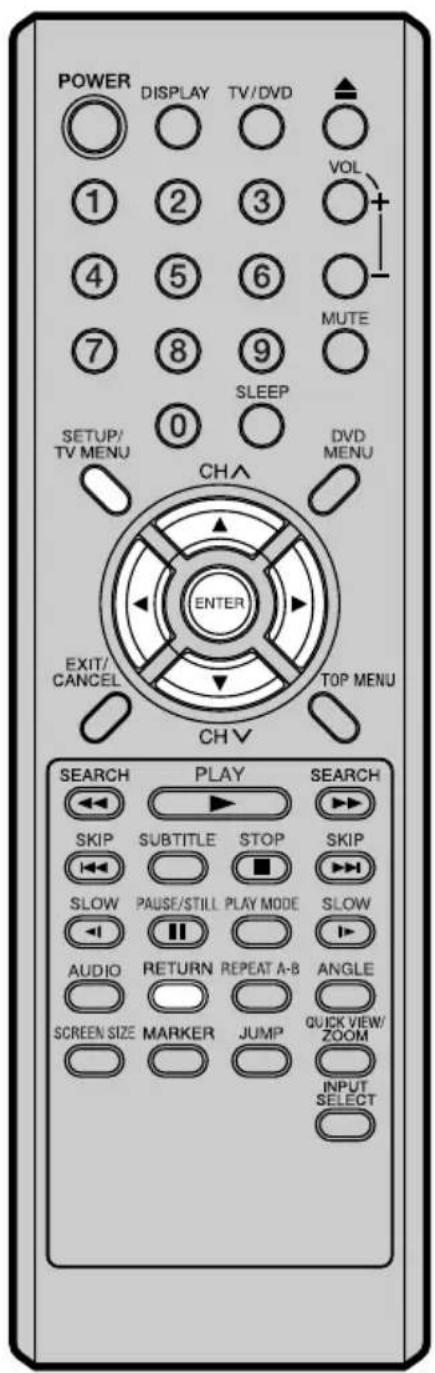

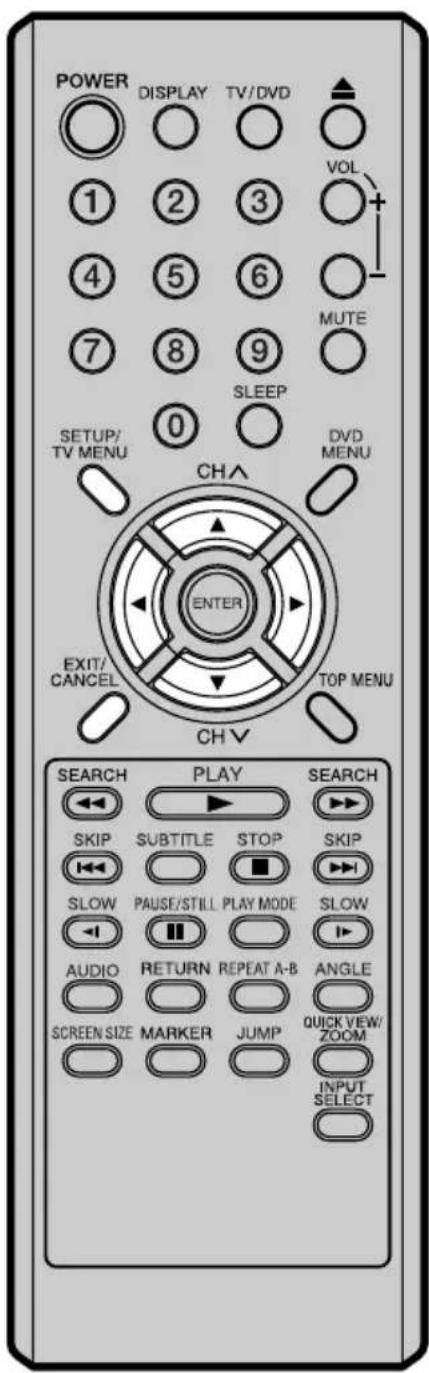

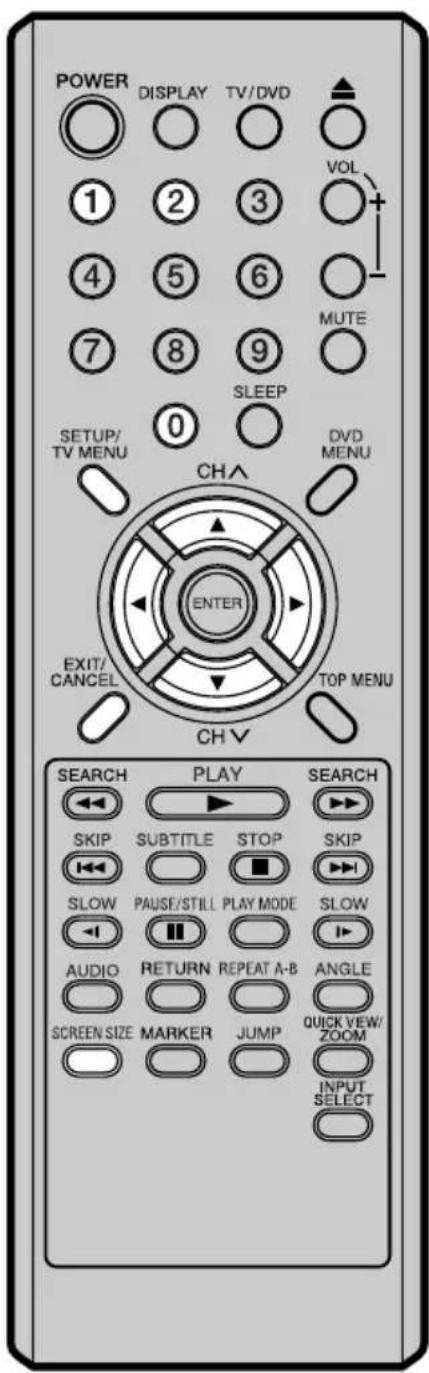

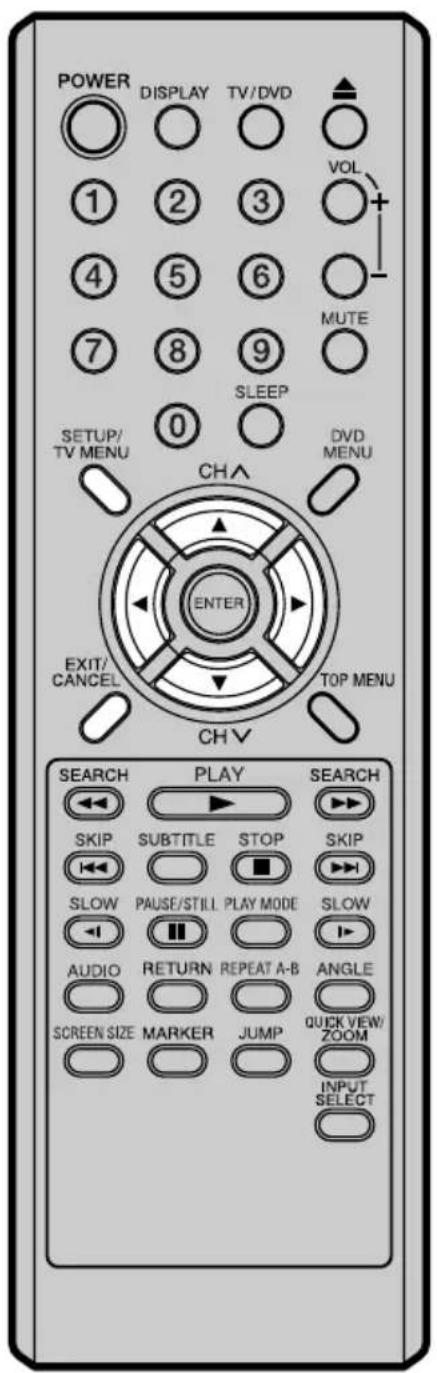

POWER Power On/Off 14,15,33,34

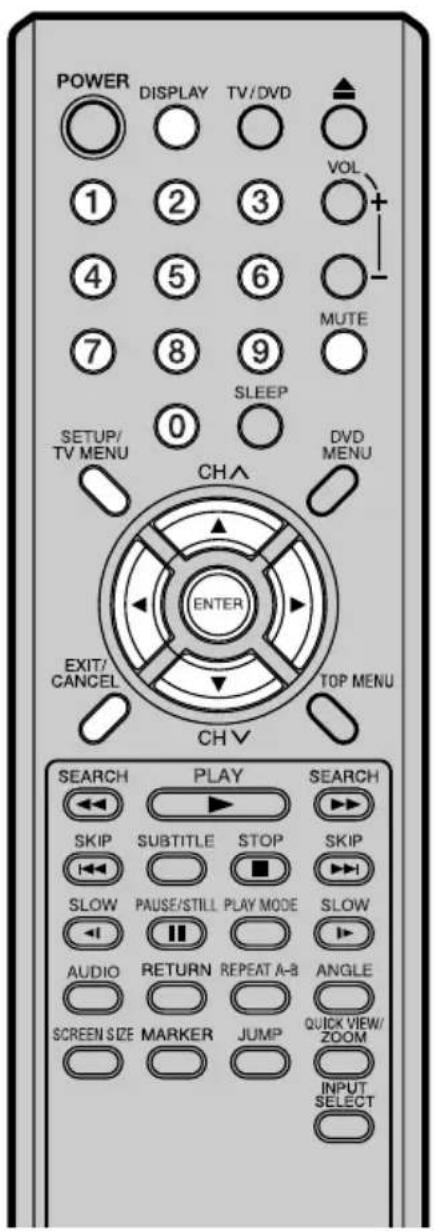

DISPLAY Call TV information 16,20Call DVD information 33
TV/DVD Switch between TV/AV and DVD 14,33,34,46
▲ (EJECT) Eject a disc 34,51
0-9 Direct channel selection of TV 15,18Input setting 23,26,36,37,40,42Enter a password 19~21,49~51

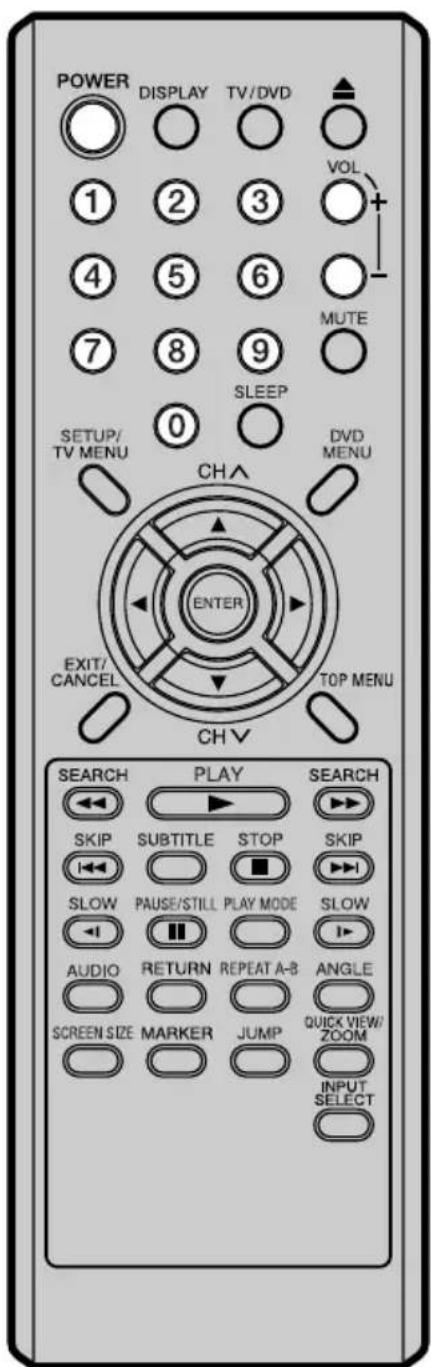

VOL +/- Adjust volume of TV	15,16
MUTE	Switch off the sound	16,20
SLEEP	Sleep timer	16
SETUP/TV MENU	TV mode - Display menu of TV	14,17~32,58
	DVD mode - Call up initial setup mode	38,39,46~50,52
DVD MENU	Display DVD menu	37,45
CH^/▼	Select channel of TV	16,18
▲▼◀▶	Cursor buttons	14,17~32,34,36~52,58
ENTER	Enter information in the menu19~22,25,34,36~43,45~52,58
EXIT	Exit from On-Screen menu	14,17,18,20~32,58
CANCEL	Reset information in the menu	40,42,43,49,50
TOP MENU	Select title	37,45
SEARCH	Fast Forward/Review playback	35
PLAY	Playback	34~37,41,42,45
SKIP	Skip chapter to forward or reverse direction	35,37

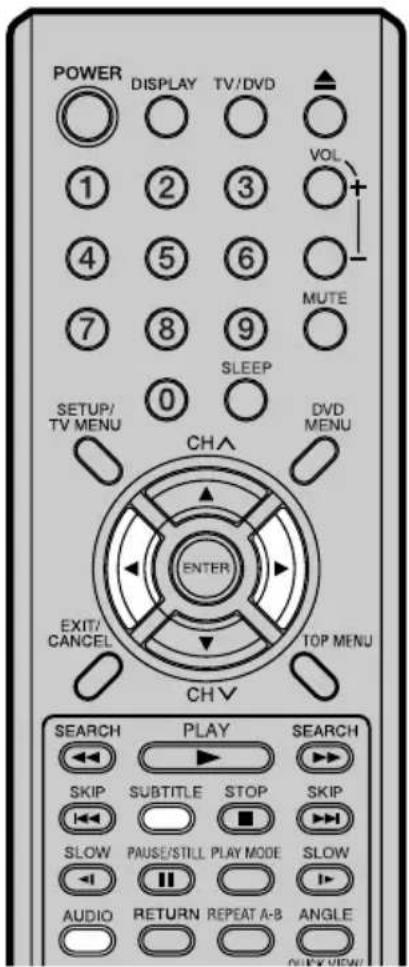

SUBTITLE	Set subtitle	44,61
STOP	Stop	34,36,37
SLOW	Forward/Reverse- slow motion	35
PAUSE/STILL	Pause CD soundStill picture of DVD	35

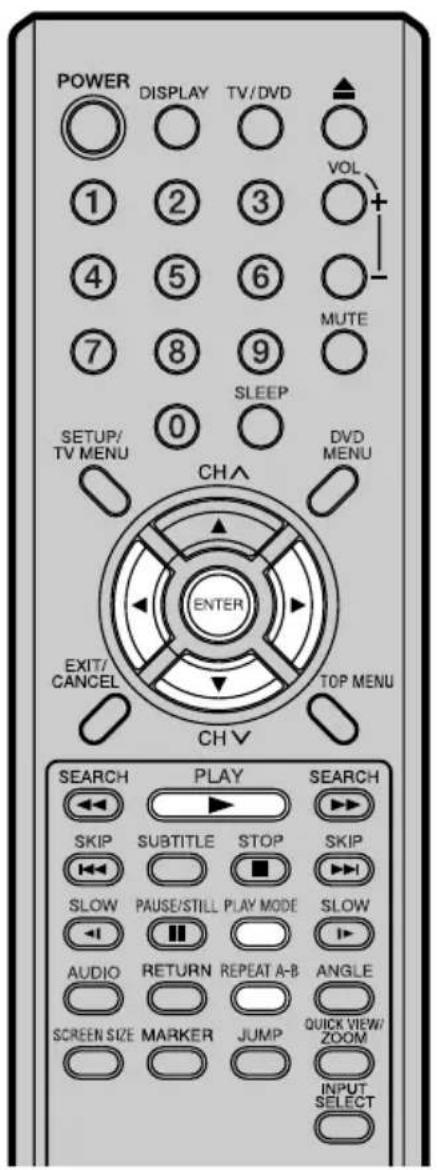

PLAY MODE	Select playback mode	41,42
AUDIO	Switch the sound of TVChange sound track language	44

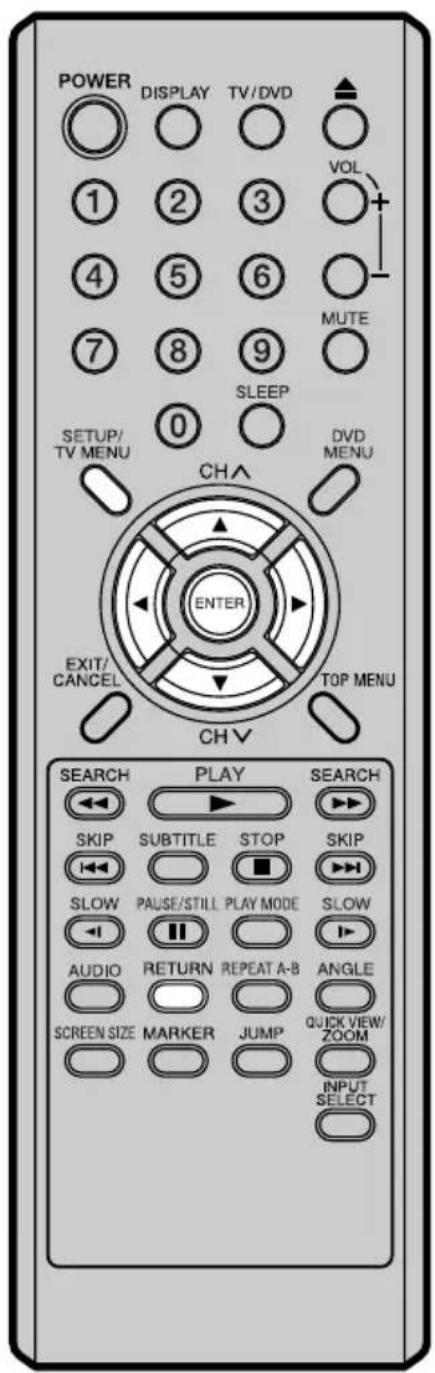

RETURN	Remove DVD setup menu 38,39,46~52
REPEAT A-B	Repeat playback between A and B	41
ANGLE	Change playback angle	45
SCREEN SIZE	Display PICTURE SIZE menu	26
MARKER	Index	43
JUMP	Locating desired scene	40
QUICK VIEW	Switch between present/last channel	16
ZOOM	Zoom	40
INPUT SELECT	Display SOURCE SELECTION menu	23,56

Remote control (continued)

Inserting Batteries

1 Open the battery compartment cover in the direction of the arrow.

2 Install two "AAA" batteries (supplied), paying attention to the polarity diagram in the battery compartment.

3 Replace the compartment cover.

Operation

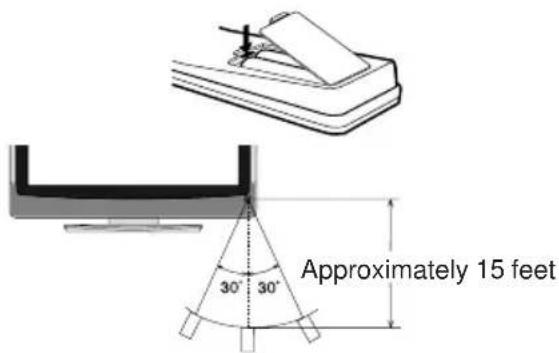

• Aim the remote control at the remote sensor and press control buttons to operate.
• Operate the remote control within a 30^ angle on either side of the remote sensor, up to a distance of approximately 15 feet.

NOTES:

• Do not leave the remote control unit exposed to direct sunlight or in hot or humid places.
• The remote control unit uses infrared beams to transmit signals, so sunlight or fluorescent light on the remote sensor may shorten operating distance.
• Incorrect use of batteries may cause them to leak or burst. Read the battery warnings and use the batteries properly.
• Do not mix old and new batteries.
• Remove batteries if the remote control will not be operated for an extended period of time.

Power source

TO USE AC POWER

1. Connect the AC cord plug into this unit's AC IN jack.
2. Connect the AC cord into an AC outlet.

NOTES:

• Please make sure to insert the cord securely at both the LCD TV/DVD and the wall outlet.
• The AC Cord has a grounding-type AC line plug. If the supplied AC cord does not match you AC outlet, contact a qualified electrician, do not defeat the purpose of a grounding plug.

WARNING:

• DO NOT CONNECT THIS UNIT TO THE POWER USING ANY DEVICE OTHER THAN THE SUPPLIED AC CORD. THIS COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.
• DO NOT USE WITH A VOLTAGE OTHER THAN THE POWER VOLTAGE DISPLAYED. THIS COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.

CAUTION:

• WHEN THIS UNIT IS NOT USED FOR A LONG TIME, (E.G., AWAY ON A TRIP) IN THE INTEREST OF SAFETY, BE SURE TO UNPLUG IT FROM THE AC OUTLET.
• DO NOT PLUG/UNPLUG THE PLUG WHEN YOUR HANDS ARE WET. THIS MAY CAUSE ELECTRICAL SHOCK.
• IF YOU NEED TO REPLACE THE SUPPLIED AC ADAPTER OR AC CORD, THE SPECIFIED ONE IS RECOMMENDED. CONTACT CUSTOMER SERVICE AT 1-800-289-0980.

Antenna connections

If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you are using a Cable TV service, see page 13 for Cable TV connections.

Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire)

Connect the 75 ohm cable from the combination VHF/UHF antenna to the antenna jack.

If your combination VHF/UHF antenna has a 300 ohm twin-lead wire, the use of the 300-75 ohm matching transformer may be necessary.

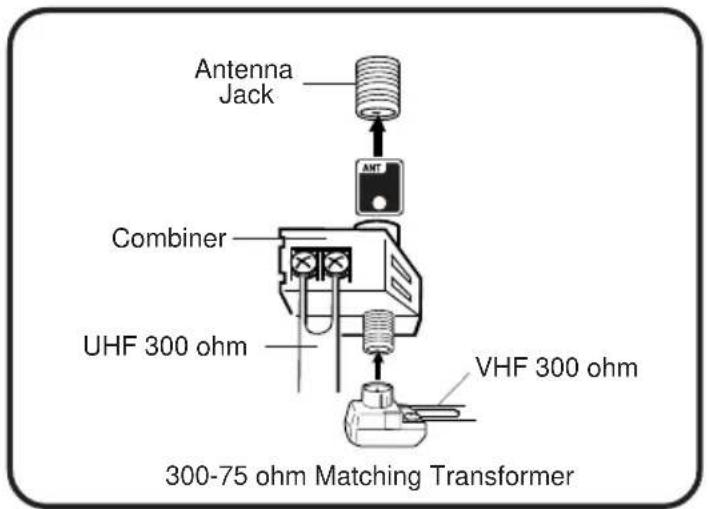

Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm twin-lead wires)

Connect the UHF 300 ohm twin-lead wire to the Combiner (not supplied). Connect the VHF 300 ohm twin-lead wire to the 300-75 ohm Matching Transformer. Attach the Transformer to the Combiner, then attach the Combiner to the Antenna Jack.

Separate VHF/UHF Antennas (75 ohm VHF cable and 300 ohm UHF twin-lead wires)

Connect the VHF 75 ohm cable and UHF 300 ohm twin-lead wire to the Combiner (not supplied). Attach the Combiner to the Antenna Jack.

This TV/DVD has an extended tuning range and can tune most cable channels without using a Cable TV Converter box. Some cable companies offer “premium pay channels” where the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the Cable TV company.

FOR SUBSCRIBERS TO BASIC CABLE TV SERVICE

For basic Cable TV service not requiring a Converter/Descrambler box, connect the 75 ohm Coaxial Cable directly to the Antenna Jack on the back of the TV/DVD.

FOR SUBSCRIBERS TO SCRAMBLED CABLE TV SERVICE

If you subscribe to a Cable TV service which requires the use of a Converter/Descrambler box, connect the incoming 75 ohm Coaxial Cable to the Converter/Descrambler box. Using another 75 ohm Coaxial Cable, connect the output jack of the Converter/Descrambler box to the Antenna Jack on the TV/DVD. Follow the connections shown below. Set the TV/DVD to the output channel of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/Descrambler box to select channels.


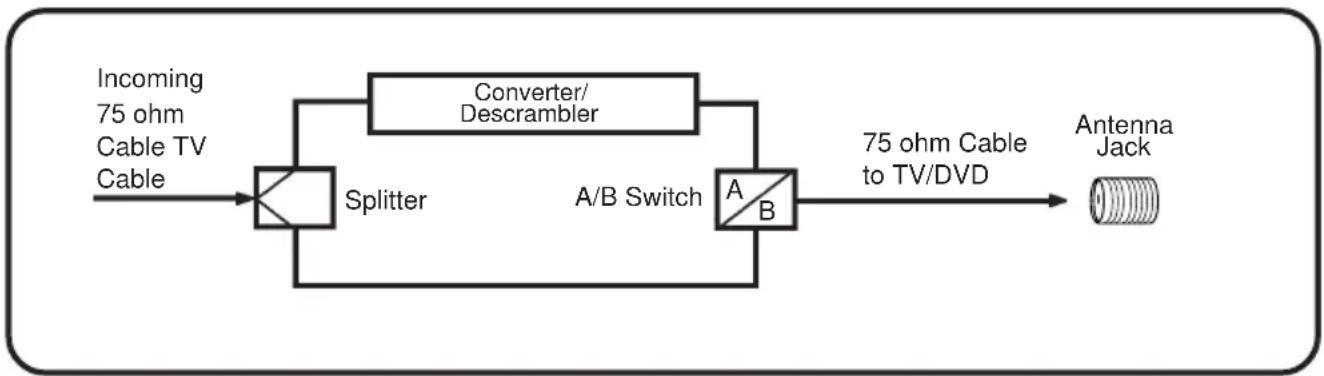

FOR SUBSCRIBERS TO UNSCRAMBLED BASIC CABLE TV SERVICE WITH SCRAMBLED PREMIUM CHANNELS

If you subscribe to a Cable TV service in which basic channels are unscrambled and premium channels require the use of a Converter/Descrambler box, you may wish to use a signal Splitter and an A/B Switch box (available from the Cable TV company or an electronics supply store). Follow the connections shown below. With the switch in the "B" position, you can directly tune any nonscrambled channels on your TV/DVD. With the switch in the "A" position, tune your TV/DVD to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/Descrambler box to tune scrambled channels.

Setting the on-screen display language

You can choose from three different languages (English, French and Spanish) for the on-screen displays.

1 Press POWER to turn on the unit.

2 Press TV/DVD to select the TV mode.

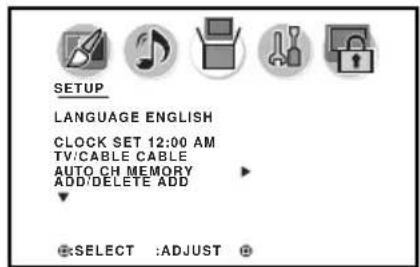

3 Press SETUP/TV MENU. The TV menu screen will appear.

4 Press or ▶ select (SETUP) menu.

5 Press ▲ or ▼ to select "LANGUAGE".

6 Press ◀ or ▶ to select the desired language: English (ENGLISH), French (FRANÇAIS) or Spanish (ESPAÑOL).

7 Press EXIT to return to the normal screen.

NOTES:

• If the unit does not operate properly (by the buttons on the unit and/or the remote control) disconnect the AC cord, wait a few minutes and plug it back in. Static electricity, etc., may have affected the player's operation.
• The TV section has its own menu and the DVD section has its own menu (see page 46).
• If no buttons are pressed for more than 60 seconds, the MENU screen will return to normal TV-operation automatically.

NOTES:

• If a channel with no broadcast is selected, the sound will automatically be muted.
• If a station being viewed stops broadcasting, the unit will automatically shut itself off after 15 minutes.

1 To turn on the unit, press POWER.
2 Adjust the volume level by pressing VOL + or - . The volume level will be indicated on the screen by white bars. As the volume level increases, so do the number of bars. If the volume decreases, the number of white bars also decreases.
3 Set the TV/CABLE menu option to the appropriate position (see page 17).
4 Press the Direct Channel Selection buttons to select the channel.

TV Mode Direct Channel Selection

When the TV/CABLE menu option is in the TV position, all channels can be instantly selected by using two buttons.

(for example, to select channel 2, press 0, then 2. If you press only 2, channel selection will be delayed for a few seconds.) For channels 10 and above, press the 2 digits in order.

TV - VHF/UHF channels CABLE - CABLE TV channels

CABLE Mode Direct Channel Selection

When the TV/CABLE menu option is in the CABLE position, channels can be selected as follows:

TO SELECT Cable TV CHANNELS:

1-9: Press 0 twice, then 1-9 as needed. Example, to select channel 2, press 002.
10-12: Press 0, then the remaining 2 digits. Example, to select channel 12, press 012.
13-99: Press the 2 digits in order. Example, to select channel 36, press 36.
100-125: Press the 3 digits in order. Example, to select channel 120, press 120.

NOTE FOR CHANNELS 1-12:

If only 1 or 2 buttons are pressed, the corresponding channel will be selected in 2 seconds.

VHF/UHF/CABLE CHANNELS

TV CABLE
VHF2-13	VHF2-13
UHF14-69	STD/HRC/IRC14-36 (A) (W)37-59 (AA) (WW)60-85 (AAA) (ZZZ)86-94 (86) (94)95-99 (A-5) (A-1)100-125 (100) (125)01 (5A)

NOTE:

The unit is capable of holding a still video image or On screen display image on your television screen indefinitely. If you leave the still video image or On screen display image displayed on your unit for an extended period of time, you risk permanent damage to your television screen.

CH ^ √

Press and release CH or . The channel automatically stops at the next channel set into memory. For proper operation, before selecting channels, they should be set into the memory. See pages 17 and 18 "Memorizing channels".

DISPLAY

Press DISPLAY to display the current information on the screen.

• Clock
• Channel number or VIDEO mode selected
• Channel label (if preset)
• Stereo or SAP (second audio program) audio status
• Content rating
• On timer, Sleep time (if preset)
• Picture size

Press DISPLAY again to clear the call display.

QUICK VIEW

This button allows you to go back to the last channel selected by pressing QUICK VIEW. Press QUICK VIEW again to return to the last channel you were watching.

MUTE

Press MUTE to switch off the sound. The unit's sound will be silenced and "MUTE" will briefly appear on the screen. The sound can be switched back on by pressing this button again or the VOL + or -.

SLEEP

To set the unit to turn off after a preset amount of time, press SLEEP on the remote control. The clock will count up 10 minutes for each press of the SLEEP button (0h00m, 0h10m, ..., 1h50m, 2h00m). After the sleep time is programmed, the display will appear briefly every ten minutes to remind you that the sleep timer is operating. To confirm the sleep timer setting, press SLEEP and the remaining time will be displayed for a few seconds. To cancel the sleep timer, press SLEEP repeatedly until the display turns to 0h00m.

This TV/DVD is equipped with a channel memory feature which allows channels to skip up or down to the next channel set into memory, skipping over unwanted channels. Before selecting channels, they must be programmed into the TV/DVD's memory. In addition to normal VHF and UHF channels, this TV/DVD can receive up to 113 Cable TV channels. To use this TV/DVD with an antenna, set the TV/CABLE menu option to the TV mode. When shipped from the factory, this menu option is in the CABLE mode.

TV/CABLE selection

1 Press SETUP/TV MENU in the TV mode. The TV menu screen will appear.

2 Press ◀ or ▶ to select (SETUP) menu.

3 Press ▲ or ▼ to select "TV/CABLE".

4 Press or ▶ select "TV" or "CABLE".

TV - VHF/UHF channels CABLE - CABLE TV channels

5 Press EXIT to return to the normal screen.

CABLE CHART

The chart below is typical of many cable system channel allocations.

Number on this TVCorresponding CABLE channel

14A

15B

16C

17D

18E

19F

20G

21H

22I

23J

24K

25L

26M

27N

28O

29P

30Q

31R

32S

33T

34U

35V

36W

37AA

38BB

39CC

40DD

41EE

42FF

43GG

44HH

45II

46JJ

47KK

48LL

49MM

50NN

51OO

52PP

53QQ

54RR

55SS

56TT

57UU

58VV

59WW

60AAA

61BBB

62CCC

63DDD

64EEE

65FFF

66GG

67HHH

68III

69JJ

70KKK

71LLL

72MMM

73NNN

74OOO

75PPP

76QQQ

77RRR

78SSS

79TTT

80UUU

81VVV

82WWW

83XXX

84YYY

85ZZZ

8686

8787

8888

8989

9090

9191

9292

9393

9494

95A-5

96A-4

97A-3

98A-2

99A-1

100100

101101

102102

103103

104104

105105

106106

107107

108108

109109

110110

111111

112112

113113

114114

115115

116116

117117

118118

119119

120120

121121

122122

123123

124124

125125

015A

Automatic memory tuning

1 Press SETUP/TV MENU in the TV mode. The TV menu screen will appear.

2 Press ◀ or ▶ to select (SETUP) menu, then press ▲ or ▼ to select "AUTO CH MEMORY".

3 Press ▶ or ▶ The unit will begin memorizing all the channels available in your area. While the TV/DVD is cycling through the channels, the message "PROGRAMMING NOW PLEASE WAIT" appears.

When channel programming is complete, the message "COMPLETED" appears.

To ADD/DELETE channels

1 Select the desired channel to add or delete using CH ^/or Direct Channel Selection (0-9). Note: Toadd channels, you must select the channel using Direct Channel Selection (0-9).

2 Press SETUP/TV MENU, then press ◀ or ▶ to select the (SETUP) menu.

3 Press ▲ or ▼ to select "ADD/DELETE".

4 Press ▶ or ▶ to select "ADD" or "DELETE".

5 Press EXIT to return to the normal screen. 6 Repeat steps 1-5 for other channels you want to add or delete.

An age limitation can be set to restrict children from viewing or hearing violent scenes or picture that you may choose to exclude. The restriction applies to "TV RATING" and "MOVIE RATING" if this data is transmitted. You may set this restriction separately. To use the V-Chip function, you must register a password.

To register password

1 Press SETUP/TV MENU in the TV mode. The TV menu screen will appear.

2 Press or ▶ select (LOCKS) menu.

3 Press ▲ or ▼ to display the password entering mode.

4 Enter the password (4 digits) using Number buttons (0-9), then press ENTER.

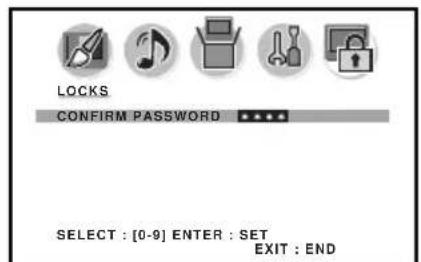

5 Enter the same password again for safety, then press ENTER. The password is now registered and the V-Chip menu will appear on the screen.

NOTES:

• If you forget the password, contact Customer Service at 1-800-289-0980 for assistance. Your original remote control will be required.
  • To avoid forgetting the password, write it down and keep in the safe place.

To use the TV after the TV is protected.

When the program applied to the V-Chip setting is received, press

MUTE and enter the password, then press ENTER. When the password is entered correctly the protection will be temporarily overridden.

NOTE:

The V-Chip function is activated only on programs and input sources that have the rating signal.

To set the V-Chip

1 Press SETUP/TV MENU in the TV mode.

Then press ◀ or ▶ to select (LOCKS) menu.

2 Press ▲ or ▼ to display the password entering mode. Use Number buttons (0-9) to enter your password, then press ENTER. The LOCKS menu appears.

3 Press ▲ or ▼ to select "TV RAT-ING". Then press ◀ or ▶ to display the desired rating.

OFF : TV RATING is not set

TV-Y : All children

TV-Y7 : 7 years old and above

TV-G : General audience

TV-PG : Parental guidance

TV-14 : 14 years old and above

TV-MA : 17 years old and above

- When you select TV-Y7, TV-PG, TV-14 or TV-MA, press DISPLAY to explain the rating. Press ▲ or ▼ to select the desired rating you want. Press ◀ or ▶ to select the setting "ON" or "OFF".

4 Press ▲ or ▼ to select "MOVIE RATING". Then press ◀ or ▶ to display the desired rating.

OFF : MOVIE RATING is not set

G : All ages

PG : Parental guidance

PG-13 : Parental guidance less than 13 years old

R : Under 17 years old Parental guidance suggested

NC17 : 17 years old and above

X : Adult only

5 Press ▲ or ▼ to select "V-CHIP".

6 Press ▶ or ▶ to select "ON". Your setting are now set into memory.

7 Press EXIT to return to the normal screen.

To change the password

1 Press SETUP/TV MENU in the TV mode. The TV menu screen will appear.

2 Press ◀ or ▶ to select (LOCKS) menu.

3 Press ▲ or ▼ to display the password entering mode. Use Number buttons (0-9) to enter your password, then press ENTER. The LOCKS menu appears.

4 Press ▲ or ▼ to select "NEW PASSWORD", then press ◀ or ▶

5 Enter a new password using Number buttons (0-9), then press ENTER.

6 Enter the same password again to confirm, then press ENTER.

7 Press EXIT to return to the normal screen.

Channel labels appear over the channel number display each time you turn on the TV, select a channel, or press DISPLAY. You can choose any four characters to identify a channel.

NOTE:

Select "Return" and press ◀ or ▶ to return from CH LABEL menu to OPTION menu.

To create channel labels

1 Select a channel you want to label.

2 Press SETUP/TV MENU in the TV mode, then press ◀ or ▶ to select 🎨 (OPTION) menu. Press ▲ or ▼ to select "CH LABEL", then press ◀ or ▶ The CH LABEL menu will appear.

3 Press ▲ or ▼ to select "SET/CLEAR". Press ◀ or ▶ to select "SET".

4 Press ENTER to select "LABEL". Then press ◄ or ▶ to enter a character in the first space. Press the button repeatedly until the character you want appears on the screen.

The characters rotation as follows:

If the character which you desire appears, press ENTER. Repeat this step to enter the rest of the characters. If you would like a blank space in the label name, you must choose the empty space from the list of characters; otherwise, a dash will appear in that space. When you finish inputting label name, press ENTER.

5 Press EXIT to return to the normal screen.

6 Repeat steps 1-5 for other channel. You can assign a label to each channel.

To erase channel labels

1 Select a channel with a label which you want to remove. 2 Press SETUP/TV MENU, then press ◀or ▶to select 🌿 (OPTION) menu. Press ▲ or ▼ to select "CH LABEL", then press ◀or ▶to display the CH LABEL menu.

3 Press ▲ or ▼ to select "SET/CLEAR". Press ◀ or ▶ to select "CLEAR", then press ENTER. 4 Press EXIT to return to the normal screen. 5 Repeat steps 1 - 4 to erase other channel labels.

Selecting the video input source/Labeling the video input source

Selecting the video input source

Press INPUT SELECT to view a signal from another device connected to your TV, such as a VCR or DVD player. You can select ANT, VIDEO1, VIDEO2, VIDEO3 (left side of the unit), COMPONENT1, COMPONENT2, HDMI, or PC depending on which input jacks you used to connect your devices.

Pressing INPUT SELECT on the remote control displays the current signal source. To change the video input source, press INPUT SELECT again or 0-7.

Labeling the video input source

The video label feature allows you to label each input source for your unit.

1 Press SETUP/TV MENU in the TV mode. Then press ▶ or ▶ to select (OPTION) menu. Press ▲ or ▼ to select "VIDEO LABEL".

2 Press or The VIDEO LABEL menu will appear.

3 Press ▲ or ▼ to select the video source you want to label.

4 Press ◀ or ▶ to select the desired label for that input source.

- : Uses the default label name VCR : V ideo cassette recorder DVD : DVD video DTV : Digital TV set-top box SAT : Satellite box CBL : Cable box HD : HDMI device

5 Press EXIT to return to the normal screen.

Setting the clock

You must set the clock correctly for the "ON timer" to activate at the correct time.

NOTE:

After a power failure or disconnection of the power, the clock settings will be lost. In this case, reset the present time.

EXAMPLE: Setting the clock to "8:30 AM".

1 Press SETUP/TV MENU in the TV mode. The TV menu screen will appear.

2 Press ◀ or ▶ to select (SETUP) menu.

3 Press ▲ or ▼ to select "CLOCK SET", then press ▲ or ▶ to select the hour position. Please note if the hour is AM or PM, and choose desired setting.

4 Press ▲ or ▼ to set the hour, then press ▶ to select the minute position.

5 Press ▲ or ▼ to set the minutes.

6 Press EXIT to return to the normal screen.

This feature allows you to have the TV automatically turn on at a predetermined time. If you program the ON TIMER to daily once, the TV will turn on everyday at the same time to the same channel.

NOTES:

• The TV will automatically turn off approximately 1 hour later after the ON TIMER turns on. To continue watching the TV, press any button to cancel the one hour automatic shut off.
  • After a power failure or disconnection of the power, the timer settings will be lost.
• Select "Return" and press ◀ or ▶ to return from CH LABEL menu to OPTION menu.

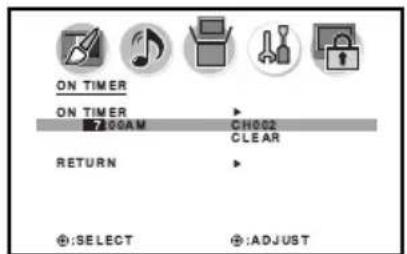

EXAMPLE: Turning on the TV to channel 12 at 7:30 AM, daily.

Preparation:

Set the clock, if you have not already done so (see page 24).

1 Press SETUP/TV MENU in the TV mode. The TV menu screen will appear.

2 Press ◀ or ▶ to select (OPTION) menu. Press ▲ or ▼ to select "ON TIMER".

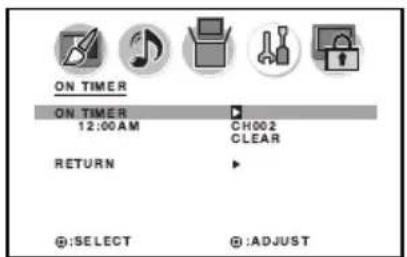

3 Press ◀ or ▶ to select "SET", then press ENTER. The "ON TIMER" menu appears.
4 Press ▲ or ▼ to select "ON TIMER", then press ◀ or ▶.
5 Press ▲ or ▼ to set the desired hour, then press ▶. Please note if the hour is AM or PM, and choose desired setting.
6 Set the desired minutes and start up channel, as in step 4.
7 Press ◀ or ▶ to select "DAILY", then press ENTER.

8 Press EXIT to return to the normal screen.

Setting the picture size

You can view 480i and 480p format programs in a variety of picture sizes—NATURAL, CINEMA WIDE and FULL.

NOTES:

• The PICTURE SIZE feature is not available for some program formats (such as 1080i or 720p). Such formats will display in FULL.
• The PICTURE SIZE feature is not available in the PC mode.

Selecting the picture size

1 Press SETUP/TV MENU in the TV mode, then press ◀ or ▶ to select 📋 (SETUP) menu. Press ▲ or ▼ to select "PICTURE SIZE".

2 Press ◄ or . The PICTURE SIZE menu will appear. Press a Number button (0-2) to select the desired picture size, as described below and on the next page.

3 Press EXIT to return to the normal screen.

NOTE:

You can also display the PICTURE SIZE menu by pressing the SCREEN SIZE button on the remote control.

NATURAL picture size

In many cases, this image will display the size of standard 4:3 with a black side bar.

Simple geometric diagram with a circle centered within a square, surrounded by four smaller circles (no text or symbols)

Natural picture size example

CINEMA WIDE picture size (for 4:3 format programs)

To fill the screen, a right and left edges are extended more widely though the center of the picture remains near former ratio.

The top and bottom edges of the picture may be hidden.

Diagram showing a square plate with a circular hole and an oval shape below it, both without any text or symbols.

CINEMA WIDE picture size example

FULL picture size (for 16:9 source programs)

FULL will display the picture at the maximum size.

Diagram showing a circular component being dropped into a rectangular frame with five circular holes (no text or symbols)

FULL picture size example

Selecting the cinema mode/Using the aspect feature/Adjusting the back lighting feature

To set the CINEMA MODE to FILM

A smoother motion may be obtained by setting the Picture Mode to Film when you view a DVD.

1 Press SETUP/TV MENU in the TV mode, then press ◀ or ▶ to select 📋 (SETUP) menu.
2 Press ▲ or ▼ to select CINEMA MODE, then press ◀ or ▶ to select "FILM".
3 Press EXIT to return to the normal screen.

To set the CINEMA MODE to VIDEO :

Press ◀ or ▶ to select "VIDEO" in step 2 above.

Using the aspect feature

When the ASPECT feature is set to ON and the unit receives a 480i signal, the picture size is automatically selected (as described in the following table).

1 Press SETUP/TV MENU in the TV mode, then press ◀ or ▶ to select 📋 (SETUP) menu.
2 Press ▲ or ▼ to select "ASPECT", then press ◀ or ▶ to select "ON" or "OFF".
3 Press EXIT to return to the normal screen.

Aspect ratio of signal source	Automatic aspect size(When ASPECT is ON)
4:3 Normal	NATURAL
16:9 Full	FULL
4:3 Letter box	CINEMA WIDE
Not defined	User-set mode

NOTE:

If the signal does not include aspect information, the picture size you selected on page 26 is displayed.

Adjusting the back lighting feature

If your unit is in a bright room, the screen image may be difficult to see. You can use the BACK LIGHTING feature to adjust the screen brightness for improved picture clarity.

1 Press SETUP/TV MENU in the TV mode, then press ◀ or ▶ to select 🏠 (SETUP) menu.
2 Press ▲ or ▼ to select "BACK LIGHTING".
3 Press ◀ or ▶ to adjust the screen brightness.
4 Press EXIT to return to the normal screen.

Adjusting the picture preference/Picture control adjustment

You can select four picture modes—SPORTS, STANDARD, MOVIE, and MEMORY—as described in the following table:

NOTE:

The CONTRAST default setting is set to maximum at the factory.

Adjusting the picture preference

1 Press SETUP/TV MENU in the TV mode, then press ◀ or ▶ to select 📂 (PICTURE) menu.

2 Press ▲ or ▼ to select "PICTURE PREFERENCE".

3 Press ◀ or ▶ select the item you want to adjust.

Mode Picture Quality

SPORTS Bright and dynamic picture (factory-set)

STANDARD Standard picture quality (factory-set)

MOVIE Movie-like picture setting (factory-set)

MEMORY Your personal preferences (set by you; see “Picture control adjustment” below).

4 After your desired setting, press EXIT to return to the normal screen.

Picture control adjustment

1 Press SETUP/TV MENU in the TV mode, then press ◀ or ▶ to select 📋 (PICTURE) menu.

2 Press ▲ or ▼ to select the item you want to adjust. Press ◀ or ▶ to adjust the setting.

	◀	▶
BRIGHTNESS	decrease brightness	increase brightness
CONTRAST	decrease contrast	increase contrast
COLOR	be pale color	be brilliant color
TINT	be reddish color	be greenish color
SHARPNESS	makes picture softer	makes picture clearer

3 After your desired setting, press EXIT to return to the normal screen.

Selecting the color temperature

Change the picture quality by selecting from three preset color temperatures—COOL, MEDIUM, and WARM:

1 Press SETUP/TV MENU in the TV mode, then press or ▶ select (PICTURE) menu.

2 Press ▲ or ▼ to select "COLOR TEMPERATURE". Press ◀ or ▶ to select the mode you prefer.

Mode Picture Quality

COOL Blueish

MEDIUM Neutral

WARM Reddish

3 Press EXIT to return to the normal screen.

Resetting your picture adjustments

The RESET function returns your picture quality adjustments to the following factory settings:

PICTURE PREFERENCE...sports TINT.....center (0) BRIGHTNESS..... center (25) SHARPNESS .....center (25) CONTRAST ..... max (50) COLOR TEMPERATURE ...cool COLOR ..... center (25)

1 Press SETUP/TV MENU in the TV mode, then press ◀ or ▶ to select 📋 (PICTURE) menu.

2 Press ▲ or ▼ to select "RESET", and then press ▶.

WHAT IS CLOSED CAPTIONING?

This television has the capability to decode and display Closed Captioned television programs. Closed Captioning will display text on the screen for hearing impaired viewers or it will translate and display text in another language.

Captions: This Closed Caption Mode will display text on the screen in English or another language. Generally, Closed Captions in English are transmitted on C1 and Closed Captions in other languages are transmitted on C2.

Text: The Text Closed Caption Mode will usually fill 1/2 of the screen with a programming schedule or other information.

1 Tune the TV to the desired program.

2 Press SETUP/TV MENU in the TV mode, then press ◀ or ▶ to display the 📋 (SETUP) menu.

3 Press ▲ or ▼ to select "CLOSED CAPTION".

4 Press ◄ or ▶ to select the desired Closed Caption mode.

NOTE:

To turn the Closed Caption feature off, select "OFF".

5 Press EXIT to return to the normal screen.

NOTES:

• If the program or video you selected is not closed-captioned, no captions will display on-screen.
• If text is not available in your viewing area, a black rectangle may appear on-screen. If this happens, set the Closed Caption feature to "OFF".
• When selecting Closed Captions, the captioning will be delayed approx. 10 seconds.
• If no caption signal is received, no captions will appear, but the television will remain in the Caption Mode.
• Misspellings or unusual characters may occasionally appear during Closed Captioning. This is normal with Closed Captioning, especially with live programs. This is because during live programs, captions are also entered live. These transmissions do not allow time for editing.
• When Captions are being displayed, on-screen displays, such as volume and mute may be seen but may interfere with Closed Captions.
• Some cable systems and copy protection systems may interfere with the Closed Captioned signal.
• If using an indoor antenna or if TV reception is very poor, the Closed Caption Decoder may not appear or may appear with strange characters or misspelled words. In this case, adjust the antenna for better reception or use an outdoor antenna.

Selecting stereo/Second Audio Program (SAP)/Sound control adjustment/Turning off the built-in speakers

The multi-channel TV sound (MTS) feature provides high-fidelity stereo sound. MTS also can transmit a second audio program (SAP) containing a second language or other audio information.

When the TV receives a stereo or SAP broadcast, the word "STEREO" or "SAP" displays on-screen every time you turn the TV on, change the channel, or press DISPLAY.

Selecting stereo/Second Audio Program (SAP)

1 Press SETUP/TV MENU in the TV mode, then press ◀ or ▶ to select ⏻ (AUDIO) menu.

2 Press ▲ or ▼ to select "MTS". Press ◀ or ▶ to select "STR (Stereo)".

3 Press EXIT to return to the normal screen.

NOTES:

• In general, you can leave your TV in stereo mode because the TV automatically outputs the type of sound being broadcast (stereo or mono).
• If the stereo sound is noisy, select MONO to reduce the noise.

To listen to a second audio program (SAP)

Press or ▶ to select "SAP" in step 2 above. The TV speakers will output the second audio program instead of normal audio.

Sound control adjustment

1 Press SETUP/TV MENU in the TV mode, then press or to select (AUDIO) menu.

2 Press ▲ or ▼ to select the item you want to adjust.

BASS: Press or t▶ adjust the bass sound.

TREBLE: Press ◀ or ▶ to adjust the trebl

BALANCE: Press ◀ or ▶ to obtain an equal sound level from both speakers.

3 After your desired setting, press EXIT to return to the normal screen.

Turning off the built-in speakers

Use this feature to turn the TV/DVD speakers off when you connect an audio system (see pages 61).

1 Press SETUP/TV MENU in the TV mode. Then press ◀ or ▶ to select ⏻ (AUDIO) menu.

2 Press ▲ or ▼ to select "SPEAKERS", and then press ◀ or ▶ to select "OFF".

3 Press EXIT to return to the normal screen.

To turn on the built-in speakers: Select "ON" in step 2 above.

Using the WOW™ surround feature/Selecting the HDMI audio input source/Resetting your audio adjustments

Notes:

• If the broadcast is monaural, the SRS 3D effect will not work.
- The audio out jacks do not output any of the WOW audio features.

WOW, SRS and (●) symbol are trademarks of SRS Labs, Inc. WOW technology is incorporated under license from SRS Labs, Inc.

Using the WOW™ surround sound feature

WOW is a special combination of SRS Labs audio technologies that creates a thrilling surround sound experience with deep, rich bass from stereo sound sources. Your TV's audio will sound fuller, richer, and wider. WOW consists of three features; SRS 3D, FOCUS, and TruBass.

1 Select STEREO mode (see "Selecting stereo/Second Audio Program (SAP)" on page 31).
2 Press SETUP/TV MENU in the TV mode, then press ◀ or ▶ to select ⏻ (AUDIO) menu.
3 Press ▲ or ▼ to select the desired WOW feature you want to adjust.

SRS 3D: Press to turn on or off the surround sound effect.

FOCUS: Press ◀ or ▶ to turn on or off the vocal emphasis effect.

TruBass: Press ◀ or ▶ to select the bass expansion effect high, low or off.

4 After your desired setting, press EXIT to return to the normal screen.

Selecting the HDMI audio input source

When you use HDMI AUDIO IN jacks with HDMI or DVI device, you must select HDMI audio input source from "HDMI" or "DVI".

1 Press SETUP/TV MENU in the TV mode. Then press ◀ or ▶ to select ⏻ (AUDIO) menu.
2 Press ▲ or ▼ to select "HDMI", then press ◀ or ▶ to select "HDMI" or "DVI".

HDMI: When you connect the HDMI device to the TV, select this setting.

DVI: When you connect the DVI device to the TV with analog audio cords, select this setting.

3 Press EXIT to return to the normal screen.

Resetting your audio adjustments

The RESET function returns the audio adjustments to the following factory settings:

BASS...... center (25)

2 Press ▲ or ▼ to select "RESET", and then press ▶.

Preparation/Status display of disc

The following pages describe the setup/operation in DVD mode.

NOTE: If the unit does not operate properly: Static electricity, etc., may affect the player's operation. Disconnect the AC power cord once, then connect it again.

Preparation

Before DVD/CD operation, please make preparations as follows.

1 Insert the AC cord plug into a standard 120V 60Hz polarized AC outlet.

- If the AC cord plug is plugged in for the first time, wait for about 5 seconds before pressing POWER.

NOTE: When connecting to other equipment, unplug the unit from the AC outlet.

2 Press POWER on the unit or on the remote control to turn on the unit. The POWER indicator will light.

• Every time you press POWER, the TV/DVD starts from TV mode.
• When using an amplifier, switch on the amplifier.

3 Press TV/DVD to select DVD mode.

The DVD startup screen will appear on the screen.

Status display of disc

Press DISPLAY twice. The status display of the disc will appear on the screen.

DVD

Tomake the status display screen disappear, press DISPLAY again.

Audio CD

- When you play a CD disc, the status display will appear and remain on the screen.

NOTES:

• If a non-compatible disc is loaded, "Incorrect Disc", "Region Code Error" or "Parental Error" will appear on the TV screen according to the type of loaded disc. If these appear, check your disc again (see pages 7 and 49).
• Some discs may take a minute or so to start playback.
• A "Prohibition" symbol may appear at the upper left of the screen. This symbol means either the feature you tried is not available on the disc, or the unit cannot access the feature at this time. This does not indicate a problem with the unit.
• When you set a single-faced disc label downwards (i.e. the wrong way up) "Reading" will appear on the display and then "Incorrect Disc" will be displayed.
• Some playback operations of DVDs may be intentionally fixed by software producers. Since this unit plays DVDs according to the disc content recorded, some playback features may not be available. Also refer to the instructions supplied with the DVDs.

1 Press TV/DVD to select DVD mode.

2 Place the disc in the disc slot with the label side facing forward. (If the disc has a label.) Hold the disc without touching either of its surfaces, align it with the guides, and

Line drawing of a hand holding a CD to open a computer monitor (no text or symbols)

3 On the screen, "No Disc" changes to "Reading" and then playback will commence.

- A menu screen may appear on the TV screen, if the disc has a menu feature. In this case, press ▲, ▼, ◀▶ ENTER to operate a menu feature.

4 Press STOP to end playback.

• The unit memorizes the stopped point, depending on the disc. “▶” appears on the screen. Press PLAY to resume playback (from the scene point).
• If you press STOP again ("■" appears on the screen) or unload the disc, the unit will clear the stopped point.

5 Press ▲ (EJECT).

Remove the disc and then press POWER.

The unit turns off.

When you eject the disc, you may hear mechanism noise, but it is not malfunction.

NOTE: There may be a slight delay between when you press the button and the function activating.

NOTE:

The unit is capable of holding a still video image or On screen display image on your television screen indefinitely. If you leave the still video image or On screen display image displayed on your TV for an extended period of time, you risk permanent damage to your television screen.

Fast Forward Playback

Press SEARCH ▶ during normal playback.

Each press of SEARCH ▶ will increase the speed of the search ▶ (x 2), ▶ (x 4), (x 8) ▶ (x 15). ▶▶▶▶▶▶ (CD: ▶ (x 2), ▶ (x 4), (x 8) ▶ (x 20)) ▶▶▶▶▶▶

• To resume normal playback, press PLAY.

Review Playback

Press SEARCH ◀ during normal playback.

Each press of SEARCH ◀ will increase the speed of the search ◀ (x 2), ◀ (x 15). ◀ (CD: ◀ (x 2), ◀ (x 8), ◀ (x 20)) ◀

• To resume normal playback, press PLAY.

Still Playback

Press PAUSE/ STILL during normal playback to pause play-back.

• T o resume normal playback, press PLAY.

Frame Advance

Press PAUSE/ STILL during still playback.

One frame is advanced each time you press PAUSE/ STILL.

• To resume normal playback, press PLAY.

Slow-motion Playback

Press SLOW ◀ Reverse or SLOW ▶ Forward during normal playback or still playback.

Each press of SLOW will change the speed of the slow x1/2, x1/4, x1/6, x1/7.

• To resume normal playback, press PLAY.

• To resume the still playback, press PAUSE/STILL.

Locating a chapter or track

Press SKIP ▶▶▶ Forward or SKIP ◀◀◀ Reverse during playback to locate a chapter that you want to watch.

Each time you press the button, a chapter or track is skipped.

This player can play back MP3/WMA/JPEG-data which has been recorded on CD-R or CD-RW. To produce MP3/WMA/JPEG-data, you need a Windows-PC with CD-ROM drive and MP3/WMA/JPEG-encoding software (not supplied).

The Apple-HFS-System cannot be played.

MP3/WMA/JPEG CD information Limitations on MP3/WMA/JPEG CD playback

• MP3/WMA/JPEG CD is the disc that is standardized by ISO9660, its file name must include 3-digit extension letters, "mp3", "wma", "jpg".
• The directory and file names of MP3/WMA/JPEG CD must correspond to ISO standardized files.
• This unit can read 200 files per disc. If one directory has more than 200 files, it reads up to 200 files, the remaining files will be omitted.
• The unit is able to recognize up to a maximum of 50 directories per disc.
• MP3/WMA CDs cannot be used for playback for the purpose of recording.
• If the CD has both audio tracks and MP3/WMA/JPEG files, only audio tracks are played.
• It may take more than one minute for this unit to read MP3/WMA/JPEG files depending on its structure.
• Music recorded by “Joliet Recording Specification” can be played back, the file name is displayed (within 16 letters) on the screen Long file names will be condensed.
• The music files recorded by "Hierarchical File System" (HFS) cannot be played.
• The unit can play back baseline and progressive JPEG files.

Limitations on display

• The maximum number for display is 16 letters. Available letters for display are the following: capital or lowercase letters A through Z, numbers 0 through 9, and _ (under score).
• Other letters than those above are replaced by a hyphen.

Notes on MP3/WMA/JPEG files

To play back MP3/WMA/JPEG CD in the recorded order,

1. Use MP3/WMA/JPEG software that records data alphabetically or numerically.
2. Name each file including a two-digit or three-digit number (e.g. "01" "02" or "001" "002").
3. Refrain from making too many sub-folders.

CAUTION:

• Some MP3/WMA/JPEG CDs cannot be played back depending on the recording conditions.
• The CD-R/RW that has no music data or non-MP3/WMA/JPEG files can not be played back.

MP3 CD playback

1 Insert a disc to play. Hold the disc without touching either of its surfaces, position it with the label side to be played facing forward (If the disc

Line drawing of a hand inserting a CD into a computer monitor (no text or symbols)

has a label), align it with the guides, and place it in position. Place the disc in the disc slot.

2 "Reading" will appear on the TV screen. Reading time will depend on the number of files on the disc.

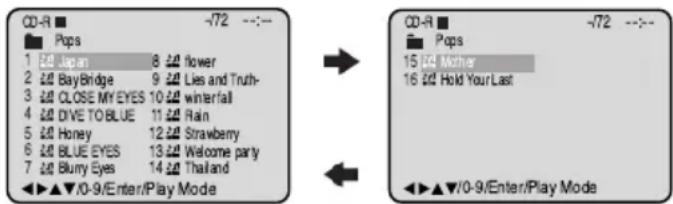

3 A file menu screen will appear on the TV screen.

Press ◀ or ▶ to select a folder.

4 Press ▲/▼/◄/► or a Number button (0-9) to select the desired file.

- In case the folder includes more than 15 files, press or to display next file list.

- When PLAY has been pressed after displaying the file menu, or when the disc tray has been closed after pressing PLAY in step 2, playback begins automatically starting from the first file. In this case, if the first file is an MP3/WMA file, only MP3/WMA files are played back in order. If the first file is a JPEG file, the first JPEG file is played back.

5 Press ENTER.

The selected file starts playing back.

6 Press STOP to end playback.

• The unit records the stopped point. “☑” appears on the screen. Press PLAY to resume playback (from the scene point).
• If you press STOP again or unload the disc, the unit will clear the stopped point.

NOTES:

• During MP3/WMA/JPEG-Playback, you cannot use SEARCH, or A-B Repeat functions.
• You can use Repeat (Track or All), Random functions and Program playback for MP3/WMA/JPEG CD Playback (see pages 41 and 42).

About file menu

NOTES:

• The picture menu is displayed when a FUJICOLOR CD or a KODAK Picture CD is played. To display the file menu press TOP MENU.
• MP3 or WMA files on the KODAK Picture CD are not recognized on this unit.

JPEG CD playback

1 Insert a disc to play. Hold the disc without touching either of its surfaces, position it with the label side to be played facing forward (If the disc has a label), align it with

Line drawing of a hand holding a CD to open a computer monitor (no text or symbols visible)

the guides, and place it in position. Place the disc in the disc slot.

2 "Reading" will appear on the TV screen. Reading time will depend on the number of files on the disc.

3 A file menu screen will appear on the TV screen.

Press ◀ or ▶ to select a folder.

4 Press ▲/▼ ▶ Number buttons (0-9) to select the desired file.

Todisplay a picture menu, press DVD MENU. (To return to a file menu, press TOP MENU.)

Press ▲/▼ to select the desired file.

Grid of nine black-and-white line drawings showing various scenes like animals, vehicles, and figures (no text or symbols)

• To display next list, press SKIP
- When PLAY has been pressed after displaying the file menu, playback begins automatically starting from the first file. In this case, if the first file is a JPEG file, the first JPEG file is played back. If the first file is an MP3/WMA file, only MP3/WMA files are played back in order.

Press ENTER.

The selected picture appears on the TV screen.

Illustration of a person using a handheld device with a star symbol above their head (no text or symbols present)

6 Press STOP to end playback.

The file menu appears on the TV screen. If you want to watch the other file, repeat steps 4-5.

Setting the JPEG interval

You can continuously play back all JPEG files automatically.

1 Press SETUP/TV MENU in the stop mode. Press ◀ or ▶ to select "Picture", then press ▼ or ENTER.

2 Press ▲ or ▼ to select "JPEG Interval".

3 Press ENTER or ◀/▶ to select your desired time.

Off:

Plays back one file at a time.

5 Seconds:

Plays back images in the form of a slide show at 5 second intervals.

10 Seconds:

Plays back images in the form of a slide show at 10 second intervals.

15 Seconds:

Plays back images in the form of a slide show in 15 second intervals.

4 Press SETUP/TV MENU or RETURN to remove the Menu screen.

When playing back a CD containing a mixture of MP3, WMA and JPEG files, only MP3/WMA or JPEG files will be displayed on the file menu.

1

Press SETUP/TV MENU in the stop mode.

Press ◀ or ▶ to select

"Picture", then press ▼ or ENTER.

2

Press ▲ or ▼ to select "Select Files".

3

Press ENTER or ◀/ ▶ select your desired file type.

All:

Displays all files.

Music Only:

Displays only MP3/WMA files.

Pictures Only:

Displays only JPEG files.

4

Press SETUP/TV MENU or RETURN to remove the Menu screen.

NOTES:

• You can select the Pause, Slow or Search playback in the zoom mode.
• Some discs may not respond to zoom feature.

Zooming

This unit will allow you to zoom in on the frame image. You can then make selections by switching the position of the frame.

1 Press ZOOM during playback. The center part of the image will be zoomed in. Each press of ZOOM will change the ZOOM magnification Q_1 (x 1.3), Q_2 (x 1.5) and Q_3 (x 2.0).

2 Press ▲/▼ to view a different part of the frame. You may move the frame from the center position UP, DOWN, LEFT or RIGHT.
3 In the zoom mode press ZOOM repeatedly to return to a 1:1 view (Q Off).

Locating desired scene

Use the title, chapter and time recorded on the disc to locate the desired point to play back.

1 Press JUMP during playback.

2 Press ▲ or to select the "Time", "Title" or "Chapter".
3 Press Number buttons (0–9) to input the number.

- If you input a wrong number, press CANCEL.

- Refer to the package supplied with the disc to check the numbers.

4 Press ENTER.

• Playback starts.
• When you change the title, playback starts from Chapter 1 of the selected title.
• Some discs may not work in the above operation.

Title, Chapter, Track Playback

1 Press PLAY MODE during playback or stop mode.

NOTES:

• Some discs may not work with the repeat operation.
• In A-B repeat mode, subtitles near point A or B may not appear.
• During the A-B Repeat Playback the ANGLE feature will not operate.
• You may not be able to set A-B Repeat, depending on the scenes of the DVD.
• A-B Repeat does not work with an interactive DVD, MP3/MPEG/WMA/JPEG-CD.

2 Press ◀/ ▶ or ENTER once or twice to select "Chapter" or "Title". In case of an Audio-CD, first press ▼ to select "Repeat", and then press ◀/ ▶ or ENTER once or twice to select "Track" or "All".

3 Press PLAY MODE again to make the screen disappear.

• Press PLAY to start Repeat playback.
• To resume normal playback, select Repeat "Off".

A-B Repeat Playback

A-B repeat playback allows you to repeat material between two selected points.

1 Press REPEAT A-B during playback. The start point is selected.

2 Press REPEAT A-B again. The end point is selected. Playback starts at the point that you selected. Playback stops at the end point, returns to Point A automatically, then starts again.

To resume normal playback press REPEAT A-B again.

"Off" appears on the screen.

Program playback

You can arrange the order of tracks on the disc.

1 Press PLAY MODE in the stop mode.

2 Press ▲ or to select "Play Mode" then press ◀ / ▶ or ENTER to select "Program".

3 Example: In case you wish to program in order of 7, 3, 11: Enter as 7 ▼, 3 ▼1.

- If you input a wrong number, press CANCEL.

4 Press ▲on▼/ to select "Program Playback" and press ENTER. "Program Playback" will appear on the screen. The program you selected will begin to playback in the order set. To return to normal playback, select "Play Mode: Off" at step 2 above.

Random playback

1 Press PLAY MODE during playback or stop mode.

2 Press ▲ or ▼ to select "Play Mode", then press ◀/▶ or ENTER to select "Random".

3 Press PLAY. "Random Play" will appear on the screen and Random Playback will start. To return to normal playback, select "Play Mode : Off" at step 2 above.

NOTES:

• To cancel program play, select "Clear" at step 4 and press ENTER.
  • The program is cancelled when you eject the disc or turn the power off.
• Random playback cannot be combined with Repeat playback.

The TV/DVD stores the points that you want to watch again. You can resume playback from that scene.

NOTES:

• The marking is canceled when you eject the disc or turn the power off.
- Some subtitles recorded around the marker may fail to appear. [DVD]

Marking the Scenes

1 Press MARKER during playback.

2 Select the blank Marker using ▲/▼ then press ENTER at the desired scene.

• Up to 3 scenes can be selected.
• Repeat this procedure to set the other 2 scenes.

3 Press MARKER to remove this display.

Returning to the Scenes

1 Press MARKER during playback or stop mode.

2 Press ▲r to select the Marker 1-3.

3 Press ENTER. Playback starts from the marked scene.

To Cancel the Mark

1 Press MARKER.
2 Press ▲r to select the Marker 1-3.
3 Press CANCEL. Press MARKER to remove this display.

Changing soundtrack language/ Subtitles/Karaoke playback

NOTES:

• If the desired language is not heard after pressing AUDIO several times, the language is not recorded on the disc.
• Changing soundtrack language is cancelled when you eject the disc. The initial default language or available language will be heard if the disc is played back again.
• Changing subtitle language is cancelled when you eject the disc.
• Some functions may not work on some DVDs. You may not be able to turn subtitles on or off or change subtitles. While playing the DVD, the subtitle may change when:
• you eject the disc.
• you change the title.
  • In some cases, the subtitle language is not changed to the selected one immediately.
  • The vocal output feature is used during playback of Dolby Digital (multi-channel) recorded DVD KARAOKE discs. This feature allows you to turn off vocal audio tracks, or restore them for background accompaniment.
• When playing KARAOKE, connect appropriate audio equipment such as an amplifier to the unit.

Changing soundtrack language

You can select the language when you play a multilingual disc.

1 Press AUDIO during playback.

The current soundtrack language will appear.

2 Press AUDIO repeatedly until the desired language is selected.

The on-screen display will disappear after a few seconds.

Subtitles

Turning the subtitles on and off

When playing back a disc recorded with subtitles, you can turn the subtitles on or off.

Press SUBTITLE during play-back until "Off" appears.

Changing the subtitle language

You can select the language when playing back a disc recorded with multi-lingual subtitles.

1 Press SUBTITLE repeatedly during playback until your desired language appears.

2 The on-screen display will disappear after a few seconds.

Karaoke playback

When playing back a DVD KARAOKE disc, you can turn the vocal on or off.

1 Press AUDIO during DVD KARAOKE disc playback.

2 Press ◀rorto>select"On" or "Off".

On: The primary vocal is output when it is recorded on the disc.

Off: The primary vocal is not output.

Changing angles

When playing back a disc recorded with multi-angle facility, you can change the view angle.

1 Press ANGLE during playback.

The current angle will appear.

NOTES:

• Depending on the DVD, you may not be able to change the angles even if multi-angles are recorded on the DVD.
• Depending on the DVD, you may not be able to select the title. Depending on the DVD, a "title menu" may simply be called a "menu" or "title" in the instructions supplied with the disc.

2 Press ANGLE repeatedly until the desired angle is selected.

Title selection

Two or more titles are recorded on some discs.

If the title menu is recorded on the disc, you can select the desired title.

1 Press TOP MENU during playback. Title menu appears on the screen.

2 Press ▲on▼/ to select the desired title.

3 Press ENTER or PLAY. The playback of the selected title will start.

DVD menu

Some DVDs allow you to select the disc contents using the menu.

When you play back these DVDs, you can select the subtitle language and soundtrack language, etc. using the DVD menu.

1 Press DVD MENU during playback. The DVD menu appears on the screen.

- Press DVD MENU again to resume playback at the scene when you pressed DVD MENU.

2 Press ▲or▼/ to select the desired item.

3 Press ENTER. The menu continues to another screen. Repeat steps 2 and 3 to set additional items if any.

Setting the language

The setup language can be selected.

1 Press TV/DVD to select the DVD mode. "No Disc" will appear on the screen (If a DVD disc has already loaded, the playback will start automatically).
2 Press SETUP/TV MENU in the stop mode. The SETUP MENU of DVD will appear on the screen. Then press ▶ to select "Other".
3 Press ▼r ENTER to select "OSD Language".
4 Press ▶r ENTER and then press ▲ or ▼o select desired language (e.g. English), then press ENTER.
5 Press SETUP/TV MENU or RETURN to remove the Menu screen.

NOTE:

It is not always possible for the DVD disc to display the picture as per your preferred picture setting - for example, if you select "4:3 Panscan", the disc may not offer this option. In this case the picture would display the format the disc is capable of playing back.

Setting the aspect ratio of TV screen

You can select the aspect ratio of the picture.

1 Press SETUP/TV MENU in the stop mode or No Disc. Press ◀ or ▶ to select "Picture".

2 Press ▼ or ENTER, then press ▲ or ▼ to select "Tv Screen".

3 Press ▶r ENTER. Press ▲ or ▼o select your desired screen type, then press ENTER.

You have the following screen sizes to choose from:

4:3 □ Letterbox

When playing back a wide screen DVD disc, it displays the wide picture with black bands at the top and bottom of screen.

4:3 Panscan

It displays the wide picture on the whole screen with left and right edges automatically cut off.

16:9 □ Wide

A wide screen picture is displayed full size.

4 Press SETUP/TV MENU or RETURN to remove the Menu screen.

Setting on screen display

On screen display can be switched on or off when you press the DISPLAY button.

1 Press SETUP/TV MENU in the stop mode or No Disc. Press ◀ or ▶ to select "Picture".

2 Press ▼r ENTER, then press ▲ or ▼o select "Display".

3 Press ▶ or ENTER to select "On" or "Off".

On: On screen displays appear when you press the buttons (factory setting). Off: On screen displays do not appear when you press any buttons except SETUP, SEARCH MODE, PLAY MODE, MARKER and DISPLAY.

4 Press SETUP/TV MENU or RETURN to remove the Menu screen.

Dynamic Range Control

DRC (Dynamic Range Control) enables you to control the dynamic range so as to achieve a suitable sound for your equipment.

1 Press SETUP/TV MENU in the stop mode or No Disc. Press ◀ or ▶ to select "Sound".

2 Press ▼r ENTER to select "DRC".

3 Press ▶r ENTER, then press ▲ or ▼ to select "On" or "Off", then press ENTER.

4 Press SETUP/TV MENU or RETURN to remove the Menu screen.

NOTES:

• This function works only during playback of Dolby Digital recorded discs.
- The level of Dynamic Range Reduction may differ depending on DVD video disc.

Some discs are specified not suitable for children. Such discs can be limited not to play back with the unit.

NOTES:

• If each setup (P.46\~50, 52) has been completed, the unit can always be operated under the same conditions (especially with DVD discs). Each setup will be retained in the memory when you turn the power off.
  • Depending on the discs, the unit cannot limit playback.
• Some discs may not be encoded with specific rating level information though its disc jacket says "adult". For those discs, the age restriction will not work.

1

Press SETUP/TV MENU in the stop mode or No Disc. Press ◀ or ▶ to select "Parental". Then press ▼ or ENTER.

2

Press ▼ to select "Parental", then press ◀ or ▶ntiththehe level you require appears.

• Level Off : The parental control setting does not function.
• Level 8 : Virtually all DVD software can be played back.
• Level 1 : DVD software for adults cannot be played back.
• Select from level 1 to level 8. The limitation will be more severe as the level number decreases.

3

Press ▲ to select "Password". Press Number buttons (0-9) to input a 4-digit password. Be sure to remember this number!

• If you input a wrong number, press CANCEL.

4

Press ENTER to store the password.

NOTE: After the rating is locked, the setting cannot be changed unless you enter the correct password.

5

Press SETUP/TV MENU or RETURN to remove the Menu screen.

Changing the parental level

NOTE:
Do not forget the password. If you forget the password, contact Customer Service at 1-800-289-0980. The original remote control will be required.

1 Press SETUP/TV MENU in the stop mode or No Disc. Press ◀ or ▶ to select "Parental". Then press ▼ or ENTER.

2 Press Number buttons (0-9) to enter the password you have stored.

- If you input a wrong number, press CANCEL.

3 Press ENTER. The rating is now unlocked.

4 Press ▼ to select "Parental", then press ◀ or ▶ to change the parental level.

5 Press ▲o select "Password", then press Number buttons (0-9) to enter the password. NOTE: You can change the password at this time if you want.

6 Press ENTER. The parental level is changed and locked.

7 Press SETUP/TV MENU or RETURN to remove the Menu screen.

Temporary disabling of rating level by DVD disc

Depending on the DVD disc, the disc may try to temporarily cancel the rating level that you have set. It is up to you to decide whether to cancel the rating level or not.

NOTE:

This temporary cancellation of the rating level will be kept until the disc is ejected. When the disc is ejected, the original rating level will be set again automatically.

1 Load a DVD disc (see page 34).

Line drawing of a hand holding a CD to open a computer monitor (no text or symbols visible)

2 If the DVD disc has been designed to temporarily cancel the Rating level, the screen which follows the "Reading" screen will change, depending on which disc is played. If you select "YES" with ENTER key, "Your disc exceeds the parental control level 1." (e.g.) screen will then appear.

3 If you wish to cancel the set rating level temporarily, select "Parental Control Level" with ▲ or ▼, then press ENTER. If the 4-digits password at step 3 on page 49 has been set, the password entering screen will appear as shown in step 4 below. Alternatively, if the password has not been set, playback will commence. If you don't know (or have forgotten) the password, select "Cancel Picture". The setting screen will disappear. Press ▲ (EJECT) to remove the disc.

4 Enter the password with Number buttons (0-9). Then press ENTER.

- If you interrupt the entering, press RETURN.

5 Playback will commence if the entered password was correct.

Setting the language

You can select the language of "Menu", "Subtitle" and "Audio" if more than one languages are recorded onto the disc.

1 Press SETUP/TV MENU in the stop mode.

Press ◀ or ▶ to select

"Language".

2 Press ▼ or ENTER. Then press ▲ or ▼ to select "Menu".

3 Press ▶r ENTER. Press ▲ or ▼o select your desired language, then press ENTER.

English, Francais, Español :

The selected language will be heard or seen.

Other:

Other language can be selected (see the "Language code list" on page 53).

Automatic (Subtitle):

• The unit will automatically select the same language in the Audio setting.
• When the unit selects the same language as the Audio, the subtitles will not appear during playback.
• When you do not use the same language as the Audio, the subtitles will appear during playback.

Original (Audio):

The unit will select the first priority language of each disc.

Off (Subtitle):

Subtitles do not appear.

4 Press SETUP/TV MENU or RETURN to remove the Menu screen.

NOTE:

If the selected language is not recorded on the disc, the first priority language is selected.

Enter the appropriate code number for the initial settings "Menu", "Subtitle" and/or "Audio" (see page 52).

Language Name Code		Language Name Code		Language Name Code		Language Name Code
Abkhazian 1112 Fiji 16		20 Lingala 2224 Singhalese 2919
Afar	1111	Finnish	1619	Lithuanian	2230	Slovak	2921
Afrikaans	1116	French	1628	Macedonian	2321	Slovenian	2922
Albanian 2927 Frisian		1635 Malagasy 2317 Somali 2925
Amharic	1123	Galician	1722	Malay	2329	Spanish	1529
Arabic	1128	Georgian	2111	Malayalam	2322	Sundanese	2931
Armenian	1835	German	1415	Maltese	2330	Swahili	2933
Assamese	1129	Greek	1522	Maori	2319	Swedish	2932
Aymara	1135	Greenlandic	2122	Marathi	2328	Tagalog	3022
Azerbaijani	1136	Guarani	1724	Moldavian	2325	Tajik	3017
Bashkir	1211	Gujarati	1731	Mongolian	2324	Tamil	3011
Basque	1531	Hausa	1811	Nauru	2411	Tatar	3030
Bengali; Bangla	1224	Hebrew	1933	Nepali	2415	Telugu	3015
Bhutani	1436	Hindi	1819	Norwegian	2425	Thai	3018
Bihari	1218	Hungarian	1831	Oriya	2528	Tibetan	1225
Breton	1228	Icelandic	1929	Panjabi	2611	Tigrinya	3019
Bulgarian	1217	Indonesian	1924	Pashto, Pushto	2629	Tonga	3025
Burmese	2335	Interlingua	1911	Persian	1611	Turkish	3028
Byelorussian	1215	Irish	1711	Polish	2622	Turkmen	3021
Cambodian	2123	Italian	1930	Portuguese	2630	Twi	3033
Catalan	1311	Japanese	2011	Quechua	2731	Ukrainian	3121
Chinese	3618	Javanese	2033	Rhaeto-Romance	2823	Urdu	3128
Corsican	1325	Kannada	2124	Romanian	2825	Uzbek	3136
Croatian	1828	Kashmiri	2129	Russian	2831	Vietnamese	3219
Czech	1329	Kazakh	2121	Samoan	2923	Volapük	3225
Danish	1411	Kirghiz	2135	Sanskrit	2911	Welsh	1335
Dutch	2422	Korean	2125	Scots Gaelic	1714	Wolof	3325
English	1524	Kurdish	2131	Serbian	2928	Xhosa	3418
Esperanto	1525	Laothian	2225	Serbo-Croatian	2918	Yiddish	2019
Estonian	1530	Latin	2211	Shona	2924	Yoruba	3525
Faroese	1625	Latvian, Lettish	2232	Sindhi	2914	Zulu	3631

Connections to other equipment

The exact arrangement you use to interconnect various video and audio components to this unit is dependent on the model and features of each component. Check the Owner's Manual provided with each component for the location of video and audio inputs and outputs.

To connect the LCD TV/DVD to a VCR

To connect the LCD TV/DVD to a VCR with an S-Video cord

If you connect a VCR with a S-VIDEO cable to the S-VIDEO IN jack on the rear lower right of the unit, you must also connect the audio cables to the AUDIO IN jacks on the rear lower right of the unit.

The S-VIDEO cable only carries the video signal. The audio signal is separate.

NOTE:

When the S-video cable and the standard video cable are connected at the same time, the S-video cable takes precedence.

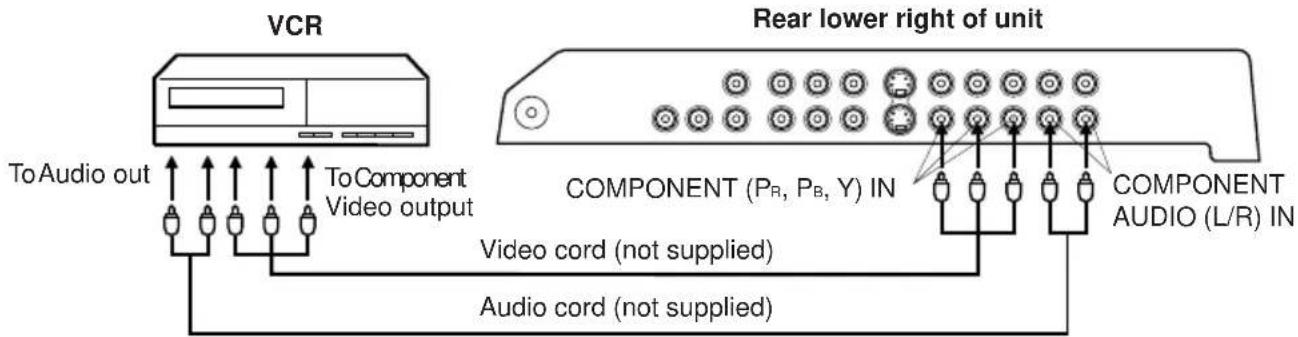

To connect to a DVD player with Component Video Input

You can enjoy a high quality picture by connecting the unit's COMPONENT VIDEO OUT jacks of your DVD player with the COMPONENT video cables (not supplied).

NOTE:

Component Video input of this unit are for use of device which output 480i/1080i interlaced signals and 480p/720p progressive signals.

Connections to other equipment (continued)

To connect a HDMI or a DVI device to the unit

The HDMI input receives digital audio and uncompressed video from a HDMI device or uncompressed digital video from a DVI device.

When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only video signal. Separate analog audio cords required.

Rear lower left of unit

NOTE:

You must choose an appropriate setting for each connection (see page 32. "Selecting the HDMI audio input source").

Using an AV Amplifier with built-in digital surround

If you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including Dolby Digital Surround audio that sounds just like the movie.

Connect an AV amplifier with built-in Dolby Digital decoder, DTS decoder, or MPEG decoder etc. as shown below.

* Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works.
* "DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.

NOTES:

• When you make the connection above, on the AV Amplifier, do not set DOLBY DIGITAL to DOLBY DIGITAL, or MPEG to MPEG "ON". If you do, a loud noise will emit from the speakers possibly causing damage to your hearing or to the speakers.
• Some DTS decoders do not support DVD-DTS interface, and may not work properly with the unit.

To connect an audio system or Subwoofer

This connection allows you to hear the TV sound through external speakers connected to an audio amplifier or subwoofer.

To control the audio, turn on the TV/DVD and the stereo amplifier, and turn off the TV/DVD's built-in speakers (see “Turning off the built-in speakers” on page 31).

NOTE:

To hear sound when using an external audio amplifier, the volume of both the TV/DVD and the amplifier must be set above 0 (zero).

For example, if the volume of the TV/DVD is set to 0, you will not be able to hear any sound, even if the volume of the amplifier is at its highest level.

To connect the TV/DVD to a PC (Personal Computer)

Before you connect this LCD Monitor to your PC, change the adjustment of your PC's Resolution and Refresh rate (60 Hz).

Connect one end of a (male to male) VGA cable to the video card of the computer and the other end to the VGA connector PC MONITOR at the back of the TV/DVD. Fix the connectors firmly with the screws on the plug. In case of a Multimedia computer, connect the audio cables to the audio outputs of your Multimedia computer and to the AUDIO L and R connectors of the PC AUDIO (L/R) IN jacks of the TV/DVD.

Press INPUT SELECT on the remote control to select PC mode.

Switch on the computer. The TV can operate as the computer monitor.

Monitor Display modes

MODE Resolution Refresh rate

VGA 640x480 60Hz

SVGA 800x600 56.3Hz

SVGA 800x600 60.3Hz

WVGA 848x480 60Hz

XGA 1024x768 60Hz

WXGA 1280x720 60Hz

WXGA 1024x768 60Hz

WXGA 1360x768 60Hz

To return to TV mode

Press INPUT SELECT again.

NOTES:

- The current signal source does not display when you return to TV mode.

- The on-screen displays will have a different appearance in PC mode than in TV mode.

- When you select WXGA mode, set the WXGA INPUT to ON in the PC PICTURE menu (see page 58).

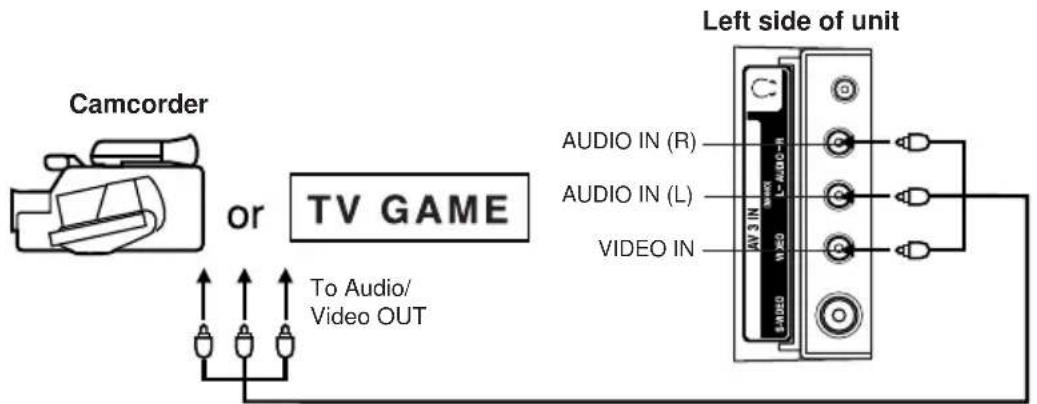

To connect the TV/DVD to a camcorder, or a TV Game

To playback from a camcorder, connect the camcorder to the unit as shown.

This unit can also be used as a display device for many video games. However, due to the wide variety of signals generated by these devices and subsequent hook-up variations required, they have not all been included in the suggested connection diagrams. You'll need to consult each component's Owner's Manual for additional information.

Audio/Video cord (not supplied)

Picture/Audio control adjustment in the PC mode

DESCRIPTION ABOUT EACH SETTING OPTION:

PICTURE menu

BRIGHTNESS: To adjust the brightness of PC Monitor screen.

CONTRAST: To adjust the contrast of PC Monitor screen.

HOR POSITION: To adjust the horizontal position of the image on the PC Monitor screen. Each video standard will require a different value for this setting.

VER POSITION: To adjusts the vertical position of the image on the PC Monitor screen. Each video standard will require a different value for this setting.

PHASE: This must be adjusted after the frequency has been set to optimize picture quality.

CLOCK: To minimize any vertical bars or stripes visible on the screen background.

RED/GREEN/BLUE: To adjust the color temperature of PC Monitor screen.

WXGA INPUT/WVGA INPUT: Set to ON, when you select the WXGA or WVGA mode on the PC.

AUDIO menu

BASS/TREBLE/BALANCE: To adjust the sound quality of PC mode.

SPEAKERS: To turn the TV speaker off when you connect an audio system.

WOW SRS 3D/Focus/Trubass: To adjust the desired WOW surround sound feature.

NOTES:

• If you wish to change the on-screen language, follow the steps 1 - 6 on page 14.
• If no buttons are pressed for more than approx. 60 seconds, the PC Monitor Menu-screen will return to normal Monitor-screen automatically.
• The PC Monitor Menu settings are not effective for normal TV-mode, DVD mode or external input mode.

PC Monitor Menu

There are a number of picture and audio settings you can adjust to optimize the performance of the unit in PC mode.

PICTURE menu

AUDIO menu

Example: Adjust the contrast.

1 During PC mode, press SETUP/TV MENU, then press or

▶ to display the (PICTURE) menu.

2 Press ▲r to select CONTRAST.

3 Press ◀r to adjust CONTRAST. The bar on the right side of Menu-screen will decrease or increase.

The adjusting screen will disappear approx. 60 seconds after finishing an adjustment.

4 Press EXIT to return to the normal screen.

Resetting your picture adjustments in the PC mode

The RESET function returns your picture quality adjustments to the following factory settings:

PICTURE menu AUDIO menu ____

BRIGHTNESS ......center (0) BASS ...... center (25)

CONTRAST ......max (25) TREBLE ...... center (25)

RED......center (0) BALANCE...... center (0)

GREEN ......center (0)

BLUE ......center (0)

1 Press SETUP/TV MENU during PC mode.

2 Press ▶r to select the desired menu.

3 Press ▲r to select "RESET", then press.

Most types of television interference can be remedied by adjusting the height and position of the VHF/UHF antenna. Outdoor antennas are recommended for best results. The most common types of television interference are shown below. If one of these symptoms appear when the TV/DVD is connected to a Cable TV system, the disturbance may be caused by the local Cable TV company broadcast.

IGNITION

Black spots or horizontal streaks may appear, the picture may flutter or drift. Usually caused by interference from automobile ignition systems, neon lamps or AC powered tools and appliances such as drills or hair dryers.

Black-and-white portrait of a smiling person with curly hair (no visible text or symbols)

GHOSTS

Ghosts are caused by the television signal following two paths. One is the direct path and the other is reflected by tall buildings, hills or other large objects. Changing the direction or position of the antenna may improve the reception.

Black-and-white portrait of a woman with curly hair and a smile (no text or symbols visible)

SNOW

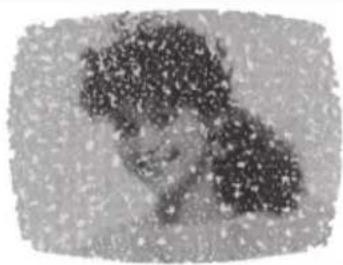

If the TV/DVD is located far from the TV station, in a fringe reception area where the signal is weak, small dots may appear in the picture. If the signal is extremely weak, the installation of a larger external antenna may be necessary.

Grayscale abstract image with indistinct dark shapes on a light background, no visible text or symbols

RADIO FREQUENCY INTERFERENCE (RFI)

Caused by two-way radios, this type of interference produces moving ripples or diagonal streaks in the picture. Some cases may cause a loss of contrast in the picture. Changing the direction and position of the antenna or installing an RFI filter may improve the picture.

Black-and-white photo of a person with dark hair against a striped background (no text or symbols visible)

PICTURE SIZE VARIATION

A slight picture size variation is normal when you adjust the CONTRAST or BRIGHTNESS settings.

Portrait of a smiling woman with curly hair and earrings (no text or symbols visible)

CARE AND MAINTENANCE

To prevent fire or shock hazard, disconnect the TV/DVD from the power source before cleaning. Clean the LCD using a dry soft cloth such as gauze. The finish on the cabinet may be cleaned with mild soap and a soft, damp cloth and cared for as other furniture. Use caution when cleaning or wiping the plastic parts.

Problems and troubleshooting

Use the following check list for troubleshooting when you have problems with your TV/DVD. Consult your local dealer or service outlet if problems persist.

Be sure all connections are properly made when using with other units.

SYMPTOMS POSSIBLE	SOLUTIONS	PAGE
POWER
TV/DVD does not operate.	Make sure the power cord is plugged in.Power is off, check fuse or circuit breaker.Unplug unit, then plug it back in.	11
TV BROADCAST RECEPTION
Poor sound or no sound.	Station or Cable TV experiencing problems, tune to another station.Check Volume adjustments.Check for sources of possible interference.	1515,1659
Poor picture or no picture.	Station or Cable TV experiencing problems, tune to another station.Check antenna or Cable TV connections, reorient antenna.Check for sources of possible interference.Check picture control adjustments.	1512,135928
Poor reception on some channels.	Station or Cable TV experiencing problems, tune to another station.Station signal is weak, reorient antenna to receive stronger station.Check for sources of possible interference.	1512,1359
Poor color or no color.	Station or Cable TV experiencing problems, tune to another station.Make sure channels are set into memory.Check picture control adjustments.Check antenna or Cable TV connections, reorient antenna.Check for sources of possible interference.	15182812,1359
Picture wobbles or drifts.	Station or Cable TV experiencing problems, tune to another station.Make sure channels are set into memory.Cable TV company is scrambling signal.Check antenna orientation.	1518-12
No Cable TV reception.	Check all Cable TV connections.Set TV/CABLE menu option to the “CABLE” mode.Station or Cable TV system problems, try another station.	131715
Horizontal or diagonal bars on screen.	Check antenna connections, reorient antenna.Check for sources of possible interference.	12,1359
No reception above channel 13.	Make sure TV/CABLE menu option is in the appropriate mode.If using antenna, check UHF antenna connections.	1712
TV shuts off.	No broadcast on station tuned.Sleep Timer is set.Power interrupted.	1516-
Closed - Caption is not activated.	TV station experiencing problems or program tuned is not closed captioned. Try another channel.Check Cable TV connection or VHF/UHF antenna, reposition or rotate antenna.Set Closed Caption decoder in the menu.	1512,1330
Display is not shown in your language.	Select proper language in the menu options.	14
DVD
Playback doesn't start.	No disc is inserted.The disc may be dirty. Clean up the disc.The unit cannot play CD-ROMs, etc.	3477
No picture. • TV/DVD selector is not set correctly.		33
No sound.	Check the input selector of the amplifier is set properly.The unit is in the Special playback mode.Select the correct Audio Output position on AV amplifier.	-3555
Picture is distorted during CUE or REVIEW.	The picture will be distorted occasionally.	-
Stopping playback, search, slow-motion play, repeat play, or program play, etc. cannot be performed.	Some discs may not allow some functions.	-
No 4:3 (16:9) picture. • The setup does not match your TV.		26,47
No on-screen display. • Select Display On.		47
No surround sound. • The setup does not match your stereo system.		55
The unit or remote operation key is not functioning.	Turn off the unit and unplug the AC power cord for several minutes, then replug it.	14
Playback does not start when the title is selected.	Check the RATING LEVEL setup.	49,50
Audio soundtrack and/or subtitle language is not changed when you play back a DVD.	Multilingual language is not recorded on the DVD disc.	44
No subtitle.	Some discs have no subtitles.Subtitles are cleared. Press SUBTITLE.	44
Angle cannot be changed. • Multi-angles are not recorded on the DVD disc.		45
“” appears on the screen.	The function is prohibited with the unit or the disc.	34
REMOTE CONTROL
The remote control does not function.	Aim at the remote control at the remote sensor.Operate within Approx. 5 Meters or reduce the light in the room.Clear the path of the beam.The batteries are weak. Replace the batteries.Check the batteries are inserted correctly.	11

FOR CUSTOMER SERVICE, ADDITIONAL SET-UP OR OPERATING ASSISTANCE PLEASE CALL:

1-800-289-0980

SANSUI®

TO ORDER ACCESSORY PARTS OR LITERATURE

PLEASE CALL:

1-888-369-0304

WHEN CALLING CUSTOMER SERVICE – PLEASE HAVE YOUR MODEL NUMBER READY

OR WRITE TO:

ORION SALES, INC.

3471 N. UNION DR.

OLNEY, ILLINOIS 62450

FOR INFORMATION ON OUR OTHER PRODUCTS, PLEASE VISIT OUR WEBSITE AT

www.orionsalesinc.com

GENERAL

Power supply: AC 120V 60Hz

Power consumption: Operation: 170W

Stand by: 1W

Weight: 19 kg (41.9 lbs)

Dimensions: Width : 822 mm (32-3/8 inches)

Height : 604 mm (23-3/4 inches)

Depth : 332.5 mm (13-1/16 inches)

Operating temperature: 5°C - 40°C

Operating humidity: Less than 80%

TELEVISION

Type: 31.5 inches (800 mm diagonal)

Display method: Transmission TFT color LCD panel

Number of Pixels: 1366 (H) x 768 (V)

Viewing angle: Left/Right: 85/85 degree

Up/Down: 85/85 degree

Tuner type: Quartz PLL Frequency Synthesized

Receiving channels: VHF 2-13

UHF 14-69

CATV 14-36 (A)-(W)

37-59 (AA)-(WW)

60-85 (AAA)-(ZZZ)

86-94 (86)-(94)

95-99 (A-5)-(A-1)

100-125 (100)-(125)

01 (5A)

Input: S-Video: Y-Input: 1.0 V (p-p), 75 ohms

C-Input: 0.3 V (p-p), 75 ohms

Video: (RCA) 1 V p-p/75 ohms

Audio: (RCA) -8 dBm/50K ohms

Digital audio out: 0.5 Vp-p 75 ohms terminated

Component video input: (Y) 1 V (p-p), 75 ohms

(P_B)/(P_R) 0.7 V (p-p), 75 ohms

HDMI input: HDMI compliant (type A connector)

HDCP compliant

E-EDID compliant

Suggested scan rates: 1080i, 480p, 480i, 720p

HDMI Audio: 2-channel PCM

32/44.1/48 kHz sampling frequency

16/20/24 bits per sample

PC Monitor input: Mini-Dsub 15pin x 1

Antenna input: VHF/UHF In 75 ohms coaxial

Speaker: 56 mm x 127 mm (2-3/16 inches x 5 inches), 4 ohms x 2

Audio output power: 10W + 10W

DVD/CD player

Signal system: NTSC

Applicable disc: 1. DVD (12 cm, 8 cm [with Disc adapter])

1. CD (12 cm, 8 cm [with Disc adapter])

Pickup: CD: Wavelength: 790 nm

Maximum output power: 7 mW

DVD: Wavelength: 655 nm

Maximum output power: 5 mW

ACCESSORIES: Remote control

Batteries (UM-4) x 2

SANSUI®

limited WARRANTY

32" TFT LCD TV WITH DVD PLAYER

ORION warrants this product to be free from manufacturing defects in material and workmanship under normal use and conditions for a period of ninety (90) days from date of original purchase in the United States only.

Should service be necessary under this warranty for any reason due to a manufacturing defect or malfunction during the first ninety (90) day period from date of original purchase, ORION will provide carry-in repair service at an ORION authorized Independent Service Center at no charge. Also, if an original part fails due to manufacturing defect in material and workmanship within one year from the original date of purchase we will replace the defective part only (EXCLUDING LABOR AFTER INITIAL NINETY (90) DAYS WARRANTY PERIOD) provided the defect or malfunction is verified along with dated proof of purchase.

There are ORION Authorized Independent Service Centers located throughout the country. For the one nearest you, DIAL TOLL FREE: 1-800-289-0980 or visit our website at www.orionsalesinc.com. This product is eligible for CARRY-IN service only. ORION will not be liable for damages incurred in shipment of the unit. If there are no ORION authorized Independent Service Centers in your area please call – 1-888-296-7466 for assistance.

Note: This warranty is void if the product is:

(a) Damaged through negligence, misuse, abuse, or accident.
(b) Used in a commercial application or rentals.
(c) Modified or repaired by anyone other than an ORION Independent Service Center authorized by ORION to effect warranty repairs to the class of product or by the ORION Factory Service Center.
(d) Damaged because it is improperly connected to the equipment of other manufacturers.

This warranty does not cover:

(a) Damage to video disc.
(b) Damage to equipment not properly connected to the product.
(c) Costs incurred in the shipping of the product to an authorized Independent Service Center or ORION Factory Service Center.
(d) Damage or improper operation of unit caused by customer abuse, misuse, negligence, or failure to follow operating instructions provided with the product.
(e) Ordinary adjustments to the product which can be performed by customer as outlined in the owner's manual.
(f) Signal reception problems caused by external antenna or cable systems.

THIS WARRANTY IS NON-TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASER AND DOES NOT EXTEND TO SUBSEQUENT OWNERS OF THE PRODUCT. ANY APPLICABLE IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED IN DURATION TO A PERIOD OF THE EXPRESS WARRANTY AS PROVIDED HEREIN BEGINNING WITH THE DATE OF ORIGINAL PURCHASE AT RETAIL AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, SHALL APPLY TO THIS PRODUCT THEREAFTER. ORION MAKES NO WARRANTY AS TO THE FITNESS OF THE PRODUCT FOR ANY PARTICULAR PURPOSE AND USE.

UNDER NO CIRCUMSTANCES SHALL ORION BE LIABLE FOR ANY LOSS, DIRECT, INDIRECT, INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGE ARISING OUT OF OR IN CONNECTION WITH THE USE OF THIS PRODUCT.

THIS WARRANTY IS VALID ONLY IN THE UNITED STATES OF AMERICA. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, HOWEVER, YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE. SOME STATES DO NOT ALLOW LIMITATION ON IMPLIED WARRANTIES OR EXCLUSION OF CONSEQUENTIAL DAMAGE, THEREFORE, THESE RESTRICTIONS MAY NOT APPLY TO YOU.

ORION SALES, INC.

3471 N. UNION DR.

OLNEY, ILLINOIS 62450
