QMP1MB - TV Stand Chief - Free user manual and instructions

Product Type	Mobile TV Stand
Brand	Chief
Model	QMP1MB
Maximum Weight Capacity	150 lbs (68.04 kg)
Height Adjustment	Yes, via knob and inner column
Wheels / Casters	Yes, with brakes on back wheels
Cable Management	Yes, front flap and openings with snap-on covers
Legs Included	2 legs (A) and (B)
Upright Included	1 upright (E)
Cross Bracket Included	1 cross bracket (F)
End Caps Included	2 end caps (D)
Hardware	Button head cap screws, washers, hex nuts
Tools Required	Phillips screwdriver, open-ended wrench, hex-key, security wrench
Material	Steel
Installation Type	Freestanding on floor
Use	For AV equipment and accessories
Safety Features	Wheel brakes, stability warnings
Maintenance	Check and tighten caster hex nuts occasionally

Frequently Asked Questions - QMP1MB Chief

What is the maximum weight capacity of the Chief QMP1MB TV stand?

The maximum weight capacity is 150 lbs (68.04 kg). Do not exceed this limit to avoid injury or damage.

How do I adjust the height of the stand?

Firmly grasp the top of the inner column. Pull out the knob on the center post and turn it 90° to disengage the locking mechanism. Raise or lower the upright, then turn the knob 90° to lock it in place. Ensure the knob engages in a hole of the inner column.

How do I assemble the legs to the cross bracket?

Attach two legs (A) and (B) to the stand cross bracket (F) using two 5/16-18 x 4-1/4" button head cap screws (L) through one end cap (D) per leg. Refer to Figure 1 in the manual.

How do I attach the upright to the leg assembly?

Attach upright (E) to leg assembly using four 5/16-18 x 2-3/4" button head cap screws (K) and four 5/16" washers (M). Insert and tighten screws in the order shown (1, 2, 3, 4) as per Figure 3.

How do I manage cables on this stand?

Signal cables can be run down the front flap of the upright and out any opening. Power cords can go through the front and exit out the back. Use snap-on covers (C) to close unused openings. To remove covers, grip sides and pull off or insert a flat-blade screwdriver into the bottom slot.

How do I lock the wheels?

Set the brakes on the back wheels by pressing down on the tab. This prevents movement when the stand is stationary.

Can I use a power drill to install the screws?

Yes, but only after hand-tightening the button head cap screws first with a hex key or handheld screwdriver. Using a power drill without hand starting may damage the attachment holes.

What tools are required for assembly?

Required tools include a Phillips screwdriver, open-ended wrench, hex-key, and security wrench. A hex head drill bit (G) and power drill are optional.

Is the stand stable on uneven surfaces?

Always place the stand on a level surface. After use on uneven ground, check and tighten the hex nuts on the casters occasionally to maintain stability.

How do I prevent the stand from tipping over?

Move the stand slowly, applying force on the narrow dimension. Always push near the middle, never at the top. Lock the wheels when stationary to prevent tipping.

USER MANUAL QMP1MB Chief

INSTALLATION INSTRUCTIONS

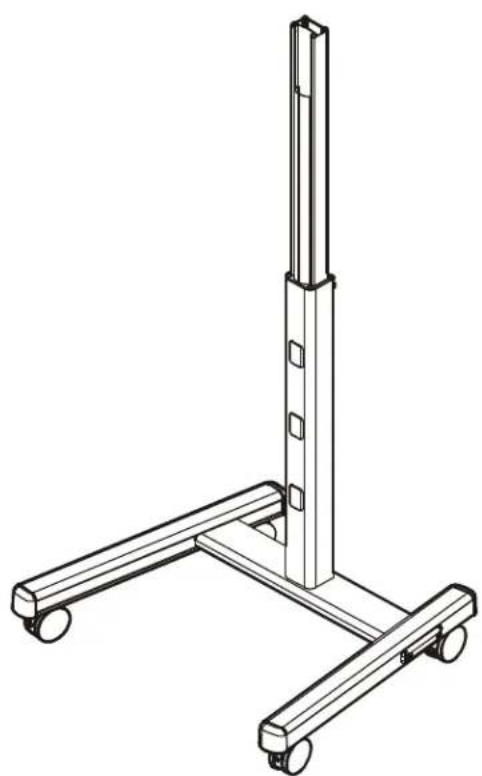

Technical line drawing of a vertical support structure with two horizontal legs and wheels (no text or symbols)

Mobile Base Music Stand

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

IMPORTANT WARNINGS AND TIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components on the stand does not exceed 150 lbs (68.04 kg).

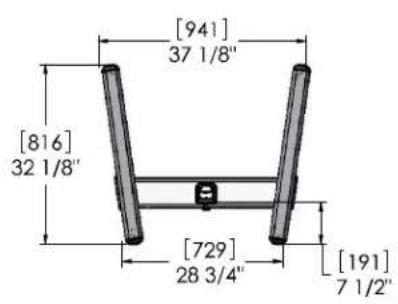

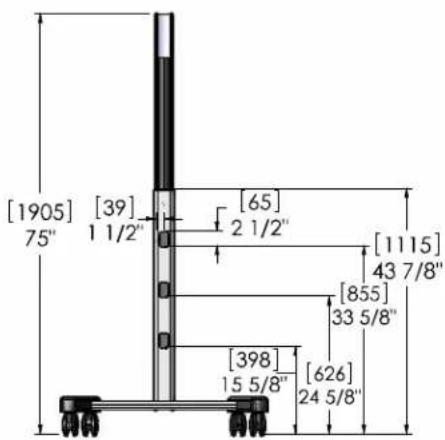

DIMENSIONS

Technical line drawing of a mechanical support structure with vertical and horizontal components (no text or symbols)

DIMENSIONS: [MILLIMETERS] INCHES

LEGEND

	Tighten Fastener		Pencil Mark
	Apretar elemento de fijación		Marcar con lápiz
	Befestigungsteil festziehen		Stiftmarkierung
	Apertar fixador		Marcar com lápis
	Serrare il fissaggio		Segno a matita
	Bevestiging vastdraaien		Potloodmerkteken
	Serrez les fixations		Marquage au crayon
	Loosen Fastener		Drill Hole
	Aflojar elemento de fijación		Perforar
	Befestigungsteil lösen		Bohrloch
	Desapertar fixador		Fazer furo
	Allentare il fissaggio		Praticare un foro
	Bevestiging losdraaien		Gat boren
	Desserrez les fixations		Percez un trou
	Phillips Screwdriver		Adjust
	Destornillador Phillips		Ajustar
	Kreuzschlitzschraubendreher		Einstellen
	Chave de fendas Phillips		Ajustar
	Cacciavite a stella		Regolare
	Kruiskopschroevendraaier		Afstellen
	Tournevis à pointe cruciforme		Ajuster
	Open-Ended Wrench		Remove
	Llave de boca		Quitar
	Gabelschlüssel		Entfernen
	Chave de bocas		Remover
	Chiave a punte aperte		Rimuovere
	Steeksleutel		Verwijderen
	Clé à fourche		Retirez
	By Hand		Optional
	A mano		Opcional
	Von Hand		Optional
	Com a mão		Opcional
	A mano		Opzionale
	Met de hand		Optie
	À la main		En option
	Hex-Head Wrench		Security Wrench
	Llave de cabeza hexagonal		Llave de seguridad
	Sechskantschlüssel		Sicherheitsschlüssel
	Chave de cabeça sextavada		Chave de segurança
	Chiave esagonale		Chiave di sicurezza
	Zeskantsleutel		Veiligheidssleutel
	Clé à tête hexagonale		Clé de sécurité

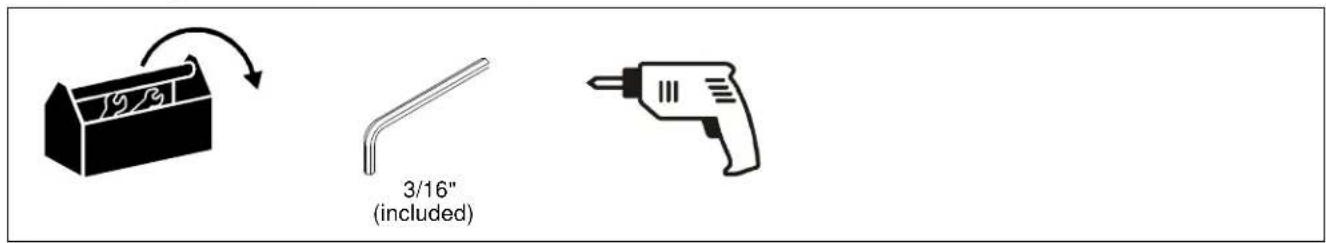

TOOLS REQUIRED FOR INSTALLATION

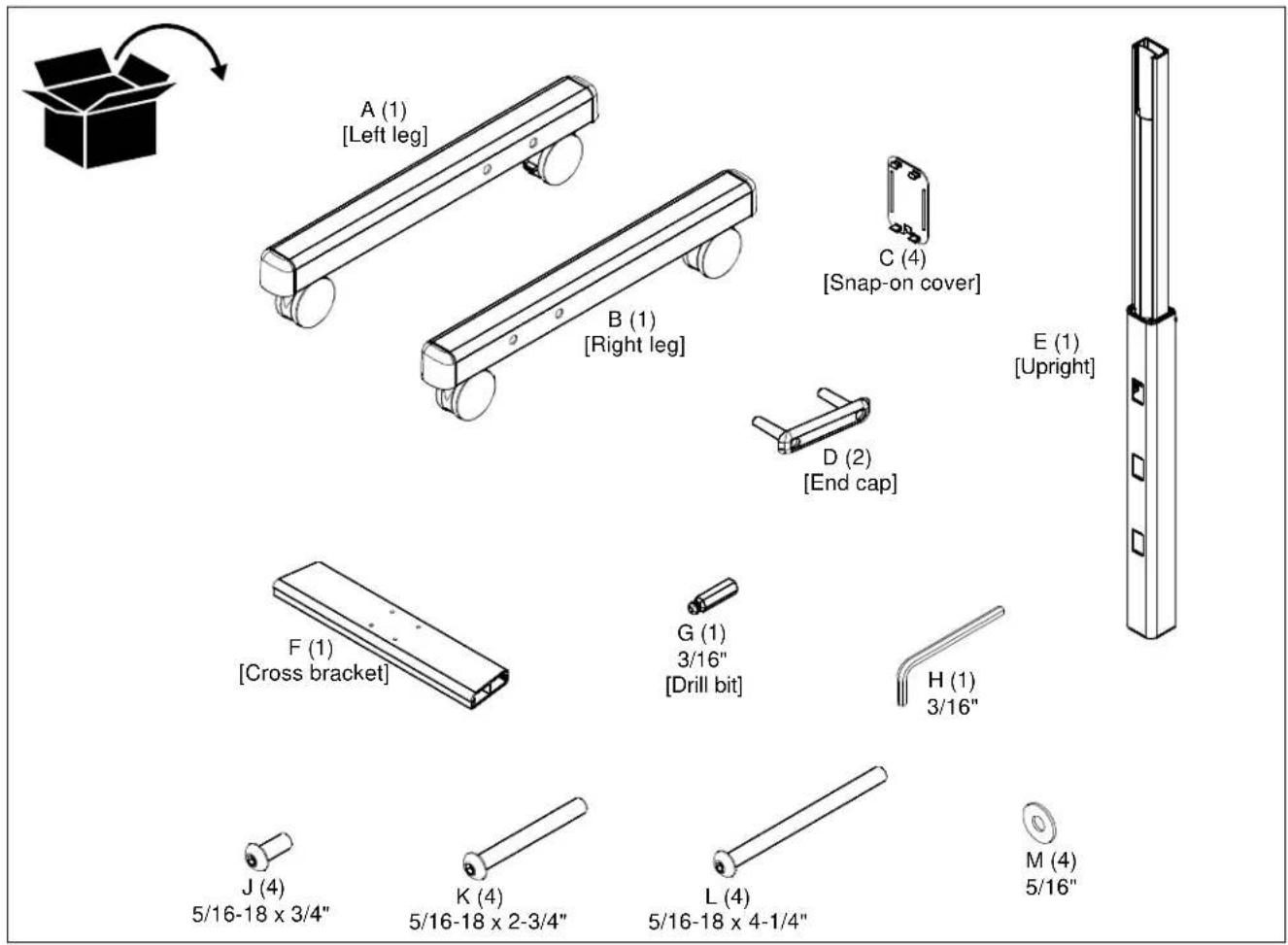

PARTS

ASSEMBLY

CAUTION: Attachment holes may be damaged if a power drill is used to insert button head cap screws. Screws should first be inserted and turned BY HAND with the hex key or with a handheld screwdriver BEFORE using the hex head drill bit (G) and power drill to complete the attachment.

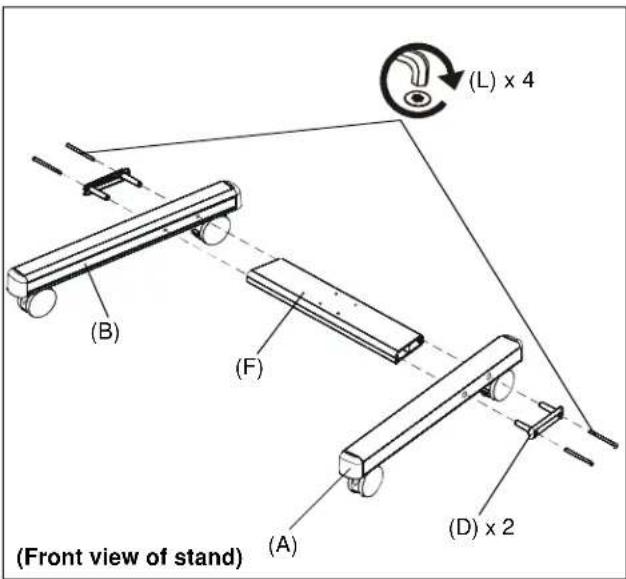

1. Assemble two legs (A) and (B) to the stand cross bracket (F) using two 5/16-18 x 4-1/4" button head cap screws (L) through one end cap (D) per leg. (See Figure 1)

Figure 1

CAUTION: INNER COLUMN IS SHIPPED DISENGAGED and may pinch hands! Hold both inner column and outer upright while removing from box.

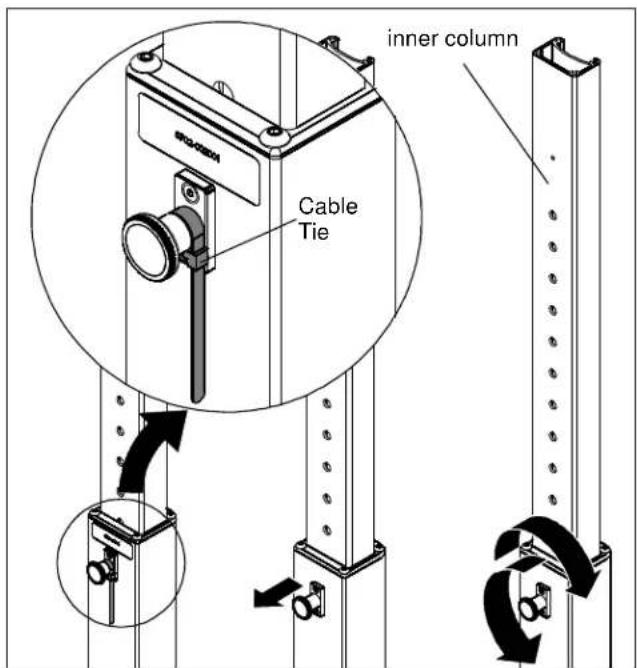

IMPORTANT ! : Press cable tie tab to loosen and remove cable tie from around knob post. (See Figure 2)

NOTE: Disengage knob on upright BEFORE attaching base to the upright.

1. Lift up slightly on the inner column of upright and hold firmly toward top of upright. (See Figure 2)
2. Pull out knob on the upright and turn 90° in either direction to disengage the locking mechanism. (See Figure 2)
3. Raise the inner column and turn the knob 90° in either direction to engage the knob and lock the column in place. (See Figure 2)

Figure 2

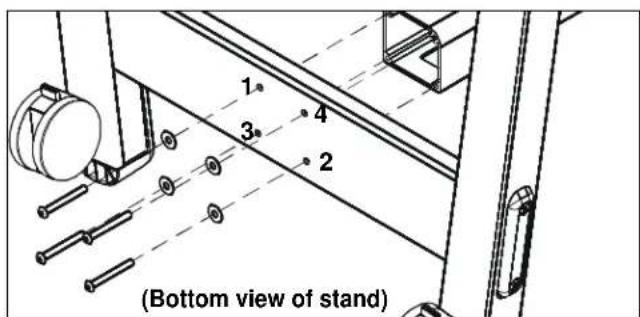

NOTE: Insert and turn screws in order shown (1, 2, 3, 4). (See Figure 3)

Figure 3

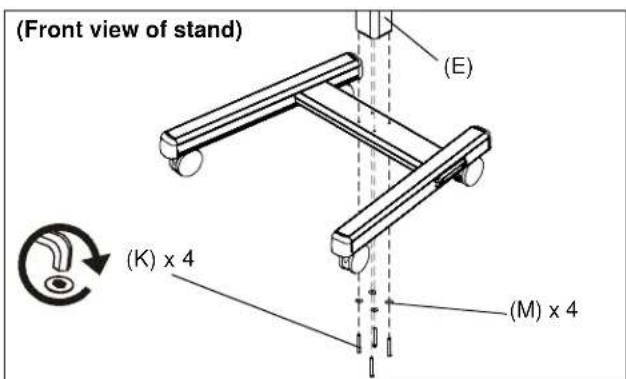

1. Attach upright (E) to leg assembly using four 5/16-18 x 2-3/4" button head cap screws (K) and four 5/16" washers (M). (See Figure 3) and (See Figure 4)

Figure 4

Attaching Accessories to Mobile Stand

WARNING: EXCEEDING MAXIMUM WEIGHT CAPACITY MAY LEAD TO SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! It is the installer's responsibility to ensure the total amount of weight placed on the stand does not exceed 150 lbs (68.04 kg).

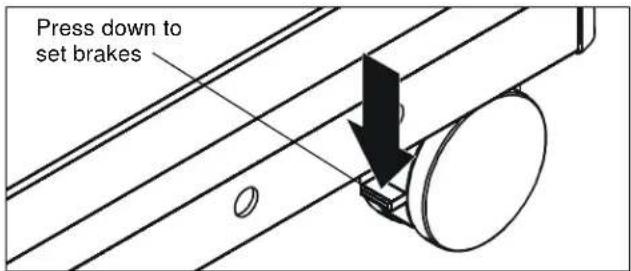

CAUTION: Before attaching accessories to stand set the brakes on the back wheels by pressing down on the tab. (See Figure 5)

1. Attach accessory and component(s) to stand following instructions included with the accessory.

Figure 5

Adjusting Stand Height

CAUTION: ALWAYS remove components attached to accessories BEFORE adjusting the height of stand.

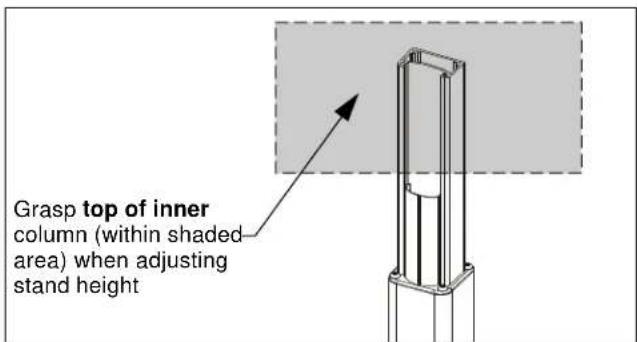

1. Firmly grasp top of inner column. (See Figure 6)

IMPORTANT ! : Firmly grasp at the top of the inner column when adjusting stand height. (See Figure 6)

Figure 6

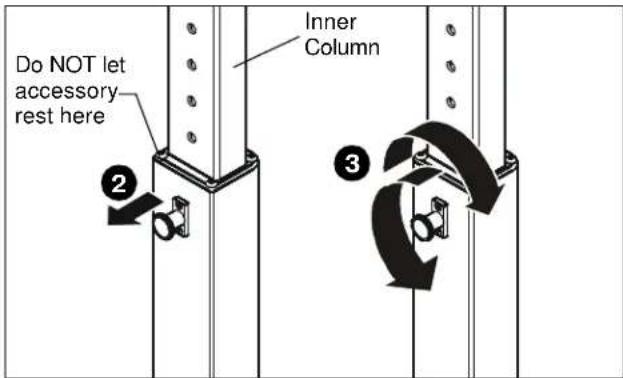

1. Adjust the stand to the desired height by slightly lifting the accessory, pulling out knob on the center post and turning 90° in either direction to disengage the locking mechanism. (See Figure 7)

2. Raise or lower the upright, then turn the knob 90° either direction to engage the knob and lock the stand at desired height. (See Figure 7)

Figure 7

IMPORTANT ! : Set the height of the stand so the accessories do NOT rest on the upper part of the outer column. (See Figure 7) Always set the height so the knob is engaged in a hole in the inner column.

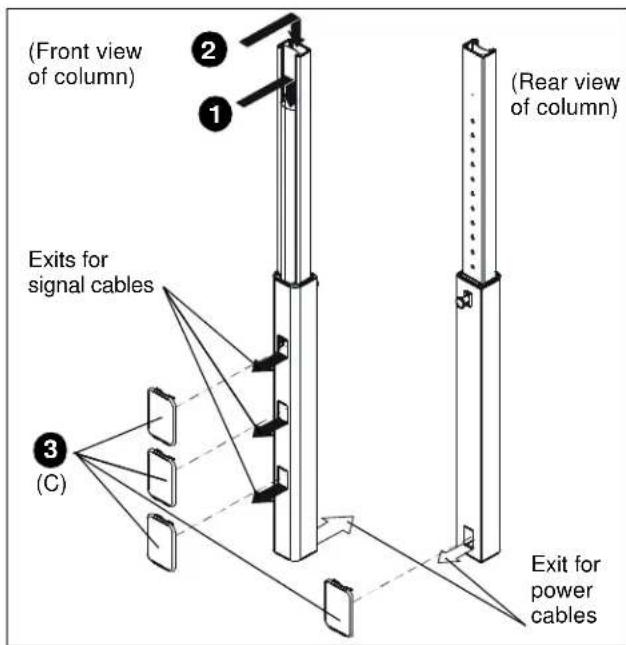

Cable Management

1. Signal cables can be run down the front flap of the upright and out the front of the upright at any of the openings. (See Figure 8)

2. Any accessory power cords can be run through the front and down through the upright to exit out the back. (See Figure 8)

3. Install the snap-on covers (C) to any opening that is not being used. (See Figure 8)

4. To remove the snap-on covers, grip the sides of the cover in the middle and pull off. They can also be removed by inserting a flat-blade screwdriver into the bottom slot and rotating the screwdriver.

Figure 8

Stand Use and Maintenance

CAUTION: This stand is intended for use only with the products and maximum weight indicated (150 lbs [68.04 kg]). Use with other products or products heavier than the maximum weight indicated may result in instability causing possible injury.

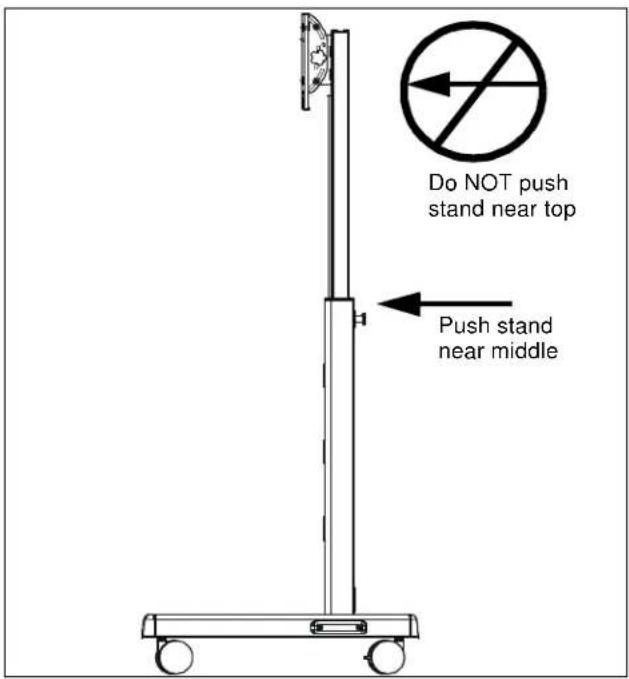

WARNING: STAND CAN TIP OVER RESULTING IN RISK OF INJURY. Move stand slowly. Apply moving force on narrow dimension. Never apply force at top - always push near middle. Push, don't pull.

Figure 9

1. Always place stand on level surface.
2. Always lock the wheels when the stand is not moving.

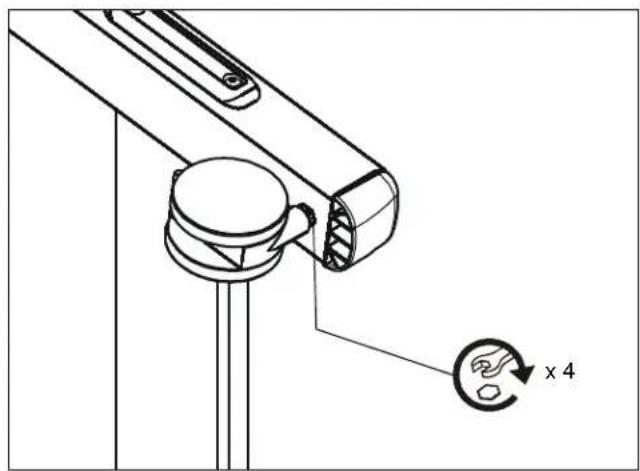

3. Check and tighten the hex nuts on the casters occasionally. (See Figure 10) These should be checked especially after use on uneven ground.

Technical line drawing of a mechanical component with a 4x4 ratio indicator (no text or symbols present)

Figure 10
