RC1820 - Rice Cooker BLACK & DECKER - Free user manual and instructions

Product Type	Rice Cooker
Brand	Black & Decker
Model	RC1820
Capacity	6 cups (uncooked), 12 cups cooked
Power	700 W
Voltage	120 V
Frequency	60 Hz
Inner Pot Material	Non-stick coated aluminum
Functions	Cook, Keep Warm
Cord Length	2.5 ft (0.76 m)
Dimensions (W x D x H)	10.5 x 9.5 x 9 inches
Weight	3.5 lbs (1.6 kg)
Lid Type	Glass with steam vent
Indicator Light	Yes (cooking and warming)
Auto Shut-off	Yes, when cooking cycle completes
Safety Features	Automatic keep warm, cool-touch handle, safety lock lid
Cleaning	Removable non-stick pot dishwasher safe; wipe exterior with damp cloth
Accessories Included	Measuring cup, serving spatula, steam tray
Warranty	1 year limited warranty

Frequently Asked Questions - RC1820 BLACK & DECKER

How much rice can the RC1820 cook at once?

The RC1820 can cook up to 6 cups of uncooked rice, which yields about 12 cups of cooked rice.

Does the RC1820 have a keep warm function?

Yes, it automatically switches to keep warm mode after cooking, keeping your rice at an optimal serving temperature.

What is the inner pot made of?

The inner pot is made of aluminum with a non-stick coating for easy cooking and cleaning.

Can I cook other grains besides rice in this cooker?

Yes, you can cook quinoa, oatmeal, barley, and other grains. Adjust water ratios according to the grain type.

How do I clean the RC1820 rice cooker?

The inner pot, lid, and accessories are dishwasher safe. The exterior can be wiped with a damp cloth. Do not immerse the base in water.

Does the RC1820 automatically shut off?

Yes, it automatically switches from cook to warm once the rice is done, preventing overcooking. It does not have a timer; manual shut-off is required for the keep warm mode.

What is the power consumption?

The RC1820 operates at 700 watts and is designed for standard 120 V outlets.

Is the lid lockable?

The glass lid features a safety lock to ensure secure closure during cooking, preventing steam from escaping.

Can I steam vegetables using this rice cooker?

Yes, it comes with a steam tray that allows you to steam vegetables, fish, or dim sum while cooking rice below.

What is the warranty period?

The Black & Decker RC1820 comes with a 1-year limited warranty against defects in materials and workmanship.

USER MANUAL RC1820 BLACK & DECKER

First Use Safety Recommendation

Please read through this booklet for safe and efficient use of the appliance. We urge you to read the "Hint's" section and also follow all detailed instructions even if you are familiar with using this appliance.

Keep this guide handy for future reference.

English

English

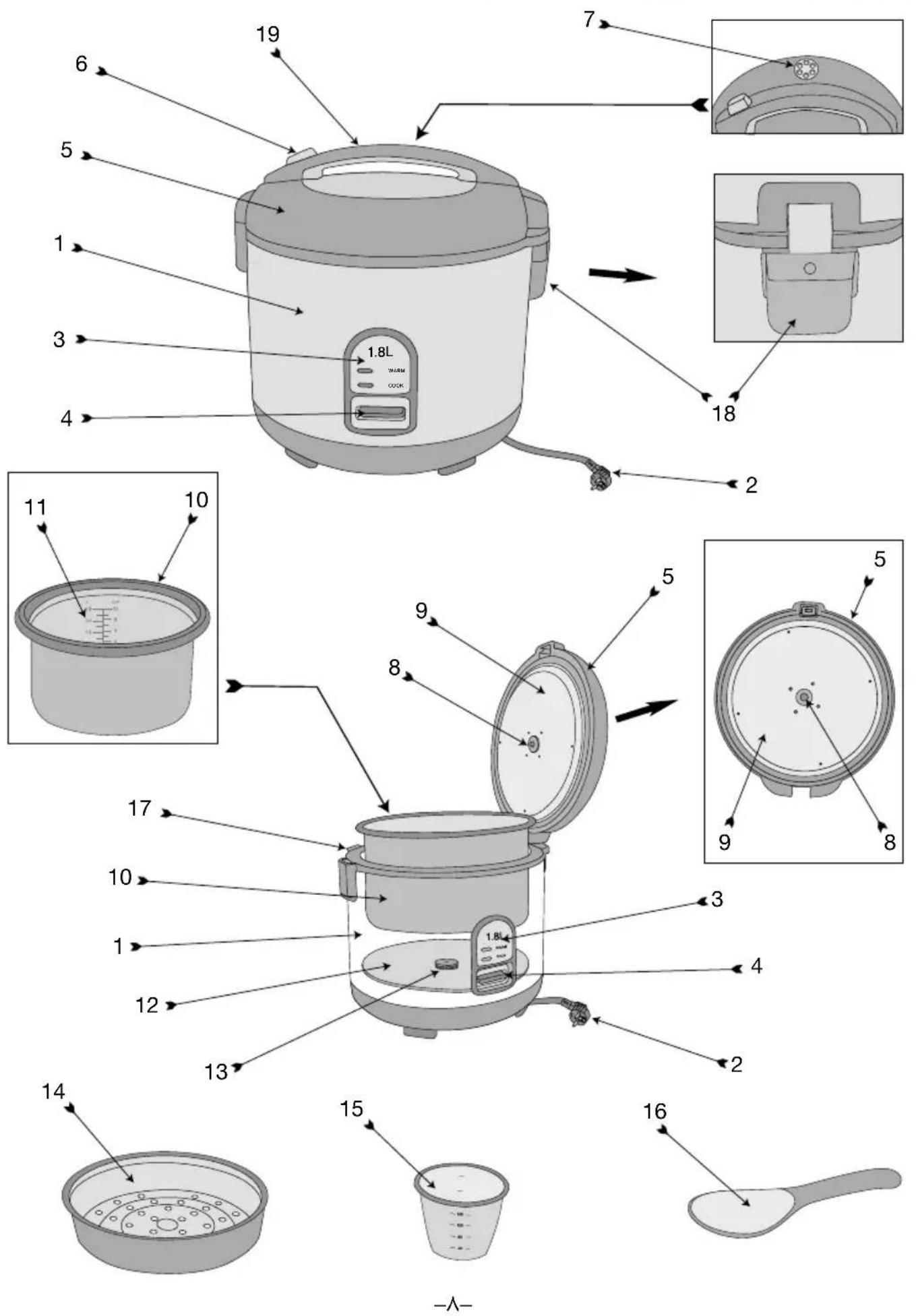

Parts Identification

1 Main body
2 Power cord
3 Control panel
4 Control lever
5 Outer lid
6 Lid release button
7 Steam vent hole
8 Mounting pin
9 Detachable inner lid
10 Cooking bowl
11 Water level indicator
12 Heating plate
13 Magnetic switch
14 Steam tray
15 Measuring cup
16 Rice spoon
17 Spoon holder
18 Condensation trap
19 Handle

Intended use

Your Black and Decker Rice Cooker has been designed for cooking rice as described in this manual. Do not use this appliance for any other purpose. This product is intended for household use only.

Safety instructions

Warning! When using mains-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock, personal injury and material damage.

Read all of this manual carefully before using the appliance.

- The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.

• Retain this manual for future reference.
• Do not touch hot surfaces.
  • Always take care when using the appliance.
• Never pull the power supply cord to disconnect the plug from the socket.
• Keep the power supply cord away from heat, oil and sharp edges.
• Do not allow the power supply cord to hang over the edge of your work top or table.
• Always place the appliance on a level surface with adequate free space on all sides.
• Do not place the appliance below a socket outlet. Do not place the appliance on a wet or slippery surface. Do not place the appliance on or near heat sources or in a heated oven.
• Do not use the appliance near flammable or explosive materials.
• Do not use the appliance outdoors.
  • Always protect the appliance from water or excessive humidity.
• Do not move the appliance when in use.
• Operate the appliance only with dry hands.
• Do not use the appliance if you have bare feet.
• If the power supply cord is damaged during use, disconnect the appliance from the power supply immediately. Do not touch the power supply cord before disconnecting from the power supply.
• Disconnect the appliance from the power supply when not in use, before fitting or removing parts and before cleaning.
• Allow the appliance to cool before cleaning.

English

Safety of others

• Never leave an appliance unattended when in use.
• Do not allow children or any person unfamiliar with these instructions to use the appliance.
• Do not allow children or animals to come near the work area or to touch the appliance or power supply cord.
• Close supervision is necessary when the appliance is used near children.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been give supervision or instruction concerning use of the appliance by a person responsible for their safety
• Children must be supervised to make sure that they do not play with the appliance.

Inspection and repairs

• Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.
• Do not use the appliance if any part is damaged or defective.

• Do not attempt to repair the appliance yourself, instead have any damaged or defective parts repaired or replaced by an authorised repair agent.

• Before use, check the power supply cord for signs of damage, ageing and wear.

• Do not use the appliance if the power supply cord or mains plug is damaged or defective.
• Never attempt to remove or replace any parts other than those specified in this manual.

Electrical safety

This product must be earthed.

Always check that the power

supply corresponds to the voltage on the rating plate.

If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Black & Decker Service Centre in order to avoid a hazard.

To avoid the risk of electric shock, do not immerse the cord, plug or appliance in water or other liquid.

Extension cables & class 1 product

If an extension lead is required a 3 core cable must be used as your appliance is earthed and of class 1 construction.

• Up to 30m (100ft) can be used without loss of power.
• Power plugs must match the outlet. Never modify the plug in anyway. Do not use any adapter plugs with earthed (Class 1) appliances.

Unmodified plugs and matching outlets will reduce the risk of electric shock.

English

Specific safety requirements for Rice Cookers

- Only cook in bowl supplied. - Do not interfere with the automatic action of the control lever (4) by preventing it from switching to the warm mode.

- Steam can escape from the unit when the lid (5) is opened.

- Steam will escape from the steam vent hole (7) during use.

- Exercise caution when handling the rice cooker as the cooking bowl (10) and accessories get hot during use. These may remain hot for some time after use.

- To prevent damaging the non stick coating on the cooking bowl always use the plastic rice spoon (16) or other rubber or wood utensils.

- If water is accidentally spilled in the outer bowl area remove the power cord from the supply and dry. If water has entered the unit allow it to dry thoroughly before using the cooker again.

- Always ensure that the heating plate (12) and the bottom of the cooking bowl are free from spilled particles before cooking.

- Keep the heating plate (12) and the magnetic switch (13) clean and free from any foreign particles. Always keep the unit clean.

- Always carry the rice cooker using the handles (19). Ensure the lid is closed properly.

- Do not switch the unit on without having inserted the cooking bowl

- Do not use the rice cooker for deep frying food and do not let any part of the rice cooker come into contact with hot oil.

• Do not place on or near a hot gas or electric burner or in a heated oven.
• Do not obstruct the steam vent (7) with any article, for example a piece of cloth, during the operation. Place the rice cooker on a level surface.
• The accessible surfaces may become hot during operation and remain hot for a period of time afterwards.
  • Always use the measuring cup that comes with your Rice Cooker. Do not use a standard cup.

Before first use

• Remove all packaging from the appliance,
• Before first use, wash the cooking bowl, inner lid, steaming tray, measuring jug and serving spoon in warm sudsy water, rinse and dry well.

Use - Cooking Rice

Measure the rice using the measuring cup (15) provided. Each cup of uncooked rice normally gives two bowls of uncooked rice. Do not exceed the quantities indicated on the inside of the inner pot. Refer to the chart within this manual for recommended rice and water quantities.

Before cooking, wash the rice thoroughly under cold running water to remove excess starch. Use a colander or fine sieve for this – do not use the cooking bowl as you may scratch the non stick coating.

Open the lid (5) by pressing the lid release button (6).

Add the washed rice to the cooking bowl and add water. The amount of water required is indicated on the scale (11) on the inside of the cooking pot.

Check to ensure the cooking bowl is in good contact with the heating plate and close the lid.

Fit the cord set (2) into the appliance inlet in the rear of the unit and connect the appliance to a suitable power supply.

English

Press the control lever (4) down to start the cooking process.

When the cooking process is finished, the cook light will go out and the keep warm light will come on automatically.

Remove the lid and stir the rice. For the best results, do this just after the keep warm function light comes on. Stirring the rice with the rice spoon (16) allows the steam to escape. This will give fluffier rice.

The rice spoon (16) can be stored on the unit in the spoon holder (17).

During use water droplets will go into the condensation trap (18). This must be emptied after use.

Steaming

The steaming function may only be used in combination with the rice cooking function. Measure out the required amount of rice (as above) and ensure there is enough room for the steamer tray (14) on the top of the cooking bowl.

Add the food to be steamed into the steamer tray. Ensure the food is spread out evenly to ensure even steaming. Do not pile up the food.

Place the steaming tray into the unit and close the unit's lid.

Continue with the rice cooking process (as described above). Once the rice is cooked the food should be steamed. Remove the lid very carefully and remove the steam tray.

Use a kitchen glove or a cloth as the steam tray (14) will be very hot.

Be aware of the hot steam escaping.

Trying to steam too much food will result in the food not been adequately steamed.

After use

• Switch off and remove the plug from the socket before leaving the appliance unattended and before changing, cleaning or inspecting any parts of the appliance.

- When not in use, the appliance should be stored in a dry place. Children should not have access to stored appliances.

Cleaning and maintenance

Warning! Before cleaning and maintenance, switch the appliance off, remove the plug from the socket and allow the appliance to cool.

Warning! Do not immerse the appliance or the cord set or the plug in water or any other liquid.

• Do not wash any part of the unit in a dishwasher.
• Wipe the exterior with a damp cloth.
• Do not use scouring pads.
• If necessary, use a mild detergent to remove spots. Do not use any abrasive or solvent based cleaner.
• The inner lid can be removed by pulling it off the mounting pin (8).
• The cooking bowl, inner lid, measuring cup, rice spoon and condensation trap can be cleaned using warm sudsy water. Ensure all are dry before using.
• Ensure any foreign particles are removed from the heating plate as this will affect the performance of the unit.

Rice / Water Measurement Chart

RAW WATER WITH WATERLINE APPROX. RICE MEASURING CUP INSIDE INNER (WHITE) PROVIDED POT			COOKED RICE YEILD
2 Cups	2-2 1/4 Cups	Line 2	4 Cups
3 Cups	3-3 1/4 Cups	Line 3	6 Cups
4 Cups	4-4 1/4 Cups	Line 4	8 Cups
5 Cups	5-5 1/4 Cups	Line 5	10 Cups
6 Cups	6-6 1/4 Cups	Line 6	12 Cups
7 Cups	7-7 1/4 Cups	Line 7	14 Cups
8 Cups	8-8 1/4 Cups	Line 8	16 Cups
9 Cups	9-9 1/4 Cups	Line 9	18 Cups
10 Cups	10-10 1/4 Cups	Line 10	20 Cups

Technical Data

RC1820
Voltage	V	220-240
Power	W	700
Bowl Capacity L 1.8
Weight	kg	2.675

English

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose it off with other household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Use of recycled materials helps prevent environmental pollution and reduces demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

Black & Decker provides a facility for the collection and recycling of Black & Decker products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. A list of authorised Black & Decker repair agents and full details of our after-sales service and contact are available on the Internet at: www.2helpU.com

BLACK & DECKER HOME APPLIANCE 2 YEAR WARRANTY

Black & Decker provides a 2 Year Warranty for this product from the date of purchase against defects due to defective materials or workmanship. Motor/element burn-outs due to voltage fluctuations are not covered under warranty. If the product should become defective within the warranty period, Black & Decker will repair or (at Black & Decker's discretion) replace it free of charge.

The warranty provisions do not cover failure due to accident, misuse, abuse, negligence or non observation of local regulations on the part of the user. Equally, the warranty provisions do not apply where the appliance has been serviced by a person not authorized by Black & Decker or serviced with non-approved parts and this has contributed to the fault of the product. Superseded models without a replacement equivalent will either be repaired or (at Black & Decker's discretion) replaced with another product of similar retail value.

UPON PURCHASE

Fill in the Warranty Registration Card with the original Authorized Dealer's stamp (indicating date of purchase) and attach your purchase receipt to it. Retain in case of claims in the future.

MAKING A CLAIM

Take your defective product together with the Warranty Registration Card & purchase receipt to your local service Centre. You can either do this in person or send it freight prepaid. If mailing or shipping your appliance, ensure that it is packed carefully in a sturdy carton with enough packing material to prevent damage. Include a note describing the problem to the service Centre and be sure to give your return address.

DESIGNED FOR DOMESTIC PURPOSES ONLY.
