Microsoft® Windows® CE 6.0 is an open, scalable, 32-bit operating system (OS) that allows you to build a wide range of innovative, small footprint devices. A typical Windows® CE-based device is designed for a specific use, and often runs disconnected from other computers, or distributed as a front-end to a centralized host. Examples include enterprise tools, such as industrial controllers, communications hubs, point-of-sale terminals, and display devices, such as HMI, advertisement appliances, and interactive panels.

Moxa pays attention to the requirements of Windows® developers to provide the Windows® CE solution for the Moxa IA261/262 series ready-to-run embedded computer, including IA261-CE, and IA262-CE. The Moxa professional kernel development experience on embedded small footprint communication devices provides the intense technological skills required while porting the Windows® CE 6.0 kernel.

The following topics are covered in this chapter:

Overview
☐ Model Descriptions and Package Checklist
□ Product Features
☐ Product Hardware Specifications
☐ Product Software Specifications

▶ Applications Development Environment
▶ Networking and Communications Capabilities
Supporting Servers and Daemons

□ Learning Firmware Build Versions
□ Memory and File Systems
☐ Hive-Based Registry-Contrast to RAM-Based Registry
☐ Inserting a CompactFlash Card
☐ Inserting a USB Mass Storage
☐ RS-232/422/485 Serial Ports
□ CAN Ports (IA262 Only)

Overview

The IA261/IA262 embedded computers, which are ideal for industrial automation applications, feature 4 RS-232/422/485 serial ports (2 for IA262), dual CAN ports (IA262 only), dual Ethernet ports, 8 digital input channels, 8 digital output channels, VGA output, 2 USB hosts and a CompactFlash socket in a compact, industrial-strength aluminum rugged casing. The DIN-Rail vertical form factor makes the IA261/262 a cost effective solution for installation in small cabinets. This space-saving solution also facilitates easy wiring, and is the best choice of front-end embedded controller for industrial applications.

Due to its VGA output capability, IA261/262 is not only play the role of protocol conversion or data acquisition for the field site devices, it is also suitable for SCADA system in industrial applications such as manufacturing automation, production line process monitoring, mining automation etc to be the operator interface terminal at the field site with VGA monitor and proper HMI software.

The diversified peripherals including RS-232/422/485, CANbus, digital input and digital output are all designed for industrial environment purpose. To embed the 2KV isolation protection in these interfaced will make IA261/262 the most reliable solution in industrial harsh environment. As the dual LAN ports are built, the IA261/262 is an ideal communication platform for Network Redundant applications.

In addition to the standard model, the IA261/IA262 also comes in wide temperature models. The IA261-T and IA262-T have an operating temperature range of -40 to 75°C, and are appropriate for harsh industrial automation environments. The industrial mechanism of the IA261/IA262 design provides robust, reliable computing. Due to the RISC-based architecture, the IA261/IA262 will not generate too much heat while being used. The high communication performance and fanless design make the IA261/IA262 ideal for industrial automation environments.

The IA261/262 embedded computers use a Cirrus Logic EP9315 ARM9, 32-bit, 200 MHz RISC CPU. Unlike the X86 CPU, which uses a CISC design, the RISC design architecture and modern semiconductor technology provide the IA261/262 with a powerful computing engine and communication functions, but without generating a lot of heat. The built-in 32 MB NOR Flash ROM and 128 MB SDRAM give you enough memory to run your application software directly on the IA261/262.

IA261/262 comes with the pre-installed Windows CE 6.0, which supports general Windows and .NET 2.0 environment. It means the program developed by the standard programming tool like Embedded Visual C++ or Visual Studio 2005 in the Windows PC environment can be operated without too much porting effort.

Model Descriptions and Package Checklist

The IA261/262 Series includes the following models:

IA261-I-CE

RISC-based Embedded Computer with VGA, 4 Serial Ports, Dual LANs, DIO, CompactFlash, USB, WinCE 6.0, isolation protection for all IO.

IA261-I-T-CE

RISC-based Embedded Computer with VGA, 4 Serial Ports, Dual LANs, DIO, CompactFlash, USB, WinCE 6.0, Wide Temperature, isolation protection for all IO.

IA262-I-CE

RISC-based Embedded Computer with VGA, 2 Serial Ports, Dual LANs, CAN, DIO, CompactFlash, USB, WinCE 6.0, isolation protection for all IO.

IA262-I-T-CE

RISC-based Embedded Computer with VGA, 2 Serial Ports, Dual LANs, CAN, DIO, CompactFlash, USB, WinCE 6.0, Wide Temperature, isolation protection for all IO.

All models of the IA261/262 series are shipped with the following items:

• 1 IA261/262 Embedded Computer
- Wall-Mounting Kit
- DIN-Rail Mounting Kit (attach to the product's casing)
- Quick Installation Guide
- Document & Software CD
- Ethernet Cable: RJ45 to RJ45 cross-over cable, 100 cm
• CBL-4PINDB9F-100: 4-pin header to DB9 female console port cable, 100 cm
• Universal Power Adapter
• Product Warranty Statement

NOTE: Notify your sales representative if any of the above items are missing or damaged.

Product Features

• Cirrus Logic EP9315 ARM9 CPU, 200 MHz
• 128 MB RAM on-board, 32 MB Flash Disk
• VGA interface for field site monitoring
• 2KV optically isolated RS-232/422/485 serial ports
- Dual 10/100 Mbps Ethernet for network redundancy
- Dual 2KV optically isolated CAN ports with CANopen protocol support
- 8+8 DI/DO with 3KV optical isolation protection
• 12 to 48VDC redundant power input design
• Support CF socket and USB 2.0 Host
• Ready-to-Run WinCE 6.0 platform
- 40 75^ C wide temperature model is available

Product Hardware Specifications

System
CPU:	Cirrus Logic EP9315 ARM9 CPU, 200 MHz
DRAM:	128 MB onboard
Flash:	32 MB Flash onboard
Storage Expansion:	CompactFlash socket x 1 for storage expansion
USB:	USB Host x 2 compliant to USB 2.0 (OHCI), Type A connector
Console/Debugging Port:	RS-232 x 1 (TxD, RxD, GND), 4-pin header output
Others:	RTC, buzzer, Watchdog Timer, Reset button
OS:	built-in WinCE 6.0
Display
Graphics Controller:	EP9315 internal graphics accelerator engine with TTL graphical signal support
Display memory:	Dynamic video memory, share system memory
Graphics Resolution:	1024 x 768 (8-bit), 800 x 600 (16-bit), 640 x 480 (24-bit)
Display Interface:	CRT interface for VGA output, DB15 female connector
Network Communication
LAN:	Auto-sensing 10/100Mbps x 2, RJ45
Protection:	built-in 1.5KV magnetic isolation protection
Serial Communication
Serial Port:	IA261: RS-232/422/485 x 4, software-selectableIA262: RS-232/422/485 x 2, software-selectableRS-232 signals: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GNDRS-422 signals: TxD+, TxD-, RxD+, RxD-, GND4-wire RS-485 signals: TxD+, TxD-, RxD+, RxD-, GND2-wire RS-485 signals: Data+, Data-, GND
Protection:	built-in 15KV ESD protection for all signals, 2KV optical isolation protection
Data bits:	5, 6, 7, 8
Stop bits:	1, 1.5, 2
Parity:	None, Even, Odd, Space, Mark
Flow Control:	RTS/CTS, XON/XOFF, RS-485 ADDCTM
Speed:	50 bps to 921.6 Kbps, supporting non-standard baudrates
Connector Type:	D-Sub male 9-pin connector
CAN Communication (IA262 only)
Interface:	Optically isolated CAN2.0A/2.0B Compliant ports x 2
CAN Controller:	Phillips SJA1000T
Signal:	CAN-H, CAN-L
Protocol:	Support CANopen library
Protection:	2KV optical isolation protection
Speed:	10Kbps to 1Mbps
Connector Type:	D-Sub male 9-pin connector
Digital Input
Input Channels:	8, source type
Digital input levels:	Dry contact:Logic level 0: Close to GNDLogic level 1: OpenWet contact:Logic level 0: +3V maxLogic level 1: +10V ~+30V (COM to DI)
Protection:	3KV optical isolation protection
Connector Type:	10-Pin Screw Terminal Block (8 points / COM / GND)
Digital Output
Output Channels:	8, sink type
On-state Voltage:	24 VDC nominal, open collector to 30 V
Output Current Rating:	Max. 200 mA per channel
Protection:	3KV optical isolation protection
Connector Type:	9-Pin Screw Terminal Block
LEDs
System:	Power x 1, Ready x 1, Storage x 1
LAN:	10M/Link x 2 (on connector), 100M/Link x 2 (on connector)
Serial:	TxD x 4, RxD x 4IA261: P1 ~ P4 for serial portsIA262: P1 ~ P2 for serial ports, P3 ~ P4 for CAN ports
Power Requirements
Power Input:	Dual power input designPWR1: 12 to 48 VDC, power jack with threadPWR2: 12 to 48 VDC, 3-pin terminal block
Power Consumption:	783 mA @ 12 VDC without loading USB ports,1.2A @ 12 VDC with loading 2 USB ports
Mechanical
Outlook Shape:	Industrial vertical form factor
Dimensions (WxDxH):	60 x 115 x 152 mm (without din-rail kit or wall mount kit)
Gross Weight:	965 g
Construction Material:	Aluminum
Mounting:	DIN-rail, wall mounting
Environmental
Operating Temperature:	-10 to 60°C (14 to 140°F)-40 to 75°C (-40 to 167°F) is optional for -T models
Storage Temperature:	-20 to 80°C (-4 to 176°F), 5 to 95% RH-40 to 85°C (-40 to 185°F) is optional for -T models
Regulatory Approvals
EMC:	FCC, CE (Class A)
Safety:	UL, cUL, LVD
Others:	RoHS, WEEE
Warranty:	5 years

Product Software Specifications

IA261/262 WinCE ready-to-run embedded computers are network centric / head-less computers that are designed to be programmable for embedded communication applications. The following are the software features of IA26X-CE:

Applications Development Environment

To make IA26X-CE an easy-to-use programming environment, its Windows® CE environment provides the following common, popular application development features that make programming convenient and easy as in a PC environment.

• C Libraries and Run-times - Compared to the C libraries and run-times used on a desktop PC running Windows®, the C libraries and run-times on a IA26X-CE is a subset of the WIN32 APIs. It supports full ANSI C run time, standard input/output library, standard input/output ASCII library and standard ASCII string functions. In addition, it supports compiler C++ exception handling equivalent and Run-Time Type Information (RTTI) equivalent to the desktop C++ compilers.
• Component Services (COM and DCOM) - The Common Object Model (COM) is an operating system-independent, object-oriented system for creating binary software components that can interact with other COM-based components in the same process space, in other processes, or on remote machines.
• Microsoft® Foundation Classes (MFC) - MFC is a comprehensive class library and complete object-oriented application framework designed to help build applications, COM components, and controls.
• SOAP Toolkit - SOAP is an XML-based protocol for object exchange and remote procedure calls. Microsoft® Windows® CE 6.0 provides functionality similar to the SOAP Toolkit version 2 on the desktop. It provides a layer that allows COM objects to use SOAP as the transport protocol for remote procedure calls and to interact with Web services.
• Microsoft® .NET Compact Framework 2.0 with service pack 2 - It offers a choice of languages, initially Microsoft® Visual Basic® and Microsoft® Visual C#, and eliminates the common problems faced with language interoperability.
• XML- Provides the Document Object Model (DOM) for base XML functionality, support for XML Query Language (XQL) and XPATH, Extensible Style Sheet Language Transformations (XSLT) that enables you to transform one class of XML document to another, SAX2 support for event-based parsing of XML documents and includes MSXML Writer, and parsing based on Simple API for XML (SAX) for resource-constrained target devices.
• Winsock 2.2 - Provides enhanced capabilities over Winsock 1.1, including installable service providers for additional third-party protocols, as well as Media sense.

Networking and Communications Capabilities

For network centric embedded application usage, IA26X-CE, not only provides powerful communication hardware interfaces including dual Ethernet and 3-in-I serial ports, but also supports the networking and communications capabilities that are built-in to Windows® CE 6.0 OS. The features that are well supported are listed as below.

• Simple Network Management Protocol (SNMP) - Monitors remote connections to the network.
• Simple Network Time Protocol (SNTP) Client - Provides support for synchronizing the device's system time with a SNTP server, and supports Daylight Saving Time.

• Serial Communications - In addition to the 16550 UART driver bound to a debug port and the console port, it includes a special driver for 8 additional Moxa home-made serial ports.

• Network Utilities (IpConfig, Ping, Route) - Utilities for troubleshooting various network problems.

• TCP/IP - Includes IP, Address Resolution (ARP), Internet Control Message (ICMP), Internet Group Membership (IGMP), Transmission Control (TCP), User Datagram (UDP), name resolution and registration, and DHCP.

Supporting Servers and Daemons

In addition to the development and communication capability, IA26X-CE embeds the services and daemons as stated next. These common and easy-to-use application servers help users to migrate the IA26X-CE embedded computer to the industrial communication application very easily and conveniently.

• Telnet Server - A sample server that allows remote administration through a standard telnet client.
• FTP Server - A sample server used for transferring files to and from remote computer systems over a network using TCP/IP.
• File Server - The File Server functionality in Microsoft® Windows® CE enables clients to access files and other resources over the network.
• Web Server (HTTPD) - Includes ASP, ISAPI Secure Socket Layer support, SSL 2, SSL 3, and Transport Layer Security (TLS/SSL 3.1) public key-based protocols, and Web Administration ISAPI Extensions.
• Dial-up Networking - Consists of RAS client API and the Point to Point Protocol (PPP). RAS and PPP support Extensible Authentication Protocol (EAP) and RAS scripting.
• Watchdog Service – It's a CPU Hardware function for reset CPU in a user specified time interval. You must call the Moxa library function to trigger it.

Learning Firmware Build Versions

There are two ways to obtain the firmware version of the IA26X-CE computer. This information is particularly important for the purpose of feature identification.

• Examine the welcome message after you logon the computer.
• Logon the Web-based management system (described in a later chapter) to view the system information.

Memory and File Systems

From the 128M bytes of SDRAM space, the main memory has a capacity of about 112M bytes in which the operating system and user applications run. The kernel image occupies the rest of the space.

The internal file system in the IA26X-CE computer controls access to ROM and also provides file storage in the object store, which is in the RAM. The ROM file system provides persistent storage for applications and their related data even when the main power supply is lost. It integrates the read-only files that are stored in Flash ROM with the read/write files of both an application and a user. In the IA26X-CE computer, a child directory named “NORFlash” under the root indicates the ROM storage of the flash memory of size 12M bytes.

The root directory is a RAM file system of size 12M bytes. It can be used for storing temporary files for your applications. However, do not place persistent files or applications in the root directory because they will be wiped out when the system is shutdown. Instead, place them under the directory “NORFlash”.

The additional file systems on USB and CompactFlash storage devices are placed at the root of the internal file system. If you intend to use these devices to port data between your PC and the IA26X-CE computer, please format them as the FAT file system on your PC.

Hive-Based Registry-Contrast to RAM-Based Registry

The registry for the IA26X-CE is a hive-based registry in contrast to a RAM-based registry. The hive-based registry stores registry data inside files, or hives, which can be kept on any file system. This removes the need for performing backup and restore on power off.

Inserting a CompactFlash Card

The IA26X-CE is equipped with a CompactFlash slot of type II which supports cards of both types - I and II. A mass storage card is considered to be a standard attachment to the computer. Thus, when an empty mass storage card is inserted into the slot, the computer automatically formats it to the FAT system. This process takes a few minutes to complete. The IA26X-CE, when a mass storage card is inserted, creates a directory named "HardDisk" under the root directory and the newly created directory serves a link to the storage. The IA26X-CE does not support PNP (plug and play) and hot swap for CompactFlash storage. User must to switch off the power and then insert Compact Flash storage to slot. And then switch on the power again the IA26X-CE will detect the CompactFlash storage. If user wants to pull out the Compact Flash storage please remove the power source first.

There are some CompactFlash storage disks are not compatible with IA26X-CE. You could try the other CompactFlash storage or disable ultra DMA using the “System Manager” to change this setting.

The following table describes the compatible CompactFlash storages list that we had tested successfully.

Vendor Device Name Size
ScanDisk	Ultra II	1GB
Transcend Compact Flash 80X 512MB
Apacer	Photo	CIENO
Unigen Compact Flash card 128MB

Inserting a USB Mass Storage

When an empty USB storage device is plugged into the USB slot at the back of the IA26X-CE, the computer automatically formats it to the FAT system.

When the first USB mass storage device is plugged in, a directory named "USBDisk" under the root directory is created as a link to the storage, on the internal file system. The directory created for the second plugged in USB device is "USBDisk2".

RS-232/422/485 Serial Ports

The IA261-CE computer comes with 4 high performance serial ports, named "COM1:", "COM2:", "COM3:" and "COM4".

And the IA262-CE computers has 2 high performance serial ports only named “COM1:” and “COM2:” all of them are designed to provide reliability, high-speed and 3-in-1 (i.e., RS-232, RS-422, and RS-485) operation mode switch for your diverse applications. Each of these ports supports baud rate settings up to 921600 bps.

CAN Ports (IA262 Only)

The IA262-CE computer embedded two CAN ports.

The CAN (Controller Area Network) is a serial communication protocol, which efficiently supports distributed real-time control with a very high level of security. It is especially suited for networking “intelligent” devices as well as sensors and actuators within a system or sub-system. In CAN networks, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted. As a stand-alone CAN controller, IA262-CE represents an economic solution within two independent CAN bus communication ports with a 9-pin D-sub connector. It can be used as master/slave function to cover a wide range of CAN applications.

In this chapter, we explain how to operate an IA26X-CE computer via a PC near you. For clarity, this PC is called a development workstation and the IA26X-CE computer is called a target computer.

In addition, manual steps are described to facilitate operations such as system time adjustment, troubleshooting network connectivity, etc. Some of these operations can be done via system commands after gaining access to the computer and others can be done by a Web-based management system, which is described in a later chapter.

The following topics are covered in this chapter:

□ Powering on IA261/262
☐ Resetting Your IA26X-CE Computer
□ Boot Loader
☐ Operating IA26X-CE Computer Via Serial Console
☐ Changing the Network Settings
➢ Use Windows CE Network Control Panel utility
☐ Operating Your IA26X-CE Computer via Telnet Client
□ User/Group Management
□ Adjusting Time Zone
□ Adjusting System Time
☐ Starting and Stopping Services
□ Troubleshooting Network Connectivity
☐ Simple Network Management Protocol (SNMP)
SNMP Manager
□ CANbus Service

Powering on IA261/262

Connect the power source located at the top side of the unit to boot up the system. It takes about 5 seconds for the system to boot up and you can hear a clear “BEEP” voice. Once the system is ready, the “Ready” LED will light up and stay on till you shutdown the computer.

Resetting Your IA26X-CE Computer

Warm-Start: In power-on state, push the “Reset” and release it in 1 second. The computer reboots itself.

Cold-Start: Switch off and then switch on the power again. The computer reboots itself right away.

Reset to Factory Defaults (Configuration only): If the computer is not working properly, and you want to reset it back to factory default settings, press and hold the "Reset" button for 5 seconds in the OS start up state. The buzzer sounds while the factory default settings are loaded. After the factory default has been loaded, the computer reboots itself. Do not confuse this with the "Warm-Start".

Reset to Factory Defaults (Configuration and file system): If the computer cannot be started up. You must go to the Boot Loader and format the storage flash. After the formatting procedure done, you should restart it.

Boot Loader

For the OS stability issue, we provide an easy and useful function for you. There are three important functions in it.

1. Reset to default: you can enforce the WinCE 6.0 to do the "reset to factory" default.

2. Format storage flash: Cause the CE 6.0 file system is the FAT, and we know FAT could be damaged by unstable power or improper application execution. If the FAT table is crashed you should not start the OS up. But we can format the file system and reboot IA26X-CE.

At the IA26X-CE startup, it will check the file system and re-partition it if the file system is empty.

1. Firmware upgrade: If you found a new firmware from Moxa web site, you can upgrade the firmware by the function. (Details in the appendix A)

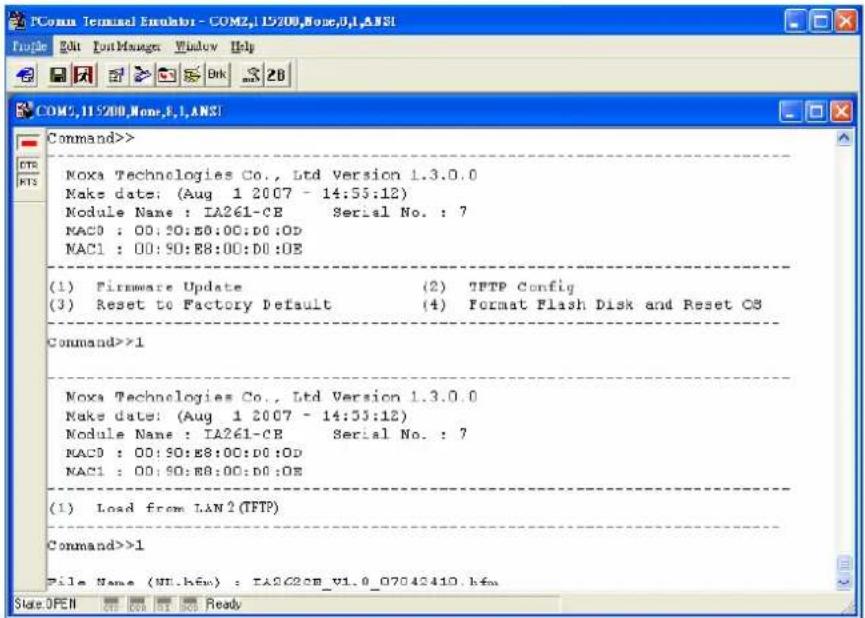

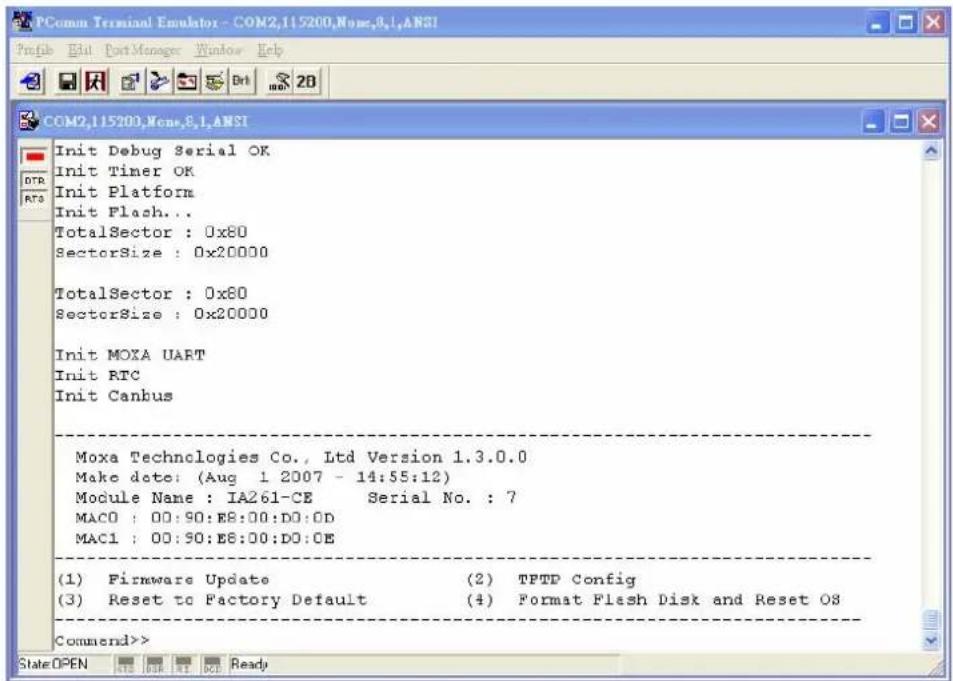

Go to the boot loader menu from serial console:

Step1: Power off IA26X-CE device.

Step2: Make sure the serial console wire is connect to your PC correctly.

Step3: Create a new terminal communication from [Start] → [Programs] → [Accessories] → [Communication] → [Terminal] with the setting Baudrate 115200, no hardware flow control, 8 N 1, character set VT100.

Step4: Active this terminal window on your PC.

Step5: Hold "DEL" key continuously.

Step6: Power on the IA26X-CE device.

Operating IA26X-CE Computer Via Serial Console

The serial console port gives users a convenient way of connecting the development workstation to the console utility of the target computer. This method is particularly useful when using the computer for the first time.

After you have wired a serial cable, go back to the development workstation and start a terminal program (e.g., HyperTerminal) by using the settings shown below for the serial console port.

Baud rate	115200bps
Parity	None
Data bits	8
Stop bits	1
Flow Control	None
Terminal	VT100

After a successful connection, type the login name and password as requested to logon the computer. The default values are both “admin”.

Login: admin

Password: admin

Changing the Network Settings

The IA26X-CE computer comes with two network interfaces. The default IP addresses and netmasks of the network interfaces are as follows:

Default IP Address Netmask
LAN 1	192.168.3.127	255.255.255.0
LAN 2	192.168.4.127	255.255.255.0

Refer to the following to change your network setting.

Use Windows CE Network Control Panel utility

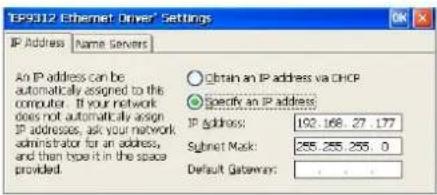

1. Move you mouse go to the [Start] → [Settings] → [Network and Dial-Up Connections].

1. Right-Click the LAN icon and click the [property].

1. Click "OK" button after configuration is done.

Operating Your IA26X-CE Computer via Telnet Client

Before operating your IA26X-CE computer using the Telnet client, we suggest that you change the network settings of the computer (see the earlier section) to have at least one of the two network ports situated in the same LAN as your development workstation.

Use a cross-over Ethernet cable to directly connect your development workstation to the target computer, or a straight-through Ethernet cable to connect the computer to a LAN hub or switch. Next, use a telnet client in your development workstation to connect to the telnet console utility of the target computer. Upon a successful connection, type the login name and password as requested to logon to the computer.

After logging in via the console port or a telnet client, you have a list of busybox commands available to operate the computer. Use HELP to display all the commands, or type HELP [command name] to display extended help for the selected command. Some of these commands such as DATE and TIME are very useful to you to easily manage the system time of the computer. Others commands such as DIR and MKDIR are good utilities for file management. For example, to inspect the file structure of the root directory, type DIR

\> dir /b
NORFlash
My Documents
Program Files
Temp
Windows

User/Group Management

User Group: You should assign specific services, such as ftp and telnet, to defined user groups such that these services are accessible only by the users within the permissible user group. Three user groups, namely “ftpd”, “telnetd”, and “httpd”, are already created by default for your convenience.

Adding a Group: Use the command useradd -g to create a user group.

> useradd -g yyyy

group yyyy has been added.

Deleting a Group: To remove a group, use the command userdel -g .

> userdel -g yyyy

group yyyy has been removed.

Adding a User: Use the command useradd to add a user for accessing the system. The user's password, by default, is the same as the user name.

> useradd xxxx

user xxxx has been added.

In addition, you can permit this user to access a particular service by typing -g followed by the user group name of the service, i.e., useradd -g . For example,

> useradd -g telnetd xxxx

user xxxx is existent

group telnetd is existent

user xxxx has been added to group yyyy

Deleting a User: Use the command userdel to delete a user from the system. User "admin" CANNOT be deleted.

> userdel xxxx

user xxxx has been deleted

You can also just remove a user from a user group by using the command userdel -g

. For example,

> userdel -g yyyy xxxx

user xxxx has been removed from group yyyy

Changing the Password: Please use "System Manager" to change the Password.

Adjusting Time Zone

Windows CE 6.0 supports Time Zone. You can use [Control Panel]→[Date/Time] to adjunct your current Time Zone. It also supports Daylight Date and Daylight Time.

Adjusting System Time

Setting the System Time Manually: Use the date, and time commands to query the current system date/time or to set a new system date/time.

\> date
The current date is: Tuesday, November 22, 2005
Enter the new date (mm-dd-[yy]yy): 12-23-05
\> date /T
Wednesday, November 23, 2005
\> time
The current time is: 5:27:17 PM
Enter the new time (hh:mm:ss): 16:02:00
\> time /T
4:02:04 PM

The Date/Time setting would be saved into IA26X-CE RTC. So even the system reboots the date and time will be still the right time.

Starting and Stopping Services

After booting up, the IA26X-CE computer runs several services continuously to serve requests from users or other programs. Notable services include telnet ("TEL0:"), console ("CON0:"), world wide web HTTP ("HTP0:"), file transfer FTP ("FTP0:") etc. You seldom need to care about these services. However, you still can start up or stop a service with its associated name by using the command "services". For example,

Start the FTP service by

\> services start FTP0:

Stop the FTP service by

\> services stop FTP0:

The default services in IA26X-CE are listed as below:

TEL0: Telnet Service

FTP0: FTP Service

CON0: Console Service

Troubleshooting Network Connectivity

The ipconfig tool prints the TCP/IP-related configuration data of a host including the IP addresses, gateway and DNS servers.

\> ipconfig /all
Windows IP configuration
Ethernet adapter Local Area Connection:
IP Address: 192.168.4.127
Subnet Mask: 255.255.255.0
Adapter Name: IXP425ETHNPE2
Description: IXP425ETHNPE2
Adapter Index: 2
Address: 80 86 33 33 34 12
DHCP Enabled: NO
Ethernet adapter Local Area Connection:
IP Address: 192.168.14.202
Subnet Mask: 255.255.248.0
Default Gateway: 192.168.15.254
Adapter Name: IXP425ETHNPE1
Description: IXP425ETHNPE1
Adapter Index: 3
Address: 78 56 34 91 cc dd
DHCP Enabled: NO
Host name: IA261
Domain Name:
DNS Servers: 192.168.1.6
NODETYPE: 8
Routing Enabled: NO
Proxy Enabled: NO

To troubleshoot network connectivity, reachability, and name resolution, use the ping command. This command verifies IP-level connectivity to another TCP/IP computer by sending Internet Control Message Protocol (ICMP) Echo Request messages. The corresponding return Echo Reply messages are displayed, along with round-trip times. For more information, type ping without parameters.

\> ping www.moxa.com
Pinging Host www.moxa.com [192.168.1.16]
Reply from 192.168.1.16: Echo size=32 time<1ms TTL=126
Reply from 192.168.1.16: Echo size=32 time<1ms TTL=126
Reply from 192.168.1.16: Echo size=32 time<1ms TTL=126

The route utility allows you to view or modify network routing tables. Type this command without parameters to view a list of functions.

\> route
To view current routing items in the tables,
\> route PRINT

To add a routing item on network interface 1,
\> route ADD 192.168.0.0 MASK 255.255.0.0 192.168.15.254 IF 2

To delete a routing item,

> route DELETE 192.168.0.0

Simple Network Management Protocol (SNMP)

SNMP is the Internet Standard protocol for network management and part of the TCP/IP protocol suite. SNMP was developed to monitor and manage networks. It uses a distributed architecture that consists of agents and managers:

SNMP agent

The SNMP agent is an SNMP application that monitors network traffic and responds to queries from SNMP manager applications. The agent also notifies the manager, by sending a trap, when significant events occur.

SNMP Manager

An SNMP manager is an SNMP application that generates queries to SNMP-agent applications and receives traps from SNMP-agent applications.

The IA26X-CE computer installs an SNMP agent to serve as an SNMP device. You should install the SNMP manager on the workstation computer (for example, a Linux system) that monitors the network. After installing the nodes, you need to configure the SNMP manager and agent.

To check SNMP agent capabilities in a target IA26X-CE (e.g., network IP at 192.168.3.127) computer, please log on the workstation computer that, for example, a Linux-based computer, the SNMP manager resides and type

\> snmpwalk -v 2c -c public 192.168.3.127 system
SNMPv2-MIB::sysDescr.0 Microsoft Windows CE Version 6.0 (Build 1400)
SNMPv2-MIB::sysObjectID.0 SNMPv2-SMI::enterprises.8691.13.7420
SNMPv2-MIB::sysUpTime.0 1282929
SNMPv2-MIB::sysContact.0 Your System Contact Here
SNMPv2-MIB::sysName.0 WindowsCE

You will see a series of messages from the SNMP agent in the IA26X-CE computer. From there, you can monitor and manage the computer.

CANbus Service

In IA262-CE we provide some applications to configure CAN Port baud rate and using simple API to send/receive message thought CANbus service.

Set Baud rate:

canapp <port> <-b> <baud rate >
\> canapp 1 -b 1000K

Set baudrate!

Set BAUDRATE Done!

Get Baud rate:

canapp <port> <-gb>
\> canapp 1 -gb
get baudrate!

current baud rate:1000K

Send message:

canapp <-tx >

> canapp 1 -tx 0 123456 88888888

Write msg from port:1

len:8

identifier:123456

Data:38 38 38 38 38 38 38

Send Msg Success!

Receive message:

canapp <-rx >

> canapp 2 -rx

Read msg from port:2

ReceiveData: 38 38 38 38 38 38 38

Set acceptance code:

canapp <-ac >

> canapp 2 -ac 0 4294967295

Set acceptance code!

code=0x0

mask=0xffffffff

IOCTL_CAN_WRITE_ACCEPTANCE_FILTER Done!

The 1A26X-CE series ready-to-run embedded computers are network-centric platforms and are designed to serve as excellent front-ends for data acquisition and industrial control. Due to the distributed characteristics of the devices, that these computers control, they often reside in harsh areas as the devices themselves and are away from system administrators. To manage these computers, operations such as networking/server configuration, file management, and process (thread) monitoring/control become a critical area to consider.

To resolve these management issues and accordingly reduce the toil of system administration, a management system is installed into the IA26X-CE computer.

Before operating the system, please make sure you have a CRT or LCD monitor connection to your IA26X-CE embedded computer. Then, double-click the desktop icon [System Manager].

The following topics are covered in this chapter:

□ System Information
Serial Port Configuration
☐ Process (Thread) Monitoring/Control
□ Services Monitoring/Control
□ Display
□ User/Group Management
□ Auto Launch Configuration
□ Web Server Configuration

System Information

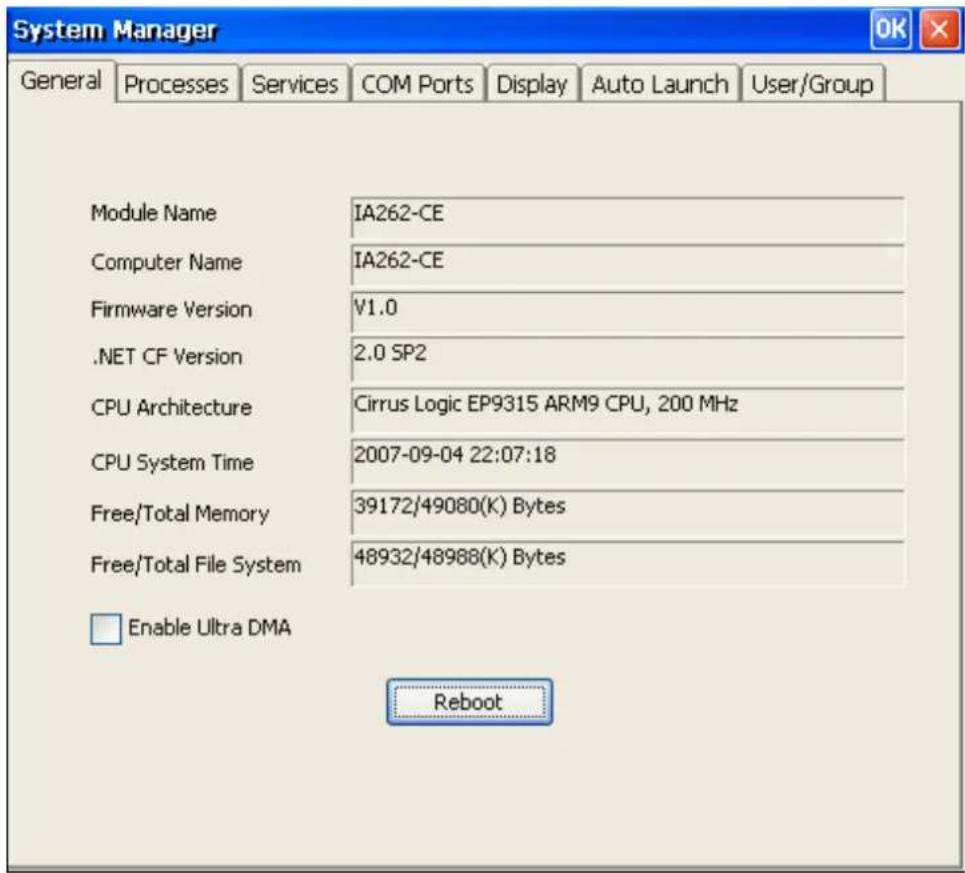

The first page displays the system information of the IA26X-CE computer, including the firmware version of the computer, .Net CF version, the system time, and system resources including main memory and file system usage.

In this page user can click on the "Enable Ultra DMA" check box to enable or disable Ultra DMA for CF card. If system can not detect some CF cards please disable this setting. If user changes this setting please reboot system again to make sure the setting take effect.

Serial Port Configuration

The IA261-CE contains 4 and IA262-CE contains 2 high-performance serial ports. When the system starts up you can specify the default operation mode (RS-232, 422 or 485). The factory default mode would be RS-232.

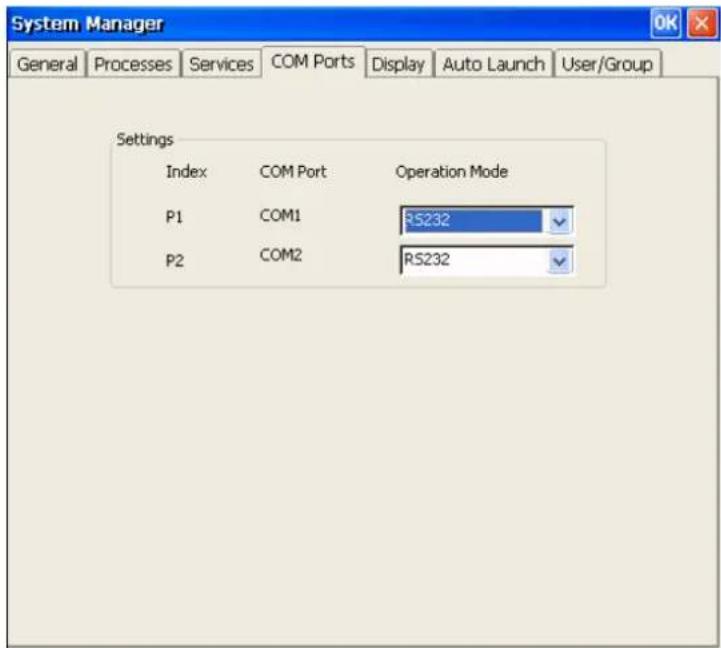

Following figure indicates condition of IA261-CE.

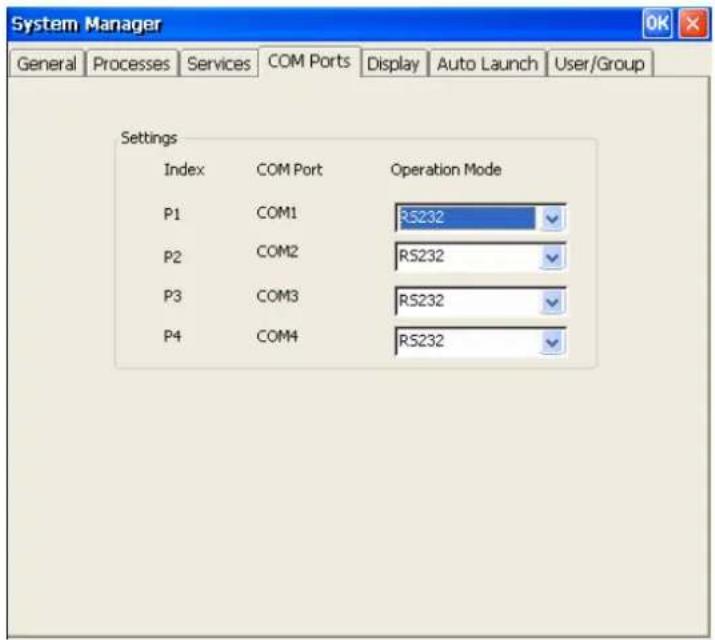

Following figure indicates condition of IA262-CE.

Process (Thread) Monitoring/Control

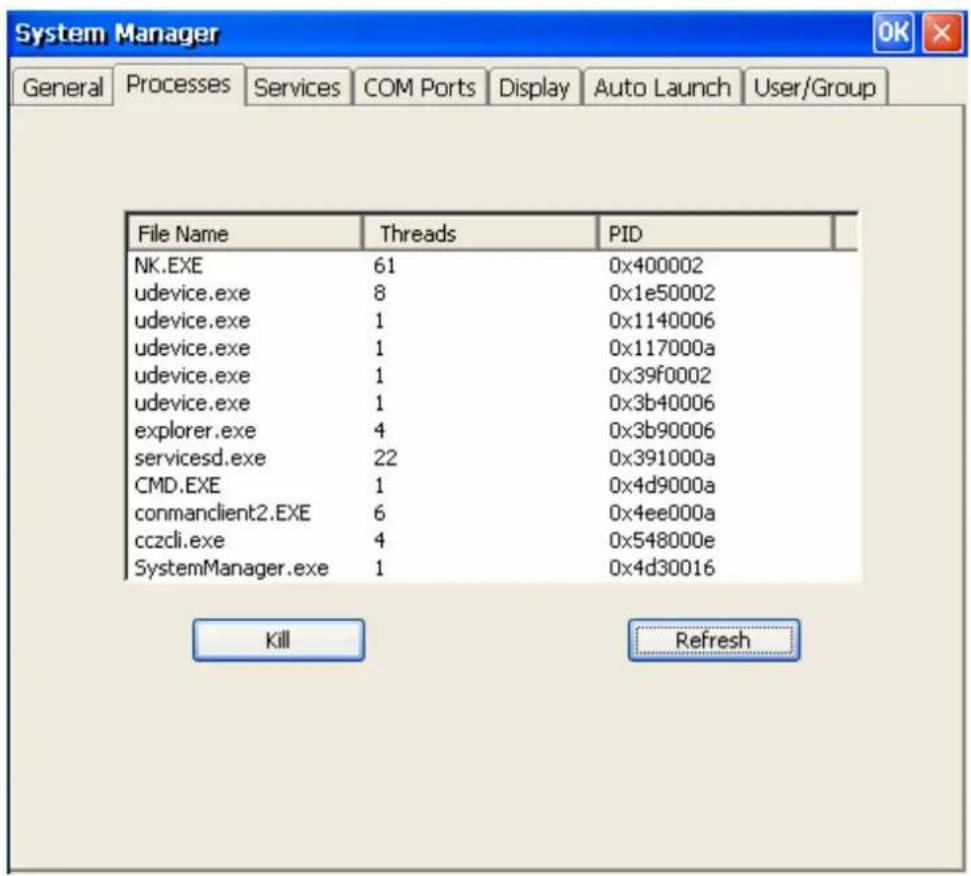

At runtime, the IA26X-CE computer manages up to 32,000 applications. You can use the management system to monitor and control them. To view current processes, please click the Processes item on the tab bar. The running processes are then displayed. You can kill a process by clicking the "kill" button next to the process name.

Services Monitoring/Control

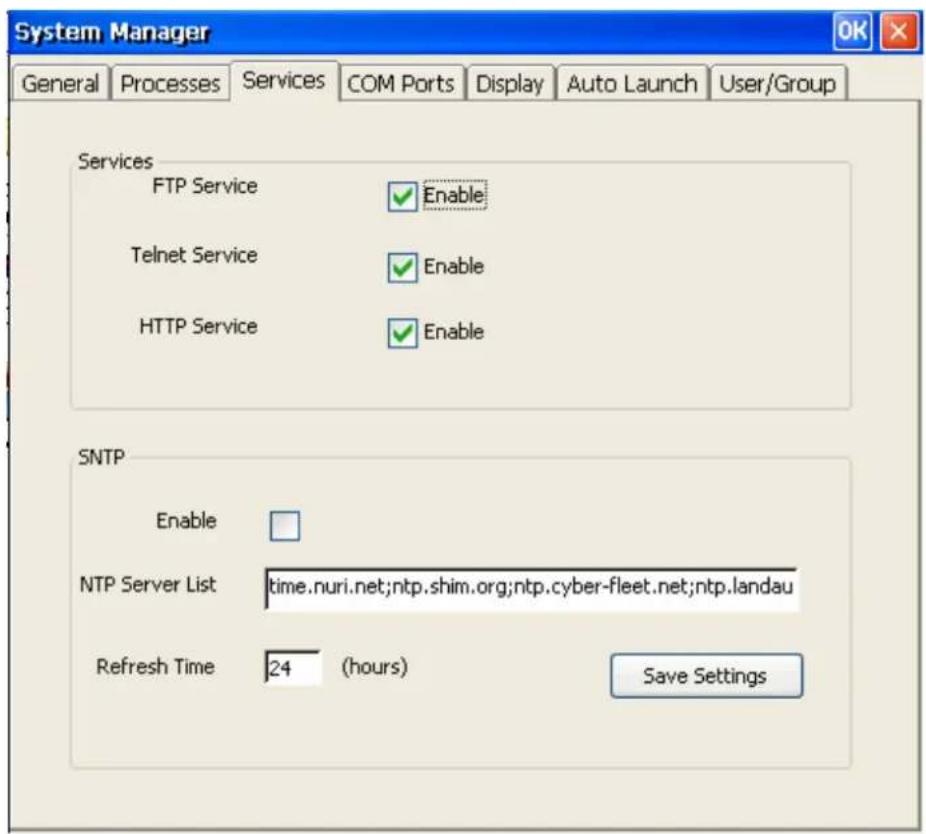

Some services run on the background to provide services, such as FTP, Telnet and HTTP, for user requests.

You can click on a check box to toggle a start/stop operation for a service.

You can also adjust the time automatically by using SNTP. Click on the check box to enable the service and click the button to activate.

Some listed services cannot be stopped in order to maintain normal operation of the computer. Such services do not have a check box next to them.

Display

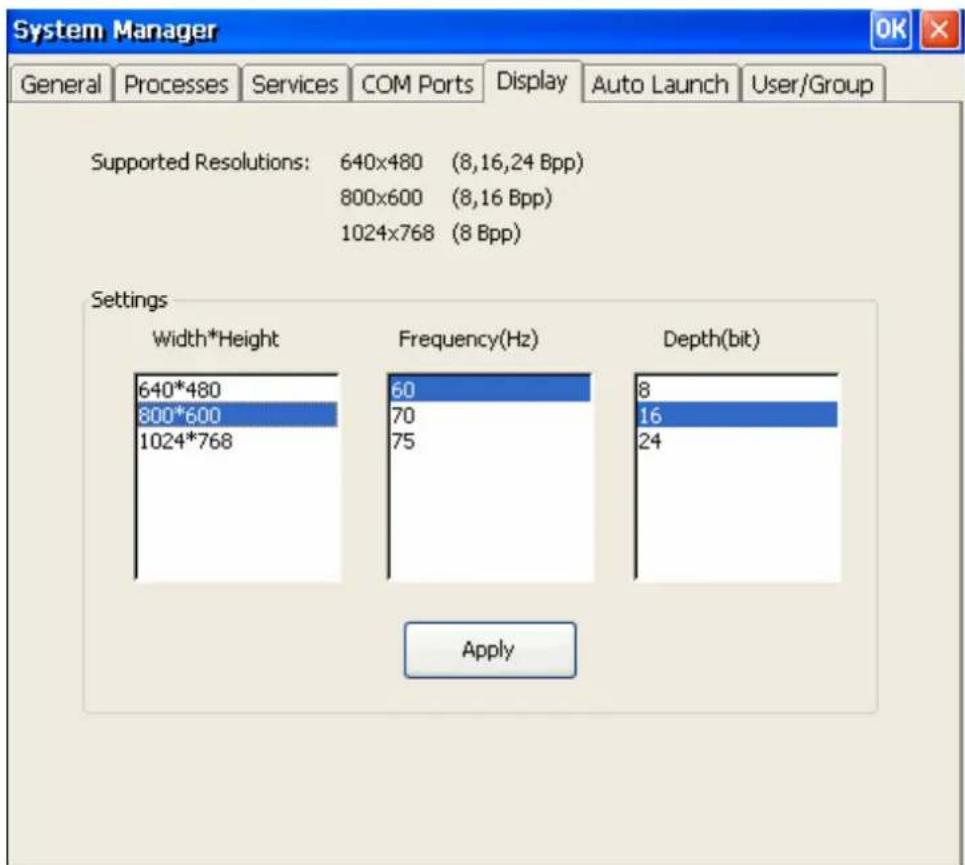

The IA26X-CE VGA output works through DB15 Female CRT connector to display the Windows CE desktop into a LCD monitor or a CRT monitor. The default setting is "800x600", 16 bit and 60Hz. For general purpose, you should tune the setting to match your LCD or CRT in specification. In the Display setting window you can adjust the setting and press "Apply" to save the setting.

Note: You must restart (reboot) your IA26X-CE to make the setting take effect.

User/Group Management

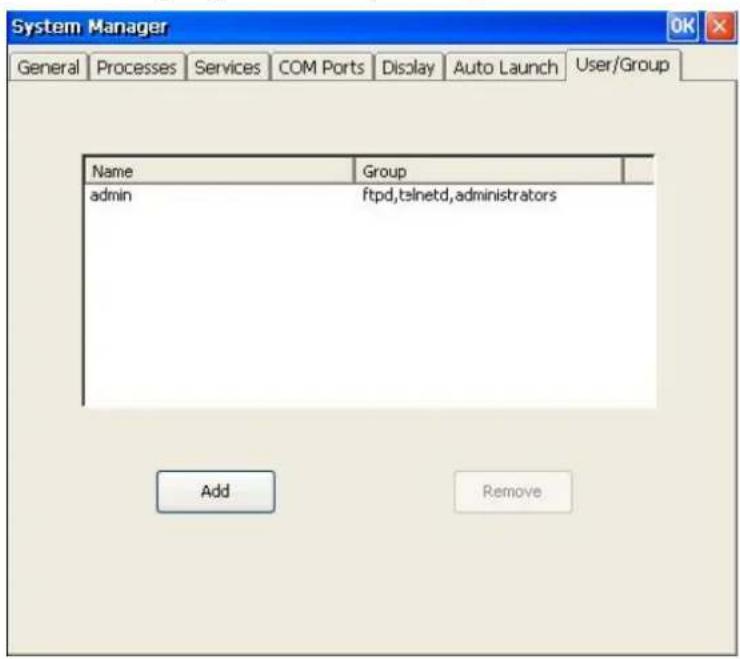

You can add users by click the "Add" button to assign specific services, such as ftp and telnet, to define user groups such that these services are accessible and remove users by click the "Remove" button.

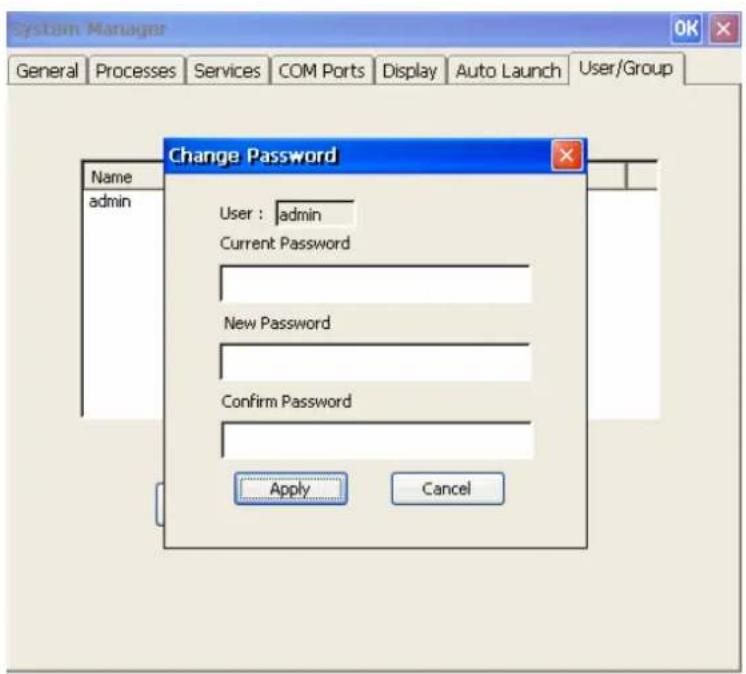

User can change login Password by click expectative name twice.

Auto Launch Configuration

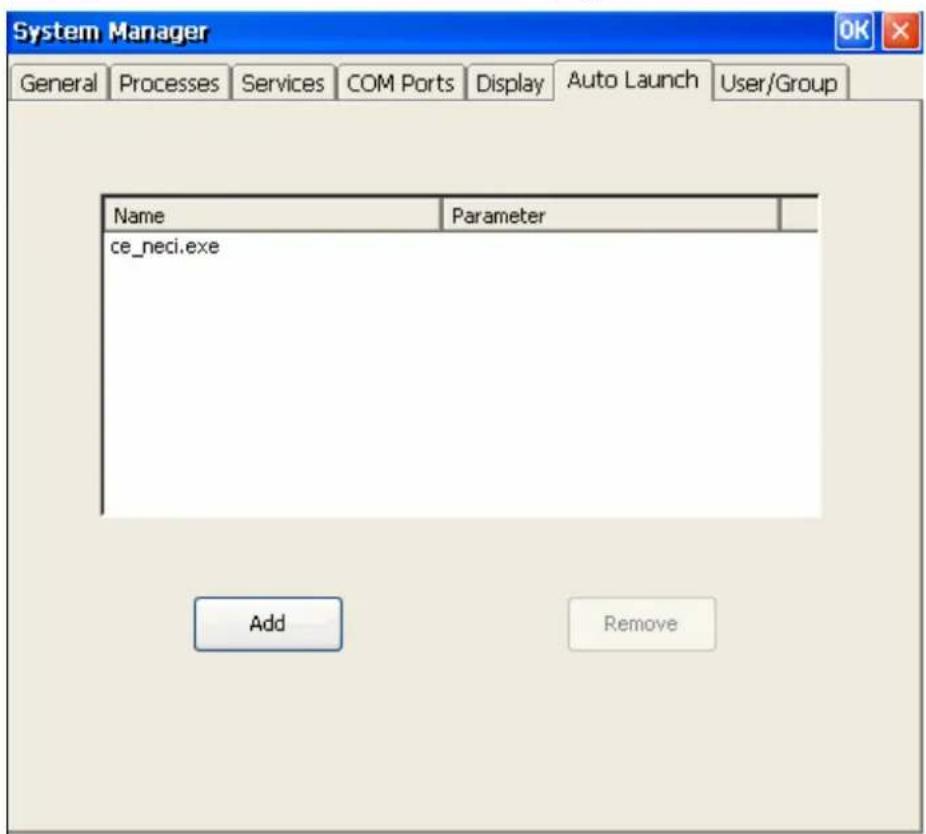

You can specify programs to execute automatically after booting up. Click "Add" button to add the program and restart IA26X-CE to execute these programs.

Web Server Configuration

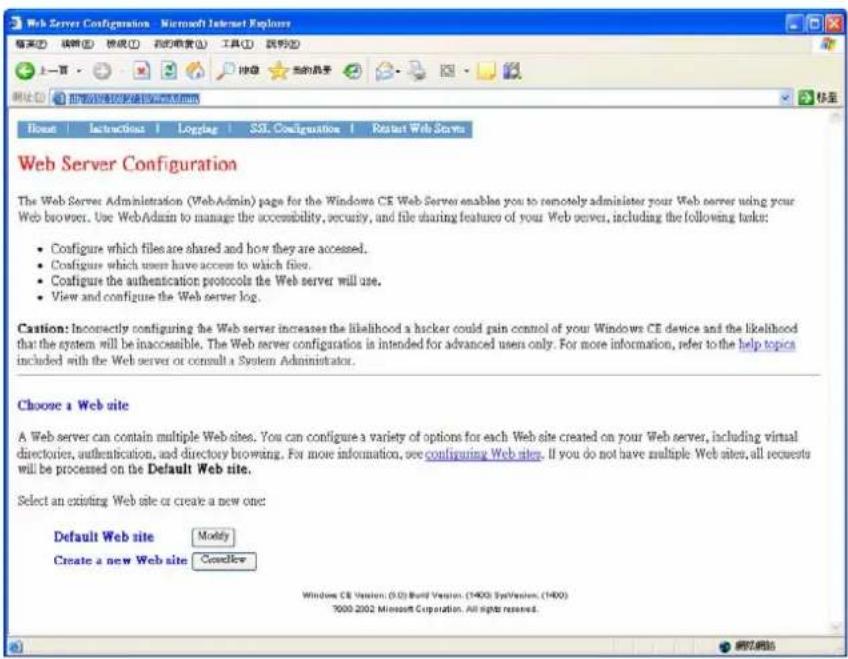

You need a Windows 2000 or Windows XP for Web administration. Try to open a "IE" and go to URL http://192.168.3.127/WebAdmin (e.g. the IA26X-CE network IP address is 192.168.3.127).

After the logon information you could see the standard Web server Administration page.

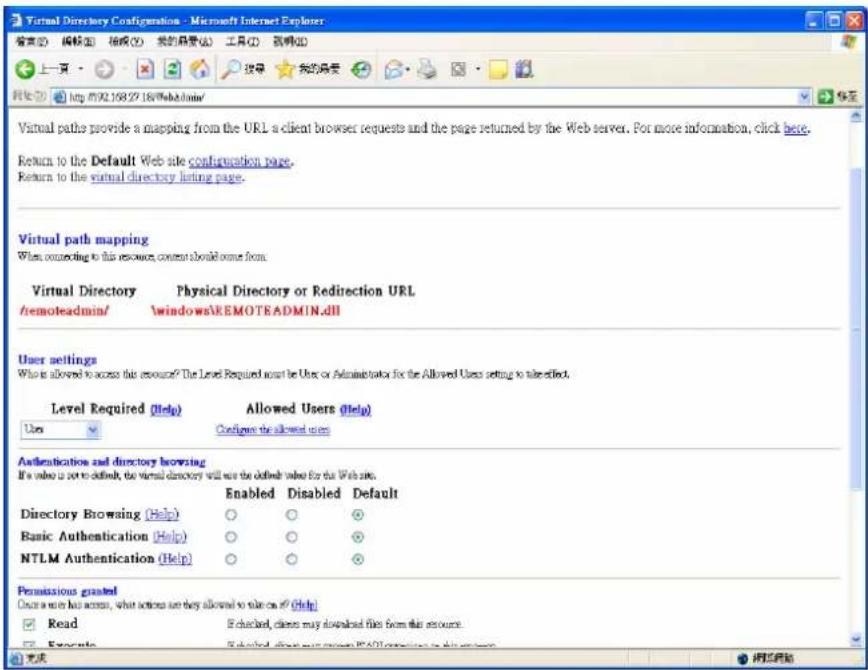

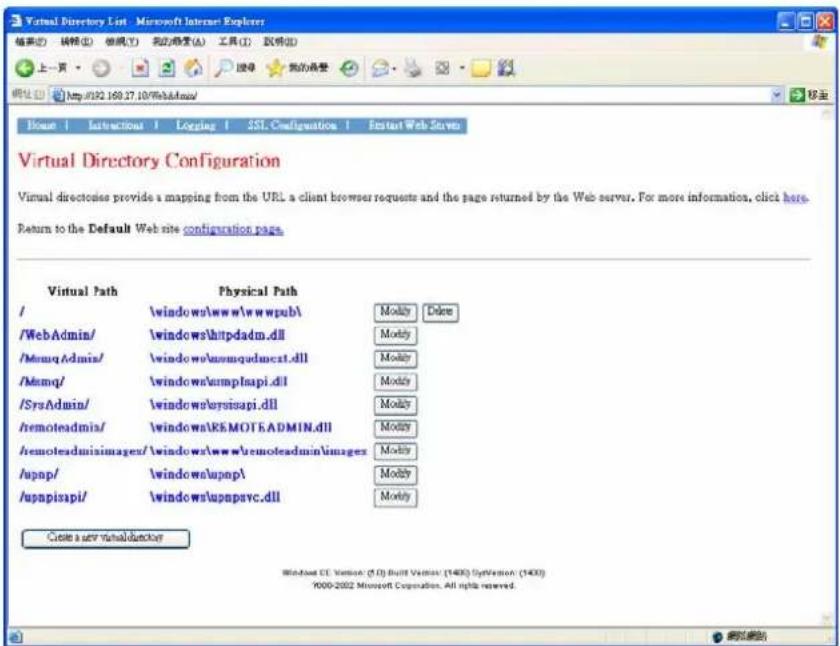

In this administration page, you can create a new web site or create a virtual web path for your web application.

You can also change the authentication for each web virtual directory.

To upgrade the IA26X-CE firmware, you must download the firmware upgrade installation file. This firmware installation file is on the software CD. You can also download the newest version from the Moxa Download Center. The URL is shown below.

http://web4.moxa.com/support/download_center.asp

Use the following steps to upgrade the firmware. Before you start, make sure your PC has the TFTP server software installed correctly.

1. Locate the firmware file (e.g., IA261CE_V1.0_07091112.hfm).
2. Go to the Boot Loader menu first. (Follow the chapter 2 section 4)

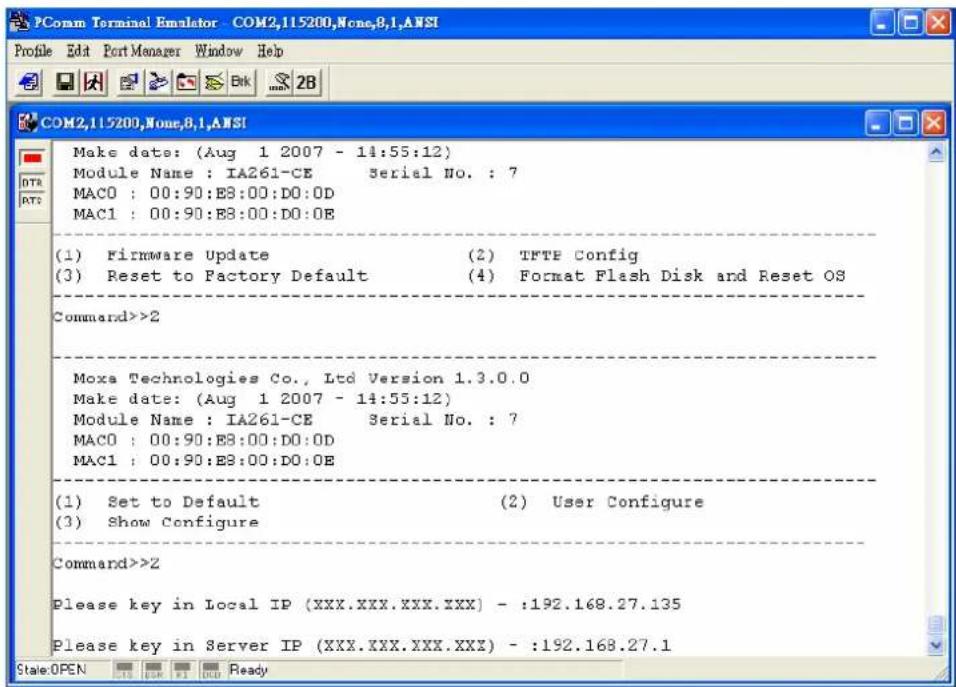

Select option (2) TFTP Config.

Next select option (2) User Configure

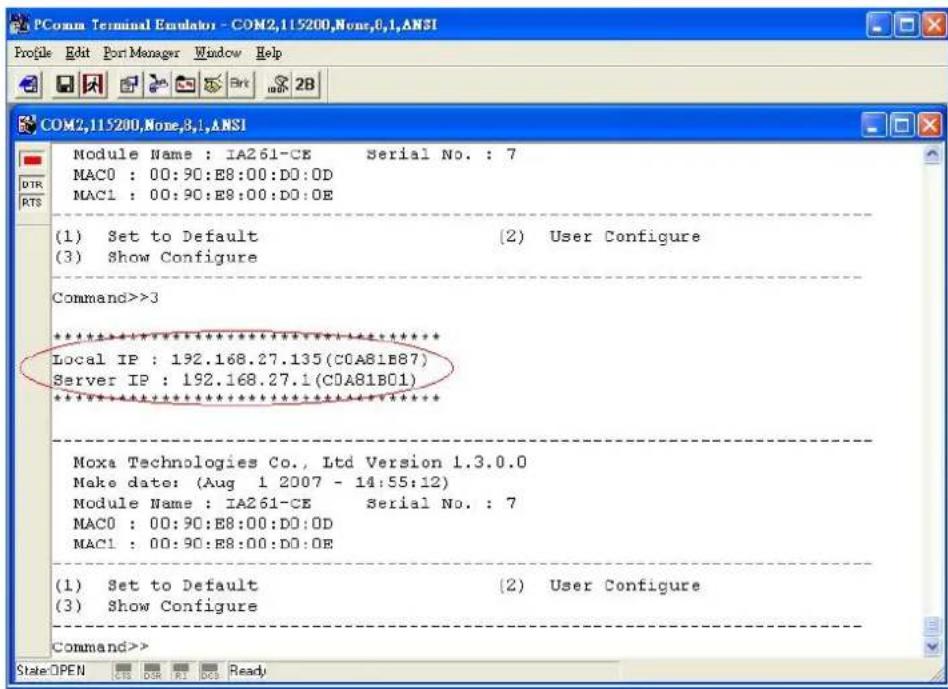

Input the local IP address (IA26X-CE) and server IP address (TFTP host IP Address)

Select option (3) Show Configure to check the configuration of the local IP and server IP.

After confirming the IP configuration, press [ESC] to return to the main menu.

3. Select option (1) Firmware Update.

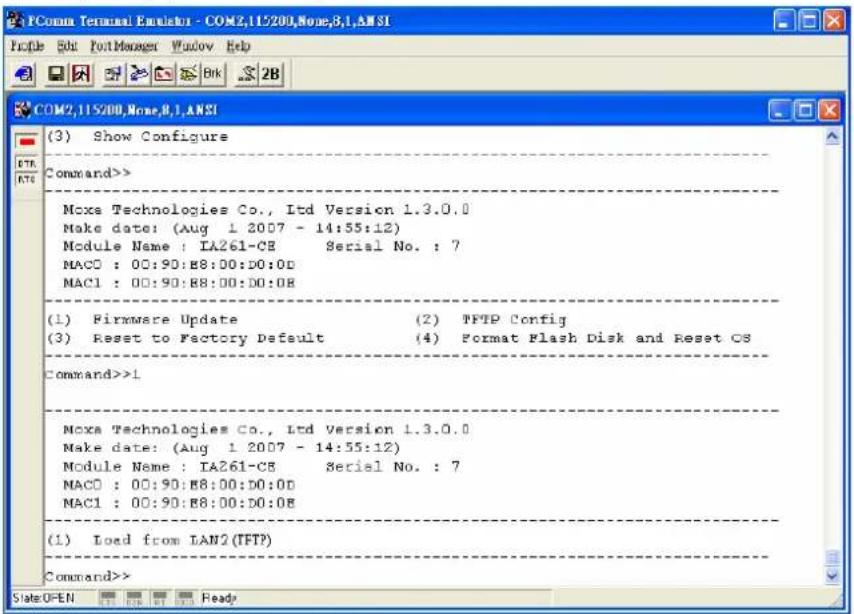

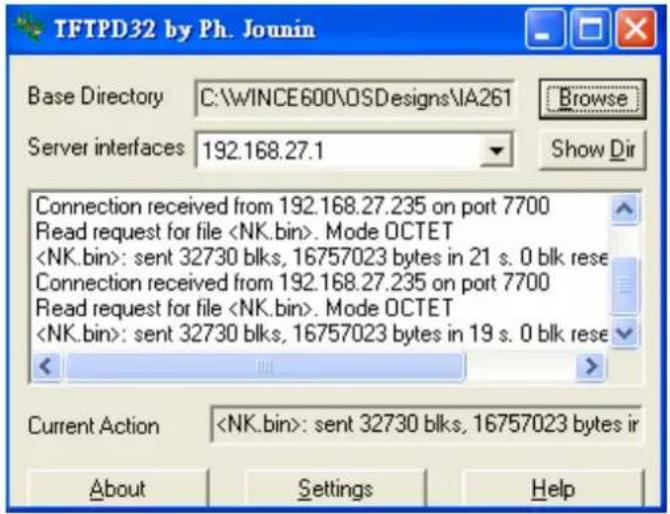

Select option (1) Load from LAN2, and input the firmware file name (e.g., IA262CE_V1.0_0704210.hfm) and press [Enter].

The Moxa IA262-CE comes with dual CAN ports as well as the CANopen protocol library support. This chapter will guide you on how to use the CANopen library to program CAN communication applications.

The following topics are covered in this appendix.

□ CANopen Introduction

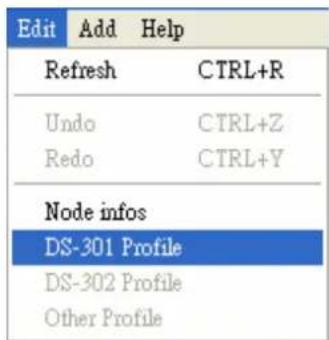

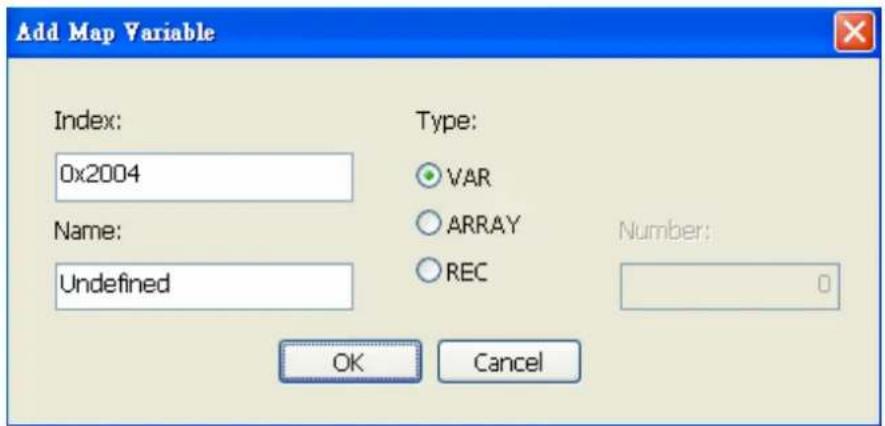

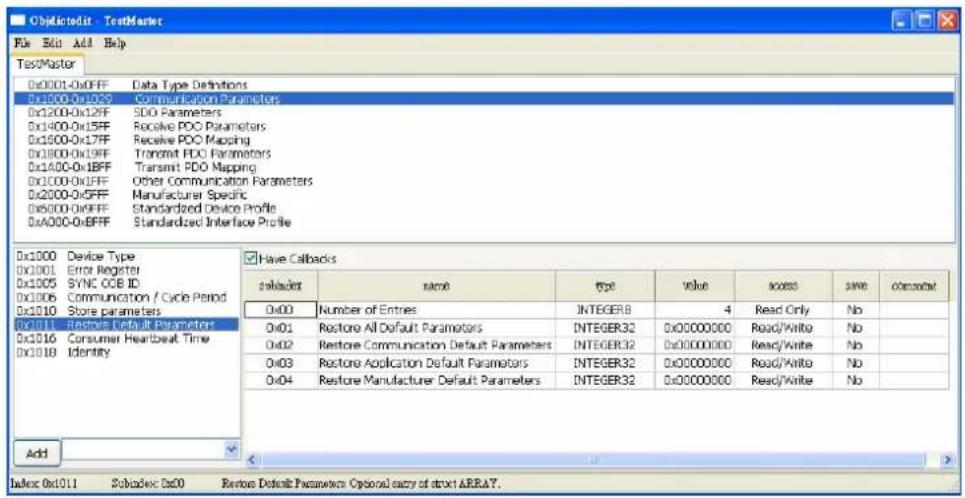

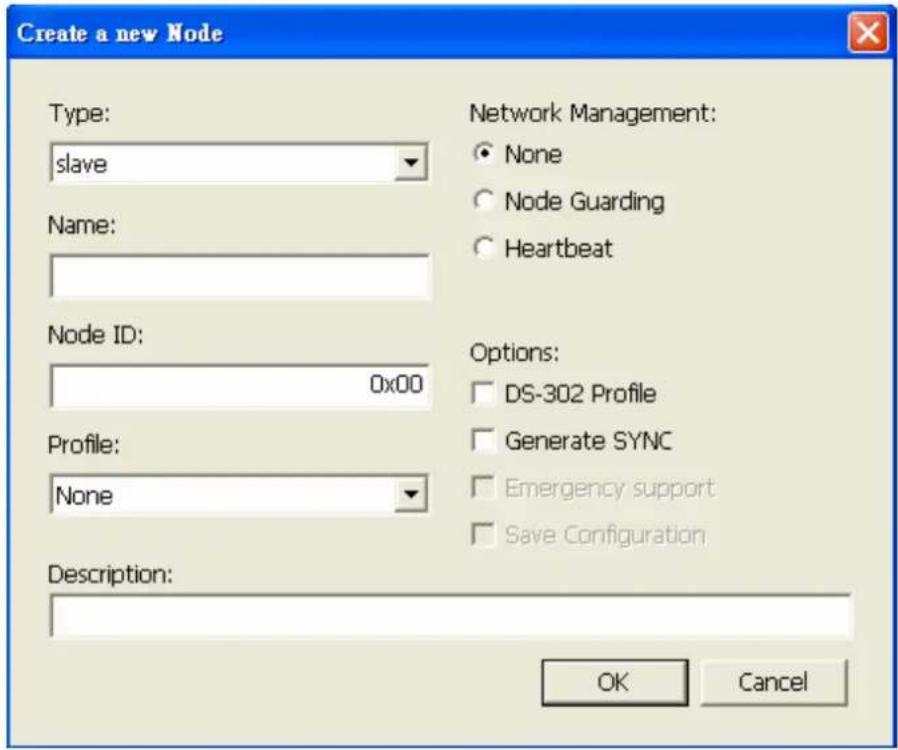

□ Using Dictionary Editor GUI
☐ Function Description

CANopen Introduction

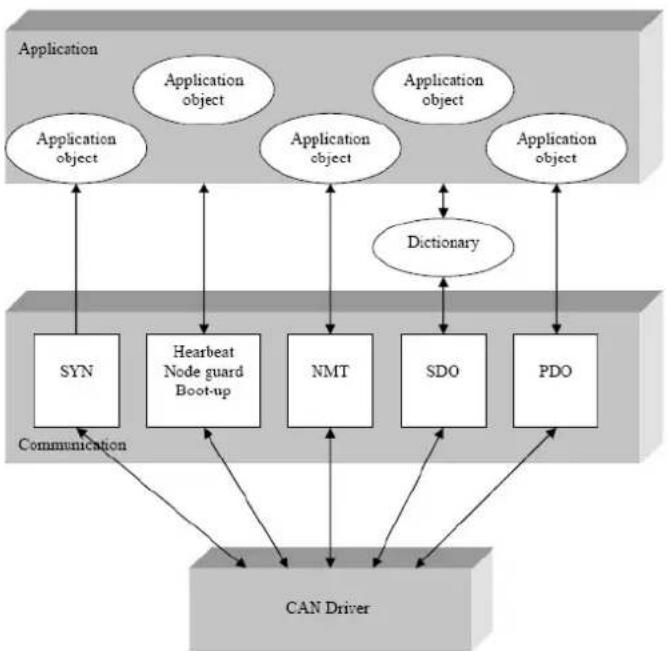

CANopen is a field bus protocol based on the Controller Area Network (CAN). As the name implies, it is a open network standard accepted throughout the world. While created as a field bus protocol for industrial automation, CANopen finds use in a wide range of other non-industrial applications. There are so many possibilities, in fact, that it is possible to write volumes on specialized uses of the protocol. Rather than being specific to one narrow application or even one field, we present here a more generalized approach: a generic communication stack based on CANopen that can be tailored to the user's needs. This article focuses only on what is covered in the CAN in Automation (CiA) standard DS-301. In fact, most of the discussion is limited to the predefined areas of the specification, with emphasis on understanding how the code provided with this application note functions and how users might develop an application on the CANopen Stack.

CANopen defines protocols for the following tasks:

• Configuring a CAN network.
• Transmitting data to a specific node or in broadcast.
• Administrate the network. For example control the state of the slave node.

The documentation can be found on the CAN automation website:

The most important document about CANopen is the normative CiA Draft Standard 301, version 4.02. You can now download at no cost from the CAN automation website.

Our CANopen Stack provides the lower layers of the protocol. Some of the features of this design include:

• Conform to DS301. V.4.02
  • Master and Slave functionality
  • Programmable transfer-rate 10K, 20K, 50K, 125K, 250K, 500K, 800K, 1000K
• Sending SYNC
  • 1 SDO server per node
  • Unlimited SDO clients
  • SDO transmission modes: normal, expedited, download, and upload
• Unlimited PDO receives
  • Unlimited PDO transmits
• Object Data type: 8, 16, 32 bits values, and fixed length strings
• Slave state full implemented
• NMT to change slave's state
• PDO transmission mode: on request, every reception of 0 to n SYNC, on event.
  • NMT Heartbeat: A node can be either heartbeat producer or receiver.
• NMT NodeGuard: Not fully implemented.

The protocol is designed in three levels, as shown in Figure 1. The lowest level is the CANbus driver providing hardware abstracted CAN support. The communications management level is the primary interface between the driver and the individual endpoint handling. Besides the application, there is also the dictionary. In essence, it resides outside of the communication object, and is directly connected to the SDO endpoint.

Figure 1. CANopen framework

The CANopen specification defines several possible endpoints. The five endpoint objects listed below are implemented in this protocol; others may be made available in the future.

• The Server SDO
- Four Static PDOs
• Synchronization Consumer
• Network Management Slave
- Node Guard or Heartbeat

SERVER SDO COMMUNICATION

The default server SDO (Service Data Object) is provided. The SDO communications path is directly linked to the object dictionary; SDO messages contain information that relates the SDO to a particular object. Data in every message is decoded, validated, and (if valid) eventually executed. There are essentially two basic operations: read and write. Thus each complete SDO transfer (which may be multiple messages) will either read or write a single object referenced in the dictionary.

PDO COMMUNICATION

The PDO (Process Data Object) communications path is linked directly to the applicable application object or objects. Thus the path is assumed by the device and no path information is contained within the communication. Essentially the data is mapped internally to one or more objects. Data is either statically mapped (compiled) or dynamically mapped (set at runtime). One message can contain data from more than one object.

The protocol provided with this application note supports the four PDOs.

NETWORK MANAGEMENT CONSUMER

A Network Management (NMT) slave is provided as required by the specification. The NMT Object receives commands to change the state of the device or reset the device's application and/or communications.

NODE GUARD/HEARTBEAT

There is a single Node Guard or Heartbeat endpoint as required by the CANopen specifications. They both exist in our protocol.

SYNCHRONIZATION CONSUMER

One synchronization consumer (SYNC) is provided. The SYNC message is simply an event to the application to generate any synchronized PDO messages.

Using Dictionary Editor GUI

The object dictionary functions as a central information database for the device. Every object within the device is represented within the dictionary by an index, subindex, and some access information. An object can be as simple as a single byte of data or a more complex data structure. Table 1 shows the basic areas of the dictionary that are defined by index in the CANopen specification.

Table 1. Location Ranges Within The Object Dictionary

Index Object
0001-001F Static Data Type
0020-003F Complex Data Types
0040-005F	Manufacturer Specific Data Types
0060-007F	Device Profile Static Data Types
0080-009F	Device Profile Complex Data Types
00A0-0FFF Reserved
1000-1FFF	Communication Profile Area
2000-5FFF	Manufacturer Specific Profile Area
6000-9FFF	Standardized Profile Area
A000-FFFF Reserved

The CANopen library comes with the following tool:

Object Dictionary Editor GUI. This tool helps a lot in generating object dictionary source code for each node.

Developing a new node

Creating a new CANOpen node implies defining the Object Dictionary of this node. To do that, the developer must provide a C file that contains the definitions of all dictionary entries, and an index table that helps the stack access some entries directly.

1) Using Dictionary Editor GUI

The Object Dictionary Editor is a WxPython based GUI that is used to create the C files needed to create a new CANOpen node.

2) Main view

The top list lets you choose a dictionary section. The bottom left list is the index selected from that dictionary, and the bottom right list contains edited sub-indexes.

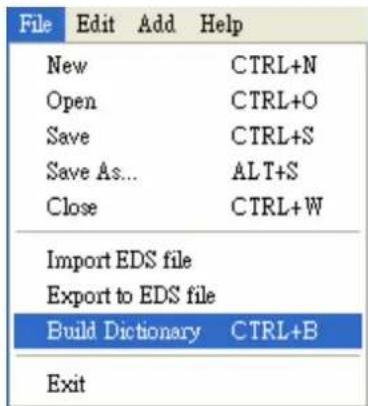

File	Edit	Add	Help
	New		CTRL+N
	Open		CTRL+O
	Save		CTRL+S
	Save As...		ALT+S
	Close		CTRL+W
	Import EDS file
	Export to EDS file
	Build Dictionary		CTRL+B
	Exit

Edit	Add	Help
	Refresh	CTRL+R
	Undo	CTRL+Z
	Redo	CTRL+Y
	Node infos
	DS-301 Profile
	DS-302 Profile
	Other Profile

Add	Help
SDO Server
SDO Client
PDO Transmit
PDO Receive
Map Variable
User Type

3) Create new node

Edit your node name, ID, and type. Choose your specific inherited profile.

4) Node info

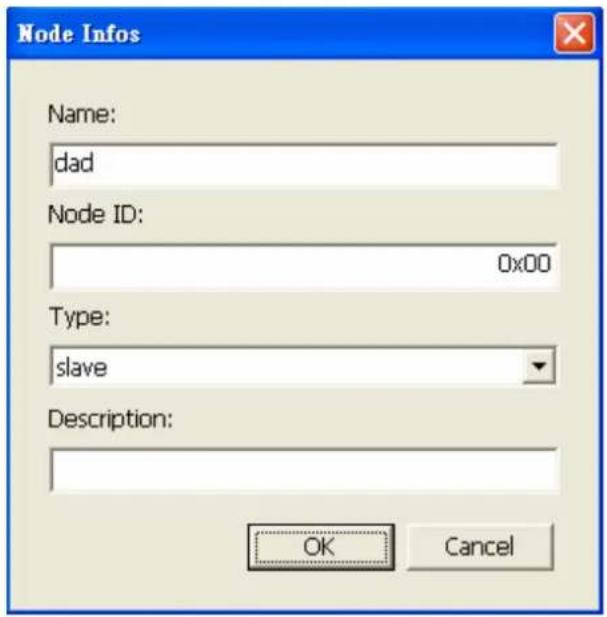

Edit your node name, ID, and type.

5) Profile editor

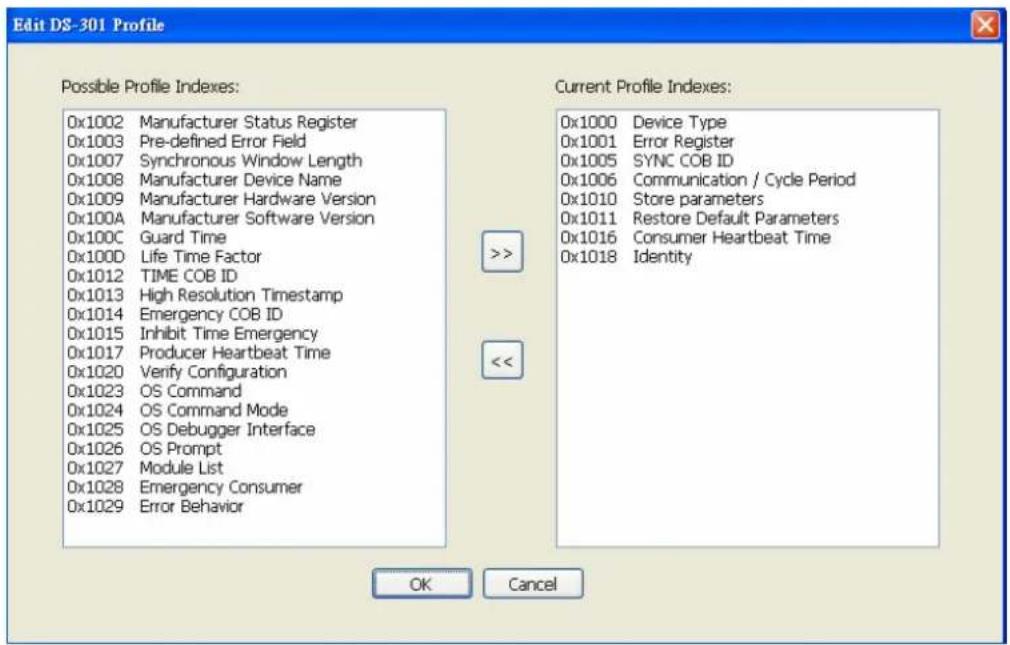

Choose the profile to Edit.

Pick up optional chosen profile entries.

6) User types

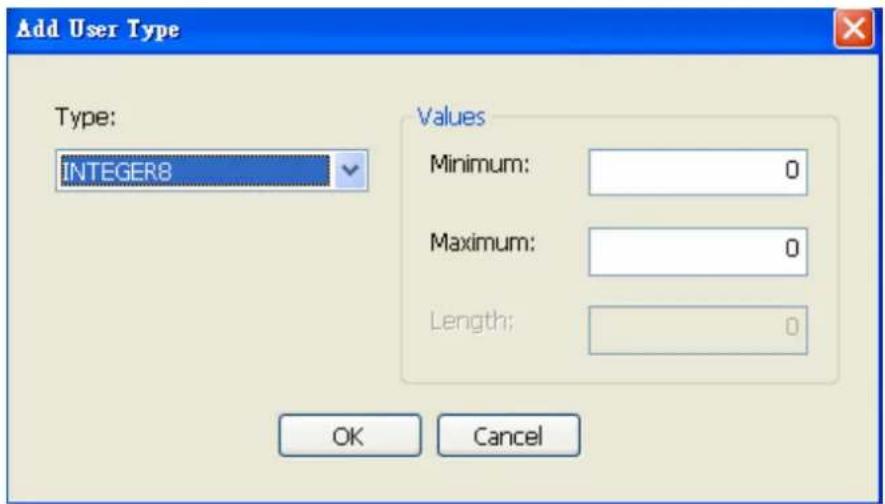

Use User Types to implement value boundaries, and string length.

7) Mapped variable

Add your own specific dictionary entries and associated mapped variables.

8) Generating the object Dictionary

Once the object dictionary has been edited and saved, you need to generate the object dictionary C code for your CANopen node. Select the Menu entry "File/Build Dictionary".

Choose a C file to create or overwrite. The header file will also be created with the same prefix as the C file.

Function Description

All the functions provided by CANopen library are listed in the following. The detail information for each function is presented in this section.

1. moxa\_getNodeState

Call this function to get node state of slave.

- Syntax

e_nodeState moxa_getNodeState (CO_Data* d, UNS8 nodeId)

- Parameters

d: [input] Node handle pointer. This structure contains all necessary information for a CANopen node.

nodeId: [input] Specified slave's node ID.

- Return Values

Return specified state of node.

2. moxa\_heartbeatInit

Initial Producer/Consumer Heartbeat time.

- Syntax

void moxa_heartbeatInit(CO_Data* d)

• Parameters
  d: [input] Node handle pointer.
• Return Values

None.

3. moxa\_heartbeatStop

Stop Producer/Consumer Heartbeat time.

• Syntax
  void moxa_heartbeatStop(CO_Data* d)
• Parameters
  d: [input] Node handle pointer.
• Return Values

None.

4. moxa\_proceedNODE\_GUARD

Use the function to process receiving NMT Node Guarding request from the master.

• Syntax
  void moxa_proceedNODE_GUARD(CO_Data* d, Message* m)

- Parameters

d: [input] Node handle pointer.

m: [input] CAN message structure.

typedef struct {

SHORT_CAN cob_id; /* l'ID du mesg */

UNS8 rtr; /* remote transmission request. 0 if not rtr, 1 for a rtr message */

UNS8 len; /* message length (0 to 8) */

UNS8 data[8]; /* data */

} Message;

- Return Values

None.

5. moxa\_masterSendNMTstateChange

The function is used to change the state of a slave.

- Syntax

UNS8 moxa_masterSendNMTstateChange (CO_Data* d, UNS8 Node_ID, UNS8 cs)

- Parameters

d: [input] Node handle pointer.

ID: [input] Slave device Node-ID (1\~127). Set this parameter to 0 to indicate all slave devices.

cs: [input] NMT command specifier.

0x01: Start

0x02: Stop

0x80: PRE-OPERATIONAL

0x81: Reset_Node

0x82: Reset_Communication

- Return Values

1: success, 0: Fail.

6. moxa\_masterSendNMTnodeguard

Master sends the Guarding message to slave device.

- Syntax

UNS8 moxa_masterSendNMTnodeguard(CO_Data* d, UNS8 nodeId)

- Parameters

d: [input] Node handle pointer.

nodeId: [input] Slave device Node-ID (1\~127). Set this parameter to 0 to indicate all slave devices.

- Return Values

1: success, 0: Fail.

7. moxa\_masterRequestNodeState

Use the function to indicate that the master is waiting for a Node_Guard frame from the slave.

- Syntax

void moxa_masterRequestNodeState(CO_Data* d, UNS8 nodeId)

- Parameters

d: [input] Node handle pointer.

nodeId: [input] Slave device Node-ID (1\~127). Set this parameter to 0 to indicate all slave devices.

- Return Values

None.

8. moxa\_proceedNMTstateChange

The function is used to change the state of a slave.

- Syntax

void moxa_proceedNMTstateChange(CO_Data* d, Message * m)

- Parameters

d: [input] Node handle pointer.

m: [input] CAN message structure.

- Return Values

None.

9. moxa\_slaveSendBootUp

Use the function to send boot up message to master.

- Syntax

UNS8 moxa_slaveSendBootUp(CO_Data* d)

- Parameters

d: [input] Node handle pointer.

- Return Values

1: success, 0: Fail.

10. moxa\_getODentry

Read an entry from the object dictionary.

- Syntax

UNS32 moxa_getODentry(CO_Data*d,

UNS16wIndex,

UNS8bSubindex,

void * pDestData,

UNS8 * pExpectedSize,

UNS8 * pDataType,

UNS8checkAccess)

- Parameters

d: [input] Node handle pointer.

wIndex: [input] The index in the object dictionary where you want to read an entry.

bSubindex: [input] The subindex of the Index.

pDestData: [input] Pointer to the variable where the value of this object dictionary entry should be copied.

pExpectedSize: [input] This function writes the size of the copied value (in Byte) into this variable.

pDataType: [input] The type of the data.

CheckAccess: [input] if other than 0, do not read if the data is Write Only.[always 0].

- Return Values

OD_SUCCESSFUL.

SDOABT_TOGGLE_NOT_ALTERNED.

SDOABT_TIMED_OUT.

SDOABT_OUT_OF_MEMORY.

SDOABT_GENERAL_ERROR.

SDOABT_LOCAL_CTRL_ERROR.

11. moxa\_setODentry

Use the function to write an entry into the object dictionary.

- Syntax

UNS32 moxa_setODentry(CO_Data*d,

UNS16 wIndex,

UNS8bSubindex,

void * pSourceData,

UNS8 * pExpectedSize,

UNS8checkAccess)

- Parameters

d: [input] Node handle pointer.

wIndex: [input] The index in the object dictionary where you want to write an entry.

bSubindex: [input] The subindex of the Index.

pSourceData: [input] Pointer to the variable that holds the value that should be copied into the object dictionary.

pExpectedSize: [input] The size of the value (in Byte).

checkAccess: [input] if other than 0, do not read if the data is Read Only or Constant.

- Return Values

OD_SUCCESSFUL

SDOABT_TOGGLE_NOT_ALTERNED

SDOABT_TIMED_OUT

SDOABT_OUT_OF_MEMORY

SDOABT_GENERAL_ERROR

SDOABT_LOCAL_CTRL_ERROR

12. moxa\_RegisterSetODentryCallBack

Use the function to register callback function for object dictionary.

- Syntax

UNS32 moxa_RegisterSetODentryCallBack (CO_Data* d, UNS16 wIndex, UNS8 bSubindex, ODCallback_t Callback)

- Parameters

d: [input] Node handle pointer.

wIndex: [input] The index in the object dictionary where you want to write an entry.

bSubindex: [input] The subindex of the Index.

Callback: [input] assigned callback function.

- Return Values

NULL if index not found, else: return the table part of the object dictionary.

13. moxa\_sendPDO

This function is used to send PDO.

- Syntax

UNS8 moxa_sendPDO (CO_Data* d, s_PDO pdo, UNS8 request)

- Parameters

d: [input] Node handle pointer.

pdo: [input] pdo is a structure which contains the data to transmit.

typedef struct struct_s_PDO {

UNS32 cobId; /* COB-ID */

UNS8 len; /* Number of data transmitted (in data[]) */

UNS8 data[8]; /* Contain the data */

}s_PDO;

Request: [input] Request can take the value REQUEST or NOT_A_REQUEST.

- Return Values

0xFF: Can't send PDO because the state of node is not in operational mode.

1: Success, 0: Fail.

14. moxa\_PDOmGR

Prepare a PDO frame transmission.

- Syntax

UNS8 moxa_PDOmGR (CO_Data* d, UNS32 cobId)

- Parameters

d: [input] Node handle pointer.

Cobid: [input] COB-ID.

- Return Values

The result of the function moxa_sendPDO or 0xFF if error

15. moxa\_buildPDO

Prepare the PDO defined at index to be sent by moxa_PDOmGR.

- Syntax

UNS8 moxa_buildPDO (CO_Data* d, UNS16 index)

- Parameters

d: [input] Node handle pointer.

Index: [input] The index in the object dictionary.

- Return Values

0 if success or 0xFF if error

16. moxa\_sendPDOrequest

Transmit a PDO request frame to the slave.

- Syntax

UNS8 moxa_sendPDOrequest (CO_Data* d, UNS32 cobId)

- Parameters

d: [input] Node handle pointer.

cobId: [input] COB-ID

- Return Values

0xFF if error, other in success.

17. moxa\_proceedPDO

Handle a receiving PDO frame.

- Syntax

UNS8 moxa_proceedPDO (CO_Data* d, Message *m)

- Parameters

d: [input] Node handle pointer.

m: [input] CAN message structure.

- Return Values

0xFF if error, else return 0

18. moxa\_SDOLineToObjdict

Copy the data received from the SDO line transfert to the object dictionary.

- Syntax

UNS32 moxa_SDOLineToObjdict (CO_Data* d, UNS8 line)

- Parameters

d: [input] Node handle pointer.

line: [input] SDO channel.

- Return Values

SDO error code if error. Else, returns 0

19. moxa\_objdictToSDOline

Copy the data from the object dictionary to the SDO line for a network transfer.

- Syntax

UNS32 moxa_objdictToSDOline (CO_Data* d, UNS8 line)

- Parameters

d: [input] Node handle pointer.

line: [input] SDO channel.

- Return Values

SDO error code if error. Else, returns 0

20. moxa\_lineToSDO

Copy the data from an existent line.

- Syntax

UNS8 moxa_lineToSDO (CO_Data* d, UNS8 line, UNS8 nbBytes, UNS8 * data)

- Parameters

d: [input] Node handle pointer.

line: [input] SDO channel.

nbBytes: [input] size of data

data: [input] specified data which want to copy to sdo.

- Return Values

0xFF if error. Else, returns 0

21. moxa\_SDOtoLine

Add data to an existent line.

- Syntax

UNS8 moxa_SDOtoLine (CO_Data* d, UNS8 line, UNS8 nbBytes, UNS8 * data)

- Parameters

d: [input] Node handle pointer.

line: [input] SDO channel

nbBytes: [input] size of data

data: [input] specified data which want to save to existent line.

- Return Values

0xFF if error. Else, returns 0

22. moxa\_failedSDO

The function will be called when an internal SDO abort occurs.

- Syntax

UNS8 moxa_failedSDO (CO_Data* d, UNS8 nodeId, UNS8 whoami, UNS16 index, UNS8 subIndex, UNS32 abortCode)

- Parameters

d: [input] Node handle pointer.

nodeId: [input] specified node id

whoami: [input] SDO_SERVER, SDO_CLIENT, SDO_UNKNOWN

index: [input] The index in the object dictionary where you want to handle.

subIndex: [input] The subindex of the Index.

abortCode: [input] SDO abort code

- Return Values

0xFF if unable to send the SDO abort, else return 0.

23. moxa\_resetSDO

Reset all SDO buffers.

- Syntax

void moxa_resetSDO (CO_Data* d)

- Parameters

d: [input] Node handle pointer.

- Return Values

None.

24. moxa\_resetSDOline

Reset an unused line.

- Syntax

void moxa_resetSDOline (CO_Data* d, UNS8 line)

- Parameters

d: [input] Node handle pointer.

line: [input] SDO channel.

- Return Values

None.

25. moxa\_initSDOline

Initialize some fields of the structure.

- Syntax

UNS8 moxa_initSDOline (CO_Data* d, UNS8 line, UNS8 nodeId, UNS16 index, UNS8 subIndex, UNS8 state)

- Parameters

d: [input] Node handle pointer.

line: [input] SDO channel.

nodeId: [input]specified node id.

index: [input] The index in the object dictionary where you want to handle.

subIndex: [input]The subindex of the Index.

State: [input]

SDO_RESET /* Transmission not started. Init state. */

SDO_FINISHED /* data are available */

SDO_ABORTED_RCV /* Received an abort message. Data not available */

SDO_ABORTED_INTERNAL /* Aborted message. */

SDO_DOWNLOAD_IN_PROGRESS /* downloading */

SDO_UPLOAD_IN_PROGRESS /*uploading */

- Return Values

0.

26. moxa\_getSDOfreeLine

Search for an unused line.

- Syntax

UNS8 moxa_getSDOfreeLine (CO_Data* d, UNS8 whoami, UNS8 *line)

- Parameters

d: [input] Node handle pointer.

whoami: [input] SDO_SERVER or SDO_CLIENT

line: [output] SDO free channel.

- Return Values

0xFF if all the lines are on use. Else, return 0

27. moxa\_getSDOlineOnUse

Search for the line which be used.

- Syntax

UNS8 moxa_getSDOlineOnUse (CO_Data* d, UNS8 nodeId, UNS8 whoami, UNS8 *line)

- Parameters

d: [input] Node handle pointer.

whoami: [input] SDO_SERVER or SDO_CLIENT.

line: [output] on use SDO channel.

- Return Values

0xFF if error. Else, return 0

28. moxa\_closeSDOtransfer

Close a transmission.

- Syntax

UNS8 moxa_closeSDOtransfer (CO_Data* d, UNS8 nodeId, UNS8 whoami)

- Parameters

d: [input] Node handle pointer.

nodeId: [input] Node id of the server if both server or client.

whoami: [input] Line opened as SDO_CLIENT or SDO_SERVER.

- Return Values

0xFF if error. Else, return 0

29. moxa\_getSDOlineRestBytes

Bytes in the line structure which must be transmitted (or received).

- Syntax

UNS8 moxa_getSDOlineRestBytes (CO_Data* d, UNS8 line, UNS8 * nbBytes)

- Parameters

d: [input] Node handle pointer.

line: [input] SDO channel.

nbBytes: [output] Number of data received or to be sent.

- Return Values

0

30. moxa\_setSDOlineRestBytes

Store in the line structure the nb of bytes which must be transmitted (or received).

- Syntax

UNS8 moxa_setSDOlineRestBytes (CO_Data* d, UNS8 line, UNS8 nbBytes)

- Parameters

d: [input] Node handle pointer.

line: [input] SDO channel.

nbBytes: [input] Number of data received or to be sent.

- Return Values

Return 0 if success, 0xFF if error

31. moxa\_sendSDO

Transmit a SDO frame

- Syntax

UNS8 moxa_sendSDO (CO_Data* d, UNS8 whoami, s_SDO sdo)

- Parameters

d: [input] Node handle pointer.

whoami: [input]SDO_CLIENT or SDO_SERVER.

sdo: [input] sdo is a structure which contains the sdo data to transmit.

- Return Values

0xFF if error, else 0.

32. moxa\_sendSDOabort

Transmit a SDO error to the client.

- Syntax

UNS8 moxa_sendSDOabort (CO_Data* d, UNS8 whoami, UNS16 index, UNS8 subIndex, UNS32 abortCode)

- Parameters

d: [input] Node handle pointer.

Whoami: [input] SDO_CLIENT or SDO_SERVER.

index: [input] The index in the object dictionary where you want to handle.

subIndex: [input] The subindex of the Index.

abortCode:[input] SDO abort code.

- Return Values

Return 1 if success, 0xFF and 0 if error

33. moxa\_proceedSDO

Handle a receiving SDO frame.

- Syntax

UNS8 moxa_proceedSDO (CO_Data* d, Message *m)

- Parameters

d: [input] Node handle pointer.

m: [input] CAN message structure.

- Return Values

Return 0xFF if error, 0x80 if transfer aborted by the server, 0x0 is success.

34. moxa\_writeNetworkDict

Used by the application to send a SDO request frame and write the data at the index and subIndex indicated.

- Syntax

UNS8 moxa_writeNetworkDict (CO_Data* d, UNS8 nodeId, UNS16 index, UNS8 subIndex, UNS8 count, UNS8 dataType, void *data)

- Parameters

d: [input] Node handle pointer.

nodeId: [input] nodeId:specified node id

index: [input] The index in the object dictionary where you want to handle.

subIndex: [input] The subindex of the Index.

count: [input] nb of bytes to write in the dictionary.

dataType: [input] defined in objdictdef.h

data: [input] specified data.

- Return Values

0xFF if error, else return 0

35. writeNetworkDictCallBack

Used by the application to send a SDO request frame with callback functions and write the data at the index and subIndex indicated.

- Syntax

UNS8 moxa_writeNetworkDictCallback (CO_Data* d, UNS8 nodeId, UNS16 index, UNS8 subIndex, UNS8 count, UNS8 dataType, void *data, SDOCallback_t Callback)

- Parameters

d: [input] Node handle pointer.

nodeId: [input] nodeId:specified node id

index: [input] The index in the object dictionary where you want to handle.

subIndex: [input] The subindex of the Index.

count: [input] nb of bytes to write in the dictionary.

dataType: [input] defined in objdictdef.h

data: [input] specified data.

Callback: [input]callback function.

- Return Values

0xFF if error, else return 0

36. moxa\_readNetworkDict

Used by the application to send a SDO request frame to read object from the dictionary of a server node.

- Syntax

UNS8 moxa_readNetworkDict (CO_Data* d, UNS8 nodeId, UNS16 index, UNS8 subIndex, UNS8 dataType)

- Parameters

d: [input] Node handle pointer.

nodeId: [input] nodeId:specified node id

index: [input] The index in the object dictionary where you want to handle.

subIndex: [input]The subindex of the Index.

dataType: [input] defined in objdictdef.h

- Return Values

0xFF if error, else return 0.

37. moxa\_readNetworkDictCallback

Used to send a SDO request frame to read a object from dictionary.

- Syntax

UNS8 moxa_readNetworkDictCallback (CO_Data* d, UNS8 nodeId, UNS16 index, UNS8 subIndex,

UNS8 dataType, SDOCallback_t Callback)

- Parameters

d: [input] Node handle pointer.

nodeId: [input] nodeId:specified node id

index: [input] The index in the object dictionary where you want to handle.

subIndex: [input] The subindex of the Index.

dataType: [input] Defined in objdictdef.h

Callback: [input] The function Callback which must be defined in the user code.

- Return Values

0xFF if error, else return 0

38. moxa\_getReadResultNetworkDict

Use this function after a moxa_readNetworkDict to get the result of the read.

- Syntax

UNS8 moxa_getReadResultNetworkDict (CO_Data* d, UNS8 nodeId, void* data, UNS8 *size, UNS32 * abortCode

- Parameters

d: [input] Node handle pointer.

nodeId: [input]specified node id

data: [output] specified data pointer.

size: [output] size of data.

abortCode: [output] 0 = not available. Else: SDO abort code.

- Return Values

SDO_FINISHED // data is available

SDO_ABORTED_RCV // Transfert failed. (abort SDO received)

SDO_ABORTED_INTERNAL // Transfert failed. Internal abort.

SDO_UPLOAD_IN_PROGRESS // Data not yet available

SDO_DOWNLOAD_IN_PROGRESS // Should not arrive!

39. moxa\_getWriteResultNetworkDict

Use this function after a moxa_writeNetworkDict to get the result of the write.

- Syntax

UNS8 getWriteResultNetworkDict (CO_Data* d, UNS8 nodeId, UNS32 * abortCode)

- Parameters

d: [input] Node handle pointer.

nodeId: [input]specified node id

abortCode: [output] 0 = not available. Else: SDO abort code

- Return Values

SDO_FINISHED // data is available

SDO_ABORTED_RCV // Transfert failed. (abort SDO received)

SDO_ABORTED_INTERNAL // Transfert failed. Internal abort.

SDO_DOWNLOAD_IN_PROGRESS // Data not yet available

SDO_UPLOAD_IN_PROGRESS // Should not arrive!

40. moxa\_getState

Return the state of the node.

- Syntax

e_nodeState moxa_getState (CO_Data* d)

- Parameters

d: [input] Node handle pointer.

- Return Values

Initialisation = 0x00,

Disconnected = 0x01,

Connecting = 0x02,

Preparing = 0x02,

Stopped = 0x04,

Operational = 0x05,

Pre_operational = 0x7F,

Unknown_state = 0x0F

41. moxa\_setState

Change the state of the node.

- Syntax

UNS8 moxa_setState (CO_Data* d, e_nodeState newState)

- Parameters

d: [input] Node handle pointer.

newState: [input]

Initialisation = 0x00,

Disconnected = 0x01,

Connecting = 0x02,

Preparing = 0x02,

Stopped = 0x04,

Operational = 0x05,

Pre_operational = 0x7F,

Unknown_state = 0x0F

- Return Values

0xFF if error, else return 0.

42. moxa\_getNodeId

Return the node Id.

- Syntax

void moxa_getNodeId (CO_Data* d, UNS8 nodeId)

- Parameters

d: [input] Node handle pointer.

- Return Values

Return the node Id.

43. moxa\_setNodeId

Define the node ID. Initialize the object dictionary.

- Syntax

void moxa_setNodeId (CO_Data* d)

- Parameters

d: [input] Node handle pointer.

- Return Values

None.

44. moxa\_sendSYNC

Transmit a SYNC message.

- Syntax

UNS8 moxa_sendSYNC (CO_Data* d, UNS32 cob_id)

- Parameters

d: [input] Node handle pointer.

cob_id: [input]COB-ID.

- Return Values

1: success, 0: fail.

45. moxa\_proceedSYNC

This function is called when the node is receiving a SYNC message (cob-id = 0x80).

- Syntax

UNS8 moxa_proceedSYNC (CO_Data* d, Message * m)

- Parameters

d: [input] Node handle pointer.

m: [input] CAN message structure.

- Return Values

0 if OK, 0xFF if error.

46. moxa\_SetAlarm

Use this to declare a new alarm.

- Syntax

TIMER_HANDLE moxa_SetAlarm(CO_Data* d, UNS32 id, TimerCallback_t callback, TIMEVAL value, TIMEVAL period)

- Parameters

d: [input] Node handle pointer.

id: [input] index of Heartbeat entries.

callback:[input] The callback function.

value: [input] time value

period: [input]Periodicity

- Return Values

-1 if error, else success.

47. moxa\_DelAlarm

Use this to remove an alarm.

- Syntax

TIMER_HANDLE moxa_DelAlarm (TIMER_HANDLE handle)

- Parameters

Handle: [input] timer handle.

- Return Values

-1.

48. moxa\_StartTimerLoop

Use this to start timer loop.

- Syntax

void moxa_StartTimerLoop (TimerCallback_t init_callback)

- Parameters

init_callback:[input] the callback function.

- Return Values

None.

49. moxa\_StopTimerLoop

Use this to stop timer loop.

- Syntax

void moxa_StopTimerLoop (void)

- Parameters

None.

- Return Values

None.

50. moxa\_canSend

Send CAN message.

- Syntax

UNS8 moxa_canSend (CAN_PORT port, Message *m)

- Parameters

port: [input] specified can port (1 or 2)

m: [input]CAN message structure.

- Return Values

1: Success, 0: fail.

51. moxa\_canReceive

Receive can message.

- Syntax

UNS8 moxa_canReceive(CAN_PORT fd0, Message *m)

- Parameters

Fdo:[input] driver data.

typedef struct

{

CO_Data * d;

HANDLE receive_thread;

void* inst;

volatile BOOL continue_receive_thread;

}driver_data;

m:[output] CAN message structure.

- Return Values

0: success, else error.

52. moxa\_canOpen

The function can initiate the CAN controller and return a handle value for this CAN channel.

- Syntax

CAN_PORT moxa_canOpen (s_BOARD *board, CO_Data *d)

- Parameters

board: [input] handle for CAN port.

struct struct_s_BOARD {

* busname; //port number

* baudrate; //baud rate

};

d: [input] Node handle pointer.

- Return Values

Return handle value for this CAN port.

53. moxa\_canClose

The function can close the CAN controller.

- Syntax

int moxa_canClose (CO_Data * d)

- Parameters

d: [input] Node handle pointer.

- Return Values

0

Example Code

The following example codes can let user to understand how to configure master and slave node. Both communicate together, performances NMT object and slave's node provided information to master through SDO.

Configure Master node:

include

include

include

pragma comment(lib, "CANopen.lib")

pragma comment(lib, "mxdev.lib")

extern "C"

{

include

#include "master.h" //this file is generated by Dictionary Editor GUI
}

UNS8 GetChangeStateResults(UNS8 node_id, UNS8 expected_state, unsigned long timeout_ms)
{
    unsigned long start_time = 0;

    // reset nodes state
    win32test_Data.NMTable[node_id] = Unknown_state;
    // request slave's node state, send (identified=700+nodId,rtr=1) to slave.
    moxa_masterRequestNodeState(&master_Data, node_id);

    start_time = GetTickCount();
    while(GetTickCount() - start_time < timeout_ms)
    {
    if(moxa_getNodeState(&master_Data, node_id) == expected_state)
    {
    break;
    return 0;
    }
    }
    return 0xFF;
}

UNS8 ReadSDO(UNS8 nodeId, UNS16 index, UNS8 subIndex, UNS8 dataType, void* data, UNS8* size)
{
    UNS32 abortCode = 0;

UNS8 res = SDO_UPLOAD_IN_PROGRESS;

// Read SDO

UNS8 err = moxa_readNetworkDict(&win32test_Data, nodeId, index, subIndex, dataType);

if (err)

    return 0xFF;

for(;;)

    {
    res = moxa_getReadResultNetworkDict(&win32test_Data, nodeId, data, size, &abortCode);

    if (res != SDO_UPLOAD_IN_PROGRESS)

    break;

    Sleep(1);

    continue;

    }

    moxa_closeSDOtransfer(&win32test_Data, nodeId, SDO_CLIENT);

    if (res == SDO_FINISHED)

    return 0;

    return 0xFF;

}

int _tmain(int argc, _TCHAR* argv[])
{
    UNS8 node_id = 0, loop=0;

    //indicate canbus port and baudrate.

    s_BOARDMasterBoard = {"1", "1000K"};
    int i=0;

/* process command line arguments */

if (argc < 3)
{
    wprintf(TEXT("USAGE: master <slave's node_id> \n"));
    return 1;
}

node_id = _wtoi(argv[1]);
if (node_id < 2 || node_id > 127)
{
    wprintf(TEXT("ERROR: node_id shoule be >=2 and <= 127\n"));
    return 1;
}

if (moxa_canOpen(&MasterBoard, &master_Data))
{
    /* Defining the master node Id */
    moxa_setNodeId(&master_Data, 0x01);

    /* set the master in operational mode */
    moxa_setState(&master_Data, Operational);

    /* Ask all slave node to go in operational mode */
    moxa_masterSendNMTstateChange (&master_Data, 0, NMT_Start_Node);

/* wait until slave's mode will switch to operational state*/
/* if return 0, mean this node entry operational state */
if (GetChangeStateResults(node_id, Operational, 20000) != 0xFF)
{
    /*modify Client SDO 1 Parameter, mapping to dictionary index:1280, client:0x600, server:0x580 */
    UNS32 COB_ID_Client_to_Server_Transmit_SDO = 0x600 + node_id;
    UNS32 COB_ID_Server_to_Client_Receive_SDO = 0x580 + node_id;
    UNS32 Node_ID_of_the_SDO_Server = node_id;
    U N S 8 ExpectedSize = sizeof(UNS32);

if (OD_SUCCESSFUL == moxa_setODentry(&master_Data, 0x1280, 1, &COB_ID_Client_to_Server_Transmit_SDO, &ExpectedSize, RW)

&& OD_SUCCESSFUL == moxa_setODentry(&maste_Data, 0x1280, 2, &COB_ID_Server_to_Client_Receive_SDO, &ExpectedSize, RW)

&& OD_SUCCESSFUL == moxa_setODentry(&master_Data, 0x1280, 3, &Node_ID_of_the_SDO_Server, &ExpectedSize, RW))

{
    UNS32 dev_type = 0;
    char device_name[64] = "";
    char hw_ver[64] = "";
    char sw_ver[64] = "";
    UNS32 vendor_id = 0;
    UNS32 prod_code = 0;
    UNS32 ser_num = 0;
    UNS8 size;
    UNS8 res;
    // get information from slave node.
    size = sizeof(dev_type);
}

res = ReadSDO(node_id, 0x1000, 0, uint32, &dev_type, &size);

printf("device type: %d\n",dev_type & 0xFFFF);

size = sizeof(device_name);

res = ReadSDO(node_id, 0x1008, 0, visible_string, device_name, &size);

printf("device name: %s\n", device_name);

size = sizeof(hw_ver);

res = ReadSDO(node_id, 0x1009, 0, visible_string, hw_ver, &size);

printf("HW version: %s\n", hw_ver);

size = sizeof(sw_ver);

res = ReadSDO(node_id, 0x100A, 0, visible_string, sw_ver, &size);

printf("SW version: %s\n",sw_ver);

size = sizeof (vendor_id);

res = ReadSDO(node_id, 0x1018, 1, uint32, &vendor_id, &size);

printf("vendor id: %d\n", vendor_id);

Configure Slave node:

#include <windows.h>
#include <commctrl.h>
#pragma comment(lib, "CANopen.lib")
extern "C"
{
#include <moxa\canopen.h>
#include "Slave.h" // this file is generated by Dictionary Editor GUI
}
#include <moxa/devices.h>

int _tmain(int argc, _TCHAR* argv[])
{
    //set canbus port and baud rate
    s_BOARD MasterBoard = {“2”, “1000K”};
    //create canopen
    if (moxa_canOpen(&MasterBoard,&Slave_Data))
    {
    //set slave state to pre-operational
    moxa_setState(&Slave_Data,Pre_operational);
    //modify Client SDO 1 Parameter, mapping to dictionary, the default node id is 0x05.
    UNS32 COB_ID_Client_to_Server_Transmit_SDO = 0x605;
    UNS32 COB_ID_Server_to_Client_Receive_SDO = 0x585;
    UNS8 ExpectedSize = sizeof(UNS32);

    moxa_setODentry(&Slave_Data, 0x1200, 1, &COB_ID_Client_to_Server_Transmit_SDO, &ExpectedSize, RW);

    moxa_setODentry(&Slave_Data, 0x1200, 2, &COB_ID_Server_to_Client_Receive_SDO, &ExpectedSize, RW);

    while(1);//wait for master's command
    }
    return0;
}
