USER MANUAL VKJ596 BREVILLE

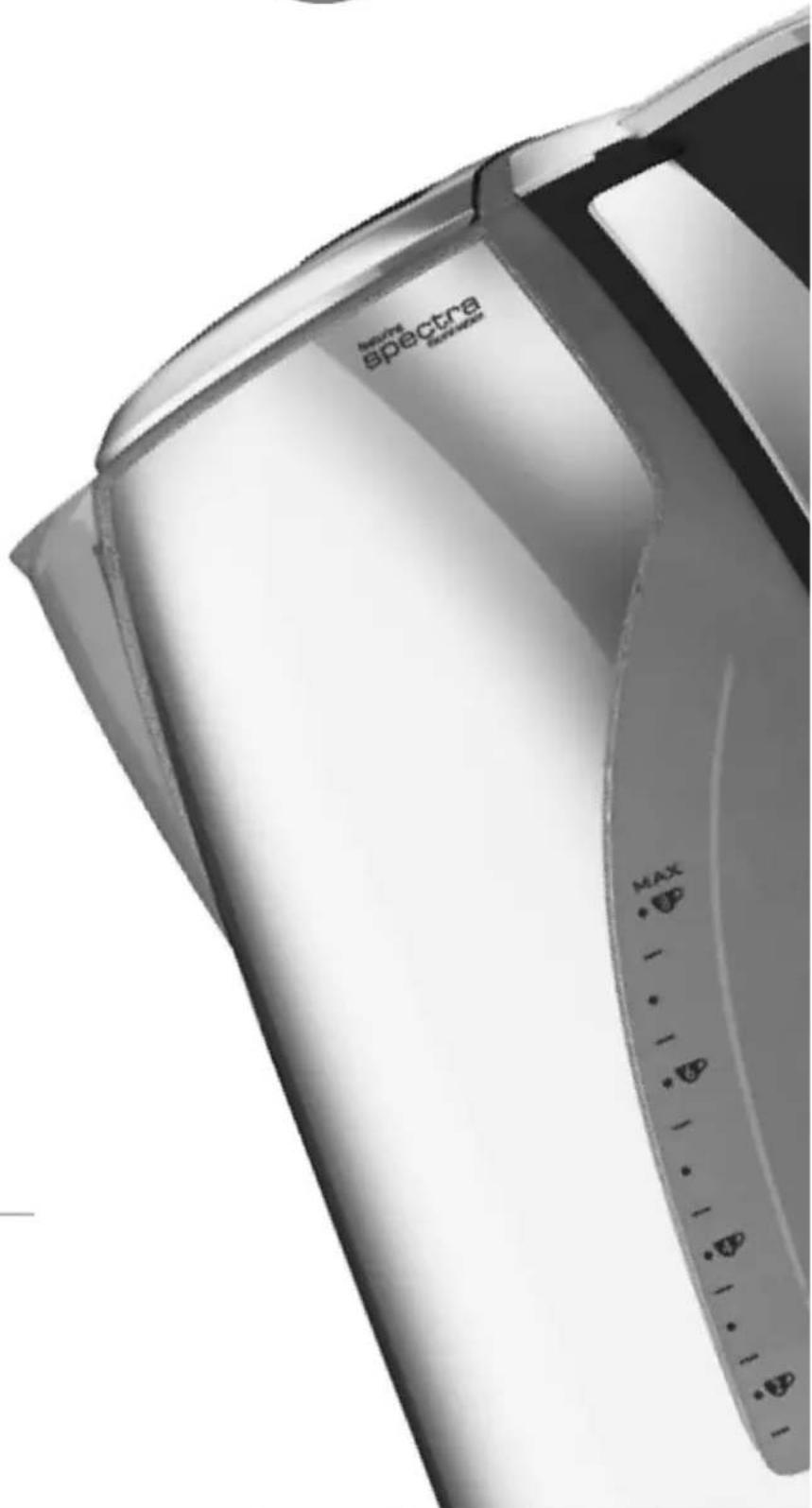

Exterior view of a modern Breville water heater with black handle and silver casing (no text or symbols visible)

stainless steel jug kettle

instruction booklet

Spectra Spectra MAX - - - - - - - - - - - -

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

This product can be used by children aged 8 years and above, and persons who require supervision, provided:

• they are familiar with the hazards associated with the product, and,
• they receive instruction by a competent person on how to safely use the product.

Children must not play with the product. Cleaning and user maintenance must not be done by children unless they are aged 8 or older and are supervised.

Never use a power base other than the one supplied with the appliance.

Never fill the kettle above the MAX marking. If the kettle is overfilled, boiling water may be ejected.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance generates heat during use. Adequate precaution must be taken to prevent the risk of burns, scalds, fires or other damage to persons or property caused by touching the exterior whilst in use or during cooling.
⚠️ Never use this appliance for anything other than its intended use. This appliance is for household use only. Do not use this appliance outdoors.
△ Always ensure that hands are dry before handling the plug or switching on the appliance.
⚠ Always use the appliance on a stable, secure, dry and level surface.
This appliance must not be placed on or near any potentially hot surfaces (such as a gas or electric hob).
⚠ Do not use the appliance if it has been dropped, if there are any visible signs of damage or if it is leaking.
⚠ Ensure the appliance is switched off and unplugged from the supply socket after use and before cleaning.
⚠️Always allow the appliance to cool before cleaning or storing.
⚠️ Never immerse any part of the appliance or power cord and plug in water or any other liquid.
⚠️ Never let the power cord hang over the edge of a worktop, touch hot surfaces or become knotted, trapped or pinched.
⚠️Never leave the appliance unattended when in use.
⚠ Beware of steam coming from the spout or lid especially during refilling. Never open the lid during the boiling cycle.
⚠️Never fill the appliance when it is positioned on the power base.
⚠️ Never use the kettle without sufficient water in the kettle for it to operate correctly.
⚠️Never allow the appliance to boil dry.

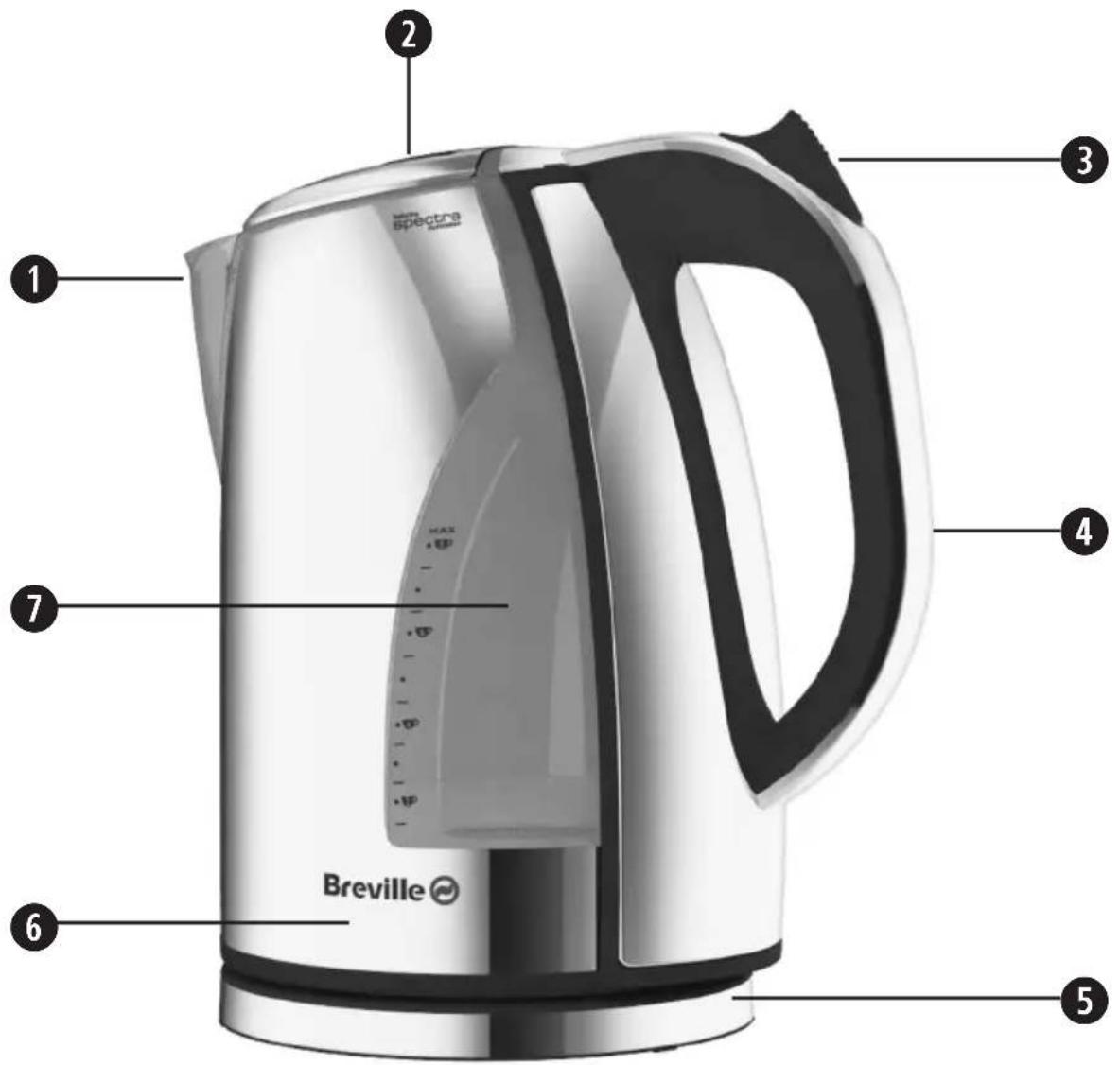

1 2 3 4 5 6 7 Breville® spectra

1 Spout
2 Lid release button
3 On/Off switch
4 Handle
5 360° rotational power base with cord storage
6 Easy clean, fast boil concealed element
7 Water level window

Remove any packaging and promotional material from your kettle and position it on a stable, secure, dry and level work surface away from the edge.

Before connecting to a power source, make sure your mains supply voltage is the same as the one indicated on the appliance. Connect the plug to a suitable power outlet and make sure that the power cord does not overhang the work surface. Excess power cord can be stored in the power base.

Remove the kettle from the power base and open the lid. Fill your kettle to the maximum mark and close the lid.

Place the kettle back onto the power base. Switch the kettle on, allow it to boil then discard the water. Repeat twice. This will remove any residue left over from the manufacturing process.

If this kettle is filled above the maximum level mark, hot water may be ejected from the spout during boiling.

Beware of steam coming from the spout or lid especially during refilling.

Never open the lid when the kettle is boiling.

1. With the kettle switched off, plug the power base into a suitable power outlet.
2. Remove the kettle from the power base before filling it with water.
3. Fill the kettle with water. Don't overfill the kettle and always ensure that there is sufficient water in the kettle for it to operate correctly. This is approximately 250ml or 1 tea cup full. Always check the water level when the kettle is positioned on its power base.
4. Close the lid and then switch the kettle on. Make sure that the lid is closed correctly to ensure safe operation.
5. When the kettle is switched on, the water level windows will illuminate.
6. When the water reaches boiling point, the kettle will switch off automatically.
7. You may also switch the kettle off manually at any time using the on/off switch.

Always use caution when carrying the kettle when it is full of boiling water and when pouring it.

Energy saving hints and tips

A Breville kettle, if used correctly, is a very energy efficient device. Why not try some of these energy saving tips:

• Only boil the water you need. Overfilling your kettle by one cup is the equivalent to using an energy saving light bulb for one hour!
• It is not always necessary to re-boil your kettle. For example, one litre of water will still be at 90°C after five minutes - the perfect temperature for a cup of coffee.

Lighting Sequence

Kettle Illumination
Kettle plugged in, kettle on/off switch OFF	The Spectra stand-by illumination is active. The water chamber softly glows through the colour spectrum. The Spectra stand-by illumination will go out after approximately 20 mins.
Kettle plugged in, kettle on/off switch ON	The water chamber illuminates and changes from blue to red (assuming that the water is cool) to indicate the progress of the boiling cycle. The redder the illumination, the closer the water is to boiling.

Stand by Illumination

Your kettle is fitted with Spectra stand-by illumination that lights the kettle body with everchanging mood lighting. The Spectra stand-by illumination will go out after approximately 20 minutes.

To restart the Spectra stand-by illumination do one of the following:

- Lift the kettle off the power base and replace it again

- Unplug the kettle then plug it back in again

- Boil the kettle as normal

To switch off the Spectra stand-by illumination, simply turn the power supply off at the wall socket or remove the plug.

If the kettle boils dry

If the kettle is operated with insufficient water a built in fail-safe device will automatically switch off the kettle.

- Unplug the kettle and allow it to cool. When the kettle has cooled down sufficiently the device will reset itself.

- Once the device has reset, refill the kettle with cold water and use it as normal.

▲ Always unplug the kettle from the mains supply socket and allow it to completely cool down before cleaning or descaling it. Do not immerse the kettle, power base or power cord and plug in water or any other liquid.

1. Clean the exterior surface of the kettle with a damp cloth and then polish with a soft dry cloth. Do not use steel wool pads or harsh/abrasive cleaners.
2. Descale your kettle regularly to keep it working efficiently. Use a proprietary descaling product following the manufacturer's instructions carefully.

Cleaning the filter

▲ Before removing or refitting the filter, switch off the kettle and empty it. Allow it to cool completely, then unplug the power base from the mains supply socket. Never operate the kettle without the filter fitted.

• Open the lid and remove the filter from behind the spout.
• Rinse the filter under a tap whilst brushing it with a soft brush.
• In hard water areas it may be necessary to descale the filter using a descaling agent. Use a proprietary descaling product following the manufacturer's instructions carefully.
• The filter may be washed safely in the cutlery rack of a dishwasher.
• Refit the filter back into the kettle.

This appliance must be earthed.

This appliance is fitted with either a moulded or rewirable BS1363, 13 amp plug. The fuse should be rated at 13 amps and be ASTA approved to BS1362.

If the fuse in a moulded plug needs to be changed, the fuse cover must be refitted. The appliance must not be used without the fuse cover fitted.

If the plug is unsuitable, it should be dismantled and removed from the supply cord and an appropriate plug fitted as detailed below. If you remove the plug it must not be connected to a 13 amp socket and the plug must be disposed of immediately.

The wires of the mains lead are coloured in accordance with the following code:

$$ \text { GREEN / YELLOW } = \text { EARTH } $$

$$ \text { BLUE } = \text { NEUTRAL } $$

$$ B R O W N = L I V E $$

The wire which is coloured GREEN/YELLOW must be connected to the terminal in your plug which is marked with an E or by the earth symbol ( 12 or coloured GREEN or GREEN/YELLOW.

The wire which is coloured BLUE must be connected to the terminal in your plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in your plug which is marked with the letter L or coloured RED.

If any other plug is used, a 13 amp fuse must be fitted either in the plug or adaptor or at the distributor board.

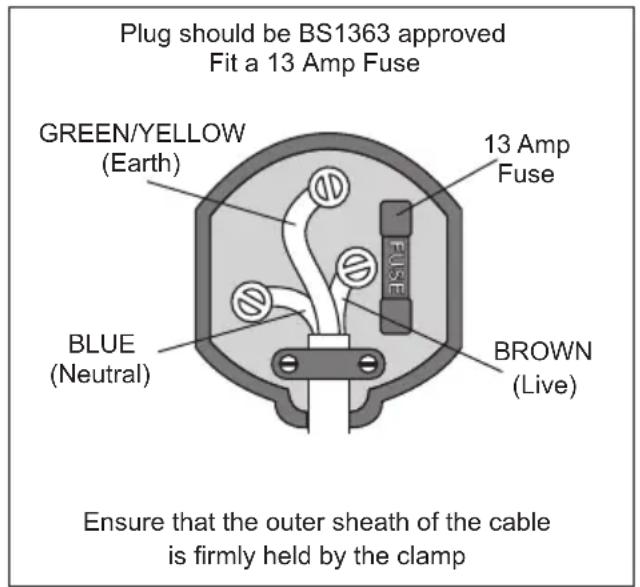

Plug should be BS1363 approved Fit a 13 Amp Fuse GREEN/YELLOW (Earth) 13 Amp Fuse BLUE (Neutral) BROWN (Live) Ensure that the outer sheath of the cable is firmly held by the clamp

These appliances are built to the very highest of standards. There are no user serviceable parts. Follow these steps if the unit fails to operate:

1. Check the instructions have been followed correctly.
2. Check that the fuse has not blown.
3. Check that the mains supply is functional.

If the appliance will still not operate, return the appliance to the place it was purchased for a replacement. To return the appliance to the Customer Service Department, follow the steps below:

1. Pack it carefully (preferably in the original carton). Ensure the unit is clean.
2. Enclose your name and address and quote the model number on all correspondence.
3. Give the reason why you are returning it.
4. If within the guarantee period, state when and where it was purchased and include proof of purchase (e.g. till receipt).
5. Send it to our Customer Service Department at the address below:

Customer Service Department

Jarden Consumer Solutions (Europe) Limited

Middleton Road

Royton

Oldham

OL2 5LN, UK.

Telephone: [phone] Fax: [phone]

e-mail: [e-mail]

Please keep your receipt as this will be required for any claims under this guarantee.

This appliance is guaranteed for 1 year after your purchase as described in this document.

During this guaranteed period, if in the unlikely event the appliance no longer functions due to a design or manufacturing fault, please take it back to the place of purchase, with your till receipt and a copy of this guarantee.

The rights and benefits under this guarantee are additional to your statutory rights, which are not affected by this guarantee. Only Jarden Consumer Solutions (Europe) Limited (“JCS (Europe)”) has the right to change these terms.

JCS (Europe) undertakes within the guarantee period to repair or replace the appliance, or any part of appliance found to be not working properly free of charge provided that:

• you promptly notify the place of purchase or JCS (Europe) of the problem; and
• the appliance has not been altered in any way or subjected to damage, misuse, abuse, repair or alteration by a person other than a person authorised by JCS (Europe).

Faults that occur through, improper use, damage, abuse, use with incorrect voltage, acts of nature, events beyond the control of JCS (Europe), repair or alteration by a person other than a person authorised by JCS (Europe) or failure to follow instructions for use are not covered by this guarantee. Additionally, normal wear and tear, including, but not limited to, minor discoloration and scratches are not covered by this guarantee.

The rights under this guarantee shall only apply to the original purchaser and shall not extend to commercial or communal use.

If your appliance includes a country-specific guarantee or warranty insert please refer to the terms and conditions of such guarantee or warranty in place of this guarantee or contact your local authorized dealer for more information.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. E-mail us at [e-mail] for further recycling and WEEE information.

Jarden Consumer Solutions (Europe) Limited Middleton Road

Royton

Oldham

OL2 5LN

UK

Symbolic illustration of a trash bin crossed with diagonal lines and a horizontal bar at the bottom (no text or labels)

For replacement parts, phone our Customer Service Department on 0161 621 6900. They will give you up to date prices, inclusive of VAT and postage and packaging.

You may then send a cheque or postal order for the correct amount made payable to Jarden Consumer Solutions (Europe) Limited, with the order form printed below (or a photocopy of it) to our Customer Service Department.

Name
Address
Postcode
Product Part number Description Quantity
VKJ596 913 60 Filter
I enclose a cheque for £ ____ in full payment

Breville

©2013 Jarden Consumer Solutions (Europe) Limited

All rights reserved. Imported and distributed by Jarden Consumer Solutions (Europe) Limited, Royton, Oldham OL2 SLN, United Kingdom.

The product you buy may differ from the one shown due to continuing product development. One (1) Year Limited Warranty—see inside for details. Jarden Consumer Solutions (Europe) Limited is a subsidiary of Jarden Corporation (NYSE:JAH). Made in PRC
