REXT600-1 - Security Camera REVO - Free user manual and instructions

Product Type	Security Camera
Brand	REVO
Model	REXT600-1
Dimensions	7.5 x 7.5 x 12 cm
Weight	350 g
Power Supply	DC 12V, 1A
Resolution	1920 x 1080 (Full HD)
Night Vision	IR LEDs up to 30 m
Viewing Angle	90° diagonal
Weatherproof Rating	IP66
Connectivity	Wired (BNC video, power)
Storage	Compatible with REVO NVRs
Motion Detection	Yes, configurable
Audio	Built-in microphone
Installation Type	Wall or ceiling mount
Operating Temperature	-10°C to 50°C
Material	Metal housing with plastic dome
Warranty	2 years

Frequently Asked Questions - REXT600-1 REVO

How do I reset the REXT600-1 camera to factory defaults?

Locate the reset button (usually a small pinhole) on the camera. Press and hold it for about 10 seconds using a paperclip while the camera is powered on. Release when the LED flashes. The camera will reboot with factory settings.

What is the IP rating of the REVO REXT600-1?

The camera has an IP66 rating, meaning it is dust-tight and protected against powerful water jets. It is suitable for outdoor use.

How do I connect the camera to my REVO NVR?

Use a BNC cable to connect the camera's video output to the NVR's video input. Then connect the power adapter to the camera. The NVR will automatically detect the camera once powered on.

Can I view the camera feed remotely on my smartphone?

Yes, if you have a compatible REVO NVR with network connectivity. Download the REVO app, add the NVR, and you can view the camera feed remotely. The REXT600-1 itself is an analog camera, so remote viewing depends on the NVR.

How should I clean the camera lens and housing?

Use a soft, dry microfiber cloth to wipe the lens and housing. For stubborn dirt, slightly dampen the cloth with water or a mild detergent solution. Avoid abrasive cleaners. Ensure the camera is disconnected from power during cleaning.

What is the power requirement for the REXT600-1?

The camera requires a DC 12V power supply with at least 1A current. Use only the included adapter or a compatible REVO power supply.

What is the night vision range of this camera?

The infrared LEDs provide night vision up to 30 meters in complete darkness. The actual range may vary depending on environmental conditions.

What are the physical dimensions of the camera?

The camera measures approximately 7.5 x 7.5 x 12 cm (width x depth x height). Please refer to the mounting template for exact measurements.

Does the REVO REXT600-1 come with a warranty?

Yes, REVO provides a 2-year limited warranty against defects in materials and workmanship. Keep your purchase receipt for warranty claims.

Where can I download the user manual for the REXT600-1?

You can download the manual for free from notice-facile.com or the REVO official website. Search for model REXT600-1 and select PDF format.

USER MANUAL REXT600-1 REVO

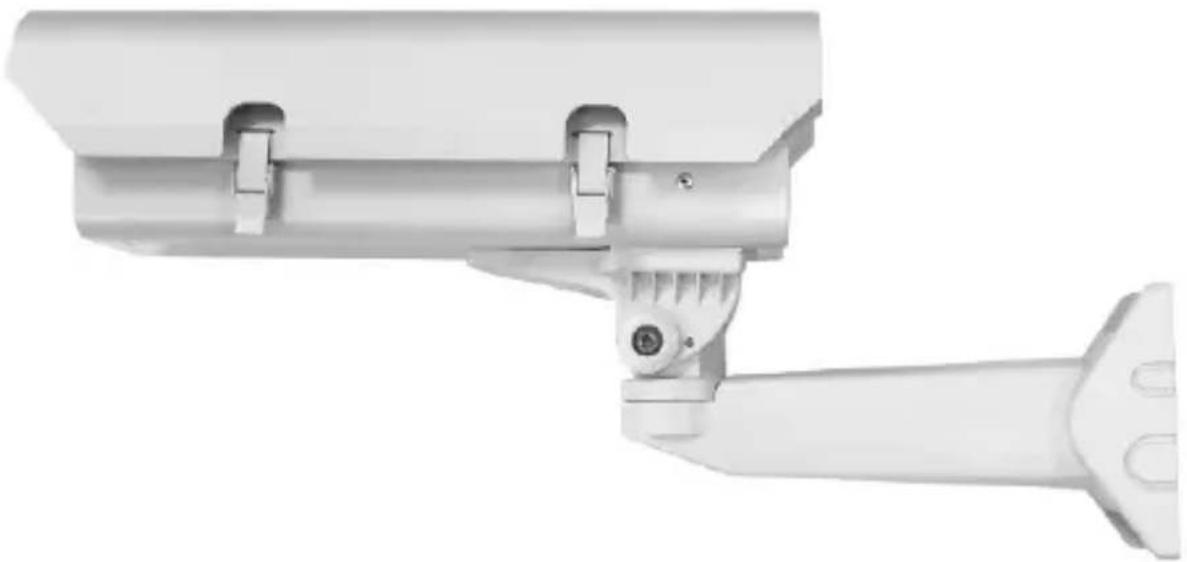

UltraHighResolution Day&NightColorCamera

Close-up of a security camera mounted on a wall-mounted device (no visible text or symbols)

WARNINGS:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.DONOTINSERTANYMETALLICOBJECTSTHROUGHTHEVENTILATIONGRILLSOR OTHEROPENINGSONTHEEQUIPMENT.

CAUTION:

CAUTIONCAU RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION:TOREDUCETHERISKOFELECTRICSHOCK, DONOTREMOVECOVER(ORBACK). NOUSER-SERVICEABLEPARTSINSIDE. REFERSERVICINGTOQUALIFIEDSERVICEPERSONNEL.

EXPLANATIONOFGRAPHICAL SYMBOLS

Thelightningflashwitharrowheadsymbol,withinanequilateraltriangle,is intendedtoalerttheusertothepresenceofuninsulated"dangerousvoltage" withintheproduct'senclosurethatmaybeofsufficientmagnitudetoconstitutea riskofelectricshocktopersons.

Theexclamationpointwithinanequilateraltriangleisintendedtoalerttheuserto thepresenceofimportantoperatingandmaintenance(servicing)instructionsinthe literatureaccompanyingtheproduct.

PRECAUTIONS

Safety

Shouldanyliquidorsolidobjectfallintothecabinet, unplugtheunitandhaveitcheckedbythequalified personnelbeforeoperatingitanyfurther.

Unplugtheunitfromthewallouletifitisnotgoingto beusedforseveraldaysormore. Todisconnectthe cord, pullitoutbytheplug. Neverpullthecorditself.

Allowadequateaircirculationtopreventinternalheat build-up.Donotplacetheunitonsurfaces(rugs, blankets,etc.)ornearmaterials(curtains,draperies) thatmayblocktheventilationholes.

Heightandverticallinearitycontrolslocatedatthe rearpanelareforspecialadjustmentsbyqualified personnelonly.

Donotinstalltheunitinanextremelyhotor humidplaceorinaplacesubjecttoexcessive dust,mechanicalvibration.

Theunitisnotdesignedtobewaterproof. Exposuretorainorwatermaydamagetheunit.

Cleaning

Cleantheunitwithaslightlydampsoftcloth. Useamildhouseholddetergent.Neveruse strongsolventssuchasthinnerorbenzineas theymightdamagethefinishoftheunit.

Retaintheoriginalcartonandpacking materialsforsafetransportofthisunitinthe future.

FCC COMPLIANCE STATEMENT

FCC INFORMATION : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANTTOPART 1 50FTHEFCCRULES. THESE LIMITSAREDESIGNEDTOPROVIDEREASONABLEPROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATERADIOFREQUENCY ENERGY AND IF NOT I INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TORADIOCOMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE IN WHICH CASETHEUSERWILL B EREQUIRED TO CORRECT THE INTERFERENCE AT H ISOWNEXPENSE.

CAUTION : CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

THISCLASSADIGITALAPPARATUSCOMPLIESWITHCANADIAN ICES-003. CET APPAREIL NUMÉRIQUE DE LA CLASSE A EST CONFORME À LA NORMENMB-003DUCANADA.

CE COMPLIANCE STATEMENT

WARNING

THISISACLASSAPRODUCT.INADOMESTICENVIRONMENTTHIS PRODUCTMAYCAUSERADIOINTERFERENCEINWHICHCASE THEUSERMAYBEREQUIREDTOTAKEADEQUATEMEASURES.

IMPORTANTSAFEGUARDS

1. Readtheseinstructions.
2. Keeptheseinstructions.
3. Heedallwarnings.
   4.Followallinstructions.
4. Donotusethisapparatusnearwater.

5. Cleanonlywithdrycloth.

6. Donotblockanyventilationopenings.Installinaccordancewiththe m anufacturer'sinstructions.

7. Donotinstallnearanyheatsourcessuchasradiators,heatregisters, s toves,orotherapparatus(includingamplifiers)thatproduceheat.

8. Donotdefeatthesafetypurposeofthepolarizedorgrounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the p rvidedplugdoesnotfitintoyouroutlet,consultanelectricianfor replacementoftheobsoleteoutlet.

9. Protect the power cord from being walked on or pinched particularly a t plugs, conveniencereceptacles, and the point where they exit from the heapparatus.

10. Only use attachments/accessories specified by the manufacturer.

11. Use only with the cart, stand, tripod, bracket, ortables specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

12. Unplugthisapparatusduringlightningstormsorwhenunusedfor longperiodsoftime.

13. Referallservicingtoqualifiedservicepersonnel.Servicingis r equiredwhentheapparatushasbeendamagedinanyway,suchas p ower-supplycordorplugisdamaged,liquidhasbeenmoisture,does n otoperatenormally,orhasbeendropped.

14. CAUTIONTHESESERVICINGINSTRUCTIONSAREFORUSEBY QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER THANTHATCONTAINEDINTHEOPERATINGINSTRUCTIONS UNLESSYOUQREQUALIFIEDTODOSO.

15. Use Certified/Listed Class 2 powersource only.

TABLEOFCONTENTS

INTRODUCTION1
CONTENTSOFPACKAGE1
CAMERACONNECTIONS2....
WALLBRACKETMOUNTING2
CAMERA OVERVIEW3
CAMERA ADJUSTMENT3
STRUCTUREOFTHESETUPMENU4
CONTROL AND CONNECTIONS/DAY&NIGHT I/O/ 8
WIRINGDIAGRAM10

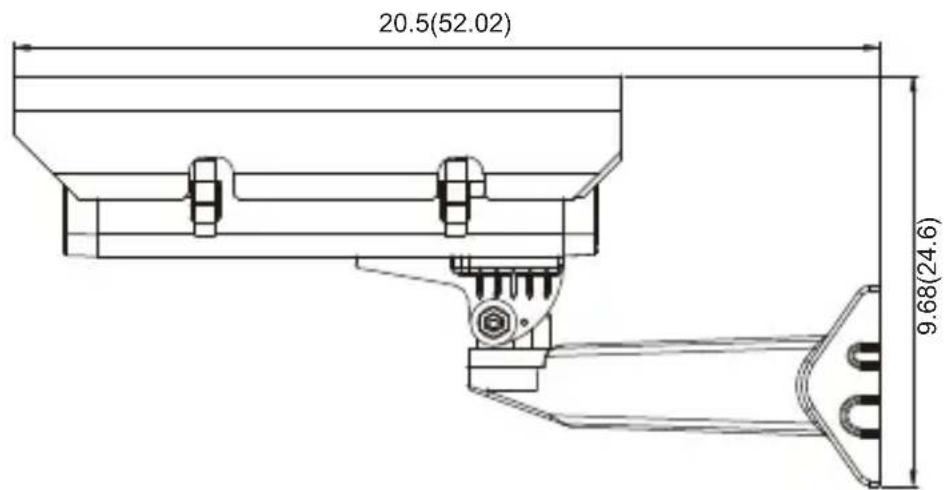

HOUSINGKITSPECIFICATIONS10
SPECIFICATIONS10

The cameraprovideshigh-qualityimagesusingSONYCCDtechnologiespecially designedforclosed-circuittelevision(CCTV)andsecuritysurveillance applications.

Features:

• Highresolutionandhighperformance1/3"SONYSuperHADCCDTechnology
• Excellentpicturequality
• 600lines(Color)ofresolution
0.1lux(Color), 0.04lux(B/W)@F1.250IRESensitivity (Senseupx256-0.0004lux(Color), 0.0001lux(B/W))
• Autoelectronicshutter[1/60(1/50)\~1/120,000]andmanualelectronic shuttermodes
- OSD(OnScreenDisplay)
• 3DDNRFunction, Eclipse, DRC(DynamicRangeControl)
• Autoandmanualwhitebalancemodes
• BLC(BackLightCompensation)
Day&Night(Auto/DAY/NIGHT/EXT) (EXT:D&NWithICRmodeloption)
- PrivateMask(24position,BW,Color,Mosaic), MotionDetection
- AGC(AutoGainControl)
- Sense-up(x2\~x256)
• MIRROR(NORMAL/MIRROR/VERTICAL/ROTATE)
- Internal/AClinelock
RS485CONTROL
• Built-in5-50mmor2.8-12mmVari-focalDCirisLens
• Operatesin12VDCor24VAC
• UseCertified/ListedClass2powersupplyonly.

CONTENTSOFPACKAGE

Installation of the cameramust be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes.

Carefullyremovethecolorcameraanditsaccessoriesfromthecarton andverifythattheywerenotdamagedinshipment.

Thecontentsofthepackageincludes:

1.CAMERAHOUSINGKIT
2. Thismanual
3.L-wrench(5mm)----1ea
(2.5mm)----1ea
4.ANCHOR(5mm)----4ea

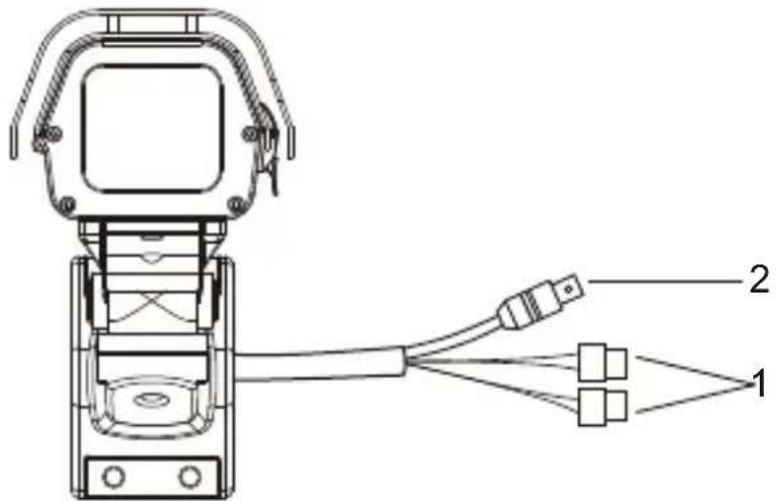

Technical diagram of a mechanical device with labeled components and wiring connections

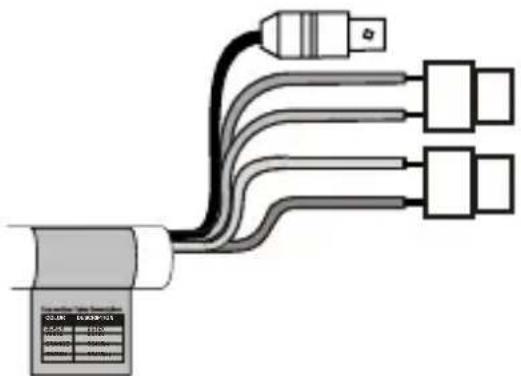

1.ColorLeadWire&ColorDisplayLabel

Diagram showing cable routing with connectors and a device panel labeled in Chinese

Connection Cable Description

COLOR	DESCRIPTION
BLACK	AC24V
RED	AC24V
BLUE	RS485(-)
BROWN	RS485(+)

REMINDER:

Neveraimthe cameradirectly intothesun.

1. Video: BNC connector used to connect the camerato monitor, switcher, etc.

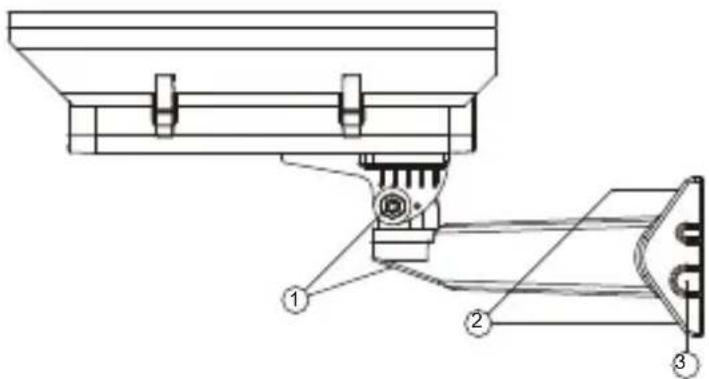

WALL B RACKETMOUNTING

1. Use fasteners of appropriates size and typeto attach the bracket to the walls surface. Position the housing so that it allows for viewing of these selected area.
2. Adjustthemovablearmofthewallbrackettoattainthedesiredposition.Oneitisinplace, tightentheboltlocatedatthepivotpointofthemovablearm.
3. If you want top pull out there relevant cable, remove the knockout on the wall bracket mounting.

Technical diagram of a mechanical assembly with numbered components, likely illustrating a mounting or mounting mechanism.

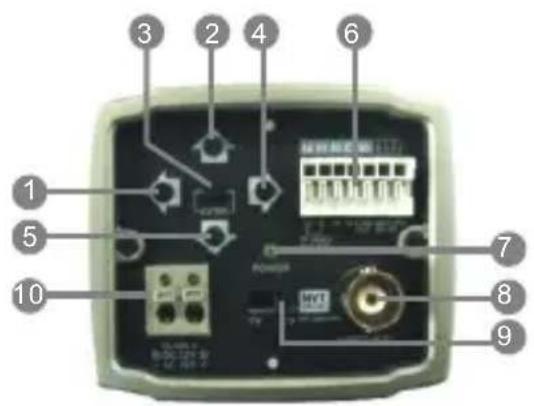

Labeled diagram of an electronic device rear panel with numbered components and terminal blocks

REARVIEW

1LeftButton
2UpButton
3EnterButton
4RightButton
5DownButton
6 Day/NightExternalInput
ALARMOUT
RS-485
UTPVideoOutput(option)
7 PowerIndicator
8 V ideoOutConnector(BNC)
UTPorBNCTransformationSwitch(option)
10 AC/DCCompatibleInputTerminal

*, -UTP9Option

CAMERAADJUSTMENT

OSDMAINSCREEN

MENU

EXPOSURE +…

WHITEBAL +…

DAY/NIGHT +…

MOTION +…

PRIVACY +…

OPTION +…

DISPLAY +…

SYNC AU O

INITIAL DEFAULT

EXIT

- [ENTER] ON or OFF of OSD MENU

- [UP] / [DOWM] UP or DOWN of Cursor

- [LEFT] / [RIGHT] SUB MENU ON or Decision

1) EXPOSURE, WHITE BAL, DAY/NIGHT, MOTION, PRIVACY, OPTION and DISPLAY has a SUB MENU. [UP]/[DOWN] of Cursor. And SUB MENUS is displayed by [LEFT] / [RIGHT].

2) SYNC : AUTO or INT can be selected.

3) When making INITIAL from USER to DEFAULT, all data is initialized.

4) To EXIT the menu use the [LEFT] / [RIGHT] buttons when EXIT is highlighted.

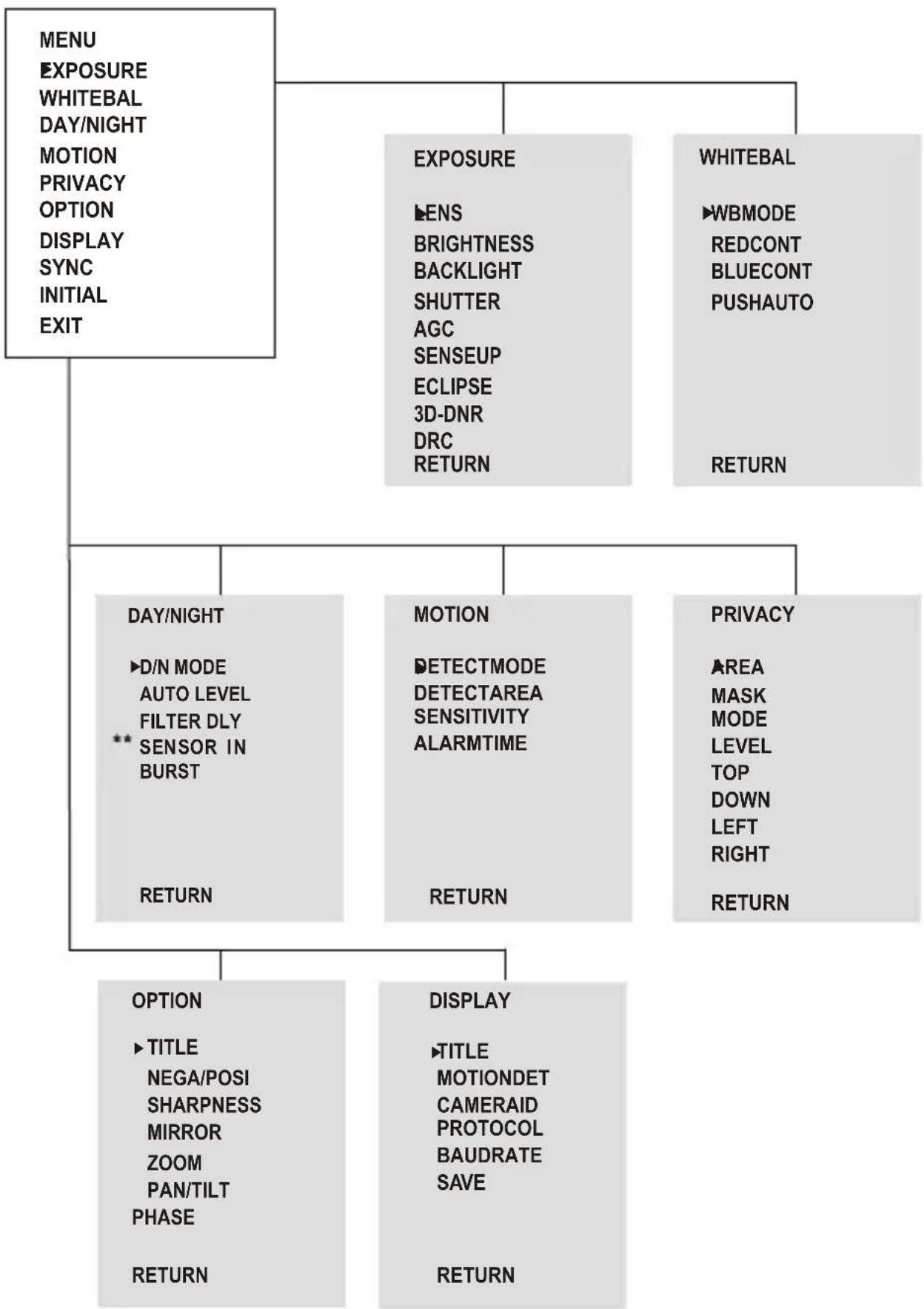

STRUCTUREOFTHESETUPMENU

**SENSOR IN : Only D&N with ICR model

Pressthe[LEFT]or[RIGHT]buttontoaccessthe"EXPOSURE"mode.

1)LENS	DC,Video,ELCcanbeselected.
2)BRIGHTNESS	0to60canbeselected.*LevelsettingisavailableinDC,Video,ELCmode.
3)BACKLIGHT	ONorOFFcanbeselected.(BLClevel,location)*Preventssuchabacklighteffecttosecureaclearimageunder allilluminationenvironments.
4)SHUTTER	1/60(1/50),FLC,1/250,1/500,1/1000,1/2000,1/4000,1/100001/30000,1/60000,1/120000sec.*WhenLENSisDCorVIDEO,itispossibletoselectit.AnotherbecomesNOTUSE.
5)AGC	AGCOFF,LOW,MID,HIGHcanbeselected.*Asthelevelofgainincreases,thescreengetsbrighterandthelevelOfnoisealsoincreases.
6)SENSEUP	OFF,x2,x4,x8,x16,x32,x64,x128,x256canbeselected.*SENSEUPhelpsmaintainabright,clearscreenimage byautomaticallydetectingchangeintheleveloflight
7)ECLIPSE	ONorOFFcanbeselected.*Thefunctionimprovestheidentificationcapabilityofsubjectsfacing abrightlylitsituationbyfilteringoutthestrengthofthelight.
8)3D-DNR	OFF,LOW,MID,HIGHcanbeselected.*Reducesthenoiseonthescreenunderlowlightcondition
9)DRC	ONor OFF*Thefunctionotvisiblybrightenasubjectinadarkarea
10)RETURN	ReturntoMAINMENU.

Pressthe[LEFT]or[RIGHT]buttontoaccessthe"WHITEBALANCE"mode.

1)WBMODE
-ATW	Thismodecanbeusedwithinthecolortemperaturerange 1.800^ 10.500^
-AWC	Pleasepressthe[LEFT]or[RIGHT]buttoninthePUSHAUTOmodewhilethecameraisdirectedatapieceofwhilepapertoobtaintheoptimumstateundercurrentillumination.Iftheenvironmentincludingthelightsourceschanged,youhavetoadjusttheWhitebalanceagain.
-MANUAL	Manualmode.UsercanchangeRandBGainmanually.
-INDOOR	Setthecolortemperatureto 3200^
-OUTDOOR	Setthecolortemperatureto 6300^
2)REDCONT	AdjustRedGainValue(0~127)Canbeadjustwhileinmanualmode.
3)BLUECONT	AdjustBLUEGainValue(0~127)Canbeadjustwhileinmanualmode.
4)PUSHAUTO	WhenitisAWC,OFFtoPUSHcanbeselected.
5)RETURN	ReturntoMAINMENU.

Pressthe[LEFT]or[RIGHT]buttontoaccessthe"DAY/NIGHT"mode.

1)D/NMODE	AUTO,DAY,NIGHT,EXTcanbeselected.
-AUTO	Thiscamerahasafunctionwhichautomaticallychangesto theappropriatemodeforday-timeornight-time.
-DAY	Inthismode,thecameraoutputsthevideoimageonlyincolor.
-NIGHT	Inthismode,thecameraoutputsthevideoimageonlyinblackandwhite.
-EXT	Inthismode,anexternalsignalchangesthecameraoutputfromthe COLORmodetoBWmodeandback.*EXT:OnlyD&NwithICRModel(Option)
2)AUTOLEVEL	When set to AUTO, the 0 to 3 values can be selected.*AGCLOW:0AGCMID:0~1AGCHIGH:0~3
3)FILTERDLY	WhensettoAUTO,4to10canbeselected.WhenAGCisOFF,NOTUSED.*Adjustthedelaytimeoffiltermovementwhenchanging fromontoofforofftoon .
4)SENSORIN	WhenitisEXT,NoorNCCanbeselected.* SENSORIN:OnlyD&nwithICRModel.(Option)
5)BURST	WhenitisDAY,NotUse.AnothermodebecomesONorOFFcanbeselected.
6)RETURN	ReturntoMAINMENU.

Pressthe[LEFT]or[RIGHT]buttontoaccessth"MOTION"mode.

1)DETECTMODE	ONorOFFcanbeselected.*TurningonbecomesinvalidwhiledisplayingOSD.However,itbecomeseffectiveonlyatMOTIONAREA.
2)DETECTAREA	MOTIONAREAisdisplayed.
3)SENSITIVITY	0to8canbeselected.
4)ALARMTIME	1to60seccanbeselected.
5)RETURN	ReturntoMAINMENU.

Pressthe[LEFT]or[RIGHT]buttontoaccessthe"PRIVACY"mode.

1)AREA	1to24canbeselected.
2)MASK	ONorOFFcanbeselected.
3)MODE	WhenMASKisON,BW,MOSAIC,COLORcanbeselected.
4)LEVEL	-BW:0to15canbeselected.-MOSAIC:SMALLorMIDDLEorLARGEcanbeselected.-COLOR:RED,BLUE,GREEN,YELLOW,CYAN,MAGENTA canbeselected.

5)TOP	WhenMASKisON,3to124(NTSC)or6to150(PAL)canbeselected.
6)DOWN	WhenMASKisON,5to126(NTSC)or8to152(PAL)canbeselected.
7)LEFT	WhenMASKisON,0to187(NTSC)or0to185(PAL)canbeselected.
8)RIGHT	WhenMASKisON,2to189(NTSC)or2to187(PAL)canbeselected.
9)RETURN	ReturntoMAINMENU.

Pressthe[LEFT]or[RIGHT]buttontoaccessthe"OPTION"mode.

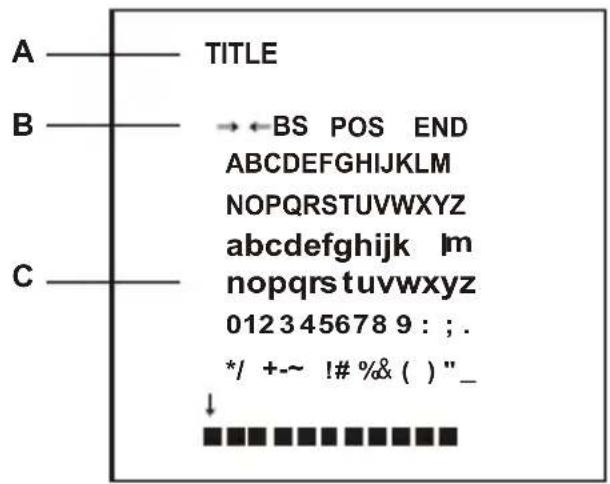

1) TITLE

TITLE →←BS POS END ABCDEFGHIJKLMNOPQRSTUVWXYZ abcdefghijklmnopqrstuvwxyz 012345678 9 : ; */ +-~ !# %& ( ) "_ ↓

A. TITLE

B. CommandLine

← :Movetoleft

→ :Movetoright

BS: Erasealeftcharacter

POS: Changethepositionofthetitle

END:End

C. CharacterTable

:brank

- :space

2) NEGA/POSI NEGAorPOSI can be selected.
3) SHARPNESS0 to 15 can be selected.
4) MIRROR NORMAL, MIRROR, VERTICAL, ROTATE can be selected.

-MIRRORHorizontalimageinversion

-VERTICAL V erticalimageinversion

-ROTATEHorizontalimageandVerticalimageinversion

5) ZOOM 0FF(x1) and ON1 to ON8(x4) can be selected. When PAN/TILT is ON, it is NOT USE.

6) PAN/TILT OFF or ON(x2) can be selected. *WhenOSDMENUisOFFandPAN/TILTisON, o p erateby[UP],[DOWN],[LEFT],[RIGHT].

7) PHASE Sync phase is adjustable in line lock mode (Auto mode) 0\~524(NTSC)or0\~624(PAL).

8)RETURNReturntoMAINMENU

Pressthe[LEFT]or[RIGHT]buttontoaccessthe"DISPLAY"mode.

1) TITLE ON or OFF can be selected.
2) MOTION DET ON or OFF can be selected.
3) CAMERA ID Select the camera ID. (001 - 254)
4) PROTOCOL Select operating protocol FASTRAX : Fastrax protocol. PELCO-D : PELCO-D protocol. PELCO-P : PELCO-P protocol.
5) BAUDRATE Select serial communication speed. (2400 / 4800 / 9600 / 19200)
6) SAVE Save the changed parameters of CAMERA ID, PROTOCOL, BAUDRATE.
7) RETURN Return to MAIN MENU.

CONTROLANDCONNECTIONS/DAY&NIGHT INPUT/ALARMOUTTERMINALS-(UTPMODEL)

1234				5	6	7
TPVIDEO O UTPUTD&N			COM	ALARM	RS-485
⊖	⊕	INGND		OUT	RS 4 85+(RX)	RS 4 85-(TX)

*3Pin : Only D&N with ICR model option (DDN model : NC)

1) CAMERACONTROL

- 6PIN:RS485+

- 7PIN:RS485 -

2) DAY&NIGHTINPUTTerminal (Only D&N with ICR model option)

ToselectDay/Nightmodeusingexternalequipment,connectcontrolline totheappropriateterminal.

• DAY&NIGHTEXTERNALINPUT(2pin)

ItisthefunctionthatcanbeswitchedtoDAYModeorNIGHTModebyreceivingtheD&Non/offsignalfromexternallightsensororIRLEDLAMP.WhenD&NModeisset"EXT"ontheOSDmenuofthecamera.

BNC: This BNC connector provides a 1.0 Vp-p/75 ohms composite video Signal.

UTP : Unshielded Twisted Pair video Transmission for effective installation(option).

1PIN:TPVIDEOOUTPUT

⊕

2PIN:TPVIDEOOUTPUT

⊕

CONTROLANDCONNECTIONS/DAY&NIGHT INPUT/ALARMOUTTERMINALS-(W/OUTP M ODEL)

1	2	3	4	5
D&N	COM	ALARM	RS-485
INGND		OUT	RS 4 85+(RX)	RS 4 85-(TX)

*1Pin : Only D&N with ICR model option (DDN model : NC)

1) CAMERACONTROL

4PIN:RS485+
5PIN:RS485 -

2) DAY&NIGHTINPUTTerminal (Only D&N with ICR model option)

ToselectDay/Nightmodeusingexternalequipment,connectcontrolline

totheappropriateterminal.

• DAY&NIGHTEXTERNALINPUT(2pin)

ItisthefunctionthatcanbeswitchedtoDAYModeorNIGHTModebyreceivingthe D&Non/offsignalfromexternallightsensororIRLEDLAMP.WhenD&NModeisset "EXT"ontheOSDmenuofthecamera.

BNC: This BNC connector provides a 1.0 Vp-p/75 ohms composite video Signal.

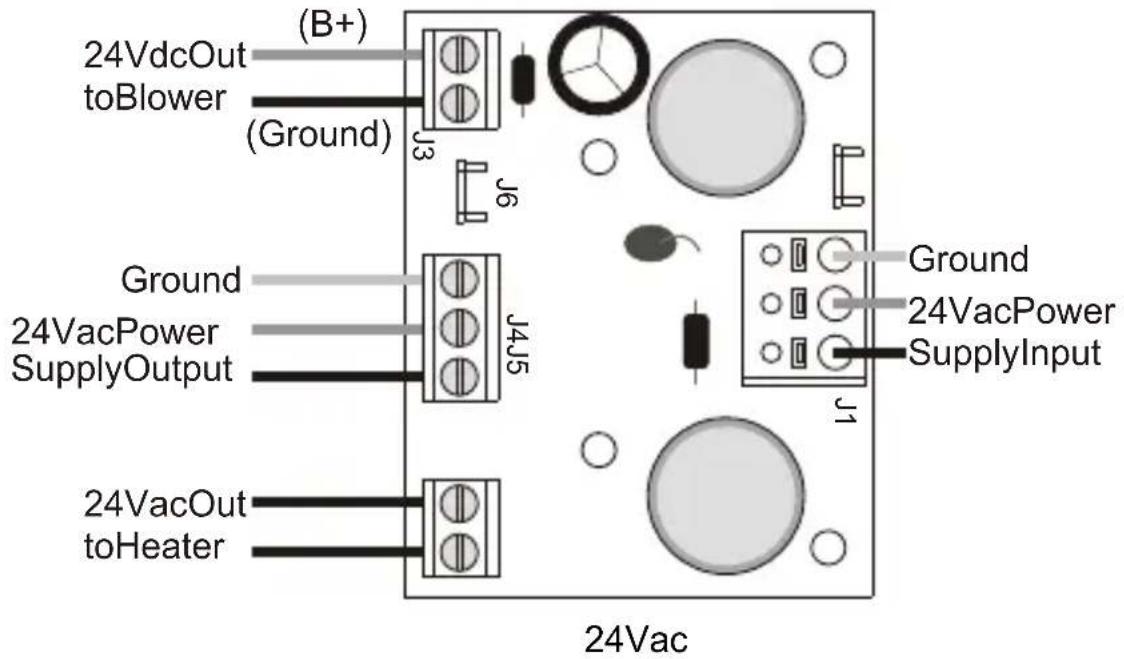

*HEATERANDBLOWER

24VdcOut toBlower (B+) (Ground) J3 J6 Ground 24VacPower SupplyOutput J4J5 24VacOut toHeater Ground 24VacPower SupplyInput J1 24Vac

HOUSINGKITSPECIFICATIONS

CameraHousingWindowSize2.5"Wx2.3"H(6.4cmx5.9cm)

CameraHousingConstructionDie-cast,extruded,andsheetaluminum

CameraHousingFinish

Light-grayployesterpowdercoat

WallBracketPanAdjustment360

0

WallBracketTiltAdjustment

70°

WallBracketLockingMethod

4holesforfastenersofasuitablesize&type.

Mounttoasecuresolidsurface.

TotalDimension(WxHxL)

5.5"Wx9.68"Hx20.5"D

(14cmx24.6cmx52.02cm)

TotalWeight

9.15lb(4.15kg)

Unit:inch(cm)

5.5(14) 2.5(6.4) 2.3(5.9)

20.5(52.02) 9.68(24.6)

MODEL			NTSC	PAL
POWER	Powersource		DC12V/AC24V10%
	Powerconsumption		4.5Watts
	Powerinput		2-PinTerminalblock
GENERAL	Imagesensor		1/3"SONYSuper-HADColorCCD
	Totalnumberofpixels		811(H)x508(V)	795(H)x596(V)
	Scanningsystem		2:1interlace
	Scanningfrequency		15.734KHz(H),59.94Hz(V)	15.625KHz(H),50Hz(V)
	Sync.system		Internal/Linelock
	Electronicshutter		1/60~1/120,000sec1/50~1/120,000sec
	Resolution		600TVLines(Color)
	Min.illumination		0.1lux(Color),0.04lux(B/W)@F1.250IRE(Senseupx256- 0.0004lux(Color),0.0001lux(B/W))
	Videooutput		1.0Vp-p(75ohm,composite)
	S/NRatio		Morethan55dB(AGCOFF,SenseupOFF)
	CameraControl		RS485(Fastrax,PelcoD,PelcoP),TACTSwitch
	FUNCTION	AutoExposure	1/60(1/50)/FLICKERLESS/MANUALSHUTTER(1/250,1/500,1/1000,/1/2000,1/4000,1/10000,1/30000,1/60000,1/120000)
		BLC	ON/OFF(Position,Level)
		AGC	OFF/LOW/MIDDLE/HIGH
		Sense-up	OFF/x2~x256
		Eclipse	OFF/ON
		3D-DNR	OFF/LOW/MIDDLE/HIGH
		DRC	ON/OFF
		WhiteBalance	ATW/AWC/MANUAL/INDOOR/OUTDOOR
		Day&Night	AUTO/DAY/NIGHT/EXT (EXT:D&NwithICRmodeloption)
		Motiondetection	OFF/ON(Sensitivity&AlarmtimeSelective)
		Privacyzone	OFF/ON(24point,MaskBW,Color,Moasic)
		Brightness	0~60
		Sharpness	0~15
		Mirror	NORMAL/MIRROR/VERTICAL/ROTATE
		Zoom	OFF/ON(x4)/PAN&TILT(x2)
		CameralD	1~254
		Baudrate	2400/4800/9600/19200
		IREXTIN	NC/NO (OnlyD&NwithICRmodeloption)
CONNECTOR & ETC.	Videooutput		BNC,UTP(option)
	Autoirisoutput		4-PinTerminaldinjack(standardconnection)
	Lensmount		C/CSmount(Selectedthroughbackfocus)
	Mountinghole		1/4"-20UNC(toporbottom)
	Lens		5-50mm F1.4 DC iris or 2.8-12mm F1.4 DC iris
	Operatingtemperature		-10°C~+50C[14F~122F]
	Operatinghumidity		0~96%(non-condensing)
	Operating humidity		0~96% (non-condensing)

Blower		Heater
Power Supply	24 Vac	Power Supply	24 Vac
Power Consumption	3.4W	Power Consumption	20W
Blower ON	t°C > 35°C +/-3°CT*F > 95°F +/-5°F	Heater ON	t°C < 5°C +/- 3°CT*F < 41°F +/- 5°F
Blower OFF	t°C < 20°C +/-3°C	Heater OFF	t°C > 15°C +/- 3°C
