Product Type	DVD Player
Brand	Philips
Model	DVP3336X
Dimensions (W x D x H)	360 x 206 x 49 mm
Weight	1.2 kg
Power Supply	110-240 V AC, 50/60 Hz
Power Consumption	< 10 W (standby < 1 W)
Disc Playback Formats	DVD, DVD+R/RW, DVD-R/RW, CD, CD-R/RW, MP3, JPEG, DivX
Video Output	Composite Video, Component Video, HDMI (up to 1080p)
Audio Output	Stereo Audio, Coaxial Digital Audio
USB Port	USB 2.0 for media playback
Region Code	2 (Europe) / Multi-region (user selectable)
Playback Features	Zoom, Repeat, A-B Repeat, Slow Motion, Multi-angle, Subtitle & Audio Selection
Remote Control	Infrared, includes batteries
Maintenance	Clean disc with soft cloth, avoid direct sunlight and dust
Safety	Class II double insulation, automatic shut-off after inactivity
Spare Parts Available	Remote control, power cord, audio/video cables
Repairability Index	7/10 (user-serviceable parts: power supply, laser lens)

Frequently Asked Questions - DVP3336X PHILIPS

Why won't my Philips DVP3336X play a disc?

Ensure the disc is inserted with the label side up. Check that the disc is not scratched or dirty. Clean with a soft cloth. If the disc is a format not supported (e.g., Blu-ray), the player cannot read it.

How do I connect the DVD player to my TV?

Use the HDMI cable for best quality. Alternatively, use the composite video (yellow) and stereo audio (red/white) cables. Ensure the TV is set to the correct input source.

Why is there no picture but sound is working?

Check the video cable connection and ensure the TV input matches the output (e.g., HDMI). If using component video, ensure the Y, Pb, Pr cables are correctly connected. Also check the TV's resolution settings.

How can I play movies from a USB drive?

Insert the USB drive into the USB port and press SOURCE until USB appears. The player supports DivX, MP4, AVI, and MP3 files. Ensure the USB is formatted in FAT32.

What do I do if the remote control is not working?

Replace the batteries with fresh ones. Ensure the remote is pointed at the player's sensor within 6 meters. Remove any obstacles. If still not working, use the buttons on the player itself.

Can I change the region code of my DVD player?

Some models allow region code change via a code from the remote. For the DVP3336X, try pressing SETUP, then 0 repeatedly until a menu appears. Enter the desired region code. This may void warranty.

Why does the player not respond to any buttons?

Unplug the player for 30 seconds to reset it. Check that the lock symbol is not displayed (child lock). If so, press ROCK on the remote to unlock.

How do I clean the DVD player?

Use a soft, dry cloth to wipe the exterior. For the lens, use a lens cleaning disc. Never use liquid cleaners or abrasive materials. Keep vents free of dust.

What is the warranty period for the Philips DVP3336X?

The standard warranty is 1 year from the date of purchase. It covers manufacturing defects but not damage from misuse or unauthorized repairs. Keep your receipt.

Can I watch DVDs from other regions on this player?

The player ships with region code 2 (Europe). To play DVDs from other regions, you may need to change the region code. Note that region codes can only be changed a limited number of times (usually 5).

USER MANUAL DVP3336X PHILIPS

Register your product and get support at

www.philips.com/welcome

DVP3336

PHILIPS DVD PLAYER DVP336 8:30:00

EN User manual

Contents

1 Important 4

Safety and important notice 4

Trademark notice 5

2 Your product 6

Feature highlights 6

Product overview 6

Remote control 7

3 Connect 8

Connect video cables 8

Connect audio cables 9

Route audio to other devices 9

Connect USB flash drive 10

Connect power 10

4 Get started 11

Prepare the remote control 11

Find the correct viewing channel 11

Select menu display language 11

Turn on progressive scan 12

5 Play 13

Play a disc 13

Play video 13

Play music 15

Play photo 16

Play from USB flash drive 17

6 Listen to FM radio 18

Tune to a radio station 18

Program radio stations automatically 18

Program radio stations manually 18

Select a preset radio station 18

7 Advanced features 19

Create MP3 files 19

8 Adjust settings 20

General setup 20

Audio setup 20

Video setup 22

Preferences 23

9 Additional information 25

Update software 25

Care 25

10 Specifications 26

11 Troubleshooting 28

12 Glossary 30

1 Important

Safety and important notice

Warning

Risk of overheating! Never install the product in a confined space. Always leave a space of at least 4 inches around the product for ventilation. Ensure curtains or other objects never cover the ventilation slots on the product.

• Never place the product, remote control or batteries near naked flames or other heat sources, including direct sunlight.
• Only use this product indoors. Keep this product away from water, moisture and liquid-filled objects.
• Never place this product on other electrical equipment.
• Keep away from this product during lightning storms.
• Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
• Visible and invisible laser radiation when open. Avoid exposure to beam.

About Progressive Scan

Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of 525 or 625 progressive scan picture problems, it is recommended that the user switch the connection to the 'standard definition' output. If there are questions regarding our TV set compatibility with this model 525p and 625p DVD player, please contact our customer service center.

Disposal of your old product and batteries

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste.

Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste.

Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Copyright notice

Be responsible Respect copyrights

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorised by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorised by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Trademark notice

DOLBY.

DIGITAL

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Plays Windows Media™

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

"DivX, DivX" Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

Play DivX® video with menus, subtitles and audio tracks.

The USB-IF Logos are trademarks of Universal Serial Bus Implementers Forum, Inc.

2 Your product

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Feature highlights

Screen Fit

View the movie in full screen display on any TV.

Progressive scan video

Push the limits of standard resolution and provide a more film-like DVD video display on a TV screen.

Hi-speed USB link

Plug a USB flash drive to the USB jack to enjoy the MP3/WMA/JPEG/DivX files.

Create MP3 files

Convert audio tracks from an audio CD into MP3 format. The created MP3 files are saved in the USB flash drive.

FM radio

Listen to FM radio stations through the integrated speaker.

Region codes

You can play discs with the following region codes.

DVD region code Countries

India

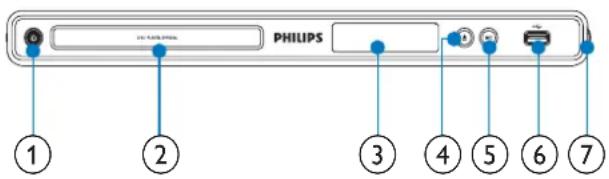

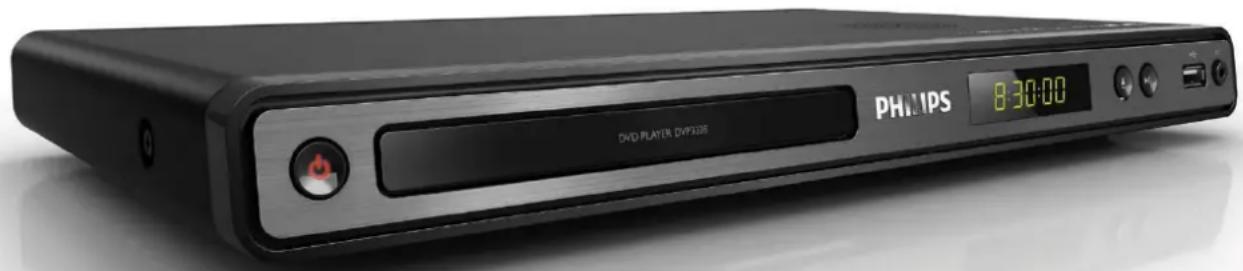

Product overview

Main unit

PHILIPS ① ② ③ ④ ⑤ ⑥ ⑦

① ⏻ (Standby-On)

Turn on the DVD player or switch to • standby mode.

②Disc compartment
③Display panel
④ ▲ (Open/Close)

Open or close the disc • compartment.

⑤ ▶ (Play/Pause)

Start, pause or resume disc play.

⑥ (USB) jack

Connect a USB flash drive.

⑦VOLUME knob

Turn up or down the speaker volume • of DVD player.

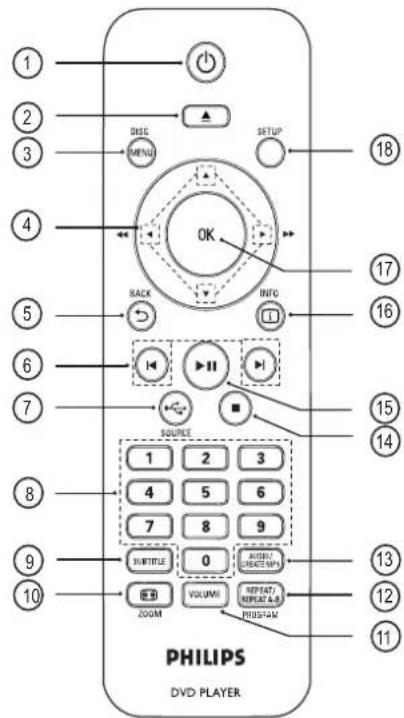

Remote control

1 2 3 4 5 6 7 8 9 10 DISC MENU OK BACK INFO SOURCE 1 2 3 4 5 6 7 8 9 SUBTITLE 0 VOLUME ZOOM RESET/CREAT/MAN REPEAT/REPEAT A/B PROGRAM PHILIPS DVD PLAYER 18 17 16 15 14 13 12 11

①

• Turn on the unit or switch to standby.

②

- Open or close the disc compartment.

③DISC MENU

- Access or exit the disc menu.

- Switch to the disc mode.

• For VCD and SVCD, turn on or off PBC (playback control).

④

• Navigate the menus.
• Search fast-forward (▶) or fast-backward (◀).
  • Search slow-forward (▲) or slow-backward (▼).
• Tune to a radio station ( ◀/▶ ).
  • Adjust the radio frequency ( ▲/▼).

⑤ ← BACK

• Return to the previous display menu.

⑥

- Skip to the previous or next title, chapter, or track.

• Select a preset radio station.

⑦SOURCE

Select a source: disc, USB or FM • radio.

⑧Numeric buttons

Select an item to play.

⑨ SUBTITLE

Select a subtitle language on a disc.

⑩ ZOOM

Fit the piture display to the TV • screen. Zoom the picture in or out.

⑪VOLUME

Adjust volume.

⑫REPEAT/REPEAT A-B PROGRAM

Select or turn off repeat mode. Repeat play for a specific section. Program radio stations.

⑬AUDIO/CREATE MP3

• Select an audio language or channel on a disc.
  • Access the menu of creating MP3 files.

14

- Stop play.

15 ▶ II

• Start, pause or resume disc play.

⑯ i INFO

• For discs, access the play options or display the current disc status.
• For slideshows, display a thumbnail view of photo files.

⑰OK

• Confirm an entry or selection.

⑱SETUP

• Access or exit the setup menu.

3 Connect

Make the following connections to use this product.

Basic connections:

Video•

Audio•

Optional connections:

Route audio to other devices:•

• Multi channel receiver
• Digital amplifier/receiver
• Analogue stereo system

- USB flash drive

Note

- Refer to the type plate at the back or bottom of the product for identification and supply ratings.

- Before you make or change any connections, ensure that all the devices are disconnected from the power outlet.

Tip

- Different types of connectors may be used to connect this product to your TV, depending on availability and your needs. A comprehensive interactive guide to help you connect your product is available at www.connectivityguide.philips.com.

Connect video cables

Connect this product to TV to view disc play. Select the best video connection that TV can support.

• Option 1: Connect to component video jacks (for a standard TV or Progressive Scan TV).
• Option 2: Connect to video (CVBS) jack (for a standard TV).

Note

You must connect this product directly to a • TV.

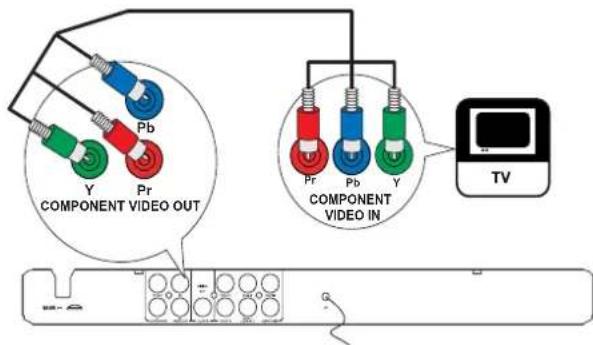

Option 1: Connect to component video jacks

COMPONENT VIDEO OUT Pb Y Pr COMPONENT VIDEO IN Pr Pb Y TV

1 Connect the component video cables (not supplied) to:

the • Y Pb Pr jacks on this product. the COMPONENT VIDEO input • jacks on the TV.

Tip

The component video input jacks on the TV may be labeled as Y Pb/Cb Pr/Cr or YUV.

- This type of connection provides good picture quality.

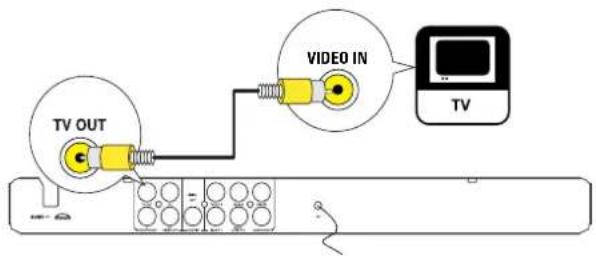

Option 2: Connect to video (CVBS) jack

TV OUT VIDEO IN TV

1 Connect a composite video cable (not supplied) to:

• the TV OUT jack on this product. the video input jack on the TV.

Tip

The video input jack on the TV may be labeled as A/V IN, VIDEO IN, COMPOSITE or BASEBAND.

- This type of connection provides standard picture quality.

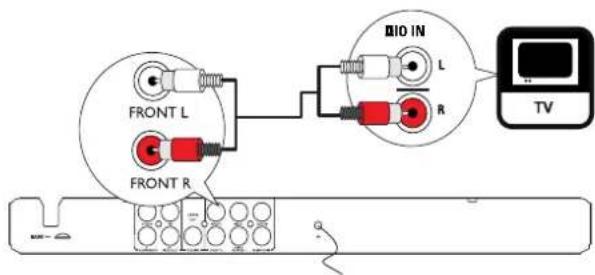

Connect audio cables

FRONT L FRONT R HIO IN L R TV

Connect the audio from this product to the TV to allow sound output through the TV.

1 Connect the audio cables (supplied) to: the • AUDIO OUT FRONT L/R jacks on this product. the audio input jacks on the TV.•

Route audio to other devices

Route the audio from this product to other devices to enhance audio play.

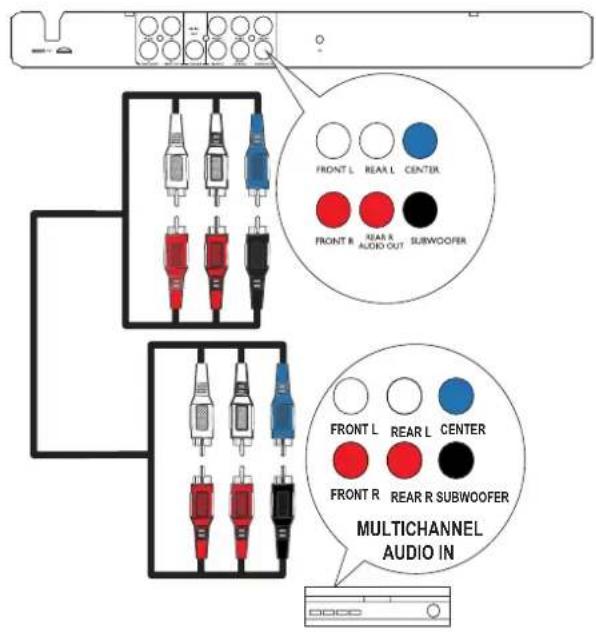

Connect multi channel receiver

FRONT L REAR L CENTER FRONT R REAR S AUDIO OUT SUBWOOFER FRONT L REAR L CENTER FRONT R REAR R SUBWOOFER MULTICHANNEL AUDIO IN

1 Connect the audio cables (not supplied) to the AUDIO OUT (FRONT L/R, REAR L/R, CENTER and SUBWOOFER) jacks on this DVD player and the audio input jacks on the device.

Tip

You can optimize the audio output (see • chapter 'Adjust settings' - [Audio Setup] > [Audio Output] for details.

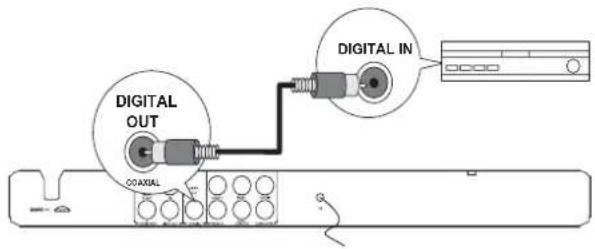

Connect to digital amplifier/receiver

DIGITAL OUT COAXIAL DIGITAL IN

1 Connect a coaxial cable (not supplied) to: the COAXIAL jack on this product. the COAXIAL/DIGITAL input jack on the device.

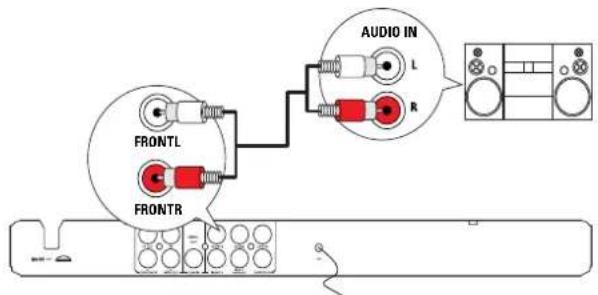

Connect analogue stereo system

FRONTL FRONTR AUDIO IN L R

1 Connect the audio cables (supplied) to: the • AUDIO OUT FRONT L/R jacks on this product. the audio input jacks on the device.

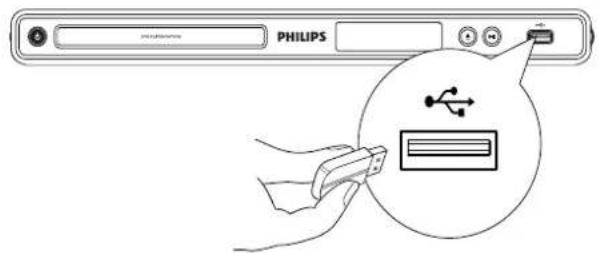

Connect USB flash drive

PHILIPS

1 Connect a USB flash drive to the jack on this product.

Note

This product can only play/view MP3, WMA, DivX or JPEG files that are stored on a USB flash drive.

- PSource button to access the content and play the files.

Connect power

Caution

Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back of the unit. Before connecting the AC power cord, ensure you have completed all other connections.

Note

The type plate is located on the back of the product.

1 Connect the AC power cable to the wall socket. The player is ready to be set up for → use.

4 Get started

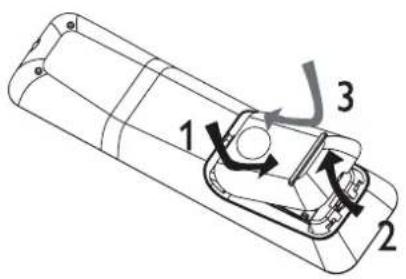

Prepare the remote control

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

1 Open the battery compartment.
2 Insert 2 AAA batteries with correct polarity (+/-) as indicated.
3 Close the battery compartment.

Caution

Remove batteries if they are exhausted or if the remote control is not to be used for a long time.

• Do not mix batteries (old and new or carbon and alkaline, etc.).
• Batteries contain chemical substances, so they should be disposed of properly.

Find the correct viewing channel

1 Press Ⓞ to turn on this product.
2 Turn on the TV and switch to the correct video-in channel (refer to the TV user manual on how to select the correct channel).

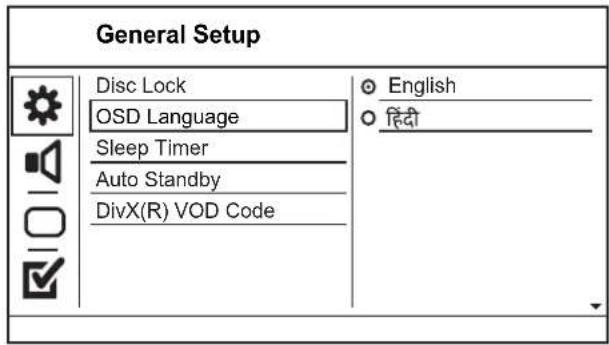

Select menu display language

General Setup Disc Lock OSD Language Sleep Timer Auto Standby DivX(R) VOD Code English हिंदी

The language options may vary from • different regions.

1 Press SETUP. →[General Setup] menu is displayed.
2 Select [OSD Language], then press▶.
3 Press to select a language, then press OK.

Turn on progressive scan

Note

To use the progressive scan feature, you must connect a progressive scan TV with the component video jacks (see “Connect” > “Connect video cables” > “Option 1: Connect to the component video jacks” for details).

Video Steup
	TV System	On
	TV Display	Off
	Progressive
	Picture Setting

1 Turn on the TV to the correct viewing channel for this product.
2 Press SETUP.
3 Press ▼ to select [Video Setup].
4 Select [Progressive] > [On], then press OK.

A warning message is displayed.

5 To proceed, select [Ok] and press OK.

The progressive setup is complete.

Note

If a blank/distorted screen is displayed, wait for 15 seconds for the auto recovery.

• If no picture is displayed, turn off the progressive scan mode as follows:
  • 1)tBrepe▲ the disc compartment.
• 2Nuclearbutton '1'.

6 Press SETUP to exit the menu.
7 You can now turn on the progressive scan mode on the TV (see the TV user manual).

Note

During play, when the progressive scan • mode is on for both this product and the TV, distorted picture may display. In this case, turn off the progressive scan feature on both this product and the TV.

5 Play

Play a disc

Caution

Do not place any objects other than discs into the disc compartment.

- Do not touch the disc optical lens inside the disc compartment.

1 Press ▲ to open the disc compartment.
2 Insert a disc with its label facing up.
3 Press ▲ to close the disc compartment and start disc play.

• To view disc play, turn on the TV to the correct viewing channel for this product.

• To stop disc play, press ■.

Note

• Check the types of discs supported (see "Specifications" > "Play media").
• If the password entry menu is displayed, enter the password before you can play the locked or restricted disc (see "Adjust settings" > "Preferences" > [Parental Control]).
• If you pause or stop a disc, the screen saver appears after 5 minutes of inactivity. To deactivate the screen saver, press DISC MENU.
  • After you pause or stop a disc and no button is pressed within 15 minutes, this product automatically switches to standby.

Play video

Note

• For video disc, play always resumes from the point where it was last stopped.
• Some operations may not work with some discs. See the information accompanying the disc for details.

Control video play

1 Play a title.
2 Use the remote control to control the play.

Button Action

▶II	Start, pause or resume disc play.
■	Stop disc play.

◀,◀kip to a previous/next title or chapter.

◀◀, Search fast-backward or fast-forward. Press repeatedly to change the search speed.

▲, Search slow-forward or slow-backward. Press repeatedly to change the search speed. For VCD/SVCD, slow-backward search is not available.

AUDIO/ CREATE MP3 Select an audio language or channel available on a disc.

SUBTITLE Select a subtitle language availabel on a disc.

REPEAT/ Select or turn off repeat REPEAT A-B mode.

Repeat options may vary from disc type.

ZOOM Fit the picture format to the TV screen.

Press repeatedly until the image is scaled to fit to the TV screen.

ZOOM Toggle between screen aspect ratio and different zoom factor. To pan through the zoomed image, press the Navigation buttons.

i INFO Access the play options and display the current disc status.

Access DVD menu

1 Press DISC MENU to access the disc root menu.
2 Select a play option, then press OK. In some menus, press the • Numeric buttons to input your selection.

Access VCD menu

The PBC ( playback control) feature is available for VCD/SVCD, which can display the contents menu for you to select a play option. The PBC is on by default in the factory.

Note

- See "Adjust settings" > [Preferences] > [PBC] on how to turn PBC on or off.

1 Display the contents menu via one of the following ways:

• If PBC is on, load in a VCD/SVCD.
- During play with PBC on, press BACK.

2 Press the Numeric buttons to select a play option, then press OK to start play.

- If PBC is turned off, it skips the menu display and starts play from the first track.

Preview disc contents

1 During play, press ⓘ INFO. The disc status menu is displayed.
2 Select [Preview], then press ▶.
3 Select a preview option, then press OK.

A thumbnails preview screen is displayed.

• To go to the next/previous preview screen, select [Prev] or [Next], then press OK.
• To start play, press OK at the selected thumbnail picture.

Skip play to a specific time

1 During play, press ⓘ INFO. The disc status menu is displayed.
2 Select an option for the current elapsed playing time, then press ▶.

• [TT Time] (title time)
• [CH Time] (chapter time)
• [Disc Time] (disc time)
• [Track Time] (track time)

3 Press the Numeric buttons to enter the time to skip to, then press OK.

Display play time

1 During play, press ⓘ INFO. The disc status menu is displayed!
2 Select [Time Disp.], then press ▶. The display options vary from disc ↩ type.
3 Select an option, then press OK.

View DVD play from different angles

1 During play, press ⓘ INFO. The disc status menu is displayed.
2 Select [Angle], then press▶.
3 Press the Numeric buttons to change the angle. Play changes to the selected angle.

Note

Applicable only to discs contain multi-angle • scenes.

Repeat play for a specific section

1 During play, press REPEAT/REPEAT A-B at the start point.
2 Press REPEAT/REPEAT A-B again to set the end point.

Repeat play starts.

3 To cancel repeat play, press REPEAT/REPEAT A-B again.

Note

- The marked section for repeat play is only possible within a track/title.

Play DivX® video

DivX video is a digital media format that retains high quality despite a high rate of compression. You can enjoy DivX video on this DivX certified product.

1 Insert a disc or USB that contains the DivX videos.

• To play videos in a USB flash drive, press ✉ SOURCE repeatedly. A contents menu is displayed.

2 Select a title to play, then press OK.

• You may select subtitle/audio language.

Note

- You can only play DivX video that is rented or purchased with the DivX registration code of this product (see "Adjust Settings" > [General Setup] > [DivX® VOD Code]).

Play music

Control a track

1 Play a track.
2 Use the remote control to control the play.

Button Action

▶II	Start, pause or resume disc play.
■	Stop disc play.
◀,▶I	Skip to a previous/next track.

Button Action

1	2	3
4	5	6
7	8	9
	0

Select an item to play.
◀, Searches fast-backward

or fast-forward. Press repeatedly to change the search speed.

REPEAT/REPEAT A-B

Select or turn off repeat mode.Repeat options may vary from disc type.

Quick skip play

1 During play, press ⓘ INFO repeatedly to select an option.

Display Action

[Disc Go To] Skip play to a specific time within the disc.

[Track Go To] Skip play to a specific time within a track.

[Select Track] Skip play to a specific track number.

2 Press the numeric buttons to change the time/number to skip to.

Play MP3/WMA music

MP3/WMA is a type of highly compressed audio file (files with .mp3, .wma extensions).

1 Insert a disc or USB that contains the MP3/WMA music. To play music in a USB flash drive, press SOURCE repeatedly. A contents menu is displayed.

2 If play does not automatically start, select a track to play.

• To select another track/folder, press ▲▼, then press OK.

Note

For disc recorded in multiple sessions, only the • first session is played.

• For a WMA file that is protected by Digital Rights Management (DRM), it cannot be played on this product.
• This product does not support MP3PRO audio format.
• For any special character that is present in the MP3 track name (ID3) or album name, it might not be displayed correctly on the screen because these characters are not supported.
• Folders/files that exceed the supported limit of this product cannot be displayed or played.

Play photo

Play photo as slideshow

You can play JPEG photos (files with .jpeg or .jpg extensions).

1 Insert a disc or USB that contains the JPEG photos.

To play photos in a USB flash drive, press ✉ SOURCE repeatedly.

Slideshow begins (for Kodak disc), or a contents menu (for JPEG disc) is displayed.

2 Select a photo folder, then press OK to start slideshow.

To preview the photos in thumbnail, • press ⓘ INFO.

To select a photo, press the • Navigation buttons.

• To enlarge the selected photo and start slideshow, press OK.
• To return to the menu, press BACK.

Note

It may require longer time to display the disc • content on the TV due to the large number of songs/photos compiled onto one disc/USB flash drive.

• If the JPEG photo is not recorded with an 'exif' type file, the actual thumbnail picture cannot be shown on the screen. It is replaced by a 'blue mountain' thumbnail picture.
• This product can only display digital camera pictures according to the JPEG-EXIF format, typically used by almost all digital cameras. It cannot display Motion JPEG, or pictures in formats other than JPEG, or sound clips associated with pictures.
• Folders/files that exceed the supported limit of this product cannot be displayed or played.

Control photo play

1 Play a photo slideshow.
2 Use the remote control to control the play.

Button Action

◄/►Rotate a photo anti-clockwise/clockwise.
▲/▼Rotate a photo horizontally/ vertically.
ZOOM Zoom in or out of a photo. Play pauses in zoom mode.

■ Stop a play.

Play musical slideshow

Create a musical slideshow to play MP3/WMA music files and JPEG photo files simultaneously.

Note

To create a musical slideshow, you must store the MP3/WMA and JPEG files on the same disc/USB flash drive.

1 Play MP3/WMA music.
2 Press ➕ BACK to return to the main menu.
3 Navigate to the photo folder/album and press OK to start slideshow play.

Slideshow begins and continues till the → end of the photo folder or album.

Audio continues to play until the end of the disc.

To stop slideshow play, press ■.

To stop music play, press again.

Play from USB flash drive

This product plays/views MP3, WMA, DivX or JPEG files that are stored on a USB flash drive.

1 Connect a USB flash drive to the jack on this product.
2 Press the ✉ SOURCE button. A contents menu is displayed!→
3 If play does not start automatically, select a file to play.

- For more information, see the chapters "Play music", "Play photo" and "Play video" for details.

4 To stop play, press ■

• To switch to the disc mode, press the ✉ SOURCE button.

6 Listen to FM radio

Tune to a radio station

1 Press • SOURCE to slect radio.
2 Press /

→[SRCH] appears.

→ The radio tunes to a station with strong reception automatically.

3 Repeat step 2 to tune to more stations.

• To tune to a weak station, press ▲/▼ repeatedly until you find the optimal reception.

Program radio stations automatically

You can program a maximum of 20 FM stations.

1 In the tuner mode, press and hold PROGRAM for 2 seconds.

→[AUTO] appears and blinks.

All detected stations are programmed.
→ The first programmed radio station is broadcast automatically.

Program radio stations manually

You can program a maximum of 20 FM stations.

1 Press ◀to◆lect a preset number, then tune to a radio station.
2 Press PROGRAM to store the radio station.
3 Repeat the above steps to program other stations.

To overwrite a programmed station, • store another station in its place.

Select a preset radio station

1 In the tuner mode, press 🔊 to select a preset radio station.

Tip

Position the antenna as far as possible from • TV, VCR or other radiation source.

- For optimal reception, fully extend and adjust the position of the antenna.

7 Advanced features

Create MP3 files

With this product, you can convert audio CDs into MP3 audio files. The created MP3 audio files are saved in the USB flash drive.

1 Insert an audio CD.
2 Connect a USB flash drive to the ♦ jack on this product.
3 During disc play, press AUDIO/CREATE MP3. → The MP3 creation menu is displayed.
4 Select [Yes] in the menu, then press OK.

Create MP3
OPTIONS		TRACK
Speed	Normal	Track01	04:14
Bitrate	128kbps	Track02	04:17
CRT ID3	Yes	Track03	03:58
Device	USB 1	Track04	04:51
Summary		Track05	03:53
Press [OK] button to change speed.		Track06	04:09
		Track07	04:38
Start	Exit	Select all	Deselect all

5 Select a conversion option in the [OPTIONS] panel, then press OK repeatedly to select an item.

Option	Description
[Speed]	Select a copying speed.
[Bitrate]	Select a quality level.Higher bitrate for better sound quality and bigger file size.
[CRT ID3]	Copy track information into the MP3 file.
[Device]	The created files can only be saved in a USB flash drive.

6 Press ▶ to access the [Track] panel.
7 Select an audio track, then press OK. To select another track, repeat step • 7. To select all tracks, select • [Select All] in the menu, and press OK. To deselect all tracks, select • [Deselect all] in the menu, and press OK.

8 Select [Start] in the menu, then press OK to start to convert.

Once complete, a new folder is → created automatically in the USB flash drive to store all the new MP3 files.

• To exit the menu, select [Exit], then press OK.

Note

When you convert, never press any button.

• DTS CDs and copy-protected CDs cannot be converted.
• Writer-protected or password-protected USB flash drives cannot be used to store MP3 files.

8 Adjust settings

Note

If the setup option is grayed out, it means the setting cannot be changed at the current state.

General setup

General Setup
	Disok
	OSD language
	Sleep time r
	Auto Standp
	Di#VOD Code

1 Press SETUP.

→[General Setup] menu is displayed.

2 Press .
3 Select an option, then press OK.
4 Select a setting, then press OK.

To return to the previous menu, • press ◀.

To exit the menu, press • SETUP.

[Disc Lock]

Set play restriction for a disc which is loaded in the disc compartment (maximum 20 discs can be locked).

• [Lock] - Restrict access to the current disc. The next time you want to play this disc or unlock it, you need to enter the password.
  • [Unlock] - Play all discs.

Tip

- You can set or change the password, go to [Preferences] > [Password].

[OSD Language]

Select an on-screen menu language.

[Sleep Timer]

Switch automatically to standby at the preset time.

- [Off] - Disable sleep mode. - [15 mins], [30 mins], [45 mins], [60 mins] - Select the count down time for this product to switch to standby.

[Auto Standby]

Turn on or off automatically standby.

• [On] - Switch to standby 15 minutes of inactivity (for example, in pause or stop mode).
  • [Off] - Disable the auto standby mode.

[DivX(R) VOD Code]

Display the DivX® registration code.

Tip

Use this product's DivX registration code • when you rent or purchase video from www.divx.com/vod. The DivX videos rented or purchased through the DivX® VOD (Video On Demand) service can be played only on the device to which it is registered.

Audio setup

Audio Setup
	Analogue Output
	Digital Audio
	Volume
	Sound Mode
	Speaker Setup
—	CD Upsampling
[AAB2]	Night Mode

1 Press SETUP. →[General Setup] menu is displayed.
2 Press ▼ to select [Audio Setup], then press ▶.
3 Select an option, then press OK.

4 Select a setting, then press OK.

• To return to the previous menu, press ◀.
• To exit the menu, press SETUP.

[Analogue Output]

Select an analogue setting based on the audio device that is connected through the analogue audio jack.

• [Stereo] - For stereo output.
• [LT/RT] - For surround sound output through two speakers.
• [V SURR] - For analogue surround sound output from the main speaker.
• [Multi Channel] - For surround sound output through 5.1 channel receiver.

[Digital Audio]

Select a digital setting based on the digital amplifier/receiver that is connected through the digital jack (coaxial/digital).

• [Digital Output] - Select a type of digital output.
• [Off] - Disable digital output.
• [All] - Support multi-channel audio formats.
• [PCM Only] - Downmix to two-channel audio format.

- [LPCM Output] - Select the LPCM (Linear Pulse Code Modulation) output sampling rate.

• [48kHz] - For discs recorded at sampling rate of 48 kHz.

• [96kHz] - For discs recorded at sampling rate of 96 kHz.

Note

• [LPCM Output] setting is only available if the [Digital Output] is set to [PCM Only].
• The higher the sampling rate, the better the sound quality.

[Volume]

Set the default volume level when you play a disc.

1. Press OK.
2. Press ◀▶ to set the volume.
3. Press OK to confirm and exit.

[Sound Mode]

Select a preset sound effect to enhance the audio output.

• [3D] - Select a virtual surround sound effect that is produced from the left and right audio channels.

• [Movie Mode] - Select a sound effect for movies.

• [Music Mode] - Select a sound effect for music.

[Speaker Setup]

Optimizes surround output for the connected speakers system.

• [Front Speaker]

Option Description

[Large] Produces low frequency signal below 120 Hz.

[Small] Cannot produce low frequency signal below 120 Hz.

• [Centre Speaker] / [Rear Speaker]

Option Description

[Large] Produces low frequency signal below 120 Hz.

[Small] Cannot produce low frequency signal below 120 Hz.

[Off] No speaker is connected.

- [Subwoofer]

Option Description

[On] A subwoofer is connected.

[Off] No subwoofer is connected.

- [Speakers Volume] – Sets the volume level of each speaker to get the ideal audio balance.

1 Press OK.

2 Select a speaker, then press ◀▶ to adjust the volume.

3 Press OK to confirm and exit.

- [Speakers Delay] – Sets the delay time for the center and rear speakers if they are placed closer to the listening position, so that the sound output from all speakers reach the listening position at the same time.

1 Press OK.
2 Select a speaker, then press to let the delay time.
3 Press OK to confirm and exit.

[CD Upsampling]

For better sound quality in stereo mode, convert the music CD to a higher sampling rate.

• [Off] - Turn off CD-upsampling.
• [88.2kHz (X2)] - Convert to twice the original sampling rate.
• [176.4kHz(X4)] - Convert to four times the original sampling rate.

[Night Mode]

Make loud sound level softer and soft sound level louder so that you can watch the DVD movies at a low volume, without disturbing others.

• [On] – Enjoy quiet viewing at night.
- [Off] – Enjoy surround sound with a full dynamic range.

Note

Applicable only to Dolby Digital encoded • DVD.

Video setup

Video Steup
	TV System
—	TV Display
[XZZ4]	Progressive
[6ZZD]	Picture Setting
[CCOW]

1 Press SETUP. →[General Setup] menu is displayed.
2 Press ▼ to select [Video Setup], then press ▶.
3 Select an option, then press OK.
4 Select a setting, then press OK. To return to the previous menu, • press ◀. To exit the menu, press • SETUP.

[TV System]

Change this setting if the video does not appear correctly. By default, this setting matches the most common setting for TVs in your country.

• [PAL] - For PAL-system TV.
• [Multi] - For TV that is compatible with both PAL and NTSC.
• [NTSC] - For NTSC-system TV.

[TV Display]

Select a display format:

4:3 Pan Scan (PS)

4:3 Letter Box (LB)

16:9 (Wide Screen)

• [4:3 Pan Scan] - For 4:3 screen TV: full-height display with the trimmed sides.
• [4:3 Letter Box] - For 4:3 screen TV: wide-screen display with black bars on the top and bottom of the screen.
• [16:9] - For wide-screen TV: display ratio 16:9.

[Progressive]

If a progressive scan TV is connected to this product, turn on the progressive scan mode.

• [On] - Turn on progressive scan.
• [Off] - Turn off progressive scan mode.

Note

For more detailed description, see "Get • started" > "Turn on progressive scan".

[Picture Setting]

Select a predefined set of picture color settings or customize the personal setting.

• [Standard] - Original color setting.
• [Bright] - Vibrant color setting.
• [Soft] - Warm color setting.
- [Personal] - Customize the color setting. Set the level of brightness, contrast, tint and color saturation, then press OK.

Preferences

Note

Stop disc play before you can access to • [Preferences].

Preferences
	Audio
	Subtitle
	Disc Menu
	Parental Control
	PBC
	Mp3 / Jpeg Nav
	Password
	DivX Subtitle

1 Press SETUP.

→[General Setup] menu is displayed.

2 Press ▼ to select [Preferences], then press ▶.
3 Select an option, then press OK.

4 Select a setting, then press OK.

To return to the previous menu, • press ◀. To exit the menu, press • SETUP.

[Audio]

Select an audio language for disc play.

[Subtitle]

Select a subtitle language for disc play.

[Disc Menu]

Select a disc menu language.

Note

If the language you have set is not available on the disc, the disc uses its own default language.
- For some DVDs, the subtitle/audio language can only change from the disc menu.
- To select the languages that are not listed in the menu, select [Others]. Then check the Language Code list at the back of this user manual and enter the respective language code.

[Parental Control]

Restrict access to discs that are unsuitable for children. These types of discs must be recorded with ratings.

1. Press OK.
2. Select a rating level, then press OK.
3. Press the numeric buttons to enter the password.

Note

Rated DVDs above the level you set in • [Parental Control] require a password to be played.

• The ratings are country-dependent. To allow all discs to play, select '8'.
• Some discs have ratings printed on them but are not recorded with ratings. This function has no effect on such discs.

[PBC]

Turn on or off the content menu of VCDs/SVCDs with PBC (playback control) feature.

• [On] - Display the index menu when you load a disc for play.
• [Off] - Skip the menu and start play from the first title.

[MP3/JPEG Nav]

Select to display the folders or display all the files.

• [View Files] - Display all the files.
• [View Folders] - Display the folders of MP3/WMA files.

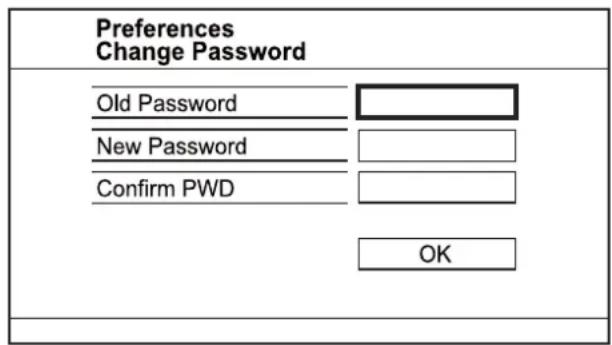

[Password]

Set or change the password for locked discs and play restricted DVDs.

Preferences Change Password Old Password New Password Confirm PWD OK

1. Press the Numeric buttons to enter '136900' or the last set password at [Old Password] field.
2. Enter the new password at [New Password] field.
3. Enter the new password again at [Confirm PWD] field.
4. Press OK to exit the menu.

Note

If you forget the password, enter '136900' • before you set a new password.

[DivX Subtitle]

Select a character set that supports the DivX subtitle.

• [Standard] – English, Irish, Danish, Estonian, Finnish, French, German, Italian, Portuguese, Luxembourgish, Norwegian (Bokmål and Nynorsk), Spanish, Swedish, Turkish

Note

Ensure that the subtitle file has the exact same file name as the movie file. If for example the file name of the movie is 'Movie.avi', then you need to name the text file 'Movie.sub' or 'Movie.srt'.

[Version Info]

Display the software version of this product.

Tip

This information is required when you want to find out if a newest software version is available at the Philips website that you may download and install on this product.

[Default]

Reset all the settings of this product to factory default, except for [Disc Lock], [Parental Control] and [Password] settings.

9 Additional information

Update software

For software updates, check the current software version of this product to compare with the latest software (if available) at the Philips website.

Caution

Power supply must not be interrupted during • software upgrade.

1 Press SETUP.
2 Select [Preferences] > [Version Info], then press OK.
3 Write down the file name, then press SETUP to exit the menu.
4 Visit www.philips.com/support to check for the latest software version, using the file name for this product.
5 Refer to the upgrade instructions on the website for more information.

Note

Disconnect the power cord for a few seconds and connect again to turn on the product.

Care

Caution

Never use solvents such as benzene, thinner, • cleaners available commercially, or anti-static sprays intended for discs.

Clean discs

Wipe the disc with a micro fibre cleaning cloth from the center to the edge in a straight line movement.

Illustration of a hand pressing down on a CD or DVD disc (no text or symbols visible)

Illustration of a hand holding a CD or DVD disc, no text or symbols present

10 Specifications

Note

• Specification and design are subject to change without notice

Accessories supplied

• Remote control and batteries

• Audio/Video cables
- User Manual

Play media

• DVD-Video, Video CD/SVCD, Audio CD, CD-R/CD-RW, DVD+R/+RW, DVD-R/-RW, DivX-CD, Picture CD, MP3-CD, WMA-CD, USB flash drive

USB

• Compatibility: Hi-Speed USB (2.0)
• Class support: UMS (USB Mass Storage Class)

TV standard

• Number of lines:

• 625 (PAL/50Hz); 525 (NTSC/60Hz)
• Play: Multi-standard (PAL/NTSC)

Video performance

• Video DAC: 12 bits, 108 MHz
• Y Pb Pr: 0.7 Vpp \~ 75 ohm

Video output: 1 Vpp \~ 75 ohm•

Video format

• Digital compression:

• MPEG 2: DVD/SVCD
- MPEG 1: VCD/DivX

• Horizontal resolution:

• DVD: 720 pixels (50 Hz); 720 pixels (60 Hz)

VCD: 352 pixels (50 Hz); 352 pixels • (60 Hz)

• Vertical resolution:

DVD: 576 pixels (50 Hz); 480 pixels • (60 Hz)

• VCD: 288 lines (50 Hz); 240 lines (60 Hz)

Audio performance

DA converter: 24 bits, 192 kHz•

Frequency response: •

DVD: 4 Hz - 22 kHz (48 kHz); 4 Hz •

- 44 kHz (96 kHz)

SVCD: 4 Hz - 20 kHz (44.1 kHz); 4 •

Hz - 22 kHz (48 kHz)

CD/VCD: 4 Hz - 20 kHz (44.1 kHz) •

Signal-Noise (1 kHz): > 90 dB (A-• weighted)

Dynamic range (1 kHz): > 80 dB (A-• weighted)

Crosstalk (1 kHz): > 80 dB•

Distortion/noise (1 kHz): > 65 dB•

MPEG MP3: MPEG Audio L3•

Audio format

Digital: •

• MPEG/AC-3/PCM: Compressed digital (16, 20, 24 bits fs, 44.1, 48, 96 kHz)
  • MP3 (ISO 9660): 96, 112, 128, 256 kbps & variable bit rate fs, 32, 44.1, 48 kHz

• Analog sound stereo
• Dolby surround compatible downmix from Dolby Digital multi-channel sound

Radio

• Tuning range: FM 87.5-108 MHz (50/100 kHz)
• 26 dB quieting sensitivity: FM 22 dBf
• IF rejection ratio: FM 60 dB
• Signal-to-noise ratio: FM 50 dB
• Harmonic distortion: FM 3%
• Frequency response: FM 180 Hz\~10 kHz / ±6dB
• Stereo separation: FM 26 dB (1 kHz)
• Stereo Threshold: FM 29 dB

Connections

• Y Pb Pr output: Cinch 3x
• Video output: Cinch (yellow)
• Audio output (L+R): Cinch (white/red)
- Digital output:

• 1 coaxial: IEC60958 for CDDA/LPCM; IEC61937 for MPEG 1/2, Dolby Digital

5.1 channel analogue output:•

Audio Front L + R: Cinch (white/red)•

Audio Rear L + R: Cinch (white/red)•

Audio Center: Cinch (blue)•

Audio Subwoofer: Cinch (black) •

Main unit

Dimensions (w × h × d): 360 × 37 × 209 • (mm)

Net Weight: approximately 1.3 kg•

Power

Power supply rating: 110 V - 240 V; 50/60 •

Hz

Power consumption: < 10 W•

Power consumption in standby mode: < • 1 W

Laser specification

Type: Semiconductor laser InGaAlP •

(DVD), AlGaAs (CD)

Wave length: 655 nm (DVD), 790 nm • (CD)

• Output Power: 10 mW (DVD), 5 mW (VCD/CD)

• Beam divergence: 60 degrees

11 Troubleshooting

Warning

- Risk of electric shock. Never remove the casing of the product.

To keep the warranty valid, never try to repair the product yourself.

If you have problems using this product, check the following points before you request service. If you still have a problem, register your product and get support at www.philips.com/welcome.

If you contact Philips, you will be asked for the model and serial number of your product. The model number and serial number are on the back of your product. Write the numbers here: Model No. ____

Serial No. ____

Main unit

The buttons on this unit do not work.

- Disconnect this product from the power outlet for a few minutes, then connect again.

No reaction to the remote control.

• Connect this product to the power outlet.
• Point the remote control at the IR sensor located on the front panel of this product.
  • Insert the batteries correctly.
• Insert new batteries in the remote control.


No picture.

See the TVs user manual on how to • select the correct input on the TV. Change the TV channel until you see the Philips screen.

If you have turned on the progressive • scan setting or change the TV system setting, switch back to default mode: 1) Press ▲ to open the disc compartment. 2) Press the Numeric button '1' (for progressive scan) or the Numeric button'3' (for TV system).

Sound

No audio output from the TV.

Ensure that the audio cables are • connected to the audio input of the TV. Assign the audio input of the TV to the • corresponding video input. See the TV user manual for details.

No audio output from the loudspeakers of the audio device (stereo system/amplifier/receiver).

Ensure that the audio cables are • connected to the audio input of the audio device. Turn on the audio device to its correct • audio input source.

No sound during DivX video playback

The audio codec may not be supported by this product.

No sound during radio play.

Ensure that the radio station is with optimal reception.

- Turn the VOLUME knob on the main unit to adjust the volume.

Play

DivX video files cannot be played.

Ensure that the DivX video file is • complete.

Ensure that the file name extension is correct.

The aspect ratio of the screen is not aligned with the TV display setting.

The aspect ratio is fixed on the disc.

DivX subtitles are not displayed correctly.

Ensure that the subtitle file name is the • same as the movie file name.

Select the correct character set.

Press • SETUP.

- Select [Preferences] > [DivX Subtitle] in the menu.

- Select the character set that supports the subtitle.

The contents of the USB flash drive cannot be read.

• The USB flash drive format is not compatible with the digital receiver.
- The drive is formatted with a file system which is not supported by this unit (e.g. NTFS).

Poor radio reception

• Increase the distance between the product and your TV or VCR.
• Fully extend the FM antenna.

12 Glossary

A

Aspect ratio

Aspect ratio refers to the length to height ratio of TV screens. The ratio of a standard TV is 4:3, while the ratio of a high-definition or wide TV is 16:9. The letter box allows you to enjoy a picture with a wider perspective on a standard 4:3 screen.

D

This DivX Certified ® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX video.

J

JPEG

A very common digital still picture format. A still-picture data compression system proposed by the Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio. Files are recognized by their file extension '.jpg' or '.jpeg.'

M

MP3

A file format with a sound data compression system. MP3 is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. With the MP3 format, one CD-R or CD-RW can contain about 10 times more data than a regular CD.

P

PBC

Playback Control. A system where you navigate through a Video CD/Super VCD with on-screen menus that are recorded onto the disc. You can enjoy interactive playback and search.

Progressive scan

The progressive scan displays twice the number of frames per second than in an ordinary TV system. It offers higher picture resolution and quality.

W

WMA

Windows Media™ Audio. Refers to an audio compression technology developed by Microsoft Corporation. WMA data can be encoded with Windows Media player version 9 or Windows Media player for Windows XP. Files are recognized by their file extension '.wma.'

Language Code

Abkhazian 6566
Afar 6565
Afrikaans 6570
Amharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Avestan 6569
Aymara 6589
Azerhaijani 6590
Bahasa Melayu 7783
Bashkir 6665
Belarusian 6669
Bengali 6678
Bihari 6672
Bislama 6673
Bokmål, Norwegian	7866
Bosanski	6683
Brezhoneg	6682
Bulgarian	6671
Burmese	7789
Castellano, Español	6983
Catalán	6765
Chamorro	6772
Chechen	6769
Chewa; Chichewa; Nyanja	7889
中文	9072
Chuang; Zhuang	9065
Church Slavic; Slavonic	6785
Chuvash	6786
Corsican	6779
Česky	6783
Dansk	6865
Deutsch	6869
Dzongkha	6890
English	6978
Esperanto	6979
Estonian 6984
Euskara 6985
Ελληνικά	6976
Faroese 7079
Français	7082
Frysk	7089
Fijian	7074
Gaelic; Scottish Gaelic	7168
Gallegan	7176
Georgian 7565
Gikuyu; Kikuyu	7573
Guarani	7178
Gujarati	7185
Hausa	7265
Herero 7290
Hindi	7273
Hiri Motu	7279
Hrwatski	6779
Ido	7379
Interlingua (International)	7365
Interlingue	7365
Inuktitut	7385

Inupiaq	7375
Irish 7165
Íslenska 7383
Italiano	7384
Ivrit	7269
Japanese	7465
Javanese	7486
Kalaallisut	7576
Kannada	7578
Kashmiri	7583
Kazakh	7575
Kernewek	7587
Khmer	7577
Kinyarwanda	8287
Kirghiz 7589
Komi	7586
Korean	7579
Kuanyama; Kwanyama	7574
Kurdish 7585
Lao	7679
Latina	7665
Latvian 7686
Letzeburgesch;	7666
Limburgan; Limburger	7673
Lingala	7678
Lithuanian 7684
Luxembourgish;	7666
Macedonian	7775
Malagasy	7771
Magyar	7285
Malayalam	7776
Maltese 7784
Manx	7186
Maori	7773
Marathi	7782
Marshallese	7772
Moldavian	7779
Mongolian	7778
Nauru	7865
Navaho; Navajo	7886
Ndebele, North	7868
Ndebele, South	7882
Ndonga	7871
Nederlands	7876
Nepali 7869
Norsk	7879
Northern Sami	8369
North Ndebele	7868
Norwegian Nynorsk;	7878
Occitan; Provencal	7967
Old Bulgarian; Old Slavonic	6785
Oriya 7982
Oromo	7977
Ossetian; Ossetic	7983
Pali	8073
Panjabi	8065
Persian	7065
Polski	8076
Português	8084

Pushto	8083
Russian	8285
Quechua	8185
Raeto-Romance	8277
Romanian	8279
Rundi 8278
Samoan 8377
Sango	8371
Sanskrit	8365
Sardinian	8367
Serbian 8382
Shona	8378
Shqip	8381
Sindhi	8368
Sinhalese	8373
Slovensky	8373
Slovenian 8376
Somali 8379
Sotho; Southern	8384
South Ndebele	7882
Sundanese	8385
Suomi	7073
Swahili	8387
Swati	8383
Svenska 8386
Tagalog 8476
Tahitian 8489
Tajik	8471
Tamil	8465
Tatar	8484
Telugu	8469
Thai 8472
Tibetan	6679
Tigrinya	8473
Tonga (Tonga Islands)	8479
Tsonga	8483
Tswana	8478
Türkçe	8482
Turkmen	8475
Twi	8487
Uighur	8571
Ukrainian	8575
Urdu	8582
Uzbek	8590
Vietnamese	8673
Volapuk 8679
Walloon	8765
Welsh	6789
Wolof	8779
Xhosa	8872
Yiddish 8973
Yoruba 8979
Zulu	9085

WARRANTY

This APPARATUS IS covered under warranty against any defect arising out of faulty or defective material or workmanship for a period of 6 months from date of purchase.

Should a defect develop during the period of warranty, Philips Electronics India Limited undertakes to repair the apparatus free of charge through an Authorised Philips service Center. If the purchaser shifts his residence to other town, the warranty will be valid at the nearest Authorised Philips service Center.

This warranty is not valid in case:

1. The apparatus is not used according to this manual;
2. Defects are caused by improper or reckless use;
3. Any repair work are done by person other than Authorised Philips Service Center;
4. Any modification or alteration of any nature are made in the apparatus;
5. The serial number is tampered
6. This warranty form is not completed immediately after purchase.

Serial No.:

Bill No & Date of Purchase:

Purchaser's Name:

Location & Tel No:

Dealer's Name:

Location & Tel No:

Dealer's Stamp & Sign:

Maintenance Tips for your DVD Player:

• Always keep a Disc loaded in your DVD Player tray.
- Keep the player away from the dusty areas. Keep it covered with a dust cover.
- Clean your DVD Player Lens after every 20 discs played.
- Use the 2 brush Philips DVD Lens Cleaner SVC2520 for best results.
- Clean the CDs / VCD / DVD / MP3 CD before inserting in your DVD Player.

"For unlimited listening pleasure use Philips earphones / headphones". Over 20 models to choose from

Philips Electronics India Limited

For any sales or service related queries:

Visit us on web at www.philips.com/support or

Call us on Tel. No.: 1860-180-1111 (BSNL / MTNL)*

011-6600-1111 (GSM / WLL)*

* "standard call rates apply"

PHILIPS
