IPD-157W - Docking Station HAIER - Free user manual and instructions
Find the device manual for free IPD-157W HAIER in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Docking Station with Alarm Clock and FM Radio |
| Brand | Haier |
| Model | IPD-157W |
| Color | White |
| Dimensions (W x H x D) | 200 x 120 x 80 mm |
| Weight | 0.8 kg |
| Power Supply | AC 100-240V, 50/60Hz, 12V 1.5A adapter included |
| Compatible Devices | iPod (4th gen to classic, nano, touch), iPhone (up to 4S) with 30-pin connector |
| Audio Output | Built-in stereo speakers, 2 x 5W RMS |
| Additional Functions | Alarm clock with dual alarms, FM radio with presets, sleep timer, snooze |
| Display | LCD screen with backlight for time and radio frequency |
| Ports | 30-pin dock connector, 3.5mm aux input, USB port (for charging only) |
| Remote Control | Yes, infrared remote included |
| Clock System | 12/24 hour format, automatic time sync via dock (if supported) |
| Alarm Sound | Buzzer, radio, or iPod/iPhone music |
| Battery Backup | CR2032 coin cell for clock memory |
| Country of Origin | China |
Frequently Asked Questions - IPD-157W HAIER
How do I set the clock on my Haier IPD-157W docking station?
Press the Clock button on the remote or unit. Use the + and - buttons to adjust hours, then press Clock again to set minutes. Press Clock to confirm.
Can I use the docking station with my iPhone 5 or newer?
The IPD-157W uses a 30-pin connector compatible only with older iPod and iPhone models (up to iPhone 4S). For newer devices with Lightning connector, you will need a 30-pin to Lightning adapter, but audio and charging may work.
How do I set the alarm?
Press the Alarm 1 or Alarm 2 button. Use the +/- buttons to set the hour and minute. Select the alarm source (buzzer, radio, or docked device) by pressing Source. Press Alarm again to save.
Why is there no sound from the docking station?
Check that the volume is turned up. Ensure the device is properly seated on the dock. If using aux input, verify the cable is fully inserted. Also confirm the unit is powered on.
How do I tune the FM radio?
Press Source to select FM radio. Press Scan to automatically search and store stations. Use +/- to manually tune. To preset a station, hold a number button on the remote.
What type of battery does the remote control use?
The remote uses two AAA batteries (not included). Replace them when the remote becomes unresponsive.
Can I charge my iPod/iPhone while playing music?
Yes, when docked, the IPD-157W will charge your device automatically while you play music, set alarms, or listen to the radio.
How do I reset the docking station to factory settings?
Unplug the power adapter for 30 seconds, then plug it back in. The clock and presets will be lost. Use a paperclip to press the reset hole on the bottom if available.
Why does the clock not hold time when unplugged?
The IPD-157W has a CR2032 backup battery for the clock. If it fails, replace it by opening the battery compartment on the bottom. The clock may need to be reset after replacement.
Is the docking station compatible with Android devices?

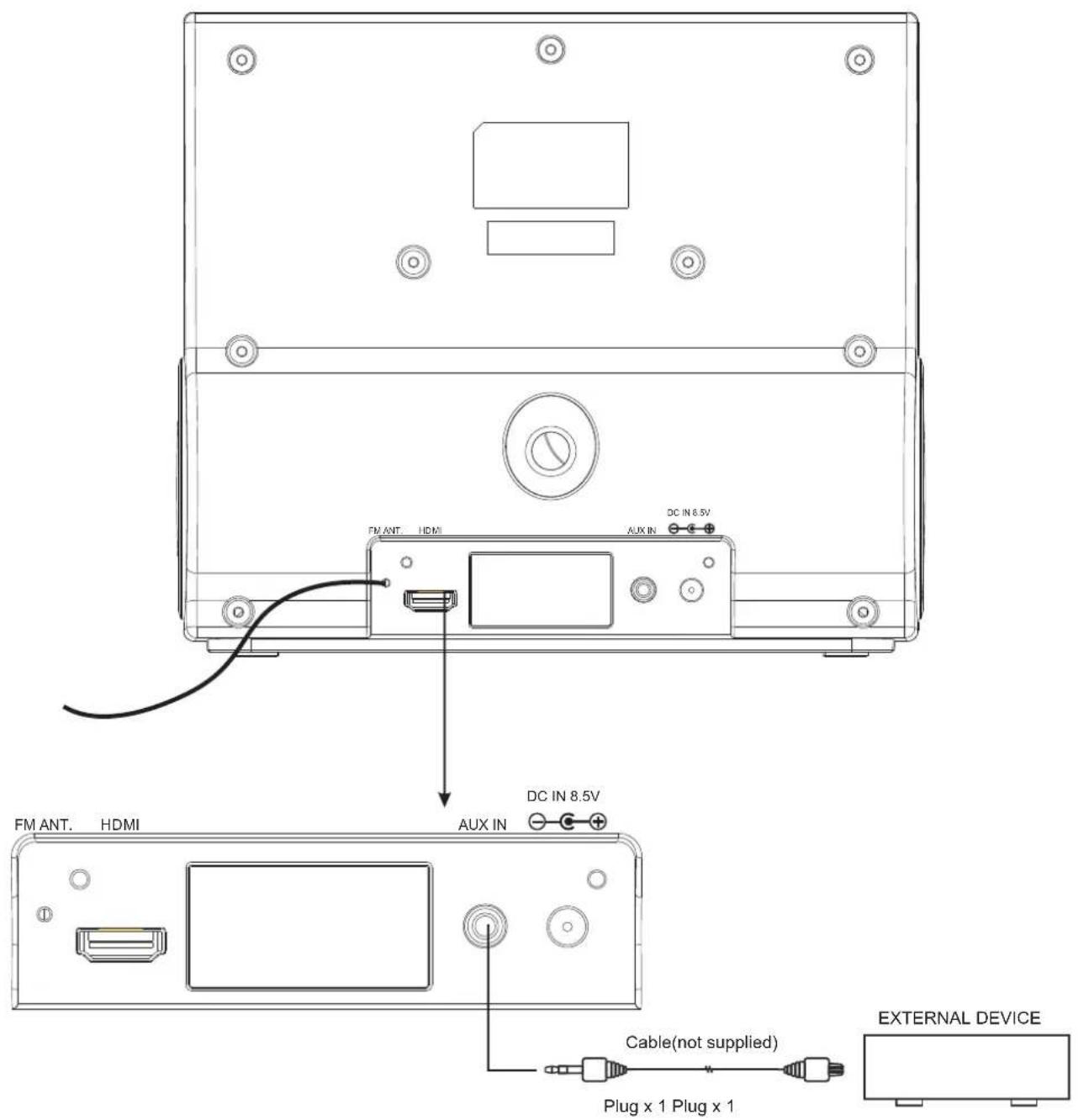

The dock is designed for Apple 30-pin devices. Android devices can be connected via the 3.5mm aux input, but they will not charge or control the device through the dock.
