Product Type	Compact Refrigerator with Freezer Compartment
Brand	Avanti
Model	RM2411B
Power Supply	115 V AC, 60 Hz
Recommended Circuit Breaker	15 amperes
Temperature Control Range	1 (warmest) to 6 (coldest), plus 0 (off)
Refrigerant	Not stated
Number of Shelves	1 removable shelf
Door Bins	1 standard door bin, 1 two-liter bottle bin
Drip Tray	Yes, included
Leveling Legs	2 front adjustable leveling legs
Door Reversibility	Yes (requires professional assistance; call customer service)
Clearance Requirements	5 inches (127 mm) on back and sides for ventilation
Ambient Temperature Range	60°F (16°C) to 90°F (32°C)
Interior Cleaning	Warm water with baking soda solution (2 tbsp per quart)
Condenser Coil Maintenance	Vacuum when dusty or dirty
Power Cord Type	3-prong grounded plug, 6 ft (approx.)
Extension Cord	Not recommended; if used must be 3-wire grounding, 115V, 10A minimum
Warranty	1 year parts and labor; 2nd-5th year compressor only (labor extra)
Country of Origin	Printed in China

Frequently Asked Questions - RM2411B Avanti

Why is my refrigerator not operating?

Check if it is plugged in. Verify that the circuit breaker is not tripped or fuse blown. Also ensure the temperature control is not set to '0'.

What should I do if my refrigerator is not cooling?

Verify the temperature control is set above '0'. Allow 24-48 hours after initial setup for cooling. Ensure the door is closed completely and the gasket seals properly.

Why does the compressor turn on and off frequently?

Possible causes: dirty condenser coils, high room temperature, adding large amounts of food, frequent door openings, or incorrect clearances (need 5 inches on sides and back).

The interior light does not work. What can I check?

First check the circuit breaker or fuse. Ensure the appliance is plugged in. If those are fine, the bulb may be burned out; refer to the maintenance section for replacement.

My refrigerator is making unusual noises. Is this normal?

Some sounds are normal: refrigerant flow may cause rattling, gurgling at cycle end, and popping/crackling from wall expansion. If loud, check that the unit is level on the floor.

How do I clean the refrigerator?

Turn the temperature control to '0', unplug the unit. Remove food and shelves. Wash interior with warm water and baking soda (2 tbsp per quart). Clean exterior with mild detergent. Vacuum condenser coils when dusty.

What precautions should I take during a power failure?

Minimize door openings to retain cold. Most failures last only a few hours and food stays safe. If prolonged, take steps to protect food (e.g., use coolers).

Can I reverse the door swing?

Yes, this model supports door reversal. The unit comes with left-hand opening. For reversal instructions, call Avanti customer service (718-893-3900) as the manual directs.

What is the proper temperature setting for normal use?

After 24-48 hours, set the temperature control to '4' for typical use. Adjust between '1' (warmest) and '6' (coldest) as needed. '0' turns off cooling.

How should I prepare the refrigerator for long vacations?

Remove all food, unplug the unit, clean thoroughly, and leave the door slightly open to prevent mold and odors. Adjust leveling legs up to avoid damage if moving.

USER MANUAL RM2411B Avanti

Line drawing of an open refrigerator with lid, shelves, and door (no text or symbols)

CAUTION:

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products, A Division of The Mackle Co., Inc.

P.O. Box 520604 - Miami, Florida 33152

www.avantiproducts.com

TABLE OF CONTENTS

Refrigerator Safety 4

Important Safeguides 5

Help Us Help You 6

Parts and Features 7

Important Safety Instructions 8

Installation Instructions 8

Before Using Your Appliance 8

Installation of Your Appliance 8

Electrical Connection 9

Operating Your Appliance 10

Temperature Control 10

Care and Maintenance 10

Power Failure 10

Vacation Time 10

Moving Your Appliance 10

Energy Saving Tips 11

Reversing the Door Swing of Your Appliance 11

Troubleshooting Guide 12

Service for Your Appliance 13

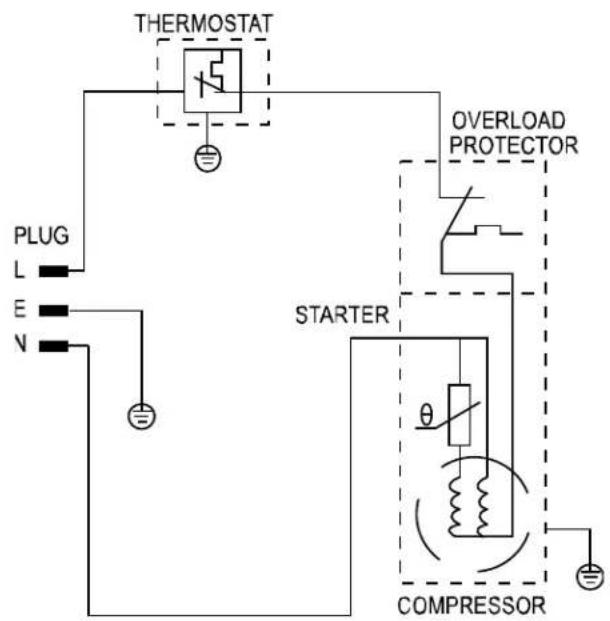

Wiring Diagram 13

Your Avanti Products Warranty 14

Registration Information and Registration Card 19

REFRIGERATOR SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual for your appliance. Always read and obey all safety messages.

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the Safety Alert Symbol and either the words" DANGER", "WARNING" or "CAUTION".

! DANGER !

Danger means that failure to heed this safety statement may result in severe personal injury or death.

WARNING

Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

CAUTION

Caution means that failure to heed this safety statement may result in minor or moderate personal injury, property or equipment damage.

All safety messages will alert you to know what potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

IMPORTANT SAFEGUIDES

Before the refrigerator is used, it must be properly positioned and installed as described in this manual so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the refrigerator, follow basic precaution, including the following:

DANGER

• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.
• It is recommended that a separate circuit, serving only your refrigerator be provided. Use receptacles that cannot be turned off by a switch or pull chain.
• Never clean refrigerator parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.
• Do not connect or disconnect the electric plug when your hands are wet.
• Unplug the refrigerator or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or death.
• Do not attempt to repair or replace any part of your refrigerator unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

WARNING

FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL

• Use two or more people to move and install refrigerator. Failure to do so can result in back or other injury.
• To ensure proper ventilation for your refrigerator, the front of the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 60^ F ( 16^ C) and below 90^ F ( 32^ C). This unit must be installed in an area protected from the element, such as wind, rain, water spray or drips.
• The refrigerator should not be located next to ovens, grills or other sources of high heat.
• The refrigerator must be installed with all electrical, water and drain connections in accordance with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances is required.
• Do not kink or pinch the power supply cord of refrigerator.
• The fuse (or circuit breaker) size should be 15 amperes.
• It is important for the refrigerator to be leveled in order to work properly. You may need to make several adjustments to level it.
• All installation must be in accordance with local plumbing code requirements.
  • Make certain that the pipes are not pinched or kinked or damaged during installations.
• Check for leaks after connection.
• Never allow children to operate, play with or crawl inside the refrigerator.
• Although the unit has been tested at the factory, due to long-term transit and storage, the first batch of cubes must be discarded.
• Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or discolor the interior.
• Do not use this apparatus for other than its intended purpose.

HELP US HELP YOU...

Read this guide carefully.

It is intended to help you operate and maintain your new appliance properly.

Keep it handy to answer your questions. If you don't understand something or your need more help, please call:

AVANTI PRODUCTS Appliance

Customer Service

718-893-3900

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

CAUTION:

THIS APPLIANCE IS NOT DESIGNED FOR THE STORAGE OF MEDICINE OR OTHER MEDICAL PRODUCTS.

Write down the model and serial numbers.

You'll find them on a plate located on the inside left wall the appliance.

Please write these numbers here:

Date of Purchase

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your appliance.

If you received a damaged appliance, immediately contact the dealer (or builder) that sold you the appliance.

Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further help.

FIRST, contact the people who serviced your appliance. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send to:

Customer

Service

Avanti Products

10880 NW 30 Street

Miami, FL 33172

PARTS AND FEATURES

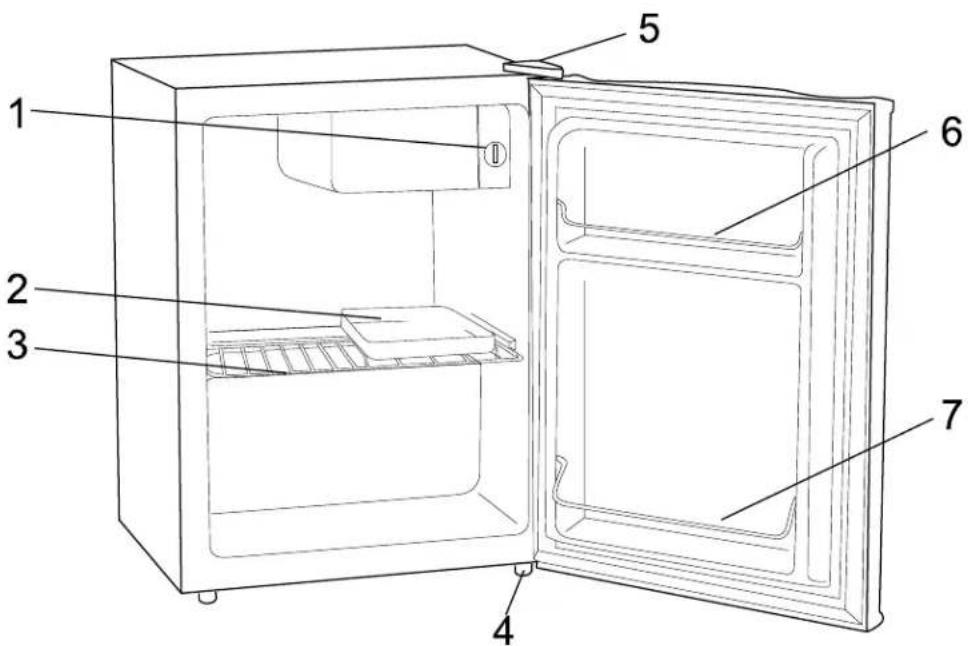

1 Temperature Control
2 Drip tray
3 Shelf
4 Leveling Leg
5 Top Hinge with Cover
6 Door Bin
7 2-Liter Bottle Storage Bin

Important Safety Instructions

WARNING

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

Read all instructions before using the appliance.DANGER or WARNING: Risk of child entrapment.Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous. . . even if they will “just sit in the garage a few days.”Before you throw away your old refrigerator or freezer: Take off the doors.Leave the shelves in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the appliance.Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.-Save these instructions-

INSTALLATION INSTRUCTIONS

Before Using Your Appliance

• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts:
• 1 Door Bin
• 1 Bottle Bin
• 1 Drip tray
  • 1 Refrigerator shelf
  • Instruction Manual

- Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

- Clean the interior surface with lukewarm water using a soft cloth.

- In case the interior accessories are not correctly placed, rearrange them as described in chapter "Parts and Features"

Installation of Your Appliance

• Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded. To level your appliance, adjust the legs at the front of the appliance.
• Allow 5 inches of space between the back and sides of the appliance, which allows the proper air circulation to cool the compressor.
• Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the appliance not to perform properly.
• Avoid locating the appliance in moist areas. Too much moisture in the air will cause frost to form quickly on the evaporator requiring more frequent defrosting of the appliance.

ELECTRICAL CONNECTION

Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center.

This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For personal safety, this appliance must be properly grounded.

This appliance requires a standard 115/120 Volt AC \~/60Hz electrical ground outlet with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.

The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord.

EXTENSION CORD

Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes.

SURGE PROTECTOR

Most electrical appliances use a series of electric control boards to operate. These boards are very susceptible to power surges and could be damaged or destroyed.

If the appliance is going to be used in an area or if your city / country is prone to power surges / outages; it is suggested that you use a power surge protector for all electrical devices / appliances you use. The surge protector that you select must have a surge block high enough to protect the appliance it is connected to. If you have any questions regarding the type and size of surge protector needed contact a licensed electrician in your area.

Damages due to power surges are not considered a manufacturer covered defect and will void your product warranty.

OPERATING YOUR APPLIANCE

Temperature Control

• Your appliance has only one control for regulating the temperature in the fresh food and the freezer compartment. The temperature control is located on the upper right hand side of the fresh food section.
• The range of the temperature control is from position"1" the warmest to "6" the coldest.
• The first time you turn the unit on set the temperature control to "6" or the max-position.
• After 24 to 48 hours, adjust the temperature control to the setting that best suites your needs. The setting of "4" should be correct for home or office appliance use.
• Changes of the ambient temperature affect temperature in the interior of the appliance (choose correct setting of the thermostat knob).
• To turn the thermostat off, turn the temperature control to "0".

NOTE:

• Turning the temperature control to "0" position stops the cooling cycle but does not shut off the power to the appliance.
• If the unit is unplugged, power lost, or turned off; you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the appliance will not start.

CARE AND MAINTENANCE

Cleaning Your Appliance

• Turn the temperature control to "0", unplug the appliance, and remove the food, shelves, and trays.
• Wash the inside with warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Wash the shelves and trays with a mild detergent solution. Plastic parts cannot be washed in a dishwasher.
• The outside of the appliance should be cleaned with mild detergent and warm water.
• The condenser coils should be vacuumed when they are dusty or dirty.
• Clean the drain pan on the refrigerator compressor. Do not remove the drain pan.
  • After cleaning, connect the appliance to power supply and reload the packages.

Power Failure

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your food.

Vacation Time

During long absences, remove all the food; unplug your appliance, clean your appliance, and leave the door slightly open to avoid possible formation of condensation, mold, or odors.

Moving Your Appliance

• Remove all the food.
• Securely tape down all loose items inside your appliance.
• Turn the leveling screws up to the base to avoid damage.
• Tape the doors shut.
• Be sure the appliance stays in the upright position during transportation.

Energy Saving Tips

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.
• Try not to open the door too often, especially when the weather is wet and hot.
• Every so often check if the appliance is sufficiently ventilated.
• Ice and frost layer increase energy consumption, so clean the appliance as soon as the layer is 14 " thick.

Reversing the Door Swing of Your Appliance

This appliance has the capability of either opening the door from the left or right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please call customer service for reversal instructions.

PROBLEMS WITH YOUR APPLIANCE?

You can solve many common appliance problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE
Appliance does not operate.	Not plugged in.The circuit breaker tripped or blown fuse.
Appliance does not cool. The appliance temperature control is set at “0”
Compressor turns on and off frequently.	Condenser coil at the back of the unit is dirty.The room temperature is hotter than normal.A large amount of food has been added to the appliance.The door is open too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.The appliance does not have the correct clearances. (5" to both sides and back of unit)
The light does not work.	The home circuit breaker or fuse has tripped.The appliance is unplugged.The bulb has burned out (see the maintenance section for the replacement procedure).
Vibrations.	Check to assure that the appliance is level.
The appliance seems to make too much noise.	The rattling noise may come from the flow of the refrigerant, which is normal.As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your appliance.Contraction and expansion of the inside walls may cause popping and crackling noises.The appliance is not level.
The door will not close properly.	The appliance is not level.The doors were reversed and not properly installed.The gasket is dirty.The shelves, bins, or baskets are out of position.

CAUSE

SERVICE FOR YOUR APPLIANCE

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti Products. With the purchase of your Avanti Products, you can have the confidence that if you ever need additional information or assistance, the AVANTI PRODUCTS Appliance Customer Service team will be here for you. Just call us toll-free.

AVANTI PRODUCTS APPLIANCE CUSTOMER SERVICES

Product Information800-323-5029	Whatever your questions are about our products, help is available.
Part Orders800-220-5570	You may order parts and accessories that will be delivered directly to your home.You may order these items by personal check, money order, Master Card, or Visa.
In-Home Repair Service800-220- 5570	An AVANTI PRODUCTS Appliance authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your appliance inside and out.

Wiring Diagram

YOUR AVANTI PRODUCTS WARRANTY Staple

your sales receipt here. Proof of original purchase date is needed to obtain service under warranty.

WHAT IS COVERED

LIMITED ONE-YEAR

WARRANTY

For one year from the date of purchase by the original owner, Avanti Products will, at its option, repair or replace any part of the appliance which proves to be defective in material or workmanship under normal use. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the appliance has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days. Avanti Products will provide you with a reasonable similar replacement product that is either new or factory refurbished. All Avanti appliances of 3.5 cubic foot capacity or less must be brought / sent to the applicable service shop for repair.

LIMITED SECOND THROUGH FIFTH YEAR WARRANTY

For the second through the fifth year from date of original purchase, Avanti Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges. In rental or commercial use, the limited compressor warranty is one year and nine months. Cost to move the appliance to the servicers' shop and back to the user's home, as may be required, are the user's responsibility.

WHAT IS NOT COVERED

• Content losses of food due to spoilage.
• Incidental or consequential damages.
• Parts and labor costs for the following will not be considered as warranty:
• Evaporator doors, door springs, and/or frames.
• Inner door panels, door shelves, door rails, and/or door supports.
• Chest appliance lid liners.
• Vegetable crispers.
  • Light bulbs and/or plastic housing.
• Plastic cabinet liners.
• Punctured evaporator that voids the warranty on the complete sealed system.
  • Repairs performed by unauthorized servicers.

• Shipping and Handling costs associated with the replacement of the unit.

• Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.

• Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
• Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the State of Alaska.
• Replacement of house fuses or resetting circuit breakers.
• Failure of the product if it is used for other than its intended purpose.
• This warranty does not outside the Continental USA.

Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits:

Avanti Products, A Division of The Mackle Co., Inc.

P.O.Box 520604 – Miami, Florida 33152

Protect your product:

We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

➢ Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

-(detach here)

Avanti Registration Card

Name Model #

Serial #

Address Date Purchased

Store / Dealer Name

City

State

Zip E-mail Address

Area Code

Phone Number Occupation

Did You Purchase An Additional Warranty As your Primary Residence, Do You:

□ Extended

□ None

Reason for Choosing This Avanti Product: Please indicate the most important factors That influenced your decision to purchase this product:

□ Price

□ Product Features

□ Avanti Reputation

□ Product Quality

□ Salesperson Recommendation

□ Other:

□ Friend / Relative Recommendation

□ Warranty

□ Other:

Comments:

□ Own

□ Rent

Your

□ under 18

□ 18-25

□ 26-30

□ 31-35

□ 36-50

□ over 50

Marital Status:

□ Married

□ Single

Is This Product Used In The:

Home

□ Business

How Did You Learn About This Product:

□ Advertising

□ In-Store Demo

□ Personal Demo

VER 1.0 - 11-21-2010 PRINTED IN CHINA
