USER MANUAL H-CMMD4048 HYUNDAI

Hyundai H509 vehicle displayed on a digital monitor, showing its front wheel and dashboard (no visible text or symbols on the car or screen)

Two glossy spheres with reflections, no text or symbols present

MULTIMEDIA DVD RECEIVER

WITH MOTORIZED 7" TFT

DISPLAY AND TV TUNER

МУЛЬТИМЕДИЙНЫЙ

DVD-РЕСИВЕР С 7"

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents 2

Before you start 4

Utilization of the product 4

Important safeguards 4

Installation/Connection 5

Installation.... 5

General notes 5

DIN front/rear mounting 5

DIN front mount (Method A) 5

Dismantling the unit 5

Trim frame installation 6

DIN-rear mount (Method B) 6

Detachable control panel 6

Anti-theft system 6

Connection 7

Connection diagram.... 7

Using the ISO Connector 7

ISO connection table 8

Parking wire connection 9

Reverse driving cable connection ..... 9

Lamp in wire 9

Operation 10

Control elements 10

Front panel 10

Inner panel 10

Remote controller 11

Changing the battery 11

General operations 12

Touch screen 12

Reset the unit 12

Turning the unit on/off 12

Open the monitor 12

Angle setting 12

Volume control.... 12

Setting the sound characteristics ..... 12

Mute function 12

Equalizer setting 12

Loudness 12

Mode selection 12

Clear 13

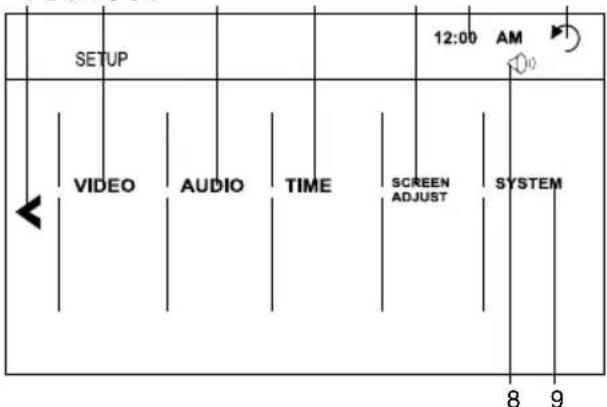

System setup 13

Video adjust 13

Audio adjust 13

Clock adjust 14

Screen adjust 14

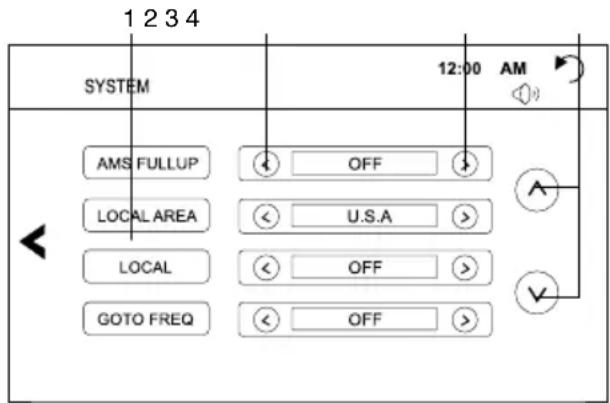

System adjust 14

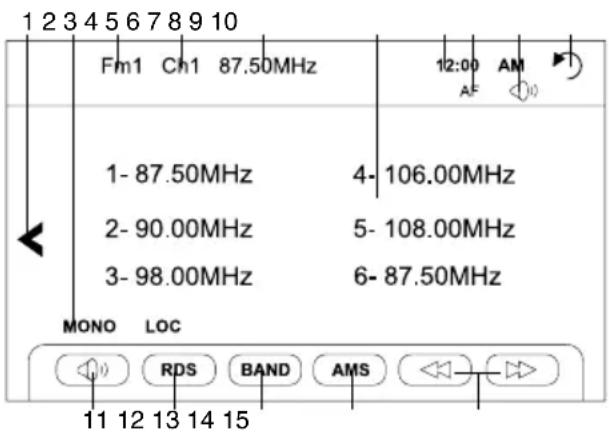

Radio operations 15

User interface of Radio mode 15

Band selection 15

Manual/automatic tuning 15

Local/distant selector 15

Selecting stored station ....

Mono/Stereo selector 15

Scanning/memorizing stations automati- 15

cally.... 16

Goto FREQ 16

RDS background 16

RDS touchable user interface 16

AF (Alternative frequencies) function .... 16

TA (Traffic alarm) function 16

Program type 17

TV tuner operations 17

TV touch screen menu 17

TV channel selection 17

Frequency searching 17

Seek channels automatically 17

AUX operations 17

Disc/USB/SD/MMC operations 18

Insert/eject disc 18

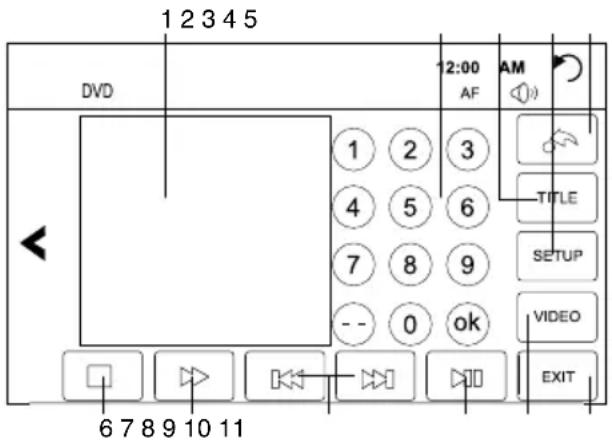

Touch screen operations with disc/USB/

SD/MMC 18

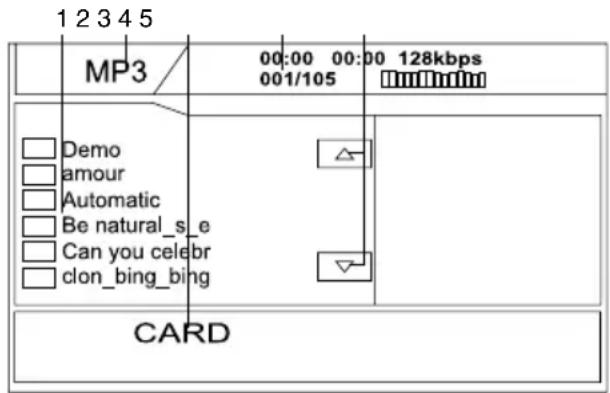

File disc/CD/USB/SD interface 18

Insert/eject USB/Memory card 19

Selecting tracks 19

Pause/Stop the playback 19

Fast rewind/forward 19

Repeat playing 19

Random playback 19

System switch 19

Slow playback 19

Picture zooming 19

On-screen display 19

Playback setting 20

View angle 20

Audio language 20

Subtitle language 20

Playback programming 20

ID3 Tag function 20

MENU function (for DVD) 20

DVD setup 20

General setup page 21

Dolby digital setup 21

Preference setup 21

Exit 22

General information 23

Handling compact discs 23

Cleaning discs 23

Cleaning the unit body 23

Accessories 23

Troubleshooting guide 24

Specification 25

Utilization of the product

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Please contact your local authorities for the correct method of disposal. By doing so, you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Important safeguards

• Read carefully through the manual to familiarize yourself with this unit.
• Keep this manual handy as a reference for operating procedures and precautions. Do not allow persons who have not read through this manual to use this unit.

- "CLASS 1 LASER PRODUCT"

This product contains a laser diode of higher class than 1. Laser beams from the optical pickup are dangerous to the eyes. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel.

- Do not allow this unit to come into contact with liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids or dust. Protect this unit from moisture.

- Make sure that foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.

- The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature.

- Using the unit with the temperature that goes beyond the operation temperature greatly decreases the operation resource of the screen

and other components of the unit and can result in an outage.

- Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.

- The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please ensure it before installation.

- When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

- Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or burn out the power amplifier.

- Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or during a thunderstorm.

- Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Let a qualified technician check the system.

• Always keep the volume low enough so that you can hear sounds from outside the vehicle.

- Should this product fail to operate properly, contact your dealer or nearest service center.

Installation

General notes

• Choose the mounting location where the unit will not interfere with the normal driving function of the driver.
• Before finally installing the unit, connect the wiring and make sure that the unit works properly.
• Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
• Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop, like an emergency stop.
• If installation angle exceeds 35^ from horizontal, the unit may not perform properly.
• Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

Din Front/Rear-Mount

This unit can be properly installed either from 'Front' (conventional DIN Front-mount) or 'Rear' (DIN Rear-mount installation, utilizing threaded screw Holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

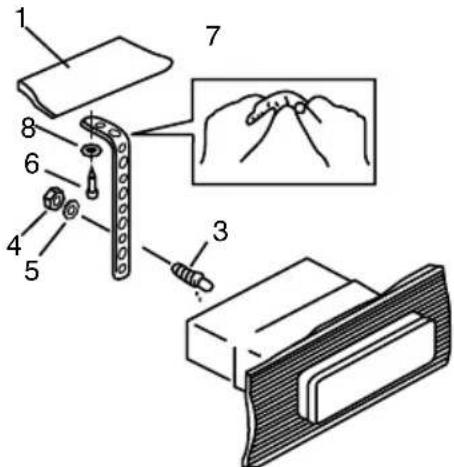

1. DIN front-mount (Method A)

1. Car dashboard
2. Sleeve
3. Screw
4. Nut (5 mm)
5. Spring washer
6. Screw (5 x 25 mm)
7. Metal strap
8. Flat washer

1 182 53 2 3

1. Install the sleeve into the dashboard; ensure it is installed with the correct side and there are no obstacles (wires, dashboard elements, etc) for the unit installation.
2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the sleeve in place.
3. Use the metal strap to fix the rear side of the unit. Determine a place for fixing and install the strap as shown in the picture. You can bend the strap to the needed angle with your hands.
4. Make the necessary wire connections. Ensure the connections are correct.
5. Install the unit into the sleeve and screw in four frontal screws.

Technical diagram showing labeled parts of a mechanical assembly with numbered annotations

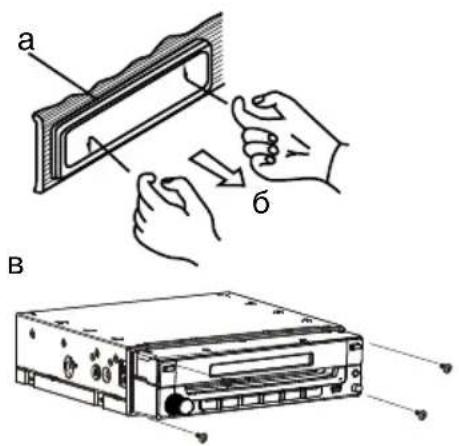

Dismantling the unit

a - Trim frame
b – Frame uninstall direction
c - Screws to be taken out

a 6 B

1. Switch off the unit and detach the front panel.
2. Insert your fingers into the groove in the front side of the trim frame (apply some effort to detach the frame). Pull the frame to detach it.
3. Unscrew the four frontal screws nad pull out the unit from the sleeve towards yourself. Before detaching the unit, ensure it is not fixed with the metal strap.

Trim frame installation

To install the trim frame, press it to the unit body and push it to fix it in place. This should be done before installing the front panel; otherwise you are not able to install the trim frame. When the trim frame being installed, the side with the groove should face down and fixed first.

2. DIN rear-mount (Method B)

For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory radio mounting brackets.

1. Select a position in which the screw holes of the brackets (3) are aligned with the screw holes in the unit body, and screw in two screws (2) in each side.
2. Screw.
3. Factory radio mounting brackets.
4. Vehicle dashboard.
5. Lock (remove this part).

The outer trim frame and mounting sleeve are not used for method of installation.

Technical diagram of a mechanical assembly with numbered components and an inset view showing a component with a tool.

Detachable control panel

Insert the left lockers of the panel into the fixing holes on the left side of the body, then press on the right part of the panel until a click.

To detach the front panel, press REL button. When it unfastens, carefully pull the panel out.

The control panel can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or subject it to strong shocks. The rear connector that connects the main unit and the control panel is an extremely important part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in isopropyl alcohol to clean the socket on the back of the control panel.

Anti-theft system

The front panel of this unit can be stored in the included protective case when not in used and carried away when you leave the vehicle to deter theft.

Switch off the power of the unit. Detach the front panel, then put it to the protective case and take it with you.

Connection

Connection diagram

AUX audio in (black line with red and white heads) Video out 2 Subwriter Video out 1 Reverse video in Rear RCA Front PCA AUX video in (black line with yellow head) (brown line with brown head) (brown line with yellow head) (dark grey line with red and white head) TV antenna Radio antenna GPS antenna jack (option for models equipped with navigation function) Reverse (orange) Parking (brown) Pink (lamp in) 12 ISO connector 1 3 5 7 2 4 6 8 1 3 5 7 2 4 6 8

Using the ISO Connector

1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

1.2.

Illustration of a hand connecting pins to a terminal block (no text or symbols)

1. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit.

Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table below for speaker and power cable connections.

ISO connection table

Location	Function
	Connector A Connector B
1 - Rear right (+) - Purple
2 - Rear right (-) - Purple/Black
3 - Front right (+) - Grey
4 Battery +12V/Yellow Front right (-) - Grey/Black
5 Antenna/Amplifier control - Blue Front left (+) - White
6 - Front left (-) - White/Black
7 Ignition/Red Rear left (+) - Green
8 Ground/Black Rear left (-) - Green/Black

Power antenna wire is intended for

power supply of the antenna and for remote control of an additional amplifier.

Parking wire connection

Parking brake lead 2A Brown Wire + - 12V Battery Brake light Car frame

If Parking cable is connected to hand brake switch, the video display of the TFT monitor will be controlled by driving status, system setup and input video sources. When the car is moving ahead, if the video disc is played, the screen shows "ATTENTION!! You cannot use this function while driving", and blank screen. The above warning screen will prevent the driver from watching images.

Reverse driving cable connection

Car frame Reverse driving light Orange wire Rear view video camera lead P R N D 2 L Gearbox + 12V Battery - Car frame

If the rear view video camera is connected, the unit automatically switches to CAMERA source during reverse driving. The unit returns to the original work mode after the reverse driving is done.

Lamp in wire

The lamp in wire is intended for performing adjustable and non-adjustable brightness of button backlight of the unit front panel.

- Adjustable: the wire should be connected to the regulator of brightness of the car dashboard. Front panel backlight is possible only when the car dashboard lighting is switched on.

- Non-adjustable: connected together with the yellow wire (battery +12 V); the front panel backlight is active always when the front panel is attached to the unit.

Control elements

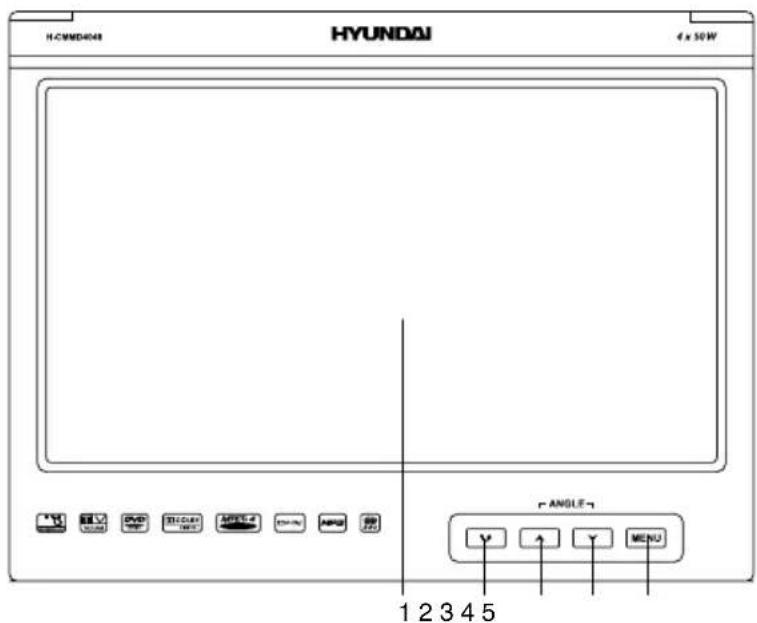

Front panel

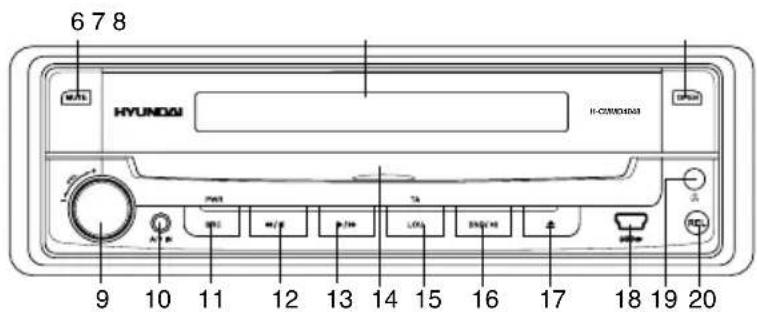

1. TFT display
2. Button
3. ANGLE ▲ button
4. ANGLE button
5. MENU button
6. MUTE button
7. LCD display
8. OPEN button
9. VOL regulator/SEL button
10. A/V input
11. PWR/SRC button
12. ◀◀/◀button
13. ▶▶/▶button
14. Disc slot
15. TA/LOU button
16. BND/▶ button
17. ▲button
18. USB port
19. IR sensor
20. REL button

Not indicated: GPS card slot (option for models equipped with navigation function) on the right side of the monitor

HYUNDAI 4 x 50W 1 2 3 4 5 ANGLE-7 MENU

6 7 8 HYUNOGI H-XW804031 9 10 11 12 13 14 15 16 17 18 19 20

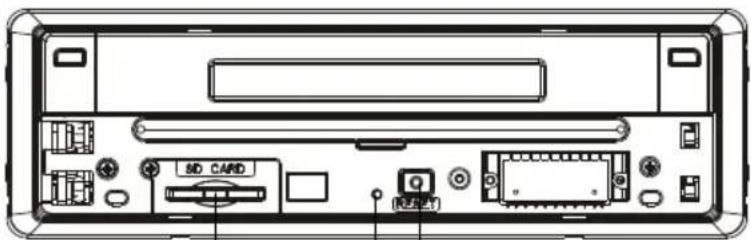

Inner panel

1. Memory card slot
2. Panel status indicator
   (flashes when the panel is detached)
3. Reset button (hole)

SD CARD R2.5.1

123

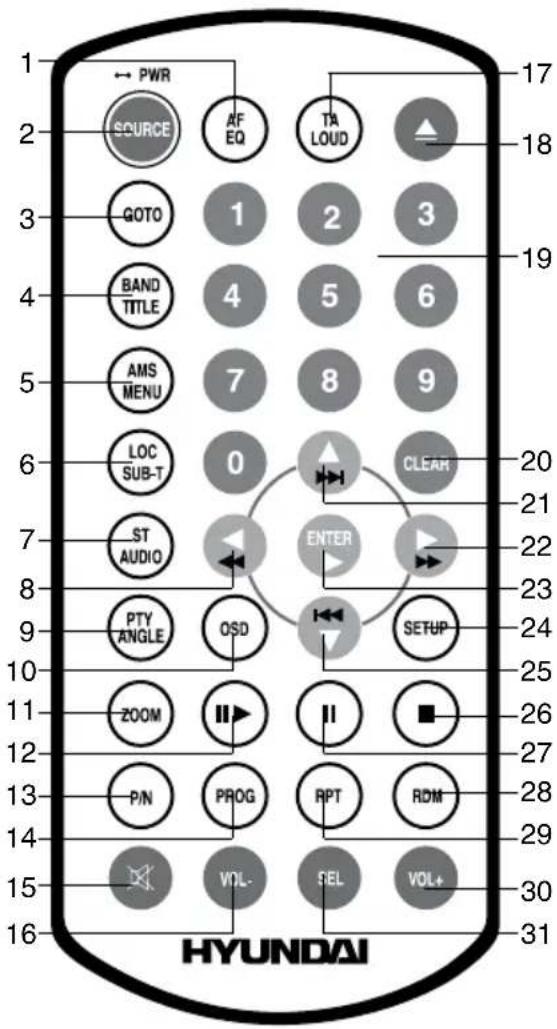

Remote controller (RC)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 HYUNDAI PWR SOURCE AF EQ TA LOUD ▲ 17 18 19 LOC SUB-T 0 CLEAR 20 21 22 23 24 25 26 27 28 29 30 31 A B D T I L E BAND TITLE AMS MENU ST AUDIO PTY ANGLE OSD ENTER SETUP VOL- SEL VOL+

1. AF/EQ button
2. SOURCE button
3. GOTO button
4. BAND/TITLE button
5. AMS/MENU button
6. LOC/SUB-T button
7. ST/AUDIO button
8. LEFT cursor button
9. PTY/ANGLE button
10. OSD button
11. ZOOM button
12. II button
13. P/N button

14. PROG button

15. ✗ button

16. VOL- button
17. TA/LOUD button
18. ▲button
19. Number buttons
20. CLEAR button
21. ▶UP cursor button
22. ▶RIGHT cursor button
23. ENTER button
24. SETUP button
25. HROWN cursor button
26. button
27. I button
28. RDM button
29. RPT button
30. VOL+ button
31. SEL button

Changing the battery

1. Press the catch and at the same time pull out the battery tray.
2. Insert the 1 lithium battery, type CR2025 (3 V) battery with the stamped (+) mark facing upward. Insert the battery tray into the remote controller.

- Store the battery where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

• Do not recharge, short, disassemble or heat the battery or dispose it in a fire.
• Do not expose or bring into contact the battery with other metallic materials. Doing this may cause the battery to give off heat, crack or start a fire.
• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may give off heat, crack or start a fire.
• Please direct the Remote controller to the IR sensor of the front panel.

General operations

Touch screen

Due to the touch screen, you can fulfill most functions not only by pressing buttons but also by touching the options you need.

Reset the unit

Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press RES button on the unit with a pointed object (such as a ballpoint pen) to set the unit to initial state.

When some errors occur on the display, you can also press RES button to resume to normal, and it will erase the clock setting and some memorized functions.

Turning the unit on/off

Press PWR/SOURCE button on the RC or PWR/SRC button on the panel to turn on the unit. Press and hold the button more than 2 seconds to turn off the unit.

Open the monitor

Press OPEN button on the unit to open the monitor. Press the button again, the monitor returns to the previous state.

Angle setting

You can adjust the desired angle of the monitor. Press ANGLE ▲ and ANGLE ▼ buttons to adjust monitor backward or forward by definite angle.

Please do not adjust the monitor tilt manually, otherwise it can get damaged.

Volume control

Press VOL+/VOL- buttons on the RC or rotate VOL regulator on the unit to increase/decrease the sound level.

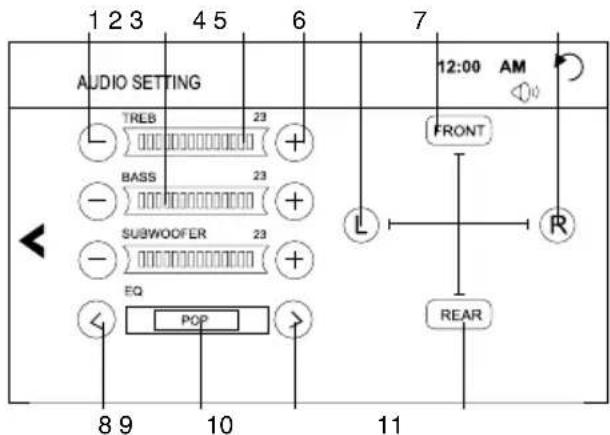

Setting the sound characteristics

Repeatedly press SEL button on the RC or on the unit to select the desired parameter in the following order: VOL => BAL => FAD => BAS => TRE => WOO. After selecting the desired parameter, you can adjust its current level by pressing VOL+/- buttons on the RC or rotating VOL knob on the unit.

Mute function

Press 📄 button on the RC or MUTE button on the unit to turn off the sound. Press the button again or adjust volume to resume the sound output.

Equalizer setting

While listening to music, you can select the corresponding preset modes to adjust the sound quality perfectly by using AF/EQ button on the RC. Press and hold the button repeatedly to choose the following modes in turn: POP => CLASS => ROCK => JAZZ => Off (no equalizer).

Loudness

Press and hold TA/LOUD button on the RC or TA/LOU button on the panel to activate loudness function. LOUD will be displayed. This is to increase the low frequency, which can improve sensitivity for your ears. Keep pressing it again to quit this function.

Mode selection

• In any mode, repeatedly press PWR/ SOURCE button on the RC or PWR/SRC button on the unit to select a mode: Radio => GPS (not supported) => USB => SD => DVD => BT (not supported) => IPOD (not supported) => TV => AUX.
• In any mode touch < item on the screen to display the source menu consisting of 2 pages. In the menu, touch the item of the mode you need to select the corresponding mode. To switch between the 2 pages, touch the screen on any non-functional area, then slide the page aside (rightwards/leftwards).

The DVD, USB and SD modes are only available when a disc, USB or SD/MMC card is inserted into the unit.

Clear

After inputting false data, press CLEAR button to clear it.

System setup

To select setup mode, in the source menu touch SETUP item, or in any mode press and hold SETUP button on the RC. When you select SETUP mode, the menu will be displayed, in which you can touch any item to perform operations as follows:

1234567

1. Go to source menu
2. VIDEO setup page
3. AUDIO setup page
4. TIME setup page
5. SCREEN ADJUST setup page
6. Clock
7. Return to previous page
8. Mute indicator

Besides, BACKGROUND setup page is available. To access it, in SETUP menu touch the screen on any non-functional area, then slide the page aside (rightwards/leftwards). In the BACKGROUND page touch a background image in the right part of the screen to select it. Touch and press to save it as background.

Video adjust

12345678

VIDEO SETTING 12:00 AM BRIGHTNESS 23 CONTRAST 23 COLOR 23 RESET SAVE 9 10 11 12

1. Go to source menu.
2. RESET button. Touch to reset all settings.
3. Display.
4. SAVE button. Touch to save settings made.
5. Brightness bar. Touch its segments of touch decrease/increase buttons to adjust brightness.
6. Clock.
7. Mute indicator
8. Return to previous page.
9. Decrease value button
10. Contrast bar. Touch its segments or touch decrease/increase buttons to adjust Contrast.
11. Color bar. Touch its segments or touch decrease/increase buttons to adjust Color.
12. Increase value button

Audio adjust

1 2 3 4 5 6 7 AUDIO SETTING TREB 23 BASS 23 SUBWOOFER 23 EQ POP 8 9 10 11 12:00 AM FRONT L R REAR

1. Decrease value button.
2. Bass bar. Touch its segments or touch decrease/increase buttons to adjust bass.
3. Treble bar. Touch its segments or touch decrease/increase buttons to adjust treble.
4. Increase value button.
5. Left channel button. Touch to adjust left channel signal.
6. Front channel button. Touch to adjust front channel signal.
7. Right channel button. Touch to adjust right channel signal.
   8, 10. Equalizer mode selection buttons.
8. Rear channel button. Touch to adjust rear channel signal.

Clock adjust

1 2 3 4 5 TIME 12:00 AM CLOCK ADJ 12 : 00 : 10 AM TYPE 12 HOUR 6 7

1. Decrease hour/minute/second button.
2. Hours. Touch to enable hour adjustment.
3. Minutes. Touch to enable minute adjustment.
4. Seconds. Touch to enable second adjustment.
5. Increase hour/minute/second button.
   6, 7. 12/24-hour clock mode selection buttons.

Screen adjust

After you touch this item, a cross appears in the bottom left corner of the display. Press the cross at place 1, then it will move to another corner, press it again. Now it will move to the third position, press it, then the last position. After you pressed the green cross four times, OK button will appear in the center of the touchable display. Touch it to complete screen adjustment.

This procedure is useful when some malfunction occurs with the touch screen, and it needs adjustment.

System adjust

1 2 3 4 SYSTEM 12:00 AM AMS FULLUP OFF LOCAL AREA U.S.A LOCAL OFF GOTO FREQ OFF

1. Parameter list.
   2, 3. Option selection buttons.
2. List page scroll buttons. Touch to change parameter list pages.

In this menu you can adjust a number of general system operation parameters.

• Key Beep: Select ON or OFF, the default setting is ON. It means when you press the buttons, they are sounded.
• Moni Flex: select AUTO (the monitor is closed automatically when the unit is powered off) or MANUAL (the monitor remains in the adjusted position).
• Rever Pola (Reverse Polarity): The signal is +12 V when you back a car, select BATTERY on the monitor; if the signal is 0 V, select GROUND.
• Subwoofer: set the subwoofer on or off.
• AMS Fullup: You can set the modes of AMS. When the setup is ON, the presettable stations are full, new one's are not allowed. When you select OFF, it will search continually.
• Local Area: You can select Europe, OIRT or FM ONLY, to search the stations quickly in your current area.
• Local: In this menu you can search local stations. When selected ON, the strong signal local stations can be received; when selected

OFF, week signal out-of-town stations may be received.

• Goto Frequency: Selecting ON, you can use GOTO button on the RC to select a station's frequency directly in radio mode.
• RT Scroll: You can select SLOW, NORMAL or FAST RDS scroll speed.
  • TA Volume: You can select LOW, NORMAL or HIGH TA volume.
• Region: To set the AF searching region, the default setting is ON. You can also set it to OFF.
• Time adj: This option is to adjust the RDS time. Select MANUAL to manually adjust RDS time. Select RDS CT to enable auto adjustment of RDS time.

Radio operation

User interface of Radio mode

1 2 3 4 5 6 7 8 9 10 Fm1 Ch1 87.50MHz 12:00 AM AF 1- 87.50MHz 4- 106.00MHz 2- 90.00MHz 5- 108.00MHz 3- 98.00MHz 6- 87.50MHz MONO LOC RDS BAND AMS 11 12 13 14 15

When the unit is switched to Radio mode, the above touchable user interface will be displayed on the display.

1. Go to source menu.
2. Mono/stereo indicator.
3. Current band.
4. Current channel number.
5. Current frequency.
6. Station list. Touch an item call the station. Touch and hold to save the current frequency in the position.
7. Clock.

8. AF/TA indicator.

9. Mute indicator.

10. Return to previous page.
11. MUTE button. Touch to disable/enable the sound
12. RDS button.
13. BAND button. Touch to select bands.
14. AMS button. Touch to scan the current band channels.
15. 🔍️ Deftons. Touch repeatedly to change frequency step by step. Touch and hold for automatic search of the nearest station.

Band selection

Press BAND/TITLE button on the RC or BND/▶button on the panel to switch to the bands in the following order: FM1 - FM2 - FM3 - FM4 (OIRT) - AM1 - AM2.

Manual/automatic tuning

• Manual tuning: Press 🔊 buttons on the RC repeatedly to change the frequency upward or downward step by step.
• Automatic tuning: Press and hold ◀◀◀◀ buttons on the RC to start automatic seeking for an available radio station downward or upward. After being found the station will be played.

Local/distant selector

In radio mode, press LOC/SUB-T button on the RC to select strong or weak station reception. LOC appears on the display and only local stations are available. When you turn it off both distant and local stations can be received.

The function is invalid in AM bands.

Selecting stored station

In radio mode, press I▶▶buttons on the RC to select the stored station upward/downward.

Mono/Stereo selector

In radio mode, you can press ST/AUDIO button on the RC to select mono or stereo mode. Stereo reception is on when MONO disappears on the display. It is switched to mono mode when MONO appears. When the

received stereo signal is weak, switch to mono mode to improve the signal.

The function is available only in FM bands.

Scanning/memorizing stations automatically

In radio mode, you can press AMS/MENU button on the RC or AMS button on the monitor to scan for several seconds each station stored under number buttons (1 - 6).

You can press the corresponding number buttons, AMS/MENU button on the RC or AMS button on the monitor when your desired station is on. And it starts playing that station.

Press and hold AMS/MENU button on the RC or AMS button on the monitor; it will activate automatic storing function. The tuner automatically selects a station and stores it under number buttons (1 - 6).

To store a station press and hold number button for more than 2 seconds when listening.

The unit can store up to 6 stations for subband.

Goto FREQ

Press GOTO button, and the monitor shows FREQ. Then press number buttons to input the needed frequency. The unit will go to the input frequency.

This function is only available when

GOTO FREQ is set to ON in System adjustment menu.

RDS background

RDS service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available.

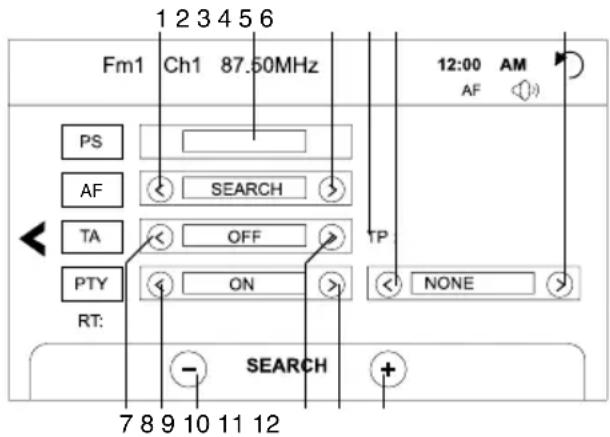

RDS touchable user interface

In Radio interface, touch RDS button on the screen or press OSD button on the RC; following menu will be displayed:

1 2 3 4 5 6 Fm1 Ch1 87.50MHz 12:00 AM AF PS AF SEARCH TA OFF PTY ON NONE RT: - SEARCH + 7 8 9 10 11 12

1, 3. AF enable/disable buttons.
2. Current information display.
4. TP indicator.
5, 6. Program type selection buttons.
7, 10. TA enable/disable buttons.
8, 11. PTY enable/disable buttons.
9, 12. SEARCH+/- buttons. Touch for automatic search.

AF (Alternative frequencies) function

Briefly press AF/EQ button on the RC to enable AF function. When the radio signal strength is poor, enabling the AF function will allow the unit to automatically search another station with the same PI (Program Identification) as the current station but with stronger signal strength.

AF indicator on the display will flash until RDS information is received. If RDS service is not available in your area, turn off the AF mode.

TA (Traffic alarm) function

Briefly press TA/LOUD button on the RC or press TA/LOU button on the panel to activate the traffic alarm function. When AF is on, the TA displays on TFT, or else, if there is no TP information, the mode will search TP station automatically.

When TA is playing, the volume will be adjusted to a TA level automatically. When other modes are activated (such as DVD, AUX), if a TA program is played the mode will skip to the RDS mode automatically. It will resume to

the primary mode after the TA is over.

Program type

Briefly press PTY/ANGLE button on the RC to activate PTY function.

When PTY is on, PTY ON appears on the monitor, you can touch Program type selection buttons on the screen to select a program type to search the special program. If PTY is off, PTY OFF appears on the monitor, the searching is stopped.

TV tuner operation

TV touch screen menu

When you select TV mode, following touchable User Interface will be displayed:

1 2 3 4 TV 12:00 AM AF ← 1 2 3 4 5 6 7 8 9 -- 0 ok CH - CH + SEEK - SEEK + SEEK ALL EXIT 5 6 7 8 9

1. Screen.
2. Number buttons. Touch to select a channel number (1 - 30).
3. P/N button. Touch to select TV system.
4. Keyboard button. Touch to call number keyboard.
5. CH+/CH- buttons. Touch to select previous/next channel.
6. SEEK+/SEEK- buttons. Touch repeatedly to change frequency step by step. Touch and hold for automatic search of the nearest channel.

7. SEEK ALL button. Touch for automatic search of all available channels.

8. VIDEO button. Touch to go to VIDEO setup menu.

9. EXIT button. Touch to exit to full-screen image mode.

When the TV image is in full-screen mode, touch left upper corner of the screen to go back to the TV interface.

TV channel selection

Press I-1 buttons to select the TV stations. Press 1-9 number buttons to select stations directly; press GOTO button to select more than 1-9 stations, then press corresponding numbers.

Frequency searching

Press 🔊 button on the RC to select the frequency upwards and downwards step by step. Press and hold the button for automatic search of nearest channel.

Seek channels automatically

Press AMS/MENU button on the RC to seek stations automatically.

AUX operation

When AUX mode is selected, following User Interface will be displayed:

1 2 3 AUX 12:00 AM AF AUX-F AUX-R VIDEO EXIT 4 5

1. Screen.
2. AUX-R. Touch to select Rear AUX.

Operation

1. AUX-F button. Touch to select Front AUX.
2. EXIT button. Touch to exit to full-screen image mode.
3. VIDEO button. Touch to go to VIDEO setup menu.

Disc/USB/SD/MMC card operations

Insert/eject disc

• When the monitor is open, insert a disc into the slot. The unit will automatically switch into DVD mode. After loading the disc, its playback will start automatically.
• Press ▲ button on the RC or on the panel to eject the disc.

Touch screen operations with Disc/USB/SD

While playing a file contained on a CD/MP3/USB/SD, the touch screen has following areas and buttons enabling to perform various playback operations:

1 2 3 4 5 DVD 12:00 AM AF TITLE SETUP VIDEO EXIT 6 7 8 9 10 11

1. Screen.
2. Number buttons. Touch to input a chapter/title/track number.
3. TITLE button. Touch to go to the root menu of the disc.
4. SETUP button. Touch to enable DVD OSD setup menu.

5. Keyboard button. Touch to call number keyboard.

6. STOP button. Touch to stop playback.

7. FAST FORWARD button. Touch repeatedly to select fast forward playback speed.
8. ◀◀/▶buttons. Touch to select previous track/title/chapter. You can also perform this function by touching left or right part of the screen when the image is in full-screen mode.
9. ▶II button. Touch to pause/resume playback.
10. VIDEO button. Touch to go to VIDEO setup menu.
11. EXIT button. Touch to exit to full-screen image mode.

When the image is in full-screen mode, touch left upper corner of the screen to go back to the DVD interface.

Manufacturer guarantees regular playback of licensed discs only. Some AVI files cannot be played due to their parameters and recording conditions. Video files more than 2 Gb having AVI extension can be played partially.

File disc/CD/USB/SD/MMC interface

When an MP3/CD/USB/SD/MMC is played, following touchable menu will be displayed:

1 2 3 4 5 MP3 00:00 00:00 128kbps 001/105 Demo amour Automatic Be natural_s_e Can you celebr clon_bing_bing CARD

1. Contents list. Touch an item (file/folder) to enter or start it.
2. Current storage indication.
3. USB/CARD indication.
4. Current playback information (track number/total tracks/total time/elapsed time/bitrate etc., depending on the format).
5. Content navigation buttons.

Insert/eject USB or Memory card

Connect a USB drive to the USB connector of this unit, using the MiniUSB-USB connecting cord included. It will automatically switch to USB mode and start to read the contents of the USB. To eject the USB drive from this unit, switch to another mode and disconnect the USB from the USB wire connector.

To connect a memory card to this unit, detach the front panel and insert the memory card into the slot. Attach the front panel. The unit will automatically switch to SD mode and start to read the contents of the memory card. To eject the memory card, switch the unit to another mode, then open the front panel and push the card until it pops out.

USB capacity supported: up to 8 Gb.

For correct and satisfactory operation, licensed SD/MMC memory cards of famous brands should be used with this unit. Avoid using memory cards of unknown brands. Capacity: up to 8 Gb.

Selecting tracks

For DVD/MP3: Press I buttons on the RC or ◀/ and ▶buttons on the panel to skip to the previous or next chapter.

For VCD/CD: Press ◀◀ button on the RC or ◀◀/◀ button on the panel to skip to the beginning of the current chapter. Press twice ◀◀ button on the RC or ◀◀ button on the panel to skip to the previous chapter. Press ▶▶ button on the RC or ▶▶/▶ button on the panel to skip to the next chapter.

Pause/Stop the playback

Press 🐎 button on the RC or BND/ 🔊 button on the panel to switch between play and pause.

Press ■ button on the RC to stop playback. If you press ▪button or ENTER button on the RC or BND/▶button on the panel, playback will be resume from the same place (not available for CD/MP3). Press ■button twice to stop playback completely. Stop point will not be memorized, and playback can be resumed only from the beginning.

Fast rewind/forward

Press 🔊 buttons on the RC or press and hold 🔊 and / buttons on the panel to perform fast rewind or fast forward. With each press playback speed will increase as follows: 2X => 4X => 8X => 16X => Normal.

Repeat playing

Press repeatedly RPT button on the RC to perform repeat playback as follows:

For DVD: Chapter repeat => Title repeat => Repeat Off.

For VCD/MP4/CD/MP3: Track repeat => Repeat Off.

Random playback

During playback, press RDM button to enable random playback of chapters/tracks. Press the button again to return to normal playback.

System switch

During playback, press repeatedly P/N button on the RC to set the TV system to PAL or NTSC or AUTO.

Slow playback

Press repeatedly II button on the RC for slow forward or backward playback in the following order:

For DVD: 1/2 forward => 1/4 forward => 1/8 forward => 1/2 backward => 1/4 backward => 1/8 backward => Normal.

For VCD: 1/2 forward => 1/4 forward => 1/8 forward => Normal.

Picture zooming

Press ZOOM button on the RC repeatedly to increase the picture scale in the following order: 2X => 3X => 4X => Normal.

On-screen display

Press repeatedly OSD button on the RC to display various information on the current playback (including elapsed/remained time of title/chapter/track) depending on the type of the disc being used.

Playback setting

For DVD: Press GOTO button to access the menu of various playback parameters (title/chapter/audio/subtitle/angle/title/time/chapter time/repeat/time display) depending on the type of the disc being used. Press UP/DOWN cursor buttons to select a parameter press ENTER button to set the status. Then press number buttons or LEFT/RIGHT cursor buttons to set the current status. Press GOTO button to exit.

For VCD/CD: Press GOTO button to display "Disc Go To:--:-". Use number buttons to input disc time for the playback to start from. Press GOTO button again to display "Track Go to:--:-". Use number buttons to input track time for the playback to start from.

For MP3: Press GOTO button to display “---”. Use number buttons to input track number to be played. Press GOTO button again to display “--:--”. Use number buttons to input track time for the playback to start from.

View angle

Press PTY/ANGLE button repeatedly to switch among viewing angles during playback. This function is only available for DVD-discs recorded with various view angles.

Audio language

Press ST/AUDIO button repeatedly to switch between available audio languages (for DVD) or audio channels (for VCD) during playback.

Subtitle language

Press repeatedly LOC/SUB-T button during playback to switch between subtitle languages. This function is only valid with DVDs featuring multi-subtitle recordings.

Playback programming

Press PROG button to display the program menu. Then press number buttons to input numbers of tracks/chapter (depending on the disc type) in the order you need. To select next menu page move the cursor to ▶ and press ENTER button. To select previous menu page move the cursor to ◀◀ and press ENTER button. Move the cursor to START and press ENTER button to start program playback. Move the cursor to EXIT and press ENTER button to quit the program menu.

ID3 Tag function

If a MP3 file has ID3 tag information in the supported ID3 format, such information will be displayed on the LCD while playback.

MENU function (for DVD)

1. Press AMS/MENU button to enter the root menu, all of the chapters will appear on the TFT. You can press ENTER button or number buttons to select your desired chapter.
2. Press BAND/TITLE button to enter the title menu, all of the titles will appear on the TFT. You can press ENTER button or number buttons to select your desired title.

DVD setup

1. Press SETUP button on the RC to enter the setup menu.
2. Use LEFT/RIGHT cursor buttons to choose the setup page: General page, Dolby Digital setup, Preference page, Exit.
3. Press DOWN cursor button to enter the setup page selected.
4. Use LEFT/RIGHT cursor buttons to select the option you want to adjust.
5. Press RIGHT cursor button to enter the adjustment list. Use UP/DOWN cursor buttons to select the adjustment and press ENTER button to confirm.
6. To return to setup page list press LEFT cursor button in the options list.
7. Press SETUP button again to quit the setup page.

You can also select any item in the menu by directly touching it on the screen.

General setup page

GENERAL SETUP PAGE

TV DISPLAY

ANGLE MARK

OSD LANG

CAPTIONS

SCREEN SAVER

- TV DISPLAY

Normal/PS: When the unit connects to the normal TV set, the wide-screen image shows on the full screen, but some part is cut off (4:3).

Normal/LB: When the unit connects to the normal TV set, the wide-screen image shows and black bars appear on the top and bottom of screen (4:3).

Wide: Use this item when the unit is connected with the wide screen (16:9) TV set.

- ANGLE MARK

It will show the angle mark when playing DVD disc with multi-angle view if selecting On.

- OSD LANG

Select on-screen display language.

- CAPTIONS

This function doesn't work when the disc without caption. The default setup is On.

- SCREEN SAVER

If the Screen saver is set On and the unit is switched on without a disc playing for 3 minutes, a moving picture appears on the TFT.

Dolby digital setup

DOLBY DIGITAL SETUP

DUAL MONO

DYNAMIC

- DUAL MONO

Choose the mode of the audio output:

Stereo: choose this setting, when 5.1-channel sound playing, two channels of signals will be output from the left and right soundtrack; when 2-channel sound playing, stereo signal will be output.

L. Mono: the signal will be output from the left speaker.

R. Mono: the signal will be output from the right speaker.

Mix-mono: the signal from one channel will be output from left and right speakers.

- DYNAMIC

If adjusting to FULL, the audio signal peak value will be the minimum. While adjusting to OFF - maximum.

Use UP/DOWN cursor buttons to move the scroll and adjust the dynamic range.

Preference setup

PREFERENCE PAGE

TV TYPE

AUDIO

SUBTITLE

DISC MENU

PARENTAL

PASSWORD

DEFAULT

- TV TYPE

This unit is suitable for all kinds of TV systems. You can select one of the PAL, NTSC or AUTO.

Auto: the TV system is auto switched according to the broadcasting system.

NTSC: this system is used in USA, Taiwan, Japan etc.

PAL: this system is used in China, Europe, Hong Kong etc.

• AUDIO, SUBTITLE, DISC MENU

Set the desired languages for all the settings. If a setting is supported by disc content, it will work. Otherwise the disc default value works. You also can press the ST/AUDIO button on the RC to select the audio language. Press the LOC/SUB-T button on the RC to select the subtitle language.

- PARENTAL

The control level is for parental to control playing content and protect your children from violence and erotic. The disc, the level of which is higher than the setting level can not be played.

Set the control level:

(1) with the least limits when playing.
(8) with the most limits when playing.

Original setting: OFF.

The rating can be selected only under the Password unlocked status, and the limits can be worked only under the password locked status.

- PASSWORD

OLD PASSWORD

NEW PASSWORD

CONFIRM PXD

OK

The password option is initialized as locked, and you cannot set the ratings limit or change the password. In order to make the Parental feature works, the password mode must be turned on. If you want to set the ratings limit, you will need to enter the default password, which is 8888, then press ENTER to confirm. To change the password, enter the Password

change submenu. Use the cursor buttons to select the desired field. In the Old password field insert the old password or 8888 (if you forget the old one). If you change the password, the default password 8888 will be void.

In New password field insert the new password.

Insert it again in Confirm password field.

Press ENTER to save the new password.

- DEFAULT

Reset to the initial factory setups.

Exit

Select the Exit page to exit the Setup menu.

Handling compact discs

Handling compact discs

• Do not insert anything other than a CD into the CD loading slot.
• Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause skipping or noise damage the player.
• Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface.
  • Store discs in their cases when not in use.
• Do not expose discs to direct sunlight, high humidity, high temperature or dust.
• Prolonged exposure to extreme temperature (such as leaving the discs in your car during summertime) can wrap a disc.
• Do not attach labels, write on or apply chemicals to the surface of the discs.
• Do not touch the recorded surface of the discs.
• Use 12-cm CDs. Use only conventional, fully circular discs. Do not use shaped discs.

Cleaning discs

Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth should remove must panicles. Wipe in a straight motion from the center to the edge.

Never use thinner benzine, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.

Illustration of a hand holding a small object with directional arrows indicating movement or force (no text or symbols)

Cleaning the unit body

Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean.

Accessories

1. Receiver ...1.pc......
2. Front panel ....1.pc....
3. Protective bag ....1.pc....
4. Remote controller ..1 pc ....
5. ISO connector ....1 pc....
6. MiniUSB-USB extension cable -1 pc
7. Audio-video cable ...1 pc ....
8. Mounting parts: Mounting sleeve ...1 pc ....

Outer trim ring ....1 pc ....

Steel bar ....1.pc....

Screw M5x5 ....4 pcs ....

Rear mounting bolt ...1.pc....

Rubber cushion ....1 pc....

1. Consumer information...1.pc.....
2. Warranty card .... 1 pc ....
3. Instruction manual...1.pc.....

Troubleshooting

Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer.

Symptom Cause $	Solution
No power The car ignition is not on. If the power supply is properly connected to the car accessory switch the ignition key to “ACC”.
No sound Volume is in minimum. Adjust volume to a desired level.
Bad sound quality The installation angle is more than 35 degrees.		Adjust the installation angle to less than 35 degrees.
Disc cannot be loaded or ejected	The unit already contains a disc.	Remove the disc in the player then put a new one.
	Moisture condensation. Leave the unit idle for an hour, then retry.
Disc cannot be read	The disc is inserted upside down.	Insert the compact disc with the label side facing upward.
	Compact disc is extremely dirty or defective.	Clean the disc or try to play a new one.
	Temperature inside the car is too high.	Cool off until the ambient temperature returns to normal.
Buttons do not work	The built-in microcomputer is not operating properly.	Reset the unit with the help of RESET button.
	Front panel is not properly fix into its place.	Install the front panel properly.
The radio does not work	The antenna cable is not connected.	Insert the antenna cable properly.
The radio station automatic tuning does not work	The signals are too weak.	Select stations manually.

Specifications

General

Power supply: 14.4 V DC

Maximum power output: 4 x 50 W

Dimensions/weight: 170 x 50 x 197 mm /2.7 kg

Mounting angle 0 to +/-35

Working temperature range -20 ^ C - +60 ^ C

Display

Display Motorized 7" TFT

Resolution: 800 x 480

Aspect ratio: 16:9

Contrast ratio: 500:1

Brightness: 400 cd/m ^2

View angle: V: 110 ^0 , H: 130 ^0

FM Stereo Radio

Frequency range: 65.0 – 74.0/87.5 – 108.0 MHz

Usable sensitivity: 10 dB μV

Preset memory stations: 24

AM Radio

Frequency range: 522 kHz - 1710 kHz

Preset memory stations: 12

TV Tuner

Color System: SECAM

Tuning Range: 48.25 – 863.25 MHz

Disc player

ESP function: 8 sec. for DVD, 40 sec. for Audio-CD, 120 sec. for MP3

Compatible storages: DVD/DVD±R/±RW, CD-R/-RW, USB/SD/MMC

Compatible formats: DVD-video/DVD-audio/SVCD/VCD/HDCD/MP3/CDDA/JPEG/MPEG4 (DivX/XviD)

Terminals

Stereo output RCA (2 V) 2

Video input (RCA) 1

AUX input (2 RCA) 1

Video output 2

Subwoofer pre-out 1

Rear camera input 1

Specifications are subject to change without notice. Dimensions are approximate.

Technical diagram showing labeled parts of a mechanical assembly with numbered annotations and magnified detail view

Снятие устройства

Line drawing of a computer drive chassis with ports and connectors (no text or symbols)

Technical diagram of a device with numbered components and exploded view, including labeled parts 2 through 5.

Diagram of two electrical connector blocks with arrows indicating connection (no text or symbols)

Diagram of a connector with pins inserted into a terminal block (no text or symbols)

Illustration of two hands performing a manual manipulation or disassembly task (no text or symbols present)
