Product Type	Barbecue
Brand	Outback
Model	Spectrum Select Flat Bed 2 Burner
Fuel Type	LPG (Propane)
Number of Burners	2
Cooking Surface	Flat bed (griddle plate)
Material	Stainless steel body, porcelain-coated griddle
Ignition Type	Piezo ignition
Dimensions (L x W x H)	1200 mm x 600 mm x 900 mm
Cooking Area	60 cm x 40 cm
Net Weight	30 kg
Side Shelves	2 folding side shelves
Temperature Gauge	Built-in dial thermometer in lid
Grease Management	Removable grease tray
Cleaning	Wipe griddle with warm soapy water; empty grease tray
Safety Features	Gas shut-off valve, stable base with locking castors
Assembly Required	Yes (tools included)
Warranty	1 year limited warranty
Country of Origin	China

Frequently Asked Questions - Spectrum Select Flat Bed 2 Burner Outback

How do I assemble the Spectrum Select Flat Bed 2 Burner?

Assembly instructions are provided in the manual. You will need a screwdriver and wrench (included). Follow step-by-step diagrams. Ensure all bolts are tightened securely.

What type of gas can I use?

Use LPG (propane) only. Never use natural gas or butane unless specified. Connect to a standard 13 kg gas cylinder with a suitable regulator.

How do I light the burners?

Open the lid, turn the gas cylinder valve on, then push and turn a burner knob to HIGH while pressing the piezo igniter. If not lit, repeat or use a long lighter.

Can I use this barbecue indoors?

No, this barbecue is for outdoor use only. Using it indoors can cause carbon monoxide poisoning or fire.

How do I clean the flat bed griddle?

After cooling, scrape off food residue with a griddle scraper. Wipe with a damp cloth and mild detergent. Rinse and dry. Do not use abrasive cleaners.

Why won't the burner light?

Check that the gas cylinder is full and valve is open. Ensure the ignition electrode is clean and dry. If still fails, use a long match or lighter.

How do I adjust the flame?

Turn the control knob to adjust flame height. For low heat, turn to LOW. If flame is uneven, check burner ports for blockage and clean with a wire brush.

How should I store the barbecue?

Store in a dry, sheltered place away from rain. Disconnect gas cylinder and cover with a waterproof cover. Keep out of reach of children.

Are replacement parts available?

Yes, contact Outback customer service or visit the website for burners, griddles, and ignition kits. Use only genuine parts.

What should I do if there is a gas leak?

Turn off the gas cylinder valve immediately. Do not use the barbecue. Check all connections with soapy water for bubbles. If leak persists, seek professional help.

USER MANUAL Spectrum Select Flat Bed 2 Burner Outback

Assembly and Operating Instructions for Outback®

Spectrum Select Flat Bed 2 Burner and Spectrum Select Flat Bed 3 Burner Gas BBQ

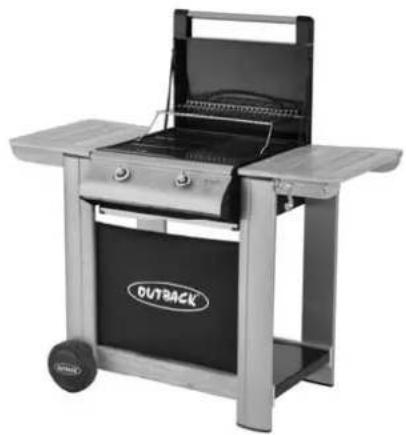

Exterior view of a modern outdoor grill with a 'OUTBACK' logo on the back panel (no additional text or symbols visible)

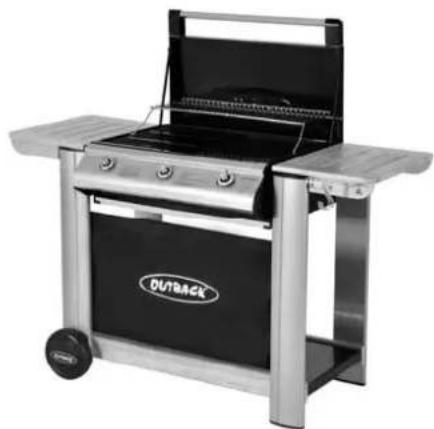

Exterior view of a modern outdoor grill with a black and silver body (no visible text or symbols)

TRG2301P-3 TRG3301P-3

Photographs are not to scale.

Specifications subject to change

without prior notice.

0359

WARNING

• For outdoor use only. Not for commercial use.
• Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.
• Warning: accessible parts may be very hot. Keep young children and pets away.
• Do not move the appliance during use.
• Turn off the gas supply at the gas bottle after use.
• Any modification of the appliance, misuse, or failure to follow the instructions may be dangerous and will invalidate your warranty. This does not affect your statutory rights.
• Retain these instructions for future reference.
• Leak test annually, and whenever the gas bottle is removed or replaced. Check that the hose connections are tight and leak test each time you reconnect the gas bottle.
• For Flare-up control please refer to the 'OPERATION' section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable vapours or liquids in the vicinity of this or any other appliance.
2. A gas bottle not connected for use shall not be stored in the vicinity of this or any other appliance.

Parts ListQuantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see 'Hardware Reference Diagram'.
	CODE	PART QTY		Outback® Spectrum Select Flat Bed 2 Burner Gas BBQ	Outback® Spectrum Select Flat Bed 3 Burner Gas BBQ
LID	A1	Lid (Pre-Assembled to Body)	1	√+▲ √+▲
	A2 Lid	Handle 1		√+▲ √+▲
	A3 Warming Rack 1			√▲ √▲
BODY	B1 Cooking Grill 1			√▲ √▲
	B2 Cooking Griddle 1			√▲	√▲
	B3 Lava Rock 1			√▲ √▲
	B4 Lava Rock Basket 1			√▲ √▲
	B5 Barbecue Body		1	√+▲ √+▲
	B6 Knob		★	2+ 3+
	B7	Control Panel	1	√+▲ √+▲
	B8 Burner		★	2+ 3+
	B9 Drip Tray		1	√▲ √▲
	B10	Drip Tray Left Bracket	1	√	√
	B11	Drip Tray Right Bracket	1	√	√
	B12	Drip Pan	1	√	√
	B13	Hose and Regulator Assembly	1	√	√
TROLLEY	C1	Left Side Shelf 1		√	√
	C2	Right Side Shelf	1	√	√
	C3	Left Front Leg	1	√	√
	C4	Left Rear Leg	1	√	√
	C5	Right Front Leg	1	√	√
	C6	Right Rear Leg	1	√	√
	C7	Screen 1		√▲ √▲
	C8	Front Fixing Support	1	√▲ √▲
	C9	Trolley Base	1	√	√
	C10	Rear Fixing Support	1	√▲ √▲
	C11	Leg Endcap	6	√+	√+
	C12	Axle	1	√	√
	C13	Wheel	2	√	√
	C14	Hubcap	2	√	√
HARDWARE	D1	M5x15 Bolt 4		√	√
	D2	Washer	4	√	√
	D3	M5 Nut 4		√	√
	D4	M6x145 Bolt	8	√	√
	D5	Spacer	8	√	√
	D6	M6x22 Step Bolt 8		√	√
	D7	M6x25 Bolt 8		√	√
	D8	1/4-20UNCx12 Bolt	2	√	√
	D9	Axle Washer	2	√+	√+
	D10	Locknut	2	√+	√+
+ Pre-Assembled Component★ Quantity varies according to model purchased▲ Appearance, size, and construction may differ according to model purchased

Parts Diagrams

Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see hardware pack page.

A3 B1 B2 B3 B4 A2 A1 B5 B8 B6 B7 B13 B10 B9 B11 C1 C4 C5 C3 C6 OUTBACK C7 C10 D9 D10 C12 C9 C11 C13 C14 C8 B12 C2

Hardware Reference Diagram

Specifications subject to change without prior notice.

D4,D5 M6 x 145 Bolt (8pcs) Spacer (8pcs) D1,D2,D3 M5 x 15 Bolt (4pcs) M5 Nut(4pcs) Washer (4pcs) 1/4-20UNC x 12 Bolt (2pcs) D8 D7 M6 x 25 Bolt (8pcs) D6 M6 x 22 Step Bolt (8pcs)

Assembly

IMPORTANT!

• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver, adjustable spanner or metric spanner set.
• Remove any internal components or packaging from the barbecue body.
• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in case sharp edges are present.
• Please read the Important Information section carefully before assembly and use of your barbecue.

1

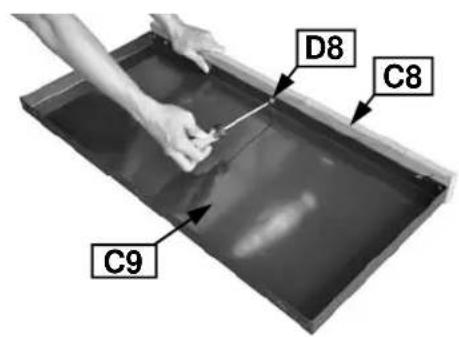

D8 C8 C9

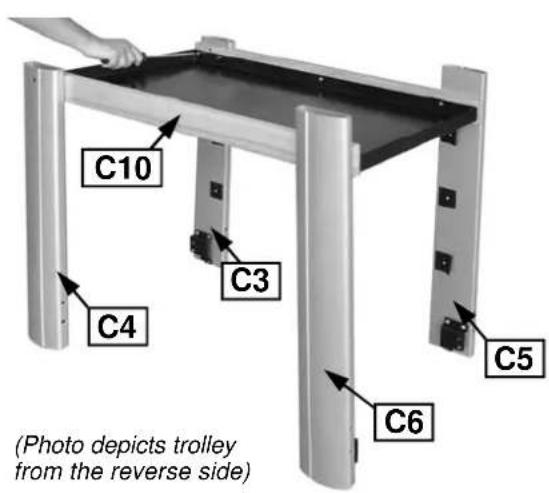

C10 C3 C4 C5 C6 (Photo depicts trolley from the reverse side)

(Photo depicts trolley from the reverse side)

Attach the Front Fixing Support (C8) and Rear Fixing Support (C10) onto the Trolley Base (C9) by aligning corresponding holes and fixing with the 1/4-20UNCx12 Bolts (D8). Then attach the Legs (C3, C4, C5, C6) to the trolley base assembly using the M6x25 Bolts (D7). Ensure that the legs with the Velcro attached to them are at the front of the barbecue, facing inwards.

2

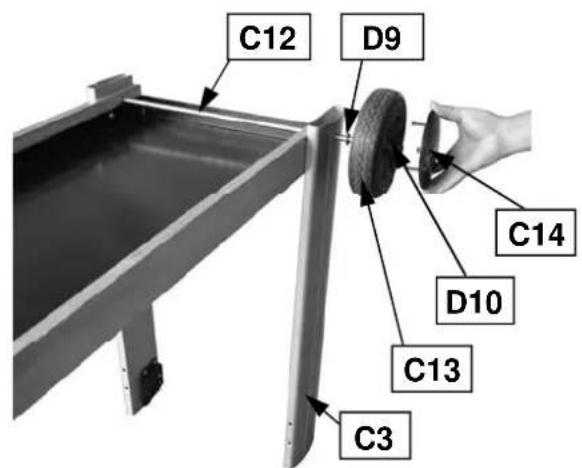

C12 D9 C14 D10 C13 C3

Unscrew the Locknuts (D10) from both ends of the Axle (C12) and remove the Axle Washers (D9). Slide the axle through the corresponding holes in the left legs. Place axle washers on each end of the axle. Slide the Wheels (C13) over each end of the axle. Secure the wheels into place with the locknuts. Place the wheel Hubcaps (C14) onto the outsides of the wheels.

3

C1 C2

Install a M6x22 Step Bolts (D6) on each leg, and then attach the Left Side Shelf (C1) and Right Side Shelf (C2) onto left and right legs using the M6x22 step bolts. Hook the side shelves onto the upper step bolts.

4

B1 B2 B3 B4

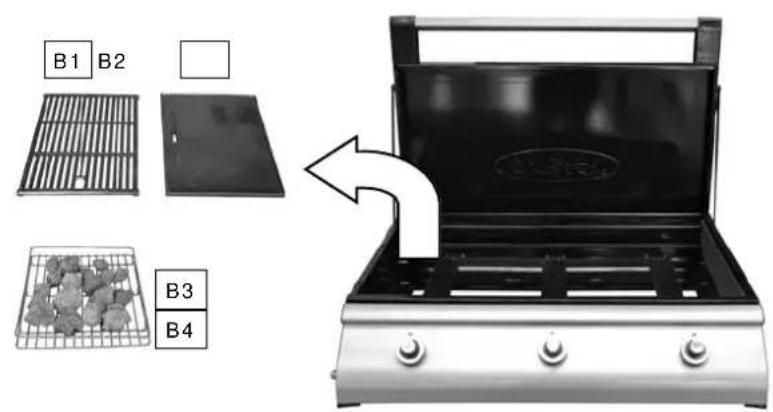

Remove all cast iron cooking components, lava rock, drip tray, and any internal packaging from the barbecue body.

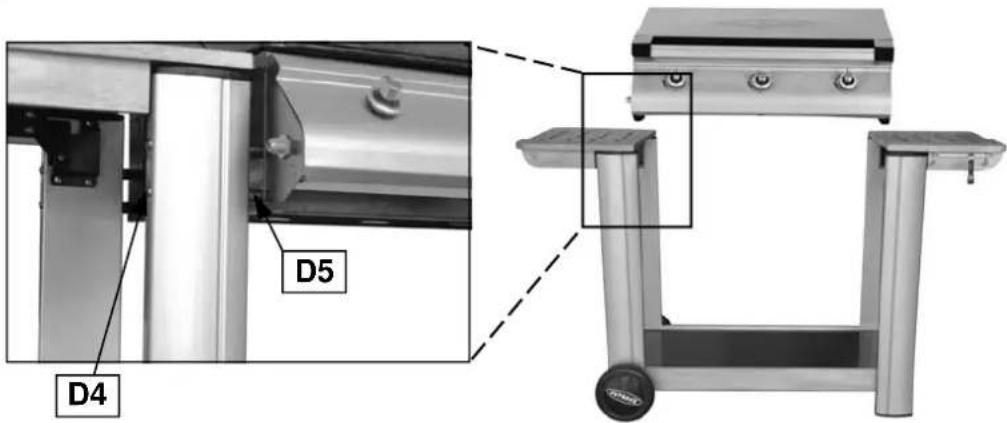

D4 D5

Insert M6x145 Bolts (D4) through the trolley legs, the Spacers (D5), and keep the tip of the bolts inside the spacers. While holding the barbecue body into position (2 people required), screw the bolts into the barbecue body as shown.

CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or becomes damaged when it is set on the ground.

When positioning the body of the barbecue, ensure the control panel is on the same side as the legs with Velcro fastenings.

Two-panel image showing a hand inserting a component into a metal frame, labeled D1 and D2 (no text or symbols on the diagram itself)

Attach Drip Tray Left Bracket (B10) to barbecue body using M5x15 Bolts (D1), Washers (D2) and M5 Nuts (D3) as shown. Repeat above process for Drip Tray Right Bracket (B11).

NOTE: Ensure that the big tabs of the brakets which stop the drip tray are located at the front of the barbecue.

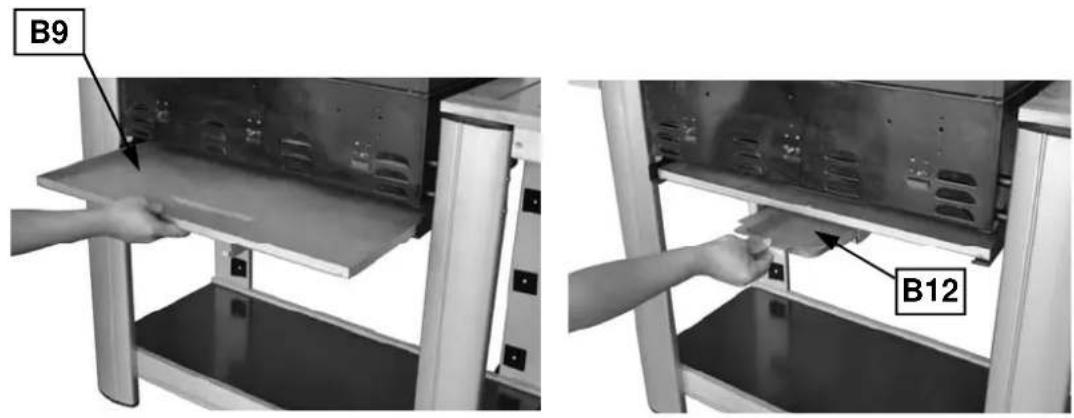

B9 B12

Insert the Drip Tray (B9) by sliding it underneath the barbecue body. Insert the Drip Pan(B12) in position.

B1 B2 B3 B4

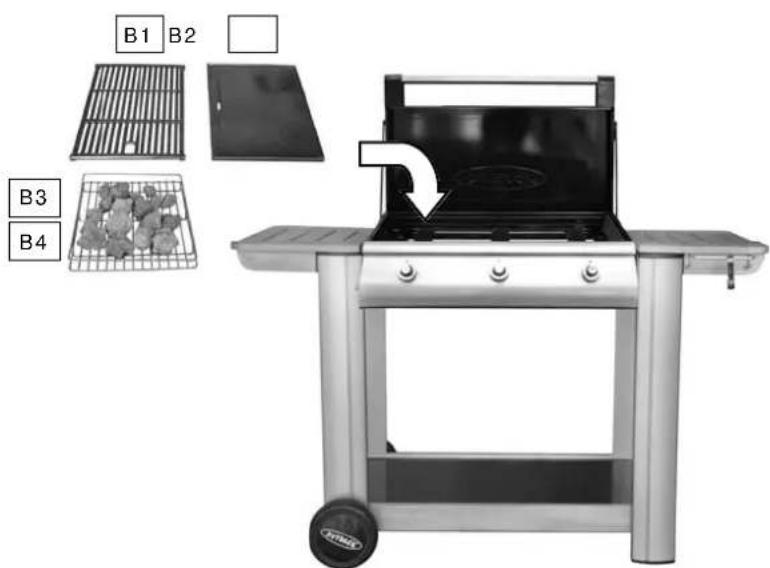

Remove the plastic wrap from the Lava Rock (B3) and then place a uniform layer into Lava Rock Basket (B4). Lay the lava rock carefully into the body ensuring it lies level within the body. Lay the cooking grill (B1) and griddle (B2) into place.

2/3 burner model configuration: Left — Cooking Grill, Right — Cooking Griddle

NOTE: Ensure that the lava rock lies directly underneath the grills.

9

(Rear view of the barbecue trolley.)

C7

Attach the screen (C7) to the front left/right legs as shown.

Exterior view of a modern outdoor grill with a hand adjusting the grille (no text or symbols visible)

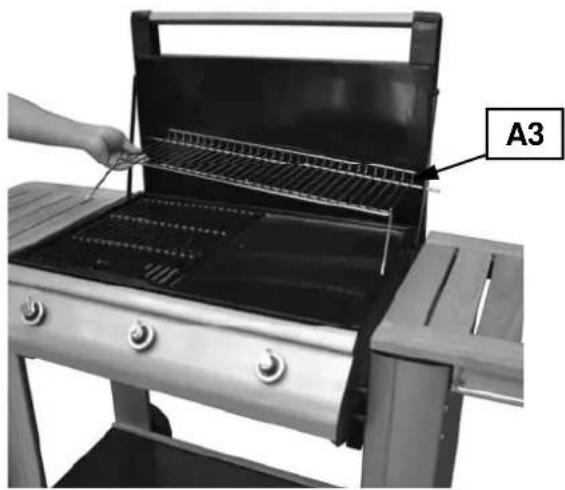

Attach the Warming Rack (A3) to the Lid (A1) and Barbecue Body (B5) as shown. Make sure that the swing legs fix to the body of the barbecue and the shorter fixed legs go through the holes in the lid.

10

Close-up of hands using a tool to lift a metal mechanical component, no visible text or symbols

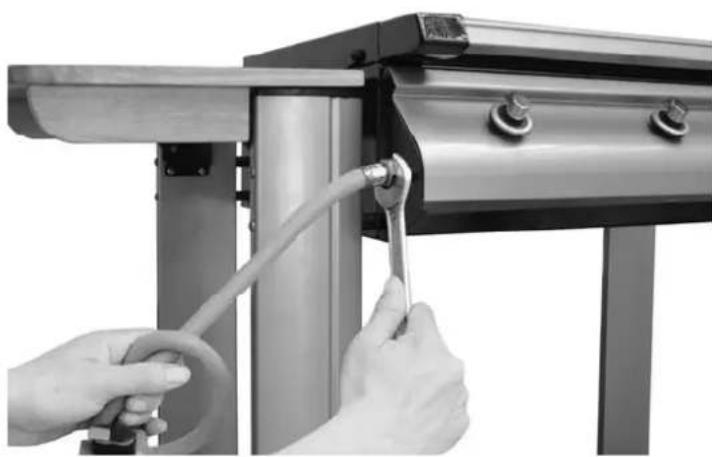

Connect the Hose and Regulator Assembly (B13) to the barbecue.

Ensure the mating faces of the connection are clean and not damaged. Do not use any sealing tape, paste, or liquid on the connection. The nut must be tightened with the use of a spanner. Do not use force which may damage the assembly.

11

Leak Test Diagram

Exterior view of a portable grill with a gas cylinder and attached stand (no text or symbols visible)

ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE

ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE.

Leak test annually, and whenever the gas bottle is removed or replaced.

LEAK TESTING

Always perform a leak test in a well-ventilated area.

Step 1 - Confirm all control knobs are in the off position.

Step 2 - Detach the barbecue control panel located across the front of the barbecue body by pulling off the control knobs and removing the control panel retaining screws.

Step 3 - Turn the gas on / open the gas control valve on the gas bottle or regulator.

Step 4 - Check for leaks by brushing a solution of 12 water and 12 liquid detergent / soap over all the gas system joints, including all valve connections, hose connections, and regulator connections.

Step 5 - NEVER USE AN OPEN FLAME to test for leaks at any time.

Step 6 - If bubbles form over any of the joints there is a leak

• Turn off the gas supply at the gas bottle
- Retighten all joints
- Repeat test
- If bubbles form again do not use the barbecue and contact your local Outback distributor for assistance.

Always wipe the mixed solution ( 12 water and 12 liquid detergent / soap) from all joints and connections after leak testing.

Important Information

Please read these instructions carefully before assembly and use of your barbecue.

▲ Retain these instructions for reference.

This product is for outdoor use only. Do not use indoors.

Do not use the barbecue or store gas bottles below ground level. LP gas is heavier than air so if a leak occurs the gas will collect at a low level and could ignite in the presence of a flame or spark.

▲ For use with LPG bottled gas only. suitable regulator must be used for butane, propane or mixes.

▲ Remove plastic wrap from any part before lighting.

Do not use within 1m of any flammable structure or surface. Do not use under any combustible surface.

▲ LP gas bottles should never be placed directly underneath the barbecue.

▲ LP gas bottles should never be stored or used laid on their side, in the horizontal position. A leak would be very serious and liquid could enter the gas line with serious result.

▲ Never store gas bottles indoors.

▲ Open the barbecue hood before lighting.

▲ Once lit, do not move the barbecue until it has completely cooled, after use.

This barbecue must not be left unattended when lit.

The hood or lid handle can become very hot. Grip only the centre of the handle. Always use oven gloves when cooking or carrying out any adjustments to the barbecue.

A Use purpose designed barbecue tools with long, heat resistant handles.

A Use Caution when opening hood or lid, as hot steam inside is released upon opening.

Parts of this barbecue become very hot – care must be taken, especially when children, elderly people, and animals are present.

▲ Turn off the gas supply at the gas bottle after use.

A Never cover a barbecue until it completely cooled.

▲ Use this barbecue only on a stable, flat surface.

▲ Before you use your barbecue, perform a

leak test. This is the only safe and sure way to detect any gas leaking from joints and connections of the barbecue after assembly.

▲ Leak test annually, and whenever the gas bottle is removed or replaced.

ure▲ Do not store flammable materials near this barbecue.

Do not use aerosols near this barbecue.

A Failure to follow the manual's instructions could result in serious injury or damage.

▲ Modification of the barbecue may dangerous, is not permitted and will nullify any warranty.

A If you have any queries regarding these instructions, contact your local dealer.

Gas, Regulator and Hose

This barbecue can use either propane butane or propane-butane mixed LPG (liquid petroleum gas) bottled gas. Propane bottles will supply gas all year round, even on cold winter days. Butane bottles will supply sufficient gas in summer, but it may affect the performance of the barbecue and restrict the heat output available from the burners, particularly once the gas temperature starts to fall below +10°C. A spanner may be required to change gas bottles.

- The hose should hang freely with no bends, twisting, tension, folds, or kinks that could obstruct free flow of gas. Always inspect the hose for cuts, cracks, or excessive wear before use.

- Apart from the connection point, no part of the hose should touch any hot barbecue parts. If the hose shows any sign of damage it must be replaced with a hose suitable for use with LP gas which meets the national standards for the country of use.

- A suitable hose must comply with ISO3821, and the length should not exceed 1.5 metres.

For optimal performance, we suggest to use a 13kg gas bottle. A suitable regulator must comply with EN12864. YOU MUST HAVE THE PROPER REGULATOR AND BOTTLE ORDER FOR THE BARBECUE TO OPERATE SAFELY AND EFFICIENTLY. USE OF AN INCORRECT OR FAULTY REGULATOR IS DANGEROUS AND WILL INVALIDATE ANY WARRANTY. Please consult your local gas dealer for the most suitable gas bottles and

regulators.

Installation

Selecting a Location

This barbecue is for outdoor use only and should be placed in a well-ventilated area, and on a safe and even surface. Never place your barbecue below ground level. Take care to ensure that it is not placed UNDER any combustible surface. The sides of the barbecue should NEVER be closer than 1 metre from any combustible surface, including trees and fences and make sure that there are no heat sources near the barbecue (cigarettes, open flames, spark etc.). Keep this barbecue away from any flammable materials!

Precautions

Do not obstruct any ventilation openings in the barbecue body.

Position the gas bottle on level ground next to the barbecue and safely away from any source of heat.

Should you need to install or change the gas bottle, confirm that the barbecue is switched off, and that there are no sources of ignition (cigarettes, open flame, sparks, etc.) near before proceeding.

Connecting a Gas Hose to the Barbecue

Connect the gas hose to the gas rail inlet on the left hand side of the barbecue. Do overtighten. Do not use any sealing tape, paste or liquid on the connection.

Fixing a Regulator to the Gas Bottle

Confirm all barbecue control knobs are in the off position. Connect the regulator to the gas bottle according to your regulator and bottle dealer's instructions.

H. Operation

▲Warnings

Before proceeding, make certain that you understand the IMPORTANT INFORMATION section of this manual.

▲ Your barbecue is not designed to be used with more than 50% of the cooking area as a solid plate — this includes baking dishes. Full coverage will cause excessive build-up

of heat and damage the barbecue. This is not covered by warranty.

Preparation Before Cooking

To prevent foods from sticking to the cooking surface, please use a long handled brush to apply a light coat of cooking or vegetable oil before each barbecuing session. (Note:

When cooking for the first time, paint colours may change slightly as a result. This is normal and should be expected.) During use, the protective coating may come off the cooking surface. This is normal and is not harmful.

Line the drip pan with aluminium foil. This will make cleanup easy.

Lighting the Barbecue

- Open the barbecue hood or lid before lighting. Never light your barbecue with the hood or lid closed.

- Ensure all knobs are in the off position. Open the gas control valve on the gas bottle or regulator.

- Push the control knob of the burner you wish to light and turn it anti-clockwise until you feel resistance to the turning. Pause 4 seconds, then continue turning the control knob until a click is heard and the burner is lit. Repeat previous step several times until the burner is lit.

- Ignite any of the remaining burners in any order, as needed. Confirm each burner is alight before igniting another burner.

- If burner fails to ignite after following above procedure, turn all the knobs to the off position. Close the gas valve on the gas bottle. Wait 5 minutes. Reattempt all of the above steps. If the barbecue still fails to light, please refer to the manual ignition instructions below.

- After ignition, turn the burners to the high position for 3-5 minutes in order to pre-heat the barbecue. This should be done before each cooking session.

• After completion of preheating, turn all burners to the low position for best cooking results.

Manual lighting instructions

- Open the barbecue hood before lighting. Never light your barbecue with the hood or lid closed.

- Ensure all knobs are in the off position. Open the gas control valve on the gas bottle or regulator.

- Insert lit match through the right match-

lighting hole on the right side of barbecue body and place near rightmost burner porthole.

• Push and turn the rightmost control knob anti-clockwise to the high position, taking care to protect yourself from the flames.
• When the right burner is lit, turn remaining burners on from right to left.
• Confirm that each burner is alight before turning on the next burner.
• If a burner fails to ignite, contact your local dealer for assistance.
• After ignition, turn the burners to the high position for 3-5 minutes in order to pre-heat the barbecue. This should be done before each cooking session.
  • After completion of preheating, turn all burners to the low position for best cooking results.

Grill Cooking

The burners heat up the lava rock, underneath the grill, which in turn heats the food on the grill. The natural food juices produced during cooking fall onto the lava rock below and vaporise. The subsequent rising smoke bastes the food, as it travels upwards, imparting that unique barbecued flavour.

Griddle Plate Cooking

The burners heat the griddle plate directly, which then cooks the food on contact. Griddle plates allow for the cooking of smaller items, such as seafood, which could fall through the spaces of a grill. They are also suitable for cooking items that require high-temperature/short-duration cooking, such as vegetables and smaller cuts of fish. Similarly, it can be used in exactly the same way as a griddle in the kitchen, for searing steaks, cooking eggs, etc. Alternatively, it can be used for heating pans or keeping food warm.

Warming Rack

Warming racks are a convenient way to keep cooked food warm or to warm items such as bread rolls. It is advisable to place (particularly fatty foods) to the front of the warming rack to avoid the possibility of juices and fat running down the back of barbecue. Always check that your warming rack is properly fitted before use.

Flare-Up Control \*Very Important\*

Flare-ups occur when meat is barbecued, and its fat and juices fall upon the hot lava rock. Smoke of course helps give food its barbecued the favour, but it is best to avoid excessive flare-up to prevent food being burned. To control flare-ups, it is ABSOLUTELY ESSENTIAL to trim away excess fat from meat and poultry before grilling, use cooking sauces and marinades sparingly and try to avoid very cheap cuts of themeat or meat products as these tend to have a high fat and water content. Also, the burners should always be placed on the low setting during cooking.

When flare-ups do occur, they can usually be extinguished by applying baking soda or salt directly onto the lava rock. Always protect your hands when handling anything near the cooking surface of the barbecue and take care to protect yourself from the flames.

If a fat fire occurs, please see the instructions given below.

Fat Fires

Empty and clean the drip tray and drip pan (and foil liner, if applicable) of food debris after each cooking session. If the barbecue is to be used for large gatherings, it will be necessary to turn off and cool the barbecue every two hours to remove food debris from the drip tray and drip pan (and foil liner, if applicable), and clean it out. The time between cleaning may need to be reduced if very fatty foods or cheap meat products are being cooked. Failure to do this may result in a fat fire, which may cause injury and could seriously damage the barbecue.

In the event of a fat fire:

• If safe to do so, turn all control knobs to the 'off' position.
• Turn off the gas supply at the gas bottle.
• Keep everyone at a safe distance from the barbecue and wait until the fire has burnt out.
• Do not close the hood or lid of the barbecue.
• NEVER DOUSE A BARBECUE WITH WATER. IF AN EXTINGUISHER IS USED, IT SHOULD BE A POWDER TYPE.
  • DO NOT REMOVE THE DRIP TRAY.
• If the fire does not seem to be abating or appears to be worsening, contact your local Fire Brigade for assistance.

End of Cooking Session

After each cooking session, turn the barbecue burners to the "high" position and burn for 5 minutes. This procedure will burn off cooking residue, thus making cleaning easier. Make

sure the hood or lid is open during this process. Turning Off Your Barbecue

When you have finished using your barbecue, turn all the control valves fully clockwise to the "Off" position, then switch off the gas supply at the bottle.

Wait until the barbecue is sufficiently cool before closing its hood.

Care and Maintenance

Regularly clean your barbecue between uses and especially after extended periods of storage. Ensure the barbecue and its components are sufficiently cool before cleaning. Do not leave the barbecue exposed to outside weather conditions or stored in damp, moist areas.

▲ Never handle hot parts with unprotected hands.
▲ Never douse the barbecue with water when its surfaces are hot.

In order to extend the life and maintain the condition of your barbecue, we strongly recommend that the unit be covered when left outside for any length of time, especially during the winter months. Heavy-duty barbecue covers and other accessories are available from your local stockist.

Even when your barbecue is covered for its protection, it must be inspected on a regular basis as damp or condensation can form which may result in damage to the barbecue. It may be necessary to dry the barbecue and the inside of the cover. It is possible for mould to grow on any fat remaining on parts of the barbecue. This should be cleaned off smooth surfaces with hot soapy water.

Any rust that is found that does not come into contact with the food should be treated with a rust inhibitor and painted with barbecue paint or a heat resistant paint.

A chrome cleaner may be used on chrome parts if required. To prevent rusting, wipe chrome plated warming racks etc. with cooking oil after rinsing and drying.

Cooking Surfaces & Warming Rack

When the barbecue has cooled, clean with hot soapy water. To remove any food residue, use a mild cream cleaner on a non-abrasive pad. Do not use scouring pads or powders as they can permanently damage the finish. Rinse well and dry thoroughly. Due to the weight of the cooking surfaces, we do not recommend cleaning in a dishwasher.

It is quite normal for surface rust to be present on the cooking surface. If rust appears between uses or in storage, clean with a soft brass wire brush. Be careful not to damage the cooking surface, re-oil and cure.

Burner

Provided that they are operating correctly, in normal usage, burning off the residue after cooking will keep the burners clean.

The burners should be removed and cleaned annually, or whenever heavy build-up is found, to ensure that there are no signs of blockage (debris, insects) in either the burner portholes or the primary air inlet of the burners. Use a pipe cleaner to clear obstructions.

When refitting the burners, be careful to check that the neck of the burner fits over the valve outlet.

It is quite normal for surface rust to be present on the burners. If rust appears between uses or in storage, clean with a soft brass wire brush.

Lava Rock

It is not necessary to remove and wash the lava rock in order to keep it clean. Burning off the residue for 3 to 5 minutes after each cooking session should be sufficient. Heavily impregnated lava rock should be turned over so that the dirty side faces the burners in order to burn off any residue. Replacement lava rock is available from your local stockist.

Drip Tray

After every use, empty and clean the drip tray (and foil liner, if applicable) of any fat or food particles, using a plastic or wooden scraper if necessary.

Failure to keep it clean, and excessive build up can result in a fat fire. This can be hazardous and severely damage the barbecue. This is not a fault in the barbecue and is therefore not covered by the terms of the warranty. If required, the tray can be washed in hot soapy water.

Barbecue Body

Regularly remove excess grease or fat from the barbecue body using a cloth wrung out in hot soapy water and dry thoroughly. Excess fat and food debris can be removed from inside the body using a soft plastic or wooden scraper. It is not necessary to remove all the grease from the body. If you need to clean fully, use hot soapy water and a cloth, or nylon-bristled brush only. Do not use abrasives. Remove cooking surfaces and burners before full cleaning. Do not immerse the gas controls or manifold in water. Check burner operation after carefully refitting into body.

Barbecue Hood or Lid

Use a non-abrasive cloth or pad and clean with hot, soapy water. Do not use scouring pads or powders as they can permanently damage the finish.

Trolley

Wipe with a cloth wrung out in hot soapy water and dry.

The wood used in the manufacture of your barbecue is a hardwood suited to outdoor use. Hardwood will naturally weather and change its appearance. It is quite natural for small cracks to appear on the surface of the wood. The wood should be regularly inspected and weathered or damaged surfaces should be sanded and recoated promptly with a hardwood garden furniture varnish or paint, following the manufacturer's instructions for preparation and application.

Fixings

All screws and bolts, etc. should be checked and tightened on a regular basis.

Storage

Ensure the barbecue is properly cooled before covering or storing. Store your barbecue in a cool dry place.

Cover the burners with aluminium foil in order to prevent insects or other debris from collecting in burner holes.

If the barbecue is to be stored indoors, the gas bottle must be disconnected and left outside. The gas bottle should always be stored outside, in a dry, well-ventilated area, away from any sources of heat or ignition. Do not let children tamper with the bottle.

When using the barbecue after extended

periods of storage follow the cleaning procedures.

J. Technical Specifications

	CE Approval	Heat Input	Burners	Injector Size	Gas /Pressure
Outback® Spectrum Select Flat Bed 2 Burner Gas BBQ	0359 359BR665	9.52 kW	2	1.07mm	28-30 mbar Butane or 37 mbar Propane
Outback® Spectrum Select Flat Bed 3 Burner Gas BBQ	0359 359BR665	14.28 kW	3	1.07mm	28-30 mbar Butane or 37 mbar Propane
Gas Consumption: Outback® Spectrum Select Flat Bed 2 Burner Gas BBQ : 693g/hr Outback® Spectrum Select Flat Bed 3 Burner Gas BBQ : 1039g/hr
Countries of Use: I_s-(28-30/37) BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SK, SI

Specifications are subject to change without prior notice.

Notes:

Troubleshooting

Problem	Possible Cause	Solution
Burner will not light using the ignition system	LP gas bottle is empty	Replace with full bottle
	Faulty regulator	Have regulator checked or replaced
	Obstructions in burner	Clean burner
	Obstructions in gas jets or gas hose	Clean jets and gas hose
	Electrode wire is loose or disconnected on electrode	Reconnect wire
	Electrode or wire is damaged	Change electrode and wire
	Faulty integral ignitor	Change ignitor
Incorrect electrode gap/ Bent collector box		The gas collector box around the electrode needs to be in line with the burner with a gap of 3 to 4mm between the end of the electrode and the tag on the end of the collector box. Realign the collector box as required.
Burner will not light with a match	LP gas bottle is empty	Replace with full bottle
	Faulty regulator	Have regulator checked or replaced
	Obstructions in burner	Clean burner
	Obstructions in gas jets or gas hose	Clean jets and gas hose
Low flame or flashback (fire in burner tube—a hissing or roaring noise may be heard)	LP gas bottle too small Use larger bottle
	Obstructions in burner	Clean burner
	Obstructions in gas jets or gas hose	Clean jets and gas hose
	Windy conditions	Use barbecue in a more sheltered position
Gas valve knob difficult to turn	Integral ignition system jammed	Replace gas valve
	Gas valve jammed	Replace gas valve

OUTBACK 10 YEAR WARRANTY

OUTBACK barbecues are warranted to the original purchaser against defects in materials and workmanship. Porcelain coated barbecue bodies, porcelain coated roasting hoods and stainless steel roasting hoods are warranted for a period of ten (10) years from the date of purchase. Stainless steel and cast iron burners are warranted for a period of two (2) years from the date of purchase. OUTBACK will, within this period, supply replacements for defective parts free of charge provided that:

• The product has not been used for trade, professional or hire purposes.
• The product has not been subjected to misuse or neglect, including fat fires and flare ups or use of a faulty or incorrect regulator.
• The product has not sustained damage through foreign objects, substances or accidents.
  The care and maintenance instructions given in your Outback manual have been followed.

This warranty is offered as an extra benefit and is in addition to the customers' statutory rights.

Outback does not warranty in any way the gas cylinder.

In the unlikely event that you experience problems with this barbecue, please fill in our warranty form at

http://www.outbackbarbecues.com/warranty-form

and one of our colleagues will be in contact with you.

For reference and correspondence, record your serial number here. (See sticker on side of barbecue body.)

Serial No.

This number may be required when ordering spare parts or accessories. A part reference number may also be required where applicable.
