Alterum ENS65-445 XD - Built-in oven Elba - Free user manual and instructions

Product Type	Built-in Electric Oven
Brand	Elba
Model	Alterum ENS65-445 XD
Energy Source	Electric
Energy Efficiency Class	A
Oven Capacity	65 L
Number of Functions	8
Functions	Conventional, Fan-assisted, Grill, Fan grill, Bottom heat, Defrost, Pizza, Eco
Temperature Range	50°C - 250°C
Control Type	Rotary knobs and display
Display	Digital LED
Timer	Yes, with end cooking time
Interior Light	Yes
Cleaning Type	Catalytic
Number of Oven Cavities	1
Door Type	Drop-down door with cool touch
Number of Glass Panels	3
Dimensions (H x W x D)	595 x 595 x 575 mm
Built-in Dimensions (H x W x D)	590 x 560 x 550 mm
Weight	32 kg
Rated Voltage	220-240 V
Rated Frequency	50/60 Hz
Rated Power	2900 W
Certifications	CE, RoHS

Frequently Asked Questions - Alterum ENS65-445 XD Elba

How do I install the Elba Alterum ENS65-445 XD built-in oven?

Ensure the oven is installed by a qualified electrician. The cutout dimensions are approximately 590 x 560 x 550 mm (H x W x D). The appliance must be connected to a 220-240 V, 50/60 Hz supply with a suitable fuse rating. Refer to the installation manual for detailed steps.

What are the main cooking functions?

The oven offers 8 functions: Conventional (top and bottom heat), Fan-assisted, Grill, Fan grill, Bottom heat, Defrost, Pizza, and Eco mode. Use the function selector knob to choose.

How do I clean the oven?

This model features catalytic liners that absorb grease and can be cleaned by heating the empty oven to 250°C for about 30 minutes. Wipe the interior with a damp cloth after cooling. Avoid abrasive cleaners.

Why is the oven not heating up?

Check that the oven is properly connected to the power supply, the timer is set, and the function is selected. If the problem persists, the heating element or thermostat may be faulty. Contact a service technician.

Can I use aluminium foil in the oven?

Yes, but avoid covering the oven floor entirely as it may block heat circulation. Do not let foil touch the heating elements. Use foil only on baking trays or to cover dishes.

How do I set the timer?

Turn the timer knob to set the desired cooking time. The oven will automatically switch off when the time elapses. Some models also have an end-of-cooking alarm.

What is the maximum temperature?

The maximum temperature is 250°C. For grilling, the grill element reaches high heat; monitor food closely to avoid burning.

Does the oven have a child safety lock?

The oven does not come with a dedicated child lock. However, the door is designed with a cool-touch surface. Always supervise children near the appliance.

Can I replace the oven light myself?

Yes, the interior light bulb (usually 25W, G9 type) can be replaced by unscrewing the lamp cover and changing the bulb. Ensure the oven is disconnected from power.

What should I do if the oven door fails to close properly?

Check for obstructions around the door seal. If the hinge is damaged, it may need replacement. Contact Elba service for spare parts and repair.

USER MANUAL Alterum ENS65-445 XD Elba

BUILT-IN COOKING HOBS

Instructions for the use - Installation advices KEEP IN A SAFE PLACE

Before operating this appliance, please read these instructions carefully

Dear Customer,

Thank you for having purchased and given your preference to our product. The safety precautions and recommendations within this booklet are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance.

Please preserve this booklet carefully. It may be useful in future, either to yourself or to others in the event that doubts should arise relating to its operation.

This appliance must be used only for the task it has explicitly been designed for, that is for cooking foodstuffs. Any other form of usage is to be considered as inappropriate and therefore dangerous.

The manufacturer declines all responsibility in the event of damage caused by improper, incorrect or illogical use of the appliance.

IMPORTANT: This appliance is designed and manufactured solely for the cooking of domestic (household) food and is not suitable for any non domestic application and therefore should not be used in a commercial environment.

The appliance guarantee will be void if the appliance is used within a non domestic environment i.e. a semi commercial, commercial or communal environment.

Read the instructions carefully before installing and using the appliance.

- This appliance has been designed and manufactured in compliance with the applicable standards for the household cooking products, including those for surface temperatures.

Some people with sensitive skin may have a more pronounced temperature perception with some components although these parts are within the limits allowed by the norms.

The complete safety of the appliance also depends on the correct use, we therefore recommend to always pay a extreme attention while using the product, especially in the presence of children.

- After having unpacked the appliance, check to ensure that it is not damaged.

In case of doubt, do not use it and consult your supplier or a professionally qualified technician.

- Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not be left around within easy reach of children, as these may cause serious injuries.

- Some appliances are supplied with a protective film on steel and aluminium parts. This film must be removed before using the appliance.

- IMPORTANT: The use of suitable protective clothing/gloves is recommended when handling or cleaning this appliance.

• Do not attempt to modify the technical characteristics of the appliance as this may become dangerous to use. The manufacturer declines all responsibility for any inconvenience resulting from the inobservance of this condition.
• CAUTION: this appliance must only be installed in a permanently ventilated room in compliance with the applicable regulations.
• Do not carry out cleaning or maintenance operations on the appliance without having previously disconnected it from the electric power supply.
• Do not use a steam cleaner because the moisture can get into the appliance therefore making it unsafe.
• Do not touch the appliance with wet or damp hands (or feet).
• Do not use the appliance whilst in bare feet.
• If you should decide not to use this appliance any longer (or decide to substitute another model), before disposing of it, it is recommended that it be made inoperative in an appropriate manner in accordance to health and environmental protection regulations, ensuring in particular that all potentially hazardous parts be made harmless, especially in relation to children who could play with unused appliances.
• The various components of the appliance are recyclable. Dispose of them in accordance with the regulations in force in your country. If the appliance is to be scrapped, remove the power cord.
  • After use, ensure that the knobs are in the off position.
• Children less than 8 years of age shall be kept away unless continuously supervised.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The manufacturer declines all liability for injury to persons or damage to property caused by incorrect or improper use of the appliance.

- WARNING: During use the appliance and its accessible parts become hot; they remain hot for some time after use.

- Care should be taken to avoid touching heating elements on the hob.

- To avoid burns and scalds, young children should be kept away.

- Make sure that electrical cables connecting other appliances in the proximity of the cooktop cannot come into contact with the hob.

- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

- WARNING: Danger of fire: do not store items on the cooking surfaces.

- WARNING: When correctly installed, your product meets all safety requirements laid down for this type of product category. However special care should be taken around the underneath of the appliance as this area is not designed or intended to be touched and may contain sharp or rough edges, that may cause injury.

- CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

- If the power supply cable is damaged, it must be replaced only by an authorized service agent in order to avoid a hazard.

Advice for the installer

IMPORTANT :

• The appliance is designed and approved for domestic use only and should not be installed in a commercial, semi commercial or communal environment.
  Your product will not be guaranteed if installed in any of the above environments and could affect any third party or public liability insurances you may have.

- This appliance is to be installed, regulated and adapted to function only by an authorized person in compliance with the current local regulations in force and in observation of the instructions supplied by the manufacturer.

Failure to comply with this condition will render the guarantee invalid.

- The appliance must be installed in compliance with regulations in force in your country and in observation of the manufacturer's instructions.

- Installation technicians must comply to current laws in force concerning ventilation and the evacuation of exhaust gases.

- Incorrect installation, for which the manufacturer accepts no responsibility, may cause personal injury or damage.

- This appliance shall only be serviced by authorized personnel.

- Always disconnect the appliance from mains power supply before carrying out any maintenance operations or repairs.

- Important: The use of suitable protective clothing/gloves is recommended when handling or cleaning of this appliance.

- These tops are designed to be embedded into kitchen fixtures measuring 600 mm in depth.

- The appliance must be housed in heat-resistant units.

- The walls of the units must not be higher than work top and must be capable of resisting temperatures of 105^ above room temperature.

- We would point out that the adhesive which bonds the plastic laminate to the furniture must withstand temperatures not less than 150^ to avoid delamination.

- Do not install the appliance near inflammable materials (eg. curtains).

WARNING!

When correctly installed, your product meets all safety requirements laid down for this type of product category. However special care should be taken around the underneath of the appliance as this area is not designed or intended to be touched and may contain sharp or rough edges, that may cause injury.

TECHNICAL INFORMATION FOR THE INSTALLER

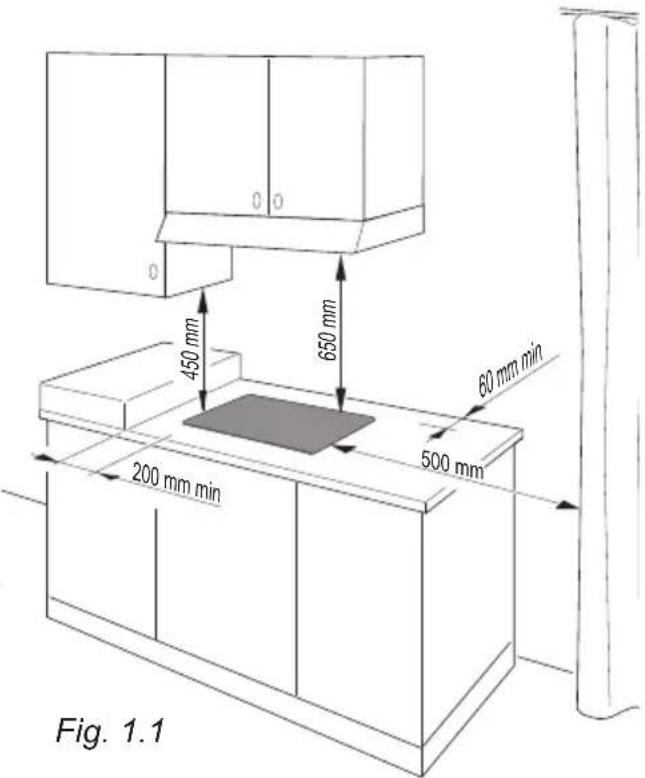

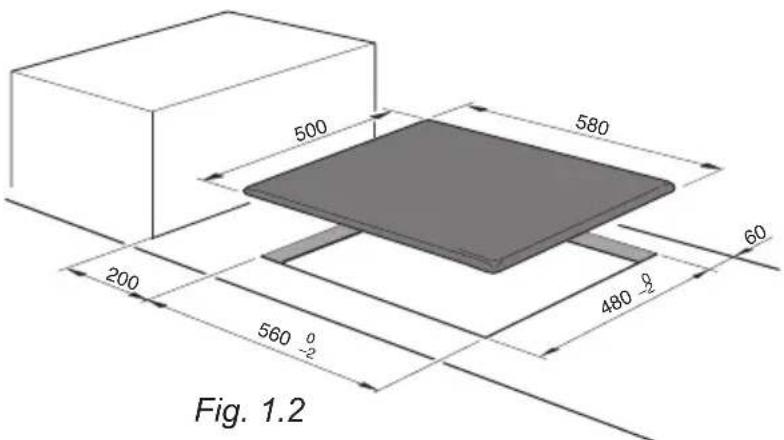

In order to install the cooker top into the kitchen fixture, a hole with the dimensions shown in fig. 1.2 has to be made, bearing in mind the following:

• within the unit, between the bottom of the cooktop and the upper surface of a shelf there must be a clearance of at least 30 mm. It is absolutely essential that you place a separator between the base of the cooktop and the built-in unit or the oven;
• the cooker top must be kept no less than 200 mm away from any side wall (fig. 1.2);
• the hob must be installed at least 60 mm from the wall;
• there must be a distance of at least 650 mm between the hob and any wall cupboard or extractor hood positioned immediately above (see fig. 1.1);
• if the hob is installed over a built-in oven, there must be a distance of at least 30 mm between the two appliances. The two appliances shall be connected to the gas /electrical supply with independent connections.

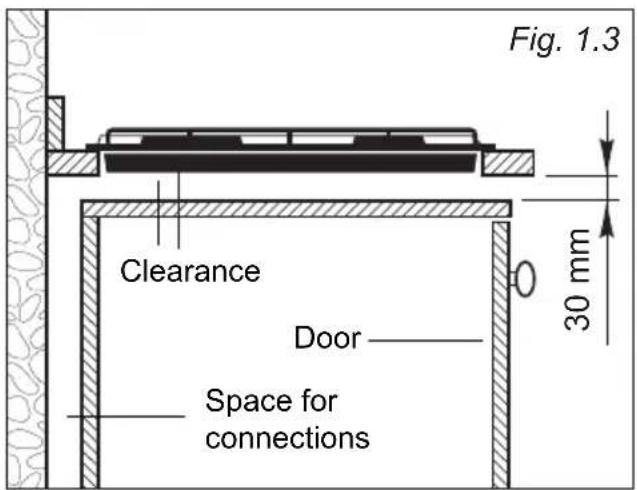

INSTALLATION IN KITCHEN CABINET WITH DOOR (fig. 1.3)

It is recommended that a 30 mm clearance be left between the cooker top and the fixture surface (fig. 1.3).

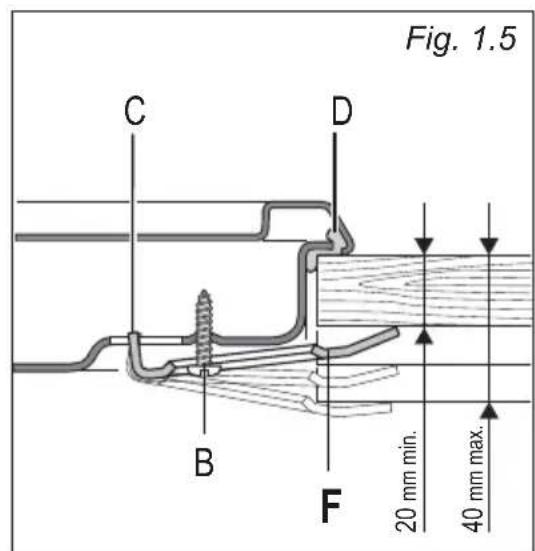

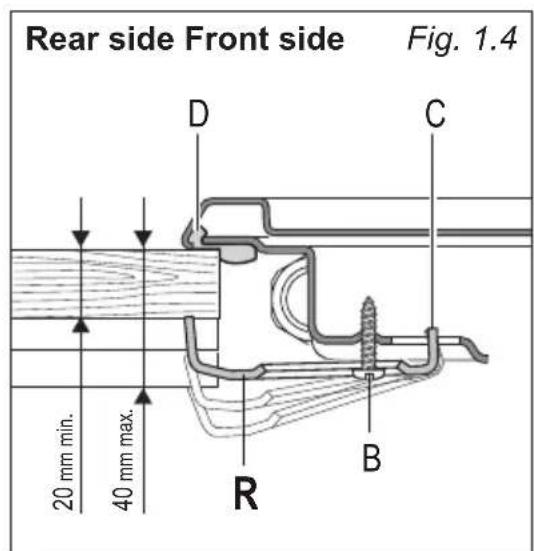

FASTENING THE INSTALLATION BRACKETS (figs. 1.4, 1.5, 1.6)

• Each cooker top is provided with an installation kit including brackets and screws for fastening the top to fixture panels from 2 to 4 cm thick.

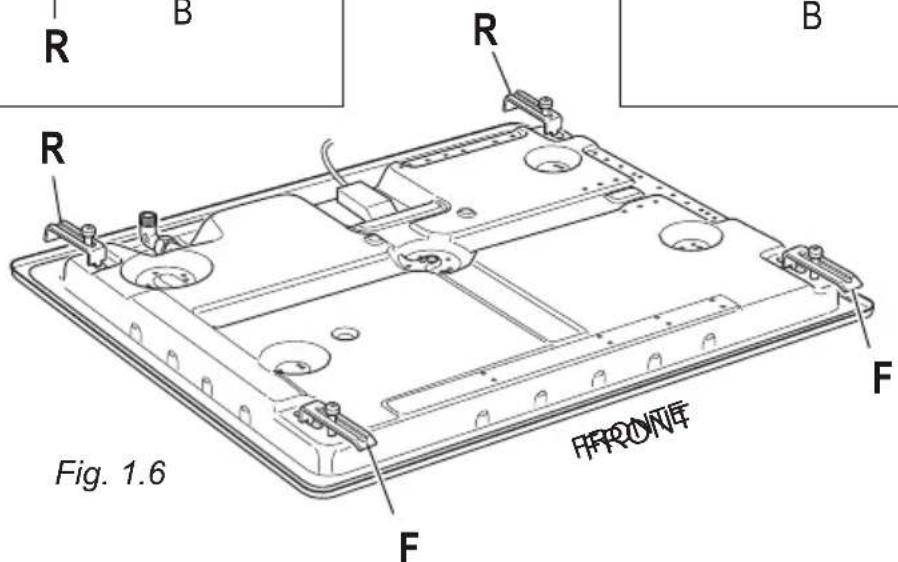

- Turn the cooker top upside down and fasten the brackets "F and R" to the appropriate socket holes, without tightening the screws "B" for the moment.
• Make sure that the brackets are fastened as shown in the figures.

FASTENING THE COOKER TOP (figs. 1.4, 1.5, 1.6)

• Spread the sealing material "D" out along the fixture hole, making sure that the junctions overlap at the corners.
• Insert the cooker top into the hole and position it correctly.
• Adjust the position of the brackets "F and R"; tooth C of the tabs should go into the hole. Tighten screws "B" to block the cooker top firmly in position.
• With a sharp cutter or trimmer knife trim the excess sealing material around the edge of the cooker top. Take care not to damage the benchtop.

VENTILATION REQUIREMENTS

The appliance must be installed in compliance with applicable local regulations concerning ventilation and the evacuation of exhaust gases.

Intensive and prolonged use may require extra ventilation, e.g. opening a window, or more efficient ventilation increasing the mechanical suction power if this is fitted.

The room where the gas appliance is to be installed must have a natural flow of air so that the gas can burn (in compliance with applicable local regulations).

The flow of air must come directly from one or more openings made in the outside walls with a free area of at least 100 cm^2 (or refer to applicable local regulations).

If the appliance does not have a no-flame safety device this opening must have an area of at least 200 cm^2 (or refer to applicable local regulations).

The openings should be near the floor and preferably on the side opposite the exhaust for combustion products and must be made so that they cannot be blocked from either the inside or the outside.

When these openings cannot be made, the necessary air can come from an adjacent room which is ventilated as required, as long as it is not a bed room or a danger area (in compliance with applicable local regulations).

In this case, the kitchen door must allow the passage of the air.

DISCHARGING PRODUCTS OF COMBUSTION

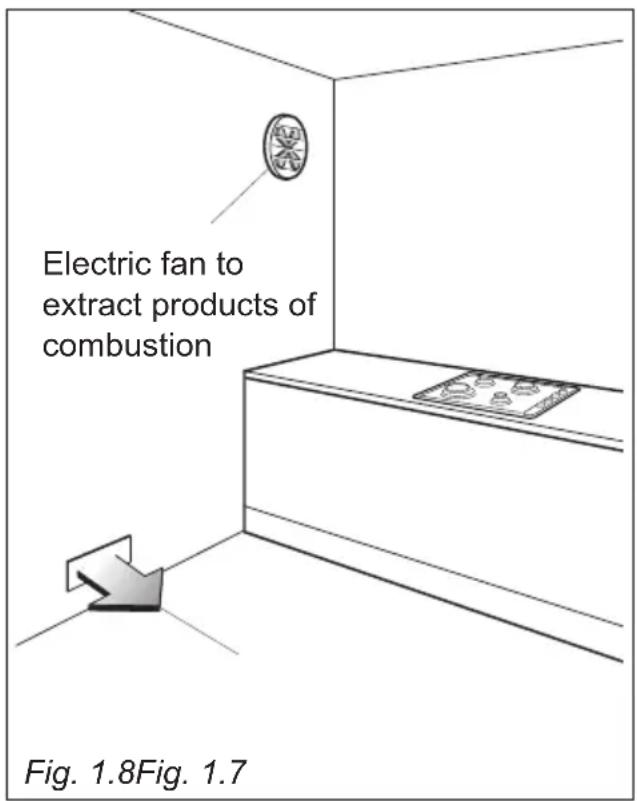

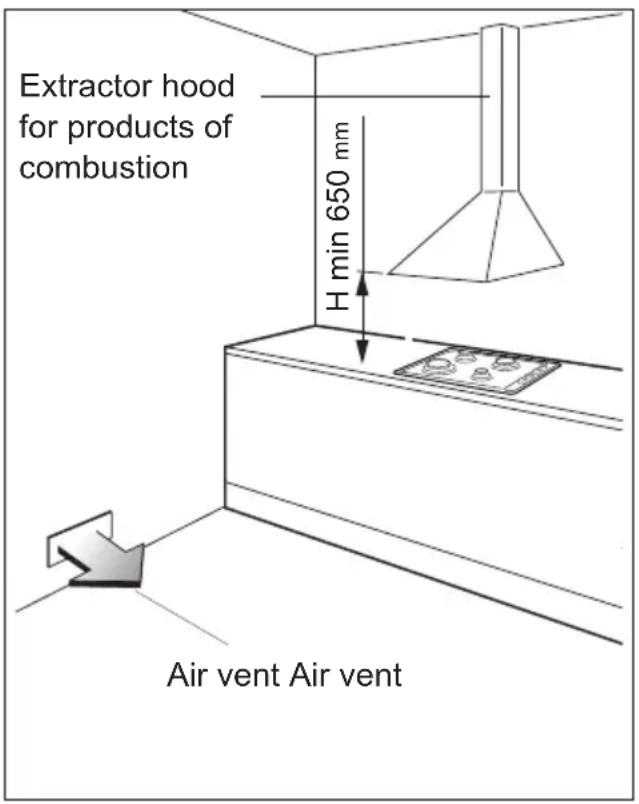

Extractor hoods connected directly to the outside must be provided, to allow the products of combustion of the gas appliance to be discharged (fig. 1.7).

If this is not possible, an electric fan may be used, attached to the external wall or the window; the fan should have a capacity to circulate air at an hourly rate of 3-5 times the total volume of the kitchen (fig. 1.8).

The fan can only be installed if the room has suitable vents to allow air to enter, as described under the heading “Choosing suitable surroundings”.

GAS INSTALLATION REQUIREMENTS

Important!

• Before installation, make sure that the local distribution conditions (gas type and pressure) and the adjustment of this appliance are compatible. The appliance adjustment conditions are given on the plate or the label.
• This appliance must be installed and serviced only by a suitably qualified, registered installer with technical knowledge of both gas installation and electricity. The installation or service must comply with the current editions of the applicable standards, regulations, and codes of practice governing gas and electrical installations.
• Failure to install the appliance correctly could invalidate any manufacturer's warranty.

This appliance is supplied for use on LPG (Cat. I 3+; check the gas regulation label attached on the appliance).

OR

This appliance is supplied for use on NATURAL GAS or LPG (Cat. II 2H 3+ or II 2E+ 3+; check the gas regulation label attached on the appliance).

• Appliances supplied for use on NATURAL GAS: they are adjusted for this gas only and cannot be used on any other gas (LPG) without modification. The appliances are manufactured for conversion to LPG.
• Appliances supplied for use on LPG: they are adjusted for this gas only and cannot be used on any other gas (NATURAL GAS) without modification. The appliances are manufactured for conversion to NATURAL GAS.

If the NATURAL GAS/LPG conversion kit is not supplied with the appliance this kit can be purchased by contacting the After-Sales Service.

FOR SOUTH AFRICA ONLY

The appliance is predisposed and adjusted to operate with the gas G30/G31 (LPG USE).

Operating pressure: 2,8 kPa.

This appliance is manufactured for conversion to G20 (NATURAL GAS) if required and is supplied with a conversion kit.

This appliance must only be connected to NATURAL GAS after a NATURAL GAS conversion kit has been fitted.

CONNECTING THE COOKTOP TO THE GAS SUPPLY

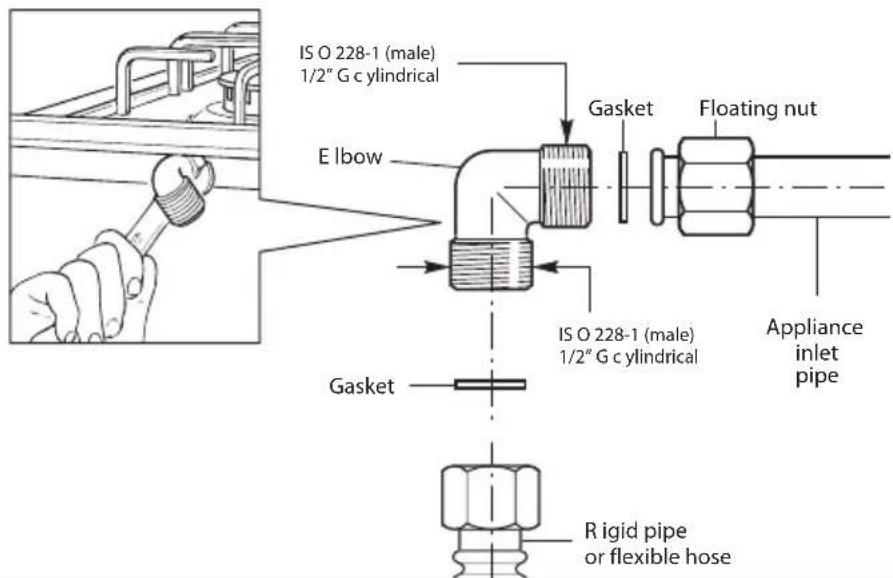

The gas connection fitting (fig. 2.1) is made up of:

• the floating nut;
- the elbow;
- the gaskets;

The gas connection must be carried out by an authorised person according to the relevant local standards.

• If using a flexible hose, make sure it does not come into contact with moving parts.
• The rear of the chassis is recessed to provide a channel for the appliance inlet pipe.
• The gas connection fitting can be turned in the direction required (but never in a vertical or horizontal position) after loosening the elbow and floating nut connection.
• Never attempt to turn the elbow without having first loosened the floating nut.
• The supplied gaskets guarantee a good seal for the gas connection. We recommend that you replace the gaskets on the slightest sign of wear, deformation or imperfection.
  • After connecting to the gas mains, check that the couplings are correctly sealed, using soapy solution, but never a naked flame.

Fig. 2.1

ADDITIONAL GAS CONNECTION REQUIREMENTS

When connecting the cooktop to the gas supply with rigid pipes or a flexible hose, make sure that:

• You use rigid pipes or a flexible hose compliant with applicable local regulations. The flexible hose shall be of the correct construction for the type of gas being used and of the correct size to maintain the heat output of the appliance.
• The connection with rigid metal pipes does not cause stress or pressure to the gas piping.
• The flexible hose is not under tension, twisted, kinked, or too tightly bent, neither while the cooktop is in use nor while it is being connected or disconnected.
• The flexible hose is not longer than 2000 mm (or refer to applicable local regulations) and does not come into contact with sharp edges, corners, or moving parts, as these may cause abrasion. Use a single flexible hose only; never connect the cooktop with more than one flexible hose.
• The flexible hose can easily be inspected along its entire length to check its condition; if it has an expiry date, it should be replaced before that date.
• If using a flexible hose which is not entirely made of metal, make sure that it does not come into contact with any part of the cooktop with a surface temperature of 70^ or above (or refer to applicable local regulations).
• The rigid pipe or flexible hose is replaced if it shows signs of damage.
• The flexible hose is not subject to excessive heat by direct exposure to flue products or by contact with hot surfaces.
• The socket into which the plug of the flexible hose fit is permanently attached to a firmly fixed gas installation pipe and is positioned so that the hose hangs freely downwards.
• The plug of the flexible hose is accessible after installation, so that it can be disconnected for service or removal.
• You inform the customer that the rigid pipe or flexible hose should not be subjected to corrosion by cleaning agents.

GAS MAINTENANCE

Some models - for the gas category check the data label attached on the appliance

TABLE FOR THE CHOICE OF THE INJECTORS
Cat: I 3+			G30/G3128-30/37 mbar
BURNERS	Nominal Power [kW]	Reduced Power [kW]	∅ injector[1/100 mm]
Auxiliary (A) 1,00 0,40		50
Semi-rapid (SR)	1,75	0,45	66
Rapid (R)	3,00	0,75	87
Triple-ring (TR)	3,50	1,50	93

Some models - for the gas category check the data label attached on the appliance

TABLE FOR THE CHOICE OF THE INJECTORS
Cat: II 2H 3+			G30/G3128-30/37 mbar	G2020 mbar
Cat: II 2E 3+			G30/G3128-30/37 mbar	G20/G2520/25 mbar
BURNERS	Nominal Power [kW]	Reduced Power [kW]	∅ injector[1/100 mm]	∅ injector[1/100 mm]
Auxiliary (A) 1,00 0,40 50 77
Semi-rapid (SR) 1,75 0,45 66 101
Rapid (R) 3,00 0,75 87 129
Triple-ring (TR) 3,50 1,50 93 135

AIR VENT NECESSARY FOR GAS COMBUSTION = (2 m3/h x kW)
BURNERS Air necessary for combustion [m 3/h]
Auxiliary (A) 2,00
Semi-rapid (SR) 3,50
Rapid (R) 6,00
Triple-ring (TR) 7,00

LUBRICATION OF THE GAS TAPS

In case of difficulty in the gas taps operation, call Service.

IMPORTANT

All intervention regarding installation, maintenance and conversion of the appliance must be fulfilled with original factory parts.

The manufacturer declines any liability resulting from the non-compliance of this obligation.

REPLACEMENT OF THE INJECTORS

Select the injectors to be replaced according to the "Table for the choice of the injectors".

The nozzle diameters, expressed in hundredths of a millimetre, are marked on the body of each injector.

If the injectors are not supplied they can be obtained from the "Service Centre".

Auxiliary, semi-rapid, rapid and fish burners

Fig. 2.2

REPLACEMENT OF THE INJECTORS OF THE COOKTOP BURNERS

To replace the injectors proceed as follows:

• Remove pan supports and burners from the cooktop.

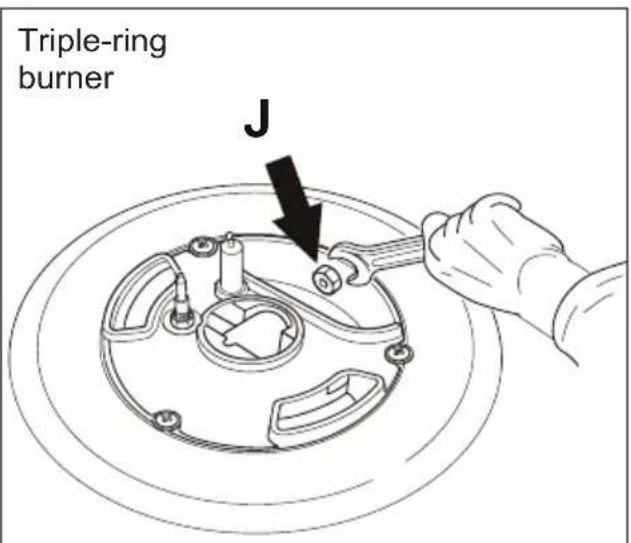

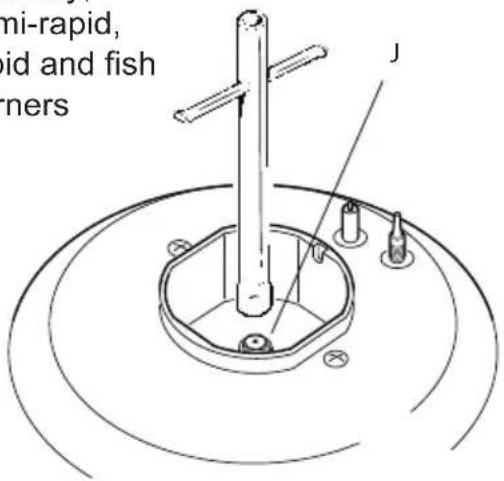

• Using a wrench, substitute the nozzle injectors "J" (figs. 2.2, 2.3) with those most suitable for the kind of gas for which it is to be used.

The burners are conceived in such a way so as not to require the regulation of the primary air.

Fig. 2.3

ADJUSTING OF THE MINIMUM OF THE TOP BURNERS

In the minimum position the flame must have a length of about 4 mm and must remain lit even with a quick turn from the maximum position to that of minimum.

The flame adjustment is done in the following way:

• Turn on the burner.
• Turn the tap to the MINIMUM position.
  • Take off the knob.

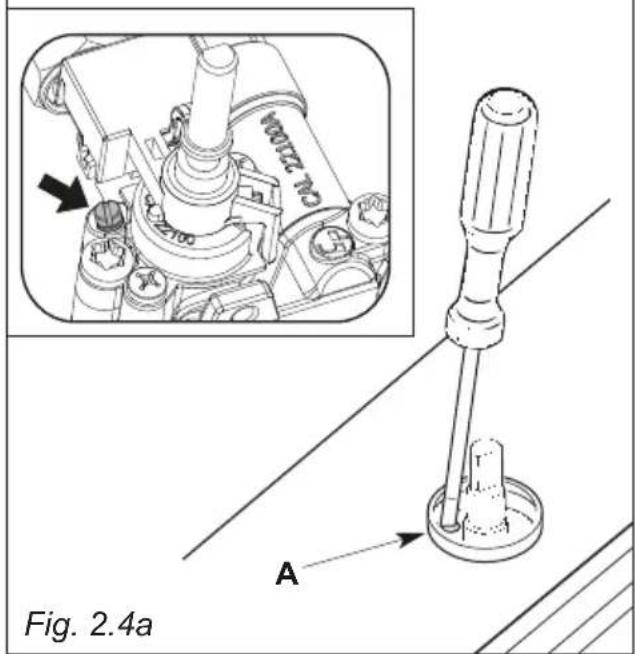

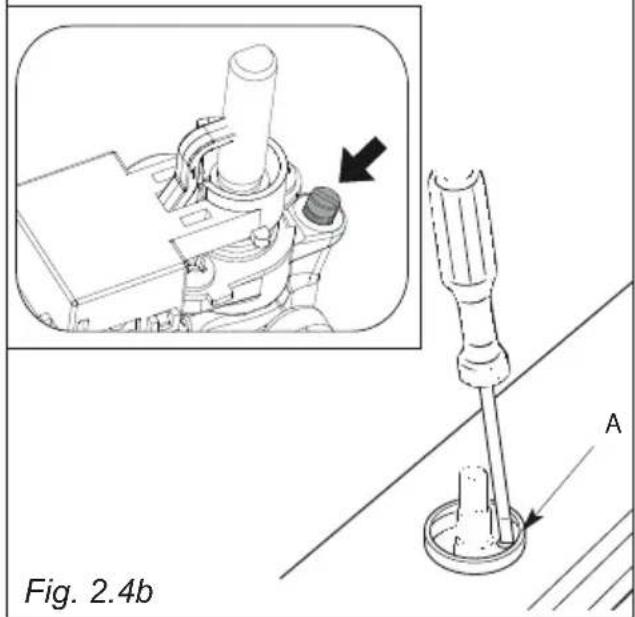

• With a small flat screwdriver turn the screw "A" to the correct regulation (figs. 2.4a or 2.4b).

Normally for G30/G31 (LPG), the regulation screw is tightened up.

Models with safety cut-off valves

Models without safety cut-off valves

IMPORTANT: The appliance must be installed by a qualified technician according with the current local regulations and in compliance with the manufacturer instructions. Incorrect installation might cause harm and damage to people, animals or objects, for which the manufacturer accepts no responsibility.

Connection to a good earth wiring system is absolutely essential. The manufacturer accepts no responsibility for any inconvenience caused by failure to comply with this rule.

Before carrying out any work on the electrical section of the appliance, it must be disconnected from the mains.

GENERAL

• Connection to the electric power supply must be carried out by a qualified technician and following the appropriate safety regulations.
• The appliance must be connected to the mains checking that the voltage corresponds to the value given in the rating plate and that the electrical cable sections can withstand the load specified on the plate.
• If the hob is supplied without plug, fit a standard plug which is suitable for the power absorbed by the appliance and in conformity with the local rules in force.
• The colours of the wires in the appliance power cable may not correspond with the colours marked on the terminals of your electrical plug. The plug should always be wired as follows:

- connect the green/yellow wire to the terminal marked with the letter "E" or the earth symbol " 1= " or coloured green/yellow;

• connect the blue wire to the terminal marked with the letter "N" or coloured black;

• connect the brown wire to the terminal marked with the letter "L" or coloured red.

• The plug must be connected to an outlet connected to the grounding unit in conformity to security norms.

• If the appliance is to be connected directly to the mains, it must be placed with an omnipolar switch with minimum opening between the contacts of 3 mm between the appliance and the mains.
• The power supply cable must not touch the hot parts and must be positioned so that it does not exceed 50°C above ambient.
• Once the appliance has been installed, the power switch or power plug must always be in a accessible position.
• If the power supply cable is damaged it must be substituted by a suitable cable available in the after sales service.
• The appliance must have its own supply; any other appliances installed near it must be supplied separately.

– N.B. For connection to the mains, do not use adapters, reducers or branching devices as they can cause overheating and burning.

- If the hob surface is cracked disconnect the appliance from the mains and contact the After-Sales Service.

In the event that installation should require modifications to the mains supply wiring system, it is recommended that a qualified technician be called to carry out substitution.

The technician will also have to verify that the cross-section of the electric cables on the power point match the appliance's power rating.

REPLACING THE POWER SUPPLY CABLE

WARNING: If the power supply cable is damaged, it must be replaced only by an authorized service agent in order to avoid a hazard.

Use the same type of power supply cable.

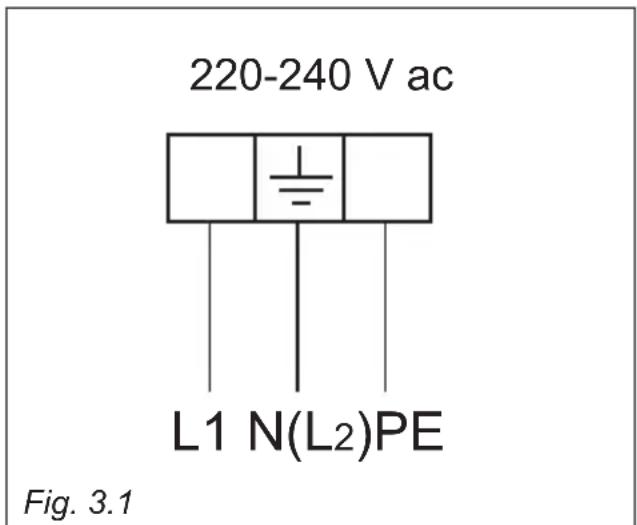

This cable must be connected to the terminal block following the diagram in fig. 3.1.

NOTE: The earth conductor must be left about 3 cm longer than the others.

SECTION OF THE SUPPLY CABLE

TYPE "H05V2V2-F" (resistant to temperatures of 90°C)

220-240 V 50/60 Hz 3 x 0,75 mm ^2 (*) (***)

220-240 V 50/60 Hz 3 x 1 mm ^2 (*) (**)(models with a rating of 1500 W at 230 V)

220-240 V 50/60 Hz 3 x 1,5 mm ^2 (*) (**) (models with a rating of 3500 W at 230 V)

(*) Connection possible with plug and outlet

(**) Connection with wall box connection.

Advice for the users

Fig. 1.1a Fig. 1.1b

Fig. 1.2a

Fig. 1.2b

Fig. 1.3a

Fig. 1.3b

Caution!

Do not cover the hob with aluminium foils.

NOTE:

The knobs and symbols may vary.

Fig. 1.4a

Fig. 1.5

Fig. 1.7

Fig. 1.4b

Fig. 1.6

Caution!

Do not cover the hob with aluminium foils.

NOTE:

The knobs and symbols may vary.

The appliance has class 3

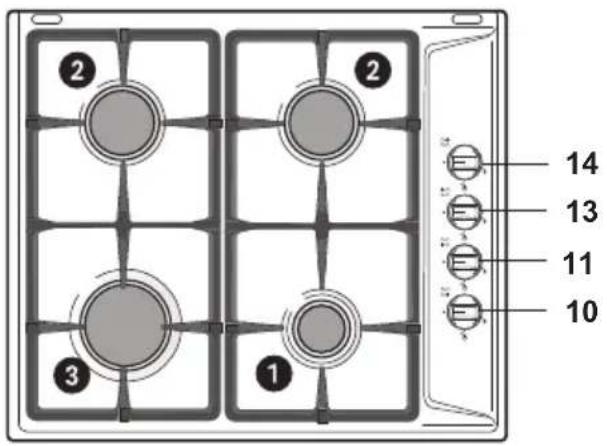

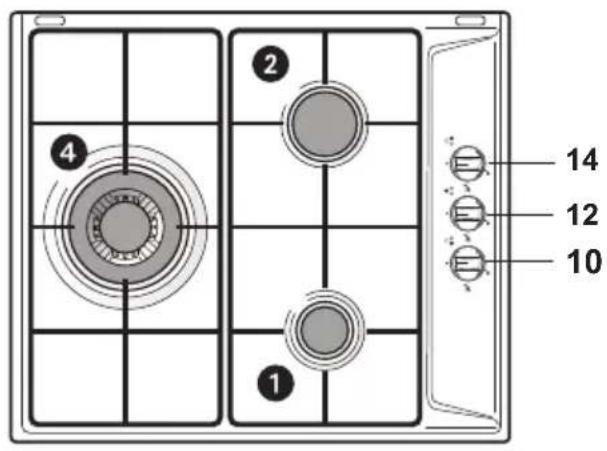

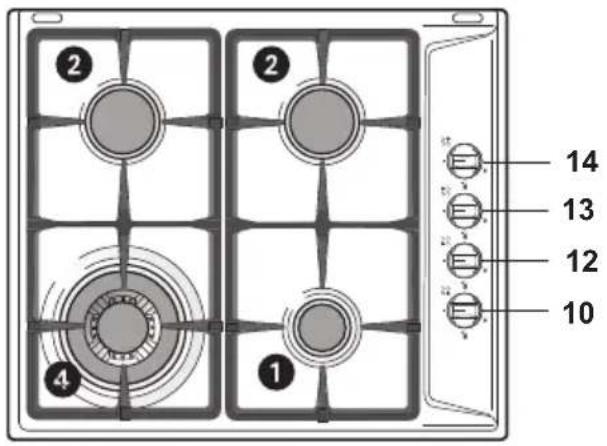

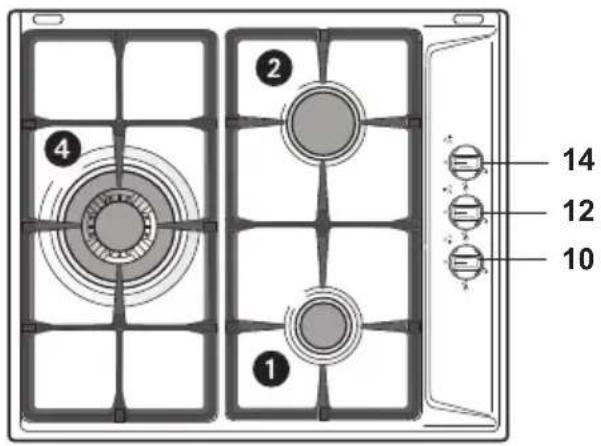

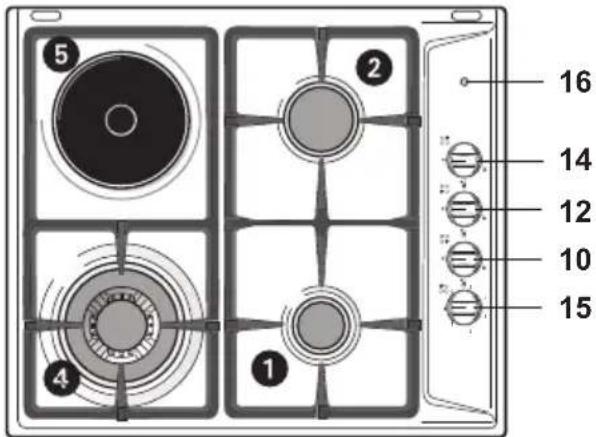

COOKING POINTS

1. Auxiliary burner (A) 1,00 kW
2. Semirapid burner (SR) 1,75 kW
3. Rapid burner (R) 3,00 kW
4. Triple ring burner (TR) 3,50 kW
5. Electric plate - normal ∅ 145 mm (1000 W) - rapid (1500 W)

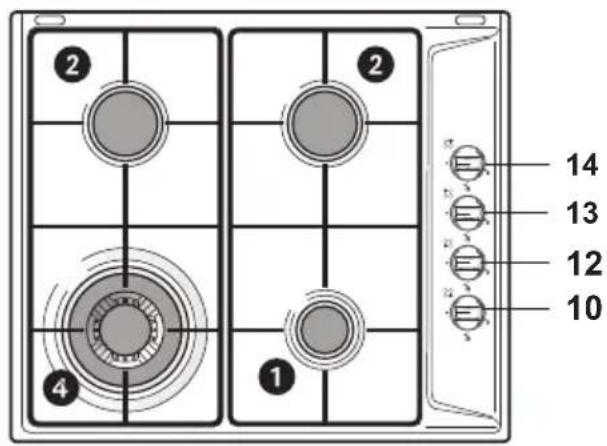

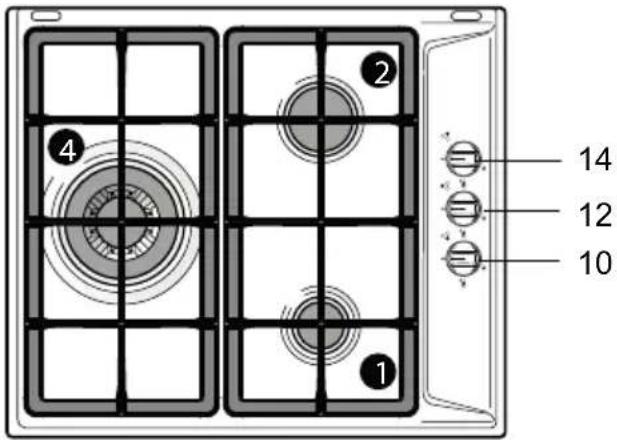

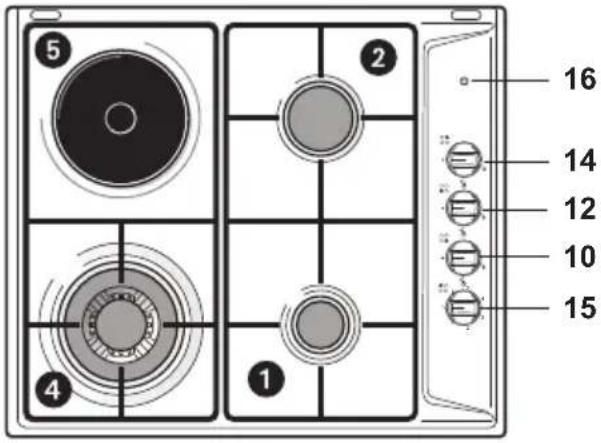

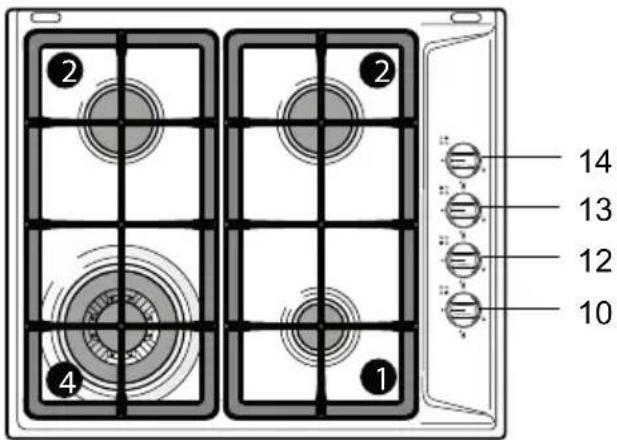

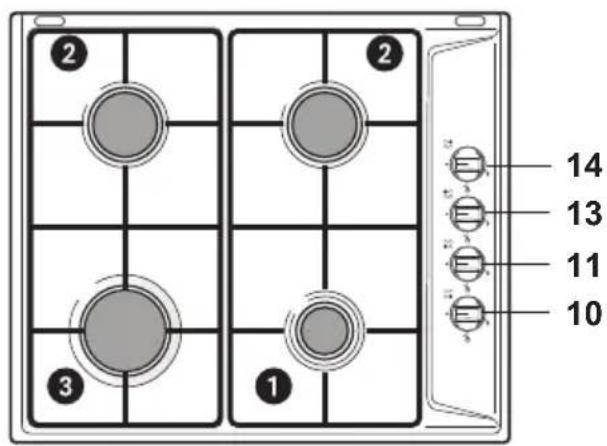

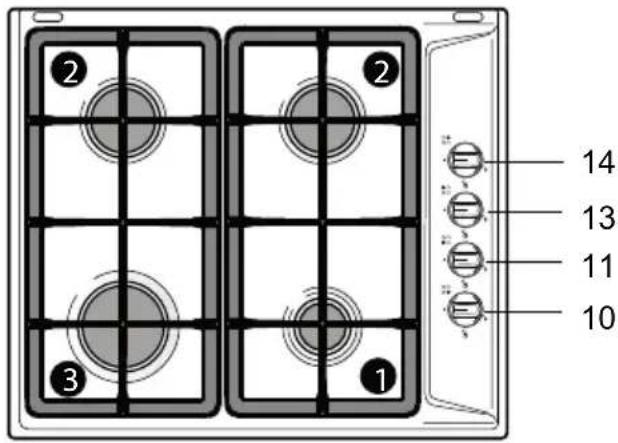

CONTROL PANEL DESCRIPTION

1. Auxiliary burner control knob (1)
2. Rapid burner control knob (3)
3. Triple ring burner control knob (4)
4. Left semirapid burner control knob (2)
5. Right semirapid burner control knob (2)
6. Rear left electrical plate control knob (5)
7. Electrical plate indicator light

NOTE:

• The electric ignition is incorporated in the knobs.
• If the appliance has a safety valve system fitted (beside every burner there is a T-shaped probe, as in figs. 3.1 - 3.3 of page 34, not to be confused with the S-shaped electrode of the gas-lighter), the flow of gas will be stopped if and when the flame should accidentally go out.

CAUTION:

If the burner is accidentally extinguished, turn the gas off at the control knob and wait at least 1 minute before attempting to relight.

CAUTION:

Gas hobs produce heat and humidity in the environment in which they are installed. Ensure that the cooking area is well ventilated by opening the natural ventilation grilles or by installing an extractor hood connected to an outlet duct.

CAUTION:

If the hob is used for a prolonged time it may be necessary to provide further ventilation by opening a window or by increasing the suction power of the extractor hood (if fitted).

GAS BURNERS

Gas flow to the burners is adjusted by turning the knobs (illustrated in fig. 2.1 - 2.3) which control the valves.

Turning the knob so that the indicator points to the symbols printed on the panel achieves the following functions:

- full circle

closed valve

- symbol

maximum

aperture or flow

- symbol

minimum

aperture or flow

• To reduce the gas flow to minimum, rotate the knob further anti-clockwise to point the indicator towards the small flame symbol.
• The maximum aperture position permits rapid boiling of liquids, whereas the minimum aperture position allows slower warming of food or maintaining boiling conditions of liquids.
• Other intermediate operating adjustments can be achieved by positioning the indicator between the maximum and minimum aperture positions, and never between the maximum aperture and closed positions.

NOTE: The knob and symbols may vary.

Simple diagram of a sphere with water droplets and dots, no text or symbols present

Fig. 2.1 Fig. 2.2

LIGHTING GAS BURNERS FITTED WITH SAFETY VALVE DEVICE

To ignite the burner, the following instructions are to be followed:

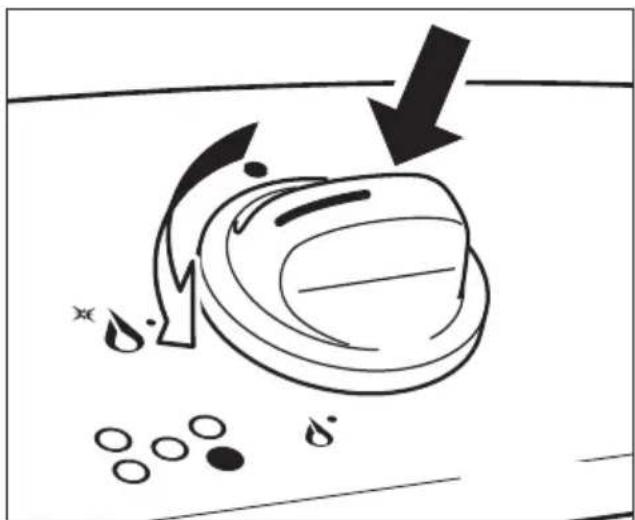

1. Press in the corresponding knob and turn counter-clockwise (fig. 2.2) to the full flame position marked by the “☀️” symbol (fig. 2.1); hold the knob in until the flame has been lit.

In the case of a mains failure light the burner with a match or lighted taper.

1. Wait for a few seconds after the gas burner has been lit before letting go of the knob (valve activation delay).

2. Adjust the gas valve to the desired position.

If the burner flame should go out for some reason, the safety valve will automatically stop the gas flow.

To re-light the burner, return the knob to the closed “●” position, wait for at least 1 minute and then repeat the lighting procedure.

Note: If your local gas supply makes it difficult to light the burner with the knob set to maximum, set the knob to minimum and repeat the operation.

Simple line drawing of a container with arrows indicating flow or movement, surrounded by droplets and bubbles (no text or symbols)

LIGHTING GAS BURNERS WITHOUT SAFETY VALVE DEVICE

To ignite the burner, the following instructions are to be followed:

1. Press in the corresponding knob and turn counter-clockwise (fig. 2.2) to the full flame position marked by the “☀️” symbol (fig. 2.3); hold the knob in until the flame has been lit.

In the case of a mains failure light the burner with a match or lighted taper.

1. Adjust the gas valve to the desired position.

To turn it off, turn the knob towards the right, up to the safety click.

Note: If your local gas supply makes it difficult to light the burner with the knob set to maximum, set the knob to minimum and repeat the operation.

NOTE: The knob and symbols may vary.

Simple diagram with a sphere, droplet symbols, and a starburst icon (no text or labels)

Fig. 2.3

VERY IMPORTANT NOTE FOR THE MODELS WITHOUT SAFETY VALVE DEVICE

The appliance must be supervised during the use of the gas burners.

If the burner flames should go out for some reason, the gas valve will continue to produce a flow of unburned gas through the burner. In that case, as soon as the flames should go out, turn the burner control knob to the “●” (off) position, wait for at least 1 minute and then repeat the lighting procedure.

If a burner does not remain lit in the minimum position, check the chapter "ADJUSTMENT OF THE MINIMUM OF THE TOP BURNERS" in the "ADVICE FOR THE INSTALLER" section.

If a burner does not remain lit in all the settings, check that the burner parts and the injector are dry and clean and that they are correctly in place.

CHOICE OF THE BURNER

On the control panel, near every knob there is a diagram that indicates which burner is controlled by that knob.

The suitable burner must be chosen according to the diameter and the capacity used.

The burners and pans must be used in accordance with the following instructions:

DIAMETERS OF PANS WHICH MAY BE USED ON THE BURNERS

BURNERS MINIMUM MAXIMUM
Auxiliary (only for models in fig. 1.5, 1.6, 1.7) 6 cm 14 cm
Auxiliary (all models except in fig. 1.5, 1.6, 1.7)	12 cm (*)	14 cm
Semi-rapid 16 cm 24 cm
Rapid 24 cm 26 cm
Triple-ring 26 cm 28 cm
Wok (**) - Max 36 cm
do not use pans with concave or convex bases

(*) with small pan adapter (optional): minimum diameter 6 cm

(**) only for the models with Triple-ring with wok pan adapter supplied

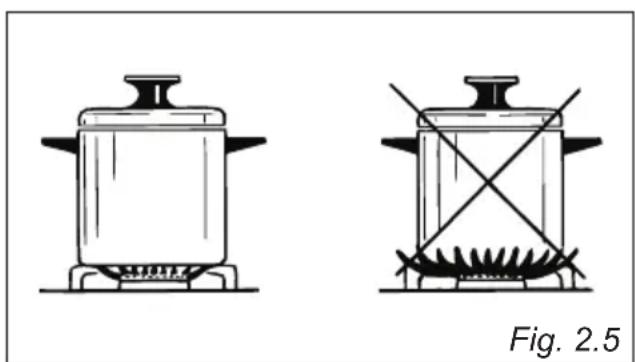

It is important that the diameter of the pot be suitable to the potentiality of the burner so as not to compromise the high output of the burners and therefore energy waste.

A small pot on a large burner does not give you a boiling point in a shorter amount of time since the capacity of heat absorption of a liquid mass depends on the volume and the surface of the pot. Too large a pot can cause damage to the burner and surrounding hob area.

CAUTION: Make sure the pans are central to the burner for maximum stability and greater efficiency.

Make sure the pans are not in contact with the control knobs, otherwise the flame could overheat the knobs and permanently damage them.

GRATE FOR SMALL PANS (Optional)

This grate is to be placed on top of the (smaller) auxiliary burner when using small diameter pans, in order to prevent them from tipping over.

Simple line drawing of a four-bladed mechanical component with a central circular hole (no text or symbols)

Fig. 2.4

Two line drawings of a cooking pot and its heating setup, labeled as Fig. 2.5 (no text or symbols on the pots or background)

SPECIAL WOK GRILLE - OPTIONAL - (models with triple-ring burner only)

(figs. 2.6a - 2.6b or 2.7a - 2.7b or 2.8a - 2.8b)

This special grille for woks should be placed over the pan-rest for the triple ring burner.

Warning:

• Using woks without this special grille may cause the burner to malfunction.
- Do not use the grille for ordinary, flat-bottomed saucepans.

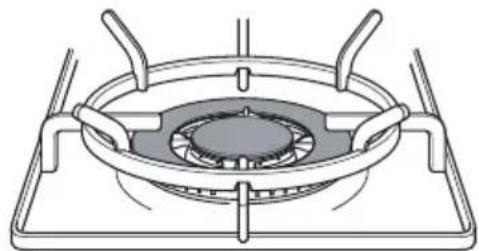

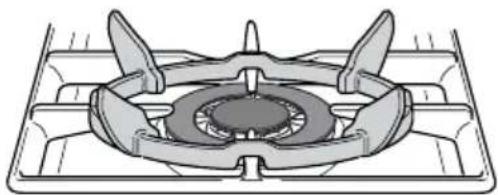

IMPORTANT:

The special grille for wok pans MUST BE PLACED ONLY over the pan-rest for the triple-ring burner.

Optional for models in figs. 1.1a, 1.2a, 1.4a

Line drawing of a gas stove with cooling fans and flames (no text or symbols)

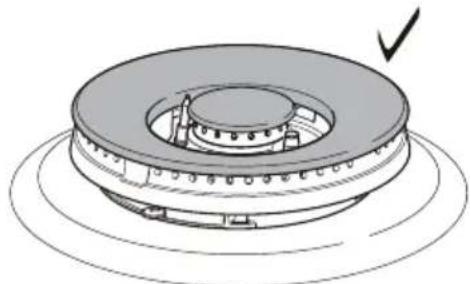

CORRECT

Line drawing of a heating setup with two handles and a central platform (no text or symbols)

Fig. 2.6a

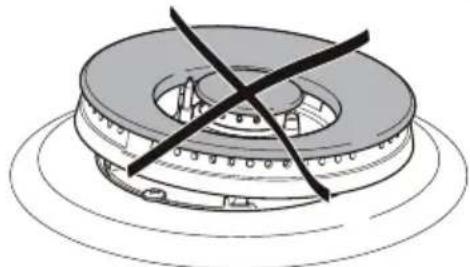

Simple line drawing of a gas stove with two crossed black lines indicating resistance (no text or symbols)

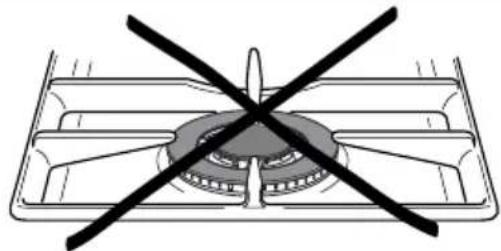

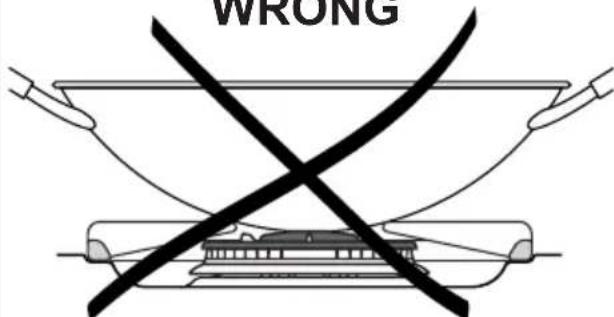

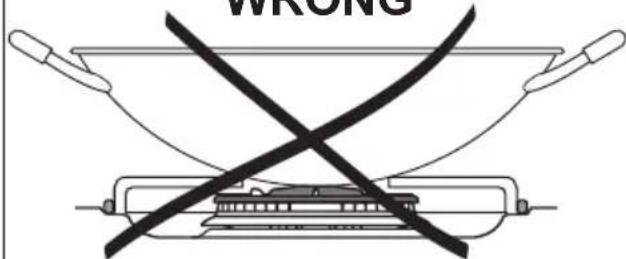

WRONG

Fig. 2.6b

Optional for models in figs. 1.1b, 1.2b, 1.4b

Technical line drawing of a portable air conditioner fan with two blades and central cooling unit (no text or symbols)

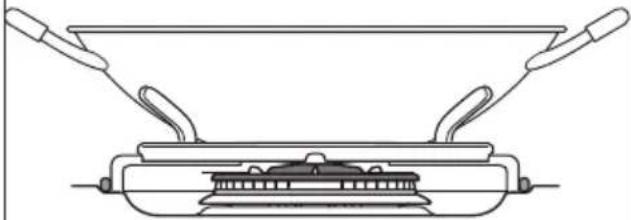

CORRECT

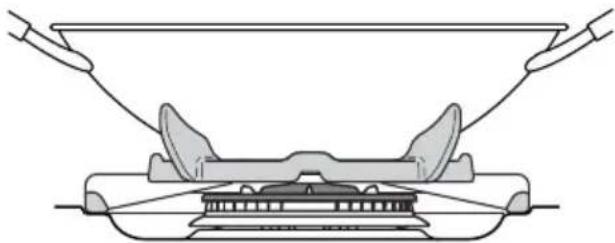

Line drawing of a heating setup with two hands operating a pan and a cooler appliance (no text or symbols)

Fig. 2.7a

Diagram of a gas stove with no text or symbols present

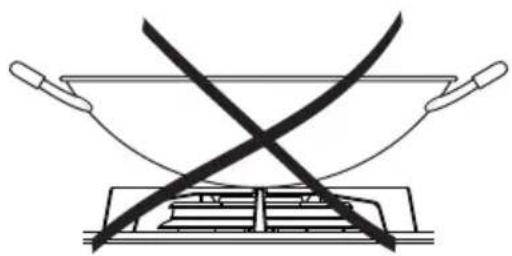

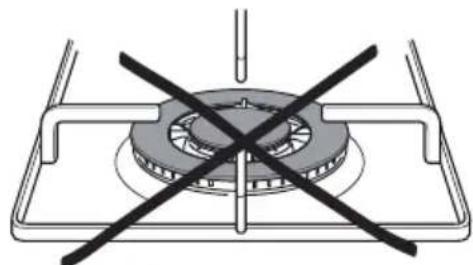

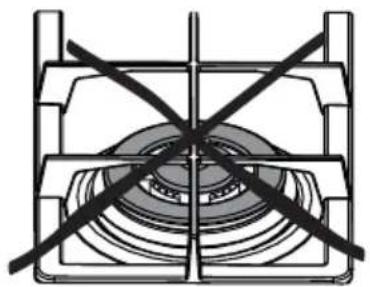

WRONG

Fig. 2.7b

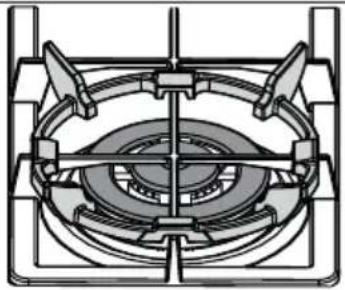

Optional for models in figs. 1.5, 1.7

Technical line drawing of a circular mechanical component with internal structure (no text or symbols)

CORRECT

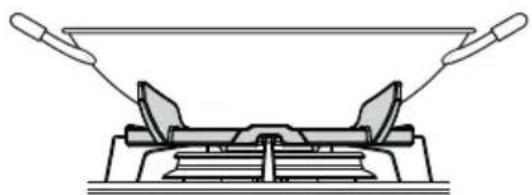

Diagram of a mechanical device with two handles and a central component (no text or symbols)

Fig. 2.8a

Technical diagram of a mechanical component with intersecting lines and central circular features (no text or symbols)

Simple line drawing of a wok with two handles crossed over it, placed on a metal platform (no text or symbols)

Fig. 2.8b

ELECTRIC HOTPLATE/S

NORMAL HOTPLATE

To switch on the normal hotplate, turn the knob (fig. 2.9) onto the desired position; the numbers 1 to 6 indicate the working positions with the increase of temperature according to the number.

Once boiling point has been reached, reduce the input according to the heating intensity desired, keeping in mind that the plate will continue to heat for 5 minutes after having been turned off.

RAPID HOTPLATE (red dot)

The control knob of the rapid hotplates is similar to that of a normal plate with 6 working positions (fig. 2.9).

The features of this plate, which is equipped with a heat limiter, allow:

• reaching the temperature rapidly;
  • maximum exploitation of the input with flat bottom pots;
• the limitation of input in the case of unsuitable pots.

Caution!

Do not cover the hob with aluminium foils.

NOTE: The knob and symbols may vary.

Fig. 2.9

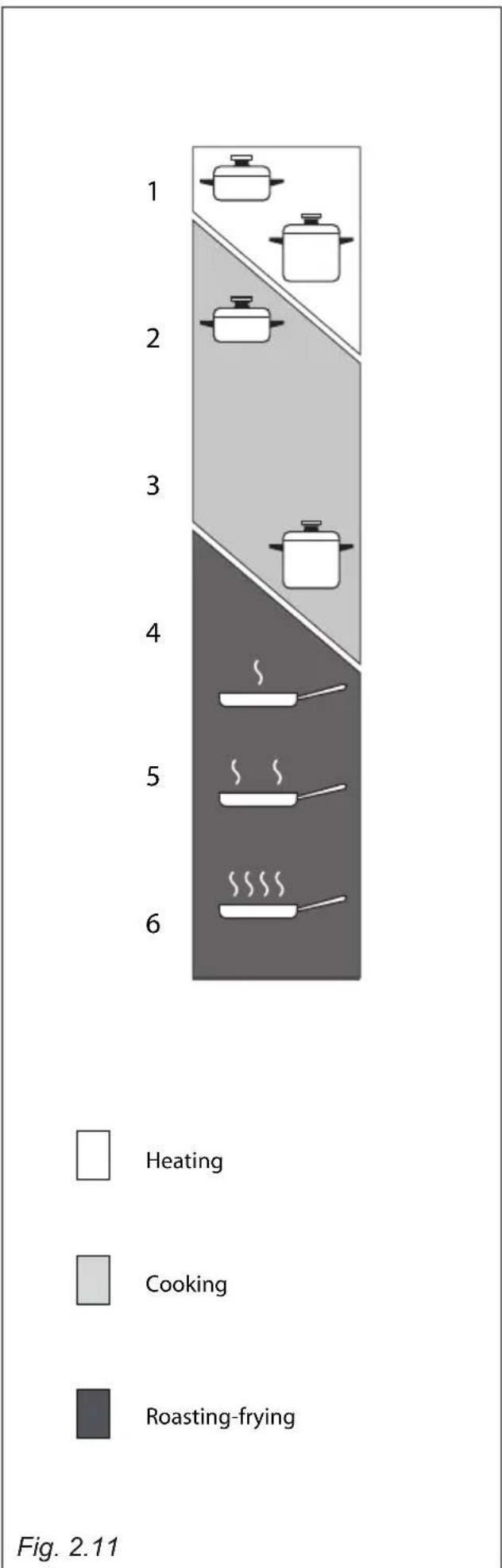

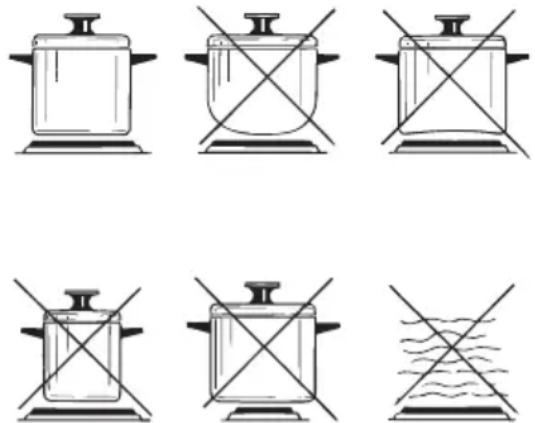

PROPER USE OF THE ELECTRIC HOTPLATE/S (fig. 2.10)

When the pan comes to the boil, turn the heat down to the level desired.

Remember that the hotplate will continue to produce heat for about five minutes after it has been turned off.

While using the electric hotplate, you must:

• avoid keeping it on without something on it;
• avoid pouring liquids on it while it is hot;
• use flat-bottomed (electric hotplate type) pots and pans only
• use cooking receptacles which cover as much of the surface of the hotplate as possible.
• to save electricity, use lids whenever possible.
• never cook food directly on the hotplate: always use a pan or suitable container.

An indicator light located close to the knob signals that the hotplate is operating.

Never cook food directly on the electric hotplates! Always use a saucepan or special container

Fig. 2.10

ELECTRIC HOTPLATE USAGE TABLE

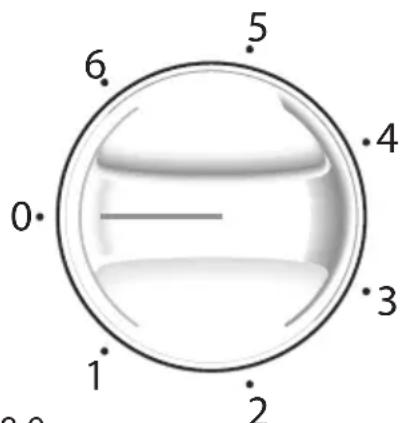

Position of switch	TYPE OF COOKING
0	Switched OFF
12	For melting operations (butter, chocolate).
2	To maintain food hot and to heat small quantities of liquid (sauces, eggs).
3	To heat bigger quantities; to whip creams and sauces. (vegetables, fruits, soups).
34	Slow boiling, i.e.: boiled meats, spaghetti, soups, continuations of steam, cooking of roasts, stews, potatoes.
4	For every kind of frying, cutlets, uncovered cooking, i.e.: risotto.
45	Browning of meats, roasted potatoes, fried fish, omelet-tes, and for boiling large quantities of water.
6	Fast frying, grilled steaks, etc.

After a short period of use, experience will teach you which setting is the right one for your needs.

GENERAL ADVICE

• Before you begin cleaning you must ensure that the hob is switched off.
- It is advisable to clean when the appliance is cold and especially when cleaning the enamelled parts.
- All enamelled surfaces have to be washed with soapy water or some other non-abrasive product with a sponge and are to be dried preferably with a soft cloth.
- Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces.
- Do not use cleaning products with a chlorine or acidic base.
- Clean surfaces with a damp cloth and use gentle, neutral cleaning products. Dry with a clean, dry cloth.
- IMPORTANT: Do not use any abrasive products (e.g. certain types of sponge) and/or aggressive products (e.g. caustic soda, products containing corrosive substances), which could cause irreparable surface damage.

WARNING

When correctly installed, your product meets all safety requirements laid down for this type of product category. However special care should be taken around the underneath of the appliance as this area is not designed or intended to be touched and may contain sharp or rough edges, that may cause injury.

COOKING HOBS WITH GLASS LID (optional)

Prohibition sign showing a crossed-out fence with leaves, no text or symbols present

Do not shut lid when burner alight.

ATTENTION

√ Do not lower the glass lid when the gas burner or electrical plates are still hot and when the oven, installed below the cooking hob, is on or still hot.
√ Do not lay on the glass lid hot pans and heavy kitchen utensils.
√ Dry off any liquid which may have spilt on the cover before opening it.

ENAMELLED PARTS

• All the enamelled parts must be cleaned with a sponge and soapy water only or other non-abrasive products.
• Dry preferably with a microfibre or soft cloth. If acid substances such as lemon juice, tomato conserve, vinegar etc. are left on the enamel for a long time they will etch it, making it opaque.

STAINLESS STEEL ELEMENTS

• Stainless steel parts must be rinsed with water and dried with a soft and clean cloth.
• For persistent dirt, use specific non-abrasive products available commercially or a little hot vinegar.
• Note: regular use could cause discolouring around the burners, because of the high flame temperature.

Important: The manufacturer declines all liability for possible damage caused by the use of unsuitable products to clean the appliance.

Attention! The appliance gets very hot, mainly around the cooking areas. It is very important that children are not left alone in the kitchen when you are cooking.

Do not use a steam cleaner because the moisture can get into the appliance thus make it unsafe.

HOT PLATE

Foods burned on the hot plates must always be cleaned dry.

Do not use water to avoid the forming of rust.

After its use, pour a bit of oil onto the warm plate and rub with a cloth.

CONTROL KNOBS

The control knobs may be removed for cleaning but care should be taken not to damage the seal.

GAS TAPS

• Do not let cleaning products come into contact with the valves.
• Periodic lubrication of the gas taps must be carried out by specialist personnel only.
• In the event of operating faults in the gas taps, call the Service Department.

BURNERS

These parts must be cleaned using a sponge and soapy water or other suitable non-abrasive products. Dry with a soft cloth.

Warning! Not dishwasher safe.

After cleaning, the burners and their flame spreaders must be well dried and correctly replaced.

It is very important to check that the burner flame spreader and the cap have been correctly positioned. Failure to do so can cause serious problems.

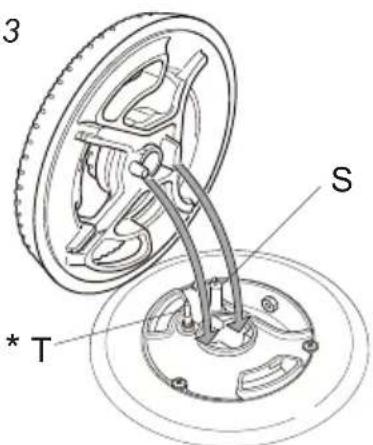

In the models with safety device, check that the probe "T" (figs. 3.1, 3.3) next to each burner is always clean to ensure correct operation of the safety valves.

Check that the electrode "S" (figs. 3.1, 3.3) next to each burner is always clean to ensure trouble-free sparking.

Both the probe and ignition plug must be very carefully cleaned.

The electrode "S" must be very carefully cleaned. To avoid damage to the electric ignition do not use it when the burners are not in place.

Note: Continuous use may cause a change in the glaze around the burners and grids, corresponding to the areas exposed to the heat. This is a natural phenomenon and does not prevent the parts from working properly.

CORRECT REPLACEMENT OF THE AUXILIARY, SEMIRAPID AND RAPID BURNERS

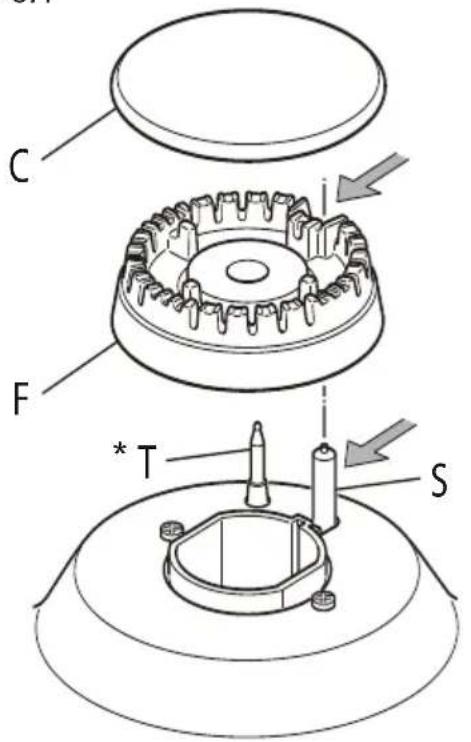

It is very important to check that the burner flame distributor “F” and the cap “C” has been correctly positioned (see figs. 3.1 - 3.2) - failure to do so can cause serious problems.

CORRECT REPLACEMENT OF THE TRIPLE RING BURNER

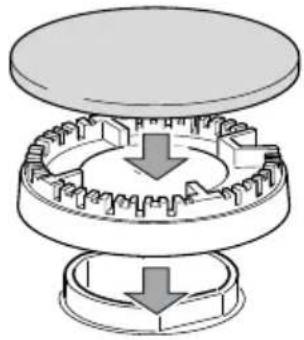

The triple ring burner must be correctly positioned (see fig. 3.5); the burner rib must be enter in their logement as shown by the arrow (see fig. 3.3).

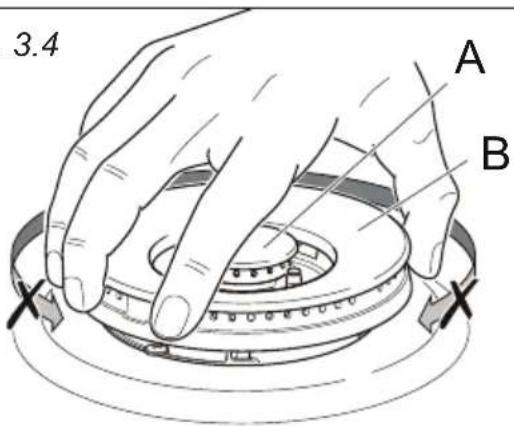

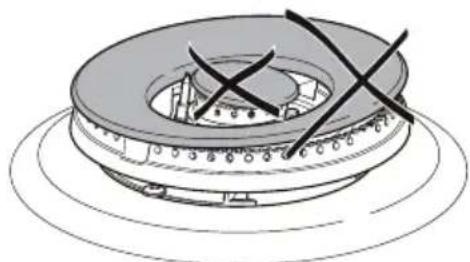

The burner correctly positioned must not rotate (fig. 3.4).

Then position the cap “A” and the ring “B” (figs. 3.4 - 3.5).

Fig. 3.1

(*) Some models only

Fig. 3.2

Diagram of a mechanical assembly showing a rotating disk and a flanged base with downward arrows indicating motion (no text or symbols)

Simple line drawing of a circular object with a cross mark on top, no text or symbols present.

Simple 3D diagram of a circular object with a checkmark arrow pointing to its top surface (no text or symbols)

Fig. 3.3

(*) Some models only

Fig. 3.5

Diagram of a mechanical component with cross-shaped marks, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Fig. 3.4

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

The manufacturer cannot be held responsible for possible inaccuracies due to printing or transcription errors in the present booklet.

The manufacturer reserves the right to make all modifications to its products deemed necessary for manufacture or commercial reasons at any moment and without prior notice, without jeopardising the essential functional and safety characteristics of the appliances.
