Product Type	Refrigerator
Brand	ASKO
Model	R2684SR
Gross Capacity	350 L
Net Capacity	330 L
Energy Class	A+
Annual Energy Consumption	280 kWh
Dimensions (H x W x D)	1850 x 600 x 650 mm
Weight	70 kg
Climate Class	SN-T
Noise Level	40 dB
Refrigerant	R600a
Defrost Type	Automatic (No Frost)
Control Type	Electronic
Temperature Range	0°C to 8°C
Number of Shelves	4 glass shelves
Door Hinge	Right, reversible
Power Supply	220-240V, 50Hz
Included Accessories	Ice cube tray, egg tray
Maintenance	Clean with mild detergent and water
Safety Features	Child lock, high temperature alarm
Repairability Index	8.0 / 10

Frequently Asked Questions - R2684SR ASKO

How do I set the temperature on my ASKO R2684SR refrigerator?

Use the electronic control panel located inside the fridge. Press the temperature button repeatedly to cycle through settings. The recommended temperature for the fridge compartment is 4°C and for the freezer is -18°C.

How often should I clean the refrigerator?

Clean the interior every 3-4 months with a mild detergent and warm water. Avoid using abrasive cleaners. Wipe the door seals regularly to ensure proper sealing.

What should I do if the refrigerator is not cooling?

First, check that the power cord is plugged in and the thermostat is set correctly. Ensure the condenser coils are clean and not blocked. If the problem persists, contact ASKO service.

Can the door hinge be reversed?

Yes, the door hinge is reversible. Refer to the user manual for step-by-step instructions. You will need a screwdriver and possibly a wrench to move the hinges to the opposite side.

How do I defrost the freezer compartment?

This model features No Frost technology, so manual defrosting is not required. The automatic defrost cycle prevents ice buildup.

What is the annual energy consumption of the R2684SR?

The estimated annual energy consumption is 280 kWh, based on standard usage. Actual consumption may vary depending on ambient temperature and usage patterns.

How much space should I leave around the refrigerator for ventilation?

Leave at least 5 cm at the back, 2 cm on each side, and 10 cm above the appliance for proper air circulation. This ensures efficient operation and prevents overheating.

Why is water leaking from my refrigerator?

Check if the drain hole at the back of the fridge is blocked. Clean it with a pipe cleaner or warm water. Also ensure the refrigerator is level to prevent water from pooling.

How do I replace the interior light bulb?

Unplug the refrigerator. Remove the light cover by pressing the tabs. Replace the bulb with a LED bulb of the same specification (typically 10W). Reattach the cover and plug the appliance back in.

Can I adjust the height of the shelves?

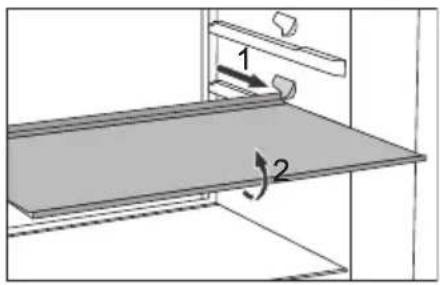

Yes, the glass shelves are adjustable. Simply lift the shelf slightly, pull it out, and reposition it at a different height using the support rails on the sides of the fridge interior.

USER MANUAL R2684SR ASKO

Close-up of a kitchen utensil set with cutlery and fork (no text or symbols visible)

Black-and-white photo of laboratory equipment including a pipette, test tubes, and a stand (no visible text or symbols)

Instructions for use Refrigerator

R2684SR

We thank you for the

confidence you have shown by purchasing our appliance.

We wish you find a lot of pleasure in its use.

The appliance is intended solely for household use.

The refrigerator is intended for storing fresh food at temperatures above 0^ C.

TABLE OF CONTENTS

4	IMPORTANT NOTES AND PRECAUTIONS	INTRODUCTION
10	ADVICE FOR SAVING POWER WITH REFRIGERATIONAPPLIANCES
11	APPLIANCE DESCRIPTION	APPLIANCEDESCRIPTION
12	INSTALLATION AND CONNECTION
14	CHANGING THE DIRECTION OF DOOR OPENING
16	OPERATING THE APPLIANCE
19	APPLIANCE INTERIOR EQUIPMENT

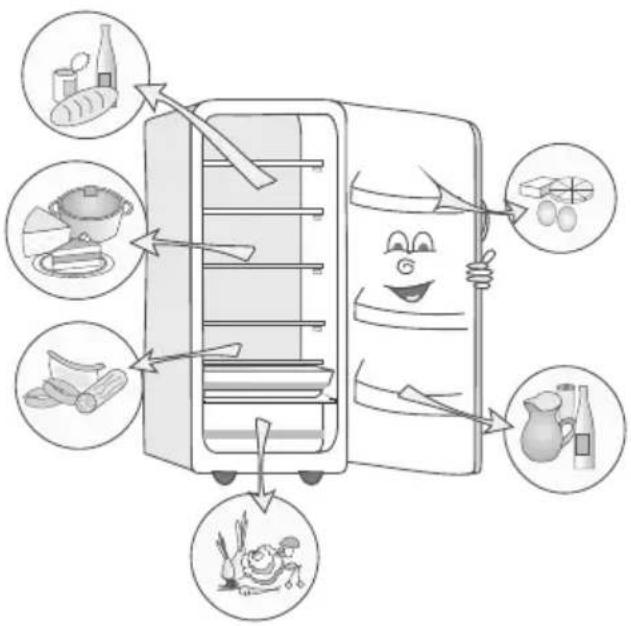

23	RECOMMENDED DISTRIBUTION OF FOOD IN THE APPLIANCE
24	STORING FOOD IN THE REFRIGERATOR	STORING ANDFREEZING FOOD
26	STORING FOOD IN THE FRESHZONE DRAWER
27	DEFROSTING THE APPLIANCE	DEFROSTINGAND CLEANINGTHE APPLIANCE
28	CLEANING THE APPLIANCE
29	TROUBLESHOOTING	OTHER
31	INFORMATION ABOUT APPLIANCE NOISE

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

Before connecting the appliance to the power mains, please read carefully the instructions for use which describe the appliance and its correct and safe use. The instructions apply to several appliance types/models; thus, settings or equipment may be described herein which is not available in your appliance. We recommend saving this instruction manual for future reference and attach it to the appliance if it is sold in the future.

Check for any damage or irregularities on your appliance. If you find your appliance is damaged, notify the retailer from which you have purchased the appliance.

Before connecting the appliance to the power mains, let the appliance rest in a vertical position for a minimum of 2 hours. This will reduce the possibility of operation faults due to the effect of transport on the cooling system.

Pure mechanical diagram showing a bolt and lever assembly without any text, numbers, or symbols

Spacers are fitted on the corners of the doors.

Remove them and insert the supplied plugs into their slots (only in some models).

IMPORTANT SAFETY INSTRUCTIONS

WARNING! Risk of fire/flammable materials.

The appliance must be connected to the power mains and grounded in compliance with the effective standards and regulations.

WARNING! Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Before cleaning the appliance, unplug it from the power mains (unplug the power cord from the wall outlet).

WARNING! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

If LED lighting does not work, call a service technician. Do not attempt a repair of the LED lighting yourself, as there is danger of contact with high voltage!

WARNING! Do not use any electric devices inside the appliance, except for those allowed by the manufacturer of this refrigeration appliance.

WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING! To avoid any hazard resulting from poor stability of the appliance, make sure it is installed as instructed.

Danger of frostbite

Never put frozen food in your mouth and avoid touching frozen food as this may cause frostnip or frostbite.

Safety of children and vulnerable persons

The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Cleaning and user maintenance shall not be made by children without supervision.

Remove the packaging intended to protect the appliance or particular parts during transport and keep it outside the reach of children.

It presents danger of injury or suffocation.

For European markets only

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

Warning regarding the refrigerant

The appliance contains a small amount of an environmentally friendly yet flammable gas R600a. Make sure that no parts of the cooling system are damaged. A gas leak is not hazardous to the environment, but it could cause eye injury or fire.

In case of a gas leak, ventilate the room thoroughly, disconnect the appliance from the power mains, and call a service technician.

IMPORTANT INFORMATION ON THE USE OF APPLIANCE

WARNING! This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

The appliance may not be used outdoors and it may not be exposed to rain.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

If the appliance will be out of use for an extended period of time, switch it off using the relevant button, and unplug it from the power mains. Empty the appliance, defrost it, clean it, and leave the door ajar.

In case of an error or power supply failure do not open the freezer compartment unless the freezer has not operated for over 16 hours. After this period, use the frozen food or provide sufficient cooling (e.g. a replacement appliance).

Technical information on the appliance

Rating plate can be found in the appliance interior. It indicates data on voltage, gross and net volume, type and amount of refrigerant, and information on the climate classes.

If the language on the rating plate is not the language of your choice or the language of your country, replace it with the one supplied.

ENVIRONMENT PROTECTION

Packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment.

Removing an obsolete appliance

To protect the environment, take the obsolete appliance to an authorized home appliance collection centre.

Before doing so, do the following:

• disconnect the appliance from the power mains;
• do not allow children to play with the appliance.

WARNING! Do not damage the refrigerant circuit. This will also prevent pollution.

The symbol on the product or its packaging indicates that the product should not be treated as normal household waste. The product should be taken to an authorized collection centre for waste electric and electronic equipment processing. Correct disposal of the product will help prevent any negative effects on the environment and health of people which could occur in case of incorrect product removal. For detailed information on removal and processing of the product, please contact the relevant municipal body in charge of waste management, your waste disposal service, or the store where you bought the product.

ADVICE FOR SAVING POWER WITH REFRIGERATION APPLIANCES

• Install the appliance as specified in the instruction manual.
- Do not open the door more often than necessary.
- Occasionally make sure air circulation underneath the appliance is unobstructed.

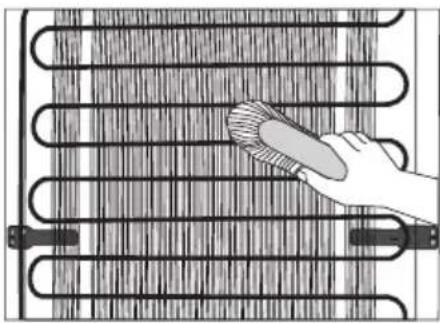

- Condenser unit on the rear wall should be kept clean (see chapter Cleaning the appliance).
- If the gasket is damaged or does not provide a perfect seal for other reasons, have it replaced as soon as possible.
- Store the food in tightly sealed containers or appropriate packaging.
- Before placing the food in the appliance, cool it to room temperature.
- Defrost frozen food in the refrigerator compartment.
- Remove some of the drawers from the freezer compartment as described in the instruction manual, in order to make use of the entire interior.
- Defrost your conventional freezer when an approximately 3-5 millimeter layer of frost or ice has built up on the refrigerated surfaces.
- Make sure the layout of shelves in the compartment is uniform and that the food is placed so that the air can freely circulate in the appliance interior (observe the recommended placement of food as described in the instructions).
• In appliances with a fan, do not block the fan slots.
- If you do not need the fan or the ionizer, switch them off to reduce power consumption.

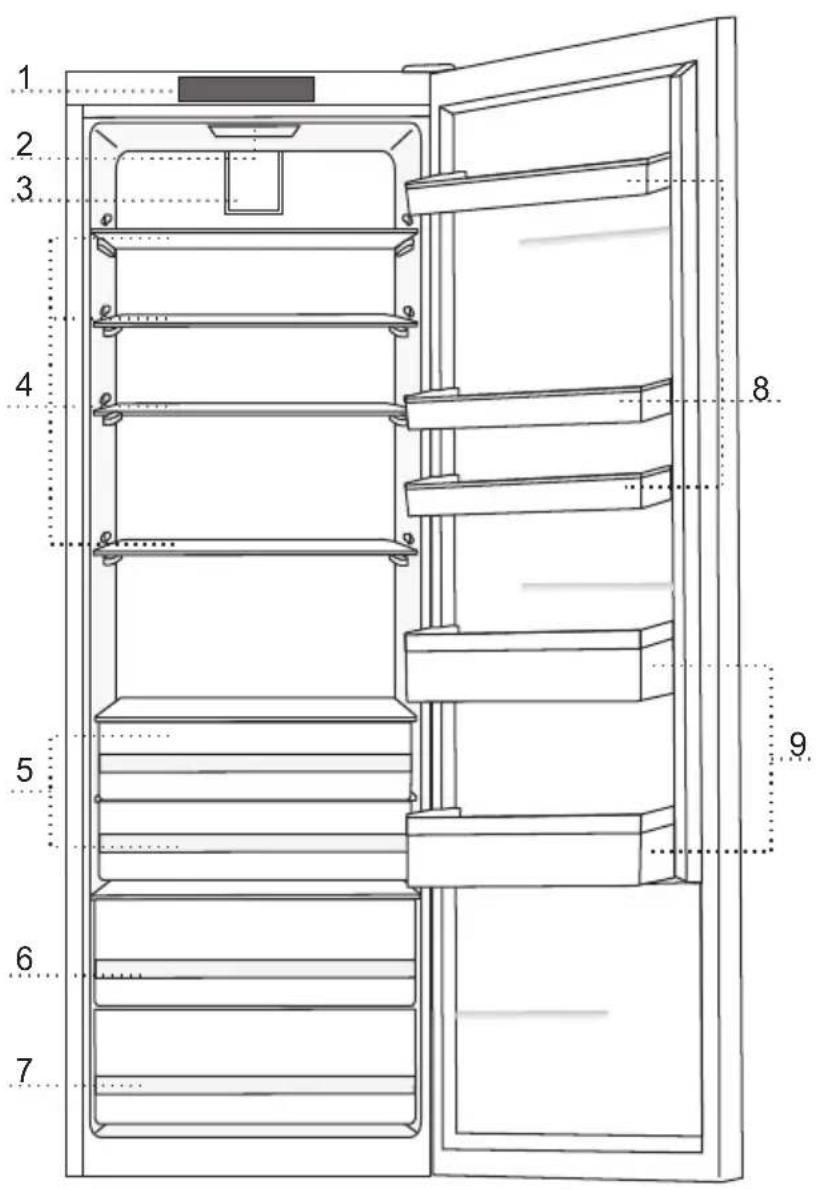

1 Control unit
2 LED lighting of refrigerator interior

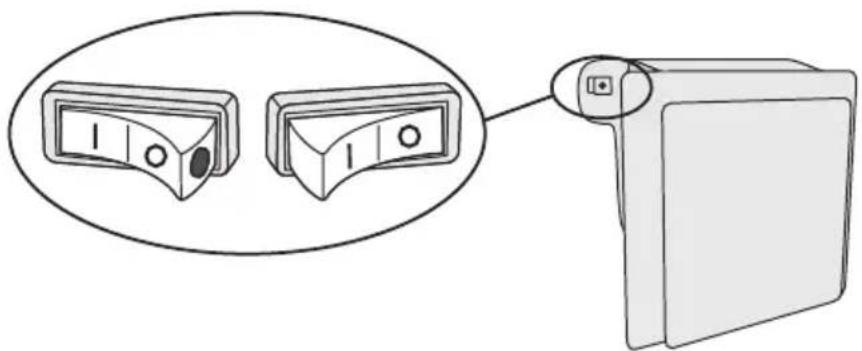

3 Fan with air ionizer (+ on/off switch)
4 Pull-out glass shelf (heightadjustable)
5 FreshZone

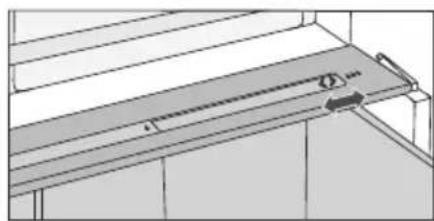

6 Fruit and vegetable bin (CrispZone) with humidity control
7 Fruit and vegetables drawer

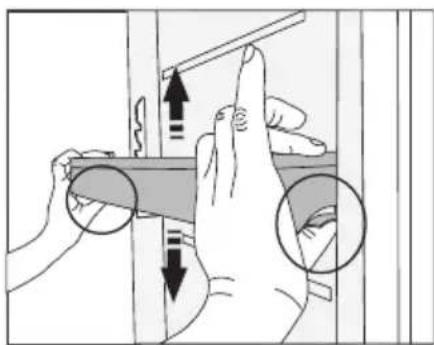

8 Height-adjustable door bin
9 Bottle shelf

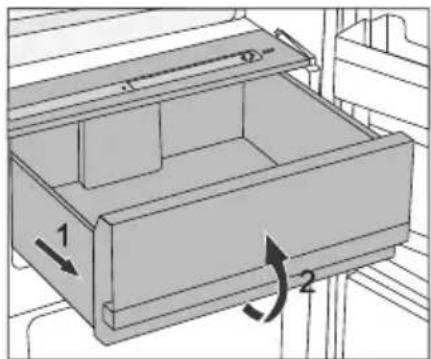

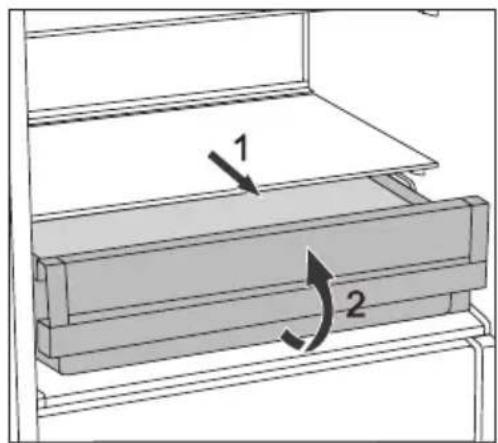

- The drawers are protected against pulling out. To remove a drawer from the appliance, pull it out as far as it will go, then lift at the front and pull out completely.

INSTALLATION AND CONNECTION

SELECTING THE ROOM

• Install the appliance in a dry and well ventilated room. The appliance will operate correctly if the environment temperature is in the interval specified in the table. The appliance class is indicated on the rating plate / label with the basic information on the appliance.

Class Temperature
SN (subnormal)	from +10°C to +32°C
N (normal)	from +16°C to +32°C
ST (subtropical)	from +16°C to +38°C
T (tropical)	from +16°C to +43°C

Warning: Make sure the room where the appliance is installed is large enough. There should be at least 1 m^3 of space per 8 grams of refrigerant. Amount of refrigerant is stated on the rating plate in the appliance interior.

INSTALLING THE APPLIANCE

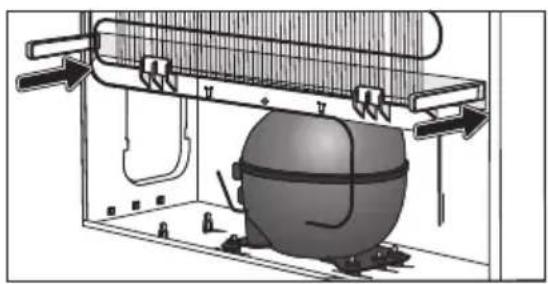

Technical diagram of a mechanical or electrical device with a spherical component and internal components (no visible text or symbols)

Appliance installation should be carried out by at least two persons to avoid any physical injury or damage to the appliance.

• The appliance must stand level and stable on a solid base. At the front, the appliance is fitted with two adjustable legs that can be used to level the appliance. At the rear side, casters allow for easier installation of the appliance (only with some models).
• There should be a clearance of at least 5 cm between the appliance and any cupboard installed above it, in order to allow adequate cooling of the condenser unit.

• The appliance is supplied with two spacers which should be installed on the lower part of the housing to prevent from pushing the appliance too close to the wall. Appliance may also be installed without the spacers; however, this may increase power consumption.

• Do not expose the appliance to direct sunlight and do not place it near any source of heat. If this cannot be avoided, install an insulation panel.

• The appliance may stand alone or it may be placed ext to a cupboard or a wall. Consider the clearance required to fully open the door in order to allow pulling out the drawers and shelves (see installation diagram).

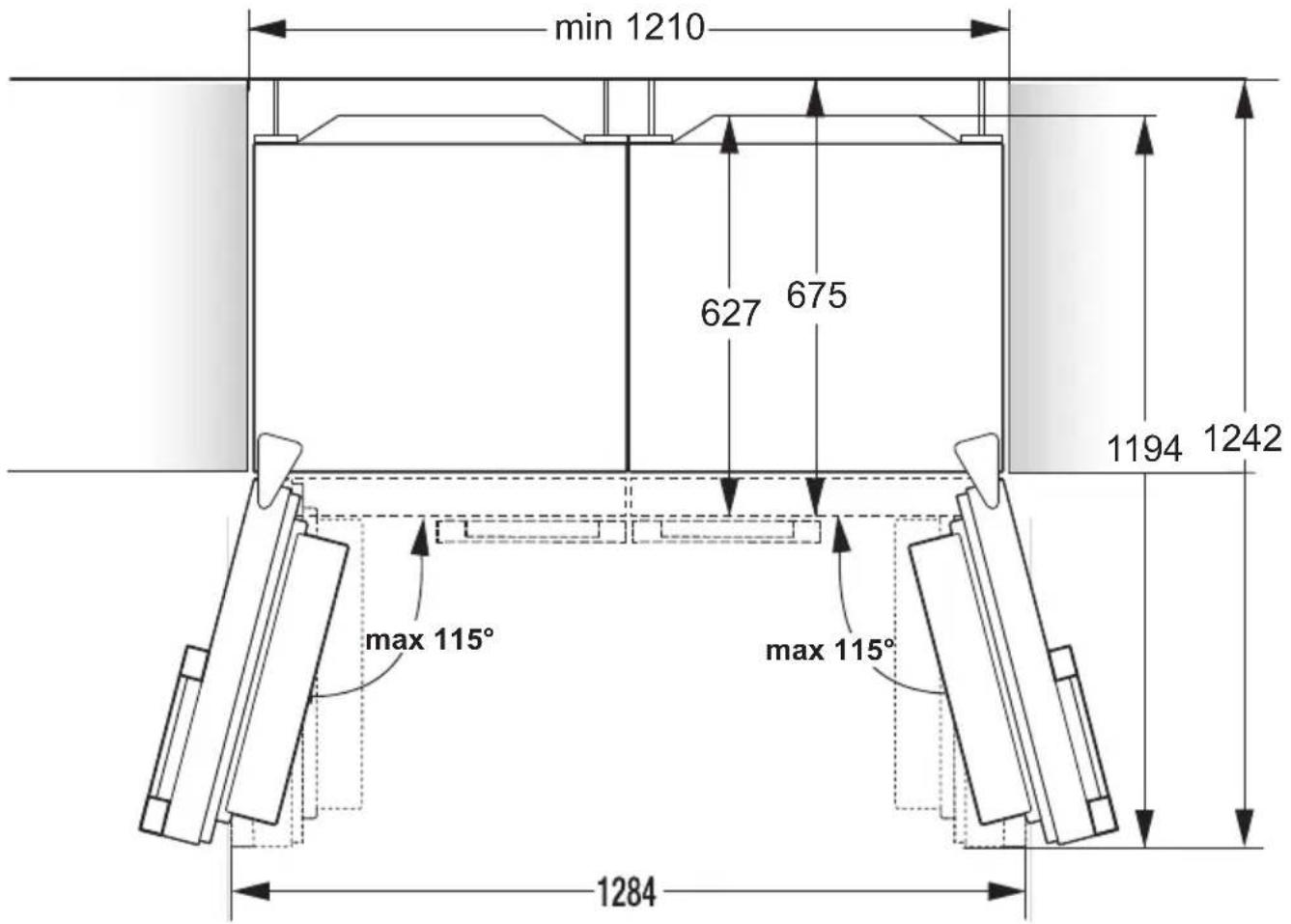

Side-by-side installation: We recommend leaving the side-by-side installation of two appliances to a service technician. If you decide to do this yourself, observe the instructions supplied with the side-by-side installation kit.

CONNECTING THE APPLIANCE

• Connect the appliance to the power mains using a connection cable. The wall outlet should be fitted with a ground contact (safety socket). Nominal voltage and frequency are indicated on the rating plate/label with basic information on the appliance.
• The appliance must be connected to the power mains and grounded in compliance with the effective standards and regulations. The appliance will withstand short-term deviations from the nominal voltage, but not more than +/- 6%.

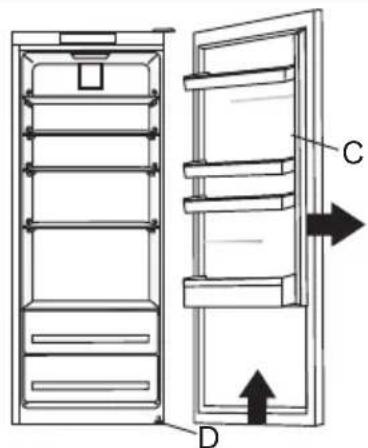

CHANGING THE DIRECTION OF DOOR OPENING

Tools required: socket wrench No. 8, Phillips screwdriver, torx 25, flat screwdriver The procedure to change the direction of door opening should be carried out by at least two persons.

1. Remove the upper hinge cover (A) and the covering cap (G).
2. Undo the upper hinge (B) and remove the door (C) from the lower hinge (D).
3. Tilt the appliance backwards (make sure you do not press against the condenser unit on the rear wall of the appliance as this may damage the cooling system), unscrew the lower hinge (D) and the foot (E), and move them to the opposite side. Make sure the washer is installed like it was before disassembly.

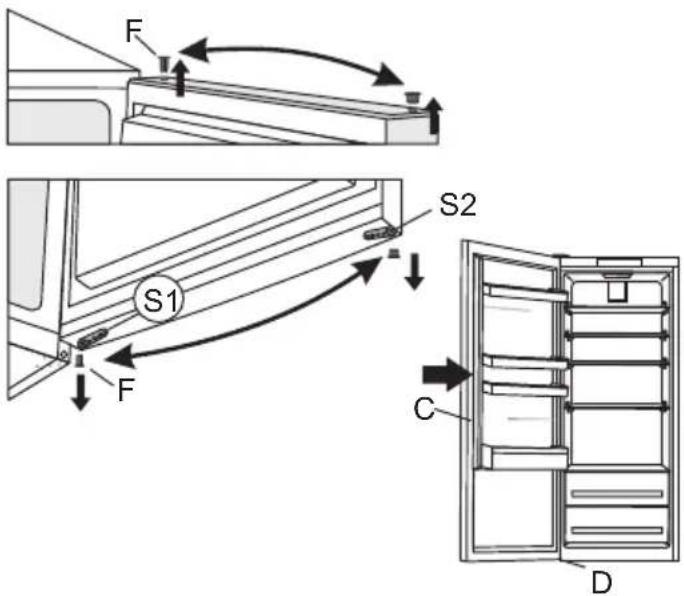

4. Move the door hinges (F) to the opposite side, remove the door stopper S1 and attach the door stopper S2 supplied in a bag with the instruction manual. Replace the door (C) back on the lower hinge (D).

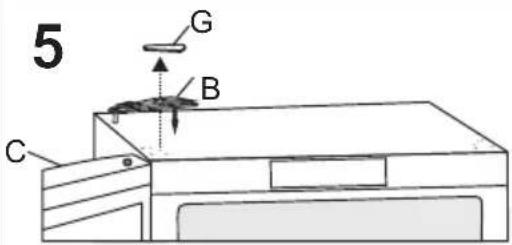

5. Use the screws to attach the upper hinge (B) on the opposite side.

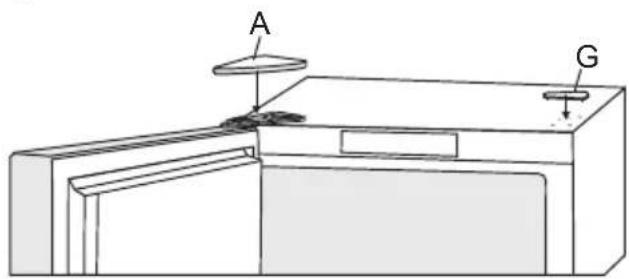

6. Replace the upper hinge cover (A) and the covering cap (G) on the opposite side.

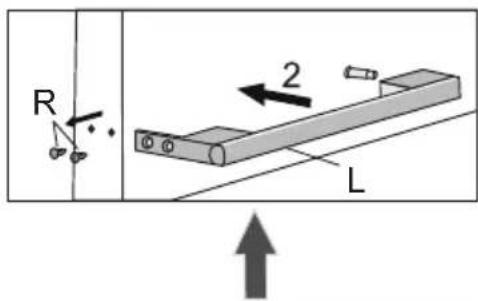

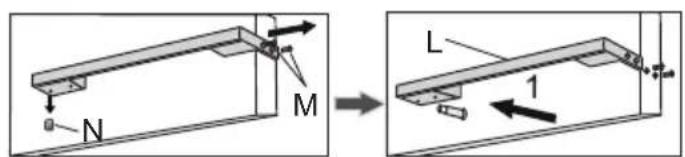

7. Replace the handle (L): undo the side screws (M) and the (N) screw in the handle holder. Take care not to damage the door. Pull the handle in the direction of the arrow Disassemble the handle (L): undo the screw (O), turn the handle holder (P) by 180° and reattach it using the screw. On the opposite side of the door, remove the cover plugs (R) and replace the handle (L) in the direction of the arrow 2. Reattach the handle using the screws (M) and (N). Place the covering plugs/caps (R) on the opposite side of the door.

1

2

3

4

6

Technical line drawing of a mechanical assembly with labeled components A and G (no text or symbols beyond labels)

7

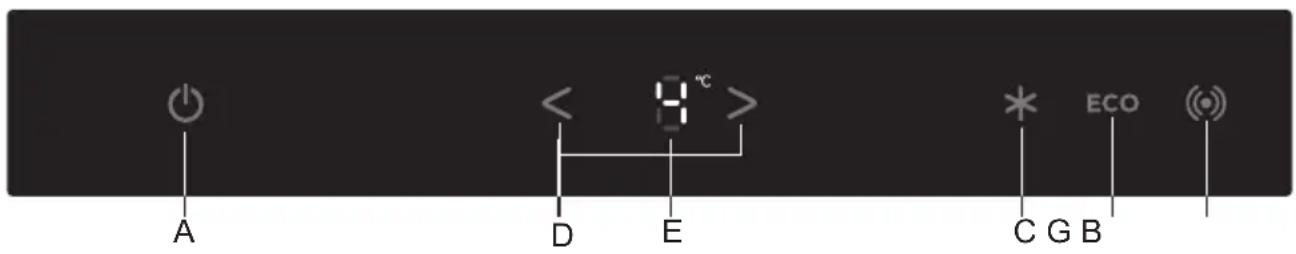

A On/off key
B Acoustic alarm off key
C Cooling boost on/off key
D Refrigerator temperature keys
E Refrigerator temperature display
G ECO function on/off key

SWITCHING THE APPLIANCE ON/OFF

Switching the appliance on: Switch on the appliance by briefly pressing the A key.

Switching off the appliance: To switch off the appliance, press the A key and hold it for 3 seconds.

ADJUSTING THE TEMPERATURE IN THE APPLIANCE

- Us the D keys to set the temperature.

< lower temperature ;

higher temperature.

• Refrigerator compartment temperature can be set in the range from +1°C to 9°C.
• After one of the D keys is pressed, the most recent temperature setting will flash on the display unit E. Use the D keys to set the desired temperature. Three seconds after the last key is pressed, the most recent temperature setting is automatically stored for the refrigerator compartment.

COOLING BOOST

- Use this setting after switching on the appliance for the first time, before cleaning, or before inserting a large amount of food.

To activate the cooling boost, press the C key.

If the function is not deactivated manually, it will be deactivated automatically after approximately six hours.

Refrigerator compartment temperature will return to the most recent setting.

Cooling boost function can also be switched off before it is automatically deactivated by setting a temperature for the refrigerator compartment.

HIGH TEMPERATURE ALARM

If the temperature inside the appliance is too high, acoustic alarm will be activated (intermittent tone) and the B key will flash.

• Acknowledge and turn off the acoustic alarm by pressing the B key.
• The acoustic alarm will be activated every 24 hours if the temperature in the appliance is not low enough and there is danger of food spoilage. The alarm will be switched off automatically as soon as the temperature in the refrigerator drops to a

level that no longer presents spoilage hazard.

• When the appliance is switched on for the first time, there is a 24-hour delay in temperature alarm operation as it takes some time for appliance to reach the adequate temperature. Thus, unnecessary activation of alarm is prevented.
• If the temperature in the appliance is too high due to a power supply failure, »9°C« will flash on the display unit.

Open door alarm: if the door is open for more than 2 minutes, acoustic alarm will be activated and the B key will flash. When the door is closed, the alarm will be deactivated. It can also be switched off by pressing the B key.

ECO FUNCTION

To activate the Eco function, press the G key. With this function activated, appliance will operate with optimum settings.

SAFETY BLOCK (CHILD SAFETY LOCK)

Use this function if you do not wish to manually adjust the appliance settings. To activate, press and hold the B key (for three seconds); L will appear on the display

E.

This will lock all keys except B.

To deactivate the safety lock, press the B key and hold it for three seconds.

APPLIANCE INTERIOR EQUIPMENT

(* Equipment depends on the model)

SHELF

• For easier access to food and clarity, the shelves can be partly pulled out.
• The shelves may be adjusted to suit your preferences using the guides in the refrigerator interior. To remove a shelf from the refrigerator, pull it out to the point when it is stopped by the guide. Then, lift it slightly at the front part and pull it all the way out.

Store perishables at the back of the shelf where the temperature is the lowest.

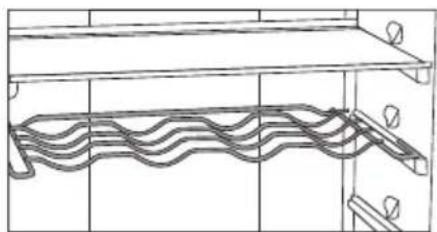

WIRE BOTTLE RACK\*

Technical line drawing of a mechanical component with wavy internal structure and mounting holes (no text or symbols)

• Some models also feature a wire bottle holder. The bottle holder is protected against being inadvertently pulled out It can only be pulled out when it is empty. To pull it out, lift is slightly at the back and pull it towards you. Place the bottle holder so that the length of the bottles does not prevent proper closing of the door. The holder can take a maximum load of 9 0.75-liter bottles or 13 kilograms of total weight - see label on the right side in the appliance interior.
• Cans may also be placed on the bottle rack (lengthwise or crosswise).

CRISPZONE - FRUIT AND VEGETABLE BIN WITH HUMIDITY CONTROL

• The bin at the bottom of the refrigerator is intended for storing fruit and vegetables. It provides humidity and prevents the food from drying out.
• Store the food in suitable packaging to prevent them from emitting or taking on odours. The bin has integrated humidity regulator which allows setting the humidity according to the amount of food stored.

Technical diagram of a mechanical assembly with a horizontal bar and dimension line (no text or symbols)

Smaller amounts of food - push the control slider to the right;

Larger amounts of food - push the control slider to the left;

• Pulling out the bin:
• Pull out the bin as far as it will go. Then, lift the front part and pull it out completely.

INTERIOR SIDE OF THE REFRIGERATOR DOOR

Mounted on the refrigerator door are compartments intended for storing cheese, butter, eggs, yoghurt and other smaller packages, tubes, cans, etc. There is a bottle shelf at the lower end of the door.

ADJUSTABLE DOOR BINS

Illustration of a hand adjusting a wall-mounted device with directional arrows and circles (no text or symbols)

The height of door bins can be adjusted to your preferences without having to take them out of the appliance.

Squeeze the tabs on both sides and move the bin up or down.

To remove a bin from the appliance, lift it as far as it will go and pull it out.

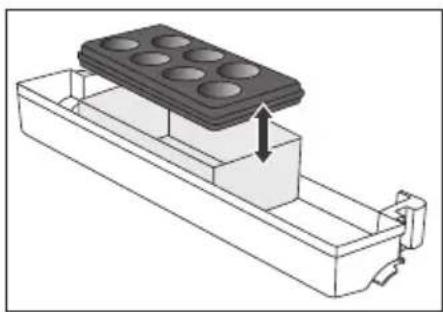

STORAGE BIN (MULTIBOX)\*

Technical line drawing of a mechanical assembly with a multi-tiered tray and mounting bracket (no text or symbols)

- MultiBox bin offers a convenient way for storing food with a strong or pungent smell, e.g. ripened or blue-vein cheese, sausages, onions, butter etc.

- The silicone lid provides an air-tight seal that prevents the food from drying out and the odour to spread throughout the refrigerator compartment.

- The silicon lid can also be used as an egg or ice tray.

- If the fl exible lid is used as an egg tray, place it directly on the bottom of the door bin and use the open lower part of the Multibox bin to store food in smaller packages – pâté, jams, smaller tubes etc.

FAN\*

- The fan placed under the refrigerator compartment ceiling or hidden in the freezer unit will make sure the temperature is distributed more evenly and reduce condensation (dew) on the storage surfaces.

IONIZER (IONAIR)\*

- Air ionizer installed in the refrigerator compartment keeps the air permanently fresh. As a result, the food remains fresh and tasty longer.

- Air ionizer can be switched on and off using the switch located on the fan housing or on the side of the cooling tower (depending on the model).

Switching the ionizer on/off

ON= | OFF = 0

Diagram showing two device buttons with one highlighted and connected to a rectangular device (no text or symbols present)

When the ionizer is switched on, a red dot will be visible on the switch.

ADAPTIVE INTELLIGENT TECHNOLOGY

Innovative sensor technology allows adjusting appliance operation to the user's habits or behaviour. Adaptive intelligent system monitors, analyzes, and records on a daily and weekly basis the use of appliance and adapts appliance operation to the perceived patterns. If the appliance is able to anticipate increased frequency of door opening, the appliance will automatically lower the temperature before such time to prevent the increase of food temperature as the door is opened more often. The appliance will also anticipate adding larger amounts of food into the refrigerator or freezer and adapt by cooling or freezing more intensively.

RECOMMENDED DISTRIBUTION OF FOOD IN THE APPLIANCE

Sections of the refrigerator:

• upper part: canned food, bread, wine, pastry etc.
• middle part: dairy products, ready-made meals, desserts, soft drinks, beer, cooked food, etc.
• Fresh bin: - meat, meat produce, delicatessen;
• Fruit and vegetable bin: fresh fruit, vegetables, salads, root vegetables, potatoes, onions, garlic, tomatoes, tropical fruit, sauerkraut, turnips etc.

Sections in the refrigerator compartment door:

• upper/middle door bins: eggs, butter, cheese etc.
• lower door bins: beverages, cans, bottles etc.

IMPORTANT WARNINGS REGARDING FOOD STORAGE

Correct use of the appliance, appropriate packaging, maintaining the right temperature, and observing the food hygiene standards has a decisive impact on the quality of food storage.

Observe the expiry dates for the food, specified on the packaging.

Food stored in the refrigerator should be kept in closed containers or appropriate packaging to prevent them from emitting or receiving odours.

Do not store inflammable, volatile, and explosive substances in the refrigerator.

Bottles with high alcohol content should be tightly sealed and stored in an upright position.

Some organic solutions, essential oils in lemon and orange peel, butter acid, etc. may damage the plastic surfaces in case of a prolonged contact, causing damage and premature ageing of these materials.

Unpleasant odour warns of lacking cleanliness of the appliance or perished contents (see Cleaning the Appliance).

If you are leaving home for a longer period of time, remove perishables from the refrigerator.

AVOID CONTAMINATION OF FOOD

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Regularly clean surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

FOOD STORAGE TIMES

Recommended storage time in the refrigerator

Type of food Time
eggs, marinades, smoked meat up to 10 days
cheese up to 10 days
root vegetables up to 8 days
butter up to 7 days
deserts, fruit, ready-to-eat food, chunks of raw meat	up to 2 days
fish, raw minced meat, seafood up to 1 day

STORING FOOD IN THE FRESHZONE DRAWER

In the FreshZone compartment, food stays fresh longer than in a conventional refrigerator, retaining more flavour and nutrients.

Decay and loss of mass are slowed down; therefore, fruit and vegetables remain fresh and natural longer.

For optimum performance, the drawer should be fully closed.

• When buying food, make sure it is fresh as this will determine the quality of the food, as well as how long it will keep in the fridge.
• Store the food in closed containers or appropriate packaging to prevent them from emitting or receiving odours.
  • Take the food from the drawer 30-60 minutes before use to allow the aroma and flavour develop at room temperature.
• Food sensitive to low temperature and not appropriate for storage in the FreshZone drawer include the following: pineapple, avocado, bananas, olives, potatoes, eggplant, cucumbers, beans, peppers (capsicum), melons, watermelons, pumpkins, squash, zucchini etc.

• To remove the drawer:
- Pull out the drawer until it is blocked.
- Then, lift it at the front and pull it all the way out.

DEFROSTING THE APPLIANCE

AUTOMATIC REFRIGERATOR DEFROSTING

Refrigerator does not need defrosting because the ice on the back interior wall is thawed automatically.

Any accumulated ice will melt when the compressor unit is inactive. Drops will flow through an opening in the refrigerator rear wall into a tray fitted above the compressor, from where they will evaporate.

If an excessive layer of ice is formed on the rear wall of refrigerator interior (3-5 mm), switch off the appliance and defrost the appliance manually.

CLEANING THE APPLIANCE

Before cleaning, unplug the appliance from the power mains - switch off the appliance (see chapter Switching the Appliance On/Off) and unplug the power cord from the wall outlet.

- Use a soft cloth to clean all surfaces. Cleaners that contain abrasive substances, acids, or solvents are not suitable for cleaning as they may damage the surface.

Clean the appliance exterior with water or a mild solution of suds. Lacquer-coated and aluminium surfaces may be cleaned with lukewarm water to which you have added a mild detergent. Use of cleaners with low alcohol content is allowed (e.g. window cleaners). Do not use cleaners containing alcohol for cleaning plastic materials.

Appliance interior can be cleaned with lukewarm water to which you can add some vinegar.

Line drawing of a hand using a pen to draw or mark on a wooden shelf (no text or symbols)

Illustration of a hand using a tool to clean or store contents on a coiled heating element (no text or symbols visible)

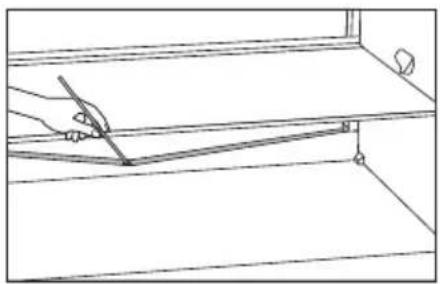

- A gutter and an opening through which the water from thawed ice flows are located underneath the cooling panel that cools the refrigerator interior. The gutter and the opening may not be clogged. Inspect them often and clean if necessary (e.g. with a plastic straw).

- Frost or ice build-up, 3-5 mm thick, will increase power consumption. Therefore, it should be regularly removed. Do not use any sharp objects, solvents, or sprays.

- The condenser unit mounted on the (exterior) back wall should always be kept clean, free of dust or deposits resulting from kitchen smoke or fumes.. Occasionally clean the dust using a soft non-metal brush or a vacuum cleaner.

• After cleaning, switch the appliance back on and insert the food.

Problem: Cause or remedy:
Appliance is connected to the power mains but it does not work.	Make sure there is voltage in the power outlet and that the appliance is switched on.
Cooling system operates continuously for a long period of time:	Too high environment temperature.Door opened too frequently or too long.Door not closed correctly (possible impurities on the seal, misaligned door, damaged seal etc.).Too much fresh food inserted at once.Sensor in the refrigerator (A) blocked by fresh food.Make sure the air can circulate around the sensor (only with some models).Insufficient compressor and condenser cooling. Check the air circulation behind the appliance and clean the condenser unit.
Excessive build-up of ice on the back wall of refrigerator interior can be a result of the following:	Door opened too frequently or too long.Warm food placed in the refrigerator.Food in contact with the back interior wall of the refrigerator.Poor door sealing.If the seal is dirty or damaged, clean it or replace it.
Condensate (dew) on the shelf above the drawers:	This is a transient phenomenon which cannot be entirely avoided in periods of high environment temperature and humidity. It subsides when temperature and humidity are normalized. We recommend cleaning the drawers more frequently and wiping the droplets occasionally.Open the humidity control slider.Place the food in to bags or other airtight packaging.
Water leaking from the refrigerator:	Clogged water discharge opening or water dripping past the water gutter.Clean the clogged opening, for example using a plastic straw.If a thick layer of ice builds up, defrost the appliance manually (see Defrosting the Appliance).
The B key will flash: • Door opened too frequently or too long.Door not closed correctly (possible impurities on the seal, misaligned door, damaged seal etc.).A longer power failure.Too much fresh food inserted at once.

Problem: Cause or remedy:
Door is difficult to open: • If you are trying to open the appliance door after just having closed it, this could be difficult to do.As you open the door, some cool air escapes from the appliance and it is replaced by warm air from the environment. When this air is cooled, negative pressure is generated which results in problems as you try to open the door. After a few minutes, the condition is normalized and the door can be easily opened again.
LED lighting does not work:	• If LED lighting does not work, call a service technician.• Do not attempt a repair of the LED lighting yourself, as there is danger of contact with high voltage!

If none of the instructions above fixes your problem, call the nearest authorized service center and state the type, model, and serial number found on the rating plate/label which is located in the appliance interior.

INFORMATION ABOUT APPLIANCE NOISE

Cooling in refrigerator freezers is made possible by a cooling system that also includes a compressor (and a fan with some appliances), which generates some noise. The level of noise depends on installation, proper use, and age of the appliance.

• After connecting the appliance to the power mains, compressor operation, or the sound of flowing liquid, may be somewhat louder. This is not a sign of malfunction and it will not affect the useful life of the appliance. In time, appliance operation and this noise will become quieter.
• Sometimes, unusual or loud noise may appear during appliance operation; these are mostly the result of improper installation:

- The appliance must stand level and stable on a solid base.

- The appliance may not be in contact with a wall or adjacent furniture.

- Make sure the interior equipment sits firmly in its place and that the noise is not caused by cans, bottles or other containers placed next to each other.

- Due to the higher workload on the cooling system when the door is opened more frequently or for a longer time, when a large amount of fresh food is introduced, or when intensive freezing or cooling functions are activated, the appliance can temporarily generate more noise.

WE RESERVE THE RIGHT TO MAKE CHANGES THAT DO NOT AFFECT THE FUNCTIONALITY OF THE APPLIANCE.

Instructions for use of the appliance can also be found on our website at www.asko.com
