USER MANUAL 12601559 Char-Broil

Assembly Guide

Model Numbers:

12601559

12601578

12601663

12601664

12601665

12601688

12601514

12601514-C1

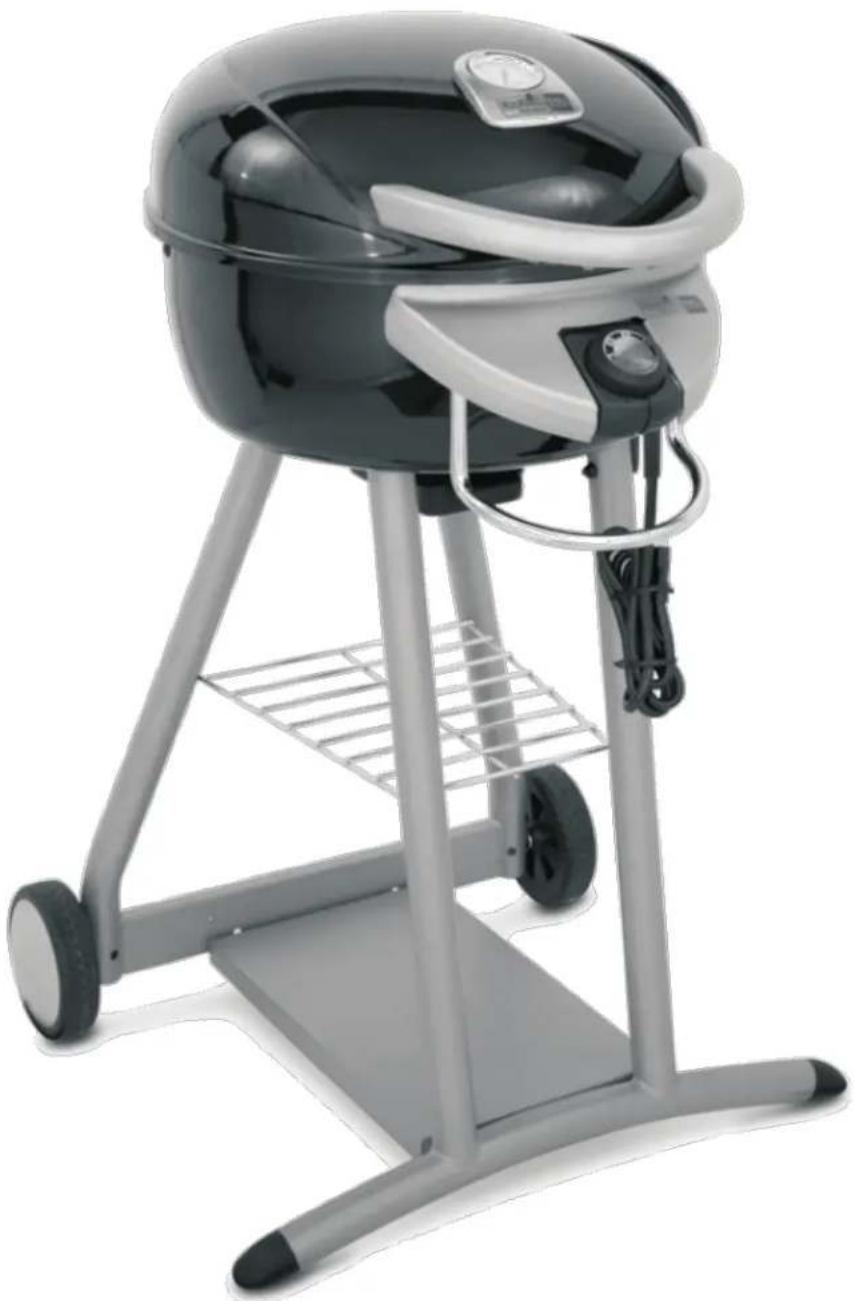

Exterior view of a modern outdoor grill with a black dome and silver grating (no visible text or symbols)

CAUTION: For your safety, before operating, Read Product Guide & Outdoor Cooking Guide provided with this grill.

*SAFETY First.....Grill components may have sharp edges. Be careful when handling grill parts during assembly. We suggest that you wear a sturdy pair of leather gloves while handling the grill parts.

BEFORE You begin assembly of your grill....

1. Carefully remove all components from the carton.
2. Familiarize yourself with the components and hardware used for assembly.
3. Please note that hardware used for assembly may not be shown actual size..
4. After removing components from the carton, split the carton open and use it as a soft, scratch-free work pad to assemble your grill.

BEFORE You Grill....

1. Read Product Guide & Outdoor Cooking Guide
2. Position Grill Safely away from walls & structures.
3. Pre- Heat Grill—15 minutes on ⑤, High to season grill.

NOTE....

Installer: Leave instructions with the grill.

Consumer: Retain instructions for reference.

Grill must be installed in accordance with local codes.....

Designed for outdoor use only...

Read all instructions before operating...

TOOLS REQUIRED FOR ASSEMBLY

(Not Supplied)

Close-up of a black screwdriver with a metallic tip (no text or symbols visible)

Phillips Head Screwdriver

Illustration of an adjustable wrench with a handle and screw (no text or symbols)

Small Adjustable Wrench

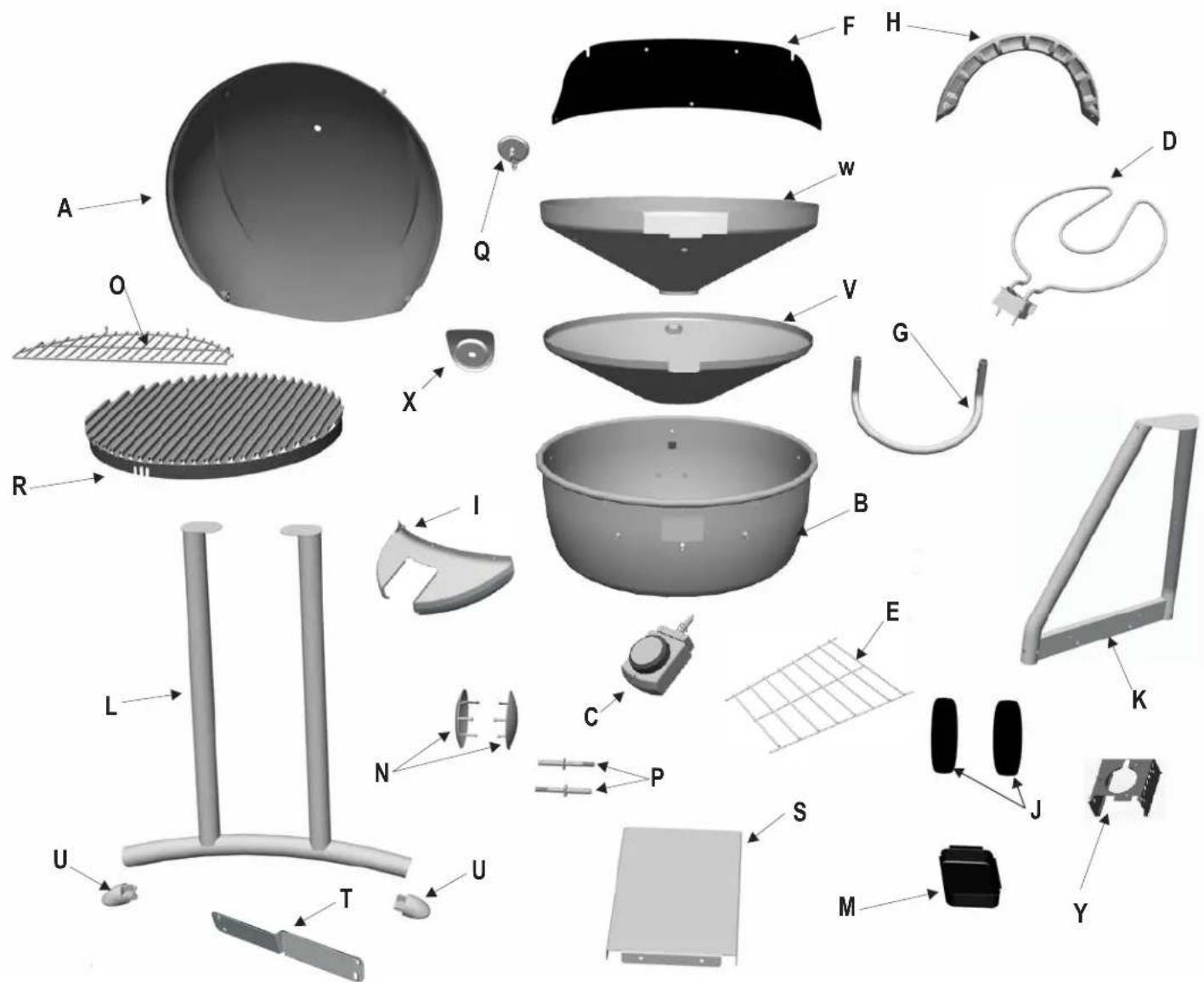

Key Qty Description

A 1 Grill Lid
B 1 Lower Body
C 1 Controller
D 1 Element Assembly
E 1 Wire Shelf
F	1	Wind Shield
G	1	Towel Bar
H 1 Lid		Handle
I	1	Control Panel
J	2	Wheel
K	1	Rear Leg Set
L 1 Front Leg Set

Key Qty

M	1	Grease Tray
N	2	Hubcap
O	1	Warming Rack
P	2	Axle
Q	1	Heat Indicator
R	1	Cooking Grate
S	1	Cart Base
T	1	Cart Bracket
U 2 Leg Cap
V 1 Heat Shield
W 1 Inner Reflector (Porcelain Bowl)
X 1 Bezel

Key Qty

Y	1	Grease Tray Guide
—	1	Hardware Pack
—	1	Assembly Guide, English
—	1	Assembly Guide, Spanish, optional
—	1	Assembly Guide, French, optional
—	—	1 Product Guide, English
—	—	optional Product Guide, Spanish,
—	1	Product Guide, French, optional
—	—	1 Grilling Guide, English
—	1	Grilling Guide, Spanish, web only
—	1	Grilling Guide, French, optional

NOTE: Some grill parts shown in the parts list may differ slightly in appearance from those on your particular model.

Part Qty

A1-Cart Base

A2-Front Leg Set 1

A3- Réar Leg Set

A4-Wheels 2

A5bcap 2

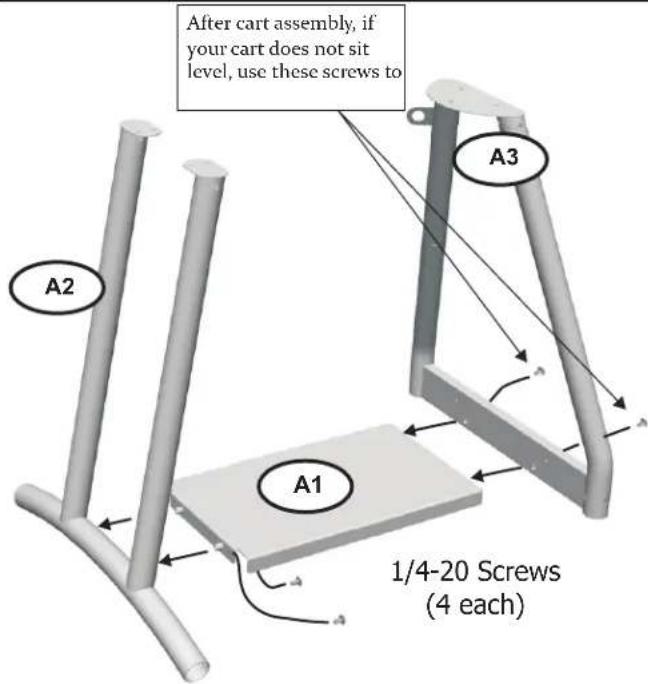

Step 1- Attach Front Leg Set (A2) to the Cart Base (A1) using 2 1/4-20 screws. Attach Rear Leg Set (A3) to the Cart Base (A1) in the
Fasteners

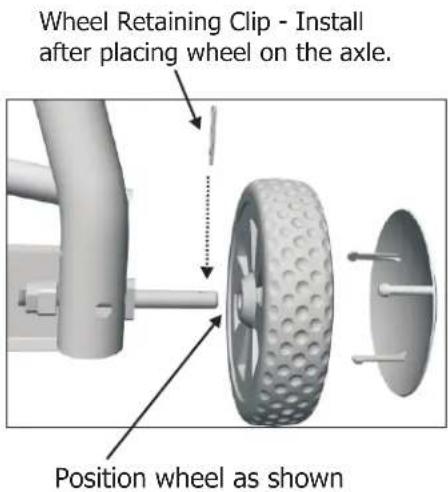

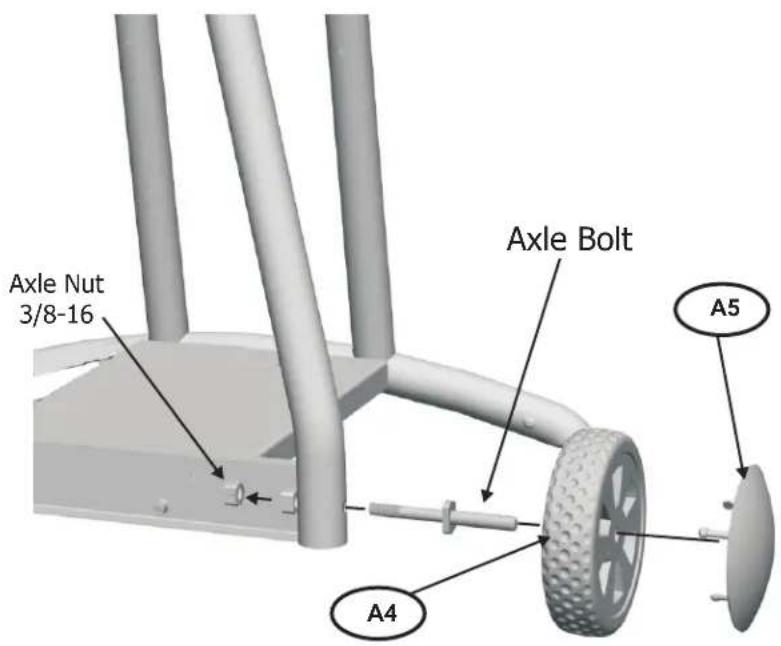

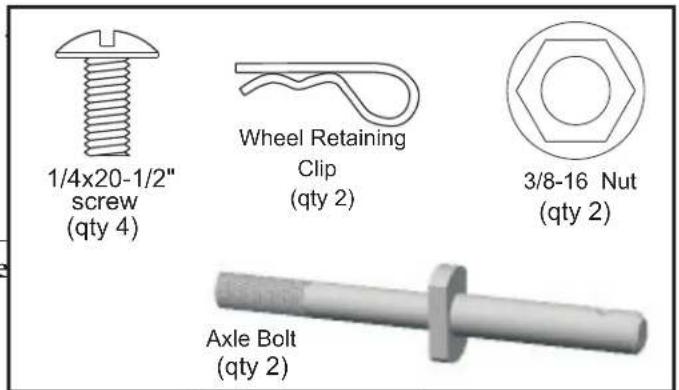

Step 2- Attach 2 Axle Bolts to the Rear Leg Set (A3), thread a 3/8-16 nut as shown and tighten securely using a small adjustable wrench. Slide a Wheel (A4) over an Axle Bolt and secure using a Wheel Retaining Clip. Repeat for other side. Position and Snap into place the

Fasteners

Part Qty

A6- Cart Bracket 1

A7-Wire Shelf 1

A8—Leg End Cap 2

Place the Grill Bottom on the carton pad upside down in preparation for the next step.

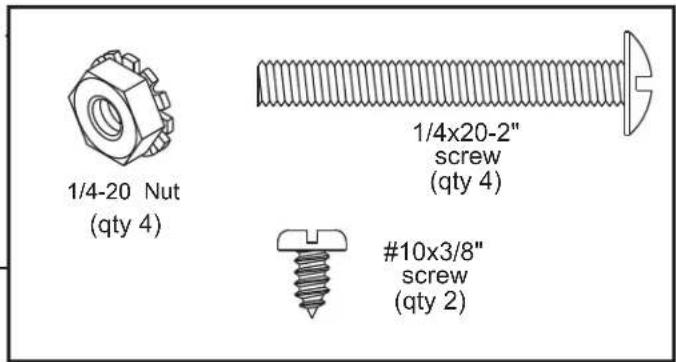

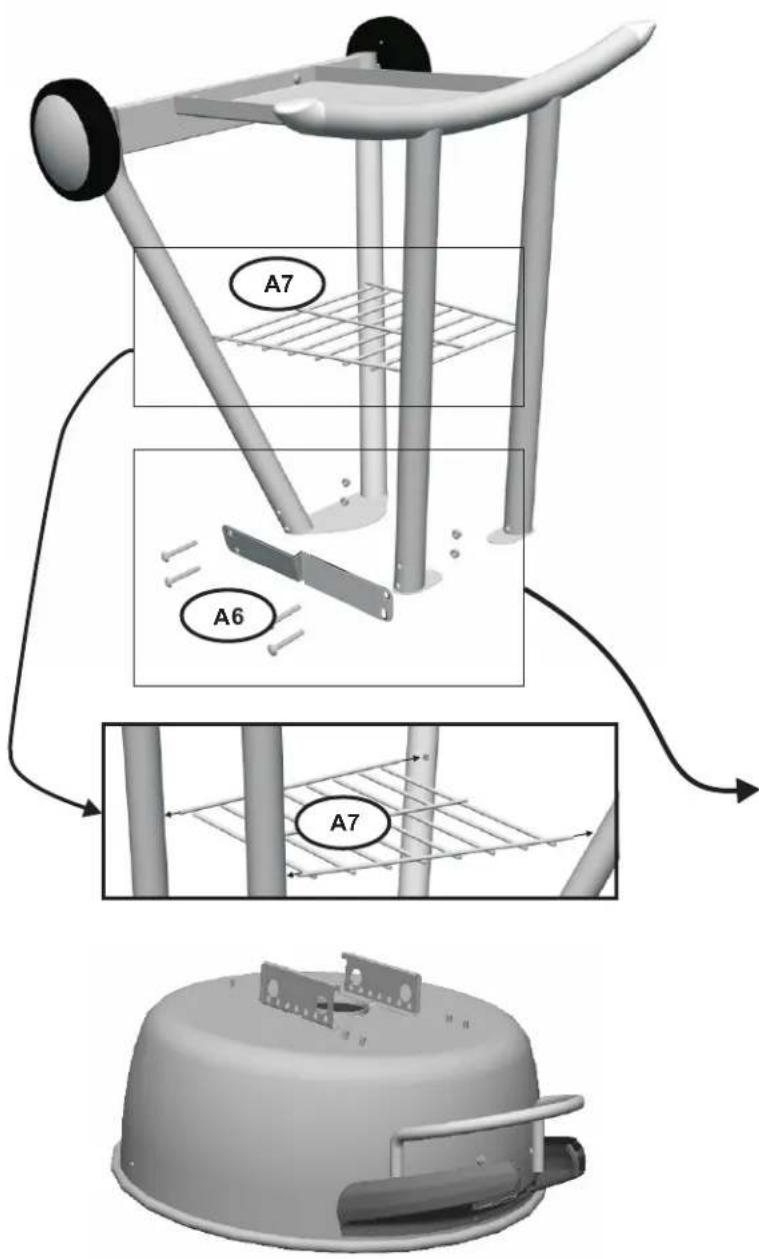

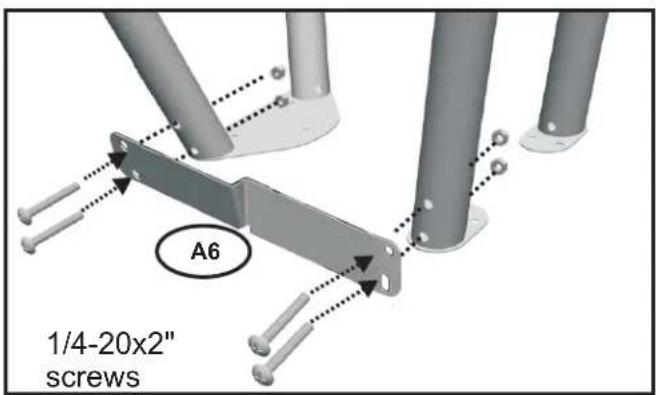

Step 3 - Carefully turn the Cart Assembly over and allow it to rest on the tops of the leg assemblies. Spread the leg assemblies apart just far enough to allow the insertion of the Wire Shelf (A7) into the 4 leg holes. Assemble the Cart Bracket (A6) to the Cart Assembly by inserting 4 each 1/4-20x2" screws into into corresponding holes as shown. Allow the Cart Bracket to rest on the floor, this will help with alignment. Secure with 4 each, 1/4-20 nuts using a small adjustable wrench, not supplied. FINGER TIGHTEN ONLY AT THIS POINT. The bracket will be tightened in step B2.

Be sure to install Cart Bracket (A6) on the side shown. Once complete -leave the cart in the upside down position.

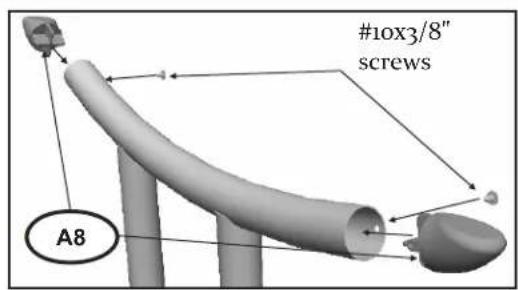

Lastly, insert the Leg End Caps (A8) into the front

Part Qty.

B1– Lower Body 1

B2– Wind Shield 1

B3- Grill Lid 1

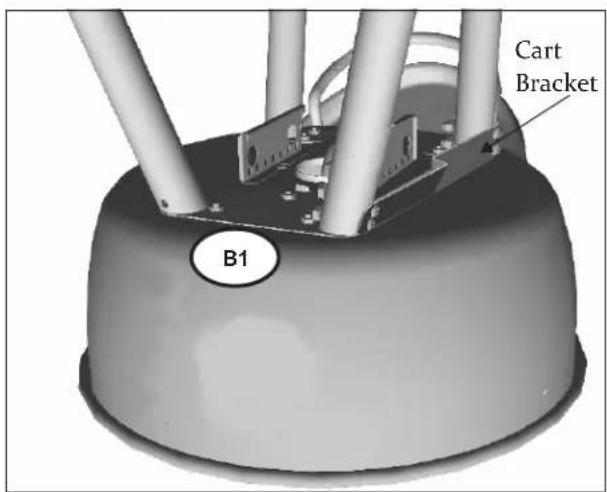

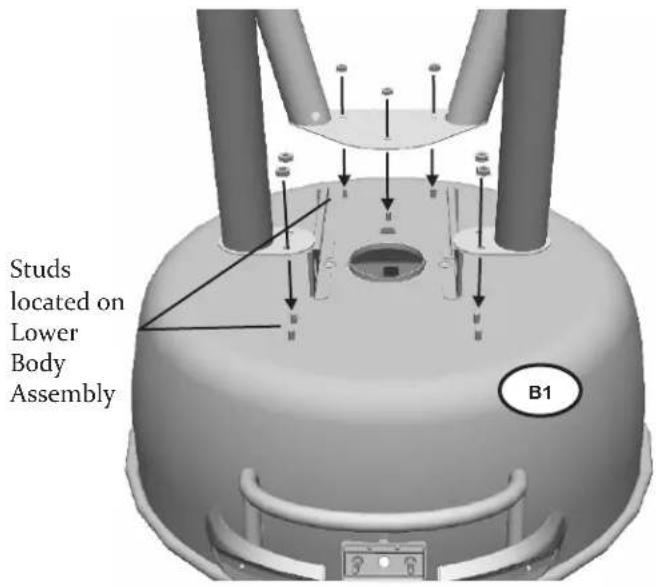

Step 1 - Attach the Lower Body Assembly (B1) to the Cart Assembly by aligning the studs on the bottom of the grill with the corresponding holes in the tops of the leg assemblies. Secure with 7 each 10-24 nuts. A Nut Driver (not supplied) will work nicely for this step.

Step 2 - With the legs assembled to the Lower Body, tighten the 4 screws holding the Cart Bracket in place. Once complete, turn the grill over to the upright position.

Fasteners

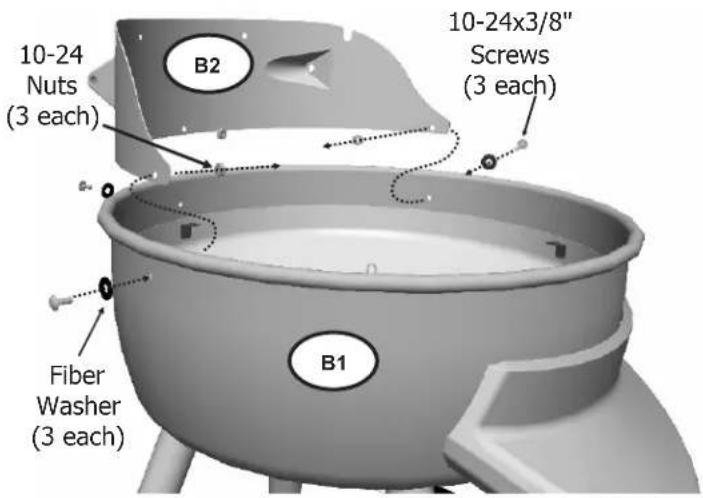

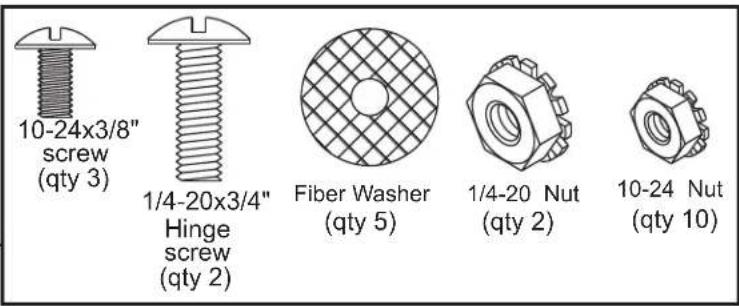

Step 3 - Attach the Wind Shield (B2) to the Lower Body (B1) by aligning the holes in the panels with the corresponding holes in the Lower Body. Secure with 3 10-24 nuts, 3 10-24x3/8" Screws, and 3 fiber washers. The Wind Shield will rest inside the Lower Body.

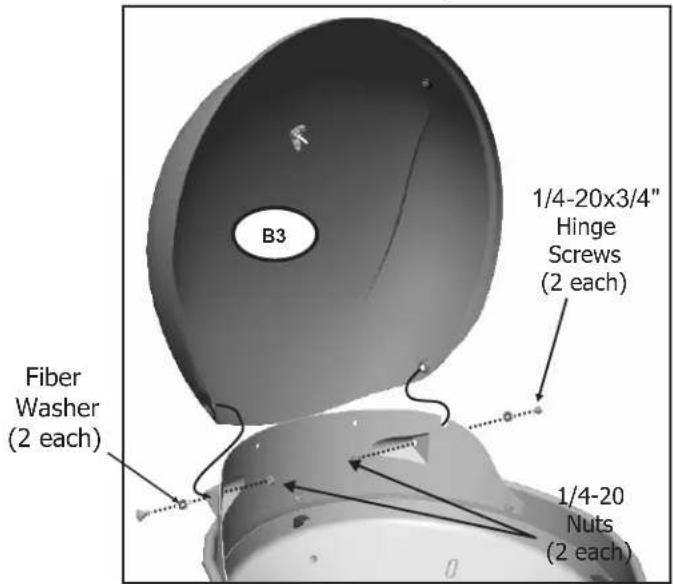

Step 4 - Attach the Grill Lid (B3) by aligning the hinge holes in the lid to the matching holes in the Wind Shield (B2). Insert 2 Hinge Screws into the holes and secure with 2 1/4-20 nuts and two Fiber washers from the inside of the grill.

Part Qty.

C1 - Cooking Grate
C2 – Warming Rack 1
C3 – Grease tray 1

NOTE: The Cooking Grate may have sharp edges. Be very careful when handling the Cooking Grate. You should wear gloves when handling the Cooking Grate.

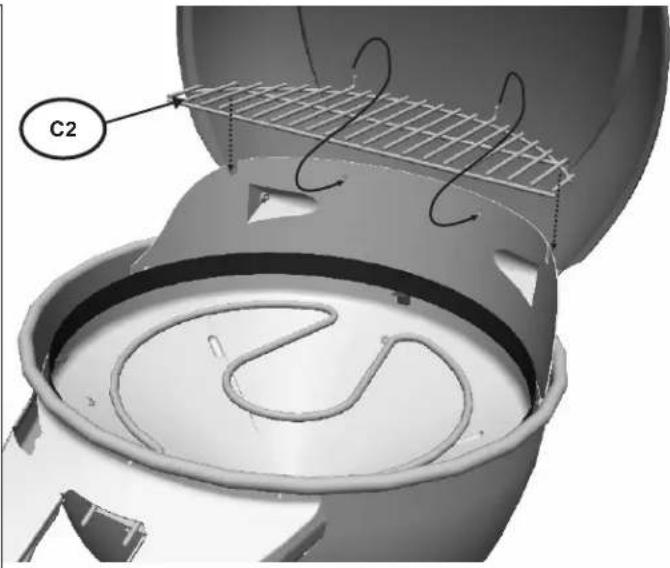

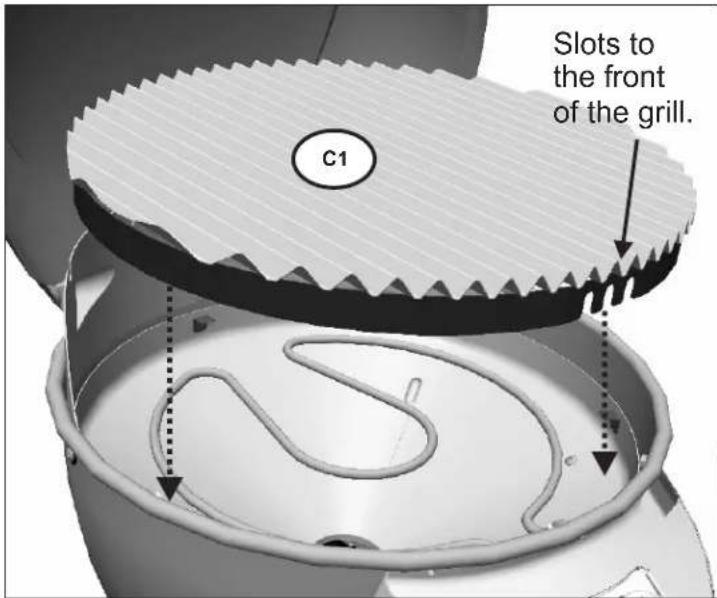

Step 1 - With the Grill Lid open, place the Cooking Grate (C1) into the Lower Body, allowing it to rest on the three brackets spaced around the Lower Body. Be sure the slots in the Cooking Grate are facing the front of the grill. Place the Warming Rack (C2) into position by first hooking the center pins into the wind shield, then rotate the warming rack down into position.

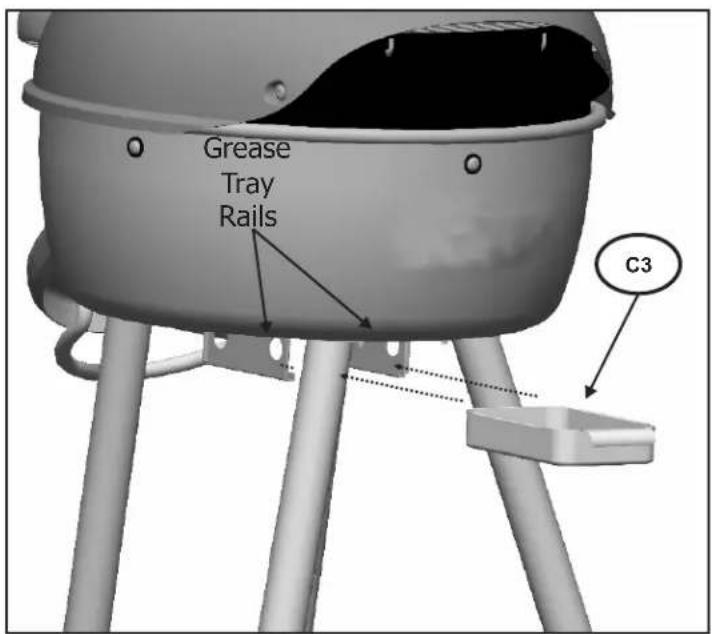

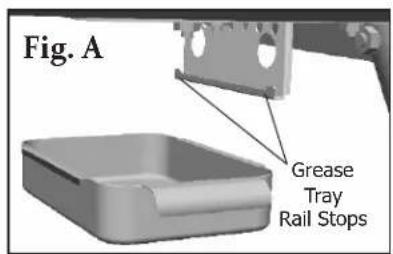

Step 2 - Install the Grease Tray (C3) by sliding the tray onto the Grease Tray Rails from the rear of the grill. Note: The

Part Qty.

C4 - Controller 1

C5 – Lid Handle 1

Fasteners

NOTE: Be sure to press the controller into the receptacle as far as it will go. Route the controller cord BEHIND the towel bar as shown.

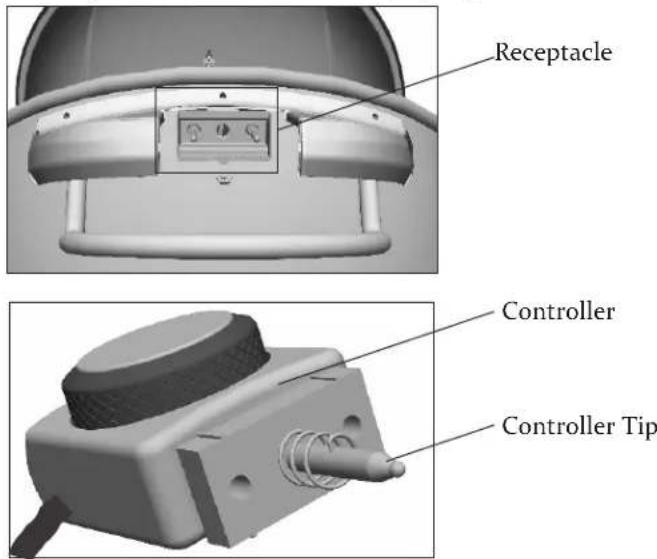

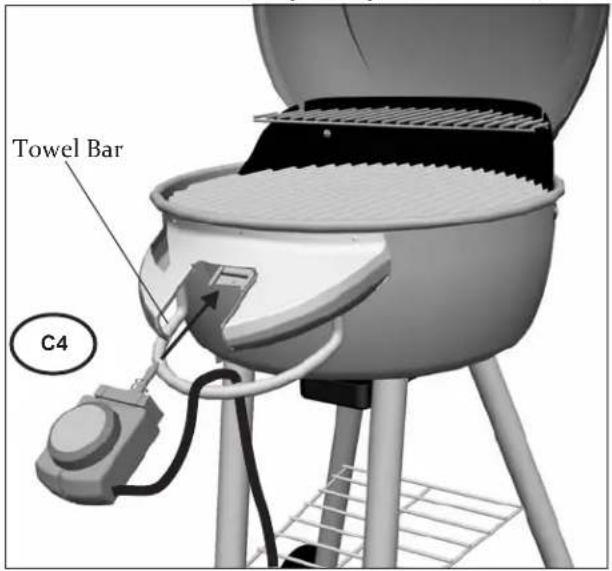

Step 3 - Install the Controller (C4) into the receptacle. Be sure to route the controller cord behind the towel bar when installing the controller. The control knob should be facing up as you engage the tip of the controller into the receptacle. Push the controller in all the way until you hear a click, this will ensure your controller is installed properly.

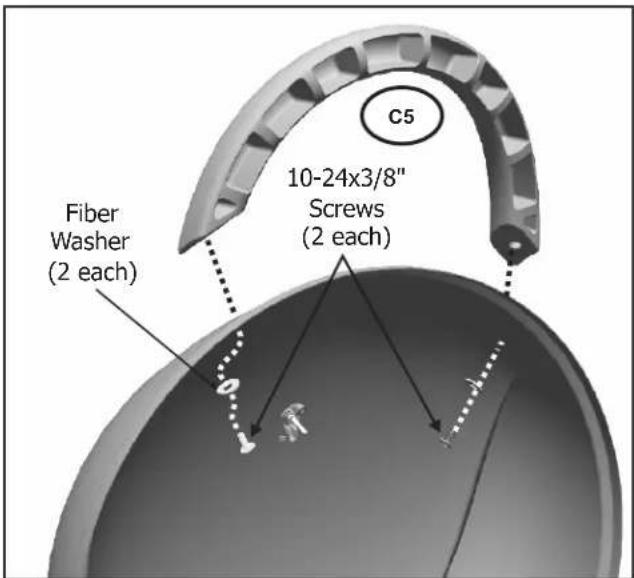

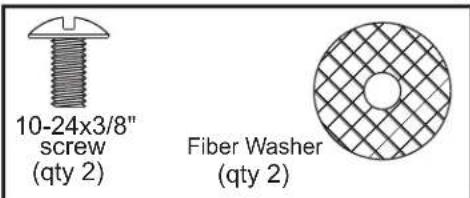

Step 4 - Install the Lid Handle with 2 10-24x3/8" screws and 2 fiber washers as shown.

Congratulations! You have successfully completed the assembly of your grill.

Ground Fault Interrupter

• Since 1971 the National Electric Code (NEC) has required Ground Fault Interrupter devices on all outdoor circuits.
• If your residence was built before 1971, check with a qualified electrician to determine if a Ground Fault Interrupter protector exists.
• Do not use this appliance if the circuit does not have GFI protection.
• Do not plug this appliance into an indoor circuit.

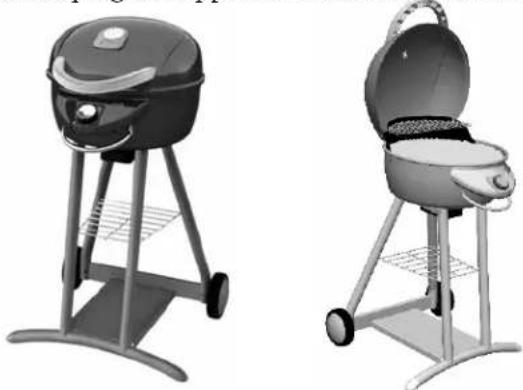

Two grayscale illustrations of a portable grill with a lid and open lid, shown from different angles (no text or symbols)
