CM 54 M - Oven FRANKE - Free user manual and instructions
Find the device manual for free CM 54 M FRANKE in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product type | Built-in electric oven |
| Brand | Franke |
| Model | CM 54 M |
| Dimensions (W x H x D) | 59.5 x 59.5 x 55.5 cm |
| Net weight | 36 kg |
| Power supply | 220-240 V, 50/60 Hz, 16 A, 3500 W |
| Oven capacity | 70 liters |
| Number of functions | 8 cooking modes (fan-assisted, top heat, bottom heat, grill, etc.) |
| Cleaning type | Pyrolytic cleaning (self-cleaning high temperature) |
| Noise level | 48 dB(A) |
| Energy class | A+ |
| Repairability index | 8/10 |
| Spare parts availability | Spare parts available (heating elements, glass, thermocouple, etc.) |
| Child safety | Programmable door lock and automatic shutdown |
| Interior lighting | Halogen lighting with door open/closed |
| Built-in | Yes, compatible with standard 60 cm dimensions |
| Maximum temperature | 280 °C |

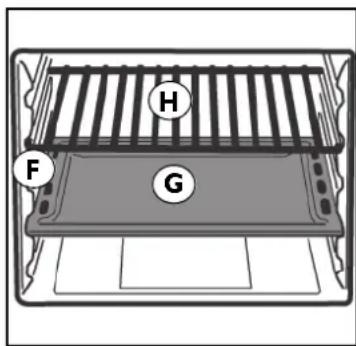

| Accessories included | Grid, drip tray, baking sheet |
Frequently Asked Questions - CM 54 M FRANKE

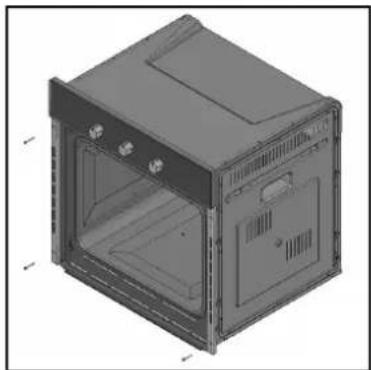

How to install the Franke CM 54 M oven?

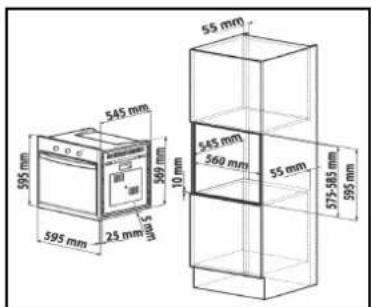

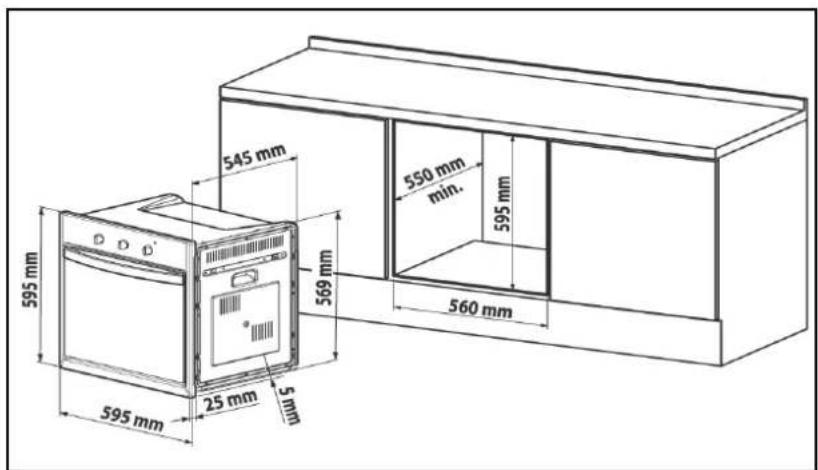

The oven must be installed by a qualified professional. Make sure the recess respects the dimensions: height 59.5 cm, width 59.5 cm, depth 55.5 cm. The appliance must be plugged into a 220-240 V grounded outlet.

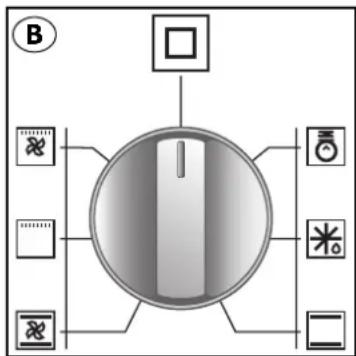

What cooking modes are available?
The CM 54 M offers 8 modes: fan-assisted, bottom heat, top heat, grill, fan-assisted grill, fan-assisted + bottom heat, defrost, and keep warm. Use the rotary selector to choose.
How to use the pyrolytic cleaning?
Empty the oven, remove accessories and racks, close the door, then select the Pyrolysis mode (temperature about 480 °C). The cycle lasts 1.5 to 2 hours. After cooling, wipe the ashes with a damp cloth.
What to do if the oven does not heat?
Check the power supply (circuit breaker, plug), the timer setting, and the mode selection. If the problem persists, the heating element or thermostat may be faulty. Consult a technician.

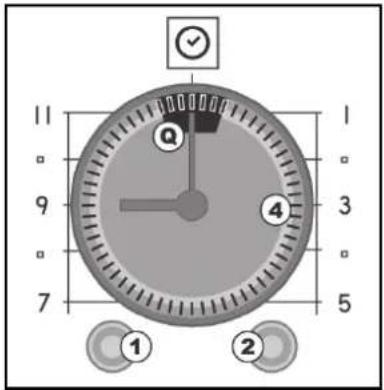

How to set the oven timer?
Press the Timer key, set the desired time with the +/- arrows (max 4h30). An audible signal sounds at the end of cooking. The oven turns off automatically.
The oven makes an abnormal noise, is this normal?
During pyrolysis, cooling of the walls may cause cracking sounds. Otherwise, fan noise is normal in fan-assisted mode. If the noise is persistent or metallic, contact customer service.
What is the energy consumption of the oven?
Energy class A+, consumption in standard mode: 0.85 kWh (fan-assisted), 0.95 kWh (convection). Pyrolysis cycles consume about 2.5 kWh.
How to clean the outer glass of the oven?
Use a soft cloth and white vinegar or glass cleaner. Do not spray directly on the door. For the inner glass, the Pyrolysis function burns grease; then wipe.
Can I replace an oven bulb myself?
Yes, the bulb is accessible via the rear or side cover. Use a 25 W/300 °C halogen bulb. First unplug the appliance. If unsure, call a professional.
Where to find spare parts for the Franke CM 54 M?
Spare parts (heating elements, glass, thermostat, etc.) are available from Franke after-sales service, authorized dealers, or specialized websites. Check the manual for references.
