MFC 368 X - Fridge Meireles - Free user manual and instructions

Product Type	Freestanding Refrigerator
Brand	Meireles
Model	MFC 368 X
Total Gross Capacity	368 Liters
Refrigerator Capacity	260 Liters
Freezer Capacity	108 Liters
Energy Class	E (EU Directive)
Annual Energy Consumption	280 kWh
Noise Level	40 dB(A)
Climate Class	N/ST
Dimensions (H x W x D)	1850 x 600 x 650 mm
Weight	65 kg
Power Supply	220-240 V, 50 Hz
Current	0.8 A
Refrigerant	R600a
Defrosting	Automatic (refrigerator), manual (freezer)
Shelves	4 tempered glass shelves
Door Balconies	4 balconies (1 butter compartment, 2 adjustable, 1 bottle)
Crisper Drawers	2 humidity-controlled drawers
Freezer Drawers	3 drawers
Ice Cube Tray	1 included
Interior Light	LED
Control Type	Mechanical thermostat
Reversible Doors	Yes
Included Accessories	Ice cube tray, instruction manual

Frequently Asked Questions - MFC 368 X Meireles

What is the total capacity of the Meireles MFC 368 X refrigerator?

The total gross capacity is 368 liters, with approximately 260 liters for the refrigerator compartment and 108 liters for the freezer.

What energy class does the MFC 368 X have?

It has an energy class E according to EU Directive, with an estimated annual consumption of 280 kWh.

How do I adjust the temperature in the refrigerator?

The temperature is controlled via a mechanical thermostat knob inside the refrigerator compartment. Turn it to a higher number for colder temperatures. Typically, a setting of 3-4 is recommended.

Does the freezer require manual defrosting?

Yes, the freezer compartment requires manual defrosting. The refrigerator compartment defrosts automatically.

What are the dimensions of the MFC 368 X?

The dimensions are approximately 1850 mm (height) x 600 mm (width) x 650 mm (depth). Check your installation space carefully.

Can I reverse the door opening direction?

Yes, the doors are reversible. You can change the hinge side following the instructions in the manual.

How do I clean the refrigerator?

Unplug the appliance, remove all food, and clean the interior with a mild detergent and warm water. Avoid abrasive cleaners. Dry thoroughly before restarting.

What should I do if the refrigerator is not cooling properly?

Check that the thermostat is set correctly, the doors are closed properly, and the condenser coils are clean. Also ensure the appliance has adequate ventilation around it. If the problem persists, contact a qualified technician.

Is the refrigerant used environmentally friendly?

The appliance uses R600a (isobutane), a natural hydrocarbon refrigerant with low global warming potential. However, it is flammable, so disposal must follow local regulations.

Where can I find spare parts for the MFC 368 X?

Contact Meireles customer service or authorized dealers. Many common spare parts such as shelves, drawers, and gaskets are available. Use the model number to order.

USER MANUAL MFC 368 X Meireles

Front view of a rectangular refrigerator with front panel and side legs (no text or symbols visible)

Contents

Safetyandwarninginformation......2
Installingyournewappliance......9
Reversingthedoor....10
Descriptionoftheappliance....14
Displaycontrols....17

Usingyourappliance....21
Helpfulhintsandtips....24
Cleaningandcare....25
Troubleshooting......26
Disposaloftheappliance....28

Safetyandwarninginformation

Foryoursafetyandcorrectusage,beforeinstallingand firstusingtheappliance,readthisusermanualcarefully, includingitshintsandwarnings.Toavoidunnecessary mistakesandaccidents,itisimportanttomakesurethatall peopleusingtheappliancearethoroughlyfamiliarwithits operationandsafetyfeatures.Savetheseinstructionsand besurethattheyremainwiththeapplianceifitismovedor sold,sothatanyoneusingitthroughoutitslife,willbe properlyinformedonitsusageandsafetynotices.

Forthesafetyoflifeandproperty,keeptheprecautionsof theseuser'sinstructionsasthemanufacturerisnot responsiblefordamagescausedbyomission.

Safetyforchildrenandotherswhoarevulnerablepeople

- According to EN standard

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in asafeway and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Childrenaged from 3 to 8 years are allowed to load and unload refrigerating appliances.

- According to IEC standard This appliance is not intended for use by persons

(includingchildren)withreducedphysical,sensoryor mentalcapabilities,orlackofexperienceandknowledge, unlesstheyhavebeengivensupervisionorinstruction concerninguseoftheappliancebyapersonbeing responsiblefortheirsafety.

● Childrenshouldbesupervisedtoensurethattheydonot playwiththeappliance.
- Keepallpackagingawayfromchildrenasthereisarisk ofsuffocation.
- Ifyouarediscardingtheappliance,pulltheplugoutofthe socket,cuttheconnectioncable(asclosetotheappliance asyoucan)andremovethedoortopreventchildren playingfromsufferinganelectricshockorfromclosing themselvesinsideit.
- If this appliance, featuring amagnetic doorseals, isto replace an older appliance having aspringlock (latch) on the dooror lid, besuretomakethespringlock unusable before you discard the old appliance. This will prevent it from becoming a deathtrap for a child.

Generalsafety

●WARNING—This appliance is intended to be used usehold and similar application such as

-staffkitchenareasinshops, offices and other working environments;

-farmhousesandhotels, motelsandotherresidentialtype environments;

-bedandbreakfasttypeenvironments;

-cateringandsimilarnon-retailapplications.

●WARNING—Donotstoreexplosivesubstancessuchas aerosolcanswithaflammablepropellantinthisappliance.

●WARNING—If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly

qualifiedpersonsinordertoavoidahazard.

●WARNING—Keepventilationopenings, intheappliance enclosure or inthebuilt-instructure, clearofobstruction.
●WARNING—Donotusemechanicaldevicesorother meanstoacceleratethedefrostingprocess,otherthan thoserecommendedbythemanufacturer.

●WARNING—Donotdamagetherefrigerantcircuit.
●WARNING—Donotuseelectricalappliancesinsidethe foodstoragecompartmentsoftheappliance,unlessthey areofthetyperecommendedbythemanufacturer.
●WARNING—Therefrigerantandinsulationblowinggas areflammable. Whendisposingoftheappliance, dosoonly atanaauthorizedwastedisposalcentre. Donotexposito flame.
●WARNING—When positioning the appliance, ensure the supply cord is not trapped or damaged.
●WARNING—Donotlocatemultipleportablesocket-outletsorportablepowersuppliesattherearofthe appliance.

Replacingtheilluminatinglamps

●WARNING—Theilluminatinglampsmustnotbereplaced bytheuser!Iftheilluminatinglampsisdamaged,contact thecustomerhelplineforassistance.

This warning is only for refrigerator that contain illuminating lamps.

Refrigerant

Therefrigerantisobutene(R600a)iscontainedwithinthe refrigerantcircuitoftheappliance,anaturalgaswithahigh levelofenvironmentalcompatibility,whichisnevertheless flammable.Duringtransportationandinstallationofthe appliance,ensurethatnoneofthecomponentsofthe refrigerantcircuitbecomesdamaged.

Therefrigerant(R600a)isflammable.

●WARNING—Refrigeratorscontainrefrigerantandgases intheinsulation. Refrigerantandgasesmustbedisposed ofprofessionallyastheymaycauseeyeinjuriesorignition. Ensurethattubingoftherefrigerantcircuitisnotdamage prioritoproperdisposal.

Thesymbolisawarringandindicatesthe refrigerantandinsulationblowinggasareflammable.

WARNING: Riskoffire/flammable materials

Iftherefrigerantcircuitshouldbedamaged:

-Avoidopeningflamesandsourcesofignition.

-Thoroughlyventilatetheroominwhichtheapplianceis situated.

Itisdangeroustoalterthespecificationsormodifythis productinanyway.

Anydamagetothecordmaycauseashortcircuit, fire, and/orelectricshock.

Electricalsafety

1. The powercord must not be lengthened.

2. Makesurethatthepowerplugisnotcrushedor damaged.

Acrushedordamagedpowerplugmayoverheatand causeafire.

1. Makesurethatyoucanaccessthemainplugofthe appliance.

2. Donotpullthemaincable.

3. If the power plug socket is loose, donot insert the power plug. There is a risk of electric shock or fire.

4. You must not operate the appliance without the interior lighting lamp cover.

5. The fridge is only applied with powers supply of single

phasealternatingcurrentof220\~240V/50Hz.Iffluctuation ofvoltageinthedistrictofuserissolargethatthevoltage exceedstheabovescope,forsafetysake,besuretoapply A.C.Automaticvoltageregulatorofmorethan350Wtothe fridge.Thefridgemustemployaspecialpowersocket insteadofcommononewithotherelectricappliances.Its plugmustmatchthesocketwithgroundwire.

Dailyuse

• Donotstoreflammablegasorliquidsintheappliance, thereisariskofanexplosion.
• Donotoperateanyelectricalappliancesintheappliance (e.g.electricicecreammakers,mixersetc.).
• Whenunpluggingalwayspulltheplugfromthemains socket, donotpullonthecable.
• Donotplacehotitemsneartheplasticcomponentsof thisappliance.
• Donotplacefoodproductsdirectlyagainsttheairoutlet ontherearwall.
• Storepre-packedfrozenfoodinaccordancewiththe frozenfoodmanufacture'sinstructions.
  ●Theappliancesmanufacturesstoragerecommendations shouldbestrictlyadheredto.Refertorelevantinstructions forstorage.
• Donotplacecarbonatedorfizzydrinksinthefreezer compartmentasitcreatespressureonthecontainer,which maycauseittoexplode,resultingindamagetothe appliance.
• Frozenfoodcancausefrostburnsifconsumedstraight fromthefreezercompartment.
• Donotplacetheapplianceindirectsunlight.
• Keepburningcandles, lamps and other items with naked flames away from the appliances that donotset the appliance on fire.

●The appliance is intended for keeping food stuff and/or beverages in normal household as explained in this instruction booklet. You should take care when move it as the appliance is heavy.
- Donotremoveortouchitemsfromthefreezer compartmentifyourhandsaredamp/wet,asthiscould causeskinabrasionsorfrost/freezerburns.
- Neverusethebase, drawers, doorsetc. tostandonoras supports.
- Frozenfoodmustnotberefrozenonceithasbeen thawedout.
- Donotconsumeicepopsiclesoricecubesstraightfrom thefreezerasthiscancausefreezerburntothemouthand lips.
●Toavoiditemsfallingandcausinginjuryordamagetothe appliance,do not overload the door racks or put too much food in the crisper drawers.
- This refrigerating appliance is not intended to be used as a built-in appliance.

caution!

Careandcleaning

• Before maintenance, switch off the appliance and disconnect themains plug from themainssocket.
• Donotcleantheappliancewithmetalobjects,steam cleaner,etherealoils,organicsolventsorabrasive cleansers.
• Donotuseasharpobjectsinsteadofaplasticscraper toremovefrostfromtheappliance.

InstallationImportant!

• Forelectrical connection carefully, follow the instructions given in this manual. Unpack the appliance and check if there are damaged on it.
• Donotconnecttheapplianceifitisdamaged.Report possibledamagesimmediatelytotheplaceyoubought

it.Inthiscaseretainpacking.

• Itisadvisabletowaitatleastfourhoursbefore connectingtheappliancetoallowtheoiltoflowbackinthe compressor.
• Adequateaircirculationsshouldbearoundtheappliance, lackingthisleadstooverheating.Toachievesufficient ventilation,followtheinstructionsrelevanttoinstallation.
• Whereverpossiblethebackoftheproductshouldnotbe tooclosetoawalltoavoidtouchingorcatchingwarmparts (compressor, topdevettheriskofafire, follow theinstructionsrelevanttoinstallation.

●Theappliancemustnotbelocateclosetoradiatorsor cookers.

● Makesurethatthemainsplugisaccessibleafterthe installationoftheappliance.

Service

• Anyelectricalworkrequiredtodotheservicingofthe applianceshouldbecarriedoutbyqualifiedelectricianor competentperson.
  ●ThisproductmustbeservicedbyanauthorizedService Center, andonlygenuinesparepartsmustbeused.

1) If the appliance is Frost Free.

2) If the appliance contains freezer compartment.

Installingyournewappliance

Beforeusingtheapplianceforthefirst time,youshouldbeinformedofthe followingtips.

Ventilationofappliance

Inordertoimproveefficiencyof thecoolingsystemandsave energy,itisnecessaryto maintain good ventilation around the applianceforthedissipationofheat. For thisreason, sufficientclearspaceshould beavailablearoundtherefrigerator.

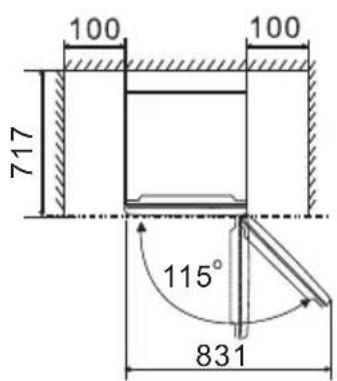

Suggest: Itisadvisablefortheretobe 50-70mmofspacefromthebacktothe wall, atleast100mmfromitstop, atleast 100mmfromitssidetothewallanda clearspaceupfronttoallowthedoorsto open115°. Asshowninfollow diagrams.

100 50-70mm x 100

100 100 717 115° 831

Note:

- This appliance performs well within the climate class from SN to ST showed in the table below. It may not work properly if being left at a temperature above or below the indicated range for a long period.

Climateclass	Ambienttemperature
SN	+10°Cto+32°C
N	+16°Cto+32°C
ST	+16°Cto+38°C

● Standyourapplianceinadryplaceto avoidhighmoisture.
- Keep the appliance out of direct sunlight, rain or frost. Stand the appliance away from heatsourcess such as stoves, firesorheaters.

Levelingofappliance

●Forsufficientlevelingandair circulatinginthelowerrearsectionof theappliance,thebottomfeetmay needtobeadjusted.Youcanadjust themmanuallybyhandorbyusinga suitablespanner.

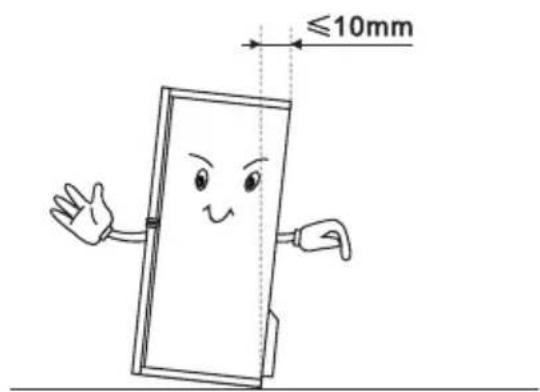

● To allow the door to self-close, till the top backwards by about 10mm.

≤10mm

Reversing the door

The side at which the door opens can be changed, from the right side (as supplied) to the left side, if the installation site requires.

Warning! When reversing the door, the appliance must not be connected to the mains. Ensure that the plug is removed from the mains socket.

Tools you will need

Notprovided
8mmsocketwrench	Thin-bladescrewdriver
Cross-shapedscrewdriver	8mmwrench

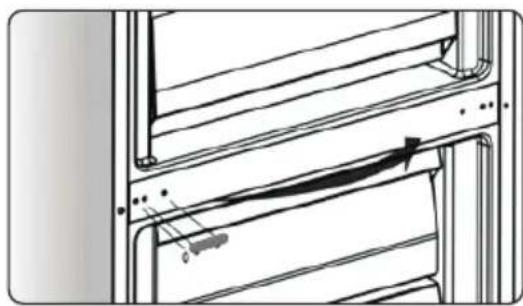

- When required, tilt the refrigerator back in order to gain access to the base, you should rest the appliance on soft foam packaging or similar material to avoid damaging the backboard of the refrigerator. To reverse the door, the following steps are generally recommended. Different models may correspond to different pictures. Models will be written in the picture. If some parts are not shown in the picture, please ignore the relevant description.

1. Stand the refrigerator upright. Open the upper door to take out all door racks (to avoid racks damaged) and then close the door.

Door racks

1. Remove part loose part from the top right side of refrigerator.

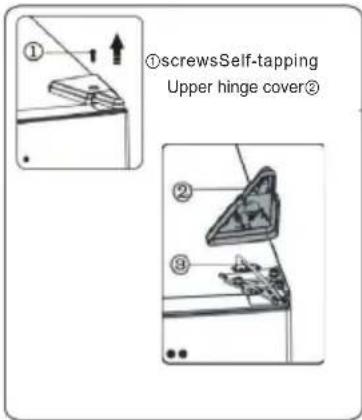

①screwsSelf-tapping Upper hinge cover②

1. Remove screws and hinge ②. When the refrigerator with display on door, you need to pass connector through the hole of hinge (Please hold upper door by hand when installing).

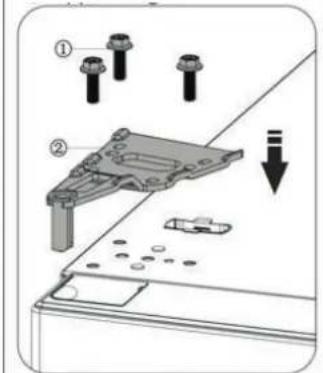

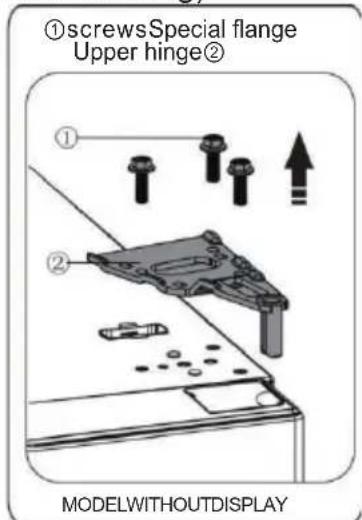

①screwsSpecial flange Upper hinge② ① ② MODELWITHOUTDISPLAY

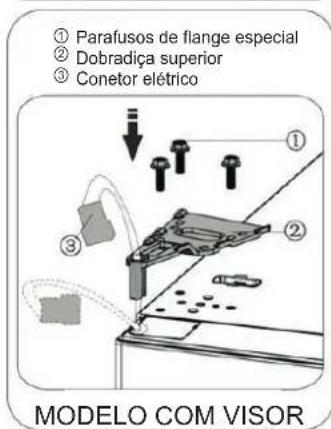

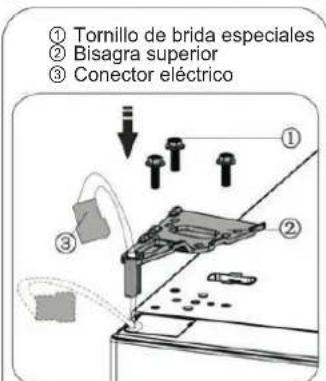

①screwsSpecial flange ② Upper hinge ③ Electrical connector MODELWITHDISPLAY

1. Remove the upper door from the middle hinge by carefully lifting the door straight up. Then place the upper door on a smooth surface with its upper cover upwards.

Line drawing of a door with two hands opening, showing an upward arrow (no text or symbols)

1. When the refrigerator with a display on door, take screw hole cover(right) from plastic bag and install it onto the top right side of refrigerator body. Then remove screw hole cover(left) from the top left side of appliance and put it into plastic bag.

When the refrigerator without a display on door, pull out screw hole cover from the left side up rightly, and fix it on the right side.

Screw hole cover (right) Screw hole cover (left) MODELWITHDISPLAY Screw hole coverScrew hole cover MODELWITHOUTDISPLAY

1. When the refrigerator with a display on door, remove part from the top left side of upper cover and take out part. Then remove part and put part in the top right side of upper cover. Refer to above operation, install part and part on to the top left side of upper cover. Install part of the top right side of upper cover. When the refrigerator without a display on door, skip this step.

① other coverleft ( ) ② (Electrical connectorleft ③ Corner coverright ④ (Electrical connectorright) ① ② ③ ④ ① ② ③ MODELWITHDISPLAY

1. Loose screwan® take down partand part, Insta® replacement door stopper-left ④ provided (in the plastic bag) and part ② (stop block) to the left side with screw. Keep partwith the appliance for future reference.

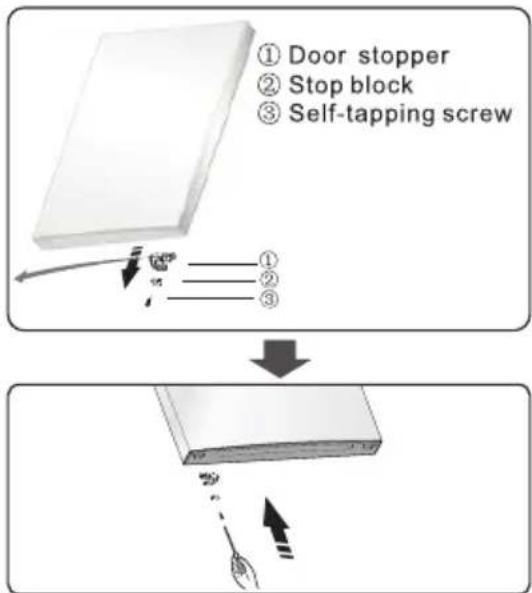

① Door stopper ② Stop block ③ Self-tapping screw

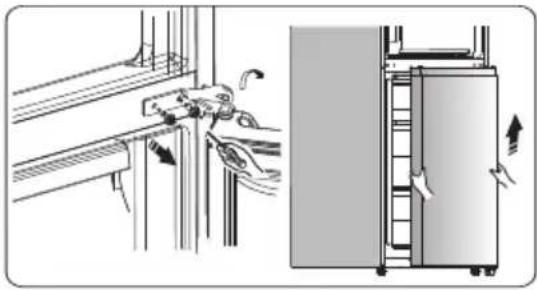

1. Loose screws used to fix the middle hinge and remove middle hinge. Then remove the lower door.

Diagram showing a door handle mechanism and its exterior view of a refrigerator with airflow arrows (no text or symbols)

1. Place the lower door on a smooth surface with its panel upwards. Loose screw and take down part ② and part, install replacement door stopper-left provided (in the plastic bag) and part (stop block) to the left side with screw. Keep part with the appliance for future reference.

1. Changescrew hole covers on middle cover plate from left to right (as shown in figure below).

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Tip the refrigerator backwards, remove part ②.

① ② ③ ④ ⑤ ①Lower hinge part (right) ② Adjustable bottom feet part ③ Adjustable bottom feet part ④ Self-tapping screws ⑤ Adjustable bottom feet part

1. Remove part from the lower hinge pin, loose out the lower hinge pin, change it to the reverse hole site, and then tighten into position, then install part on the lower hinge pin.
2. Replace the items remount in step 11, change part to eftand , then fix them with screws install part at last.

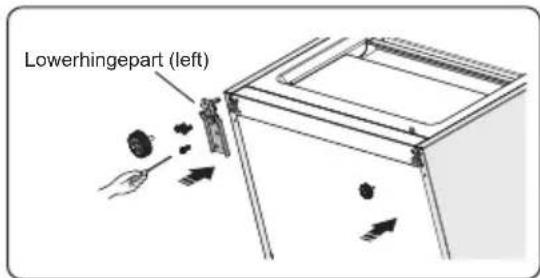

Lowerhingepart (left)

1. Slot the lower door onto the bottom hinge pin and hold in position. Turn the middle hinge by 180^ , change the washer on the axis to the lower side, adjust the middle hinge to the appropriate position and then install it ensuring the lower door in secured place.

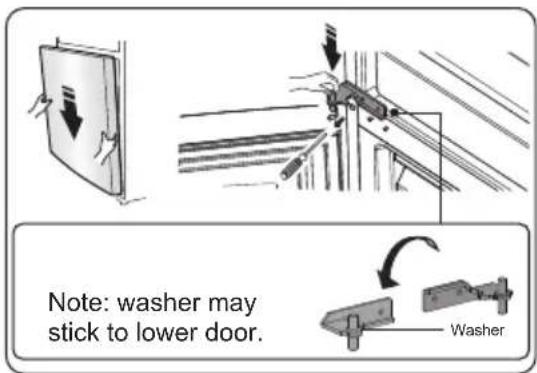

Note: washer may stick to lower door. Washer

1. Move the upper door to an appropriate position, and then fix

part by screws. Before fix part, ② pass connector through hinge ② refer to step 3. (Please hold upper door by hand when installing)

Illustration of a refrigerator with a downward arrow indicating compression or cooling (no text or symbols present)

①Special flange screws

②Upper hinge

Technical diagram showing mechanical assembly with numbered components and directional arrow indicating motion or force

MODELWITHOUTDISPLAY

① Special flange screws ② Upper hinge ③ Electrical connector

MODELWITHDISPLAY

1. Connect electrical connector ① as shown in the picture, then fix part ② by screwrefer to step 2.

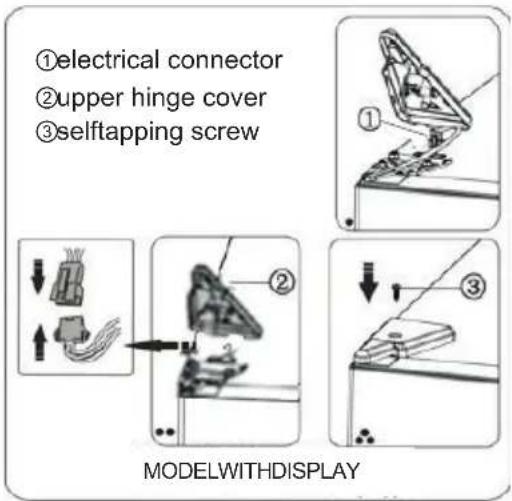

①electrical connector ②upper hinge cover ③selftapping screw MODELWITHDISPLAY

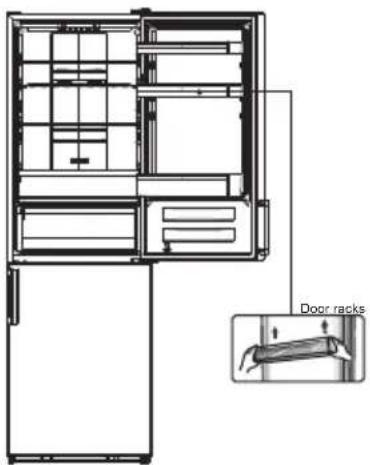

1. Open the upper door, mount door racks and then close it.

Note:

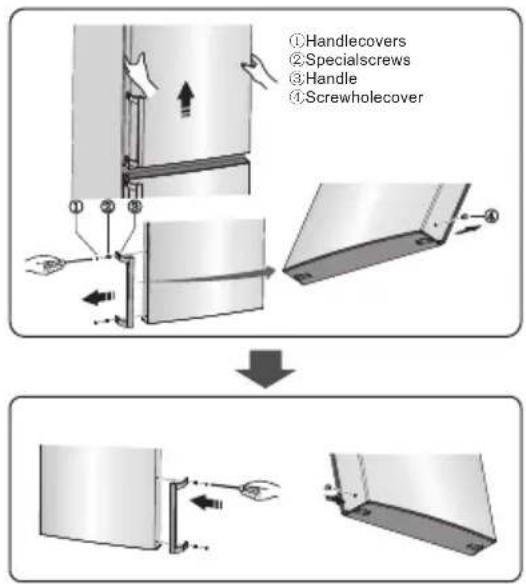

If your appliance has handle, you have to reverse handle by follow instructions below. Remove the upper door and place it on a smooth surface with its panel upwards. Lever part and part, then loose screws, as shown in the picture. Change handle to the right side, then install screws, ② part and part in turn

①Handlecovers ②Specialscrews ③Handle ④Screwholecover

Descriptionoftheappliance

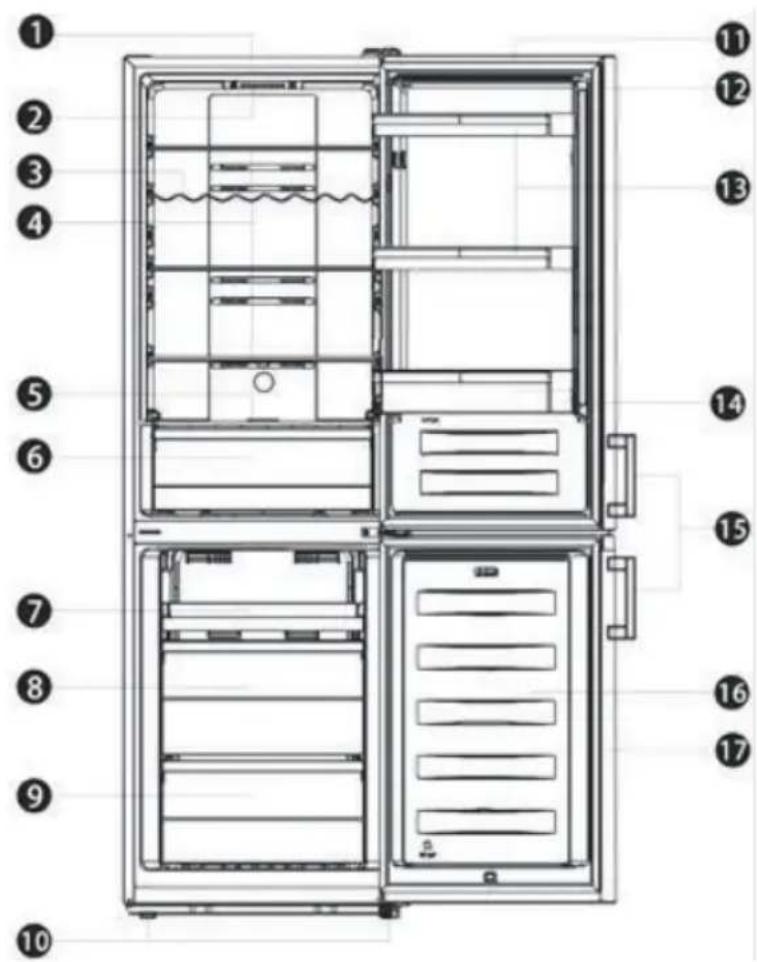

The view of an appliance with dispenser

Technical diagram of a refrigerator with numbered components for identification

1. Cabinet
2. LED light & thermostat control
3. Wine shelf(alternative)
4. Glass shelves
5. Crisper cover
6. Crisper
7. Tray(alternative with a upper drawer)
   8.Middle drawer

8. Lower drawer
   10.Adjustable feet

9. Refrigerator door

10. Refrigerator door gasket
11. Upper rack
    14.Middle rack
12. Water tank
13. Lower rack
14. Handle(optional)
    18.Freezer door
    19.Freezer door gasket
    20.Accessories

Note:

• Due to unceasing modification of our products, some parts of your refrigerator may be slightly different from this instruction manual, but its functions and using methods remain the same.
• To get more space in the freezer, you can remove drawers(except the bottom drawer in freezer!) .To get the best energy of this product, please place all shelves drawers on their original position as the illustration above.

Descriptionoftheappliance

The view of an appliance without dispenser

Technical diagram of a refrigerator with numbered labels pointing to different interior compartments

1. Cabinet
2. LED light & thermostat control
3. Wine shelf(alternative)
4. Glass shelves
5. Crisper cover
   6.Crisper

6. Tray(alternative with a upper drawer)
   8.Middle drawer

7. Lower drawer
   10.Adjustable feet

8. Refrigerator door
9. Refrigerator door gasket
10. Upper rack(X2)
11. Lower rack
12. Handle(optional)
    16.Freezer door
    17.Freezer doorgasket

Note:

• Due to unceasing modification of our products, some parts of your refrigerator may be slightly different from this instruction manual, but its functions and using methods remain the same.
• To get more space in the freezer, you can remove drawers(except the bottom drawer in freezer!) .To get the best energy of this product, please place all shelves drawers on their original position as the illustration above.

Descriptionoftheappliance

The view of an appliance with display on door

Technical diagram of a refrigerator with numbered parts for identification

1. Cabinet
   2.LED light
   3.Wine shelf(alternative)
2. Glass shelves
3. Upper crisper
4. Crisper cover
5. Lower Crisper
6. Upper drawer
   9.Middle drawer
7. Lower drawer
   11.Adjustable feet
8. Refrigerator door
9. Refrigerator door gasket
10. Upper rack(X2)
11. Lower rack
12. Handle(optional)
    17.Freezer door
    18.Freezer door gasket
13. Accessories

Note:

- Due to unceasing modification of our products, some parts of your refrigerator may be slightly different from this instruction manual, but its functions and using methods remain the same.

- To get more space in the freezer, you can remove drawers(except the bottom drawer in freezer!) .To get the best energy of this product, please place all shelves drawers on their original position as the illustration above.

Displaycontrols

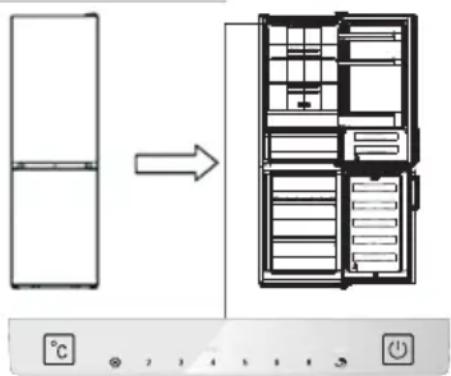

Display panel inside door

User your appliance according to the following control regulations, your appliance has the corresponding functions and modes as the display panels showed in the pictures below. Whentheapplianceispoweredonforthe firsttime,thebacklightingoftheiconson displaypanelstartsworking.Ifnobuttons havebeenpressedandthedoorsare closed,thebacklightingwillturnoff.

Diagram showing refrigerator interior layout with temperature control buttons and directional arrow

Display panel inside door

Controllingthetemperature

For optimum food preservation, Werecommendthatwhenyoustartyour refrigeratorforthefirsttime,the temperaturefortherefrigeratorissetto 4° C.Ifyouwanttochangethe temperature,followtheinstructionsbelow

.NOTE:High temperature setting will accelerate food waste. Caution!

When you set a temperature, you set an average temperature for the whole refrigerator cabinet. Temperatures inside each compartment may vary from the temperature values displayed on the panel, depending on how much food you store and where you place them. Ambient temperature may also affect the actual temperature inside the appliance.

Fridge

- Press “°C” to set fridge temperature between 2°C and 8°C as needed, and displaypanelwilldisplaycorresponding valuesaccordingtothefollowing sequence.

Note: Whenthe“ ” islighted, the holiday mode is activated. Check the Holiday mode instruction.

SuperFreeze()

SuperFreezewillquicklylowerthe temperaturewithinthefreezersofoodwill freezefaster. Thiscanlockinthevitamins andnutrientsoffreshfoodandkeepfood freshlonger.

• Youcanpress“ ℃” for3sectogetinto superfreezemode.
• When Superfreeze Mode is selected, the light will be illuminated and the freezer temperature will be set at -24°C.
• Incaseofthemaximumamountoffood tobefrozen,pleasewaitabout24h.
• Superfreezeautomaticallyswitchesoff after52hoursandthenthefreezer temperaturesettingwillrevertbacktothe previoussetting.

Holiday()

If you are going to be away for along period of time, press " ℃", you can activate this function.

- WhenHolidayModeisactivated, the lightwillbeilluminated. Thefreezer temperaturewillbesetat-18°Candthe fridgetemperaturewillbesetat15°C.

Important! Donotstoreanyfoodinthe fridgeduringthistime.

3. Switch() (displaypanelinside door)

Youcanswitchonorswitchchoffyour

appliancebypressthisbutton.

- Press" 🔊 " for3seconds,aftera buzzersound,theappliancewillbe turnedoff.

- Press" [+] " for1seconds,aftera buzzer sound,the appliance will be turned on.

Displaycontrols

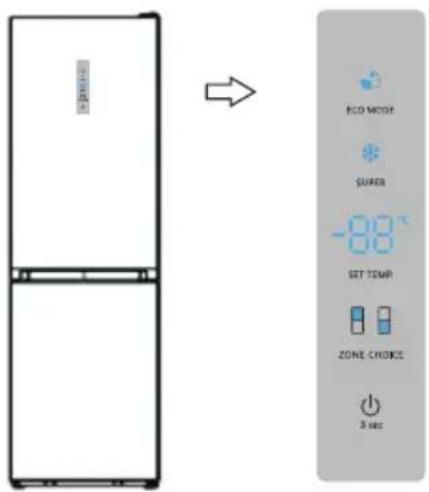

Display panel on door

ECONOMY SURGER -88°C SET TEM ZONE CHOICE 3 sec

Display panel on door

Controlling the temperature

For optimum food preservation, We recommend that when you start your refrigerator for the first time, the temperature for the refrigerator is set to 4°C. If you want to change the temperature, follow the instructions below.

NOTE: High temperature setting will accelerate food waste.

Caution!

When you set a temperature, you set an average temperature for the whole refrigerator cabinet. Temperatures inside each compartment may vary from the temperature values displayed on the panel, depending on how much food you store and where you place them. Ambient temperature may also affect the actual temperature inside the appliance.

Fridge

- Press "ZONE CHOICE", the " "light willturnon. Then press" SETTEMP.", you can set fridgetemperature between 2°C and 8°C as needed, and display panel will display corresponding values according

tothefollowingsequence.

Freezer

Press"ZONECHOICE",whenthe" lightturnson.Thenpress"SETTEMP", youcansetfreezertemperaturebetween -14°Cand-24°Casneeded,andthe displaypanelwilldisplaycorresponding valueaccordingtothefollowing sequence.

SuperFreeze()

SuperFreezewillquicklylowerthe temperaturewithinthefreezersofoodwill freezefaster. Thiscanlockinthevitamins andnutrientsoffreshfoodandkeepfood freshlonger.

• Youcanpress"SUPER"togetinto superfreezermode.
• WhensuperfreezeModeisselected, thelightwillbeilluminatedandthefreezer temperaturewillbesetat-24°C.
• Incaseofthemaximumamountoffood tobefrozen,pleasewaitabout24h.
  ● Superfreezeautomaticallyswitchesoff after52hoursandthenthefreezer temperaturesettingwillrevertbacktothe previoussetting.

Ecoenergy

This function makes the freezerworkina powersaving modewhichis useful for reducing energy consumption when you are away.

• Youcanpress "ECOMODE" toget into economic energy mode.
• WheneconomicenergyModeis

activated, the light will be illuminated. The freezertemperature will besetat-17°C and the fridgetemperature will besetat 6°C.

Switch

Youcanswitchonorswitchoffyour appliancebypressthisbutton.

- Press“ ⏻” for3seconds,afterabuzzer sound,meanwhilethedigitallightwill show“OF”,theappliancewillbeturned off.

- Press“”for 3 seconds, after a buzzersound, the appliance will be turned on.

Alarm

• Whenthedooroffridgehasbeen openedforover2minutes,thedooralarm willsound.Incaseofdooralarm,buzzer willsound3timesevery1minuteandwill stopalarmingautomaticallyafter8 minutes.
• Tosaveenergy, please avoid keeping the door open for a long time when using the appliance. Thedoor alarm can also be cleared by closing the door.

Usingyourappliance

Your appliance is supplied with a number of accessories and this section describes how best to use them.

Door rack

- Itissuitableforthestorageofeggs, cannedliquid,bottleddrinksandpacked food,etc.Donotplacetoomanyheavy thingsintheracks.

Illustration of two hands holding a transparent cylindrical object with upward arrows indicating motion or force (no text or symbols)

Shelf in Refrigerator chamber

- Therearethreeshelvesinrefrigerator chamber, and they can be taken out to be cleaned.

Illustration of a hand placing a rectangular object on a shelf with an arrow symbol (no text or labels)

Extrafreshbox(optional)

- Incertainmodel,therewillbeanextra freshbox(drawer).Inthisdraweryoucan getalowertemperaturetostorefish, meatandothererodiblefood. temporarily Normallyitwillbeabout2°Clowerthan theotherpartofthefreshcompartment. Youcanmovetheslidebartosetthe temperature.Therearesome recommendationsinthebelowtable whichyoucanconsult.

fridge temp. set	slide bar	food	storage period
2°C	right most	fish&meat	<3 days
5°C	right most	fruit	<2 weeks
8°C	right most	vegetables	<5 days

Note: Duetotheenvironment temperatureandsetting temperaturebothinfluencethe temperatureofextrafresh box(drawer),theactualtemperature maychangeinacertainrange. Thetemperatureofthisdrawermay lowerthanzero,soitisnormalthat liquidinthisdrawerwasfrozen.

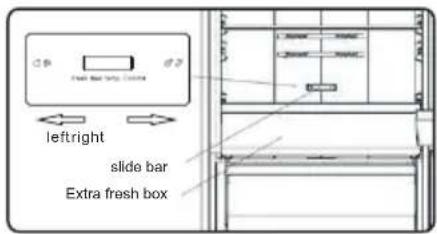

CP Free Bar Tray Control leftright slide bar Extra fresh box

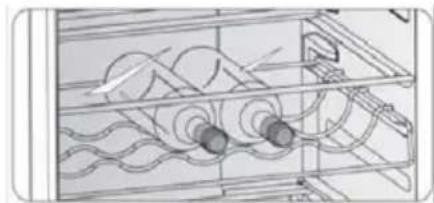

Flexiblewinerack

- Itisforstoringbottledwineordrinks, anditcanbetakenouttoclean.

Technical line drawing of a mechanical assembly with rollers and housing (no text or symbols)

Crisper cover

- Itisforcontrollingthetemperatureofthe crisperandavoidingthevegetablelosing moisture. - Youcanadjusttheslidebaronthe crispercovertokeepdifferenthumidityin thecrisper.Pushtheslidebartotheleft, youwillkeepahigherhumiditywhichcan storagevegetableandfruitlongand fresh,totherightwillbelowerhumidity.

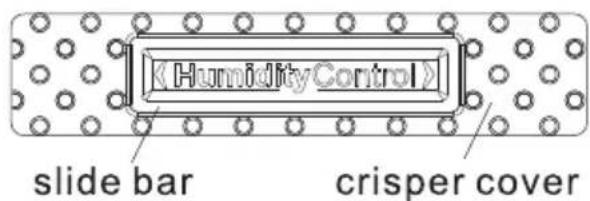

(HumidityControl) slide bar crisper cover

Fruit and vegetable crisper

- Itissuitableforthestorageoffruitsand vegetable.

Freezer Drawer

- Itisusedtostorefoodwhichneedstobe frozen,includingmeat,fish,icecream, etc.

Ice cube tray

- Itisusedtomakeicecubes.Tomakeice cubes,pleasefillwaterintotheicecube traysandthewaterlevelshallnotexceed thetopline(ideallyeightypercentofthe icetrayvolume).Placethetrayintothe freezerdrawerandwaitatleasttwohours fortheicecubestobeformed.Afterthe cubesareformed,gentlytwistthetrayto separatethecubesandtrays.

Line drawing of two hands holding a grid device, no text or symbols present

Water Dispenser

The water dispenser, located in the fridge door, is for storing drinking water. With this appliance you can obtain chilled water easily without opening the refrigerator. You should be informed of following tips.

BeforeUsing

Before using this appliance for the first time, you should use it as follows.

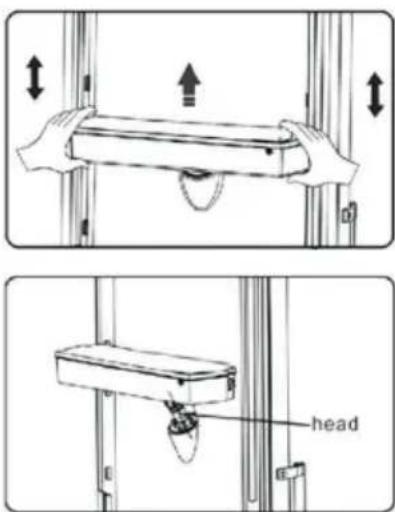

Technical diagram showing two steps of a mechanical assembly with labeled head component

1. Take out the middle rack.
2. Hold the two sides of the water tank tightly, then pull up the water tank by shaking up and down.
3. Unscrew the head, then cleanit and the inside of water tank.

●Assembling

Before assembling, please drain the water inside the tank, and check whether the washer reversed or not.

1. Insert the head into the hole.
2. Fit the tank along the guides on the door.
3. Press down two side of the tank.
4. When you hear a click sound, that means the installation is completed.

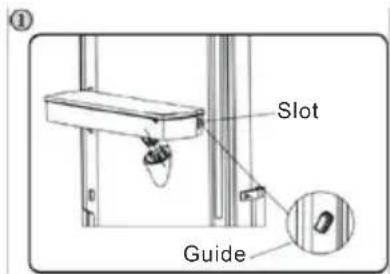

Slot Guide

Technical line drawing of a mechanical assembly with a suspended component (no text or symbols)

Diagram showing hands holding a rectangular object with downward arrows indicating motion or force, possibly illustrating a mechanical or electrical setup.

Technical line drawing of a mechanical assembly or bracket (no text or symbols visible)

Warning!

1. Becareful not topress on the head;
2. When fitting the water tank, ensure the head inserted into the

hole first.

●Fillingwater

Before you fill the drinking water into the watertank, ensure that the water tank is steady and in a correct position.

Caution!

Fill with water up to 3L(which is suggested), and not above the level. Otherwise, it may overflow when the lid is close.

1. We recommend that you fill the water by the following way.
   2.Open the small lid by rotating it, and fill water from the inlet of the large lid. Please remember rotate the small lid back to it's original position when finish filling water.

Small lid

Large lid Head

Warning!

Don't touch other parts of the appliance when filling water, it may cause the water leakage.

Dispensing water

1. Make sure the cover of the water tank is fitted on.
2. Close the fridge door and check the dispenser.

Receiving Water

You should use the correct cup to receive water underneath the water dispenser.

Warning!

Don't push the dispenser lever forward without cup, it may cause the water leak from the dispenser.

Receiving tank

- Cleaning

1. Put the water tank out of the door carefully, and then wash the tank, lid and head lightly in water.
2. After you have successfully cleaned the appliance, you should dry it by natural drying or using the dryer.
3. If you have used the water dispenser for many times, the water in the receiving tank may drop on the floor, which may make your floor wet, and you should clean the tank with dry towel regularly before overflow.

Dispenser lever Suggested position

Helpfulhintsandtips

Energysavingtips

Werecommendthatyoufollowthetips belowtosaveenergy.

●Trytoavoidkeepingthedooropenfor longperiodsinordertoconserveenergy.
- Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc)
- Don'tsetthetemperaturecolderthan necessary.
- Don't store warm food over evaporating liquid in the appliance.
- Placetheapplianceinawellventilated, humidityfree,room.Pleasereferto Installingyournewappliance chapter.
- Ifthediagramshowsthecorrect combinationforthedrawers,crisperand shelves,donotadjustthecombinationas thisisdesignedtobethemostenergy efficientconfiguration.

Hintsforfreshfoodrefrigeration

• Donotplacehotfooddirectlyintothe refrigeratororfreezertheinternal temperaturewillincreaseresultinginthe compressorhavingtoworkharderand willconsumemoreenergy.
  ●Docoverorwrapthefoodparticularlyif ithasastrongflavor.
  ●Placefoodproperlysothataircan circulatefreelyaroundit.

Hintsforrefrigeration

●Meat(AllTypes)Wrapinpolythene food:wrapandplaceontheglassshelf abovethevegetabledrawer.Always followfoodstoragetimesanduseby datessuggestedbymanufacturers.
●Cookedfood, colddishes, etc.: They should be recovered and maybe placed on any shelf.
●Fruitandvegetables: Theyshouldbestoredinthespecial drawerprovided.
- Butterandcheese: Shouldbewrappedinairtightfoilor plasticfilmwrap.

- Milkbottles: Shouldhavealidandbestoredinthe doorracks.

Hintsforfreezing

• Whenfirststarting-uporafteraperiod outofuse,lettheappliancerunatleast2 hoursonthehighersettingsbefore puttingfoodinthecompartment.
  ●Preparefoodinsmallportionstoenable ittoberapidlyandcompletelyfrozenand tomakeitpossibletosubsequentlythaw onlythequantityrequired.
• Wrapupthefoodinaluminumfoilor polyethylenefoodwrapswhichare airtight.
• Donotallowfreshunfrozenfoodto touchthefoodwhichisalreadyfrozento avoidtemperatureriseofthelatter.
• Icedproductsifconsumedimmediately afterremovalfromthefreezer compartmentwillprobablycausefrost burnstotheskin.
• Itisrecommendedtolabelanddate eachfrozenpackageinordertokeep trackofthestoragetime.

Hintsforthestorageoffrozenfood

• Ensure that frozen food has been stored correctly by the food retailer.
• Oncedefrostedfoodwilldeteriorate rapidlyandshouldnotbere-frozen.Do notexceedthestorageperiodindicated bythefoodmanufacturer.

Switchingoffyourappliance

If the applianceneedstobeswitchedoff foranextendedperiodthefollowing stepsshouldbetakenpreventmouldon the appliance.

1. Removeallfood.
2. Removethepowerplugfromthemains socket.
3. Cleananddrytheinteriorthoroughly.
4. Ensure that all the doors are wedged, openly to allow airtocirculate.

Cleaningandcare

Forhygienicreasonstheappliance (includingexteriorandinterior accessories)shouldbecleanedregularly (atleasteverytwomonths).

Warning!

Theappliancemustnotbeconnectedto themainsduringcleaningasthereisa dangerofelectricalshock!Before cleaningswitchtheapplianceoffand removetheplugfromthemainssocket.

Exteriorcleaning

Tomaintaingoodappearanceofyour appliance,youshouldcleanitregularly.

● Wipethecontrol panel with a clean, soft cloth.
- Spraywaterontothecleaningcloth insteadofsprayingdirectlyonthesurface oftheappliance. Thishelpsensureaneven distributionofmoisturetothesurface.
- Cleanthedoors, handles and cabinet surfaces with amilddetergent and then wiped dry with asoft cloth.

Caution!

• Don'tusesharpobjectsastheyare likelytoscratchthesurface.
• Don'tuse Thinner, Cardetergent, Clorox, etherealoil, abrasive cleanser organic solvents such as Benzenefor cleaning. They may damage the surface of the appliance and may cause fire.

Interiorcleaning

Youshouldcleantheapplianceinterior regularly.Itwillbeeasiertocleanwhen foodstocksarelow.Wipetheinsideofthe fridgefreezerwithaweaksolutionof bicarbonateofsoda,andthenrinsewith warmwaterusingawrung-outspongeor cloth.Wipecompletelydrybefore replacingtheshelvesandbaskets. Thoroughlydryallsurfacesand removablepartsbeforeputtingthem backintoplace.

Although this appliance automatically defrosts, alayeroffrostmayoccuronthe freezercompartment'sinteriorwallsifthe freezerdoorisopenedfrequentlyorkept opentoolong.Ifthefrostistoothick, chooseatimewhenthefreezerisnearly emptyandproceedasfollow:

1. Remove existing food and accessories baskets, unplug the appliance from the mains power and leavethedores open. Ventilatetheroom thoroughly to acceleratethe process.
2. Whendefrostingiscompleted, clean yourfreezerasdescribedabove.

Caution!

Donotusesharpobjectstoremovefrost fromthefreezercompartment.Onlyafter theinterioriscompletelydryshouldthe appliancebeswitchedbackonand pluggedbackintothemainssocket.

Doorsealscleaning

Takecaretokeepdoorsealsclean. Stickyfoodanddrinkscancausesealsto sticktothecabinetandtearwhenyou openthedoor.Washsealwithamild detergentandwarmwater.Rinseanddry itthoroughlyaftercleaning.

Caution! Onlyafterthedoorsealsare completelydryshouldtheappliancebe poweredon.

ReplacingtheLEDlight:

Warning:TheLEDlightmustnotbe replacedbytheuser!IftheLEDlightis damaged,contactthecustomerhelpline forassistance.

Troubleshooting

If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below.

Warning! Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product.

Problem	Possiblecause&Solution
Applianceisnot workingcorrectly	Checkwhetherthepowercordispluggedintothepower outletproperly.
	Checkthefuseorcircuitofyourpowersupply,replace ifnecessary.
	Itisnormalthatthefreezerisnotoperatingduringthe defrostcycle,orforashorttimeaftertheapplianceis switchedontoprotectthecompressor.
Odoursfromthe compartments	Theinteriormayneedtobecleaned
	Somefood,containersorwrappingcauseodours.
Noisefromtheappliance	Thesoundsbelowarequitenormal:Compressorrunningnoises.Airmovementnoisefromthesmallfanmotorinthe freezercompartmentorothercompartments.Gurglingsoundsimilartowaterboiling.Poppingnoiseduringautomaticdefrosting.Clickingnoisebeforethecompressorstarts.
	Otherunusualnoisesareduetothereasonsbelowand mayneedyoutocheckandtakeaction:Thecabinetisnotlevel.Thebackofappliancetouchesthewall.Bottlesorcontainersfallenorrolling.
Themotorruns continuously	Itisnormaltofrequentlyhearthesoundofthemotor,itwill needtorunmorewheninfollowingcircumstances:Temperaturesendicobetham necessaryLargequantityofwarmfoodhasrecentlybeenstored withintheappliance.Thetemperatureoutsidetheapplianceistoohigh.Doorsarekeptopentoolongortoooften.Afteryourinstallingtheapplianceorithasbeenswitched offforalongtime.
Alayeroffrostoccurs inthecompartment	Checkthattheairoutletsarenotblockedbyfoodand ensurefoodisplacedwithintheappliancetoallow sufficientventilation.Ensurethatdoorisfullyclosed.To remove the frost, please refer to the“Cleaning and care” chapter.
Temperatureinsideis toowarm	Youmayhaveleftdoorsopentodongortoo frequently;orthedoorsarekeptopenbysomeobstacle; ortheapplianceislocatedwithinsufficientclearanceat thesides,backandtop.
Temperatureinside istoocold	Increasethetemperaturebyfollowingthe“Displaycontrols” chapter.
Doorscan’tbe closedeasily	Checkwhetherthetopoftherefrigeratoristiltedbackby 10-15mmtoallowthedoorstoselfclose,orifsomething insideispreventingthedoorsfromclosing.
Waterdrips onthefloor	Thewaterpan(locatedattherearbottomofthecabinet) maynotbeproperlyleveled,orthedrainingspoutunder neaththetopofthecompressordepotmaynotbeproperly positionedtodirectwaterintothispan,orthewaterspoutis blocked.Youmayneedtopulltherefrigeratorawayfromthe walltocheckthepanandspout.Checkiftherefrigeratorispower-offforalongtime,thismay causetheiceinthebuckettomeltintowater,andflowtothe floor.
Thelightisnotworking	●TheLEDlightmaybedamagedRefertoreplaceLED lightsincleaningandcarechapter.●Thecontrolsystemhasdisabledthelightsduetothe doorbeingkeptopentoolong,closeandreopensthedoor toreactivatethelights.

Disposaloftheappliance

Itisprohibited to dispose of this appliance as household waste.

Packagingmaterials

Packagingmaterialswiththerecyclesymbolarerecyclable. Dispose of the packaging into asuitable waste collection container recycleit.

Beforedisposaloftheappliance

1. Pulloutthemainsplugfromthemainssocket.
2. Cutoff the power cord and discard with themains plug.

Warning! Refrigeratorscontainrefrigerantandgasesintheinsulation. Refrigerant and gasesmustbedisposedofprofessionallyastheymaycauseeyeinjuriesor ignition.Ensurethattubingoftherefrigerantcircuitisnotdamagepriortoproper disposal.

Correct Disposal of this product

Thissymbolontheproductorinitspackingindicatesthatthisproduct maynotbetratedashouseholdwaste.Instead,itshouldbetakento theappropriatewastecollectionpointfortherecyclingofelectricaland electronicequipment.Byensuringthisproductisdisposedofcorrectly, youwillhelppreventpotentialnegativeconsequencesforthe environmentandhumanhealth,whichcouldotherwisebecausedby theirinappropriatewastehandlingofthisproduct.Formoredetailed informationabouttherecyclingofthisproduct,pleasecontactyour localcouncilyourhouseholdwastedisposalservice,ortheshopwhere youpurchasedtheproduct.

To avoid contamination off food, pleaserespect the following instructions:

-Openingthedoorforlongperiodscancauseasignificantincreaseofthe temperatureinthecompartmentsoftheappliance.
-Cleanregularlysurface that can come in contact with food and accessible drainage systems.
-Storerawmeatandfishinsuitablecontainersintherefrigerator,sothatitisnotin contactwithordripontoootherfood.
-Two-starfrozen-food compartmentsaresuitableforstoringpre-frozenfood,storingormakingicecreamandmakingicecubes.
-One-, two-and three-star compartments are not suitable for the freezing off fresh food.

Order	Compartments TYPE	Target storage temp.[]c	Appropriatefood
1	Fridge	+2~+8	Eggs,cookedfood,packagedfood,fruitsand vegetables,dairyproducts,cakes,drinksand otherfoodswhicharenotsuitableforfreezing.
2	(***)*-Freezer	≤18-	Seafood(fish,shrimp,shellfish),freshwater aquaticproductsandmeatproducts (recommendedfor3months,helongerthe storagetime,theworsethetasteand nutrition),suitableforfrozenfreshfood.
3	***-Freezer	≤18-	Seafood(fish,shrimp,shellfish),freshwateraquatic productsandmeatproducts(recommendedfor3 months,thelongerthestoragetime,theworsethe tasteandnutrition),frozenotsuitablefor food.
4	**-Freezer	≤12-	Seafood(fish,shrimp,shellfish),freshwater aquaticproductsandmeatproducts (recommendedfor2months,thelongerthestorage time,theworsethetasteandnutrition), arenotsuitableforfrozenfreshfood.
5	*-Freezer	≤6	Seafood(fish,shrimp,shellfish),freshwater aquaticproductsandmeatproducts (recommendedfor1month,thelongerthestorage time,theworsethetasteandnutrition), arenotsuitableforfrozenfreshfood.
6	0-star	-6~0	Freshpork,beef,fish,chicken,somepackaged processedfoods,etc.(Recommendedtoeatwithin thesameday,preferablynolaterthan3days). Partiallyencapsulatedprocessedfoods(non-freezablefoods)
7	Chill	-2~3+	Fresh/frozenpork,beef,chicken,freshwateraquatic products,etc.(7daysbelow0andAbove0 °C isrecommendedforconsumptionwithinthatday, preferablynomorethan2days). Seafood(lessthan0for15days,itisnot recommendedtostoreabove0) °C
8	Fresh Food	0~4+	Freshpork,beef,fish,chicken,cookedfood,etc. (Recommendedtoeatwithinthesame day,preferablynomorethan3days)
9	Wine	++ 5~20	Redwine,whitewine,sparklingwineetc.

Note: please store different foods according to the compartments or target storage temperature of your purchased products.

-Iftherefrigeratingapplianceisleftemptyforlongperiods,switchoff,defrost,clean,dry,andleavethedooropentopreventmoulddevelopingwithintheappliance.

Contenido

Line drawing of a door with hands opening, showing an upward arrow (no text or symbols)

Diagram showing a door handle adjustment and a refrigerator interior with arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a refrigerator with a downward arrow indicating airflow or ventilation (no text or symbols present)

① Tornillo de brida especiales ② Bisagra superior

Technical diagram showing assembly steps with numbered components and a downward arrow indicating process direction

MODELO SIN PANTALLA

Diagram showing a hand inserting a component into a panel, with no visible text or symbols

Technical diagram of a refrigerator with numbered parts for identification

Technical diagram of a refrigerator with numbered labels pointing to the interior layout.

Technical diagram of a refrigerator with numbered compartments and labeled storage areas

Diagram showing refrigerant insulation process with temperature control panel below

Super Freeze(※)

Congelador

Super Freeze(

Illustration of hands holding a transparent cylindrical object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a shelf item with an arrow symbol (no text or labels)

Technical line drawing of a mechanical assembly with rollers and housing (no text or symbols)

Line drawing of two hands holding a small grid device (no text or symbols)

Tanque receptor

●Limpieza

Line drawing of a door with two hands opening, showing an upward arrow (no text or symbols)

Diagram showing a door lock mechanism and a refrigerator interior with hand gestures (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a refrigerator with a downward arrow indicating a drop, held by hands (no text or symbols present)

① Parafusos de flange especial ② Dobradiça superior MODELO SEM VISOR

① Parafusos de flange especial ② Dobradíça superior ③ Conetor elétrico MODELO COM VISOR

Technical diagram of a refrigerator with numbered labels pointing to different compartments and storage areas.

Technical diagram of a refrigerator with numbered labels pointing to different interior compartments

Technical diagram of a refrigerator with numbered compartments and labeled storage areas

Diagram showing refrigerant insulation process with temperature control panel below

Painel visor dentro da porta

Controlar a temperatura

Super Congelamento(※)

Congelador

Super Congelamento( ✉)

Illustration of hands holding a transparent cylindrical object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a tray with an arrow, no text or symbols present

Technical line drawing of a mechanical assembly with rollers and housing (no text or symbols)

Cobertura da gaveta

Line drawing of two hands holding a grid device (no text or symbols)

Technical diagram showing two mechanical assembly steps with directional arrows and a labeled 'Cancaps' component.

① Ranhura guia

Simple line drawing of a mechanical assembly with a hanging component (no text or symbols)

Diagram showing hands holding a rectangular object with downward arrows indicating motion or force, labeled with number ③.

Technical line drawing of a mechanical assembly with no visible text or symbols

Aviso!
