Notice BLAUPUNKT BLP15P3V2MR32 - page 11
11 / 31
View the manual : English EN Polski PL
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Heat Pump
Brand Blaupunkt
Model BLP15P3V2MR32
Refrigerant R32
Heating Setpoint 45°C (adjustable)
Cooling Setpoint 12°C (adjustable)
Hot Water Temperature 50°C (adjustable)
Temperature Differential 5°C
Power Supply 230 V / 50 Hz
Dimensions (W x H x D) 800 x 600 x 800 mm
Weight 50 kg
Installation Professional installation required
Main Functions Heating, cooling, domestic hot water
Safety Features Overheat protection, error alarm, frost protection
Maintenance Clean filters regularly; annual professional inspection
Spare Parts Availability Authorized service centers
Reparability Serviceable by qualified technicians
Warranty Included (details in manual)

Frequently Asked Questions - BLP15P3V2MR32 BLAUPUNKT

How do I install the Blaupunkt BLP15P3V2MR32 heat pump?
Installation must be carried out by a qualified professional following the detailed instructions in the manual. Ensure proper location, electrical connection, and piping.
What type of refrigerant does this heat pump use?
The heat pump uses R32 refrigerant, which is environmentally friendly and energy-efficient.
Can I adjust the temperature settings?
Yes, you can set the heating setpoint (default 45°C), cooling setpoint (default 12°C), and hot water temperature (default 50°C) via the controller.
How often should I clean the filters?
Filters should be cleaned every 3 months or more frequently in dusty environments to maintain efficiency.
What should I do if the heat pump shows an error code?
Refer to the error code table in the manual. Common issues include sensor faults or system alarms. Contact a technician if needed.
Does the heat pump provide both heating and cooling?
Yes, it is a reversible heat pump capable of both heating and cooling, as well as domestic hot water production.
How long is the warranty period?
Warranty details are provided in the warranty card included with the manual. Typically, it covers 2 years for parts and labor.
Can I use the heat pump with underfloor heating?
Yes, the system is designed to work with underfloor heating and fan coil units as shown in the installation diagram.
What is the recommended maintenance schedule?
Perform annual professional maintenance including refrigerant check, electrical inspection, and cleaning.
Is the heat pump noisy?
Noise levels are typically low (around 50 dB) but may vary depending on installation and load. Ensure proper mounting to minimize vibration.

User questions about BLP15P3V2MR32 BLAUPUNKT

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Heat pump in PDF format for free! Find your manual BLP15P3V2MR32 - BLAUPUNKT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BLP15P3V2MR32 by BLAUPUNKT.

USER MANUAL BLP15P3V2MR32 BLAUPUNKT

WER.:R32-2022V2

BLAUPUNKT BLP15P3V2MR32 - 1

KONSERWACJA I NAPRAWA 26

CZEŚĆ 4.

KARTA GWARANCYJNA 28

Uwaga:

Two workers operating a large industrial fan device connected to a power outlet, with an exclamation mark nearby (no text or symbols on the diagram itself)

Back Front 2000mm

4. INSTALACJA I PRZEWODY POMPY CIEPŁA

4.2. SYSTEM OBIEGU PIERWOTNEGO

SYSTEM OBIEGU WTÓRNEGO

2. WYKRES DYNAMICZNY

SetpointBLAUPUNKT BLP15P3V2MR32 - WYKRES DYNAMICZNY - 1
Heating setp.45°C
Cooling setp.12°C
Temp. diff.5°C
Hotwater setp.50°C
Temp. diff.5°C

INF Comp. current 0A Driving temp. 0.0°C DC bus voltage 0V Comp. frequency 0Hz Evap. temp. 0.0°C Cond. temp. 0.0°C

INFO DC fan 1 speed 0rpm DC fan 2 speed 0rpm DC pump speed 0% DC fan target 0rpm

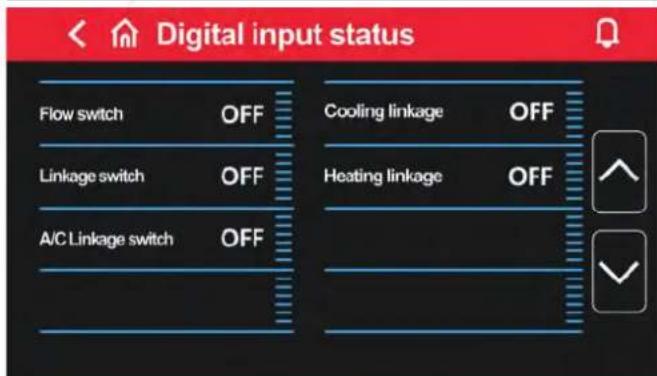

Digital input status Flow switch OFF Cooling linkage OFF Linkage switch OFF Heating linkage OFF A/C Linkage switch OFF

Digital output status DC Pump OFF Three-way valve OFF Chassis heater OFF Heating heater OFF Crank heater ON Hotwater heater OFF

Digital output status Model code 0.0 Version 1.0

  1. BŁĄD WEJŚCIA I ALARM OCHRONY
  1. INNY PROBLEM I NAPRAWA

PUNKTY DOT. GWARANCJI:
