USER MANUAL CLG631SPX CANDY

CANDY HOOVER GROUP S.R.L. • Via Privata Eden Fumagalli • 20047 Brugherio Milano Italy

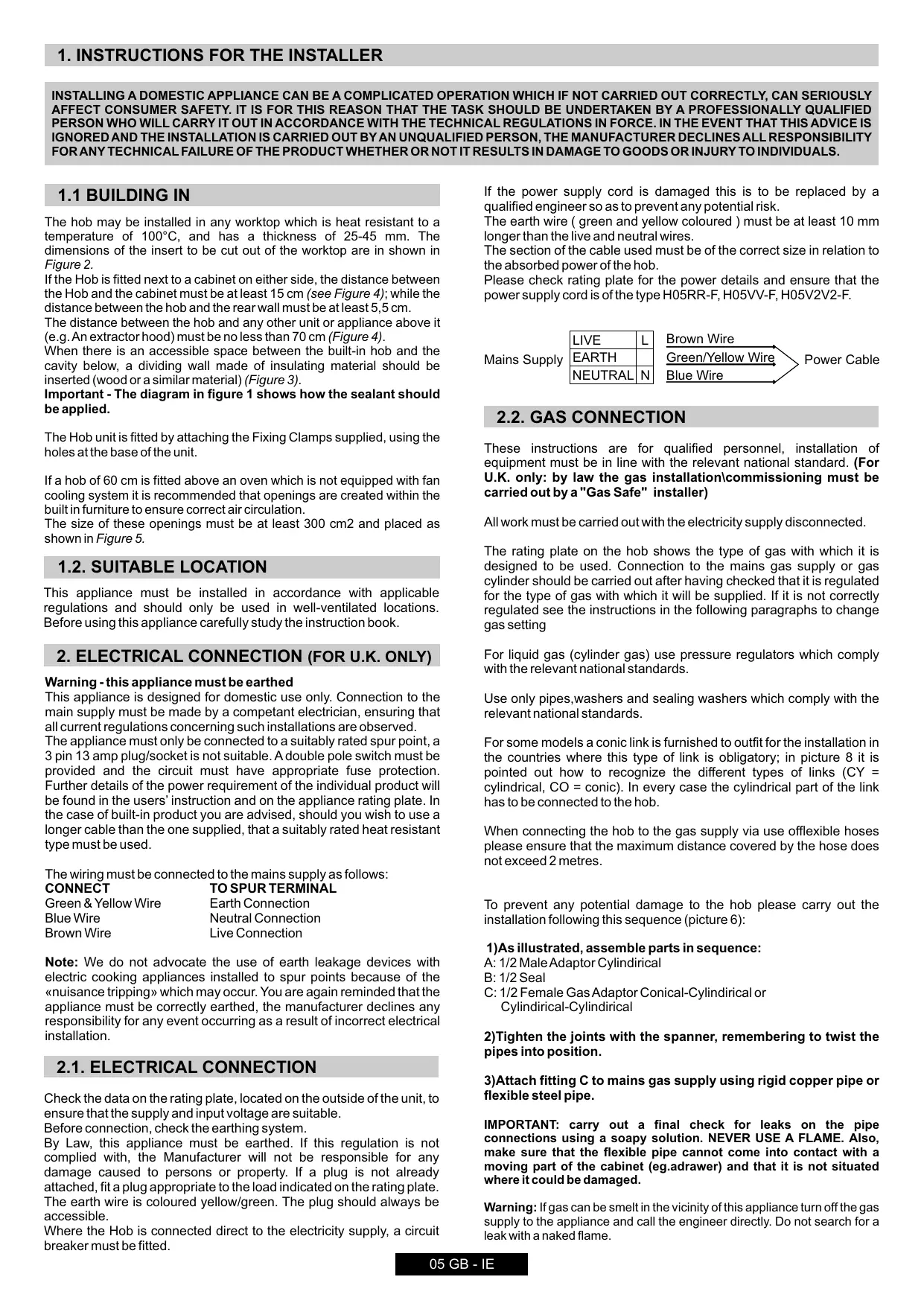

1. INSTRUCTIONS FOR THE INSTALLER INSTALLING A DOMESTIC APPLIANCE CAN BE A COMPLICATED OPERATION WHICH IF NOT CARRIED OUT CORRECTLY, CAN SERIOUSLY AFFECT CONSUMER SAFETY. IT IS FOR THIS REASON THAT THE TASK SHOULD BE UNDERTAKEN BY A PROFESSIONALLY QUALIFIED PERSON WHO WILL CARRY IT OUT IN ACCORDANCE WITH THE TECHNICAL REGULATIONS IN FORCE. IN THE EVENT THAT THIS ADVICE IS IGNORED AND THE INSTALLATION IS CARRIED OUT BY AN UNQUALIFIED PERSON, THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR ANY TECHNICAL FAILURE OF THE PRODUCT WHETHER OR NOT IT RESULTS IN DAMAGE TO GOODS OR INJURY TO INDIVIDUALS.

1.1 BUILDING IN The hob may be installed in any worktop which is heat resistant to a temperature of 100°C, and has a thickness of 25-45 mm. The dimensions of the insert to be cut out of the worktop are in shown in

Figure 2. If the Hob is fitted next to a cabinet on either side, the distance between the Hob and the cabinet must be at least 15 cm (see Figure 4); while the distance between the hob and the rear wall must be at least 5,5 cm. The distance between the hob and any other unit or appliance above it (e.g. An extractor hood) must be no less than 70 cm (Figure 4). When there is an accessible space between the built-in hob and the cavity below, a dividing wall made of insulating material should be inserted (wood or a similar material) (Figure 3). Important - The diagram in figure 1 shows how the sealant should be applied. The Hob unit is fitted by attaching the Fixing Clamps supplied, using the holes at the base of the unit. If a hob of 60 cm is fitted above an oven which is not equipped with fan cooling system it is recommended that openings are created within the built in furniture to ensure correct air circulation. The size of these openings must be at least 300 cm2 and placed as shown in Figure 5.

1.2. SUITABLE LOCATION This appliance must be installed in accordance with applicable regulations and should only be used in well-ventilated locations.

Before using this appliance carefully study the instruction book.

2. ELECTRICAL CONNECTION (FOR U.K. ONLY)

Warning - this appliance must be earthed This appliance is designed for domestic use only. Connection to the main supply must be made by a competant electrician, ensuring that all current regulations concerning such installations are observed. The appliance must only be connected to a suitably rated spur point, a 3 pin 13 amp plug/socket is not suitable. A double pole switch must be provided and the circuit must have appropriate fuse protection. Further details of the power requirement of the individual product will be found in the users’ instruction and on the appliance rating plate. In the case of built-in product you are advised, should you wish to use a longer cable than the one supplied, that a suitably rated heat resistant type must be used. The wiring must be connected to the mains supply as follows: CONNECT TO SPUR TERMINAL Green & Yellow Wire Earth Connection Blue Wire Neutral Connection Brown Wire Live Connection

If the power supply cord is damaged this is to be replaced by a qualified engineer so as to prevent any potential risk.

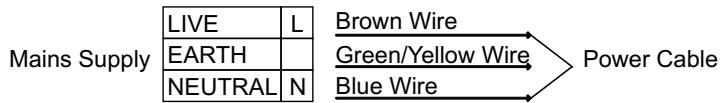

The earth wire ( green and yellow coloured ) must be at least 10 mm longer than the live and neutral wires. The section of the cable used must be of the correct size in relation to the absorbed power of the hob. Please check rating plate for the power details and ensure that the power supply cord is of the type H05RR-F, H05VV-F, H05V2V2-F.

Green/Yellow Wire Blue Wire

2.2. GAS CONNECTION These instructions are for qualified personnel, installation of equipment must be in line with the relevant national standard. (For

U.K. only: by law the gas installation\commissioning must be carried out by a "Gas Safe" installer) All work must be carried out with the electricity supply disconnected. The rating plate on the hob shows the type of gas with which it is designed to be used. Connection to the mains gas supply or gas cylinder should be carried out after having checked that it is regulated for the type of gas with which it will be supplied. If it is not correctly regulated see the instructions in the following paragraphs to change gas setting For liquid gas (cylinder gas) use pressure regulators which comply with the relevant national standards. Use only pipes,washers and sealing washers which comply with the relevant national standards. For some models a conic link is furnished to outfit for the installation in the countries where this type of link is obligatory; in picture 8 it is pointed out how to recognize the different types of links (CY = cylindrical, CO = conic). In every case the cylindrical part of the link has to be connected to the hob. When connecting the hob to the gas supply via use offlexible hoses please ensure that the maximum distance covered by the hose does not exceed 2 metres. To prevent any potential damage to the hob please carry out the installation following this sequence (picture 6):

Note: We do not advocate the use of earth leakage devices with electric cooking appliances installed to spur points because of the

«nuisance tripping» which may occur. You are again reminded that the appliance must be correctly earthed, the manufacturer declines any responsibility for any event occurring as a result of incorrect electrical installation.

2.1. ELECTRICAL CONNECTION Check the data on the rating plate, located on the outside of the unit, to ensure that the supply and input voltage are suitable.

Before connection, check the earthing system. By Law, this appliance must be earthed. If this regulation is not complied with, the Manufacturer will not be responsible for any damage caused to persons or property. If a plug is not already attached, fit a plug appropriate to the load indicated on the rating plate. The earth wire is coloured yellow/green. The plug should always be accessible. Where the Hob is connected direct to the electricity supply, a circuit breaker must be fitted.

1)As illustrated, assemble parts in sequence:

A: 1/2 Male Adaptor Cylindirical B: 1/2 Seal C: 1/2 Female Gas Adaptor Conical-Cylindirical or Cylindirical-Cylindirical 2)Tighten the joints with the spanner, remembering to twist the pipes into position. 3)Attach fitting C to mains gas supply using rigid copper pipe or flexible steel pipe. IMPORTANT: carry out a final check for leaks on the pipe connections using a soapy solution. NEVER USE A FLAME. Also, make sure that the flexible pipe cannot come into contact with a moving part of the cabinet (eg.adrawer) and that it is not situated where it could be damaged. Warning: If gas can be smelt in the vicinity of this appliance turn off the gas supply to the appliance and call the engineer directly. Do not search for a leak with a naked flame.

05 GB - IE For smaller containers the gas burner should be regulated so that the flame does not overlap the base of the pan. Vessels with a concave or convex base should not be used.

2.3. ADAPTING THE HOB TO DIFFERENT TYPES OF GAS To adapt the Hob for use with different types of gas, carry out the following instructions:

•remove the grids and burners •insert on hexagonal spanner (7 mm) into the burner support (Figure 7) •Unscrew the injector and replace it with one suitable for the gas to be used (see gas type table)

2.4. REGULATING THE MINIMUM FLAME After lighting the burners, turn the control knob to the minimum setting and then remove the knob (this can easily be removed by applying gentle pressure).

Using a small «Terminal» type screwdriver the regulating screw can be adjusted as in Figure 9. Turning the screw clockwise reduces the gas flow, whilst turning it anticlockwise increases the flow – Use this adjustment to obtain a flame of approximately 3 to 4 mm in length and then replace the control knob. When the gas supply available is LPG - the screw to set the idle flame must be turned (clockwise) to the end stop. When you have carried out the new gas regulation, replace the old gas rating plate on your appliance with one (supplied with hob) suitable for the type of gas for which it has been regulated.

3. USE OF HOB - USER INSTRUCTIONS This appliance must only be used for the purpose for which it is intended, domestic cooking, and any other use will be considered improper and could therefore be dangerous. The Manufacturer will not be responsible for any damage or loss resulting from improper use.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

3.1. USING THE GAS BURNER To ignite the burners, place a lighted taper close to the burner, press in and turn the control knob anti-clockwise.

If the burners have not been used for a couple of days, wait for a few seconds before lighting the burner, this will allow any air present in the pipes to escape. For appliances fitted with electronic ignition carry out the following: • push in and turn the knob anticlockwise to the ignition symbol. • ignite the burner by pressing the sparker button. For hobs fitted with automatic ignition simply push in and turn the knob to the ignition symbol. The ignition system will continue to generate sparks as long as the control knob is being pressed. If the burner has not ignited within 5 seconds, turn the knob to the 0 position and repeat the operation. For models fitted with a safety tap (which cuts-off the flow of gas if the flame is accidentally extinguished) the burners are ignited and described above, but care must be taken. Prior to switching on the gas hob ensure that the burners and burner caps are correctly placed within their position. GENERAL ADVISE For best results, use cooking vessels with a flat surface. The size of the surface should match the gas burner side as follows. Table A. Burner Type

AUX Auxiliary Burner

SR Semi Rapid Burner

Table A Rapid Burner

WARNING: If a flame is accidentally extinguished, turn the knob to the off position and do not attempt to re-ignite if for at least 1 minute.

If over the years the gas taps become stiff to turn it is necessary to lubricate them. Such operation must be carried out only by qualified Service Engineers.

3.2. USE OF COOKTOP ELECTRICAL PLATES Turn the knob to the position for the required temperature of the hot plate. The indicator light of the hot plate will come on and the hot plate will start to heat.

When cooking is completed, turn the knob to the “ O” position. (Figure 10). Do not leave the hot plate turned on without a pan on it. The diameter and the base of the pan you use is critical. The maximum diameter of the pan base is 14 cm and the base should be flat. Leave the hot plate to heat up for 5 minutes before placing a pan on it the first time you use it. This will allow the heat resistant coating of the plate to harden due to burning. Use a wet cloth and detergent for cleaning the hot plates. Do not remove food residues from the hot plates with a knife or any other hard, sharp object. Turn on the hot plate for a few moments to dry it after cleaning. However, it must never be left on for more than a few moments without a pan on top. Position Power (Watt) Power (Watt) 0 1 2 3 4 5 6

100 W 180 W 250 W 500 W 750 W 1000 W

135 W 220 W 300 W 850 W 1150 W

Off Heating Cooking at low temperature Cooking at low temperature Cooking, Roasting, Boiling Cooking, Roasting, Boiling Cooking, Roasting, Boiling

Suitability of Cooking Pans (Figure 11)

Keep in mind that larger pans have larger heating surfaces. This will help them to cook the food faster than pans with smaller heating surfaces. Always use pan sizes proportionate to the amount of the food to be cooked. In order to prevent splashing, do not use very small pans, especially for foods with excess liquid. If you use excessively large pans for quick cooked foods, sausages and liquids will stick and residues will remain attached to the pan after being emptied. Closed pans and baking trays or moulds are suggested for cooking sweets. Splashed sugar and juices from an open pan may stick to the cooker surface and will be difficult to remove. This is especially important for pans used for roasting or pressurized cooking at high temperature. Do not leave burners unattended without a pan or with an empty pan on top. Check the suitability of cooking pans with respect to the following criteria; They should be heavy. They should completely cover the burner surface; they may be a little bigger but no smaller. Base surfaces should be completely flat and fit well on the cooking surface. •For the best use of the electric hotplates and to minimize energy consumption, only pans with smooth flat bases should be used. The size of the pan should be as close as possible to the diameter of the hotplate, and never smaller. The base of the pan should be dry and spillage should be avoided. Empty pans must not be left on the plates, and the plates should not be left switched on without a pan.

4. MAINTENANCE AND CLEANING Before cleaning the hob, ensure the appliance has cooled down.

Remove the plug from the socket or (if connected directly) switch off the electricity supply. Never use abrasives, corrosive detergents, bleaching agents or acids. Avoid any acid or alkaline substances (lemon, juice, vinegar etc.) on the enamelled, varnished or stainless steel sections. "WARNING” - Do not use a steam cleaner to clean the hob. When cleaning the enamelled, varnished or chrome sections, use warm soapy water or a non caustic detergent. For stainless steel use an appropriate cleaning solution. The burners can be cleaned with soapy water. To restore their original shine, use a household stainless steel cleaner. After cleaning, dry the burners and replace. It is important the Burners are replaced correctly.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and

Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Declaration of compliance: This equipment, in the parts intended to come into contact with food, complies with the regulations laid down in

EEC directives 89/109. Appliance complies with European Directives 73/23/EEC and 89/336/EEC, replaced by 2006/95/EC and 2004/108/EC, and subsequent amendments.

5. AFTERCARE Before calling out a Service Engineer please check the following:

• that the plug is correctly inserted and fused; • that the gas supply is not faulty. If the fault cannot be detected: Switch off the appliance and call the After Service Centre. DO NOT TAMPER WITH THE APPLIANCE.

The Manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejiudice to the characteristics relating to safety or function.

BUILT IN HOBS Burner Type / reference Flame failure device Auxiliary burner

R / SR / AUX / E S60 / HBGS S60 / HBGS YES YES

5.4 kW Installed Gas Type / Power:

Gas Power G 20/20 mbar (methane)

G 30/28-30 mbar (LPG)

220-240 V / 50-60 Hz

220-240 V / 50-60 Hz

1500 W Installation Class

Voltage / Frequency V / Hz Electrical input power Electric ignition Product dimension

This appliance has been designed for non-professional, i.e. domestic, use.

Position Puissance (Watt) Puissance (Watt)

0 0 0 100 W 135 W 1 180 W 220 W 2 250 W 300 W 3 500 W 850 W 4 750 W 1150 W 5 1000 W 1500 W 6

R / SR / AUX / E S60 / HBGS S60 / HBGS YES YES

Dimensions appareil (LxP) mm

Výkon (Watty) Výkon (Watty)

0 0 100 W 135 W 180 W 220 W 250 W 300 W 500 W 850 W 750 W 1150 W 1000 W 1500 W

R / SR / AUX / E S60 / HBGS S60 / HBGS Sİ

0 100 W 180 W 250 W 500 W 750 W

0 135 W 220 W 300 W 850 W 1150 W 1500 W

Ø Tava / tencere (cm)

0 100 W 180 W 250 W 500 W 750 W

0 135 W 220 W 300 W 850 W 1150 W 1500 W

R / SR / AUX / E S60 / HBGS S60 / HBGS EVET EVET

R / SR / AUX / E S60 / HBGS S60 / HBGS Varnostna naprava

DA DA G30/28-30 mbar (LPG-propan)

220-240 V / 50-60 Hz

220-240 V / 50-60 Hz

R / SR / AUX / E S60 / HBGS S60 / HBGS

R / SR / AUX / E S60 / HBGS S60 / HBGS SIM SIM Auxiliar(AØ 50 mm)

Energia (Watt) Energia (Watt)

0 0 100 W 135 W 180 W 220 W 250 W 300 W 500 W 850 W 750 W 1150 W 1000 W 1500 W

R / SR / AUX / E S60 / HBGS S60 / HBGS IGEN IGEN

2. CONEXIUNEA ELECTRICĂ

2.1. CONEXIUNEA ELECTRICĂ

0 135 W 220 W 300 W 850 W 1150 W

0 100 W 180 W 250 W 500 W 750 W 1000 W

R / SR / AUX / E S60 / HBGS S60 / HBGS DA DA

CY, CZ, GB, GR, IE, IT, PT, SI, ES, CH,TR BG, HR, DK, EE, FI, LV, LT, NO, RO, SK, SE G20

Pressione gas/Gas pressure/Pression gaz/

Gasdruck/Presion gas

Pressione gas/Gas pressure/Pression gaz/

Gasdruck/Presion gas

Pressione gas/Gas pressure/Pression gaz/

Gasdruck/Presion gas

Pressione gas/Gas pressure/Pression gaz/

Gasdruck/Presion gas

Pressione gas/Gas pressure/Pression gaz/

Gasdruck/Presion gas

Pressione gas/Gas pressure/Pression gaz/

Gasdruck/Presion gas

10.2010 • REV:0 • 42805654

GB - IE The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of con sumption, without prejudice to the characteri stics relating to safety or function.
