Product Type	MP3 Player with 1.5-inch Color CSTN Display
Brand	Curtis
Model	MPK1041
Dimensions	39mm (W) x 90mm (H) x 8mm (D)
Weight	45g
Power Source	250mA Lithium Battery (rechargeable via included charger)
Display	1.5-inch Color STN Display with Backlight
Storage Capacity	128MB/256MB/512MB/1GB/2GB Internal Flash Memory
Supported Audio Formats	MP3 (32-384 kbps), WMA (64-128 kbps) – Constant Bit Rate
Supported Video Format	.SMV (converted from AVI, WMV, MPG)
Supported Photo Formats	JPG, BMP
Supported E-Book Format	TXT
Recording Format	WAV
Interface	USB 2.0 Full Speed
Audio Output	3.5mm Earphone Jack, 9mW x 32ohm
Signal-to-Noise Ratio	90dB
Equalizer Modes	5: Normal, Rock, Classic, Pop, Jazz
Playback Modes	Normal, Repeat One, Repeat All, Shuffle, Shuffle All, Intro
Additional Functions	Voice Recorder, FM Radio (if built-in – not confirmed), E-Book Reader, Photo Viewer, Games (Boxman, Tetris)
System Requirements	Windows 98SE/Me/2000/XP, MAC OS 9.0/10.0; USB Port; CD-ROM drive; 64MB RAM
Driver Required	Only for Windows 98SE (driver on CD)
Video Conversion Tool	Included on CD: SIGMATEL MOTION (SMV Transcoding)

Frequently Asked Questions - MPK1041 CURTIS

How do I turn on the MPK1041?

Push the ON/OFF button to power on. Alternatively, if the switch is set to ON, press and hold the PLAY/STOP button.

What audio formats does the player support?

It supports MP3 (32-384 kbps) and WMA (64-128 kbps) at constant bit rate. It does not support MPEG1 Layer1/2 or variable bit rate files.

How do I charge the battery?

Connect the player to the included power charger while the ON/OFF switch is in the ON position. The battery icon will show a jumping animation during charging.

Why is my MPK1041 not detected by the computer?

On Windows 98SE, you must install the driver from the included CD first. For Windows Me/XP, no driver is needed. Also ensure the USB cable is properly connected and the player is powered on.

How do I delete files from the player?

In STOP mode, press MENU, select Delete files, choose YES, then press PLAY/PAUSE to confirm. The file will be deleted and 'delete success' will appear.

Can I play videos directly?

No, videos must be converted to .SMV format using the included SIGMATEL MOTION tool. Supported source formats: AVI, WMV, MPG. Then copy the SMV file to the 'MVIDEO' folder.

How do I set the equalizer?

While playing music, press MENU, select EQ Set, then use PREV/NEXT to choose between Normal, Rock, Classic, Pop, or Jazz. Press MENU/CONFIRM to apply.

What should I do if the player shows 'No Music Files'?

Ensure you have transferred MP3 or WMA files to the internal memory. If using MTP mode, sync via Windows Media Player 10. If using USB Storage mode, drag and drop files directly.

How can I extend battery life?

Use the Power Save Mode in System Settings to set the display to turn off after 5, 20, 30, or 60 seconds of inactivity. Also set Power Off Set to automatically turn off the player after 2, 5, or 10 minutes in STOP mode.

Is the MPK1041 compatible with Mac?

Yes, it supports MAC OS 9.0 and 10.0. For file transfer, use USB Storage mode (change from MTP to USB Storage via Device Manager on PC, though Mac may work differently).

USER MANUAL MPK1041 CURTIS

THIS INSTRUCTION BOOK MAY CONTAIN ERRORS AND OMISSIONS. DESIGN AND SPECIFICATION ARE SUBJECT TO CHANGE WITHOUT NOTICE.

No part of this document may be reproduced or transmitted in any form or by any means, electronics or mechanical, including photocopying and recording or translated to another language for any purpose without the prior written consent of the manufacturer.

All brand names, logos and registered trademarks mentioned are property of their respective owners.

© 2006. All right reserved. Version 1.0 10092006

Please read this booklet and note the warning statements before using the product.

Warning! Improper use of charger might cause the battery to turn hot or explode.

Note:

Electrical and electronic equipment (EEE) contains materials, parts and substances which can be dangerous to the environment and harmful to human health if waste of electrical and electronic equipment (WEEE) is not disposed of correctly.

Equipments which are marked with the WEEE logo (as shown on the left), should not be thrown away with your household waste. Contact your Local Authority Waste Disposal Department as they will be able to provide details of the recycling options available in your area. 1

English

Table of Contents

Introduction-3

Features----3

Package Contents----3

Overview----4

Buttons Operation----5

Display 6

On-screen-menu Operation----7

Power On and Off 8

Changing Mode 8

Entering Main Menu Page----8

Music Play 9

Skip a Song----9

Fast Forward and Backward----9

Record----10

Voice Play 10

Skip a voice----11

Fast Forward and Backward----11

Video Play 11

Skip a voice---- 12

Fast Forward and Backward----12

Photo---- 12

E-Book 13

System Set 13

Language 13

Power Off Set 14

Power Save Mode 14

Record Mode Set 14

LCD Contrast 15

About 15

Game 15

File list 15

EQ Eet 16

PlayMode Set---- 16

Delete files----17

Installing Driver----16

System Requirements----17

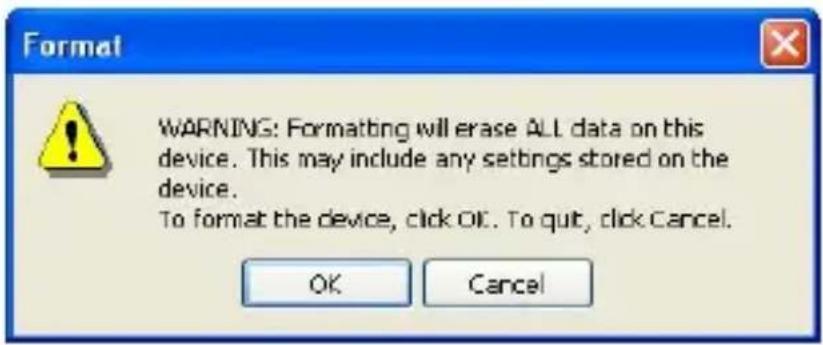

Format the MTP Player----18

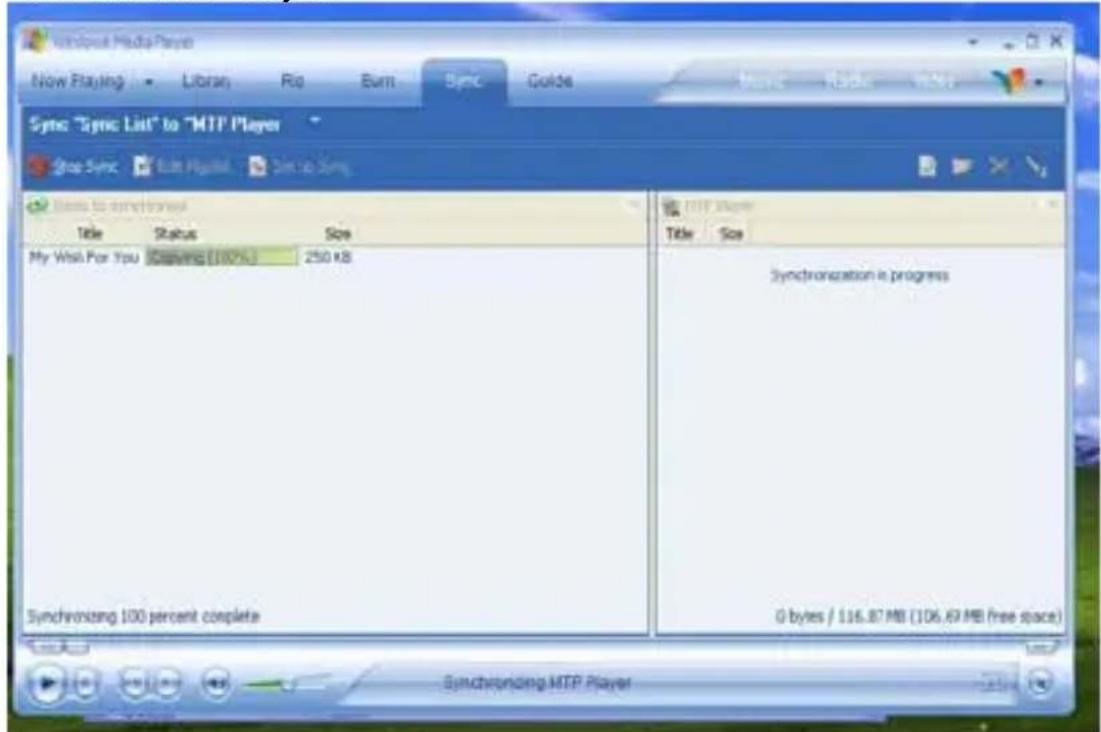

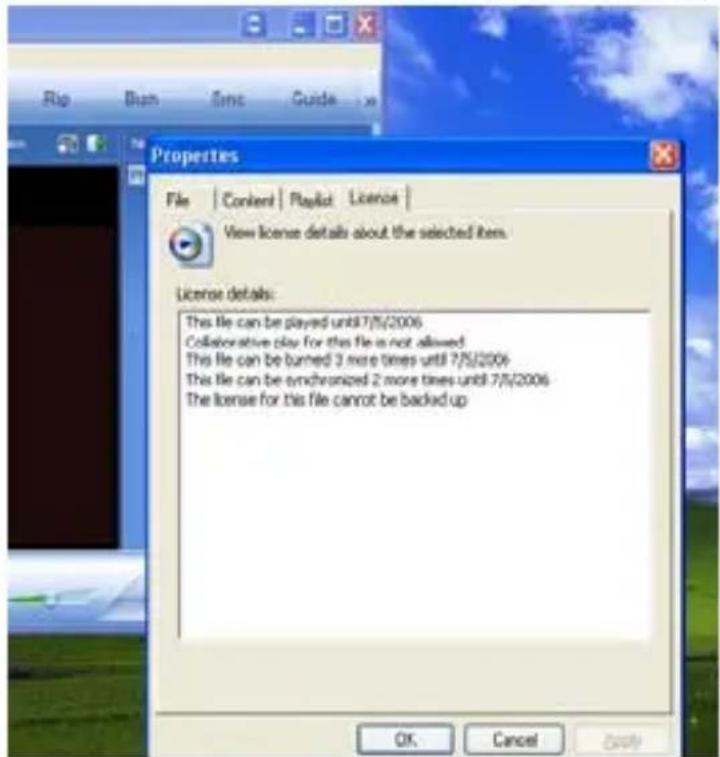

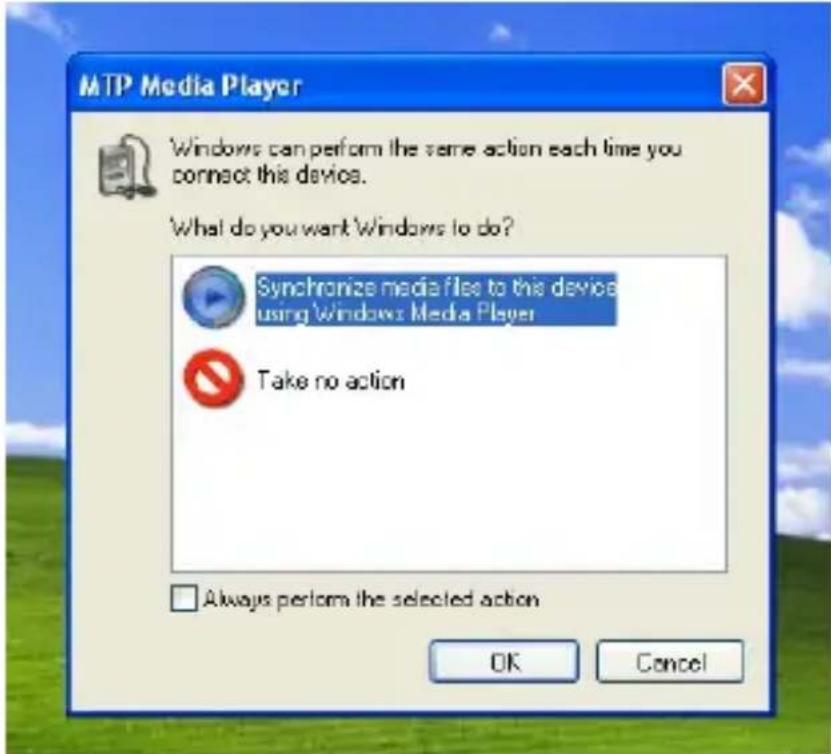

Synchronize MP3 and WMA Files to the Player----19

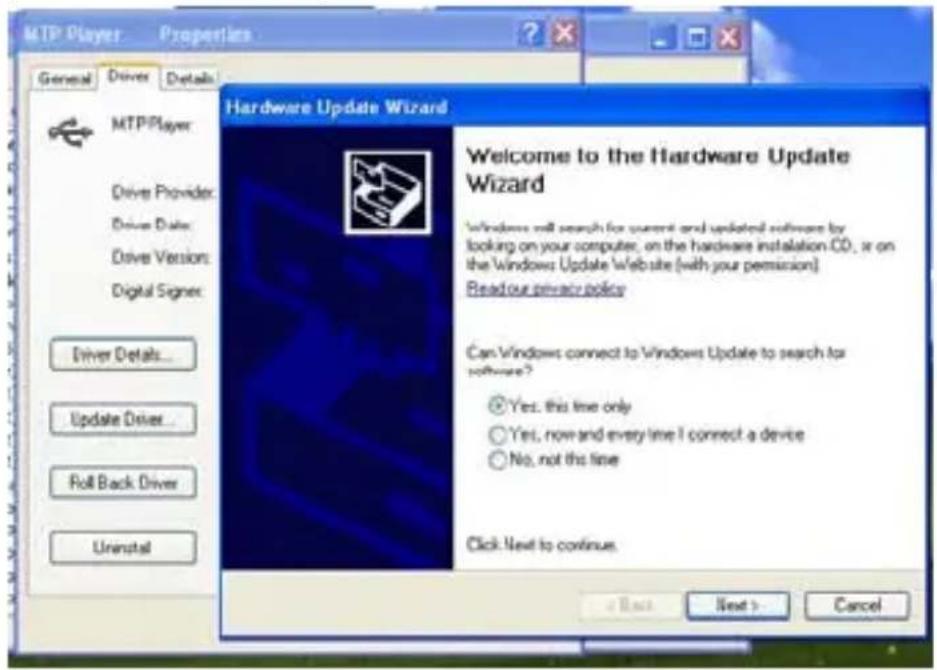

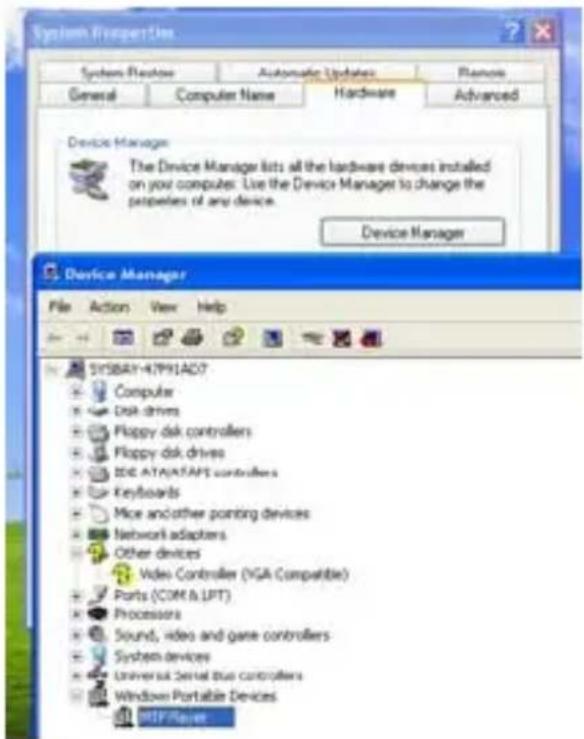

MTP Function being changed into USB Storage Function----25

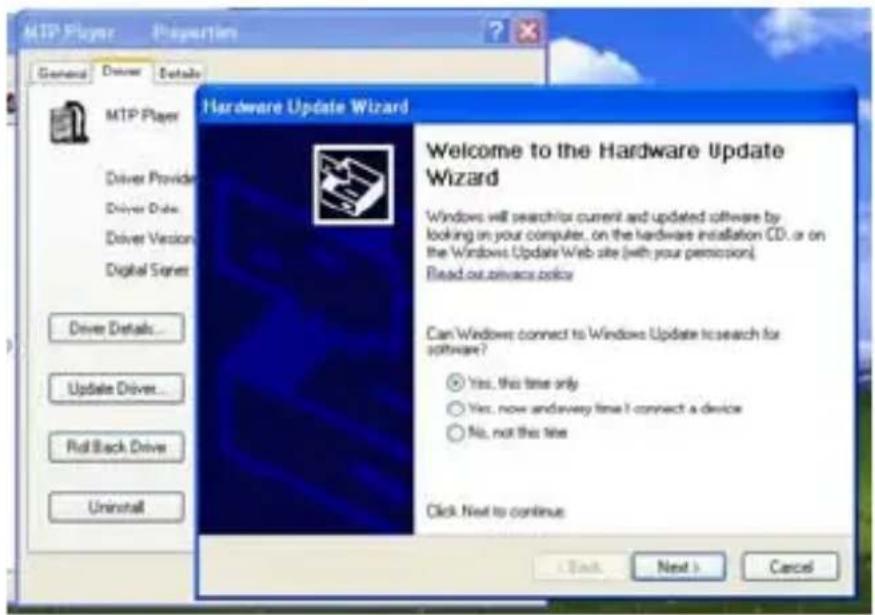

USB Storage Function being changed into MTP Function----28

Trouble Shooting 30

Technical Specifications 32

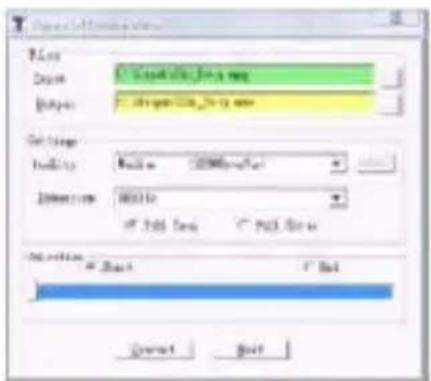

How to convert video format----33

English

Introduction

Thank you for choosing our digital MP3 player. You can use this versatile MP3 player not only for playing MP3 and WMA songs, but also recording voice and serving as a USB flash disk, etc.

Features

● Colour 1.5-inch CSTN display
● Support MP3 (MPEG1/2 Layer2) and WMA music playback
● Support Game function
● Support E-Book function
● Support JPG and BMP picture
● Digital voice recorder
- USB mass storage function for data storage
- 5 EQ settings
● Lithium battery supports long playing time
- No driver installation is required (except Windows® 98/98SE)

Package Contents

• User's manual
• Earphone
  ● Power charger
• USB cable
• CD including the driver and software utilities

English

Overview

Front and Right

Top and Botton

Buttons Operation

Operation
EARPHONE JACK	Insert the earphone plug into the earphone jack
USB PORT Connect	the USB cable to the USB port of the computer for uploading the songs
MICROPHONE Microphone for voice recording
NEXT/FAST FORWARD	In PLAYING mode, press the button and release immediately to jump to next song.In PLAYING mode, press and hold the button to fast forward
MENU/CONFIRM/DISPLAY LYRIC	In STOP mode, press and hold the button to enter the Main Menu page for changing the modes.Under Menu or Sub-menu page, press the button to confirm to the selection of menu items.the lyric will shows on the display automatically. (The lyric is necessary edited by the user before shown on the LCD display)
PREVIOUS/FAST BACKWARD	In PLAYING mode, press the button and release immediately to jump to previous songIn PLAYING mode, press and hold the button to fast backward the song
VOLUME +VOLUME -	Press the VOL button to tune volume, increase the volume by pressing NEXT button.Press the VOL button to tune volume, decrease the volume by pressing PREVIOUS button.
ON/OFF/	In IDLE mode, push the button to power on the playerIn STOP mode, push the button to power off the player
PLAY/PAUSE/	In STOP mode, press the button to play the songsIn PLAYING mode, press the button to pause the playing songWhen the ON/OFF button is locating at ON, press and hold the button to turn on and turn off the player.
DISPLAY Display the operating status, lyrics with backlight

English

Display

Display Icon Function
	Repeat ModeShow the current repeat mode used.
Battery	Show the battery level.
Volume increase or decrease	Show the current volume
	Mode of EqualizerIndicate the current mode of equalizer used. 5 different EQ settings are available for selection.
	Show the bit rate of the song
	The Name of Playing SongShow the playing song currently

English

On-screen-menu Operation

English

Power On and Off

Power On

Push the ON/OFF button to power on the player. The "LOGO" appears on the display.

Power Off

Push the ON/OFF button to power off the player. The player is off.

Note: When the ON/OFF button is locating at ON, press and hold the PLAY/STOP button to turn on and turn off the player.

Battery Level

The battery icon ■ on the display shows the battery level.

Low Battery

When the battery icon shows in ☐, it indicates the battery power is running out. You should connect the player to power charger for charging.

*Remark: the player can be charged while the ON/OFF button is in ON status. When you connect the player to power charger, the player turn on automatically and enter the Main Menu mode, the jumping battery icon will show on the display of STOP mode. You can use the player when the player is charging.

Changing Mode

Entering Main Menu Page

1. Press and hold the MENU button and enter the main menu page. You've entered the Main Menu page.

* Remark: "FM" is only applicable for the player with built-in FM function.

1. Press PREVIOUS/NEXT button to jump to other menu items in sequence of Music Play, Record, Play Voice, Photo, E-book System Set, About and Game

English

1. Select your desired menu item and press MENU/CONFIRM button again to enter sub-menu page.

Music Play

1. After entering Main Menu page, select Music and press MENU/CONFIRM button to enter Playing Song mode.

Note: Only .MP3 and .WMA format will be played under Playing Song mode.

1. The display will enter to the following screen in STOP mode.

1. Press PREVIOUS/NEXT button to select your desired song.

2. Press PLAY/PAUSE button to start playing selected .MP3 or .WMA music. If there is no .MP3 and .WMA files, "No Music Files" will show on the display.

Skip a Song

Press NEXT/PREVIOUS button to jump to next or previous song.

Fast Forward and Backward

Fast forward or backward by press and hold PREVIOUS/NEXT during playing music

English

Record

1. After entering Main Menu page, select Record and press MENU button to enter Recording Voice mode.

Note: The recorded voice will be saved in .WAV only.

Simple black-and-white icon of a microphone on a stand (no text or symbols)

1. Following display will show once you've entered Recording Voice mode, and the recording will start once you enter.

1. Press the PLAY/PAUSE button to stop the recording.

2. When you finished the recording, press MENU/CONFRIM button. The wording of "Save success" appears on the display and the recorded audio files will be automatically saved under Voice folder Directory as default. You can check the recorded audio files in Voice folder of Voice paly mode by pressing PREV/NEXT button.

Voice Play

1. After entering Main Menu page, select Voice and press MENU/CONFIRM button to enter Playing Recorded Voice mode.

Note: Only. WAV format will be played under Playing Voice Mode

English

1. The display will return to the following screen in STOP mode.

1. Press PREVIOUS/NEXT button to select your desired voice.

2. Press PLAY/PAUSE button to start playing selected audio files. If there is no recorded audio file, "No Files!" will show on the display.

Skip a Voice

Press PREVIOUS/NEXT button and release immediately to jump to previous or next recorded voice.

Fast Forward and Backward

Press and hold PREVIOUS/NEXT button to fast backward or forward.

Video Play

1. After entering Main Menu page, select Video Play and press MENU/CONFIRM button to enter Playing movie mode.

Note: Only .smv format will be played under Playing Movie mode.

Simple black-and-white icon of an open book with a grid of dots, no text or symbols present.

English

1. The display will return to the following screen in STOP mode.

1. Press PREVIOUS/NEXT button to select your desired movie.

2. Press PLAY/PAUSE button to start playing selected .smv movie. If there is no .smv files, "No Movie Files" will show on the display.

Skip a Movie

Press PREVIOUS/NEXT button to jump to next or previous movie.

Fast Forward and Backward

Fast forward or backward by press and hold the PREVIOUS/NEXT button during playing movie


1. After entering Main Menu page, select PHOTO and press MENU/CONFIRM button to enter View photos function.

Note: Only .JPG and .BMP format will be played under View PHOTO function.

Simple geometric diagram with a black diamond shape above a white triangular base (no text or symbols)

1. Press the desired view way to start the photo viewing, there are 2 ways to choose: Manual View and Auto View.

English

Ebook

1. After entering Main Menu page, select Ebook and press MENU/CONFIRM button to enter E-book function.

Note: Only .TXT format will be played under Ebook function.

1. Press PREVIOUS/NEXT button to select your desired article, then press PLAY button to start reading the article.

System Set

1. After entering Main Menu page, press PREV/NEXT button to select System Function.

1. Press MENU/CONFIRM button to enter System Set Function menu page.

Language Power Off Set Power Save Mode Record Mode Set LCD Contrast Return

Language

After entering System Set Function menu page, press MENU/CONFIRM button to select Language Function. Press PREV/NEXT button to select the desired language and press MENU/CONFIRM to confirm the Language.

English French Italian German

English

Power Off Set

1. After entering System Set Function menu page, press PREVIOUS/NEXT button to select Power off Set Function. Press MENU/CONFIRM button to confirm.
2. To set the off time in 2/5/10 minutes. In the STOP mode, the player will be off automatically based on the duration you set. You may set "Disable" to disable this function.

Power Save Mode

1. After entering System Set Function menu page, press PREVIOUS/NEXT button to select Power Save Mode Function. Press MENU/CONFIRM button to confirm.
2. To set the Save time in 5/20/30/60 seconds, In the IDLE mode (no button is pressed), the display will come to be black automatically based on the duration you set. You can press any key to light the display. Also you may set "Disable" to disable this function.

Record Mode Set

After entering Setting menu, select Record Mode Set by pressing MENU/CONFIRM button to enter this menu.

Press the PREVIOUS/NEXT button to select items including Source, Encoder, Sample, channel and Return.

Source

Only MIC mode is available in Source.

Encoder

Press MENU/CONFIRM button to select the different Encoder including IMADPCM, MSADPCM and PCM.

Sample

Press MENU/CONFIRM button to select the different data including 8000Hz, 11025Hz, 16000Hz, 22050Hz and 32000Hz.

Channel

Only Mono mode is available in Channel.

English

LCD Contrast

After entering Setting menu, select LCD contrast by pressing MENU/CONFIRM button to enter this menu. A suitable contrast can be set accordingly.

About

After entering Setting menu page, select About item by pressing MENU/CONFIRM button. The version of the firmware and the Memory Info will be shown on the display for reference.

Game

After entering Main Menu page, select Game and press MENU/CONFIRM button to enter Game function. Two games in this player are available : Boxman and Tetris.

Files List

Folder Management

Under the ROOT directory, you may create the folder to manage the songs for easy navigation and management. Under the each folder, subfolder or ROOT directory.

Folder Navigation

1. In the Stop mode, press the MENU button and select Files list.
2. The created folder names in the first layer are listed on the display. Choose your desired folder name by pushing PREV/NEXT button.
3. Press the PLAY button to confirm your selection

English

Sub-folder

You may enter each folder in order to locate your desired sub-folder. Then press MENU button for confirmation.

EQ Set

In PLAYING mode, press MENU/CONFIRM button and select EQ Select to enter the EQ mode. Five EQ mode are available: normal, Rock, Classic, Pop and Jazz Press PREVIOUS/NEXT button to change the EQ mode and press MENU/CONFIRM button to confirm the EQ mode.

PlayMode Set

In PlayMode Menu, press PREV/NEXT button to select the desired Repeat mode. Seven Repeat Modes are available: Normal, Repeat One, Repeat All, Random, Random All, Preview.

Normal

All music will be played one by one and stopped at the last music until you disable this function.

Repeat One

The playing music will be re-played until you disable this function.

Repeat All

All music will be played from the beginning to the last one and then repeated again and again until you disable this function.

Shuffle

All music in the player will be randomly played until all music are finished playing.

Shuffle All

All music in the player will be randomly playback until you disable this function.

Intro

All music from the current one to the last one will play for 10 seconds one by one until you disable this function.

English

The setting of Repeat mode is able to apply in Playing Song and Playing Recorded Voice mode.

Delete files

In STOP mode, press MENU/CONFIRM button and select Delete files to enter the deletion function. Select "YES" or "No" by pressing MENU/CONFIRM button, then press PLAY/PAUSE button to confirm your selection. The wording "delete success" will show on the display.

Exit this function by pressing VOL button.

Driver

Windows® 98 and MAC OS

Windows® 98 (first edition) and MACOS are not supported.

Windows® 98SE

If the player is running on Windows® 98SE, please install the driver by going through the following instruction in details before using the player. The driver must be installed on your computer to make your player work properly with your computer. Please skip the following instructions for driver installation.

Step 1. Before you install the driver, please don't connect the player to the computer

Step 2. Insert the CD into your computer, click Setup.exe and the installation will start.

Step 3. Follow the on-screen instructions to complete the driver installation and restart your computer.

Step 4. Connect the player to your computer and a Removable Disk will appear for drag-and-drop of the music files

*Note"For Windows®Me/XP platform, it is unnecessary for installing driver before using.

System Requirements

● PC with Pentium class or faster processor

64MB RAM

- USB port

English

• CD-ROM drive for software installation
  ● 30MB free hard disk space
• Windows® 98SE

Format the MTP Player

Step 1: Click the MTP Player in My Computer by pressing the right button of the mouse and select "Format..."

Step 2: A dialog box will appear to guide how to format. Click OK to proceed.

Audio Devices

MTP Player

Then the MTP Player will be format accordingly.

English

Synchronize MP3 and WMA Files to the Player

Please operate the following procedure in licensed Windows® XP operation system with Windows® Media Player 10.

Noted: MAC OS and Windows® 98/98SE/Me are not supported for WMDRM songs playback.

Note: The player with WMDRM10 is only allowed for user to download music legally and validly from the distribution licensees of WMA songs which are posted on the corporate website of Microsoft®. Please make sure that the WMA songs are downloaded from these distribution licensees and frequently check the most updated distribution licensees on the corporate website of Microsoft®.

If the music is downloaded illegally, the songs could not be played normally.

Step 1. Connect the MP3 player to the computer with USB Cable, It will show an icon at the right-bottom corner of the desktop.

Step 2. A dialog box will appear as follows, choose the Media Player icon and click OK to proceed.

English

Step 3. The Media Player will find device automatically as follows

Step 4. Soon a dialog box will appear, Choose Manual and click Finish to proceed.

English

Step 5. The Media Player will enter the operation status as follows.

Step 6. Select your desired songs into the Media Player and press Start Sync.

English

Step 7. The song you selected will be synchronized into the Software of Media Player and the MP3 Player.

Step 8. Once the song has been synchronized, it will appear as follows.

English

Step 9. click + on the right hand side to expand "Music", the same song name of "My Wish For You" should appear on the right hand side. it will appear as follows:

Step 10. Click Now Playing and start to play your desired song.

English

Tips: Each WMDRM song is limited by an expiry date or number of times for synchronization from the computer to the player. This limitation of the expiry dates the synchronization times depend on different distribution licensees and different songs when you purchase. The WMDRM songs should be synchronized from the computer to the player within number of synchronization times by the specified expiry date.

Note: The songs cannot be played if the synchronization times is exceeded or the synchronization is performed beyond the expiry date.

If WMDRM song cannot be played on the player normally or the synchronization cannot done successfully from the computer to the player, please check whether the song is expired or not. Please operate the following procedure.

Step1: Click the song by pressing the right button of the mouse and select" Properties".

English

Step 2. A dialog box will appear as follows, Click the license for checking the song is expired or not.

MTP Function being changed into USB Storage Function

MTP function is the default one for the MP3 player with WMDRM10. It could be used as a Portable USB also. The following steps could be guided to finish this transformation

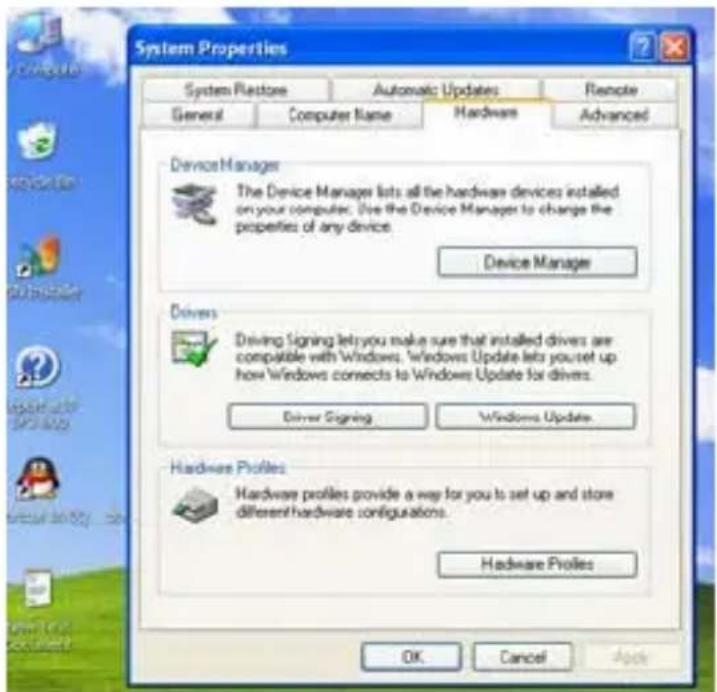

Step 1 : Click My Computer by pressing the right bottom of the mouse, choose the Hardware menu.

English

Step 2 : Select Device Manager and pick up MTP Player on the sub-menu of Windows Portable Devices.

Step 3 : Click MTP Player by pressing right Button of the mouse and choose Driver menu.

English

Step 4 : Click "Update Driver ..." to proceed.

Step 5 :Follow the tips of Dialog Box by clicking the “Next >” button to finish updating. The procedure should be : Install from a list or specific location (Advanced) — Don’t search. I will choose the driver to install — USB Mass Storage Device— Finish. The Removable Disk will appear in My Computer.

English

USB Storage Function being changed into MTP Function

Step 1 : Click My Computer by pressing the right bottom of the mouse, choose the Hardware menu.

Step 2 : Select Device Manager and pick up MTP Player on the sub-menu of Universal Serial Bus controllers.

English

Step 3 : Click MTP Player by pressing right Button of the mouse and choose Driver menu.

Step 4 : Click "Update Driver ..." to proceed.

Step 5 :Follow the tips of Dialog Box by clicking the "Next >" button to finish updating. The procedure should be : Install from a list or specific location (Advanced) — Don't search. I will choose the driver to install — MTP Player — Finish. The MTP Player will appear in My Computer.

Trouble Shooting

Symptom	Reasons	Solution
Press the POWER button, the display does not turn on	The battery has run out ●	Replace battery with a new one.
After plugging the player into the USB port of your computer,Removable DiskDrive cannot be found inMy Computer	The software utilities (included in CD) has not yet installed on Windows® 98/98SE	● Insert the CD● Click the setup to install the software utilities● Follow the on-screen instructions to finish installation
	The software utilities of the player (included in CD) conflicts with other software drivers which were installed on your computer	● Uninstall software utilities of the player● Restart computer● Re-install the software utilities again
	Your motherboard doesn't support the USB connection	Contact the manufacturer of your motherboard to upgrade the motherboard driver
The music file on the player cannot be deleted	The attribute of the music file sets asRead Only	Change the attribute of the music file
The playing time displays in disorder when playing a mp3 music	A mp3 music file is currently compressed in VBR format, which can vary the compression speed of a mp3 music. When the mp3 music is playing, the variable speed will cause the playing time displays in disorder	Compress the mp3 music in fix compression speed rather than variable compression speed
When the player is connected or disconnect to/from your computer, there is an unusual error on the computer	It's due to the sudden disconnection of USB port during transferring the files	It is recommended the user should not suddenly unplug the player from the USB port of computer when the files are being transferred or the internal memory is being formatted.
My player can't play the mp3 music files	Most of mp3 music files in the market are compressed in MPEG1, MPEG2, LAYER3 standard. In earlier days, some mp3 music are compressed in MPEG1	If the mp3 player can't play the mp3 music file, skip to the next song until the mp3 music files are not compressed in MPEG1 LAYER1 /MPEG1 LAYER2.

the your

English

LAYER1 and MPEG1	LAYER2. Please note our player doesn't support MPEG1 LAYER1, MPEG1 LAYER2 or an mp3 compressed in more than one compression standards.	Delete those files which can't be played in the player
		Change the compression standard of a mp3 music file in MPEG1 LAYER3
If the music file can't be played normally or you hear a long beep sound	The player doesn't support such compression standard of the playing music file	The player just can support MPEG1 MPEG2 LAYER3 and WMA music files
	Out of the range of compression speed	● The range of MP3 compression speed: 32Kbps~384Kbps● The range compression speed: 64Kbps~128Kbps
	Tips: If you don't know the compression standard and speed of the music file, you should use those common music players (i.e. Winamp) to check the music information.
After formatting the internal memory of the player by using our software utilities, close and re-open the software, the mp3 player can't be detected	Some system information may be deleted during formatting	Disconnect the player and re-plugged
the USB cable	No driver was installed on Windows® 98/98SE	Install driver The computer can't de
	Unsafely remove the USB cable	Format the internal memory

Technical Specifications

Capacity	128MB/256MB/512MB/1GB/2GB internal flash memory
Display Colour STN display
Interface USB 2.0 full speed
Power 250 MA Lithium battery
File type	.MP3 (32kbps - 384kbps), .WMA (64kbps - 128kbps) for music at Constant Bit Rate.WAV for recorded audio files.TXT for E-Book files.JPG and .BMP for photo files
S/N ratio 90dB
Earphones output power	9mWx, 32ohm
Operating System	Windows® 98/98SE/Me/2000/XP MAC OS 9.0, 10.0
Dimensions 39mm(W) x9	0mm(H) x 8mm(D)
Weight 45g

English

How to convert video format

- Video format

The player can only play movies after converting other video formats to SMV format. The player supports the following video formats to be converted to SMV format: AVI, WMV, MPG.

- Converting video format

Accessory disk has been provided with video converting tool. It is unnecessary to install. You can use it by copying it to your PC directly. For example: copy the whole folder of "SMV Transcoding" to the folder "c:\program files\" of your PC. Then enter this folder, click "video2smv.exe" to open video converting tool:

Converting video file to SMV format file

Notice: Before playing video file, please use SIGMATEL MOTION, the VIDEO software to convert other format to SMV format. Operating steps are as follows:

1. Please make sure that the target video source (the video that needs to be converted) is / has been saved in your PC and save it under C:\converting objects. The format of the video should be AVI, MPG. or WMA.

50_Trp.mpg

The Raceakl

Gern, engineering Arab technology. know

1. Running "video2smv" program under folder of SMV Transcoding in accessory CD.

English

3. Setting:

• Click …” to select the video source file you want to convert in “Input”
• Click ____” to select the position you want to preserve and file name after converting in “Output”.

- Select the level of video quality you would like the output to be converted to:

Person sitting in front of a snowy mountain landscape (no visible text or symbols)

Generally, they are 3 levels of video quality:

High: video playback length is one hour; it takes up about 200MByte space. Medium: video playback length is one hour; it takes up about 128MByte space. Low: video playback length is one hour; it takes up about 83MByte space.

Custom: User-defined video quality

English

- Dimension: Choose resolution 128*128, best suited for your screen size of 1.5"

- Choose start point of the video you want to convert.

- Choose ending point of the video you want to convert.

1. After setting, click "Convert" to start converting.

2. After converting, connect the MP3 player to your PC by USB cable.

3. Enter C:\Output\

1. Copy Ski_trip.smv to the folder of "MVIDEO" of your MP3 player.

Disconnect the MP3 player from PC, turn on the player and enter Video menu to watch the converted video.

Notice:

You'd better use the windows default of the software if you are not so familiar with video converting.
