USER MANUAL CS-A95KR PANASONIC

Front view of a white air conditioner unit with ventilation grille and control panel (no visible text or symbols)

Indoor Outdoor

Model CS-A75KR Model CU-A75KR

CS-A95KR CU-A95KR

CS-A125KR CU-A125KR

Interior view of a modern living room with white sofa, armchair, and large windows overlooking a brick wall (no visible text or symbols)

Before using your air-conditioner, please read this operating instructions carefully and keep it for future reference.

ENGLISH....P. 1-P. 28

CONTENTS

1 Before use

FEATURES 3
▶ SAFETY PRECAUTIONS 4 – 6

• Installation Precautions
• Operation Precautions

▶ NAME OF EACH PART 7 – 10

- Indoor Unit

■ When the front panel is opened

• Outdoor Unit
• Accessories
• Remote Control

■ When the remote control is opened
■ How to use the remote control
■ When the back cover is opened

▶ PREPARATION BEFORE OPERATION ..... 11 – 12

• Indoor unit
• Remote Control

■ Inserting batteries
■ Setting the clock
■ About the batteries

2How to use

HOW TO OPERATE....13 – 14

• Automatic • Heating • Cooling • Soft Dry
■ Operation details
- Adjusting Airflow Direction and Fan Speed
■ Operation details

▶ SETTING THE TIMER.... 15 – 16

• Recommended Setting of Timer
  ▶ CONVENIENCE OPERATION 17 – 18

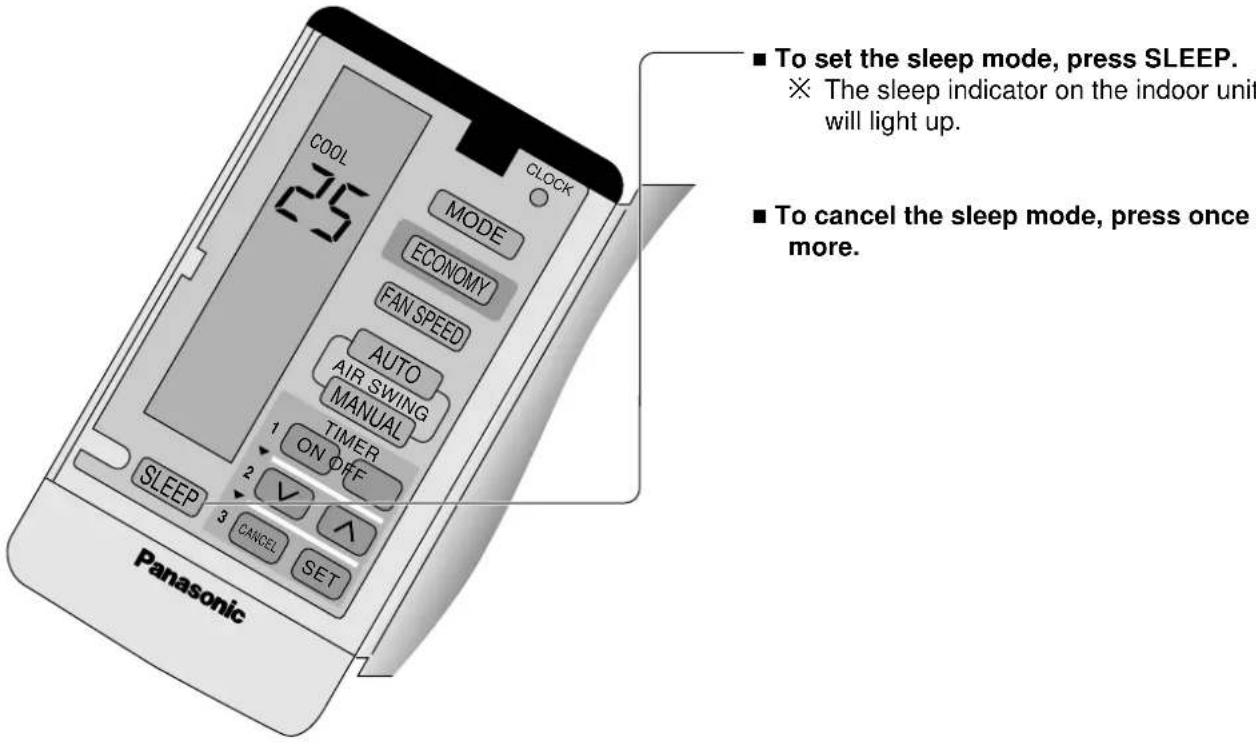

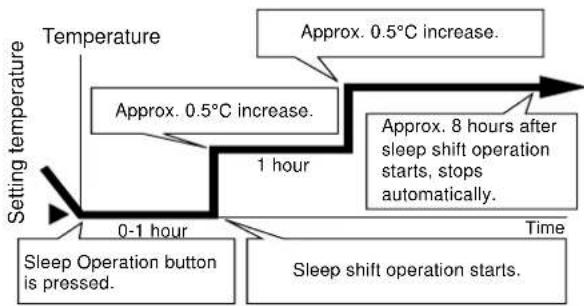

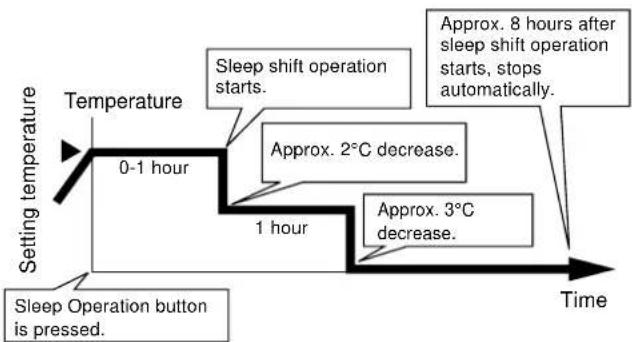

- Sleep Mode

■ Operation details

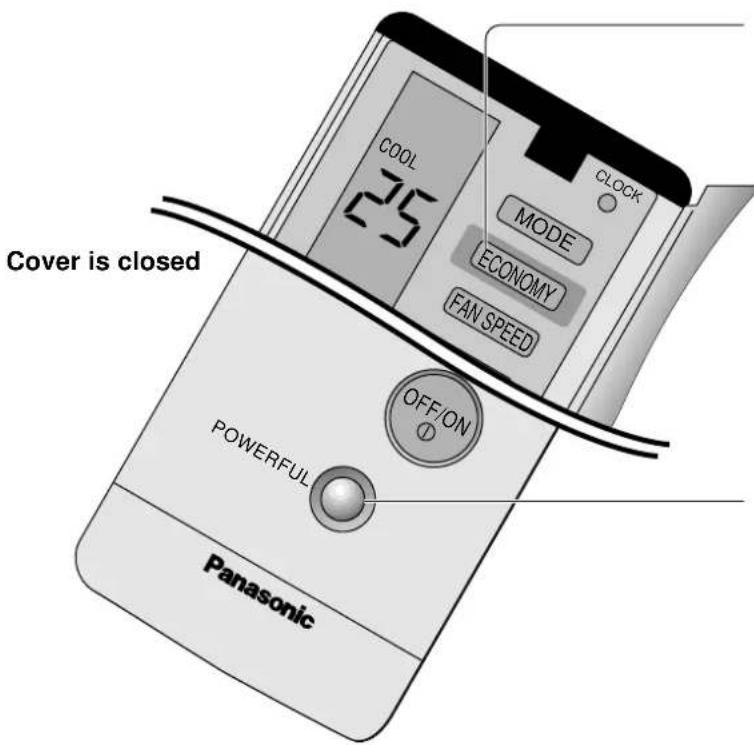

• Economy or Powerful Mode
■ Operation details

3 If necessary

▶ CARE AND MAINTENANCE 19 – 22

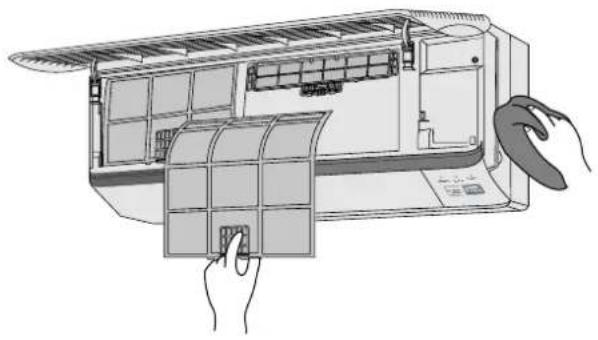

• Cleaning the Indoor Unit and Remote Control

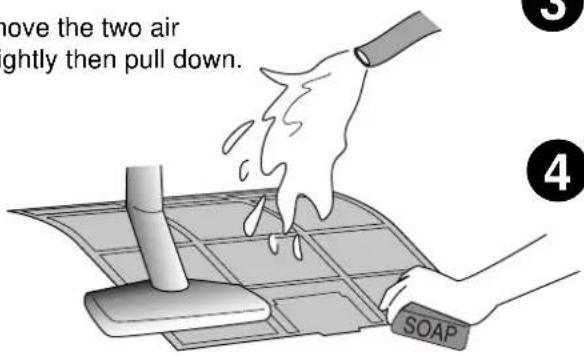

• Cleaning the Air Filter
• Cleaning the Front Panel

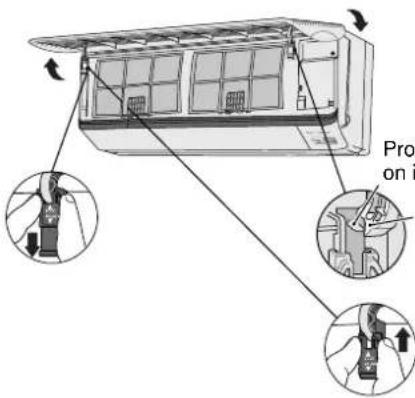

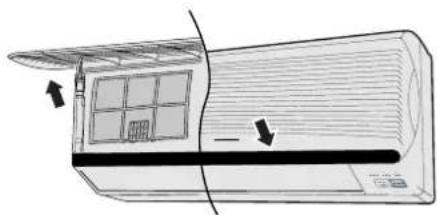

■ Removing the front panel
■ Fixing the front panel

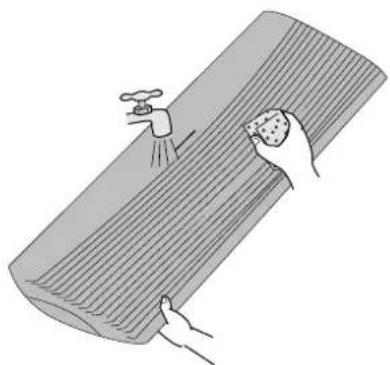

■ Cleaning the front panel

- Replacing the Air Purifying Filters

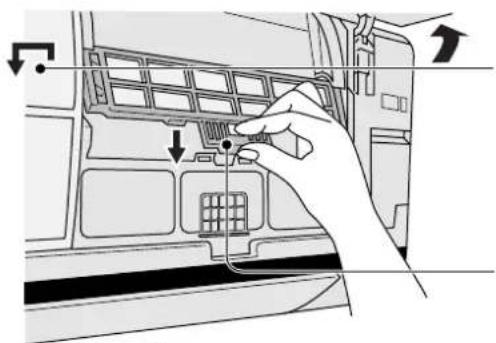

■ Removing the air purifying filters

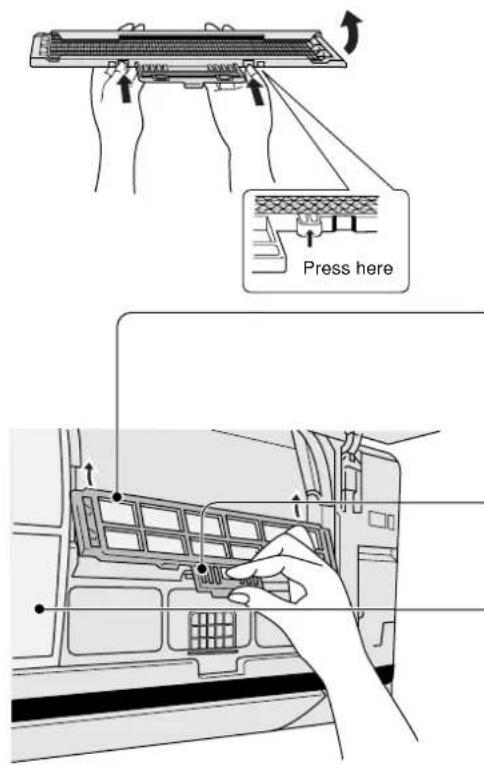

■ Reinstalling the air purifying filters

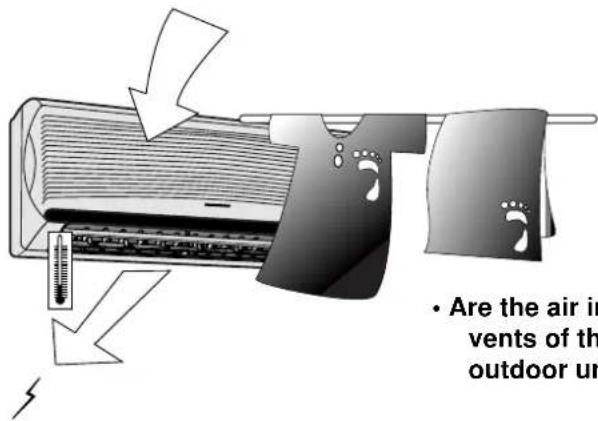

• Pre-season Inspection

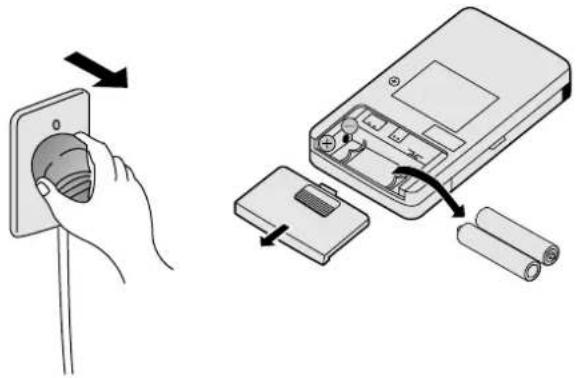

- When the Air Conditioner is Not Used for an Extended Period of Time
- Recommended Inspection

TROUBLESHOOTING 23 – 24

• Normal Operation
• Abnormal Operation
• Call the Dealer Immediately

▶ HELPFUL INFORMATIONS ...... 25

ENERGY SAVING AND OPERATION HINTS...... 26

FEATURES

- SELF-ILLUMINATING BUTTON

For your convenience to operate in the dark.

(Refer page 9)

Sense intake air temperature every hour to select the optimum mode.

(Refer page 13)

- SLEEP MODE

Prevent the room from getting too hot or too cold while you are sleeping.

(Refer page 17)

• ECONOMY MODE

To reduce electrical power consumption.

(Refer page 18)

- POWERFUL MODE

Reaches the desired room temperature quickly.

(Refer page 18)

- REMOVABLE FRONT PANEL

For quick and easy cleaning (washable).

(Refer page 20)

• CATECHIN AIR PURIFYING FILTER.

Filter that can trap dust, tobacco smoke and tiny particles in the room. It can also prevent the growth of bacteria and viruses trapped in this filter.

(Refer page 21)

• DEODORIZING FILTER

Used to remove unpleasant odours and deodorize the air in the room.

(Refer page 21)

• AUTO RESTART CONTROL

Automatically restart the unit after power failure.

(Refer page 25)

Front view of a white air conditioner unit with ventilation grille and control panel (no visible text or symbols)

Line drawing of a hand holding a smartphone with a button (no text or symbols)

Thank you for purchasing a Panasonic Room Air Conditioner.

Note:

Before using your air-conditioner, please read this operating instructions carefully and keep it for future reference.

SAFETY PRECAUTIONS

Before operating, please read the following "Safety Precautions" carefully.

To prevent personal injury, injury to others and property damage, the following instructions must be followed.

■ Incorrect operation due to failure to follow instructions will cause harm or damage, the seriousness of which is classified as follows:

Warning

This sign warns of death or serious injury.

Caution

This sign warns of damage to property.

■ The instructions to be followed are classified by the following symbols:

This symbol (with a white background) denotes an action that is PROHIBITED.

These symbols (with a black background) denote actions that are COMPULSORY.

• Installation Precautions

Warning

■ Do not install, remove and reinstall the unit yourself.

Improper installation will cause leakage, electric shock or fire. Please engage an authorized dealer or specialist for the installation work.

Caution

■ This room air conditioner must be earthed.

Improper grounding could cause electric shock.

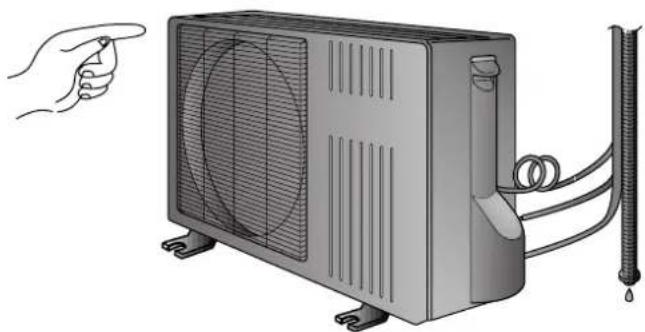

■ Ensure that the drainage piping is connected properly.

Otherwise, water will leak out.

■ Do not install the unit in a place where there may be explosive gas leaks.

Gas leaks near the unit could cause fires.

• Operation Precautions

Warning

This sign warns of death or serious injury.

Do not insert plug to operate the unit. Do not pull out plug to stop the unit.

Plug in properly.

Do not share outlet.

Illustration of a person lying down inside a vehicle (no text or symbols visible)

Do not operate with wet hands.

Use specified power cord.

Do not repair by yourself.

Do not damage or modify the power cord.

or cord. modify

If abnormal condition (burnt smell, etc) occurs, switch off and unplug the power supply.

Do not exposed directly for a long period.

Do not insert finger or other objects into the indoor or outdoor units.

Do not exposed directly to cool air for a long period.

Illustration of a heat exchanger unit with cooling fins and coiled tubing, accompanied by a hand pointing to it (no text or symbols present)

Switch used

Switch off the power supply if the unit is not used for a long period.

Caution

This sign warns of injury.

Do not pull the cord to disconnect the plug.

Switch off the power supply before cleaning it.

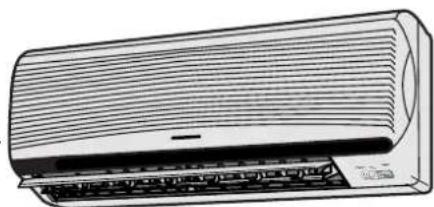

Line drawing of a wall-mounted air conditioner unit (no text or symbols)

Do not wash the unit with water.

Do not use for other purpose such as preservation or etc.

Do not use any combustible equipment at airflow direction.

Simple line drawing of a window with curtains and windows, no text or symbols present

Ventilate the room regularly.

Do not sit or place anything on the outdoor unit.

Pay attention as to whether the installation rack is damaged due to long period of usage.

Illustration of a portable air conditioner unit with two potted plants on top, emitting steam or heat (no text or symbols)

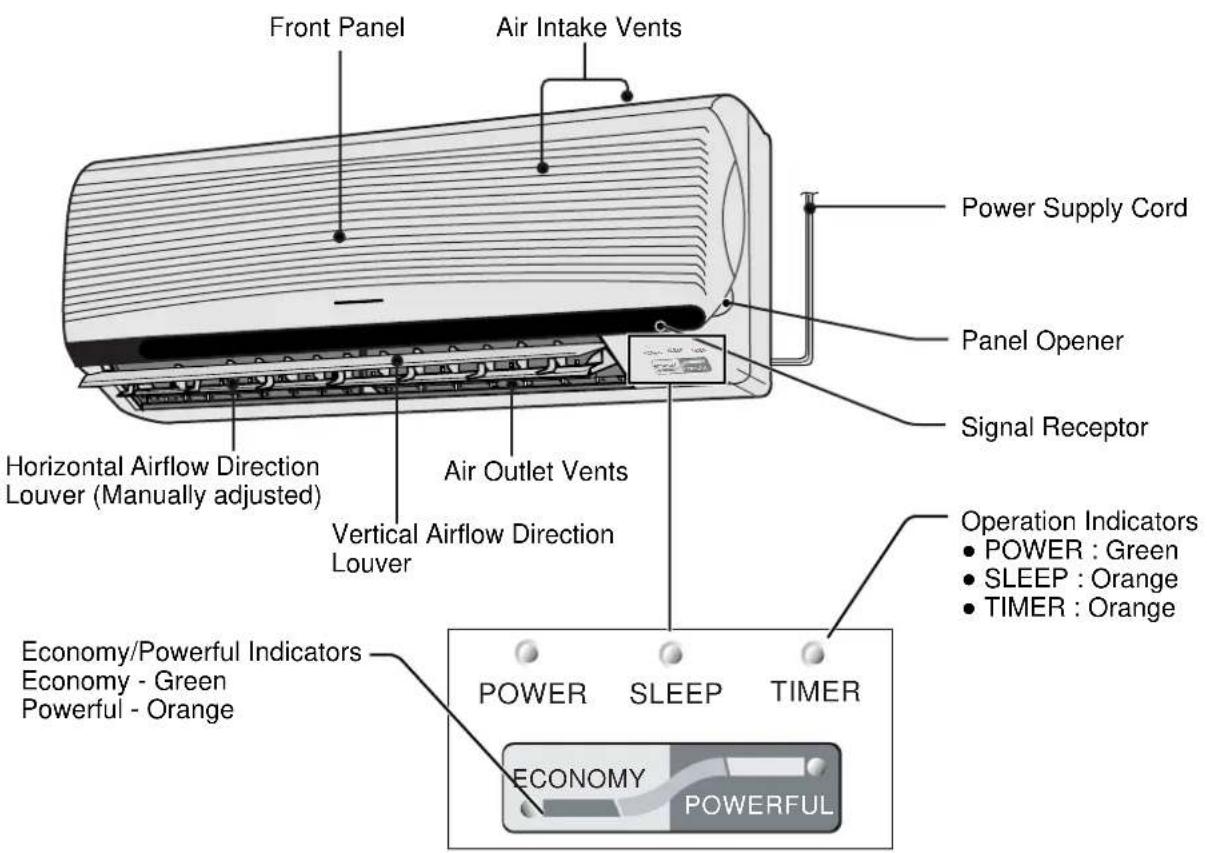

NAME OF EACH PART

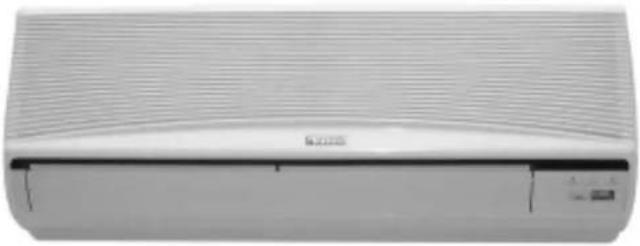

• Indoor Unit


Front Panel Air Intake Vents Power Supply Cord Panel Opener Signal Receptor Horizontal Airflow Direction Louver (Manually adjusted) Air Outlet Vents Vertical Airflow Direction Louver Operation Indicators POWER : Green SLEEP : Orange TIMER : Orange Economy/Powerful Indicators Economy - Green Powerful - Orange POWER SLEEP TIMER ECONOMY POWERFUL

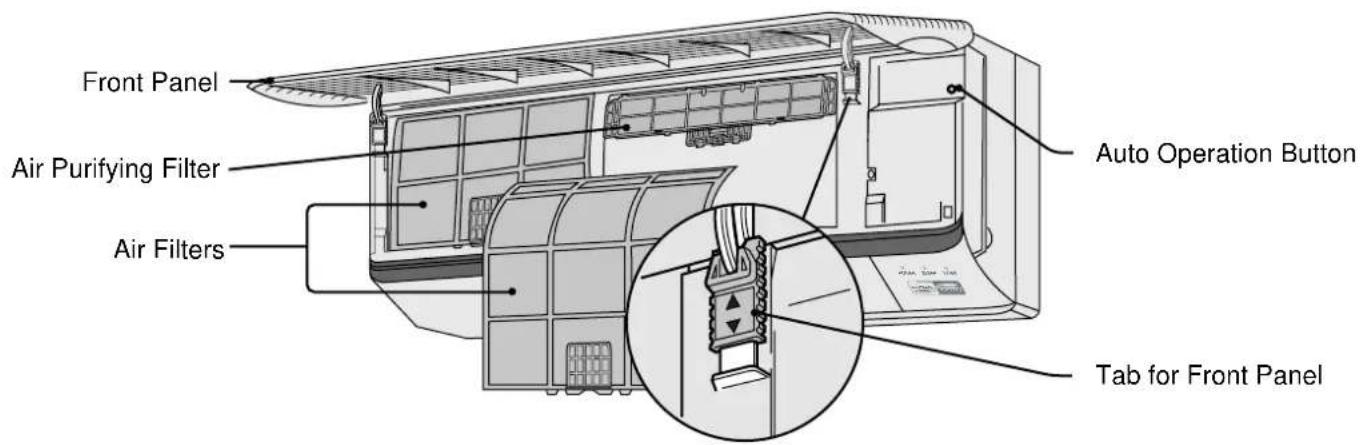

■ When the front panel is opened

Front Panel Air Purifying Filter Air Filters Auto Operation Button Tab for Front Panel

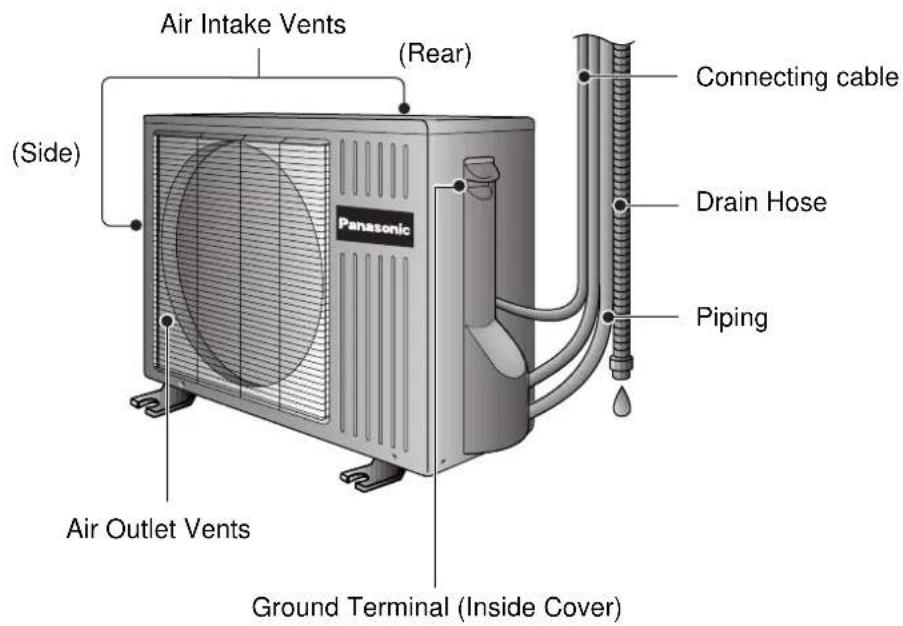

- Outdoor Unit

Air Intake Vents (Rear) Connecting cable (Dside) Panasonic Drain Hose Piping Air Outlet Vents Ground Terminal (Inside Cover)

- Accessories

FON TEMP POWER POWER1 2.7°C 0.5°C Panasonic

Isometric line drawing of a mechanical component with two mounting holes and internal ribs (no text or symbols)

Remote Control Holder Remote Control

Two RO3 (AAA) dry-cell batteries or equivalent
Air Purifying Filters (Catechin Air Purifying Filters and Deodorizing Filters)

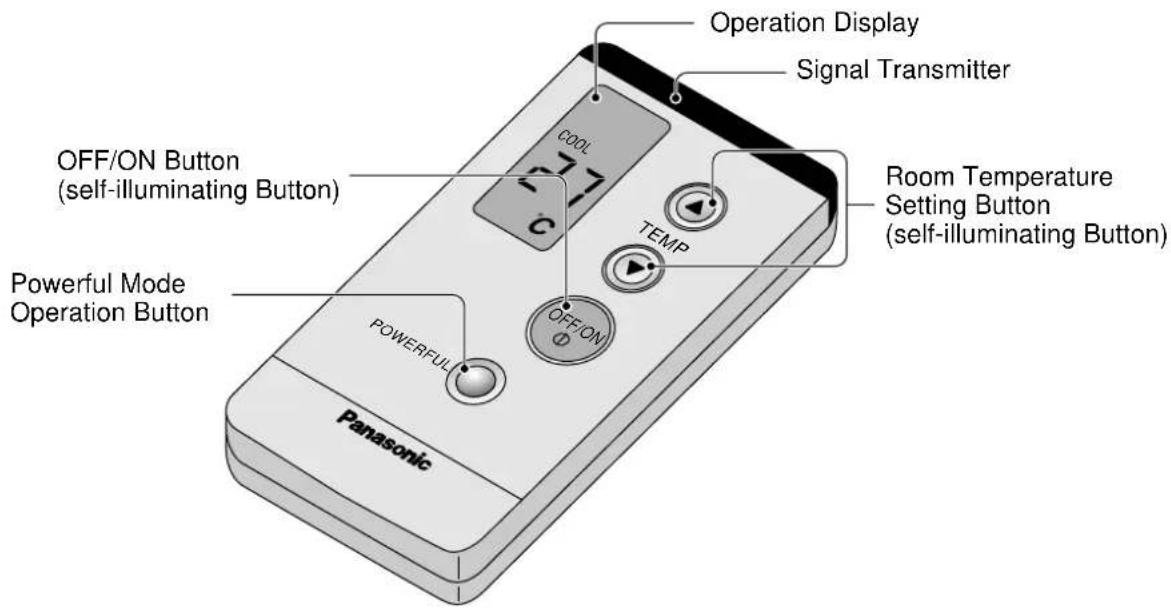

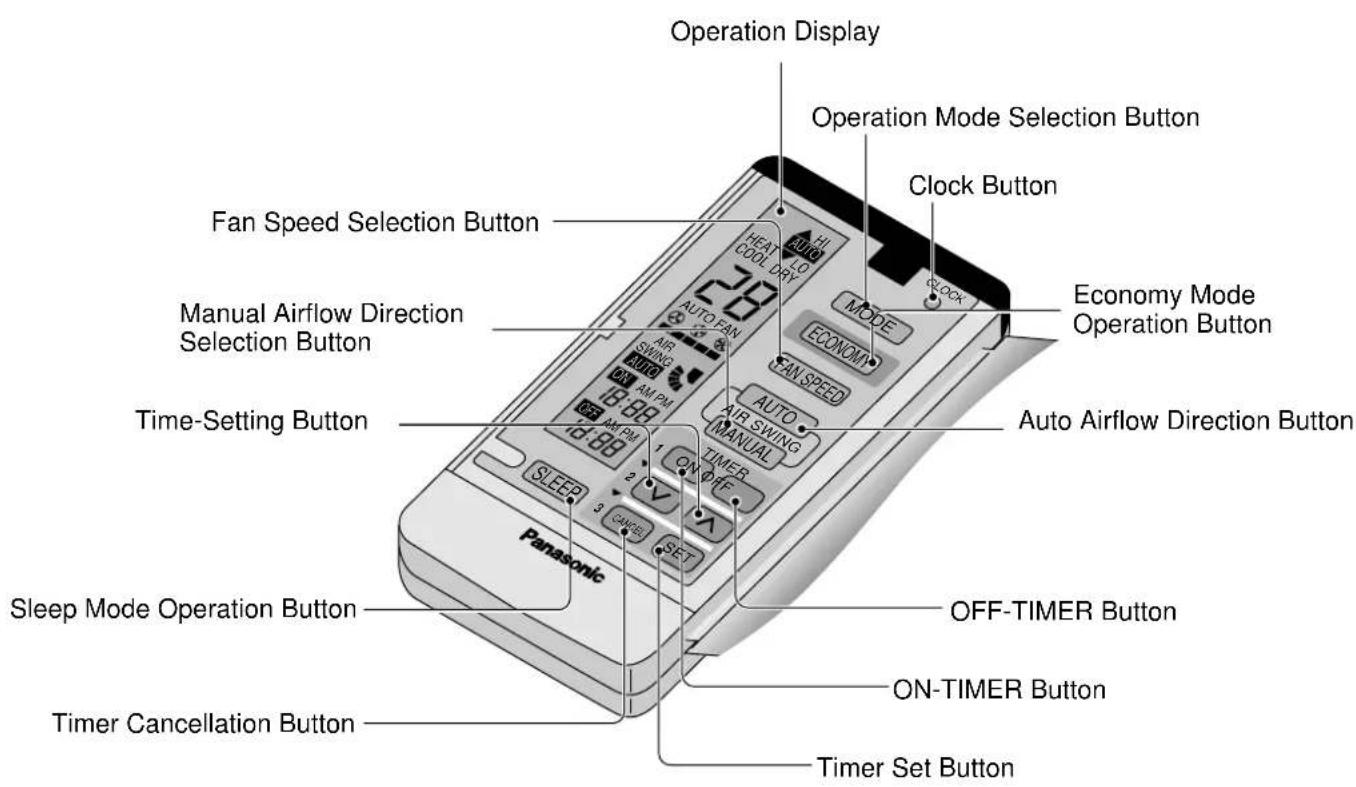

• Remote Control


Operation Display Signal Transmitter OFF/ON Button (self-illuminating Button) Powerful Mode Operation Button POWERFUL Panasonic TEMP OFF/ON Room Temperature Setting Button (self-illuminating Button)

■ When the remote control cover is opened

Operation Display Operation Mode Selection Button Clock Button CLOCK Economy Mode Operation Button Fan Speed Selection Button 20 AUTO FAN AIR SWING AM-PM AIR SWING MANUAL TIME-Setting Button SLEEP 3 CANCEL SET PANASONIC Sleep Mode Operation Button Timer Cancellation Button OFF-TIMER Button ON-TIMER Button Timer Set Button

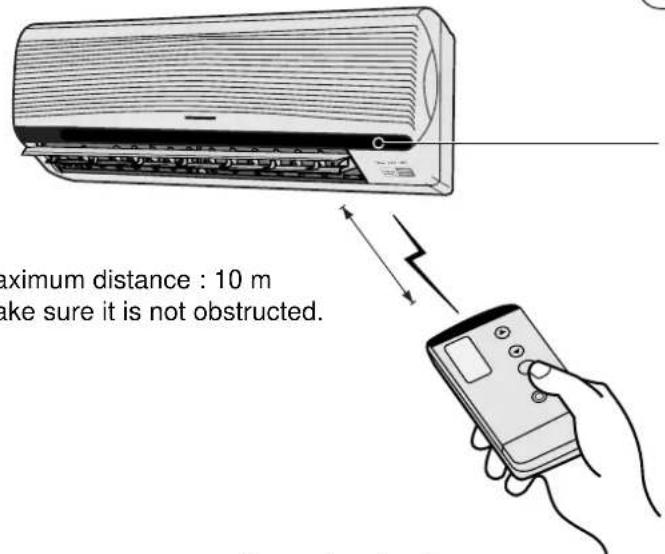

■ How to use the remote control

Notes

• Do not throw or drop
• Do not get it wet
• Certain type of fluorescent lamps may affect signal reception. Consult your dealer.

maximum distance : 10 m make sure it is not obstructed.

Signal receptor

- Signal received sound. One short beep or one long beep.

- Aim at the signal receptor.

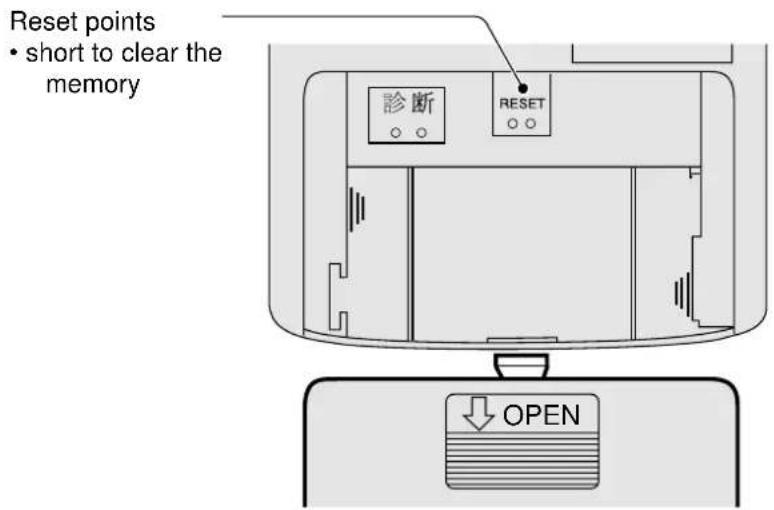

■ When the back cover is opened

Reset points • short to clear the memory 診断 RESET OPEN

■ Ensure the power plug is securely inserted. A loose plug may cause a fire or an electric shock.

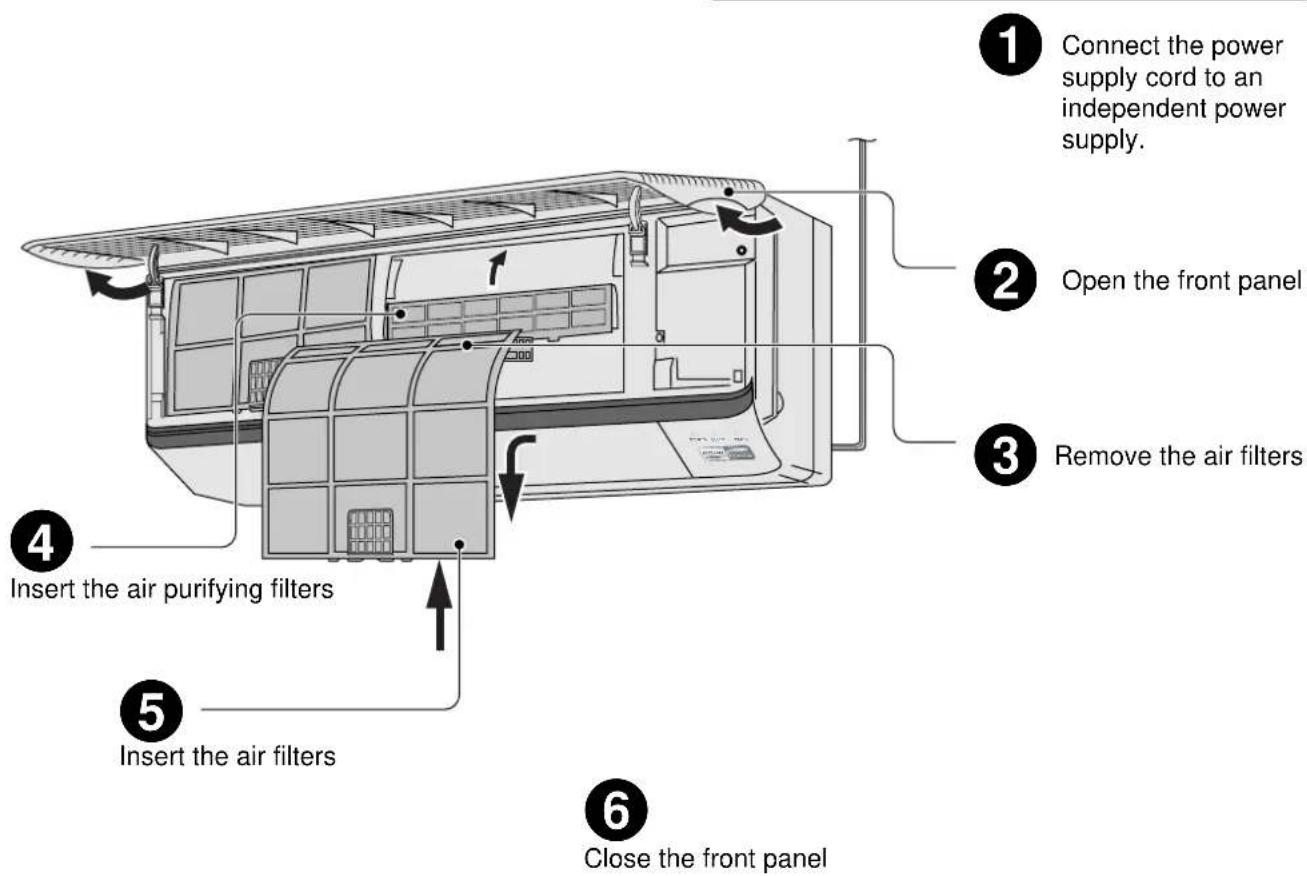

1 Connect the power supply cord to an independent power supply. 2 Open the front panel 3 Remove the air filters 4 Insert the air purifying filters 5 Insert the air filters 6 Close the front panel

Notes

• If the unit is not going to be used for an extended period of time, turn off the main Power supply. If it is left at the ON position, approximately 2.5 W of electricity will be used even if the indoor unit has been turned off with the remote control.
• If operation is stopped, then restart immediately, the unit will resume operation only after 3 minutes.

Use under the following conditions(Unit in °C)
DBT: Dry Bulb TempWBT: Wet Bulb Temp	Cooling Heating
	Indoor		Outdoor		Indoor		Outdoor
	DBT	WBT	DBT	WBT	DBT	WBT	DBT	WBT
Maximum Temperature	32	23	43	26	30	-	24	18
Minimum Temperature	16	11	16	11	16	-	-5	-6

- Remote Control

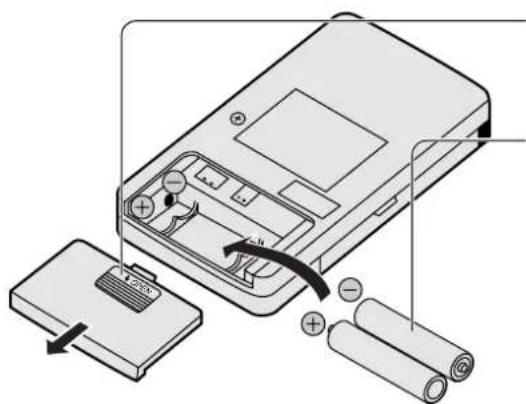

■ Inserting batteries

Diagram of an electronic device showing battery, switch, and battery pack with labeled components

Slide the cover to open

Be sure the directions are correct

PM 12:00

- Open the remote control cover and confirm the display 12:00 PM is flashing.

※ Set the current time (Clock) immediately to prevent battery exhaustion.

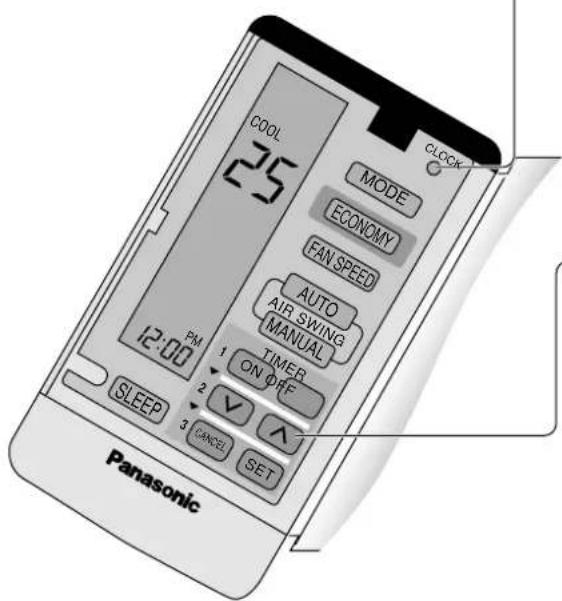

■ Setting the clock

COOL 25 12:00 PM SLEEP 3 CANCEL SET CLOCK MODE ECONOMY FAN SPEED AUTO AIR SWING MANUAL TIMER ON ORF PANasonic

1 Press the clock button

-PM 12:00 ← flashes ← lights up

2 Press to set the current time

Press continuously for fast forwarding.

Press continuously for fast reversing.

3 Press the clock button

PM ← lights up 2:30 ← lights up

■ About the batteries

• Can be used for approximately one year.
  Observe the following when replacing the batteries
• Replace with new batteries of the same type.
• Do not use rechargeable batteries (Ni-Cd).
• Remove the batteries if the unit is not going to be used for a long period.

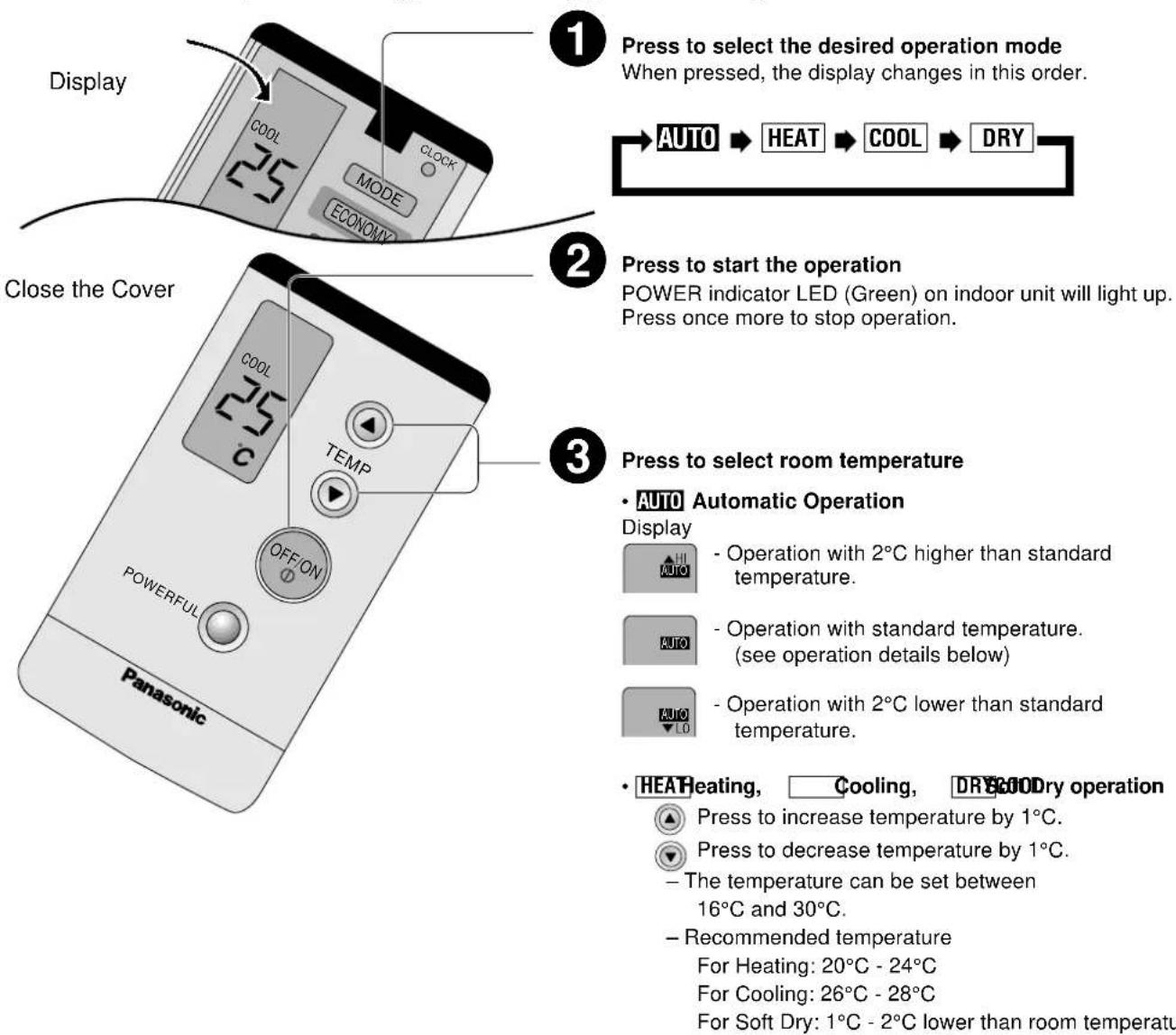

HOW TO OPERATE

• Automatic, Heating, Cooling, Soft Dry

Press to select the desired operation mode When pressed, the display changes in this order.

Press to start the operation POWER indicator LED (Green) on indoor unit will light up. Press once more to stop operation.

Press to select room temperature

• AUTO Automatic Operation

Display

• Operation with 2°C higher than standard temperature.
• Operation with standard temperature. (see operation details below)
• Operation with 2°C lower than standard temperature.

• HEATHeating, □ Cooling, DRYGOODry operation

Press to increase temperature by 1°C.
Press to decrease temperature by 1°C.

- The temperature can be set between 16°C and 30°C.

- Recommended temperature

For Heating: 20°C - 24°C

For Cooling: 26°C - 28°C

For Soft Dry: 1°C - 2°C lower than room temperature.

■ Operation details

COOL Cooling Operation

- To set room temperature to your preference of cooling comfort.

AUTO – Automatic Operation

• At the start of the automatic operation, Heating, Cooling or Soft Dry is automatically selected according to the indoor temperature.
• The operation mode changes every hour, when necessary.
  • Temperature is not displayed on remote control during Auto mode operation

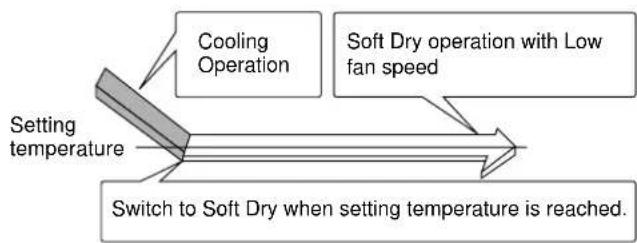

DRY – Soft Dry Operation

• A very gentle Cooling Operation. Consisting primarily of dehumidifying. It does not lower the room temperature.
• During Soft Dry operation, the indoor fan operates at Low fan speed.


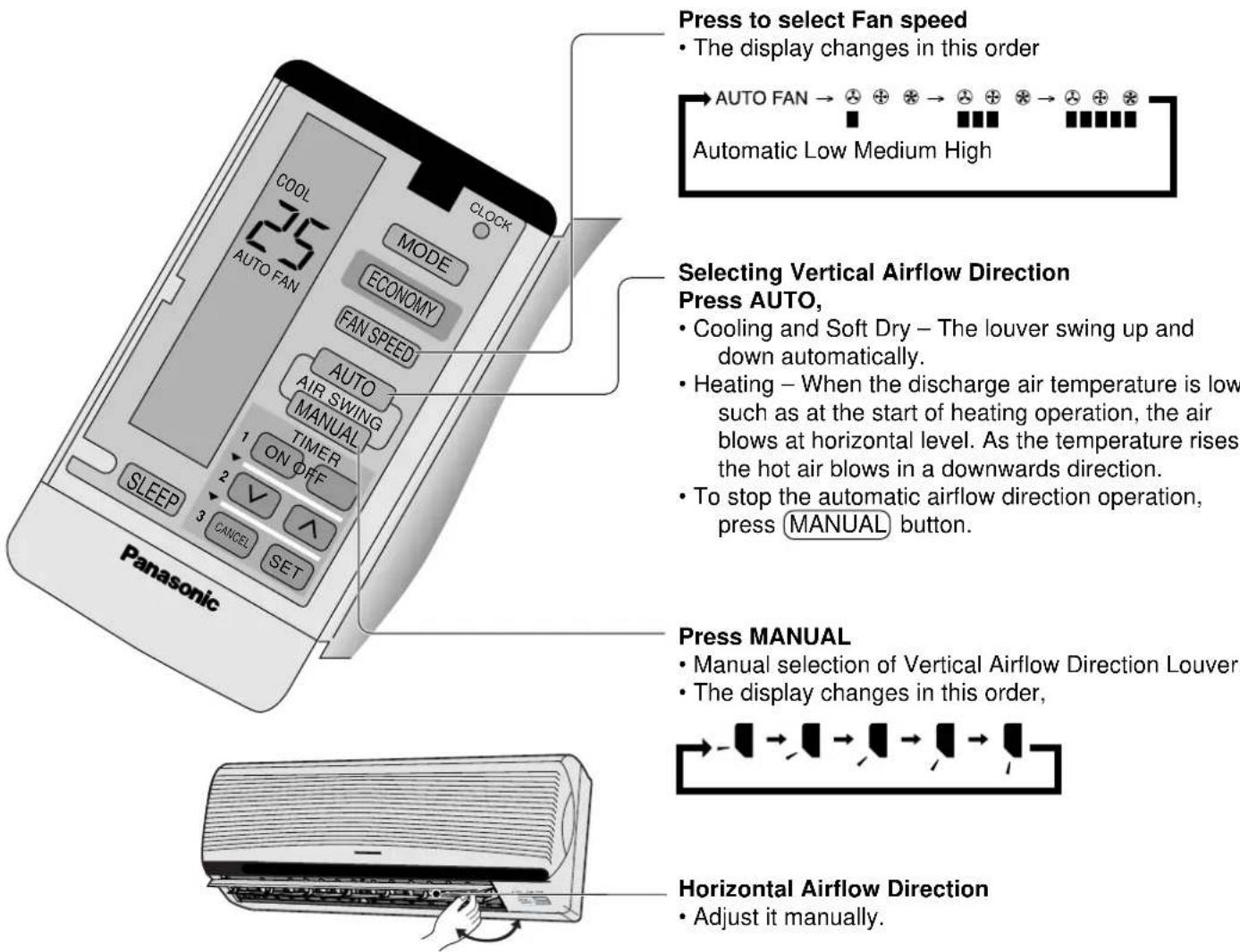

- Adjusting Airflow Direction And Fan Speed

Press to select Fan speed • The display changes in this order → AUTO FAN → 🧐 ✝️ ✝️ ✝️ → 🧐 ✝️ ✝️ ✝️ → 🧐 ✝️ ✝️ ✝️ Automatic Low Medium High Selecting Vertical Airflow Direction Press AUTO, • Cooling and Soft Dry – The louver swing up and down automatically. • Heating – When the discharge air temperature is low such as at the start of heating operation, the air blows at horizontal level. As the temperature rises, the hot air blows in a downwards direction. • To stop the automatic airflow direction operation, press MANUAL button. Press MANUAL • Manual selection of Vertical Airflow Direction Louver. • The display changes in this order, Horizontal Airflow Direction • Adjust it manually.

■ Operation details

HEAT – Heating Operation

• Defrosing Operation Depend on the outdoor temperature, the operation occasionally stops to melt the frost on the outdoor unit.
• Heat is obtained from outdoor air to warm up the room. When the outdoor ambient air temperature falls, the heating capacity of the unit might be reduced.

Automatic Airflow Volume

- The speed of the Indoor fan is adjusted automatically according to the operation. The Indoor fan stops occasionally during cooling operation.

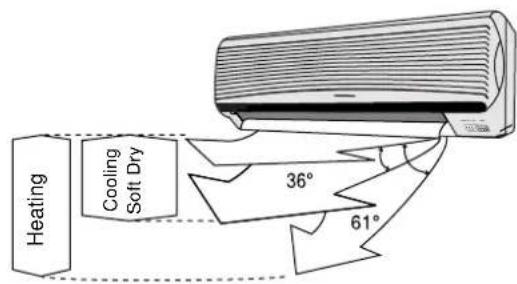

Louver adjustment range

Heating Cooling Soft Dry 36° 61°

※ Five stages of adjustments can be made in this range.

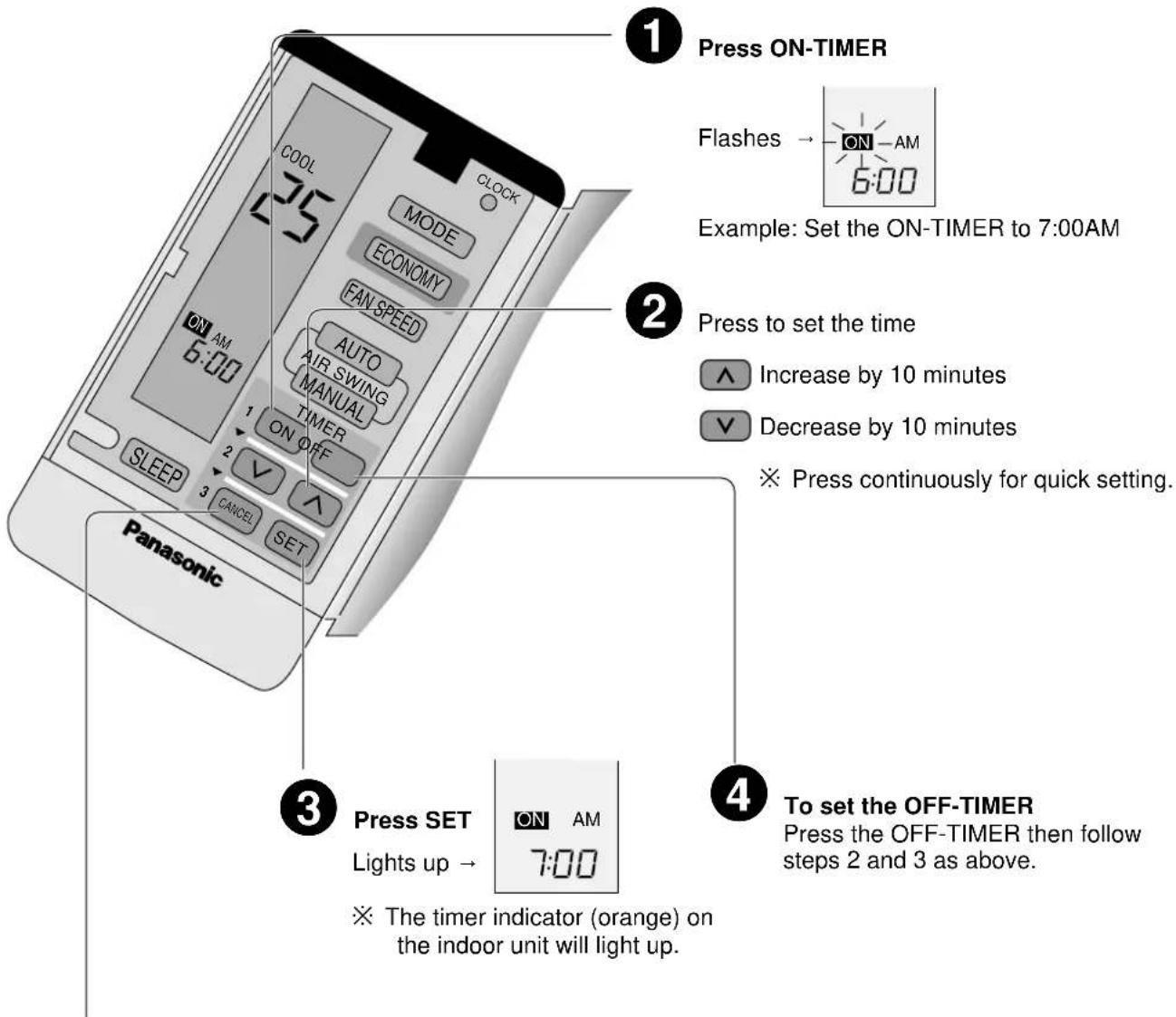

SETTING THE TIMER

Ensure that the current time is correct before setting the timer. The timer cannot be set if the time display is flashing.

Press ON-TIMER Flashes → ON AM 6:00 Example: Set the ON-TIMER to 7:00AM Press to set the time Increase by 10 minutes Decrease by 10 minutes ※ Press continuously for quick setting. Press SET Lights up → ON AM 7:00 To set the OFF-TIMER Press the OFF-TIMER then follow steps 2 and 3 as above. The timer indicator (orange) on the indoor unit will light up.

■ Timer Cancellation Button

(To cancel the Timer)

Press the ON-TIMER or OFF-TIMER then press CANCEL.

※ The timer indicator on the indoor unit will go off.

■ To change the setting time, follow the above steps.

Timer details

- When the ON-Timer is set, operation will start before the actual set time. This is to allow the room temperature to reach the setting temperature by the setting time (Cooling and Soft dry, 15 minutes in advance. Heating and Automatic, 30 minutes in advance).

- Once the ON-Timer is set, operation will start at the setting time everyday.

- Recommended Setting of Timer

Good Night! Good Morning! RING... RING... Bye Not at Home Hi! I'm home

■ When you sleep

- Set the time at which you will go to sleep with the OFF-TIMER. This prevent wastage of electricity.

■ When you wake up

- Set the time at which you will wake up with the ON-TIMER. You can start the new day at a comfortable temperature.

Note:

(The above is an example of how you can used the OFF-TIMER and ON-TIMER mode. However it is recommended to use the sleep mode function for sleeping)

■ When going out

- Set the time at which you will go out with the OFF-TIMER. Set the time at which you will come back with the ON-TIMER. - This will prevent the air conditioner from being left on while you are out, and the temperature will be pleasant when you return.

■ When you return

- Set the time at which you will return with the ON-TIMER. - This will make the temperature pleasant when you return, and it will prevent the air conditioner from being left on.

Timer details

- The current time is not displayed when the timers are set.

- When both timers are used together, the TIMER LED on the indoor unit remains lit even if the operation is stopped by the OFF-TIMER.

This is to obtain a comfortable room temperature while sleeping.

COOL 25 SLEEP 3 CANCEL SET CLOCK MODE ECONOMY FAN SPEED AUTO AIR SWING MANUAL 1 TIMER ON OFF 2 V To set the sleep mode, press SLEEP. ※ The sleep indicator on the indoor unit will light up. ■ To cancel the sleep mode, press once more. Panasonic

■ Operation details

• When the room temperature reaches the setting temperature, the airflow volume will automatically change to low.
  • Sleep Mode Operation time is 8 hours.
• When used together with the timer, the timer has priority.

• Cooling or Soft Dry Operation for sleep mode movement will start to avoid overcooling.

• Heating operation for sleep mode movement will start to avoid overheating.

• Economy or Powerful Mode

Economy and Powerful operation cannot be selected simultaneously.

COOL 25 CLOCK MODE ECONOMY FAN SPEED Cover is closed POWERFUL OFF ON Panasonic

Economy Mode

To save electrical power consumption.

However, please use this mode when the room have reached your desired temperature.

• Press ECONOMY
  ※ Economy indicator (Green) on indoor unit lights up.
• Press once more to cancel this operation.

Powerful Mode

To obtain the setting temperature quickly.

• Press POWERFUL
  ※ Powerful indicator (Orange) on indoor unit lights up.
  ※ Powerful mode will operate for 15 minutes only.
  • To cancel this operation, press once more.

■ Operation details

	Economy operation Powerful operation
	Temperature	Airflow volume	Temperature	Airflow volume
Cooling/Soft Dry	0.5°C higher than set temp.	Low (on and off)	3°C lower than set temp.	Super High
Heating	0.5°C lower than set temp.	Low (on and off)	3°C higher than set temp.	Automatic

※ • The changes of the temperature and airflow volume are automatic.

• The remote control display remain unchanged.
- If sleep button or operation mode button is pressed, economy or powerful operation is cancelled.
- During Economy mode, indoor fan operates on and off at Low speed.

CARE AND MAINTENANCE

- Cleaning the Indoor Unit and Remote Control

• Wipe gently with a soft, dry cloth.
• Do not clean with water hotter than 40°C or with polishing fluids.
• The front panel can be removed and cleaned with water.

Diagram of an air conditioner unit with hands inserting a panel, showing internal structure and ventilation slots (no text or symbols)

Caution

Switch OFF and unplug the power cord before cleaning the air conditioner.

Hand inserting a socket into an electrical outlet with a downward arrow indicating direction (no text or symbols)

- Cleaning the Air Filter

(Recommendation:- If the unit is operated in a dusty environment, clean the filters every two weeks, continuous use of this dirty filters will reduce cooling efficiency)

Open the front grille and remove the two air filters. Hold the tab, lift up slightly then pull down.

Wash back of the air filter with water.

Remove dirt using a vacuum cleaner.

move the two air lightly then pull down. SOAP

If badly soiled, wash it with soap or a mild household detergent.

Benzene Thinner

Let it dry and reinstall it. Be sure the "FRONT" mark is facing you.

※ Damaged air filter.

Consult the nearest authorized dealer.

Part No.: CWD00240.

- Do not clean using benzene, thinner, scouring powder or cloths soaked in caustic chemicals.

- Cleaning the Front Panel

(Must be removed before washing)

Caution

- Stand on a level surface when removing the front panel.

- Do not touch the metal parts in the indoor unit after removing the front panel.

- Do not leave water on the panel after cleaning. Dry thoroughly to prevent electric shock.

■ Removing the front panel

Raise the front panel to its full extent.

Pro on i

Protruding portion on indoor unit

Fulcrum

Slide the two tabs (left and right) to the UNLOCK position.

Line drawing of a small air conditioner unit with ventilation grilles and airflow arrows (no text or symbols)

■ Fixing the front panel

Raise the front panel horizontally, match the protruding portion on the indoor unit to the fulcrum and push into place.

Slide the two tabs up to the Lock position. (Click sound)

Note: If the tabs are left in the UNLOCK position, the front panel will not close.

※ If the panel does not close completely, check the tabs positions and try again.

Raise the front panel to a position slightly higher than horizontal and pull to remove.

■ Cleaning the front panel

• Gently wash with water and a sponge. (Do not use a scrubbing brush or other hard cleaning aids).
- Do not press the front panel too hard when washing. (Excess pressure may damage the panel).
- When cleaning with kitchen cleaning fluids (neutral detergents), rinse thoroughly. (Do not use non neutral detergents)
- Do not dry the front panel in direct sunlight. (Exposure to direct sunlight may discolor or deform the panel).

Illustration of hands cleaning a corrugated wooden plank with a faucet (no text or symbols)

- Replacing the Air Purifying Filters

(Once every 3 month)

- Do not reuse dirty filters. Consult the nearest authorized dealer.

(Air Purifying filter No. CZ-SFD50N)

• These filters function effectively for not more than three months.

- If the air conditioner operates with dirty filters:-

• Air is not purified
• Cooling capacity decreases
• Foul odours are emitted

- Note:

Catechin is natural brown element. The filter is coated with catechin in order to prevent the growth of bacteria and viruses.

■ Removing the air purifying filters

Diagram showing a hand inserting a component into an air conditioner unit with directional arrows indicating movement or force.

1 Raise the front panel to its full extent.

2 Remove the air filters (left and right).

- Lift up slightly then pull down

3 Hold the tabs of the air purifying filters and pull.

Caution - Be careful not to hurt your hands on metal parts.

■ Reinstalling the air purifying filters

Press here

1 Open the filter frame to insert the new filters. - Deodorizing Filter (Black in colour) - Catechin Air Purifying Filter (Brown in colour)
2 Insert the new air purifying filter. (Be sure the "FRONT" mark is facing you)
3 Push until you hear a click.
4 Reinsert the air filters.
5 Close the front panel.

• Pre-season Inspection

• Is the discharge air cold (warm)?

Operation is normal if, 15 minutes after the start of operation, the temperature difference between the air intake and outlet vents is 8°C or above for cooling and 14°C or above for heating.

• Are the air in vents of the outdoor un

- Are the air intake or outlet vents of the indoor or outdoor units obstructed?

- Are the remote control batteries weak?

If the remote control display appears weak, replace the batteries (page 12).

- When the Air Conditioner is Not Used For an Extended Period of Time

1 To dry the internal parts of the indoor unit, operate the unit for 2 - 3 hours using COOL operation with 30°C setting temperature.

2 Turn off the power switch and remove the power supply plug.

Note: If the unit is not switched off by the remote control, it will start operating when you plug in (because a Auto Restart Control is provided).

3 Remove the remote control batteries.

Illustration showing a hand inserting a plug into a socket next to a battery pack and battery stack (no text or symbols)

- Recommended Inspection

- The unit will become dirty after use over several seasons, reducing performance. Depending on the operation condition, a dirty unit may produce foul odours and dust may pollute the dehumidifying drainage. Seasonal inspection is recommended, in addition to regular cleaning. Consult an authorized dealer.

TROUBLESHOOTING

- Normal Operation

Q - Is it okay?

A- This is the answer.

Q - Air conditioner has been restarted, but does not operate for 3 minutes.

A - This is to protect the air conditioner. Wait until the air conditioner begins operating.

Q - A sound like water flowing can be heard.

A - This is the sound of refrigerant flowing inside the air conditioner unit.

Ssshh og is coming air conditioner. occurs when in the air ols the room air.

Q - It seems that fog is coming out from the air conditioner.

A - Condensation occurs when the airflow from the air conditioner cools the room air.

HEATING OPERATION

Q - Operation stops for about 12 minutes during heating. (The operation lamp blinks)

A - This is to melt the frost which has accumulated on the outdoor unit (defrosting operation). This will take no longer than about 12 minutes, so wait for operation. (Frost accumulates on the outdoor unit when the outdoor temperature is low and humidity is high.) Water comes out from the outdoor unit.

Q - The room has a peculiar odour.

A - This may be a damp smell emitted by the walls, carpet, furniture or clothing in the room.

AUTO FAN

Q - During Automatic Vertical Airflow setting, indoor fan stops occasionally.

A - This is to remove the smell emitted by the surroundings.

HEATING OPERATION

Q - During heating operation, indoor fan may run at on and off conditions.

A - This to prevent undesired cooling effect during heating operation.

- Abnormal Operation

Hmmm! Air conditioner operate too loud. • Is the installation work • Is the front grille closed properly?

The air conditioner does not operate.

• Has a circuit breaker been tripped?
• Has the power plug been removed from the wall outlet?
  • Is the timer being used correctly?

Air conditioner operation noise too loud.

• Is the installation work slanted?
• Is the front grille closed properly?

The air conditioner does not cool (warm) effectively.

• Has the temperature been set incorrectly?
• Are the filters dirty?
• Are the intake or outlet vents of the outdoor unit obstructed?
• Are all windows and doors closed?

- Call the Dealer Immediately

If the following conditions occur, immediately turn off the main power supply and unplug.

• Abnormal noise is heard during operation.

• Water or foreign material gets into the remote control by mistake.

• Water leaks from the indoor unit.

Illustration of a classic rotary dial telephone with a coiled cord (no text or symbols visible)

- Switches or buttons do not operate properly.

• The circuit breaker switches off frequently.

• Power supply cord and plug become unusually warm.

HELPFUL INFORMATION

Auto Operation Button

Diagram showing a hand pressing a button onto a device with labeled parts and a close-up of the handle.

■ Automatic Operation

• If the remote control fails to function or misplaced, press Auto Operation button for Automatic operation.
• The Automatic operation will be activated immediately once the Auto operation button is pressed. However, temperature cannot be adjusted in this operation.
• The power LED on the indoor unit blinks until the operation mode is selected automatically.
  • To cancel this operation, press once more.

■ Remote Control Signal Receiving Sound

• To switch off the beep (Signal Receiving Sound), press this Auto Operation button for 10 seconds continuously or longer. "Beep", "beep" sound will be heard at the tenth seconds.
  Note: "Beep" sound will be heard at the fifth seconds; However please press continuously until you heard "beep", "beep" sound.
• Repeat this, if you want to switch on the Signal Receiving Sound.

※ Note: If you press this button continuously for 5 to 10 seconds, Test Run operation will be performed. A "beep" sound will be heard at the fifth seconds, to identify the starting of Test Run operation. (This is for Servicing purpose only.)

POWER FAILURE

Auto Restart Control

• If power is resumed after a power failure, the operation will restart automatically after 3 - 5 ^1/2 minutes.
• Operation will be automatically restart under the previous operation mode and airflow direction when power is resumed as the operation is not stopped by remote control.

Timer Setting

- When power failure occurs, the timer setting is cancelled. Once power is resumed, reset the timer.

Illustration of a curtain hanging from a window with raindrops and silhouettes (no text or symbols)

Thunder and Lightning

- This air conditioner is equipped with a built-in surge protective device. However, in order to further protect your air conditioner from being damaged by abnormally strong lightning activity, you may switch off the main power supply and unplug from power socket.

Hand inserting a plug into an electrical socket (no text or symbols visible)

Setting Temperature Set the temperature 1°C higher (Cooling operation) or 2°C lower (Heating operation) than actually desired. Approximately 10% of electricity costs can be saved. Air Filter and Air Purifying Filter Clean the air filter every 2 weeks and change the Air Purifying Filter every 3 months. Dirty filter may reduce cooling or heating efficiency. Keep All Doors and Windows Closed Otherwise, cooling and heating performance will be reduced and electricity costs is wasted. Outdoor Unit Do not block the air outlet vents. Otherwise, it will lower the cooling or heating performance. Avoid Direct Sunlight Timer and Sleep Mode To prevent wastage of electricity, use sleep mode when sleeping or Timer when going out to save electricity cost.

Warning

1) If the supply cord is damaged or need to be replaced, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
2) Remove power plug or disconnect from the mains before servicing this appliance.
3) Do not repair by yourself. In case of malfunction of this appliance, do not repair by yourself. Contact to the sales dealer or service dealer for a repair.
4) The appliance is not intended for use by young children or infirm persons without supervision.
5) Young children should be supervised to ensure that they do not play with the appliance.
6) Turn off the power (Isolation from main power supply). Pull off the power plug from the receptacle, or switch off the breaker, or switch off the power disconnecting mean to isolate the equipment from the main power supply in case of an emergency.

Caution

DISCONNECT THE MAINS PLUG FROM THE SUPPLY SOCKET WHEN NOT IN USE, WHERE SUPPLY CONNECTION IS VIA MAINS PLUG.

IMPORTANT

1. WHEN THE POWER CORD IS CONNECTED TO THE MAINS THROUGH A MULTI POLAR SWITCH

THERE MUST BE A MULTI POLAR SWITCH (DISCONNECTING MEANS) WITH A MINIMUM 3 mm CONTACT GAP IN THE FIXED INSTALLATION CIRCUIT.

1. WHEN THE POWER PLUG IS CONNECTED TO THE RECEPTACLE

Replacement or installation of power plugs shall be performed only by authorised/qualified personnels.

The wires in this main lead are coloured in accordance with the following code :

Green-and-yellow : Earth

Blue : Neutral

Brown : Live

If the colours of the wires in the main lead of this appliance do not correspond with the coloured markings indentifying the terminals in your plug, proceed as follows :

The green-and-yellow wire must be connected to the terminal in the plug which is marked with letter E or by the earth symbol ⊕ or coloured green or green-and-yellow.

The blue wire must be connected to the terminal which is marked with the letter N or coloured black.

The brown wire must be connected to the terminal which is marked with the letter L or coloured red.

Note

Please remember to record the following:

• Model Number
• Serial Number
• Dealer's Name
  • Date Purchased
