Gamester MM279 - Console Manta - Free user manual and instructions

Product Type	Handheld Gaming Console / Multimedia Player
Display	2.8-inch TFT LCD
Battery	Built-in rechargeable lithium battery
Storage	Internal flash memory; expandable via SD card slot (up to 32 GB)
Camera	Built-in digital camera (photo and video recording)
Video Recording (DV)	Yes, resolutions: 160x128, 320x240
Video Playback	Supports multiple video formats
Audio Playback	MP3, WMA, WAV; built-in speaker and earphone jack
FM Radio	Yes, requires earphone as antenna
Game Support	Built-in NES-style games; directional keys and action buttons
Connectivity	USB 2.0, AV Out/In (NTSC/PAL), earphone jack
Other Features	E-book reader, dictionary, calculator, notebook, recording (MIC), slide design
Power Supply	DC 5V input via charger (included)
Charging Indicator	Blue (working), Red (charging)
Dimensions (Approx.)	120 x 60 x 15 mm (estimated based on 2.8" screen)
Weight (Approx.)	120 g (estimated)
Body Material	Plastic
Color	White (as shown in images)

Frequently Asked Questions - Gamester MM279 Manta

How do I turn on/off the Manta Gamester MM279?

Press and hold the ON/OFF button for a few seconds to power on. To turn off, press and hold again until the shutdown screen appears. The device will also auto power off after 3 minutes of standby.

How do I charge the device?

Connect the included USB charging cable to the DC IN port and a standard 5V USB power adapter. The red indicator light shows charging; blue indicates fully charged or in use.

Can I play NES games on this console?

Yes, the console includes built-in NES games. Use the directional keys to move, OK to start/pause, B for shooting, and X for jump/grade select. Press ESC to exit a game.

How do I insert or remove an SD card?

Locate the SD card slot on the device. Insert the card with the metal contacts facing down until it clicks. To remove, press the card in gently until it pops out.

How can I transfer files from my computer?

Connect the device to your computer via the USB port. It will appear as a removable drive. Copy music, videos, photos, or e-books to the appropriate folders. Safely eject before disconnecting.

How do I reset the device if it freezes?

Use a paperclip to press the Reset button located on the side or bottom of the device. This will restart the console without losing data.

Can I record audio with this device?

Yes, use the Recording function in the main menu. Press OK to start, ESC to stop. Files are saved as MP3 in the music list.

How do I use the FM radio?

Connect earphones (they act as antenna). Go to FM Radio in the menu. Use LEFT/RIGHT to tune frequency, B to switch between auto/manual search. Press ESC to exit.

What is the meaning of the blue and red lights?

The blue indicator lights up when the device is on and working. The red indicator lights up during charging. When charging is complete, the red light turns off.

How do I clean the device?

Power off and disconnect any cables. Wipe the exterior with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners. Avoid moisture entering ports.

USER MANUAL Gamester MM279 Manta

To ensure proper use of this product please read this User's Manual carefully and keep for future reference.

MM621 GT Racing Wheel

Close-up of a black and white car steering wheel with control buttons (no visible text or symbols)

Exterior view of a white electronic device with a circular lens and drive slots (no visible text or symbols)

DVD-037 Emperor Recorder 2

White electronic device with a remote control unit and display screen (no visible text or symbols)

Two transparent mechanical components with circular bases, no visible text or symbols

Odtwarzacz audio....13

Zdjęcia 14

Device features ......26

Description 27

Device functions brief ....29

Basic operation ....30

Main menu interface operation ....30

Audio player ....31

Picture mode ....33

Camera 34

DV mode 35

Recording 36

Game 37

Study 38

Dictionary....38

E-book 39

Tools 40

Calculator 40

MM253/279 - GAMESTER

Notebook 40

Memory Administration ....40

System setting 41

Language....41

Original Setting 41

Sound Setting 41

Auto Power Off 41

Interface Style 41

Power saving 42

Recording 42

FM radio 42

Instrukcja obsługi

Widok z dołu

Widok z tyłu

MM253/279 - GAMESTER

Podstawowe funkcje

• Screen slide design with 2.8" TFT
  ● Game function
  ● Digital video camera, DV function.
  ● Movie playing function:
  ● Audio playing function: for all audio format including MP3/WMA and WAV etc.
  ● Photo/picture view function
  ● Build-in MIC;
  ● A.V out: (NTSC/PAL)
  A.V. in: A.V.
  ● Multi-languages set
• SD card socket, expanding the storage space.
  E-book function.
  ● Built-in li. battery
  ● Built-in speaker

Function

Description

Front

Top

MM253/279 - GAMESTER

Bottom

Back

MM253/279 - GAMESTER

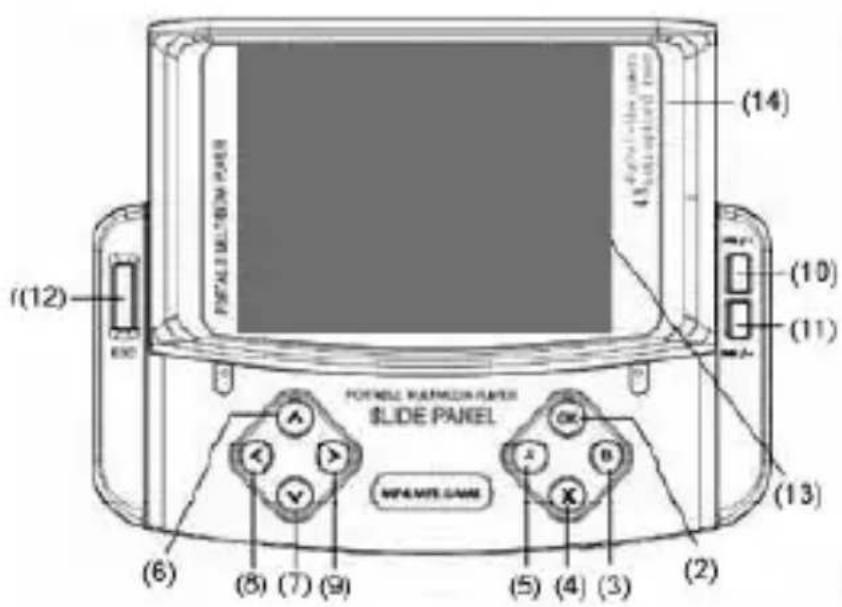

Device functions brief

1. Power ON/OFF
2. OK - Confirm
3. B – Shooting key in Game/OSD display
4. X – Mode exchange in MP3/menu key/turning and jumping key in Game
5. A – Recycle mode exchange in MP3/menu;
6. • ^ UP; cursor moving/object moving direction in Game
7. • v Down
8. • < left
9. -> right
10. Vol+
11. ▶/ = - Vol-
12. ESC – Exit

(Note: When playing NES game, press and hold

1. Slide panel
2. – Earphone socket
3. Working indicator light (blue)/charging light (red
4. 📷/▶‖ –Przycisk migawki aparatu/nagrywania kamery
5. Reset - Reset
6. Hold – Hold
7. Dc in /charger in
8. USB
9. AV OUT/IN
10. SD card
11. Built-in speaker
12. Built-in camera
13. Built-in MIC

Application Introduction

Basic operation

Power on /off

Press and hold the power “ON/OFF” to power on ,Press and hold again the device displays off picture and turn off. The device will be power off automatically after standby by over 3 min.

Main Menu Operation

Main menu interface operation

Video player

UP/Down – Selecting video files.

A – Get in sub-menu:

Display Mode	List
	Thumbnail
Recycle Mode	One
	All
	Random
File proof	Lock
	Unlock
File del.	One
	All
Video out put	LCD
	NTSC
	PAL

MM253/279 - GAMESTER

Exit

UP/Down – Items selecting

RIGHT – Sub-menu.

OK - Confirm.

Note: The files locked can not be deleted.

Video files playing

OK – Play/pause

UP/Down – Last or next song selecting

LEFT/RIGHT - Fast backword or forward (×2 ×4×6×8)

- Vol+ or Vol-

OK – Normal play /pause

Exit From Video Playing

ESC - exit.

Audio player

„OK“ – Get in music viewing operation interface;

UP/Down – Selecting audio files.

A – Get in menu, functions as follow:

Recycle Mode	One
	All
	Random
File Proof	Lock
	Unlock
File Del.	One
	All

MM253/279 - GAMESTER

EQ Mode	Normal
	Classical
	Pop
	Bass
	Rock
	3Min.
Exit

UP/Down – Last or next item selection

RIGHT – Sub-menu

OK – Confirm

Audio files playing

Selecting the audio file ,play by “OK” key .The id3 information of music file under playing can be displayed on the screen:

OK – Play/Pause

UP/Down – Last or next song

LEFT/RIGHT – Fast backward/fast forward; (×2 ×4×6×8

A – Recycle mode(3 modes)

X - EQ mode

Note:

Pressing any key to relieve screen proof.

MM253/279 - GAMESTER

Picture mode

Get in picture mode

Operation:

UP/Down – selecting picture files

A – Get in menu: functions as shown bellow.

Display Mode	Thumbnail
	List
	Slide
File Proof	Lock
	Unlock
File Del.	One
	All
Power on catalogue	Customer's definition
Power off catalogue	Customer's definition
Video out put	LCD
	NTSC
	PAL

UP/Down – Last or next item selecting

OK - Confirm

Picture files playing

Selecting slide view or any picture file, play by "OK"

UP/Down – Upper or next picture

OK – Slide viewing or stop

Exit

ESC – Exit

MM253/279 - GAMESTER

Camera

Camera mode:

The camera working state and the picture size are showed on the left upper corner of LCD, the memory capacity left is showed on the right.

Operation:

SHUTTER – shooting

UP/Down – Focus adjust (2 times auto-zoom)

A – Get in Camera actors setting sub-menu

MM253/279 - GAMESTER

Shoot Mode	Single
	Continuance
	Auto
Picture Size	Select
Picture Quality	High
	Normal
	Low
Special Effect	Normal Mode
	Negative Mode
	Solaris Mode
	Relief Mode
	Binaries Mode
	Sepia Mode
	Black and white Mode
Exit

DV mode

Press „OK“ key to confirm as shown bellow.

MM253/279 - GAMESTER

Operation:

- Shooting/Stop shooting

UP/Down – Focus adjusting(2 times digital focus).

A – Stop shooting, get in sub-menu:

Video Size	160*128
	320*240
Video Quality	High
	Normal
	Low
Special effect	Normal
	Negative
	Solaris
	Relief
	Binaries
	Sepia
	Black & White
Exit

Recording

MIC recording mode

Pressing „OK“ to get in recording work interface:

Built-in MIC Recording

When MIC recording:

OK – Start/Pause

ESC – Stop recording

MM253/279 - GAMESTER

Note:

After recording, the music file will be stored in MP3 list automatically.

Exit From Recording Mode

ESC – Exit.

Game

Key operation:

UP/Down – Game selection

A Get in sub-menu, as follow:

File proof	Lock
	Unlock
File Del.	One
	All
Video out	LCD
	NTSC
	PAL
Exit

UP/Down – Upper or next item selection

RIGHT – Sub-menu

OK – Confirm

MM253/279 - GAMESTER

Starting Game

In game, key function as follow

Key	Function
Direction key	Up/down/left/right moving
OK	Start game or pause
B	Shoot Kick fight
X	Turn jump game grade select
ESC	Exit from game
|/-	Exit

Study

OK – Get in study mode, as shown bellow:

Dictionary

Confirming by „OK“ key:

Direction keys – Moving cursor to select words

X – Confirm the word

B – „Tab” key of PC keyboard, the device passes 3 display windows.

- Words sound

UP/Down – upper or down selection

ESC – Exit from dictionary

MM253/279 - GAMESTER

E-book

UP/Down – File selection

A – Get in sub-menu:

File proof	Lock
	Unlock
File Del.	One
	All
Exit

UP/Down – Upper or next item

RIGHT – Sub-menu

OK – Confirm

When you read, operations as follow:

UP/Down – Line selection

A – Get in „searching menu:

OK – Get in „searching“ mode

LEFT – Get in follow function

View mode	Manual
	0.5 Sec.
	1 Sec.
	2 Sec.
Lines Distance	Small
	Middle
	Big

The book lable can be used to administrate the E-book

ESC – Exit from E-book

MM253/279 - GAMESTER

Tools

Calculator

Direction keys – Words selection

OK – Confirm /Working

ESC – Exit

Notebook

A – Get sub-menu

New file
Edit file
File proof	Lock
	Unlock
File Del.	Now
	All
Esc

OK – Get in

A – Store menu

B – Mode exchange

OK – Confirm

ESC – Exit

Memory Administration

This function is for memory selection (SD card - flash)

Operation:

LEFT / RIGHT – Flash or SD card selection

UP / DOWN – Working area or format selection

OK – Confirm

ESC – Exit

MM253/279 - GAMESTER

Note: After formatting, all files in device's memory will be deleted.

System setting

OK – Get in system setting mode:

Auto power off

Language

UP / DOWN – Upper or next selection

OK - Confirm

Note: After confirming, the system needs to power on again.

Original Setting

This function is designed to open or close the speaker's sound or key's sound.

ESC - exit

Auto Power Off

Stand by time – the time from the last key operation to power off.

Never – Clear the auto power off function

Interface Style

The device possess 2 interfaces;

MM253/279 - GAMESTER

Power saving

Select the LCD OFF time to save the power.

Recording

OK – Start/Stop

ESC – Exit

FM radio

B – Channel selection Auto-searching or manual searching exchange key.

LEFT/RIGHT à Frequency adjust or channel selection

UP / DOWN à Channel numbering in manual searching

a Vol+ or Vol- in channel searching

OK à Channel store in manual search;

Start searching in auto-searching

ESC à Exit from FM mode

Note:

The earphone lines is used as the antenna in FM mode
