USER MANUAL VA-1DVIN Kramer

Kramer Electronics, Ltd.

USER MANUAL

Model:

VA-1DVIN

Virtual EDID

Contents

1 Introduction 1
2 Getting Started 1
3 Overview 2
3.1 Defining EDID 3
4 Your VA-1DVIN Virtual EDID 3
5 Connecting the VA-1DVIN Virtual EDID 4
5.1 Acquiring the EDID 4
5.2 Reconnecting the Projector 5
6 Technical Specifications 6

Figures

Figure 1: VA-1DVIN Virtual EDID 3
Figure 2: VA-1DVIN – Acquiring the EDID from the Display Device 5
Figure 3: Connecting the VA-1DVIN Virtual EDID 6

Tables

Table 1: VA-1DVIN Virtual EDID 3
Table 2: Technical Specifications of the VA-1DVIN Virtual EDID 6

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better! Our 1,000-plus different models now appear in 11 groups ^1 that are clearly defined by function.

Congratulations on purchasing your Kramer Pico TOOLS VA-1DVIN Virtual EDID, which is ideal for:

• Presentation graphics distribution
  • Graphics production studios
• Extending a display away from the computer

Each package includes the following items:

• VA-1DVIN Virtual EDID
• Power adapter (5V DC Input)
- This user manual ^2

2 Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
• Review the contents of this user manual
• Use Kramer high performance high-resolution cables ^3

3 Overview

The Kramer VA-1DVIN is a unique DVI EDID emulator, with a DVI-D input and DVI-D output on DVI-I connectors ^1 . When connecting the VA-1DVIN to a display device and pressing the CAPTURE EDID button, the VA-1DVIN reads and stores the EDID (Extended Display Identification Data) from the display device ^2 . For example, when the DVI signal is extended more than 100 meters over fiber optic cable, the VA-1DVIN can emulate the EDID information ^3 . The display can be disconnected and later reconnected, without rebooting the operating system.

Note: The VA-1DVIN does not pass HDCP signals.

In addition, the VA-1DVIN:

• Features a maximum data rate of 3.3Gbps
• Is housed in a Pico TOOLS enclosure ^4
- Is fed from a 5V DC power supply

To achieve the best performance:

• Connect only good quality connection cables, thus avoiding interference, deterioration in signal quality due to poor matching, and elevated noise- levels (often associated with low quality cables)
• Avoid interference from neighboring electrical appliances and position your Kramer VA-1DVIN away from moisture, excessive sunlight and dust

3.1 Defining EDID

The Extended Display Identification Data (EDID ^1 ) is a data-structure, provided by a display, to describe its capabilities to a graphics card (that is connected to the display's source). The EDID enables the source (for example, a PC) to “know” what kind of monitor is connected to the output.

The EDID includes the manufacturer's name, the product type, the timing data supported by the display, the display size, luminance data and (for digital displays only) the pixel mapping data.

4 Your VA-1DVIN Virtual EDID

Figure 1 and Table 1 define the VA-1DVIN Virtual EDID:


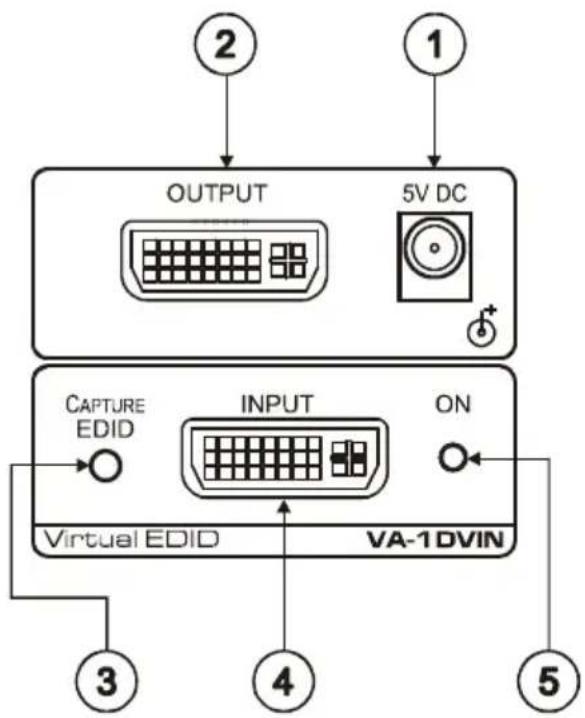

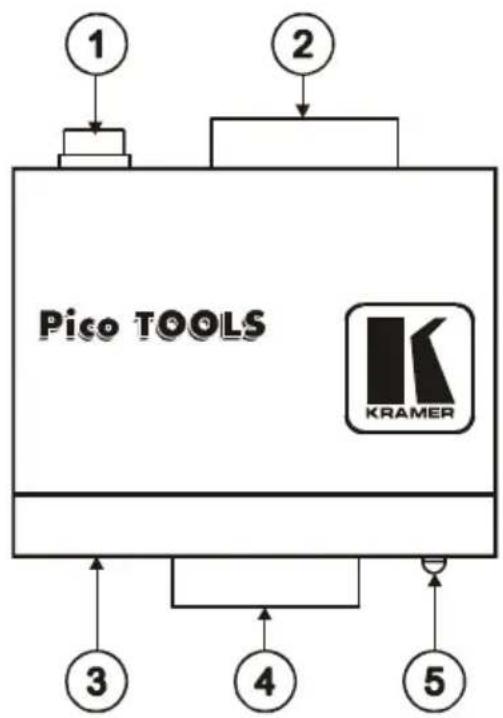

Figure 1: VA-1DVIN Virtual EDID

Table 1: VA-IDVIN Virtual EDID

#	Feature Function
1	5V DC	+5V DC connector for powering the unit
2	OUTPUT DVI Connector Connect to the DVI acceptor
3	CAPTURE EDID Button	Press to acquire EDID
4	INPUT DVI Connector	Connect to the DVI source
5	ON LED	Lights when the power is connected

5 Connecting the VA-1DVIN Virtual EDID

In the example illustrated in Figure 2 a projector is disconnected from a PC in order to reinstall it at a distance, after the PC has read the projector's acquired EDID from the VA-1DVIN. The projector is then reconnected, without the need to reboot the system.

The configuration illustrated in Figure 3 requires two separate stages:

• The VA-1DVIN needs to acquire the projector's EDID information (see section 5.1)
• The PC is connected to the VA-1DVIN, letting it read the projector's EDID information even if it is not connected to the PC (see section 5.2). The projector can now be reconnected at a distance to the PC via the VA-1DVIN

5.1 Acquiring the EDID

To use the VA-1DVIN to acquire the EDID information, as illustrated in the example in Figure 2, do the following:

1. Connect the OUTPUT DVI connector to the input DVI connector of the display (for example, a projector), using a short cable.
2. Connect the 5V DC power adapter to the power socket and connect the adapter to the mains electricity ^1 (not shown in this illustration). The ON LED should light.
3. Press the CAPTURE EDID button. The ON LED turns off while the EDID information is read and stored in the VA-1DVIN non-volatile memory. When the ON LED lights again, the EDID is stored.
4. Disconnect the projector's DVI connector from the OUTPUT DVI on the VA-1DVIN.
5. Disconnect the power source.

Figure 2: VA-1DVIN – Acquiring the EDID from the Display Device

5.2 Reconnecting the Projector

To reconnect the projector at a distance from the PC, as illustrated in the example in Figure 3, do the following ^1 :

1. Connect a DVI source (for example, a DVI computer graphics source) to the INPUT DVI connector on the VA-1DVIN.

Turn on the DVI source only after connecting the VA-1DVIN, so it can acquire the EDID properly

1. If required connect the 5V DC power adapter to the power socket and connect the adapter to the mains electricity.

2. When installation is complete ^3 , connect the OUTPUT DVI connector of the VA-1DVIN to the projector, using the required cable length.


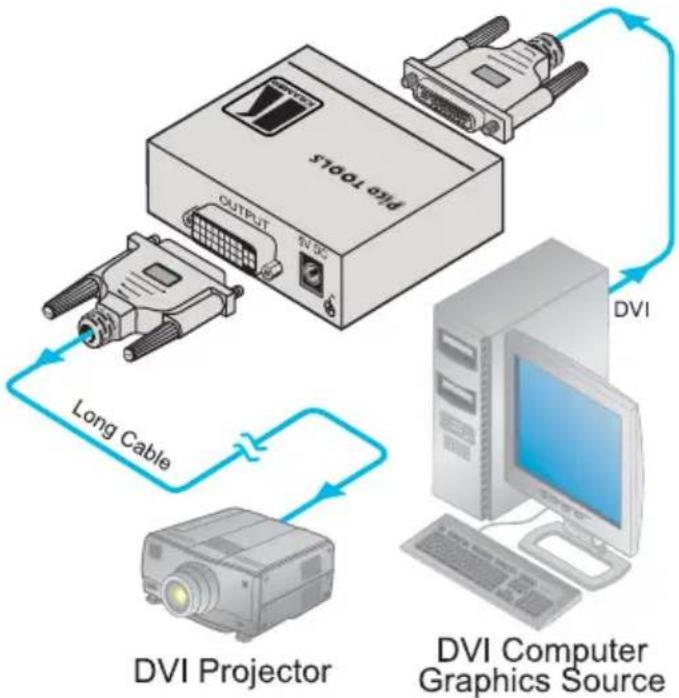

Figure 3: Connecting the VA-1DVIN Virtual EDID

6 Technical Specifications

Table 2 includes the technical specifications:
Table 2: Technical Specifications ^1 of the VA-1DVIN Virtual EDID

INPUT: 1 x DVI	^2 Dual Link, DVI 1.0, 1.2Vpp on a DVI Molex 24-pin female connector; DDC signal 5Vpp (TTL)
OUTPUT: 1 x DVI	^2 , Dual Link, DVI 1.0, 1.2Vpp on a DVI Molex 24-pin female connector; DDC signal 5Vpp (TTL)
BANDWIDTH:	3.3Gbps
CONTROLS:	Capture EDID button
POWER SOURCE: 5V DC, 20mA
DIMENSIONS: 6.22cm x 5.24cm x 2.41cm (2.45" x 2.06" x 0.95") W, D, H
WEIGHT: 0.15kg (0.55lbs) approx.
ACCESSORIES: 5V	DC power supply
OPTIONS: RK-4PT 19" rack adapter
