USER MANUAL En:V barbecue EQBM100AS ELECTROLUX

User manual En:V barbecue Side burner EQMW40AS

EQBM100AS

Black-and-white photo of a plated dish featuring sliced meat and a cherry tomato, with no visible text or symbols.

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time. Welcome to Electrolux.

BEFORE USING YOUR APPLIANCE

Check for any damage or marks. If you find the appliance damaged or marked you must report it within 7 days to claim for damages under the manufacturers warranty.

Before you use the appliance, we recommend that you read through the whole user manual which provides the description of the product and its functions. To avoid the risks that are always present when you use a gas appliance, it is important that the product is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.

For future reference, please store this booklet in a safe place.

This appliance complies with the requirements of Australian Standard AS4557.

BEFORE YOU CALL

Please ensure you read the instruction manual fully before you call for service, or a full service fee could be applicable.

RECORD MODEL AND SERIAL NUMBER HERE:

Model: ____

Serial No: ____

CONTENTS

3 General warnings
4 Electrolux En:V barbecue product description
5 Side burner product description
5 Dimensions
6 Parts
7 Assembling the barbecue
8 Mounting optional side burner
9 Gas specifications
10 Gas bottle safety information
10 Installing the gas cylinder
11 Leak test procedure (Universal LPG)
11 Conversion to Natural Gas
12 Leak test procedure (Natural Gas)
13 Choosing a location
14 Installation warnings

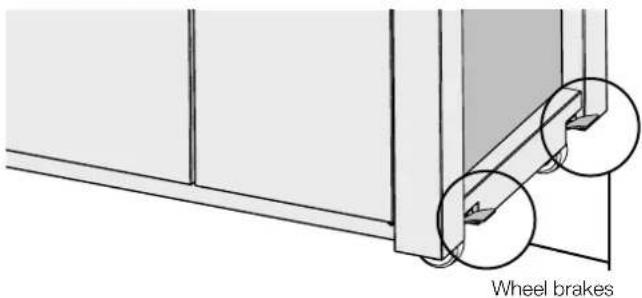

14 Activating the wheel brake
14 Options for configuration of hotplates and grills
15 Operating instructions

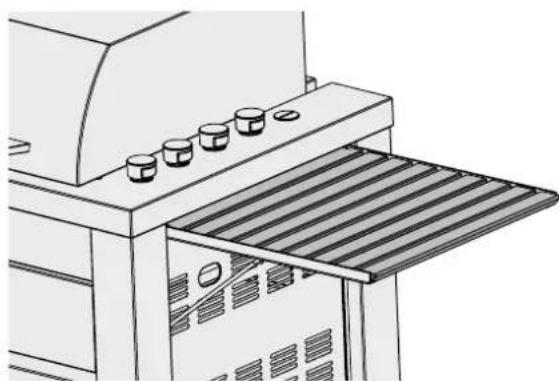

16 Using the side table
16 Using the warmer drawer
17 Using the roasting hood

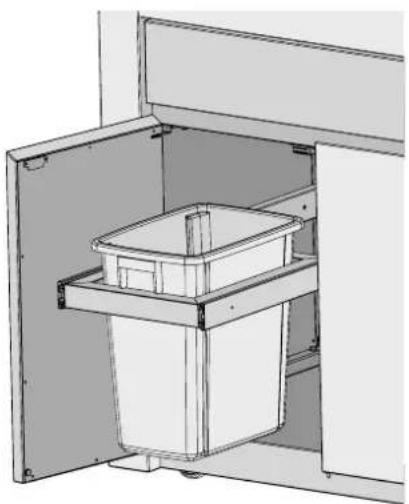

17 The waste bin
17 Side burner operation
18 Cleaning and care
19 Maintenance
20 Troubleshooting
20 Accessories
23 Warranty

SYMBOLS

! WARNING!

This symbol indicates information concerning your personal safety.

CAUTION!

This symbol indicates information on how to avoid damaging the appliance.

i IMPORTANT!

This symbol indicates tips and information about use of the appliance.

ENVIRONMENT!

This symbol indicates tips and information about economical and ecological use of the appliance.

GENERAL WARNINGS

Please read the user manual carefully and store in a handy place for later reference. Pass the user manual on to possible new owners of the appliance.

Read the following carefully to avoid damage or injury.

NOTE! You must read these warnings carefully before installing or using the appliance. If you need assistance, contact your Customer Care Department. The manufacturer will not accept liability, should these instructions or any other safety instructions incorporated in this book be ignored.

For your safety please read this book before operating your barbecue.

WARNING!

This appliance MUST be installed and serviced only by a qualified licensed person.

Improper installation, adjustment, alteration or maintenance can cause injury or property damage. Please contact your nearest Electrolux Service Department for additional information or assistance for an approved installer.

NOTE TO THE INSTALLER

THIS MANUAL MUST REMAIN WITH THE OWNER FOR FUTURE REFERENCE.

WARNING!

IF YOU SMELL GAS, do not attempt to light the barbecue. Locate the leak and re-tighten the leaking joint. Carry out the Leak Test procedure as described in this manual. If the leak persists, turn off the gas supply and call Electrolux Service Centre or a Licensed Gas Fitter.

WARNING!

Do not lean over barbecue when lighting.

Do not leave the barbecue unattended when alight.

Do not delay lighting once the gas has been turned on.

Do not store or use aerosol cans in the vicinity of the barbecue.

Do not store flammable liquids in the vicinity of the barbecue.

Do not use caustic or abrasive based cleaners on the barbecue.

Do not operate the barbecue with the cover on.

Do not attempt to dismantle or adjust the control valves.

Do not attempt to dismantle or adjust the regulator.

Do not test for leaks with a naked flame.

Do not modify the construction of this appliance or modify the injector orifice size.

Do not obstruct any ventilation of the barbecue.

Do not allow children to operate or play near the barbecue.

CAUTION!

This barbecue is supplied set up for Universal LPG and is labelled accordingly. A Natural Gas conversion kit is included if required. Conversion of this unit to Natural Gas must be carried out by a qualified licensed person and a Certificate of Compliance must be issued to the owner on completion of the installation and conversion.

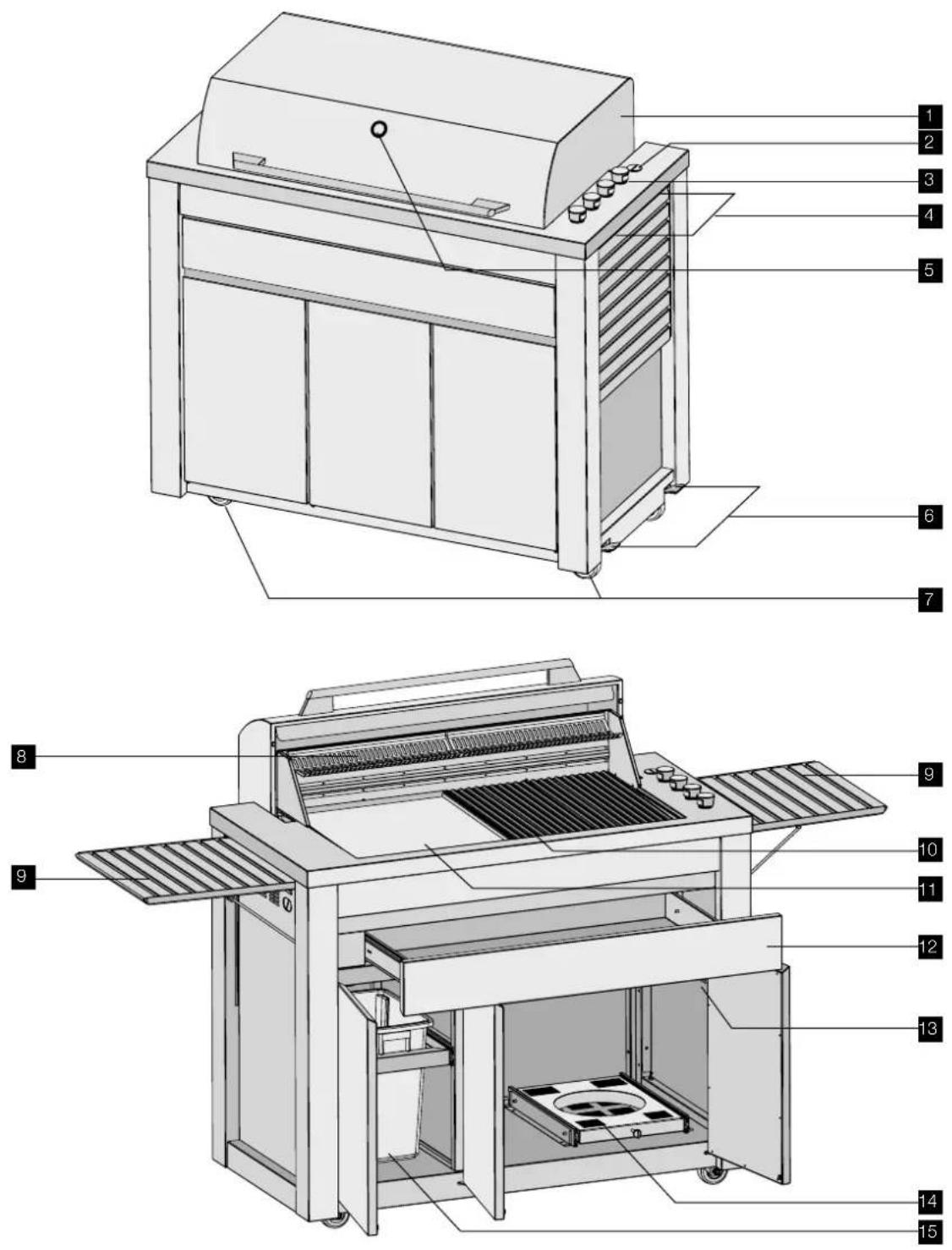

ELECTROLUx EN:V BARBECUE

1 Retractable roasting hood
2 Battery cover
3 Burner controls
4 Mounting screws for side burner (not visible)
5 Temperature indicator
6 Wheel brakes
7 Wheels

8 Warming racks
9 Fold down side table
10 Grill assembly
11 Hotplate
12 Warmer drawer
13 Gas connection point (under drawer, not visible)
14 Slide-out gas bottle tray
15 Slide-out waste bin

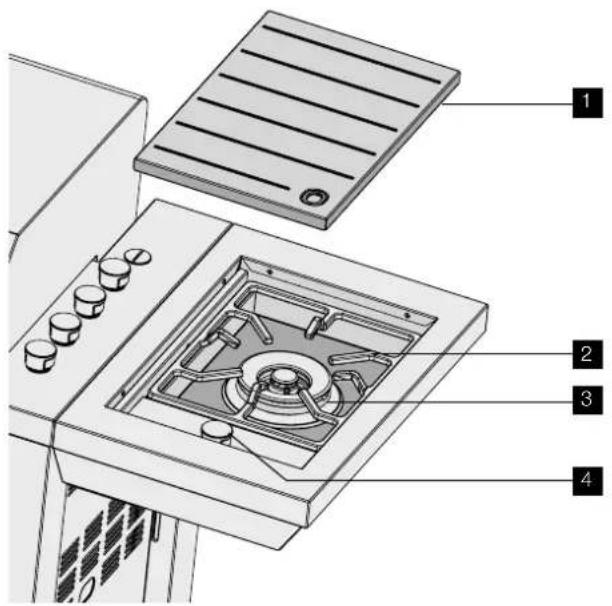

OPTIONAL SIDE BURNER

1 Side burner weatherproof lid

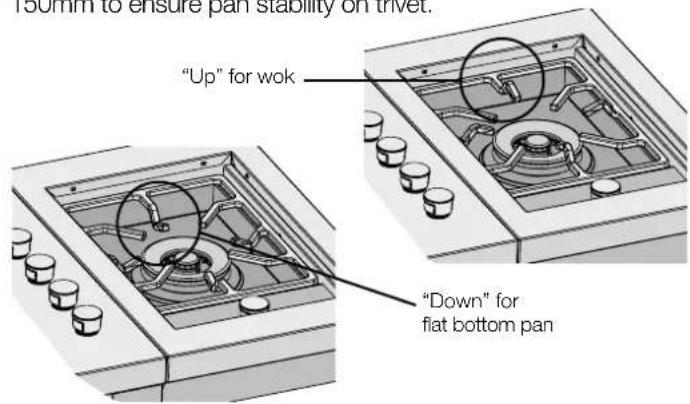

2 Reversible trivet
3 Burner crown
4 Burner control

Line drawing of a portable kitchen or processing unit with control panel and side-mounted tray (no text or symbols)

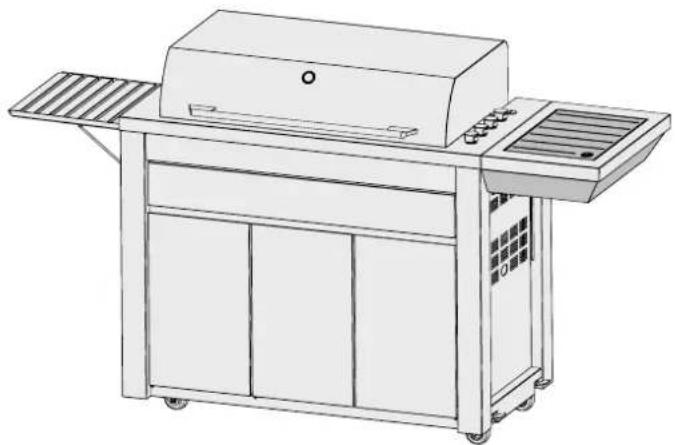

Side burner fitted to barbecue

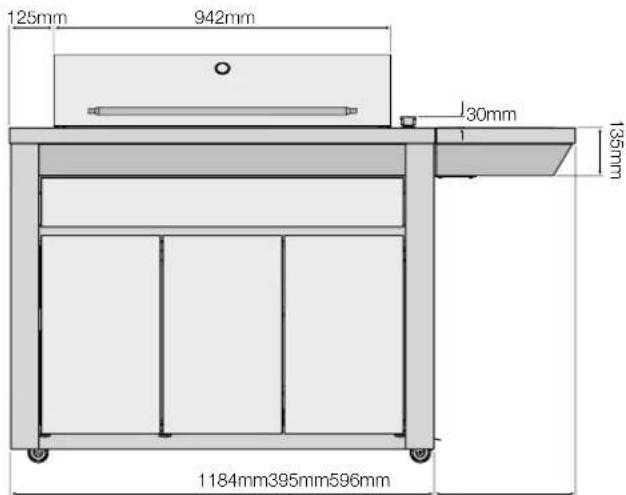

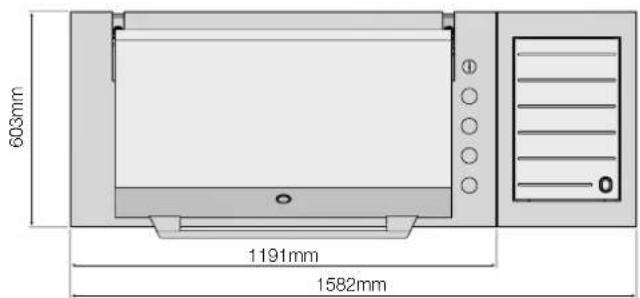

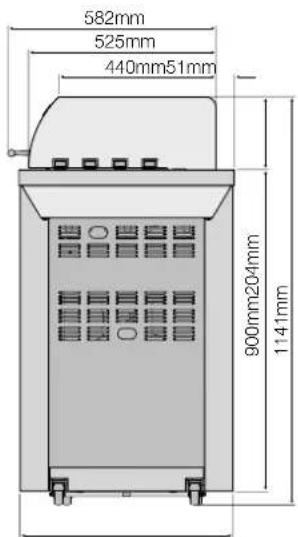

DIMENSIONS

Weight without side burner 116kg
Weight with side burner 125kg

Contents of your barbecue pack:

	Description qTY
	Electrolux 1En:V barbecue
	Flame tamers 2
	Solid hot plate 1

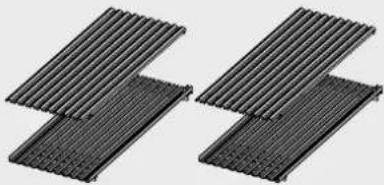

	Grill assemblies 2
	Warming racks 2
	Natural gas regulator and braided hose 1
	Weatherproof cover - item number EQ100ACM 1
1 plastic bag containing this instruction book, 1 fibre washer, 4x 1.75 NG injectors, 1 NG gas label

Tools you will need for assembly:

• Spanner for gas inlet connection
• Phillips head screwdriver

OPTIONAL SIDE BURNER PARTSELECTROLUX

Contents of your optional side burner pack:

	Description qTY
	Lid 1
	Trivet 1
	Burner components	1 set
	Mounting brackets	2
	Burner box assembly	1
1 Plastic bag containing this instruction book, 8 M6 screws, 1x 1.8mm NG injector, 1 small screw driver

ASSEMBLING THE BARBECUE

1. Remove packaging and remove all components from inside cabinet.

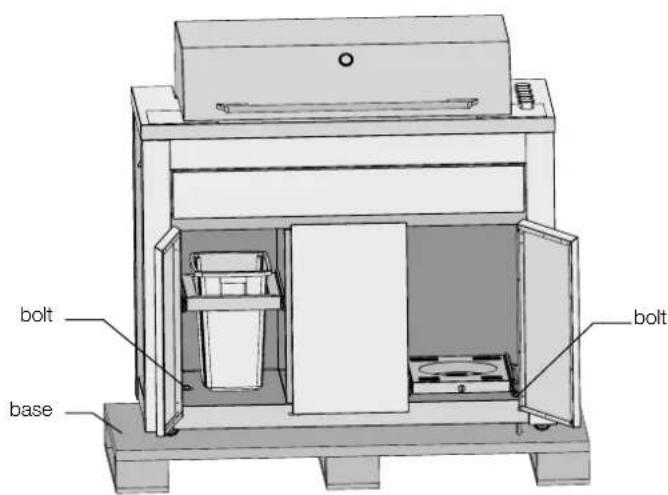

2. Unfasten bolts securing unit to the pallet base and remove unit from base.

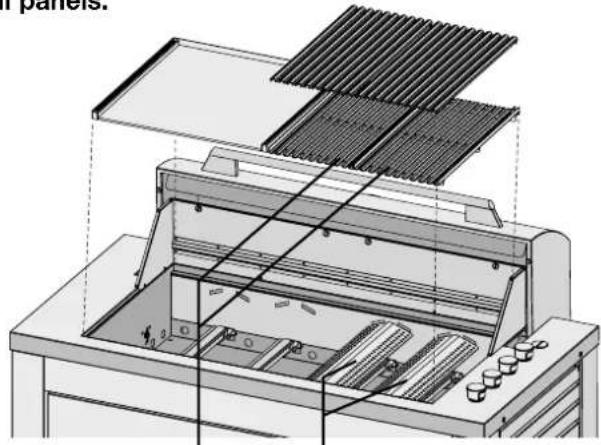

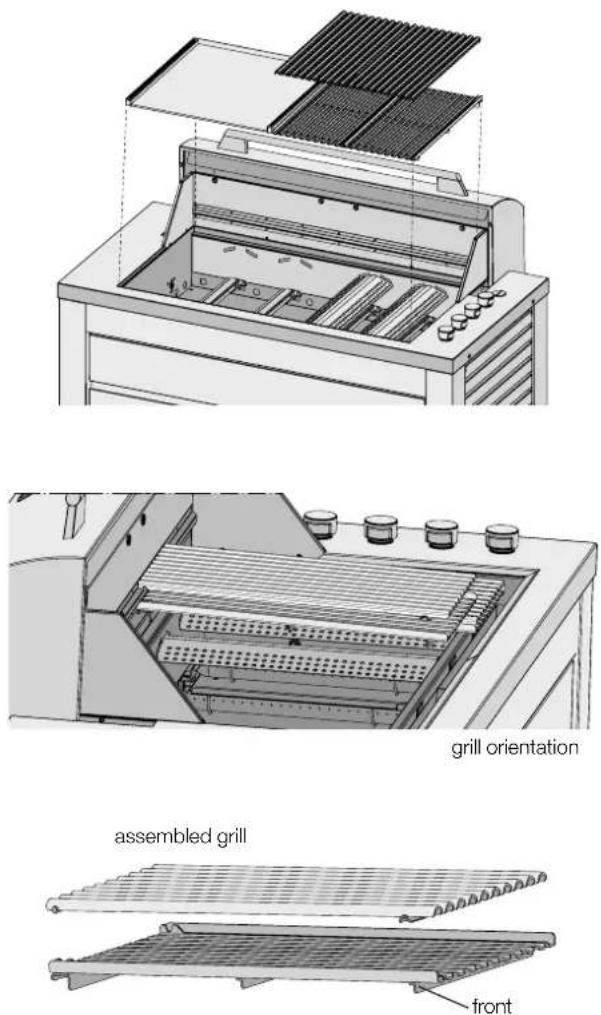

3. Place hotplate and grill sections into desired positions ensuring that the flame tamers are under grill sections.

NOTE ensure that grill assemblies are orientated correctly so that the surface of the grill is sloping forward to allow oil to drain into oil reservoirs.

1. Position flame tamers into desired locations (under where grill sections will be fitted) and fix back edge of the flame tamer into rear of barbecue body.

Technical line drawing of a mechanical device with open top and side panels (no text or symbols)

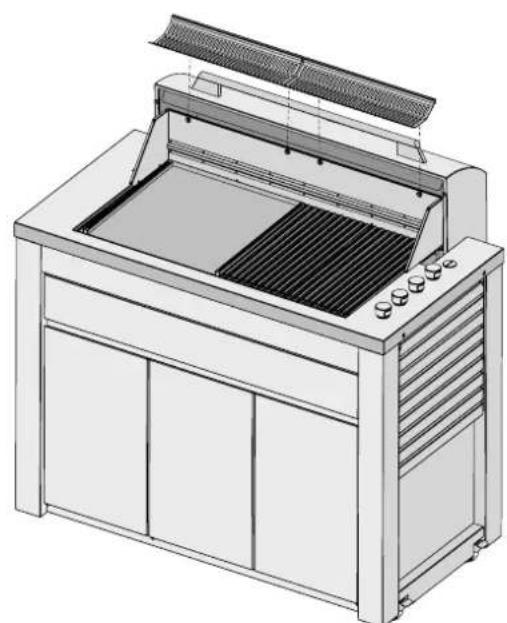

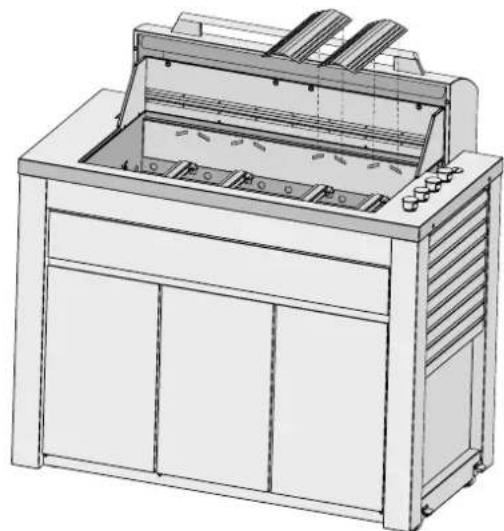

1. Fit warming racks to splashguard at rear.

Technical line drawing of a portable air conditioner unit with cooling fins and ventilation grilles (no text or symbols)

MOUNTING OPTIONAL SIDE BURNER

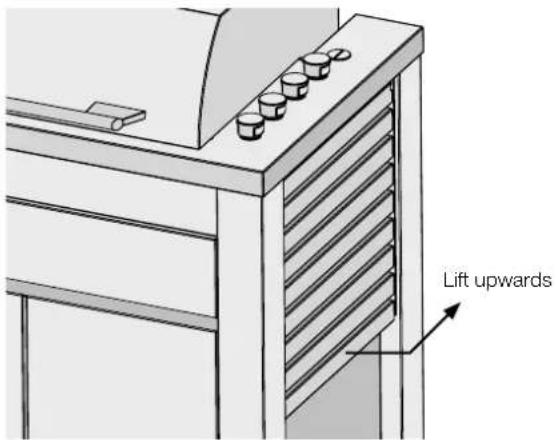

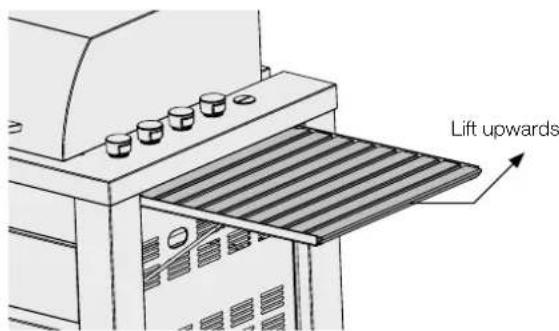

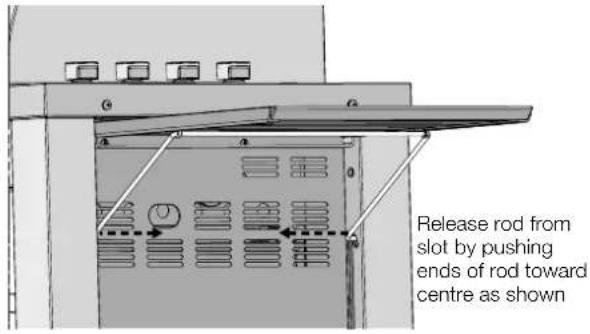

1. Release support rod ends from slots.

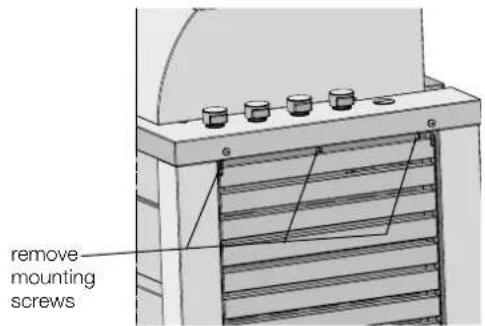

1. Remove side table mounting screws, and remove side table. Re-fit screws without side table.

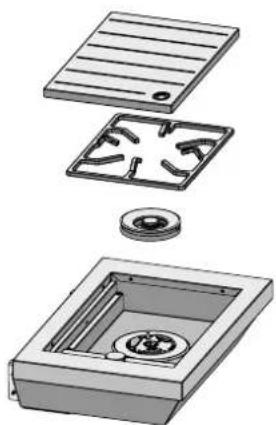

1. Remove lid, trivet and burner crown from side burner.

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

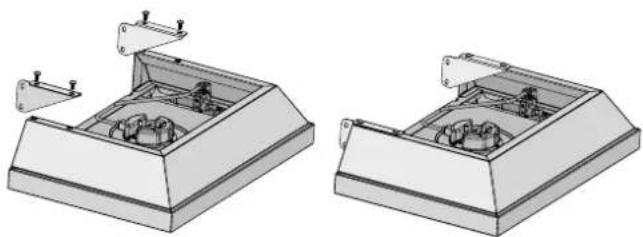

1. Fit brackets to side burner, do not tighten screws but allow some movement for fitting.

Two technical illustrations of a mechanical housing or enclosure with internal components and mounting brackets (no text or symbols visible)

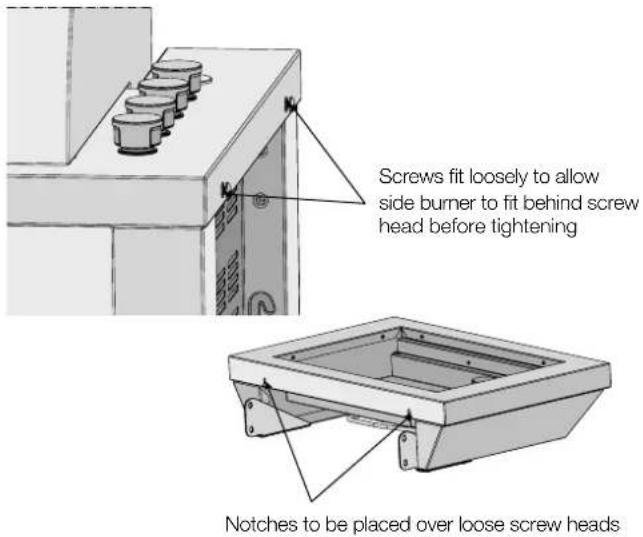

1. Assemble screws to side of trim panel loosely, allowing clearance for the side burner trim panel to fit under head of screw.

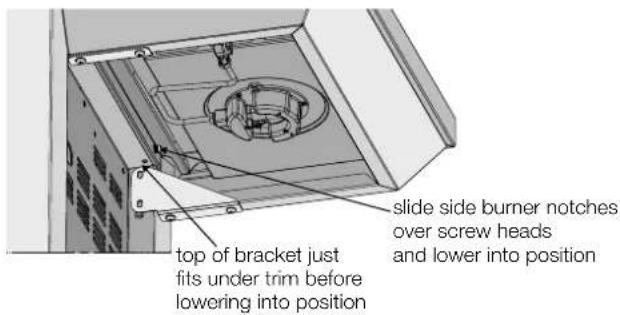

1. Slide side burner against main barbecue trim with notches behind screw heads and then lower into position.

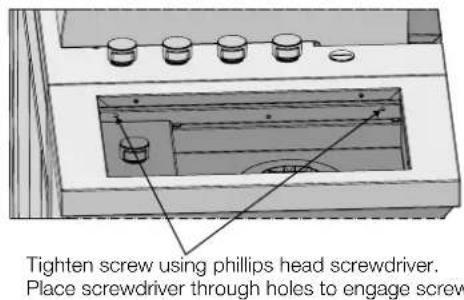

1. Tighten screws to clamp side burner to main barbecue. You may need to remove the control knob for screw driver access.

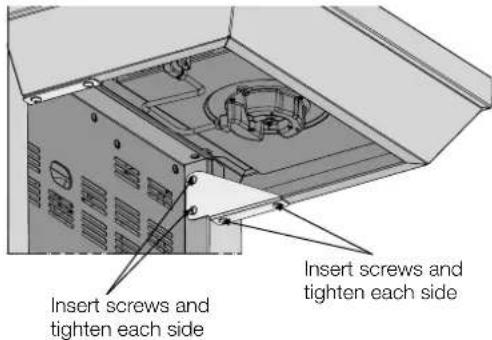

1. Insert and tighten 4 screws securing brackets to corner posts. Tighten screws previously fitted to bracket.

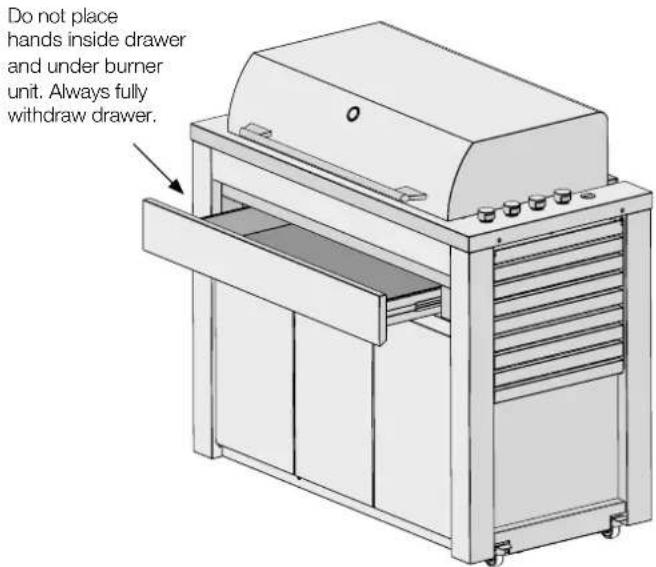

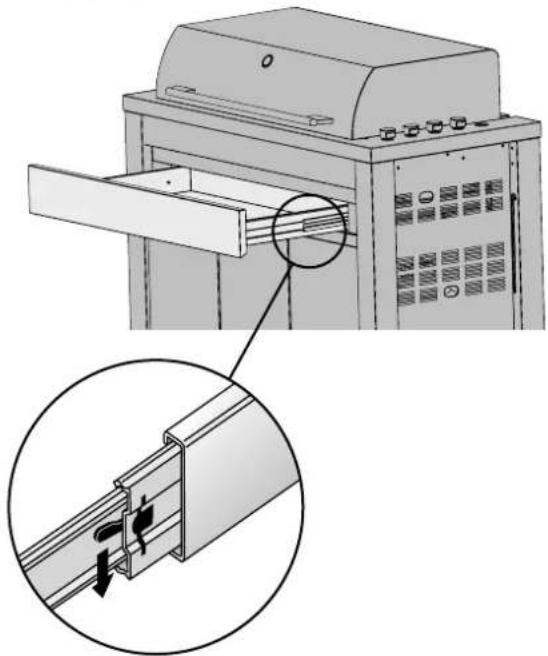

1. Remove warmer drawer. Pull out warmer drawer and release slides by actuating plastic lever on side of slides.

Technical illustration of a mechanical device with an inset close-up showing internal components (no text or symbols)

1. Locate connection hose and poke through side panel hole.

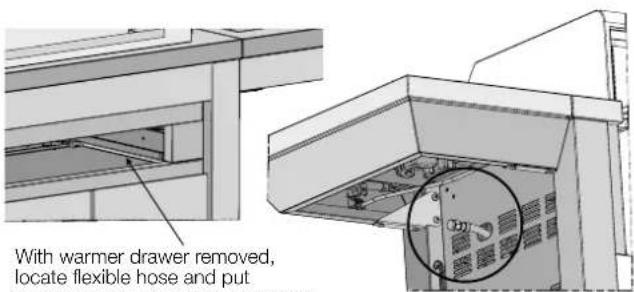

With warmer drawer removed, locate flexible hose and put free end through hole of side panel

1. Remove plug from end of hose and connect hose to side burner valve. Once hose fitment completed, fit drawer into place by carefully placing slide runners each side into place and gently push in fully.

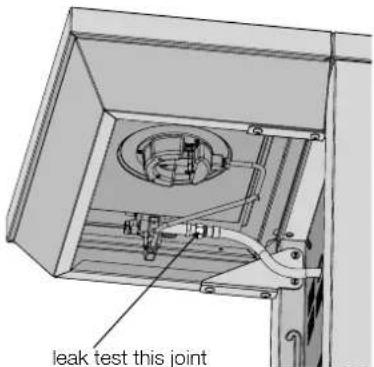

1. Check for leaks at joins as described in "Leak test procedure" section on page 11.

GAS SPECIFICATIONS

For Electrolux En:V barbecue only

Gas type Universal LPG Natural gas
Maximum gas consumption	50 MJ/h	50 MJ/h
Injector orifice diameter (mm)	0.95	1.75
Number of injectors 4 4
Regulator pressure	2.75 kPa	1.00 kPa*

For Electrolux En:V barbecue with optional side burner

Gas type Universal LPG Natural gas
Maximum gas consumption	61 MJ/h	63.5 MJ/h
Injector orifice diameter (mm)
Number of injectors 4 / 1	4 / 1
Regulator pressure	2.75 kPa	1.00 kPa*

NOTES

• This appliance MUST be serviced only by a qualified licensed person.
  • This product is intended for outdoor use only.
• Ventilation holes in the unit must not be obscured by the installation.
  * The outlet pressure at the natural gas regulator will be lower if the side burner is fitted. The minimum allowable pressure is 0.8 kPa.

For conversion to Natural Gas a conversion kit is included. Conversion of this unit to Natural Gas must be carried out by a qualified licensed person and a Certificate of Compliance must be issued to the owner on completion of the installation and conversion.

GAS BOTTLE SAFETY INFORMATION

- This appliance is designed to use a Universal LPG 9kg (20 lbs) gas cylinder.

- The gas cylinder must be made and marked in accordance with specifications for LPG cylinders.

- The isolation valve must be turned off when the appliance is not in use.

- Gas cylinders must be stored in an approved housing out of reach of children.

- When disconnecting the gas bottle ensure that all the control valves are in the 'OFF' position.

- Remove the bottle from any housing in which it may be stored before disconnection.

- When reconnecting the hose to the bottle, ensure that all connections are tight before replacing in the storage compartment.

- Carry out a leakage check as detailed below after each reconnection.

INSTALLING THE GAS CYLINDER

To install bottle:

1. Open both centre & right hand cabinet doors and pull out sliding tray.

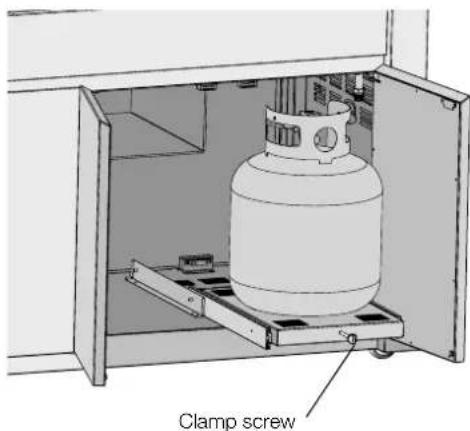

2. Wind out clamp screw to allow base of bottle to fit.
3. Place gas bottle into tray and tighten clamp to secure bottle.
4. Make connection of gas hose to gas bottle.

Gas bottles vary in size and there may be some variations that do not fit into the space provided. As an alternative to mounting the gas bottle in slide out tray, the bottle can be placed on the ground and hose placed through hole in side panel for connection to inlet.

LEAK TEST PROCEDURE (UNIVERSAL LPG)

• Ensure all gas valves are in the 'OFF' position.
• In a small container, mix a solution of water and detergent or soap.
• After connection of the hose, turn on the valve at the gas bottle or mains as appropriate.

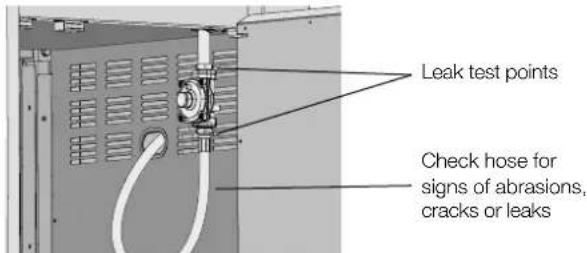

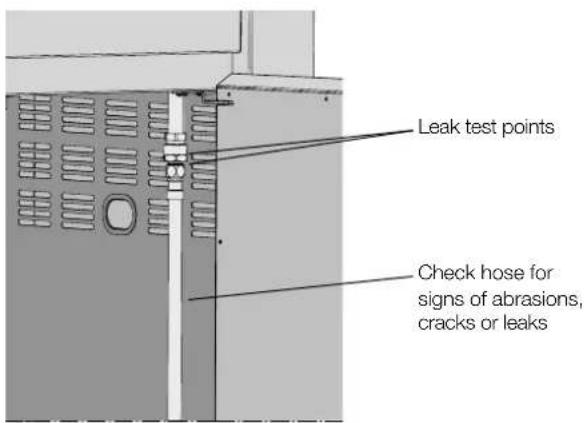

• Using a brush apply the solution to the gas connection points and look for bubbles forming.
  • Bubbling will indicate a leak.
• Turn off the valve and re-tighten the joint. Repeat the leak test.
• If the leak persists, turn off the gas at the isolation valves and contact a licensed gas fitter to correct.

CONVERSION TO NATURAL GAS

Preparing the unit for Natural Gas installation.

This barbecue is supplied set up for Universal LPG and is labelled accordingly. A Natural Gas conversion kit is included to enable conversion to Natural Gas use.

NOTE: Conversion of this unit to Natural Gas must be carried out by a qualified licensed person and a Certificate of Compliance must be issued to the owner on completion of the installation and conversion.

The conversion kit consists of:

• Regulator
• Hose with quick connect bayonet fitting one end
• Small plastic bag containing 4 brass injectors
• Natural Gas sticker

Procedure

1. Changing the injectors

• Remove warmer drawer as shown on page 9.

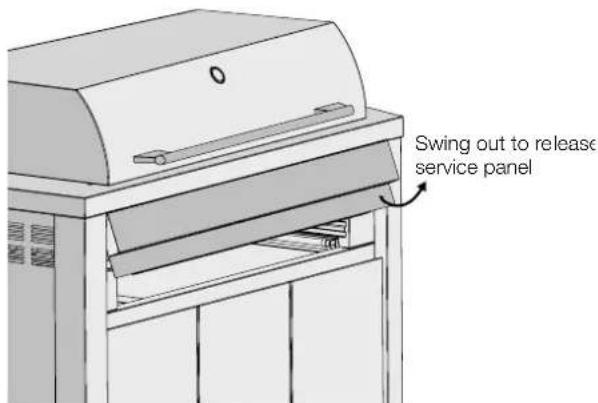

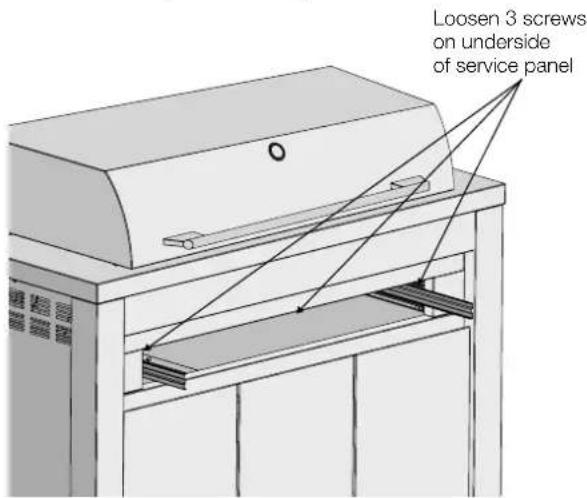

• Remove front service panel by loosening the screws in 3 places. Screws need only be loosened, and not fully removed.

- Lift service panel from the bottom and swing out approximately 45 degrees to release the top edge of the service panel.

CONVERSION TO NATURAL GAS (CONT.)

CAUTION!

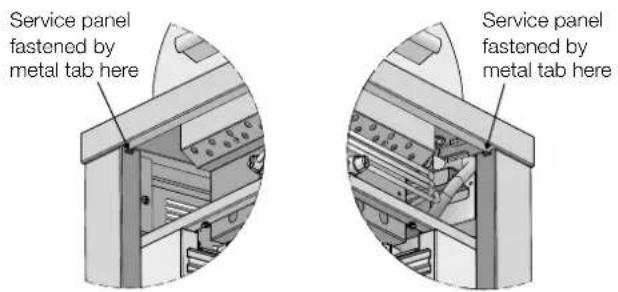

Take care when removing service panel not to damage the metal tabs that support the panel on either side.

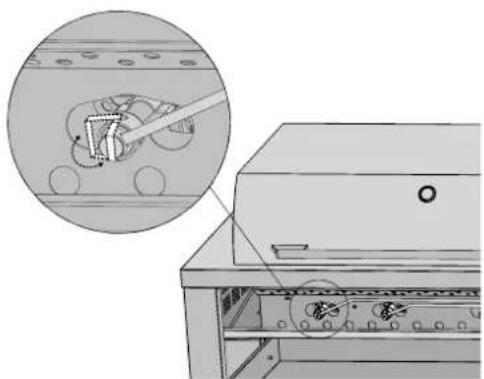

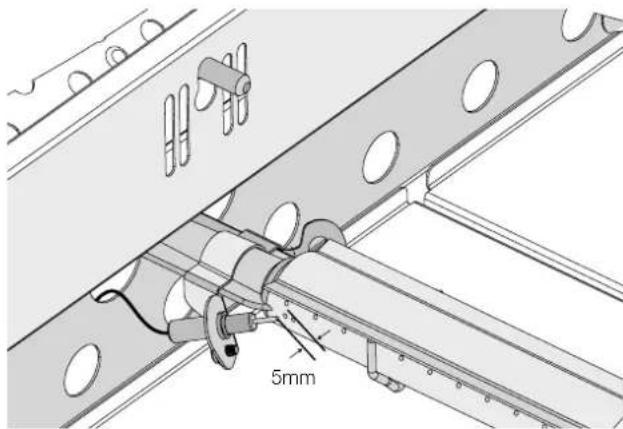

- Release the burner retaining clip as shown:

Diagram of a mechanical device with an inset showing a rotating component and a close-up view of the internal structure (no text or symbols)

• Unscrew and replace the 4 injector nipples located in the end of each tube feeding the burners. The Natural Gas injectors have a 1.75mm diameter orifice in them. The orifice appears substantially larger than those of the Universal LPG injectors.
• Re-fasten the clip to retain the tube in the burner. Do not over tighten or distort supply tube.
• Fit the front service panel back on and fasten screws. If unit is fitted with side burner – the injector for this burner must also be changed.
• Remove lid, trivet, burner caps and burner crown.

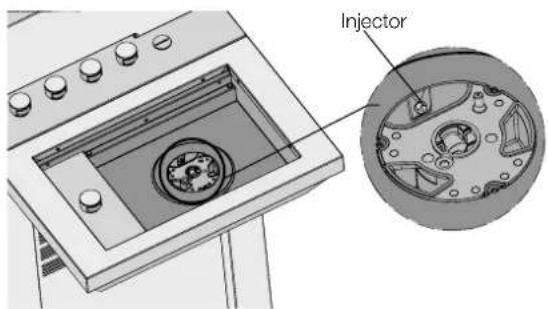

• Unscrew injector and replace with 1.80mm Natural Gas injector (supplied with side burner).

- Replace burner crown and caps.

2. Disconnect brass adaptor and LPG hose and regulator assembly from gas inlet connection.

3. Connect the hose to the regulator

• Place threaded end of hose through hole in side panel.
• Apply thread tape or sealant to the male thread on the hose and screw into the regulator.

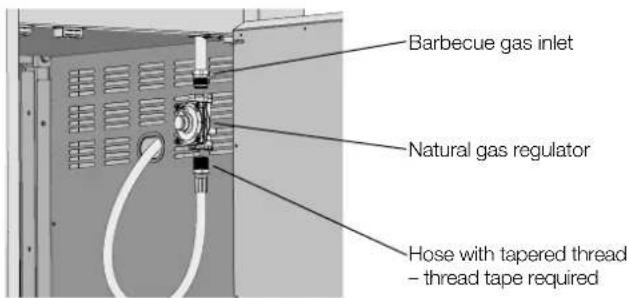

4. Connect the regulator to the barbecue gas inlet

- Fit the regulator ensuring the blue sealing washer is in place and the arrow is pointing in the right direction.

5. Replace the 'gas type' sticker

- Locate the 'Universal LPG' sticker located on the barbecue gas inlet and remove it. Put the 'Natural Gas' sticker in its place.

6. Leak test procedure

• Ensure all gas valves are in the 'OFF' position.
• In a small container, mix a solution of water and detergent or soap.
• After connection of the hose, turn on the valve at the gas bottle or mains as appropriate.
• Using a brush apply the solution to the gas connection points and look for bubbles forming.
  • Bubbling will indicate a leak.
• Turn off the valve and re-tighten the joint. Repeat the leak test.
• If the leak persists, turn off the gas at the isolation valves and contact a licensed gas fitter to correct.

7. Turndown adjustment

When converting to natural gas the turndown setting will need to be adjusted to give a satisfactory flame on low setting.

• Remove the 4 knobs from valve shafts of main barbecue.
• Remove rubber grommets from control panel holes.
• Using the small flat blade screwdriver provided, adjust the turndown screw of each valve by turning anti-clockwise 2 turns (see diagram).

• If optional side burner fitted, remove the control knob from valve shaft.
• Using the small flat blade screwdriver provided, adjust the turndown screw of valve by turning clockwise approximately 1/4 turn (see diagram).

• Following connection of the gas and leak testing as per previous steps, light all burners and set to high.
• One burner at a time, turn the valve shaft to lowest setting, observe the flame and adjust the turndown screw until a small steady flame is achieved.
• Repeat until all burners adjusted.
• Once turndown settings adjusted, turn burners off and replace rubber grommets and control knobs.

CHOOSING A LOCATION

• The vertical clearance above the cooking surface to any combustible materials must be at least 1000mm.
• Cooking with roasting hood closed vents the hot flue gases out the rear of the appliance. A minimum clearance of 450mm to any combustible materials is required. This clearance should also be maintained for brittle materials which may be affected, such as glass.
• Avoid windy conditions as this will affect cooking performance and burner efficiency. If this situation cannot be avoided some shielding may be necessary.
• The barbecue grills and hotplates are slightly sloped to enable grease and oil drainage into front receptacles. When choosing a location ensure that the slope towards the front is maintained. If not, oil and grease may run into the back of the burner box from the grill channels.
• This appliance must be installed in accordance with Australian Standards AS4557 and AS5601 and in accordance with the local authority.

INSTALLATION WARNINGS ACTIVATING THE WHEEL BRAKE

WARNING!

• This appliance shall only be used in an above ground, open air situation with natural ventilation without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind or natural convection. This barbecue has been designed for outdoor use only. Refer to diagrams below.
• Never install this barbecue inside any building, garage, shed or breezeway or inside a boat, caravan or recreational vehicle. This is to prevent the possibility of fire, carbon monoxide poisoning or asphyxiation.
• Any enclosure in which this appliance is installed shall comply with one of the following:
• An enclosure with walls on all sides, but at least one permanent opening at the ground level and no overhead covering.
• Within a partial enclosure that includes an overhead cover and no more than 2 walls.
• Within a partial enclosure that includes an overhead cover and more than 2 walls, the following shall apply:
• at least 25% of the total wall area is completely open and at least 30% of the remaining wall area is open and unrestricted.
• In the case of balconies, at least 20% of the total of the side, back and front wall areas shall be and remain open and unrestricted.

Outdoor area example 1

Outdoor area example 2

Outdoor area example 3

Both ends open

Outdoor area example 4

Open side at least 25% of total wall area

30% or more in total of the remaining wall area is open and unrestricted

Outdoor area example 5

Open side at least 25% of total wall area

30% or more in total of the remaining wall area is open and unrestricted

For safety, the wheel brake should be activated to prevent any movement of the barbecue.

There are 2 wheel brakes.

Technical diagram of a mechanical component with two circular components labeled 'Wheel brakes' (no other text or symbols)

To activate:

- Push down until it locks.

OPTIONS FOR CONFIGURATION OF HOTPLATES AND GRILLS

IMPORTANT!

Ensure flame tamers are positioned under the grill panels.

Technical illustration of a mechanical device with internal components and a lid, no visible text or symbols

Grill panels Flame tamers

Front view of a microwave oven with ventilation grilles and control panel (no visible text or labels)

Left hand hotplate, right hand grill - recommended orientation for grilling.

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Left hand half grill, central hotplate, right hand half grill - recommended orientation for roasting.

Technical line drawing of a mechanical or architectural component with no visible text or symbols

Left hand grill, right hand hotplate - alternative recommended orientation for grilling.

OPERATING INSTRUCTIONS

Control functions

Before lighting the barbecue:

• Check that all hoses and gas fittings are tight.
• Open the roasting hood.
• Check all control knobs are in the 'OFF' position.
• Ensure that the cooking surfaces are clean.
• Turn the gas isolation valve 'ON'.

Lighting instructions

• Do not attempt to light burners with the cooking surfaces covered.
• Read instructions before lighting.
• To light a burner, depress the knob and rotate to 'RAPID PREHEAT'.
• Hold for 3 seconds, release and check the flame.
• If burner did not light, turn knob to the 'OFF' position Allow gas to disperse, then repeat lighting procedure.

Manual lighting

• If, in the event of the automatic ignition system not working, the barbecue can be lit manually.
• A match holder with attached chain is located behind the middle cabinet door. Unclip match holder to use.

Pure mechanical diagram showing a vertical rod inserted into a circular component, with no text or symbols present.

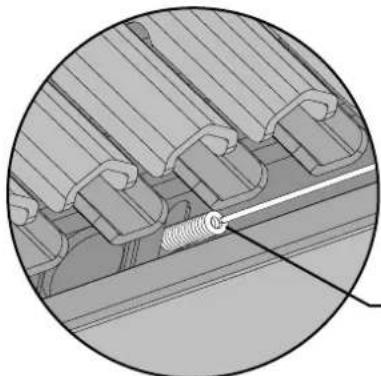

- To light manually, fit a 40mm match to the match holder and ignite match. Pass lit match through the viewing slots below the front of cooking plates down towards the burner, then rotate knob to "RAPID PREHEAT" to ignite. If ignition fails, turn the control valve off and allow several minutes for the gas to disperse before attempting to light again.

Cross-sectional diagram of a mechanical assembly with no visible text or symbols

Pass match holder through viewing slot at front under cooking plates

- Once alight, repeat for other burners as required.

Preheating

• This barbecue is fitted with high power burners. In most conditions it will only be necessary to preheat the barbecue for 5 minutes before cooking can commence.
• As with most things, experience will familiarise you with the effectiveness of and the time required to achieve the desired preheating time to obtain the desired cooking temperature.
• Testing has shown that the burners can be turned to the low position for satisfactory cooking.
• If the unit does not operate correctly refer to the troubleshooting section on page 20.
• If the burners are left to run too hot there will be excessive smoking during the cooking process and subsequent burning of the food being prepared. This may also result in excessive flaring of the fat being emitted from the food.
• Roasting with the hood closed only requires the 2 outermost burners to be on low setting for satisfactory cooking. Refer to page 17 for further information on roasting.

To turn the burner off

• When cooking is complete, rotate the knob fully clockwise so the pointer on the knob is positioned at the off position.
• Turn gas bottle isolation valve off after turning all knobs to off position when appliance not in use.

USING THE SIDE TABLE

To extend the side tables:

- Lift upwards until it locks.

Line drawing of a kitchen appliance with a grater and a tray (no text or symbols)

To fold back into place:

1. Lift upwards slightly to unlock.
2. Slide support arms upwards and table should fall into place.

USING THE WARMER DRAWER

Using the Warmer Drawer

• The warmer drawer may be used to warm up crockery prior to use.
• During barbecue usage temperatures within the drawer can exceed 80°C under some circumstances, depending on the number and settings of burners in use as well as the weather conditions. When accessing the drawer use oven gloves to avoid burning or scalding.
• When placing crockery into warmer drawer distribute evenly, and do not exceed 15kg.
• It is not recommended to use the warmer drawer for food due to the risk of bacteria developing at temperatures below 70°C.
• Do not place flammable items in the drawer.
• Do not store plastic items in the drawer.
• Do not store aerosols or cleaning products in the drawer.
• The drawer can be used to store utensils when barbecue not in use.

! WARNING!

Do not place hands inside the warmer drawer under barbecue. The base of the burner box can be extremely hot.

Always fully pull out the warmer drawer to access.

USING THE ROASTING HOOD

- Cooking with the hood closed only requires 2 burners to be on low setting. Setting is to be adjusted depending on conditions and using the temperature indicator as a guide.

- It is recommended when roasting to place the solid hot plate in the centre with one grill on each side of the plate. Use the two outer burners under the grills.

- To achieve even cooking of the food, place the food onto a wire rack above the hot plate to allow air to circulate under the food.

- Food can also be placed on the warming racks for cooking with hood closed.

WARNING!

• Do not use more than 2 burners when hood closed and do not allow the temperature to exceed the 'Ready' zone of the temperature indicator. These conditions create excessive heat and may cause damage to the barbecue and roasting hood.
• When cooking with the hood closed the hot flue gases flow out the rear of the appliance between the splashguard and the hood. Ensure the barbecue is suitably located to avoid damage or injury.

THE WASTE BIN

• The waste bin is seated in a frame mounted on telescopic slides. The bin can be removed from the frame for cleaning etc. Ensure the door is fully open before pulling out the bin slide assembly to prevent damage to the inner door.
• Do not place hot items into bin that may damage or melt plastic.

Technical line drawing of a cabinet interior showing a two-tiered plastic bucket (no text or symbols)

Before lighting the side burner:

• Check that all hoses and gas fittings are tight.
• Remove lid.

NOTE The lid is designed as a cover for weather protection. The lid is not designed to be used as a cooking hood. During use the lid can be stored on the shelf inside the cabinet below.

• Check control knob is in the 'OFF' position.
• Ensure that the cooking surfaces are clean.
• Turn the gas isolation valve 'ON'.

Lighting instructions

• Do not attempt to light burners with the cooking surfaces covered.
• Read instructions before lighting.
• To light a burner, depress the knob and rotate to 'RAPID PREHEAT'.
• If burner did not light, turn knob to the 'OFF' position. Allow gas to disperse, then repeat lighting procedure.

Manual lighting

• If, in the event of the automatic ignition system not working, the barbecue can be lit manually.
• Rotate the knob to the 'RAPID PREHEAT' and place a lighted match near to the burner.
• Testing has shown that the burners can be turned to the low position for satisfactory cooking.
• If the unit does not operate correctly refer to the troubleshooting section on page 20.
• If the burner is left to run too hot there will be excessive smoking during the cooking process and subsequent burning of the food being prepared.

To turn the burner off

- When cooking is complete, rotate the knob fully clockwise so the pointer on the knob is positioned at the off position.

IMPORTANT!

The side burner trivet is designed for use with a flat bottom pan or for a wok. This is achieved by simply turning the trivet over to suit the type of cooking desired. When using flat bottom pan ensure pan base diameter is at least 150mm to ensure pan stability on trivet.

CLEANING AND CARE

The Electrolux En:V barbecue has been constructed from select grade stainless steel which, if not cared for, may discolour over time. To keep your barbecue looking its best we recommend that the cooking surfaces are cleaned after every use.

Please note that environmental conditions need to be taken into account with regards to the maintenance required on your barbecue. In particular, units installed in humid climates or seaside locations will be more susceptible to surface corrosion/discolouration over time. In these conditions Electrolux strongly recommends cleaning and drying your barbecue after every time it is used and covering it when not in use to minimise exposure to the elements.

WARNING!

Please ensure that your barbecue is switched off and has cooled down before following the instructions below.

Cleaning of Stainless Steel components

Hot Plate and Grill

- Remove all solid materials and excess grease from grill and hotplate using scraper or wire brush. - To make cleaning easy, the two grill halves can be removed with the hotplate. For stubborn stains, simply soak the grill and plate components in hot soapy water before rinsing thoroughly.

- Ensure that all surfaces are dried with a clean dry cloth.

- The hot plate and grill will discolour with high temperatures when used. The discolouration is normal and does not affect the durability or performance.

Other stainless steel surfaces

CAUTION!

Do not use abrasive or caustic cleaners, scourers or metal scrapers on these stainless steel surfaces as they may permanently scratch and damage your barbecue.

• Wash all stainless steel components, including the slimline lid, the roasting hood and control knobs with a soft dishcloth using hot soapy water.
• The barbecue interior can be wiped down with a soft cloth in hot soapy water. The rear panel of the interior is removable for easy cleaning.
• Ensure that all surfaces are dried with a clean dry cloth.

- Sometimes stainless steel surfaces are affected by a brown discolouration called tea staining. This usually occurs in areas which use high heat and can be removed using specialised stainless steel cleaners. For best results, we recommend that specialised cleaners be used regularly on all stainless steel components. You will find these cleaners at the Electrolux spare parts outlets.

CAUTION!

Take extra care (particularly when cleaning on and around the control knobs) to ensure that water and soapy residue do not enter the control panel, where the valves are or into the burners. Care should also be taken not to disturb the spark electrode.

A distance of 5mm should be maintained between it and the burners (see diagram below).

Cleaning the oil reservoirs

The barbecue has a unique oil management system which uses overlapping channels to drain all oil to the front into easily removed reservoirs and should be cleaned after each use.

- To remove reservoirs, pull upwards from the front of the barbecue and dispose of the contents of the catchment responsibly. Rinse oil reservoirs in warm soapy water. The reservoirs can be placed in the dishwasher if desired.

Powder coated panels

Do not use abrasive or caustic cleaners, scourers or metal scrapers as they may permanently damage your barbecue.

Wash all powder coated panels with a soft dishcloth using warm soapy water. Ensure that all surfaces are dried with a clean dry cloth.

Side Burner

The side burner contains aluminium fittings. Do not use caustic based cleaners. Do not place burner bodies or caps in a dishwasher. Check burner ports for blockages and clear as required. If caps, crown and cup are heavily soiled, use a non-abrasive cleaning compound.

Trivet

The trivet can be removed for cleaning. Clean by washing in warm soapy water. Take care when replacing the trivets as dropping them may damage the enamelled surface.

Side table timber

The hardwood used on lift up side tables has been treated with a light coating of protection oil. Clean surface using a soft sponge and a solution of mild soapy water. Wash down afterwards with clean water.

To maintain strength, avoid discolouration and fading, the timber must be protected using a suitable outdoor timber furniture oil. Re-oiling of timber will need to be conducted at regular intervals depending upon the amount of exposure to the sun and rain.

Minor scuffs and scratches can easily be covered with a coat of oil. Deep scratches need to be sanded out and oiling concentrated in that area until the lustre is uniform.

Use of a weatherproof cover will help to minimise the maintenance required.

i IMPORTANT!

Special note on stainless steel

The stainless steel panels may distort while in use but will return to normal when cold. When the barbecue is not being used it is recommended to keep it covered. If the barbecue is to be stored indoors, remove the gas cylinder and store the cylinder in a ventilated outdoor area.

MAINTENANCE

The ignition system

To change the battery rotate the cover anti-clockwise to release. Lift off the cover to access spring and battery. Lift out the spring and battery. Replace with a new AA battery and replace the cover. Test by depressing the knob and an audible ‘clicking’ sound should be heard.

NOTE: Ensure that the battery has been placed in the correct orientation.

Illustration of a hand using a pipette to apply liquid onto a circular object (no text or symbols present)

Stainless steel burners

Burners should be checked at least once per year and cleaned as necessary. Inspect burners to ensure no residues have been deposited and gas ports are clear.

TROUBLESHOOTING

Problem Possible cause		Remedy
Barbecue won't light	No gas Check isolation valve is ON
		Gas bottle empty - refill or change gas bottle
	Ignition system not working	Check battery - should hear a clicking noise when the knob is depressed
		Replace battery
		Manually light the barbecue
	Ignition electrode wet or dirty	Gently clean and dry electrode ensuring position is correct
Excess smoke being emitted from the cooking area	Gas valve set too high	Turn gas valves down or turn off selected burners
Smell of gas	Gas leak Turn off gas at the isolation valves
DO NOT ATTEMPT TO LIGHT THE APPLIANCE		Check for leaks, tighten joints
		If problem persists call Electrolux Service

ACCESSORIES

To order any of the following accessories, or for more information on any other suitable accessories for this product, please contact the Electrolux Customer Service Centre.

Accessory Item number
BBQ hotplate liner ACC035
Oyster tray ACC053
Pizza stone	ACC061
LPG regulator and hose (3m long) ACC065
LPG regulator and hose (1.2m long) ACC066
Frame and skewer BBQ set ACC075
BBQ cleaner ACC108
Microfibre cloth ACC101
Stainless steel grill 0 02204116 3
Stainless steel hot plate	0 02204116 4
Black enamel grill	0022041207
Black enamel hot plate	0022041206
Weatherproof cover (for BBQ model EQBH100AS)	EQACBH
Weatherproof cover (for BBQ model EQBL100AS)	EQACBL

NOTES

NOTES

This document sets out the terms and conditions of the product warranties for Electrolux Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should you require service for your Appliance.

1. In this warranty:

(a) ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL;
(b) 'ACL' means Schedule 2 to the Competition and Consumer Act 2010;
(c) ‘Appliance’ means any Electrolux product purchased by you and accompanied by this document;
(d) 'ASC' means Electrolux authorised service centres;

(e) 'Electrolux' means Electrolux Home Products Pty Ltd of 163 O'Riordan Street, Mascot NSW 2020, ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux (NZ) Limited (collectively 'Electrolux') of 3-5 Niall Burgess Road, Mount Wellington, in respect of Appliances purchased in New Zealand;

(f) ‘major failure’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL and includes a situation when an Appliance cannot be repaired or it is uneconomic for Electrolux, at its discretion, to repair an Appliance during the Warranty Period;

(g) 'Warranty Period' means the Appliance is warranted against manufacturing defects in Australia for 60 months and in New Zealand for 24 months, following the date of original purchase of the Appliance;

(h) 'you' means the purchaser of the Appliance not having purchased the Appliance for re-sale, and 'your' has a corresponding meaning.

1. This warranty only applies to Appliances purchased and used in Australia or New Zealand and used in normal domestic applications and is in addition to (and does not exclude, restrict, or modify in any way) any non-excludable statutory warranties in Australia or New Zealand.
2. During the Warranty Period Electrolux or its ASC will, at no extra charge if your Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Electrolux or its ASC may use remanufactured parts to repair your Appliance. You agree that any replaced Appliances or parts become the property of Electrolux. This warranty does not apply to light globes, batteries, filters or similar perishable parts.
3. Parts and Appliances not supplied by Electrolux are not covered by this warranty.
4. To the extent permitted by law, you will bear the cost of transportation, travel and delivery of the Appliance to and from Electrolux or its ASC. If you reside outside of the service area, you will bear the cost of:

(a) travel of an authorised representative;

(b) transportation and delivery of the Appliance to and from Electrolux or its ASC.

In all instances, unless the Appliance is transported by Electrolux or an Electrolux authorised representative, the Appliance is transported at the owner's cost and risk while in transit to and from Electrolux or its ASC.

1. Proof of purchase is required before you can make a claim under this warranty.

2. You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship. Electrolux is not liable in the following situations (which are not exhaustive):

(a) the Appliance is damaged by:

(i) accident
(ii) misuse or abuse, including failure to properly maintain or service (iii) normal wear and tear
(iv) power surges, electrical storm damage or incorrect power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional instructions supplied with the Appliance;

(b) the Appliance is modified without authority from Electrolux in writing;

(c) the Appliance's serial number or warranty seal has been removed or defaced;

(d) the Appliance was serviced or repaired by anyone other than Electrolux, an authorised repairer or ASC.

1. This warranty, the contract to which it relates and the relationship between you and Electrolux are governed by the law applicable where the Appliance was purchased. Where the Appliance was purchased in New Zealand for commercial purposes the Consumer Guarantee Act does not apply.
2. To the extent permitted by law and subject to your non-excludable statutory rights and warranties, Electrolux excludes all warranties and liabilities (other than as contained in this document) including liability for any loss or damage whether direct or indirect arising from your purchase, use or non use of the Appliance.
3. For Appliances and services provided by Electrolux in Australia, the Appliances come with a guarantee by Electrolux that cannot be excluded under the ACL. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure. The benefits to you given by this warranty are in addition to your other rights and remedies under a law in relation to the Appliances or services to which this warranty relates.
4. At all times during the Warranty Period, Electrolux shall, at its discretion, determine whether repair, replacement or refund will apply if an Appliance has a valid warranty claim applicable to it.
5. For Appliances and services provided by Electrolux in New Zealand, the Appliances come with a guarantee by Electrolux pursuant to the provisions of the Consumer Guarantees Act, the Sale of Goods Act and the Fair Trading Act.
6. To enquire about claiming under this warranty, please follow these steps: (a) carefully check the operating instructions, user manual and the terms of this warranty;

(b) have the model and serial number of the Appliance available;

(c) have the proof of purchase (e.g. an invoice) available;

(d) telephone the numbers shown below.

1. You accept that if you make a warranty claim, Electrolux and its ASC may exchange information in relation to you to enable Electrolux to meet its obligations under this warranty.

Important Notice
Before calling for service, please ensure that the steps listed in clause 13 above have been followed.

FOR SERVICEor to find the address of your nearest state service centre in AustraliaPLEASE CALL 13 13 49For the cost of a local call (Australia only)	SERVICE AUSTRALIAElectroluxELECTROLUX HOME PRODUCTSwww.electrolux.com.au	FOR SPARE PARTSor to find the address of your nearest state spare parts centre in AustraliaPLEASE CALL 13 13 50For the cost of a local call (Australia only)
FOR SERVICEor to find the address of your nearest authorised service centre in New ZealandFREE CALL 0800 10 66 10(New Zealand only)	SERVICE NEW ZEALANDElectroluxELECTROLUX (NZ) Ltdwww.electrolux.co.nz	FOR SPARE PARTSor to find the address of your nearest state spare parts centre in New ZealandFREE CALL 0800 10 66 20(New Zealand only)

Electrolux Home Products Australia

telephone: [phone]

fax: [phone]

email: [e-mail]

web: www.electrolux.com.au

Electrolux Home Products New Zealand

telephone: [phone]

fax: [phone]

email: [e-mail]

web: www.electrolux.co.nz

The Thoughtful Design Innovator.

Do you remember the last time you opened a gift that made you say "Oh! How did you know? That's exactly what I wanted!" That's the kind of feeling that the designers at Electrolux seek to evoke in everyone who chooses or uses one of our products. We devote time, knowledge, and a great deal of thought to anticipating and creating the kind of appliances that our customers really need and want.

This kind of thoughtful care means innovating with insight. Not design for design's sake, but design for the user's sake. For us, thoughtful design means making appliances easier to use and tasks more enjoyable to perform, freeing our customers to experience that ultimate 21st century luxury, ease of mind. Our aim is to make this ease of mind more available to more people in more parts of their everyday lives, all over the world. So when we say we're thinking of you, you know we mean just that.

The “Thinking of you” promise from Electrolux goes beyond meeting the needs of today’s consumers. It also means we’re committed to making appliances safe for the environment—now and for future generations.

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com.au or www.electrolux.co.nz
