USER MANUAL E:Volution EQBM120LAS ELECTROLUX

Exterior view of a stainless steel outdoor grill with open lid and control panel (no visible text or symbols)

Black-and-white photo of a person standing at a table with food and drinks, no visible text or symbols

Congratulations

Congratulations and thank you for choosing our Electrolux E:Volution barbecue. We are sure you will find your new barbecue a pleasure to use. Before you use the barbecue, we recommend that you read through the entire user manual, which provides the description of the barbecue and its functions.

To avoid the risks that are always present when you use a gas appliance, it is important that it is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.

We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

After unpacking the barbecue please check it is not damaged. If in doubt, do not use the appliance but contact your local Electrolux Customer Care Centre.

Conditions of Use

This appliance is intended to be used in household and similar applications such as:

- Farm houses

- By clients in holiday apartments and other residential type environments.

Contents

• Important safety instructions 3

• EQBM120HAS description 4

• EQBM120HAS dimensions 5

• EQBM120LAS description 6

• EQBM120LAS dimensions 7

• EQBM75HAS description 8

• EQBM75HAS dimensions 9

• EQBM75LAS description 10

• EQBM75LAS dimensions 11

- Barbecue parts 12

- Assembling the barbecue 13

• Gas specifications 14

• Gas bottle safety information 14

• Installing the gas cylinder 15

- Leak test procedure 15

- Conversion to natural gas 15

- Choosing a location 17

• Installation warnings 17

- Activating the wheel brake 18

- Configuration of hotplates 18

- Operating instructions 18

• Using the roasting hood 19

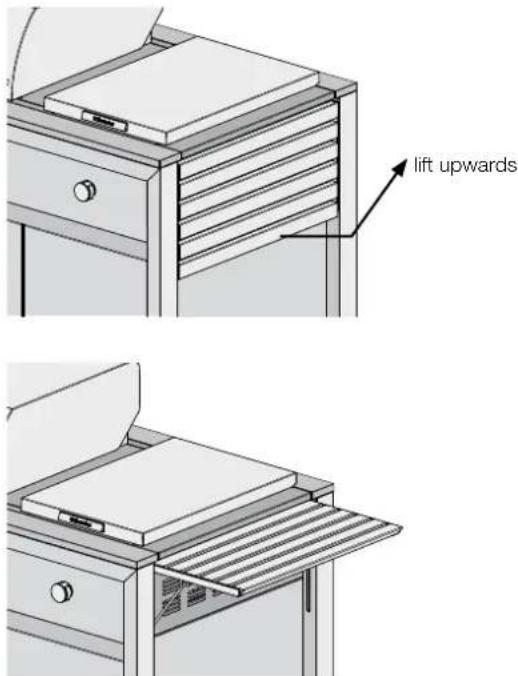

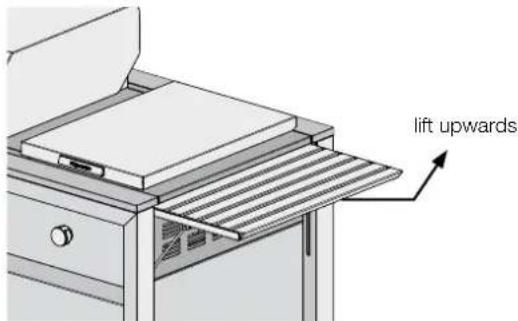

• Using the side table 20

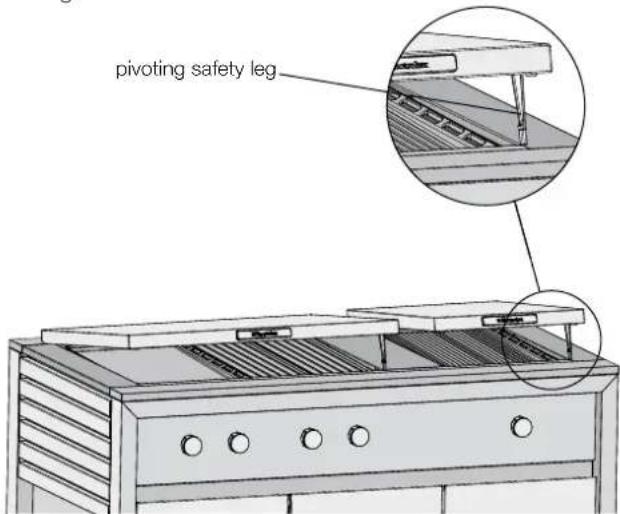

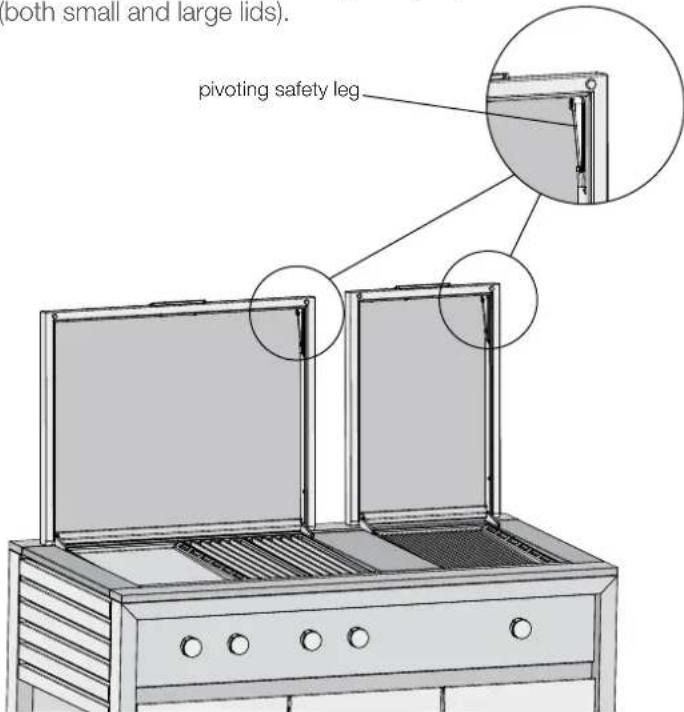

- Lid safety leg 20

- Cleaning and care 21

- Maintenance 22

- Troubleshooting 22

- Warranty 23

Important safety instructions

Please read the user manual carefully and store in a handy place for later reference.

Meanings of the symbols used in this manual are shown below:

warning

This symbol indicates information concerning your personal safety

caution

This symbol indicates information on how to avoid damaging the appliance

tips and information

This symbol indicates tips and information about use of the appliance

environmental tip

This symbol indicates tips and information about economical and ecological use of the appliance

This symbol indicates never to do this

For your safety please read this book before operating your barbecue.

warning

Improper installation, adjustment, alteration or maintenance can cause injury or property damage. Please contact your nearest Electrolux Service Department for additional information or assistance for an approved installer.

NOTE TO THE INSTALLER

THIS MANUAL MUST REMAIN WITH THE OWNER FOR FUTURE REFERENCE

environmental tip

Information on disposal for users

• Most of the packing materials are recyclable. Please dispose of those materials through your local recycling depot or by placing them in appropriate collection containers.
• If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

warning

IF YOU SMELL GAS, do not attempt to light the barbecue. Locate the leak and re-tighten the leaking joint. Carry out the Leak Test procedure as described in this manual. If the leak persists, turn off the gas supply and call Electrolux Service or a Licensed Gas Fitter.

warning

Do not lean over barbecue when lighting.
Do not leave the barbecue unattended when alight.
Do not delay lighting once the gas has been turned on.
Do not store or use aerosol cans in the vicinity of the barbecue.
Do not store flammable liquids in the vicinity of the barbecue.
Do not use caustic or abrasive based cleaners on the barbecue.
Do not operate the barbecue with the cover on.
Do not attempt to dismantle or adjust the control valves.
Do not attempt to dismantle or adjust the regulator.
Do not test for leaks with a naked flame.
Do not modify the construction of this appliance or modify the injector orifice size.
Do not obstruct any ventilation of the barbecue.
Do not allow children to operate or play near the barbecue.

caution

This barbecue is supplied set up for Universal LPG and is labelled accordingly. A Natural Gas conversion kit is available for purchase from Electrolux Service or Spare Parts. Conversion of this unit to Natural Gas must be carried out by a qualified licensed person and a Certificate of Compliance must be issued to the owner on completion of the installation and conversion.

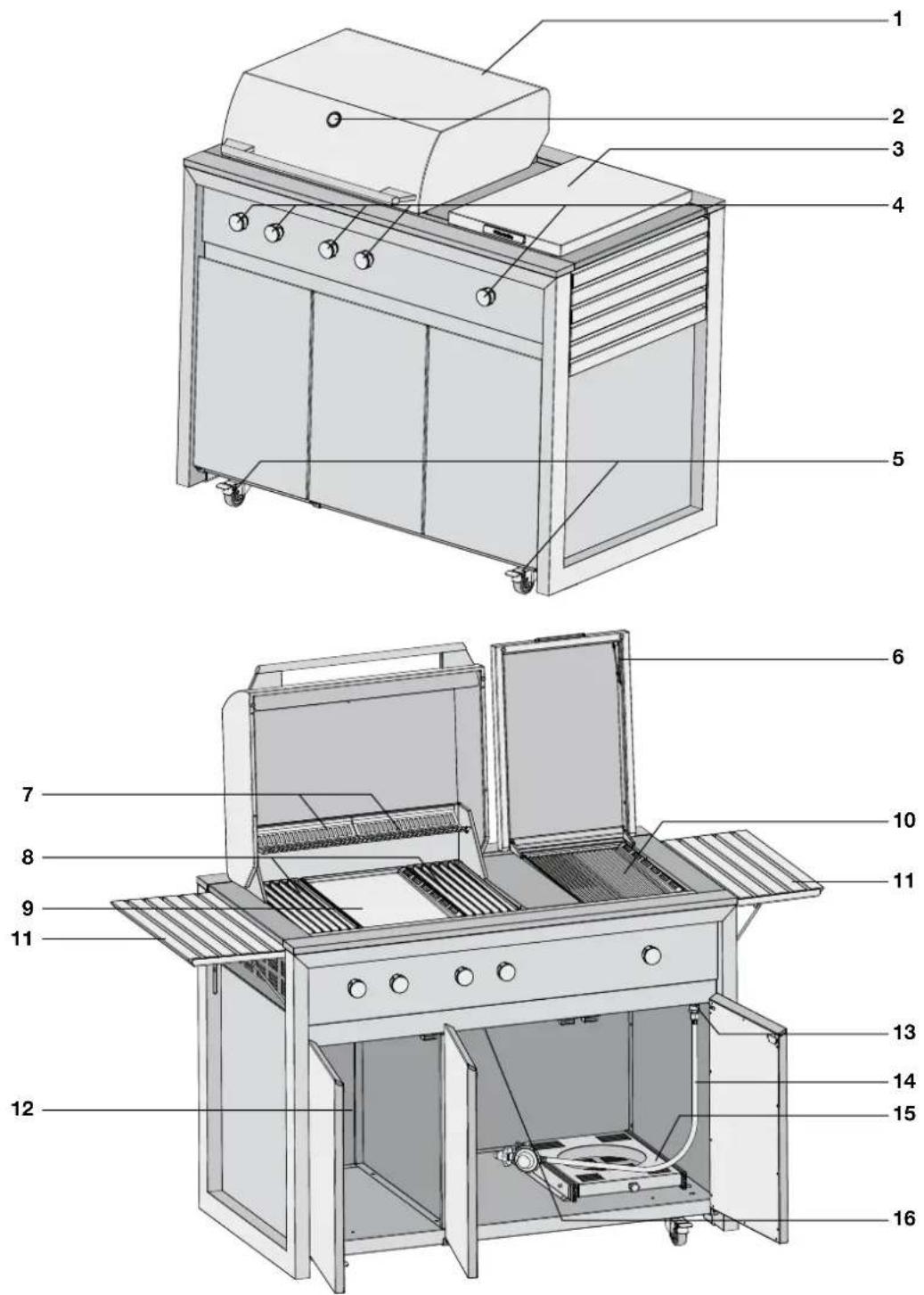

EQBM120HAS

1 Roasting hood
2 Temperature indicator
3 Slimline lid cover
4 Burner controls
5 Swivel wheels with brake
6 Pivoting safety leg
7 Warming racks
8 Grill
9 Hotplate

10 Ribbed hotplate
11 Fold down side tables
12 Storage compartment
13 Gas connection point
14 Gas hose with universal LPG connection
15 Slide-out gas bottle tray

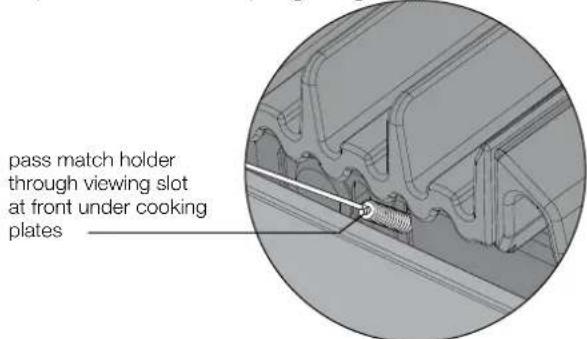

16 Match holder for manual lighting (not illustrated)
17 Removable oil reservoirs located at front of cooking surface (not illustrated)
18 Flame tamers located under grills (not illustrated)

EQBM120HAS dimensions

Dimensions are in millimetres.

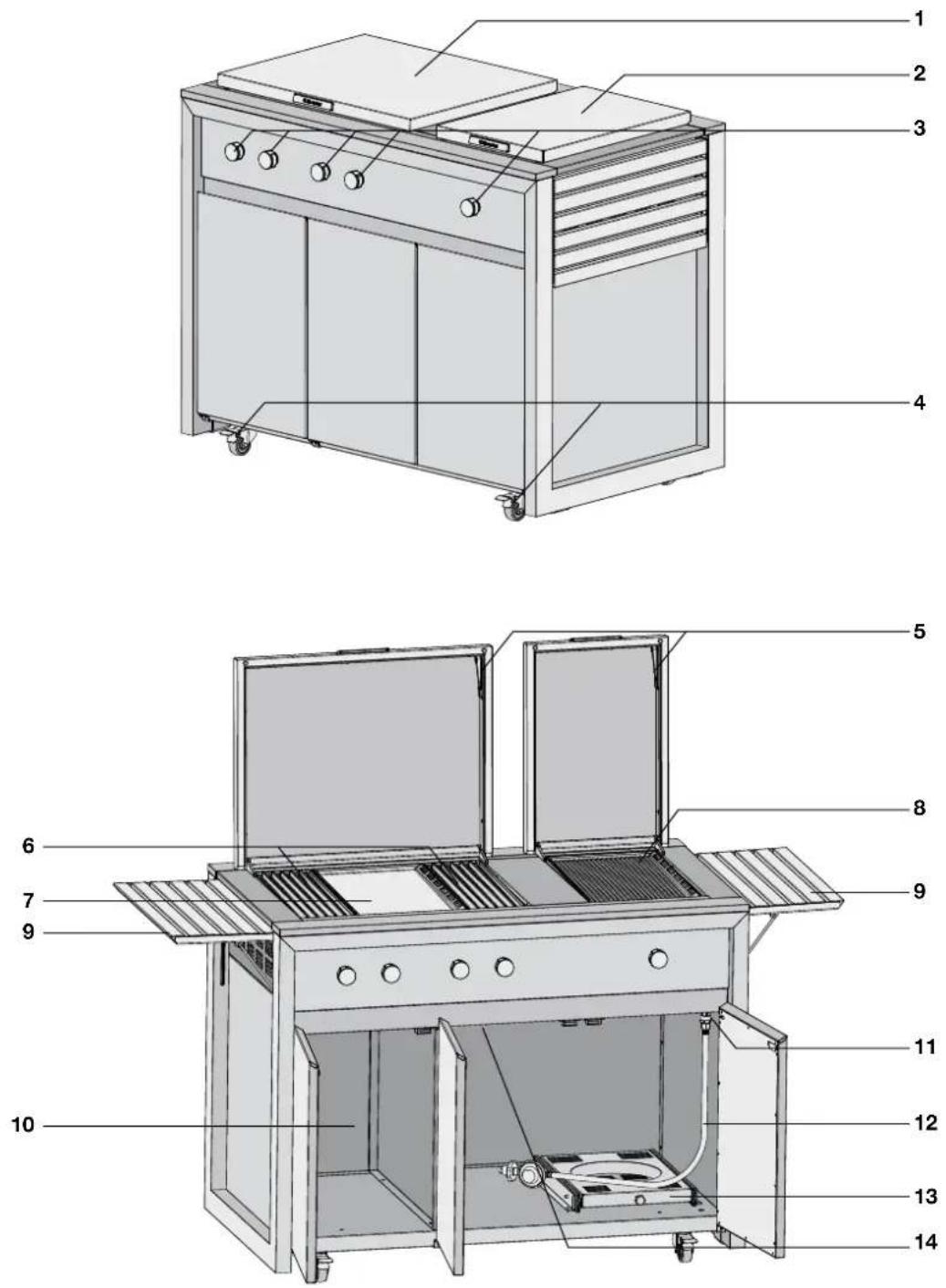

EQBM120LAS

1 Slimline lid cover
2 Slimline lid cover
3 Burner controls
4 Swivel wheels with brake
5 Pivoting safety leg
6 Grill
7 Hotplate
8 Ribbed hotplate

9 Fold down side tables
10 Storage compartment
11 Gas connection point
12 Gas hose with universal LPG connection
13 Slide-out gas bottle tray
14 Match holder for manual lighting (not illustrated)
15 Removable oil reservoirs located at front of cooking surface (not illustrated)
16 Flame tamers located under grills (not illustrated)

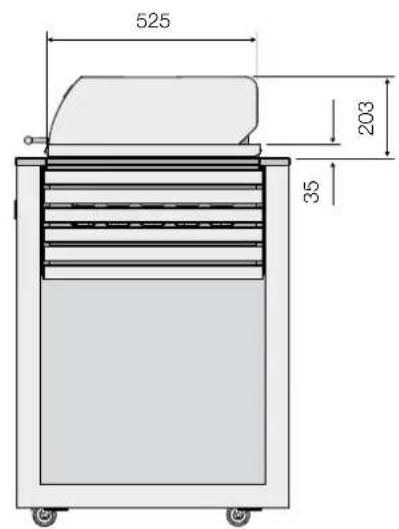

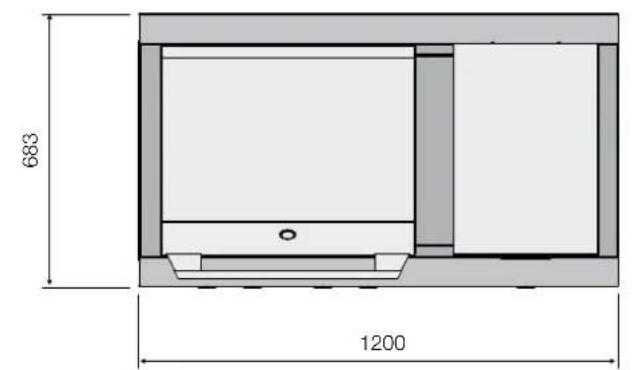

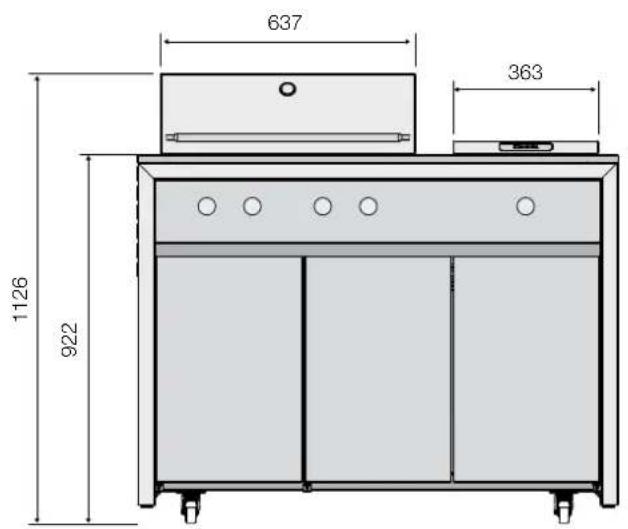

EQBM120LAS dimensions

Dimensions are in millimetres.

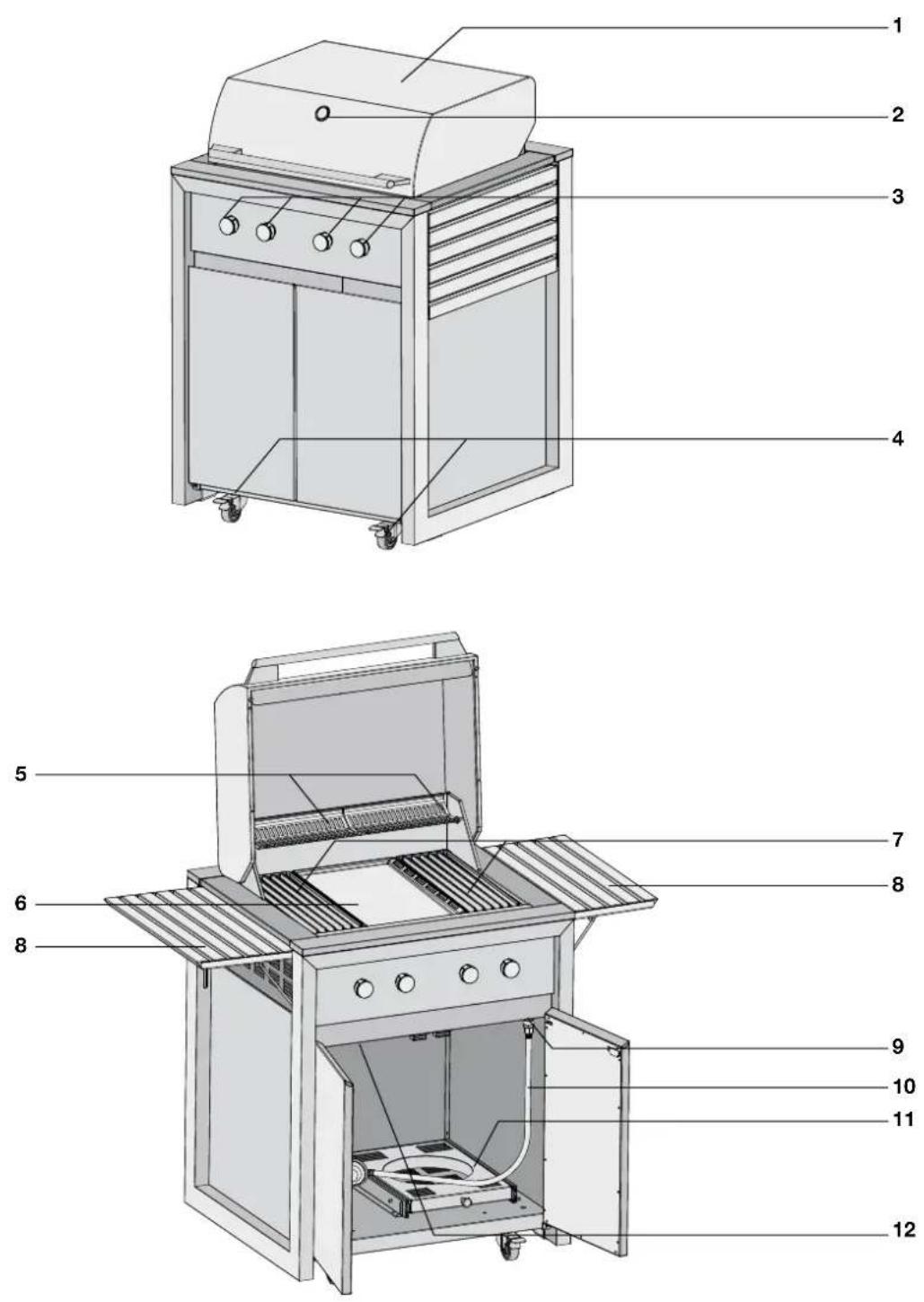

EQBM75HAS

1 Roasting hood
2 Temperature indicator
3 Burner controls
4 Swivel wheels with brake
5 Warming racks
6 Hotplate
7 Grills

8 Fold down side tables
9 Gas connection point
10 Gas hose with universal LPG connection
11 Slide-out gas bottle tray
12 Match holder for manual lighting (not illustrated)
13 Removable oil reservoirs located at front of cooking surface (not illustrated)
14 Flame tamers located under grills (not illustrated)

EQBM75HAS dimensions

Dimensions are in millimetres.

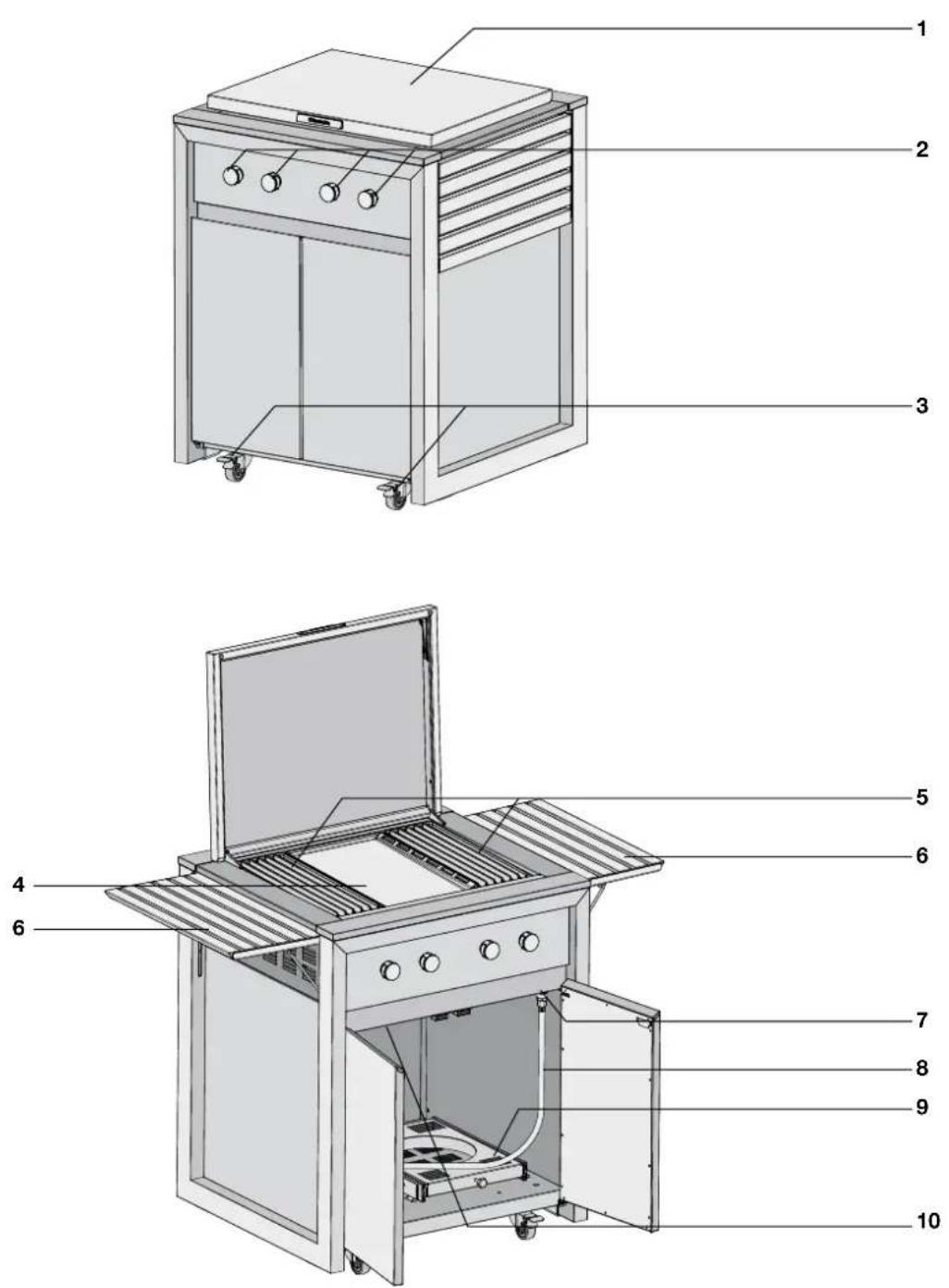

EQBM75LAS

1 Slimline lid
2 Burner controls
3 Swivel wheels with brake
4 Hotplate
5 Grills
6 Fold down side tables

7 Gas connection point
8 Gas hose with universal LPG connection
9 Slide-out gas bottle tray
10 Match holder for manual lighting (not illustrated)
11 Removable oil reservoirs located at front of cooking surface (not illustrated)
12 Flame tamers located under grills (not illustrated)

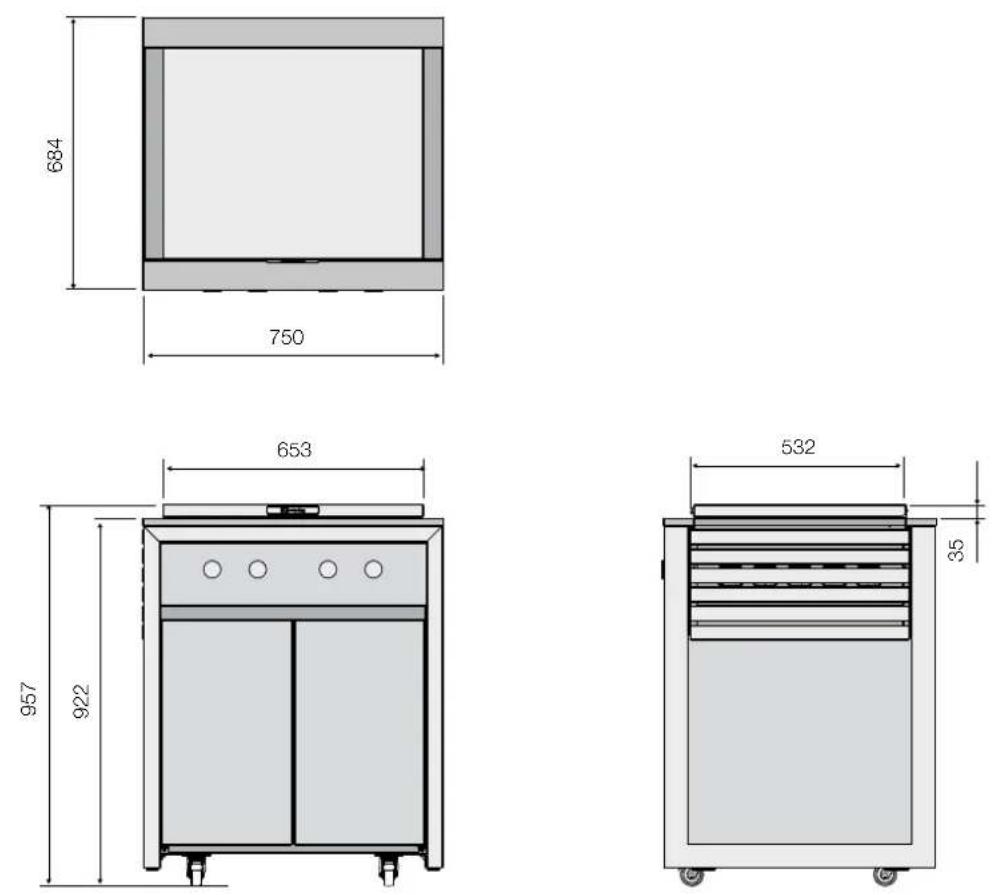

EQBM75LAS dimensions

Dimensions are in millimetres.

Contents of your 120cm barbecue pack: Contents of your 75cm barbecue pack:

	description qty		description qty
	EQBM12AS - 1120cm mobile barbecue base		EQBM75AS - 175cm mobile barbecue base
OR OR	EQB6HAS - 1Roasting hood and warming racksOR EQB6LAS - Flat lid with mounting brackets		EQB6HAS - 1Roasting hood and warming racksOR EQB6LAS - Flat lid with mounting brackets
	EQB3LAS - 1Small flat lid with mounting brackets		Grills 2
	Grills 2		Hotplate 1
	Hotplate 1		Flame tammers 2
	Ribbed hotplate 1	1 plastic bag containing this instruction book and trim fixing screws
	Flame tamers 2
1 plastic bag containing this instruction book and trim fixing screws		Tools you will need for assembly:- Phillips head screwdriver

Assembling the barbecue

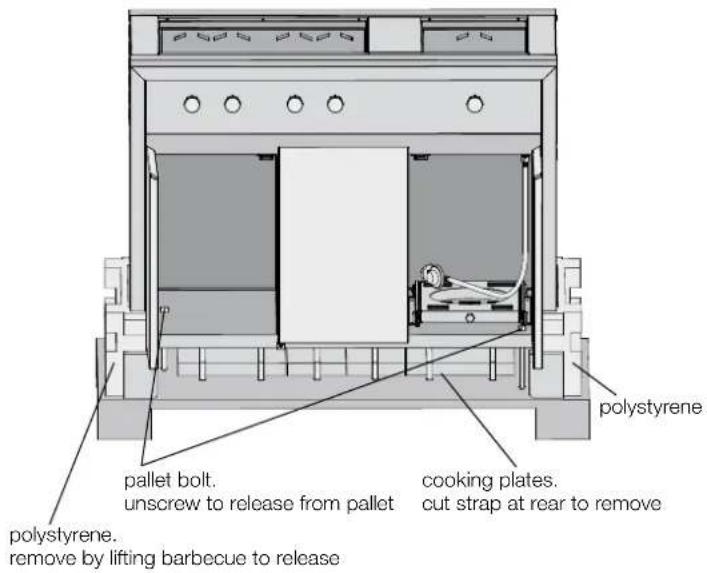

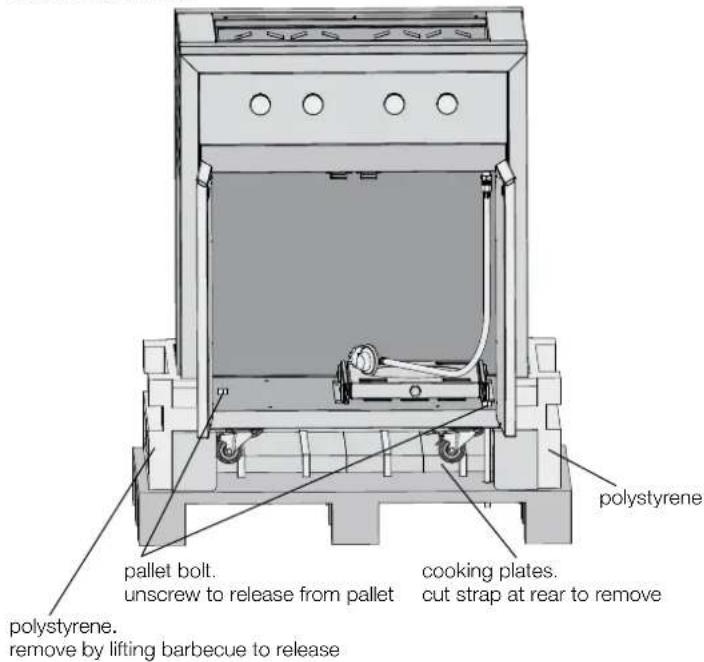

1. Remove packaging & remove all components from inside of burner box. Remove cooking plates fastened to pallet under cabinet.
2. Unfasten bolts securing unit to the pallet base and remove unit from base.

model EQBM12AS

model EQBM75AS

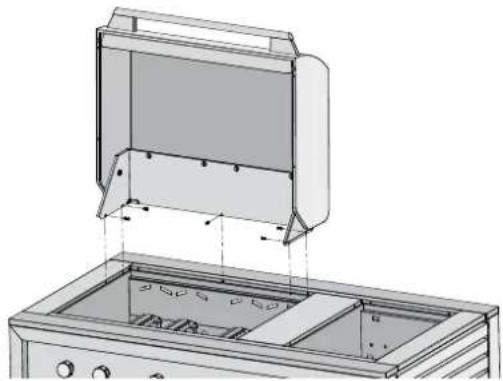

3. Fitting of roasting hood

• Unpack the roasting hood.
• Remove necessary screws to enable assembly of hood. Some screws have been removed to facilitate assembly and are included in bag with instruction manual.
• Due to the size of the roasting hood, it is recommended that two people place the roasting hood into position.
• When fitting the roasting hood assembly, take particular care to avoid scratching of the external trim.
• Once in position, fix hood assembly to trim surround with screws provided.

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

OR

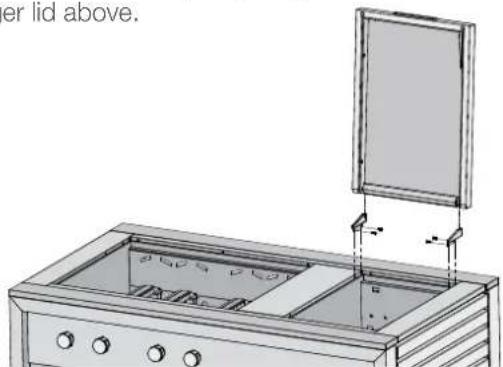

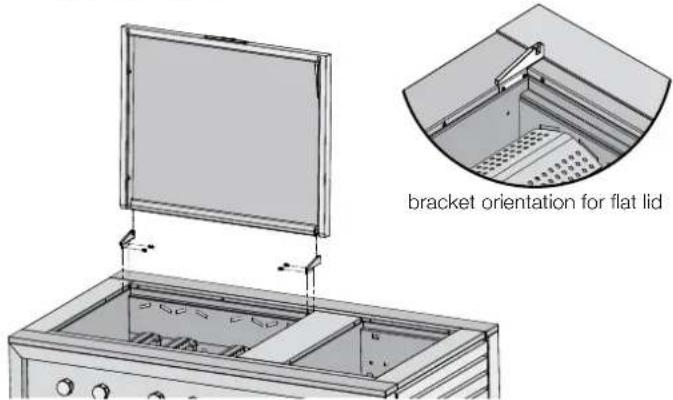

Fitting of slimline lid

• Unpack the slimline lid.
• Remove necessary screws from barbecue trim surround to enable assembly of brackets.
• Fit brackets to trim surround with screws removed and additional screws in plastic bag. Fit additional screws provided to trim where missing.

- Fit lid to brackets.

1. Fit small slimline lid (if required) in the same manner as larger lid above.


Technical line drawing of a stainless steel counter with lid above (no text or symbols)

Assembling the barbecue (cont.)

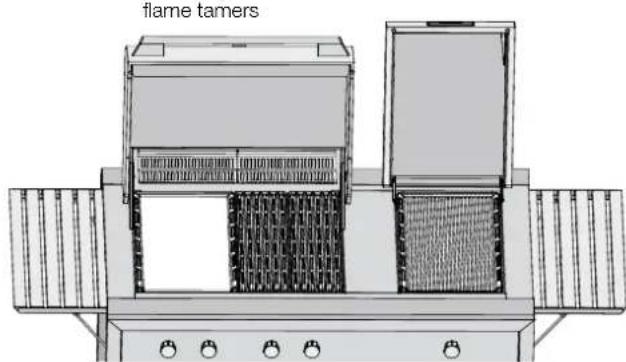

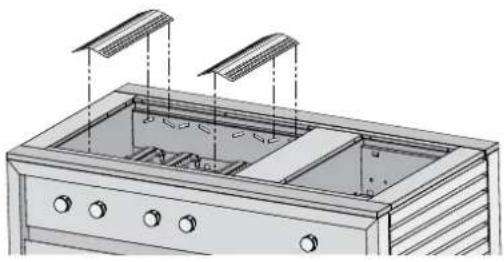

1. Position flame tamers into desired locations (under where grill sections will be fitted) and fix back edge of flame tamer into rear of barbecue body.

Technical line drawing of a mechanical device with multiple ports and mounting brackets (no text or symbols)

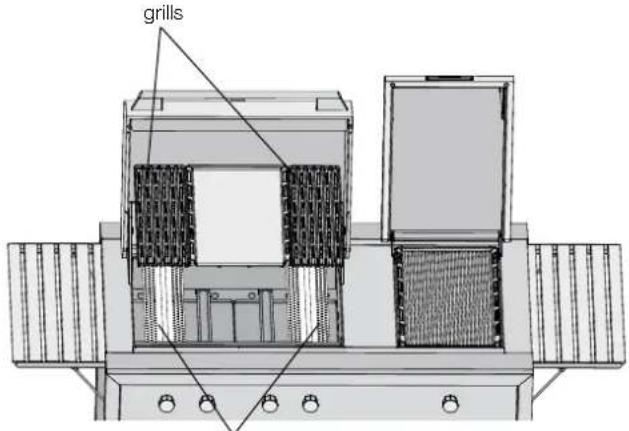

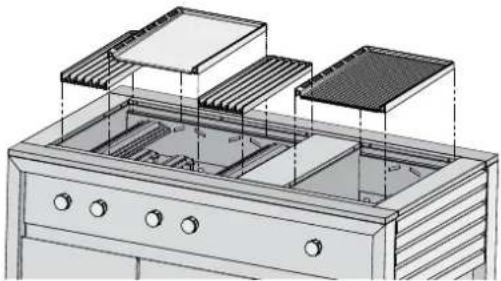

1. Place hotplate and grill sections into desired positions ensuring that the flame tamers are under grill sections.

NOTE: ensure that grill assemblies are orientated correctly so that the surface of the grill is sloping forward to allow oil to drain into oil reservoirs.

Technical line drawing of a multi-tiered storage unit with heat sinks and ventilation grilles (no text or symbols)

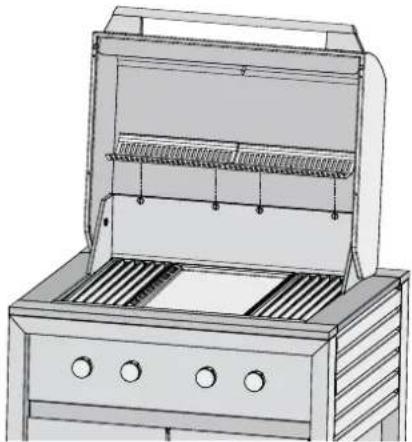

1. Fit warming racks to splashguard at rear (roasting hood models only).

Technical line drawing of a portable stove or grater with three outlets and a rack (no text or symbols)

Gas specifications

For 120cm barbecue

model EQBM120HAS & EQBM120LAS
gas type universal LPG natural gas
Maximum gas consumption 50 MJ/h 57.5 MJ/h
Injector orifice diameter (mm) 0.90 1.50
Number of injectors 5 5
Regulator pressure 2.75 kPa 1.00 kPa*

For 75cm barbecue

model EQBM75HAS & EQBM75LAS
gas type universal LPG natural gas
Maximum gas consumption 40 MJ/h 46 MJ/h
Injector orifice diameter (mm) 0.90 1.50
Number of injectors 4 4
Regulator pressure 2.75 kPa 1.00 kPa*

NOTES

• This appliance MUST be serviced only by a qualified licensed person.
  • This product is intended for outdoor use only.
• Ventilation holes in the unit must not be obscured by the installation.
  * The outlet pressure at the Natural Gas regulator will be lower when all burners are operating. Burner pressure should read 1.0kPa with one burner operating and approximately 0.93kPa with four burners operating.

For conversion to Natural Gas a conversion kit will need to be purchased from Electrolux Spare Parts.

Gas bottle safety information

• This appliance is designed to use a Universal LPG 9kg (20 lbs) gas cylinder.
  • The gas cylinder must be made and marked in accordance with specifications for LPG cylinders
• The isolation valve must be turned off when the appliance is not in use.
• Gas cylinders must be stored in an approved housing out of reach of children.
• When disconnecting the gas bottle ensure that all the control valves are in the 'OFF' position.
• Remove the bottle from any housing in which it may be stored before disconnection.
• When reconnecting the hose to the bottle, ensure that all connections are tight before replacing in the storage compartment.
• Carry out a leakage check as detailed below after each reconnection.

Installing the gas cylinder

To install bottle:

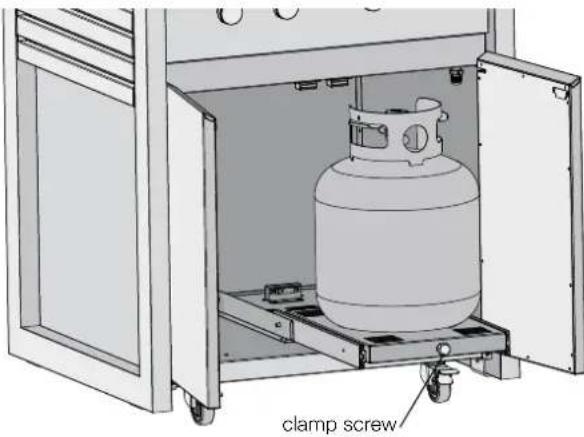

1. Open both gas bottle compartment doors and pull out sliding tray.
2. Wind out clamp screw to allow base of bottle to fit.
3. Place gas bottle into tray and tighten clamp to secure bottle.
4. Make connection of gas hose to gas bottle.

Gas bottles vary in size and there may be some variations that do not fit into the space provided. As an alternative to mounting the gas bottle in slide out tray, the bottle can be placed on the ground and hose placed through hole in rear panel for connection to inlet.

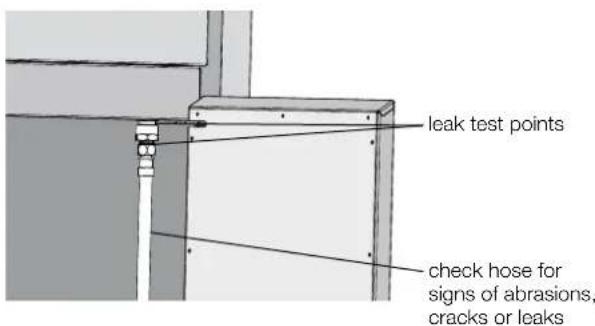

Leak test procedure (Universal LPG)

• Ensure all gas valves are in the 'OFF' position.
• In a small container, mix a solution of water and detergent or soap.
• After connection of the hose, turn on the valve at the gas bottle or mains as appropriate.

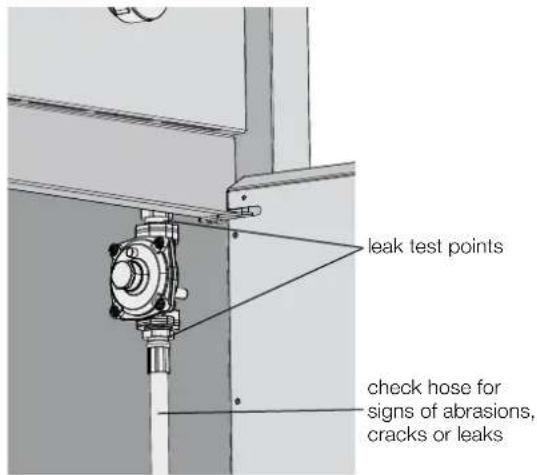

• Using a brush apply the solution to the gas connection points and look for bubbles forming.
  • Bubbling will indicate a leak.
• Turn off the valve and re-tighten the joint. Repeat the leak test.
• If the leak persists, turn off the gas at the isolation valve and contact a licensed gas fitter to correct.

Conversion to Natural Gas

Preparing the unit for Natural Gas installation.

This barbecue is supplied set up for Universal LPG and is labelled accordingly. A Natural Gas conversion kit can be purchased from Electrolux Spare Parts to enable conversion to Natural Gas use.

NOTE: Conversion of this unit to Natural Gas must be carried out by a qualified licensed person and a Certificate of Compliance must be issued to the owner on completion of the installation and conversion.

The conversion kit consists of:

• Regulator
• Hose with quick connect bayonet fitting one end
  • Natural Gas sticker

Procedure

1. Changing the injectors

• Remove the hotplates & grills
• Remove the flame tamers

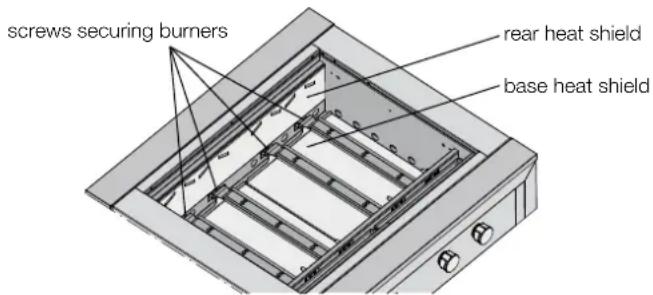

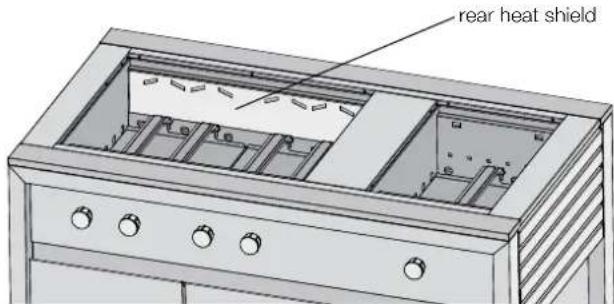

• Remove rear heat shield (push up and then forward to release)

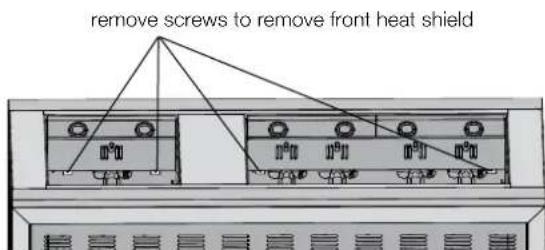

- Remove front heat shield panel

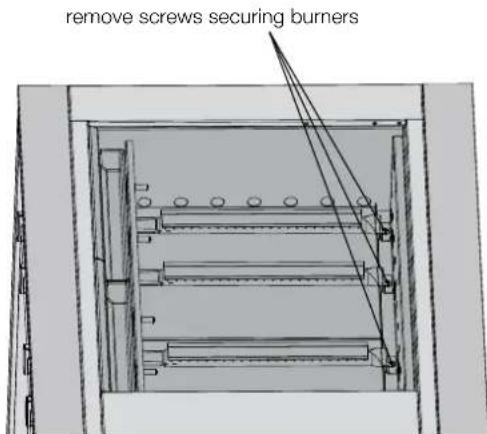

- Remove screws securing burner at rear

Conversion to Natural Gas (cont.)

• Manoeuvre rear of burner to release front of burner from injector

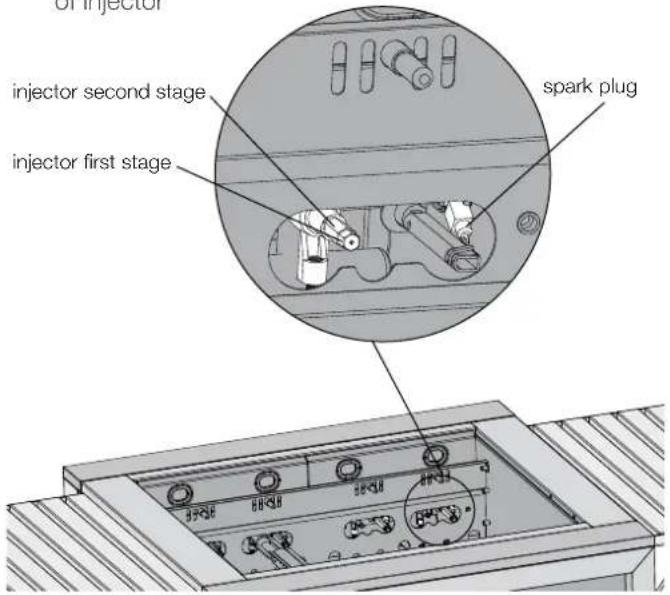

  • Using a spanner or socket tool remove first stage of injector

• Ensure second stage of injector is not loose – tighten if necessary
• Refit burners ensuring the injector is located in burner inlet
• Refit front heat shield panel and rear heat shield panel
  • Refit flame tamers, grills and hotplates

2. Disconnect brass adaptor and LPG hose and regulator assembly from gas inlet connection

3. Connect the hose to the regulator

• Place threaded end of hose through hole in rear panel
• Apply thread tape or sealant to the male thread on the hose and screw into the regulator.

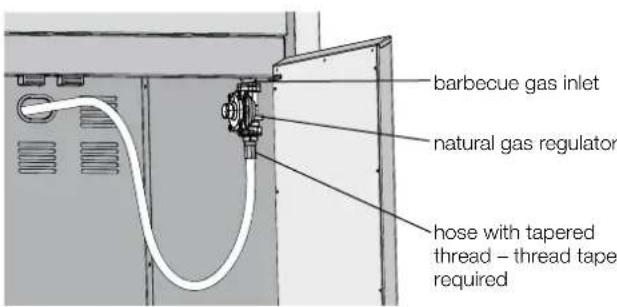

4. Connect the regulator to the barbecue gas inlet

- Fit the regulator ensuring the blue sealing washer is in place and the arrow is pointing in the right direction

5. Replace the 'gas type' sticker

- Locate the 'Universal LPG' sticker located on the barbecue gas inlet and remove it. Put the 'Natural Gas' sticker in its place.

6. Leak test procedure

• Ensure all gas valves are in the 'OFF' position.
• In a small container, mix a solution of water and detergent or soap.
  • After connection of the hose, turn on the valve at the gas bottle or mains as appropriate.
  • Using a brush apply the solution to the gas connection points and look for bubbles forming.
  • Bubbling will indicate a leak
• Turn off the valve and re-tighten the joint. Repeat the leak test.
• If the leak persists, turn off the gas at the isolation valves and contact a licensed gas fitter to correct.

7. Turndown adjustment

When converting to natural gas the turndown setting will need to be adjusted to give satisfactory flame on low setting.

• Remove all knobs from valve shafts of main barbecue
• Remove rubber grommets from control panel holes

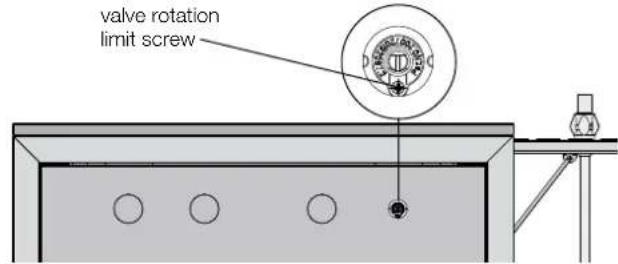

• Using a Philips head screw driver, fully screw in clockwise the valve rotation limit screw. When this is done the valve rotation will be limited to less than 180°.

• Following connection of the gas and leak testing as per previous steps, light all burners and set to high.
• One burner at a time turn the valve shaft to lowest setting, observe the flame to ensure a small steady flame is achieved.
• Turn burners off and replace rubber grommets and control knobs.

Choosing a location

• The vertical clearance above the cooking surface to any combustible materials must be at least 1000mm.
• Cooking with roasting hood closed vents the hot flue gases out the rear of the appliance. A minimum clearance of 450mm to any combustible materials is required.
• The appliance requires clearance on both sides and at rear for ventilation, ensure at least 100mm clearance.
• Avoid windy conditions as this will affect cooking performance and burner efficiency. If this situation cannot be avoided some shielding may be necessary.
• The barbecue grills and hotplates are slightly sloped to enable grease & oil drainage into front receptacles. When choosing a location ensure that the slope towards the front is maintained.
• This appliance must be installed in accordance with Australian Standards AS4557 and AS5601 and in accordance with your local authority.

Installation warnings

warning

• This appliance shall only be used in an above ground, open air situation with natural ventilation without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind or natural convection. This barbecue has been designed for outdoor use only. Refer to diagrams below.
• Never install this barbecue inside any building, garage, shed or breezeway or inside a boat, caravan or recreational vehicle. This is to prevent the possibility of fire, carbon monoxide poisoning or asphyxiation.
• Any enclosure in which this appliance is installed shall comply with one of the following:
• An enclosure with walls on all sides, but at least one permanent opening at the ground level and no overhead covering.
• Within a partial enclosure that includes an overhead cover and no more than 2 walls.
  – Within a partial enclosure that includes an overhead cover and more than 2 walls, the following shall apply:
• at least 25% of the total wall area is completely open and at least 30% of the remaining wall area is open and unrestricted
• In the case of balconies, at least 20% of the total of the side, back and front wall areas shall be and remain open and unrestricted.

Outdoor area example 1

Isometric line drawing of a 3D rectangular box with a cutout and a separate empty rectangle (no text or symbols)

Outdoor area example 2

Outdoor area example 3

both ends open

Geometric diagram showing a 3D cube with an extended side and a 2D square with internal diagonals (no text or symbols)

Outdoor area example 4

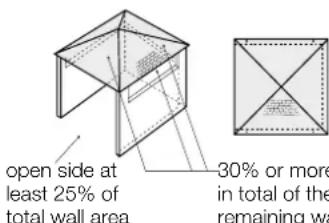

Outdoor area example 5

open side at least 25% of total wall area

-30% or more in total of the remaining wall area is open and unrestricted

Activating the wheel brake

For safety, the wheel brake should be activated to prevent any movement of the barbecue.

There are 2 wheel brakes.

To activate:

- Push down until it locks.

Options for configuration of hotplates and grills

important

Ensure flame tamers are positioned under the grill panels

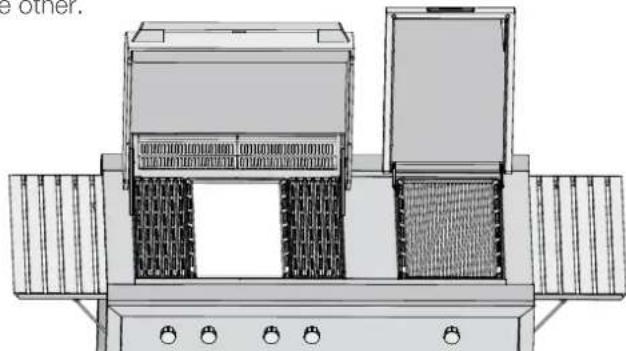

Grills can be placed together on one side and hotplate on the other.

Technical line drawing of a mechanical device with two main components and control panels (no text or symbols)

Grills can be placed either side of hotplate. This is the preferred option for roasting.

Operating instructions

Control functions

Before lighting the barbecue:

• Check that all hoses and gas fittings are tight.
• Open the roasting hood or slimline lid

NOTE the slimline lid is designed as a cover for weather protection. The lid is not designed to be used as a cooking hood

• Check all control knobs are in the 'OFF' position
• Ensure that the cooking surfaces are clean
• Turn the gas isolation valve 'ON'

Lighting instructions

• Do not attempt to light burners with cooking surfaces covered
• Read instructions before lighting
  • To light a burner, depress the knob and rotate to 'HIGH'
• A spark is generated to light the flame thrower along side the burner. The flame thrower makes an audible noise and only operates when the knob is depressed to light the burner. Release the knob and check if burner is lit. The audible noise from the flame thrower will stop when knob released.
• If the burner did not light, turn the knob to the 'OFF' position. Allow gas to disperse, then repeat lighting procedure.

Manual lighting

• If, in the event of the automatic ignition system not working, the barbecue can be lit manually

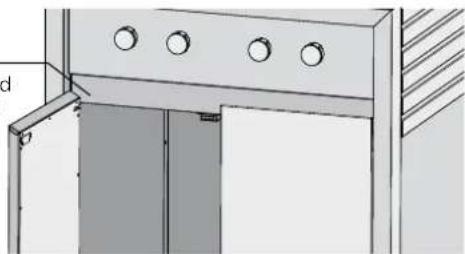

• A match holder with attached chain is fixed to the panel behind top of door. For the 3 door model, it is near the hinge of the centre door. For the 2 door model it is near the hinge of the left door. It is accessible from inside the

cabinet.
match holder with —— attaching chain located inside channel formed by this panel

Technical line drawing of a door frame with three circular cutouts and a door opening (no text or symbols)

- To light manually, fit a 40mm match to the holder and light. Pass match through viewing slots below the front cooking plate down towards the burner, then rotate knob to HIGH to ignite. If ignition fails, turn the control valve OFF and allow several minutes for the gas to disperse before attempting to light again.

• Once alight, repeat for other burners as required.

Using the roasting hood

Preheating

• This barbecue is fitted with high power burners. In most conditions it will only be necessary to preheat the barbecue for 5 minutes before cooking can commence
• As with most things, experience will familiarise you with the effectiveness of and the time required to achieve the desired preheating time to obtain the desired cooking temperature
• Testing has shown that the burners can be turned to low position for satisfactory cooking
• If the unit does not operate correctly refer to the troubleshooting section on page 22
• If the burners are left to run too hot there will be excessive smoking during the cooking process and subsequent burning of the food being prepared. This may also result in excessive flaring of the fat being emitted from the food
• Roasting with the hood closed only requires the 2 outermost burners on low setting for satisfactory cooking.

To turn the burner off

• When cooking is complete, rotate the knob fully clockwise so the pointer on the knob is positioned at the 'OFF' position
• Turn gas bottle isolation valve off after turning all knobs to 'OFF' position when appliance not in use

Cooking with the hood closed only requires 2 burners to be on low setting. Setting is to be adjusted depending on conditions and using the temperature indicator as a guide.

• It is recommended when roasting to place the solid hot plate in the centre with one grill on each side of the plate. Use the two outer burners under the grills.
• To achieve even cooking of the food, place the food onto a wire rack above the hot plate to allow air to circulate under the food.
• Food can also be placed on the warming racks for cooking with hood closed

warning

• Do not use more than 2 burners when hood closed and do not allow the temperature to exceed the 'Ready' zone of the temperature indicator. These conditions create excessive heat and may cause damage to the barbecue and roasting hood.
• When cooking with the hood closed the hot flue gases flow out the rear of the appliance between the splashguard and the hood. Ensure the barbecue is suitably located to avoid damage or injury.

warning

ONLY USE A MINIMUM AMOUNT OF OIL AS EXCESS OIL CAN CAUSE THE FLAMES TO IGNITE FURTHER.

Using the side table Lid safety leg – slimline lid only

To extend the side tables:

• Lift upwards until it locks

To fold back into place:

1. Lift upwards slightly to unlock
2. Slide support arms upwards and table should fall into place.

To ensure that the user remembers to turn off the gas before closing the lid, a pivoting safety leg has been fitted (both small and large lids).

When closing the lid the safety leg will pivot forward and rest against the trim surface to prevent the lid closing. After ensuring the gas has been turned off, to fully close the lid, the leg needs to be rotated backwards.

THE SLIMLINE LID MUST NOT BE CLOSED WHEN THE BURNERS ARE OPERATING.

Closing the lid during burner operation can cause discolouration and damage to the lid and barbecue unit.

Cleaning and care

This Electrolux barbecue has been constructed from select grade stainless steel which, if not cared for, may discolour over time. To keep your barbecue looking its best we recommend that the cooking surfaces are cleaned after every use.

warning

Please ensure that your barbecue is switched off and has cooled down before following the instructions below.

Cast iron plates

The cooking plates and grills have a porcelain enamelled coating.

NOTE: Many food acids, juices, marinades and sauces contain highly acidic elements that will slowly attack the surface of the cast iron if not removed immediately after cooking.

After use remove all solid material from the cooking surface using a brass bristled barbecue brush or plastic bristled scourer. Wipe off the remaining grease with paper towelling. Gently wash the surfaces with a cloth or sponge and a mild detergent and hot water. Dry components immediately and coat the cooking surface with a light layer of cooking oil. This protects the surface when not in use. Do not clean the cooking surface in a dishwasher

Cleaning stainless steel surfaces

caution

Do not use abrasive or caustic cleaners, scourers or metal scrapers on stainless steel surfaces as they may permanently scratch and damage your barbecue.

• Wash all stainless steel components, including the slimline lid, the roasting hood, tubular frame and control knobs with a soft dishcloth using hot soapy water
• The barbecue interior can be wiped down with a soft cloth in hot soapy water. The rear panel of the interior is removable for easy cleaning
• Ensure that all surfaces are dried with a clean dry cloth

tips and information

Sometimes stainless steel surfaces are affected by a brown discolouration called tea staining. This usually occurs in areas which use high heat and can be removed using specialised stainless steel cleaners. For best results, we recommend that specialised cleaners be used regularly on all stainless steel components. You will find these cleaners at the Electrolux spare parts outlets.

caution

Take extra care (particularly when cleaning on and around the control knobs) to ensure that water and soapy residue do not enter the control panel.

Care should also be taken not to disturb the spark electrode.

Cleaning inside the barbecue

The inside of the burner box should be regularly cleaned to prevent any build up of food residues.

To access the burner box remove cooking plates and heat distributors. To remove rear heat shield lift to disengage clips. To remove burners undo screws securing burners at rear, and lift out carefully to prevent scratching. The base heat shields can also be lifted out.

Ensure that all oil and food residues are removed.

After cleaning complete, re-assemble ensuring burner is correctly located over the injector.

Cleaning the oil reservoirs

The barbecue has a unique oil management system which drains oil to the front into easily removed reservoirs which should be cleaned after each use.

- To remove reservoirs, pull upwards from the front of the barbecue and dispose of the contents of the catchment responsibly. Rinse oil reservoirs in warm soapy water. The reservoirs can be placed in the dishwasher if desired.

Powder coated panels

Do not use abrasive or caustic cleaners, scourers or metal scrapers as they may permanently damage your barbecue. Wash all powder coated panels with a soft dishcloth using warm soapy water. Ensure that all surfaces are dried with a clean dry cloth.

Side table timber

The hardwood used on the lift up side tables has been treated with a light coating of protection oil. Clean surface using a soft sponge and a solution of mild soapy water. Wash down afterwards with clean water.

To maintain strength, avoid discolouration and fading, the timber must be protected using a suitable outdoor timber furniture oil. Re-oiling of timber will need to be conducted at regular intervals depending upon the amount of exposure to the sun and rain.

Minor scuffs and scratches can easily be covered with a coat of oil. Deep scratches need to be sanded out and oiling concentrated in that area until the lustre is uniform.

Use of a weatherproof cover will help to minimise the maintenance required.

tips and information

The stainless steel panels may distort while in use but will return to normal when cold.

When the barbecue is not being used it is recommended to keep it covered.

If the barbecue is to be stored indoors, remove the gas cylinder and store the cylinder in a ventilated outdoor area.

Maintenance Troubleshooting

Stainless steel burners

Burners should be checked at least once per year and cleaned as necessary. Inspect burners to ensure no residues have been deposited and gas ports are clear.

problem possible cause remedy
Barbecue won't light	No gas Check isolation valve is ON
	Ignition system not working	Check there is a spark being generated when knob rotated
		Ignition electrode wet or dirty, gently clean and dry electrode, ensuring position is unchanged
		Manually light the barbecue
Excess smoke being emitted from the cooking area	Too much heat Turn down gas valve or turn off selected burners
Smell of gasDO NOT ATTEMPT TO LIGHT THE APPLIANCE	Gas leak Turn off gas at the isolation valves

This document sets out the terms and conditions of the product warranties for Electrolux Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should you require service for your Appliance.

1. In this warranty

(a) ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL;

(b) 'ACL' means Trade Practices Amendment (Australian Consumer Law) Act (No.2) 2010;

(c) 'Appliance' means any Electrolux product purchased by you accompanied by this document;

(d) 'ASC' means Electrolux' authorised serviced centres;

(e) 'Electrolux' means Electrolux Home Products Pty Ltd of 163 O'Riordan Street, Mascot, NSW 2020, ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux (NZ) Limited of 3-5 Niall Burgess Road, Mount Wellington, in respect of Appliances purchased in New Zealand;

(f) ‘major failure’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL and includes a situation when an Appliance cannot be repaired or it is uneconomic for Electrolux, at its discretion, to repair an Appliance during the Warranty Period;

(g) 'Warranty Period' means:

(i) where the Appliance is used for personal, domestic or household use (i.e. normal single family use) as set out in the instruction manual, the Appliance is warranted against manufacturing defects in Australia for 24 months and in New Zealand for 24 months, following the date of original purchase of the Appliance;

(ii) where the Appliance is used for commercial purposes (including being used to directly assist a business or where the Appliance is used in a multi-family communal or share type environment), the Appliance will then be warranted against manufacturing defects in Australia for 3 months and in New Zealand for 3 months, following the date of original purchase of the Appliance.

(h) ‘you’ means the purchaser of the Appliance not having purchased the Appliance for re-sale, and ‘your’ has a corresponding meaning.

1. This warranty only applies to Appliances purchased and used in Australia or New Zealand and is in addition to (and does not exclude, restrict, or modify in any way) any non-excludable statutory warranties in Australia or New Zealand

2. During the Warranty Period Electrolux or its ASC will, at no extra charge if your Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Electrolux or its ASC may use remanufactured parts to repair your Appliance. You agree that any replaced Appliances or parts become the property of Electrolux. This warranty does not apply to light globes, batteries, filters or similar perishable parts.

3. Parts and Appliances not supplied by Electrolux are not covered by this warranty.

4. You will bear the cost of transportation, travel and delivery of the Appliance to and from Electrolux or its ASC. If you reside outside of the service area, you will bear the cost of:

(a) travel of an authorised representative;

(b) transportation and delivery of the Appliance to and from Electrolux or its ASC,

In all instances, unless the Appliance is transported by Electrolux or an Electrolux authorised representative, the Appliance is transported at the

owner's cost and risk while in transit to and from Electrolux or its ASC.

1. Proof of purchase is required before you can make a claim under this warranty.

2. You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship. Electrolux is not liable in the following situations (which are not exhaustive):

(a) the Appliance is damaged by:

(i) accident

(ii) misuse or abuse, including failure to properly maintain or service

(iii) normal wear and tear

(iv) power surges, electrical storm damage or incorrect power supply

(v) incomplete or improper installation

(vi) incorrect, improper or inappropriate operation

(vii) insect or vermin infestation

(viii) failure to comply with any additional instructions supplied with the Appliance;

(b) the Appliance is modified without authority from Electrolux in writing;

(c) the Appliance's serial number or warranty seal has been removed or defaced;

(d) the Appliance was serviced or repaired by anyone other than Electrolux, an authorised repairer or ASC.

1. This warranty, the contract to which it relates and the relationship between you and Electrolux are governed by the law applicable where the Appliance was purchased. Where the Appliance was purchased in New Zealand for business purposes the Consumer Guarantee Act does not apply.

2. To the extent permitted by law, Electrolux excludes all warranties and liabilities (other than as contained in this document) including liability for any loss or damage whether direct or indirect arising from your purchase, use or non use of the Appliance.

3. For Appliances and services provided by Electrolux in Australia, the Appliances come with a guarantee by Electrolux that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure. The benefits to you given by this warranty are in addition to your other rights and remedies under a law in relation to the Appliances or services to which warranty relates.

4. At all times during the Warranty Period, Electrolux shall, at its discretion, determine whether repair, replacement or refund will apply if an Appliance has a valid warranty claim applicable to it.

5. For Appliances and services provided by Electrolux in New Zealand, the Appliances come with a guarantee by Electrolux pursuant to the provisions of the Consumer Guarantees Act, the Sale of Goods Act and the Fair Trading Act.

6. To enquire about claiming under this warranty, please follow these steps: (a) carefully check the operating instructions, user manual and the terms of this warranty;

(b) have the model and serial number of the Appliance available;

(c) have the proof of purchase (eg an invoice) available;

(d) telephone the numbers shown below.

1. You accept that if you make a warranty claim, Electrolux and its ASC may exchange information in relation to you to enable Electrolux to meet its obligations under this warranty.

Important Notice
Before calling for service, please ensure that the steps listed in point 13 above have been followed.

FOR SERVICEor to find the address of your nearest state service centre in AustraliaPLEASE CALL 13 13 49For the cost of a local call (Australia only)

SERVICE AUSTRALIAElectroluxELECTROLUX HOME PRODUCTSwww.electrolux.com.au

FOR SPARE PARTSor to find the address of your nearest state spare parts centre in AustraliaPLEASE CALL 13 13 50For the cost of a local call (Australia only)

FOR SERVICEor to find the address of your nearest authorised service centre in New ZealandFREE CALL 0800 10 66 10(New Zealand only)

SERVICE NEW ZEALANDElectroluxELECTROLUX HOME PRODUCTSwww.electrolux.co.nz

FOR SPARE PARTSor to find the address of your nearest state spare parts centre in New ZealandFREE CALL 0800 10 66 20(New Zealand only)

Electrolux Home Products Australia

telephone: [phone]

fax: [phone]

email: [e-mail]

web: www.electrolux.com.au

Electrolux Home Products New Zealand

telephone: [phone]

fax: [phone]

email: [e-mail]

web: www.electrolux.co.nz

The Thoughtful Design Innovator.

Do you remember the last time you opened a gift that made you say "Oh! How did you know? That's exactly what I wanted!" That's the kind of feeling that the designers at Electrolux seek to evoke in everyone who chooses or uses one of our products. We devote time, knowledge, and a great deal of thought to anticipating and creating the kind of appliances that our customers really need and want.

This kind of thoughtful care means innovating with insight. Not design for design's sake, but design for the user's sake. For us, thoughtful design means making appliances easier to use and tasks more enjoyable to perform, freeing our customers to experience that ultimate 21st century luxury, ease of mind. Our aim is to make this ease of mind more available to more people in more parts of their everyday lives, all over the world. So when we say we're thinking of you, you know we mean just that.

The "Thinking of you" promise from Electrolux goes beyond meeting the needs of today's consumers. It also means we're committed to making appliances safe for the environment—now and for future generations.

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com.au or www.electrolux.co.nz
