Product Type	Fridge-freezer (combined)
Brand	Beko
Model	RCNE520E41ZX
Refrigerant	R600a (flammable)
Supply Voltage	220-240 V ~ 50 Hz
Recommended Fuse	10-16 A
Freezing Capacity	4.5 kg/24h per 100 L (according to IEC 62552 standard)
Freezer Temperature Range	-18 °C to -24 °C
Refrigerator Temperature Range	2 °C to 8 °C
Fast Freeze Function	Yes (manual activation, automatic deactivation after 4 h)
Vacation Mode	Yes (automatic after 12 h of no opening)
Door Open Alarm	Yes (audible alarm after 1 min)
Water Dispenser	Yes (with 3 L tank, recommended pressure 1-8 bar)
Automatic Ice Maker	Yes (optional)
Defrosting	Automatic (freezer compartment)
Internal Lighting	LED (replacement by authorized service)
Door Reversibility	Yes (contact authorized service)
Adjustable Feet	Yes (front)
Maintenance	Clean with water and carbonate (1 teaspoon per liter), no abrasive products
Safety	Grounded plug, control lock, child safety (key out of reach)

Frequently Asked Questions - RCNE520E41ZX BEKO

How to set the freezer temperature?

Press the compartment selection button to choose the freezer, then use the temperature adjustment button. The range is from -18 °C to -24 °C. The default setting is -18 °C.

How to activate fast freezing?

Press the fast freeze button (or turn the temperature button to the fast freeze position depending on the model). The function deactivates automatically after 4 hours or when the desired temperature is reached.

What to do in case of high temperature alarm?

Check the food in the freezer. Press the alarm deactivation button to clear the message. If the alarm persists, consult the troubleshooting section of the manual.

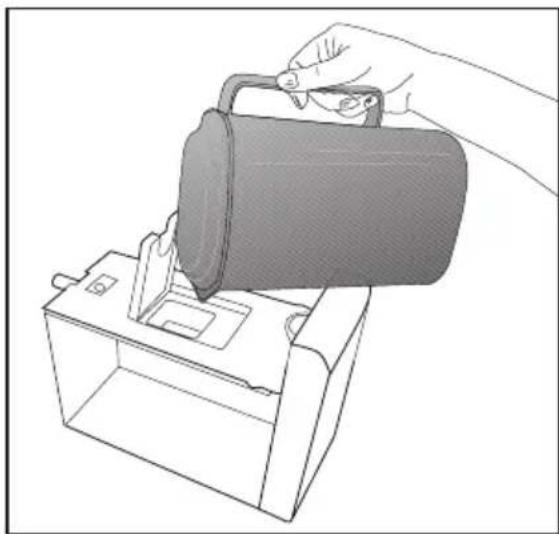

How to use the water dispenser?

Fill the water tank (max 3 L) located in the door with drinking water. Press the glass against the dispenser button to obtain fresh water. Use only pure water.

Why is my refrigerator making noise?

Liquid or gas noises are normal. The compressor and fan may emit sounds. If vibrations occur, check that the appliance is level and that objects placed on it do not move.

How to reverse the door opening direction?

Contact authorized service. The operation is complex and requires professional intervention. Consult the warning label in the packaging.

What to do if the door does not close properly?

Check that food is not blocking the door. Ensure the appliance is level (adjust the feet). The door gasket must be clean and in good condition.

How to clean the refrigerator interior?

Unplug the appliance. Dissolve one teaspoon of carbonate in warm water. Clean with a soft cloth, then wipe with a dry cloth. Never use abrasive products or steam.

Can I freeze hot food?

No, wait for them to cool to room temperature. Placing hot food increases energy consumption and may affect the freezing of other food.

What does the 'Energy Saving' indicator mean?

It indicates that the refrigerator is operating in economy mode, usually when the freezer temperature is set to -18 °C. The display turns off after 5 minutes if the door remains closed.

USER MANUAL RCNE520E41ZX BEKO

RCNE520E32X

RCNE520E31DW

RCNE520E31DS

RCNE520E31W

RCNE520E31S

RCNE520K21DS

RCNE520K21DW

RCNE520E41ZX

RCNE520E32DJX

EN|FR|DE

beko

Please read this manual before using the product!

Dear Customer,

We'd like you to make the best use of our product, which has been manufactured in modern facilities with care and meticulous quality controls.

Thus, we advise you to read the entire user manual before you use the product. In case the product changes hands, do not forget to hand the guide to its new owner along with the product.

This guide will help you use the product quickly and safely.

• Please read the user guide carefully before installing and operating the product. • Always observe the applicable safety instructions.
• Keep the user guide within easy reach for future use.
• Please read any other documents provided with the product.

Keep in mind that this user guide may apply to several product models. The guide clearly indicates any variations of different models.

Important information and useful tips.

Risk of life and property.

Risk of electric shock.

The product's packaging is made of recyclable materials, in accordance with the National Environment Legislation.

1 Safety and environment instructions 3

1.1. General safety....3 1.1.1 HC warning....5 1.1.2 For models with water dispenser ..... 5 1.2. Intended use....5 1.3. Child safety. 6 1.4. Compliance with WEEE Directive and Disposing of the Waste Product 6 1.5. Compliance with RoHS Directive ..... 6 1.6. Package information 6

2 Your Refrigerator 7

3 Installation 8

3.1. Right place for installation 8 3.2. Attaching the plastic wedges ..... 8 3.3. Adjusting the stands 8 3.4. Power connection ..... 9 3.5. Reversing the doors ..... 10 3.6. Reversing the doors ..... 11

4 Preparation 12

4.1. What to do for energy saving....12 4.2. First Use....12

5 Using the product 13

5.1. Temperature adjustment button.....13 5.2. Rapid freezing 13 5.3. Vacation function 14 5.4. Indicator panel 15 5.5. Indicator panel 17 5.6. Ice bucket....20 5.7. Egg holder 20 5.8. Fan.20 5.9. Vegetable bin....20 5.10. Zero degree compartment ..... 20 5.11. Moving door rack....21 5.12. Sliding storage box 21 5.13. Moisture controlled vegetable bin ..... 22 5.14. Automatic ice machine 22 5.15. Icematic and ice storage container ..... 23 5.16. Using the water dispenser ..... 23 5.17. Filling the water dispenser's tank ..... 24 5.18. Cleaning the water tank 25 5.19. Drip tray 26 5.20. Freezing fresh food 27 5.21. Recommendations for storing frozen foods 27 5.22. Deep freezer details ..... 28 5.23. Placing the food.....28 5.24. Door open alert 28 5.25. Changing the opening direction of the door 28 5.26. Interior light 28

6 Maintenance and cleaning 29

6.1. Avoiding bad odors 29 6.2. Protecting the plastic surfaces ..... 29 6.3. Door Glasses 29

7 Troubleshooting 30

1 Safety and environment instructions

This section provides the safety instructions necessary to prevent the risk of injury and material damage. Failure to observe these instructions will invalidate all types of product warranty.

1.1. General safety

• This product should not be used by persons with physical, sensory and mental disabilities, without sufficient knowledge and experience or by children. The device can only be used by such persons under supervision and instruction of a person responsible for their safety. Children should not be allowed to play with this device.
• In case of malfunction, unplug the device.
• After unplugging, wait at least 5 minutes before plugging in again.
• Unplug the product when not in use.
• Do not touch the plug with wet hands! Do not pull the cable to plug off, always hold the plug.
• Wipe the power plug's tip with a dry cloth before plugging in.
• Do not plug in the refrigerator if the socket is loose.
• Unplug the product during installation, maintenance, cleaning and repair.
• If the product will not be used for a while, unplug the product and remove any food inside.
• Do not use the product when the compartment with circuit cards located on the upper back part of the product (electrical card box cover) (1) is open.

• Do not use steam or steamed cleaning materials for cleaning the refrigerator and melting the ice inside. Steam may contact the electrified areas and cause short circuit or electric shock!
• Do not wash the product by spraying or pouring water on it! Danger of electric shock!

Safety and environment instructions

• In case of malfunction, do not use the product, as it may cause electric shock. Contact the authorized service before doing anything.
• Plug the product into an earthed socket. Earthing must be done by a qualified electrician.
• If the product has LED type lighting, contact the authorized service for replacing or in case of any problem.
• Do not touch frozen food with wet hands! It may adhere to your hands!
• Do not place liquids in bottles and cans into the freezer compartment. They may burst out!
• Place liquids in upright position after tightly closing the lid.
• Do not spray flammable substances near the product, as it may burn or explode.
• Do not keep flammable materials and products with flammable gas (sprays, etc.) in the refrigerator.
• Do not place containers holding liquids on top of the product. Splashing water on an electrified part may cause electric shock and risk of fire.
• Exposing the product to rain, snow, sunlight and wind will cause electrical danger. When relocating the product, do not pull by holding the door handle. The handle may come off. • Take care to avoid trapping any part of your hands or body in any of the moving parts inside the product.
• Do not step or lean on the door, drawers and similar parts of the refrigerator. This will cause the product to fall down and cause damage to the parts. • Take care not to trap the power cable.

Safety and environment instructions

1.1.1 HC warning

If the product comprises a cooling system using R600a gas, take care to avoid damaging the cooling system and its pipe while using and moving the product. This gas is flammable. If the cooling system is damaged, keep the product away from sources of fire and ventilate the room immediately.

The label on the inner left side indicates the type of gas used in the product.

1.1.2 For models with water dispenser

- Pressure for cold water inlet shall be maximum 120 psi (8 bar). If your water pressure exceeds 80 psi (5.5 bar), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber.

- If there is risk of water hammer effect in your installation, always use a water hammer prevention equipment in your installation. Consult Professional plumbers is you are not sure that there is no water hammer effect in your installation.

prevention equipment in your installation. Consult professional plumbers if you are not sure that there is no water hammer effect in your installation.

• Do not install on the hot water inlet. Take precautions against the risk of freezing of the hoses. Water temperature operating interval shall be 33°F (0.6°C) minimum and 100°F (38°C) maximum.
• Use drinking water only.

1.2. Intended use

• This product is designed for home use. It is not intended for commercial use.
• The product should be used to store food and beverages only.
• Do not keep sensitive products requiring controlled temperatures (vaccines, heat sensitive medication, medical supplies, etc.) in the refrigerator.

Safety and environment instructions

• The manufacturer assumes no responsibility for any damage due to misuse or mishandling.
• The product's bench life is 10 years. The spare parts necessary for the product to function will be available for this period.

1.3. Child safety

• Keep packaging materials out of children's reach.
• Do not allow the children to play with the product.
• If the product's door comprises a lock, keep the key out of children's reach.

1.4. Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.5. Compliance with RoHS Directive

• This product complies with EU WEEE Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.6. Package information

- Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your Refrigerator

1. Cooler compartment door shelf
2. Water dispenser filling tank
3. Egg section
4. Water dispenser reservoir
5. Bottle shelf
6. Sliding storage box
7. Adjustable legs
8. Deep freezer compartment
9. Quick freeze compartment
10. Ice cube tray & Ice bank
11. Vegetable bin
12. Zero degree compartment
13. Interior light
14. Cooler compartment glass shelf
15. Temperature adjustment button
16. Cooler compartment
17. Freezer compartment

*optional: Pictures given in this manual are given as example figures and they may not be exactly the same as your product. If your product does not comprise the relevant parts, the information pertains to other models.

3 Installation

3.1. Right place for installation

Contact the Authorized Service for the product's installation. To ready the product for installation, see the information in the user guide and make sure the electric and water utilities are as required. If not, call an electrician and plumber to arrange the utilities as necessary.

	WARNING: The manufacturer assumes no responsibility for any damage caused by the work carried out by unauthorized persons.
	WARNING: The product's power cable must be unplugged during installation. Failure to do so may result in death or serious injuries!
	WARNING: If the door span is too narrow for the product to pass, remove the door and turn the product sideways; if this does not work, contact the authorized service.

• Place the product on a flat surface to avoid vibration.
• Place the product at least 30 cm away from the heater, stove and similar sources of heat and at least 5 cm away from electric ovens.
• Do not expose the product to direct sunlight or keep in damp environments.
• The product requires adequate air circulation to function efficiently.
• If the product will be placed in an alcove, remember to leave at least 5 cm distance between the product and the ceiling and the walls.
• Do not install the product in environments with temperatures below -5°C.

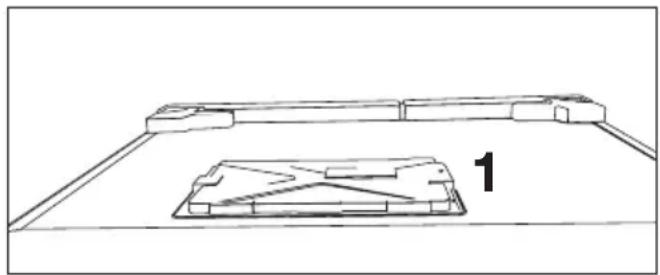

3.2. Attaching the plastic wedges

Use the plastic wedges provided with the product to provide sufficient space for air circulation between the product and the wall.

1. To attach the wedges, remove the screws on the product and use the screws provided with the wedges.
2. Attach 2 plastic wedges on the ventilation cover as shown in the figure.

3.3. Adjusting the stands

If the product is not in balanced position, adjust the front adjustable stands by rotating right or left.

3.4. Power connection

WARNING: Do not use extension or multi sockets in power connection.

WARNING: Damaged power cable must be replaced by Authorized Service.

When placing two coolers in adjacent position, leave at least 4 cm distance between the two units.

• Our firm will not assume responsibility for any damages due to usage without earthing and power connection in compliance with national regulations.
• The power cable plug must be easily accessible after installation.
• Connect the refrigerator to an earthed socket with 220-240V/50 Hz voltage. The plug must comprise a 10-16A fuse.
• Do not use multi-group plug with or without extension cable between the wall socket and the refrigerator.

Installation

3.5. Reversing the doors

Proceed in numerical order.

Installation

3.6. Reversing the doors

Proceed in numerical order.

4 Preparation

4.1. What to do for energy saving

Connecting the product to electronic energy-saving systems is harmful, as it may damage the product.

• Do not keep the refrigerator doors open for long periods.
• Do not place hot food or beverages into the refrigerator.
• Do not overfill the refrigerator; blocking the internal air flow will reduce cooling capacity.
• In order to store the maximum amount of food into the cooler compartment of your refrigerator, you should take out the upper drawers and place it onto the glass rack. The declared energy consumption of your refrigerator was determined by taking out the cooler, ice tray and upper drawers in a way that will enable maximum storage. Using the below drawer when storing is strongly recommended. Energy saving function should be activated for best energy consumption.

- You should not block the airflow by putting food in front of the cooler fan. A space of minimum 3cm must be left in front of the protective fan wire when placing food.

- Depending on the product's features; defrosting frozen foods in the cooler compartment will ensure energy saving and preserve food quality.

- Food should be stored using the drawers in the cooler compartment in order to ensure energy saving and protect food in better conditions.

- Food packages should not be in direct contact with the heat sensor located in the cooler compartment. If they are in contact with the sensor, energy consumption of the appliance might increase.

- Make sure the foods are not in contact with the cooler compartment temperature sensor described below.

4.2. First Use

Before using your refrigerator, make sure the necessary preparations are made in line with the instructions in "Safety and environment instructions" and "Installation" sections.

- Keep the product running with no food inside for 6 and do not open the door, unless absolutely necessary.

	A sound will be heard when the compressor is engaged. It is normal to hear sound even when the compressor is inactive, due to the compressed liquids and gasses in the cooling system.
	Front edges of the product might heat up. This is normal. These areas are designed to warm up in order to prevent condensation.
	In some models indicator panel turns off automatically 5 minutes after the door closes. It will be reactivated when the door is open or any button is pressed.

5 Using the product

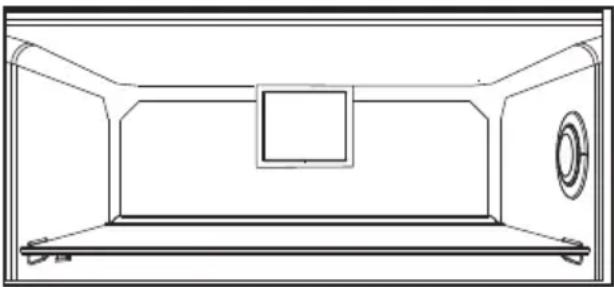

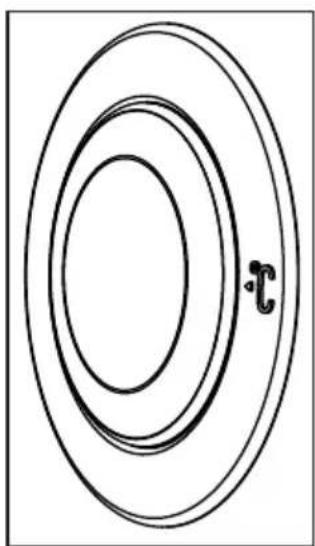

5.1. Temperature adjustment button

Internal temperature of your refrigerator varies depending on the following reasons:

• Seasonal temperatures, - Opening the door frequently and leaving it open for long periods, - Meals put into the refrigerator without being cooled to room temperature, - Location of the refrigerator in the room (e.g. exposed to sunshine). - Internal temperature varying due to these factors can be adjusted via the adjustment button.

Numbers around the adjustment button indicate temperature degrees as “°C”.

If the ambient temperature is 20°C, it is recommended to set the refrigerator temperature to 4°C. For other ambient temperatures, this value can be adjusted.

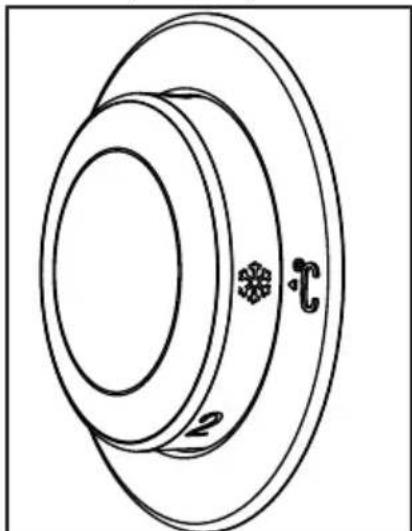

5.2. Rapid freezing

If you want to freeze large amounts of fresh food, switch the temperature adjustment button to

(position) before putting the food into the quick freezing compartment.

It is recommended to keep the button at this position for 24 hours to freeze the maximum amount of food indicated as the freezing capacity. Pay special attention not to mix food that has been frozen with fresh food.

Remember to switch the temperature adjustment button back to its previous position.

Using the product

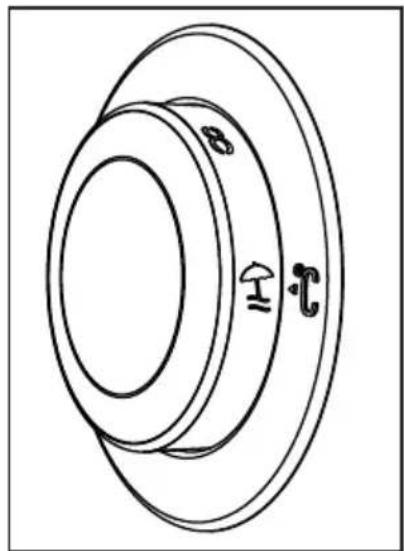

5.3. Vacation function

If the doors of the product are not opened for at least 12 hours after adjusting the temperature setting button to the highest, the vacation function is automatically activated.

The button setting must be changed to cancel the function.

It is not recommended to store food in the cooler compartment when the vacation function is activated.

• After setting is completed, you can conceal the temperature setting button by pressing it inside.

Using the product

5.4. Indicator panel

Indicator panels may vary according to the product model.

Audio-visual functions on the indicator panel help you in using your product.

1. Fridge Compartment Indicator
2. Error status indicator
3. Temperature indicator
4. Vacation function button
5. Temperature setting button
6. Compartment selection button
7. Freezer compartment indicator
8. Economy mode indicator
9. Vacation function indicator *optional

*Optional: The figures in this user guide are intended as drafts and may not perfectly match your product. If your product does not comprise the relevant parts, the information pertains to other models.

Using the product

1. Fridge compartment indicator

The fridge compartment light is illuminated while the fridge compartment temperature is set.

2. Error status indicator

If your refrigerator does not perform enough cooling or in case of a sensor fault, this indicator is activated. When this indicator is activated, “E” is displayed on the freezer compartment temperature indicator, and numbers such as “1,2,3…” are displayed on the fridge compartment temperature indicator. These numbers on the indicator inform service personnel about the error.

3. Temperature indicator

Indicates freezer, fridge compartment temperature.

4. Vacation function button

Press on Vacation Button for 3 seconds to activate this function. When the vacation function is activated, “- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature.

To cancel this function press Vacation button again.

5. Temperature setting button

Changes the temperature of the relevant compartment between -24°C ... -18°C and 8°C ... 1°C .

6. Compartment selection button

Selection button: Press compartment selection button to switch between fridge and freezer compartments.

7. Freezer compartment indicator

Fridge compartment light is illuminated while the freezer compartment temperature is set.

8. Economy mode indicator

Indicates that the refrigerator operates in energy saving mode. This display shall be activated if the freezer compartment temperature is set to -18° C.

9. Vacation function indicator

Indicates that vacation is activated.

Using the product

5.5. Indicator panel

The indicator panel allows you to set the temperature and control other functions related to the product without opening the door. Just press the inscriptions on the relevant buttons for function settings.

1. Power failure/High temperature / error warning indicator

This indicator ⚡ illuminates during power failure, high temperature failures, and error warnings. During sustained power failures, the highest temperature that the freezer compartment reaches will flash on the digital display. After checking the food located in the freezer compartment (✗), press the alarm off button to clear the warning.

Please refer to the "remedies advised for troubleshooting" section in your manual if you observe that this indicator is illuminated.

2. Energy saving function (display off):

If the product doors are kept closed for a long time, the energy saving function is automatically activated and the energy saving symbol is illuminated. ()

When the energy saving function is activated, all symbols on the display other than the energy saving symbol will turn off. If any button is pressed or the door is opened while the energy saving function is activated, the function will be canceled and the symbols on the display will return to normal.

The energy saving function is activated during delivery from the factory and cannot be canceled.

*Optional: The figures in this user guide are intended as drafts and may not perfectly match your product. If your product does not comprise the relevant parts, the information pertains to other models.

Using the product

3. Quick fridge function

The button has two functions. To activate or deactivate the quick cool function, press it briefly. The Quick Cool indicator will turn off and the product will return to its normal settings. (☐)

Use the quick cooling function when you want to quickly cool food placed in the fridge compartment. If you want to cool large amounts of fresh food, activate this function before putting the food into the product.

If you do not cancel it, quick cooling will cancel itself automatically after 8 hours or when the fridge compartment reaches the required temperature.

If you press the quick cooling button repeatedly with short intervals, the electronic circuit protection will be activated and the compressor will not start up immediately.

This function is not recalled when power restores after a power failure.

4. Fridge compartment temperature setting button

Press this button to set the temperature of the fridge compartment to 8, 7, 6, 5, 4, 3, 2, 8... respectively. Press this button to set the fridge compartment temperature to the desired value.

5. Vacation Function

To activate the vacation function, press this button ( * ) for 3 seconds, and the vacation mode indicator ( ) will be activated. When the vacation function is activated,

" - -" is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep food in the fridge compartment when this function is activated. Other compartments shall continue to be cooled as per their set temperature.

To cancel this function, press the Vacation function button again.

6. Alarm off warning:

In case of power failure/high temperature alarm, after checking the food located in the freezer compartment, press the alarm off button (✗) to clear the warning.

7. Key lock

Press the key lock button (8) simultaneously for 3 seconds. The key lock symbol

will light up and key lock mode will be activated. Buttons will not function if the key lock mode is active. Press the key lock button simultaneously for 3 seconds again. The key lock symbol will turn off and the key lock mode will be exited.

Press the key lock button if you want to prevent changing of the temperature setting of the refrigerator (3.3")

8. Eco fuzzy

Press and hold the eco fuzzy button for 1 second to activate the eco fuzzy function. The refrigerator will start operating in the most economic mode at least 6 hours later, and the economic usage indicator will turn on when the function is active. (Press and hold the eco fuzzy function button for 3 seconds to deactivate the eco fuzzy function.)

This indicator is illuminated after 6 hours when eco fuzzy is activated.

Using the product

9. Freezer compartment temperature setting button

Press this button to set the temperature of the freezer compartment to -18, -19, -20, -21, -22, -23, -24, -18... respectively. Press this button to set the freezer compartment temperature to the desired value. (7)

10. Icematic off indicator

Indicates whether the icematic is on or off. (✗) If on, then the icematic is not operating. To operate the icematic again, press and hold the On-Off button for 3 seconds.

Water flow from the water tank will stop when this function is selected. However, ice made previously can be taken from the icematic.

11. Quick freeze function button / icematic on-off button

Press this button to activate or deactivate the quick freezing function. When you activate the function, the freezer compartment will be cooled to a temperature lower than the set value. ()

To turn on and off the icematic, press and hold it for 3 seconds.

Use the quick freeze function when you want to quickly freeze the food placed in the fridge compartment. If you want to freeze large amounts of fresh food, activate this function before putting the food into the product.

If you do not cancel it, Quick Freeze will cancel itself automatically after 4 hours or when the fridge compartment reaches the required temperature.

This function is not recalled when power restores after a power failure.

12. Economic usage indicator

Indicates that the product is running in energy-efficient mode. (This indicator will be active if the Freezer Compartment temperature is set to -18 or the energy efficient cooling is being performed due to Eco-Extra function.)

Economic usage indicator is turned off when quick cooling or quick freeze functions are selected.

Using the product

5.6. Ice bucket

*optional

• Take the ice bucket from the freezer compartment. • Fill the ice bucket with water. • Place the ice bucket into the freezer compartment. • The ice will be ready after approximately two hours. Take the ice bucket from the freezer compartment and bend it slightly over the holder that you are going to serve. Ice will easily pour into the serving holder.

5.7. Egg holder

You can put the egg holder on the door or body rack of your choice. If you decide to put it on the body rack, it is recommended to prefer the shelves below as they are colder.

Do not put the egg holder into the freezer compartment.

5.8. Fan

Fan was designed to distribute and circulate the cold air inside your refrigerator homogeneously. Operating time of the fan might vary depending on the features of your product.

While in some products fan only operates with compressor, in others control system determines the operating time based on the need for cooling.

5.9. Vegetable bin

*optional

Product's vegetable bin is designed to keep vegetables fresh by preserving humidity. For this purpose, the overall cold air circulation is intensified in the vegetable bin.

5.10. Zero degree compartment *optional

Use this compartment to keep delicatessen at lower temperatures or meat products for immediate consumption.

Zero degree compartment is the coolest place where foods such as dairy products, meat, fish and chicken can be stored in ideal storage conditions. Vegetables and/or fruits should not be stored in this compartment.

Using the product

Moving door rack can be fixed in 3 different positions.

In order to move the rack, push the buttons on the side evenly. Rack will be movable.

Move the rack up or down.

When the rack is in the position that you want, release the buttons. Rack will be fixed again in the position where you have released the buttons.

5.12. Sliding storage box

*optional

This accessory has been designed to increase the usage volume of the door racks.

Thanks to its ability to move sideways, it enables you to easily place long bottle, jar or boxes that you put in the bottle rack below.

Using the product

5.13. Moisture controlled vegetable bin

*optional

With the moisture control feature, the moisture levels of vegetables and fruits are kept under control, ensuring a longer freshness period for foods.

It is recommended to store leafy vegetables such as lettuce and spinach, and similar vegetables prone to moisture loss, not on their roots but in a horizontal position in the vegetable bin as much as possible.

When placing vegetables, put heavy and hard ones at the bottom and light and soft ones on top, taking into account their specific weights.

Do not leave vegetables in the vegetable bin in plastic bags. Leaving them in plastic bags causes them to rot quickly. If you prefer not to have contact with other vegetables, use packaging materials such as paper that have a certain porosity for hygiene.

Do not put fruits that produce high levels of ethylene gas, such as pears, apricots, peaches, and especially apples, in the same vegetable bin with other vegetables and fruits. The ethylene gas from these fruits can cause other vegetables and fruits to ripen faster and spoil sooner.

5.14. Automatic ice machine *optional

The automatic ice machine allows you to easily make ice in your refrigerator. To obtain ice from the ice machine, remove the water tank from the cooler compartment, fill it with water, and put it back.

The first ice will be ready in about 2 hours in the ice machine drawer in the cooler compartment. After placing the full water tank, you can get about 60-70 ice cubes until it is completely empty. If the water in the tank has been sitting for 2-3 weeks, it should be changed.

In products with an automatic ice machine, you may hear a sound when the ice is dispensed. This sound is normal and not a sign of malfunction.

Using the product

5.15. Icematic and ice storage container

*optional

Using the Icematic

Fill the Icematic with water and place it into its seat. Your ice will be ready approximately in two hours. Do not remove the Icematic from its seating to take ice.

Turn the knobs on the ice reservoirs clockwise by 90 degrees.

Ice cubes in the reservoirs will fall down into the ice storage container below.

You may take out the ice storage container and serve the ice cubes.

If you wish, you may keep the ice cubes in the ice storage container.

Ice storage container

Ice storage container is only intended for accumulating the ice cubes. Do not put water in it. Otherwise, it will break.

5.16. Using the water dispenser *optional

It is normal for the first few glasses of water taken from the dispenser to be warm.

If the water dispenser is not used for a long period of time, dispose of first few glasses of water to obtain fresh water.

1. Push in the lever of the water dispenser with your glass. If you are using a soft plastic cup, pushing the lever with your hand will be easier.
2. After filling the cup up to the level you want, release the lever.

Please note, how much water flows from the dispenser depends on how far you depress the lever. As the level of water in your cup / glass rises, gently reduce the amount of pressure on the lever to avoid overflow. If you slightly press the arm, the water will drip; this is quite normal and not a failure.

Using the product

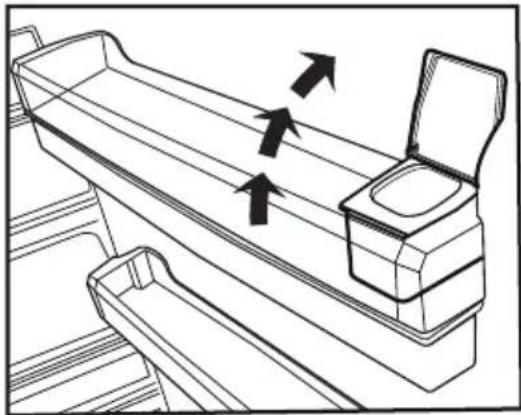

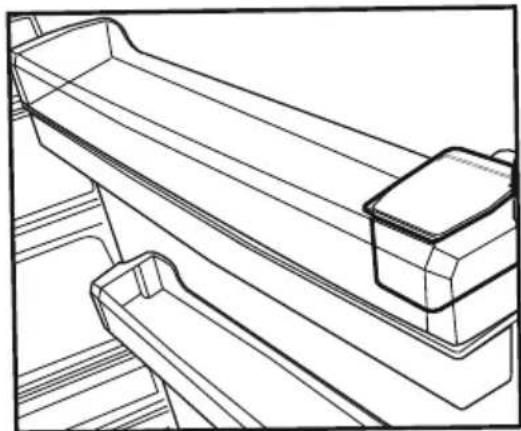

5.17. Filling the water dispenser's tank

The water tank filling reservoir is located inside the door rack.

1. Open the cover of the tank.
2. Fill the tank with fresh drinking water.
3. Close the cover.

Do not fill the water tank with any liquid other than water, such as fruit juices, carbonated beverages, or alcoholic drinks, which are not suitable for use in the water dispenser. The water dispenser will be irreparably damaged if these kinds of liquids are used. The warranty does not cover such usages. Some chemical substances and additives contained in these kinds of drinks or liquids may damage the water tank.

Use clean drinking water only.

Using the product

The capacity of the water tank is 3 liters; do not overfill.

5.18. Cleaning the water tank

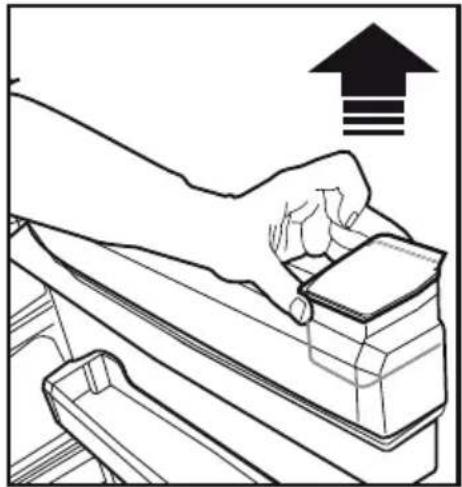

1. Remove the water filling reservoir inside the door rack.

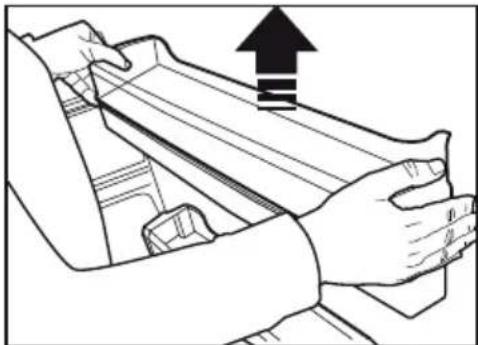

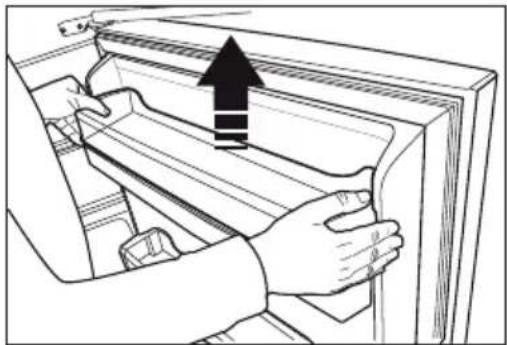

2. Remove the door rack by holding it from both sides.
3. Grab the water tank from both sides and remove it at an angle of 45 degrees.
4. Remove the cover of the water tank and clean the tank.

Components of the water tank and water dispenser should not be washed in the dishwasher.

Using the product

5.19. Drip tray

Water that drips while using the water dispenser accumulates in the spillage tray.

Remove the plastic filter as shown in the figure.

With a clean and dry cloth, remove the water that has accumulated.

Using the product

5.20. Freezing fresh food

• To preserve food quality, the food items placed in the freezer compartment must be frozen as quickly as possible; use the rapid freezing function for this.
• Freezing the food items when they are fresh will extend the storage time in the freezer compartment.
• Pack the food items in air-tight packs and seal tightly.
• Make sure the food items are packed before putting them in the freezer. Use freezer holders, tinfoil, damp-proof paper, plastic bags, or similar packaging materials instead of traditional packaging paper.

Ice in the freezing compartment thaws automatically.

• Mark each food pack by writing the date on the package before freezing. This will allow you to determine the freshness of each pack every time the freezer is opened. Keep the earlier food items in the front to ensure they are used first.
• Frozen food items must be used immediately after defrosting and should not be frozen again.
• Do not freeze large quantities of food at once.

5.21. Recommendations for storing frozen foods

The compartment must be set to at least -18°C.

1. Place the food items in the freezer as quickly as possible to avoid defrosting.
2. Before freezing, check the "Expiry Date" on the package to make sure it is not expired.
3. Make sure the food's packaging is not damaged.

Freezer Compartment Temperature Setting	Cooler Compartment Temperature Setting	Details
-18°C 4°C This is the default, recommended setting.
-20,-22 or -24°C	4°C	These settings are recommended for ambient temperatures exceeding 30°C.
Quick Freeze 4°C		Use when you want to freeze your food in a short time. When the process ends, the product will regain its position.
-18°C or colder	2°C	Use these settings if you believe the cooler compartment is not cold enough due to ambient temperature or frequently opening the door.

Using the product

5.22. Deep freezer details

As per the IEC 62552 standards, the freezer must have the capacity to freeze 4.5 kg of food items at -18°C or lower temperatures in 24 hours for each 100 litres of freezer compartment volume.

Food items can only be preserved for extended periods at or below a temperature of -18°C. You can keep the foods fresh for months (in deep freezer at or below temperatures of -18°C).

The food items to be frozen must not contact the already-frozen food inside to avoid partial defrosting.

Boil the vegetables and filter the water to extend the frozen storage time. Place the food in air-tight packages after filtering and place in the freezer. Bananas, tomatoes, lettuce, celery, boiled eggs, potatoes and similar food items should not be frozen. In case this food rots, only nutritional values and eating qualities will be negatively affected. A rotting threatening human health is not in question.

5.23. Placing the food

Freezer compartment shelves	Various frozen goods including meat, fish, ice cream, vegetables etc.
Cooler compartment shelves	Food items inside pots, capped plate and capped cases, eggs (in capped case)
Cooler compartment door shelves	Small and packed food or beverages
Vegetable bin	Fruits and vegetables
Fresh food compartment	Delicatessen (breakfast food, meat products to be consumed in short notice)

5.24. Door open alert (Optional)

An audible alert will be heard if the product's door remains open for at least 1 minute. The audible alert will stop when the door is closed or any button on the display (if available) is pressed.

Door open alert is indicated to the user both audibly and visually. Interior lighting will turn off if the warning continues for 10 minutes.

5.25. Changing the opening direction of the door

You can change the direction of opening of your refrigerator depending on the location where you use it. When you need this, consult the closest Authorized Service.

The explanation above is a general statement. You should check the warning tag located inside the product package about the changeability of direction of the door.

5.26. Interior light

Interior light uses a LED type lamp. Contact the authorized service for any problems with this lamp.

Lamp(s) used in this appliance cannot be used for house lighting. Intended use of this lamp is to help the user place food into the refrigerator / freezer safely and comfortably.

6. Maintenance and cleaning

Service life of the product is increased if it is regularly cleaned.

WARNING: First unplug the product before cleaning your refrigerator.

• Never use any sharp and abrasive tools, soap, household cleaners, detergent and wax polish for cleaning.
• Dissolve one teaspoon of carbonate in half liter of water. Soak a cloth with the solution and wring it thoroughly. Wipe the interior of the appliance with this cloth and then dry thoroughly.
• Make sure that no water enters the lamp housing and other electrical items.
• Clean the door with a damp cloth. To remove door and body shelves, remove all of their contents. Remove door shelves by moving them upwards. After cleaning, slide them from top to bottom to install.
• Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.
• Do not use sharp, abrasive tools, soap, household cleaning agents, detergents, kerosene, fuel oil, varnish, etc. to prevent removal and deformation of the prints on the plastic part. Use lukewarm water and a soft cloth for cleaning and then wipe it dry.

6.1. Avoiding bad odors

Materials that may cause odor are not used in the production of our appliances. However, due to inappropriate food preserving conditions and not cleaning the inner surface of the appliance as required can bring forth the problem of odor.

Therefore, clean the refrigerator with carbonate dissolved in water every 15 days.

• Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odours.

- Never keep the food that have expired best before dates and spoiled in the refrigerator.

6.2. Protecting the plastic surfaces

Clean with arm water immediately as the oil may cause damage on the surface when it is poured on plastic surfaces.

6.3. Door Glasses

Remove the protective foil on the glasses.

There is a coating on the surface of the glasses. This coating minimizes the stain build-up and helps to remove the possible stains and dirt easily. Glasses that are not protected with such a coating may be subject to persistent binding of air or water based organic or inorganic dirt such as limescale, mineral salts, unburned hydrocarbons, metal oxides and silicones that can easily and quickly cause stains or material damage. Keeping the glass clean becomes too difficult despite the regular cleaning. Consequently, the appearance and the transparency of the glass deteriorates. Harsh and corrosive cleaning methods and compounds will intensify these defects and speed up the deterioration process.

Water-based cleaning products that are not alkaline and corrosive must be used for regular cleaning purposes.

Non-alkaline and non-corrosive materials must be used for cleaning so that the service life of this coating lasts for a long time.

These glasses are tempered to increase their durability against impacts and breaking.

A safety film is also applied to their rear surfaces as an extra safety measure in order to prevent them from causing damage to their surrounding in case of a breakage.

Alkali is a base that forms hydroxide ions (OH-) when dissolved in water.

Li (Lithium), Na (Sodium), K (Potassium), Rb (Rubidium), Cs (Cesium), and the artificial and radioactive Fr (Francium) metals are called ALKALI METALS.

7 Troubleshooting

Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product.

The refrigerator is not working.

• The power plug is not fully settled. >>> Plug it in to settle completely into the socket.
• The fuse connected to the socket powering the product or the main fuse is blown. >>> Check the fuses.

Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE).

• The environment is too cold. >>> Do not install the product in environments with temperatures below -5°C.
• The door is opened too frequently. >>> Take care not to open the product's door too frequently.
• The environment is too humid. >>> Do not install the product in humid environments.
• Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in sealed holders.
• The product's door is left open. >>> Do not keep the product's door open for long periods.
• The thermostat is set to too low temperature. >>> Set the thermostat to appropriate temperature.

Compressor is not working.

• In case of sudden power failure or pulling the power plug off and putting back on, the gas pressure in the product's cooling system is not balanced, which triggers the compressor thermic safeguard. The product will restart after approximately 6 minutes. If the product does not restart after this period, contact the service.
• Defrosting is active. This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically.
• The product is not plugged in. Make sure the power cord is plugged in.
• The temperature setting is incorrect. Select the appropriate temperature setting.
• The power is out. The product will continue to operate normally once the power is restored.

The refrigerator's operating noise is increasing while in use.

The product's operating performance may vary depending on the ambient temperature variations. This is normal and not a malfunction.

The refrigerator runs too often or for too long.

• The new product may be larger than the previous one. Larger products will run for longer periods.
• The room temperature may be high. The product will normally run for long periods in higher room temperature.
• The product may have been recently plugged in or a new food item is placed inside. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal.
• Large quantities of hot food may have been recently placed into the product. Do not place hot food into the product.
• The doors were opened frequently or kept open for long periods. The warm air moving inside will cause the product to run longer. Do not open the doors too frequently.
• The freezer or cooler door may be ajar. Check that the doors are fully closed.
• The product may be set to temperature too low. Set the temperature to a higher degree and wait for the product to reach the adjusted temperature.
• The cooler or freezer door washer may be dirty, worn out, broken or not properly settled. >>> Clean or replace the washer. A damaged or torn door washer will cause the product to run for longer periods to preserve the current temperature.

Troubleshooting

The freezer temperature is very low, but the cooler temperature is adequate.

- The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The cooler temperature is very low, but the freezer temperature is adequate.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The food items kept in cooler compartment drawers are frozen.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The temperature in the cooler or the freezer is too high.

• The cooler compartment temperature is set to a very high degree. >>> Temperature setting of the cooler compartment has an effect on the temperature in the freezer compartment. Wait until the temperature of relevant parts reach the sufficient level by changing the temperature of cooler or freezer compartments.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently. • The door may be ajar. >>> Fully close the door.
• The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

Shaking or noise.

• The ground is not level or durable. >>> If the product is shaking when moved slowly, adjust the stands to balance the product. Also make sure the ground is sufficiently durable to bear the product.
• Any items placed on the product may cause noise. >>> Remove any items placed on the product.

The product is making noise of liquid flowing, spraying etc.

- The product's operating principles involve liquid and gas flows. >>> This is normal and not a malfunction.

There is sound of wind blowing coming from the product.

- The product uses a fan for the cooling process. This is normal and not a malfunction.

There is condensation on the product's internal walls.

• Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently; if open, close the door. • The door may be ajar. >>> Fully close the door.

There is condensation on the product's exterior or between the doors.

- The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced.

The interior smells bad.

Troubleshooting

• The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and carbonated water.
• Certain holders and packaging materials may cause odour. >>> Use holders and packaging materials without free of odour.
• The foods were placed in unsealed holders. >>> Keep the foods in sealed holders. Micro-organisms may spread out of unsealed food items and cause malodour. Remove any expired or spoilt foods from the product.

The door is not closing.

• Food packages may be blocking the door. >>> Relocate any items blocking the doors.
• The product is not standing in full upright position on the ground. >>> Adjust the stands to balance the product.
• The ground is not level or durable. >>> Make sure the ground is level and sufficiently durable to bear the product.

The vegetable bin is jammed.

- The food items may be in contact with the upper section of the drawer. >>> Reorganize the food items in the drawer.

WARNING: If the problem persists after following the instructions in this section, contact your vendor or an Authorized Service. Do not try to repair the product.

5.9. Vegetable bin

(Optional)

The alkali metals Li (Lithium), Na (Sodium), K (Potassium), Rb (Rubidium), Cs (Caesium) and radioactive Fr (Francium) constitute the ALKALI METALS.

7 Troubleshooting

3.4. Power connection

4 Preparations

Using the product

Using the product

5.4. Display panel

5.9. Vegetable compartment

(optional)

Warning!

Using the product

5.19. Drip tray

Using the product

FLI

beko

1.1.1 HC warning

1. Refrigerator door shelf
2. Water dispenser reservoir
3. Egg compartment
4. Water dispenser reservoir
5. Bottle shelf
6. Ice cube tray
7. Adjustable feet
8. Freezer compartment
9. Quick freeze compartment
10. Ice drawer & ice bank
11. Vegetable drawer
12. Zero-degree compartment
13. Interior lighting
14. Refrigerator glass shelf
15. Temperature setting button
16. Refrigerator compartment
17. Freezer compartment

4.2. First use

5.2. Quick freeze

5.9. Vegetable compartment

(Optional)

5.12. Ice compartment (Optional)

5.16. Water dispenser

*optional
