Brand	Brandt
Model	TI2005
Product Type	Freestanding Cooker
Fuel Type	Electric
Oven Type	Conventional with Grill
Number of Hob Burners	4
Hob Type	Ceramic Glass
Oven Capacity	70 Liters
Oven Cleaning	Enamel Interior, Easy Clean
Power Supply	220-240 V, 50/60 Hz
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Weight	50 kg
Energy Efficiency Class	A
Safety Features	Child Lock, Auto Shut-off
Spare Parts Availability	Available for 10 years
Warranty	2 years

Frequently Asked Questions - TI2005 BRANDT

How do I install the TI2005 cooker?

Ensure the cooker is placed on a level surface with proper ventilation. Connect to a 220-240 V power supply. Refer to the installation manual for detailed steps.

What should I do before first use?

Remove all packaging and clean the oven and hob with warm soapy water. Run the oven empty at 250°C for 30 minutes to eliminate any manufacturing residues.

How can I clean the ceramic hob?

Use a ceramic hob scraper for burnt-on residues and a soft cloth with a dedicated cleaner. Avoid abrasive sponges.

Why is the oven not heating up?

Check the power supply and ensure the oven timer is set. If the problem persists, the heating element may need replacement by a qualified technician.

How do I activate the child lock?

Press and hold the lock button for 3 seconds. The symbol will appear on the display. To deactivate, repeat the action.

What is the maximum oven temperature?

The oven can reach up to 250°C.

Can I use the grill and oven simultaneously?

Yes, the grill function can be used with the oven, but note that grilling may require the oven door to be slightly open.

How do I replace the oven light bulb?

Disconnect the cooker from the power supply. Remove the glass cover, replace with a 300°C heat-resistant bulb (25W, E14).

What spare parts are available?

Common spare parts include heating elements, oven door hinges, and control knobs. Contact Brandt customer service for ordering.

How long is the warranty?

Brandt offers a 2-year warranty for manufacturing defects. Keep your proof of purchase.

USER MANUAL TI2005 BRANDT

FR MANUEL D'INSTRUCTION

EN INSTRUCTION MANUAL

Brandt

Chère Cliente, Cher Client,

Casserole en émail

Plaque de cuisson

You have just purchased a BRANDT induction cooker and we would like to thank you.

We have placed in this appliance all our passion and know-how in order to meet at best your need. Innovative and efficient: we designed it to be always easy to use.

In the BRANDT products line, you will also find a wide range of small domestic appliances that can be coordinated to your new BRANDT induction cooker.

Of course, in a permanent wish to satisfy as best as possible your expectations toward our products, our after-sales service department is at your disposal and at your listening to answer to all your questions and suggestions.

You can also visit our website www.brandt.com where you will find all our products, as well as additional and useful information.

BRANDT

As part of our commitment to constantly improve our products, we reserve the right to make technical, functional or esthetical properties modifications linked to their technological development

BRANDT

As part of our commitment to constantly improving our products, we reserve the right to make changes to their technical, functional and/or esthetical properties in line with their technological development.

Attention: Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

www.brandt.com

1 INFORMATION FOR THE USER 16

1.1 Safety recommendations 16

1.2 Technical data 19

1.3 Protecting the environment 19

2 PREPARING YOUR APPLIANCE 20

2.1 A. Description of the induction cooker 20

2.2 Before the first use 21

2.3 Operating instructions 22

3 CLEANING AND TROUBLESHOOTING OF YOUR APPLIANCE 23

3.1 Cleaning of the appliance 23

3.2 Troubleshooting 24

4 WARRANTY AND CONSUMER RELATIONS 25

4.1 Warranty 25

4.2 Customer relations 25

1 INFORMATION FOR THE USER

Keep this user guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives the user guide. Please become familiar with these recommendations before installing and using your appliance. They were written for your safety and the safety of others.

1.1 Safety recommendations

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE USE

GENERAL INFORMATION

Your appliance is designed for standard household use for cooking, reheating foods and liquids. Use this appliance only for its intended uses as described in manual. It shall be used in covered, closed and warmed environment such as a kitchen or a room with the same specifications. The manufacturer declines any responsibility in the case of inappropriate use.

• Children less than 8 years of age shall be kept away unless continuously supervised.
• Children shall not play with the appliance.
• Keep the appliance and its cord out of reach of children less than 8 years.

Safety tips when installing the appliance

Install or locate this hob only in accordance with the installation instructions provided. See the section 'PREPARING YOUR APPLIANCE'.

• This appliance must not be placed in a cabinet.
• Do not obstruct any of the vents of your appliance.
• If this equipment is covered or touching flammable material, including curtains, drapes items with a similar nature there is a risk of fire during the use.
• Keep cord away from heated surface.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Safety tips when using the appliance

The appliance and its accessible parts become hot during use. Young children should be kept away.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• The temperature of accessible surfaces may be high when the appliance is operating.
• Ensure that the cookware is suitable for use with an induction hotplate.
• Precautions must be taken when handling the cookware to avoid burns.
• Metallic objects such as knives, forks, spoons and lids not be place on the hotplate since they can get hot.

If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Safety tips when cleaning the appliance

Turn the hob off and remove the power plug from the wall socket before cleaning.

Failure to maintain the hob in a clean condition could lead to deterioration of the surface that could tersely affect the life of the appliance and possibly hurt in a hazardous.

• Cleaning and user maintenance shall not be made by children unless they are supervised.
• This appliance should be cleaned regularly and any food deposits removed.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the ceramic glass since they can scratch the surface, which may result in shattering of the glass.
• For your safety, steam cleaner is not to be used.
• When unplugging the power cord, do not pull on the cord itself but pull on the plug.
• The supply cord cannot be replaced. If the supply cord is damaged, the appliance should be scrapped.

IMPROPER USE

The manufacturer assumes no liability for improper use. Use this appliances only for the uses described in this manual. Observe general and safety instructions listed in this chapter.

- This induction hob is not intended to be used outdoor.

- This induction hob is intended for home use in private homes. Its use in common areas such as local professionals or pause office or workshop, local camping, hotel, ect... does not respond to an intended use as defined by the manufacturer.

1.2 Technical data

Model no	TI2005
Power supply	220-240V~ 50/60Hz
Power	2000W
Dimensions mm (HxLxW)	65x360x290 mm
Net wt.	2.5 Kg

Ecodesign information:

Symbol Value Unit

Brand	Brandt
Model identification	TI2005=MC-STW2009-E3A
Type of hob	Portable
Heating technology	Induction
Number of cooking zones		1	-
Diameter of useful surface area (single or right zone)	φ 21,0 cm
Diameter of useful surface area (left zone)	φ / cm
Energy consumption per cooking zone (single or right zone)	ECzone	210	Wh/kg water
Energy consumption per cooking zone (left zone)	ECzone / Wh/kg water
Energy consumption for the hob	ECHob	210	Wh/kg water

1.3 Protecting the environment

At the end of its working life, the product must not be disposed with household waste. It must be taken to a special local authority waste collection center or to a company providing this service. Disposing household appliances separately avoids possible negative effects on the environment and health and enables the constituent materials to be recycled which saves energy and resources.

To remind you that you must dispose of this appliance correctly the symbol shown above appears on the product warning you not to dispose of it with household waste. For further information, contact your local authority or the shop where you bought the product.

Cooking with a well adjusted lid can save energy. If you use a glass lid, you can perfectly check the cooking.

2 PREPARING YOUR APPLIANCE

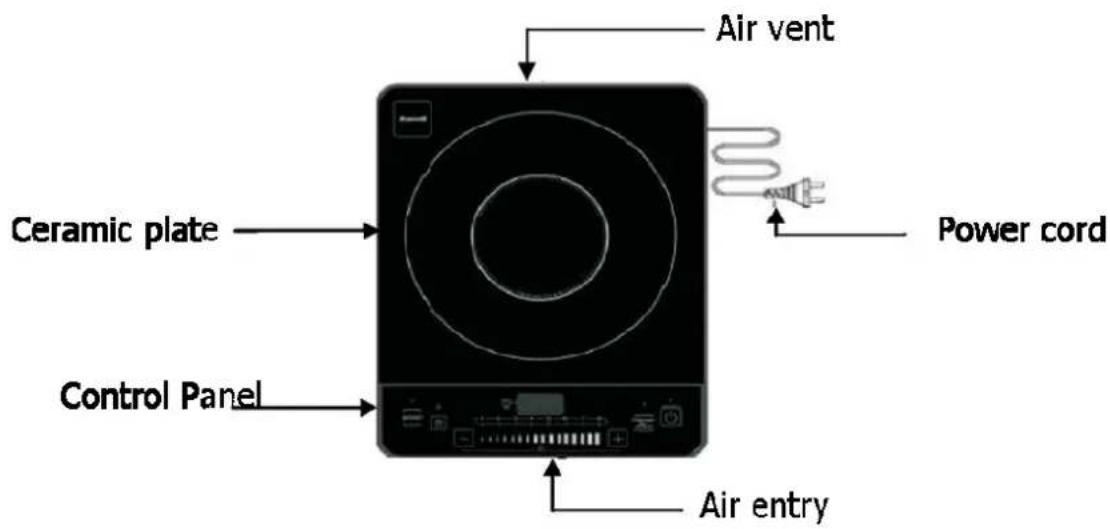

2.1 Description of the induction cooker

Control Panel

1. On/Off button
2. Levels of temperature
3. Timer set
4. « Booster» function: maximum power
5. Maintien au chaud » (Keep warm)
   function
6. Temperature control (slider)
7. Digital screen

2.2 Before the first use

2.2.1 Placing the induction cooker

Before using the appliance for the first time, be sure that it is placed horizontally at least 10 cm away from all sides of the wall, curtains, etc.

Use an individual socket with more than 10A capacity. Never use a universal socket or share a socket with other appliances. If the use of a multiple socket is indispensable assure that those elements respect the limit power. The appliance must be place on a flat, firm and dry surface. Never move the appliance when it is in process.

When using the appliance you can hear a noise due to high frequency electromagnetic wave. This is normal and non dangerous.

2.2.2 Suitable and unsuitable pots and containers

When your induction cooker is switched on and a heating power has been selected, the electronic circuits produce induced currents that instantaneously heat the bottom of the pan that transfers this heat to food. Thus cooking takes place with practically no energy loss between the induction hob and the food. Your induction hob is able to recognize most types of pans.

Pan test with a magnet: if the magnet "sticks" to the base of the pan, then it is suitable for use with induction cooking. You can also refer to the following description:

Iron oil frying pan

Enamel stainless steal kettle

Enamel cooking ustensil

Iron plate

Requirement for pot materials: containing magnetic induction materials. All the test and authentication of thus product is based on the 430 cookware (bottom diameter 180+/-10mm). The other cookware can not guarantee the best results and performance.

Shape requirement: you can use pots with a diameter (on the higher part) from 12 to 26 cm.

2.2.3 Safety pack

Over-temperature protection. If the temperature inside the induction cooker body is too high, the appliance will stop heating and will indicate the failure code.

Over current or voltage abnormality protection. When voltage is abnormal or current changes abruptly, the induction cooker will stop and indicate the failure code. Once the issues are solved, the induction cooker will work again normally.

Container detection system. If a pot is moved during process, the unit will stop heating immediately. The appliance will emit a sound and after 1 minute it will automatically return to standby mode. Automatic shutdown protection. When the time selected is reached, the induction cooker will shut off automatically until the user triggers the timer again.

Control Lock. This pad allows locking all the control panel to simplify the cleaning but also to preserve and safe children from all risks.

2.3 Operating instructions

2.3.1 Use of the control panel :

• The sensitive pads work with a sense of touch. It is not necessary to put pressure on.
• Use the base of your finger and not the tip as indicated on the images below

• Slide your finger on the slider to increase or decrease the power.
  • You will hear a beep each time an action will be registered.
• The control panel must be clean, dry and not be covered by an object or a cloth; even a thin layer of water can create dysfunction.

2.3.2 Starting:

(1) (2) (3)

After the power supply is connected, the buzzer sounds and the screen show"L" blinking, indicating that the hotplate is in a state of standby. So that the appliance is ready to be programmed, press on (1) and the LED will blink in order to indicate you that it is ready. After used, the surface of the hotplate is hot, the screen show "H" blinking.

Never put an empty container on the ceramic plate before switching on the appliance.

2.3.3 POWER Function:

To select the power intensity press the +/- buttons. In case there is no pot or unsuitable pots in the appliance, it will emit a sound. The induction cooker will shut down automatically after one minute. You can select 8 different level of power.

2.3.4 Timer:

To use the timer, press the (2) pad. The digital screen will indicate « 0 : 00 ». During the next 4 seconds, press on the +/- pads to adjust the cooking time. Each pressure increases or decreases the time of 1 minute. If you maintain the pad longer, the time will increase or decrease by increments of 10 minutes. The timer can be set from 1 minute to 180 minutes. Once the time is set, the digital screen will flicker during 5 seconds before heating. To cancel the timer function, press again on the (2) pad but this time during 3 seconds.

For all levels of heating, the cooking time is by default 2 hours.

The (3) pad allows obtaining directly the highest power level. By pressing again the (3) pad the appliance will go back to the power of origin.

When the appliance is in operation, press on the « Maintien au chaud » pad if you want to keep warm your preparation. The appliance will set automatically on the lowest power and will stop after 120 minutes. To set again the power, press directly on the +/- pads.

2.3.7 Lock function:

To lock the control pads during cooking, press simultaneously the +/- pads during 3 seconds, the appliance will activate the lock. The indicator « Lo » will appear on the screen. In this case, only the (1) pad can be used to switch off the appliance. To unlock the control panel, press again on the +/- pads during 3 seconds.

2.3.8 Switch off the appliance:

• After use, the electric hob is hot, the buzzer rings and the indicator « H » flashes on the screen.
• To switch off the appliance, press on the (1) pad, then unplug the socket.

3 CLEANING AND TROUBLESHOOTING OF YOUR APPLIANCE

3.1 Cleaning of the appliance

Switch off and unplug the appliance.

Let it cool down before cleaning.

1. Concerning the glass-ceramic and the control panel

• Light dirt: clean with a soft wet cloth.
- Oily dirt: clean with a soft wet cloth dipped with little toothpaste or neutral detergent until the removal of residuals.

Remark: during the cleaning, never clean the surface of the induction cooker with a rigid brush.

2. Concerning the air entry and the air vent

After a long time of use, some dust or other dirt may be accumulated at the air entry or air vent. Use a flexible brush or a detergent to clean it. The body of the appliance can be cleaned with caution with a dry cloth.

Remark: never immerse the induction cooker in the water and do not maintain it with a steam cleaner.

3.2 Troubleshooting

Here are the recommended inspections of common failures:

Do not disassemble the unit by yourself to avoid any dangers or damage to the induction cooker.

Problems Points to check
After the plug in the socket, the indicator (1) and the screen do not light up.		- Make sure that the plug is inserted tightly. - Make sure that the switch, socket, fuse and power line are in good condition.
The button (1) lights up but heating does not start.		- Make sure that the containers are suitable for induction cooker.- Sent it to service facility to repair
Heating stops suddenly during operation.		- Let the appliance cool down- Let air entry and air vent free- Set again the timing- Refer to failure codes
Failure codes	E3, E6	After a moment, temperature inside the cooker returns to normal. The unit can restore its work once the « on/off » button is pressed.
	E7, E8	After adjusting the voltage, the unit restores its work.
	E1, E2, E4, E5, EB	Send it to service facility to repair.

4 WARRANTY AND CONSUMER RELATIONS

This product is covered by your retailer. For more details, please refer to the warranty conditions supplied by your retailer.

4.1 Warranty

This product is covered by your retailer. For more details, please refer to the warranty conditions supplied.

- Service calls

Any repairs that are made to your appliance must be handled by a qualified professional authorised to work on the brand.

When you call, mention your appliance's "Service" reference, as well as its serial number "Nr". This information appears on the manufacturer's nameplate which can be found stuck behind the machine.

4.2 Customer relations

- Customer relations

To find out more about all the brand's products you can visit our website: www.brandt.com

To communicate:

You may visit our website www.brandt.com and go to the "CONTACT" section
You may e-mail us: [e-mail]
You may write us at the following address:

Or phone us from Monday to Friday from 8:30 am to 6:00 pm :
