Product Type	Freestanding Refrigerator
Brand	Meireles
Model	MFF 251 W
Total Net Capacity	251 L (approx.)
Refrigerator Capacity	180 L (approx.)
Freezer Capacity	71 L (approx.)
Energy Class	F (EU 2019/2016)
Annual Energy Consumption	221 kWh/year (approx.)
Noise Level	40 dB (approx.)
Climate Class	N-ST (16°C to 38°C)
Dimensions (H x W x D)	1850 x 550 x 600 mm (approx.)
Weight	55 kg (approx.)
Power Supply	220-240 V ~ 50 Hz, 0.8 A
Refrigerant	R600a (isobutane)
Temperature Control	Mechanical thermostat
Defrosting	Automatic (refrigerator), Manual (freezer)
Shelves Material	Tempered glass
Door Reversibility	Yes, user-reversible
Interior Light	LED
Cleaning	Unplug device, use warm water and mild detergent; avoid abrasive cleaners
Safety Features	Child lock (optional), flame-retardant back panel
Spare Parts Availability	Original parts available from Meireles service centers
Repair Index (France)	7.5/10 (approx.)

Frequently Asked Questions - MFF 251 W Meireles

How do I adjust the temperature of the Meireles MFF 251 W fridge?

Use the thermostat dial inside the refrigerator compartment. Turn it clockwise for colder temperatures and counterclockwise for warmer. Typically, setting 3-4 is recommended for normal use.

What is the recommended temperature for the fridge and freezer?

The ideal refrigerator temperature is between +2°C and +5°C, and the freezer should be at -18°C or lower to ensure food safety.

How often should I defrost the freezer?

Defrost the freezer when the ice layer reaches 3-5 mm thickness to maintain efficiency. The MFF 251 W has a manual defrost freezer, so you need to unplug and let ice melt.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual to transfer hinges and handles to the opposite side. You may need a screwdriver and a second person for assistance.

Why is the fridge making unusual noises?

Normal sounds include gurgling (refrigerant flow), clicking (thermostat), and humming (compressor). If noises are loud or irregular, ensure the fridge is level and not touching walls or cabinets.

How do I clean the interior and exterior?

Unplug the refrigerator. Use a soft cloth with warm water and mild dish soap. Rinse with clean water and dry. Avoid abrasive cleaners, scouring pads, or solvents.

What should I do if the fridge is not cooling enough?

Check the temperature setting, ensure the door seals are clean and closing properly, and verify there is adequate ventilation around the appliance (air gaps at least 5 cm). If the issue persists, contact service.

Where can I download the user manual for MFF 251 W?

You can download the free PDF manual from notice-facile.com or the official Meireles website. The manual contains complete instructions, installation guide, and troubleshooting tips.

What is the energy efficiency class of this model?

The Meireles MFF 251 W is rated Class F under the new EU energy label (2019/2016), with an estimated annual consumption of 221 kWh. This means it consumes more energy than higher-rated models.

Does the fridge have a warranty?

Yes, Meireles typically offers a 2-year warranty for manufacturing defects. Keep your purchase receipt. For extended warranty or spare parts, contact your local dealer or Meireles customer service.

USER MANUAL MFF 251 W Meireles

1. SAFETY WARNINGS.... 1
2. INSTALLATION....3

2.1 Location....3
2.2 Reversing the Door Swing 3
2.3 Door Space Requirements....7
2.4 Levelling the Unit 8
2.5 Cleaning Before Use 8
2.6 Before Using Your Unit....8
2.7 Interior Accessories....9

1. PRODUCT OVERVIEW 9
2. OPERATION....10

4.1 Switching On Your Unit 10
4.2 Noise Inside the Unit!...... 10
4.3 Tips for Keeping Food in the Unit.... 10
4.4 Change the Light Bulb 10

1. CLEANING 11

5.1 Defrosting.... 11
5.2 Cleaning the Interior and the Exterior of the Unit.... 11
5.3 Cleaning Tips 11

1. MAINTENANCE 12

6.1 Changing the Internal Light.... 12
6.2 Care When Handling / Moving Your Unit.... 12
6.3 Servicing 12
6.4 Switching Of for Long Periods of Time 12

1. Trouble shooting 12
   7.1 Warm tips: 13
2. TIPS FOR ENERGY SAVING 13
3. DISPOSAL 14

1. SAFETY WARNINGS

Warning: risk of fire / flammable materials

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

The appliance has to be unplugged after use and before carrying out user maintenance on the appliance..

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Do not use extension cords or ungrounded (two prong) adapters.

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

-Take off the doors.

-Leave the shelves in place so that children may not easily climb inside.

The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable.

Therefore, when the refrigerator is scrapped it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

For EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

For IEC standard: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.)

Children should be supervised to ensure that they do not play with the appliance.

The instructions shall include the substance of the following: To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. (note 1)

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star ^** frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. (note 2)

- One ☑ -,two ☑ * -and three-star ☑ *** compartments are not suitable for the freezing of fresh food. (note 3)

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note 1,2,3: Please confirm whether it is applicable according to you product compartment type.

2. INSTALLTION

2.1 Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

When installing the unit, ensure that 10 cm of free space is left at both sides, 10 cm at the rear and 30 cm at the top of the unit. This will allow cold air to circulate around the wine cooler and improve the efficiency of the cooling process.

2.2 Reversing the Door Swing

Tools Required: Phillips style screwdriver / Flat blated screwdriver / Hexagonal spanner

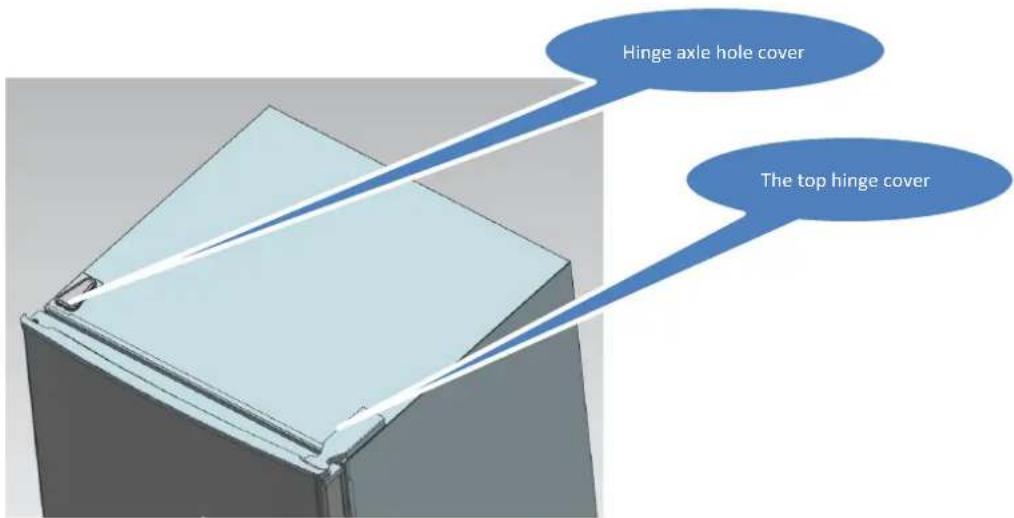

1) Remove the top hinger cover.

Hinge axle hole cover The top hinge cover

3D rendering of a rectangular electronic device with a lid and mounting bracket (no text or symbols visible)

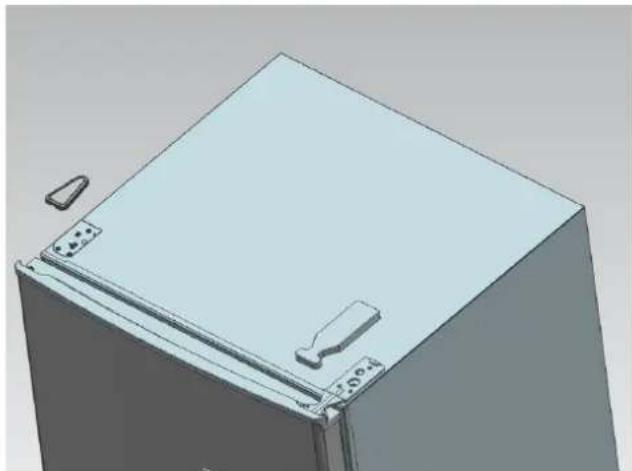

2) Remove the screws fixed the top-hinge with cross-slot screwdriver.

Screw (three)

3) Replace the top-hinge and the top-door limit block and the door bearing bush to the other side.

A. Remove the nut with sleeve. Take off the washer then remove the axes to the other side and fixed.

3D mechanical part diagram showing a component being processed from an external view (no text or symbols)

B. Remove the door limit block

Diagram showing a device being processed from a panel, with no visible text or symbols

C. Please taking out another door limit block, with screw mounting to the door

3D CAD model of a mechanical component with two oval features and a blue indicator light (no text or symbols)

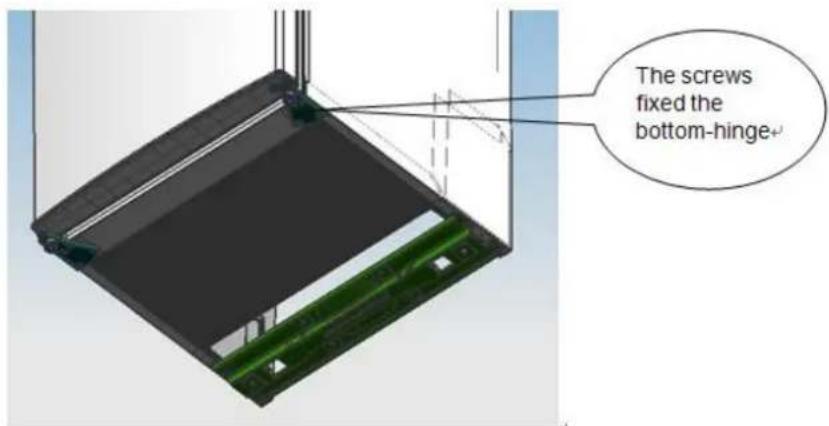

4) Disassemble the screws fixed the bottom-hinge with cross-slot screwdriver.

The screws fixed the bottom-hinge+

Note: the refrigerator-freezer incline angle less 45^ .

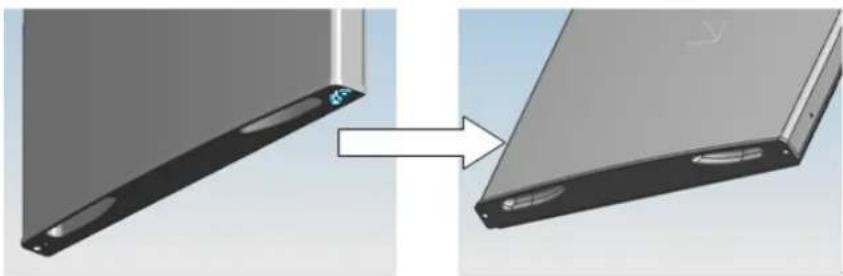

5) Replace the bottom door bearing bush and the limit block.

Diagram showing a curved arrow pointing upward from a rectangular object, with no visible text or symbols.

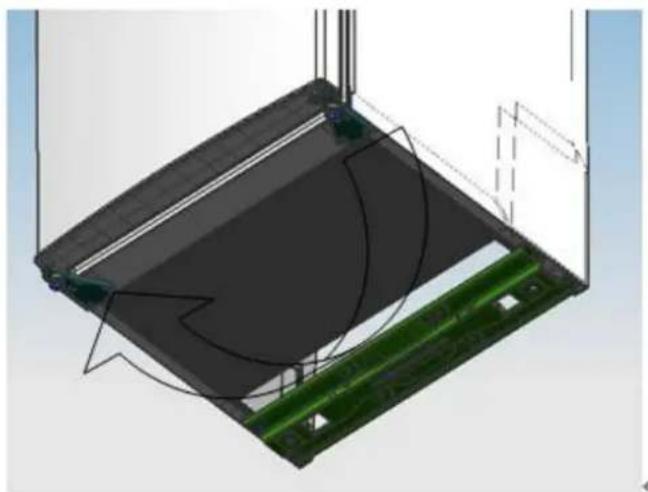

6) Replace the bottom hinge to the other side then fix it with screws.

3D diagram of a device with green circuit board and curved internal components, no visible text or symbols

7) Replace the mid-hinge.

Diagram of a door with green indicator lights and curved arrows indicating motion or movement (no text or symbols)

8) Set the bottom door right position, fix the mid-hinge.

Two colored rectangular panels: a yellow upper panel with internal cutouts and a red lower panel with a white stripe (no text or symbols)

9) Replace the top-hinge.

3D rendering of a rectangular box with a curved top panel and mounting holes (no text or symbols visible)

10) Set the top door right position, fix the top-hinge and the cover.

Two solid color blocks, pink and olive, stacked vertically with a small blue horizontal bar at the bottom (no text or symbols)

11) Install the four screw caps and two catches to corresponding position.

• Ensure the Appliance is unplugged and empty.
• Adjust the two leveling feet to their highest position.
  • We recommend you have someone to assist you.

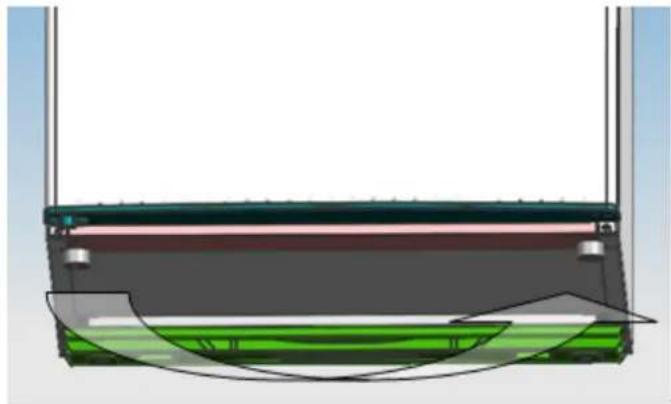

12) replace the leveler to the other side and adjust it to make sure the cabinet level.

Diagram of a mechanical component with layered structure and green base, no visible text or symbols

2.3 Door Space Requirements

The unit's door must be able to open fully as shown.

$$ W \times D \geqslant 9 0 2 \times 1 0 5 2 m m $$

W D

2.4 Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the door and magnetic seal alignments will not be covered properly.

Make sure that the foot touches the ground before use.

Look down from the top, clockwise and counterclockwise loosening, tightening.

Two labeled diagrams showing a checkmark and a cross symbol inside containers, likely indicating inspection or verification steps.

2.5 Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'Wrung-out' sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth. If you require more information refer to the Cleaning section.

2.6 Before Using Your Unit

Do not damage the power cord under any condition so as to ensure safety use, do not use when the power cord is damaged or the plug is worn.

Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.

Do not place flammable items near the refrigerator to avoid fires.

This product is household refrigerators and shall be only suitable for the storage of foods. According to national standards, household refrigerators shall not be used for other purposes, such as storage of blood, drugs or biological products.

Do not place items such as bottled or sealed container of fluid such as bottled beers and beverages in the freezer to prevent bursts and other losses.

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

Before Plugging in

You must check that you have a socket which is compatible with the plug supplied with the unit.

Before Turning On!

Do not turn on until two hours after moving the unit.

2.7 Interior Accessories

Various glass or plastic storage shelves are included with your appliance - different models have different combinations.

You should always slide one of the full size glass storage shelves into the lowest set of guides, above the fruit and vegetable containers, and keep it in this position. To do this, pull the storage shelf forward until it can be swivelled upwards or downwards and removed.

Please do the same in reverse to insert the shelf at a different height.

In order to make the most of the volume of the fresh food storage compartment and frozen-food storage compartment, the user can remove one or more shelves, drawers, out of the appliance, according to your daily use.

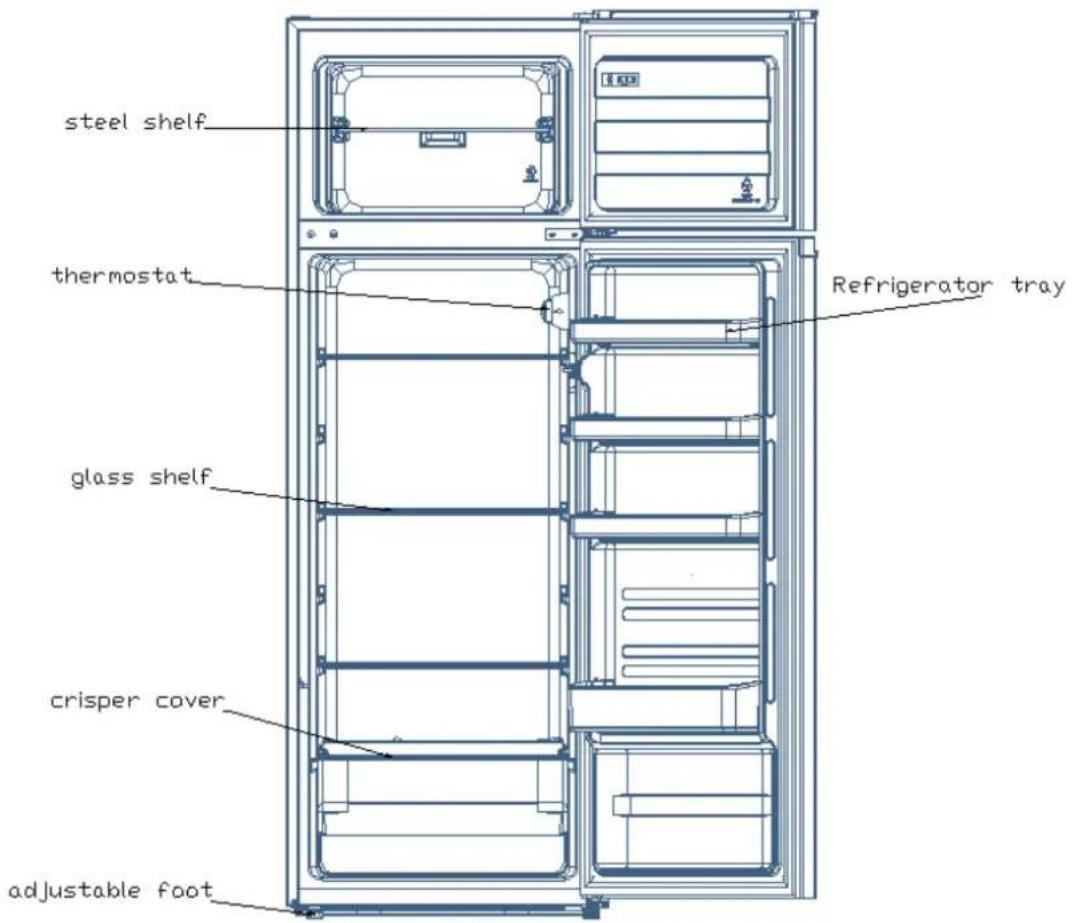

3. PRODUCT OVERVIEW

steel shelf thermostat glass shelf crisper cover adjustable foot Refrigerator tray

*All images in this instruction manual are for indication only; please refer to your individual unit for details.

4. OPERATION

4.1 Switching On Your Unit

◆The thermostat knob is located on the right hand side

wall of the refrigerator interior

wall of the refrigerator interior

Setting "Off": UnitOff

Setting "Min": Less Cool Temperature

Setting “Med”: Normal Operation(adequate for most situations)

Setting "Max": Coolest Temperature

◆ During high ambient temperatures e.g. on hot summer days. It may be necessary to set the thermostat to the Coolest seng(posion "Max").This may cause the compressor running continuously in order to maintain a low temperature in the cabinet.

◆ For the rst time you install your refrigerator, set the thermostat knob at "Med".

Give your refrigerator time to cool down completely before adding food. It is the best to wait

24 hours before adding food. The thermostat knob controls the temperature. When the thermostat control knob is set to OFF, the refrigerator will not be running.

4.2 Noise Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

4.3 Tips for Keeping Food in the Unit

◆ Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool.
◆ To prevent transfer of favours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
◆ Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
◆ To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.

4.4 Change the Light Bulb

Lamp replacement by professionals

5. CLEANING

5.1 Defrosting

Auto-defrost for Frost-free Refrigerator

5.2 Cleaning the Interior and the Exterior of the Unit

◆ Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.
◆ Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
◆ The interior of the refrigerator should be cleaned regularly to avoid odor.
◆ Please turn off the power before cleaning interior, remove all foods, drinks, shelves, drawers, etc.
Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.
For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.
Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.
- Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.
◆ Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.
Do not use hard brushes, clean steel balls, wire brushes, abrasives(such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.
Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

5.3 Cleaning Tips

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe of any moisture residue. If the problem continues, please contact a qualified technician for assistance.

6. MAINTENANCE

6.1 Changing the Internal Light

Lamp replacement by professionals.

6.2 Care When Handling / Moving Your Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

6.3 Servicing

The unit should be serviced by an authorized engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualitatively technician.

6.4 Switching Of for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

7. Trouble shooting

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled.

Inoperation	Whether the freezer is plugged and connected to power;Low voltage;Failure power or tripping circuit
Odor	Odorous foods should closely wrapped;Whether foods are rotten;Whether the interior shall be cleaned.
Long-term operation of compressor	It is normal that refrigerator operates for longer time in summer when the ambient temperature is higher;Do not put too much food in the freezer at one time;Do not put foods until they are cooled;Frequent opening of refrigerator door.
Illuminating light does not shine	Whether the refrigerator is connected to power,whether the illuminating light is damaged.
The refrigerator door can not be properly closed.	The freezer door is stuck by food packages;Too much food;Tilt refrigerator.
Loud noises	Whether the food is leveled, whether the refrigerator is balanced;Whether the refrigerator parts are properly placed.

7.1 Warm tips:

◆The refrigerator enclosure may emit heat during operation specially in summer, this is caused by the radiation of the condenser, and it is a normal phenomenon.
◆Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the condensation can be wiped away with a dry towel.
◆Buzz: Buzz will be generated by running compressor specially when starting up or shutting down.

8. TIPS FOR ENERGY SAVING

Try not to open the door too often, especially when the weather is wet and hot. Once you open the door, close it as soon as possible.

Every now and then check if the appliance is sufficiently ventilated (adequate air circulation behind the appliance).

In normal temperature conditions, please arrange the thermostat at the middle setting.

Before loading the appliance with packages of fresh food, make sure they are cooled to ambient temperature.

Ice and frost layer increase energy consumption, so clean the appliance as soon as the layer is 3-5 mm thick.

If it is the outer condenser, the rear wall should be always clean free of dust or any impurities.

◆ The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
◆ Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
◆ Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
◆ Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

9. DISPOSAL

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal. Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break of any old locks or latches and remove the door as a safeguard.

Correct Disposal of this product

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

For more information, please contact the local authority or your retailer where you purchased the product.

meireles

MANUAL DE INSTRUÇÕES

FRIGORÍFICO 2 PORTAS

MODELO: MFF 251 W

Conteúdo

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

Hinge axle hole cover The top hinge cover

Screw (three)

3D mechanical part diagram showing a bracket being cut with a hole, before and after assembly (no text or symbols)

Diagram showing a device being processed from a panel to a closed panel, with no visible text or symbols.

3D CAD model of a mechanical component with two oval features and a blue indicator light (no text or symbols)

The screws fixed the bottom-hinge+

Simple diagram showing a horizontal bar with a green marker and curved arrows indicating motion or force direction (no text or symbols)

3D diagram of a solar panel assembly with green circuit board and internal components (no text or symbols)

Diagram of a mechanical or electrical component with green arrows indicating direction, no visible text or symbols

Two-panel image showing a yellow rectangular panel with internal components and a red horizontal bar on the right (no text or symbols)

3D rendering of a rectangular box with a curved top panel and mounting brackets (no text or symbols visible)

Two solid color blocks, one pink and one olive, stacked vertically with no text or symbols.

Diagram of a mechanical component with layered structure and green base, no visible text or symbols

D W is pés na ntos

5.1 Retire todas as prateleiras do interior do frigorífico e as gavetas dos legumes.
