UM801xSL - Parasol Treasure Garden - Free user manual and instructions

Type	Market Umbrella
Model	UM801xSL
Brand	Treasure Garden
Canopy Diameter	9 ft (274 cm)
Overall Height	Approx. 104 inches (264 cm)
Pole Diameter	1.5 inches (3.8 cm)
Pole Material	Aluminum
Ribs Material	Steel
Canopy Fabric	Sunbrella or solution-dyed acrylic
Fabric Color Options	Multiple solid and striped options
Weight	Approx. 25 lbs (11.3 kg)
Opening Mechanism	Crank lift with auto-lock
Tilt Mechanism	Push-button tilt with multiple angles
Wind Vent	Integrated vented canopy for wind relief
Base Recommended	45-60 lbs base (not included)
Water and UV Resistance	Yes, fabric is water repellent and UV resistant
Cleaning Instructions	Hand wash with mild soap and water; air dry
Storage Recommendation	Store in dry place or use protective cover when not in use
Wind Rating	Designed for moderate wind; close during high wind
Warranty	Limited 1-year warranty on frame; fabric may vary
Country of Origin	China
Repairability	Replacement canopy and parts available from Treasure Garden

Frequently Asked Questions - UM801xSL Treasure Garden

How do I clean my Treasure Garden umbrella fabric?

Clean the fabric with a mild soap and water solution using a soft brush. Rinse thoroughly and allow to air dry completely. Avoid harsh chemicals or bleach.

Can I leave the umbrella open overnight?

It is recommended to close and secure the umbrella when not in use, especially overnight or during windy conditions, to prevent damage.

What size base do I need for the UM801xSL?

A base weighing between 45-60 lbs (20-27 kg) is recommended for stability. Ensure the base fits a 1.5-inch pole.

How do I tilt the umbrella?

Press the tilt button located on the pole while gently pushing the canopy to the desired angle. Release the button to lock in place.

Is the fabric waterproof?

The fabric is water repellent, not fully waterproof. It will shed light rain but may leak under heavy or prolonged rain.

Can I replace the canopy on my umbrella?

Yes, Treasure Garden offers replacement canopies. Contact customer service with your model number (UM801xSL) to order.

What should I do if the crank becomes hard to turn?

Lubricate the crank mechanism with a silicone spray. If issue persists, inspect for debris or damage and contact support.

How do I store the umbrella during winter?

Remove the canopy and store it in a dry, indoor area. Store the frame in a dry place. Use a cover if storing outdoors.

What is the warranty on the UM801xSL?

Treasure Garden offers a limited 1-year warranty on the frame. Fabric warranty may vary by collection. Keep your receipt.

Can I use the umbrella in high wind?

No, the umbrella is not designed for high wind. Close it if wind exceeds 15 mph to prevent damage.

USER MANUAL UM801xSL Treasure Garden

Assembly and Operation Guide

Line drawing of a beach umbrella with a coiled cable and power plug attached (no text or symbols)

Thank you for your purchase of Treasure Garden's Starlight Collar Tilt Umbrella.

Please remove all contents from the package, inspect and review checklist.

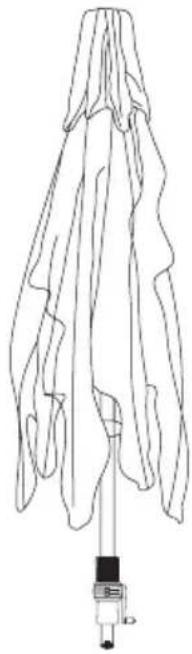

STARLIGHT COLLAR TILT CHECKLIST

A- Finial
B- Canopy/Mainframe
C- Bottom Pole
D- Power Cord/Transformer

Note: Use only the Power Cord/Transformer supplied.

A-B-

C-

Line drawing of a leafy plant with a small black-and-white component attached (no text or symbols)

D-

Pure electrical circuit lines without any symbols

STEP 1 Set Up

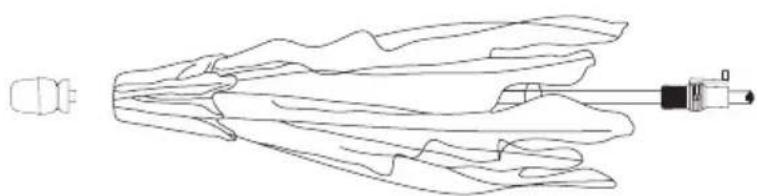

Carefully remove umbrella from box. Attach finial to top of canopy/mainframe.

Line drawing of a mechanical component with a cylindrical shaft and flanged base (no text or symbols)

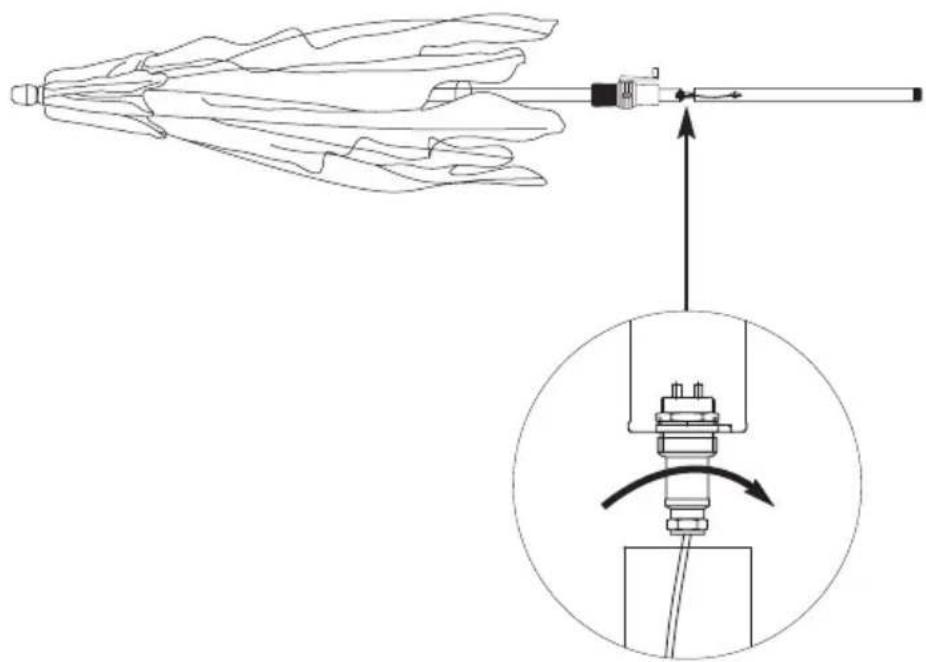

Connect bottom pole plug to canopy/mainframe plug. Twist plug clockwise together to secure connection.

Technical diagram showing a mechanical assembly with an inset close-up of a component being inserted (no text or symbols present)

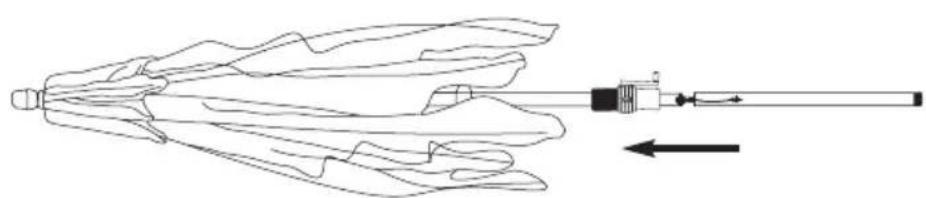

Insert bottom pole into canopy/mainframe pole. Line up button with hole and snap into place.

Diagram of a medical or laboratory procedure showing a needle inserted into tissue with an arrow indicating direction (no text or labels)

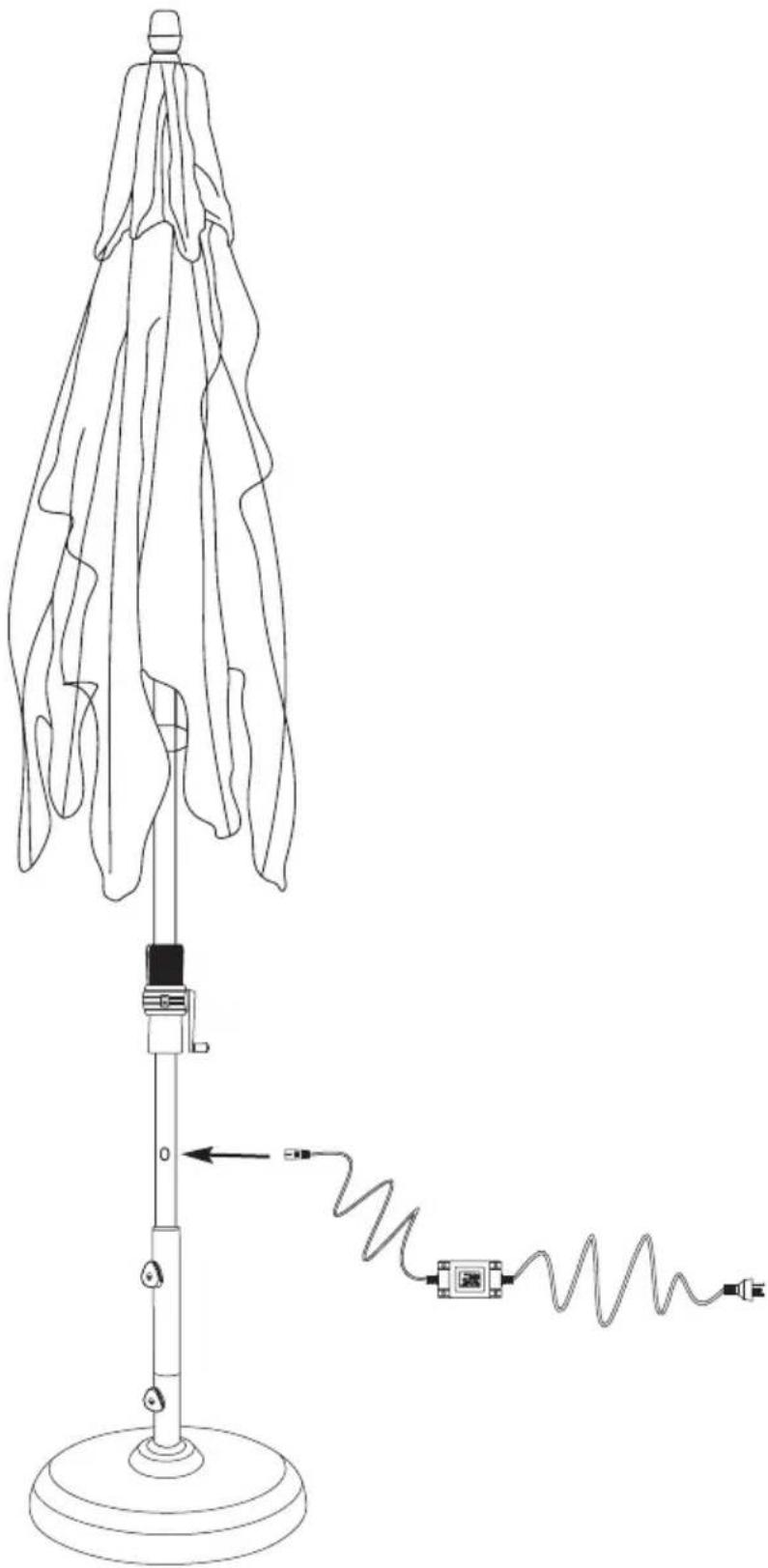

Turn umbrella in upright position. Insert bottom pole into free standing base or through table top. Insert power supply/transformer into umbrella pole. Connect other end of power supply/transformer into wall outlet.

Line drawing of a beach umbrella with attached electrical circuit components (no text or symbols)

Note: The transformer output power is 12V. It is normal for transformer to get warm after long period of use. Avoid sun on power supply/transformer to increase lifetime use. Be sure not to drop transformer Note: Use only the Power Cord/Transformer supplied.

STEP 2 Operating Umbrella

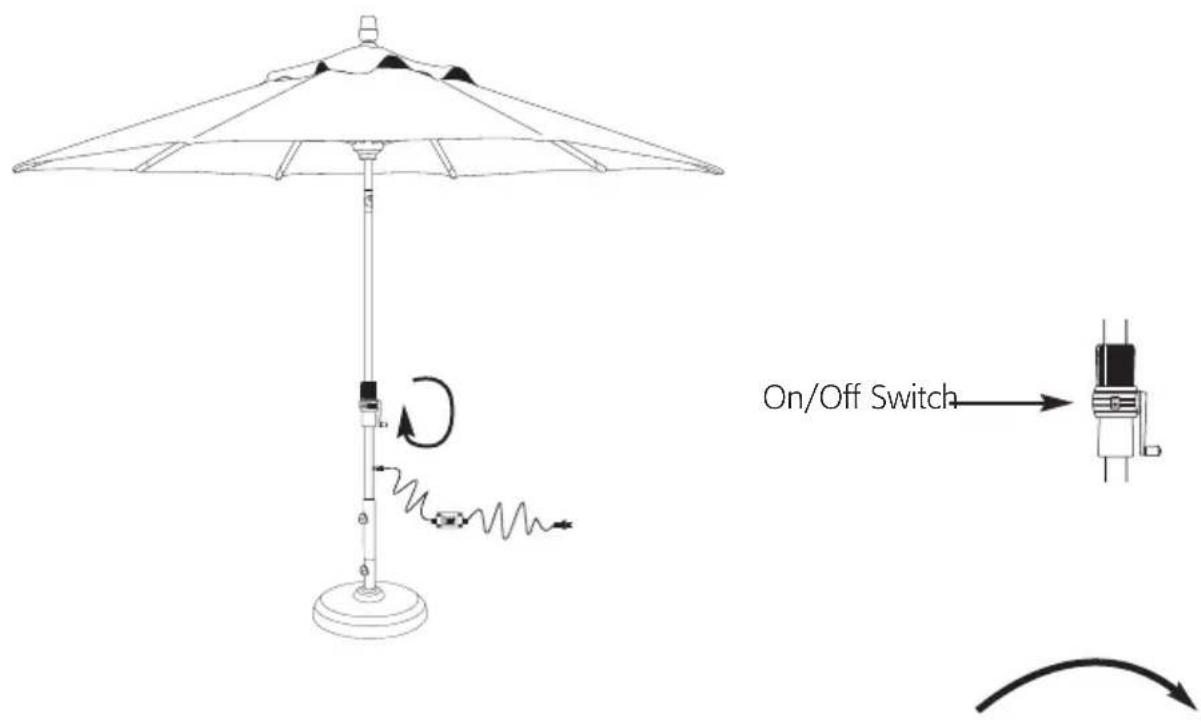

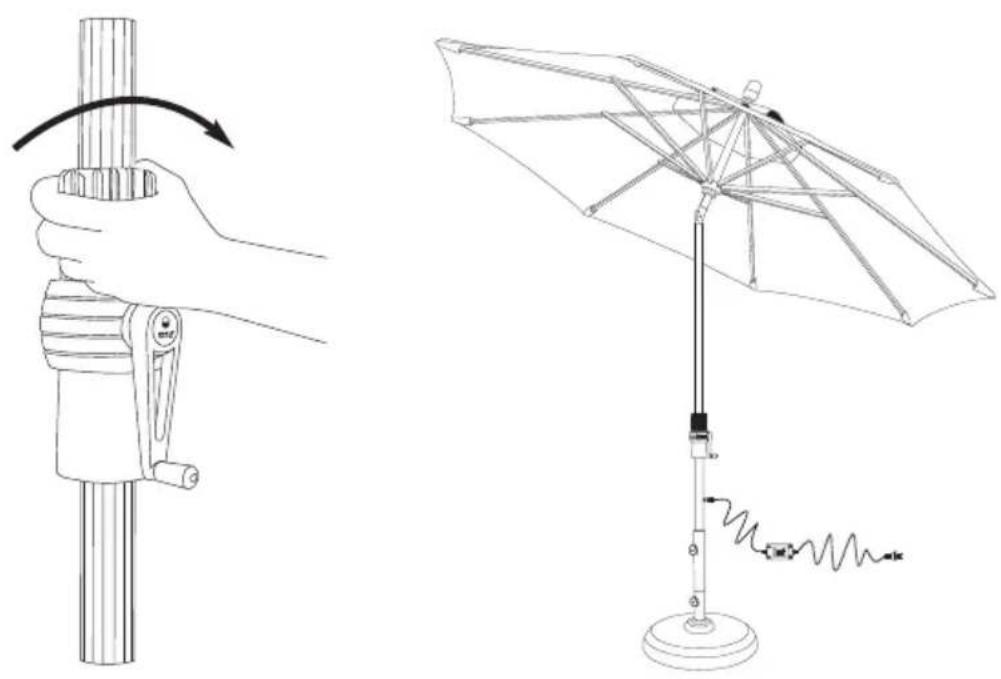

Crank handle clockwise to open umbrella to its fully open position. To turn umbrella on or off, press on/off switch located on collar housing.

To tilt, simply twist the collar in clockwise direction.

Technical line drawing showing a hand holding a post with a rotating arm and a separate diagram of a beach umbrella with a spring (no text or symbols)

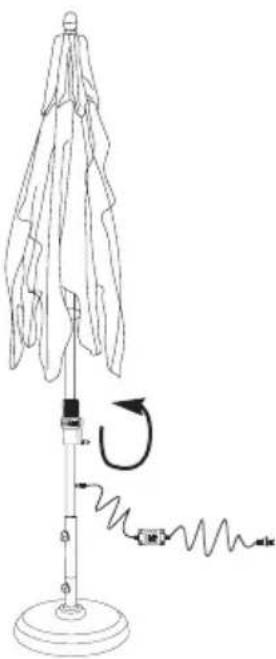

STEP 3 Closing Umbrella

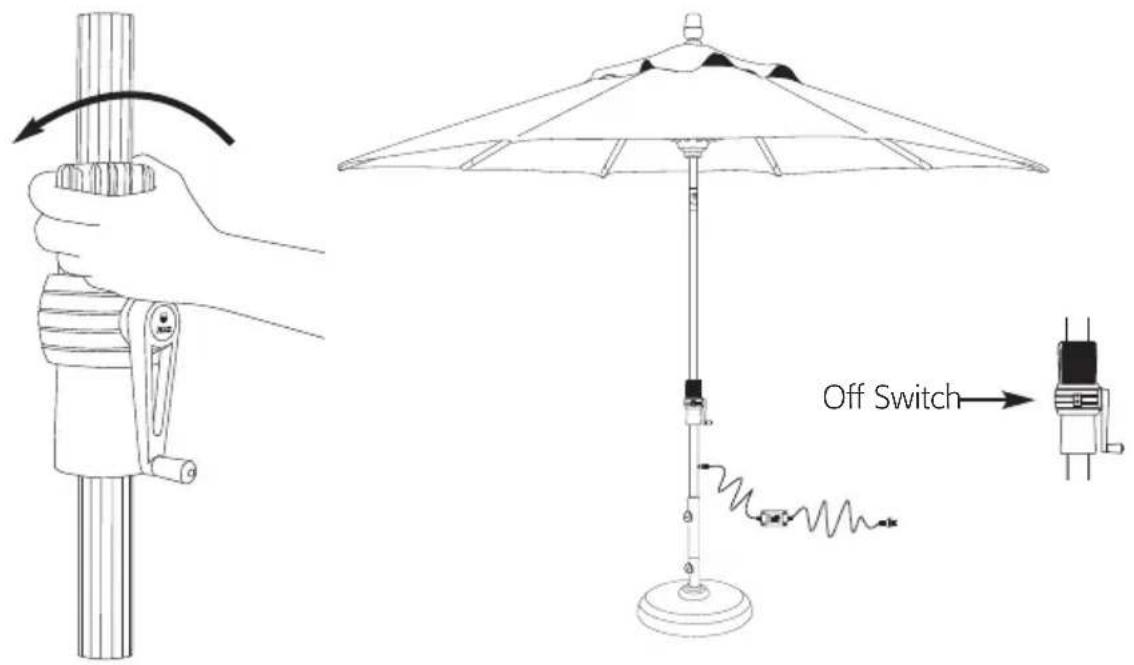

Twist collar in counter-clockwise direction to bring umbrella back to its original upright position. Turn umbrella off by clicking switch to off position.

To close, turn crank in counter-clockwise direction to close umbrella.

Line drawing of a simple pendulum setup with a rotating arm and spring (no text or symbols)

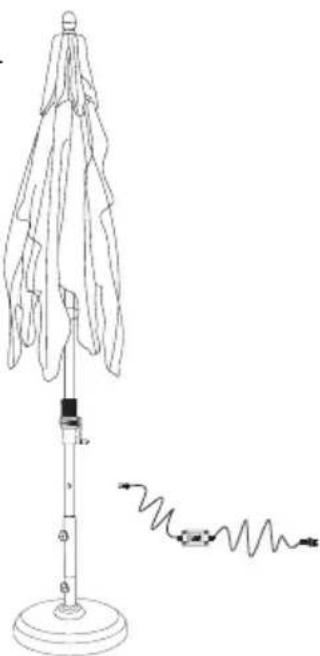

To store umbrella away, unplug power supply/transformer from wall and umbrella pole. Repeat Step 1 process in reverse to store.

Line drawing of a simple pendulum setup with a spring scale and base, no text or symbols present

Note: During disassembly, it is important to loosen knob of plug inside umbrella poles first, then remove bottom pole from mainframe/canopy. If not, the wire will be split and result in damage to lighting.

WARRANTY:

Treasure Garden warrants this product (in residential use) to be free from defects in original materials and workmanship for a period of 2 years from the date of purchase. If a defect in the original material or workmanship appears during the warranty period; Treasure Garden will (at its option) repair or replace the product without charge. Limited warranty against fabric fading, depending on fabric.

Simply contact your original authorized Treasure Garden dealer with a description of the defect. The dealer will verify the defect and work closely with Treasure Garden to obtain the necessary service. In many cases, simple problems can be solved with a replacement part that can be shipped directly to the dealer for professional installation/repair. In the event that warranted factory service is required, Treasure Garden will assume the responsibility of the return freight charges on warranted product for the 2 years only.

Returned product that (upon receipt and inspection) is deemed to be "not covered" under our warranty, will be shipped/billed at your expense.

This warranty gives you specific legal rights, and you may have other rights which vary from state to state.

NOTE: Failure caused by unreasonable or abusive use, or failure caused by neglect of reasonable and necessary care are not covered by this warranty.

Additionally, acts of nature (including but not limited to wind, hurricanes, tornadoes, and storms) are not covered by this warranty.

SAFETY PRECAUTIONS:

• Close and store the umbrella in windy conditions or when a storm approaches. Never allow the umbrella to flap in the wind; this could damage the canopy.
• Do not leave open umbrella unattended. If damage occurs, this is not covered by the warranty.
• When adjusting the umbrella, make sure that no person(s) or item(s) are close to the umbrella. This is important to prevent injury or material damage.

CARE AND MAINTENANCE:

• When not in use, close and cover umbrella with a protective cover (not included).
• Allow a wet canopy to dry while in open position.
• If necessary, clean the fabric with lukewarm water, mild detergent, and a sponge.
• Wipe sliding marks on the aluminum poles with a damp cloth.

Storage:

• Store in a dry, protective place.
• Any visible defects must be repaired by a professional.

After the Winter:

• Areas subject to turning and sliding can be treated with a non-staining lubricant spray (silicone-based).
• Check the condition and function of the umbrella. Any defects must be repaired by a professional.

TREASURE

GARDEN

www.treasuregarden.com

©2012 Treasure Garden, Inc. - All Rights Reserved. Version 5/12
