USER MANUAL P1032CN Hoffman

Close-up of a metal-framed structural frame with bolt holes and vertical supports (no text or symbols visible)

Permits joining two enclosure frames while maintaining an environmental seal.

Side-to-Side Joining Kit consists of six frame nuts and screws, as well as gasket material to maintain a dust-tight and water-tight seal between ganged frames. Can be used if rack angles are not in the front or rearmost positions or if a subpanel is not in the rearmost position.

Alternate Joining Kit consists of three standoffs, six frame nuts and screws, as well as gasket material. This kit facilitates frame joining when rack angles are in the front or rearmost position, or if a subpanel is in the rearmost position.

Front-to-Back Joining Kit permits front-to-back joining of two single-bay enclosures. This kit does not fit 1200-mm or 1600-mm wide frames.

BULLETIN: P20, P20EM

Catalog Number Description

PJ2F Standard Frame Joining, Side-to-Side

PJ2FD Standard Frame Joining, Side-to-Side, Non-gasketed

PJ2FHF2 EMC Standard Frame Joining, Side-to-Side

PJ2FF Alternate Frame Joining, Side-to-Side

PJ2FBF Frame Joining, Front-to-Back

GASKET

GASKET M6 HEX SCREW M6 FRAME NUT Frame Nut Detail (6 places)

Side-to-Side

STANDOFF GASKET

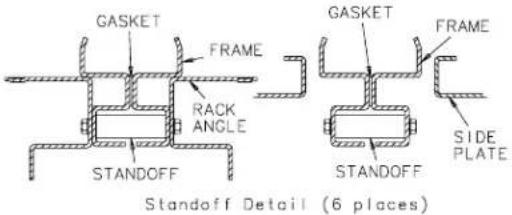

GASKET FRAME RACK ANGLE STANDOFF GASKET FRAME SIDE PLATE STANDOFF Standoff Detail (6 places)

M6 HEX SCREW M6 FRAME NUT GASKET Frame Nut Detail (optional 3 places)

Alternate (Side-to-Side)

JOINING BRACKET GASKET

87798468
Front-to-Back

L Joining braCket

Collection of metal bracket components with no visible text or symbols

A-T-O

The L Joining Bracket, made of 10 gauge steel, is used in conjunction with the standard joining kit as additional support. Pictured hardware is included.

BULLETIN: P20

Catalog Number Description

PJB2F L Joining Bracket

Frame Feet

Collection of metallic mechanical parts including a flange, washer, nut, and washer (no text or symbols visible)

A-T-O

Four die-cast feet for use on the bottom of PROLINE™ frames that raise the frame 9 mm.

BULLETIN: P20

Catalog Number Description

PFFM12 Frame Feet

87798469

tooL-LeSS (Snap-in) bLanking paneLS For 19-in. raCkS

These Tool-less 19-in. Blanking Panels provide easy tool-less installation and ensure proper airflow to equipment. Made of black composite material and can be used with tapped or square EIA universal spaced rack mounting angles.

BULLETIN: DACCY

Catalog Number	Description	RackUnits Fits	Pkg.Qty.
D19BPT1RU	Blanking Panel, 19 in.	1 19 in., universal rack spacing,tapped or square holes	10
D19BPT2RU	Blanking Panel, 19 in.	2 19 in., universal rack spacing,tapped or square holes	10

Technical line drawing of two rectangular structural components with internal divisions (no text or symbols)

LeveLerS

Four post-type levelers allow adjustment for uneven floors. Levelers can be attached to the bottom of a frame or to a 0-mm solid base. Levelers are plated and the leveler base is capped with plastic to provide resistance to marring. Adjustable for 17-mm to 35-mm height. Ball and socket construction. Four levelers will support a maximum of 453.6 kg (1000 lb.).

BULLETIN: P20

Catalog Number Description

PLM12 Post-type Levelers

M12X26 87415118 40 mm 1.57

proLine™ Frame FLOOR-mounting braCket

Provides a structural method of bolting a PROLINE™ frame to the floor. Fits all frame sizes. Made of 12 gauge steel with plated finish. Kit includes four brackets and mounting hardware. Not for use on colocation frames, which include welded-in floor mounting brackets.

BULLETIN: DPY

Catalog Number Description

PFBK PROLINE Frame Floor-Mounting Bracket

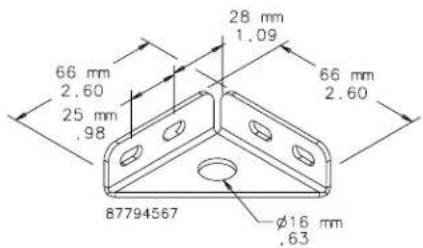

66 mm 2.60 25 mm .98 28 mm 1.09 66 mm 2.60 87794567 Ø16 mm .63

grounding bar SyStem

Exterior view of a wall-mounted shelf unit with metal brackets and mounting feet (no text or symbols visible)

induStry StandardS

UL Component Recognized; File No. E61997

Three sizes of grounding bars and insulated mounting brackets are available. Bars are plated copper with M6 and M5 tapped holes to provide a common point for grounding equipment. Fits all enclosures if mounted vertically. See table for horizontal mounting.

BULLETIN: P20

Catalog Number	Description	Length mm/in.	Number of Holes and Screws M6	Number of Holes and Screws M5
PGS2K Fits 400-mm deep frame		200	3/5 10/10
		front to back horizontally	7.87
PGS4K Fits 600-mm deep frame		400	9/11 20/20
		front to back horizontally	15.75
PGS6K Fits 800-mm deep frame		600	15/17 30/31
		front to back horizontally	23.62

proLine™ grounding kit

Close-up of a laptop with cables connected to a rack-mounted server rack (no visible text or symbols)

The Grounding Kit allows a PROLINE™ enclosure to be grounded to VDE specifications. Includes six 12 gauge wires 411 mm (16.19 in.) long with ring terminations and M6 mounting hardware.

BULLETIN: P9

Catalog Number	Wire Size	Length Between Ring Terminals mm/in.	Ring Terminal Hole Diameter mm/in.
PGK 12 ga. 411			7
		16.19	.29

Four different types of caster wheel casings labeled 'CASTER KIT' and 'ATO', shown in a grid layout without any text or symbols on the wheels.

A set of four casters (two locking, two non-locking) that mount directly to the bottom of a PROLINE™ frame, 0-mm, or 100-mm Solid Base or a Console. (Do not use on plinth bases.) Casters elevate the enclosure 110 mm (4.33 in.) when installed. Caster frames are plated steel with ball-bearing pivots. Caster wheels are made of a black polyamide material. Kit includes M12 mounting hardware.

Order separately. Casters Maximum Load: 1000 lb. (453 kg)

Exercise care when using casters to move the cabinet. Avoid tipping and damage to the cabinet and its contents by slowly moving the cabinet on its casters across smooth, flat flooring. Avoid:

- large cracks

- floor displacement

- seams

- gravel

- any other obstruction

Never use casters while transporting a cabinet by truck on roadways.

Contact Hoffman if further information is needed.

BULLETIN: P20

Catalog Number Description
PC1M12 Set of 4 Casters

Ø76 mm 3.00 108 mm 4.24 32 mm 1.26

87798501

SCREW PACKAGES

Screw Packages are for mounting rack panels and equipment to rack angles.

BULLETIN: A80, DACCY, X20

Catalog Number	Color Description	Pkg. Qty.
ES1224 Silver 12-24 x 5/8 in. combo head 20
ES1224250 Silver 12-24 x 5/8 in. combo head 250
ES1224B Black 12-24 x 5/8in. combo head	20
ES1224B250	Black 12-24 x 5/8 in. combo head 250
ASM5	Silver M5 x 20 mm Combo Head	20
ASM6	Silver M6 x 16 mm combo head	20
ASM5T	Silver M5 x 12 mm thread-forming Phillips hex head screws 20
ASM6250	Silver M6 x 16 mm combo head	250
AS1032	Silver 10-32 x 5/8 in. combo head 20
AS1032250	Silver 10-32 x 5/8 in. combo head 250
AS1032B	Black 10-32 x 5/8 in. combo head 20

Use ASM5T on PROLINE™ frame or Net Series extruded holes.

CAGE NUT PACKAGE

Cage Nut Packages are for use with square-hole rack angles. Cage nuts are plated steel.

BULLETIN: DACCY, P20

Catalog Number	Color	Description	Pkg. Qty.
PM5CN	Silver	M5 cage nut	20
PM6CN	Silver	M6 cage nut	20
PM6CN250	Silver	M6 cage nut	250
P1032CN	Silver	10-32 cage nut	20
P1032CN250	Silver	10-32 cage nut	250
P1224CN	Silver	12-24 cage nut	20
P1224CN250	Silver	12-24 cage nut	250

mounting Channel

Side-to-Side

Vertical and Horizontal

Full Height

Allows rack angles and other accessories to be positioned at any depth within the cabinet. Rails mount front to back in PROLINE™ frame. 14 gauge steel with RAL 9005 black polyester powder paint finish. Includes two rails, mounting hardware and four M6 spring nuts for mounting accessories. Use hardware kit APSM6CN (package of 20 screws, washers and spring nuts) for mounting additional rack angles or other accessories to the mounting channels.

BULLETIN: DPY

Catalog Number	Description	Fits Frame Depth
PMU8B Mounting Channel 800
PMU9B Mounting Channel 900
PMU10B Mounting Channel 1000
PMU11B Mounting Channel 1100
PMU12B Mounting Channel 1200

APSM6CN Mounting Channel Hardware Kit —

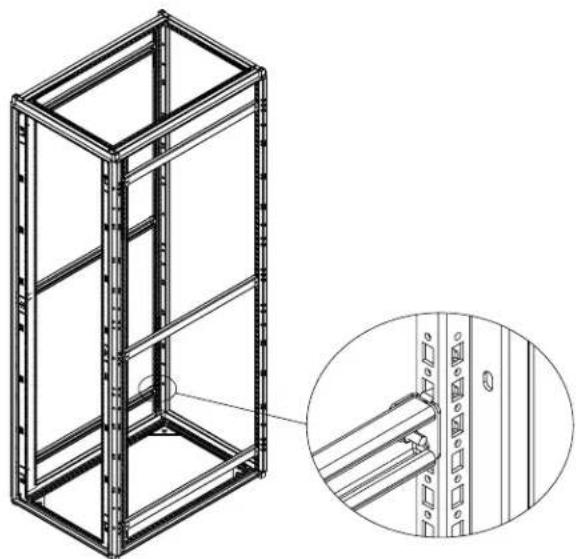

Technical line drawing of a metal-framed cabinet with an inset close-up showing internal components (no text or symbols)

87561937

Technical line drawing of a mechanical assembly with no visible text or symbols

grid StrapS

Technical illustration of metal structural components with no visible text or symbols

Grid Straps are 14 gauge plated steel. They are provided with specially designed rectangular holes to allow the use of cage nuts or front-loading cage nuts. Mounting holes are provided on 25-mm centers. Grid Straps are available with either 1 row or 3 rows of holes and are furnished in pairs. Mounting hardware to attach Grid Straps to the frame or to other Grid Straps is included.

• Can be mounted front-to-back horizontally across the bottom or sides of the PROLINE™ frame
• Can be mounted left-to-right horizontally between front-to-back pairs or from the sides of the PROLINE frame
• Can be mounted vertically between horizontally mounted Grid Straps

Catalog Number	Hole Pattern L (mm) L (in.)	Fits Frame Depth	Fits Frame Width
PGH1S5 One Row 342 13.46 500 —
PGH1S6 One Row 442 17.40 600 —
PGH1S7 One Row 542 21.34 700 600
PGH1S8 One Row 642 25.28 800 700
PGH1S9 One Row 742 29.21 900 800
PGH1S10 One Row 842 33.15 1000 900
PGH1S11 One Row 942 37.08 — 1000
PGH1S13 One Row 1142 44.96 — 1200
PGH1S17 One Row 1542 60.71 — 1600
PGH3S4 Three Row 242 9.53	400 —
PGH3S5 Three Row 342 13.46 500 —
PGH3S6 Three Row 442 17.40 600 —
PGH3S7 Three Row 542 21.34 700 600
PGH3S8 Three Row 642 25.28 800 700
PGH3S9 Three Row 742 29.21 900 800
PGH3S10 Three Row	842 33.15 1000 300
PGH3S11 Three Row	942 37.08 1100 1000
PGH3S12 Three Row	1242 48.89 1200	—
PGH3S13 Three Row	1142 44.96 — 1200
PGH3S17 Three Row	1542 60.71 — 1600

BULLETIN: DPY, P20

Top View

Front View Horizontal Installation

25 mm .98 25 mm .98 75 mm 2.95 L 25 mm .98 L 25 mm .98

Side View Vertical and Horizontal Installation

Side View Vertical Installation

87415121

FuLL-height vertiCaL grid StrapS

Metallic rack structure with grid pattern and two separate clamped components (no text or symbols)

Provide expanded vertical mounting positions. Made of plated steel. 25-mm spacing between mounting positions. Use cage nuts or front-loading cage nuts. Sold in pairs. Mounting hardware included.

BULLETIN: P20

Catalog Number	L (mm) L (in.)	Fits Frame Height
PGH3S14V 1295 50.98 1400
PGH3S16V 1495 58.86 1600
PGH3S18V 1695 66.73 1800
PGH3S20V 1895 74.61 2000
PGH3S22V 2095 82.48 2200

proLine™ FaStener paCkageS

Collection of metallic mechanical components arranged in a triangular pattern (no text or symbols visible)

Use to fasten components to the grid system. PGF Packages include 20 front-loading clip nuts (M6) and 20 combination-drive washer-head bolts (M6).

Grounding Package is used with the rectangular holes in the PROLINE™ frame to provide electrical continuity between the frame and the grid system. ASM5T Package is used with PROLINE frames having round holes. Package includes 20 M5 self-tapping screws.

BULLETIN: DACCY, P20

Catalog Number	Description Use in	Pkg. Qty.
ASM5T M5 x 12 mm thread-forming Phillips hex head screws Round holes 20
PGFM6 Standard Package - M6 cage nuts and bolts Rectangular holes 20
PGFGM6	Grounding Package - M6 grounding cage nuts and bolts Tapped holes	20

19-in. and 23-in. raCk angLeS

Two black rectangular panels with evenly spaced holes, no text or symbols visible

Made of 14 gauge steel with square holes or 12 gauge steel with 10-32 tapped holes. Provides 19-in. rack spacing when mounted in 600-mm wide frames, and 23-in. rack spacing when mounted in 700-mm wide frames. Use with frame reducing brackets to provide 19-in. or 23-in. spacing in 700-mm or 800-mm wide frames. Sizes available for multi-compartment colocation applications. Finish is black RAL 9005 polyester powder paint with flat finish. Furnished in pairs. The standard rack angle position is 44 mm behind the door opening.

Rack angles can be moved forward if desired. Deeper positions require the use of grid straps or mounting channels. For joining cabinets with rack angles in the full forward position, use Joining Kit PJ2FF. Shelves, drawer, guides and pull-out shelves require two sets of rack angles or frame accessory brackets installed in the frame.

For 700- and 800-mm wide cabinets, reducer or cable manager must be ordered.

BULLETIN: DPC

Catalog Number	Hole Type	Description (in.)	Use With	Fits Frame/Cabinet Height (mm)	Rack Units	Length (mm)	Length (in.)
PRA1912THL1	Square	19	PROLINE ^TM DataCom Packages	1200	24	1091	42.97
PRA1916TPL1	Tapped	19	PROLINE ^TM DataCom Packages	1600	33	1491	58.72
PRA1918THL1	Square	19	PROLINE ^TM DataCom Packages	1800	38	1691	66.59
PRA1918TPL1	Tapped	19	PROLINE ^TM DataCom Packages	1800	38	1691	66.59
PRA1920THL1	Square	19	PROLINE ^TM DataCom Packages	2000	42	1892	74.47
PRA1920TPL1	Tapped	19	PROLINE ^TM DataCom Packages	2000	42	1892	74.47
PRA192320THL1	Square	19 & 23	PROLINE ^TM DataCom Packages	2000	42	1892	74.47
PRA1921TPL1	Tapped	19	PROLINE ^TM DataCom Packages	2100	45	2041	80.37
PRA1921THL1	Square	19	PROLINE ^TM DataCom Packages	2100	45	2041	80.37
PRA1922THL1	Square	19	PROLINE ^TM DataCom Packages	2200	47	2091	82.34
PRA1922TPL1	Tapped	19	PROLINE ^TM DataCom Packages	2200	47	2091	82.34
PRA192322THL1	Square	19 & 23	PROLINE ^TM DataCom Packages	2200	47	2091	82.34
PRA1924TPL1	Tapped	19	PROLINE ^TM DataCom Packages	2400	51	2291	90.21

adJuStabLe raCk-mounting raiLS

Two metallic structural beams with grid patterns, no text or symbols visible

Mounting rails allow rack angles to be positioned anywhere within the PROLINE™ frame. The left-to-right adjustment pertains only when the enclosure is wider than the minimum width required for rack angles. Includes two right-hand and two left-hand 12 gauge plated or painted steel mounting rails. Mounting hardware is included.

BULLETIN: DPY, P20

Catalog Number	L [mm] L (in.) Fits Frame Depth	Finish
PBARA6 511 20.11 600 Plated
PBARA8 711 27.98 800 Plated
PBARA9 811 31.92 900 Plated
PBARA9B 811 31.92 900 Painted RAL 9005 Black
PBARA10B 911 35.86 1000 Painted RAL 9005 Black
PBARA11B 1011 39.79 1100 Painted RAL 9005 Black
PBARA12B 1111 43.73 1200 Painted RAL 9005 Black

Frame-reduCing braCketS For FrameS or grid StrapS A-T-O

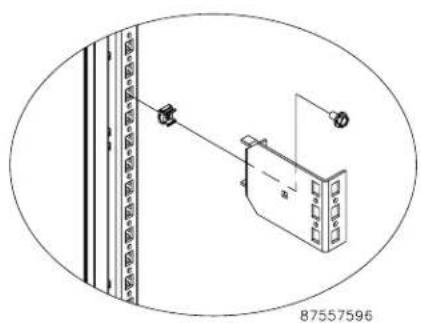

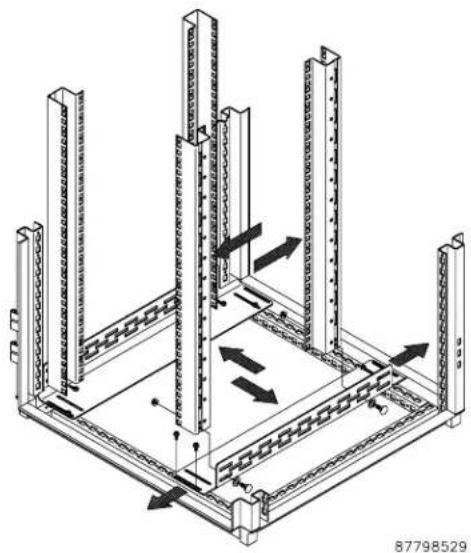

Frame-Reducing Brackets mount directly to 700- or 800-mm wide PROLINETM frames or to grid straps. Converts wider frames to 600-mm wide, allowing 19-in. rack angles to fit, or to 700-mm wide, allowing 23-in. rack angles to fit. Can be used to left- or right-justify the rack-mounted equipment. Furnished in sets of four. 14 gauge plated steel. Mounting hardware is included.

BULLETIN: P20

Catalog Number	ReducesFrameWidth W (mm) W (in.)			Converts Frame Width
PRB50	50	50	1.97	From 700 to 600From 800 to 700 mm
PRB100	100	100	3.94	From 800 to 600From 800 to 700From 700 to 600 mm
PRB200	200	200	7.87	From 1000 to 600From 1000 to 800From 800 to 600 mm

Isometric technical diagram of a structural frame with vertical supports and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with attached components, enclosed in an oval frame (no text or symbols)

FRAME-REDUCING BRACKETS FOR FRAMES OR MOUNTING CHANNEL

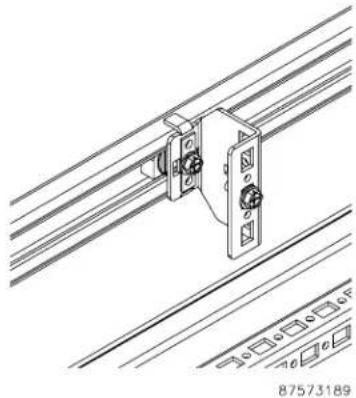

Frame-reducing brackets mount directly to 700-mm or 800-mm wide PROLINE™ frames or to mounting channel. Convert wider frames to 600-mm wide, allowing 19-in. rack angles to fit, or to 700-mm wide, allowing 23-in. rack angles to fit. Can be used to left- or right-justify the rack-mounted equipment. Made of 14 gauge steel painted with flat-black RAL 9005 polyester powder. Furnished in sets of four. Mounting hardware is included.

BULLETIN: DPY

Catalog Number	Reduces Frame Width	W (mm)	W (in.)	Converts Frame Width
PMURB50	50 50	1.97 From 700 to 600, From 800 to 700
PMURB100	100	100	3.94 From 800 to 600, From 800 to 700, From 700 to 600

Frame Reducing Bracket Selection Guide

PROLINE Frame Width	Setting 19 in. Centered	Setting 19 in. Left or Right	Setting 23 in. Centered
600 mm (23.60) No reducing brackets	brackets	No reducing brackets	—
700 mm (27.60) with grid straps PRB50 PRB 100	brackets	No reducing brackets

Technical line drawing of a mechanical assembly with mounting brackets and a central bracket (no text or symbols)

180-DEGREE HINGE KIT
A-T-O

Black metal bracket with two screws and a circular hole (no text or symbols)

Optional hinging for steel solid, window or disconnect doors. The 180-degree hinges provide a door opening up to 260-degrees on single-bay enclosures. These hinges mount to the door flange and have a low-profile appearance. The kit includes three hinges with textured black polyester powder paint and all necessary mounting hardware. Cannot be used on PROLINE™ FLOTEK™ or CONNECTEK™ front doors.

BULLETIN: P20

Catalog Number	Description
PH180	180-Degree Hinge Kit

door-mount Fan tray and bLoCking pLate

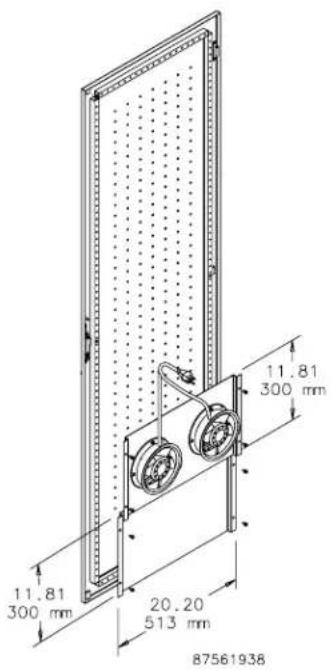

The Door-Mount Fan Tray is used with perforated PROLINE™ doors to blow air through the perforations. Mounts to door bars. Use Blocking Plates to prevent short cycling of fans. Includes two 6-in. fans and mounting plate, two finger guards, power cord and mounting hardware.

The Blocking Plate is used with the Door-Mount Fan Tray to direct airflow and prevent short cycling. Multiple plates can be used to fill door opening and achieve desired airflow. Mounts to door bars. Includes one blocking plate and mounting hardware.

BULLETIN: DPY, DTHRM

Catalog Number	Description	Fits Door Widthmm/in.	Voltage
PF06021DR6 Door-Mount Fan Tray 600 115 VAC

PBLNKDR6 Blocking Plate 600 —

11.81 300 mm 20.20 513 mm 11.81 300 mm 87561938

FLuSh keyLoCking trigger LatCh with random key CodeS

Black metal door handle with a key inserted, no visible text or symbols

Flush design. Over 100 random key codes with available master. Black textured polyester powder paint finish. Includes two trigger latches with matching key code and two keys. Designed to replace locking trigger latch. For use on PROLINE™ Voice/Data and Colocation doors only.

BULLETIN: DPC

Catalog Number Description

PTKLDC Flush keylocking Trigger Latch with random key codes

Side Cover LoCk

A-T-O

Fits in pre-punched hole to secure DataCom solid side from unauthorized entry.

BULLETIN: DPC

Catalog Number	Description	Key Code
PSCLO Side Cover Lock 2233

FLUSH SWING HANDLES

Four black plastic cylindrical devices with mounting holes, shown from a close-up inset (no text or symbols visible)

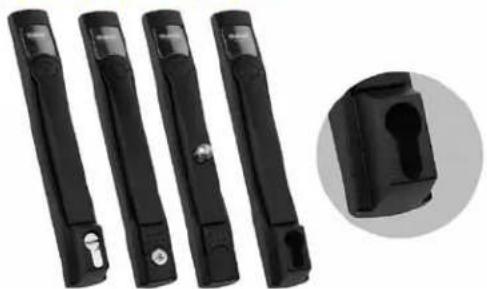

Flush Handles are optional for any solid, window or disconnect door that includes 3-point latching, except Voice/Data and Colocation cabinets. They are ergonomically designed to provide style and function in a low profile. The handle is die-cast zinc finished with RAL 9005 textured black polyester powder paint. Provision to add your logo is included. Handle can be installed to rotate either clockwise or counterclockwise.

Handle with Screwdriver Defeater

Enclosure security is provided by the integrated tool-to-open feature that releases the handle when rotated, allowing access to the enclosure.

Handle with Keylock

Keylock feature locks the handle to provide security for the enclosure. When the key is in the unlocked position, the pushbutton releases the handle to provide access to the enclosure. Two keys are furnished.

Handle for Padlock

Padlocking Handle provides security when using up to a 5/16 padlock. Pushbutton releases the handle to provide access to the enclosure.

Handle with DIN Profile Provision

DIN Flush Handle is provided with the option to add your DIN profile lock or to accept Hoffman DIN profile lock PDKL (order separately).

BULLETIN: P20

Catalog Number Description

PFHDF Flush Handle with Defeater

PFHKBL Keylocking Flush Handle

PFHPBL Padlocking Flush Handle

PFHDBL DIN Profile Flush Handle

DIN LOCK INSERTS (FOR DIN PROFILE HANDLE ONLY)

Product display of various mechanical components including a black plastic case and multiple small accessories (no visible text or labels)

The DIN profile keylock provides keylocking security for the Flush Swing Handle with DIN provision. Includes profile lock and two keys. Order one profile lock for each handle.

DIN Lock Kit for PROLINE™ DataCom doors includes two locks keyed alike with one of 100 different key codes and two keys (master key available).

All DIN Lock Inserts are zinc die-cast.

BULLETIN: DPY, P20

Catalog Number Description

PKOSLFH Slotted insert profile cylinder

PKOTM7FH 7-mm triangle insert profile cylinder

PKOSM7FH 7-mm square insert profile cylinder

PKOTM8FH 8-mm triangle insert profile cylinder

PKODBK3FH Double-bit 3-mm insert profile cylinder

PDKL DIN keylock, 2 keys included, key code 333

PDKLRKPR DIN Lock Kit for PROLINE DataCom doors

DIN profile inserts are used with DIN flush swing handles. One key is included (except for slotted insert).

L HANDLE

Black handheld device with a circular button labeled 'P' (no visible text or symbols on the device itself)

The L Handle is a stylish option for any solid, window or disconnect door, except Voice/Data or Colocation cabinets. It can be installed to rotate either clockwise or counterclockwise. Handle comes with a bezel, includes keylocking provision and is finished with RAL 9005 textured black polyester powder paint. Two keys are included. The bezel permits your logo to be inserted.

BULLETIN: P20

Catalog Number Description

PLHK

L Handle with 2 keys and logo slot, key code 333

pagoda exhauSt vents

Exterior view of a metallic industrial fan or vent with internal blades and mounting holes (no text or symbols visible)

Pagoda Exhaust Vents can be field-installed on any PROLINE™ solid top. An axial fan and finger guard are mounted in a housing. A drip-proof raised cover is removable from inside the enclosure. Gasket and mounting hardware are included. Vent housing and raised cover are 14 gauge steel finished with RAL 7035 textured light-gray polyester powder paint.

BULLETIN: P20

Catalog Number	Description	Volts
PPT1 Leadwires 115
PPT1C Power cord 115
PPT2 Leadwires 230

62 mm 2.45 37 mm 1.45 8 mm .30 87798490

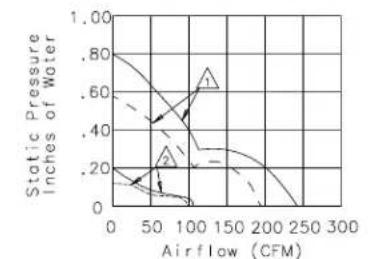

Performance Curve: 6 in. Fans

(Curves represent fan performance only.)
① FNPG, FN, FN2 models 60 Hz ② FNGQ models 50 Hz
87924791

high-perFormanCe pagoda exhauSt vent

3D rendering of a square electronic component with a white top and gray base, labeled 'AFO' in the top-left corner (no other text or symbols)

Vents fit on standard PROLINE™ top with vent cutout or can be field-installed on any PROLINE solid top. The Pagoda Vent features an integral centrifugal blower mounted in a housing that includes a drip-proof removable hood, wire mesh finger guard, perimeter gasket and terminal block. Electromagnetic-compatible (EMC) Pagoda Vents include a conductive screen, conductive gasket, line filter and 6-ft. power cord with stripped leads. Pagoda Vent housing and hood are rugged 16 gauge steel finished with RAL 7035 textured light-gray polyester powder paint. EMC vents are finished with paint over plated surfaces. Installation hardware is included.

BULLETIN: P20, P20EM

394 mm 15.50 394 mm 15.50 109 mm 4.29 26 mm 1.02 22 mm .85 87798492

87798491

Catalog Number	Description Voltage Full Load Amps			Use With
PPTHP1 Leadwires 115 1.7 Top with high-performance pagoda vent cutout
PPTHP1C Power cord 115 1.7 Top with high-performance pagoda vent cutout
PPTHP1EMC	Power cord	115	1.7	Top with high-performance pagoda vent cutout on EMC enclosures
PPTHP2 Leadwires 230 .9 Top with high-performance pagoda vent cutout
PPTHP2EMC	Power cord	230	.9	Top with high-performance pagoda vent cutout

MOBILE BASE

Black plastic tray with a rectangular opening, no visible text or symbols

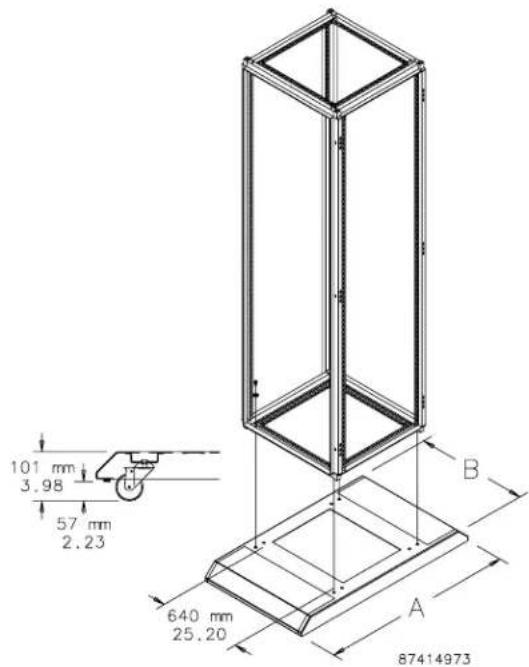

Mobile Bases fit 600- and 800-mm wide frames. They extend beyond the front and rear of 600-mm cabinets to provide enhanced stability. Provides front extension only on 800-mm cabinets. Constructed of steel finished in RAL 9005 textured black polyester powder paint. The base fastens to the underside of the frame and provides integral mounting of furnished casters. The front and rear top surfaces of the base are trimmed with black rubber mats 3-mm thick.

Casters and mounting hardware are furnished.

Four non-locking casters provide a maximum load-bearing capacity of 1000 lb. (453.6 kg).

Exercise care when using casters to move the cabinet. Avoid tipping and damage to the cabinet and its contents by slowly moving the cabinet on its casters across smooth, flat flooring. Avoid:

• large cracks
  • floor displacement
• seams
• gravel
• any other obstruction

Never use casters while transporting a cabinet by truck on roadways.

Contact Hoffman if further information is needed.

BULLETIN: P20

Catalog Number	AxB in. AxB mm	Fits Frame B x C (mm)
PMB66 40.91 x 23.62	1039 x 600 600 x 500 and 600 x 600
PMB69 52.72 x 23.62	1339 x 600 600 x 800 and 600 x 900
PMB86 40.91 x 31.50	1039 x 800 800 x 500 and 800 x 600
PMB89 52.72 x 31.50	1339 x 800 800 x 600 and 800 x 900

101 mm 3.98 57 mm 2.23 640 mm 25.20 B A 87414973

MOBILE BASE LEVELING KIT

Levelers mount in the outer corners of the Mobile Base, providing load-bearing capacity of 1000 lb. (453.6 kg).

BULLETIN: P20

Catalog Number	Description	Use with
PMBLM12 Mobile Base Leveling Kit Mobile Base

Hoffman®
