Product Type	Kitchen Sink
Brand	Rangemaster
Model	KUB40
Material	Stainless Steel
Installation Type	Topmount / Drop-in
Number of Bowls	1
Dimensions (L x W x D)	560 mm x 450 mm x 200 mm
Cut-out Dimensions (L x W)	540 mm x 430 mm
Weight	6.5 kg
Finish	Satin / Brushed
Drain Hole Diameter	90 mm
Overflow	Yes
Includes Drainer	No
Soundproofing Pads	Included
Cleaning Instructions	Wipe with mild detergent and soft cloth; avoid abrasive cleaners
Maintenance	Rinse after use; dry to prevent water spots
Safety Notes	Do not use harsh chemicals or steel wool; ensure proper support during installation
Spare Parts Available	Yes – strainer, basket, clips
Warranty	2 years limited
Compliance	CE marked

Frequently Asked Questions - KUB40 RANGEMASTER

How do I install the Rangemaster KUB40 kitchen sink?

The sink is designed for topmount installation. Cut a hole in your countertop according to the template provided (540mm x 430mm). Apply a bead of silicone sealant around the cut-out edge, lower the sink into place, and secure with the provided clips. Ensure the sink is level and allow sealant to cure before use.

What is the best way to clean my KUB40 sink?

Clean with a mild dish soap and a soft sponge or cloth. Avoid abrasive cleaners, steel wool, or bleach as they can damage the stainless steel finish. Rinse thoroughly and dry with a soft towel to prevent water spots.

Can the Rangemaster KUB40 be installed undermount?

No, this model is specifically designed for topmount/drop-in installation only. Undermount installation is not supported and may void the warranty.

Does the sink come with a strainer?

Yes, a stainless steel strainer basket is included with the sink. It fits the 90mm drain hole. Replacement strainers are available as spare parts.

What tools do I need for installation?

You will need a jigsaw or router to cut the countertop, silicone sealant, screwdriver for the clips, a measuring tape, and safety gloves. A hole saw may be needed for the faucet hole if not pre-drilled.

How do I remove scratches from my stainless steel sink?

Minor scratches can be minimized using a stainless steel polish or a fine-grit abrasive pad (e.g., 800 grit) followed by gentle rubbing along the grain. For deep scratches, contact a professional or consider a sink repair kit.

Is the KUB40 sink compatible with garbage disposals?

The sink has a standard 90mm drain outlet, which is compatible with most garbage disposal units. However, ensure the disposal does not exceed the weight capacity of the sink (6.5 kg). Consult the disposal manual for specific mounting requirements.

Does the sink have an overflow?

Yes, the KUB40 features an internal overflow channel to prevent accidental spills. The overflow outlet is located near the top rim.

Can I use harsh chemicals like bleach in the sink?

No, avoid bleach, chlorine, and other abrasive chemicals as they can cause pitting or discoloration of the stainless steel. Stick to mild detergents and rinse immediately after any contact with harsh substances.

Where can I find spare parts for my Rangemaster KUB40?

Spare parts such as strainers, basket strainers, mounting clips, and overflow cover plates are available from Rangemaster's official website or authorized dealers. You can also contact customer service with your model number.

USER MANUAL KUB40 RANGEMASTER

STAINLESS STEEL UNDERMOUNT BOWLS

Installation Instructions & Aftercare Information

RANGEMaster sinks & taps

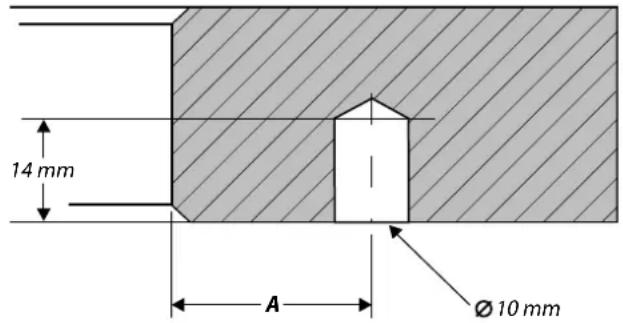

Fig.1

Dimension A: 33 mm, 27 mm or 22 mm depending on the bowl – see the templates in this booklet for this dimension.

Installer

Please leave this leaflet with the user, as it contains valuable after care advice.

Notes

Undermount sinks should only be fixed to granite worktops by a specialist installer.
⚠️ Please beware of sharp metal edges prior to and during installation.
During installation, take care to protect the bowl from scuffs and scratches.
Avoid straining and overtightening of all plumbing fixtures connected to the bowl.
We recommend that the worktop opening is sealed using waterproof sealant or a similar material.

Installation

Preparing the Worktop

1. Decide on the position that your bowl (or bowls) is to be fitted. Check that the bowl will not foul on the cabinet below.
2. Place the sink upside down on the worktop. Position the sink on the worktop as required. Make sure the cabinet framework will clear all parts of the bowl. Using a soft, sharp pencil draw around the bowl as accurately as possible. Remove the bowl.

Alternatively, you can use a bowl template. For details go to www.rangemaster.co.uk.

1. Referring to the templates as shown in this booklet, draw another line – as indicate by 'A' (Fig.1) inside the sink top outline – this is the cutting line for the opening.
2. Drill as large a hole as possible inside the cutting line. Using a padsaw, jigsaw or similar, cut out the opening up to the cutting line.
3. On the underside of the worktop, mark the positions for the threaded inserts – see the templates in this booklet for the correct dimensions or go to www.rangemaster.co.uk for template details.
4. Drill the 10 mm diameter holes (Fig.1) for the threaded inserts (refer to the worksurface supplier for drilling advice and the drill bit diameter required).
5. Glue the threaded fixing inserts into the drilled holes.

Applying the Sealant

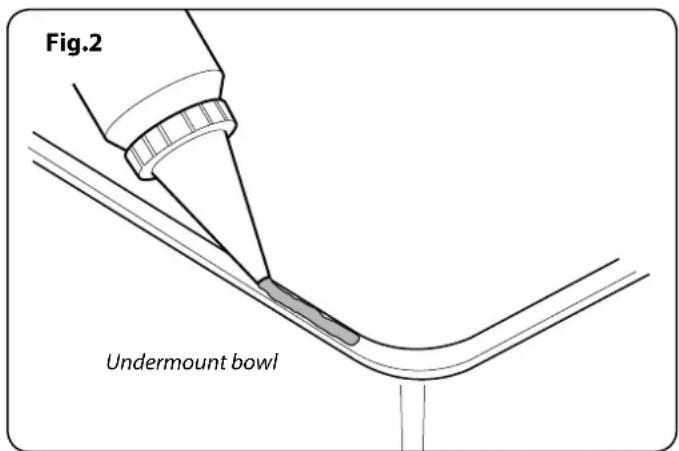

Apply silicone sealant (not supplied) to the bowl rim (Fig.2).

Fitting the Bowl

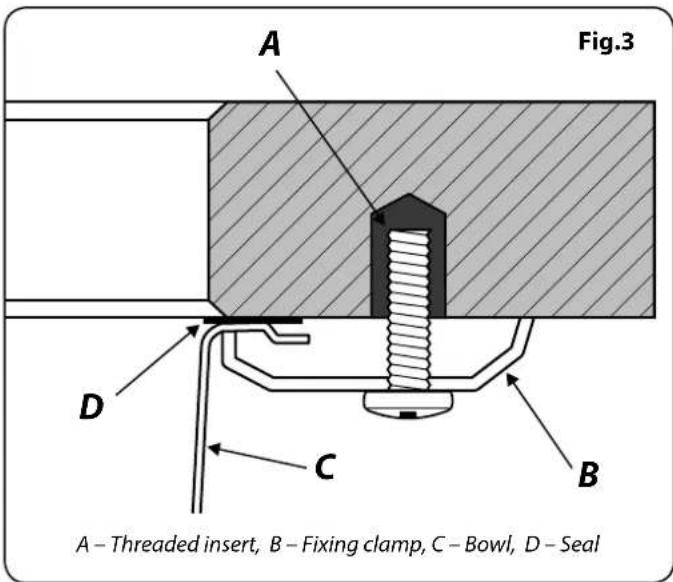

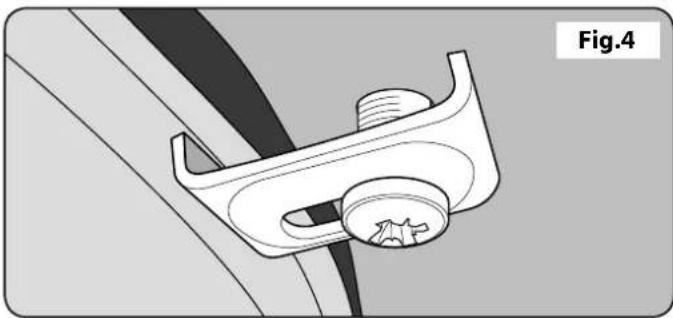

Position the bowl to the worktop. Using the fixing clamps and screws (Fig.3), secure the bowl to the worktop (Fig.4).

DO NOT tighten fully at first attempt.

DO NOT overtighten the clamps.

Remove any surplus sealing material or wipe away any excess sealant.

Note: Some bowls may require additional support (this should be supplied and fitted by your installer).

Fitting the Square Overflow Pipework (Kube & Quadbowl models)

The overflow pipework for the square style underbowls may require modifying to fit.

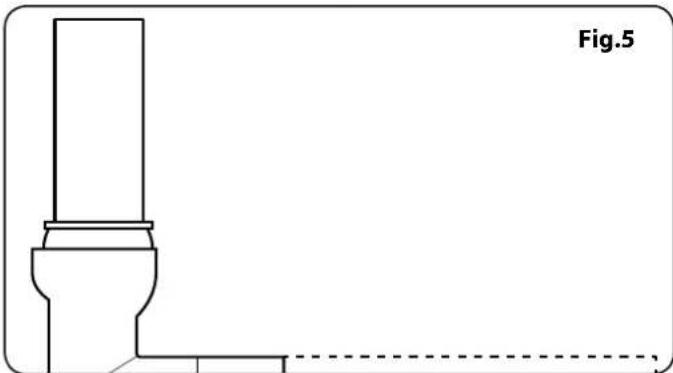

Fig.5 shows the suggested areas of the overflow pipework that may need to be cut. Measure the pipework, and cut the areas show as required. Fit together as normal.

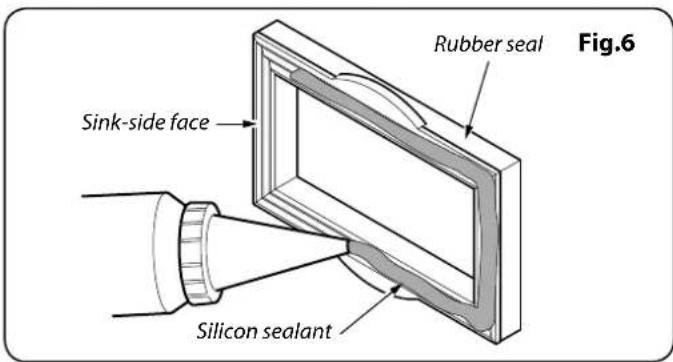

To ensure a watertight seal, apply silicon sealant onto the sink-side face of the rubber seal before fitting it to the sink (Fig.6).

Mechanical component diagram showing a clamp or bracket assembly (no text or symbols)

Technical line drawing of a corner architectural detail (no text or symbols)

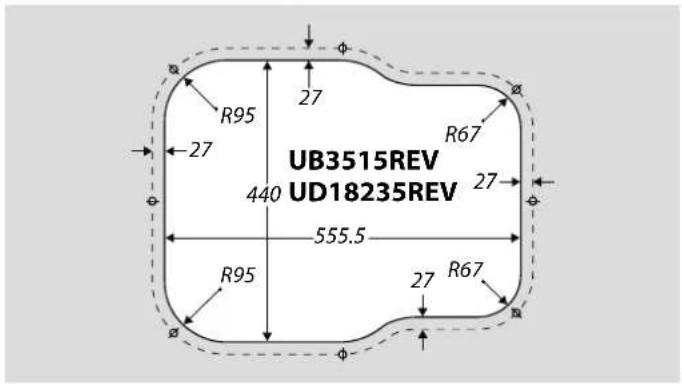

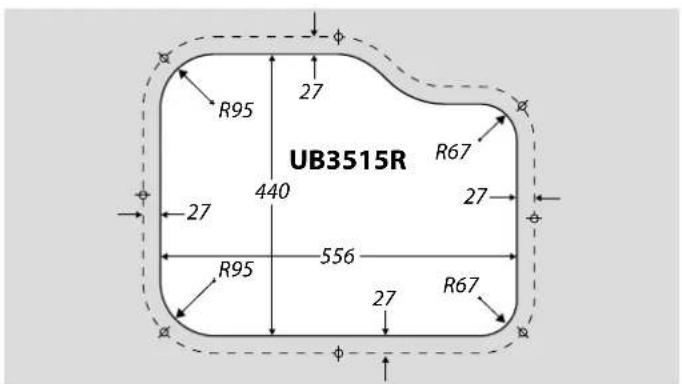

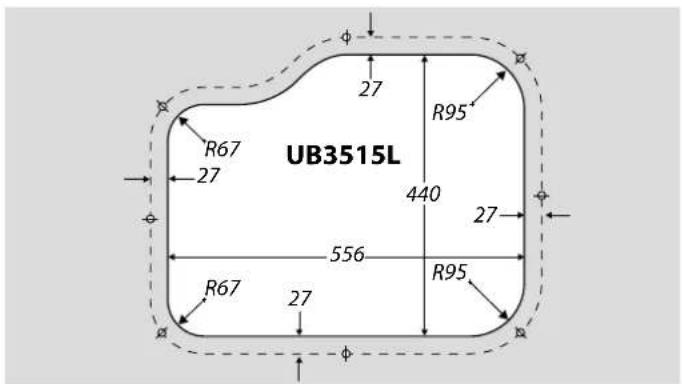

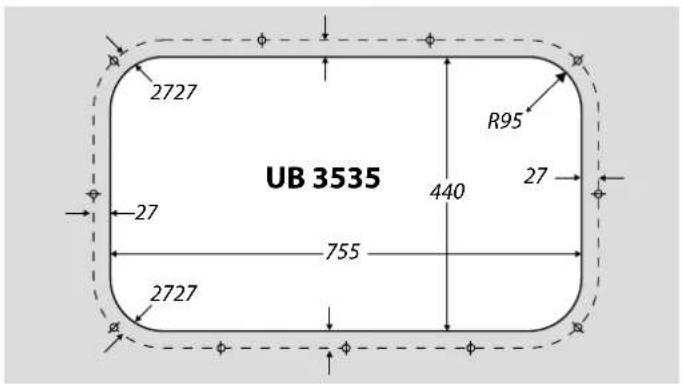

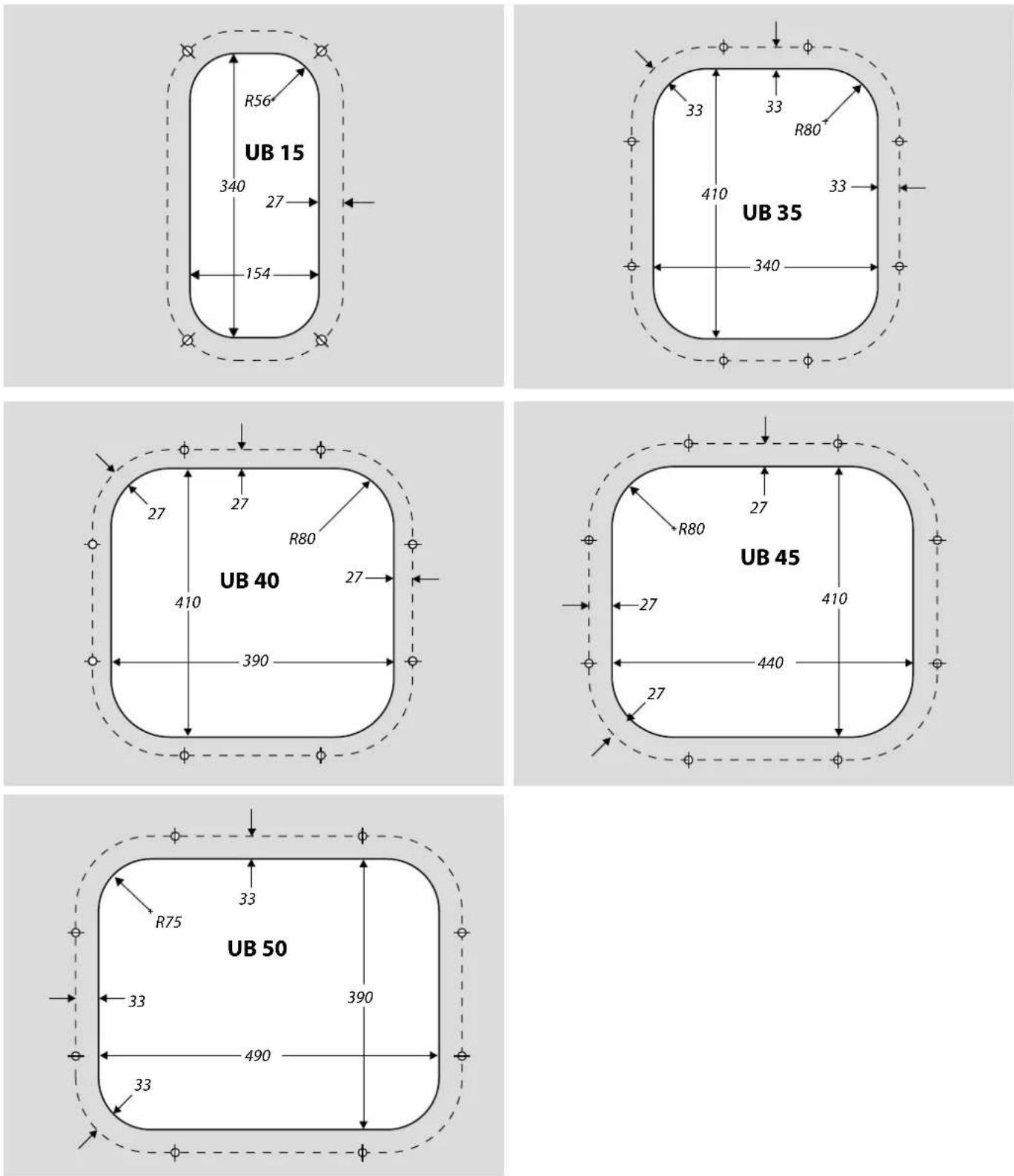

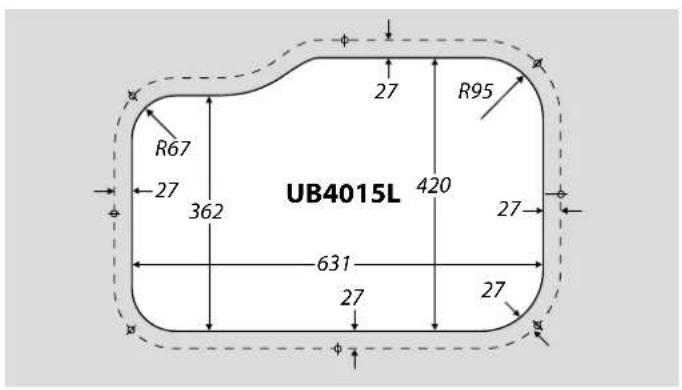

Atlantic Single Bowl Templates

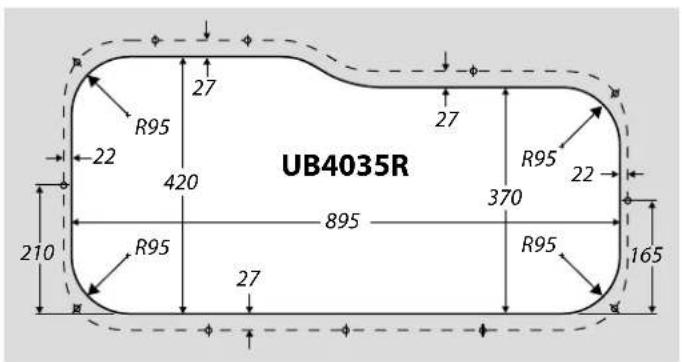

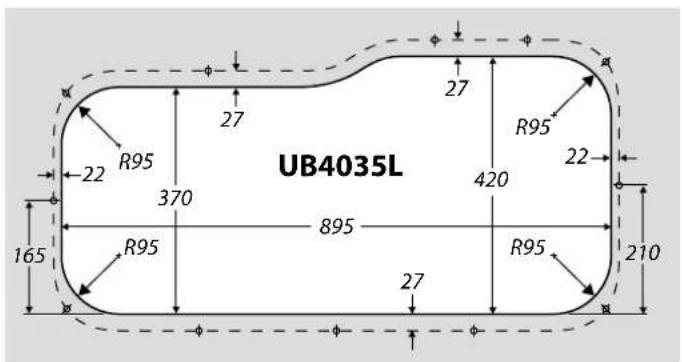

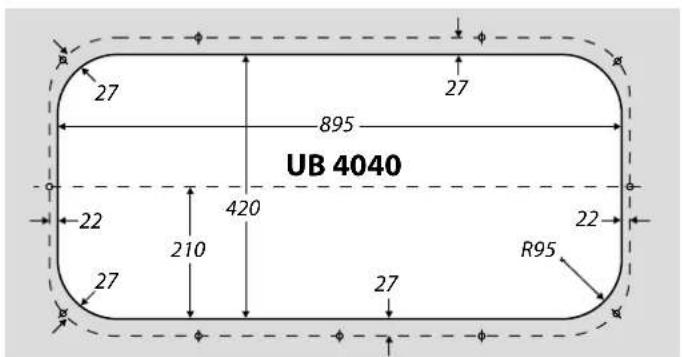

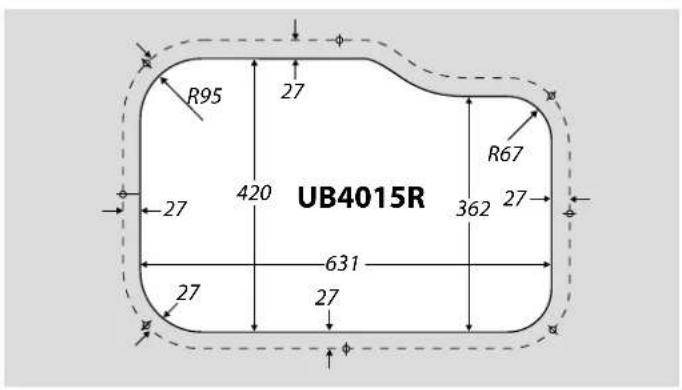

Atlantic Double Bowl Templates

All dimensions in mm

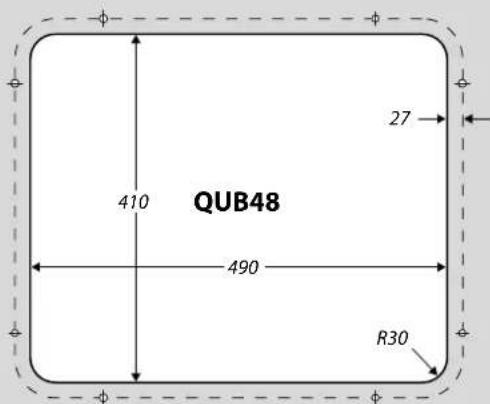

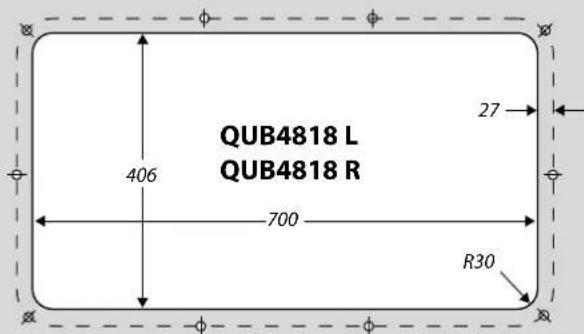

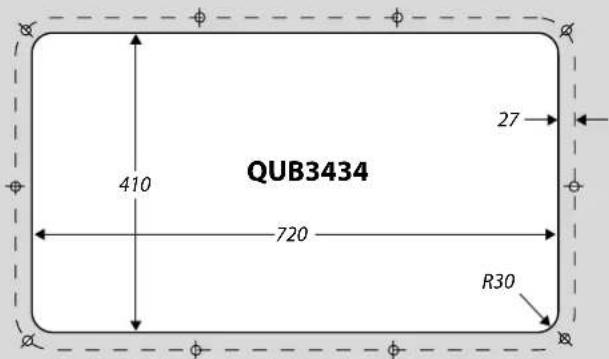

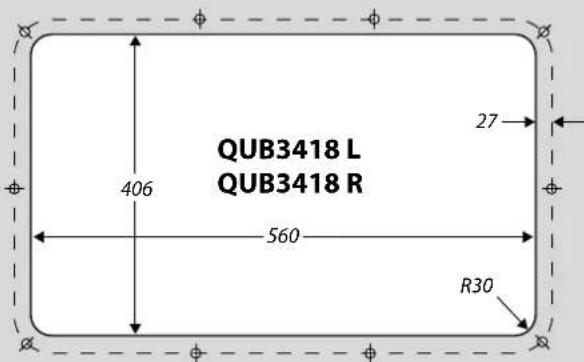

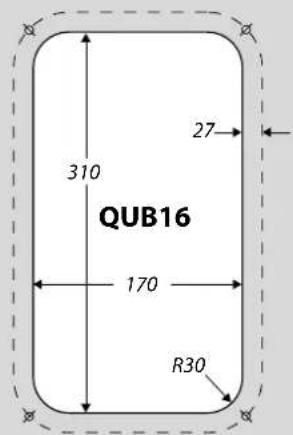

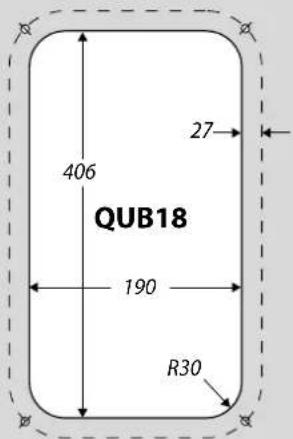

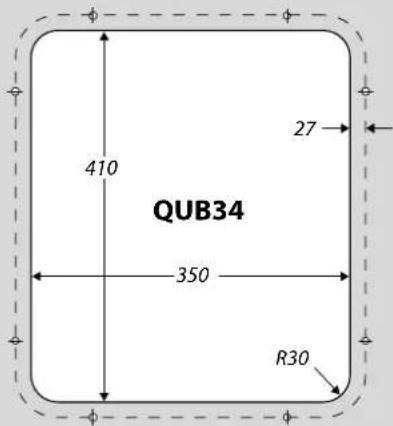

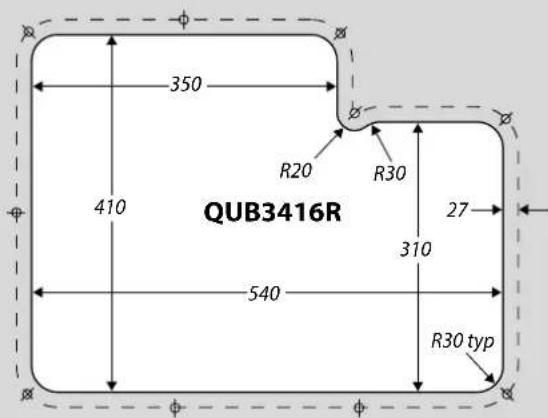

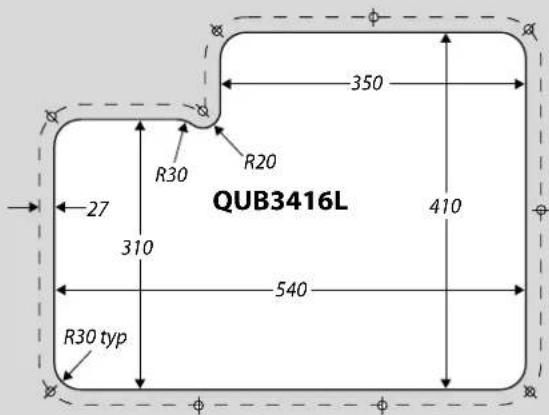

Quadbowl Templates

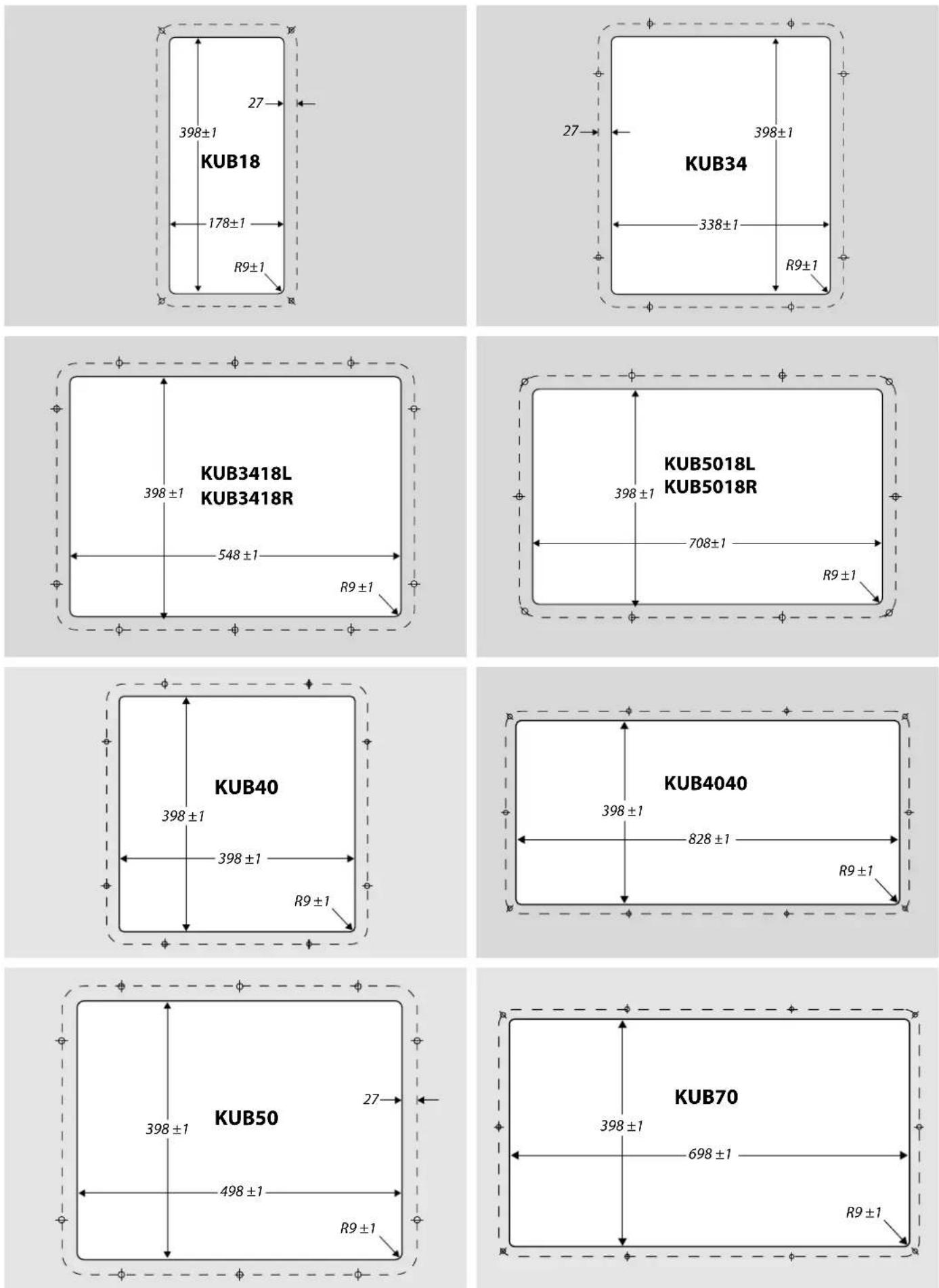

Kube Templates

All dimensions in mm

Day-to-day Care

Routine cleaning of your stainless steel bowl is easy if the following simple procedure is followed:

After use wipe the bowl with a soft damp soapy cloth and rinse with clean water. In hard water areas, an application of proprietary cream cleaner or stainless steel sink cleaner will avoid any build-up of a dull film of waterborne deposits.

Although stainless steel is an extremely durable material and will withstand a great deal of hard use, it can be scratched by hard or sharp objects. If the surfaces are to be kept in a blemish free condition reasonable care should be taken when handling such items.

Cleaning

Always use a soft cloth. The use of coarse grit scouring powders or soap-filled wire wool cleaning pads is not recommended, since both will mark the surface of the bowl. Wire wool pads can leave tiny fragments of wire embedded in the surface and these can rust and leave small brown rust stains. Vigorous rubbing with a soft cloth with a proprietary cream cleaner or stainless steel sink cleaner will remove these stains.

Always remove wet cleaning aids (cloths, containers, etc.) from the bowl surface after use to avoid the formation of water marks and rust stains.

Discolouration and Heavy Staining

In most cases, staining of stainless steel is due to something being deposited on the steel rather than an attack on the material itself. The most common cause of staining is the build-up of a thin film of waterborne deposits on the bowl surface, often first seen as a rainbow effect. The build-up of such a film can be avoided by drying the surface of the bowl after use.

Should such a film appear, apply proprietary cream cleaner or stainless steel sink cleaner neat and rub vigorously with a damp cloth around the bowl. After cleaning, rinse thoroughly with clean water and dry.

Wire wool products and ferrous water supply pipes can leave minute ferrous particles adhered to the bowl surface. Since stainless steel under normal conditions does not rust, these particles can cause the appearance of small brown rust stains. These stains can be removed using the procedure described above.

Caution!

Certain household products contain substances that will attack the stainless steel surface. They are:

1. Bleaches

Most common domestic bleaches contain Chlorine in the form of a hypochlorite. Chlorine attacks the microscopic Chromium Oxide film on the surface and can cause pitting of the surface.

Bleaches should always be used in the prescribed strength specified by the manufacturers. Undiluted bleaches can cause pitting and staining of the surface and should be immediately rinsed off with plenty of clean water.

All cleaning agents containing hypochlorites are unsuitable for use with stainless steel and, even highly diluted, can cause pitting under certain circumstances. For this reason we strongly recommend that the bowl is not used for soaking clothes or cleaning clothes in hypochlorite solutions for long periods.

2. Silver Dip Cleaners

These are particularly harmful since they contain strong acids that can cause discolouration and pitting. The first sign of this is an iridescent rainbow stain that turns an etched dull grey colour.

Should any silver dip cleaner come into contact with the surface of the bowl it should be immediately rinsed off with plenty of clean water.

3. Corrosive Foodstuffs

Fruit juices, damp salt, vinegar, ready made mustards, pickle and mayonnaise can cause pitting and corrosion if left in contact with the stainless steel surface for long periods.

4. Acids

Sulphuric, Hydrochloric and other strong acids will cause pitting corrosion, as will photographic developing liquids. If contact occurs immediately wash off with plenty of clean water.

25 Year Guarantee

We guarantee to replace any stainless steel bowl that breaks due to material or manufacturing defects within 25 years from the date of purchase.

The guarantee does not cover normal wear and tear occurring through use of the product.

For the guarantee to apply the owner must follow the use, care and cleaning instructions provided.

Accessories and waste fittings are not included in this guarantee.

CE

RANGEmaster

Meadow Lane, Long Eaton,

Nottingham, NG10 2GD, England

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

www.rangemaster.co.uk

13 / 14 (QUB18, QUB3418, QUB4818, KUB5018)

EN 13310:2003

Kitchen sink made of: Stainless Steel

Cleanability: Pass

Load resistance: NPD / N/A

Durability: Pass
