1910-3-002-01 - Uncategorized Kendall Howard - Free user manual and instructions

Product Type	Server Rack Enclosure
Brand	Kendall Howard
Model	1910-3-002-01
Form Factor	19-inch rackmount, 42U height
External Dimensions (H x W x D)	78.5 in x 24 in x 42 in (1994 mm x 610 mm x 1067 mm)
Internal Usable Depth	38 inches (965 mm)
Weight Capacity (Static)	3000 lbs (1361 kg)
Weight	225 lbs (102 kg)
Material	Cold-rolled steel, powder-coated finish
Front Door	Perforated steel door with lock, reversible hinge
Rear Door	Split rear doors with lock
Side Panels	Removable, lockable side panels
Ventilation	Top fan panel (optional fans), vented front/rear doors
Cable Management	Top cable entry, brush strips, and cable routing rings
Mounting Rails	Adjustable depth, square hole pattern, supports #12-24 and 10-32 screws
Grounding	Ground lug kit included, front and rear grounding points
Maintenance	Clean with a damp cloth and mild detergent; avoid abrasive cleaners
Safety	Ensure proper grounding; do not exceed weight rating; use anti-tip hardware
Spare Parts & Repairability	Replacement doors, side panels, shelves, fan kits available; contact Kendall Howard support
Compliance	EIA-310-E, RoHS

Frequently Asked Questions - 1910-3-002-01 Kendall Howard

What is the weight capacity of the Kendall Howard 1910-3-002-01 rack?

The static weight capacity is 3000 lbs (1361 kg) when properly installed on a level surface and anchored.

What are the external dimensions of this server rack?

The external dimensions are 78.5 inches high, 24 inches wide, and 42 inches deep (1994 mm x 610 mm x 1067 mm).

What type of mounting rails are included?

The rack includes adjustable depth mounting rails with square hole pattern, compatible with #12-24 and 10-32 cage nuts.

Is the front door reversible?

Yes, the front door has a reversible hinge, allowing it to open from the left or right side.

Does the rack come with fans?

The rack has a top fan panel ready for optional fan trays; fans are not included but can be purchased separately.

How do I ground the rack?

A ground lug kit is included with front and rear grounding points. Connect a bonding wire from the rack to a verified earth ground per local electrical codes.

Can I mount switches or patch panels in addition to servers?

Yes, the 19-inch square hole rails accept standard EIA-310-E equipment. Use appropriate cage nuts and screws.

What is the warranty on this Kendall Howard rack?

Kendall Howard offers a limited lifetime warranty against defects in materials and workmanship. See the manual for details.

How do I clean and maintain the rack?

Clean with a soft, damp cloth and mild detergent. Do not use abrasive cleaners. Regularly check door locks and hinge tension.

Can I purchase replacement parts like side panels or doors?

Yes, replacement parts are available through Kendall Howard customer service. Common spares include side panels, doors, and fan trays.

USER MANUAL 1910-3-002-01 Kendall Howard

Installation Instructions

Part Numbers: 1910-3-002-01, 1910-3-003-01 & 1910-3-004-01

Technical line drawing of a server rack with multiple ports and ventilation slots (no text or labels)

For Your Safety

Read and understand the entire manual before installing

TABLE OF CONTENTS

Support 2

Disclaimer 2

Tools Needed: 3

Component Identification....3

Installation Instructions 4

Installation Instructions Continued 5

Warranty 6

Support

Support is available through the following methods:

By Phone from 8:00 AM to 5:00 PM CST. 651.213.1333

By Email [e-mail]

By Mail 10152 Liberty Lane, Chisago City, MN 55013

By Web www.kendallhoward.com

Disclaimer

DISCLAIMER: Kendall Howard LLC. endeavors to make this manual accurate and complete. However, Kendall Howard LLC makes no representations or warranties of any kind, expressed or implied, about whether the use of products contained herein would infringe any rights or the correctness, accuracy, or reliability of the information contained herein or that said information covers all details, conditions, or variations. The information herein does not provide for every possible contingency in connection with the installation or use of the product(s). The information contained in this document is subject to change without notice or obligation. Kendall Howard LLC assumes no responsibility for the accuracy, completeness, or reliability of the information contained in this document. Any reliance placed on the information is therefore strictly at your own risk.

Tools Needed:

Phillips Screwdriver

Component Identification

What is in the box:
Which version did you purchase?
2-Post Rackmount Keyboard Tray (Part Number: 1910-3-002-01)	QTY 1 2-Post Rackmount Keyboard Tray Assembly
4-Post Rackmount Keyboard Tray (Part Number: 1910-3-003-01)	QTY 10 10-32 Cross Head Screws	QTY 2 Extension L Brackets	QTY 2 Extension Rails	QTY 1 2-Post Rackmount Keyboard Tray Assembly
Rackmount Keyboard Tray Extension Kit (Part Number: 1910-3-004-01)	QTY 10 10-32 Cross Head Screws	QTY 2 Extension L Brackets	QTY 2 Extension Rails

Installation Instructions

Step 1:

To install the 4-post keyboard tray and extension kit, pull the keyboard forward to provide more room in the back of the tray. Using the 10-32 screws, secure the L bracket to the keyboard tray as shown. Repeat for the opposite side.

Diagram of a server rack with an inset showing mechanical components (no text or symbols present)

Step 2:

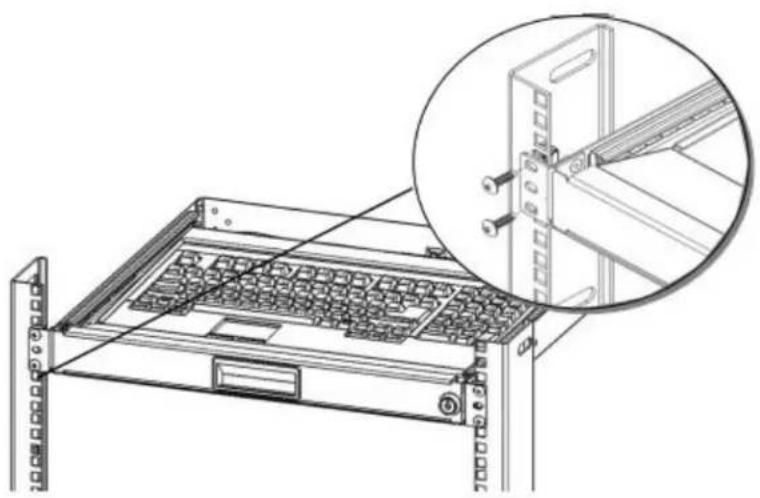

Using rack screws, not included, attach the keyboard tray to the rack. This completes the 2-post keyboard tray install. To install the 4-post keyboard tray, proceed to step 3.

Technical line drawing of a server rack with an inset showing a close-up of the internal structure (no text or symbols)

Installation Instructions Continued

Step 3:

Attach the extension rails to the rear of the rack using rack screws, not included. Please note that the extension rails will slide inside the extension L brackets shown below.

Technical line drawing of a server rack with two magnified insets showing internal components (no text or symbols)

Step 4:

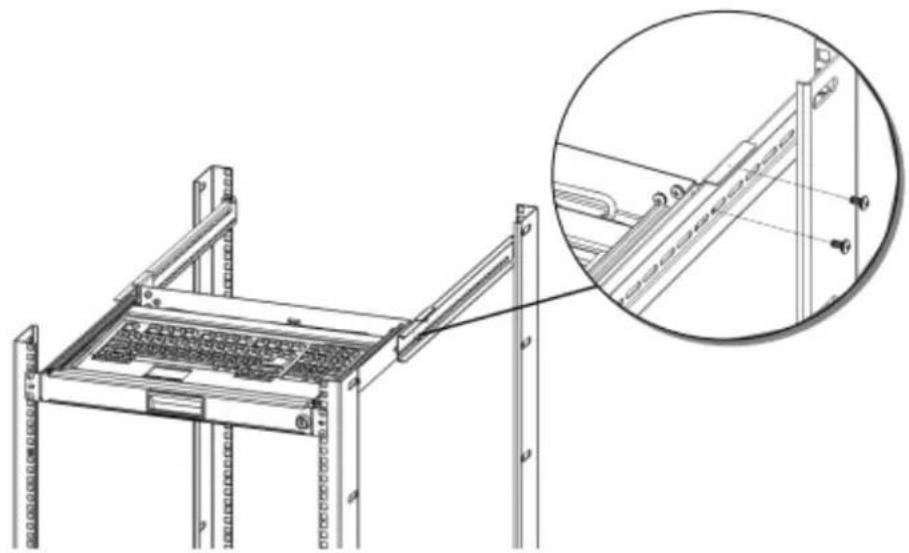

Secure the extension rails to the L brackets using the provide 10-32 screws.

Technical line drawing of a server rack with mounting brackets and a magnified inset showing internal components (no text or symbols)

Warranty

GENERAL: Kendall Howard offers all users of our products the following Limited Warranty against defects in material and workmanship. Please read your warranty carefully. This Warranty sets forth our responsibilities in the unlikely event of a defect and tells you how to obtain resolution.

TERMS OF WARRANTY: Kendall Howard products are warranted to be free of defects in material and workmanship. If any part or portion of the Kendall Howard product fails to conform to the Warranty, Kendall Howard, at its option, will furnish new or factory remanufactured products for repair or replacement of that part.

WARRANTY EXTENDS TO FIRST PURCHASER FOR USE, NON-TRANSFERABLE: This Warranty is extended to the first person, firm, association, or corporation for whom the Kendall Howard product specified herein is originally sold for use in the United States (the "User"). This Warranty is not transferable or assignable without the prior written permission of Kendall Howard.

ASSIGNMENT OF WARRANTIES: Kendall Howard assigns to User any warranties which are made by manufacturers and suppliers of components of the Kendall Howard product and which are assignable, but Kendall Howard makes NO REPRESENTATIONS as to the effectiveness or extent of such warranties, assumes NO RESPONSIBILITY for any matters which may be warranted by such manufacturers or suppliers and extends no coverage under this Warranty to such components.

DRAWINGS, DESCRIPTIONS: Kendall Howard warrants for the period and on the terms of the warranty set forth herein that the Kendall Howard product will conform to the descriptions contained in Kendall Howard final Invoices, orders, proposals (as modified), and other Kendall Howard descriptive documents ("Descriptions"). Kendall Howard does not control the use of any Kendall Howard product. Accordingly, it is understood that the Descriptions are NOT WARRANTIES OF PERFORMANCE and NOT WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE.

WARRANTY CLAIMS PROCEDURE: Within a reasonable time, but in no case to exceed thirty (30) days, after User discovers a defect, User shall contact Kendall Howard. Subject to the limitations specified herein, a Kendall Howard customer service representative will repair or replace the non-conforming Kendall Howard product warranted hereunder, without charge for materials. User will not be charged for labor if performed within thirty (30) days of product purchase. In all other instances, the User will be charged for labor performed at Kendall Howard's then-current rates. Kendall Howard shall assume shipping costs for replacement products and return of the defective product to Kendall Howard. Warranty coverage will be extended only after Kendall Howard inspection determines there is a defect as claimed and shows no signs of treatment or use which would void the coverage of this Warranty.

WARRANTY PERFORMANCE OF COMPONENT MANUFACTURERS: It is Kendall Howard's practice, consistent with its desire to remedy Warranty defects most promptly and effectively possible, to cooperate with and utilize the services of component manufacturers and their authorized representatives in the performance of work to correct defects in Kendall Howard components. Accordingly, Kendall Howard may utilize third parties in the performance of Warranty work, including repair or replacement hereunder, where, in Kendall Howard's opinion, such work can be performed in less time, and with less expense.

ITEMS NOT COVERED BY WARRANTY: THIS WARRANTY DOES NOT COVER DAMAGE OR DEFECT CAUSED BY misuse, improper application, wrong or inadequate electrical current or connection, negligence, inappropriate on-site operating conditions, repair by non- Kendall Howard designated personnel, accident in transit, tampering, alterations, a change in location or operating use, exposure to the elements, Acts of God, theft or installation contrary to Kendall Howard's recommendations or specifications, or in any event if the Kendall Howard serial number has been altered, defaced, or removed. THIS WARRANTY DOES NOT COVER Installation costs, external circuit breaker resetting or maintenance or service items, and further, except as may be specifically provided for herein, does NOT include labor or shipping costs arising from the repair or replacement of the Kendall Howard product, or any part thereof, or charges to remove same from any premises of User. THIS WARRANTY IS VOID if the User alters the product in any way.

LIMITATIONS: THIS WARRANTY IS IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE USER'S SOLE AND EXCLUSIVE REMEDY IS REPAIR OR REPLACEMENT OF THE KENDALL HOWARD PRODUCT AS SET FORTH HEREIN. IF THE USER'S REMEDY IS DEEMED TO FAIL OF ITS ESSENTIAL PURPOSE BY A COURT OF COMPETENT JURISDICTION, KENDALL HOWARD'S RESPONSIBILITY FOR PROPERTY LOSS OR DAMAGE SHALL NOT EXCEED ONE TIMES THE NET PRODUCT PURCHASE PRICE. IN NO EVENT SHALL KENDALL HOWARD ASSUME ANY LIABILITY FOR INDIRECT, SPECIAL, INCIDENTAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER, INCLUDING WITHOUT LIMITATION LOST PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, WHETHER ANY CLAIM IS BASED UPON THEORIES OF CONTRACT, NEGLIGENCE, STRICT LIABILITY, TORT, OR OTHERWISE.

MISCELLANEOUS: NO SALESPERSON, EMPLOYEE, OR AGENT OF KENDALL HOWARD IS AUTHORIZED TO ADD TO OR VARY THE TERMS OF THIS WARRANTY. Warranty terms may be modified, if at all, only in writing signed by a Kendall Howard officer. This Warranty is effective as of the date of Kendall Howard receipt of full payment and supersedes all previous warranties Kendall Howard reserves the right to supplement or change the terms of this Warranty in any subsequent warranty offering to User or others. If any provision of this Warranty should be or becomes invalid and/or unenforceable during the warranty period, the remaining terms and provisions shall continue in full force and effect. User must complete the attached User Information Card and forward it to Kendall Howard within thirty (30) days of receipt of the Kendall Howard product. This Warranty is given in and performance hereunder is to be construed under the laws of the State of Nebraska. This Warranty represents the entire agreement between Kendall Howard and User concerning the subject matter herein and supersedes all prior or contemporaneous oral or written communications, representations, understandings, or agreements relating to this subject.
