Product Type	Other kitchen appliance (e.g., countertop hot plate)
Brand	CaterChef
Model	688105
Dimensions (approx.)	30 x 40 x 20 cm
Weight (approx.)	5 kg
Power Supply	220-240 V, 50/60 Hz, 1500 W
Material	Stainless steel housing, cast iron heating plate
Main Functions	Heating, cooking, simmering
Temperature Range	60°C - 220°C (adjustable thermostat)
Control Type	Thermostatic knob with on/off indicator
Cleaning and Maintenance	Wipe with damp cloth; do not immerse in water
Safety Features	Overheat protection, non-slip feet, cool-touch handles
Spare Parts Availability	Heating element, thermostat, knob, feet (contact service)
Repairability Index	7/10 (modular components)
Warranty	2 years limited warranty
Included Accessories	User manual, power cord
Certifications	CE, RoHS
Usage Location	Indoor commercial kitchen or home use
Noise Level	< 50 dB (quiet operation)
Energy Consumption (standby)	< 1 W

Frequently Asked Questions - 688105 CaterChef

How do I clean the CaterChef 688105?

Unplug the device and allow it to cool completely. Wipe the exterior and heating plate with a damp cloth. Do not use abrasive cleaners or immerse in water.

What is the maximum temperature?

The thermostat can be set up to 220°C (428°F). Always use the knob to adjust gradually.

Can I use this appliance on a glass stove?

No, place it on a heat-resistant, stable surface such as stainless steel countertop. The feet are non-slip but may scratch delicate surfaces.

What does the overheat protection do?

If the internal temperature exceeds safe limits, the device will automatically shut off to prevent damage. Reset by unplugging for 10 minutes.

Is the heating plate removable?

No, the heating plate is fixed. For stubborn residue, use a plastic scraper after cooling.

How do I adjust the temperature?

Turn the knob clockwise to increase heat, counterclockwise to decrease. The indicator light will cycle on and off as the temperature stabilizes.

What is the power consumption?

The maximum power is 1500 W. Use a dedicated outlet to avoid circuit overload.

How long is the warranty?

CaterChef offers a 2-year limited warranty against manufacturing defects. Proof of purchase is required.

Can I use metal utensils on the heating plate?

Avoid metal utensils to prevent scratching the non-stick coating (if present). Use silicone or wooden tools instead.

Where can I find spare parts?

Contact CaterChef customer service or authorized distributors. Common parts include heating element, thermostat, and knob.

USER MANUAL 688105 CaterChef

MULTIFUNCTIONEEL KOOKAPPARAAT MULTICOOKER

Modelnr.: *688.105

Exterior view of a CaterChef professional supply electric oven with mesh entrance and control panel (no text or symbols on main body)

Before starting up, please read this manual carefully in order to ensure the correct and safe installation and usage. Damage caused by not following the instructions of this manual will always invalidates the warranty. CaterChef would like to emphasize that this instruction manual needs to be readed carefully before usage and should be stored for later use.

TECNICAL SPECIFICATIONS:

MODEL	DIMENSIONS (CM)	VOLTAGE (V)	HERTZ (HZ)	POWER (W)
688.105	29 × 37 × 35(H)	220-240 V 50-60 Hz		2600

For more information we would like to ask you to go to our website www.emga.com.

You could for example search on item nr. and go to downloads.

Here, you will be able to find more information like the exploded views and the spare part list.

TYPE PLATE

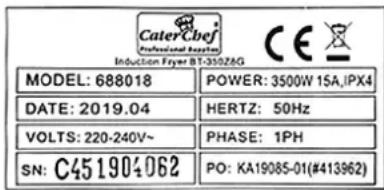

The type plate (the picture is an example) is located on the back of the device. You are requested not to remove it.

The type plate can for example be used to determine, when the item was purchased (view PO) and from which production line (view SN) it originates. This information may be essential with regard to warranty.

It also contains important information such as the voltage and power

supply which determines the ability to connect the device safe.

TRANSPORT AND STORAGE:

As long as the products are packed, please make sure you never place them upside down.

This could damage the appliance. During transport, the product should be placed carefully.

Make sure you prevent any drastic vibration during transport. You should never place or store this product outside or in open air for a longer period of time than a few hours

(not even packed). It should be stored in a well-ventilated warehouse without corrosive

gasses. When, in case of an emergency, you need to store them temporarily outside, you should take measures to protect them from rain or moisture.

SAFETY PRECAUTIONS AND USAGE ENVIRONMENT:

1. Remove all packaging material and any protective film from the device.
2. This product should be placed in a balanced and well ventilated spot and its left and right sides should be free from obstacles for more than 20cm. It's back-side should be free from the obstacles (like a wall etc.) for more than 20cm.
3. Do not place the appliance on a carpet, a tea towel, tablecloth (vinyl) or another surface that cannot withstand high temperatures. This could cause fire hazard.
4. During operation, do not place any stuff in front of the appliance to make sure it could be operated at any time needed.
5. Never plug the power cord into an extension cord or wall outlet to which multiple devices are connected.
6. Never put the plug in the socket with wet hands.
7. The power pressure of this equipment should conform to the supply voltage of this product.
8. The user should install the suitable power switch, fuse and leakage-protector near to the equipment.
9. Before usage, this equipment must be connected (safe) to a grounded socket.
10. Ensure whether all the connections of all the electric elements of the product are firm or not, and whether the safety grounding is reliable or not.
11. When disconnecting the device from the power, never pull from the cord, only the plug.
12. When you change the power cable, you should select the same model cable and: it is only allowed to let a professional electrician do this.

13. If you need to (re)connect, repair or maintain the appliance, do not do this by yourself. This is forbidden. This must always be done by a professional electrician.

14. If there are any abnormal phenomenons during usage, you must stop the appliance directly.
    After checking you can continue to use it as long as it is safe. Do not repair the appliance by yourself. This should always been done by a technical professional.

15. Never use other parts than the ones which are from CaterChef.
    CaterChef is not taking any responsibility for damage caused by the use of other (non-related) parts.

DEGREASE:

Before operating for the first time, clean the device with warm water, a wet cloth and a small amount of detergent. Do not rinse the appliance under the tap, this could cause serious damage to the appliance. In addition, make sure that you have dried it properly before you start operating the device.

SAFETY INSTRUCTIONS:

1. Never leave the area around the appliance during use.
   (Use also includes the cooling down period).
2. Never move the appliance during use.
3. Never touch the inner pan during use.
4. The device should only be used for its intended purpose.
5. Cooling down: After usage (and after turning thermostat back to 0 and remove the plug from the socket), the appliance needs to cool down for a minimum time of 30 minutes. To prevent any burning injuries or other danger, do not touch, move or use the appliance during this period of time.
6. After usage the electricity needs to be cut from the socket to prevent fire hazard.
   This to prevent short circuit or danger.
7. When you move the product from its place, always pick it up from the lower side of the appliance.
   Never pick it up from the upper side (baking tray) to prevent any damage to the appliance.

USERS INSTRUCTIONS:

1. Place the grid over the heating element at the bottom of the container.
2. Fill the appliance with water, the water level must not exceed the MAX indication.
3. Insert the plug into the wall socket and the green indicator lamp (POWER) will light up.
4. Turn the thermostat knob to the desired temperature (30°C\~110°C), the red indicator light (HEATING) will light up and the water will be heated.
5. When the red indicator light (HEATING) goes out, the desired temperature has been reached.
6. Place the basket with the product to be cooked in the container.
   Pay attention! the basket can get hot.
7. Prevent the appliance from boiling dry, this prevents damage.
   Check the amount of water in the meantime (every 15 minutes) and top up if necessary.
8. If you want to switch off the appliance, turn the thermostat knob to the 0^ C position and remove the plug from the socket.

CLEANING AND MAINTENANCE:

- Only empty the bain-marie (the water) after it has completely cooled down and has been switched off. To do this, turn the thermostat/switch to 0.

Step 1: After usage, the device must first be switched OFF, after which you must remove the plug from the socket. Always do this in the order described to prevent short circuit or other possible dangers.

Step 2: Clean the parts and the device with warm water, a wet cloth and a small amount of cleaning-detergent and then dry it thoroughly. Do not use benzine, thinner, scouring brush or polishing powder to clean the device.

• Pay attention! Do not rinse the device with water (don't wash it by using the tap).
  This could cause damage to the device and could therefore lead to dangerous situations;
• Never clean the device with a stainless steel brush. This causes scratches and damages to the device;
  • Always store the appliance inside and keep it dry;
• Before maintaining the appliance, always make sure you have removed the plug from the socket.

If the appliance does not work or is damaged, check the following:

1. Whether the plug is in the socket;
2. Whether the plug and/or the cord is damaged.

If it is nr. 2 or if another problem occurs, contact your local dealer or authorized service technician.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.
