Product Type	Wireless presentation adapter
Brand	ACER
Model	MWA3
Power Supply	5 V / 1 A DC power adapter required for HDMI use
Connectivity	Wireless Wi-Fi, HDMI and MHL output
Supported operating systems	iOS 7+, Android 4.0+, Windows 7/8.1, Mac OS 10.9+
Required application	Acer eDisplayPro (available on Google Play and App Store)
Main functions	Wireless display, split screen, host control, Acer BYOC applications
Receiver compatibility	MHL interface, Acer projectors and receivers
Minimum configuration	Wi-Fi network (SSID: MWA3_XXXXXX) and compatible device
Radiation exposure distance (FCC)	Minimum 20 cm between device and body
Certifications	FCC Part 15 (Class B)
Maintenance and cleaning	Use a soft, dry cloth. Avoid moisture and chemicals.
Safety	Do not modify the device. Observe the safe distance for radiation.
Package contents (estimated)	MWA3 wireless adapter, quick start guide
Repairability	Not specified, contact Acer support for any issues.
General information	Brand: ACER, Model: MWA3, Category: Wireless adapter

Frequently Asked Questions - MWA3 ACER

How do I connect my device to the Acer MWA3 wireless adapter?

Go to your device's wireless settings, find the SSID MWA3_XXXXXX and connect. Then launch the Acer eDisplayPro app.

What operating systems are compatible with the MWA3?

It supports iOS 7+, Android 4.0+, Windows 7/8.1 and Mac OS 10.9+.

Do I need a special application to use the adapter?

Yes, you need to download the Acer eDisplayPro app from the Google Play Store or the Apple App Store.

Does the adapter require external power?

Yes, when using the HDMI output, an external 5 V / 1 A power adapter is required. In MHL mode, power can be supplied by the connected device.

What is the wireless signal range?

The typical range is approximately 10 meters indoors, but may vary depending on the environment.

How do I update the firmware of the MWA3 adapter?

Updates are available on the Acer website. Go to www.acer.com, search for 'Drivers and manuals' for the MWA3 model.

Can I use the adapter with a non-Acer projector?

The adapter is optimized for Acer projectors, but it can work with any device that has an HDMI or MHL input.

What should I do if the eDisplayPro app does not detect the adapter?

Check that your device is connected to the adapter's Wi-Fi network (SSID MWA3_XXXXXX), restart the app and the adapter, or reset the adapter.

Is the adapter compliant with safety standards?

Yes, it is certified FCC Part 15 (Class B) and must be used at least 20 cm from the body to comply with radiation exposure limits.

How do I clean the MWA3 wireless adapter?

Use a soft, dry cloth to clean the device. Avoid moisture, solvents, and abrasive products.

USER MANUAL MWA3 ACER

KpaTkoe pyKoBoIcTBo 31

36

新手入門指南 40

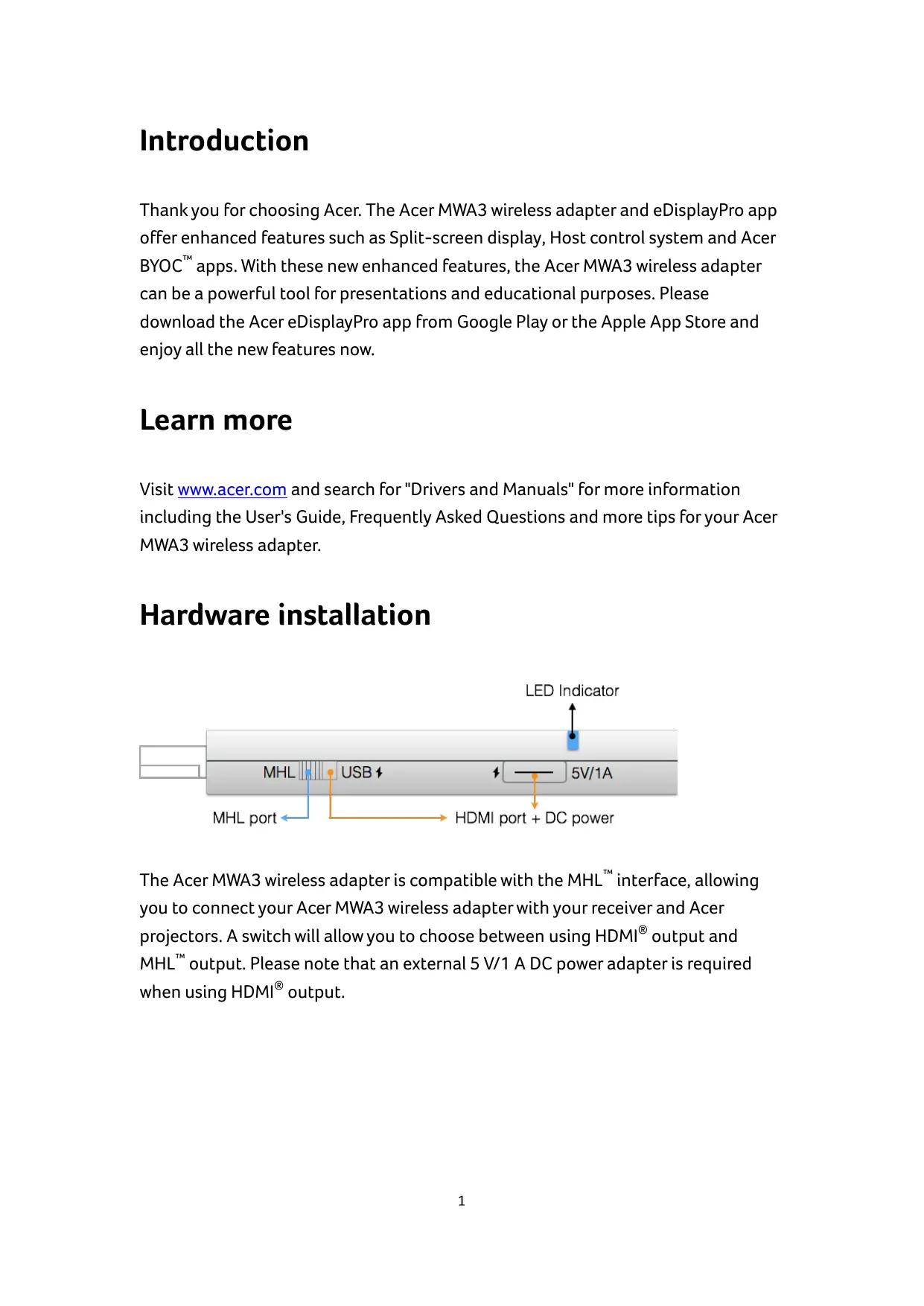

Introduction

Thank you for choosing Acer. The Acer MWA3 wireless adapter and eDisplayPro app offer enhanced features such as Split-screen display, Host control system and Acer BYOC™ apps. With these new enhanced features, the Acer MWA3 wireless adapter can be a powerful tool for presentations and educational purposes. Please download the Acer eDisplayPro app from Google Play or the Apple App Store and enjoy all the new features now.

Learn more

Visit www.acer.com and search for "Drivers and Manuals" for more information including the User's Guide, Frequently Asked Questions and more tips for your Acer MWA3 wireless adapter.

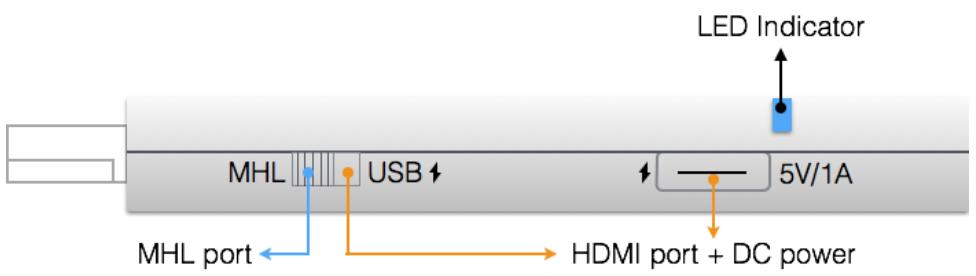

Hardware installation

The Acer MWA3 wireless adapter is compatible with the MHL™ interface, allowing you to connect your Acer MWA3 wireless adapter with your receiver and Acer projectors. A switch will allow you to choose between using HDMI® output and MHL™ output. Please note that an external 5 V/1 A DC power adapter is required when using HDMI® output.

App installation

iOS and Android™ users

• Search for "eDisplayPro" in Google Play or the Apple App Store and install it.

• Or use a QR scanner app to scan the QR code on the eDisplayPro adapter standby page.

• Supports iOS 7 and Android 4.0 and newer versions.

• Windows and Mac OS users

• Please download the software installer from the Acer website: www.acer.com.

• Supports Windows 7 / 8.1 and Mac OS 10.9 and newer versions.

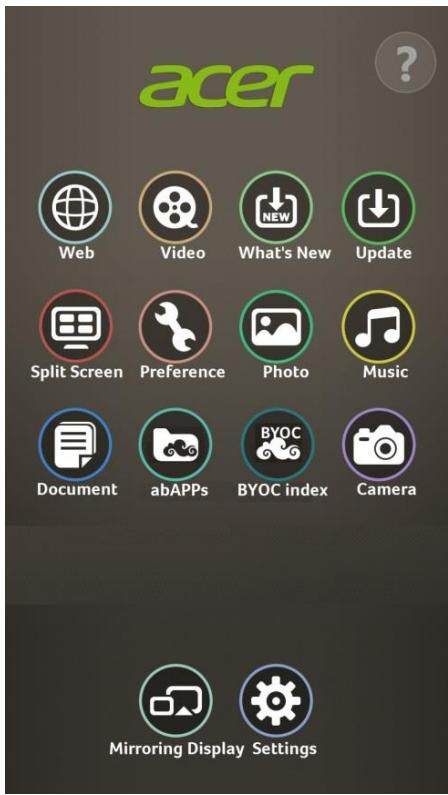

Getting started

1. Enter your laptop, PC, smartphone, or tablet's wireless settings.
2. Find the SSID (MWA3XXXXXXXX) and connect to it.
3. Launch the Acer eDisplayPro app on your device.

Now you are ready to enjoy Acer eDisplayPro!

©2014 Acer Incorporated. All rights reserved. Acer MWA3, eDisplayPro and eDisplayPro Management are trademarks of Acer Incorporated, registered in Taiwan and other countries. Other product and company names mentioned herein may be trademarks of other companies.

FCC STATEMENT

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC radiation exposure statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.

Introduccion

FCC B OTHOUSHEN BO3deiCTBNA

Without permission, any company, firm or user shall not alter the frequency, increase the power, or change the characteristics and functions of the original design of the certified lower power frequency electric machinery.

Article 14

The application of low power frequency electric machineries shall not affect the Navigation safety nor interfere a legal communication, if an interference is found, the service will be suspended until improvement is made and the interference no longer exists.
