AKE9004ARVS - Range hood INVENTUM - Free user manual and instructions
Find the device manual for free AKE9004ARVS INVENTUM in PDF.
| Product Type | Range Hood (Cooker Hood) |
| Brand | Inventum |
| Model | AKE9004ARVS |
| Color | Stainless Steel |
| Installation Type | Ceiling Mount (Island Hood) |
| Extraction System | Ducted (Air Outlet) or Recirculation (with carbon filter) |
| Duct Diameter | 150 mm |
| Minimum Distance from Hob | 65 cm (electric/ceramic/induction) or 75 cm (gas) |
| Motor Speeds | 3 speeds + Boost mode |
| Boost Mode Duration | 5 minutes, then automatically returns to level 3 |
| Timer | 10 to 90 minutes, adjustable in 10-minute increments |
| Lighting | 4 x LED strips, each 2.1W |
| Grease Filters | 3 x Metal grease filters (washable, dishwasher safe) |
| Carbon Filter (optional) | For recirculation mode, replace every 6 months |
| Control Type | Push buttons with backlight display |
| Power Supply | 220-240 V AC, plug included |
| Warranty | 2 years standard + 3 extra years (if registered within 45 days) |
| Cleaning Frequency | Grease filters at least once per month |
| User-Replaceable Parts | LED strips (type 2.1W) and carbon filters |
| Included Accessories | Suspension system, screws, plugs, chimney sections |
Frequently Asked Questions - AKE9004ARVS INVENTUM
User questions about AKE9004ARVS INVENTUM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Range hood in PDF format for free! Find your manual AKE9004ARVS - INVENTUM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AKE9004ARVS by INVENTUM.
USER MANUAL AKE9004ARVS INVENTUM
- appliance description page 20
- before first use page 20
- controls page 21
- cleaning & maintenance page 21
- troubleshooting
- installation instructions
page 22
page 23
Guarantee & After sales service
page 26
6 storingen
2
1 safety instructions
- Please read these instructions before operating the appliance and retain for future use.
- The appliance is intended solely for domestic use within the home. The appliance is suitable for extraction of air to the outside.
- Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.
- This appliance can be used by children aged 8 years and over, as well by people with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, provided they are supervised and instructed in the safe use of the appliance and understand the hazards involved. Do not allow children to play with the appliance. Do not allow children to clean or maintain the appliance unless supervised.
- Life-threatening: danger of poisoning through backdrafting of combustion gasses!
- Never use the appliance to extract air while using a cooker that consumes air from the room, unless the room is sufficiently ventilated. Cooking appliances that consume air in the room (such as equipment that heats using gas, oil, wood or coal, geysers, hot water appliances) draw the combustion air out of the room and carry these gasses outside via the outlet (eg. chimney). In combination with an activated cooker hood, air is withdrawn from the kitchen and the adjacent rooms. This creates negative pressure if there is insufficient air supply. Poisonous gasses from the chimney or outlet channel are then backdrafted into the living area. Always provide adequate ventilation!
- The maximum permitted negative pressure is 4 Pa.
- Local regulations concerning the discharge of air have to be fulfilled.
- The appliance is not intended to be operated by means of an external timer or separate remote control system.
- In relation with electrical safety, the appliance shall not be cleaned with high-pressure cleaners or steam cleaners.
- Warning: Avoid the risk of electric shock; make sure the appliance is switched off before replacing the lighting or cleaning the appliance.
- Do not use the cooker hood if the grease filter has not been fitted properly!
- Do not lean against the cooker hood.
- Never use the cooker hood as a working surface unless this is indicated explicitly.
- If the cooker hood is used in combination with a gas hob ensure sufficient ventilation.
- The outlet should not be connected to a flue duct used by other appliances.
- Never flambé under a cooker hood and clean the filters on time. To prevent hot fat catching fire you should only deep fry under continuous supervision.
- The cooker hood should be cleaned regularly both on the outside as well as the inside (at least 1 x a month). Insufficient cleaning or a delay in the replacement of filters can cause fire hazard.
- The grease filters can become hot during use. After cooking wait at least 30 minutes before cleaning.
- Please note! Intensive use can lead to condensation on the cooker hood. Condensation is simple to remove with a dry cloth.
- Grease and oil are inflammable when overheated. Remain in the cooking area when preparing meals.
- Fire danger! There is a risk of fire if the instructions for cleaning or replacing grease filters and/or carbon filters are not followed.
- Fire danger! through grease deposits in the metal grease filter. Never work with open flame under the appliance (eg. flambéing). Always use the appliance with the metal grease filter. Clean the grease filter regularly.
- Fire danger! through overheated fat or oil. Never extinguish a fire with water; always use a fire blanket, lid or plate.
- The appliance may have sharp edges; please be careful during cleaning.
INSTALLATION
- This appliance should only be connected by a registered installer.
- Always follow the installation instructions in the installation manual (chapter 7) provided.
- Check the appliance for transport damage. Do not connect a damaged appliance.
- Faulty parts may only be replaced by original parts. The manufacturer can only guarantee that original parts meet safety requirements.
- If the connecting cable is damaged, it may only be replaced by the manufacturer, the manufacturer's service organisation or equivalently qualified persons, in order to avoid dangerous situations.
• Always use the original cable and plug to connect the appliance.
- The electrical connection must comply with national and local regulations.
- The wall plug socket and plug should always be accessible.
- If you want to make a fixed connection, make sure that an omnipolar switch with a contact separation of at least 3 mm is fitted in the supply cable.
- The appliance should not be connected to the mains via a multi-plug adapter or extension cable, as the safe use of the equipment cannot be guaranteed.
- Warning: Never open the appliance casing. The casing may only be opened by a service technician.
- Disconnect the appliance from the mains supply before starting any repair work.
- We advise to wear protective gloves when assembling the cooker hood because of the possible sharp edges.
- The distance between the lowest point of the cooker hood and the supported surface for the cooking pans gas hob should be at least 75 cm. With an electric, ceramic or induction hob this distance should at least be 65 cm.
- If the instructions of the gas hob specify a greater distance, this should be taken into account.
- Warning: failure to install screws or fixing devices in accordance with these instructions may result in electrical hazard.
- If the safety instructions and warnings are not followed, the manufacturer cannot be held responsible for any resulting damage.
- This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas, in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
- Only use the appliance inside the home.
- If you decide to discontinue using the appliance because of a fault, we recommend you cut off the cable after removing the plug from the socket.
- Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.
2 appliance description
- Inner chimney
- Outer chimney
- Cooker hood
- Controls with backlight
- Metal grease filters - 3
- Lighting (LED strips 4 x 2.1W)
3 before the first use
Before you use the appliance for the first time, please do as follows: Carefully unpack the appliance and remove all the packaging material. Keep the material (plastic, polystyrene and cardboard) out of reach of children. Check the appliance after unpacking for any damage, possible from transportation. Place the appliance on a flat and stable surface.
This appliance should be installed and connected to the power supply by a recognized fitter who is familiar with, and works according to the correct safety regulations.
How to install the appliance, is instructed in the installation instructions (chapter 7).
The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must correspond with the details on the rating label of the appliance.
EXTRACTION SYSTEM
This cooker hood can be connected in two ways: to a duct or as a recirculation hood. Install the cooker hood according to the instructions depending on your choice.
VENT OUTSIDE - to a duct, the cooking vapours extracted by suction are carried outside, once the grease particles have been filtered.
4 controls
12345
SWITCHING THE COOKER HOOD ON AND OFF
To select the functions of the cooker hood, press the control buttons gently.
1 OFF/ SPEED DECREASE- Press the button - to switch the engine off or to decrease the speed of the engine.
2 ON/SPEED INCREASE - Press the button + and the engine is on at the lowest setting - 1.
Press the button + again and the engine is set to the middle setting - 2.
Press a third time on the button + and the engine is set to the highest setting - 3.
Press the key + again to activate the BOOST mode. Use this mode when a large amount of cooking vapors are released. After five minutes, the cooker hood will automatically switch back to level 3.
3 DISPLAY - shows the setting of the engine speed and the setting of the timer.
4 TIMER - by setting the timer the cooker hood will automatically switch off after the set time. The timer can be set with a minimum of 10 minutes to a maximum of 90 minutes - in increments of 10 minutes.
Switch the cooker hood on at setting 1, 2 or 3.
- Press the button ⏻ to set the timer. The display shows a blinking 0. Select with the button + the desired switch off time.
Keep in mind that the number on the display stands for 10 minutes. 1 = 10 minutes; 2 = 20 minutes; 3 = 30 minutes; 4 = 40 minutes; 5 = 50 minutes; 6 = 60 minutes; 7 = 70 minutes; 8 = 80 minutes; 9 = 90 minutes. - Confirm the selected switch off time by pressing the button ① again. The display now shows the set engine speed, setting 1, 2 or 3 with a blinking dot. The blinking dot shows the timer is counting down.
- The timer can be switch off by pressing the key 📋 again while the timer is counting down.
Caution: the setting of the timer must be completed within 20 seconds, otherwise no action will be taken, and the cooker hood will resume operation in normal mode.
5 LIGHTING - Press the key 🔍 to switch on the lighting. Press the same button again to turn off the lighting.
Switch the lighting on if you need more light on your cooking appliance. It is recommended to operate the appliance a few minutes prior to cooking. Leave the appliance in operation for 10 minutes after the cooking is finished to remove all the smells from the kitchen.
5 cleaning & maintenance
Before performing any maintenance operation, disconnect the cooker hood from the mains power supply. Ensure that it is switched off and pull the plug or remove the connector fuse.
Clean the in- and outside of the cooker hood regularly. Clean the cooker hood with warm soapy water and a soft cloth. If your model is stainless steel, clean it with a stainless steel care product. Do not use any abrasive cleaning agents such as powder cleaners or cleaners that contain alcohol. Clean the controls only with a damp cloth.
Attention: failure to carry out the basic cleaning recommendations can cause fire risks.
GREASE FILTERS
A metal grease filter filters the fat particles in the air. Therefore the filter can get clogged, depending on the use. The metal grease filter does not have to be replaced, but should at least be cleaned once a month. You can clean it either by hand or in the dishwasher on a low temperature. Make sure the grease filters are competely dry before placing them back.
Do not use any abrasive cleaning agents.
Not cleaning the grease filters on time can cause fire risks.
Cleaning the grease filters in the dishwasher can cause discoloration. This has no effect on the operation.

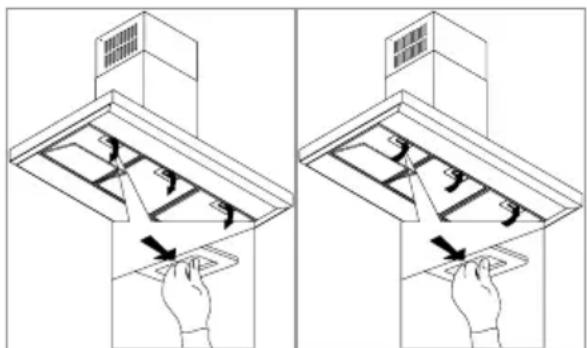

REMOVING THE GREASE FILTER
Switch off the electricity! Remove the plug from the socket.
Pull the grease filter towards you and tilt it downwards at the front. Make sure you guide the grease filter with you other hand to prevent the grease filter from falling down on your cooking appliance.


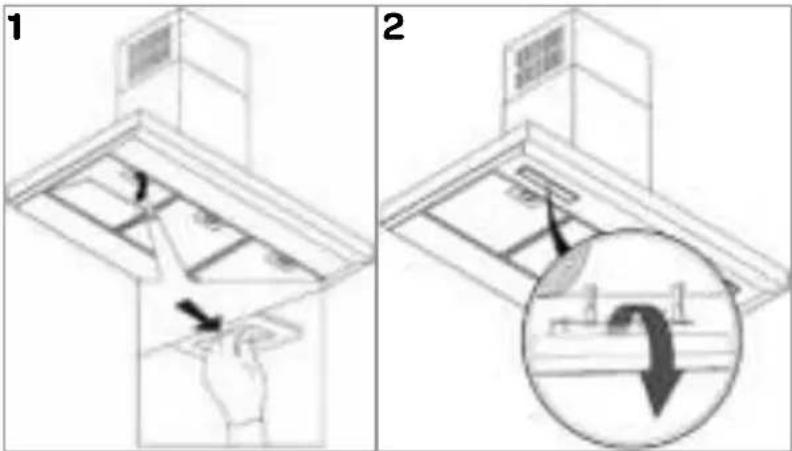

When a LED strip of the cooker hood is broken, you can replace it yourself. Follow these steps:
- Unplug the appliance or remove the connector fuse.
- Remove the grease filters - figure 1.
- Push the complete LED strip from the outside to the inside of the cooker hood and slide it towards the opening of the grease filter. downwards - figure 2. Unplug the broken LED strip from the transformer and replace the complete LED strip with a matching type (2.1W, LED).
- Plug the new LED strip in the transformer and slide and push the complete LED strip gently back in its place.
- Replace the grease filters and plug the appliance in.
6 troubleshooting
What to do in case of a malfunction? In most cases, you will be able to correct these faults easily yourself. Please check the solutions below before contacting the Inventum service department.
The motor is not running
• Is it plugged in correctly?
• Is there a power outage?
- Check the electrical installation.
The performance of the cooker hood is not correct and makes more nois.
• Is the diameter of the exhaust-air pipe correct?
- Is the duct blocked?
• The diameter of the duct must be 150 mm. A smaller diameter can negatively influence the suction of the motor.
• Are the grease filters clean?
- Are the carbon filters not replaced within the last 6 months? Replace the carbon filters.
• Is there enough air supply to replace the extracted air?
7 installation instructions
Read these installation instructions carefully before starting the installation.
We advise to install the cooker hood with two persons.
- If the cooker hood is to be fitted to an existing duct no other appliances, such as a geyser or heater, may be connected to that same duct.
• The shorter the duct, and the fewer the bends in it, the better the cooker hood will work.
• The connection pipe for the cooker hood has a diameter of 150 mm.
1
3
2
4
INSTALLING THE COOKER HOOD TO A DUCT

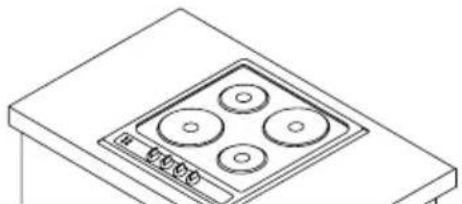

1 The minimum distance between the supporting surface for the cooking pans on the cooker and the lowest part of the hood must be:
- 65 cm for an electric, ceramic or induction cooker
- 75 cm for a gas hob
2 Determine the center of the cooker. Mark it on the ceiling exactly above the center of the cooker. Hold the suspension system to the ceiling, taking care of the center mark. Mark the four holes on the corners needed to fit the suspension system.
3 Drill with a masonry drill of ∅8mm the four marked holes for the suspension system in the ceiling.
4 Insert the plugs
5 Drill a hole with a diameter of 160 mm in the ceiling to the outside. Make sure the hole is centered in relation to the four corner holes for the suspension system.
6 Place a socket, if necessary, out of sight. The socket must be positioned within at least 2 cm of the holes for the suspension system, but next to the exhaust opening.

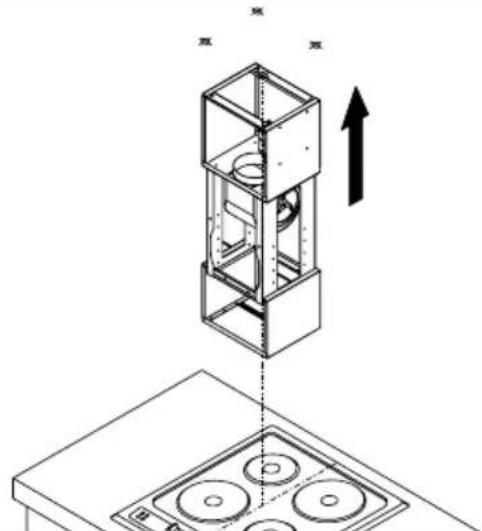

7 Hold the suspension system against the ceiling making sure the holes are aligned.
8 Fasten the suspension system to the ceiling with four screws.

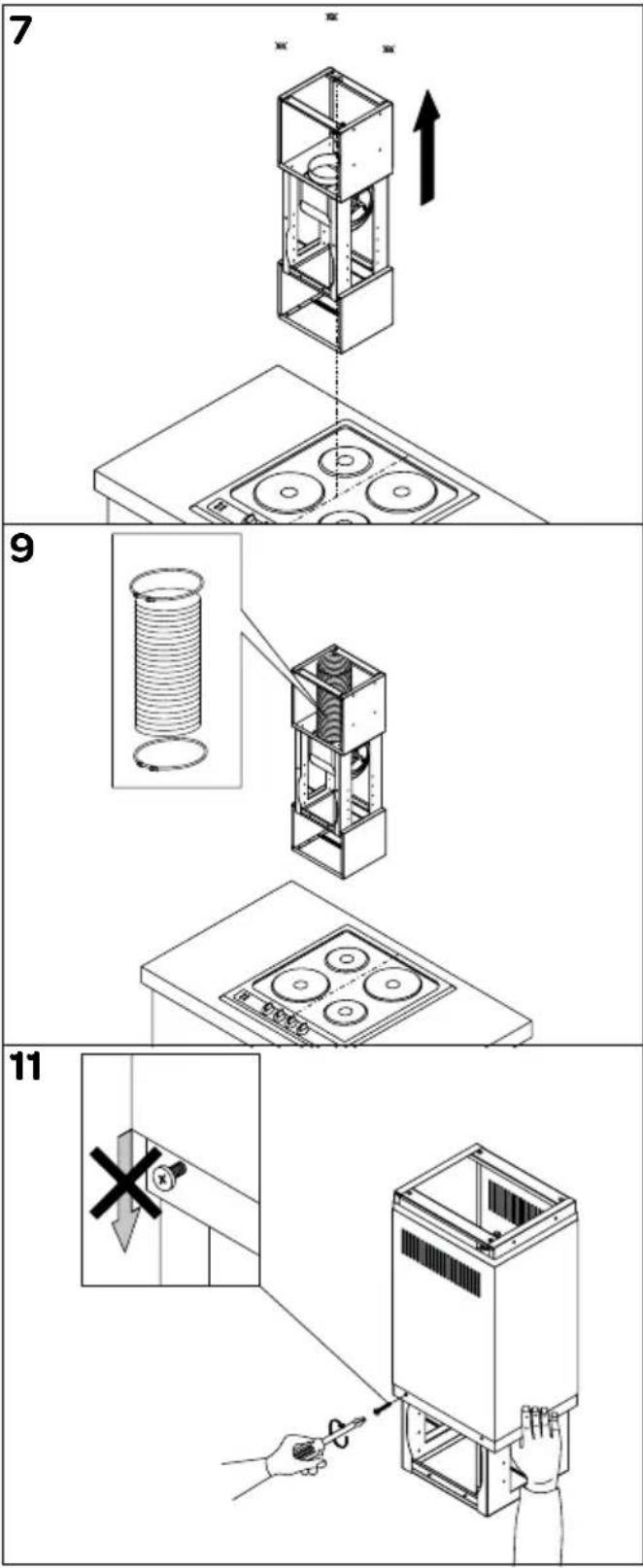

9 Fit a flexible exhaust air-pipe onto the cooker hood to the exhaust opening in the ceiling.
Plug in the appliance.

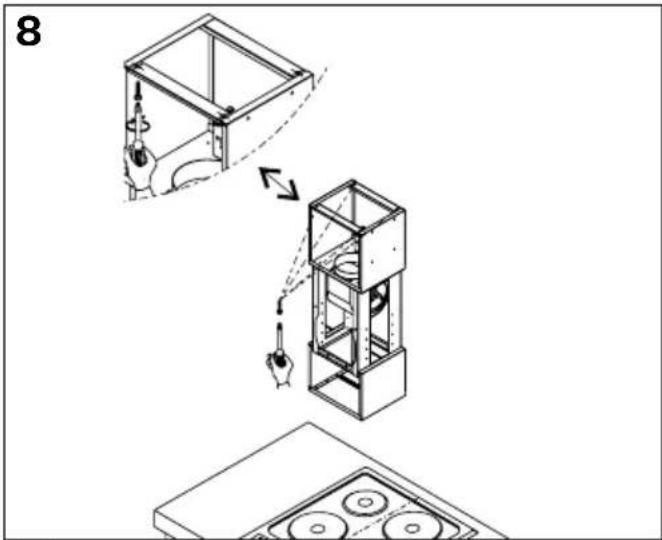

10 Remove the four screws fiited on the outside of the suspension system and keep them for later use. Slide the chimney over the suspension system and slide both parts against the ceiling. Make sure the inner chimney has the ventilation grids at the top.
11 On the bottom of the inner chimney are four holes. Place a screw in each one and fasten it till halfway. Now gently lower the chimney parts until they rest on the screws.

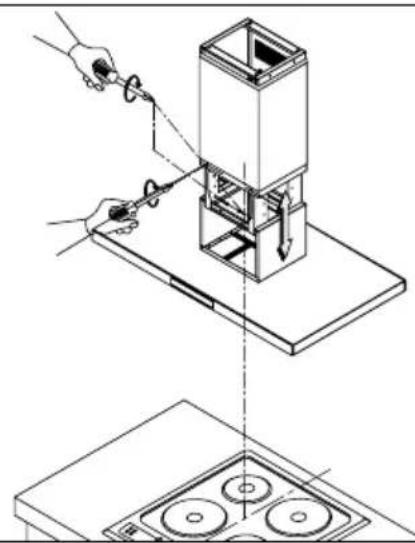

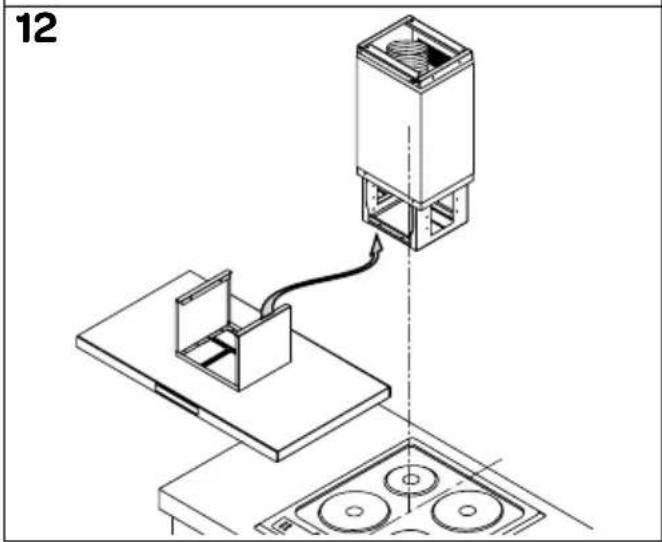

12 Remove the four screws which are at the top on the outside of the cooker hood and keep them. Hold the cooker hood below the suspension system and carefully slide the cooker hood upwards until it is at the right height. Make sure the top of the cooker hood is aligned with the suspension system. Fasten the cooker hood with the four screws through the holes in the suspension system. Tighten the screws. The cooker hood is now fastened to the suspension system.

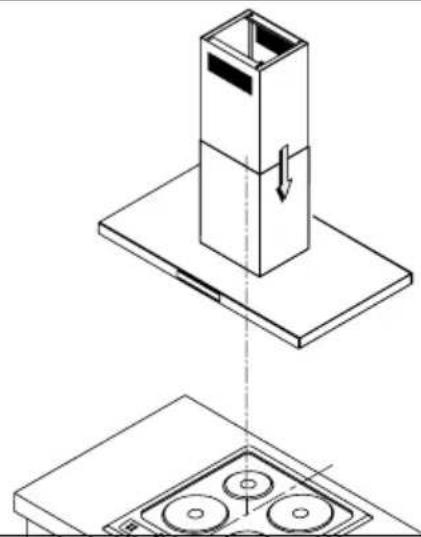

13 Slide the outer chimney completely upwards against the ceiling. Completely tighten the four screws which supported the chimney.
14 Carefully lower the outer chimney until it rests on the cooker hood.
Remove all the protective film before using the cooker hood. The cooker hood is ready for use.
ELECTRIC CONNECTION
Make sure the supply voltage ratings correspond with those stated on the rating plate. Plug the appliance in. The cooker hood is provided with a plug. Make sure the plug remains accessible. Place the socket, if necessary, out of sight behind the exhaust-air pipe.
Attention: if you want to make a fixed connection, ensure that a multi-pole switch with a distance between contacts of 3 mm is installed in the supply cable.
guarantee & after sales service
- INVENTUM guarantees this product for a period of 2 years starting from the date of purchase. The warranty covers proven defects in material, manufacturing and functioning of components and includes material costs, travel- or shipping costs and labor.
- INVENTUM provides not only the 2 years standard warranty, but also gives 3 years extended warranty on spare parts and labor costs. We only bill the travel- or shipping costs. This way, the quality of your INVENTUM equipment is 5 years guaranteed.
• To qualify for the extended 5 year warranty, please register your appliance within 45 days of purchase on www.inventum.eu
• Why is registration important for you?
-
You get a 5-year warranty
-
All details of your appliance are known by Inventum. No need to search for your model number when you contact us.
-
Inventum can provide a faster and better service when you contact our service center.
- Guarantee can only be given if proof of purchase (e.g. till receipt or copy) can be shown. Therefore keep it in a safe place. The guarantee period starts at the date of purchase.
• Guarantee is not valid in case of:
- normal wear;
- damage through misuse use or when the instructions were not followed correctly;
- lack of maintenance;
- not following the operation- and safety instructions;
- incompetent montage or repairs made by yourself or others;
- using accessories and spare parts which are not suitable for the appliance;
for assessment by our technical department.
• The guarantee is not valid for:
- normal wear - such as baking tray, grill rack and removal handles;
- normal wear and tear – such as glass breakage, scratches on the equipment, discoloration of plastic or painted parts; Insufficient or incorrect maintenance can cause discolouration of surfaces and rubbers and plastics can deteriorate fast. This is also not covered under warranty.
- (interchangeable) signal- and controllamps;
- defects and consequential damage caused by strong contamination and incorrect maintenance;
for assessment by our technical department.
Defects which do not significantly influence the value or operation of the device asre excluded by free repair and / or replacement.
Transport damage is not guaranteed. Therefore, check your new equipment before use. If any damage is found, please contact your supplier within 5 working days after purchase.
From warranty and/or replacement are excluded: defects, loss and damage to the appliance due to an event that usually is insured under the home contents insurance.
To whom can you turn to?
On www.inventum.eu you will find - besides advice on how to use the appliance and cleaning tips - all the answers to your service related questions. Please check the website before contacting our service center.
You can register your service request quickly and easily online at www.inventum.eu. It is also possible to do this by telephone via the INVENTUM service organization. Check the the INVENTUM website for the contact information.
To provide the best possible service and to process your service request as soon as possible, we recommend that you always first contact INVENTUM.
These warranty conditions only apply to the Netherlands. For local warranty please contact your dealer.
In countries where INVENTUM has a distributor, you can turn to them if you need the INVENTUM service organization. In other countries, contact your dealer.
When the guarantee is no longer valid or when the period of guarantee has passed, we will charge any costs that flow out of an assessment and/or repairing.
On request we will supply a statement before repairing. Without requesting a statement, we assume that you, by
sending the appliance, automatically order to repair the appliance.
A guarantee period of two months is valid for repairs done by our technical department and the used spare parts, counting from the repairdate. When a malfunction occurs within this period which directly flows out of the repairs and the used spare parts, the consumer has the right of repairs without any costs.
Modification and printing errors reserved. The latest version of the deposited guarantee conditions can be obtained through our service organization.
klein huishoudelijk
witgoed vrijstaand
witgoed inbouw
twitter.com/inventum1908
facebook.com/inventum1908
youtube.com/inventum1908
- HET VERVANGEN VAN DE LED STRIP
- storingen
- INSTALLATIE VAN DE AFZUIGKAP OP EEN AFVOER NAAR BUITEN
- safety instructions
- INSTALLATION
- appliance description
- before the first use
- EXTRACTION SYSTEM
- controls
- 12345
- SWITCHING THE COOKER HOOD ON AND OFF
- cleaning & maintenance
- GREASE FILTERS
- Do not use any abrasive cleaning agents.
- REMOVING THE GREASE FILTER
- CHANGING A LED STRIP
- troubleshooting
- The motor is not running
- The performance of the cooker hood is not correct and makes more nois.
- installation instructions
- Read these installation instructions carefully before starting the installation.
- INSTALLING THE COOKER HOOD TO A DUCT
- ELECTRIC CONNECTION
- guarantee & after sales service
- To whom can you turn to?
Brand : INVENTUM
Model : AKE9004ARVS
Category : Range hood
