AKO6001RVS - Range hood INVENTUM - Free user manual and instructions

Product Type	Range Hood
Brand	Inventum
Model	AKO6001RVS
Color	Stainless Steel
Width	600 mm
Diameter of Exhaust	120 mm
Number of Motors	1
Maximum Flow Rate (Q_MAX)	180 m³/h
Rated Power of Lighting	2 x 28 W (max, E14)
Noise Level	45 - 58 dB
Power Consumption	100 W
Rated Voltage / Frequency	220-240 V / 50 Hz
Number of Aluminum Grease Filters	2
Carbon Filter (optional)	Part 2KSF002 (not included)
Minimum Distance to Electric Hob	65 cm
Minimum Distance to Gas Hob	75 cm
Installation Types	Wall-mounted or under cupboard
Controls	Slider switch (0, 1, 2, 3) + light button
Grease Filter Cleaning	Monthly, hand or dishwasher (low temp)
Carbon Filter Replacement	Every 3 months
Light Bulb Replacement	E14, max 28 W
Warranty	2 years standard, 5 years with registration (NL only)

Frequently Asked Questions - AKO6001RVS INVENTUM

How do I install the hood properly?

Read the installation manual. The hood can be mounted on the wall or under a cupboard. Use the provided drilling template. Ensure minimum distances: 65 cm for electric/induction hob, 75 cm for gas. Connect to a duct or use recirculation mode with a carbon filter (not included).

How often should I clean the grease filters?

Clean the metal grease filters at least once a month. You can wash them by hand with warm soapy water or in a dishwasher on a low temperature cycle. Make sure they are completely dry before reinstalling.

How do I replace the carbon filter?

The carbon filter (model 2KSF002, not included) should be replaced every 3 months. To replace: switch off power, remove the grease filters, attach the new carbon filter(s) to the motor, then replace the grease filters.

What type of light bulb do I need and how to change it?

Use an E14 bulb with a maximum of 28W. To change: unplug the hood, open the glass visor, remove the grease filters, unscrew the old bulb and replace with a new one, then reassemble.

The hood is noisy or not working properly. What could be wrong?

Check if the exhaust pipe is blocked or has a diameter smaller than 120 mm. Clean or replace the grease filters if clogged. If using recirculation, ensure the carbon filter is not saturated. Also check for proper air supply in the room.

Can I use the hood without a carbon filter?

Yes, if you connect the hood to an external duct (vent outside mode). The carbon filter is only needed for recirculation mode. In that case, the filter must be installed to remove odors.

What is the difference between model AKO6001 and AKO6002?

AKO6001 has one motor and a maximum flow rate of 180 m³/h, while AKO6002 has two motors and 314 m³/h. Both have similar dimensions and other features.

How do I register for the extended warranty?

Register your appliance within 45 days of purchase on www.inventum.eu to get a 5-year warranty (valid only in the Netherlands). Keep your proof of purchase.

What should I do if the motor does not start?

Check if the plug is connected properly and there is power. If using fixed wiring, ensure the circuit breaker is on. Also inspect the fuse or circuit if needed. If still not working, contact Inventum service.

Is it safe to flambé under the hood?

No, never flambé under the cooker hood. The flames can cause a fire hazard. Always use the hood with the grease filter installed and avoid open flames.

USER MANUAL AKO6001RVS INVENTUM

White air purifier with ventilation grille and metal frame (no visible text or symbols)

Exterior view of a modern kitchen air conditioner unit (no text or symbols visible)

1. safety instructions page 15
2. appliance description page 18
3. before first use
4. controls
5. cleaning & maintenance
6. troubleshooting
7. installation instructions
   product fiche
   Guarantee & After sales service

page 18

page 19

page 19

page 20

page 20

page 22

page 23

Front view of a computer monitor with two side panels and a handle (no visible text or symbols)

KOOLSTOFFILTERS VERVANGEN

1 safety instructions

- Please read these instructions before operating the appliance and retain for future use.

- The appliance is intended solely for domestic use within the home. The appliance is suitable for extraction of air to the outside or for recirculation.

- Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.

- This appliance can be used by children aged 8 years and over, as well by people with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, provided they are supervised and instructed in the safe use of the appliance and understand the hazards involved. Do not allow children to play with the appliance. Do not allow children to clean or maintain the appliance unless supervised.

- Life-threatening: danger of poisoning through backdrafting of combustion gasses!

- Never use the appliance to extract air while using a cooker that consumes air from the room, unless the room is sufficiently ventilated. Cooking appliances that consume air in the room (such as equipment that heats using gas, oil, wood or coal, geysers, hot water appliances) draw the combustion air out of the room and carry these gasses outside via the outlet (eg. chimney). In combination with an activated cooker hood, air is withdrawn from the kitchen and the adjacent rooms. This creates negative pressure if there is insufficient air supply. Poisonous gasses from the chimney or outlet channel are then backdrafted into the living area. Always provide adequate ventilation!

• The maximum permitted negative pressure is 4 Pa.
• Local regulations concerning the discharge of air have to be fulfilled.
• The appliance is not intended to be operated by means of an external timer or separate remote control system.
• In relation with electrical safety, the appliance shall not be cleaned with high-pressure cleaners or steam cleaners.
• Warning: Avoid the risk of electric shock; make sure the appliance is switched off before replacing the lighting or cleaning the appliance.
• Do not use the cooker hood if the grease filter has not been fitted properly!

• Do not lean against the cooker hood.

• Never use the cooker hood as a working surface unless this is indicated explicitly.

• If the cooker hood is used in combination with a gas hob ensure sufficient ventilation.
• The outlet should not be connected to a flue duct used by other appliances.
• Never flambé under a cooker hood and clean the filters on time. To prevent hot fat catching fire you should only deep fry under continuous supervision.
• The cooker hood should be cleaned regularly both on the outside as well as the inside (at least 1 x a month). Insufficient cleaning or a delay in the replacement of filters can cause fire hazard.
• The grease filters can become hot during use. After cooking wait at least 30 minutes before cleaning.
• Please note! Intensive use can lead to condensation on the cooker hood. Condensation is simple to remove with a dry cloth.
• Grease and oil are inflammable when overheated. Remain in the cooking area when preparing meals.
• Fire danger! There is a risk of fire if the instructions for cleaning or replacing grease filters and/or carbon filters are not followed.
• Fire danger! through grease deposits in the metal grease filter. Never work with open flame under the appliance (eg. flambéing). Always use the appliance with the metal grease filter. Clean the grease filter regularly.
• Fire danger! through overheated fat or oil. Never extinguish a fire with water; always use a fire blanket, lid or plate.
• The appliance may have sharp edges; please be careful during cleaning.

INSTALLATION

- This appliance should only be connected by a registered installer.

• Always follow the installation instructions in the installation manual (chapter 7) provided.
• Check the appliance for transport damage. Do not connect a damaged appliance.
• Faulty parts may only be replaced by original parts. The manufacturer can only guarantee that original parts meet safety requirements.
• If the connecting cable is damaged, it may only be replaced by the manufacturer, the manufacturer's service organisation or equivalently qualified persons, in order to avoid dangerous situations.
  • Always use the original cable and plug to connect the appliance.

16 • English

- The electrical connection must comply with national and local regulations.

- The wall plug socket and plug should always be accessible.

- If you want to make a fixed connection, make sure that an omnipolar switch with a contact separation of at least 3 mm is fitted in the supply cable.

- The appliance should not be connected to the mains via a multi-plug adapter or extension cable, as the safe use of the equipment cannot be guaranteed.

- Warning: Never open the appliance casing. The casing may only be opened by a service technician.

- Disconnect the appliance from the mains supply before starting any repair work.

- We advise to wear protective gloves when assembling the cooker hood because of the possible sharp edges.

- The distance between the lowest point of the cooker hood and the supported surface for the cooking pans gas hob should be at least 75 cm. With an electric, ceramic or induction hob this distance should at least be 65 cm.

- If the instructions of the gas hob specify a greater distance, this should be taken into account.

- Warning: failure to install screws or fixing devices in accordance with these instructions may result in electrical hazard.

- If the safety instructions and warnings are not followed, the manufacturer cannot be held responsible for any resulting damage.

- This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas, in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

- Only use the appliance inside the home.

- If you decide to discontinue using the appliance because of a fault, we recommend you cut off the cable after removing the plug from the socket.

- Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

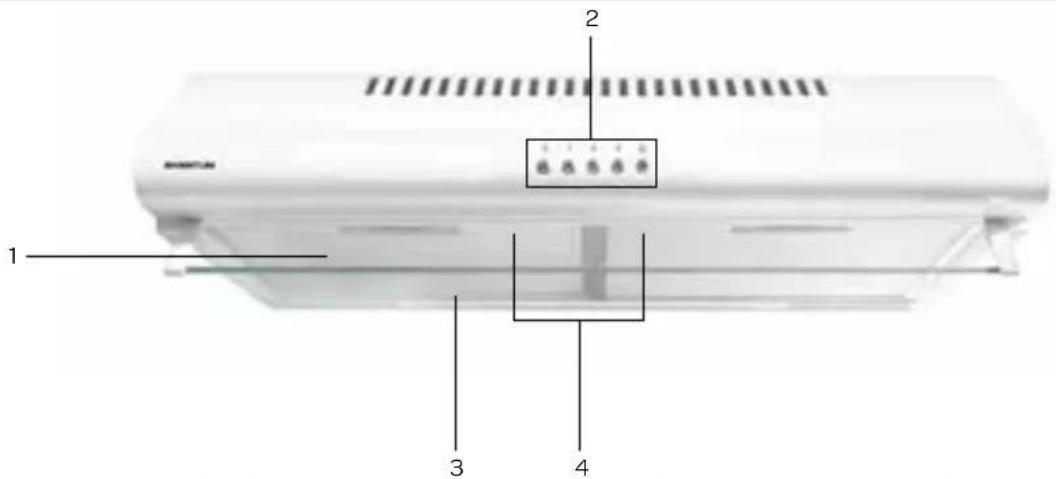

2 appliance description

1. Glass visor
2. Control buttons
3. Lighting
4. Metal grease filters
5. Motor housing
6. Mount for carbon filter
7. Lever for outside ventilation or recirculation

Attention:

AKO6001 has 1 motor AKO6002 has 2 motors

model AKO6001

3 before the first use

Before you use the appliance for the first time, please do as follows: Carefully unpack the appliance and remove all the packaging material. Keep the material (plastic, polystyrene and cardboard) out of reach of children. Check the appliance after unpacking for any damage, possible from transportation. Place the appliance on a flat and stable surface.

This appliance should be installed and connected to the power supply by a recognized fitter who is familiar with, and works according to the correct safety regulations.

How to install the appliance, is instructed in the installation instructions (chapter 7).

The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must correspond with the details on the rating label of the appliance.

EXTRACTION SYSTEM

This cooker hood can be connected in two ways: to a duct or as a recirculation hood. Install the cooker hood according to the instructions depending on your choice.

VENT OUTSIDE - to a duct, the cooking vapours extracted by suction are carried outside, once the grease particles have been filtered. This is the best method. Mount a flexible exhaust-air pipe on the hood and turn the air distribution lever to the correct position - VENT OUTSIDE

RECIRCULATE - as a recirculation hood, the grease particles and the smell in the extracted vapours are filtered. The air that has been sucked in is not carried outside but recirculates in the kitchen. In this case you must have a carbon filter fitted. Place the supplied lid on the back of the hood and turn the air distribution lever to the correct position - RECIRCULATE

Attention! The carbon filter is not included. You need to order it separately - article number 2KSF002.

18 • English

4 controls

0

1

2

3

SWITCHING THE COOKER HOOD ON AND OFF

• Press 0 and the motor stops.
• Press 1 and the motor runs at the lowest speed.
• Press 2 and the motor runs at the middle speed.
• Press 3 and the motor runs at the highest speed.
• Press ⚙️ and the lighting switches on. Press the button again to switch the lighting off.

Open the glass visor by pulling it gently towards you. Switch the lighting on if you need more light on your cooking appliance. It is recommended to operate the appliance a few minutes prior to cooking. Leave the appliance in operation for 5 to 10 minutes after the cooking is finished to remove all the smells from the kitchen.

5 cleaning & maintenance

Before performing any maintenance operation, disconnect the cooker hood from the mains power supply. Ensure that it is switched off and pull the plug or remove the connector fuse.

Clean the in- and outside of the cooker hood regularly. Clean the cooker hood with warm soapy water and a soft cloth. If your model is stainless steel, clean it with a stainless steel care product. Do not use any abrasive cleaning agents such as powder cleaners or cleaners that contain alcohol. Clean the controls only with a damp cloth.

Attention: failure to carry out the basic cleaning recommendations can cause fire risks.

GREASE FILTERS

A metal grease filter filters the fat particles in the air. Therefore the filter can get clogged, depending on the use. The metal grease filter does not have to be replaced, but should at least be cleaned once a month. You can clean it either by hand or in the dishwasher on a low temperature. Make sure the grease filters are competely dry before placing them back.

Do not use any abrasive cleaning agents.

Not cleaning the grease filters on time can cause fire risks.

Cleaning the grease filters in the dishwasher can cause discoloration. This has no effect on the operation.

REMOVING THE GREASE FILTER

Switch off the electricity! Remove the plug from the socket. Pull the grease filter towards you and tilt it downwards at the front. Make sure you guide the grease filter with you other hand to prevent the grease filter from falling down on your cooking appliance.

Front view of a computer monitor with two side panels and a control panel (no visible text or symbols)

REPLACING THE CARBON FILTERS

A carbon filter cleans the air and filters the smell that occurs during cooking. A carbon filter can not be washed and reused. In all cases it is necessary to replace the carbon filter at least every three months.

• Remove the grease filters.
• Attach, depending on the model, one or two carbon filters to the motor.
• Replace the grease filters.

CHANGING THE LIGHT BULBS

When a light bulb of the cooker hood is broken, you can replace it yourself. Follow these steps:

• Unplug the appliance.
• Open the glass visor by pulling it gently towards you.
• Remove the grease filters.
• Unscrew the broken light bulb and replace it with a blub matching the wattage stated at the inside of the cooker hood (maximum 28 Watt, E14).
• Replace the grease filters and plug in the appliance.

6 troubleshooting

What to do in case of a malfunction? In most cases, you will be able to correct these faults easily yourself. Please check the solutions below before contacting the Inventum service department.

The motor is not running

• Is it plugged in correctly?
• Is there a power outage?
- Check the electrical installation.

The performance of the cooker hood is not correct and makes more nois.

• Is the diameter of the exhaust-air pipe correct?
• Is the duct blocked?
• The diameter of the duct must be 120 mm. A smaller diameter can negatively influence the suction of the motor.
• Are the grease filters clean?
- Are the carbon filters not replaced within the last 6 months? Replace the carbon filters.
• Is there enough air supply to replace the extracted air?

7 installation instructions

Read these installation instructions carefully before starting the installation.

Decide whether you install the cooker hood to the wall or under a cupboard and whether there is a duct available or if the cooker hood needs to recirculte. We advise to install the cooker hood with two persons.

• The minimum distance between the supporting surface for the cooking pans on the cooker and the lowest part of the hood must be:
• 65 cm for an electric, ceramic or induction cooker
• 75 cm for a gas hob
• If the cooker hood is to be fitted to an existing duct no other appliances, such as a geyser or heater, may be connected to that same duct.
  • The shorter the duct, and the fewer the bends in it, the better the cooker hood will work.
• The connection pipe for the cooker hood has a diameter of 120 mm. It is best also th use a flue pipe of the same diameter.
• Use the provided round cover on the exit you do not want to use.

ELECTRIC CONNECTION

Make sure the supply voltage ratings correspond with those stated on the rating plate. Plug the appliance in. The cooker hood is provided with a plug. Make sure the plug remains accessible. Place the socket, if necessary, out of sight behind the exhaust-air pipe.

Attention: if you want to make a fixed connection, ensure that a multi-pole switch with a distance between contacts of 3 mm is installed in the supply cable.

20 • English

MOUNTING AGAINST THE WALL

Attention: the cooker hood should be mounted onto a flat perpendicular kitchen wall.

Use the provided screws and plugs for mounting against the wall.

• Measure the right height for the cooker hood (min. 65/75 cm) and mark the underside of the cooker hood on the wall.
- Open the glass visor gently by pulling it towards you.
- Remove the grease filters to expose the interior of the cooker hood. A keyhole slot (A) and a retainer hole (B) will be visible on either side of the back panel.
- Hold the cooker hood level against the wall on the correct height according to the marking and mark the holes (A+B) on the wall.
- Drill the holes with a masonry drill off ∅8mm at the top of each marked slot and push in a rawl plug in each hole.
- Partly insert two screws in the plugs, with a head diameter slightly smaller than the lower opening in the keyhole slot. Leave about 5 mm of the screw sticking out.
- Lift the cooker hood and slide the keyhole slots over the two screws.
- Mark the two lower retainer holes and lift the cooker hood down.
- Drill the holes with a masonry drill of ∅8mm and insert the plugs.
- Mount the cooker hood and place the screws in the retainer holes. Tighten all four screws.
- Replace the grease filters.
- Place an exhaust-air pipe when you have chosen a duct as the extraction system.
- Plug in the appliance.

MOUNTING BELOW A KITCHEN CUPBOARD

Attention: if the cooker hood it to be mounted underneath a cupboard, also take the minimum height (min. 65/75 cm) into account. Use the provided bolts, nuts and washers for mounting underneath the cupboard.

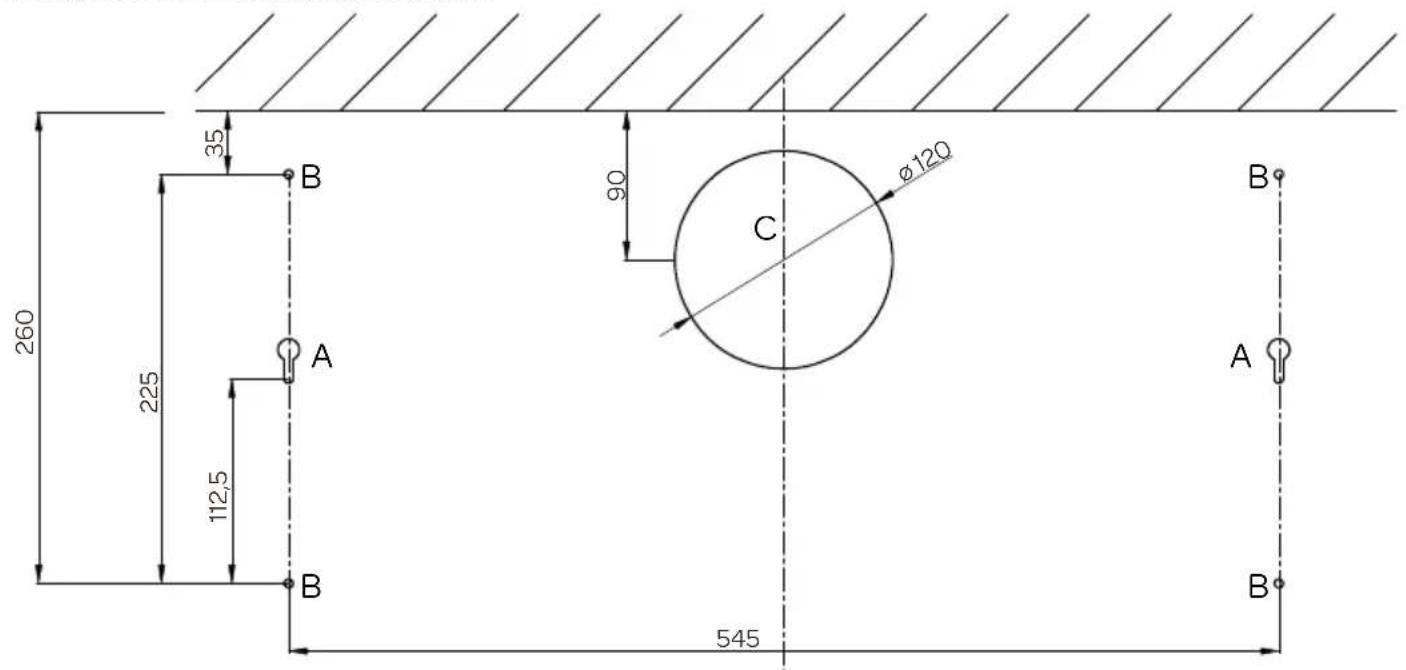

Advice: Use the provided drilling template to mark the necessary holes for the bolts and for the hole of the exhaust when connecting the cooker hood to a duct.

• Open the glass visor by pulling it gently towards you.
• Remove the grease filters to expose the interior of the cooker hood.
• Hold the cooker hood underneath the cupboard and mark the four retainer holes (B) and mounting aid holes (A) at the bottom of the cupboard.

• Tape the drilling template to the bottom of the cupboard aligned with the marked positions and draw the hole for the power cord and the exhaust pipe (C).

• Drill the marked holes in the bottom of the cupboard.

• Cut a hole in the bottom and topside of the cupboard for the exhaust and, if necessary, cut a hole for the power cord.
• Pull the power cord through the hole and place the cooker hood underneath the cupboard.
• Mount the cooker hood with the four 35mm M4 bolts, washers and nuts.
• Replace the grease filters.
• Place an exhaust-air pipe when you have chosen a duct as the extraction system.
• Plug in the appliance.

PRODUCT FICHE

	INVENTUM INVENTUM INVENTUM INVENTUM
Type AKO6001RVS AKO6001WIT AKO6002RVS AKO6002WIT
Maximum flow rate [ Q_MAX ] 180m	^3 /hour 180m	^3 /hour 314m	^3 /hour 314m	^3 /hour
Rated power of lighting [ W_L ] 2 x 28W 2 x 28W 2 x 28W 2 x 28W
Noise level [dB] 45-58 dB 45-58 dB 45-58 dB 45-58 dB
Execution
Color material stainless steel white stainless steel white
Number of motors	1	1	2	2
Lighting	2 x 28 W	2 x 28 W	2 x 28 W	2 x 28 W
number of aluminum grease filters	2	2	2	2
Fitting carbon filter (not included)	2KSF002	2KSF002	2KSF002	2KSF002
Dimensions
Width [mm]	600	600	600	600
Diameter exhaust [mm]	120	120	120	120
Technical specifications
Power consumption [W]	100	100	2 x 100	2 x 100
Rated voltage [V] / frequency [Hz]	220-240/50	220-240/50	220-240/50	220-240/50

Note: On the rating label - which you can find on the left inside the appliance - you can also find the technical specifications.

22 · English

guarantee & after sales service

• INVENTUM guarantees this product for a period of 2 years starting from the date of purchase. The warranty covers proven defects in material, manufacturing and functioning of components and includes material costs, travel- or shipping costs and labor.
• INVENTUM provides not only the 2 years standard warranty, but also gives 3 years extended warranty on spare parts and labor costs. We only bill the travel- or shipping costs. This way, the quality of your INVENTUM equipment is 5 years guaranteed.

• To qualify for the extended 5 year warranty, please register your appliance within 45 days of purchase on www.inventum.eu
  • Why is registration important for you?

• You get a 5-year warranty

• All details of your appliance are known by Inventum. No need to search for your model number when you contact us.

• Inventum can provide a faster and better service when you contact our service center.

• Guarantee can only be given if proof of purchase (e.g. till receipt or copy) can be shown. Therefore keep it in a safe place. The guarantee period starts at the date of purchase.
  • Guarantee is not valid in case of:

• normal wear;

• damage through misuse use or when the instructions were not followed correctly;
• lack of maintenance;
• not following the operation- and safety instructions;
• incompetent montage or repairs made by yourself or others;
• using accessories and spare parts which are not suitable for the appliance;

for assessment by our technical department.

• The guarantee is not valid for:

• normal wear - such as baking tray, grill rack and removal handles;
• normal wear and tear – such as glass breakage, scratches on the equipment, discoloration of plastic or painted parts; Insufficient or incorrect maintenance can cause discolouration of surfaces and rubbers and plastics can deteriorate fast. This is also not covered under warranty.
• (interchangeable) signal- and controllamps;
• defects and consequential damage caused by strong contamination and incorrect maintenance;

for assessment by our technical department.

Defects which do not significantly influence the value or operation of the device asre excluded by free repair and / or replacement.

Transport damage is not guaranteed. Therefore, check your new equipment before use. If any damage is found, please contact your supplier within 5 working days after purchase.

From warranty and/or replacement are excluded: defects, loss and damage to the appliance due to an event that usually is insured under the home contents insurance.

To whom can you turn to?

On www.inventum.eu you will find - besides advice on how to use the appliance and cleaning tips - all the answers to your service related questions. Please check the website before contacting our service center.

You can register your service request quickly and easily online at www.inventum.eu. It is also possible to do this by telephone via the INVENTUM service organization. INVENTUM Service Organization: 0900-INVENTUM (0900-468 36 88) (just for Holland).

To provide the best possible service and to process your service request as soon as possible, we recommend that you always first contact INVENTUM.

Our service address is:

Attn. Service department

Generatorstraat 17

3903 LH VEENENDAAL

Website: www.inventum.eu

THE NETHERLANDS Helpdesk: 0900-468 36 88

(just for Holland)

These warranty conditions only apply to the Netherlands. For local warranty please contact your dealer.

In countries where INVENTUM has a distributor, you can turn to them if you need the INVENTUM service organization. In other countries, contact your dealer.

When the guarantee is no longer valid or when the period of guarantee has passed, we will charge any costs that flow out of an assessment and/or repairing.

On request we will supply a statement before repairing. Without requesting a statement, we assume that you, by sending the appliance, automatically order to repair the appliance.

A guarantee period of two months is valid for repairs done by our technical department and the used spare parts, counting from the repairdate. When a malfunction occurs within this period which directly flows out of the repairs and the used spare parts, the consumer has the right of repairs without any costs.

Modification and printing errors reserved. The latest version of the deposited guarantee conditions can be obtained through our service organization.

24 · English

klein huishoudelijk

witgoed vrijstaand

witgoed inbouw

twitter.com/inventum1908

facebook.com/inventum1908

youtube.com/inventum1908

AKO6001-AKO6002/01.0714V
