BKS 1330 C - Uncategorized BEKO - Free user manual and instructions

Type of product	Cylinder vacuum cleaner
Brand	Beko
Model	BKS 1330 C
Power consumption	700 W
Suction power	300 AW
Dust capacity	1.5 L
Filtration system	HEPA 13 washable filter
Noise level	78 dB(A)
Cord length	6 m
Weight	4.5 kg
Dimensions (L x W x H)	40 x 28 x 25 cm
Power supply	230 V, 50 Hz
Bagless	Yes, cyclonic technology
Accessories included	Crevice tool, brush nozzle, upholstery tool
Maintenance	Empty dust container after each use, wash filter monthly
Safety features	Thermal cut-off, automatic cord rewind
Repairability index	7.5 / 10
Spare parts availability	Filters, brush, hose available online
Warranty	2 years
Energy class	Class A

Frequently Asked Questions - BKS 1330 C BEKO

How do I empty the dust container?

Press the release button on the top of the container, remove it, and empty the contents into a trash bin. Rinse the container with water if needed and dry thoroughly before reattaching.

How often should I clean the filter?

Clean the washable HEPA filter at least once a month. Tap off excess dust, wash under running water, and let it air dry completely for 24 hours before reinserting.

Why is my vacuum losing suction?

Check if the dust container is full, the filter is clogged, or the hose/brush is blocked. Empty the container, clean the filter, and remove any obstructions from the hose or brush roll.

What accessories are included?

The BKS 1330 C comes with a crevice tool for tight spaces, a brush nozzle for furniture, and an upholstery tool for fabrics. These can be stored on the vacuum body.

Can I use the vacuum on hardwood floors?

Yes, the vacuum has a brush on/off switch. For hardwood floors, turn off the brush to avoid scratches. Use the included floor nozzle in hard floor mode.

How do I change the brush roll?

Unplug the vacuum, turn it over, locate the brush roll cover on the bottom, slide the cover open, lift out the old brush, and insert a new one. Close the cover securely.

The vacuum makes a loud noise. What should I do?

A loud noise may indicate a blockage or a problem with the motor or fan. Check the hose and brush for obstructions. If the noise persists, contact Beko customer service.

How long is the power cord?

The power cord is 6 meters long, allowing you to clean a large area without changing outlets. To rewind, press the cord rewind button on the top of the vacuum.

Where can I buy replacement filters?

Replacement HEPA filters are available on the Beko official website and major online retailers. Use the model number BKS 1330 C to find compatible parts.

Is the vacuum bagless?

Yes, the BKS 1330 C is a bagless vacuum with cyclonic technology that separates dust from air, maintaining constant suction. Simply empty the transparent dust container when full.

USER MANUAL BKS 1330 C BEKO

BKS 1330 C

ENRO

01M-8833073200-3815-01

beko

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

Important information or useful hints about usage.

Warning for hazardous situations with regard to life and property.

This product has been produced in environmentally friendly, modern facilities.

CONTENTS

1 Important safety and environmental instructions 4-5

1.1 General safety....4
1.2 Compliance with the WEEE Directive and disposal of waste products ....5
1.3 Package information 5

2 Your vacuum cleaner 6

2.1 Overview....6
2.2 Technical data 6

3 Use 7-8

3.1 Intended use 7
3.2 Attaching/removing the hose....7
3.3 Adjusting the parquet/carpet brush .....7
3.4 Accessories 7
3.5 Operation 7
3.5.1 Adjusting the suction power .....7
3.5.2 Dust bag full indicator 8
3.6 Switching off and parking the vacuum cleaner....8

4 Cleaning and maintenance 9-10

4.1 Replacing the dust bag....9
4.2 Cleaning the filters....10
4.2.1 Motor protection filter....10
4.2.2 Foam filter....10
4.3 Storage 10

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies with the international security standards.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Do not use it if the power cable or the appliance itself is damaged. Contact an authorized service.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• The mains supply of the appliance must be secured with a minimum 16 A fuse.
• Do not use the appliance with an extension cord.
• In order to prevent the power cable from getting damaged, make sure that it doesn't get stuck, twisted or rub against sharp surfaces.
• Do not touch the appliance or its plug when it is plugged if your hands are damp or wet.
• Do not pull the power cable when unplugging the appliance.
• Do not vacuum flammable materials and when vacuuming cigarette ashes make sure that it got cold.

1 Important safety and environmental instructions

• Do not vacuum water or other liquid materials.
• Protect the appliance from rain, humidity and heat sources.
• Never use the appliance in or near to combustible or inflammable places and materials.
• Unplug the appliance before cleaning and maintenance.
• Do not dip the appliance or its cable in water to clean it.
• Check the hose of the appliance regularly. Do not use if it is damaged and contact an authorized service.
• Do not attempt to dismantle the appliance.
• Only use the original parts or parts recommended by the manufacturer.

• If heavily used for cleaning dust such as cement or grout the dust indicator will lit earlier then expected, in such case replace the dust bag even it is empty.

• Do not use the appliance without filters; otherwise it can get damaged.

• When vacuuming the stairs, the appliance should be located below the user.
• If your store the package material, keep it out of the reach of children.

1.2 Compliance with the WEEE Directive and disposal of waste products

This product does not include harmful and prohibited materials specified in the "Regulation for Supervision of the Waste Electric and Electronic Appliances" issued by the Ministry of Environment and Urban Planning. This appliance conforms to the WEEE regulation. This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Ask the local authority in your area for these collection points. Contribute to the preservation of environment and natural sources by taking the used products to the recycling points.

1.3 Package information

Package of the product is made of recyclable materials in accordance with our National Legislation. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your vacuum cleaner

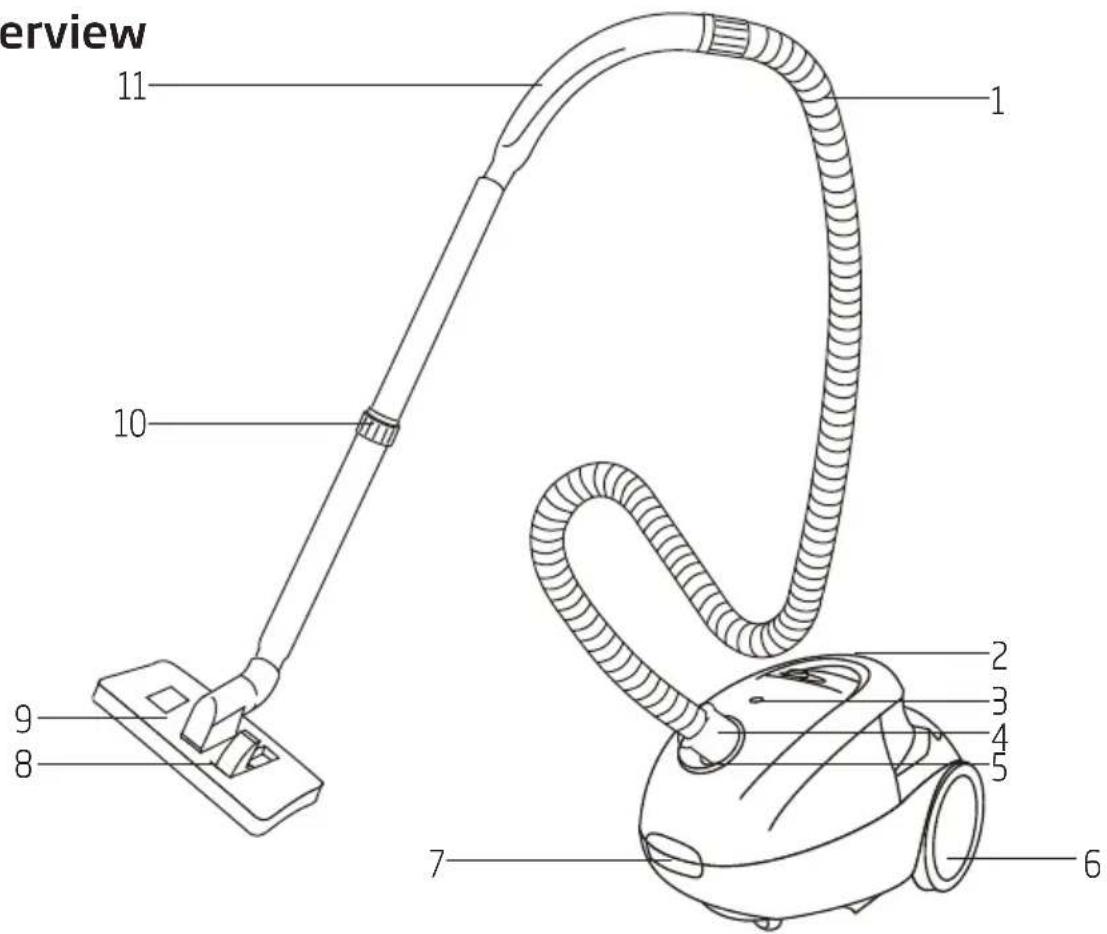

2.1 Overview

1. Hose
2. Carrying handle
3. Dust bag full indicator
4. The hose cap
5. Suction nozzle
6. Wheel
7. Fron cover release latch
8. Parquet/carpet brush adjustment latch
9. Parquet/carpet brush
10. 2 pcs. plastic extension tubes
11. Handle

2.2 Technical data

This appliance complies with the European Directives numbered 2004/108/EC, 2006/95/EC, 2009/125/EC, 2010/30/EU and 2011/65/EU.

Supply voltage	220-240 V~, 50/60 Hz
Max power	1200 W
Nom. power	1000 W
Energy class	C
Net weight	3,9 kg
Dust capacity	2 L
Usage radius	8 m

Rights to make technical and design changes are reserved.

The values which are declared in the markings affixed on your product or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

3 Use

3.1 Intended use

The appliance was designed to be used in houses, and is not fit for industrial use.

3.2 Attaching/removing the hose

1. To attach the hose (1) pull the hose cap (4) in the direction of arrow until it is aligned with the housing.

- The tabs on the hose cap (4) must be seated correctly.

1. To remove the hose (1) press on the tabs on the hose cap (4) and pull it.

3.3 Adjusting the parquet/ carpet brush

By pressing the adjustment latch located on the parquet carpet brush (8);

• Use “” position for hard surfaces and parquet.
• Use "for carpets.

3.4 Accessories

Crevice tool

Suitable for the cleaning of the surfaces which are difficult to clean, such as the areas remaining under the sofas and furniture.

WARNING: Do not make cleaning by using the handle's (12) end part.

3.5 Operation

1. Plug the appliance after pulling the power plug located at the back of the appliance.
2. Press on/off button to switch on your appliance.

3.5.1 Adjusting the suction power

You can lower the suction power of the parquet carpet brush by pulling backward the vacuum adjustment control located on the handle (12).

3 Use

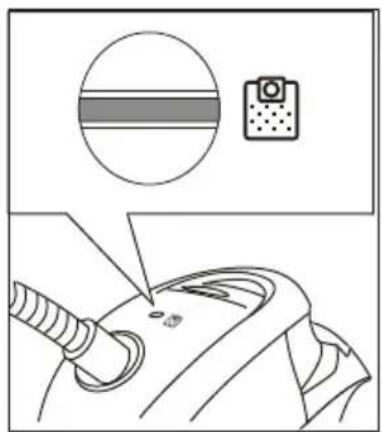

3.5.2 Dust bag full indicator

Dust bag full indicator (3) indicates the fullness of the dust bag. When the indicator displays red zone more than 50% , replace the dust bag. (see 4.1).

3.6 Switching off and parking the vacuum cleaner

1. Switch off the appliance with the on/off button and unplug it.
2. Wind the electric cable by pressing the power cable winding button.

Vertical parking feature

Insert the hook of the parquet/carpet brush into the parking channel located at the bottom section of the appliance.

Horizontal parking feature

Insert the hook of the parquet/carpet brush into the parking channel located at the rear section of the appliance.

4 Cleaning and maintenance

Switch off and unplug the appliance before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

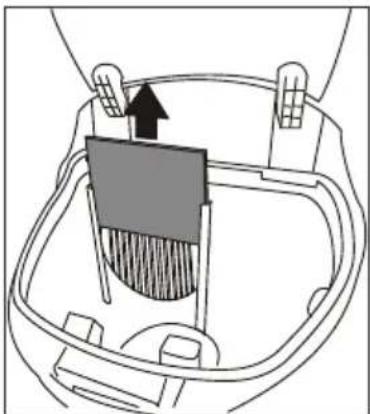

4.1 Replacing the dust bag

1. Open the cover with front cover release latch (7).
2. Seperate the dust bag holder and the dust bag.

1. Close the cover of the full dust bag and dispose it.
2. Insert the new dust bag into the holder.

1. Place back the dust bag holder into the dust container.
2. Close the appliance's cover.

WARNING: Your appliance is equipped with a system that prevents closing of the front cover when the dust bag is not installed. Please check whether the dust bag is installed if the front cover cannot be closed.

WARNING: Dust bags provided from locations other than the authorized dealers and services are not original. Such dust bags have a lesser quality and they become torn in a shorter period and render your appliance unoperational. Faults caused by using unauthentic dust bags are not covered by the scope of the warranty.

WARNING: Do not wash the dust bag.

4 Cleaning and maintenance

4.2 Cleaning the filters

After each 5 dust bag replacement (may vary depending on the frequency and area of usage) clean the filters.

WARNING: Do not use appliances producing hot air such as hair dryer or heater to dry the filters.

WARNING: Do not install the filters without completely drying them; otherwise smell of moisture may occur during the use, water can leak from the back of the appliance or the filters may get damaged.

WARNING: When the filters dry, replace them into their positions.

4.2.1 Motor protection filter

1. Open the cover by pressing the fron cover release latch (7).
2. Remove the dust bag together with the dust bag holder.

1. Remove the foam from the grid.
2. Wash it under running water after shaking it off.
3. After washing the foam, gently wring it and leave it to dry.

4.2.2 Foam filter

1. Open the rear cover.

1. Remove the foam filter behind the cover and wash it.
2. After washing the foam, gently wring it and leave it to dry.

4.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
  • Pull the appliance's plug out.
• Keep the appliance out of the reach of children.
