HC622VGB - Cooker Freggia - Free user manual and instructions

Product Type	Freestanding Cooker
Brand	Freggia
Model	HC622VGB
Dimensions (H x W x D)	900 x 500 x 600 mm
Weight	50 kg
Power Supply	220-240 V ~ 50 Hz (Electric Oven) / Gas (Hob)
Energy Class (Oven)	A
Number of Burners	4 Gas Burners
Oven Type	Electric
Oven Capacity	65 L
Maximum Oven Temperature	250 °C
Oven Functions	Bake, Grill, Broil, Convection, Defrost
Ignition Type	Automatic Electronic Ignition
Control Type	Knobs for Hob and Oven
Cleaning	Easy-clean Enamel Interior
Safety Features	Flame Failure Device, Child Lock, Thermostat
Spare Parts Availability	Available from Freggia Service Centers
Repairability	Repairable by Qualified Technician
Warranty	2 Years
Color	White

Frequently Asked Questions - HC622VGB Freggia

How do I install the Freggia HC622VGB cooker?

Installation must be carried out by a qualified technician. Ensure gas and electrical connections comply with local regulations. Refer to the manual for detailed steps.

What type of gas does the hob use?

The hob is designed for natural gas (NG) but can be converted to LPG (propane/butane) using conversion jets. Consult the manual or a technician.

How do I clean the oven?

Use a damp cloth and mild detergent for the enamel interior. Avoid abrasive cleaners. For stubborn stains, use a specialized oven cleaner. Do not immerse the oven door in water.

Why won't the oven heat up?

Check if the oven is plugged in and the circuit breaker is on. Ensure the thermostat is set correctly. If the problem persists, the heating element or thermostat may be faulty.

How do I set the child lock?

The child lock feature is activated by pressing and holding a specific button combination (usually the + and - buttons simultaneously) for 3 seconds. Refer to the manual for exact instructions.

What should I do if a gas burner won't ignite?

Clean the burner caps and electrodes with a soft brush. Ensure gas supply is on. If using electronic ignition, check if the spark plug is working. If not, replace the battery or call a technician.

Can I use the cooker without the oven light?

Yes, the oven light is not essential for cooking. However, replacing the bulb is easy. Order a replacement from Freggia and follow instructions in the manual.

How do I convert the hob to LPG?

Conversion requires replacing the injectors and adjusting the pressure regulator. This must be performed by a qualified gas technician. The conversion kit is available from Freggia.

What is the energy consumption of the oven?

The oven has energy class A. Exact consumption depends on usage. Refer to the energy label in the manual for specific kWh values.

Where can I download the user manual?

The manual is available for free on notice-facile.com or Freggia's official website in PDF format. You can also request a translation by email.

USER MANUAL HC622VGB Freggia

Thank you for purchasing Freggia built-in hob.

Please carefully read the user manual, as it contains the instructions for the safe installation, operation and maintenance of the built-in hob.

Save it for future use.

RU

We invite you to read this instruction booklet carefully, before installing and using the equipment. It is very important that you keep this booklet together with the equipment for any future consultation. If this equipment should be sold or transferred to another person, make sure that the new user receives the booklet, so that he can learn how to operate the appliance and read the corresponding notice. This is a class 3 appliance.

This appliance complies with the following directives:

CE

Declaration of conformity:

It declared that our products comply with current European directives, orders and regulations, and fulfil the conditions set out in the reference standards.

• The installation must be carried out by experienced and qualified personnel, in conformity with the regulations in force.
  • This equipment has been designed to be used by adults.
  • Therefore, make sure that children do not go near the equipment to play with it.
• While the appliance is running, watch the children and make sure they neither stay near the equipment, nor touch the surfaces that have not cooled down completely.
• Before powering the equipment, check that it is properly adjusted for the type of gas at disposal (see the "installation" paragraph).
• Before carrying out the maintenance or cleaning the equipment, cut power supply off and make it cool down.
• Make sure that air circulates around the gas equipment. Insufficient ventilation produces a lack of oxygen.
• In case of an intense or prolonged use of the equipment, it may be necessary to improve aeration, for example by opening a window or increasing the mechanical suction power, if it exists.
• The products of combustion must be discharged outside through a suction hood or an electric fan (see the "installation" paragraph).
• For any possible operation or modification, apply to an authorized Technical Assistance Centre and demand original spare parts.

!

WARNING:

If the appliance is equipped with a glass cover, the latter may shatter if heated. Turn off all the burners and wait a few minutes before closing the cover.

The product label, with the serial number, is sticked under the hob.

The manufacturer refuses all responsibility for possible damages to things or people, resulting from a wrong installation or from an improper, incorrect or unreasonable use of this equipment.

GENERAL NOTICE

TECHNICAL CHARACTERISTIC TABLE

BURNERS		GAS	NORMAL PRESSURE mbar	NORMAL RATE		INJECTOR DIAMETER 1/100 mm	TAPE BY PASS DIAMETER 1/100 mm	NOMINAL HEAT INPUT (W)		EE gas burner (%) *
N°	DENOMINATION			g/h	L/h			Max.	Min.
1	SEMI-RAPID	G30	28-30	127	-	66	31	1750	600	59,9
		G31	37	125	-	66	31	1750	600
		G20	20	-	167	101	Reg.	1750	600
2	RAPID	G30	28-30	218	-	87	42	3000	950	59,9
		G31	37	214	-	87	42	3000	950
		G20	20	-	286	129	Reg.	3000	950

Short title or reference methods of measurement and calculation used to establish compliance with the above requirements.

The performance of each individual burner is calculated according to EN 30-2-1 (2015).

The total return of the cooking surface is calculated according to EU Regulation 66/2014 Par. 2.2.

The efficiency is calculated only for the burners with a nominal capacity exceeding 1.16 kW (EN 30-2-1 (2015))

Information relevant to the customer to minimize energy consumption during use.

Saving tips:

common use pots with flat base, Use pots with the correct format, Use pots with a lid, minimize the amount of fat or liquid, when you start a hot liquid to reduce the setting.

DIRECTIVE 2012/19/EU (WEEE)

This information is intended exclusively for owners of appliances with the symbol of Fig. A in the adhesive label showing the technical data applied to the product itself (serial number label):

This symbol indicates that the product is classified according to current regulations, being electrical or electronic equipment and complies with Directive 2012/19/EU (WEEE) therefore, at the end of its useful life, it must be treated separately from household waste, delivering it free of charge to a separate collection centre for electrical and electronic equipment or returning it to the retailer at the time of purchase of new equivalent equipment.

TECHNICAL CHARACTERISTIC TABLE

The user is responsible for taking the appliance at the end of its life to the appropriate collection facilities, otherwise incurring the penalties provided for by the current waste legislation.

Adequate separate collection for future use of the equipment assigned for recycling, treatment and environmentally compatible disposal helps to prevent possible negative effects on the environment and on human health and promotes recycling of the materials that compose the product.

For more detailed information regarding the collection systems available, contact the local waste disposal service, or the store where the purchase was made.

Manufacturers and importers must comply with their responsibility for environmentally compatible recycling, treatment and disposal either directly or by participating in a collective scheme.

INSTRUCTIONS FOR THE USER

It is necessary that all the operations regarding the installation, adjustment and adaptation to the type of gas available are carried out by qualified personnel, in conformity with the regulations in force.

The specific instructions are described in the booklet section intended for the installer.

USING THE BURNERS

The symbols silk-screen printed on the side of the knob indicate the correspondence between the knob and the burner.

• START-UP WITHOUT VALVES

Turn the corresponding knob anticlockwise up to the maximum position (large flame, fig. 1) and press start-up button P (fi g. 1).

• AUTOMATIC START-UP WITH VALVES

Turn the corresponding knob anticlockwise up to the maximum position (large flame, fig. 1) and press the knob. Once the burner has been started up, keep the knob pressed for about 6 seconds.

• USING THE BURNERS

In order to obtain the maximum yield without waste of gas, it is important that the diameter of the pot is suitable for the burner potential (see the following table), so as to avoid that the flame goes out of the pot bottom (fig. 2).

Use the maximum capacity to quickly make the liquids reach the boiling temperature, and the reduced capacity to heat food or maintain boiling. All of the operating positions must be chosen between the maximum and the minimum ones, never between the minimum position and the closing point.

Use the maximum capacity to quickly make the liquids reach the boiling temperature, and the reduced capacity to heat food or maintain boiling. All of the operating positions must be chosen between the maximum and the minimum ones, never between the minimum position and the closing point.

The gas supply can be interrupted by turning the knob clockwise up to the closing position.

If there is no power supply, it is possible to light the burners with matches, setting the knob to the start-up point (large flame, fig. 1).

BURNERS POWER (W) ∅ of pots
Semi-rapid 1750 16 - 18 cm
Rapid 3000 20 - 22 cm

INSTRUCTIONS FOR THE USER

NOTICE

• When the equipment is not working, always check that the knobs are in the closing position (see fig.1).
• If the flame should blow out accidentally, the safety valve will automatically stop the gas supply, after a few seconds. To restore operation, set the knob to the lighting point (large flame, fig. 1) and press.
  • While cooking with fat or oil, pay the utmost attention as these substances can catch fire when overheated.
• Do not use sprays near the appliance in operation.
• Do not place unstable or deformed pots on the burner, so as to prevent them from overturning or overflowing.
• Make sure that pot handles are placed properly.
• When the burner is started up, check that the flame is regular and, before taking pots away, always lower the flame or put it out.

• USING THE HI-LIGHT HEATING

Use only flat pans and with sufficiently thick base, equal or not much superior that the hot plate (fi g.2/A).

• The containers should not have rough bottoms in order to avoid scratching the heat surface of the top.
• Do not switch the electric plate without the pan over the plate.
• Do not cook any food directly on the ceramic glass. Avoid overflows of liquid.
  • Turn off the plate few minutes before the cooking end.

• USE

• Set the power rotating the knob, taking into consideration that to the highest number corresponds the maximum power (fi g. 1/A).
• If the hob is fitted with extended zones, the outer heating element can be switched on turning the knob up to the end of rotation.
• The pilot light is switched ON when at least one element is insered.
• The pilot light is switched ON when the top temperature at indicated spot is higher than 50°C .

CLEANING

Before any operation, disconnect the appliance from the electric grid.

It is advisable to clean the appliance when it is cold.

• VITROCERAMIC PLATFORM AND ENAMELLED PARTS

The vitroceramic platform and all of the enamelled parts must be washed with a sponge and soapy water or with a light detergent. Do not use abrasive or corrosive products. Do not use abrasive or corrosive products.

Do not leave substances, such as lemon or tomato juice, salt water, vinegar, coffee and milk on the enamelled surfaces for a long time.

• STAINLESS STEEL PARTS

Stainless steel can be stained if it remains in contact with highly calcareous water or aggressive detergents for an extended period of time.

The stainless steel parts should also be cleaned with soapy water and then dried with a soft cloth.

• BURNERS AND RACKS

These parts can be removed to make cleaning easier.

The burners must be washed with a sponge and soapy water or with a light detergent, wiped well and placed in their housing perfectly. Make sure that the flame-dividing ducts are not clogged.

Check that the feeler of the safety valve and the start-up electrode are always perfectly cleaned, so as to ensure an optimum operation.

- GAS TAPS

The possible lubrication of the taps must be carried out by specialized personnel, exclusively.

In case of hardening or malfunctions in the gas taps, apply to the Customer Service.

HI-LIGHT HEATING

Remove leftovers and grease from the cooking surface with the special scraper (optional).

After that clean the heating area as best as possible with a paper towel and SIDOL, STAHLFIX or other similar products.

IMPORTANT

Never use abrasive sponges or irritating chemical detergents such as over spray or spot removers

Scraper (optional):

INSTRUCTIONS FOR THE INSTALLER

IMPORTANT NOTICE:

THE OPERATIONS INDICATED BELOW MUST BE FOLLOWED BY QUALIFIED PERSONNEL EXCLUSIVELY, IN CONFORMITY WITH THE REGULATIONS IN FORCE.

THE MANUFACTURING FIRM REFUSES ALL RESPONSIBILITY FOR DAMAGES TO PEOPLE, ANIMALS OR THINGS, RESULTING FROM THE FAILURE TO COMPLY WITH SUCH PROVISIONS.

INSTALLATION

• INSTALLING THE TOP

The appliance is designed to be embedded into heat-resistant pieces of furniture.

The walls of the pieces of furniture must resist a temperature of 75° C besides the room one.

The equipment must not be installed near inflammable materials, such as curtains, cloths, etc. Make a hole in the top of the piece of furniture, with the dimensions indicated in fig. 3, at a distance of at least 50 mm from the appliance border to the adjacent walls.

INSTRUCTIONS FOR THE USER

MODEL L (mm) P (mm)
HC622VGB 560 490

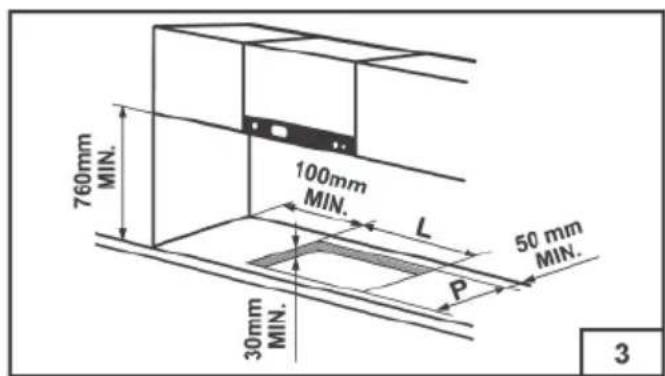

Any possible wall unit over the cook-top must be placed at a distance of at least 760 mm from the top.

It is advisable to isolate the appliance from the piece of furniture below with a separator, leaving a depression space of at least 10 mm (fi g. 4).

If the hob is going to be installed on the top of an oven, precautions must be taken to guarantee an installation in accordance with current accident prevention standards. Pay particular attention to the position of the electric cable and gas pipe: they must not touch any hot parts of the oven.

Moreover, if the hob is going to be installed on the top of a built in oven without forced cooling ventilation, proper air vents must be installed to guarantee an adequate ventilation, with the lower air entering with a cross section of at least 200cm² , and the higher air exiting with a cross section of at least 60cm² .

- FASTENING THE TOP

Every cook-top is equipped with a special washer. A set of hooks is also supplied for mounting the cook-top.

Depending on the type of mounting surface, the suitable type of mounting hook is supplied (hook A or hook B).

For the installation proceed as follows:

• Remove the racks and burners from the top.
• Turn the appliance upside down and lay the washer S along the external border (fi g. 5).
• Introduce and place the cook-top in the hole made in the piece of furniture, then block it with the V screws of the fastening hooks G (fi g.6 / 6A).

• INSTALLATION ROOM

This appliance is not provided with a device for exhausting the products of combustion.

Regarding room ventilation rules where appliance is installed make reference to the legislation, in conformity with the local regulations.

• FOR THE U.K. ONLY

The room containing this hotplate should have an air supply in accordance with BS 5440: Part 2: 1989.

• All rooms require an openable window, or equivalent and some rooms will require a permanent vent a well.
• For room volumes up to 5m ³ an air vent of 100cm ² is required.

- For room volumes between 5m ³ and 10m ³ an air vent of 50cm ² is required.

- If the room is greater than 5m ³ and has a door that opens directly to the outside, then no air vent is required. If there are other fuel burning appliances in the same room BS 5440: Part 2:1989 should be consulted to determine the air vent requirements.

• GAS CONNECTION

Make sure that the appliance is adjusted for the gas type available (see the label under the appliance). Follow the instructions indicated in the chapter "gas transformations and adjustments" for the possible adaptation to different gases.

The appliance must be connected to the gas system by means of stiff metal pipes or flexible steel pipes having continuous walls, in compliance with the regulations in force.

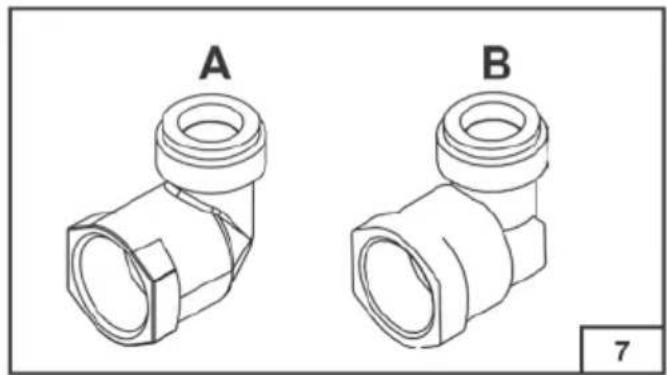

Some models are equipped with both cylindrical A and conical B connectors for gas supply (fig. 7). Please select the type which is correct for the supply concerned.

The connection must not stress the gas ramp.

Once the installation is over, check the connection seal with a soapy solution.

• ELECTRIC CONNECTION

The connection to the electric grid must be carried out by qualified personnel and in conformity with the regulations in force.

The voltage of the electric system must correspond to the value indicated in the label under the appliance. Make sure that the electric system is provided with an effective ground connection in compliance with the regulations and provisions of the law. Grounding is compulsory.

GAS TRANSFORMATIONS AND ADJUSTMENTS

• REPLACING THE NOZZLES

If the equipment is adjusted for a type of gas that is different from the one available, it is necessary to replace the burner nozzles.

The choice of the nozzles to replace must be made according to the table of the "technical characteristics" as enclosed.

Act as follows:

• Remove the racks and burners.
  • By means of a straight spanner L, unscrew the nozzle U (fig.8) and substitute it with the corresponding one.
• Tighten the nozzle strongly.

• ADJUSTING THE BURNERS

The lowest flame point must always be properly adjusted and the flame must remain on even if there is an abrupt shift from the maximum to the minimum position.

If this is not so, it is necessary to adjust the lowest flame point as follows:

• start the burner up
• turn the tap up to the minimum position (small flame)
• remove the knob from the tap rod
• introduce a flat-tip screwdriver in the hole F of the tap (fig. 9-9/A) and turn the by-pass screw up to a proper adjustment of the lowest fl ame point.

As regards G30 gas burners, the by-pass screw must be tightened completely.

MAINTENANCE

- REPLACING THE POWER SUPPLY CABLE

If the power supply cable should be replaced, it is necessary to use a cable with a section of 3 × 1.5 mm² , type H05VV-F or H05RR-F, complying with the regulations in force for the hob with gas burners. For the hob with electric plates and power under 3500W 3 × 1.5 mm² power cable should be used.

The connection to the terminal board must be effected as shown in fig. 10 - 10/A:

brown cable L (phase)

blue cable N (neutral)

green-yellow cable (ground)

The manufacturing firm refuses all responsibility for any possible imprecision in this booklet, due to misprints or clerical errors. It reserves the right to make all the changes that it will consider necessary in its own products, without effecting the essential characteristics of functionality and safety.

FOR YEARS TO COME freggia

This manual can be downloaded at www.freggia.com
