| Product type | KVM switch |
| Brand | ATEN |
| Model | KH1532A |
| Number of ports | 32 ports |
| Connection type | RJ-45 |
| Maximum resolution | 1920 x 1200 |
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 15 W max |
| Dimensions (L x W x H) | 437 x 243 x 44 mm |
| Weight | 2.8 kg |
| Operating temperature | 0°C to 50°C |
| Operating humidity | 0% to 80% RH |

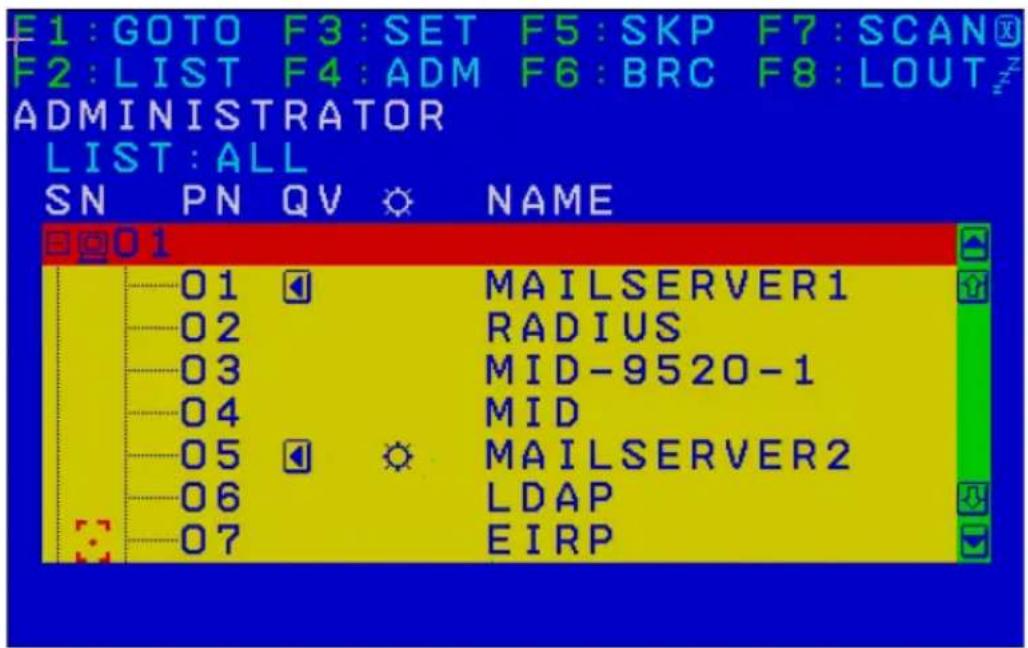

| Main functions | Remote control, keyboard switching, OSD screen |
| Maintenance and cleaning | Clean with a dry, soft cloth. Avoid liquids. |
| Safety | Do not open the case, disconnect before maintenance |
| Spare parts and repairability | Contact ATEN support for parts |
Frequently Asked Questions - KH1532A ATEN

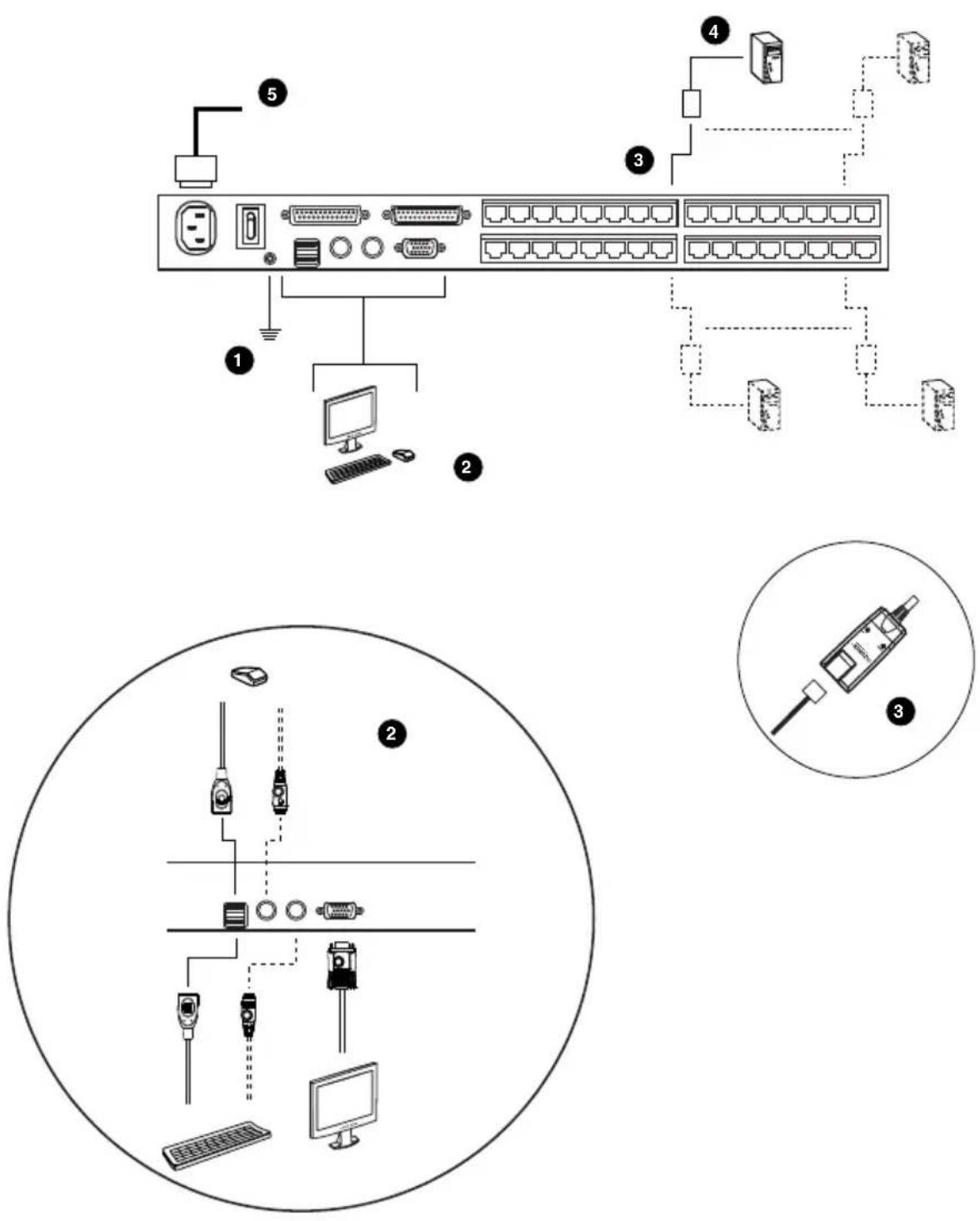

How to connect the KH1532A switch to my network?
Connect the RJ-45 cables from the servers to the switch ports, then connect the switch to your network via the dedicated Ethernet port.
What is the maximum distance between the switch and the servers?
The maximum distance is 50 meters with Cat5e/6 cables.
Can I use the switch with multiple users simultaneously?
Yes, the KH1532A supports up to 32 simultaneous users via a network connection.
How to reset the switch to factory settings?
Press and hold the Reset button on the back for 10 seconds until the LEDs flash.
Is the switch compatible with Linux operating systems?
Yes, it is compatible with Windows, Linux, Mac OS, and other systems via a web browser.

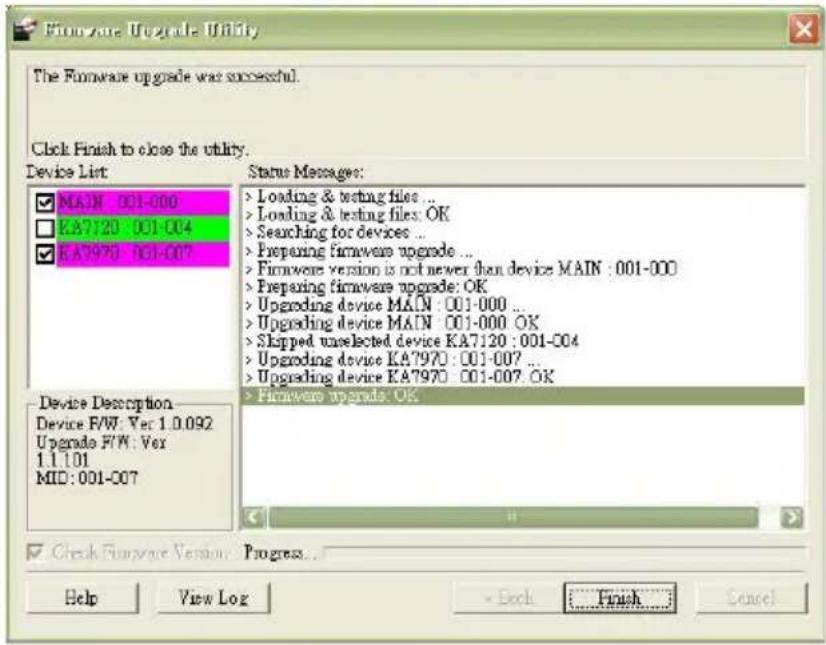

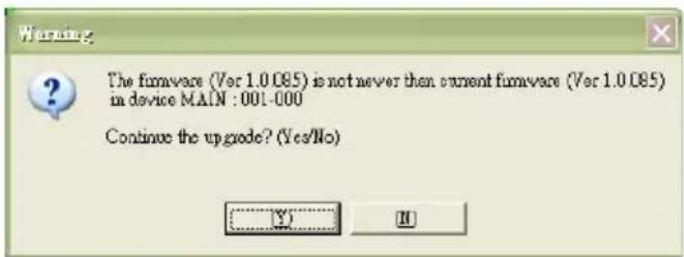

How to update the firmware of the KH1532A?
Download the latest firmware from the ATEN website, then use the web interface to perform the update.
What types of cables are needed for connections?
Use RJ-45 cables of category 5e or higher for server connections.
Does the switch support remote control via the Internet?
Yes, you can access the switch remotely via a secure Internet connection after configuration.
How to add a new server to the existing configuration?
Connect the server to a free port on the switch, then assign it a name via the management interface.
What to do if the switch stops responding?
Unplug the power for 30 seconds, then plug it back in. If the problem persists, contact ATEN support.
