Product Type	Hand Blender (Immersion Blender)
Model	ErgoMixx MSM66135GB
Brand	Bosch
Power Consumption	600 W
Voltage	220-240 V, 50-60 Hz
Number of Speeds	12 variable speeds plus Turbo boost
Blending Shaft Material	Stainless steel
Accessories Included	Measuring beaker (600 ml), whisk attachment, blending shaft
Dimensions (Height x Width x Depth)	Approx. 380 x 70 x 70 mm
Weight	Approx. 1.2 kg
Cable Length	Approx. 1.2 m
Functions	Blending, pureeing, emulsifying, whisking, chopping
Cleaning	Removable blending shaft and whisk are dishwasher safe; motor unit wipe clean only
Safety Features	Overload protection; safety switch to prevent accidental operation
Spare Parts Availability	Replacement blending shafts, whisks, and beaters available separately
Repairability	Motor unit can be serviced by authorized Bosch service centers
Warranty	2 years (subject to terms)

Frequently Asked Questions - ErgoMixx MSM66135GB BOSCH

How do I use the Turbo function?

Press and hold the Turbo button on the handle for maximum power during blending. Release to return to the set speed.

Can I blend hot liquids?

Yes, but allow them to cool slightly (max 80°C) to avoid splashing. Use a deep container and start at low speed.

How do I clean the blender shaft?

Detach the shaft from the motor unit. It is dishwasher safe or can be washed under running water. Wipe the motor unit with a damp cloth only.

What can I make with the whisk attachment?

The whisk is ideal for whipping cream, egg whites, meringues, light batters, and sauces. Not suitable for heavy dough.

Why does my blender stop suddenly?

The overload protection may have activated. Unplug, let it cool for a few minutes, then reduce the quantity or cut ingredients into smaller pieces.

Can I use the blender in a non-stick pot?

Yes, but be careful not to scratch the coating. Use a silicone or wooden spatula, and avoid hitting the sides with the metal shaft.

How do I change the speed?

Rotate the speed control dial on the handle to select from 12 speeds. Higher speeds for harder ingredients, lower for soft ones.

Is the blender suitable for crushing ice?

No, the standard blending shaft is not designed for crushing ice. Use a dedicated ice crusher or chopper accessory if available.

Where can I buy spare parts?

Spare parts like blending shafts and whisks are available from Bosch service centers or online retailers. Always use genuine parts.

How do I store the blender?

Store the motor unit upright. Keep the shaft and whisk detached. Wrap the cable loosely around the handle or use the cable clip if provided.

USER MANUAL ErgoMixx MSM66135GB BOSCH

Register your new device on MyBosch now and get free benefits:

bosch-home.com/welcome

ErgoMixx

MSM6..GB

MS6..GB

[en] Instruction manual

[ms] Operating instructions

[zf] User manual

[zh] User manual

Accessories (Hand blender) 3

Accessories (Hand blender) 8

Accessories (Hand blender) 13

Accessories (Hand blender) 17

These accessories are designed for the hand blender MSM6../MS6.. . Follow the operating instructions for the hand blender.

Never use these accessories for other appliances. Only use matching parts together.

These accessories are suitable for the following purposes:

Universal cutter: For cutting meat, hard cheese, onions, herbs, garlic, fruit, vegetables, nuts and almonds. With the ice crusher blade: For crushing ice cubes.

Whisk: For whipping cream, beating egg whites and milk froth as well as for making sauces and desserts.

“ProPuree” masher attachment: For making purees of potatoes, peas or fruit (or purees from food with a similar consistency) from cooked ingredients.

Food which is to be processed must not contain any hard components (e.g. bones). The accessory must not be used for processing other objects or substances.

Safety instructions

Risk of injury

■ Do not touch the blades of the universal cutter / ice crusher with bare hands. To insert and remove the universal blade / ice crusher blade, grasp by the plastic only. Clean with a brush. ■ The accessory must be completely assembled before use. Before attaching or removing the accessory, always wait until the drive has come to a standstill and pull out the mains plug. ■ Never insert the whisk or masher attachment in the base unit without the associated gear attachment. Never use the hand blender (blender foot) in the cutter container.

Caution!

■ The universal cutter is not microwave-safe. ■ Never immerse the attachment of the universal cutter or the gear attachments in liquids or hold under running water. Do not clean in the dishwasher.

⚠️ Important!

It is essential to clean the accessory thoroughly after each use or after it has not been used for an extended period. → “Cleaning and maintenance” see page 6

Overview

→ Fig. A

1 Universal cutter L *

a Container b Fixing points for gear attachment ● c Universal blade (L) d Ice crusher blade (L) e Gear attachment f Lid

2 Universal cutter XL *

a Container b Fixing points for gear attachment ● c Universal blade (XL) d Gear attachment e Lid

3 Whisk*

a Gear attachment

4 "ProPuree" masher attachment *

a Gear attachment b Masher paddle (detachable)

* Depending on the model

Before using the appliance for the first time

Before the new accessory can be used, it must be fully unpacked, cleaned and checked.

Caution!

Never operate a damaged accessory!

■ Remove all accessories from the packaging and dispose of all packing materials. ■ Check that all the parts are present and examine them for obvious damage. ■ Thoroughly clean and dry all parts before using for the first time. → "Cleaning and maintenance" see page 6

Symbols and markings

Symbol Meaning

Marking on the masher paddle (→ Fig. E).

Universal cutter (size L and XL)

Universal cutter: For cutting meat, hard cheese, onions, herbs, garlic, fruit, vegetables, nuts, and almonds.

Always observe the maximum quantities in the table. → Fig. ©

Ice crusher blade (only size L):

For crushing ice cubes (crushed ice).

Caution!

– Before cutting meat, remove gristle, bones and sinews. - The universal cutter is not suitable for cutting very hard items (coffee beans, radishes, nutmeg) and frozen food (fruit etc.). - Ice cubes should be processed only with the ice crusher blade.

→ Fig. B

1. Place the container on a smooth, clean work surface and press into position. Insert the universal blade or ice crusher blade.

Important: The blade must be positioned straight in the container.

1. Add food.
2. Place the gear attachment on the container and rotate clockwise until it clicks into position.
3. Place the base unit on the gear attachment and press until it clicks into position.
4. Plug the mains plug into the mains.
5. Hold the base unit and universal cutter firmly. Press the Turbo button Ⓣ. The appliance remains switched on as long as the button is pressed.
6. Process the food with the universal cutter.
7. Release the button when the desired consistency is reached. Wait until the drive comes to a standstill. Disconnect the mains plug.
8. Hold down both release buttons and remove the base unit.
9. Rotate the gear attachment anticlockwise and remove.

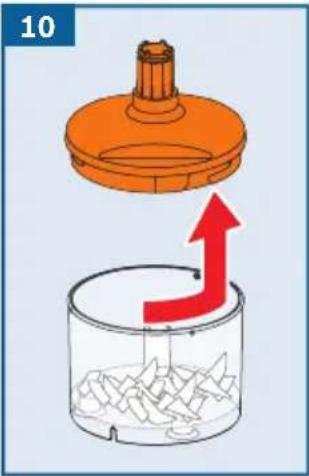

10. Take out the blade.
11. Empty the container.

■ Clean all parts immediately after use. → “Cleaning and maintenance” see page 6

Example recipe: Honey cake with apples

Honey-apple mixture (CNHR24):

• 110 g forest honey (5 °C)
• 30 g sliced apple cubes (11 mm cubes) ■ Put in universal cutter and mix on Turbo speed for 2 seconds.

Honey-apple mixture (CNHR25, CNHR26, CNHR26C):

• 130 g forest honey (5 °C)
• 30 g sliced apple cubes (11 mm cubes) ■ Put in universal cutter and mix on Turbo speed for 2 seconds.

Cake:

• 3 eggs
• 60 g butter
• 100 g plain white flour
• 60 g ground walnuts
• 1 teaspoon cinnamon
• 2 packets vanilla sugar
• 1 teaspoon baking powder
• 1 apple

■ Separate egg yolks from the whites.

■ Beat the egg whites until stiff.

■ Beat the yolks and sugar, then add softened butter and honey-apple mixture.

In a separate container, mix flour, ground walnuts, cinnamon, and baking powder. Mix and incorporate into the wet ingredients. Using a spatula, carefully fold in the beaten egg whites.

Line a bread baking pan (35 cm x 11 cm) with baking paper and pour in the prepared mixture.

Peel the apple and slice it. Place the slices on top of the cake.

Preheat the oven to 180 °C and bake the cake for 30 minutes.

Whisk

For whipping cream, beating egg whites, and frothing milk from hot (max. 70 °C) and cold milk (max. 8 °C), as well as for preparing sauces and desserts.

Risk of scalding!

When processing hot liquids, use a tall, narrow container for blending.

Caution!

• Never insert the whisk into the base unit without the gear attachment.
• Do not attach or remove the gear attachment with the whisk until the appliance is at a standstill.

→ Fig. ©

1. Place the prepared food in the blender jug or another suitable container, or process in the cooking pot.
2. Place the gear attachment on the whisk and press until it clicks into position.
3. Place the whisk with the gear attachment on the base unit and press until it clicks into position.
4. Plug the mains plug into the mains.
5. Set the required speed with the speed control (high speed recommended).
6. Take hold of the base unit and blender jug and press the ON button ①.
7. Process the food with the whisk.
8. Release the ON button ① after processing. Wait until the drive comes to a standstill. Disconnect the mains plug.
9. Hold down both release buttons and remove the whisk with the gear attachment from the base unit.
10. Remove the gear attachment from the whisk.

■ Clean all parts immediately after use. → "Cleaning and maintenance" see page 6

"ProPuree" masher attachment

For processing cooked potatoes and for making purees from other suitable foods (e.g. cooked pulses, cooked fruit and vegetables).

Caution!

• Before using the masher attachment in a cooking pot, take the pot off the hotplate.
• Do not bang the masher attachment against hard edges (pot, bowl).
• Do not process hard ingredients (e.g. coffee beans, chocolate).
• Only use cooked ingredients. – Roughly chop large items of food (e.g. potatoes).

→ Fig. D

1. Place the prepared, cooked food in a suitable receptacle or process in the cooking pot.
2. Place the gear attachment on the masher attachment and rotate clockwise until it clicks into position.
3. Place the masher attachment with the gear attachment on the base unit and press until it clicks into position.
4. Plug the mains plug into the mains.
5. Hold the receptacle with one hand and immerse the masher attachment.
6. Press the Turbo button Ⓣ. The appliance remains switched on as long as the button is pressed.
7. Move the masher attachment up and down while processing the food.
8. Release the button when the desired consistency is reached. Wait until the drive comes to a standstill. Disconnect the mains plug.
9. Hold down both release buttons and remove the masher attachment with the gear attachment from the base unit.
10. Rotate the gear attachment anticlockwise and remove from the masher attachment.

■ Clean all parts immediately after use.

→ “Cleaning and maintenance” see page 6

Example recipe: Mashed potatoes

• 1 kg boiled potatoes
• 0.15 l warm milk
• 50 g soft butter – Salt, pepper and nutmeg – Cinnamon (to taste) ■ Place ingredients in a suitable receptacle and process with the masher attachment for approx. 1 minute. ■ Lastly, season to taste with salt, pepper and nutmeg. ■ Add a pinch of cinnamon if wished.

Cleaning and maintenance

The attachments and accessories used must be thoroughly cleaned after each use.

Risk of injury

Do not touch the blades of the universal cutter / ice crusher with bare hands. To clean, only grasp by the plastic and use a brush.

Caution!

• Do not use any cleaning agents containing alcohol or spirits.
• Do not use any sharp, pointed or metal objects.
• Do not use abrasive cloths or cleaning agents.
• Never immerse the gear attachment of the universal cutter or the gear attachment in liquids or hold under running water. Do not clean in the dishwasher.

Please note:

• To make it easier to clean the whisk / masher attachment, after use place it in a receptacle containing clean water and briefly press the Turbo button Ⓣ several times.
• When processing food such as red cabbage or carrots, plastic parts may become discoloured. This can be removed with a few drops of cooking oil.

In Fig. F you will find a summary of how to clean the individual parts.

Universal cutter / whisk

■ Only wipe the attachment of the universal cutter and the gear attachment of the whisk with a soft, damp cloth and dry off. ■ Clean the other accessory parts with a detergent solution and a soft cloth or sponge or place them in the dishwasher. Clean the blades with a brush.

Masher attachment

Caution!

To remove food remnants, use a dough scraper or plastic spoon. Never try to remove by banging against hard edges (e.g. cooking pot)!

Note: The masher paddle can be removed to ensure especially thorough cleaning. To do so, the gear attachment must be affixed to the masher attachment.

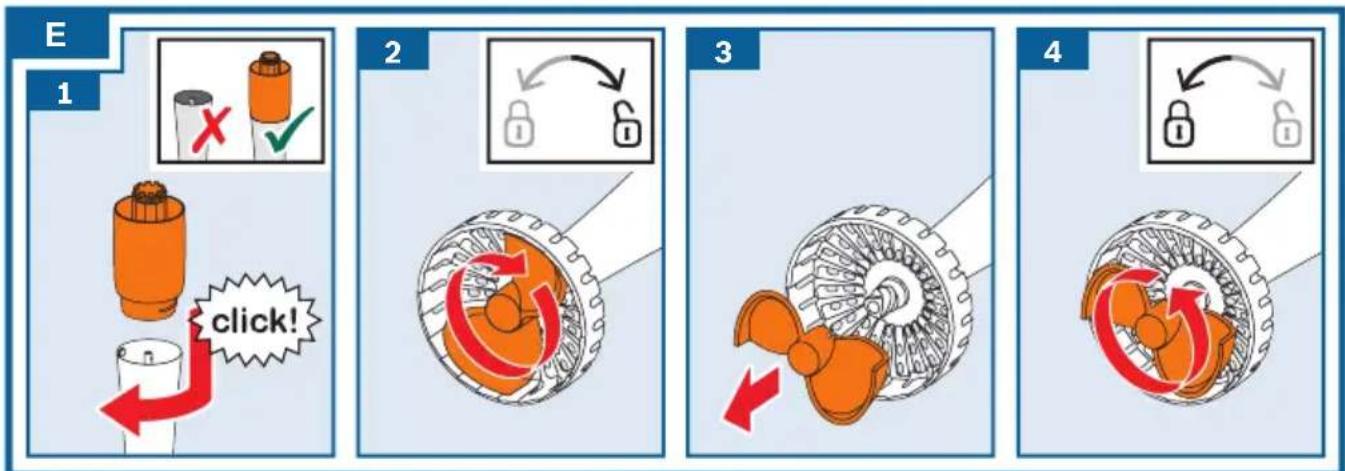

→ Fig. E

1. Place the gear attachment on the masher attachment and rotate clockwise until it clicks into position.
2. Hold the masher attachment and rotate the masher paddle clockwise (☐).
3. Remove the masher paddle.

■ Rotate the gear attachment anticlockwise and remove from the masher attachment.

■ Clean all parts as shown in Fig. F.

Important: After cleaning, check there is nothing left in the locking opening. If necessary, remove with a brush or toothpick.

1. Hold the masher attachment with the gear attachment in place and rotate the masher paddle anticlockwise (☐).

Subject to change without notice.

Free and easy registration – also on mobile phones:

www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, need help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you:

www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

	[2752]
		[2ZW7]

			100 g -		10-15 s
	→		CNHR24 100 g	-	30-40 s
			CNHR25 CNHR26 CNHR26C 150 g
	→		150 g	-	(2-5) x 1 s
	→		15 g	-	(7-10) x 1 s
	→		(STWZ)	-	(3-8) x 1 s
	→		150 g	-	(5-10) x 1 s
	→		100 g 10-20 s	-
			100 g	-	30-40 s
			-5 s	100 g
