Product Type	Smartphone
Brand	LG
Model	G282
Dimensions (approximate)	105 x 46 x 16 mm
Weight (approximate)	90 g
Battery Type	Li-Ion 1000 mAh
Standby Time (approximate)	200 hours
Talk Time (approximate)	3 hours
Display	2.0 inch TFT, 65K colors
Camera	1.3 MP, fixed focus
Connectivity	GSM 900/1800, Bluetooth, USB
Storage	Internal 64 MB, microSD slot (up to 2 GB)
Main Functions	Call, SMS, FM Radio, MP3 Player, Alarm, Calculator
Care Instructions	Clean with dry cloth, avoid liquids, keep away from magnets
Safety Precautions	Do not disassemble, use only approved chargers, avoid extreme temperatures
Spare Parts & Repairability	Battery and charger available from LG service centers
General Information	User manual in PDF format on notice-facile.com

Frequently Asked Questions - G282 LG

How do I insert the SIM card and battery?

Remove the back cover by pressing the indentation. Slide the SIM card into the slot with gold contacts facing down. Insert the battery aligning the contacts, then replace the cover.

How can I charge the battery?

Connect the provided charger to the phone's charging port and plug into a wall outlet. The battery icon will animate during charging. Full charge takes about 2 hours.

What is the maximum memory card capacity?

The LG G282 supports microSD cards up to 2 GB. Insert the card in the dedicated slot under the back cover, with contacts facing down.

How do I take a photo?

Open the camera app from the menu. Aim the lens and press the center select button or the side camera key to capture. Photos are saved in the gallery.

Can I listen to FM radio without headphones?

No, the headset acts as an antenna. Plug in the earphones, then open the FM radio app. You can listen through the speaker once tuned.

How do I transfer files via Bluetooth?

Go to Settings > Bluetooth and turn it on. Select 'Search for devices' to pair. After pairing, send or receive files from the gallery or file manager.

How can I reset the phone to factory settings?

Dial *2767*3855# (Master Reset) or go to Settings > Reset. This erases all user data, so back up important files first.

What should I do if the battery drains quickly?

Check for background apps, reduce screen brightness, and disable Bluetooth when not in use. If the battery is old, consider replacing it with an original LG battery.

How do I set a ringtone?

Go to Settings > Sound Profiles. Select a profile and choose Ringtone. You can pick from built-in tones or use an MP3 from the memory card as a ringtone.

My phone turns off unexpectedly. What to do?

Ensure the battery is fully charged and contacts are clean. If the problem persists, perform a soft reset by removing the battery for 10 seconds. If still issues, contact LG support.

USER MANUAL G282 LG

LG-G282 USER'S MANUAL

GPRS Phone

Please read this manual carefully before operating your mobile phone. Retain it for future reference.

Introduction

Congratulations on your purchase of the advanced and compact LG-G282 cellular phone, designed to operate with the latest digital mobile communication technology.

This user's guide contains important information on the use and operation of this phone. Please read all the information carefully for optimal performance and to prevent any damage or misuse of the phone. Any changes or modifications not expressly approved in this user's guide could void your warranty for this equipment.

For Your Safety

Warning

• Mobile Phones must be switched off at all times in an aircraft.
• Do not hold the phone in your hand while driving.
• Do not use your phone near petrol stations, fuel depots, chemical plants or blasting operations.
• For your safety, use ONLY specified ORIGINAL batteries and chargers.
• Do not handle the phone with wet hands while it is being charged. It may cause an electric shock or seriously damage your phone.
• Keep the phone in a safe placeout of children's reach. It includes small parts which if detached may cause a choking hazard.

Caution

• Switch off the phone in any area where required by special regulations. For example, do not use your phone in hospitals or it may affect sensitive medical equipment.
• Emergency call may not be available under all cellular networks. Therefore, you should never depend solely on the phone for emergency calls.
• Only use ORIGINAL accessories to avoid damage to your phone.
• All radio transmitters carry risks of interference with electronics in close proximity. Minor interference may affect TVs, radios, PCs, etc.
• Batteries should be disposed of in accordance with relevant legislation.
• Do not dismantle the phone or battery.

Guidelines for safe and efficient use

Read these simple guidelines. Breaking the rules may be dangerous or illegal. Further detailed information is given in this manual.

Exposure to radio frequency energy

Radio wave exposure and Specific Absorption Rate (SAR) information

This mobile phone model LG-G282 has been designed to comply with applicable safety requirement for exposure to radio waves. This requirement is based on scientific guidelines that include safety margins designed to assure this safety of all persons, regardless of age and health.

• The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate, or SAR. Tests for SAR are conducted using standardized method with the phone transmitting at its highest certified power level in all used frequency bands.
• While there may be differences between the SAR levels of various LG phone models, they are all designed to meet the relevant guidelines for exposure to radio waves.
• The SAR limit recommended by the international Commission on Non-Ionizing Radiation Protection (ICNIRP), which is 2W/kg averaged over ten (10) gram of tissue.
• The highest SAR value for this model phone tested by DASY4 for use at the ear is 0.227 W/kg @ 10g on IDA certificate.

- SAR data information for residents in countries/regions that have adopted the SAR limit recommended by the Institute of Electrical and Electronics Engineers (IEEE), which is 1.6 W/kg averaged over one (1) gram of tissue.

Product care and maintenance

Warning: Use only batteries, charger and accessories approved for use with this particular phone model. The use of any other types may invalidate any approval or warranty applying to the phone, and may be dangerous.

• Do not disassemble this unit. Take it to a qualified service technician when repair work is required.
• Keep away from electrical appliance such as a TV, radio or personal computer.
• The unit should be kept away from heat sources such as radiators or cookers.
• Do not drop.
• Do not subject this unit to mechanical vibration or shock.
• The coating of the phone may be damaged if covered with wrap or vinyl wrapper.
• Do not use harsh chemicals (such as alcohol, benzene, thinners, etc.) or detergents to clean your phone. There is a risk of this causing a fire.

• Do not subject this unit to excessive smoke or dust.

• Do not keep the phone next to credit cards or transport tickets; it can affect the information on the magnetic strips.

• Do not tap the screen with a sharp object; otherwise, it may damage the phone.
• Do not expose the phone to liquid or moisture.
• Use the accessories like an earphone cautiously.
• If you put your phone in a pocket or bag without covering the receptacle of the phone (power plug pin), metallic articles (such as a coin, paperclip or pen) may short-circuit the phone. Always cover the receptacle when not in use.
• Never place your phone in a microwave oven as it will cause the battery to explode.
• Only authorized personnel should service the phone and its accessories. Faulty installation or service may result in accidents and consequently invalidate the warranty.
• Do not use the phone if the antenna is damaged. If a damaged antenna contacts skin, it may cause a slight burn. Please contact an LG Authorized Service Center to replace the damaged antenna.
• The label of the phone contains important information for customer support purposes. Do not remove it.

Efficient phone operation

To enjoy optimum performance with minimum power consumption please:

• Hold the phone as you speak to any other telephone. While speaking directly into the microphone, angle the antenna in a direction up and over your shoulder. If the antenna is extendable/retractable, it should be extended during a call.
• Do not hold the antenna when the phone is in use. If you hold it, it can affect call quality, it also may cause the phone to operate as a higher power level that needed and shorten talk and standby times.
• If your mobile phone supports infrared, never direct the infrared ray at anyone's eye.

Electronics devices

All mobile phones may get interference, which could affect performance.

• Do not use your mobile phone near medical equipment without requesting permission. Avoid placing the phone over the pacemaker, i.e. in your breast pocket.
• Some hearing aids might be disturbed by mobile phones.
• Minor interference may affect TVs, radios, PCs, etc.
• Do not bend, scratch, or expose to static electricity.

Road safety

Check the laws and regulations on the use of mobile phones in the areas when you drive.

• Do not use a hand-held phone while driving.
• Give full attention to driving.

Guidelines for safe and efficient use

• Use a hands-free kit, if available.
• Pull off the road and park before making or answering a call if driving conditions so require.
• RF energy may affect some electronic systems in your motor vehicle such as car stereo, safety equipment.
• When riding in a car, do not leave your phone or set up the hands-free kit near to the air bag. If wireless equipment is improperly installed and the air bag is activated, you may be seriously injured.

Blasting area

Do not use the phone where blasting is in progress. Observe restrictions, and follow any regulations or rules.

Potentially explosive atmospheres

• Do not use the phone at a refueling point. Don't use near fuel or chemicals.
• Do not transport or store flammable gas, liquid, or explosives in the compartment of your vehicle, which contains your mobile phone and accessories.

In aircraft

Wireless devices can cause interference in aircraft.

• Turn off your mobile phone before boarding any aircraft.
• Do not use it on the ground without crew permission.

Battery information and care

• You do not need to completely discharge the battery before recharging. Unlike other battery systems, there is no memory effect that could compromise the battery's performance.
• Use only LG batteries and chargers. LG chargers are designed to maximize the battery life.
• Do not disassemble or short-circuit the battery pack.
• Keep the metal contacts of the battery pack clean.
• Replace the battery when it no longer provides acceptable performance. The battery pack may be recharged hundreds of times until it needs replacing.
• Recharge the battery if it has not been used for a long time to maximize usability.
• Do not expose the battery charger to direct sunlight or use it in high humidity, such as the bathroom.
• Do not leave the battery in hot or cold places, this may deteriorate the battery performance.

Network service

• Some services and functions described in this user's guide are dependent on network or subscription. Therefore, all menus may not be available in your phone. Please consult network operator for more information about your subscription.

Contents

Part of the Phone 9

• Front of the Phone 9
• Rear of the Phone 9

Key Description 10

• Keypad Description 10
• Side of the Key 11
• Letter Keys 11

Display Information 12

- On-Screen Icons 12

Installation 13

• Inserting the SIM Card 13
• Removing the SIM Card 13
• Installing the Battery 13
• Charging the Battery 14
• Disconnecting the charger 14

Making and Answering Calls 15

• Making a call 15
  • International Calls 15
• Making a call using the Phonebook 15

Access Codes 16

• PIN code (4 digits) 16
• PIN2 code (4 digits) 16
- PUK code (8 digits) 16
- PUK2 code (8 digits) 16
- Security code (4 to 8 digits) 16

Menu Tree 17

Messages [Menu 1] 19

• Write text message [Menu 1-1] .... 19
• Write multimedia message [Menu 1-2] 20

• Inbox [Menu 1-3] 23

• Outbox [Menu 1-4] 24

• Drafts [Menu 1-5] 25
• Listen to voice mail [Menu 1-6] 25
• Info message [Menu 1-7] 25
• Templates [Menu 1-8] 26
• Settings [Menu 1-9] ...... 26

Contacts [Menu 2] 29

• Search [Menu 2-1] 29
• Add new [Menu 2-2] 29
• Caller groups [Menu 2-3] .... 30
• Speed dial [Menu 2-4] .... 30
• Settings [Menu 2-5] .... 30
• Copy all [Menu 2-6] 31
• Delete all [Menu 2-7] 31
  • Information [Menu 2-8] 32

Call manager [Menu 3] 33

• Call register [Menu 3-1] .... 33
• Call charges [Menu 3-2] 33
  • GPRS information [Menu 3-3] 34
• Call divert [Menu 3-4] 34
• Call barring [Menu 3-5] 35
• Call waiting [Menu 3-6] 35
• Fixed dial number [Menu 3-7] 35
• Call settings [Menu 3-8] 35

Service [Menu 4] 37

• Internet [Menu 4-1] 37
• SIM service [Menu 4-2] 40

My stuff [Menu 5] 41

• Pictures [Menu 5-1] .... 41
• Sounds [Menu 5-2] 41
• Album [Menu 5-3] 41

Contents

• MP3 [Menu 5-4] 42
• Memory status [Menu 5-5] 42

Camera [Menu 6] 43

• Take picture [Menu 6-1] 43

• Take in modes [Menu 6-2] 43

• Take continuously [Menu 6-3] 43

- Album [Menu 6-4] 44

- Settings [Menu 6-5] 44

Organiser [Menu 7] 45

- Scheduler [Menu 7-1] 45

• Voice recorder [Menu 8-2] 48

- Melody composer [Menu 8-3] .... 48

- Games & more [Menu 8-4] 49

Tools [Menu 9] 50

- Alarm clock [Menu 9-1] .... 50

- Calculator [Menu 9-2] .... 50

- Unit converter [Menu 9-3] .... 50

• World time [Menu 9-4] 50

- Favorites [Menu 9-5] .... 51

Display [Menu *] 52

- Wallpaper [Menu *-1] 52

- Handset scheme [Menu *-2] 52

- Greeting note [Menu *-3] 52

- Backlight [Menu *-4] 52

- LCD contrast [Menu *-5] 52

- Information window [Menu *-6] 52

- Network name [Menu *-7] 52

Profiles [Menu 0] 53

• Vibrate only [Menu 0-1] 53

- Silent [Menu 0-2] 53

- General [Menu 0-3] .... 53

- Loud [Menu 0-4] 53

- Headset [Menu 0-5] .... 53

Settings [Menu #] 55

- Date & Time [Menu #-1] 55

- Language [Menu #-2] 55

• Rhythm light [Menu #-3] 55

- Security settings [Menu #-4] 55

• Network settings [Menu #-5] 56

• GPRS setting [Menu #-6] 57

- Memory status [Menu #-7] 57

- Reset settings [Menu #-8] 57

Accessories 58

Technical Data 59

Part of the Phone

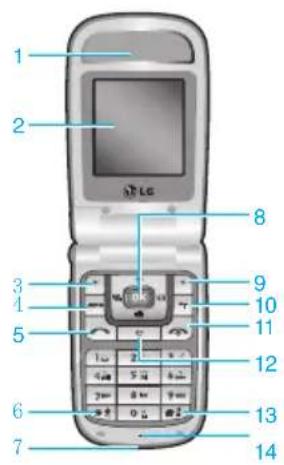

Front of the Phone

1. Earpiece
2. LCD Screen
3. Left soft key
4. MP3 key
5. Send key
6. Star key
7. Cable connector
8. Joystick (Navigation key) and easy access to functions:

- Left:

Short press: Audio profiles Long press: Change mode (Vibrate and Gerneral)

• Right: Messages/agenda
• Up: Favourites functions
• Down: Phone book list Short press: Selects the function

• OK: Long press: Access WAP

• Right soft key

• Organiser key

• End/Power key
• Cancel key
• Hash key
• Microphone

Rear of the Phone

1. Handstrap Hole
2. Battery Cover

3. Battery

4. SIM Card Socket

5. Cable Connector/Battery Charging Connector

Key Description

Keypad Description

Key Description
	Soft Left key / Soft Right keyEach of these keys performs the function indicated by the text on the display immediately above it.
[H0Y]	Joystick or Navigation keyUse to scroll through menus and move the cursor. You can also use joystick for quick access to the following functions.-MessagePush "right" to retrieve or send text messages.-ProfilePush "left" to choose the audio profile you want.-FavoritesPush "up" to access the list of preferred functions.-Answering phone listPush "down" to access answering phone list menu.
[X154]

Key Description
	Send keyYou can dial a phone number and answer a call. If you press this key without entering a number, your phone shows the most recently dialled, received and missed numbers.
\ \[AC7T\} \)	Numeric keysThese keys are used mainly to dial in standby mode and enter numbers or characters in editing mode. When you press these keys for a long time.Used to call your voicemail box by Used to call for international call by Used to call Speed dials by fromto .
	END / PWR keyUsed to end or reject a call. This key is also used as Power Key by pressing this key for a few seconds.
	Clear KeyYou can delete the characters, go back the menu.

Side of the Key

Key Description
[1]	Camera keyThis key is used to take a picture and save it.
[2]	Side keysIn standby mode: Volume of key toneIn menu: Scroll up & downDuring a call: Volume of the earpiece

Letter Keys

Each key can be used for several symbols. These are shown below.

Key	Description
	Upper Case	Lower Case
	.,/?!-:"1	.,/?!-:"1
	ABC2	abc2
	DEF3	def3
	GHI4	ghi4
	JKL5	jkI5
	MNO6	mno6
	PQRS7	pqrs7
	TUV8	tuv8
	WXZY9	wxyz9
	0	0

Display Information

The screen displays several icons. These are described below.

On-Screen Icons

Icon Description
	Tells you the strength of the network signal. *
	Call is connected.
	You can use GPRS service.
[A6ZA]	Shows that you are using a roaming service.
	The alarm has been set and is on.
	Tells you the status of the battery.
	You have received a text message.
[DTGK] [2H8E]	Line 1/2 is in use for outgoing calls - If you subscribe to The Two Line Service.

Icon Description
[KSH4]	You can view your schedule.
	Vibrate only menu in profile.
[8X06]	General menu in profile.
[24H0]	Loud menu in profile.
[T780]	Silent menu in profile.
	Headset menu in profile.
	You can divert a call.
	Indicates that the phone is accessing the WAP.
	Indicates that you are using GPRS.

* The quality of the conversation may change depending on network coverage. When the signal strength is below 2 bars, you may experience muting, call drop and bad audio. Please take the network bars as indicator for your calls. When there are no bars, that means that there is no network coverage: in this case, you won't be able to access the network for any service (call, messages and so on).

Installation

1. Inserting the SIM Card

Locate the SIM card socket in the back of the phone. Follow the steps below to install the SIM card.

1. Remove the back cover.

2. Remove the battery if attached.

1. Slide the SIM card into the slot, under the silvery holders, with the golden connectors facing down.

SIM card

When you register as a subscriber with a network operator, you can get a SIM (Subscriber Identity Module) card. The SIM card contains a computer chip that keeps track of your phone number, the services included in your subscription and your phone book information among other things.

2. Removing the SIM Card

Follow the steps below to remove the SIM card.

1. Remove the battery if attached.

2. Take out the SIM card from the slot.

Caution

• Removing the battery from the phone whilst it is switched on may cause it to malfunction.
• The metal contact of the SIM card can be easily damaged by scratches. Pay special attention to the SIM card when you handle and install. Follow the instructions supplied with the SIM card.
• The SIM card must be treated with the same care as a bank card.
• If your phone and/or SIM card are lost or stolen, call the service provider immediately to prevent misuse.

3. Installing the Battery

1. Position the lugs on the top of the battery into the retaining holder.
2. Then push the bottom of the battery into position until it clicks.

Installation

1. Attach back cover by sliding up into position until it clicks.

4. Charging the Battery

To connect the travel adapter to the phone, you must have installed the battery.

1. Ensure the battery is fully charged before using the phone.

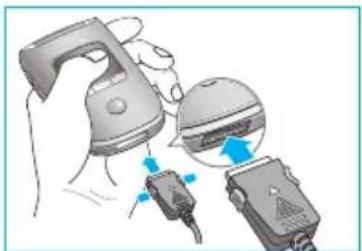

2. With the arrow facing you as shown in the diagram push the plug on the battery adapter into the socket on the bottom of the phone until it clicks into place.
3. Connect the other end of the travel adapter to the mains socket. Use only the included packing charger.
4. The moving bars of battery icon will stop after charging is complete.

Caution

• Do not force the connector as this may damage the phone and/or the travel adapter.
• Do not remove your battery or the SIM card while charging.

Warning

• Unplug the power cord and charger during lightning storms to avoid electric shock or fire.
• Make sure that no sharp-edged items such as animal teeth, nails, come into contact with the battery. There is a risk of this causing a fire.
• Do not place or answer calls while charging the phone as it may short-circuit the phone and/or cause electric shock or fire.

5. Disconnecting the charger

Disconnect the travel adapter from the phone by pressing its side buttons as shown in the diagram.

Making and Answering Calls

Making a call

1. Key in phone number including the area code. If you want to delete number, press ☐.
2. Press 📋 to call the number.
3. Press 📋 to end the call.

International Calls

1. Press and hold the key for the international prefix. “+” character may replace with the international access code.
2. Enter the country code, area code, and the phone number.
3. Press

Making a call using the Phonebook

1. In standby mode, press [Contacts].
2. When the menu is displayed, you select Search by pressing 16.
3. If you find out the desired item through searching by a name or a number, press 📋 to call.

Access Codes

You can use the access codes described in this section to avoid unauthorized use of your phone.

PIN code (4 to 8 digits)

The PIN (Personal Identification Number) code protects your SIM card against unauthorized use. The PIN code is usually supplied with the SIM card. When PIN code is set On, your phone will request the PIN code every time it is switched on. On the contrary, when PIN code is set Off, your phone connects to the network directly without the request PIN code.

PIN2 code (4 to 8 digits)

The PIN2 code, supplied with some SIM cards, is required to access some functions such as Advice of call charge, Fixed Dial number. These functions are only available if supported by your SIM card.

PUK code (4 to 8 digits)

The PUK (PIN Unblocking Key) code is required to change a blocked PIN code. The PUK code may be supplied with the SIM card. If not, contact your local service provider for the code. If you lose the code, also contact your service provider.

PUK2 code (4 to 8 digits)

The PUK2 code, supplied with some SIM cards, is required to change a blocked PIN2 code. If you lose the code, also contact your service provider.

Security code (4 to 8 digits)

The security code protects the unauthorized use of your phone. It is usually supplied with the phone. This code is required to delete all phone entries and to activate "Reset settings" menu. The default number is "0000".

Menu Tree

1 Messages

1 Write text message
2 Write multimedia message
3 Inbox
4 Outbox
5 Drafts
6 Listen to voice mail
7 Info message
8 Templates
9 Settings

3 Call manager

1 Call register
2 Call charges
3 GPRS information
4 Call divert
5 Call barring
6 Call waiting
7 Fixed dial number
8 Call settings

5 My stuff

1 Pictures
2 Sounds
3 Album
4 MP3
5 Memory status

2 Contacts

1 Search
2 Add new
3 Caller groups
4 Speed dial
5 Settings
6 Copy all
7 Delete all
8 Information

4 Service

1 Internet
2 SIM service

6 Camera

1 Take picture
2 Take in modes
3 Take continuously
4 Album
5 Settings

Menu Tree

7 Organiser

1 Scheduler
2 Memo

9 Tools

1 Alarm clock
2 Calculator
3 Unit converter
4 World time
5 Favorites

0 Profiles

1 Vibrate only
2 Silent
3 General
4 Loud
5 Headset

8 Multimedia

1 MP3
2 Voice recorder
3 Melody composer
4 Games & more

* Display

1 Wallpaper
2 Handset scheme
3 Greeting note
4 Backlight
5 LCD contrast
6 Information window
7 Network name

# Settings

1 Date & Time
2 Language
3 Rhythm light
4 Security settings
5 Network settings
6 GPRS setting
7 Memory status
8 Reset settings

Messages [Menu 1]

This menu includes functions related to SMS (Short Message Service), MMS (Multimedia Message Service), voice mail, as well as the network's service messages.

Write text message [Menu 1-1]

You can write and edit text message, checking the number of message pages.

1. Enter the Messages menu by pressing 🔒.
2. If you want to write a new message, select Write text message.
3. To make text input easier, use T9. For details, see How to use T9 (Page 22).
4. Press [Insert] to attach the followings.
5. If you want to set option for your text, or to finish your writing, press ☐ [Options].

Note

The phone which supports EMS release 5 is available to send colour pictures, sounds, text styles, etc.. The other party may not receive pictures, sounds or text styles you sent properly if the phone does not support such options.

Insert

• Symbol: You can add special characters.
- Picture: You can insert the Default pictures or pictures in My folder that are available for short messages.
- Sound: You can insert sounds that are available for short messages.
- Text templates: You can use Text templates already set in the phone.
- Contacts: You can add phone numbers or e-mail addresses in Contacts.
- Business Card: You can add your signature to the message.

Options

• Send: Sends text messages.
• Enter numbers of recipient.
• Push down 📋 to add more recipients.
• You can add phone numbers in the phone book.
• Press ☐ after entering numbers.
  All messages will be automatically saved in the outbox folder, even after a sending failure.
• Save: Stores messages in Outbox.
• Font: You can select Size and Style of fonts.

Messages [Menu 1]

• Colour: You can select Colour of foreground and background.
• Alignment: You can make the message contents aligned Right, Centre or Left.
• Add T9 dictionary: You can add your own word. This menu can be shown only when edit mode is Predictive (T9Abc/T9abc/T9ABC).
  • T9 languages: Select a T9 input mode.
• Exit: If you press Exit while writing a message, you can end the writing message and back to the Message menu. The message you have written is not saved.

Write multimedia message [Menu 1-2]

You can write and edit multimedia messages, checking message size.

1. Enter the Messages menu by pressing 📄.
2. If you want to write a new message, select Write multimedia message.
3. You can create a new message or choose one of the multimedia message templates already made.
4. Press Insert to add Symbol, Photo, Take photo, Picture, Sound, Voice memo, Text templates, Phonebook or Business card.

Options

- Send: You can send multimedia messages to multiple recipients, prioritise your message, and make it sent later as well.

Note

• All messages will be automatically saved in the outbox folder, even after a sending failure.
• Check with your service provider if the Priority service is available.

- Preview: You can preview multimedia messages you wrote.

- Save: You can save multimedia messages In drafts or As template.

- Add slide: You can add a slide before or after current slide.

- Move to slide: You can move to previous or next slide.

- Delete slide: You can delete current slides.

- Set slide format

• Set timer
  You can set timer for slide, text, picture and sound.

- Swap text and picture

You can switch the position of picture and text of the message.

• Remove media: You can remove pictures or sounds in the slide. This option can be shown only when any media exists.
• Add T9 dictionary: You can add your own word. This menu can be shown only when edit mode is Predictive (T9Abc/T9abc/T9ABC).
  • T9 languages: Select a T9 input mode.
• Exit: You can back to the Message menu.

Note

If you select the picture (15K) on writing multimedia message, loading duration will take around 15 seconds at least. Furthermore, you can't activate any key during loading time. After 15 seconds, it is available to write multimedia message.

Messages [Menu 1]

How to Use T9

T9 allows you to input text quickly. In T9, you only need to press the key with the corresponding letter once. This is based on a built-in dictionary to which you can also add new words.

▶ Writing words by using T9.

1. Start writing a word by using the keys ☐☐. ☐☐ Press each key only once for one letter. To write for instance 'Girl', press ☐☐, ☐☐, ☐☐, ☐☐. The characters that you enter appear blocked.

The word changes after each keystroke. Therefore you shouldn't pay too much attention to how the word appears on the display until you have pressed all the appropriate keys.

To delete a character to the left, press □. To insert several numbers, hold □ down and key in the numbers. If you hold □ down, you can change the type of language. (You can also use options.)

Also, the phone supports three modes: Predictive (T9Abc, T9ABC, T9abc), Multitap (ABC, abc), Numeric (123). If you want to change a mode, press key.

Alternatively: Press key and select insert symbols. Select the desired character and press Select.

1. When you have finished writing a word, check whether the word is correct.

If the word is correct: Press ☐ and write the next word.

If the word is not correct: Search by 📄, 📋 (Previous and Next word).

Alternatively: If there is no word you want you can add your own word. Press 📄 [Options] in the Predictive edit mode. Select Add T9 dictionary Menu. You can see the following.

1. To insert a punctuation mark, press repeatedly until the desired mark appears.

! T9 languages

You can select T9 Languages by selecting Menu. In T9 mode, you can also select T9 Off menu. (Default is T9 On)

Inbox [Menu 1-3]

You will be alerted when you have received messages. They will be stored in Inbox.

In Inbox, you can identify each message by icons. For detail, see the icon directive.

Icon directive

[ ]Multimedia message
[ ] Short message
[ ] SIM message
[ ] Read multimedia message
[ ] Read text message
[ ] Push message
[ ] Notified multimedia message

If the phone shows 'No space for SIM message', you have to delete only SIM messages from Inbox. If the phone displays 'No space for message', you can make space of each repository as deleting messages, media and applications.

* SIM message

SIM message means the message exceptionally stored in SIM card.

For notified multimedia message, you have to wait for downloading and processing of the message. For notification setting, see [Menu 5-9-2] for detail.

To read a message, select one of the messages by pressing ☐.

View

You can view the message you received.

Reply

You can reply to the sender.

Forward

You can forward the selected message to another party.

Return call

You can call back to the sender.

Delete

You can delete the current message.

View information

You can view information about received messages; Sender's address, Message date & time, Message type, Message size.

Messages [Menu 1]

Delete all

You can delete all messages.

Replay (applicable to Multimedia message only)

You can replay multimedia messages.

Receive (In the case of notification message)

If Multimedia message is set to Auto download off, you can get only Notification. To receive a message, you need to select [Receive].

Outbox [Menu 1-4]

You can see sent and unsent messages here. For sent message, you can see the delivery status.

The browsing is same as that for the inbox message.

Icon directive

[ ]MMS Sent

[ ] MMS Unsent

[ ] MMS delivery confirmed

[ ] SMS sent

[ ] SMS unsent

[ ] SMS Delivery confirmed

* When you already sent the message:

View

You can view the message you send.

Forward

You can forward the current message to other recipients.

Delete

You can delete the current message.

View information

You can view information about outbox messages; Message date & time, Message type, Message size.

Delete all

You can delete all the messages in the outbox.

* When you didn't send the message:

View

You can view the failed send message. Send You can send the message.

Send

You can send the message.

Delete

You can delete the current message.

View information

You can view information about outbox messages.

Send all

You can send all messages didn't send.

Delete all

You can delete all messages in outbox.

Drafts [Menu 1-5]

Using this menu, you can preset up to five multimedia messages that you use most frequently. This menu shows the preset multimedia message list.

The following options are available.

• View: You can view the message you selected.
- Edit: Modifies the massage you choose.
- Delete: Deletes the message you choose.
- View information: To view the information of the message.
- Delete all: Deletes all of the messages in the folder.

Listen to voice mail [Menu 1-6]

You can listen to voice mail.

Info message [Menu 1-7]

(Dependent to network and subscription)

Info service messages are text messages delivered by the network to GSM. They provide general information such as weather reports, traffic news, taxis, pharmacies, and stock prices. Each type of information has the number; therefore, you can contact service provider as long as you have input the certain number for the information. When you have received an info service message, you can see the popup message to show you that you have received a message or the info service message is directly displayed.

To view the message again or not in standby mode, follow the sequence shown below;

Read [Menu 1-7-1]

1. When you have received an info service message and select Read to view the message, it will be displayed on the screen.
2. The message will be shown until another message is reached.

Topics [Menu 1-7-2]

(Dependent to network and subscription)

- Add new

You can add Info service message numbers in the Phone memory with its nickname.

Messages [Menu 1]

• View list

You can see Info service message numbers which you added. If you press [Options], you can edit and delete info message category which you added.

- Active list

You can select Info service message numbers in the active list. If you activate an info service number, you can receive messages sent from the number.

Templates [Menu 1-8]

Text templates [Menu 1-8-1]

You have 6 text templates.

Multimedia templates [Menu 1-8-2]

You can use the following options.

• View: You can view the template you selected.
- Edit: You can edit multimedia templates.
- Add new: Allows you to add new multimedia templates.
- Write messages: You can write multimedia messages using multimedia templates.
- Delete: You can delete multimedia templates.
- Delete All: Deletes all of the messages in the folder.

Business Card [Menu 1-8-3]

You can make your signature.

Settings [Menu 1-9]

Text message [Menu 1-9-1]

Message types

Text, Voice, Fax, Natl. paging, X.400, E-mail, ERMES

Usually, the type of message is set to Text. You can convert your text into alternative formats. Contact your service provider for the availability of this function.

▶ Validity period

This network service allows you to set how long your text messages will be stored at the message centre.

▶ Delivery report

If you set to Yes, you can check whether your message is sent successfully.

▶ Reply via same service centre

When a message is sent, it allows the recipients to reply and charge the cost of the reply to your telephone bill.

▶ SMS centre

If you want to send the text message, you can receive the address of SMS centre through this menu.

Multimedia message [Menu 1-9-2]

Priority
You can set the priority of the message you choose.
▶ Validity period
This network service allows you to set how long your text messages will be stored at the message centre.
▶ Delivery report
If it is set to Yes in this menu, you can check whether your message is sent successfully. If you select Homenetwork only, you receive multimedia messages depends on Homenetwork.
Auto download
If you select On, you receive multimedia messages automatically. If you select Off, you receive only notification message in the inbox and then you can check this notification.
▶ Sender visibility
You can selected Yes or No.
▶ Network settings
If you select multimedia message server, you can set URL for multimedia message server.

▶ Permitted types
Personal: Personal message.
Advertisements: Commercial message.
Information: Necessary information.

Voice mail centre [Menu 1-9-3]

You can receive the voicemail if this feature is supported by your network service provider. When a new voicemail is arrived, the symbol will be displayed on the screen. Please check with your network service provider for details of their service in order to configure the phone accordingly.

Home
You can listen to voice mails by selecting Home.
Roaming
Even when you are in abroad, you can listen to voice mails if roaming service is supported.

Info message [Menu 1-9-4]

Receive

- Yes If you select this menu, your phone will receive Info service messages.

- No If you select this menu, your phone will not receive Info service messages any more.

Messages [Menu 1]

Alert

- Yes

Your phone will beep when you have received Info service message numbers.

- No

Your phone will not beep even though you have received info service messages.

Languages

You can select the language you want by pressing [On/Off]. Then, the info service message will be shown in the language that you selected.

Push messages [Menu 1-9-5]

You can set the option whether you will receive the message or not.

Contacts [Menu 2]

1. To use Contacts, press □[Contacts] in standby mode.
2. To use Contacts, press [Menu] in standby mode and select Contacts.

Search [Menu 2-1] (Calling from phonebook)

1. In standby mode, press [Contacts].
2. Search by pressing □ [Select].
3. Enter the name whose phone numbers or e-mail address you want to search or Select 'List' to view phonebook.
4. Instant searching is available by inputting the initial letter of the name or number you want to search.

5. If you want to edit, delete, copy an entry, or to add the voice to one, select [Options]. The following menu will be displayed.

6. Edit: You can edit the name, number, E-mail and fax by pressing [OK].

7. Write text/multimedia message: After you have found the number you want, you can send a text/multimedia message to the selected number.
8. Copy: You can copy an entry from SIM to phone or from phone to SIM.
9. Main number: You can select the one out of mobile, home, office that you often use. The main number will be displayed first, if you set this.

- Delete: You can delete an entry.

Add new [Menu 2-2]

You can add phonebook entry by using this function.

Phone memory capacity is 200 entries. SIM card memory capacity depends on the cellular service provider.

You can save names in Phone memory, and save characters in the SIM card. The number of character is SIM dependent feature.

1. Open the phonebook first by pressing □ [Contacts] in standby mode.
2. Scroll to highlight Add new, and press [Select].
3. Select the memory you want to save: SIM or Phone. If set to Phone, you need to select which number you want as Main number.

a. Press [OK] to input a name.
b. Press [OK], then you can input a number.
c. Press [Save].
d. You can set a group for the entry by using ☐, ☐:
e. You can set a character and a picture for the entry by using 📄, 🎋.

Contacts [Menu 2]

Caller groups [Menu 2-3]

You can list up to 20 members per one group.

There are 7 groups you can make lists to.

1. In standby mode, press ⚙[Contacts].
2. Scroll to Caller groups item then press □[Select], and every Group list will be displayed.
3. Select Group name you want by pressing [Select].

Member list [Menu 2-3-1]

Shows the group members you have selected.

Group ring tone [Menu 2-3-2]

Allows you to specify ring tone for the group members' call.

Group icon [Menu 2-3-3]

Allows you to select the icon dependent on Group.

Add member [Menu 2-3-4]

You can add group members. Each group member shouldn't be exceeded 20.

Remove member [Menu 2-3-5]

You can remove the member from the Group member list. But the name and the number still remain in phonebook.

Rename [Menu 2-3-6]

You can change a group name.

Speed dial [Menu 2-4]

You can assign any of the keys, to with a Name list entry. You can call directly by pressing this key for 2-3 seconds.

1. Open the phonebook first by pressing □ [Contacts] in standby mode.
2. Scroll to Speed dial, then press [Select].
3. If you want to add Speed dial, select (Empty). Then, you can search the name in phonebook.
4. Select allocated a name by speed dial.

Settings [Menu 2-5]

1. Press [Contacts] in standby mode.
2. Scroll to Settings, then press 📋 [Select].

Set memory [Menu 2-5-1]

Scroll to highlight Set memory, then press [Select].

• If you select Variable, when adding entry, the phone will ask where to store.
• If you select SIM or Phone, the phone will store an entry to SIM or phone.

Search by [Menu 2-5-2]

Scroll to highlight Search by, then press [Select].

• If you select Variable, the phone will ask how to search.
• If you select Name or Number, the phone will search an entry by Name or Number.

View options [Menu 2-5-3]

Scroll to highlight View options, then press [Select]

• Name only: Set the phonebook list with displaying only name.
• With pictures: Set the phonebook list with the information of character and picture.
• Name & number: Set the phonebook list with displaying name and number.

Copy all [Menu 2-6]

You can copy/move entries from SIM card memory to Phone memory and vice versa.

1. Open the Phonebook first by pressing [Contacts] in standby mode.
2. Scroll to Copy all, then press [Select] to enter this menu.

- SIM to Phone: You can copy the entry from SIM Card to Phone memory.

- Phone to SIM: You can copy the entry from Phone memory to SIM Card.

1. You can see the following submenus.

2. Keep original: When copying, Original Dial Number is kept.

3. Delete original: When copying, Original Dial Number will be erased.

Delete all [Menu 2-7]

You can delete all entries in SIM and Phone. This function requires Security code.

1. Press □ [Contacts] in standby mode and select Delete all, press □ [Select].
2. Then select a memory to erase.
3. Enter security code and Press □ [OK] or [Back].

Contacts [Menu 2]

Information [Menu 2-8]

Service dial number [Menu 2-8-1]

Use this function to access a particular list of services provided by your network operator (if supported by the SIM card).

1. Open the phonebook first by pressing ▶ [Contacts] in standby mode and select Information.
2. Scroll to Service dial number, then press [Select] to enter.
3. The names of the available services will be shown.
4. Use 📄, to select a service. Press [Send].

Memory status [Menu 2-8-2]

This feature allows you to see how many free and in-use are in your phonebook.

1. Open the phonebook first by pressing [Contacts] in standby mode. Select Information by pressing [Select].
2. Scroll to Memory status, then press [OK].

Own number (SIM dependent) [Menu 2-8-3]

You can save and check your own number in SIM card.

Call manager [Menu 3]

Call register [Menu 3-1]

Missed calls [Menu 3-1-1]

This menu shows recently missed numbers. You can call these numbers, save and view the date and the time.

Received calls [Menu 3-1-2]

This menu shows recently received numbers. You can call these numbers, save and view the date and the time.

Dialled calls [Menu 3-1-3]

This menu shows recently dialed numbers. You can call these numbers, save and view the date and the time.

Delete recent calls [Menu 3-1-4]

You can delete recent calls of Missed calls, Received calls, Dialled calls or All calls.

1. View Detail
2. Save
3. Write Text Messages
4. Write multimedia messages
5. Delete

Call charges [Menu 3-2]

Within these submenus, you can view the duration and the call cost of your calls.

Call duration [Menu 3-2-1]

This function allows you to view the duration of your Last Call, All Calls, Received calls and Dialled calls in hours, minutes and seconds. You can also reset the call timers.

1. Press [Menu] in standby mode.
2. Press ☐ for direct access or use 📄 to enter Call register, then select Call charges.
3. Scroll to highlight Call duration and Press [Select]. The following 5 submenus: Last call, All calls, Received calls, Dialled calls and Reset all.

Call costs [Menu 3-2-2]

This function allows you to check the cost of your last call, all calls, remaining and reset the cost. To reset the cost, you need the PIN2 code.

1. Press [Menu] in standby mode.
2. Press ☐ for direct access or use (→) to enter Call register, then select Call charges.
3. Scroll to highlight Call costs and Press [Select]. The following 4 submenus: Last call, All calls, Remaining and Reset all.

Note

The actual cost invoiced for calls by your service provider may vary, depending upon network features, rounding-off for billing, tax, and etc.

Call manager [Menu 3]

Settings [Menu 3-2-3]

(SIM Dependent)

- Set tariff

You can set the currency type and the unit price. Contact your service providers to obtain charging unit prices. To select the currency or unit in this menu, you need the PIN2 code.

Note

When all units have been used, no calls can be made except emergency calls. Depending on the SIM card, you need the PIN2 code to set a call cost limit.

- Set credit

This network service allows you to limit the cost of your calls by selected charging units. If you select Read, the number of remaining unit is shown. If you select Change, you can change your charge limit.

- Auto display

This network service allows you to see automatically the cost of your last calls. If set to On, you can see the last cost when the call is released.

GPRS information [Menu 3-3]

You can check the amount of data transferred over the network through GPRS. In addition, you can view how much time you are online.

Call duration [Menu 3-3-1]

You can check the duration of Last call and All calls. You can also reset the call timers.

Data volumes [Menu 3-3-2]

You can check the Sent, Received or All data volumes and Reset all.

Call divert [Menu 3-4]

When this network service is activated, you can direct your incoming calls to another number, for example, to your voice mailbox number. For details, contact your network operator. Select one of the divert options, for example, select If busy to divert voice calls when your number is busy or when you reject incoming calls.

The following options are available.

• All voice calls: Diverts all voice calls unconditionally.
• If busy: Diverts voice calls when the phone is in use.
• If no reply: Diverts voice calls which you do not answer.
• If out of reach: Diverts voice calls when the phone is switched off or out of coverage.

• All data calls: Diverts to a number with a PC connection unconditionally.

• All fax calls: Diverts to a number with a fax connection unconditionally. Each option has the following menu:

• Cancel all: You can cancel all call divert settings.

Call barring [Menu 3-5]

Call barring lets you restrict the making and receiving of calls with your phone. For this function, you need the barring password, which you can obtain from your service provider.

The following options are available:

• All outgoing: The barring service for all outgoing calls.
  • International: International calls cannot be made.
• international when roaming: When abroad, calls can be made only to numbers within the current country and to your home country, the country where your home network provider is located.
• All incoming: No call can be received.
• Incoming when roaming: Calls cannot be received when you are using your phone outside your home service area.
• Cancel all: You can cancel all call barring you set.
• Change password: You can change password.

Call waiting [Menu 3-6]

(Network dependent)

The network will notify you of a new incoming call while you have a call in progress. Select Activate to request the network to activate call waiting, Cancel to request the network to deactivate call waiting, or View status, to check if the function is active or not.

Fixed dial number [Menu 3-7]

You can restrict your outgoing calls to selected phone numbers. The numbers are protected by your PIN2 code.

Call Settings [Menu 3-8]

- Answer mode

Flip open: If you select this menu, you can receive an incoming call by only fiping.

Press Any key: If you select this menu, you can receive a call by pressing any key except end key.

Send only: If you select this menu, you can receive a call by only pressing send key.

- Send my number

On: You can send your phone number to another party. Your phone number will be shown on the receiver's phone.

Call manager [Menu 3]

Off: Your phone number will not be shown.

Set by network: If you select this, you can send your phone number depending on two line service as line 1 or line 2.

- Minute minder

If you select On, you can check the call duration by deep sound every minute during a call.

- Auto redial

On: When this function is activated, the phone will automatically try to redial in the case of failure to connect a call.

Off: Your phone will not make any attempts to redial when he original call has not connected.

Service [Menu 4]

Internet [Menu 4-1]

You can access various WAP (Wireless Application Protocol) services such as banking, news, weather reports and flight information. These services are specially designed for mobile phones and they are maintained by WAP service providers.

Check the availability of WAP services, pricing and tariffs with your network operator and/or the service provider whose service you wish to use. Service providers will also give you instructions on how to use their services.

Please contact your network operator to open your Internet account. To use the Web Browser, you must indicate your phone number via the Own number menu option.

Once connected, the homepage is displayed. The content depends on the service provider. You can access any website page by entering its URL address. To exit the browser at any time, press the 🔔 key. The phone will return to the standby mode.

Home [Menu 4-1-1]

Connect to a homepage. The homepage may be the site which is defined in the activated profile. It will be defined by Service Provider if you don't make in activated profile.

Bookmarks [Menu 4-1-2]

As Internet Bookmarks for your Internet PC browser, in this menu you can add or change your favourite WAP sites in order to always have them with you.

Press □ [Select] to access available options, or press □ [Back] to exit.

• Connect: Connect to the selected bookmark.
• Add new: Add a new bookmark manually.
• Edit: Edit the title and the address of the selected bookmark.
• Delete: Delete the selected bookmark from the bookmark list.

Profiles [Menu 4-1-3]

Profiles contain the configurations to use WAP and MMS services. As the Internet connection for the PC, the mobile phone must be configured in order to access the gateway of service provider. In this menu, you can configure several profiles. You must remember that WAP and MMS profiles are different, so you need to configure 2 different profiles. Contact the service provider to get all the necessary parameters.

Service [Menu 4]

This mobile phone also supports the Over The Air (OTA) configuration, compliant with the Openwave specification.

Using OTA, you can configure the phone using an SMS. Contact the service provider for the availability of this service.

Each profile contains the following menu:

Activate [Menu 4-1-3- -1]

You can activate the profile you want.

Settings [Menu 4-1-3- -2]

You can edit and change WAP settings of the selected profile.

- Homepage

This setting allows you to enter the address (URL) of a site you want to use as homepage. You do not need to type "http://" at the front of each URL as the WAP Browser will automatically add it.

- Bearer

You can set the bearer data service.

- Data

- GPRS

- GPRS settings

The service settings are only available when GPRS is chosen as a bearer service.

IP address: Input the IP address of the WAP gateway you access.

APN: Input the APN of the GPRS.

User ID: The users identify for your APN server.

Password: The password required by your APN server.

- Connection type

The options for connection type are Temporary or Continuous and depend on the gateway you are using.

- Continuous

A confirmed delivery mechanism but generates more network traffic.

- Temporary

A non-confirmed (connectionless) service.

- HTTP

- Proxy settings

IP address: Input the IP address of the proxy.

Port: Input the port number of the proxy.

- DNS settings

You can set the primary and secondary server as the DNS.

- Secure settings

According to the used gateway port, you can choose this option as On or Off.

- Display image

You can select whether images on WAP cards are displayed or not.

Rename [Menu 4-1-3- -3]

Edit the Profile Name.

Delete [Menu 4-1-3--4]

Delete the Profile.

Add new [Menu 4-1-3- -5]

You can add a new profile manually.

Go to URL [Menu 4-1-4]

You can directly connect to the site you want. You need to enter a specific URL.

Cache settings [Menu 4-1-5]

You can remove the contents of Cache memory or change the Cache mode.

Clear cache [Menu 4-1-5-1]

The contents of Cache memory will be removed.

Check cache [Menu 4-1-5-2]

You can set the option whether you will check the cache memory or not.

Cookies settings [Menu 4-1-6]

You can set the cookies setting you want.

Clear cookies [Menu 4-1-6-1]

Check cookies [Menu 4-1-6-2]

Security certification [Menu 4-1-7]

A list of the available certificates is shown.

Authority [Menu 4-1-7-1]

Personal [Menu 4-1-7-2]

Reset profiles [Menu 4-1-8]

You can reset profiles to return to original settings.

Browser version [Menu 4-1-9]

The WAP Browser version is displayed.

On browsing menu

If you are on line, you can view the following menus.

• Home

Refer to [Menu *-1].

- Reload

Reloads the current page.

Service [Menu 4]

- Bookmarks

See [Menu *-2].

- Save as bookmark

You can save a site as bookmark.

- Go to URL

You can move to the site you want. In this menu, you can also edit the site address.

- Clear cache

The contents of cache memory will be removed.

SIM service [Menu 4-2]

Our service provider can offer special application through SIM card, such as home banking, stock market, etc. If you have registered for one of these services, the service name will appear at the end of the Main Menu. With the SIM service menu your phone is future-proof and will support additions to your service provider's service. For more details, please contact your service provider.

My stuff [Menu 5]

Pictures [Menu 5-1]

My pictures [Menu 5-1-1]

The left soft key [View] will bring up the following options.

• Set as wallpaper: Currently selected Picture can be set as a Wallpaper.
• Write multimedia message: Downloaded Picture can be sent via MMS.
• Delete All

Sounds [Menu 5-2]

The left soft key [Options] will bring up the following options.

• Set as ringtone: This sets the Ring Tone with currently selected Sound.
• Write messages: Melody Sound can be sent via MMS.
• Delete All

Album [Menu 5-3]

You can browse and send pictures as well as set the pictures as the background.

All Pictures [Menu 5-3-1]

You can browse all pictures orderly.

General Pictures [Menu 5-3-2]

You can browse all pictures except frame pictures and phone book pictures.

Mode Pictures [Menu 5-3-3]

You can browse all Mode pictures.

Option

• Muti view: 9 thumbnails can be previewed at maximum in a screen.
• Write Multimedia message: Picture can be sent through multimedia information.
• Set as wallpaper: Setting the pictures as wallpaper is available.
• Slide show: You can browse pictures automatically and successively with this menu.
• Delete: Deleting picture is available.
• Edit title: Editing title of picture is available.
• View Information: Viewing related titles, size as well as information concerning date and time of shooting is available.
• Protection: Lock the pictures in this function list to prevent any wrong deletion.

My stuff [Menu 5]

Phonebook Pictures [Menu 5-3-4]

You can browse all phone book pictures.

Option

• set as wallpaper: Setting the pictures as wallpapers is available.
• Slide Show: You can browse pictures automatically and successively with this menu.
• Delete: Deleting picture is available.
• Edit title: Editing title of picture is available.
• View Information: Viewing related titles, size as well as information concerning date and time of shooting is available.
• Protection: Lock the pictures in this function list to prevent any wrong deletion.

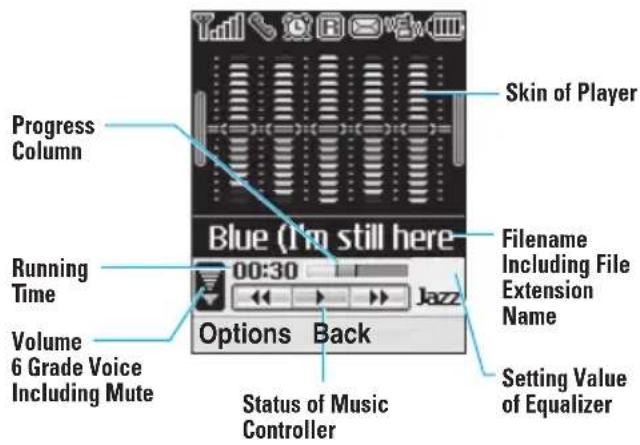

MP3 [Menu 5-4]

The following options are available:

• Playing: You can play the selected melodies.
• Set as ringtone: You can set the selected melodies as rings.
• Delete: Delete melodies from the list.
• Delete all: Empty the playing list.

Memory status [Menu 5-5]

This function enables you to view memory status of your cell phone.

1. Firstly, press [Menu] under the standby mode to select to enter "my material".
2. Tumble into memory status and then press [selection] to get into that function list.

Camera [Menu 6]

With the camera you can take pictures of people and events while on the move.

Take picture [Menu 6-1]

Pictures should be taken when the lid of cell phone is open

1. Select Camera, and then press ☐: If you want to reach this menu directly, press ☐ for a long time.
2. Focus on the subject to capture the image, and then press OK.
3. If you want to save it, press ☐ or OK

! Reference!

Settings window

You can control the image size, brightness, colour and zooming by using OK( , ).

[ P, x1 ] Zooming: x1, x2, x4 (depends on resolution). The default value is x1.

[ ] Colour: True colour, Sepia, Black/White.

[2] Brightness: -2, -1, Standard, +1, +2.

[5 sec] Autoshoot: Off, 3 sec, 5 sec.

[ ] Memory status: Check the available memory to take new pictures.

[430] Resolution: VGA 640x480, QVGA 320x240, QQVGA 128x160, PB 48x48

[Norm] Picture quality: Norm, Fine and Basic.

Pictures should be taken when the lid of cell phone is closed

When you self-heterodyne, you can see yourself through the outer screen.

1. List is available by short press.
2. Select taking picture by volume key on the side, and then press ⚠.
3. Aim at the objective to take a picture, and then press B. Here the picture can be saved automatically.

Take in modes [Menu 6-2]

You can take a picture on the various of backgrounds. Furthermore, you can select a frame by using 📄, 📋.

! Reference!

In this mode, you can't change the settings of resolution.

Take continuously [Menu 6-3]

You can take the maximum of 9 pictures subsequently at the same time. After taking a picture, you can view it by using 📋. You can also save it by pressing 📋.

! Reference!

If you set 128x160 in resolution, you can take only 9 pictures. In case of 320x240, it is available to 6 pictures.

Camera [Menu 6]

Album [Menu 6-4]

You can view and send a picture. In addition, you can set the window as a background.

All pictures [Menu 6-4-1]

You can view all pictures in order.

General pictures [Menu 6-4-2]

You can view all pictures except of frame and phone book ones.

Mode pictures [Menu 6-4-3]

You can view all mode pictures.

Phonebook pictures [Menu 6-4-4]

You can view all phonebook pictures.

Options

▶ Multi view: You can view the maximum of 9 thumbnails in a screen.
▶ Write multimedia message: You can send a picture thru MMS.
▶ Setaswallpaper: You can set a picture as a wallpaper.
▶ Slide show: You can view the pictures automatically by this menu.

▶ Delete: You can delete a picture.
▶ Edit title: You can edit the title of picture.
View information: You can view the information about Name, Size, Date and Time you have taken.
▶ Protection: On/Off If you select [On], you can lock the picture for deleting in mistakes in this menu.

Settings [Menu 6-5]

Memory status [Menu 6-5-1]

You can check the capacity of total, used, and free memory.

Clear album [Menu 6-5-2]

You can delete all pictures which saved in a memory.

Auto save [Menu 6-5-3]

Automatically saves the pictures taken with the camera.

Organiser [Menu 7]

Scheduler [Menu 7-1]

When you enter this menu a Calendar will show up. On top of the screen there are sections for date. Also on bottom of the screen there are sections for icons (schedule). Whenever you change the date, the calendar will be updated according to the date.

And square cursor will be used to locate the certain day. If you see under bar on the calendar, it means that there is a schedule or memo that day. This function helps to remind you of your schedule and memo. The phone will sound an alarm tone if you set this for the note.

To change the day, month, and year.

Key	Description	Key	Description
	Yearly		Weekly
	Monthly		Daily

Note

Your phone should be switched on to use this function.

Add new [Menu 7-1--1]

You can make up to maximum 20 notes.

- Schedule

Input the subject, the schedule time, the repeat, the alarm by pressing allowed keys.

- Memo

1. Select Add new by pressing [Select].
2. Press Memo.
3. Input the memo and then press [OK].

View [Menu 7-1--2]

Shows the note for the chosen day. Use 📄 to 📋 browse through the note lists. If you set alarm for the note, Alarm watch is displayed. At that time, if you press [Select], you can see the note in detail. Press [Options] to delete, edit the note you selected.

View all [Menu 7-1- -3]

Shows the notes that are set for all days.

Use 📄, to browse through the note lists.

You can use the same menu as "View" by pressing [Options].

Delete past [Menu 7-1--4]

You can delete the past schedule that has been already notified you.

Delete all [Menu 7-1--5]

You can delete for the all note(s).

Organiser [Menu 7]

Memo [Menu 7-2]

1. Press add.
2. Select Memo.
3. Input Memo, then save it.

Multimedia [Menu 8]

MP3 [Menu 8-1]

MP3 Player [Menu 8-1-1]

Play Music

Press ☐ and then select MP3 player. Screen displays as below:

Remark

If there is any invalid file in the playing list, message of "player error" will pop up and system returns back to the previous screen.

Key of Music Controller

	Press this key for playing.Press this key for pause.
	(short press) for skip to the previous melody.(long press) for quick return back to the current melody while playing.
	(short press) skip to the next melody.(long press) quicken the current.
	MelodyTurn up/down the volume.

The following options can be selected by pressing the left soft key [option].

• View Playing List: While playing, the playing list can be viewed by selecting this item.
• Equalizer: Select required sound style with navigation key and then press left soft key [selection].

Multimedia [Menu 8]

• Playmode: Select required playing mode with navigation key and then press left soft key [selection].
• Play all: Play all melodies.
• Repeat all: Repeatedly play all melodies stored in the cell phone orderly.
• Repeat one: Play the current melody repeatedly.
• Set as ring tone: You can set the selected MP3 as ring tone.

Playlist [Menu 8-1-2]

Display the playing list.

The following options are available.

• Play: You can play the selected melody.
• Set as ringtone: You can set the selected melody as ring.
• Delete: Delete the melodies from the list.
• Delete all: Empty playing list.

MP3 Settings [Menu 8-1-3]

• MP3 skin: You can select the required skin of player in selection screen.

• Flip setting: Select continue or stop playing when the cell phone is turned on/off.

• Continue playing

• Stop playing

Voice recorder [Menu 8-2]

The voice memo feature you to record up to 10 voice messages and each memo is up to 20 Seconds.

Record [Menu 8-2-1]

1. Once recording is started, the message Recording and the remaining time is displayed.
2. If you want to finish recording, press □ [Save].
3. Key in Voice memo title, press [OK].

View list [Menu 8-2-2]

• Playback
• Write multimedia message
• Delete
• Delete all

Melody composer [Menu 8-3]

You can compose the ring what you would like yourself. When you get into this function, the former ring that you have composed will be displayed. You can recompose the ring or modify the former ring:

You can select code mode and diagrammatic representation mode.

1. Input the note what you want (1\~7: cdefgab)

2. Steps for adjusting notes:

3. Duration: 8 shortened and 9 lengthened notes or pause.

4. Halt: 0 interests a pause with length same as the previous note.
5. Octachord: * Set octachord for new note.
6. High Consonant: # Set pitch of note.

Java

Java is a technology developed by Sun Microsystems. Similar to the way you would download the Java Applet using the standard Netscape or MS Internet Explorer browsers, Java MIDlet can be downloaded using the WAP enabled phone. Depending on the service provider, all Java based programs such as Java games can be downloaded and run on a phone. Once downloaded, the Java program can be viewed within the Applications menu where you can select, execute, or delete. The Java program files saved in the phone are in .JAD and .JAR formats.

Note

The JAR file is a compressed format of the Java program and the JAD file is a description file that includes all detailed information. From the network, prior to download, you can view all detailed file descriptions from the JAD file.

! Warning

• Only J2ME (Java 2 Micro Edition) based programs will run in a phone environment. The J2SE (Java 2 Standard Edition) based programs will only run in a PC environment.
• Even if they are built on a standard language (J2ME), not all the Java application are compatible with all phones, because they can use specific libraries (API). If you download a Java application not specifically built for this model, you could experience power down or lock up problems, which will need the phone to be restarted (by detaching and reattaching the battery). We specify that these issues are caused by incompatible programs, and it does not mean that the phone has a problem.

Games & more [Menu 8-4]

Java Menu Options

Scroll to an application and select Options.

1. New folder: You can create new folder.
2. Move: You can select a folder which you want.
3. launch: Start the selected application.
4. Remove: Deletes the selected MIDlet.
5. Rename: You can rename the application.

JAVA™ is a trademark of Sun Microsystems, Inc.

Tools [Menu 9]

Alarm clock [Menu 9-1]

You can set up to 5 alarm clocks to go off at a specified time.

1. Select On and enter the alarm time you want.
2. Select the repeat period: Once, Mon\~Fri, Mon\~Sat, Everyday.
3. Select the alarm tone you want and press [OK].
4. Edit the alarm name and press [OK].

Note

The Wake up alarm lasts 1 minute.

Calculator [Menu 9-2]

This contains the standard functions such as +, -, x, / : Addition, Subtraction, Multiplication, and Division.

1. Input the numbers by pressing numeric keys.
2. Use a navigation key to select a sign for calculation.
3. Then input the numbers.
4. Press ☐ [Result] to view the result.
5. Press ☐ [Reset] or enter numbers to repeat the procedure above.

6. Use □ key to erase any numbers or signs.

7. If you press Ⓜ key, you can input a minus number. In addition, if you press Ⓥ key, you can input a decimal number.

8. To end Calculator, press 📋 [Back].

Unit converter [Menu 9-3]

This converts any measurement into a unit you want. There are 4 types that can be converted into units: Length, Area, Weight, and Volume.

1. You can select one of four unit types by pressing □ [Unit] key.
2. Select the standard value by using OK (✗)
3. Select the unit you want to convert by using
4. You can check the converted value for the unit you want. Also, you can input a decimal number by pressing 📄.

World time [Menu 9-4]

You can view clocks of the world's major cities.

1. Select the city belonged to the time zone by using
2. You can set the current time to the city time you select by pressing ⚙ [Set].

Favorites [Menu 9-5]

You can set 12 common function lists in favorites and get into this function with navigation key-favorites.

If you want to set a function list in favorite, select the column in the list for entry. For the set function list, please refer to the following illustration:

• Selection: Open the set function list.
• Modification: You can modify your favorites.
• Deletion: Delete all set function list in favorites.
• Information Prompt: View information of function list in the favorites.

Display [Menu *]

Wallpaper [Menu *-1]

You can select the background pictures in standby mode.

• Main LCD
• Sub LCD

Default [Menu *-1-1]

You can select a picture or an animation of wallpaper by pressing 📄, 📋, 📞

My folder [Menu *-1-2]

You can select a picture or an animation as wallpaper.

Handset scheme [Menu *-2]

You can select clean style, heart style, paper style and metallic style.

Greeting note [Menu *-3]

If you select On, you can edit the text which is displayed in standby mode.

Backlight [Menu *-4]

You can set the light-up duration of the internal display.

LCD contrast [Menu *-5]

You can use and to adjust the LCD.

Information window [Menu *-6]

You can preview the current state of the selected menu before open the menu. The state is shown at bottom of the display.

Network name [Menu *-7]

You can use On or Off to select if display the Network name.

Profi les [Menu 0]

In this menu, you can adjust and customize the phone tones for different events and environments.

1. Press □ [Menu] in standby mode.
2. Press □ for direct access or use 📄.
3. You can also enter this menu directly by using OK (in standby mode.

Vibrate only [Menu 0-1]

You can adjust the profile as Vibrate only if you need vibration mode. In the mode, all kinds of alert are Vibrate or Silent.

Silent [Menu 0-2]

You can adjust the profile as Silent if you are in quiet place.

General [Menu 0-3]

You can adjust the profile as General.

Loud [Menu 0-4]

You can adjust the profile as Loud if you are in a noisy environment.

Headset [Menu 0-5]

You can adjust the profile as Headset when you put on a headset.

Activate [Menu 0-X-1]

Activates the selected Profile.

Personalise [Menu 0-X-2]

Each has the submenus as shown below except for Vibrate only.

Call alert type

Allows to select alert type such as Ring, Vibrate, etc. for the incoming for adjusting environment.

Ring tone

Allows to set the ring tone for adjusting environment.

Ring volume

Allows to set the ring volume for adjusting environment. The volume of Power on/off sound and all the alert sounds set according to Ring volume.

Message alert type

Allows to alert when receiving a message for adjusting environment.

Message tone

Allows to select the alert tone for message reception.

Keypad tone

Allows to select the keypad tone for adjusting environment.

Profi les [Menu 0]

Keypad volume

Allows to set the keypad volume for adjusting environment.

Flip tone

Allows to set the flip tone for adjusting environment.

Effect sound volume

Allows to set the effect sound volume for adjusting environment.

Power on/off volume

Allows to set the power on/off volume for adjusting environment.

Auto answer

This function will be activated only when your phone is connected to the headset or handsfree kit.

• Off: The phone will not answer automatically.
• After 5 secs: After 5 seconds, the phone will answer automatically.
• After 10 secs: After 10 seconds, the phone will answer automatically.

Rename [Menu 0-X-3]

You can change the default profile name except of Vibrate only, Headset menus.

Note

If you set the Handsfree kit to the phone, you can't use the vibrate mode related with Call alert type or Message alert menu.

Settings [Menu #]

You can set the following menus for your convenience and preferences.

1. Press □ [Menu] in standby mode.
2. Press ☐ for direct access to enter Settings.

Date & Time [Menu #-1]

You can set functions relating to the date and time.

Set date [Menu #-1-1]

You can enter the current date.

Date format [Menu #-1-2]

You can set the Date format such as DD/MM/YYYY, MM/DD/YYYY, YYYY/MM/DD. (D: Day / M: Month / Y: Year)

Set time [Menu #-1-3]

You can enter the current time.

Note

In the 12-hour time format, you can change AM/PM by using OK (☐).

Time format [Menu #-1-4]

Your can set the time format between 24-hour and 12-hour.

Language [Menu #-2]

You can change the language for the display texts in your phone. This change will also affect the Language Input mode.

Rhythm light [Menu #-3]

You can set the method of keypad light.

Security settings [Menu #-4]

PIN code request [Menu #-4-1]

In this menu, you can set the phone to ask for the PIN code of your SIM card when the phone is switched on. If this function is activated, you'll be requested to enter the PIN code.

1. Select PIN code request in the security settings menu, and then press [Select].
2. Set On/Off.
3. If you want to change the setting, you need to enter PIN code when you switch on the phone.
4. If you enter wrong PIN code more than 3 times, the phone will lock out. If the PIN is blocked, you will need to key in PUK code.

Settings [Menu #]

1. You can enter your PUK code up to 10 times. If you put wrong PUK code more than 10 times, you can not unlock your phone. You will need to contact your service provider.

Phone lock [Menu #-4-2]

You can use security code to avoid unauthorized use of the phone. Whenever you switch on the phone, the phone will request security code if you set phone lock to On. If you set phone lock to Automatic, your phone will request security code only when you change your SIM card.

Change codes [Menu #-4-3]

PIN is an abbreviation of Personal Identification Number to prevent use by unauthorized person.

You can change the access codes: PIN2 code, Security code.

1. If you want to change the Security code/PIN2 code input your original code, and then press [OK].
2. Input new Security code/PIN2 code and verify them.

Network settings [Menu #-5]

You can select a network which will be registered either automatically or manually. Usually, the network selection is set to Automatic.

Automatic [Menu #-5-1]

If you select Automatic mode, the phone will automatically search for and select a network for you.

Once you have selected "Automatic", the phone will be set to "Automatic" even though the power is off and on.

Manual [Menu #-5-2]

The phone will find the list of available networks and show you them. Then you can select the network which you want to use if this network has a roaming agreement with your home network operator. The phone let you select another network if the phone fails to access the selected network.

Preferred [Menu #-5-3]

You can set a list of preferred networks and the phone attempts to register with first, before attempting to register to any other networks. This list is set from the phone's predefined list of known networks.

GPRS setting [Menu #-6]

You can set GPRS service depending on various situation.

Power on [Menu #-6-1]

If you select this menu, the phone is automatically registered to a GPRS network when you switch the phone on. Starting a WAP or PC dial-up application created the connection between phone and network and data transfer is possible. When you end the application, GPRS connection is ended but the registration to the GPRS network remains.

when needed [Menu #-6-2]

If you select this menu, the GPRS connection is established when you connect a WAP service and closed when you end the WAP connection.

Memory status [Menu #-7]

You can check the memory.

Reset settings [Menu #-8]

You can initialize all factory defaults. You need Security code to activate this function.

Accessories

There are various accessories for your mobile phone.

You can select these options according to your personal communication requirements.

Standard Battery

Data cable/CD

You can connect your phone to PC to exchange the data between them.

Portable Handsfree

This connects to your phone, allowing handsfree operation.

Travel Adapter

This charger allows you to charge the battery while away from home or your office.

Note

• Always use genuine LG accessories.
- Failure to do this may invalidate your warranty.
• Accessories may be different in different regions; please check with our regional service company or agent for further enquires.

Technical Data

General

Product name: LG-G282

System: GSM 900 / DCS 1800

Ambient Temperatures

Max: +55°C

Min: -10°C

LG-G282 8用户手册LG-G282

GPRS 手机 GPRS 手机

1.1. 先移除电池盖和电池。

1.1. 先移除电池盖和电池。

2.2. 将SIM卡从插槽中小心滑出。

小心

书签 [功能表 4-1-2] 书签 [功能表 4-1-2]

LG-G282 BUKU PANDUAN PENGGUNA

BAHASA MALAYSIA

KAMI HARUS MEMBERITAHU PENGGUNA BAHAWA BUKU PANDUAN INI MEMPUNYAI BEBERAPA PERBEZAAN DENGAN TELEFON BERGANTUNG KEPADA PERISIAN TELEFON DAN PEMBEKAL SERVIS

1. Kekunci navigasi dan kekunci cepat ke menu fungsi

2. Kiri: profil

3. Kanan: mesej
4. Atas: kegemaran

5. Bawah: kontak

6. Kekunci kanan

7. Lekunci dokumen
8. Kekunci off / cas bateri
9. Kekunci batal
10. Kekunci angka
11. Kekunci #
12. Mikrofon
13. Kekunci atas dan bawah
14. Kanta kamera

1. Soket telefon
2. Soket alat dengar
3. Penutup bateri
4. Pemegang kad SIM
5. Kekunci kamera
6. Soket aliran data / soket cas bateri

Deskripsi tekanan kekunci

The phone which supports EMS release 5 is available to send colour pictures, sounds, text styles, etc.. The other party may not receive pictures, sounds or text styles you sent properly if the phone does not support such options.

Masukkan

Panggilan Diterima [Menu 3-1-2]

Kertas Hias Dinding [Menu *-1]

Declaration of Conformity

tallserdppu

Name

eIEGL scintorte

sserddA

sr2019 nggouul, Korea 150-721

sr@wi

Yelo-,gbod

\$

ProductName

aBD009nSICP/008E1ament

M Name

LG-G282

Trade Name

LG

slateDs

/5999

1089-1 V1.4.1(

EN 6 0590000

EN 503

10.VSS10.0

Sel anoitcoidg to GCF-

oynatmelpita

The conformity to above standards is verified by BABT with Certificate No.(NC/12470) and GSM test report, EMC test report, safety test report, SAR test report.

electron

I hereby declare under our sole re blatops eMa is Dateus that the product men edoibove to which this
declame	later sitarnoith stand	ehrbiowseilpmoeBgJikDdinesdrives	eBgJik	dir	30. June . 2005
LG Electronics Inc. Amst dam OfficeVelu emm 15, 13 EAM2 te ltE,eineTel: +31 - 36547-8940, e- litarklm @ lge.com				epfocustatingIS

Memo

Memo
