Notice Axxess AXDSPX-TY3 - page 1
1 / 16
Pick your language and provide your email: we'll send you a specifically translated version.
Product TypeDigital Signal Processor (DSP)
BrandAXESS
ModelAXDSPX-TY3
Channels8 input / 8 output
Sample Rate96 kHz
Bit Depth24-bit
Input Impedance10 kΩ
Output Impedance100 Ω
Frequency Response20 Hz – 20 kHz (±0.5 dB)
Signal-to-Noise Ratio> 105 dB
Total Harmonic Distortion< 0.01%
Input Voltage Range2V – 8V RMS
Output VoltageUp to 4V RMS
Power Supply12V DC (10–16V)
Current Draw0.5A (idle), 2A (max)
Dimensions (W x H x D)7.0 x 1.2 x 4.5 inches (177 x 30 x 114 mm)
Weight0.8 lbs (360 g)
SoftwareAXESS DSP Tuner (PC/Mac)
BluetoothYes (audio streaming & control)
Remote ControlOptional wired remote
Equalization31-band graphic EQ per channel
Crossover FiltersHigh-pass, Low-pass, Band-pass (12/24 dB/oct)
Time Alignment0 – 20 ms per channel
Phase Adjustment0°/180° per channel

Frequently Asked Questions - AXDSPX-TY3 Axxess

What is the AXESS AXDSPX-TY3 used for?
The AXDSPX-TY3 is a digital signal processor designed to optimize car audio systems by providing precise control over equalization, crossover, time alignment, and phase.
How do I connect the AXDSPX-TY3 to my factory radio?
Use the included speaker-level input harness to connect directly to your factory speaker outputs. Ensure the input voltage is within 2–8V RMS.
Can I use this DSP with aftermarket amplifiers?
Yes, the AXDSPX-TY3 has 8 RCA outputs that can feed aftermarket amplifiers. Set output voltage to match your amp's input sensitivity.
What software do I need to tune the DSP?
Download the AXESS DSP Tuner software from the AXESS website. It is compatible with Windows and macOS.
How do I reset the AXDSPX-TY3 to factory defaults?
Press and hold the reset button (located on the side panel) for 5 seconds using a paperclip. All settings will be cleared.
Does the AXDSPX-TY3 support Bluetooth?
Yes, it has built-in Bluetooth for wireless audio streaming and control via the AXESS DSP app (iOS/Android).
What is the maximum current draw?
The maximum current draw is 2A. Use an appropriate 12V power source with a 5A fuse.
Can I adjust time alignment for each speaker?
Yes, the AXDSPX-TY3 provides independent time alignment per channel from 0 to 20 ms in 0.02 ms steps.
How do I update the firmware?
Connect the DSP to your computer via USB, open the DSP Tuner software, and go to Settings > Firmware Update. Follow on-screen instructions.
What is the warranty period?
AXESS offers a 1-year limited warranty against defects in materials and workmanship. Retain your purchase receipt.

User questions about AXDSPX-TY3 Axxess

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Car audio interface in PDF format for free! Find your manual AXDSPX-TY3 - Axxess and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AXDSPX-TY3 by Axxess.

USER MANUAL AXDSPX-TY3 Axxess

natural_image Collection of various electronic components and connectors, including a black rectangular device and various colored cables (no visible text or labels)

APPLICATIONS

Visit axxessinterfaces.com for current application list

Toyota DSP Interface With Pre-Wired Harness 2018-Up

INTERFACE FEATURES

  • Includes a DSP (Digital Signal Processor)
    • 31 Band graphic EQ
    • 10 individually assignable outputs
  • Independent equalization on each of the 10 outputs
  • Independent high pass, low pass, and bandpass filters
    • Each channel can be delayed independently up to 10ms
  • Clipping detection and limiting circuits
  • Can be used in amplified and non-amplified models
  • Easy behind the radio installation with pre-wired harness
  • Bass knob included for level control of subwoofer amp
  • Settings adjusted via Bluetooth Ⓞ in a smart device application (tablet or mobile phone), compatible with both Android and Apple devices
  • Read, write, and store configurations for future recall
  • Password protect feature available in the mobile app
  • Micro-B USB updatable

TABLE OF CONTENTS

Installation Options 2
Installation 2
Connections 3-4
Mobile App 5-13
Specifications 14

INTERFACE COMPONENTS

  • AXDSPX-TY3 interface
  • AXDSPX-TY3 interface harness
  • AXDSPX-TY3 vehicle T-harness • Bass knob

TOOLS & INSTALLATION ACCESSORIES REQUIRED

  • Crimping tool and connectors, or solder gun, solder, and heat shrink • Tape • Wire cutter
  • Zip ties • Multimeter

Google Play Store
Axxess AXDSPX-TY3 - TOOLS &amp; INSTALLATION ACCESSORIES REQUIRED - 1

Apple App Store iOS 12.1 or higher
Axxess AXDSPX-TY3 - TOOLS &amp; INSTALLATION ACCESSORIES REQUIRED - 2

INSTALLATION OPTIONS I N STALL AT

Adding a sub to a factory system:

This feature offers the ability to add a subwoofer to a factory system, whether amplified or non-amplified. (refer to page 3)

Adding a full-range amp & sub to a factory system:

This feature offers the ability to add a full-range amp and sub to a factory system, whether amplified or non-amplified. (refer to page 4)

† The factory amp must be bypassed/unplugged.

Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.

N

  1. Remove the factory radio , then unplug all connectors.
  2. Install the AX-DSPX-TY3 vehicle T-harness to the vehicle and make all necessary connections, but leave the amp turn-on wire disconnected.
  3. Plug the AX-DSPX-TY3 vehicle T-harness to the AX-DSPX-TY3 interface.
  4. Plug the AX-DSPX-TY3 interface harness to the AX-DSPX-TY3 interface.
  5. Download and install the AXDSP-X app from the Google Play Store or Apple App Store.
  6. Open the app then select the Bluetooth Connection tab. Follow the instructions to pair the mobile device to the interface. Refer to page 6 for more information.
  7. Scroll to the Configuration tab then select the vehicle type. Press the Lock Down button to save the configuration. Refer to page 7 for more information.
  8. Connect the amp turn-on wire.
  9. Adjust the settings in the app as desired. Press the Lock Down + button to save any new configurations.
    ^† Refer to Metra online for dash disassembly. If Metra makes a dash kit for the vehicle, disassembly will be within those instructions.
    Anytime the interface is locked down the key must be cycled off then back on

ADDING A SUB TO A FACTORY SYSTEM
Factory Radio Bass Knob Black - Ground Orange - Control Factory Radio Harness Any remaining wires tape off and disregard Vehicle T-Harness Interface Keep Connected These outputs can be used for additional sub amps, or for adding onto the system at a later date RCA Jacks (sold separately) Any remaining wires tape off and disregard Blue/White - Amp Turn-On Wire

REV. 7/31/2020 INSTAXDSPX-TY3

ADDING A FULL-RANGE AMP & SUB TO A FACTORY SYSTEM
Axxess AXDSPX-TY3 - N - 2

MOBILE APP

Setup Instructions

SETUP INSTRUCTIONS BLUETOOTH CONNECTION CONFIGURATION OUTPUTS CROSSOVER ADJUST EQUALIZER ADJUST DELAY ADJUST INPUTS/LEVELS Using the vehicle specific harness, install the AX-DSP. The high level outputs from the OEM radio go to the inputs of the AX-DSP. The AX-DSP outputs are low level and should be connected to the amplifier inputs. - Power on the system, and verify audio to the front (left and right), rear (left and right), and Subwoofer. - Set the OEM radio bass and treble controls for flat frequency response. - Set the left/right balance to center. - Set the front/rear fader to center. Detailed installation instructions are available on-line. Click the button below to view the instructions VIEW INSTRUCTIONS

- General information tab for installing the interface.

Continued on the next page

MOBILE APP (CONT.)

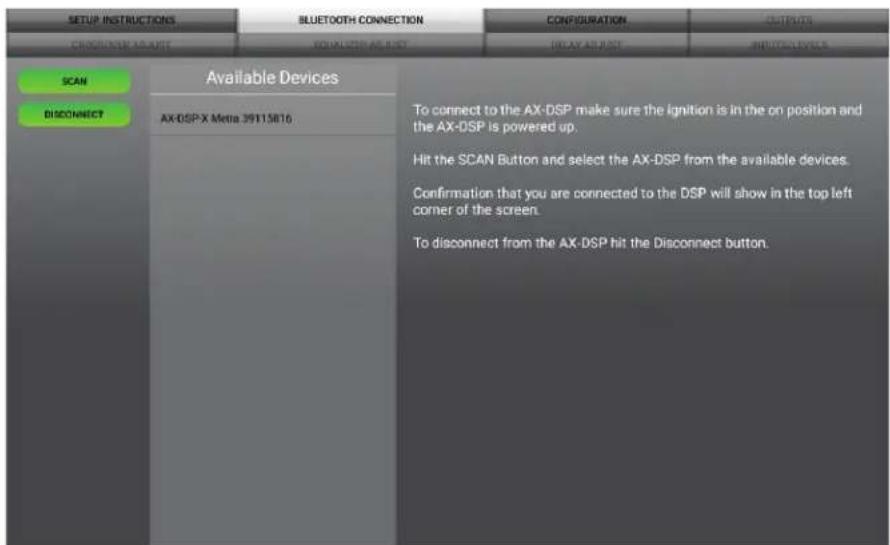

Bluetooth Connection

SETUP INSTRUCTIONS BLUETOOTH CONNECTION CONFIGURATION OUTPUTING CROSSHORN ACCESS ADJUSTED ACCESS ARRAY ACCESS INPUTS/DEVICES SCAN DISCONNECT Available Devices AX-DSP-X Metia 39115816 To connect to the AX-DSP make sure the ignition is in the on position and the AX-DSP is powered up. Hit the SCAN Button and select the AX-DSP from the available devices. Confirmation that you are connected to the DSP will show in the top left corner of the screen. To disconnect from the AX-DSP hit the Disconnect button.

- Scan - Press this button to start the Bluetooth pairing process, then select the interface once it is found. "Connected" will appear in the top left corner of the app once paired.

- Disconnect - Disconnects the interface from the app.

Note: The ignition must be cycled on during this process.

Continued on the next page

MOBILE APP (CONT.)

Configuration

SETUP INSTRUCTIONS CROSSOVER ADJUST BLUETOOTH CONNECTION EQUALIZER ADJUST CONFIGURATION DELAY ADJUST OUTPUTS INPUTS/LEVELS IDENTIFY Click this button to identify the AX-DSP; the chimes will play RESET TO DEFAULTS Resets the DSP customization settings, will not reset vehicle type. During the reset process, the amplifiers will shut off for 5- 10 seconds, and then turn back on once completed. VEHICLE TYPE Select the type of vehicle the AX-DSP is installed in LOCK DOWN Stores the current configuration into the AX-DSP SAVE CONFIG Saves the current configuration to your device RECALL CONFIG Recalls a configuration from your device and applies the recalled configuration to the AX-DSP ABOUT Displays Information about this App and the AX-DSP SET PASSWORD Changes password for accessing the AX-DSP

  • Identify - Click this button to send a test tone to the front left speaker*.
    * Only installations using the front left output (white RCA jack).
  • Reset to Defaults - Resets the interface to factory settings. During the reset process the amp(s) will shut off for 5-10 seconds.
  • Vehicle Type - Select the vehicle type from the drop down box, then click the apply button
  • Lock Down - Click this button to save the selected settings.

Attention! This must be done before closing the app or cycling the key otherwise all new changes will be lost!

  • Save Configuration - Saves the current configuration to the mobile device.
  • Recall Configuration - Recalls a configuration from the mobile device.
  • About - Displays information about the app, vehicle, interface, and mobile device.
  • Set Password - Assign a 4-digit password to lock the interface. If no password is desired, use "0000". This will clear out any currently set password. It is not necessary to lock down the interface when setting a password.

Note: A 4-digit only password must be chosen otherwise the interface will show "password not valid for this device".

Continued on the next page

MOBILE APP (CONT.)

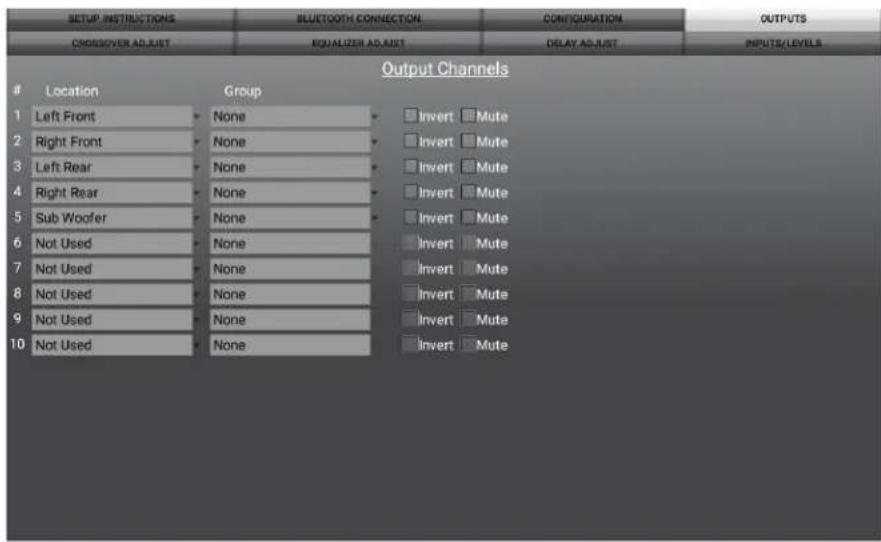

Outputs

SETUP INSTRUCTIONS BLUETOOTH CONNECTION CONFIGURATION OUTPUTS CND/GOVER ADJUST EQUALIZER ADJUST DELAY ADJUST INPUTS/LEVELS Location Group 1 Left Front None Invert Mute 2 Right Front None Invert Mute 3 Left Rear None Invert Mute 4 Right Rear None Invert Mute 5 Sub Woofer None Invert Mute 6 Not Used None Invert Mute 7 Not Used None Invert Mute 8 Not Used None Invert Mute 9 Not Used None Invert Mute 10 Not Used None Invert Mute Output Channels

Output Channels

  • Location - Location of speaker.

  • Group - Used to join channels together for simple equalization. Example, left front woofer/midrange and left front tweeter will be considered simply left front. The letter M indicates the speaker assigned as the master speaker.

  • Invert - Will invert the phase of the speaker.

  • Mute - Will mute desired channel(s) for tuning individual channels.

Continued on the next page

MOBILE APP (CONT.)

Crossover Adjust

SETUP INSTRUCTIONS CROSSOVER ADJUST BLUETOOTH CONNECTION EQUALIZER ADJUST CONFIGURATION DELAY ADJUST OUTPUTS INPUTS/LEVELS Left Front Low Pass Band Pass High Pass Lower Freq: 100 Hz Right Front Low Pass Band Pass High Pass Lower Freq: 100 Hz Left Rear Low Pass Band Pass High Pass Lower Freq: 100 Hz Right Rear Low Pass Band Pass High Pass Lower Freq: 100 Hz Sub Woofer Low Pass Band Pass High Pass Upper Freq: 100 Hz

  • If installing a subwoofer, the front and rear outputs will default to a 100Hz high pass filter to keep the low frequency signals out. If a subwoofer is not being installed, change the front and rear crossover points down to 20Hz for a full range signal, or to the lowest frequency the speakers will play down to.
  • Selecting High Pass and Low Pass will provide one crossover frequency adjustment. Selecting Band Pass will provide two crossover frequency adjustments, one for low pass, and one for high pass.

Continued on the next page

MOBILE APP (CONT.)

Equalizer Adjust

SETUP INSTRUCTIONS CROSSOVER ADJUST BLUETOOTH CONNECTION EQUALIZER ADJUST CONFIGURATION DELAY ADJUST OUTPUTS INPUTS/LEVELS FLAT LEFT FRONT RIGHT FRONT LEFT REAR RIGHT REAR SUB WOOFER +10 6an 20 31 50 80 125 200 315 500 800 1.2K 2K 3.1K 4K 5K 6.3K 8K 12K 16K 20K

  • All channels can be adjusted independently within this tab with 31 bands of available equalization. It is best to tune this by using an RTA (Real Time Analyzer).
  • The Gain slider on the far left is for the channel selected.

Continued on the next page

Axxess AXDSPX-TY3 - Equalizer Adjust - 2

AXXESS

MOBILE APP (CONT.)

Delay Adjust

SETUP INSTRUCTIONS CROSSOVER ADJUST BLUETOOTH CONNECTION EQUALIZER ADJUST CONFIGURATION DELAY ADJUST OUTPUTS/LEVELS INTPUTS/LEVELS Distance from each speaker to 'Head' position (in inches) Left Front 0 Right Front 0 Left Rear 0 Right Rear 0 Sub Woofer 0 Measure the distance from each speaker to the desired 'Head' position and enter those values in the corresponding boxes. Maximum distance is 99°.

- Allows a delay of each channel. If a delay is desired, first measure the distance (in inches) from each speaker to the listening position, then enter those values to the corresponding speaker. Add (in inches) to the desired speaker to delay it.

Continued on the next page

MOBILE APP (CONT.)

Inputs/Levels

SETUP INSTRUCTIONS CROSSOVER ADJUST BLUETOOTH CONNECTION EQUALIZER ADJUST CONFIGURATION DELAY ADJUST OUTPUTS INPUT/LEVELS Chime Volume Volume: 3 Low Medium High Medium High The Chime Volume control is provided to prevent warning tones from being overly loud. Clipping Level Off On Level: 5 Soft Demo Hard The AX-DSP can detect clipping of the audio signals and reduce the level for a period of time to prevent damage to the speakers. Amp Turn On Turn On Delay: 6 0 Seconds 10 Signal Sense Always On The AMP ON line can be turned on whenever accessory power is on, or only when a signal is detected from the radio. Subwoofer Input Front + Rear Subwoofer The Subwoofer output can be driven from the sum of the Front and Rear inputs, or it can be from the Subwoofer input only.

  • Chime Volume - Not applicable in this application.
  • Clipping Level - Use this feature to protect sensitive speakers like tweeters from being driven past their capabilities. If the output signal of the interface clips the audio will be reduced by 20dB. Turning down the stereo will allow the audio to come back at a normal level. The sensitivity of this feature can be adjusted to the listening preference of the user.

- Amp Turn On

  • Signal Sense - Will turn the amp(s) on when an audio signal is detected, and keep on for 10 seconds after the last signal. This ensures the amp(s) won't shut off between tracks.
  • Always On - Will keep the amp(s) on as long as the ignition is cycled on.
  • Turn on Delay - Can be used to delay audio output to avoid turn-on pops.
  • Subwoofer Input - Select Front + Rear

Continued on the next page

MOBILE APP (CONT.)

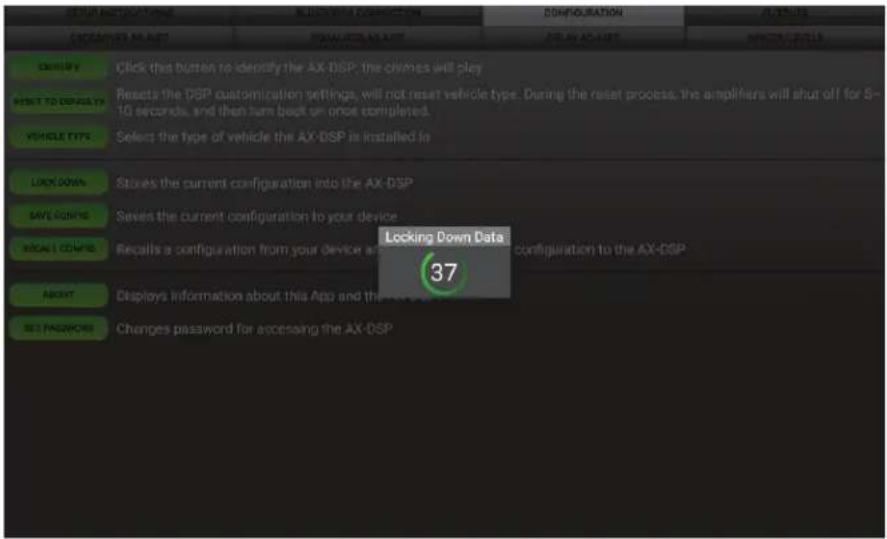

Locking Down Data

ON BATTEN ON TONE ADJRIKING CONNECTIONS CONFIGURATION ANSUMBER CONTENTS IN PART RIGHT ON AS PART OFF AS AND SHEET OPTIONAL ITEMS TITLE Click that button to identify the AX-DSP: the climes will play RESET TO DEEASE Reset to the DSP customization settings, will not reset vehicle type. During the reset process, the amplifiers will shut off for S- 10 seconds, and then turn back on once completed. VEHICLE TYPE Select the type of vehicle the AX-DSP is installed in LOCK DOWN Stoves the current configuration into the AX-DSP SAVE CHANGE Seves the current configuration to your device LOCAL COWNS Regalls a configuration from your device and 37 Locking Down Data configuration to the AX-DSP ABOUT Displays Information about this App and the AX-DSP BEI PASSWORD Changes password for accessing the AX-DSP

Last and the most important. You must lock down your configuration and cycle the key!!!

SPECIFICATIONS

Input Impedance 1M Ohm

Input Channels 6

Input Options High Level or Low Level

Input Type Differential balanced

Input Voltage 0 - 28-volts (peak-to-peak)

(high level range)

Input Voltage 0 - 4.9-volts (peak-to-peak)

(low level range)

Ouput Channels 10

Output Voltage Up to 5-volts RMS

Output Impedance 50 Ohms

Equalizer Type 31 Band Graphic EQ, +/- 10dB

THD <0.03%

Frequency Response 20Hz - 20kHz

Crossover 3-Way LPF, BPF, HPF THP per channel

Crossover Type Linkwitz-Riley 24db slope

Sampling 48kHz

S/N Ratio 105dB @ 5-volts RMS

Operating Voltage 10-16 volts DC

Standby Current Draw 7mA

Operation Current Draw 150mA

Adjustments/Controls Application via Bluetooth

Remote Output 12 volts DC (signal sense

Axxess AXDSPX-TY3 - SPECIFICATIONS - 1

AXDSPX-TY3 INSTALLATION INSTRUCTIONS

Having difficulties? We're here to help.

Axxess AXDSPX-TY3 - AXDSPX-TY3 INSTALLATION INSTRUCTIONS - 1

our Tech Support line at:

386-257-1187

Axxess AXDSPX-TY3 - AXDSPX-TY3 INSTALLATION INSTRUCTIONS - 2

mail at:

techsupport@metra-autosound.com

Tech Support Hours (Eastern Standard Time)

Monday - Friday: 9:00 AM - 7:00 PM

Saturday: 10:00 AM - 7:00 PM

Sunday: 10:00 AM - 4:00 PM

Axxess AXDSPX-TY3 - Tech Support Hours (Eastern Standard Time) - 1

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills b enselling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

600-354-6782 for more information and take steps toward a better tomorrow.

Axxess AXDSPX-TY3 - Tech Support Hours (Eastern Standard Time) - 2

Metra recommends MECP certified technicians
