Product Type	Fitness Equipment (Exercise Bike)
Brand	Cortex
Model	BN-8
Dimensions (L x W x H)	120 x 50 x 130 cm
Weight	35 kg
Max User Weight	120 kg
Power Source	2 AA batteries (not included)
Resistance Type	Magnetic, 8 levels
Display	LCD: time, speed, distance, calories, pulse
Heart Rate Monitor	Hand pulse sensors on handlebars
Pedals	Adjustable with toe cages
Seat	Adjustable height and fore/aft
Handlebar	Adjustable, multi-grip
Transport Wheels	Yes, for easy movement
Maintenance	Wipe with damp cloth; check bolts monthly
Safety Features	Emergency stop brake, stable steel frame
Spare Parts Available	Seat, pedals, handlebar grips, battery cover
Repairability	User-replaceable parts; professional service for electrical
General Information	Indoor use only; 1-year limited warranty

Frequently Asked Questions - BN-8 CORTEX

How do I assemble the Cortex BN-8 fitness equipment?

Assembly requires basic tools (included). Follow the step-by-step manual: attach the stabilizers, then seat post and handlebar post, then pedals and console. Tighten all bolts securely. Estimated time: 30 minutes.

How do I adjust the resistance?

Turn the resistance knob on the main frame clockwise to increase resistance and counterclockwise to decrease. The BN-8 has 8 magnetic resistance levels for a smooth, quiet ride.

The display is not turning on. What should I do?

Check that the batteries are installed correctly in the console (2 AA, not included). If still off, try replacing the batteries. Ensure the battery contacts are clean and making contact. If the problem persists, contact support.

How do I use the heart rate monitor?

Grasp the hand pulse sensors on the handlebars lightly with both hands. The display will show your heart rate after a few seconds (usually in beats per minute). For more accurate readings, pause pedaling and keep hands still.

Why is the pedaling not smooth?

First, check that the pedals are tightened properly. Then verify the resistance setting is not too high. If the sound is grinding, lubricate the crank axle with silicone spray (do not use oil). If problem continues, inspect the magnetic brake; contact support if needed.

Can I use the BN-8 if I weigh over 120 kg?

No, the maximum user weight is 120 kg. Exceeding this could damage the frame and cause safety hazards. Please respect the weight limit.

How do I clean and maintain the equipment?

After use, wipe the frame and seat with a dry or slightly damp cloth. Do not use harsh chemicals. Check all screws and bolts monthly and retighten if loose. Lubricate moving parts every 3 months with a light lubricant.

The seat is wobbly. How can I fix it?

Tighten the seat post adjustment knob and the bolts under the seat. If still wobbling, check if the seat post is properly inserted and not damaged. For replacement parts, contact Cortex.

What spare parts are available for the BN-8?

Commonly available spare parts include replacement pedals, seat cushions, handlebar grips, battery covers, and resistance knobs. Contact Cortex customer service or check online for part numbers.

How long is the warranty and what does it cover?

The Cortex BN-8 comes with a 1-year limited warranty covering manufacturing defects in materials and workmanship. Wear items like pedals and grips are not covered. For warranty claims, provide proof of purchase.

USER MANUAL BN-8 CORTEX

Technical line drawing of a mechanical exercise machine with curved arm and base mount (no text or symbols)

Product may vary slightly from the item pictured due to model upgrades.

Read all instructions carefully before using this product. Retain this owner's manual for future reference.

NOTE:

This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au

TABLE OF CONTENTS

I. Important Safety Instructions 04
II. Care Instructions 05
III. Parts List 06
IV. Assembly Instructions 07
V. Exercise Guide ...... 11
VI. Warranty 13

I. IMPORTANT SAFETY INSTRUCTIONS

WARNING: Read all instructions before using this product.

• It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. Please note: It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.
• Before starting any exercise program, you should consult your doctor to determine if you have any medical or physical conditions that could put your health and safety at risk, or prevent you from using the equipment properly. Your doctor's advice is essential if you are taking medication that affects your heart rate, blood pressure or cholesterol level.
• Be aware of your body's signals. Incorrect or excessive exercise can damage your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, and extreme shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do experience any of these symptoms, you should consult your doctor before continuing with your exercise program.
• Keep children and pets away from the equipment. This equipment is designed for adult use only.
• Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To ensure safety, the equipment should have at least 2 meters of free space around it.
• Before using the equipment, check that the nuts and bolts are securely tightened. If you hear any unusual noises coming from the equipment during use and assembly, stop immediately. Do not use the equipment until the problem has been rectified.
• Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get caught in the equipment or that may restrict or prevent movement.
• Care must be taken when lifting or moving the equipment so as not to injure your back.
  • Always keep this instruction manual and assembly tools at hand for reference.

• The equipment is not suitable for therapeutic use.

• Lubricate moving joints with grease after periods of usage.

• Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects.
• The machine can be kept clean by wiping it down using a dry cloth.
• Regularly check all moving parts and grasp whether there are signs of wear and damage, and if any, stop using the device immediately and contact the rear of my department.
• During inspection, all bolts and nuts must be fully fixed. If bolts or nuts are loose, please secure them in place.
• Check that the weld is free of cracks.
• Failure to perform daily maintenance may result in personal injury or equipment damage.

III. PARTS LIST

Key No. Picture Name Qty.

1		Main Bending Frame	2
2 Spacer
3 Barbell
4 M10 x 6
5 Φ10 18
6 M10 18
7		Bottom Connecting Frame	1
8		50mm Connecting Plate	1
9 M10 >
10		Flat Connecting Piece	6
11		Upper Connecting Frame	2

Key No. Picture Name Qty.

12		Cushion Frame	1
13		CushionAdjusting Frame	1
14		Plum BlossomPumping	1
15		CushionAdjusting Frame	1
16		Plum BlossomButton	1
17		Φ10	1
18		Cushion	1
19		Elbow Cushion	1
20		M8 x 40	8
21 Φ8

IV. ASSEMBLY INSTRUCTIONS

! NOTE:

1. Gaskets shall be placed at both ends of the bolt (against bolt head and nut), as otherwise stated.
2. The initial assembly is to tighten all bolts and nuts by hand, and to tighten them with wrenches when fully assembled.
3. Some spare parts have been pre-assembled in the factory.
4. This product is recommended for installation by more than two people.

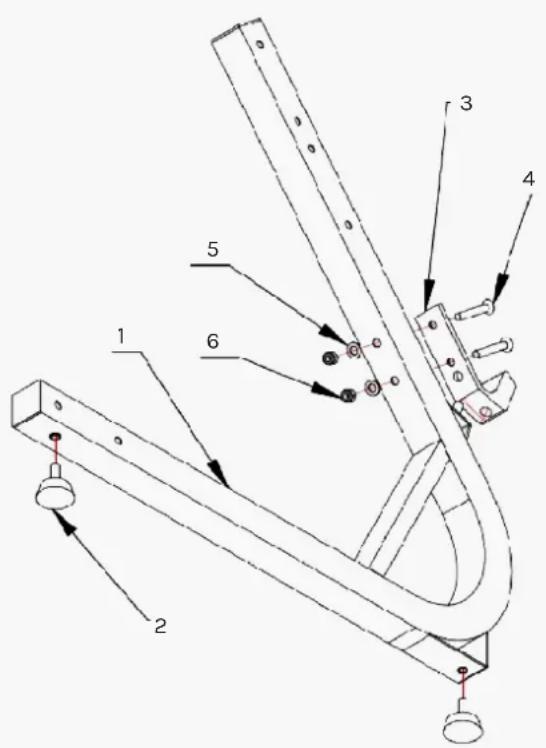

STEP 1

1. According to the figure, first install the adjustment pad (#2) below the main bow(#1).
2. Place the barbell hook (#3) on the main bow (#1) as shown and fasten it with the countersunk bolt M10*65 (#4), the flat washer (#5), and the nut (#6).
3. Repeat the steps for the other side.

STEP 2

1. Install the bottom connection frame (#7) with the 50mm connection plate (#8), as shown, and then screw on the nut with the carriage bolts M10 * 70 (#9) through the bottom connecting frame (#7).

2. According to the diagram, the main bend frame (#1) is placed on one end of the bottom connecting frame (#7) and fastened with 110 flat connecting plate (#10), carriage bolt M10x70 (#9), flat gasket (#5) and nut (#6); The other end is the same.

3. The upper connecting frame (#11) is placed between the two main bending frames (#1) as shown, and then the connection plate (#10), the carriage bolt M10*70 (#9), the flat gasket (#5), and the nut (#6) are fastened with the 110mm flat connecting plate (#10).

4. The other upper connecting frame (#11) is the same as the other upper connecting frame (#11).

STEP 3

1. The nut is removed from the bottom connector (#7), and the bottom frame (#12) is placed to the end on the connecting frame (#7), which is fastened with a flat gasket (#5) and a nut (#6).
2. According to the diagram, put the cushion adjusting frame (#13) into the seat pad bottom frame (#12), and then fasten it with plum blossom pin (#14).
3. According to the diagram, the front and rear adjusting frame (#15) of the cushion is put into the cushion adjusting frame (#13), and then fastened with the large flat gasket (#17) and the plum blossom knob (#16).

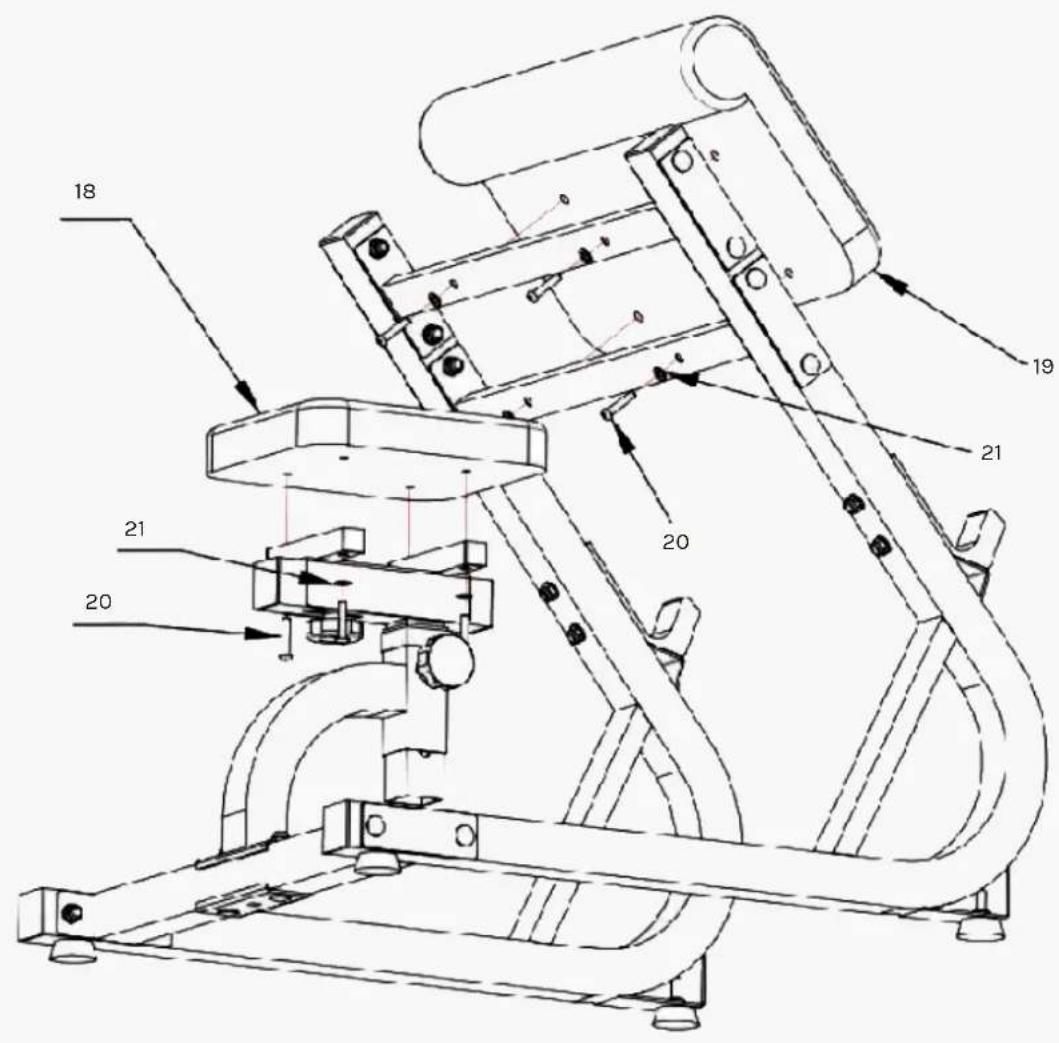

STEP 4

1. According to the diagram, the cushion (#18) is first installed on the front and rear adjusting frame (#15) and fixed with the hexagonal bolt M8x40 (#20), Φ8 flat, gasket (#21) in the head of the disc.
2. According to the diagram, the elbow pad (#19) is installed on the upper connecting frame (#11) and fixed with the hexagonal bolt M8x40 (#20). 8 flat, gasket (#21) in the head of the disc.

Please tighten the bolts and nuts with a wrench.

! PLEASE NOTE:

Before beginning any exercise program, consult your physician. This is important for individuals over the age of 45 or with pre-existing health problems.

The pulse sensors are not medical devices. Various factors, including the user's movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as an exercise aid in determining heart rate trends in general.

Exercising is great way to control your weight, improve your fitness and reduce the effect of aging and stress. The key to a healthy lifestyle is to make exercise a regular and enjoyable part of your everyday life.

The condition of your heart and lungs and how efficient they are in delivering oxygen via your blood to your muscles is an important factor to your fitness. Your muscles use this oxygen to provide enough energy for daily activity. This is called aerobic activity. When you are fit, your heart will not have to work so hard. It will pump a lot fewer times per minute, reducing the strain on your heart.

So as you can see, the fitter you are, the healthier and greater you will feel.

Four sequential illustrations of a person performing a stretching or martial arts movement, showing forward and backward positions (no text or symbols)

WARM UP

Start each workout with 5 to 10 minutes of stretching and some light exercises. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise. Ease into your exercise.

After warming up, increase the intensity to your desired exercise program. Be sure to maintain your intensity for maximum performance. Breathe regularly and deeply as you exercise.

COOL DOWN

Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-exercise problems.

WORKOUT GUIDELINES

This is how your pulse should behave during general fitness exercise. Remember to warm up and cool down for a few minutes.

VI. WARRANTY

AUSTRALIAN CONSUMER LAW

Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.

You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Full details of your consumer rights may be found at www.consumerlaw.gov.au.

Please visit our website to view our full warranty terms and conditions:

http://www.lifespanfitness.com.au/warranty-repairs

WARRANTY AND SUPPORT

Any claim against this warranty must be made through your original place of purchase. Proof of purchase is required before a warranty claim may be processed.

If you have purchased this product from the Official Lifespan Fitness website, please visit https://lifespanfitness.com.au/warranty-form

For support outside of warranty, if you wish to purchase replacement parts or request a repair or service, please visit https://lifespanfitness.com.au/warranty-form and fill in our Repair/Service Request Form or Parts Purchase Form.

Scan this QR code with your device to go to lifespanfitness.com.au/warranty-form
