| Product Type | External Power Supply Unit |
| Brand | Martin (HARMAN Professional) |
| Model | IP66 PSU 240W |
| IP Rating | IP66, NEMA 4X |
| Housing Material | Aluminum, clear anodized |
| Dimensions (L x W x H) | 314 x 68 x 39 mm (12.4 x 2.7 x 1.5 in) |
| Weight | 1.5 kg (3.3 lb) |
| Output Cable Length | 350 mm (13.8 in) |
| AC Input | 100-240 VAC, 50/60 Hz |
| DC Output | 48 VDC, 240 W max, 5 A max |
| Protection | Overvoltage, overcurrent, short circuit, overtemperature (auto-recovery) |
| Surge Protection | Up to 4 kV |
| Cooling | Convection (no fan) |
| Maximum Ambient Temperature | 45°C (113°F) |
| Minimum Ambient Temperature | -30°C (-22°F) |
| Maximum Surface Temperature | 80°C (176°F) at Ta=45°C |
| Total Heat Dissipation | 820 BTU/hr (calculated, full load) |
| Installation Orientation | Any orientation |
| Mounting | Wall-mountable, 4 x M5 bolts (surface mounting) |
| Compatible Products | Exterior PixLine, Exterior Dot-HP, VDO Sceptron, VDO Dotron, VDO Fatron, VC-Dot (via VC-Feeder), VC-Grid, VC-Strip, Tripix |
| Input Cable Options | Y-cables: XLR5 + IP66 PSU to XLR4, BBD, M16, or Tripix system (see manual for part numbers) |
| Safety Approvals | Intertek, EN 60598, UL 1598, CSA C.22.2 No. 250 |
| RoHS Compliant | Yes |
| Application | Professional use, outdoor and indoor |
Frequently Asked Questions - IP66 PSU 240W MARTIN
User questions about IP66 PSU 240W MARTIN
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Power Supply in PDF format for free! Find your manual IP66 PSU 240W - MARTIN and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IP66 PSU 240W by MARTIN.
USER MANUAL IP66 PSU 240W MARTIN
Martin IP66 PSU 240W
Dimensions
Dimensions are in millimeters
©2014-2019 HARMAN PROFESSIONAL DENMARK ApS. All rights reserved. Features, specifications and appearance are subject to change without notice. HARMAN PROFESSIONAL DENMARK ApS and all affiliated companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to use or reliance on the information contained in this document. Martin is a registered trademark of HARMAN PROFESSIONAL DENMARK ApS registered in the United States and/or other countries.
HARMAN PROFESSIONAL DENMARK ApS, Olof Palmes Alle 44, 8200 Aarhus N, Denmark HARMAN PROFESSIONAL SOLUTIONS U.S., 8500 Balboa Blvd., Northridge CA 91329, USA
Martin IP66 PSU 240W User Manual, P/N 5121477-00, Rev. A
Contents
Dimensions....2
Contents 3
Safety Information ....4
Introduction....7
Using for the first time ....7
Physical installation....8
Location and orientation....8
Mounting 8
AC power....9
Power input cable....9
Power plug ....10
Power input cable....10
Connections 12
VC-Grid and VC-Strip....14
Newer VC-Feeders and products with BBD connectors....15
Legacy VC-Feeders with M16 connectors....16
Tripix system....17
Service and maintenance....18
Cleaning....18
Fuse 18
Troubleshooting....19
Specifications 20
Safety Information
Warning! Read the safety precautions in this section before installing, powering, operating or servicing the Martin IP66 PSU 240W.
The following symbols are used to identify important safety information on the PSU and in this manual:
DANGER!
Safety hazard. Risk of severe injury or death.
Warning! Hazardous voltage. Risk of lethal or severe electric shock.
Warning! Burn hazard. Hot surface. Do not touch
Warning! Refer to user manual.
The Martin IP66 PSU 240W is for professional use only. It is not for household use. It presents risks of severe injury or death due to fire hazards, electric shock and falls.
Read this manual before installing, powering or servicing the Martin IP66 PSU 240W. Follow the safety precautions listed below and observe all warnings in this manual and printed on the PSU. Install and operate the Martin IP66 PSU 240W only as described in this manual and in accordance with local laws and regulations. Refer any operation not described in this manual to an authorized Martin Service partner.
If you have questions about how to operate the PSU or connected devices safely, please contact your Martin distributor (see www.martin.com/distributors for details), or in the USA call 1-888-tech-180.
Protection from electric shock
- Shut down power to the entire installation at the main power distribution board and lock out power (by removing the fuse at the distribution board for example) before carrying out any installation or maintenance work.
- Isolate the Martin IP66 PSU 240W and connected devices from AC power before removing or installing any cover or part and when not in use.
- Connect the Martin IP66 PSU 240W electrically to ground (earth).
- Use only a source of AC power that complies with local building and electrical codes and has both overload and ground-fault (earth-fault) protection.
- Before using the Martin IP66 PSU 240W and connected devices, check that all power distribution equipment and cables are in perfect condition and are rated for the current requirements of all connected devices.
- Isolate all devices from power immediately if any cable, seal, cover or other component is damaged, cracked or deformed. Do not reapply power until repairs have been completed.
- The Martin IP66 PSU 240W can be installed outdoors.
- Refer any service operation not described in this manual to an authorized Martin Service partner.
Protection from fire and burns
- Do not operate the Martin IP66 PSU 240W if the ambient temperature (Ta) exceeds 45°C (113°F).
- The exterior surface of the Martin IP66 PSU 240W can become hot (up to 80° C, 176° F) during normal operation. Ensure that accidental physical contact with the device is impossible.
- Allow the Martin IP66 PSU 240W to cool for at least 10 minutes before servicing.
- Install the Martin IP66 PSU 240W at least 20 cm (8 in.) away from combustible materials (for example textiles, wood, paper).
- Keep flammable materials well away from the Martin IP66 PSU 240W.
- Do not modify the Martin IP66 PSU 240W in any way not described in this manual. Only install genuine Martin parts.
- Install the Martin IP66 PSU 240W indoors in a well-ventilated area only or outdoors. Provide a minimum clearance of 5 cm (2 in.) and ensure unrestricted airflow around the PSU.
Protection from injury
- Ensure that all external covers, components and installation fittings are securely fastened.
- Block access below the work area and work from a stable platform whenever installing, servicing or moving devices overhead.
- Ensure that all supporting structures, surfaces, fasteners and lifting equipment can bear the weight of all the devices they are intended to support plus an adequate safety margin, and that they conform to local building and safety regulations.
Disposing of this product
Martin® products are supplied in compliance with Directive 2012/19/EC of the European Parliament and of the Council of the European Union on WEEE (Waste Electrical and Electronic Equipment), where applicable
Help preserve the environment! Ensure that this product is recycled at the end of its life. Your supplier can give details of local arrangements for the disposal of Martin products.
Introduction
Thank you for using the Martin Professional® range of lighting and LED video products.
The Martin IP66 PSU 240W replaces the Martin Tripix Power IP66 external power supply unit and has identical specifications with that unit.
The Martin IP66 PSU 240W is an IP66-rated external power supply unit that can supply 48 VDC power to various Martin lighting and LED video products such as Exterior PixLine, Exterior Dot-HP and VC-Dot. It provides an alternative to the P3 PowerPort in supplying power to fixtures in a DMX-controlled system. The unit offers the following features:
IP66-rated
- Wall-mountable
- Protection against overvoltage, overcurrent, short circuit, overtemperature, all with auto-recovery
- Surge protection up to 4 KV
- No configuration or addressing required.
For the latest documentation, product specifications and other information about this and all Martin Professional products, please visit the Martin website at http://www.martin.com.
Using for the first time
Before applying power to the Martin IP66 PSU 240W:
- Carefully review “Safety Information” on page 3.
- Check that the local AC power voltage is within the range listed on the Martin IP66 PSU 240W's serial number label.
Physical installation
Warning! Read "Safety Information" on page 3 before installing devices.
The safety and suitability of lifting equipment, installation location, anchoring method, mounting hardware and electrical installation is the responsibility of the installer. All local safety regulations and legal requirements must be observed when installing and connecting the devices. Installation must be carried out by qualified professionals only.
Contact your Martin supplier for assistance if you have any questions about how to install this product safely.
Location and orientation
The Martin IP66 PSU 240W has an IP rating of 66 and is suitable for outdoor installation.
Allow 5 cm (2 in.) space and free airflow around the Martin IP66 PSU 240W. Do not bury or cover the PSU.
Install the Martin IP66 PSU 240W at least 20 cm (8 in.) away from any combustible materials (wood, paper, etc.) and well away from any flammable materials.
The housing of the Martin IP66 PSU 240W can reach 80° C (176° F). Restrict public access or locate PSUs so that they cannot accidentally be touched.
The PSU can be installed in any orientation.
Mounting
Respect all local safety, fire and building regulations governing the installation of electrical equipment in cavities or plenums. Allow free airflow and at least 5 cm (2 in.) of free space around the device. Allow sufficient ventilation to ensure that the ambient temperature will not exceed 40° C ( 104° F) for the Martin IP66 PSU 240W and 45° C ( 113° F) for Tripix fixtures.
The Martin IP66 PSU 240W must be screwed or bolted securely to a flat surface in a location that is accessible for service using 5 mm shaft diameter screws or M5 bolts through the four mounting holes at the corners of the devices. Use washers under the screw or bolt heads. Use screw anchors in the mounting surface if necessary.
AC power
Warning! Read "Safety Information" on page 3 before installing this product. Lock out power to the entire installation before working on cables and connections or removing any cover.
Warning! Electrical installation must be carried out by qualified professionals only.
Warning! For protection from dangerous electric shock, the Martin IP66 PSU 240W must be grounded (earthed). The AC power distribution system must be fitted with current overload and ground-fault (earth-fault) circuit breakers as well as a means to isolate the system from power and lock out power during service.
Important! Do not connect the Martin IP66 PSU 240W to an electrical dimmer system. Doing so can damage the electronics.
If you require help in planning or dimensioning the power distribution system, please contact your Martin supplier for assistance.
The Martin IP66 PSU 240W must be connected to a single-phase 3-wire (live, neutral, ground/earth) power distribution system at 100-240 VAC nominal, 50/60 Hz. Do not connect to power at any other voltage or frequency.
The Martin IP66 PSU 240W does not have a power on/off switch. Make sure that a means of isolating it from power (an on/off switch or a power plug that can be removed from a power outlet) is easily accessible.
Power input cable
Warning! The electrical equipment and cable used to supply the Martin IP66 PSU 240W with power must be in perfect condition, be adequately dimensioned for current requirements and respect maximum cable run lengths.
To connect the Martin IP66 PSU 240W to AC mains power:
- For North America, use only SJTW (or STW), 3-conductor 18 AWG (or 16 AWG) power input cable rated minimum 105° C (221° F), VW-1.
- For the EU, use only power input cable type H05RN-F, 3 × 0.75 mm2 .
Check the condition of cables carefully. If there is a break or cut at any point in a cable (for example at a connection point), and if this is
exposed to water, moisture can be drawn up the inside of the cable due to the vacuum effect of temperature fluctuations during operation.
Power plug
The Martin IP66 PSU 240W can be hard-wired to a building's AC mains electrical installation, but if you decide to fit the power cable with a plug that is suitable for your AC mains power outlets, install a grounding-type (earthed) plug following the plug manufacturer's instructions.
Table 1 shows some possible pin identification schemes; if pins are not clearly identified, or if you have any doubts about proper installation, consult a qualified electrician.
| Wire color (US system) | Wire color (EU system) | Conductor | Symbol | Screw (US) |
| Black | Brown | Live | L | Yellow or Brass |
| White | Blue | Neutral | N | |
| Green | Yellow/Green | Ground (Earth) | Green | |
Table 1: Cable color-coding and conductor identification
Power input cable
A power input cable that meets the specifications given under “Power input cable” on the previous page must be supplied by the user. The cable must have an external diameter of 5 – 9.5 mm (0.2 – 0.37 in.), otherwise the power cable entry gland will not be effective to IP66.
Installing the power input cable
- Unfasten all the screws on the input side cover and lift the cover away from the housing as shown in Figure 1.
Figure 1. Installing a power input cable
- Pass the power input cable through the cable gland.
- Connect the power cable conductors to the power terminals inside the cover using Table 1 and the markings on the terminals as a guide.
- Check carefully that the cover seal is correctly positioned, then replace the cover and tighten all the screws to a torque of 1 ± 0.1 Nm
- Tighten the outer nut on the cable gland to compress the gland and make the cable entry waterproof.
- Prepare the other end of the power input cable for connection to AC mains power, but do not apply power until all installation work is completed.
Connections
Important! Read the user manuals of all products involved before making connections. Incorrect configuration may present a risk of fire, electric shock or damage.
Isolate the system from power before making connections.
The Martin IP66 PSU 240W is used together with a Y-shaped input / power inserter cable that combines DC power from the PSU with DMX data from a DMX/RDM controller and sends a hybrid (combined power and data) signal to lighting / video display fixtures.
The following input cables are available from Martin for the different lighting / video display fixtures in Martin's product range:
| Lighting / video display product | Y-shaped input cable | Part number |
| VC-Grid | Input Y-Cable, XLR5 + Martin IP66 PSU to XLR4 | 91616039 |
| VC-Strip | Input Y-Cable, XLR5 + Martin IP66 PSU to XLR4 | 91616039 |
| Exterior PixLine | Input Y-Cable, XLR5 + Martin IP66 PSU to BBD | 91616050 |
| Exterior Dot-HP | Input Y-Cable, XLR5 + Martin IP66 PSU to BBD | 91616050 |
| VDO Sceptron | Input Y-Cable, XLR5 + Martin IP66 PSU to BBD | 91616050 |
| VDO Fatron | Input Y-Cable, XLR5 + Martin IP66 PSU to BBD | 91616050 |
| VDO Dotron | Input Y-Cable, XLR5 + Martin IP66 PSU to BBD | 91616050 |
| Newer VC-Feeder (VC-Dot system) | Input Y-Cable, XLR5 + Martin IP66 PSU to BBD | 91616050 |
| Older VC-Feeder (VC-Dot system) | Input Y-Cable, XLR5 + Martin IP66 PSU to M16 | 11840195 |
| Tripix system | Input Y-Cable Martin IP66 PSU 240 W to Tripix system | 91611339 |
The connections from the PSU, from the DMX data source and to fixtures are marked on power inserter cables (see Figure 2). When you are cabling the installation:
- Connect the Martin IP66 PSU 240W to the cable tail marked Power
- Connect the DMX data source (RDM/DMX lighting controller) to the cable tail marked In
- Connect the chain of lighting / video display fixtures (or the VC-Feeder and chain of VC-Dots) to the cable tail marked Out.
Figure 2. Markings on Input Cables
VC-Grid and VC-Strip
VC-Grid and VC-Strip lighting / video display fixtures have 4-pin XLR connectors for power and data input.
To draw DC power from the Martin IP66 PSU 240W in an installation consisting of:
- Martin VC-Grid
• and/or VC-Strip products,
you will need an Input Y-Cable, XLR5 + Martin IP66 PSU to XLR4, 0.25 m (9.8 in.), P/N 91616039 (see Figure 3). This Y-shaped cable connects the Martin IP66 PSU 240W and data from a DMX controller to a chain of VC-Grid or VC-Strip products via a 4-pin XLR connector.
Figure 3. XLR5 + IP66 PSU to XLR4 Cable, P/N 91616039
Newer VC-Feeders and products with BBD connectors
Newer VC-Feeder units and Exterior PixLine, VDO Sceptron, VDO Dotron, VDO Fatron and Exterior Dot-HP lighting / video display fixtures have BBD connectors for power and data input.
To draw DC power from the Martin IP66 PSU 240W in an installation consisting of:
- VC-Dot products that are powered and managed via newer VC-Feeders,
• Martin Exterior PixLine,
• VDO Sceptron,
• VDO Dotron, - VDO Fatron
• and/or Exterior Dot-HP products,
you will need an XLR5 + Martin IP66 PSU-to-BBD Input Cable, 0.25 m, P/N 91616050 (see Figure 4) to connect the Martin IP66 PSU 240W and data from a DMX controller to a chain of VC video display products via a BBD-type connector.
Figure 4. XLR5 + IP66 PSU to BBD Input Cable, P/N 91916050
Legacy VC-Feeders with M16 connectors
Older VC-Feeder units had IP65-rated M16 connectors for power and data input.
To draw DC power from the Martin IP66 PSU 240W in an installation consisting of Martin VC-Dot products that are powered and managed via legacy VC-Feeder units, you will need an XLR5 + Martin IP66 PSU to M16 Input Cable, 0.25 m (9.8 in.), P/N 11840195 (see Figure 5) to connect the Martin IP66 PSU 240W and data from a DMX controller to an older VC-Feeder.

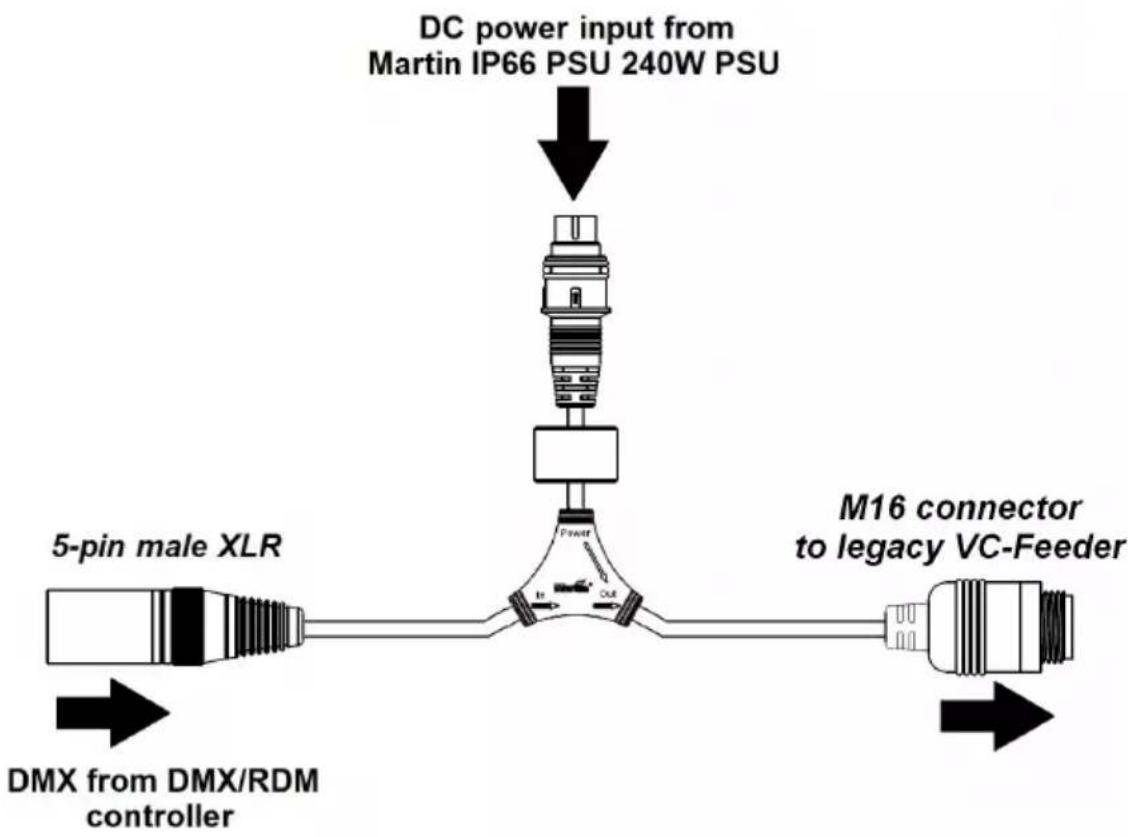

Figure 5. XLR5 + IP66 PSU to M16 Input Cable, P/N 11840195
Tripix system
To draw DC power from the Martin IP66 PSU 240W in an installation consisting of Martin Tripix lighting fixtures, you will need a Power Inserter Cable, Martin IP66 PSU 240 W to Tripix system, P/N 91611339 (see Figure 6). This Y-shaped cable connects the Martin IP66 PSU 240W and data from a DMX controller to a chain of Tripix fixtures.

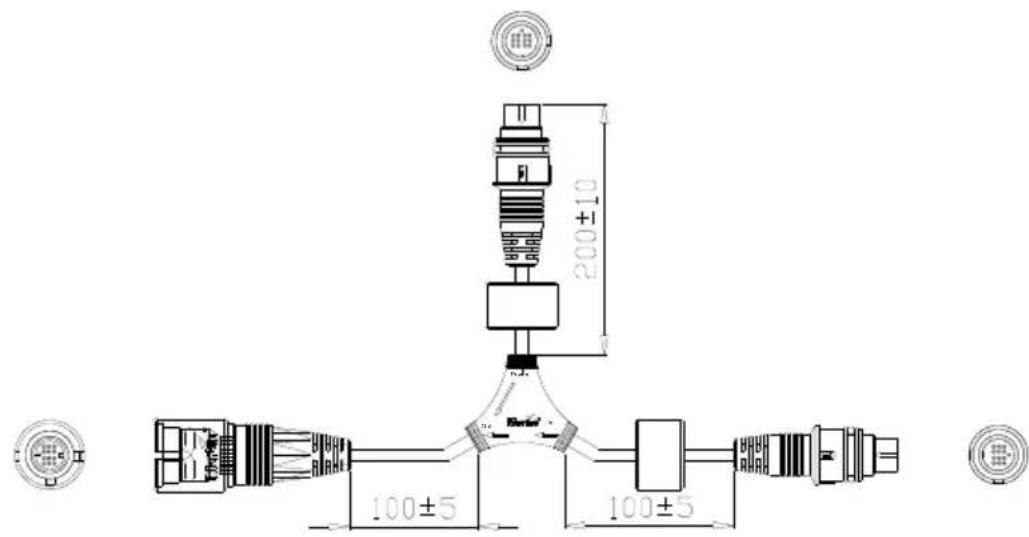

Figure 6. Tripix Power Inserter cable P/N 91611339
Service and maintenance
Warning! Read “Safety Information” on page 3 before carrying out service or maintenance work on the Martin IP66 PSU 240W. Lock out power to the entire distribution system and allow fixtures to cool before servicing or opening any cover.
The service and maintenance procedures described in this section must be carried out by qualified professionals only. Any service procedures not described in this section must be carried out by the Martin Service organization or its authorized agents.
Cleaning
Warning! Do not use a high-pressure water jet for cleaning.
Regular cleaning is essential for fixture life and performance. Build up of dust and dirt degrades the PSU's cooling ability.
Clean the Martin IP66 PSU 240W when it becomes dirty. Use a soft cloth dampened with a solution of water and a mild detergent such as car shampoo. Take care not to damage cables during cleaning. Do not use products that contain solvents, abrasives or caustic agents for cleaning.
Fuse
Warning! The fuse in the Martin IP66 PSU 240W must be replaced by an authorized Martin Service partner only.
If you suspect that the PSU's fuse has blown, contact Martin for assistance.
Troubleshooting
| Problem | Probable | cause(s) | Remedy |
| PSU and connected lighting fixtures are completely dead | No power to Martin IP66 PSU 240W | Check power and connections. | |
| Primary fuse blown | Isolate device from power. Contact Martin for service. | ||
| Connected lighting fixtures cut out intermittently | Martin IP66 PSU 240W is too hot | Ensure free airflow around Martin IP66 PSU 240W. Clean the Martin IP66 PSU 240W. Check that ambient temperature does not exceed maximum permitted level. Contact Martin for service. |
Table 7: Troubleshooting
Specifications
Physical
Martin IP66 PSU 240W
Length 314 mm (12.4 in.)
Width 68 mm (2.7 in.)
Height 39 mm (1.5 in.)
Weight 1.5 kg (3.3 lb.)
Output cable tail length....350 mm (13.8 in.)
System integration
Exterior PixLine™ family
Exterior Dot-HP TM family
VDO Sceptron™ family
VDO Dotron™ family
VDO Fatron™ family
VC-Dot TM family via VC-Feeder TM
VC-Grid TM family (indoor product)
VC-Strip™ family (indoor product)
Tripix family
Construction
Housing ...... Aluminum
Finish...... Clear Anodized
IP rating IP 66, NEMA 4X
RoHS compliant
Installation
Orientation......Any
Mounting.... Fixation points for surface mounting
Connections
AC power input.... Hard-wired (terminal block) via cable gland
48 VDC power out ....Cable tail with 13-pin DIN connector, IP66
DC power connection options
To VC-Grid Input Y-Cable, XLR5 + Martin IP66 PSU to
PSU to XLR4, 0.25 m (9.8 in.), P/N 91616039
To VC-Strip ...... Input Y-Cable, XLR5 + Martin IP66 PSU to
XLR4, 0.25 m (9.8 in.), P/N 91616039
To VDO Sceptron .... Via Input Y-Cable, XLR5 + Martin IP66 PSU 240W to BBD, 0.25 m (9.8 in.), P/N 91616050
To VDO Dotron .... Via Input Y-Cable, XLR5 + Martin IP66 PSU 240W to BBD, 0.25 m (9.8 in.), P/N 91616050
To VDO Fatron ...... Via Input Y-Cable, XLR5 + Martin IP66 PSU 240W to BBD, 0.25 m (9.8 in.), P/N 91616050
To Exterior PixLine ...... Via Input Y-Cable, XLR5 + Martin IP66 PSU 240W to BBD, 0.25 m (9.8 in.), P/N 91616050
To Exterior Dot-HP ...... Via Input Y-Cable, XLR5 + Martin IP66 PSU 240W to BBD, 0.25 m (9.8 in.), P/N 91616050
To newer VC-Feeder ..... Input Y-Cable, XLR5 + Martin IP66 PSU 240W to BBD connector, 0.25 m (9.8 in.), P/N 91616050
To legacy VC-Feeder .... Input Y-Cable, XLR5 + Martin IP66 PSU 240W to M16 connector, 0.25 m (9.8 in.), P/N 11840195
To Tripix ...... Via Power Inserter Cable, Martin IP66 PSU 240 W to Tripix system, 0.25 m (9.8 in.), P/N 91611339
See user manuals of compatible products for latest complete information on suitable cables and connectors, safety limits, etc.
Electrical
AC power....100-240 VAC nominal, 50/60 Hz
Power supply unit ......Auto-sensing multi-voltage switch mode
DC power output.... 48 V
Maximum DC output power 240 W
Maximum DC output current draw 5 A
Protection .... Overvoltage, overcurrent, short circuit, over-temperature,
Surge protection 4 KV
Thermal
Cooling ...... Convection
Maximum ambient temperature (Ta max.)....45° C (113° F)
Minimum ambient temperature (Ta min.)....-30° C (-22° F)
Maximum surface temperature, steady state, Ta=45°C: .....80°C (176°F)
Total heat dissipation (calculated, including max.
number of connected devices, all at full load) ....820 BTU/hr.
Approvals
Intertek 3044793
EU Safety ......EN 60598-1, EN 60598-2-1
LED Safety ....IEC 60825-1, 2001; IEC 62471, 2006
EU EMC EN 55 015, EN 55 103, EN 61 000-3
US Safety UL 1598
Canadian Safety....CAN/CSA C.22.2 No. 250
Accessories*
Input Y-Cable, 5-pin XLR + Martin IP66 PSU 240W to BBD, 0.25m (9.8 in.)....P/N 91616050
Input Y-Cable, 5-pin male XLR + Martin IP66 PSU 240W to 4-pin fem. XLR, 0.25 m (9.8 in.).....P/N 91616039
Input Y-Cable, 5-pin male XLR + Martin IP66 PSU 240W to M16, 0.25 m (9.8 in.)....P/N 11840195
Input Y-Cable, Martin IP66 PSU 240 W to Tripix™ system....P/N 91611339
*See also overview of power input cables on page 12
Ordering Information
Martin IP66 PSU 240W P/N 90760330
Specifications subject to change without notice. Please see www.martin.com for latest product information and specifications.
- MARTIN IP66 PSU 240W
- DIMENSIONS
- CONTENTS
- SAFETY INFORMATION
- PROTECTION FROM ELECTRIC SHOCK
- PROTECTION FROM FIRE AND BURNS
- PROTECTION FROM INJURY
- DISPOSING OF THIS PRODUCT
- INTRODUCTION
- USING FOR THE FIRST TIME
- PHYSICAL INSTALLATION
- LOCATION AND ORIENTATION
- MOUNTING
- AC POWER
- POWER INPUT CABLE
- POWER PLUG
- INSTALLING THE POWER INPUT CABLE
- CONNECTIONS
- VC-GRID AND VC-STRIP
- NEWER VC-FEEDERS AND PRODUCTS WITH BBD CONNECTORS
- LEGACY VC-FEEDERS WITH M16 CONNECTORS
- TRIPIX SYSTEM
- SERVICE AND MAINTENANCE
- CLEANING
- FUSE
- TROUBLESHOOTING
- SPECIFICATIONS
- PHYSICAL
- SYSTEM INTEGRATION
- CONSTRUCTION
- INSTALLATION
- DC POWER CONNECTION OPTIONS
- ELECTRICAL
- THERMAL
- APPROVALS
- ACCESSORIES
- ORDERING INFORMATION
Brand : MARTIN
Model : IP66 PSU 240W
Category : Power Supply
