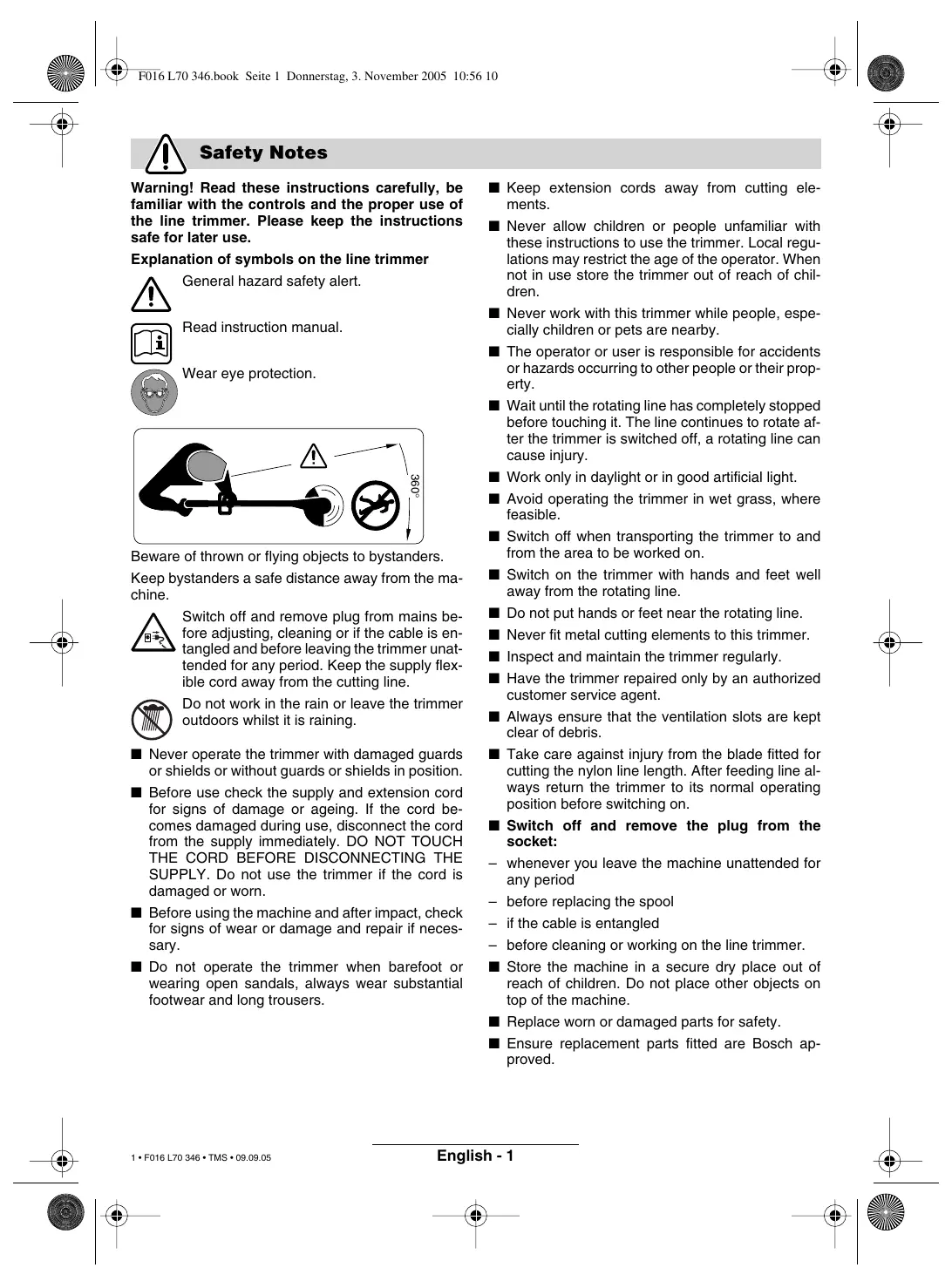

Warning! Read these instructions carefully, be familiar with the controls and the proper use of the line trimmer. Please keep the instructions safe for later use. Explanation of symbols on the line trimmer General hazard safety alert. Read instruction manual. Wear eye protection.

Beware of thrown or flying objects to bystanders.

Keep bystanders a safe distance away from the machine. Switch off and remove plug from mains before adjusting, cleaning or if the cable is entangled and before leaving the trimmer unattended for any period. Keep the supply flexible cord away from the cutting line. Do not work in the rain or leave the trimmer outdoors whilst it is raining. ■ Never operate the trimmer with damaged guards or shields or without guards or shields in position. ■ Before use check the supply and extension cord for signs of damage or ageing. If the cord becomes damaged during use, disconnect the cord from the supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. Do not use the trimmer if the cord is damaged or worn. ■ Before using the machine and after impact, check for signs of wear or damage and repair if necessary. ■ Do not operate the trimmer when barefoot or wearing open sandals, always wear substantial footwear and long trousers.

1 • F016 L70 346 • TMS • 09.09.05

■ Keep extension cords away from cutting elements.

■ Never allow children or people unfamiliar with these instructions to use the trimmer. Local regulations may restrict the age of the operator. When not in use store the trimmer out of reach of children. ■ Never work with this trimmer while people, especially children or pets are nearby. ■ The operator or user is responsible for accidents or hazards occurring to other people or their property. ■ Wait until the rotating line has completely stopped before touching it. The line continues to rotate after the trimmer is switched off, a rotating line can cause injury. ■ Work only in daylight or in good artificial light. ■ Avoid operating the trimmer in wet grass, where feasible. ■ Switch off when transporting the trimmer to and from the area to be worked on. ■ Switch on the trimmer with hands and feet well away from the rotating line. ■ Do not put hands or feet near the rotating line. ■ Never fit metal cutting elements to this trimmer. ■ Inspect and maintain the trimmer regularly. ■ Have the trimmer repaired only by an authorized customer service agent. ■ Always ensure that the ventilation slots are kept clear of debris. ■ Take care against injury from the blade fitted for cutting the nylon line length. After feeding line always return the trimmer to its normal operating position before switching on. ■ Switch off and remove the plug from the socket: – whenever you leave the machine unattended for any period – before replacing the spool – if the cable is entangled – before cleaning or working on the line trimmer. ■ Store the machine in a secure dry place out of reach of children. Do not place other objects on top of the machine. ■ Replace worn or damaged parts for safety. ■ Ensure replacement parts fitted are Bosch approved.

Product Specification

Line trimmer Part number Rated power No-load speed Cutting line feed Adjustable handle Cutting Head angle adjustment/edging adjustment Cutting line Cutting circle Cutting spool capacity Extra strong line Weight (without optional extras) Protection class Serial Number

ART 2300 COMBITRIM 3 600 H78 B.. [W] 400 [rpm] 12 500 Pro-tap automatic ●

/ II / II See serial No 16 (rating plate) on machine.

/ II Operating Controls

The product is intended for the cutting of grass and weeds under bushes, as well as on slopes and edges that can not be reached with the lawn mower.

Intended Use is related to operation within 0 °C and 40 °C ambient temperature.

This manual gives instructions on the correct assembly and safe use of your machine. It is important that you read these instructions carefully.

Carefully remove the machine from its packaging and check that you have all the following items: – Line trimmer – Cutting guard – Adjustable handle (fitted) – Wheels (ART 30/3000 COMBITRIM only) – Plant protector (ART 30/3000 COMBITRIM only) – Extra Strong Line – Operating instructions

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Handle Handle wing nut Adjustable handle Adjusting collar Shaft Trimmer head Ventilation slots Plant protector (ART 30/3000 COMBITRIM only) Cutting guard Wheels (ART 30/3000 COMBITRIM only) Foot pedal for head angle adjustment Extra Strong Line Extra Strong Line spool Mains plug** Serial Number

Not all of the accessories illustrated or described are included as standard delivery.

When parts are missing or damaged, please contact your dealer.

1 • F016 L70 346 • TMS • 09.09.05

Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled. The cutting line continues to rotate for a few seconds after the trimmer is switched off. Caution – do not touch rotating cutting line. Electrical Safety Your machine is double insulated for safety and requires no earth connection. The operating voltage is 230 V AC, 50 Hz (for non-EU countries 220 V, 240 V as applicable). Only use approved extension cables. Contact your Bosch Service Centre for details. It is recommended for increased electrical safety to use a Residual Current Device (RCD) with a tripping current of not more than 30 mA. Always check your RCD every time you use it. WARNING: For safety, it is essential that the mains plug 15 attached to the product is fitted to the power supply cable 17. The couplings of connection leads must be protected against splashes and the coupling sockets on the leads must be made of rubber or coated with rubber. Fixing means for the connection leads must be used. The connection lead must be inspected for signs of damage at regular intervals and may only be used if in perfect condition. If the supply cord is damaged, it must be replaced by a Bosch Service Centre. Extension cords/leads should only be used if they comply with H05VV-F or H05RN-F types. Products sold in GB only: Your product is fitted with an approved 13 A (BS 1363/A) electric plug and is protected by a 3 A fuse (ASTA Approved to BS 1362). If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a 13 A socket elsewhere.

Do not connect the machine to the mains socket before it is completely assembled.

(ART 30/3000 COMBITRIM only) B1 Fit the wheels 11 onto the shaft 6. B2 Fit the bolt 19 and the wingnut 18. Note: The position of the wheels can be adjusted by loosening the wingnut 18 and moving to the desired position. B3 The wheels can be moved up and down the shaft 6 depending on the height of cut required.

C Using Adjustable Handle The adjustable handle 4 can be set in various positions:

change the position undo the handle wing nut 3 and move the adjustable handle 4.

➋ Tighten the handle wing nut 3 securely to fix the adjustable handle 4 in the adjusted position. D Adjusting Product length

➊ Loosen the adjustment collar 5 90°.

➋ Pull the shaft out to increase the height, or push the shaft in to decrease the height. Re-tighten adjustment collar 5.

E Adjusting cutting head angle:

To change the angle depress the foot pedal 12 and move the shaft 6 to the desired position. Release the foot pedal 12.

Adjusting for Edging Mode

F Moving wheels (where fitted): ➊ Loosen wingnut 18. ➋ Twist wheels 11 90° as shown. ➌ Tighten wingnut 18. G Adjusting cutting head angle: ➊ Depress the foot pedal 12. ➋ Move the shaft 6 to the lowest position. Release the foot pedal 12. H Move trimmer head: ➊ Loosen the adjustment collar 5. ➋ Turn the shaft 6 90° to position the trimmer head 7 for trimming/edging as shown. Re-tighten adjustment collar 5.

A Mounting the Cutting Guard

Place the cutting guard 10 on the trimmer head 7. ➊ Hook the guard onto trimmer head and push until secure fitting. ➋ Push rear of guard until secure (click). 1 • F016 L70 346 • TMS • 09.09.05

Remove stones, loose pieces of wood and other objects from the cutting area. The cutting line continues to rotate for a few seconds after the trimmer is switched off. Allow the motor/cutting line to stop rotating before switching “on” again. Do not rapidly switch off and on. Switching On and Off Press switch 1 and hold depressed. Release switch 1 for switching off. I Cutting Grass Move the trimmer left and right, keeping it well away from the body. The trimmer can efficiently cut grass up to a height of 15 cm. Cut taller grass in stages. Remove the wheels when cutting long grass (ART 30/3000 COMBITRIM only).

Cutting Very Long Grass/Weeds

The product is supplied with Extra Strong Line and a fixing spool, fit as described in spool maintenance. Fitting the Extra Strong Line for very long tough conditions will improve the performance and give better results. J Trimming Edges Guide the trimmer along the edge of the lawn. Do not allow the cutting line to contact paved surfaces, stones or garden walls, since this will wear the line rapidly. For better control use the plant protector 9 (ART 30/ 3000 COMBITRIM only – available as an accessory for ART 23/26/2300/2600 COMBITRIM) as a guide. K Cutting Around Trees and Bushes Carefully cut around trees and bushes so that they do not come into contact with the cutting line. Plants can die if you damage the bark. For better control use adjustable handle 4 and use the plant protector 9 (ART 30/3000 COMBITRIM only – available as an accessory for ART 30/3000 COMBITRIM).

The rotating line can wear or break. You will notice when the motor runs without load and no grass is cut. L While operating the trimmer press the ground or a solid surface, then release (necessary pressure approx. 3 kg). This action will allow the feed button 20 to release the line out. The spool will release approx. 4 cm of line per action. 1 • F016 L70 346 • TMS • 09.09.05

When the line breaks off completely, feed twice to regain the full cutting circle.

M If the line is exceeding the maximum cutting circle it will be cut by the blade 24 integrated in the cutting guard 10.

Stop and remove plug from the power supply. Note: To ensure long and reliable service, carry out the following maintenance regularly. Regularly check for obvious defects such as loose fixings, and worn or damaged components. Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using. If the trimmer should happen to fail despite the care taken in manufacture and testing, repair should be carried out by an authorized customer service agent for Bosch garden products. For all correspondence and spare parts orders, always include the 10-digit part number (TYP) from the nameplate of the machine!

Stop and remove plug from the power supply. M Replacing the Line Spool Hold the spool plate 23 in position. Turn the spool cover 21 counter-clockwise and remove. Take the empty spool 25 out from the spool cover. Thread the line of the new/refilled spool through the eyehole 22 and place the spool in the spool cover 21. Pull approx. 9 cm of line out of the spool. Place spool with cover 21 on the spool plate in the correct position (bayonet fastening), press down and turn fully clockwise (click).

Fitting Extra Strong Line Spool

Hold the spool plate 23 in position. Turn the spool cover 21 counter-clockwise and remove. Place the Extra Strong Line spool 14 on the spool plate in the correct position (bayonet fastening), press down and turn fully clockwise (click).

O When the Extra Strong Line breaks, us the above procedure to remove the spool and fit the Extra

Strong replacement Line 13 as shown to the spool. Replacement Extra Strong Line can be stored on the product as shown in main figure. N Refilling Line Take out the spool 25 as described above. Press the cover ring 27 together, push it forward and detach over the smaller diameter of the spool. Cut off approx. 8 m line from the refill roll. Press one end into the notch of the spool so that it stands out approx. 4 mm. Wind on the line tightly and in orderly layers in arrow direction. Thread the line’s end through the slot 26 in the cover ring 27 from the inside. Keep the line tight and slide the cover ring 27 over the smaller diameter of the spool. Build in the spool as described above. Note: Only use Bosch replacement line. It has been developed specially for improved cutting and feeding performance. The use of other line will lead to a deterioration in performance.

After Trimming/Storage

Stop and remove plug from the power supply. Clean the exterior of the machine thoroughly using a soft brush and cloth. Do not use water, solvents or polishes. Remove all grass and debris, especially from the ventilation slots 8. Turn the machine on its side and clean the cutting guard 10 inside. If grass cuttings are compacted, remove with a wooden or plastic implement. Hang the cable on the hook provided. DO NOT wrap/loop the supply/extension cable around the hook and the guard together - this will cause the cable to be in contact with the guard blade which can damage the cable. ONLY hang on the hook provided.

The following table gives checks and actions that you can perform if your machine does not operate correctly. If these do not identify/remedy the problem, contact your service agent. Warning: Switch off and remove plug from mains before investigating fault. Symptom

Machine fails to operate

Mains socket faulty Extension cable damaged Fuse faulty/blown

Use another socket Inspect cable, replace if damaged Replace fuse

Machine functions intermittently

Extension cable damaged

Machines internal wiring damaged

Inspect cable, replace if damaged

Contact Service Agent Contact Service Agent

Machine is not cutting

Line too short/broken off

Feed the line manually/automatically

Line inside the spool entangled

Inspect the spool, rewind if necessary

Line inside the spool entangled

Trimmer used incorrectly

Inspect the spool, rewind if necessary

Only trim with the tip of the line, avoid stones, walls and other hard objects. Feed the line regularly to maintain full cutting width.

1 • F016 L70 346 • TMS • 09.09.05

Power tools, accessories and packaging should be sorted for environmental-friendly recycling. Only for EC countries: Do not dispose of power tools into household waste! According to the European Directive 2002/96/EC on waste electrical and electronic equipment and its incorporation into national law, power tools that are no longer suitable for use must be separately collected and sent for recovery in an environmental-friendly manner.

Exploded views and information on spare parts can be found under: www.bosch-pt.com Great Britain Robert Bosch Ltd. (B.S.C.) P.O. Box 98 Broadwater Park North Orbital Road Denham-Uxbridge Middlesex UB 9 5HJ ✆ Service Fax Service ✆ Advice line Fax Advice

Robert Bosch Limited 14-16 Constellation Drive Mairangi Bay Auckland New Zealand

Declaration of Conformity

Beaver Distribution Ltd. Greenhills Road Tallaght-Dublin 24 ✆ Service +353 (0)1 / 45 15 211 Fax +353 (0)1 / 45 17 127 Malaysia Robert Bosch (SEA.) Pte. Ltd. No. 8a, Jalan 13/6 Selangor Darul Ehsan Petaling Jaya 46200 Malaysia

Robert Bosch Australia Ltd. RBAU/SPT2 1555 Centre Road P.O. Box 66 Clayton 3168 Clayton/Victoria

Measured values determined according to

2000/14/EC (1.60 m height, 1.0 m distance away) and EN 28 662. Typically the A-weighted noise level of the product is: sound pressure level 84 dB (A); sound power level 95 dB (A). The typical hand/arm vibration is below 2.5 m/s2. We declare under our sole responsibility that this product is in conformity with the following standards or standardization documents: EN 786, EN 60 335 according to the provisions of the directives 89/336/EEC, 98/37/EC, 2000/14/EC. 2000/14/EC: The guaranteed sound power level LWA is lower than 96 dB (A). Conformity assessment procedure according to Annex VI. Notified body: SRL, Sudbury England Notified body identifications number: 1088 Leinfelden, 01.12.2004. Dr. Egbert Schneider Senior Vice President Engineering
