HPM-L1000BL - Mixer Heinner - Free user manual and instructions

Product Type	Stand Mixer
Brand	Heinner
Model	HPM-L1000BL
Power Consumption	1000 W
Bowl Capacity	5 L
Bowl Material	Stainless Steel
Number of Speeds	6
Included Attachments	Dough Hook, Flat Beater, Wire Whisk
Dimensions (L x W x H)	40 x 25 x 35 cm
Weight	5.2 kg
Power Supply	220-240 V, 50/60 Hz
Cord Length	1.2 m
Color	Black / Blue
Overload Protection	Yes
Non-Slip Feet	Yes
Tilt-Up Head	Yes
Planetary Mixing Action	Yes
Safety Lock	Yes
Cleaning	Wipe with damp cloth; attachments dishwasher safe
Repairability	Spare parts available; service center supported
Certifications	CE, RoHS

Frequently Asked Questions - HPM-L1000BL Heinner

What is the maximum capacity of the Heinner HPM-L1000BL mixer?

The maximum bowl capacity is 5 liters. Do not exceed the maximum fill level indicated on the bowl to avoid overflow.

Can I mix heavy dough with this mixer?

Yes, the 1000 W motor and dough hook allow you to knead heavy doughs. Use speed 1-2 for heavy mixtures.

How do I clean the attachments?

The stainless steel bowl and attachments are dishwasher safe. Alternatively, wash them with warm soapy water and dry immediately.

What should I do if the mixer stops during use?

The mixer has overload protection. Unplug it, let it cool for 15 minutes, and reduce the load. It will reset automatically.

Is the mixer handheld or stand-only?

This is a stand mixer with a tilt-up head for easy access to the bowl. It is not designed for handheld use.

Can I use metal utensils in the bowl?

No, avoid metal utensils to prevent scratching the stainless steel bowl. Use silicone or wooden utensils.

How many speed levels are there?

The mixer has 6 speed levels, plus a pulse function (P) for short bursts of high speed.

What does the safety lock do?

The safety lock prevents the mixer from operating when the head is tilted up. Ensure the head is locked down before use.

Where can I find spare parts?

Spare parts such as bowls, attachments, and beaters are available through Heinner’s authorized service centers. Contact customer support for details.

Can I beat egg whites in this mixer?

Yes, use the wire whisk attachment and a clean, dry bowl. Start at low speed and gradually increase for optimal volume.

USER MANUAL HPM-L1000BL Heinner

Blue kitchen stand mixer with whisk inside a bowl (no visible text or symbols)

• Mixer planetar
• Putere: 1000 W
  • Capacitatea vasului: 4 litri

Blue kitchen stand mixer with a whisk inside, no visible text or symbols

• Planetary mixer
• Power: 1000W
• Bowl capacity: 4L

Thank you for purchasing this product!

I. INTRODUCTION

Before using the appliance, please read carefully this instruction manual and keep it for future reference.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

II. CONTENT OF YOUR PACKAGE

Planetary mixer
User manual
Warranty card

III. SAFETY MEASURES

1. Carefully read the instructions before using your appliance.
2. Switch off the appliance before fitting and removing the attachment.
3. Keep your fingers away from moving parts and the opening on the attachment.
4. Only use the appliance for its intended domestic use, the manufacture will not accept any liability if the appliance is subject to improper use or failure to comply with these instructions.
5. Never leave the appliance to run unsupervised, especially when young children or handicapped persons are present.
6. Check that the voltage rating of the appliance does in fact match that of your electrical system. Any connection error will nullify the guarantee.
7. Unplug the appliance as soon as you have finished using it and when you clean it.
8. Don't use your attachment and/or appliance if it has been damaged. You should contact an approved service centre.
9. Any work on the appliance other than normal care and cleaning by the customer must be carried out by an approved service centre.
10. Do not immerse the appliance, the power cord or the plug in water or in any other liquid.
11. Do not allow the power cord to hang within the reach of children, to come close to or into contact with the hot parts of your appliance, any other source of heat or any sharp edge.
12. If the power cord or the plug are damaged, don't use your appliance. To avoid any risk, these must be replaced by an approved service centre.
13. Do not put any accessories containing metal in a microwave oven.
14. Switch off the appliance and disconnected from supply before changing accessories or approaching parts which move in use.
15. Do not touch the whisk, mixer blade or kneading hook while the appliance is in operation.
16. Only use one attachment at a time.
17. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
18. Children shall not play with the appliance.
19. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
20. There is a potential injury from misuse. Please handle it with care.

21. Care should be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

22. Caution: Ensure that the blender is switched off before removing it from the stand.

23. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
24. The appliance should be cool down to the room temperature after each process.
25. Never operate the appliance continuously for more than 7 minutes at rated power.
26. Be careful if hot liquid is poured into the food processor as it can be ejected out of the appliance due to a sudden steaming.
27. This appliance is intended to be used in household only.

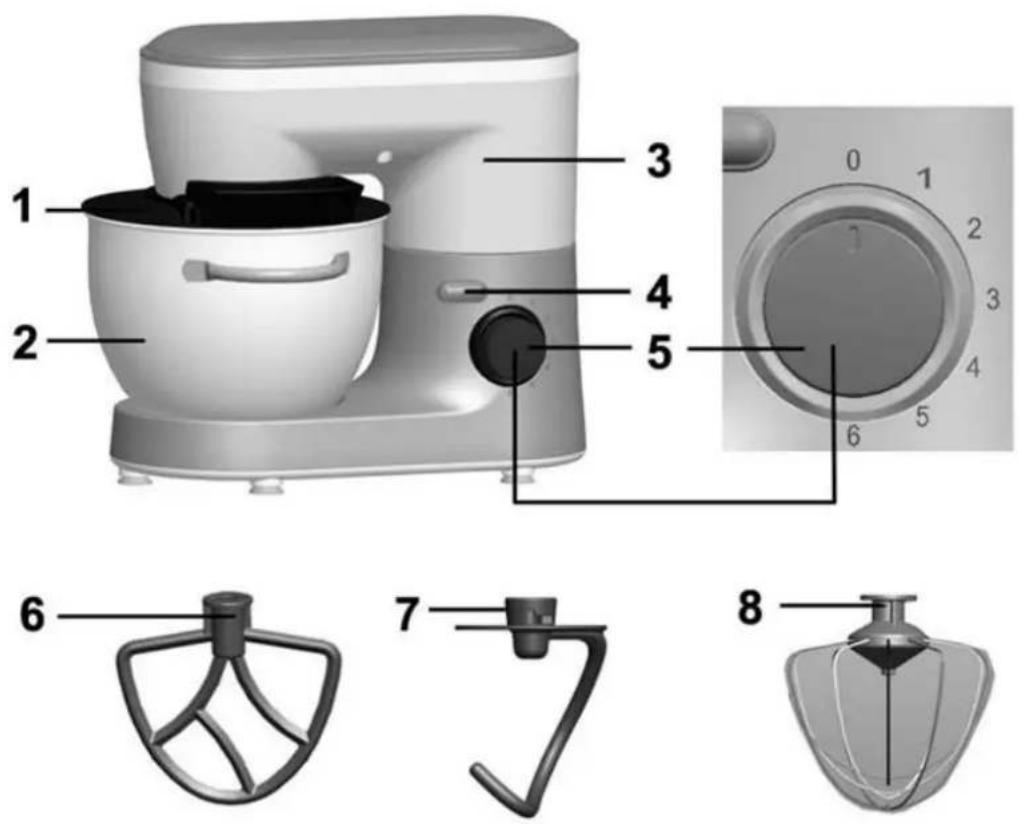

IV. DESCRIPTION

1. Bowl cover

2. Stainless steel bowl (max 4 L)

3. Multifunction head

4. Release button for multifunction

5. Speed control switch

6. Mixer blade

7. Dough hook

8. Whisk

V. USING INSTRUCTIONS

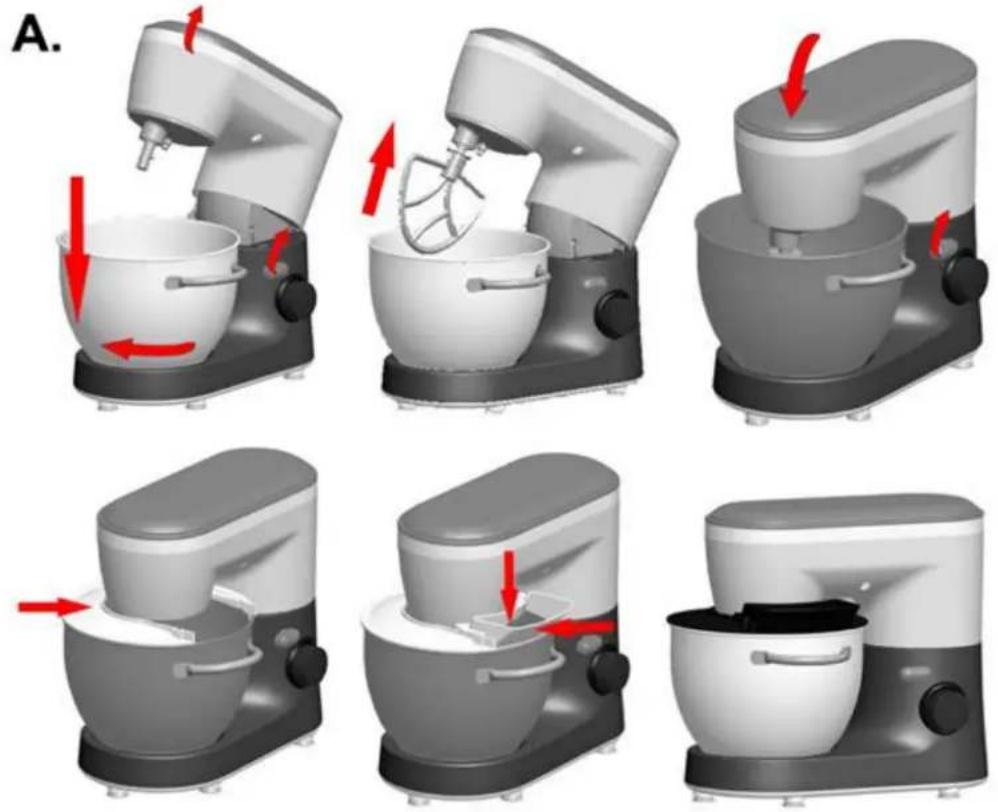

Adjusting the height of your attachments: (See figure A)

1. Press the release button (4) to lift the multifunction head and insert the mixer blade, dough hook or whisk.
2. Hold it in position.
3. Lower the head of the appliance (3) with the button (4) press until a click is heard.
4. Install the accessories in the power outlet.
5. Lift the multifunction head (3) again. Hold the Mixer blade, Hook or whisk in position.
6. Before using for the first time, clean all parts of the accessories with soapy water rinse and dry.
7. Place the appliance on a flat, clean and dry surface and then plug in your appliance.

Mixing/kneading/beating/emulsifying/whisking (see figure B)

B.

3D rendering of a kitchen mixer with a red arrow indicating motion (no text or symbols)

Depending on the nature of the ingredients, the bowl (2) with its cover can be used to prepare up to 1.1 kg of dough.

1. Press button (4) to the release the multifunction head (3) and raise it to a vertical position.
2. Fit the bowl (2) onto the appliance by turning until it locks in position and place the ingredients in it.
3. Position the cover on the head with the filling opening at the front of the appliance.
4. Fit the desired accessory (6, 7, 8) in the power outlet, pushing the shaft of the accessory home and turn it a quarter turn towards you to lock it in position.
5. Put the multifunction head of the appliance to a horizontal position and press button (4) (a click should be heard).
6. During preparation, you can add ingredients through the opening of the cover.
7. To stop the appliance, turn the knob (5) back to 0.

Accessory	Food	Maximum	Operation time	Speeds	Preparation
whisk	Cream (include 38% fat)	250 ml	5 minutes	4-6	/
	Egg white	8 pcs	3 minutes		/
Dough hook	Flour	700 g	7 minutes	1-6	/
	Salt	5 g
	Yeast	10 g
	Sugar	5 g
	Water	350 g
	Lard	20 g
Mixer blade	Flour	100 g	5 minutes	1-6	/
	Castor sugar	100 g
	Margarine	100 g
	Egg	2 pcs

VI. MAINTENANCE AND CLEANING

1. Unplug the appliance.
2. Never immerse the motor in water or put it under running water. Wipe it with a soft dry or slight damp cloth.
3. Wash, rinse and wipe the accessories can be put in the dishwasher, except for the metal components of the mincer attachment.
4. If your accessories are discolored by food (carrots, oranges etc), rub them gently with kitchen towel dipped in cooking oil and then clean in the usual way.

VII. TECHNICAL DETAILS

Power	1000 W
Capacity	4L
Voltage	220-240V; 50/60Hz

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

CE

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro
